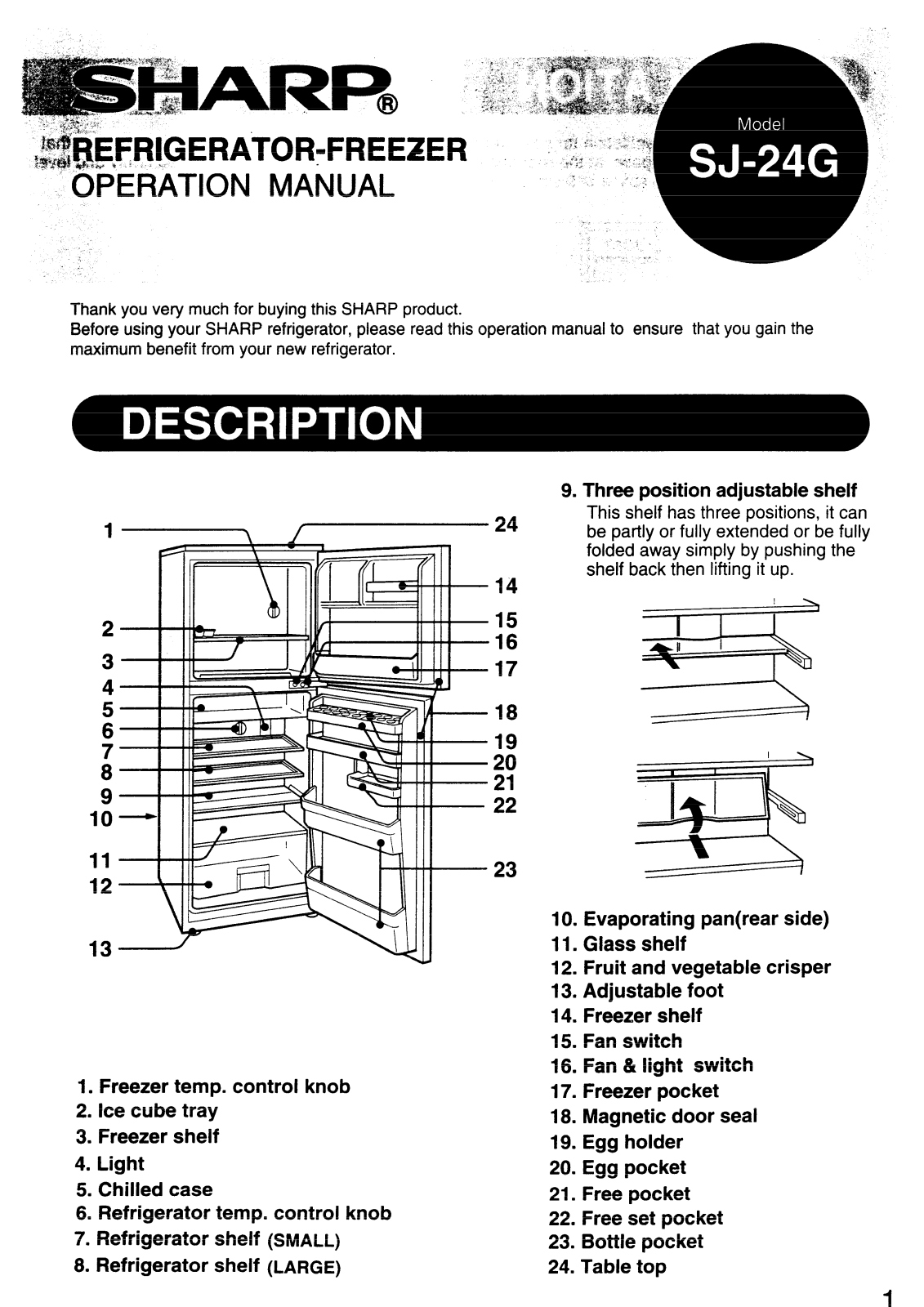

1 OPERATION
Thank you very much for buying this SHARP product.
Before using your SHARP refrigerator, please read this operation manual to ensure that you gain the
maximum benefit from your new refrigerator.
MANUAL
I
rhree position adjustable shelf
9.
This shelf has three positions, it can
be partly or fully extended or be fully
folded away simply by pushing the
shelf back then lifting it up.
2
3
4
5
6
7
8
9
IO11
12
15
16
17
18
19
20
21
22
23
I I I
H
Evaporating pan(rear side)
IO.
I
1. Freezer temp. control knob
2. Ice cube tray
3. Freezer shelf
4. Light
5. Chilled case
6. Refrigerator temp. control knob
7. Refrigerator shelf (SMALL)
8. Refrigerator shelf (LARGE)
Glass shelf
11.
Fruit and vegetable crisper
12.
Adjustable foot
13.
14. Freezer shelf
Fan switch
15.
Fan & light switch
16.
Freezer pocket
17.
Magnetic door seal
18.
Egg holder
19.
Egg pocket
20.
21. Free pocket
Free set pocket
22.
Bottle pocket
23.
24. Table top

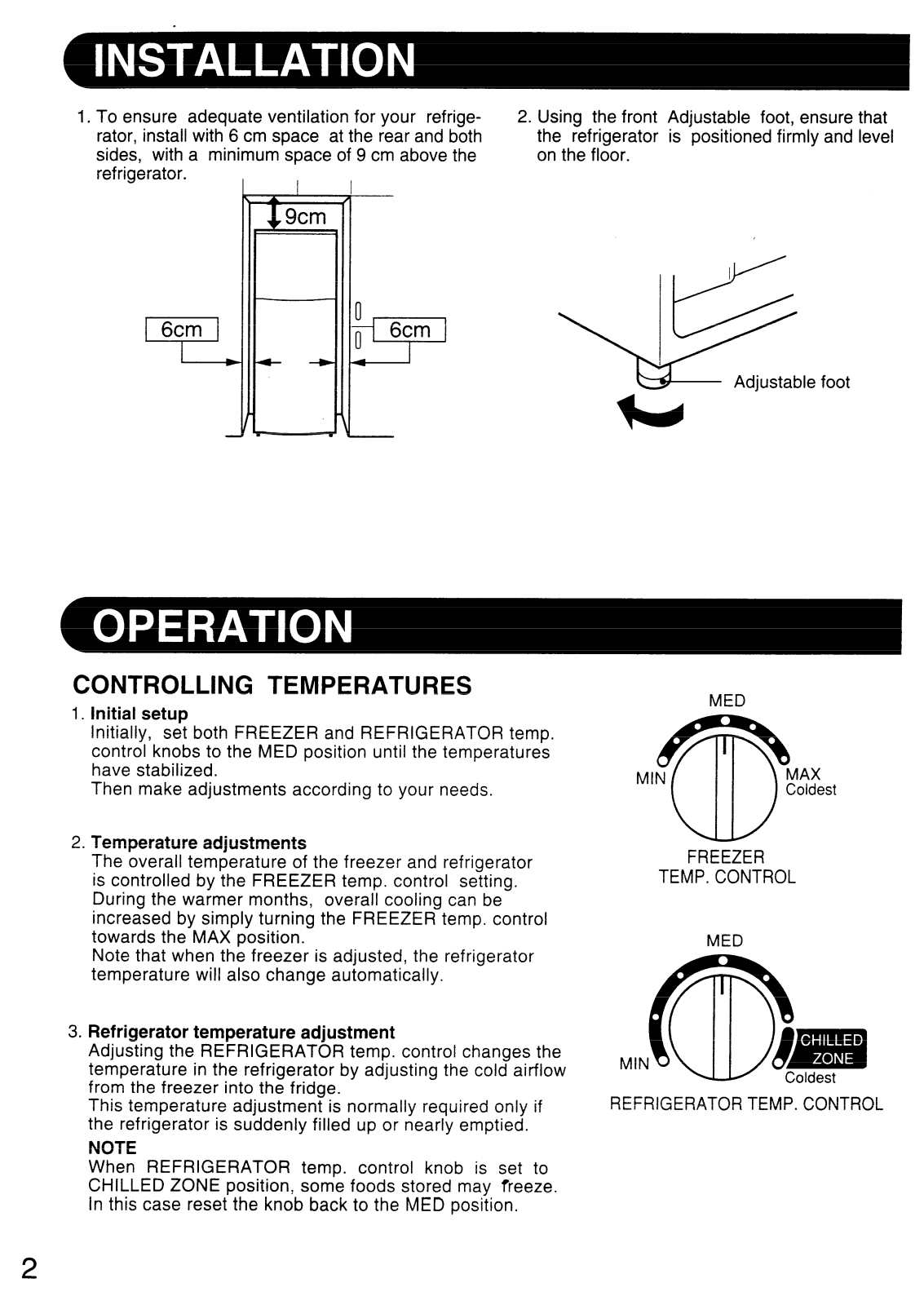

1. To ensure adequate ventilation for your refrigerator, install with 6 cm space at the rear and both
sides, with a minimum space of 9 cm above the
refrigerator.
I I
2. Using the front Adjustable foot, ensure that
the refrigerator is positioned firmly and level
on the floor.
I
CONTROLLING TEMPERATURES
1. initial setup
Initially, set both FREEZER and REFRIGERATOR temp.
control knobs to the MED position until the temperatures
have stabilized.
Then make adjustments according to your needs.
A
MED
Adjustable foot
2.
Temperature adjustments
The overall temperature of the freezer and refrigerator
is controlled by the FREEZER temp. control setting.
During the warmer months, overall cooling can be
increased by simply turning the FREEZER temp. control
towards the MAX position.
Note that when the freezer is adjusted, the refrigerator
temperature will also change automatically.
3.
Refrigerator temperature adjustment
Adjusting the REFRIGERATOR temp. control changes the
temperature in the refrigerator by adjusting the cold airflow
from the freezer into the fridge.
This temperature adjustment is normally required only if
the refrigerator is suddenly filled up or nearly emptied.
NOTE
When REFRIGERATOR temp. control knob is set to
CHILLED ZONE position, some foods stored may freeze.
In this case reset the knob back to the MED position.
FREEZER
TEMP. CONTROL
MED
MIN
REFRIGERATOR TEMP. CONTROL
2
3. Connect the power plug to a 230/240 volt 10 amp power point.
NOTES
l Keep your refrigerator out of direct sunlight.
l Don’t place next to heat generating appliance.
HINTS WHEN MAKING ICE
1. Do not over fill the Ice cube tray; otherwise the ice
cubes will be joined together when frozen.
2. To make ice cubes quickly, set the FREEZER temp.
control to MAX.
NOTE
Reset the FREEZER temp. control back to its original
position as soon as the ice cubes are made; otherwise
the food in the refrigerator may freeze.
3.When the ice cubes are made, hold the Ice cube tray
upside down whilst twisting either end in opposite
directions, allowing the ice cubes to drop out.
DEFROSTING
Defrosting is fully automatic due to a unique energy saving system.
Whereby the defrost cycle start time is proportional to the running time
of your refrigerator compressor, i. e.,
compressor operates (during the winter season or you’re away on holidays),
the longer the time between each defrost cycle.
the less time the refrigerator
3
-\
4
1.

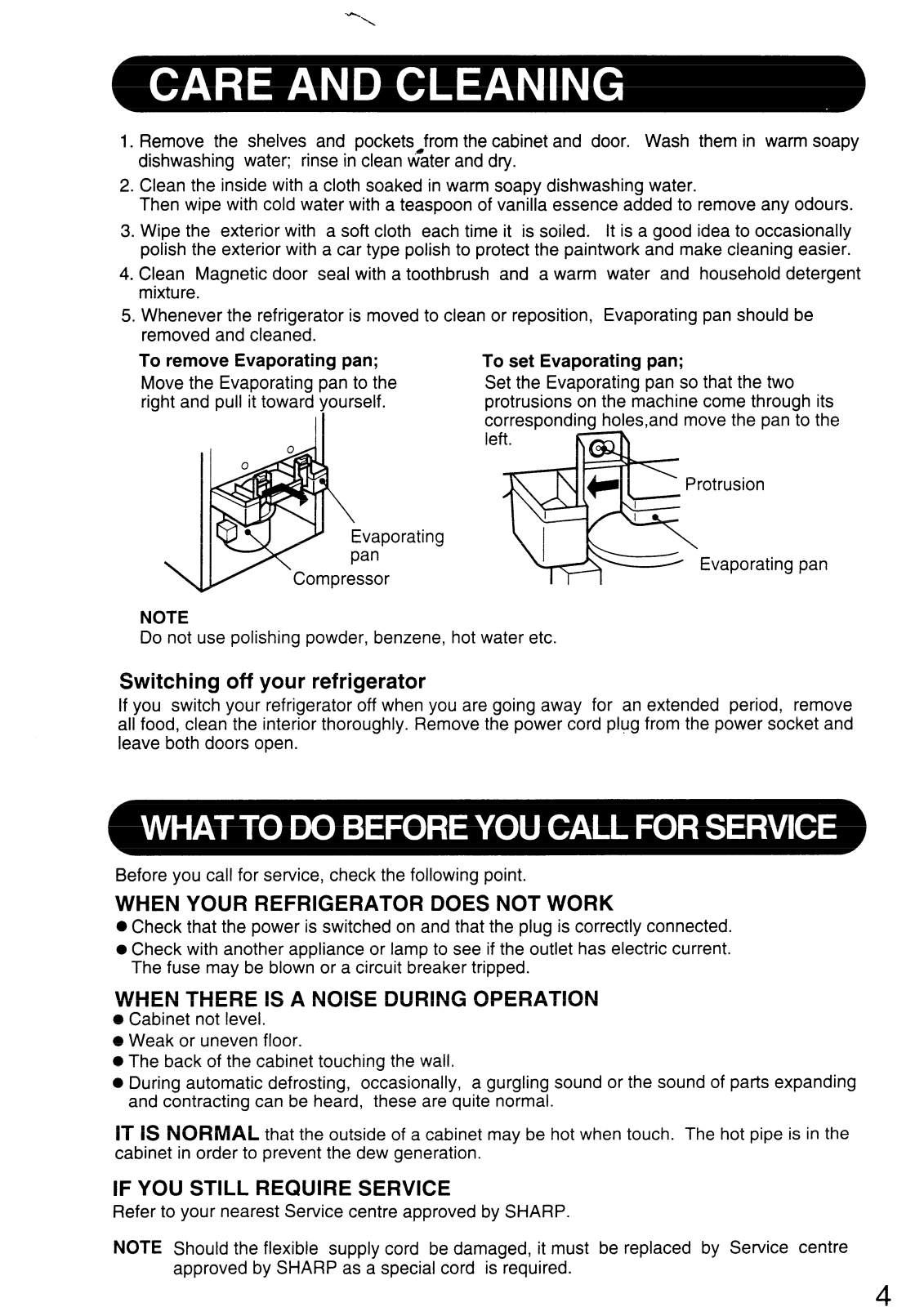

Remove the shelves and pocketsS4from the cabinet and door. Wash them in warm soapy
dishwashing water; rinse in clean water and dry.
2.
Clean the inside with a cloth soaked in warm soapy dishwashing water.
Then wipe with cold water with a teaspoon of vanilla essence added to remove any odours.
Wipe the exterior with a soft cloth each time it is soiled. It is a good idea to occasionally
3.
polish the exterior with a car type polish to protect the paintwork and make cleaning easier.
4.
Clean Magnetic door seal with a toothbrush and a warm water and household detergent
mixture.
Whenever the refrigerator is moved to clean or reposition, Evaporating pan should be
5.
removed and cleaned.
To remove Evaporating pan;
Move the Evaporating pan to the
right and pull it toward yourself.
To set Evaporating pan;
Set the Evaporating pan so that the two
protrusions on the machine come through its
corresponding holes,and move the pan to the
\I
NOTE
Do not use polishing powder, benzene, hot water etc.
Switching off your refrigerator
if you switch your refrigerator off when you are going away for an extended period, remove
all food, clean the interior thoroughly. Remove the power cord plug from the power socket and
leave both doors open.
Before you call for service, check the following point.
WHEN YOUR REFRIGERATOR DOES NOT WORK
0 Check that the power is switched on and that the plug is correctly connected.
l Check with another appliance or lamp to see if the outlet has electric current.
The fuse may be blown or a circuit breaker tripped.
WHEN THERE IS A NOISE DURING OPERATION
l Cabinet not level.
l Weak or uneven floor.
0 The back of the cabinet touching the wall.
l During automatic defrosting, occasionally, a gurgling sound or the sound of parts expanding
and contracting can be heard, these are quite normal.
IT IS NORMAL that the outside of a cabinet may be hot when touch. The hot pipe is in the
cabinet in order to prevent the dew generation.
IF YOU STILL REQUIRE SERVICE
Refer to your nearest Service centre approved by SHARP.
NOTE Should the flexible supply cord be damaged, it must be replaced by Service centre
approved by SHARP as a special cord is required.

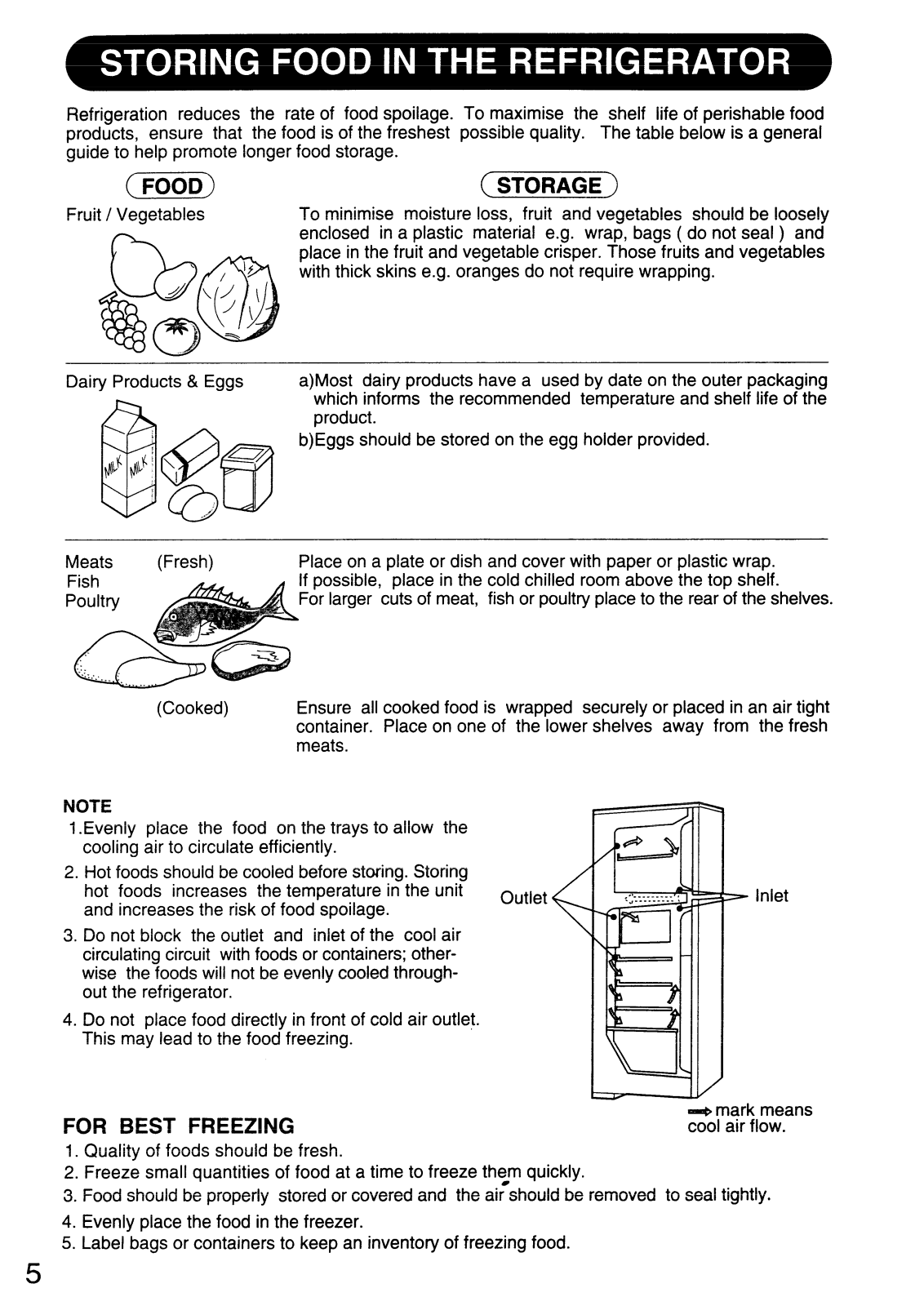

Refrigeration reduces the rate of food spoilage. To maximise the shelf life of perishable food
products, ensure that the food is of the freshest possible quality.
guide to help promote longer food storage.
The table below is a general
(?66i@
Fruit / Vegetables
Dairy Products & Eggs
(STORAGE)
To minimise moisture loss, fruit and vegetables should be loosely
enclosed in a plastic material e.g. wrap, bags ( do not seal ) and
place in the fruit and vegetable crisper. Those fruits and vegetables
with thick skins e.g. oranges do not require wrapping.
a)Most dairy products have a used by date on the outer packaging
which informs the recommended temperature and shelf life of the
product.
b)Eggs should be stored on the egg holder provided.
Meats
Fish
NOTE
1 .Evenly place the food on the trays to allow the
I
cooling air to circulate efficiently.
2.
Hot foods should be cooled before storing. Storing
hot foods increases the temperature in the unit
and increases the risk of food spoilage.
3.
Do not block the outlet and inlet of the cool air
circulating circuit with foods or containers; otherwise the foods will not be evenly cooled throughout the refrigerator.
(Fresh)
(Cooked)
Place on a plate or dish and cover with paper or plastic wrap.
If possible, place in the cold chilled room above the top shelf.
For larger cuts of meat, fish or poultry place to the rear of the shelves.
Ensure all cooked food is wrapped securely or placed in an air tight
container. Place on one of the lower shelves away from the fresh
meats.
Outlet
7 Inlet
6
5
4.
Do not place food directly in front of cold air outlet.
This may lead to the food freezing.
/
=-+ mark means
FOR BEST FREEZING
1.
Quality of foods should be fresh.
Freeze small quantities of food at a time to freeze them quickly.
2.
Food should be properly stored or covered and the air should be removed to seal tightly.
3.
4.
Evenly place the food in the freezer.
5.
Label bags or containers to keep an inventory of freezing food.
cool air flow.

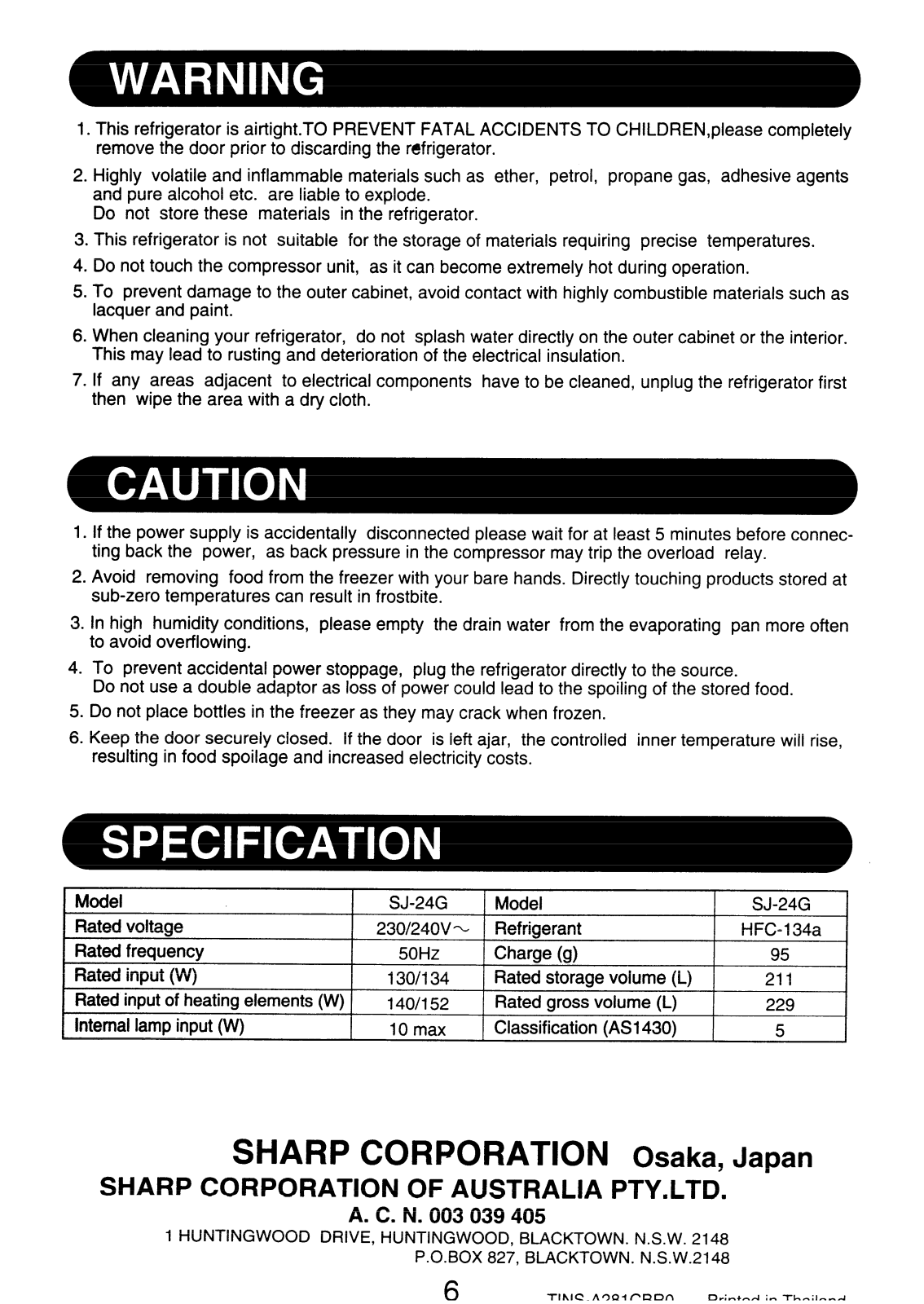

1. This refrigerator is airtight.TO PREVENT FATAL ACCIDENTS TO CHILDREN,please completely
remove the door prior to discarding the refrigerator.
Highly volatile and inflammable materials such as ether, petrol, propane gas, adhesive agents
2.
and pure alcohol etc. are liable to explode.
Do not store these materials in the refrigerator.
This refrigerator is not suitable for the storage of materials requiring precise temperatures.
3,
4.
Do not touch the compressor unit, as it can become extremely hot during operation.
To prevent damage to the outer cabinet, avoid contact with highly combustible materials such as
5.
lacquer and paint.
When cleaning your refrigerator, do not splash water directly on the outer cabinet or the interior.
6.
This may lead to rusting and deterioration of the electrical insulation.
7.
If any areas adjacent to electrical components have to be cleaned, unplug the refrigerator first
then wipe the area with a dry cloth.
1.
If the power supply is accidentally disconnected please wait for at least 5 minutes before connec-
ting back the power, as back pressure in the compressor may trip the overload relay.
Avoid removing food from the freezer with your bare hands. Directly touching products stored at
2.
sub-zero temperatures can result in frostbite.
In high humidity conditions, please empty the drain water from the evaporating pan
3.
more often
to avoid overflowing.
4.
To prevent accidental power stoppage, plug the refrigerator directly to the source.
Do not use a double adaptor as loss of power could lead to the spoiling of the stored food.
Do not place bottles in the freezer as they may crack when frozen.
5.
Keep the door securely closed. If the door is left ajar, the controlled inner temperature will rise,
6.
resulting in food spoilage and increased electricity costs.
1 Model 1 SJ-24G 1 Model
Rated voltage
Rated frequency
Rated input (VV)
t
Rated input of heating elements (W)
1 Internal lamp input (W)
230/24OVx
50Hz
130/l 34
140/l 52
10 max
Refrigerant HFC-134a
Charge (9)
Rated storaae volume (L)
Rated grossvolume (L)
1 Classification (AS1 430)
SHARP CORPORATION Osaka, Japan
SHARP CORPORATION OF AUSTRALIA PTY.LTD.
A.C.N.003 039405
1 HUNTINGWOOD DRIVE, HUNTINGWOOD, BLACKTOWN. N.S.W. 2148
P.O.BOX 827, BLACKTOWN. N.S.W.2148
1 SJ-24G 1
95
I
211
229
5
