Sharp SJ-2256, SJ-2266 User Manual

REFRIGERATOR - FREEZER

OPERATION MANUAL

CONTENTS
• WARNING ..................................................	2
• CAUTION ...................................................	2
• INSTALLATION ..........................................	2
• DESCRIPTION ...........................................	3
• STORING FOOD........................................	3
• CARE AND CLEANING..............................	4
• WHAT TO DO BEFORE YOU CALL
FOR SERVICE...........................................	4
Household use only
Free standing type

aa

ДОМАШНИЙ ХОЛОДИЛЬНИК С МОРОЗИЛЬНОЙ КАМЕРОЙ ИНСТРУКЦИЯ ПО ЭКСПЛУАТАЦИИ

СОДЕРЖАНИЕ
• ПРЕДУПРЕЖДЕНИЕ ................................	5
• ОСТОРОЖНО............................................	5
• УСТАНОВКА..............................................	5
• ОПИСАНИЕ...............................................	6
• ХРАНЕНИЕ ПРОДУКТОВ .........................	6
• УХОД И ЧИСТКА.......................................	7
• ЧТО ДЕЛАТЬ, ПРЕЖДЕ ЧЕМ ОБРАТИТЬСЯ
В СЕРВИСНУЮ СЛУЖБУ................................	7
Для бытового использования
Отдельно стоящий

SJ-2266

ENGLISH

РУССКИЙ

SJ-2256 SJ-2266

Thank you very much for buying this SHARP product. Before using your SHARP refrigerator, please read this operation manual to ensure that you gain the maximum benefit from it.

WARNING

■Highly volatile and flammable materials such as ether, petrol, propane gas, adhesive agents and pure alcohol etc. are liable to explode. Do not store these materials in the refrigerator.

■Dust deposited on the power plug may cause fire. Wipe it off carefully.

■Do not attempt to change or modify this refrigerator. This may result in fire, electric shock or injury.

■Ensure that the refrigerator presents no danger to children while being stored for disposal. (e.g. remove the door to prevent child entrapment.)

■This refrigerator should be disposed appropriately. Take the refrigerator to a recycling plant for flammable insulation blowing gases.

CAUTION

■Do not touch the compressor unit or its peripheral parts, as they become extremely hot during operation and the metal edges may cause injury.

■Do not touch foods or metal containers in the freezer compartment with your wet hands. This may cause frostbite.

■Do not use an extension cord or adapter plug.

■Do not place bottled and canned drinks in the freezer as they may crack when frozen.

■Make sure that the power cord has not been damaged during installation or moving. If the power plug or cord is loose, do not insert the power plug. There is a risk of electric shock or fire.

■Disconnect from the mains electricity supply by removing the mains plug from the electricity supply socket. Do not remove by pulling the mains lead. This may cause electric shock or fire.

■The refrigeration system behind and inside the refrigerator contains refrigerant. Do not allow any sharp objects to come into contact with the refrigeration system.

■Should the flexible supply cord be damaged, it must be replaced by service agent approved by SHARP as a special cord is required.

■In case of gas leak, ventilate the area by opening a window, etc. Do not touch the refrigerator or the power outlet.

■Do not place objects containing liquid or unsteady objects on top of refrigerator.

■This refrigerator is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the refrigerator by a person responsible for their safety. Young children should be supervised to ensure that they do not play with the refrigerator.

INSTALLATION

WARNING

■Do not install the refrigerator in a damp or wet location as this may cause damage to the insulation and a leak. Condensation may also build on the outer cabinet and cause rust.

1 Keep adsequate ventilation space around the refrigerator.

•The figure shows the minimum required space for installing the refrigerator. It differs from the space in the measurement condition of the amount of power consumption.

•It is possible to use the refrigerator with a less amount of power consumption by keeping greater space.

•If using the refrigerator in the space below dimension of the figure, it may cause the temperatures in the unit to rise, loud noise, and failure.

	60 mm
	90 mm or more or more
60 mm	mm
or more
	1500

1400 mm

2 Using the two front adjustable feet, ensure that the refrigerator is positioned firmly and level on the floor.

3 Remove the 2 screws of the cabinet lower part, and use these to fit the foot covers. (supplied inside the refrigerator compartment)

Adjustable foot

Foot cover

NOTE

•Position your refrigerator so that the plug is accessible.

•Keep your refrigerator out of direct sunlight.

•Do not place next to heat generating appliance.

•Do not place directly on the ground. Provide suitable stand.

When transporting

•Using the casters, it is possible to move back and forth.

•Carry the refrigerator by holding the handles located on the rear and bottom.

Before using your refrigerator

Clean the inside parts with a cloth soaked in warm water. If soapy water is used, wipe it off thoroughly with water.

2

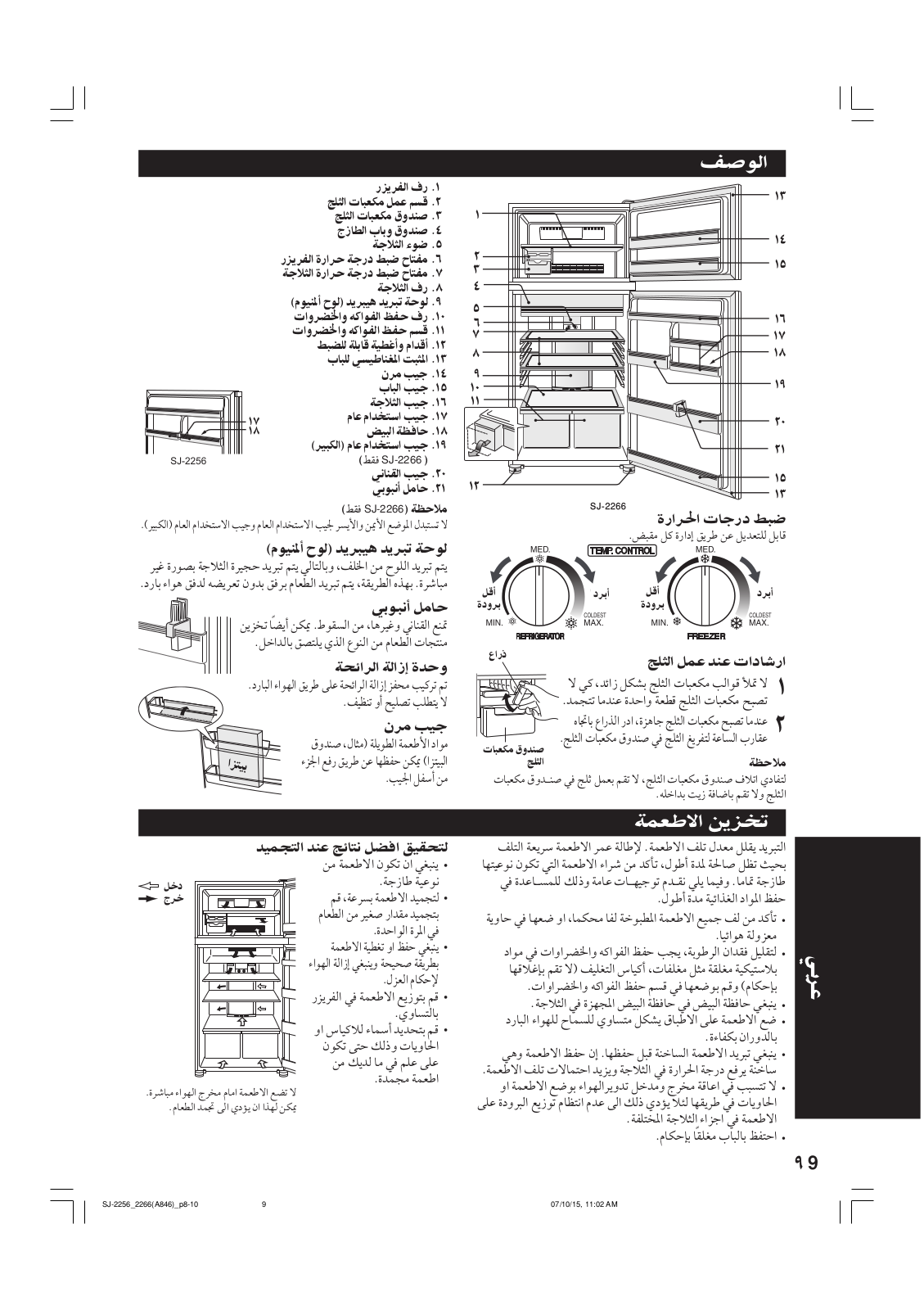

DESCRIPTION
	13	1.	Freezer shelf
		2.	Ice cube maker
1
		3.	Ice cube box
	14	4.	Fresh case & door
2		5.	Refrigerator light
	15	6.	Freezer temp. control knob
3		7.	Refrigerator temp. control knob
4		8.	Refrigerator shelf
5		9.	Hybrid cooling panel (Aluminum panel)
	16	10.	Fruit and vegetable shelf
6
7	17	11. Fruit and vegetable crisper
8	18	12.	Adjustable feet & cover
		13.	Magnetic door seal
9	19	14.	Flexible pocket		17
10		15.	Door pocket
11		16.	Refrigerator pocket		18
	20	17.	Utility pocket	SJ-2256
		18.	Egg holder
	21	19.	Utility pocket (large) (Only for SJ-2266)
		20.	Bottle pocket
12	15	21.	Tube stand
		NOTE (Only for SJ-2266)
	13
SJ-2266		Do not replace the right and left position of the utility
		pocket and the utility pocket (large).

Controlling temperature

Adjustable by turning each knob.

Hybrid cooling panel (Aluminum panel)

The panel is cooled from the rear, thus indirectly cooling the refrigerator compartment. In this way, food is refrigerated gently, without exposing it to cold air flow.

Flexible pocket

Tall food items (e.g. pizza box) can be stored by lifting the partition from the bottom of the pocket.

Hints when making ice

Lever

1 Do not over fill the Ice cube trays;

otherwise the ice cubes will be joined together when frozen.

2 When the ice cubes are made, turn the lever clockwise to empty the ice

into the Ice cube box.

Ice cube box

NOTE

To prevent damage to the Ice cube box, do not make ice in the Ice cube box or pour oil into it.

Tube stand

Prevents bottles etc. from falling. Stick-type food products can also

be stored inside.

Deodorizing unit

Deodorizing catalyst is installed on

the routes of cold air. No operation and cleaning are required.

STORING FOOD

Refrigeration reduces the rate of food spoilage. To maximize the shelf life of perishable food products, ensure that the food is the freshest possible quality. The following is a general guide to help promote longer food storage.

•Ensure all cooked food is wrapped securely or placed in an airtight container.

•To minimize moisture loss, fruit and vegetables should be loosely enclosed in a plastic material e.g. wrap, bags (do not seal) and place in the fruit and vegetable crisper.

•Eggs should be stored in the Egg holder.

•Evenly place the food on the shelves to allow the cooling air to circulate efficiently.

•Hot foods should be cooled before storing. Storing hot foods increases the temperature in the unit and increases the risk of food spoilage.

•Do not block the outlet and inlet of the cool air circulating circuit with foods or containers; otherwise the foods will not be evenly cooled throughout the refrigerator.

•Keep the door securely closed.

IN

OUT

For best freezing

• Quality of foods should be fresh.

• Freeze small quantities of food at

a time to freeze them quickly.

• Food should be properly stored or

covered and the air should be

removed to seal tightly.

• Evenly place the food in the

freezer.

• Label bags or containers to keep

an inventory of freezing food.

ENGLISH

РУССКИЙ

3
