Sharp SharpVision XV-370H Operation Manual

Page 1
l ENGLISH
q
l DEUTSCH il l FRANGAlS IFi
GVENSKA lsvi
l ESPAT;IOL lEsi l ITALIAN0
. NEDERIANDS il
.cp*
Icl
,
_--
__ _--_.I --.-_ -.
Page 2

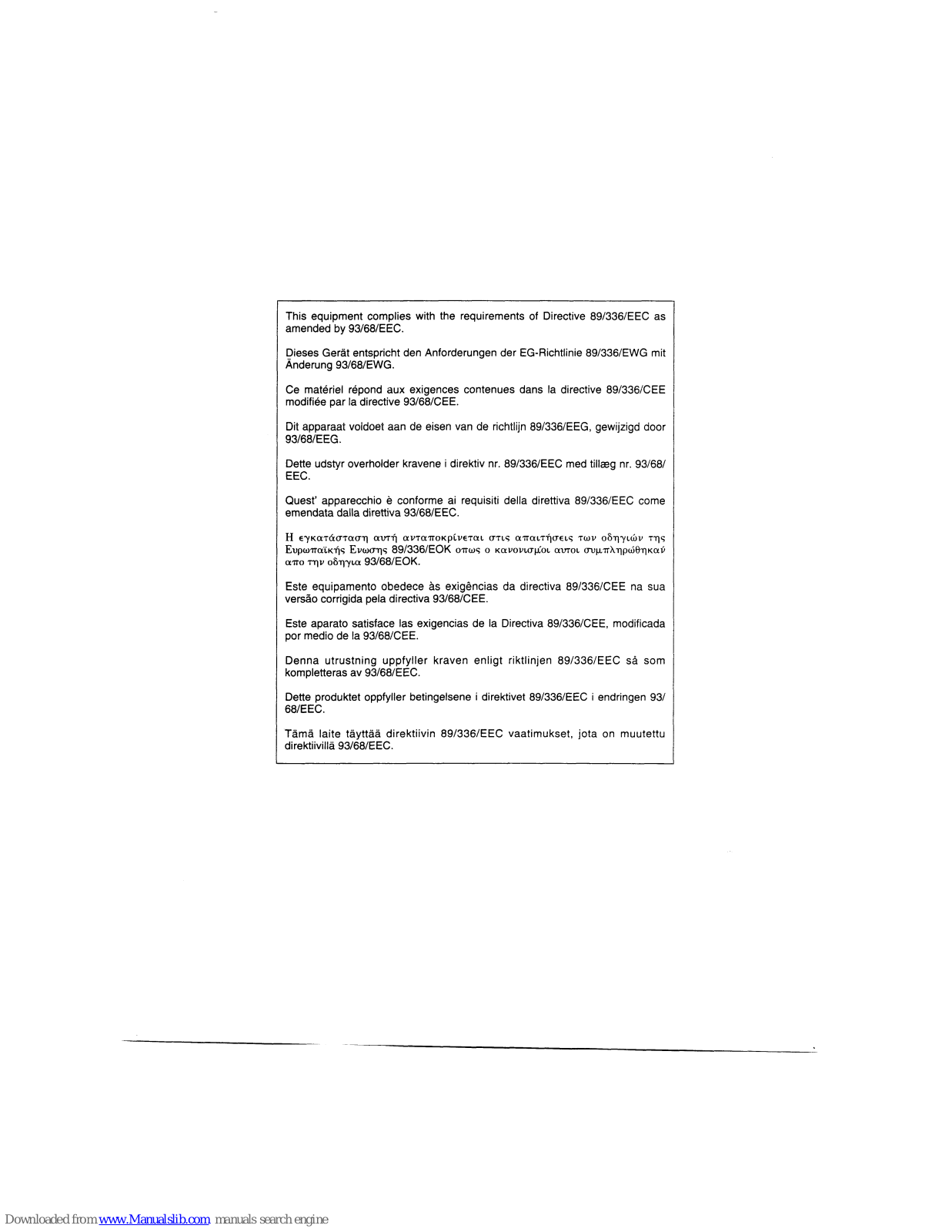

This equipment complies with the requirements of Directive 89/336/EEC as amended by 93/68/EEC.
Dieses Gerat entspricht den Anforderungen der EG-Richtlinie 89/336/EWG mit Anderung 93/68/EWG.
Ce materiel &pond aux exigences contenues dans la directive 89/336/CEE modifibe par la directive 93/68/CEE.
Dit apparaat voldoet aan de eisen van de richtlijn 89/336/EEG, gewijzigd door 93/68/EEG.
Dette udstyr overholder kravene i direktiv nr. 89/336/EEC med till=g nr. 93/68/ EEC.
Quest’ apparecchio & conforme ai requisiti della direttiva 89/336/EEC come emendata dalla direttiva 93/68/EEC.
Este equipamento obedece As exiggncias da directiva 89/336/CEE na sua versZio corrigida pela directiva 93/68/CEE.
Este aparato satisface las exigencias de la Directiva 89/336/CEE, modificada por medio de la 93/68/CEE.
Denna utrustning uppfyller kraven enligt riktlinjen 89/336/EEC si som kompletteras av 93/68/EEC.
Dette produktet oppfyller betingelsene i direktivet 89/336/EEC i endringen 93/ 68/EEC.
Tarn3 laite t8yttM direktiivin 89/336/EEC vaatimukset, jota on muutettu direktiivillti 93/68/EEC.
.
Page 3
(

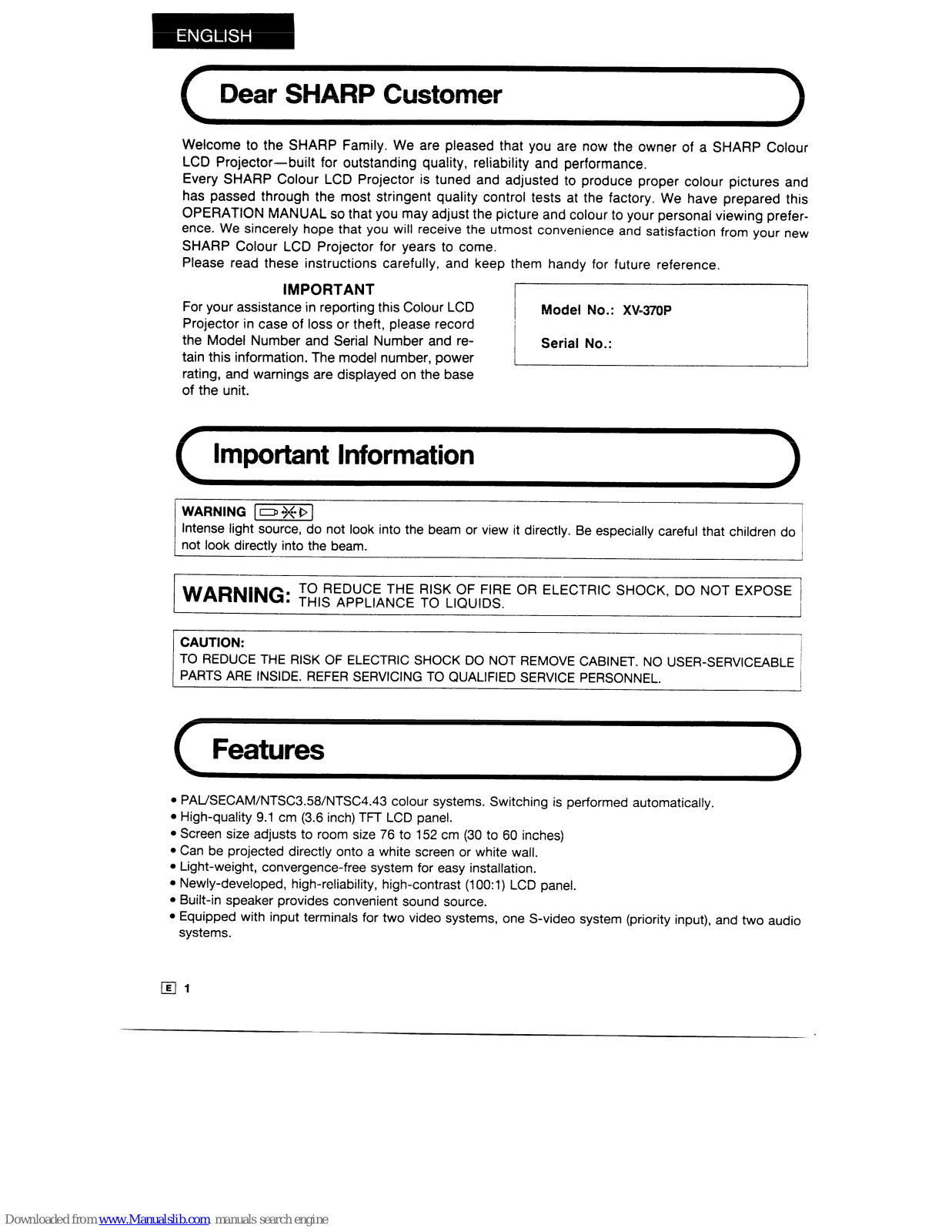

Dear SHARP Customer
Welcome to the SHARP Family. We are pleased that you are now the owner of a SHARP Colour LCD Projector-built for outstanding quality, reliability and performance. Every SHARP Colour LCD Projector is tuned and adjusted to produce proper colour pictures and has passed through the most stringent quality control tests at the factory. We have prepared this OPERATION MANUAL so that you may adjust the picture and colour to your personal viewing prefer-
ence. We sincerely hope that you will receive the utmost convenience and satisfaction from your new SHARP Colour LCD Projector for years to come. Please read these instructions carefully, and keep them handy for future reference.
IMPORTANT
For your assistance in reporting this Colour LCD
Projector in case of loss or theft, please record
the Model Number and Serial Number and re­tain this information. The model number, power rating, and warnings are displayed on the base of the unit.
Model No.: XV-370P
Serial No.:
(
Important Information
WARNING 1-1
Intense light source, do not look into the beam or view it directly. Be especially careful that children do 1
not look directly into the beam.
WARNING. TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE /
. THIS APPLIANCE TO LIQUIDS.
I
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE CABINET. NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
(
Features
l PAL/SECAM/NTSC3.58/NTSC4.43 colour systems. Switching is performed automatically. l High-quality 9.1 cm (3.6 inch) TFT LCD panel. l Screen size adjusts to room size 76 to 152 cm (30 to 60 inches) l Can be projected directly onto a white screen or white wall. l Light-weight, convergence-free system for easy installation.
l Newly-developed, high-reliability, high-contrast (1OO:l) LCD panel. l Built-in speaker provides convenient sound source. l Equipped with input terminals for two video systems, one S-video system (priority input), and two audio
systems.
Page 4

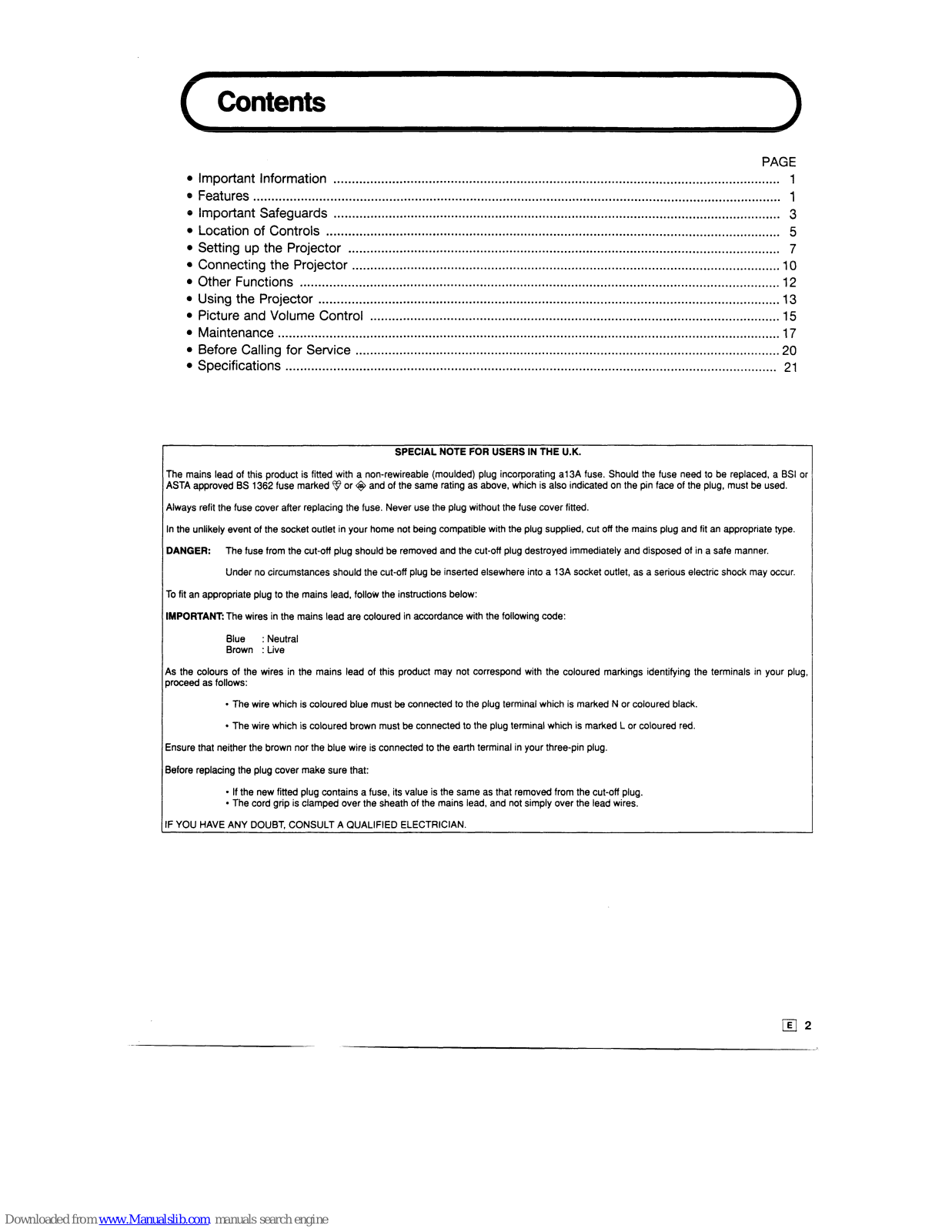

PAGE
Important Information
.......................................................................................................................... 1
Features ................................................................................................................................................ 1
Important Safeguards ..........................................................................................................................
3
Location of Controls
............................................................................................................................
5
Setting up the Projector ...................................................................................................................... 7

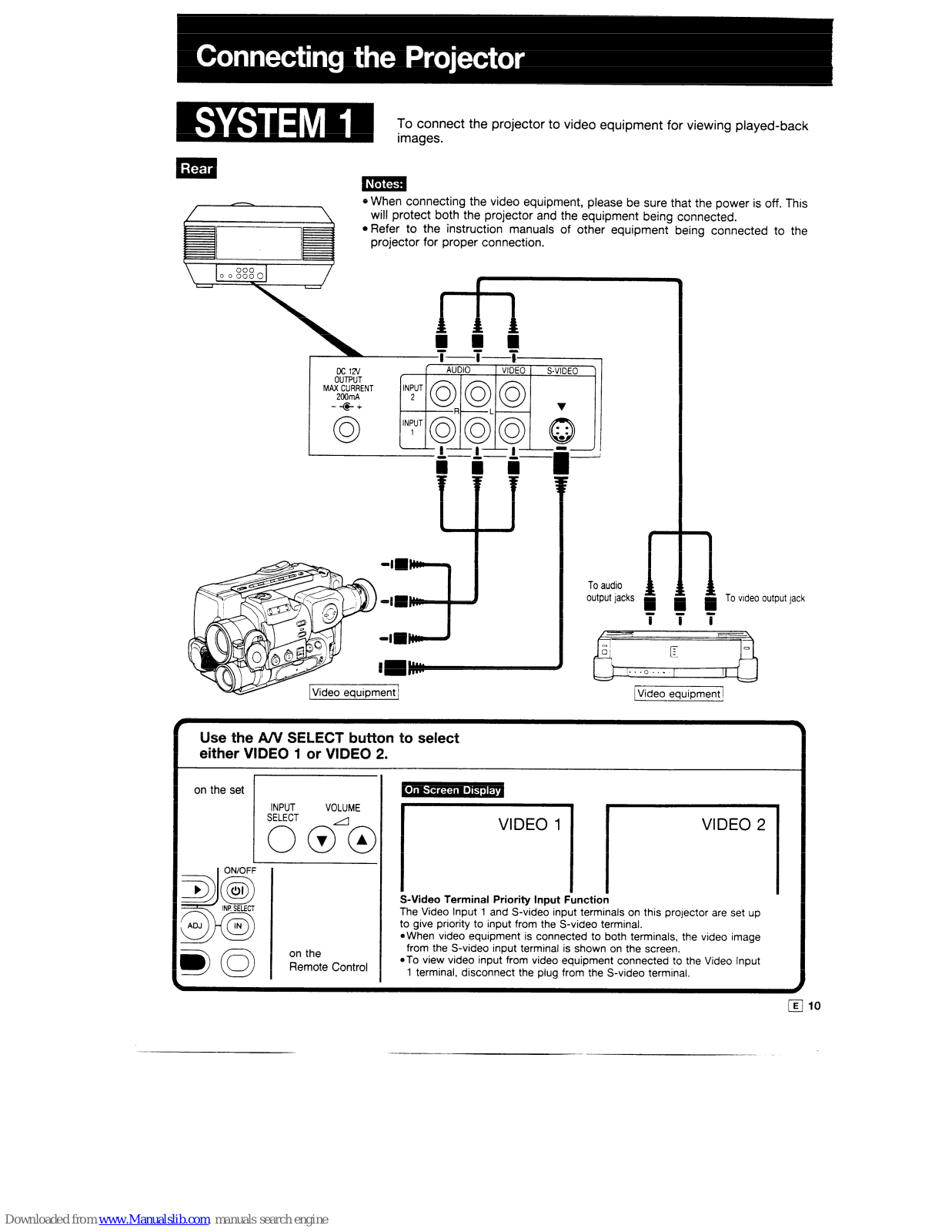

Connecting the Projector
..................................................................................................................... 10

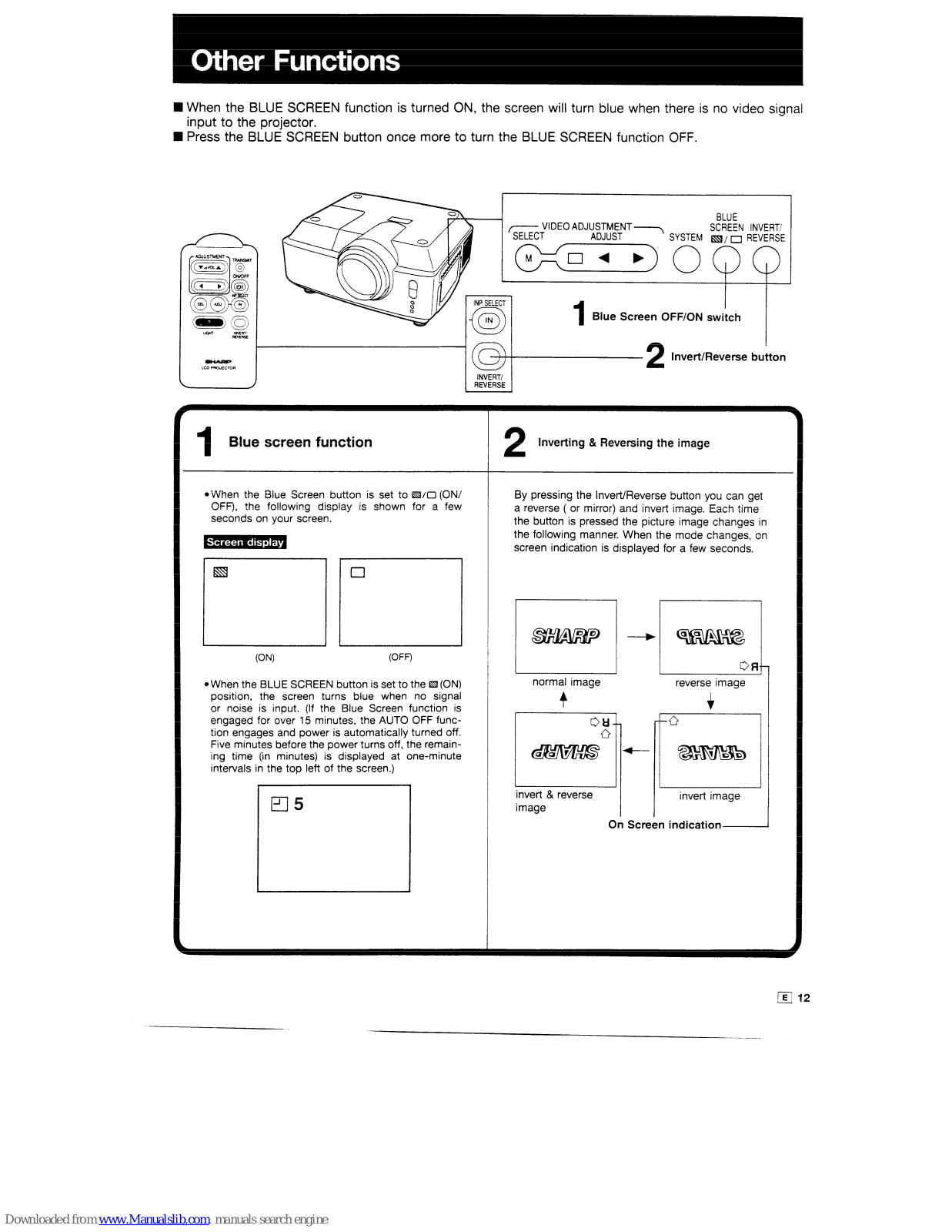

Other Functions ...................................................................................................................................
12

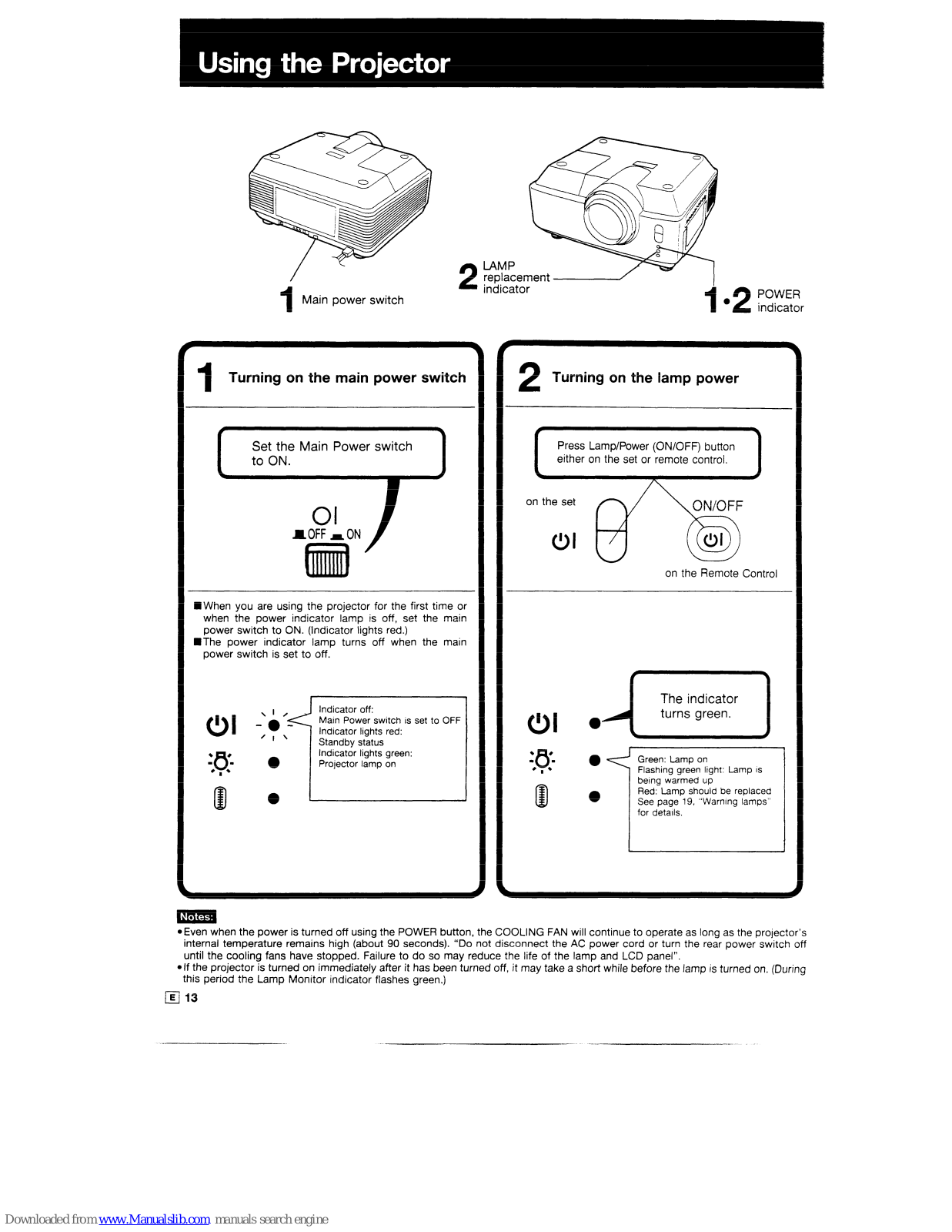

Using the Projector
.............................................................................................................................. 13

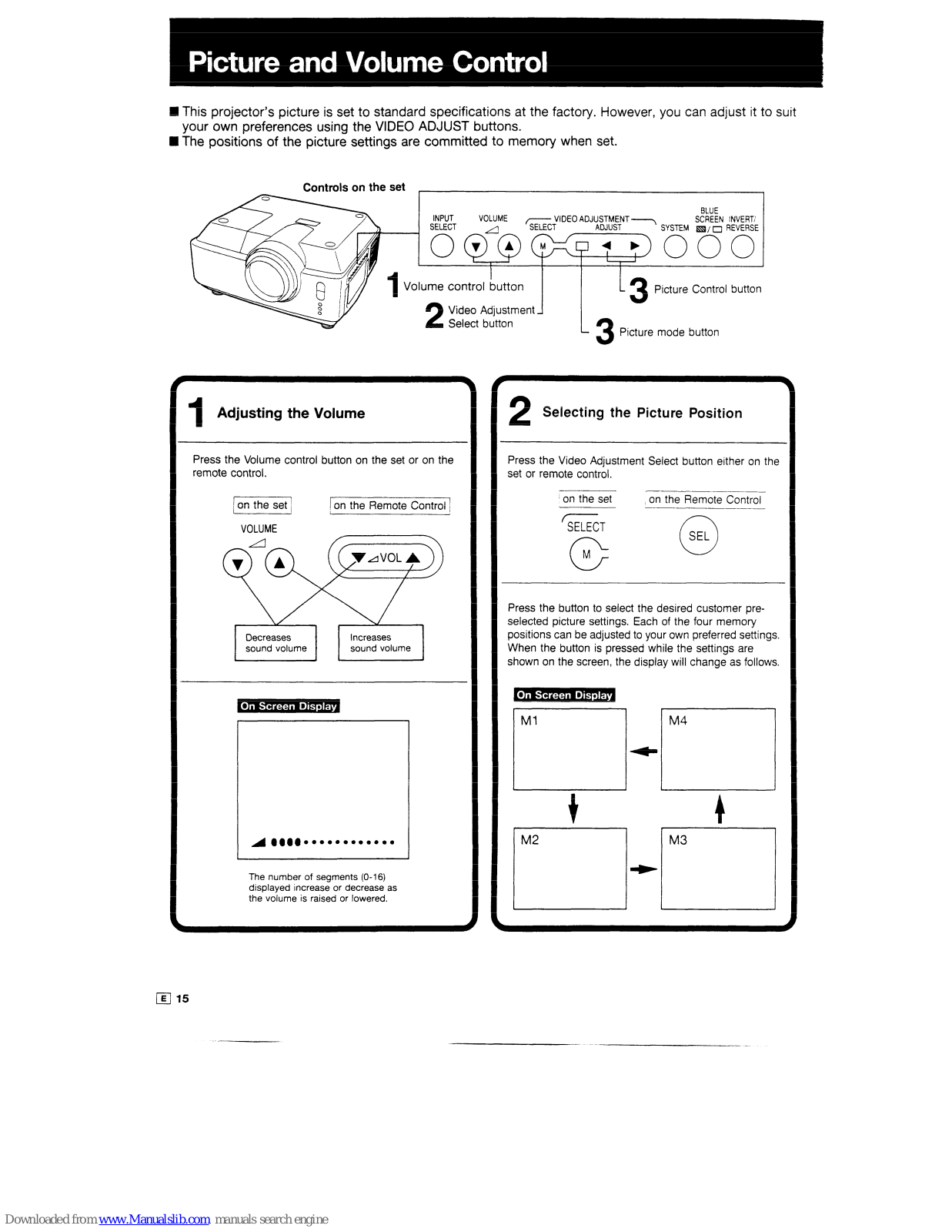

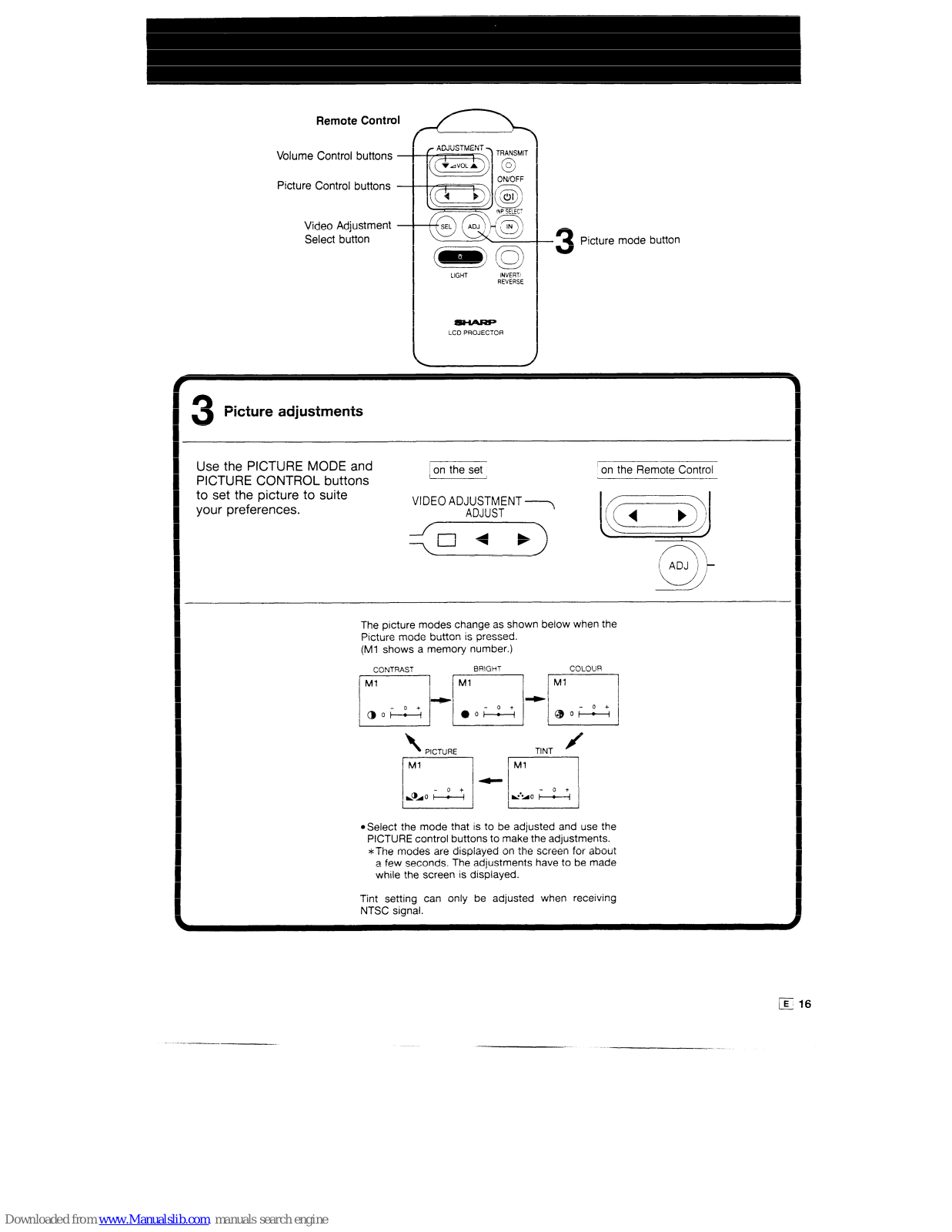

Picture and Volume Control
................................................................................................................ 15

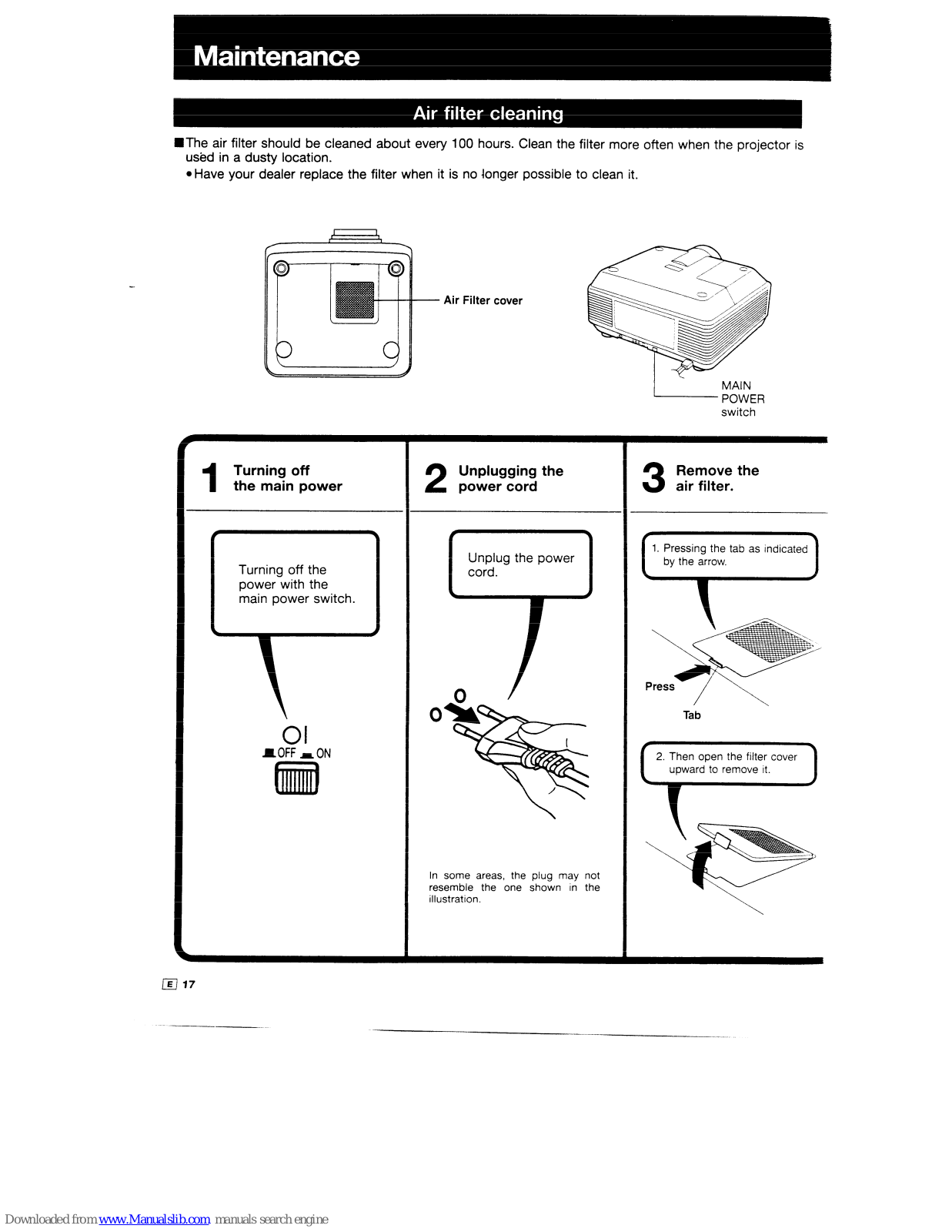

Maintenance .........................................................................................................................................
17

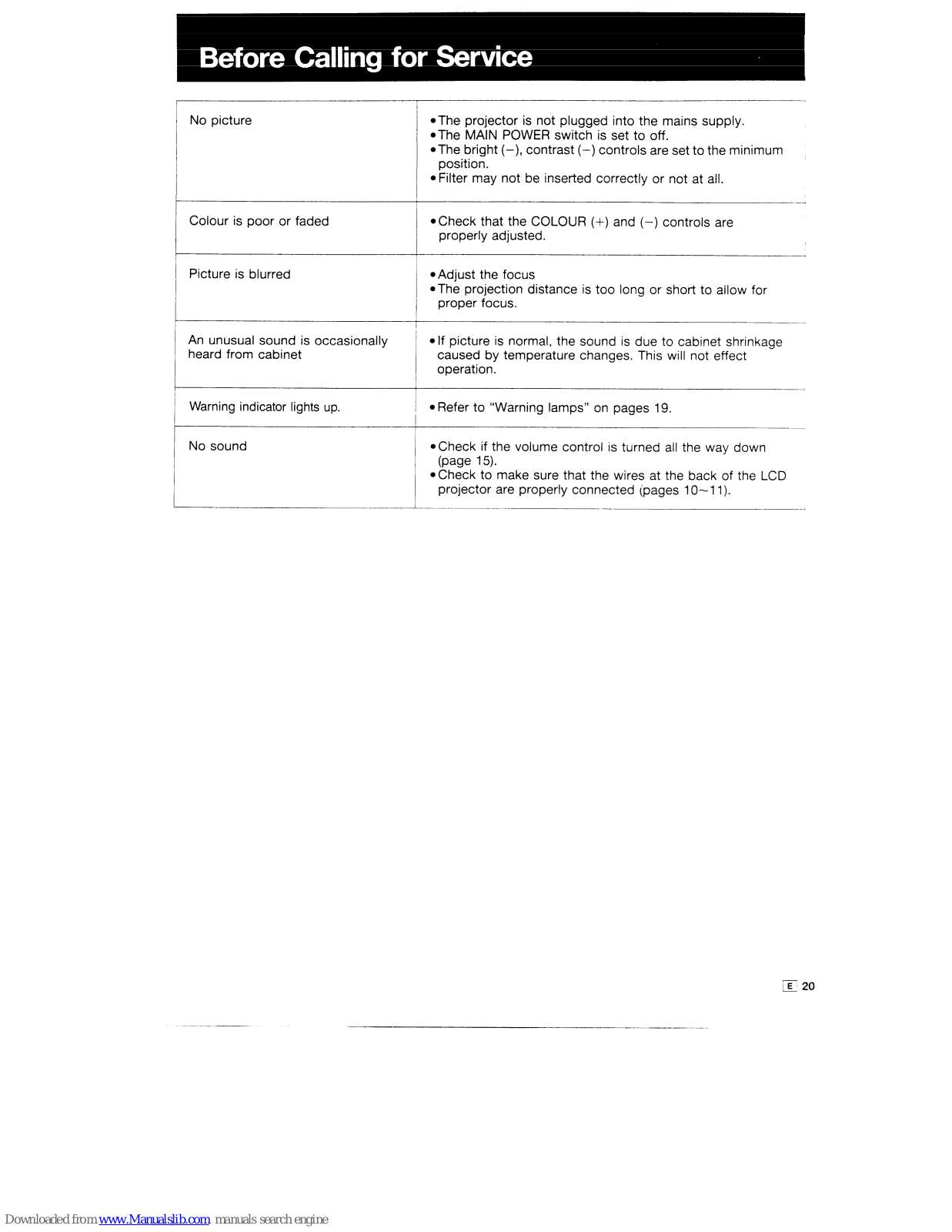

Before Calling for
Service ....................................................................................................................
20

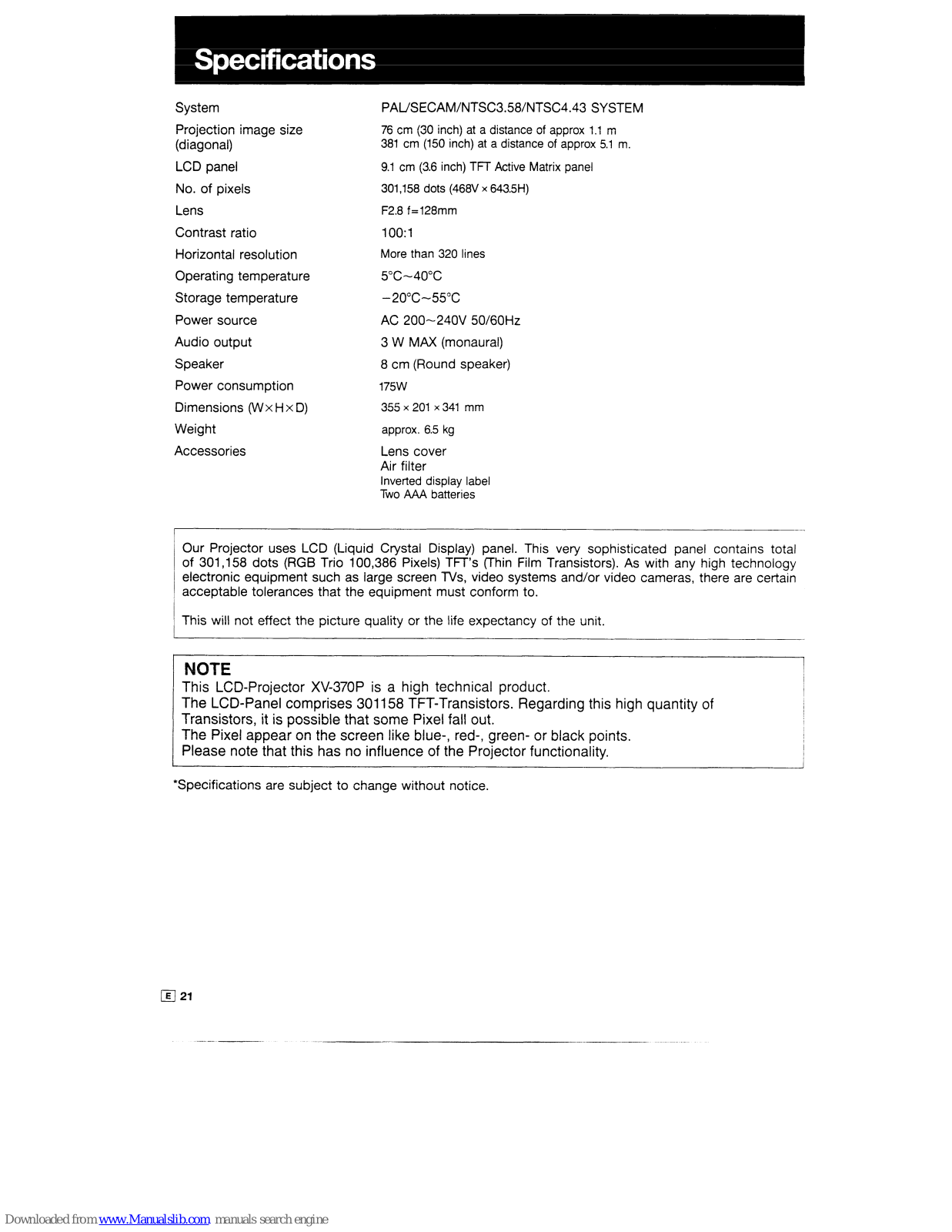

Specifications
......................................................................................................................................
21
SPECIAL NOTE FOR USERS IN THE U.K.
The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a13A fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked v or 9 and of the same rating as above, which is also indicated on the pin face of the plug, must be used.
Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted.
In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the mains plug and fit an appropriate type.
DANGER: The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed of in a safe manner.
Under no circumstances should the cut-off plug be inserted elsewhere into a 13A socket outlet, as a serious electric shock may occur.
To fit an appropriate plug to the mains lead, follow the instructions below:
IMPORTANT: The wires in the mains lead are coloured in accordance with the following code:
Blue : Neutral Brown : Live
As the colours of the wires in the mains lead of this product may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:
l The wire which is coloured blue must be connected to the plug terminal which is marked N or coloured black.
l The wire which is coloured brown must be connected to the plug terminal which is marked L or coloured red.
Ensure that neither the brown nor the blue wire is connected to the earth terminal in your three-pin plug.
Before replacing the plug cover make sure that:
l If the new fitted plug contains a fuse, its value is the same as that removed from the cut-off plug. l The cord grip is clamped over the sheath of the mains lead, and not simply over the lead wires.
IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
Page 5

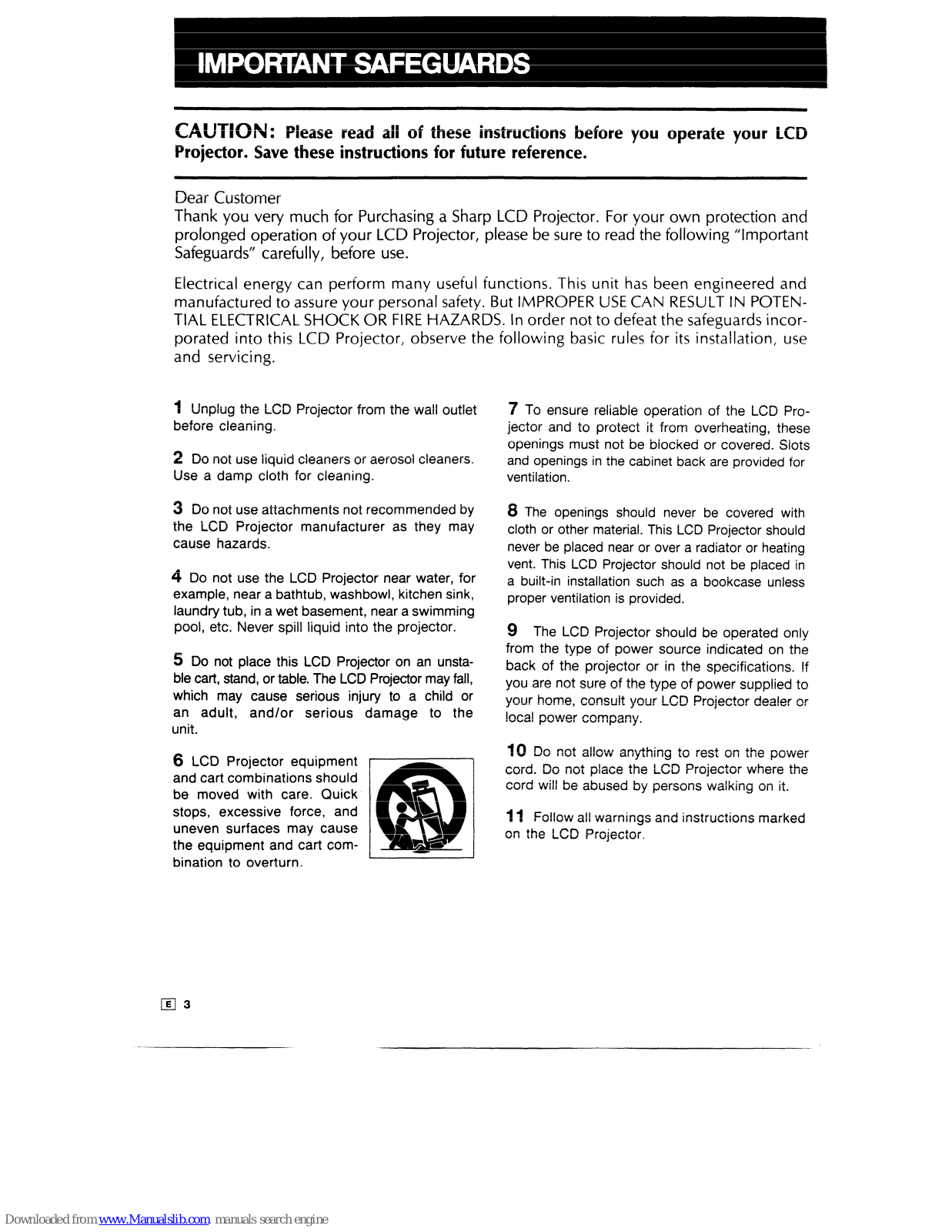

CAUTION: Please read all of these instructions before you operate your LCD
Projector. Save these instructions for future reference.
Dear Customer Thank you very much for Purchasing a Sharp LCD Projector. For your own protection and prolonged operation of your LCD Projector, please be sure to read the following “Important Safeguards” carefully, before use.
Electrical energy can perform many useful functions. This unit has been engineered and manufactured to assure your personal safety. But IMPROPER USE CAN RESULT IN POTEN-
TIAL ELECTRICAL SHOCK OR FIRE HAZARDS. In order not to defeat the safeguards incor-
porated into this LCD Projector, observe the following basic rules for its installation, use
and servicing.
1 Unplug the LCD Projector from the wail outlet
before cleaning.
2 Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.
3 Do not use attachments not recommended by the LCD Projector manufacturer as they may cause hazards.
4 Do not use the LCD Projector near water, for
example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, near a swimming
pool, etc. Never spill liquid into the projector.
5 Do not place this LCD Projector on an unsta­ble cart, stand, or table. The LCD Projector may fall, which may cause serious injury to a child or
an adult, and/or serious damage to the
unit.
6 LCD Projector equipment
and cart combinations should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the equipment and cart com­bination to overturn.
I
7 To ensure reliable operation of the LCD Pro­jector and to protect it from overheating, these openings must not be blocked or covered. Slots
and openings in the cabinet back are provided for ventilation.
8 The openings should never be covered with
cloth or other material. This LCD Projector should never be placed near or over a radiator or heating vent. This LCD Projector should not be placed in a built-in installation such as a bookcase unless proper ventilation is provided.
9 The LCD Projector should be operated only
from the type of power source indicated on the back of the projector or in the specifications. If you are not sure of the type of power supplied to your home, consult your LCD Projector dealer or local power company.
10 Do not allow anything to rest on the power
cord. Do not place the LCD Projector where the
cord will be abused by persons walking on it.
11 Follow all warnings and instructions marked
on the LCD Projector.
Page 6

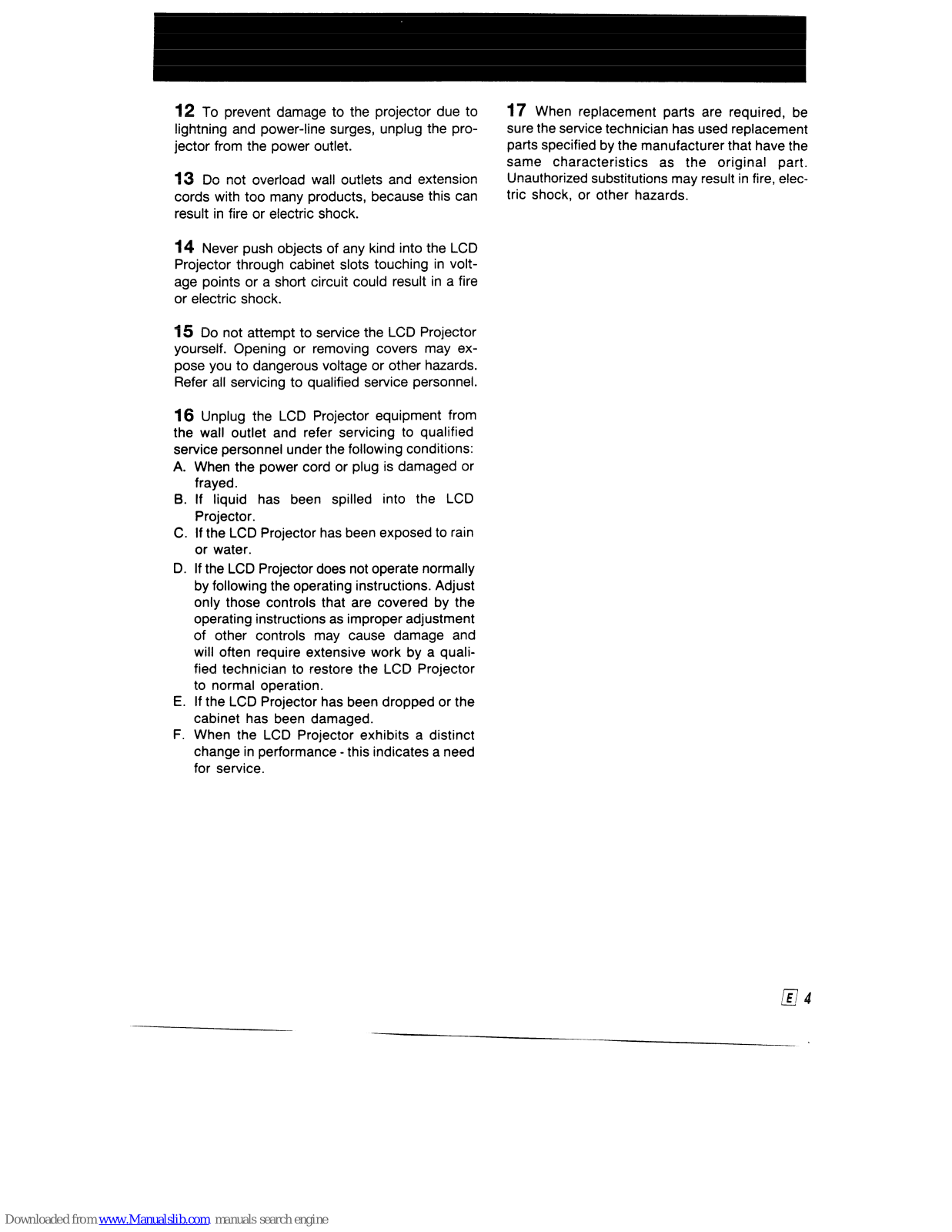

12 To prevent damage to the projector due to lightning and power-line surges, unplug the pro-
jector from the power outlet.
13 Do not overload wall outlets and extension
cords with too many products, because this can result in fire or electric shock.
17 When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer that have the same characteristics as the original part. Unauthorized substitutions may result in fire, elec­tric shock, or other hazards.
14 Never push objects of any kind into the LCD
Projector through cabinet slots touching in volt­age points or a short circuit could result in a fire or electric shock.
15 Do not attempt to service the LCD Projector
yourself. Opening or removing covers may ex-
pose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
16 Unplug the LCD Projector equipment from
the wall outlet and refer servicing to qualified service personnel under the following conditions: A.
0.
C.
D.
E.
F.
When the power cord or plug is damaged or
frayed. If liquid has been spilled into the LCD Projector. If the LCD Projector has been exposed to rain or water.
If the LCD Projector does not operate normally
by following the operating instructions. Adjust only those controls that are covered by the operating instructions as improper adjustment of other controls may cause damage and will often require extensive work by a quali­fied technician to restore the LCD Projector to normal operation.
If the LCD Projector has been dropped or the cabinet has been damaged. When the LCD Projector exhibits a distinct change in performance - this indicates a need for service.
@4
E
Page 7

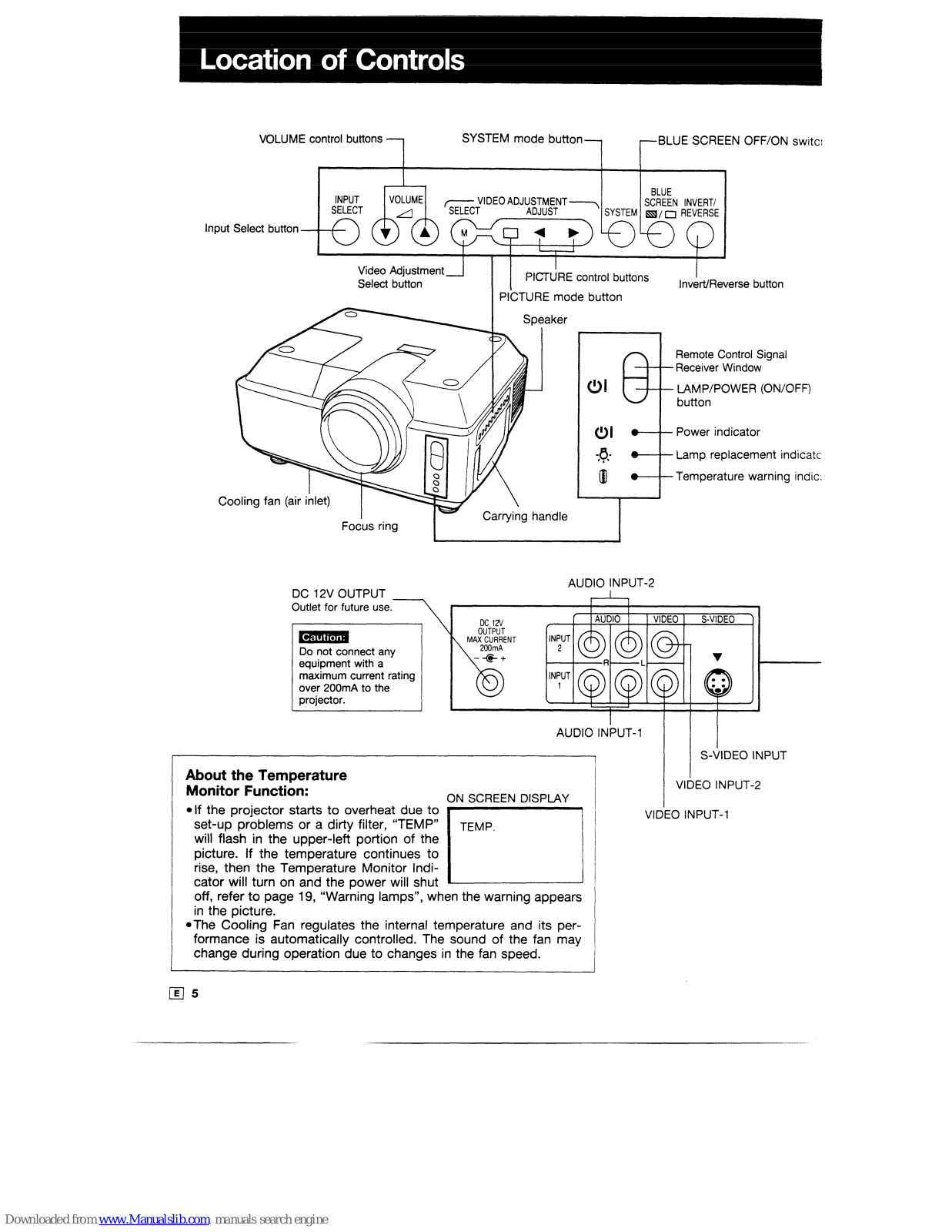

VOLUME control buttons
1
SYSTEM mode button
i r
BLUE SCREEN OFF/ON switc!
Input Select button
Video Adjustment _] Select button
I
PICTURE control buttons
PICTURE mode button
I
Invert/Reverse button
Focus ring
I
I
I
Remote Control Signal Receiver Window
I
01 u
LAMP/POWER (ON/OFF) button
c!II l
Power indicator
-,q:
Lamp replacement indicate
@
l
Temperature warning indic.
DC 12V OUTPUT Outlet for future
use
-7
Do not connect any equipment with a maximum current rating over 200mA to the projector.
AUDIO INPUT-2
I
I 1
\
DC 12v
c AUDiO
VIDEO S-VIDEO ’
OUTPUT
AUDIO INPUT-1
I I I
About the Temperature
Monitor Function:
ON SCREEN DISPLAY
4f the projector starts to overheat due to
set-up problems or a dirty filter, “TEMP”
TEMP.
will flash in the upper-left portion of the picture. If the temperature continues to rise, then the Temperature Monitor Indi-
cator will turn on and the power will shut
4
off, refer to page 19, “Warning lamps”, when the warning appears in the picture.
*The Cooling Fan regulates the internal temperature and its per-
formance is automatically controlled. The sound of the fan may change during operation due to changes in the fan speed.
S-VIDEO INPUT
VIDEO INPUT-2
VIDEO INPUT-1
Page 8

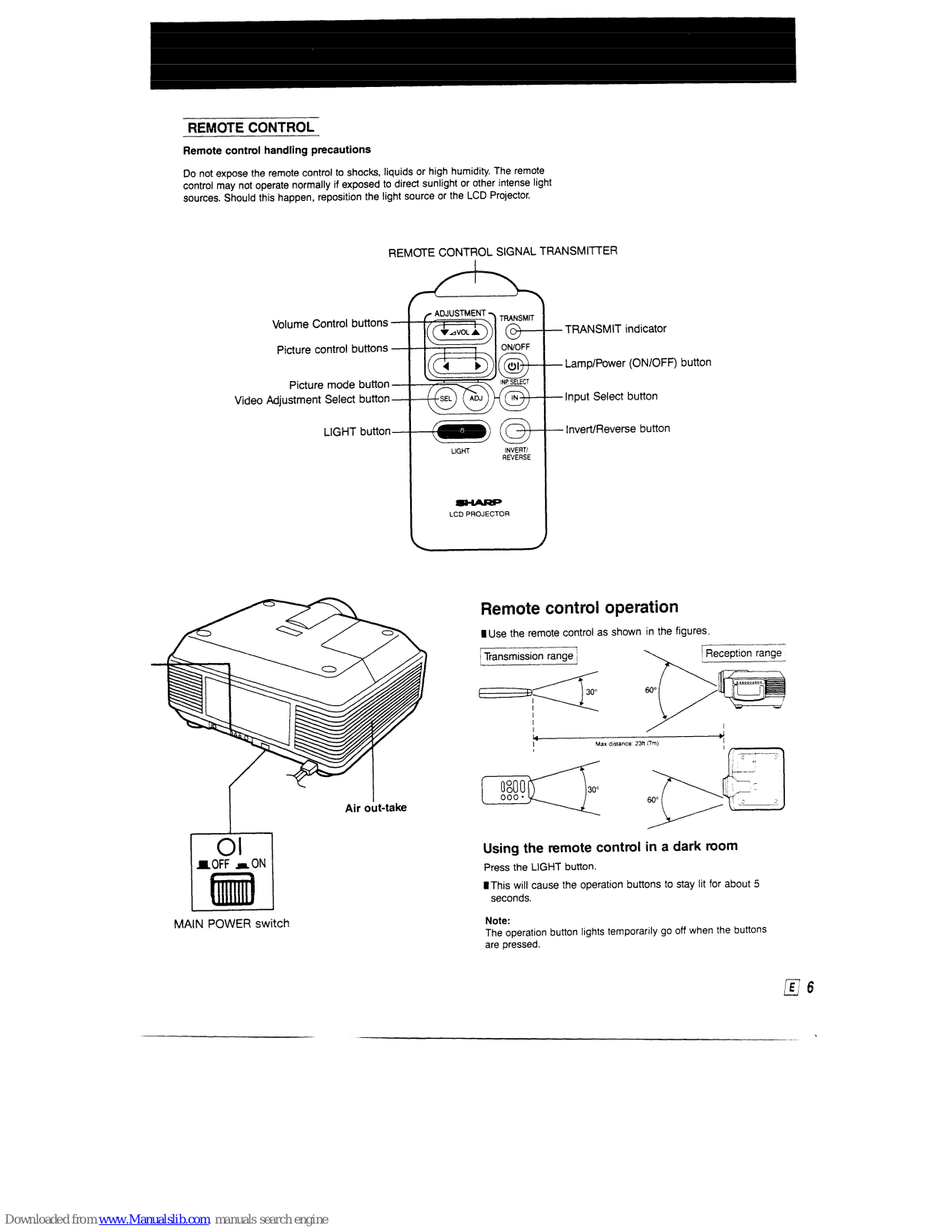

REMOTE CONTROL
Remote control handling precautions
Do not expose the remote control to shocks, liquids or high humidity. The remote control may not operate normally if exposed to direct sunlight or other intense light sources. Should this happen, reposition the light source or the LCD Projector.
REM(JTE CONTROL SIGNAL TRANSMITTER
Video
Volume Control buttons
Picture control buttons
Picture mode button
Adjustment Select button
TRANSMIT indicator
Lamp/Power (ON/OFF)
button
Input Select button
LIGHT button FL-)
a+ Invert/Reverse button
LIGHT
INVERT/
REVERSE
I
LCD PROJECTOR
I
I
Air out-take
01
=OFF aON
I
4
MAIN POWER switch
Remote control operation
IUse the remote control as shown in the figures.
1
Transmission range /
Using the remote control in a dark room
Press the LIGHT button. IThis will cause the operation buttons to stay lit for about 5
seconds.
Note:
The operation button lights temporarily go off when the buttons are pressed.
L;‘6
E
\
.-_
Page 9

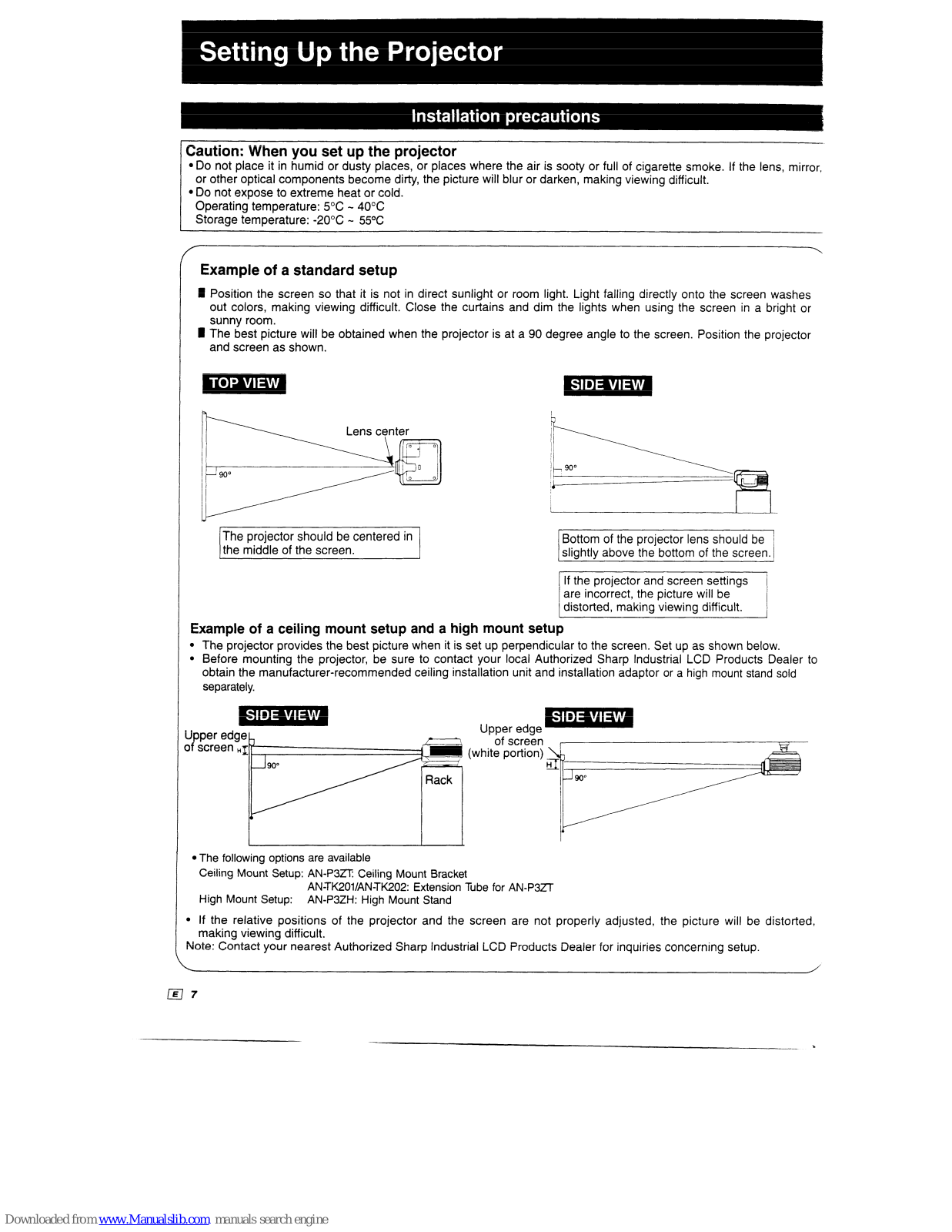

Caution: When you set up the projector
l Do not place it in humid or dusty places, or places where the air is sooty or full of cigarette smoke. If the lens, mirror.
or other optical components become dirty, the picture will blur or darken, making viewing difficult.
l Do not expose to extreme heat or cold.
Operating temperature: 5°C - 40°C Storage temperature: -20% - 55%
/
\
Example of a standard setup
I Position the screen so that it is not in direct sunlight or room light. Light falling directly onto the screen washes
out colors, making viewing difficult. Close the curtains and dim the lights when using the screen in a bright or sunny room.
m The best picture will be obtained when the projector is at a 90 degree angle to the screen. Position the projector
and screen as shown.
Lens center
~
10
0
9o”
!K
II
0
0
The projector should be centered in the middle of the screen.
Bottom of the projector lens should be slightly above the bottom of the screen.
If the projector and screen settings are incorrect, the picture will be distorted, making viewing difficult.
Example of a ceiling mount setup and a high mount setup
l The projector provides the best picture when it is set up perpendicular to the screen. Set up as shown below. l Before mounting the projector, be sure to contact your local Authorized Sharp Industrial LCD Products Dealer to
obtain the manufacturer-recommended ceiling installation unit and installation adaptor or a high mount stand sold separately.
Upper edge
B
(white portion)
Of Screen aa
I
l The following options are available
Ceiling Mount Setup: AN-P3ZT Ceiling Mount Bracket
AN-TK20VAN-TK202: Extension Tube for AN-P3n
High Mount Setup: AN-P3ZH: High Mount Stand
l If the relative positions of the projector and the screen are not properly adjusted, the picture will be distorted,
making viewing difficult.
Note: Contact your nearest Authorized Sharp Industrial LCD Products Dealer for inquiries concerning setup.
,
_-
Page 10

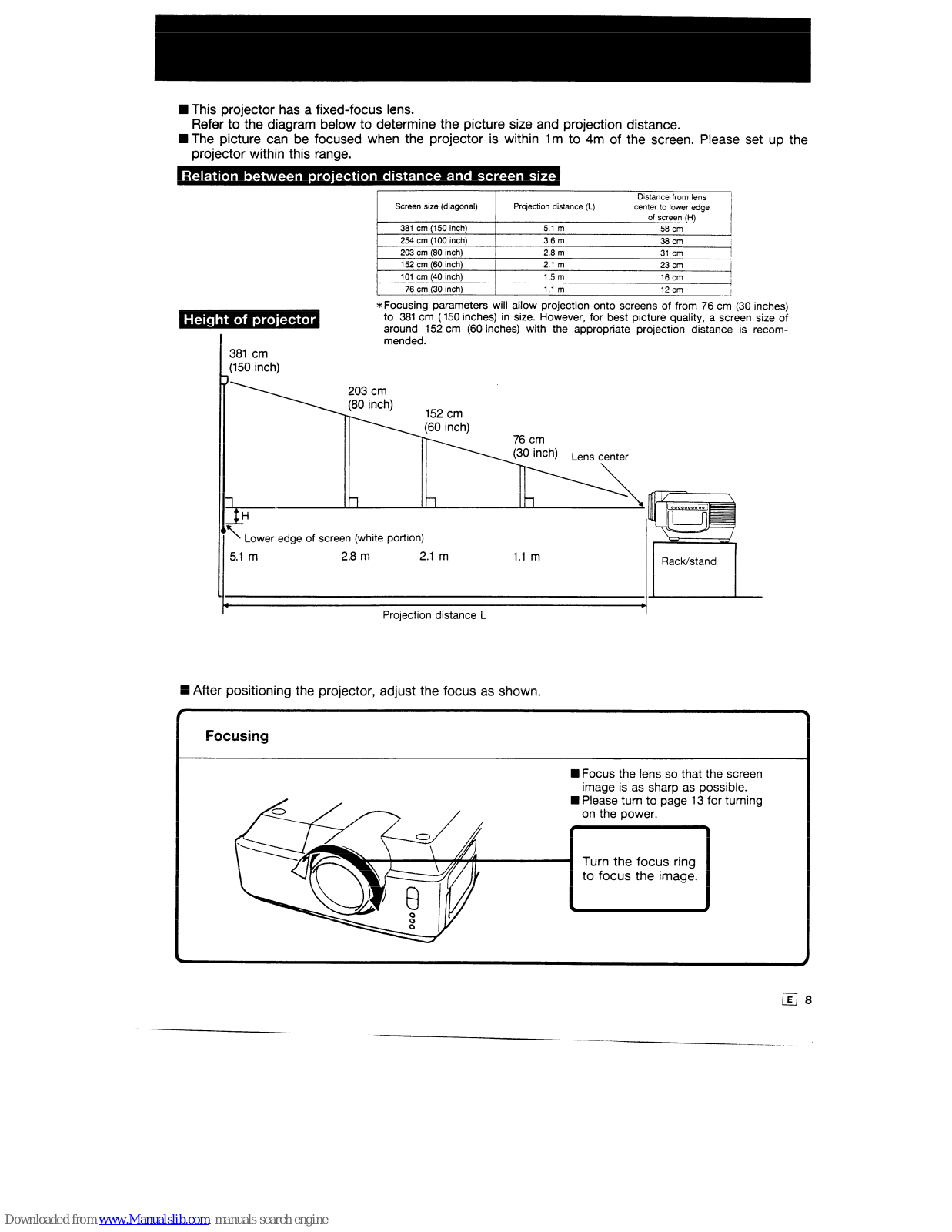

H This projector has a fixed-focus lens.
Refer to the diagram below to determine the picture size and projection distance.
WThe picture can be focused when the projector is within lm to 4m of the screen. Please set up the
projector within this range.
Screen size (diagonal) Projection distance (L)
381
cm (150 inch) 5.1 m 254 cm (100 inch) 3.6 m 203
cm (80 inch) 2.6 m 152
cm (60 inch) 2.1 m 101 cm 140 inch) 1.5 m
Distance from lens i
center to lower edge
of screen (H)
58 cm 38 cm 31 cm 23 cm
16 cm /
I
76 cm (30 inch)
1.1 m
12 cm
I
381 cm (150 inch)
*Focusing parameters will allow projection onto screens of from 76 cm (30
to 361 cm (150 inches) in size. However, for best picture quality, a screen around 152 cm (60 inches) with the appropriate projection distance is mended.
Lower edge of screen (white portion)
5.1 m 2.8 m
2.1 m
1.1 m
inches)
size of
recom-
I’
Projection distance L
4 After positioning the projector, adjust the focus as shown.
Focusing
n Focus the lens so that the screen
image is as sharp as possible.
n Please turn to page 13 for turning
on the power.
4
l
1 Turn the focus ring
to focus the image.
-
Page 11

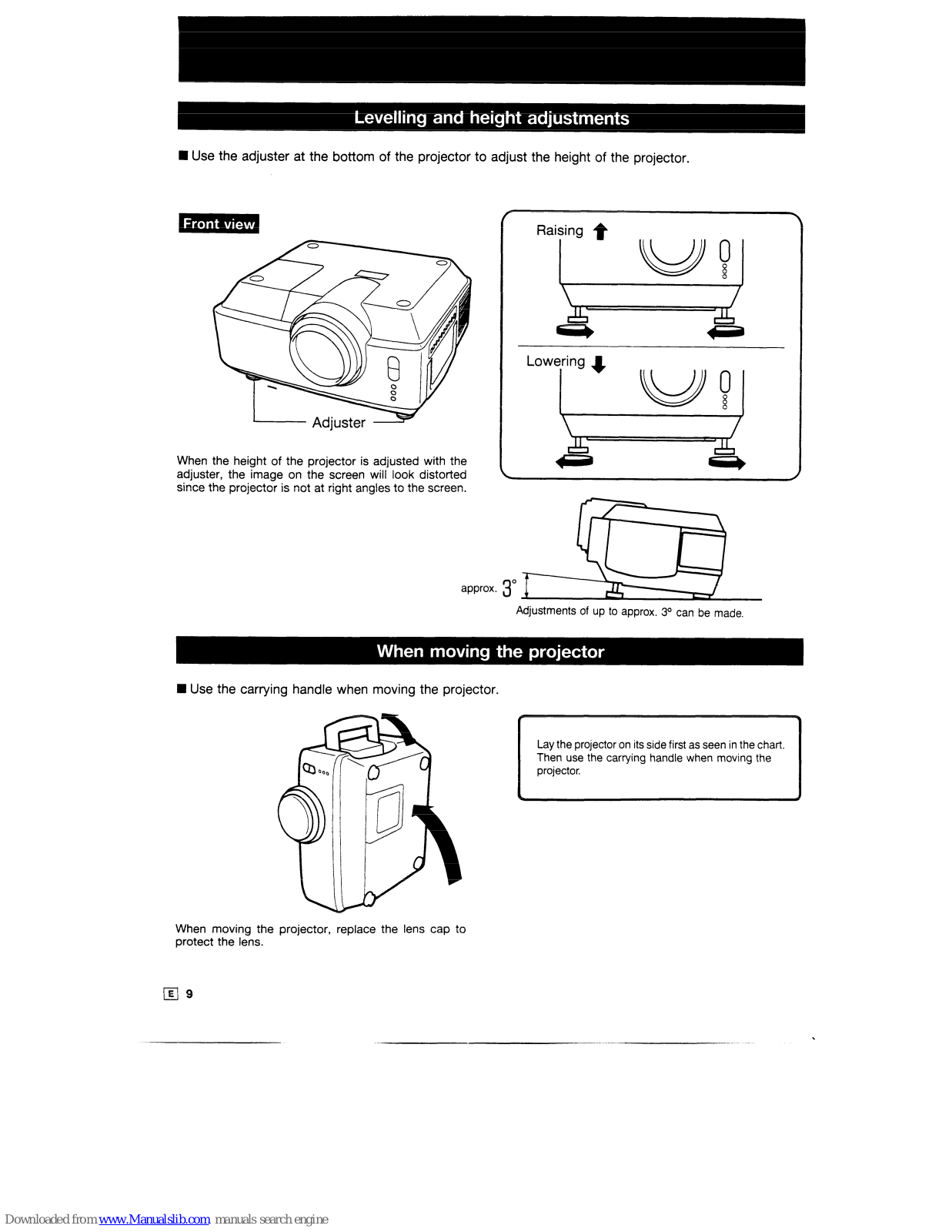

n Use the adjuster at the bottom of the projector to adjust the height of the projector.
When the height of the projector is adjusted with the adjuster, the image on the screen will look distorted since the projector is not at right angles to the screen.
_I
approx.
3” IL
Adjustments of up to approx. 3O can be made.
n Use the carrying handle when moving the projector.
When moving the protect the lens.
projector, r
-eplace the lens cap to
Lay the projector on its side first as seen in the chart. Then use the carrying handle when moving the projector.
Page 12
To connect the projector to video equipment for viewing played-back images.
l When connecting the video equipment, please be sure that the power is off. This
will protect both the projector and the equipment being connected.
l Refer to the instruction manuals of other equipment being connected to the
projector for proper connection.
oc lzv
OUTPUT
MAX CURRENT
2oomA
- -@- +
L
0
0
To audio
1
output jacks a
I
.
m
I I I
To video output jack
/Video eoubment 1
. .
, ----7-r- --
Use the A/V SELECT button to select either VIDEO 1 or VIDEO 2.
on the set
INPUT
VOLUME
.
VIDEO 1
VIDEO 2
S-Video Terminal Priority Input Function
Ex%e Control
The Video Input 1 and S-video input terminals on this projector are set up to give priority to input from the S-video terminal. *When video equipment is connected to both terminals, the video image
from the S-video input terminal is shown on the screen.
~TO view video input from video equipment connected to the Video Input
1 terminal, disconnect the plug from the S-video terminal.
I
Page 13

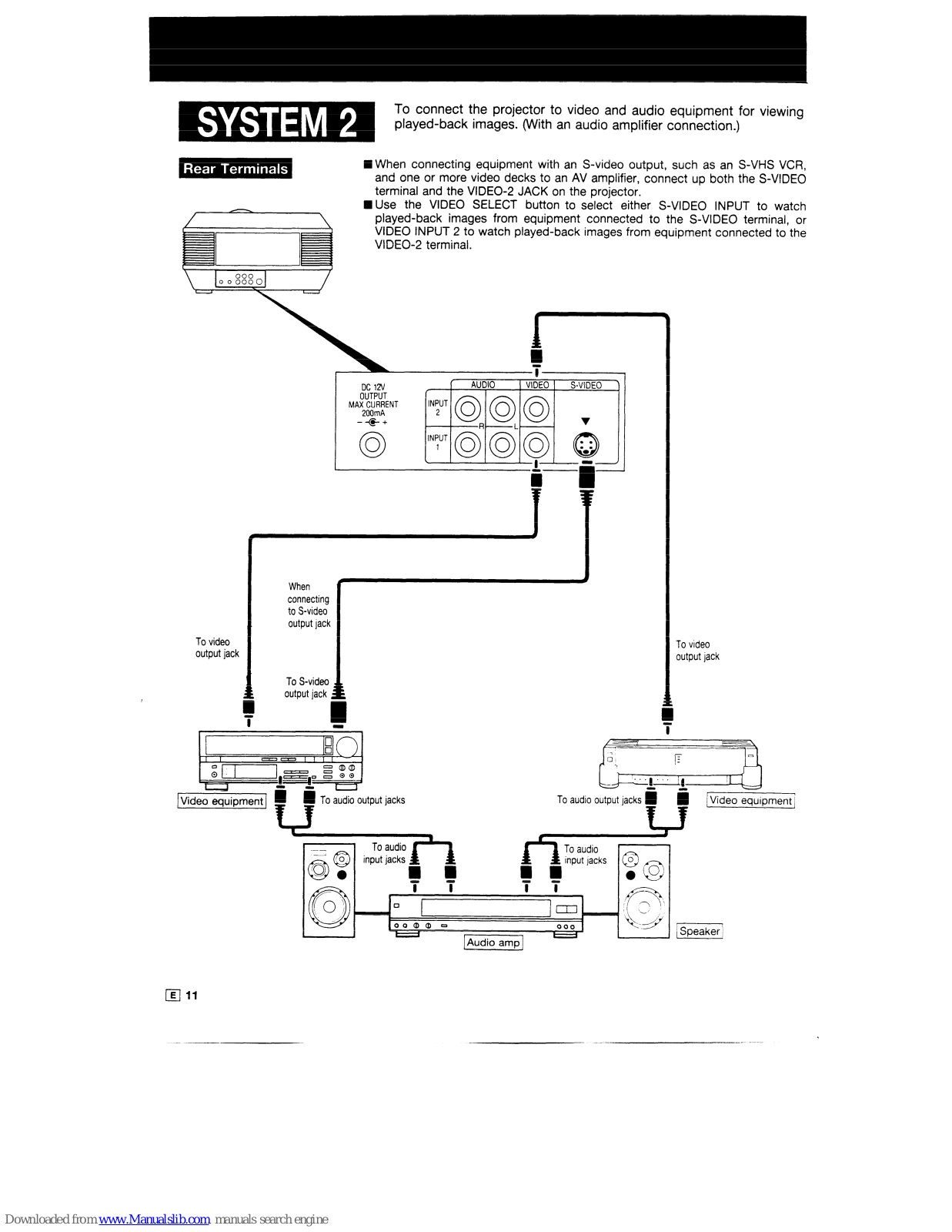

n When connecting equipment with an S-video output, such as an S-VHS VCR,
and one or more video decks to an AV amplifier, connect up both the S-VIDEO
terminal and the VIDEO-2 JACK on the projector.
n Use the VIDEO SELECT button to select either S-VIDEO INPUT to watch
played-back images from equipment connected to the S-VIDEO terminal, or VIDEO INPUT 2 to watch played-back images from equipment connected to the VIDEO-2 terminal.
To video output jack
\*,
DC 12v
OUTPUT
MAX CURRENT
200mA
- + +
0
0
. .
f2
. .
0
When connecting to S-video output jack
To S-video
output jack ,
I
To wdeo output jack
1 i
1 f ~ ; To audiooutput jacks , l To audio output jacks i , y [Video equipment i
To audio
input jacks
m g
To audio input jacks
g m
r
0
-7
l Q
/ Speaker I
I Audio amp I
Page 14
n When the BLUE SCREEN function is turned ON, the screen will turn blue when there is no video signal
input to the projector.
n Press the BLUE SCREEN button once more to turn the BLUE SCREEN function OFF.
1
INVERT/
/-- VIDEO ADJUSTMENT----7
SELE(
_ ._-
BLUE
SCREEN
ZT
ADJUST
1 .>
2
Inverting & Reversing the image
1
Blue screen function
By pressing the Invert/Reverse button you can get a reverse ( or mirror) and invert image. Each time
the button is pressed the picture image changes in the following manner. When the mode changes, on screen indication is displayed for a few seconds.
l When the Blue Screen button is set to IWO (ON/
OFF), the following display is shown for a few seconds on your screen.
cl
(ON)
(OFF)
reverse image
+
l When the BLUE SCREEN button is set to the m(ON)
position, the screen turns blue when no signal or noise is input. (If the Blue Screen function is engaged for over 15 minutes, the AUTO OFF func­tion engages and power is automatically turned off. Five minutes before the power turns off, the remain­ing time (in minutes) is displayed at one-minute intervals in the top left of the screen.)
normal image
A
I
invert 84 reverse image
1’15
invert image
On Screen indication-
Page 15
1
2
Main power switch
POWER indicator
L
1
Turning on the main power switch
/
\
Set the Main Power switch
to ON.
n When you are using the projector for the first time or
when the power indicator lamp is off, set the main power switch to ON. (indicator lights red.)
HThe power indicator lamp turns off when the main
power switch is set to off.
01
I
Maln
Power switch IS
set to OFF
‘I \
indicator lights red:
Standby status
l 0
B
indicator lights green:
I I
l
*I*
Projector lamp on
a
r
2
Turning on the lamp power
Press Lamp/Power (ON/OFF) button
either on the set or remote control.
on the Remote Control
(1)1
&z-]
l l
B
9
I I
l -=q!
Green: Lamp on
*I*
Flashing green light: Lamp IS
Q
betng warmed up
e
Red: Lamp should be replaced See page 19, “Warning lamps” for details.
@Even when the power is turned off using the POWER button, the COOLING FAN will continue to operate as long as the projector’s
internal temperature remains high (about 90 seconds). “Do not disconnect the AC power cord or turn the rear power switch off until the cooling fans have stopped. Failure to do so may reduce the life of the lamp and LCD panel”.
elf the projector is turned on immediately after it has been turned off, it may take a short while before the lamp is turned on. (During
this period the Lamp Monitor indicator flashes green.)
q 13
Page 16
BLUE
4
Input Select button
3
SYSTEM mode button
L
3

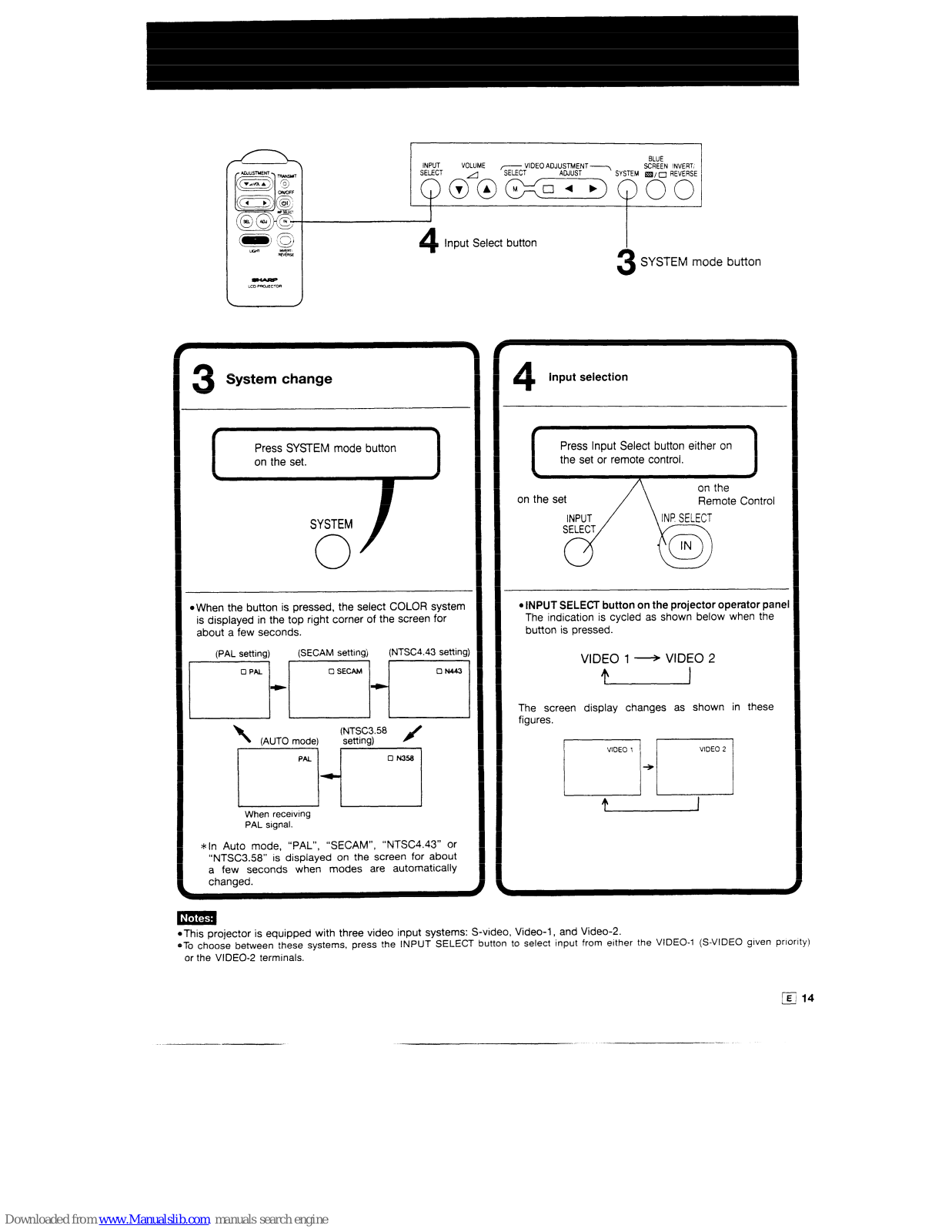

System change
)
\
Press SYSTEM mode button
on the set.
*When the button is pressed, the select COLOR system
is displayed in the top right corner of the screen for about a few seconds.
(PAL setting)
(SECAM setting)
(NTSC4.43 setting)
r/-YqTi
; (AUTO rn;c~[r*~‘~ “1
When recelvtng PAL signal.
*in Auto mode, “PAL”, “SECAM”, “NTSC4.43” or
“NTSC3.58” is displayed on the screen for about a few seconds when modes are automatically changed.
L
4
Input selection
c
\
Press Input Select button either on
the set or remote control.
\
on the set
Remote Control
l INPUT SELECT button on the projector operator panel
The indication is cycled as shown below when the button is pressed.
VIDEO 1 - VIDEO 2
I
The screen display changes as shown in these figures.
ri+._,i
P
I
l
A
aThis projector is equipped with three video input systems: S-video, Video-l, and Video-2.
*To choose between these systems, press the INPUT SELECT button to select input from either the VIDEO-1 (S-VIDEO given prlorlty)
or the VIDEO-2 terminals.
jEi 14
Page 17
your ‘owh
preferences
using the VIDEO ADJUST buttons.
n The positions of the picture settings are committed to memory when set.
Controls on the set
4
1
Volume
BLUE
INPUT VOLUME --&IDE0 ADJUSTMENT \
SCREEN INVERT:
ADJUST
SYSTEM m/o REVERSE
1000
2
I
control button Video Adjustment
Select button
‘3
Picture Control button
2 Picture mode button
L
1
Adjusting the Volume
.
2
Selecting the Picture Position
Press the Volume control button on the set or on the
Press the Video Adjustment Select button either on the
remote control.
set or remote control.
/I
VOLUME
1 on the Remote Control /
I on the set
/SELECT
G
M
on the Remote Control
0
SEL
Decreases sound volume
Increases sound volume
Press the button to select the desired customer pre­selected picture settings. Each of the four memory positions can be adjusted to your own preferred settings. When the button is pressed while the settings are shown on the screen, the display will change as follows.
Ml
M4
The number of segments (O-16) displayed increase or decrease as the volume is raised or lowered.
[El 15
Page 18
Remote Control
Volume Control buttons
Picture Control buttons
Video Adjustment Select button
LIGHT
i -
INVERT/
REVERSE
LCD PROJECTOR
I
-3
Picture mode button
3
Picture adjustments
Use the PICTURE MODE and PICTURE CONTROL buttons to set the picture to suite your preferences.
on the Remote Control
4
The picture modes change as shown below when the
Picture mode button is pressed.
(Ml shows a memory number.)
CONTRAST
BRIGHT
COLOUR
@Select the mode that is to be adjusted and use the
PICTURE control buttons to make the adjustments. *The modes are displayed on the screen for about
a few seconds. The adjustments have to be made while the screen is displayed.
Tint setting can only be adjusted when receiving
NTSC signal.
jEi 16
-_ _
Page 19
MThe air filter should be cleaned about every 100 hours. Clean the filter more often when the projector is
us&d in a dusty location.
l Have your dealer replace the filter when it is no longer possible to clean it.
b
1
Turning off the main power
Turning off the power with the main power switch
- Air Filter cover
- K&R
switch
2
Unplugging the power cord
f
4
Unplug the power cord.
In some areas, the plug may not resemble the one shown in the illustration.
3
Remove the air filter.
1. Pressing the tab as
indicated
by the arrow.
Press=
Tab
2. Then open the filter cover upward to remove it.
Page 20

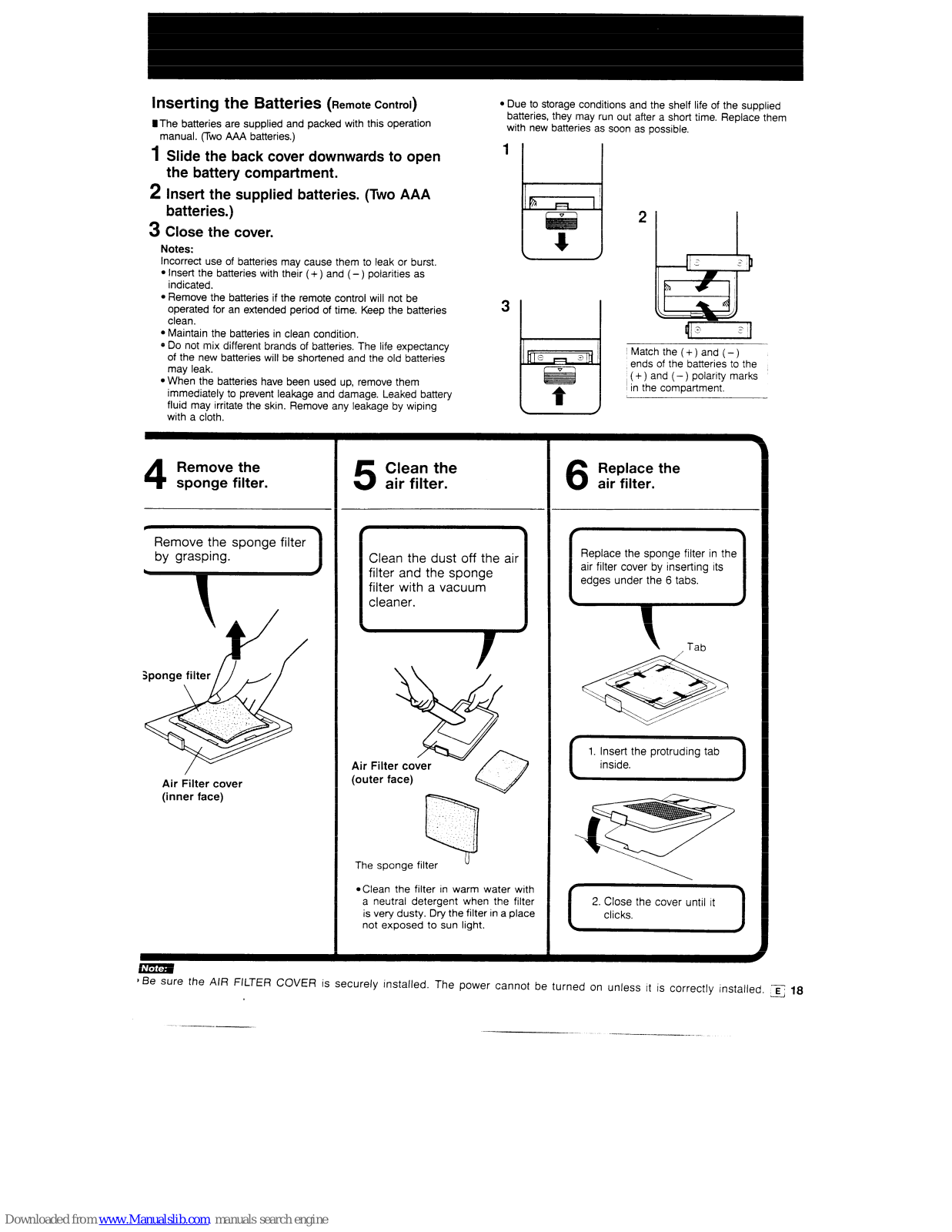

Inserting the Batteries (Remote Control)
lThe batteries are supplied and packed with this operation
manual. fFwo AAA batteries.)
l Due to storage conditions and the shelf life of the supplied
batteries, they may run out after a short time. Replace them with new batteries as soon as possible.
1 Slide the back cover downwards to open
the battery compartment.
2 Insert the supplied batteries. (Two AAA
batteries.)
1
3 Close the cover.
Notes:
Incorrect use of batteries may cause them to leak or burst.
l Insert the batteries with their (+) and (-) polarities as
indicated.
l Remove the batteries if the remote control will not be
operated for an extended period of time. Keep the batteries clean.
l Maintain the batteries in clean condition. l Do not mix different brands of batteries. The life expectancy
of the new batteries will be shortened and the old batteries may leak.
l When the batteries have been used up, remove them
immediately to prevent leakage and damage. Leaked battery fluid may irritate the skin. Remove any leakage by wiping
with a cloth.
3
4
Remove the sponge filter.
Remove the by grasping.
Air Filter cover (inner face)
2
-L
v
2,
Es
4
q-1
I Match the (+) and (-)
v
bil
ends of the batteries to the
(+ ) and (- ) polarity marks
t
I in the compartment.
/
5
Clean the
air filter.
Clean the dust off the air filter and the sponge filter with a vacuum cleaner.
Air Filter cover (outer face)
The sponge filter
McLean the filter in warm water with
a neutral detergent when the filter
is very dusty. Dry the filter in a place
not exposed to sun light.
6
Replace the
air filter.
Replace the sponge filter in the air filter cover by inserting its edges under the 6 tabs.
\
, Tab
1. Insert the protruding tab inside.
2. Close the cover until it clicks.
) Be sure the AIR FILTER COVER is securely installed. The power cannot be turned on unless It is correctly installed. z 18
Page 21
n The projector’s lamp has a limited operating life.
When the lamp is nearly burned out, the picture and colour quality deteriorate. In this event, have the
/
lamp replaced by qualified service personnel.
I
Replacing the projector lamp requires special technical expertise and should be performed by your local
Sharp dealer or Sharp Service Station.
IThis projector is equipped with warning indicators that go on when an abnormal condition occurs. IThere are two warning indicators in the projector: the temperature warning lamp and lamp replacement
indicator.
n If the projector malfunctions, the temperature warning indicator or the lamp replacement indicator will
light red and the power is turned off. Perform the following procedures when you have turned off the main power switch.
Warning indicator )
/
Symptom Potential problems Countermeasures
*The air vents are blocked.
*Install the projector in an
appropriate location.
Glean the filter as
Temperature warning indicator
, The temperature I inside is too high.
/ l The air filter is clogged. described on page 17 and
18.
I
Lamp replacement
/ The projector lamp
indicator
’ does not light.
c
1
@The cooling fan is
defective.
l Any of the internal circuits
are defective.
l Turn in the projector for
service.
*The projector lamp has
reached the end of its life.
@The projector lamp circuit
is defective.
@Turn in the projector for
service.
If the temperature warning lamp lights up red and the power cuts off, the projector will enter stand-by mode. After turning off the projector, be sure to wait until the unit’s internal temperature has sufficiently lowered before turning It on agarn (at least 5 min.).
When the power is turned off and then turned on again, as during a brief rest, the Lamp replacement
indicator may be triggered, preventing the power from going on. When this happens, turn the Main power
switch off and turn it on again.
IE] 19
Page 22
No picture
*The projector is not plugged into the mains supply. @The MAIN POWER switch is set to off. @The bright (-), contrast (-) controls are set to the minimum
position.
l Filter may not be inserted correctly or not at all.
Colour is poor or faded
*Check that the COLOUR (+) and (-) controls are
properly adjusted.
Picture is blurred ~ @Adjust the focus
/ aThe projection distance is too long or short to allow for
proper focus.
1 An unusual sound is occasionally
heard from cabinet
/ l If picture is normal, the sound is due to cabinet shrinkage
caused by temperature changes. This will not effect operation.
Warning indicator lights up.
j l Refer to “Warning lamps” on pages 19.
.
No sound
@Check if the volume control is turned all the way down
(page 1%
@Check to make sure that the wires at the back of the LCD
projector are properly connected (pages 1 O-l 1).
Page 23
System Projection image size
(diagonal) LCD panel No. of pixels Lens Contrast ratio
Horizontal resolution Operating temperature Storage temperature
Power source Audio output Speaker
Power consumption Dimensions (W x H x D) Weight Accessories
PAL/SECAM/NTSC3.58/NTSC4.43 SYSTEM 76 cm (30 inch) at a distance of approx 1.1 m
381 cm (150 inch) at a distance of approx 5.1 m.
9.1 cm (3.6 inch) TFT Active Matrix panel 301,158 dots (468V x 643.5H) F2.8 f=l28mm 1OO:l More than 320 lines 5X-40X
-2O”C-55°C AC 200-240V 50/60Hz 3 W MAX (monaural) 8 cm (Round speaker)
175w
355 x 201 x 341 mm approx. 6.5 kg Lens cover
Air filter
Inverted display label
Two AAA batteries
Our Projector uses LCD (Liquid Crystal Display) panel. This very sophisticated panel contains total of 301 ,I 58 dots (RGB Trio 100,386 Pixels) Tm’s (Thin Film Transistors). As with any high technology electronic equipment such as large screen n/s, video systems and/or video cameras, there are certain acceptable tolerances that the equipment must conform to.
This will not effect the picture quality or the life expectancy of the unit.
NOTE
This LCD-Projector XV-370P is a high technical product.
The LCD-Panel comprises 301158 TFT-Transistors. Regarding this high quantity of Transistors, it is possible that some Pixel fall out. The Pixel appear on the screen like blue-, red-, green- or black points.
Please note that this has no influence of the Projector functionality.
*Specifications are subject to change without notice.
Loading...
