SHARP S245 Technical Report

COPIER : SF-2218
Date
:
Jun. 30, 1998
No. : S-245
MEASURE TO ALLEVIATE PROBLEMS OF JAMS IN THE FUSING SECTION WHICH OCCUR DURING DOUBLE-SIDE COPY OPERATIONS.
1.Model Name: SF-2218 (For machines bound for China)
2.General: There have been problems of jams occurring in the fusing section during double-side
copy operations due to factors such as the quality of the copy paper and the humidity. The following information concerning the action that has been carried out to alleviate this problem is hereby reported.
<Symptoms> There have been problems of jams occurring in front of the fusing section during double-side copy operations.
<Cause> When single side copies are made, curling sometimes occurs in the copy paper as due to paper quality and humidity factors. If double-side copy operations are carried out without correcting the curling of the copy paper, there is a possibility of jams occurring in front of the fusing section.
SHARP CORPORATION Reprography Division
1/5
Green
C
<Action> The addition of the following parts listed below has been carried out. This action has been carried out as a measure to improve the transport performance of the copy paper in front of the fusing section.
<Parts name> <Parts code> <Q'ty> Fusing front sheet A PSHEP4620FCZZ 1 Fusing front sheet B PSHEP4621FCZZ 1 Fusing front guide sheet PSHEP4622FCZZ 1 Fusing front upper guide PGIDH1758FCZZ 2 Upper guide sheet PSHEZ4454FCZZ 4 Screw XHBSD30P06000 2 Paper retainer sheet PSHEP4619FCZZ 1
<Attachment procedures> <1> Disengage the fusing section from the machine. <2> Remove the fixing screws (XHBSD30P06000) of the fusing unit and then remove
the fusing cover (PCOVQ1278FCZZ).
<3> Carry out attachment procedures of the new parts to the fusing cover.

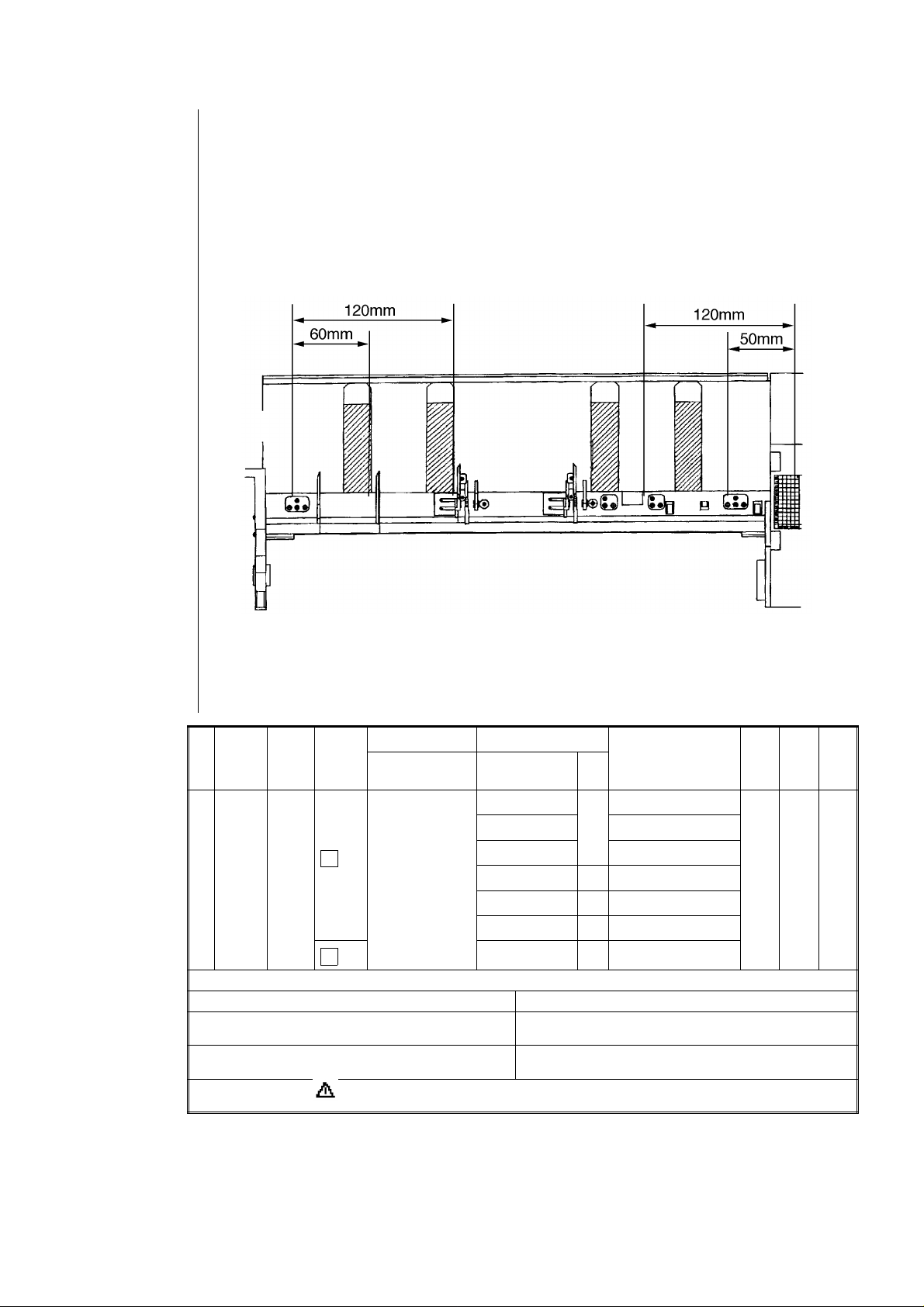

Caution: Please refer to the figure shown below for details concerning the attachment standards. When attaching the new parts to the fusing cover the attachment surfaces of the fusing cover should be carefully wiped with alcohol.
2/5
Fusing front sheet B
Care should be exercised so that fusing front sheet B, the fusing front guide sheet, and fusing front sheet A do not ride up on the ribs of the fusing cover.
Standard
Figure 1
Fusing front guide sheet
Standard
Figure 2
Fusing front sheet A
The attachment size of each sheet with regards to the attachment standards marked in the figures shown to the right should be a maximum of 0 mm in the "+" direction and
0.5 mm in the "-" direction.
