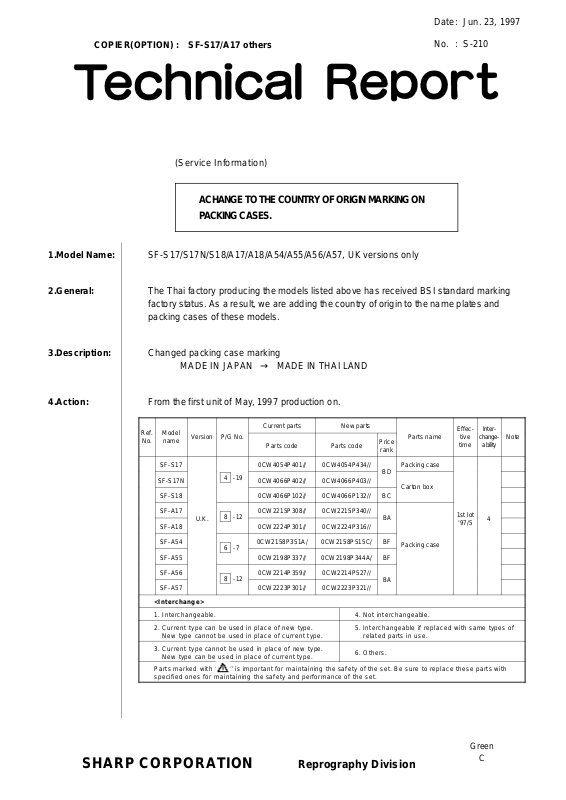

SHARP S210 Technical Report

COPIER(OPTION) : SF-S17/A17 others

Date

Jun. 23, 1997

No. : S-210

(Service Information)

A CHANGE TO THE COUNTRY OF ORIGIN MARKING ON PACKING CASES.

1.Model Name: SF-S17/S17N/S18/A17/A18/A54/A55/A56/A57, UK versions only

2.General: The Thai factory producing the models listed above has received BSI standard marking

factory status. As a result, we are adding the country of origin to the name plates and packing cases of these models.

3.Description: Changed packing case marking

MADE IN JAPAN → MADE IN THAI LAND

4.Action: From the first unit of May, 1997 production on.

Ref.

Model

No.

SF-S17

SF-S17N 0CW4066P402// 0CW4066P403//

SF-S18 0CW4066P102// 0CW4066P132// BC SF-A17 SF-A18 0CW2224P301// 0CW2224P316// SF-A54 SF-A55 0CW2198P337// 0CW2198P344A/ BF SF-A56 SF-A57 0CW2223P301// 0CW2223P321//

1. Interchangeable. 4. Not interchangeable.

2. Current type can be used in place of new type.

3. Current type cannot be used in place of new type.

Parts marked with ‘‘ ’’ is important for maintaining the safety of the set. Be sure to replace these parts with

specified ones for maintaining the safety and performance of the set.

Version P/G No.

name

4 -19

U.K.

New type cannot be used in place of current type.

New type can be used in place of current type.

8 -12

6 -7

8 -12

Current parts New parts

Parts code Parts code

0CW4054P401// 0CW4054P434//

0CW2215P308// 0CW2215P340//

0CW2158P351A/ 0CW2158P515C/ BF

0CW2214P359// 0CW2214P527//

Effec-

tive

time

1st lot

’97/5

Inter-

change-

ability

Note

rank

Parts name

Packing case

Carton box

Packing case

Price

5. Interchangeable if replaced with same types of related parts in use.

6. Others.

SHARP CORPORATION Reprography Division

Green
