60" Class (60" Diagonal) Ultra-Slim Bezel

Ultra-High Brightness Video Wall Monitor

SHARP QUALITY AND BRILLIANCE

FOR VIDEO WALLS OF VIRTUALLY LIMITLESS SIZE AND POTENTIAL

PN-V602

Page 2

Introducing the 60΄΄ Diagonal Class PN-V602 LCD video wall monitor with exceptionally high brightness, extraordinary image quality and ultra-slim bezel design.

High Brightness, High Visibility

With exceptionally high brightness of 1,500 cd/m2, the PN-V602 excels in

brightly lit indoor applications including window facing settings with high

ambient light. Its high contrast helps ensure images are clearly visible from

a distance, enabling PN-V602 video wall displays to be utilized in sports

and entertainment facilities, transportation hubs, shopping malls and

control centers where the PN-V602 can provide vivid high quality images,

24 hours a day, seven days a week.

Breathtaking Image Quality

The PN-V602’s exceptional image quality comes from Sharp’s industry

leading LCD technologies. Sharp proprietary UV

A* technology

incorporated into the 60" diagonal class LCD panel provides highly efcient

use of light from the full-array LED backlight while simultaneously

preventing light leakage. The results are exceptionally high quality images

with bright whites, amazingly vivid colors and extremely deep blacks.

Sharp’s full-array LED backlight, with LED

elements evenly positioned across the

entire panel, helps ensure that Sharp

multi-screen displays are bright, beautiful

and uniform.

* UV2A stands for “Ultraviolet-induced Multi-domain Vertical Alignment,” a photo-alignment technology that ensures uniform alignment of liquid crystal molecules in a certain direction.

(Image)

Local Dimming for High Contrast and Superb Energy Efﬁciency

Much of the PN-V602’s exceptional performance – including outstanding

black levels, high contrast and superb energy efciency is due to local

dimming of the LED backlight. Local dimming allows specic groups of

LEDs to be dimmed for greater control of brightness and darkness in

different areas of the screen. Since

LEDs in a black area of the screen

image can be independently turned

off, local dimming can help to

considerably reduce power

consumption. This helps the PN-V602

deliver signicantly better contrast (up

to 1,000,000:1 contrast ratio with

local dimming set to HIGH) and

brightness (up to 1,500 cd/m

)

compared to conventional LCD

monitors, while utilizing less power.

Local Dimming

LED backlight brightened

LED backlight dimmed

(Image)

Power Consumption Comparison*

1,500 cd/m Local dimming: OFF

1,500 cd/m Local dimming: HIGH

(ref) 700 cd/m Local dimming: HIGH

* Results of Sharp measurements when displaying broadcast content (sub-clause 11.6) stipulated under IEC 62087 Ed. 2.0 and with brightness set to maximum. Note that the power consumption reduction will vary depending on the images displayed.

Notes:

1. The PN-V602 is intended for use in indoor environments. If the monitor is installed in a location exposed to excessive direct sunlight such as a windowfront, consult your installer to determine if additional measures to reduce ultraviolet and infrared radiation and ambient temperature are required.

2. The images in this brochure are simulated. Depending on the system, additional software/hardware may be required.

155W

270W

500W

Down by approx. 46%

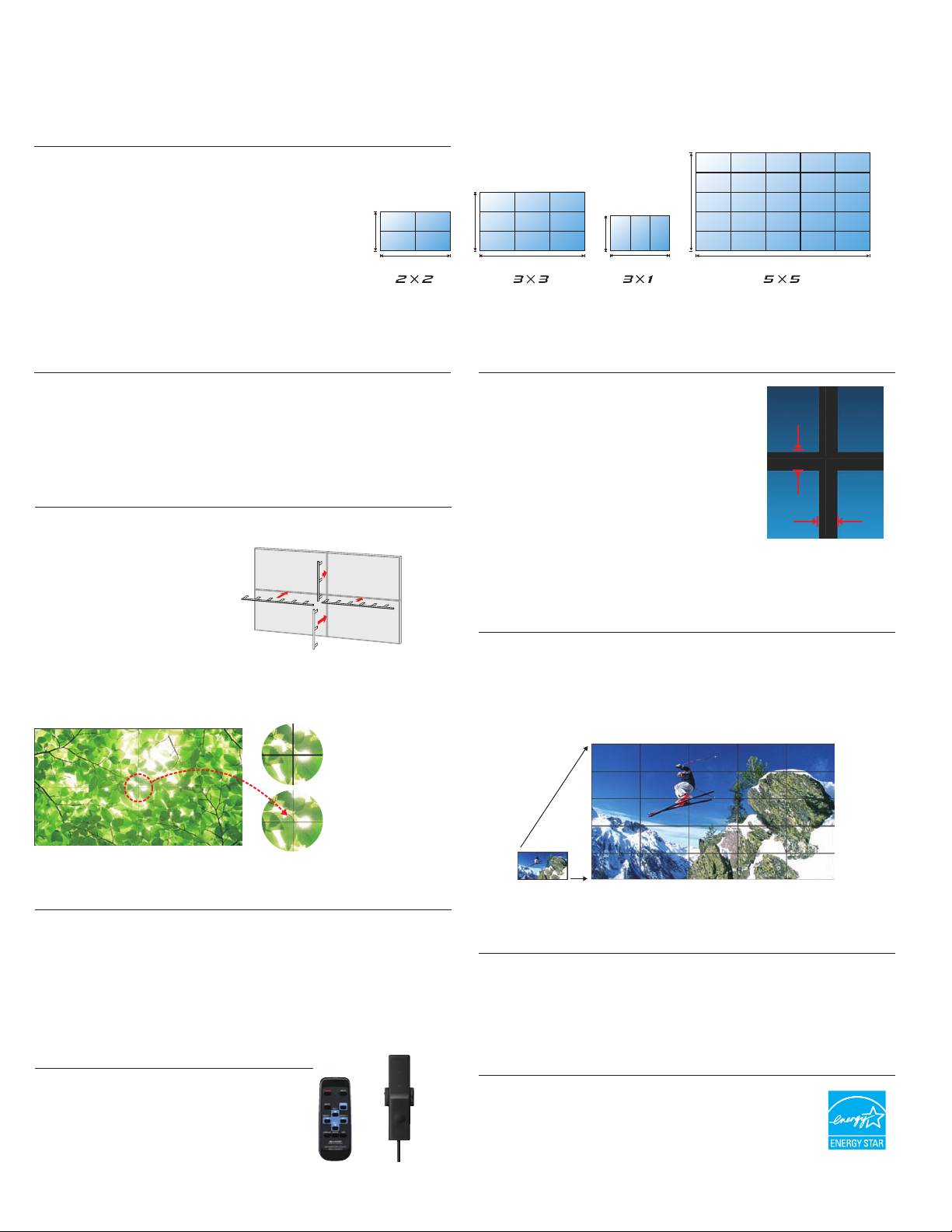

Page 3

Create virtually seamless video walls with incredible brightness in almost any size and conguration.

Create Dynamic Video Walls

Almost any number of PN-V602 displays can be

joined together to create high impact multi-screen

video walls. These congurations may be controlled

through RS-232C or over a network.* Their ease of

control and ease of integration help simplify the

design and installation of sophisticated video wall

4 monitors

59"

106"

displays of most any size and shape.

* Optional PN-ZB02 expansion board is required for network control.

(measurements are approximations that include the bezel width)

Choice of Installation Mode

The PN-V602 offers the choice of landscape, portrait or

“face-up/face-down” installation. This allows customers to select the

mode that best suits their content and application, greatly expanding

the possibilities for video walls and digital signage displays.

Mirror Frames

In multi-screen congurations, mirror

frames minimize* the lines between

slim-bezel PN-V602 displays by

reecting mirror images from the

display content. This helps create

more dynamic video walls with an

even smoother big-picture effect.

* Visibility of the seams between monitors will vary depending on on-screen images and viewing angle.

A Multi-Screen Conﬁguration with Mirror Frames

(option)

Mirror Frame Mounting

PN-ZR33

PN-ZR32

PN-ZR33

PN-ZR32 Long Mirror Frame PN-ZR33 Short Mirror Frame

PN-ZR32

25 monitors

9 monitors

89"

158"

3 monitors

53"

89"

149"

263"

... and more

Ultra-Slim Bezel for Dynamic Video Walls

The PN-V602 boasts the slimmest bezel in the

60" diagonal class of LCD monitors*

the lines between neighboring monitors in a video

wall being only 6.5 mm*

wide (2.4 mm right and

bottom; 4.1 mm left and top)*3. This enables the

high impact display of video wall images of

almost unlimited size and conguration.

*1 Based on available information as of September 1, 2011 *2 Does not include gap between monitors *3 Non display area for neighboring monitors is 7.1 mm

Enlarge

(Zoom)

Display Mode

(for up to 25 Monitors)

The Enlarge (Zoom) display mode can spread one image across up to 25

monitors (in a 5 x 5 conguration) from a single PC, and without the need

for external processors. The Frame Width Adjustment function virtually

eliminates misalignment and helps enhance the quality of the enlarged

image on a multi-screen display.

resulting in

6.5 mm

Without Mirror Frames

With Mirror Frames

(Simulated images)

Brightness Sensor*

The brightness sensor function automatically adjusts backlight

brightness to complement surrounding ambient light levels. In dark

environments, backlight brightness automatically lowers, helping

provide optimal viewing, along with energy savings.

* Requires optional PN-ZR01 control kit.

PN-ZR01 Control Kit

When one of the monitors in a

multi-screen conguration is tted with

a remote control sensor box, all of the

monitors can be conveniently operated

through one remote control unit. (UPC:

074000069022)

(option)

Remote

control unit

Remote control

sensor box

5 x 5 (25-screen) displaySingle-screen display

24/7 Operation

Engineered for 24/7 certied commercial use, Sharp LCD video wall

displays are designed to provide the reliability and durability needed

for most any professional application.

ENERGY STAR® Qualiﬁed

Sharp LCD video wall displays conform to ENERGY STAR

qualications, as well as the RoHS Directive restricting the

use of hazardous substances.

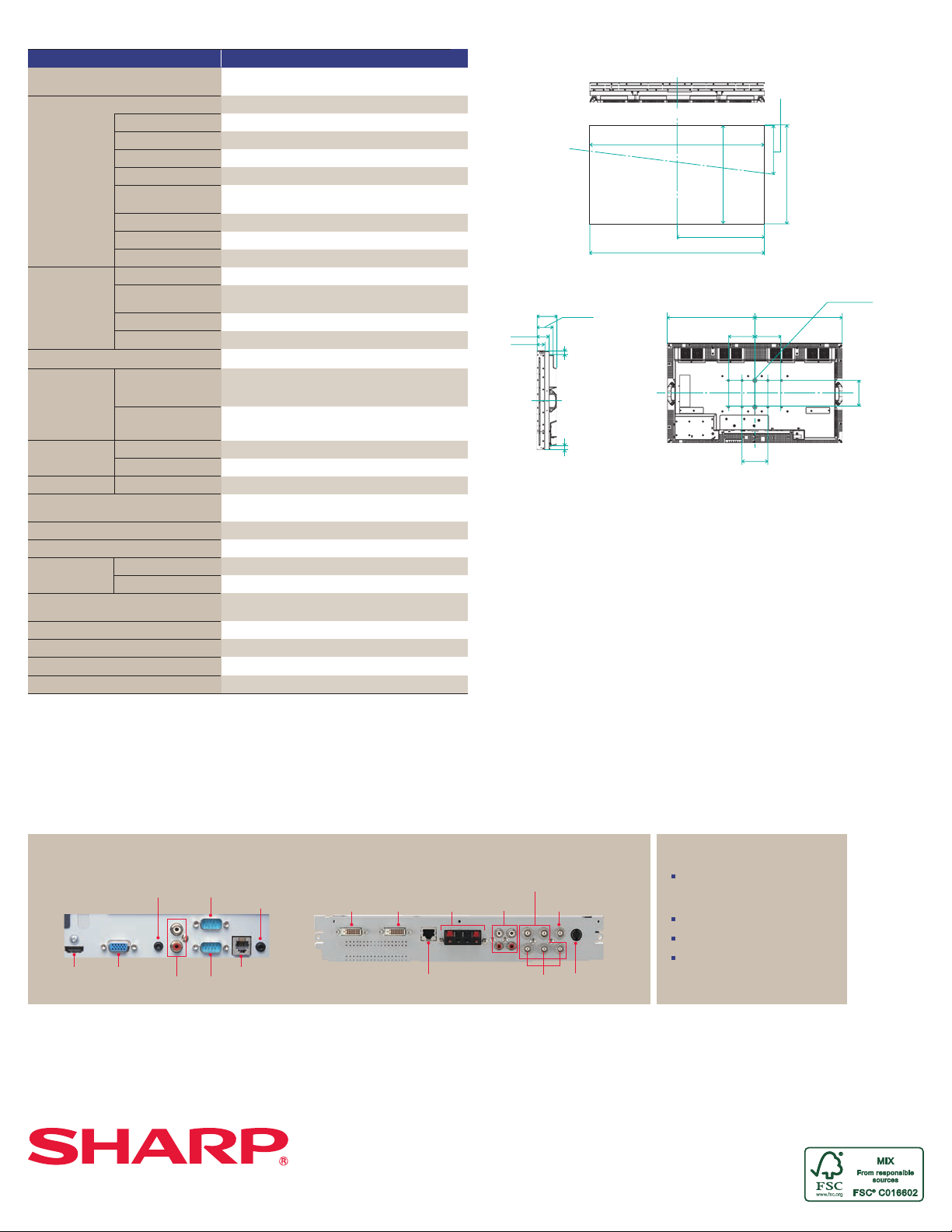

Page 4

Speciﬁcations

Model Name PN-V602

Installation

LCD Panel

Max. Resolution

Max. Display Colors (approx.)

Pixel Pitch (H x V)

Max. Brightness*

Contrast Ratio

Viewing Angle (H/V)

Active Screen Area (W x H)

Response Time

Computer Input Video

Synchronization

Plug & Play

Power Management

Video Color System

Input Terminals*

Via Optional PN-ZB02 Board

Output Terminals*

Standard

Via Optional PN-ZB02 Board

Input/Output Terminals*3 Via Optional PN-ZB02 Board

Mounting

Power Supply

Power Consumption

Environmental Operating Temperature Conditions

Operating Humidity

Dimensions (W x D x H) (approx.)

Weight (not including PN-ZB02) (approx.)

Packing Dimensions (W x D x H) (approx.)

Limited Warranty

UPC

*1 Brightness will depend on input mode and other picture settings. Brightness level will decrease over time. Due to the

nature of the equipment, it is not possible to precisely maintain a constant level of brightness. *2 Requires separately sold PN-ZB02 Interface Expansion Board. *3 Use a commercially available connection cable for PC and other video connections.

*4 The mini D-sub 15-pin connector may be used with an analog RGB computer source, component video source or

composite video source. This is menu selectable. When used with a component or composite video source, a commercially available conversion cable is required. *5 For both PC and AV components. *6 When the PN-V602 is equipped with the optional PN-ZB02 board, either the LCD monitor’s standard-equipped video and component terminals or the PN-ZB02’s video and component terminals can be selected for use from the menu.

Landscape / Portrait / Face-up / Face-down (Note, face-up operation requires optional PN-ZR31 fan cover kit)

60-inch class (60" diag.) widescreen (152.4 cm diag.), UV

A LCD

1,366 x 768 pixels

16.77 million colors

0.973 x 0.973 mm

1,500 cd/m

1,000,000 : 1 (local dimming set to HIGH) 5,000 : 1 (without local dimming)

176°/176° (CR ≥ 10)

/8" x 29 7/16" (1328.8 x 747.1 mm)

6 ms (gray to gray, avg.)

Analog RGB (0.7 Vp-p) [75 Ω], Digital (conforms to DVI 1.0 standards)

Horizontal/vertical separation (TTL: positive/negative) Sync-on-green, Composite sync (TTL: positive/negative)

VESA DDC2B

VESA DPMS, DVI DMPM

NTSC (3.58 MHz, 4.43 MHz)*

PC analog: Mini D-sub 15-pin x 1*

, 3.5 mm-diameter mini stereo jack x 1, Video*6, Component

video*

, RS-232C: D-sub 9-pin x 1, Control Kit jack x 1

PC digital: DVI-D 24-pin (HDCP compatible) x 1, PC analog: BNC x 1, Video: BNC x 1*6, S-Video x 1, Component video: BNC (Y, Cb/Pb,

Cr/Pr) x 1*

, Audio: RCA pin (L/R) x 2

/ PAL / PAL60 / SECAM

, HDMI® (1080p compatible) x

Audio: RCA pin (L/R) x 1, RS-232C: D-sub 9-pin x 1

PC digital: DVI-D 24-pin x 1, External speaker: 10W + 10W (6 Ω)

LAN port (10Base-T/100Base-TX)

VESA (6 points), 7 VESA (4 points), 7

/8" (200 mm) pitch, M6 screw or

/8" (200 mm) pitch, M6 screw

100V – 240V AC, 50/60 Hz

510W (local dimming: OFF)

0°C to 40°C

20% to 80% RH (no condensation)

/8" x 5 7/8" x 29 11/16" (1,335.9 x 149.3 x 754.2 mm)

52 (Display section only, not including protrusions)

44 kg (97 lbs)

/4" x 15" x 36 3/4" (1,580 x 381 x 932 mm)

3 years on-site, parts and labor

074000069084

Dimensions

(373.9)

52 3/8" * (1,329.4)

" *

(747.7)

26 1/8" (664.7)

52 5/8" (1,335.9)

/8"

(149.3)

3 5/8"

(92.3)

2 1/4"

(58.3)

(124.3)

7 7/8" (200) 7 7/8" (200)

(27.2)

(30)

7 7/8" (200)

Units: inch (mm)

* Screen dimensions

* To use the VESA-standard mounting bracket, use M6 screws that are 8 to 10 mm plus the thickness of the bracket.

(754.2)

VESA holes*

26 3/8" (668.8)26 1/4" (667.1)

(200) "

/ 7

Input/Output Terminals

(standard) PN-ZB02 Interface Expansion Board (option)

Audio input

RS-232C output Control kit

jack

PC/AV input digital RGB (DVI-D)

PC/AV output digital RGB (DVI-D)

External speakers

Audio input

PC analog input RGB (BNC)

Video input (BNC)

Other Options

PN-ZR01 : Control Kit

(remote controller and remote control sensor box)

PN-ZR31 : Fan Cover Kit

PN-ZR32 : Long Mirror Frame

PN-ZR33 : Short Mirror Frame

PC/AV input (HDMI)

Note: the PN-V602 is intended for use in indoor environments. If the display is installed in a location exposed to excessive direct sunlight such as a window front, consult your installer to determine if additional measures to reduce ultraviolet and infrared radiation and temperature are required.

PC analog input RGB (D-sub)

Audio output

RS-232C input

Optional port

LAN port

Component video input (BNC)

S-Video input

Design and specications subject to change without prior notice. Sharp is a registered trademark of Sharp Corporation. HDMI is a registered trademark of HDMI Licensing LLC. ENERGY STAR is a registered trademark of the U.S. Government. All other trademarks are the property of their respective owners.

Professional Display Division Sharp Plaza, Mahwah, NJ 07495-1163 For more info, call 1-866-4-VISUAL (1-866-484-7825) www.sharpusa.com/monitors
