Sharp PC123A, PC123B, PC123C, PC123S, PC123Y Datasheet
...
PREPARED BY: DATE:
\
)4/
,(- :-,, < ‘. h
&&-‘/,L ’
.%’ 2
APPROVED BY: DATE:
- ,.
I- 1 -. ,dC,
SPEC. No. ED-94040E
SHARP
ISSUE March 5, 1998
PAGE 14
Pages
ELECTRONIC COMPONENTS
GROUP SHARP CORPORATION REPRESENTAm
DMSION
A 1 lUi\1
I
OPTO-ELECTRONIC DEVICES Dn!
’ DEVICE SPECIFICATION FOR
PHOTOCOUPLER
MODEL No.
PC123
business dealing name
1.
These specification sheets include materials protected under copyright of Sharp Corporation (“Sharp”).
Please do not reproduce or cause anyone to reproduce them without Sharp’s consent.
2.
When using this product, please observe the absolute maximum ratings and the instructions for use outlined
in these specification sheets, as well as the precautions mentioned below. Sharp assumes no responsibility
for any damage resulting from use of the product which does not comply with the absolute maximum ratings
and the instructions included in these specification sheets, and the precautions mentioned below.
(Precautions)
ill This product is designed for use in the following application areas :
[
* OA equipment
* Audio visual equipment
* Home appliances
* Telecommunication equipment (Terminal)
* Measuring equipment
* Tooling machines
+ Computers
1
If the use of the product in the above application areas is for equipment listed in paragraphs
(2) or (31, please be sure to observe the precautions given in those respective paragraphs.
(21 Appropriate measures, such as fail-safe design and redundant design considering
the safety design of the overall system and equipment, should be taken to ensure reliability
and safety when this product is used for equipment which demands high reliability and
safety in function and precision, such as ;
[
. Transportation control and safety equipment (aircraft, train, automobile etc.1
- Trafhc signals
* Gas leakage sensor breakers
. Rescue and security equipment
* Other safety equipment
1
(31 Please do not use this product for equipment which require extremely high reliability
and safety in function and precision, such as :
[
. Space equipment . Telecommunication equipment (for trunk lines)
* Nuclear power control equipment * Medical equipment
1
(41 Please contact and consult with a Sharp sales representative if there are any questions
regarding interpretation of the above three paragraphs.
. Please contact and consult with a Sharp sales representative for any questions about this product.
CUSTOMER’S APPROVAL
DATE
PRESENTED
BY
DATE
BY
T. Matsumura,
Department General Manager of
Engineering
Dept.,11
Opto-Electronic Devices Div.
ELECOM Group
SHARP CORPORATION
SHARP CORPORATION
PC 123
I
l/8
1. Application
This specification applies to the outline and characteristics of photocoupler
Model No. PC123.
2. Outline
Refer to the attached drawing No. CY725 lKO2.
3. Ratings and characteristics
Refer to the attached sheet, page 4 to 6.

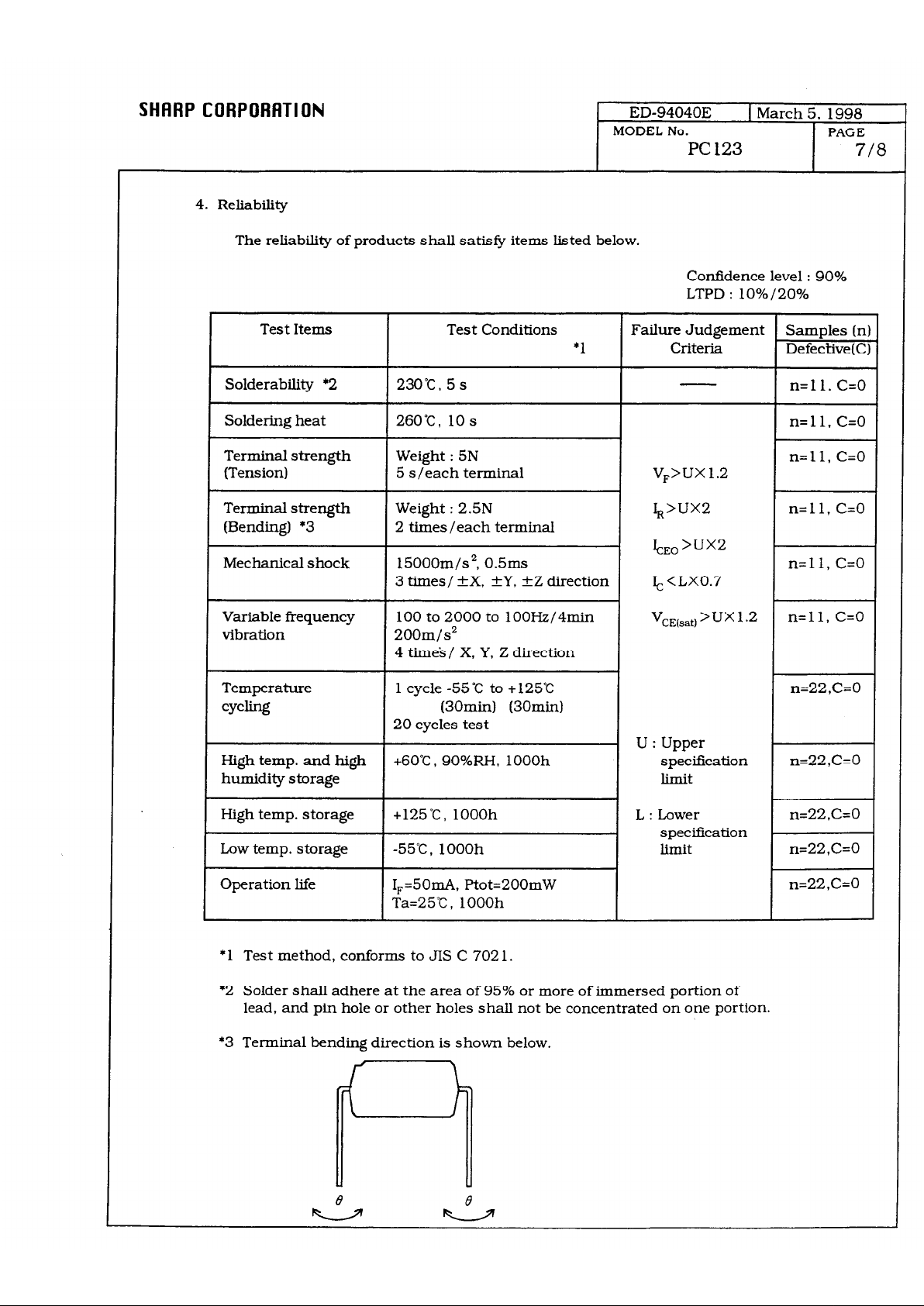

4. Reliability
Refer to the attached sheet, page 7.
5. Incoming inspection
Refer to the attached sheet, page 8.
6. Supplement
6.1 Isolation voltage shaIl be measured in the following method.
(1 I Short between anode to cathode on the primary side and between collector
to emitter on the secondary side.
(2) The dielectric withstand tester with zero-cross circuit shall be used.
(3) The wave form of applied voltage shall be a sine wave.
(It is recommended that the isolation voltage be measured in insulation oil.1
6.2 Collector current (Ic) Delivery rank table
(”
0”
mark indicates business dealing name of ordered product)
Rank at Business Rank at
* Business
delivery dealing name delivery dealing name
Rank mark Ic (mAI
Test
conditions
PC123
PC123A
PC123B
PC123C
PC123Y A, B, S or no mark 2.5 to 20
1,=5mA
PC123Yl A
2.5 to 7.5
vc,=5v
PC 123Y2 B
5.0 to 12.5
. Ta=25”C
PC123Y5 no mark
10.0 to 20.0
PC123S PC 123YS S
5.0 to 10.0
* Applied to products as an option (Attach sheet 2-l to 2-4)
ED-94040E
MODEL No.
1 March 5, 1998
1 PAGE
SHARP CORPORATION
ED-94040E
1 March 5, 1998
MODEL No.
PAGE
PC 123
2/8
6.3 This Model is approved by UL.
Approved Model No. : PC123
UL tile No. : E64380
6.4 This Model is approved by CSA.
Approved Model No. : PC123
CSA file No. : CA95323
CSA approved mark ”
C
sp: shall be indicated on minimame unit package.
6.5 This product is approved by BSI. (BS415, BS7002)
Approved Model No. : PC123
Certificate No. : 7087/7409
6.6 This product is approved by SEMKO, DEMKO, NEMKO and EI.
6.7 This product is not designed against irradiation.
This product is assembled with electrical input and output.
This product incorporates non-coherent light emitting diode.
6.8 ODS materials
This product shall not contain the following materials.
Also, the following materials shall not be used in the production process for this product.
Materials for ODS :
CFC,, Halon, Carbon tetrachloride,
1.1.1 -Trichloroethane (Methylchloroform)
6.9 Brominated flame retardants
Specific brominated flame retardants such as the PBBO, and PBB, are not used
in this device at all.
7.
Notes
Refer to the attached sheet- 1 - 1, 2.
SHARP CORPORflTI ON
PC 123
I
3/B
2. Outline
Rank mark
mark l 2
7.62’0-3
1: Anode
2: Cathode
3:
4:
Emitter
Collector
*l) a-digit number sha.lI be marked according to DIN standard.
*2) Factory identification mark shall be or shall not be marked.
*3) Marking is laser marking
Pin Nos. and
internal
connection diagram
4. 58
‘0.3
ED-94040E
MODEL No.
1 March 5, 1998
1 PAGE
Product ‘mass : Approx. 0. 18g
UNIT:l/lmm
q
SHARP CORPORflTION
PC 123
3. Ratings and characteristics
3.1 Absolute maximum ratings
Ta=25”C
*l The derating factors of absolute maximum ratings due to ambient temperature
are shown in Fig. 1 to 4.
*2 Pulse widths100 pus, Duty ratio : 0.001 (Refer to Fig. 5)
*3 AC for 1 min. 40 to 6O%RH
*4 For 10s
*2 Peak forward current
