Solder-coated grid results in high fill factor

performance under low light conditions.

Sharp multi-purpose modules offer

industry-leading performance for

a variety of applications.

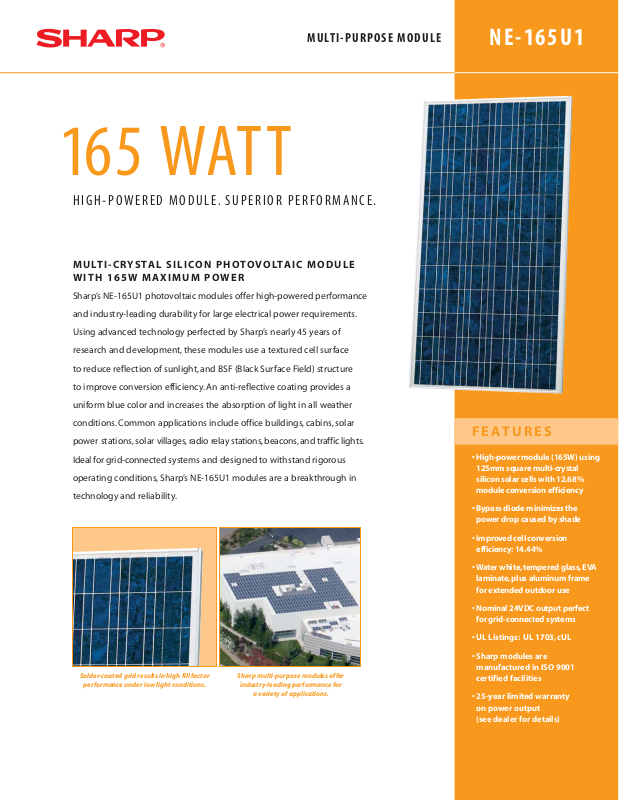

165 WATT

MULTI-CRYSTAL SILICON PHOTOVOLTAIC MODULE
WITH 165W MAXIMUM POWER

Sharp’s NE-165U1 photovoltaic modules offer high-powered performance

and industry-leading durability for large electrical power requirements.

Using advanced technology perfected by Sharp’s nearly 45 years of

research and development, these modules use a textured cell surface

to reduce reflection of sunlight, and BSF (Black Surface Field) structure

to improve conversion efficiency. An anti-reflective coating provides a

uniform blue color and increases the absorption of light in all weather

conditions. Common applications include office buildings, cabins,solar

power stations, solar villages, radio relay stations, beacons,and traffic lights.

Ideal for grid-connected systems and designed to withstand rigorous

operating conditions, Sharp’s NE-165U1 modules are a breakthrough in

technology and reliability.

HIGH-POWERED MODULE. SUPERIOR PERFORMANCE.

NE-165U1

FEATURES

• High-power module (165W) using
125mm square multi-crystal
silicon solar cells with 12.68%
module conversion efficiency

• Bypass diode minimizes the
power drop caused by shade

• Improved cell conversion
efficiency: 14.44%

• Water white,tempered glass, EVA
laminate,plus aluminum frame
for extended outdoor use

• Nominal 24VDC output perfect
for grid-connected systems

• UL Listings: UL 1703, cUL

• Sharp modules are
manufactured in ISO 9001
certified facilities

• 25-year limited warranty
on power output
(see dealer for details)

MULTI-PURPOSE MODULE

DIMENSIONS

Sharp Electronics Corporation • 5901 Bolsa Avenue, Huntington Beach,CA 92647

Tel:1-800-SOLAR-06 • E-mail:[e-mail] • www.sharpusa.com/solar

NE-165U1 MULTI-PURPOSE MODULE

165 WATT

IV CURVES

ABSOLUTE MAXIMUM RATINGS

MECHANICAL CHARACTERISTICSELECTRICAL CHARACTERISTICS

In the absence of confirmation by product manuals,Sharp takes no responsibility for any defects that may occur in equipment using any Sharp devices.

Contact Sharp to obtain the latest product manuals before using any Sharp device.

Specifications are subject to change without notice.

Cell Multi-crystal silicon

No. of Cells and Connections 72 in series

Open Circuit Voltage (Voc) 43.1V

Maximum Power Voltage (Vpm) 34.6V

Short Circuit Current (Isc) 5.46A

Maximum Power Current (Ipm) 4.77A

Maximum Power (Pm)

*

165W

Minimum Power (Pm)

*

148.5W

Encapsulated Solar Cell Efficiency (ηc) 14.44%

Module Efficiency (ηm) 12.68%

PTC Rating (W)

**

144.80

Maximum System Voltage 600VDC

Series Fuse Rating 10A

Type of Output Terminal Lead Wire with MC Connector

Dimensions (A x B x C below) 62.01 x 32.52 x 1.81" / 1575 x 826 x 46mm

Weight 37.485lbs / 17.0kg

Packing Configuration 2 pcs per carton

Size of Carton

66.93 x 38.19 x 5.12" / 1700 x 970 x 130

mm

Loading Capacity (20 ft container) 168 pcs (84 cartons)

Loading Capacity (40 ft container) 392 pcs (196 cartons)

Operating Temperature -40 to 194˚F / -40 to +90˚C

Storage Temperature -40 to 194˚F / -40 to +90˚C

Dielectric Isolation Voltage 2200 VDC max.

* (STC) Standard Test Conditions: 25°C,1 kW/m2, AM 1.5

** (PTC) Pacific Test Conditions: 20°C, 1 kW/m

2

, AM 1.5,1 m/s wind speed

A

C

B

D

E

G

F

FRONT VIEW

BACK VIEW

DEF G

30.93"/785.5mm 7.3"/185.5mm 30.43"/773mm 51.2" +/- 2"/1300mm+/-50mm

Cell Temperature: 25˚C

Current, Power vs. Voltage Characteristics

Cover photo:Solar installation by Pacific Power Management,Auburn CA SSD-165-904 ©2004 Sharp Electronics Corporation Printed in the USA
