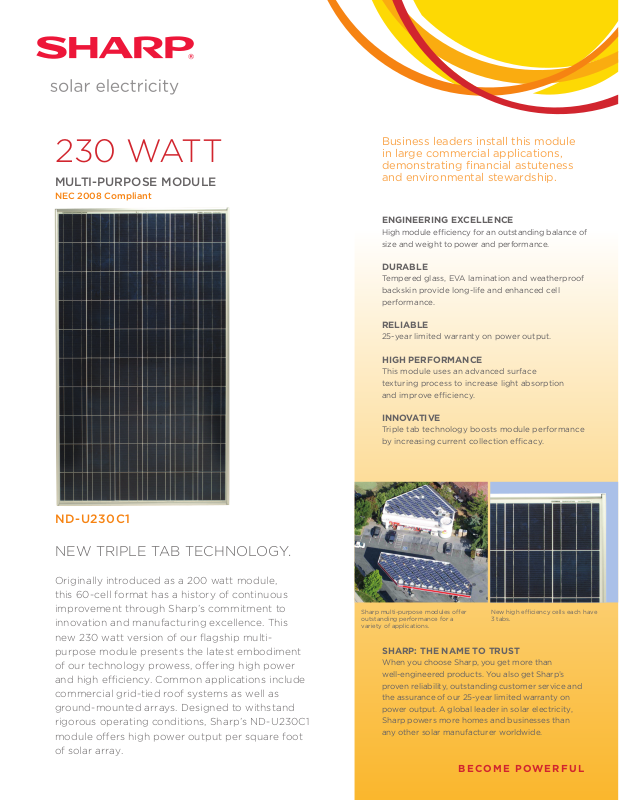

Sharp ND-U230C1 User Manual
230 WATT
MULTI-PURPOSE MODULE
NEC 2008 Compliant
Business leaders install this module
in large commercial applications,
demonstrating financial astuteness
and environmental stewardship.
engineering excellence
High module eciency for an outstanding balance of
size and weight to power and performance.
DurAble
Tempered glass, EVA lamination and weatherproof
backskin provide long-life and enhanced cell
performance.
reliAble
25-year limited warranty on power output.
HigH performAnce
This module uses an advanced surface
texturing process to increase light absorption
and improve eciency.
innoVATiVe
Triple tab technology boosts module performance
by increasing current collection ecacy.
ND-U230C1
NEW TRIPLE TAB TECHNOLOGY.
Originally introduced as a 200 watt module,
this 60-cell format has a history of continuous
improvement through Sharp’s commitment to
innovation and manufacturing excellence. This
new 230 watt version of our flagship multipurpose module presents the latest embodiment
of our technology prowess, oering high power
and high eciency. Common applications include
commercial grid-tied roof systems as well as
ground-mounted arrays. Designed to withstand
rigorous operating conditions, Sharp’s ND-U230C1
module oers high power output per square foot
of solar array.
Sharp multi-purpose modules oer
outstanding performance for a
variety of applications.
sHArp: THe nAme To TrusT
When you choose Sharp, you get more than
well-engineered products. You also get Sharp’s
proven reliability, outstanding customer service and
the assurance of our 25-year limited warranty on
power output. A global leader in solar electricity,
Sharp powers more homes and businesses than
any other solar manufacturer worldwide.
New high eciency cells each have
3 tabs.
becom e p owerfu l
© 2008 S harp Electr onics Corporation. All rights rese rved.
SHARP ELECTRONICS CORPORATION
5901 Bolsa Avenue, Huntington Beach, CA 92647
www.sharpusa.com/solar
230 WATT
ND-U230C1
NEC 2008 Compliant
Module output cables now 12 AWG with locking connectors
elecTricAl cHArAcTerisTics
Maximum Power (Pmax)* 230 W
Tolerance of Pmax +10% / -5%
Type of Cell Polycrystalline silicon
Cell Confi guration 60 in series
Open Circuit Voltage (Voc) 37.0 V
Maximum Power at Voltage (Vpm) 30.3 V
Short Circuit Current (Isc) 8.24 A
Maximum Power at Current (Ipm) 7.60 A
Module E ciency (%) 14.1%
Maximum System (DC) Voltage 600 V
Series Fuse Rating 15 A
NOCT 47.5°C
Temperature Coe cient (Pmax) -0.485% / °C
Temperature Coe cient (Voc) -0.36% / °C
Temperature Coe cient (lsc) 0.053% / °C
*Measured at (STC) Standard Test Conditions: 25°C, 1 kW/m2 insolation, AM 1.5
mecHAnicAl cHArAcTerisTics
Dimensions (A x B x C below) 39.1” x 64.6” x 1.8”/994 x 1640 x 46 mm
Cable Length (I) 43.3”/1100 mm
Output Interconnect Cable**
12 AWG with MC4 Locking Connector
Weight 44 lbs / 20 kg
Max Load 50 psf (2400 Pascals)
** A safety lock clip (Multi Contact part number PV-SSH4) may be required in
readily accessible locations per NEC 2008 690.33 (C)
iV curVes
CURRENT, POWER VS. VOLTAGE CHARACTERISTICS
Dimensions
D
E
F
CELL TEMPERATURE: 25˚C
12
11
10
9
1000[W/m2]
8
2
800[W/m
]
7
6
2
]
600[W/m
5
Current [A]
4
3
2
1
0
0
5 10 15 20 25 30 35 40
Voltage [V]
B AC K VIE W
A
I
240
220
200
180
160
140
120
100
80
60
40
20
0
G
Power [W]
Current vs. Voltage
Power vs. Voltage
S IDE V I EW
QuAlificATions
UL Listed UL 1703
Fire Rating Class C
wArrAnTY
25-year limited warranty on power output
Contact Sharp for complete warranty information
Design and spe cifi cations are sub ject to change without notice.
Sharp is a registere d trademark of Sharp Corpor ation. All other trademark s are property of
their respec tive owners. Contact Shar p to obta in the latest product manuals before using
any Sharp device. Cover ph oto: Solar installation by Pacifi c Power Manage ment, Auburn CA
B
F
E
G
H
A B C D E
39.1”/994 mm 64.6”/1640 mm 1.8”/46 mm 7.9”/200 mm 14.4”/365 mm
F G H I
32.3”/820 mm 3.9”/100 mm 37.7”/958 mm 43.3”/1100 mm
Contact Sharp for tolerance specifi cations
D
C
