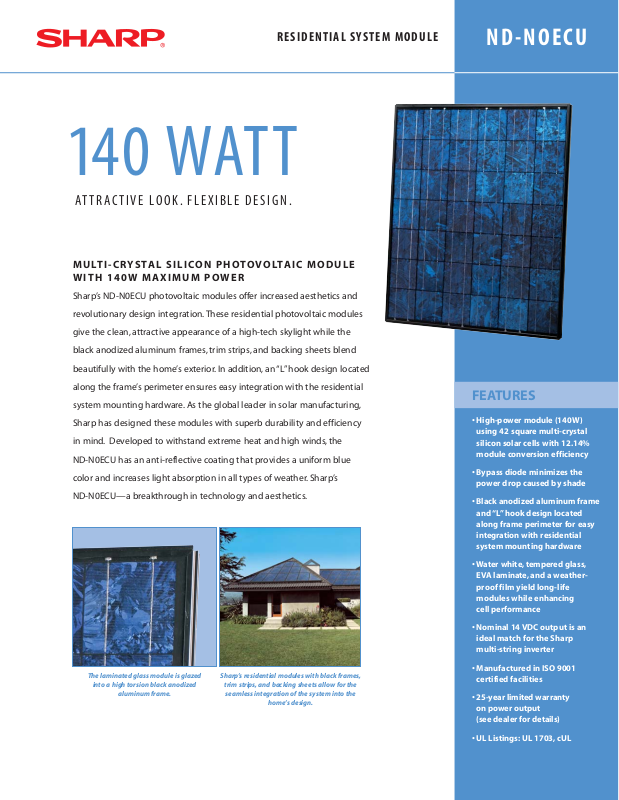

140 WATT
MULTI-CRYSTAL SILICON PHOTOVOLTAIC MODULE
WITH 140W MAXIMUM POWER
Sharp’s ND-N0ECU photovoltaic modules offer increased aesthetics and
revolutionary design integration.These residential photovoltaic modules
give the clean, attractive appearance of a high-tech skylight while the
black anodized aluminum frames, trim strips, and backing sheets blend
beautifully with the home’s exterior. In addition, an “L”hook design located
along the frame’s perimeter ensures easy integration with the residential
system mounting hardware. As the global leader in solar manufacturing,
Sharp has designed these modules with superb durability and efficiency
in mind. Developed to withstand extreme heat and high winds, the
ND-N0ECU has an anti-reflective coating that provides a uniform blue
color and increases light absorption in all types of weather.Sharp’s
ND-N0ECU—a breakthrough in technology and aesthetics.
ATTRACTIVE LOOK. FLEXIBLE DESIGN.
ND-NOECU
FEATURES
• High-power module (140W)
using 42 square multi-crystal
silicon solar cells with 12.14%
module conversion efficiency
• Bypass diode minimizes the
power drop caused by shade
• Black anodized aluminum frame
and “L”hook design located
along frame perimeter for easy
integration with residential
system mounting hardware
• Water white, tempered glass,
EVA laminate, and a weatherproof film yield long-life
modules while enhancing
cell performance
• Nominal 14 VDC output is an
ideal match for the Sharp
multi-string inverter
• Manufactured in ISO 9001
certified facilities
• 25-year limited warranty
on power output
(see dealer for details)
• UL Listings: UL 1703, cUL
The laminated glass module is glazed
into a high torsion black anodized
aluminum frame.
Sharp’s residential modules with black frames,
trim strips, and backing sheets allow for the
seamless integration of the system into the
home’s design.
RESIDENTIAL SYSTEM MODULE
Sharp Electronics Corporation • 5901 Bolsa Avenue, Huntington Beach,CA 92647
Tel:1-800-SOLAR-06 • E-mail:sharpsolar@sharpusa.com • www.sharpusa.com/solar
ND-NOECU RESIDENTIAL SYSTEM MODULE
140 WATT
DIMENSIONS
IV CURVES
ABSOLUTE MAXIMUM RATINGS
MECHANICAL CHARACTERISTICSELECTRICAL CHARACTERISTICS
In the absence of confirmation by product manuals,Sharp takes no responsibility for any defects that may occur in equipment using any Sharp devices.
Contact Sharp to obtain the latest product manuals before using any Sharp device.
Specifications are subject to change without notice.
Cell Multi-crystal silicon
No. of Cells and Connections 42 in series
Open Circuit Voltage (Voc) 24.85V
Maximum Power Voltage (Vpm) 19.95V
Short Circuit Current (Isc) 7.81A
Maximum Power Current (Ipm) 7.02A
Maximum Power (Pm)
*
140W
Minimum Power (Pm)
*
126W
Encapsulated Solar Cell Efficiency (ηc) 13.44%
Module Efficiency (ηm) 12.14%
PTC Rating (W)
**
122.70
Maximum System Voltage 600VDC
Series Fuse Rating 15A
Type of Output Terminal Lead Wire with MC Connector
Dimensions (A x B x C below) 45.87 x 38.98 x 1.81" / 1165 x 990 x 46mm
Weight 31.96lbs / 14.5kg
Packing Configuration 2 pcs per carton
Size of Carton 49.6 x 42.52 x 5.12" / 1260 x 1080 x 130mm
Operating Temperature -40 to 194˚F / -40 to +90˚C
Storage Temperature -40 to 194˚F / -40 to +90˚C
Dielectric Isolation Voltage 2200 VDC max.
* (STC) Standard Test Conditions: 25°C,1 kW/m2, AM 1.5
** (PTC) Pacific Test Conditions: 20°C, 1 kW/m
2
, AM 1.5,1 m/s wind speed
BACK VIEW
EDGE VIEW
0
1
2
3
4
5
6
7
8
9
0 4 10 15 20 25
180
150
120
90
60
30
0
1000 [W/m2]
800 [W/m
2
]
600 [W/m
2
]
Cell Temperature: 25˚C
Current, Power vs. Voltage Characteristics
Voltage [V]
Current vs. Voltage
Power vs.Voltage
Current [A]
Power [W]
ABCDEFG
45.87"/1165mm 38.98"/990mm 1.81"/46mm 7.2"/182.5mm 15.75"/400mm 7.87"/200mm 36.85"/936mm
DE
A
F
GCB
C
SSD-140-105 ©2005 Sharp Electronics Corporation Printed in the USA
