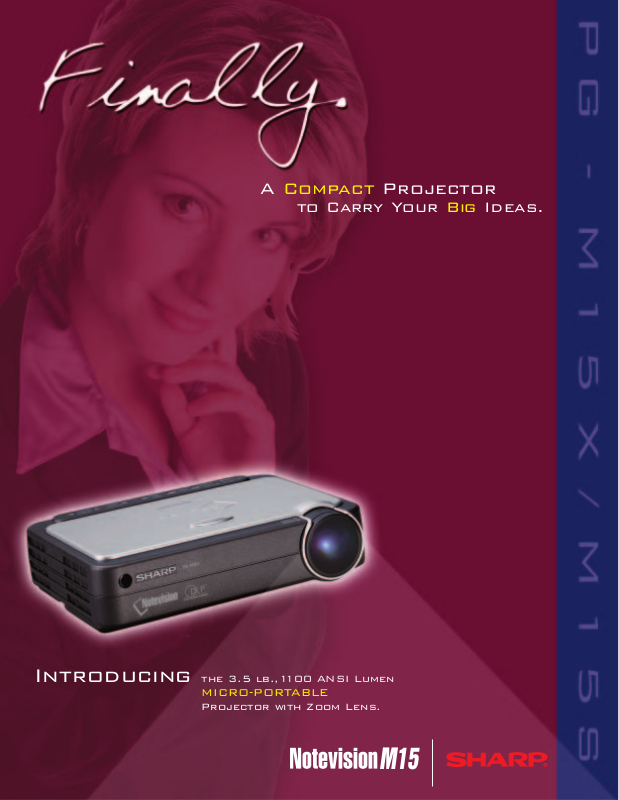

A Compact Projector

to Carry Your Big Ideas.

Introducing the 3.5 lb.,1100 ANSI Lumen

MICRO-PORTABLE

Projector with Zoom Lens.

M15

Superior Image Quality

RESOLUTION PG-M15X - Native XGA (1024 x 768) up to SXGA

PG-M15S - Native SVGA (800 x 600) up to SXGA

TV LINES 580
PANEL TYPE 0.7" DMD™
H&V FREQUENCY fh 31.5 - 80 kHz /fv 56 - 85 Hz
DOT CLOCK 25 - 135 MHz
LAMP 130 Watts AC, User-replaceable
LAMP PART # BQC-PGM15X//1

Powerful Performance

RESIZING ImageACE Resizing
BRIGHTNESS 1100 ANSI Lumens w/ 85% CCR
CONTRAST RATIO 500:1(full on/off)
LENS TYPE 1.2:1 Manual Zoom/Focus
ASPECT RATIO 4:3 & 16:9
AUDIO SYSTEM 2.0 Watt Monaural
POWER DISSIPATION 680 BTU/hour
POWER CONSUMPTION 180 Watts
POWER SOURCE 100-240 V AC, 50/60 Hz

Reliable and Easy to Use

COMPATIBILITY PC & MAC
VIDEO SYSTEM NTSC/PAL/PAL-N/PAL-M/SECAM/NTSC 4.43
REMOTE CONTROL IR w/Mouse Control
IR CARRIER FREQUENCY 38 kHz
DIMENSIONS 8.9" (W) x 2.0" (H) x 6.9" (D) (Main Body)
FAN NOISE 37 dB
WEIGHT 3.5 lbs.
LIMITED WARRANTY 3 Years Parts/Labor & 2 Years Sharp ER (Express

Repair), Lamp 90 Days

There’s nothing
compact about the
way it performs.

Now there ’s a Sharp DLP projector that brings you all the technology,
all the features and all the flexibility you need to look absolutely brilliant.
All in something that fits in the palm of your hand. It’s the new
extraordinarily small, extraordinarily light, extraordinarily advanced Sharp
M15 micro-portable projector.

You and your presentations will be more brilliant than ever thanks
to the M15 1100 ANSI Lumen brightness. You’ll have new flexibility in
how you present your ideas because the M15 has easy-to-use
connections for computers (both PC and Mac), audio and video.
Automatic image set-up and Digital Keystone Correction (+/- 19˚),
high-end XGA resolution (a full 1024 x 768 native resolution) with
Intelligent Resizing up to SXGA (1280 x1024 pixels) deliver your ideas
with a new sharpness and clarity. And a wireless remote with mouse
control gives you total control from anywhere in the room.

And perhaps most important, is the exclusive Sharp ER warranty – the
i n d u s t ry-leading parts and labor warranty with 24 hour emergency
repair/replacement service. So even if there’s a problem, Sharp will
come through for you. Fast.

The new Sharp M15 micro-portable DLP projector. Brighter, to
make you look even better.

Inputs/Outputs

1 Computer Input . . . . . . . . .DVI-I (29 Pin)

2 Video Inputs . . . . . . . . . . .Composite (RCA) and S-video (4 Pin DIN)

1 Audio Input . . . . . . . . . . . .3.5mm Stereo Minijack

1 RS-232C Input . . . . . . . . .7 Pin DIN to 9 Pin D-Sub

1 Component Video Input . . . .(Shared with Computer Input–DVI-I)

1 Computer Output . . . . . . . .15 Pin HD (analog only)

Included Accessories

Wireless Remote Control, Two AAA Size Batteries, 6' Power Cord,
6' Computer RGB Cable, 6' Audio Cable (3.5mm Stereo), Audio Cable
(3.5mm Stereo to RCA), USB Mouse Control Cable, 6' Mouse Control Cable,
6' Video Cable, 6' S-Video Cable, 6' RS-232 Conversion Cable, DVI/15 pin
HD Adapter, Soft Pouch, Projector Operation Manual, Projector Quick
Reference Guide, 6' DVI to 15-pin HD Cable

Optional Accessories

AN-M100PCBAG Soft Sided Carry-on Bag (Projector & PC)

AN-M100CC Hard Shell Carrying Case (Projector only)

AN-M100SC “ATA” Style Shipping Case (Projector only)
AN-M100WB Wheeled “Tilt-N-Go” Bag (Projector & PC)
AN-C200BAG Soft Sided Carry-on Bag (Projector only)

AN-PGCM85 Ceiling Bracket for PG-M15X/M15S

AN-EP101B Extension Pole for Ceiling Bracket

Projection Distances

M15X Screen Diagonal...............................40" to 250"

Minimum Distance............................5'4" to 33'4"

Maximum Distance...........................6'5" to 40'

M15S Screen Diagonal...............................40" to 250"

Minimum Distance............................5'7" to 35'

Maximum Distance...........................6'8" to 41'8"

SHARP ELECTRONICS CORPORATION

Professional LCD Products Group • Sharp Plaza, Mahwah, NJ 07430-2135
1-888-GO-SHARP ( 4 6 7 - 4 2 7 7 ) • www.SharpLCD.com
Corporate Headquarters [phone]

E-Mail: [e-mail] • Fax Back [phone]

Design and specifications are subject to change without notice.
All trademarks are property of their respective holders.

LC-02-228
