1. Application
This specification applies to the color 42” TFT-LCD module LQ420D3LZ19.
* These specification sheets are proprietary products of SHARP CORPORATION (“SHARP”) and include materials
protected under copyright of SHARP. Do not reproduce or cause any third party to reproduce them in any form or by
any means, electronic or mechanical, for any purpose, in whole or in part, without the express written permission of
SHARP.
* In case of using the device for applications such as control and safety equipment for transportation (aircraft, trains,
automobiles, etc.), rescue and security equipment and various safety related equipment which require higher
reliability and safety, take into consideration that appropriate measures such as fail-safe functions and redundant
system design should be taken.
* Do not use the device for equipment that requires an extreme level of reliability, such as aerospace applications,
telecommunication equipment (trunk lines), nuclear power control equipment and medical or other equipment for
life support.
* SHARP assumes no responsibility for any damage resulting from the use of the device that does not comply with
the instructions and the precautions specified in these specification sheets.
* Contact and consult with a SHARP sales representative for any questions about this device.
2. Overview
This module is a color active matrix LCD module incorporating amorphous silicon TFT (T
composed of a color TFT-LCD panel, driver ICs, control circuit, power supply circuit, inverter circuit and back light
system etc. Graphics and texts can be displayed on a 1920×RGB×1080 dots panel with 16,777,216 colors by
using LVDS (L
This module also includes the DC/AC inverter to drive the CCFT. (+24V of DC supply voltage)
And in order to improve the response time of LCD, this module applies the Over Shoot driving (O/S driving)
technology for the control circuit .In the O/S driving technology, signals are being applied to the Liquid Crystal
according to a pre-fixed process as an image signal of the present frame when a difference is found between image
signal of the previous frame and that of the current frame after comparing them.
By using the captioned process, the image signals of this LCD module are being set so that image response can be
completed within one frame, as a result, image blur can be improved and clear image performance can be realized.
3. Mechanical Specifications
Active area 930.24(H) x 523.26 (V) mm
Pixel Format
Pixel pitch 0.1615(H) x 0.484 (V) mm
Pixel configuration R, G, B vertical stripe
Display mode Normally black
Unit Outline Dimensions (*1) 1035 (W) x 585(H) x 100.0(D) mm
Mass 33.5 +/- 0.5 kg
Surface treatment

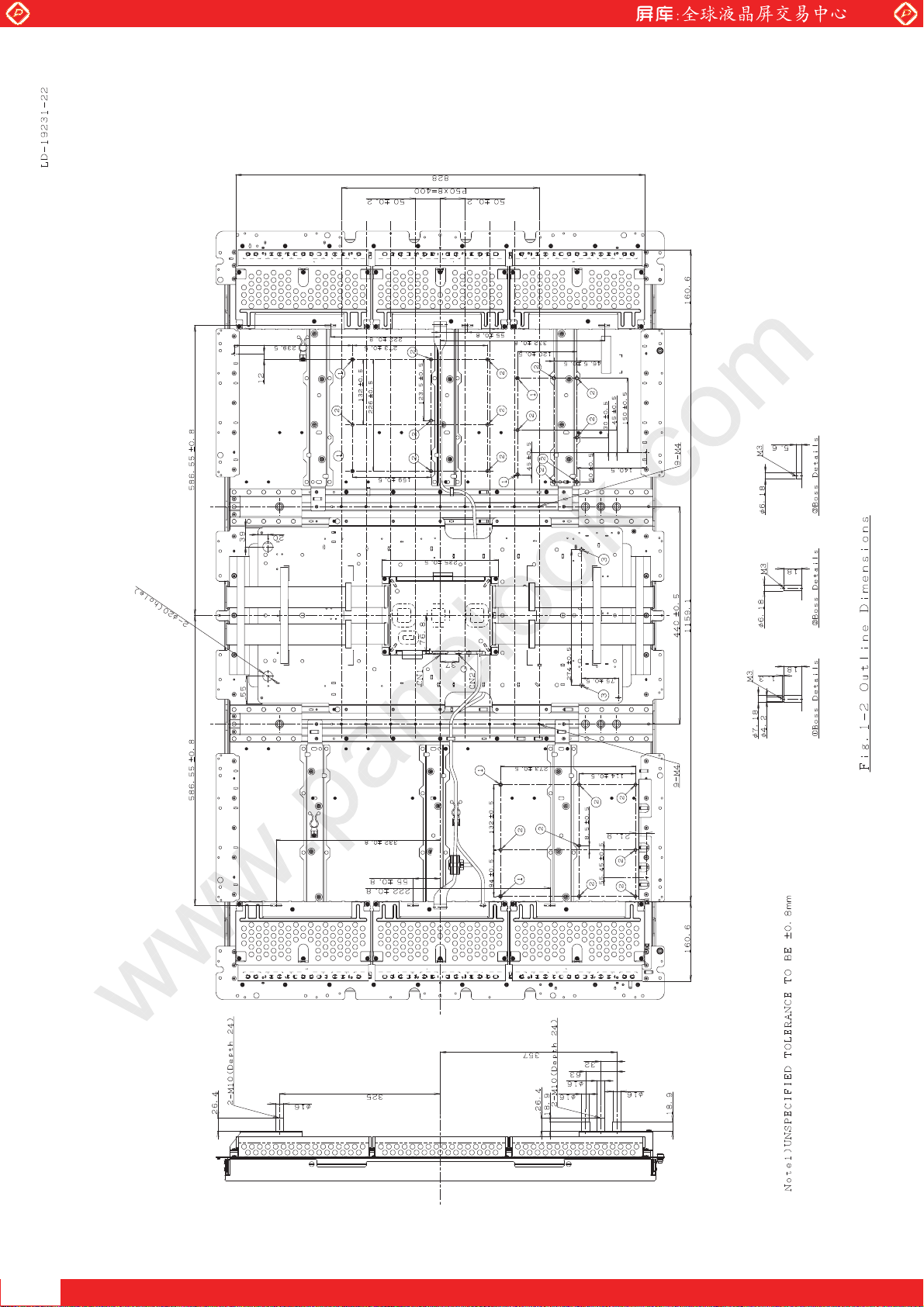

(*1) Outline dimensions are shown in Fig.1-1,1-2.
ow Voltage Differential Signaling) to interface, +12V of DC supply voltages.
Parameter Specifications Unit
Display size
www.panelook.com
163.9 （Diagonal）
64.5 （Diagonal）
1920(H) x 1080(V)
1pixel = R + G + B dot）
（
Anti glare, low reflection coating
Hard coating: 2H
hin Film Transistor). It is
cm
inch
pixel
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
3
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
䎯䎦䎧䎃䎳䎤䎱䎨䎯
䎃 䎔䎜䎕䎓䎃䏛䎃䎖䎋䎵䎪䎥䎌䎃䎻䎃䎔䎓䎛䎓
䎥䏄䏆䏎䎃䎯䏌䏊䏋䏗䎋䎦䎦䎩䎷䎌
䏛䎃䎖䎙
䎶䏒䏘䏕䏆䏈䎃䎧䏕䏌䏙䏈䏕
䎪䏄䏗䏈䎃䎧䏕䏌䏙䏈䏕
䎬䏑䏙䏈䏕䏗䏈䏕
䎦䏒䏑䏗䏕䏒䏏䎃䎳䎺䎥
䎦䎱䎔䎦䎱䎕
䎦䎱䎖䎏䎗䎏䎘䎏䎙䎏䎚䎏䎛
䎃䎳䏒䏚䏈䏕䎃䎶䏘䏓䏓䏏䏜
䎃䎦䏌䏕䏆䏘䏌䏗
䎃䎶䏜䏖䏗䏈䏐䎃䎦䏒䏑䏗䏕䏒䏏䎃䎦䏌䏕䏆䏘䏌䏗
䎃䎃䎃䎧䏄䏗䏄䎃䎳䏕䏒䏆䏈䏖䏖䏒䏕
䎃䎃䎃䎷䏌䏐䏌䏑䏊䎃䎦䏒䏑䏗䏕䏒䏏䏏䏈䏕
䎲䎱
䎳䏒䏚䏈䏕䎃䎶䏘䏓䏓䏏䏜
䎬䏑䏓䏘䏗䎃䎶䏌䏊䏑䏄䏏
䎳䏒䏚䏈䏕䎃䎶䏘䏓䏓䏏䏜
䎥䎵䎷
䎪䏄䏗䏈䎃䎧䏕䏌䏙䏈䏕
䎶䏒䏘䏕䏆䏈䎃䎧䏕䏌䏙䏈䏕
Interface block diagram
・
(TV Side)
Port A
AR0䱊AR7
AG0䱊AG7
AB0䱊AB7
ENAB_A
Controller
BR0䱊BR7
BG0䱊BG7
BB0䱊BB7
ENAB_B
8
8
8
CLKA
Port B
8
8
8
LVD S
↑
TTL
PLL
LVD S
↑
TTL
www.panelook.com
AIN0+( 11)
AIN0-( 10)
AIN1+( 13)
AIN1-( 12)
AIN2+( 15)
AIN2-( 14)
AIN3+( 19)
AIN3-( 18)
ACK+( 17 )
ACK- (16 )
BIN0+(21)
BIN0-(20)
BIN1+(23)
BIN1-(22)
BIN2+(25)
BIN2-(24)
BIN3+(29)
BIN3-(28)
TTL
↑
LVDS
PLL
TTL
↑
LVD S
(TFT-LCD side)
Port A
Port B
8
8
8
8
8
8
AR0䱊AR7
AG0䱊AG7
AB0䱊AB7
LCD Internal Circuit
ENAB_A
CLKA
BR0䱊BR7
BG0䱊BG7
BB0䱊BB7
ENAB_B
CLKB
PLL
Corresponding Transmitter: THC63LVDM83R (THine)
Block Diagram (LCD Module)
・
#+0#+0
#+0#+0
#+0#+0
#+0#+0
#%-#%-
$+0$+0
$+0$+0
$+0$+0
$+0$+0
$%-$%-
7&4.
6'/2
5'..8&5
15UGV
(TCOG
8
8
8&%
)0&
8&%
BCK+(27)
BCK-(26)
PLL
CLKB
or equivalent device
䎯
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
6
www.panelook.com
Global LCD Panel Exchange Center
[Note 1]SELLVDS
Transmitter SELLVDS
Pin No Data
51 TA0
52 TA1
54 TA2
55 TA3
56 TA4
3 TA5
4 TA6
6 TB0
7 TB1
11 TB2
12 TB3
14 TB4
15 TB5
19 TB6
20 TC0
22 TC1
23 TC2
24 TC3
27 TC4
28 TC5
30 TC6
50 TD0
2 TD1
8 TD2
10 TD3
16 TD4
18 TD5
25 TD6
NA: Not Available
DE: Display Enable
(*) Since the display position is prescribed by the rise of DE (Display Enable) signal, please do not fix
DE signal during operation at "High".
www.panelook.com
=L(GND)
R0(LSB)
R1
R2
R3
R4
R5
G0(LSB)
G1
G2
G3
G4
G5
B0(LSB)
B1
B2
B3
B4
B5
NA NA
NA NA
DE(*) DE(*)
R6 R0(LSB)
R7(MSB) R1
G6 G0(LSB)
G7(MSB) G1
B6 B0(LSB)
B7(MSB) B1
NA NA
=H(3.3V) or Open
R2
R3
R4
R5
R6
R7(MSB)
G2
G3
G4
G5
G6
G7(MSB)
B2
B3
B4
B5
B6
B7(MSB)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
7
www.panelook.com
Global LCD Panel Exchange Center
SELLVDS= High (3.3V) or Open
ACK+,BCK+
ACK-,BCK-
AIN0+,BIN0+
AIN0-,BIN0-
AIN1+,BIN1-
AIN1-,BIN1-
AIN2+,BIN2+
AIN2-,BIN2-
AIN3+,BIN3+
AIN3-,BIN3-
SELLVDS= Low(GND)
ACK+,BCK+
ACK-,BCK-
AIN0+,BIN0+
AIN0-,BIN0-
AIN1+,BIN1+
AIN1-,BIN1-
AIN2+,BIN2+
AIN2-,BIN2-
AIN3+,BIN3+
AIN3-,BIN3-
DE: Display Enable
NA: Not Available (Fixed Low)
www.panelook.com
1 cycle
G2 R7 R6 R5 R4 R3 R2 R2 R3 G2
B3 B2 G7 G6 G5 G4 G3 G3 G4 B3
DE
G0 R5 R4 R3 R2 R1 R0 R0 R1 G0
B1 B0 G5 G4 G3 G2 G1 G1 G2 B1
DE
NA NA
B1 B0 G1 G0 R1 R0 R0 R1 NA NA
NA NA
B7 B6 G7 G6 R7 R6 R6 R7 NA NA
B7 B6 B5 B4 B4 B5
1 cycle
B5 B4 B3 B2 B2 B3
DE
DE
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
8
Global LCD Panel Exchange Center
www.panelook.com
[Note 2]Display reversal function
Normal (Default)
Horizontal reverse image
R/L : L (GND) U/D: L (GND) R/L : H (3.3V) U/D: L (GND)
ＣＮ１ ＣＮ１
Vertical reverse image
Horizontal and vertical reverse image
R/L : L (GND) U/D: H (3.3V) R/L : H(3.3V) U/D: H (3.3V)
[Note 3] O/S Setting
ＣＮ１ＣＮ１
According as the surface temperature of the panel, enter the optimum 3 bit signal into pin No.36,37,38.
Measuring the correlation between detected temperature by the sensor on PWB in users side and actual surface
temperature of panel at center, convert the temperature detected by the sensor to the surface temperature of
panel to enter the 3 bit temperature data.
Surface temperature of panel
Pin no.
0-5℃ 5-10℃ 10-15
℃
15-20
℃
20-25
℃
25-30
30-35℃ 35℃ and
℃
above
36 0 0 0 0 1 1 1 1
37 0 0 1 1 0 0 1 1
38 0 1 0 1 0 1 0 1
*0: Low level voltage (GND) 1: High level voltage(3.3V)
*For overlapping temperatures (such as 5℃,10℃,15℃,20℃,25℃, 30℃,35℃) select the optimum parameter,
judging from the actual picture image.
[Note 4]
Pin No. Symbol Function Remark
39 VON
33 V
BRT
Inverter ON／OFF
Brightness Control [Note B]
[Note A]
*GND of an inverter board is connected to GND of a module chassis and a liquid crystal panel drive part.
[Note A] Inverter ON/OFF
Input voltage Function
3.3V Inverter: ON
0V Inverter: OFF
[Note B] Brightness Control
PWM Brightness Control is regulated by analog input voltage (0V to 3.3V) .
Input voltage Function
0V Brightness Control : (Dark :20%)
3.3V Brightness Control : (Bright: 100%)
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
9
Global LCD Panel Exchange Center
4-2. Backlight driving
CN3, CN4, CN5,CN6,CN7,CN8 (Inverter Power input Pin layout)
Using connector: B10B-PH-K-S(LF)( J.S.T. Mfg Co.,Ltd.)
Mating connector: PHR-10(J.S.T. Mfg Co.,Ltd.)
Pin No. Symbol Function
1 V
2 V
3 V
4 V
5 V
24V
INV
24V
INV
24V
INV
24V
INV
24V
INV
6 GND GND
7 GND GND
8 GND GND
9 GND GND
10 GND GND
*GND of an inverter board is connected to GND of a module chassis and a liquid crystal panel drive part.
4-3. The back light system characteristics
The back light system is direct type with 36 CCFTs (Cold Cathode Fluorescent Tube).
The characteristics of the lamp are shown in the following table.
The value mentioned below is at the case of one CCFT.
Item Symbol Min. Typ. Max. Unit Remarks
Life time TL - 60000 - Hour [Note]
[Note]・Lamp life time is defined as the time when brightness becomes 50% of the original value
in the continuous operation under the condition of Ta=25 ℃ and brightness control(V
・Above value is applicable when the long side of LCD module is placed horizontally
(Landscape position).
(Lamp lifetime may vary if LCD module is in portrait position due to the change of
mercury density inside the lamp.)
5. Absolute Maximum Ratings
Parameter Symbol Condition Ratings Unit Remark
Input voltage
(for Control)
12V supply voltage
(for Control)
Input voltage
(for Inverter)
24V supply voltage
(for Inverter)
I
V
VCC
V
BRT
VON
V
INV
www.panelook.com
Ta=25 ℃
Ta=25 ℃
Ta=25 ℃
Ta=25 ℃
=3.3V).
BRT
-0.3 ~ 3.6 V [Note 1]
0 ~ + 14 V
0 ~ + 6 V
0 ~ +27 V
Storage temperature Tstg - -25 ~ +60
Operation temperature
(Ambient)
Topa - 0 ~ +50
℃
℃
[Note 1]SELLVDS, R/L,U/D, Frame1,O/S set, Temp1, Temp2, Temp3
[Note 2]Humidity 95%RH Max.(Ta≦40℃)
Maximum wet-bulb temperature at 39 ℃ or less.(Ta>40 ℃) / No condensation.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
[Note 2]
www.panelook.com
10
Global LCD Panel Exchange Center
6. Electrical Characteristics
6-1. Control circuit driving Ta=25 ℃
Parameter Symbol Min. Typ. Max. Uniit Remark
+12V supply
voltage
Supply voltage Vcc 11.4 12.0 12.6 V [Note 1]
Current
Permissible input ripple
voltage
High VTH - - 100 mV Differential input
threshold voltage
Low V
Input Low voltage VIL - - 0.8 V
Input High voltage VIH 2.0 - 3.3 V
Input leak current (Low) IIL
Input leak current (High) IIH
Terminal resistor RT - 100 -
[Note]VCM: Common mode voltage of LVDS driver.
[Note 1]
Input voltage sequences Dip conditions for supply voltage
0 < t1 ≦ 20ms a) 6.5V
0 < t2 ≦ 20ms td ≦ 10ms
0 < t3 ≦ 1s b) Vcc < 6.5V
0 < t4 ≦ 1s Dip conditions for supply voltage is
t5 ≧ 1s based on input voltage sequence.
t6 ≧ 0
t7 ≧ 1s
www.panelook.com
Icc - 1.20 1.75 A [Note 2]
Iccs 0.3 A [Note 7]
- - 100 mV
V
RP
TL
-100 - - mV
- - 400 μA
- - 400 μA
Vcc < 10.8V
≦
Vcc = +12.0V
P-P
CM
V
[Note 6]
[Note 3]
VI = 0V
[Note 4]
VI = 3.3V
[Note 5]
Differential input
Ω
= +1.2V
0.9Vcc
0.1Vcc
Vcc
t1
t2
Data1
ON
t3
Data2
t5
Back light:V
Data1:ACK±,AIN0±,AIN1±, AIN2±, AIN3±, BCK±,BIN0±,BIN1±, BIN2±, BIN3±
※
Data2:U/D,R/L,SELLVDS,Frame1,O/Sset,Temp1,2,3
※
INV
OFF
t6
t4
t3
0.9Vcc
0.1Vcc
t7
OFF
0.1Vcc
td
V2
Vcc
V1
V1:10.8V
V2:6.5V
About the relation between data input and back light lighting, please base on the above-mentioned input sequence.
When back light is switched on before panel operation or after a panel operation stop, it may not display normally.
But this phenomenon is not based on change of an incoming signal, and does not give damage to a liquid crystal
display.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
11
Global LCD Panel Exchange Center
[Note 2] Maximum current situation: white (RGB GS255)
Typical current situation: 256 gray-bar pattern (Vcc = +12.0V)
The explanation of RGB gray scale is seen in section 8.
RGB
GS1
RGB
GS2
....
RGB
GS0
[Note 3] U/D,R/L, SELLVDS, Frame1,O/S set, Temp1, Temp2, Temp3
[Note 4] SELLVDS
[Note 5] U/D,R/L, Frame1,O/S set, Temp1, Temp2, Temp3
[Note 6] ACK±,AIN0±,AIN1±, AIN2±, AIN3±, BCK±,BIN0±,BIN1±, BIN2±, BIN3±
[Note 7] The minimum current value is a value when inputting only voltage (Vcc＝+12V)
and cutting an incoming signal (CK,ENAB,DATA).
RGB
GS254
www.panelook.com
RGB
GS255
CK＝74.25MHz
Th＝14.8μs
Vcc＝12.0V
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
12
www.panelook.com
Global LCD Panel Exchange Center
6-2. Inverter driving for back light
The back light system is
direct type
Parameter Symbol Min. Typ. Max. Unit Remark
Current dissipation
24V
＋
Supply voltage V
Permissible input ripple
voltage
Input voltage (Low) V
Input voltage (High) V
Brightness control voltage
vs
Brightness level
(Reference value)
Note 1】1)V
【
INV
-turn-on condition
www.panelook.com
with 36 CCFTs (Cold Cathode Fluorescent Tube). Ta=25℃
INV
V
INV 1
I
- 19.8 21.9 A
INV 2
- 17.0 18.7 A
I
23.0 24.0 25.0 V
INV
RF
- - 200 mV
V
0 - 1.0 V
ONL
3.0 - 5.0 V
ONH
0
→
3.3 V
20
→
100 %
V
p-p
impedance=(3.5kΩ)
impedance=(45kΩ)
= 24V
V
BRT
= 3.3V,
V
=3.3V
ON
Note 1,3】
【
INV
= +24V
Vo n【Note 1】
Note 2】
【
INV
0.9V
0.1V
V
INV
INV
T1＞100Ps
≧
T2
1ms
T1 T2
V
ON,VBRT
0V
0.1V
ON
-turn-off condition
INV
2) V
V
ON,VBRT
t1≧1ms
t1
1.0V
V
INV
Note 2】V
【
Note 3】Current dissipation 1 : The regulation value within 120 minutes after the turning on.
【
BRT
0V
0.9V
INV
0V
(*It doesn't include Rush current.)
Current dissipation 2 : The regulation value since then of 120 minutes after the turning on.
Note】 The inverter unit is driving at the following drive frequency.
【
*The lamp drive frequency: 36kHz +/- 1kHz
*The burst Brightness control drive frequency: 165Hz +/-10 Hz
The above drive frequency and the module drive frequency are cause and there is possibility that the
backlight display problem occurs. When setting the drive frequency of the module, the interference with
the above frequency make not occur.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
13
www.panelook.com
Global LCD Panel Exchange Center
7. Timing characteristics of input signals
7-1. Timing characteristics
Timing diagrams of input signal are shown in Fig.2.
60Hz-mode
Parameter Symbol Min. Typ. Max. Unit Remark
Clock Frequency 1/Tc 55 74.25 80 MHz
Horizontal period TH
Data enable
signal
Horizontal period (High) THd 960 960 960 clock
Horizontal period(Low) TH-THd 1.80 1.87 - μs
Vertical period TV 1096 1125 1350 line
Vertical period (High) TVd 1080 1080 1080 line
Note】When vertical period is very long, flicker and etc. may occur.
【
Please turn off the module after it shows the black screen.
Please make sure that length of vertical period should become of an integral
multiple of horizontal length of period. Otherwise, the screen may not display properly.
DE
Aport DATA
1919
(R,G,B)
Bport DATA
(R,G,B)
Tc
DE
www.panelook.com
984 1100 1650 clock
14.8 14.8 - μs
TH
THd
1
2
TV
3
41920 1920
1 2 1080
Fig.2 Timing characteristics of input signals
1919
1079
TVd
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
14
www.panelook.com
Global LCD Panel Exchange Center
7-2. Input data signal and display position on the screen
R1 G1 B1 R2 G2 B2
(１,１) (１,２)
www.panelook.com
１・１ １・２ １・３
２・１ ２・２
３・１
1080･1
R G B
Display position of Dat (V,H)
1･1920
1080･1920
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
15
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
8. Input Signal, Basic Display Colors and Gray Scale of Each Color
Colors &
Gray scale
R0 R1 R2 R3 R4 R5 R6 R7 G0 G1 G2 G3 G4 G5 G6 G7 B0 B1 B2 B3 B4 B5 B6 B7
Gray
Scale
Data signal
Black
Blue
Green
Cyan
Red
Basic Color
Magenta
Yellow
White
Black GS0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
GS1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
×
Darker GS2 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
×
Ø
Brighter GS253 1 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Gray Scale of Red
GS254 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Ø
Red GS255 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Black GS0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
GS1 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
×
Darker GS2 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0
×
Ø
Brighter GS253 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1 0 0 0 0 0 0 0 0
Gray Scale of Green
GS254 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
Ø
Green GS255 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
−
0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
−
0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
−
0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
−
1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
−
1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
−
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 0 0 0 0 0 0 0 0
−
1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1
−
È
È
È
È
È
È
È
È
È
È
È
È
È
È
È
È
Black GS0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0
GS1 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 0
×
Darker GS2 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 0 0 0 0 0
×
Ø
Brighter GS253 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 0 1 1 1 1 1 1
È
È
È
È
È
È
Gray Scale of Blue
GS254 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1
Ø
Blue GS255 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 1 1 1 1 1 1 1 1
0 : Low level voltage, 1 : High level voltage.
Each basic color can be displayed in 256 gray scales from 8 bit data signals. According to the combination of total
24 bit data signals, the 16-million-color display can be achieved on the screen.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
È
È
16
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
9. Optical characteristics
Ta=25℃, Vcc = 12.0V, V
= 24.0V ,60Hz-mode
INV
Parameter Symbol Condition Min. Typ. Max. Unit Remark
21
θ
θ
θ
θ
τ
τ
22
11
12
r1
d1
x
y
x
y
x
y
x
y
80 88 - Deg.
CR≧10
80 88 -
1000 2000 -
6 ms
0.257 0.287 0.317
0.265 0.295 0.325
0.619 0.649 0.679
=0 deg.
θ
0.308 0.338 0.368
0.251 0.281 0.311
0.580 0.610 0.640
0.111 0.141 0.171
0.045 0.075 0.105
Viewing angle
range
Contrast ratio CRn
Response time
Luminance of white
Luminance of red
Luminance of green
Luminance of blue
Horizontal
Vertical
Luminance of white YL1 360 450 cd/m2
Luminance uniformity
δ
Ｗ
Measurement condition : Set the value of V
to maximum luminance of white.
BRT
- - 1.25 [Note 6]
*The measurement shall be executed 120 minutes after lighting at rating.
Note】The optical characteristics are measured using the following equipment.
【
Deg.
-
-
-
-
-
-
-
-
[Note1,4]
[Note2,4]
V
=3.3V
BRT
[Note3,4,5]
V
=3.3V
BRT
[Note 4]
V
=3.3V
BRT
=3.3V
BRT
V
[Note 4]
Detector（EZ-CONTRAST）
Middle of the screen (
θ＝0°
)
TFT-LCD Module
Fig.4-1 Measurement of viewing angle range.
Detector（SR-3, BM-5A
400mm
Field=1°
Middle of the screen (
θ＝0°
)
TFT-LCD Module
Fig.4-2 Measurement of Contrast, Luminance,
Chromaticity and Response time.
(Contrast, Luminance and Chromaticity: SR-3,
Response time: BM-5A).
）
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
17
Global LCD Panel Exchange Center
[Note 1]Definitions of viewing angle range :
[Note 2]Definition of contrast ratio :
The contrast ratio is defined as the following.
Luminance (brightness) with all pixels white
Contrast Ratio
Luminance (brightness) with all pixels black
[Note 3]Definition of response time
3-1. Response time
The response time (Wd1 and Wr1) is defined as the following figure and shall be measured by switching the
input signal for “five luminance ratio(0%, 25%, 50%, 75%, 100%)” and “five luminance ratio(0%, 25%, 50%,
75%, 100%)”.
0% 25% 50% 75% 100%
0%
25%
50%
75%
100%
tr:0%-25% tr:0%-50% tr:0%-75% tr:0%-100%
td:25%-0% tr:25%-50% tr:25%-75% tr:25%-100%
td:50%-0% td:50%-25% tr:50%-75% tr:50%-100%
td:75%-0% td:75%-25% td:75%-50% tr:75%-100%
td:100%-0% td:100%-25% td:100%-50% td:100%-75%
t*:x-y...response time from level of gray(x) to level of gray(y)
Wr1 = 6(tr:x-y)/10 , Wd1 = 6(td:x-y)/10
[Note 4]This shall be measured at center of the screen.
[Note 5] Response time is the value when O/S driving is used at typical input time value .
[Note 6]Definition of white uniformity ;
White uniformity is defined as the following with five measurements. (A〜E)
Maximum luminance of five points (brightness)
Ｗ
＝
δ
Minimum luminance of five points (brightness)
θ
＝
www.panelook.com
Normal
11
θ
θ
6 o’clock direction
θ
480
A
B
㩷
㩷
960 1440
㩷
D
㩷
C
E
㩷
pixel
270
540
810
pixel
㩷
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
18
www.panelook.com
Global LCD Panel Exchange Center
10. Handling Precautions of the module
a) Be sure to turn off the power supply when inserting or disconnecting the cable.
b) This product is using the parts (inverter, CCFT etc), which generate the high voltage.
Therefore, during operating, please don't touch these parts.
c) Brightness control voltage is switched for “ON” and “OFF”, as shown in Fig.4. Voltage difference generated
by this switching, ΔV
INV,
inverter and its surrounding circuit. So, separate the power supply of the inverter circuit with the one of its
surrounding circuit.
www.panelook.com
may affect a sound output, etc. when the power supply is shared between the
㩷
V
INV
㩷
I
INV
PWM control
signal㩷
㰱V
0V㩷
0A㩷
ON㩷 ON㩷OFF㩷
0V㩷
INV
㩷
Fig.4 Brightness control voltage.
*Since inverter board’s GND is not connected to the frame of the LCD module, please connect it with the
Customer’s GND of inverter power supply.
d) Be sure to design the cabinet so that the module can be installed without any extra stress such as warp or
twist.
e) Since the front polarizer is easily damaged, pay attention not to scratch it.
f) Since long contact with water may cause discoloration or spots, wipe off water drop immediately.
g) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
h) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface. Handle with
care.
i) Since CMOS LSI is used in this module, take care of static electricity and take the human earth into
consideration when handling.
j) The module has some printed circuit boards (PCBs) on the back side, take care to keep them form any stress
or pressure when handling or installing the module; otherwise some of electronic parts on the PCBs may be
damaged.
k) Observe all other precautionary requirements in handling components.
l) When some pressure is added onto the module from rear side constantly, it causes display non-uniformity
issue, functional defect, etc.. So, please avoid such design.
m) When giving a touch to the panel at power on supply, it may cause some kinds of degradation. In that case,
once turn off the power supply, and turn on after several seconds again, and that is disappear.
n) When handling LCD modules and assembling them into cabinets, please be noted that long-term storage in
the environment of oxidization or deoxidization gas and the use of such materials as reagent, solvent,
adhesive, resin, etc. which generate these gasses, may cause corrosion and discoloration of the LCD
modules.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
19
Global LCD Panel Exchange Center
o) Lamps of the backlight are placed horizontally to the short side of LCD module. So make sure that the LCD
module are placed horizontally (landscape position), as lifetime of backlight becomes shorter if placed at
atilt.
p) Make sure that the LCD module is operated within specified temperature and humidity.Measures against dust,
water, vibration, and heat radiation, etc. are required at the cabinet or equipment side.And image retention
may occur if same fixed pattern is displayed for a long time. In some cases, it may notdisappear.
Please consider the design and operating environment
11. Packing form
a) Piling number of cartons: 2 maximum
b) Packing quantity in one carton: 4 pcs.
c) Carton size: 1100 (W) × 650 (D) × 100(H)
d) Total mass of one carton filled with full modules: 38kg(typ)
e) Packing Form are shown in Fig. 5
12. Reliability test item
No. Test item Condition
1
2
3
4
5
High temperature storage test
Low temperature storage test
High temperature and high humidity
operation test
High temperature operation test
Low temperature operation test
Vibration test
6
7
8
Result evaluation criteria】
【
(non-operation)
Shock test
(non-operation)
ESD
Under the display quality test condition with normal operation state, there shall be no change, which may
affect practical display function.
www.panelook.com
Ta=60
℃
Ta=-25
℃
Ta=40℃ ; 95%RH 240h
(No condensation)
Ta=50
℃
Ta=0
Frequency: 10~57Hz/Vibration width (one side): 0.075mm
: 58~500Hz/Acceleration: 9.8 m/s
Sweep time: 11 minutes
Test period: 3 hours (1h for each direction of X, Y, Z)
Maximum acceleration: 490m/s
Pulse width: 11ms, sinusoidal half wave
Direction: +/-X, +/-Y, +/-Z, once for each direction.
At the following conditions, it is a thing without incorrect
operation and destruction.
(1)Non-operation: Contact electric discharge +/-10kV
(2)Operation Contact electric discharge +/-8kV
240h
℃
Conditions: 150pF、330ohm
240h
240h
240h
2
2
Non-contact electric discharge+/-20kV
Non-contact electric discharge +/-15kV
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
20
www.panelook.com
Global LCD Panel Exchange Center
SHARP
（４Ｓ）
L
420D3LZ19
13. Others
1)Lot No. Label
The label that displays SHARP,product model(LQ420D3LZ19),a product number is stuck on the back of the
module.
S
*R1LQ420D3LZ19_73K00001*
www.panelook.com
Model No.
LQ420D3LZ19
Barcode
Lot No.
A production year(the last figures of the Christian Era)
How to express Lot No.
○ ○ ○ ○ ○ ○ ○ ○
Serial No.
A production month (1-9, X,Y, Z)
Management No.
2) Packing Label
␠ౝຠ⇟㧦
㧸㨛㨠㧺㧻㧚 㧦
Barcode
（１Ｔ）
2007
．*．**（②）
Management No. (LQ420D3LZ19)
①
Lot No. (Date)
②
Barcode
Quantity
③
㧽㨡㨍㨚㨠㨕㨠㨥㧦
Barcode
࡙ࠩຠ⇟ 㧦
＊＊＊＊＊
シャープ物流用ラベルです。
（Ｑ）
4
ｐｃｓ（③）
3) Adjusting volume have been set optimally before shipment, so do not change any adjusted value.
If adjusted value is changed, the specification may not be satisfied.
4) Disassembling the module can cause permanent damage and should be strictly avoided.
5) Please be careful since image retention may occur when a fixed pattern is displayed for a long time.
6) Cold cathode fluorescent lamp in LCD PANEL contains a small amount of mercury. Please follow local
ordinances or regulations for disposal. It is displaying the label in the module back.
COLD CATHODE FLUORESCENT LAMP IN LCD PANEL
CONTAINS A SMALL AMOUNT OF MERCURY,PLEASE FOLLOW
LOCAL ORDINANCES OR REGULATION FOR DISPOSAL
当該液晶ディスプレイパネルは蛍光管が組み込まれていますので、地方自
冶体の条例、または、規則に従って廃棄ください。
Lead-free soldering is applied.
7)
8) The chemical compound, which causes the destruction of ozone layer, is not being used.
9) Appearance quality and standard are referred to the outgoing incoming inspections.
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
21
www.panelook.com
Global LCD Panel Exchange Center
14. Carton storage condition
Temperature 0
Humidity 95%RH or less
Reference condition : 20
Sunlight Be sure to shelter a product from the direct sunlight.
Atmosphere Harmful gas, such as acid and alkali which bites electronic components and/or
wires must not be detected.
Notes Be sure to put cartons on palette or base, don’t put it on floor, and store them with
removing from wall
Please take care of ventilation in storehouse and around cartons, and control
changing temperature is within limits of natural environment
Storage life 1 year
℃
: 5
www.panelook.com
to 40℃
to 35℃ , 85%RH or less (summer)
℃
to 15℃ , 85%RH or less (winter)
℃
the total storage time (40℃,95%RH) : 240h or less
・
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
22
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
www.panelook.com
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Global LCD Panel Exchange Center
Data Modul Headquarters Munich
Landsberger-Str. 322
D-80687 Munich - Germany
Tel.: +49-89-56017-0
Sales Office Duesseldorf
Fritz-Vomfelde-Str. 8
D-40547 Duesseldorf - Germany
Tel.: +49-211-52709-0
Sales Office Hamburg
Borsteler Chaussee 51
D-22453 Hamburg - Germany
Tel.: +49-40-42947377 - 0
www.panelook.com
Sales Office Stuttgart
Friedrich-List-Str. 42
D-70771 Leinfelden-Echterdingen
Germany
Tel.: +49-711-782385-0
Data Modul France, S.A.R.L.
Bat B - Hall 204
1-3 Rue des Campanules
77185 Lognes - France
Tel.: +33-1-60378100
Data Modul Italia, S.r.l.
Regus Center Senigallia
Via Senigallia 18/2
20161 Milano - Italy
Tel.: +39-02-64672-509
Data Modul Iberia, S.L.
c/ Adolfo Pérez Esquivel 3
Edificio Las Americas III Oficiana 40
28230 Parque Empresarial
Madrid Las Rozas - Spain
Tel.: +34-916 366 458
Data Modul Ltd. / UK
3 Brindley Place
Birmingham B 12JB
United Kingdom
Tel.: +44-121-698-8641
One step solution for LCD / PDP / OLED panel application: Datasheet, inventory and accessory!
www.panelook.com
Loading...
