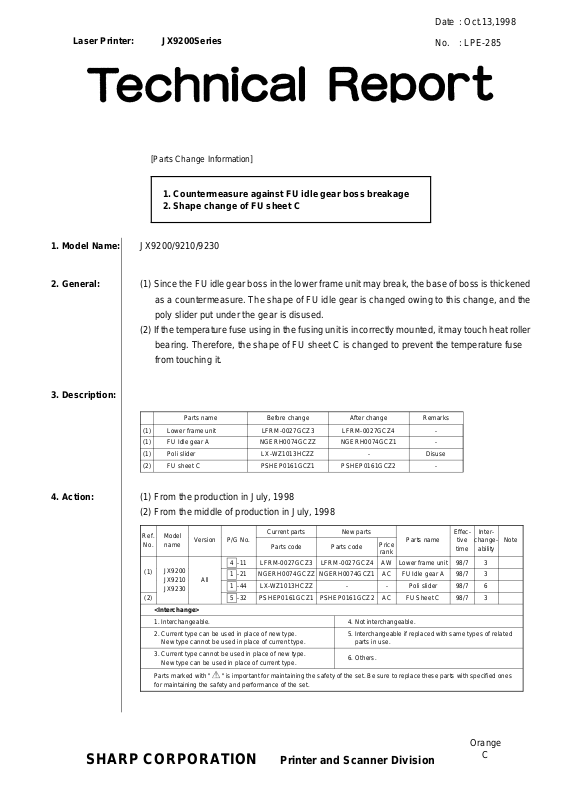

SHARP LPE285 Technical Report
Date : Oct.13,1998
Laser Printer: JX9200Series
No. : LPE-285
[Parts Change Information]
1. Countermeasure against FU idle gear boss breakage
2. Shape change of FU sheet C
1. Model Name: JX9200/9210/9230
2. General: (1) Since the FU idle gear boss in the lower frame unit may break, the base of boss is thickened
as a countermeasure. The shape of FU idle gear is changed owing to this change, and the
poly slider put under the gear is disused.
(2) If the temperature fuse using in the fusing unit is incorrectly mounted, it may touch heat roller
bearing. Therefore, the shape of FU sheet C is changed to prevent the temperature fuse
from touching it.
3. Description:
Parts name Before change After change Remarks
(1) Lower frame unit LFRM-0027GCZ3 LFRM-0027GCZ4 (1) FU Idle gear A NGERH0074GCZZ NGERH0074GCZ1 (1) Poli slider LX-WZ1013HCZZ - Disuse
(2) FU sheet C PSHEP0161GCZ1 PSHEP0161GCZ2 -
4. Action: (1) From the production in July, 1998
(2) From the middle of production in July, 1998
Ref.
Model
No.
name
JX9200
(1)
JX9210
JX9230
(2) 5 -32 PSHEP0161GCZ1 PSHEP0161GCZ2 AC FU Sheet C 98/7 3
<Interchange>
1. Interchangeable. 4. Not interchangeable.
2. Current type can be used in place of new type.
New type cannot be used in place of current type.
3. Current type cannot be used in place of new type.
New type can be used in place of current type.
Parts marked with " " is important for maintaining the safety of the set. Be sure to replace these parts with specified ones
for maintaining the safety and performance of the set.
Version P/G No.
4 -11 LFRM-0027GCZ3 LFRM-0027GCZ4 AW Lower frame unit 98/7 3
All
1 -21 NGERH0074GCZZ NGERH0074GCZ1 AC FU Idle gear A 98/7 3
1 -44 LX-WZ1013HCZZ - - Poli slider 98/7 6
Current parts New parts
Parts code Parts code
Effec-
Parts name
Price
rank
5. Interchangeable if replaced with same types of related
parts in use.
6. Others.
tive
time
Inter-
change-
ability
Note
SHARP CORPORATION Printer and Scanner Division
Orange
C
