SHARP LPE231 Technical Report

LASER PRINTER: JX-9680

Date

:

Feb. 20, 1996

(A change in parts)

No. : LPE-231

A CHANGE TO THE SCREWS FOR THE
CS PWB DRIVE FRAME UNIT

1.Model name: JX-9400/H, 9460/PS, 9600/PS, 9660/PS, 9680

2.General: We are changing the screws used for the CS PWB drive frame unit to eliminate

problems with noise.

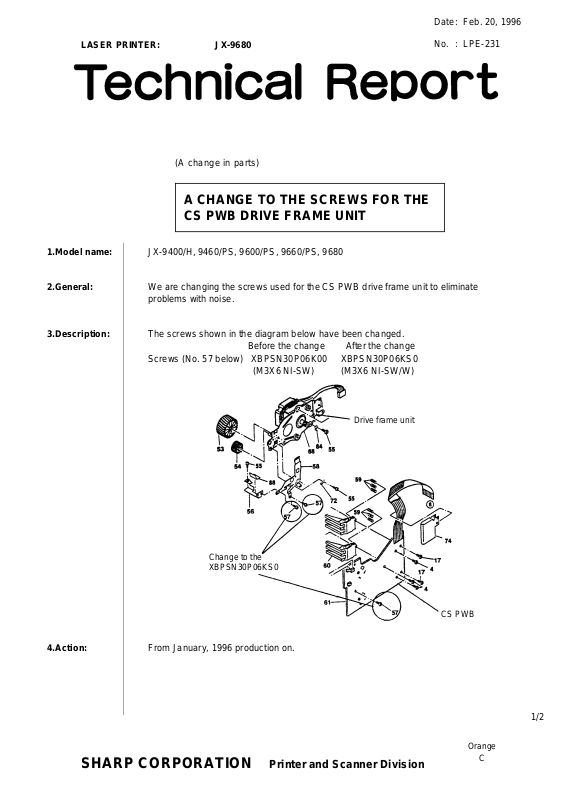

3.Description: The screws shown in the diagram below have been changed.

Before the change After the change
Screws (No. 57 below) XBPSN30P06K00 XBPSN30P06KS0
(M3X6 NI-SW) (M3X6 NI-SW/W)

Drive frame unit

Change to the
XBPSN30P06KS0

4.Action: From January, 1996 production on.

SHARP CORPORATION Printer and Scanner Division

CS PWB

1/2

Orange

C

Ref.

Model

No.

JX-9400/

<Interchange>

1. Interchangeable. 4. Not interchangeable.

2. Current type can be used in place of new type.

3. Current type cannot be used in place of new type.

Parts marked with ‘‘ ’’ is important for maintaining the safety of the set. Be sure to replace these parts with

specified ones for maintaining the safety and performance of the set.

Version P/G No.

name

9600

series

New type cannot be used in place of current type.

New type can be used in place of current type.

All 2 -57 XBPSN30P06K00 XBPSN30P06KS0 AA Screw(M3X6KS) 96/1 3

Current parts New parts

Parts code Parts code

5. Interchangeable if replaced with same types of
related parts in use.

6. Others.

Price

rank

Parts name

Effec-

tive

time

Inter-

change-

ability

Note

2/2
