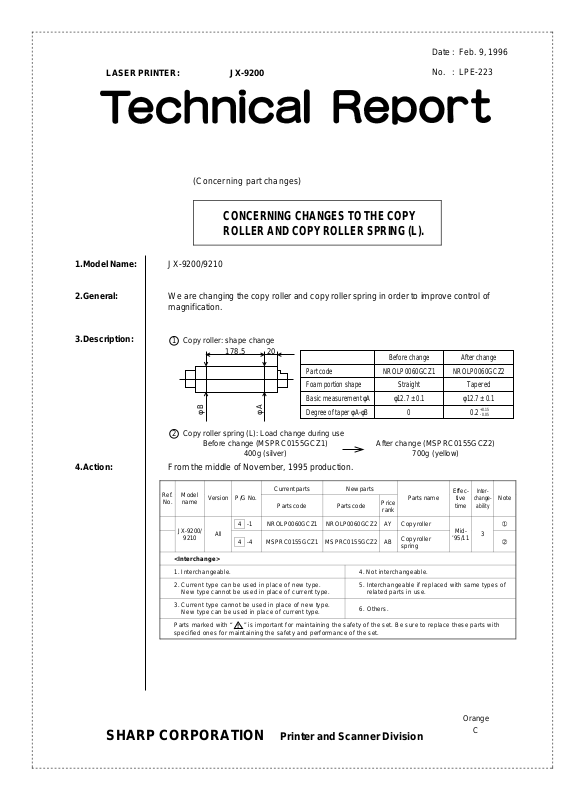

SHARP LPE223 Technical Report

Date: Feb. 9, 1996

LASER PRINTER: JX-9200

No. : LPE-223

(Concerning part changes)

CONCERNING CHANGES TO THE COPY
ROLLER AND COPY ROLLER SPRING (L).

1.Model Name: JX-9200/9210

2.General: We are changing the copy roller and copy roller spring in order to improve control of

magnification.

3.Description:

1 Copy roller: shape change

178.5 20

Part code
Foam portion shape
Basic measurement φA

φ B

φ A

Degree of taper φA-φB

2 Copy roller spring (L): Load change during use

Before change (MSPRC0155GCZ1)

400g (silver)

4.Action: From the middle of November, 1995 production.

Ref.

Model

No.

JX-9200/

<Interchange>

1. Interchangeable. 4. Not interchangeable.

2. C urr e nt t y pe c a n be u s ed i n p lac e of n ew type.
New ty pe cann ot be us ed i n place of curr ent type .

3. C urre nt ty pe cann ot be used i n place of new ty pe.
New t y pe c a n be u sed in p la c e of c u rr en t ty p e.

Parts marked with “ ” is important for maintaining the safety of the set. Be sure to replace these parts with

specified ones for maintaining the safety and performance of the set.

name

9210

Version P/G No.

4 -1 NROLP0060GCZ1 NROLP0060GCZ2 AY Copy roller

All

4 -4 MSPRC0155GCZ1 MSPRC0155GCZ2 AB

!

Current parts New parts

Parts code Parts code

Before change

NROLP0060GCZ1

Straight

φ12.7 ± 0.1

0

After change

NROLP0060GCZ2

Tapered

φ12.7 ± 0.1

+0.15

0.2

-

0.05

After change (MSPRC0155GCZ2)

700g (yellow)

Effec-

Price

5. Interchangeable if replaced with same types of
relate d parts in use .

6. Others .

Parts name

rank

Copy roller
spring

tive

time

Mid-

’95/11

Inter-

change-

ability

3

Note

➀

➁

SHARP CORPORATION Printer and Scanner Division
