SHARP LL-T18A1 User Manual [en, de, fr, es]

LCD Monitor LCD Farbmonitor Moniteur LCD Monitor LCD Monitor LCD

LL-T18A1

OPERATION MANUAL BEDIENUNGSANLEITUNG MODE D'EMPLOI MANUALE D'USO MANUAL DE FUNCIONAMIENTO

Table of Contents / Inhaltsverzeichnis / Table des matières / Indice / Índice

Notice for Users in Europe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Notice for Users in the UK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Notice for Users in Australia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Notice for Users in the USA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

TCO'95 / TCO'99 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Deutsch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Italiano . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Español . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

EnglishDeutschFrançaisItalianoEspañolEnglish

Notice for Users in Europe

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/EEC.

Dieses Gerät entspricht den Anforderungen der EG-Richtlinien 89/336/EWG und 73/23/EWG mit Änderung 93/68/EWG.

Ce matériel répond aux exigences contenues dans les directives 89/336/CEE et 73/23/CEE modifiées par la directive 93/68/CEE.

Dit apparaat voldoet aan de eisen van de richtlijnen 89/336/EEG en 73/23/EEG, gewijzigd door 93/68/ EEG.

Dette udstyr overholder kravene i direktiv nr. 89/336/EEC og 73/23/EEC med tillæg nr. 93/68/EEC.

Quest' apparecchio è conforme ai requisiti delle direttive 89/336/EEC e 73/23/EEC, come emendata dalla direttiva 93/68/EEC.

Η εγκατασταση ανταποκρινεται στιζ απαιτησειζ των οδηγιων τηζ Ευρωπαïκηζ Ενωσηζ 89/336/ΕΟΚ κατ 73/23/ΕΟΚ, óπωζ οι κανονισµοι αυτοι συµπληρωθηκαν απó την οδηγια 93/68/ΕΟΚ.

Este equipamento obedece às exigências das directivas 89/336/CEE e 73/23/CEE, na sua versão corrigida pela directiva 93/68/CEE.

Este aparato satisface las exigencias de las Directivas 89/336/CEE y 73/23/CEE, modificadas por medio de la 93/68/CEE.

Denna utrustning uppfyller kraven enligt riktlinjerna 89/336/EEC och 73/23/EEC så som komplette ras av 93/68/EEC.

Dette produktet oppfyller betingelsene i direktivene 89/336/EEC og 73/23/EEC i endringen 93/68/EEC.

Tämä laite täyttää direktiivien 89/336/EEC ja 73/23/EEC vaatimukset, joita on muutettu direktiivillä 93/ 68/EEC.

CAUTION :

TO PREVENT ELECTRICAL SHOCK, DISCONNECT THE AC CORD BEFORE SERVICING.

CAUTION :

FOR A COMPLETE ELECTRICAL DISCONNECTION, PULL OUT THE MAIN PLUG.

VORSICHT :

UM DIE STROMZUFUHR VOLLSTÄNDIG ZU UNTERBRECHEN, DEN NETZSTECKER HERAUSZIEHEN ENTFERNEN.

ATTENTION :

POUR UN ARRET TOTAL DE L'APPAREIL, DEBRANCHEZ LA PRISE DU COURANT SECTEUR.

VARNING :

FÖR TOTAL ELEKTRISK URKOPPLING, KOPPLA UR KONTAKTEN OCH.

PRECAUCION :

PARA UNA COMPLETA DESCONEXION ELECTRICA DESENCHUFE LA CLAVIJA DE LA RED.

PRECAUCION :

A FIN DE EVITAR DESCARGAS ELÉCTRICAS, DESCONECTE EL ENCHUFE DE LA RED ANTES DE REALIZAR CUALQUIER OPERACIÓN DE SERVICIO.

ATTENZIONE:

PER EVITARE FOLGORAZIONI, SCOLLEGATE IL CAVO DI COLLEGAMENTO ALLA RETE IN ALTERNATA PRIMA DI EFFETTUARE UN INTERVENTO DI SERVIZIO TECNICO.

ATTENZIONE:

PER UNO SCOLLEGAMENTO ELETTRICO COMPLETO, TIRATE FUORI LA SPINA PRINCIPALE.

Notice for Users in the UK

FOR CUSTOMERS IN U.K.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code :

GREEN-AND-YELLOW : Earth BLUE : Neutral BROWN : Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug proceed as follows:

• The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug which is marked by the letter E or by the safety earth or coloured green or green-and-yellow.

• The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

• The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

Ensure that your equipment is connected correctly. If you are in any doubt consult a qualified electrician.

"WARNING: THIS APPARATUS MUST BE EARTHED."

Notice for Users in Australia

Service Inquiries

Please contact your dealer for service if required or contact Sharp Corporation of Australia on 1 300 13 50 22 for referral to your nearest Sharp authorized Service Center.

EnglishDeutschFrançaisItalianoEspañolEnglish

Notice for Users in the USA

FCC Statement

WARNING – FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device

pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the distance between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

Use nothing but the included cables and AC cord to insure compliance with FCC regulation for Class B computing equipment.

Declaration of Conformity

SHARP LCD Color Monitor LL-T18A1-H / LL-T18A1-B

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Responsible Party : SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430 TEL :1-800-BE-SHARP

* As an ENERGY STAR Partner, SHARP has determined that this product meets the ENERGY STAR

guidelines for energy efficiency.

This product utilizes tin-lead solder, and fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronics Industries Alliance:www.eiae.org

LL-T18A1-B LL-T18A1-H

Congratulations!

You have just purchased a TCO'95 or TCO'99 approved and labelled product! Your choice has provided you with a product developed for professional use. Your purchase has also contributed to reducing the burden on the environment and also to the further development of environmentally adapted electronics products. This product meets the requirements for the TCO'95 or TCO'99 scheme which provides for an international environmental and quality labelling of personal computers. The labelling scheme was developed as a joint effort by the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation), Statens Energimyndighet (The Swedish National Energy Administration) and SEMKO AB. The requirements cover a wide range of issues: environment, ergonomics, usability, reduction of electric and magnetic fields, energy consumption and electrical safety.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the adaptation of goods and services to the environment. The main problem, as far as computers and other electronics equipment are concerned, is that environmentally harmful substances are used both in the products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority of electronics equipment, most of these potentially damaging substances sooner or later enter nature. There are also other characteristics of a computer, such as energy consumption levels, that are important from the viewpoints of both the work (internal) and natural (external) environments. Since all methods of electricity generation have a negative effect on the environment (e.g. acidic and climate-influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is often left running continuously and thereby consumes a lot of energy.

What does the environmenal labelling involve?

The environmental demands has been developed by Svenska Naturskyddsforeningen (The Swedish Society for Nature Conservation). These demands impose restrictions on the presence and use of heavy metals, brominated and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The product must be prepared for recycling and the manufacturer is obliged to have an environmental policy which must be adhered to in each country where the company implements its operational policy. The energy requirements include a demand that the computer and/or display, after a certain period of inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time to reactivate the computer shall be reasonable for the user.

Below you will find a brief summary of the environmental requirements met by this product. The complete environmental criteria document may be ordered from:

TCO Development

SE-114 94 Stockholm, Sweden Fax: +46 8 782 92 07 Email (Internet): development@tco.se Current information regarding TCO'99 approved and labelled products may also be obtained via the Internet, using the address: http://www.tco-info.com/

Environmental requirements

Flame retardants Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health effects, including reproductive damage in fisheating birds and mammals, due to the bio-accumulative * processes. Flame retardants have been found in human blood and researchers fear that disturbances in foetus development may occur. The relevant TCO'95 and TCO'99 demand require that plastic components weighing more than 25 grams must not contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the printed circuit boards since no substitutes are available.

Cadmium ** Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer displays. Cadmium damages the nervous system and is toxic in high doses. TCO'95 requirement states that batteries may not contain more than 25 ppm (parts per million) of cadmium. The colour-generating layers of display screens must not contain any cadmium. The relevant TCO'99 requirement states that batteries, the colour-generating layers of display screens and the electrical or electronics components must not contain any cadmium.

Mercury ** Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is toxic in high doses. TCO'95 requirement states that batteries may not contain more than 25 ppm (parts per million) of mercury. The relevant TCO'99 requirement states that batteries may not contain any mercury. Both TCO'95 and TCO'99 also demand that mercury is not present in any of the electrical or electronics components associated with the labelled unit. There is however one exception. Mercury is, for the time being, permitted in the back light system of flat panel monitors as there today is no commercially available alternative. TCO aims on removing this exception when a mercury free alternative is available.

CFCs (freons) The relevant TCO'95 and TCO'99 requirement state that neither CFCs nor HCFCs may be used during the manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant melanoma) as a consequence.

Lead ** Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous system and in higher doses, causes lead poisoning. The relevant TCO'95 and TCO'99 requirement permit the inclusion of lead since no replacement has yet been developed.

* Bio-accumulative is defined as substances which

accumulate within living organisms.

** Lead, Cadmium and Mercury are heavy metals which are

Bio-accumulative.

EnglishDeutschFrançaisItalianoEspañolEnglish

Tips and safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Product description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Connecting the monitor and turning the monitor on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Connecting the monitor to a computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Connecting the monitor to a power source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Turning the power on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Changing between input terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Turning the power off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Adjusting the screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Resetting all adjustment values . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Adjustment lock function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Adjusting the backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Adjusting the screen display (When using an analog signal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Automatic screen adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

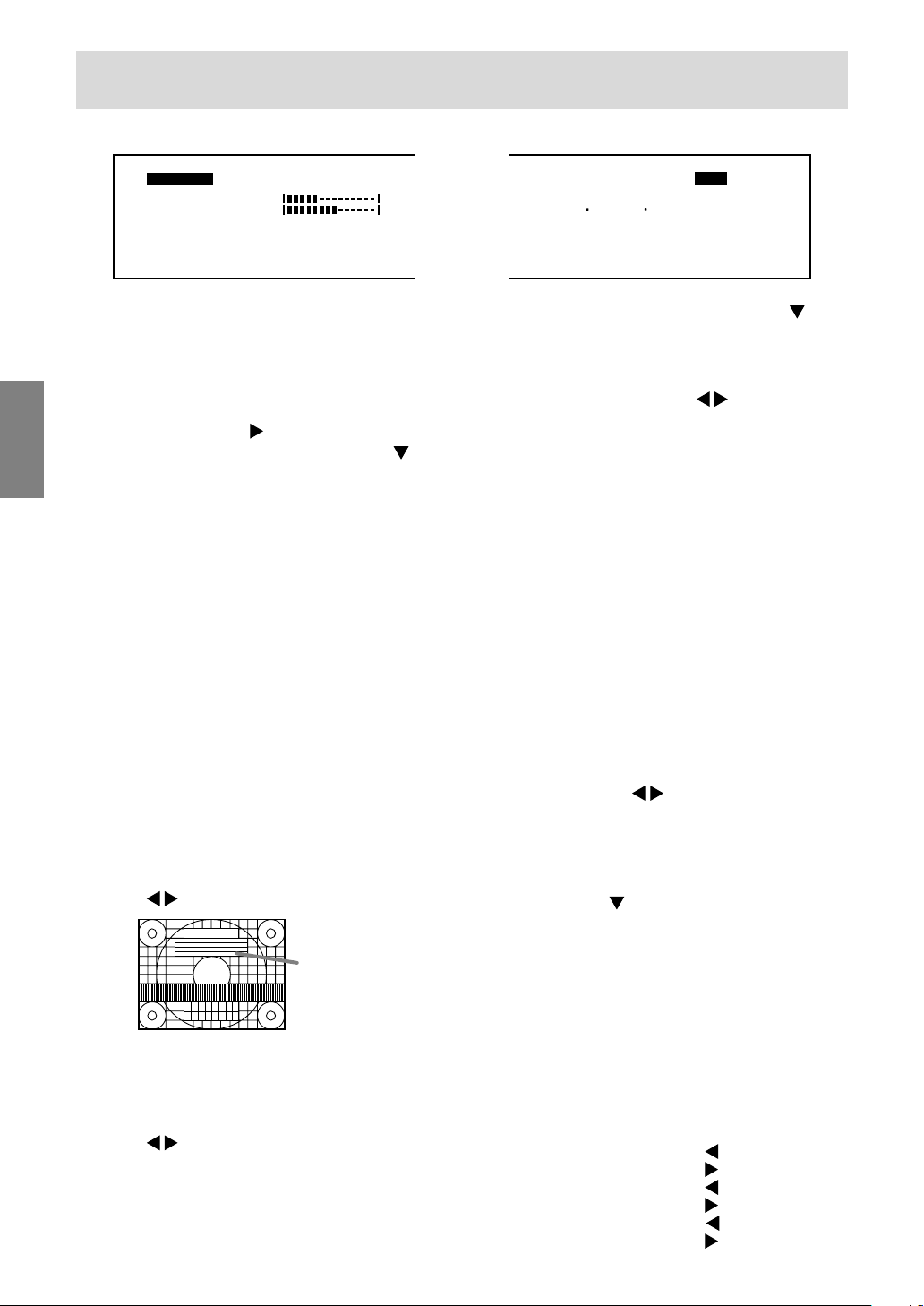

Manual screen adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Adjusting the screen display (When using a digital signal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Monitor care and repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Monitor care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Installing set-up information and the ICC profile (For Windows) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Information about the ColorSync profile (For MacOS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Instructions for attaching a VESA compliant arm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Table of Contents

Tips and safety precautions

- The TFT color LCD panel used in this monitor is made

with the application of high precision technology. However, there may be minute points on the screen where pixels never light or are permanently lit. Also, if the screen is viewed from an acute angle there may be uneven colors or brightness. Please note that these are not malfunctions but common phenomena of LCDs and will not affect the performance of the monitor.

- Do not leave the screen displaying idly for long periods

of time, as this could cause afterimage to remain.

- If the brightness is adjusted to the minimum setting it

may be difficult to see the screen.

- The quality of the computer signal may influence the

quality of the display. We recommend using a computer able to emit high quality video signals.

- Never rub or tap the monitor with hard objects.

- Please understand that Sharp Corporation bears no

responsibility for errors made during use by the customer or a third party, nor for any other malfunctions or damage to this product arising during use, except where indemnity liability is recognized under law.

- This monitor and its accessories may be upgraded

without advance notice.

Location

- Do not use the monitor where ventilation is poor, where

there is a lot of dust, where humidity is high, or where the monitor may come into contact with oil or steam, as this could lead to fire.

- Ensure that the monitor does not come into contact

with water or other fluids. Ensure that no objects such as paper clips or pins enter the monitor as this could lead to fire or electric shock.

- Do not place the monitor on top of unstable objects or

in unsafe places. Do not allow the monitor to come into contact with strong shocks or vibrations. Causing the monitor to fall or topple over may damage it.

- Do not use in places where the monitor will be subject

to direct sunlight, near heating equipment or anywhere else where there is likelihood of high temperature, as this may lead to generation of excessive heat and outbreak of fire.

The Power Cord

- Do not damage the power cord nor place heavy

objects on it, stretch it or overly bend it. Also, do not add extension cords. Damage to the cord may result in fire or electric shock.

- Use only the power cord supplied with the monitor.

- Insert the power plug directly into the AC outlet. Adding

an extension cord may lead to fire as a result of overheating.

Monitor and accessory checklist

- Please check that the following items are included in the package.

- LCD monitor (1)

- AC adapter (1)

(model name: NL-A61J)

- Analog signal cable (1)

(model name: 0LTGD15180001)

- Utility Disk (For Windows/Macintosh) (1)

- Operation manual (1)

Notes:

- Use only the cables supplied with the monitor or designated cables that are separately purchased.

- The digital signal cable (DVI-D24 pin – DVI-D24 pin) is to be purchased separately. (model name: NL-C01E)

- You are advised to retain the carton in case the monitor needs to be transported.

- Sharp Corporation holds authorship rights to the Utility Disk program. Do not reproduce it without permission.

- The shape of the supplied accessaries may not be exactly same as shown in this booklet.

Use of AC adapter

- Do not use the AC adapter for other than the specified equipment.

- Unplug the AC adapter if it is not used for long time.

- Do not place any objects on the AC adapter.

- Do not use the AC adapter outdoors.

- Do not attempt to repair the AC adapter if it is broken or malfunctioning. Refer the servicing to the service representative.

- Do not try to open the AC adapter.

- Do not use water or wet cloth for cleaning the AC adapter.

Manual Scope

- In this booklet, Microsoft Windows XP will be referred to as "Windows XP", Microsoft Windows Millenium as "Windows Me", Microsoft Windows 2000 as "Windows 2000", Microsoft Windows 98 as "Windows 98", Microsoft Windows 95 as "Windows 95", and Microsoft Windows Version 3.1 as "Windows 3.1". When there is no need to distinguish between programs, the term "Windows" will be used.

- Microsoft and Windows are registered trademarks of Microsoft Corporation.

- Macintosh is a registered trademark of Apple Computer, Inc.

- All other brand and product names are trademarks or registered trademarks of their respective holders.

EnglishDeutschFrançaisItalianoEspañolEnglish

Product description

654

1. INPUT button .............................. To switch between the signal's input terminals. (Analog RGB input

terminal ↔ DVI-D input terminal)

2. MENU button ............................... This button is used to pop-up, select and close the OSD (On Screen

Display) Menu.

3. button ...................................... This button is used to select menu options when the OSD Menu is

displayed.

buttons ................................ When the OSD Menu is displayed:

These buttons are used to select an option or adjust the value of the selected option.

When the OSD Menu is not displayed:

These buttons are used to adjust backlight brightness .

5. Power LED .................................. This LED is lit green when in use and orange when in power-saving

mode.

6. Power button

7. Power terminal

8. DVI-D input terminal ................... Use this when connecting to the computer's digital RGB output

terminal. It can be connected to a computer with a DVI-compatible output terminal (DVI-D24 pin or DVI-I29 pin) and which has SXGA output ability. (Depending on the computer to be connected, correct display may or may not be possible.) In order to connect, it is necessary to purchase a Digital signal cable.(Model name: NL-C01E)

9. Analog RGB input terminal ......... Use this when connecting to the computer's analog RGB output

terminal.

10. Security lock anchor ................... By connecting a security lock (commercially available) to the security

lock anchor, the monitor is fixed so that it cannot be transported. The security slot works in conjunction with Kensington Micro Saver Security Systems.

11.Ventilation openings .................... Note: Never block the ventilation openings as this may lead to

overheating inside the monitor and result in malfunction.

Product description

Standing up and adjusting the monitor

CAUTION!

- Pressure from hands on the LCD panel could

cause damage.

- Be careful not to allow your fingers to be

pinched.

- Be careful not to place any objects on the cables.

Doing so may result in disconnection or other problems.

Standing up the monitor

Press down on the stand and lift up the top section of the monitor.

Folding up the monitor

1.Remove the AC adapter and the signal cable.

2.If carrying out adjustments to the monitor, place

it upright.

3.While pressing the rear lock disable button (1),

gently fold back the monitor (2).

(2)

(1)

Angle adjustment

Adjust to an easy to view angle.

- Do not use the monitor when tilted back beyond approximately 15º. The monitor may fall over leading to injury or malfunction.

Prohibited range

approx.15°

approx.45°

EnglishDeutschFrançaisItalianoEspañolEnglish

Connecting the monitor and turning the monitor on and off

CAUTION!

- When connecting, ensure that both the monitor and computer are switched off.

- Be careful not to overly bend the cable or add extension cords as this could lead to a malfunction.

Connecting the monitor to a computer

Analog RGB connection

Connect this device's analog signal cable to the computer.

- Paying attention to connector direction, firmly

insert the signal cable to terminal, and then tighten the screws at both sides.

If connecting to a D-sub 15 pin 2 row Apple Power Macintosh, attach a Macintosh conversion adapter (commercially available) to the analog signal cable.

Analog RGB terminal (Mini D-Sub 15 pin, 3 row)

Analog signal cable

Macintosh conversion adapter

Digital RGB connection

Connecting the monitor to a computer via a Digital signal cable. (to be purchased separately)

- For digital RGB connection, the monitor has an input for connecting to a computer with a DVIcompatible output connector (DVI-D 24 pin or DVI-I 29 pin) and SXGA output capability. (Depending on the type of computer to be connected, the display may not work correctly.)

- Paying attention to connector direction, firmly insert the signal cable to terminal, and then tighten the screws at both sides.

Connecting the monitor to a power source

1.Connect the AC adapter to the monitor's power terminal.

2.Attach the power cord to the AC adapter and place the power plug into the AC outlet.

CAUTION!

- After unplugging the AC adaptor or power cord, be sure to wait at least 10 seconds before plugging in again. If you put the plug back in immediately after unplugging, damage may be caused and the screen malfunction or not display.

Digital signal cable

Digital RGB output terminal (DVI-D 24 pin or DVI-I 29 pin)

DVI-D input terminal (DVI-D24 pin)

AC adapter

Power terminal

Power cord

AC outlet

Turning the power on

1. Press the monitor's POWER button.

2. Turn on the computer. The power LED will be lit green, and the screen will display an image.

Notes: (when using an analog signal)

- If using the monitor for the first time or after

having changed the system settings during use, perform an automatic screen adjustment (p.14).

- When connecting to a notebook, if the notebook

computer's screen is set so that it is displaying at the same time, the MS-DOS screen may not be able to display properly. In this case, change the settings so that only the monitor is displaying.

Changing between input terminals

Use the INPUT button to switch between signal input terminals.

Analog RGB Digital RGB

input terminal input terminal

INPUT

INPUT-2(DIGITAL)

INPUT-1(ANALOG)

Connecting the monitor and turning the monitor on and off

Turning the power off

1.Turn the computer off.

2.Press the monitor's POWER button. The Power LED will disappear.

OFF

If the monitor is not going to be used for a long period of time, be sure to unplug it from the AC outlet.

Turn on the computer

Press power button

Turn the computer off

EnglishDeutschFrançaisItalianoEspañolEnglish

Adjusting the screen display

For analog signal

1.First perform an automatic adjustment. (p.14)

2.Perform manual adjustment where necessary. (p.15)

For digital signal

The monitor can generally be used without adjustment. If necessary perform manual adjustment. (p.18)

Note:

- All adjustments will be saved even after turning the power off.

Resetting all adjustment values

All adjustment values can be returned to their original ex-factory values in one command.

1.Turn off the monitor power.

2.Press the MENU button and the button simultaneously, and while doing this press the power button (i.e. turn the power on). When [ALL RESET] appears on the screen, the reset is complete.

Notes:

- While [ALL RESET] is displayed, the control buttons are disabled.

- It is not possible to reset values when the adjustment lock is in place. Remove the adjustment lock before attempting to operate control buttons.

Adjustment lock function

By disabling the control buttons (i.e. setting the lock) any attempted changes to adjusted values will be voided.

1.Turn off the monitor power.

2.While pressing the MENU button, press the power button (i.e. turn the power on). Continue to press the button until [

ADJUSTMENT

LOCKED

] appears on the screen.The lock is set

when the message is displayed.

Note:

- When the lock is in place, all buttons other than the power button are disabled.

Adjustment lock release

1.Turn off the monitor power.

2.While pressing the MENU button, press the power button (i.e. turn the power on). Continue to press the button until [

ADJUSTMENT

UNLOCKED

] appears on the screen.The lock is

released when the message is displayed.

Adjusting the backlight

1.Without the OSD Menu being displayed, press the

or the button. At the bottom of the

screen the BRIGHT bar will appear.

2.Adjust by pressing the button (darker) or button (lighter).

3.Press the MENU button. The BRIGHT bar disappers.

- The BRIGHT bar automatically disappears several seconds after the last command.

Adjusting the screen display (When using an analog signal)

Automatic screen adjustment

Options in the ADJUSTMENT Menu can be adjusted automatically (CLOCK, PHASE, H-POS V-POS).

Note:

- When setting up this monitor for the first time or after having changed an aspect of the current system, perform an automatic screen adjustment before use.

On Screen Display for the automatic adjustment

First display an image that makes the entire screen light. If you are using Windows, you can use Adjustment Pattern on the accompanying Utility Disk.

Opening the Adjustment Pattern (for Windows)

This explanation is for Windows 95/98/2000/Me/XP, and assumes that the floppy disk drive is "A drive".

1.Place the Utility Disk (provided) into the computer's A drive.

2.Open [My Computer] and select [3 ½ Floppy [A:]]. If using Windows 3.1, open [File Manager] and choose A drive.

3.Double click on [Adj_uty.exe] to run the Adjustment Program. The Adjustment Pattern will appear.

Adjustment pattern

After completing the adjustments, press the computer's [Esc] key to exit the Adjustment Program.

Note:

- If your computer's display mode is set to 65K colors, you may see the different color levels in each color pattern or the gray scale may look colored. (This is due to the specification of the input signal and is not a malfunction.)

How to Adjust

1.Press the MENU button. The ADJUSTMENT Menu will be displayed.

[

]

ACCD

LMMN

LOO

PPS

STTT

258

010

0 8

OPS-

HV0

1870H0152

:k:8Hz

ANALOG<>

2.Press the button. The screen will become dark and [ADJUSTING] will be displayed. After a few seconds the ADJUSTMENT Menu will return. (The automatic adjustment is now complete.)

3.Press the MENU button 4 times to make the OSD Menu disappear.

Notes:

- In most cases automatic adjustment is sufficient.

- If necessary due to any of the following, manual adjustments (p.15) can be performed after the automatic adjustment.

- When further fine adjustment is needed.

- When [OUT OF ADJUST] is displayed. (When

the screen displays an entirely dark image, the automatic screen adjustment may be disabled. When making an automatic adjustment, be sure to either use the Adjustment Pattern or try displaying an image that makes the entire screen very bright.)

EnglishDeutschFrançaisItalianoEspañolEnglish

Adjusting the screen display (When using an analog signal)

Manual screen adjustment

Adjustments can be made using On Screen Display (OSD) Menu provided.

On Screen Display for adjustment

If you are using Windows, open the Adjustment Pattern on the accompanying Utility Disk. (p.14). If your system is not Windows, you can not use the Adjustment Pattern. Therefore display an image that makes the entire screen light and adjust it through checking visually its actual tone. This chapter provides the procedure how to adjust the screen by using Adjustment Pattern (for Windows)

How to adjust

1.Press the MENU button. The ADJUSTMENT Menu will be displayed.

[

]

ACCD

LMMN

LOO

PPS

STTT

258

010

0 8

OPS-

HV0

1870H0152

:k:8Hz

ANALOG<>

At this point relevant menu options can be adjusted. Each time the MENU button is pressed the next menu is selected. (ADJUSTMENT → GAIN CONTROL → COLOR CONTROL → MODE SELECT → OSD Menu disappears)

Note:

- The OSD Menu automatically disappears several seconds after the last command.

ADJUSTMENT Menu

[

]

ACCD

LMMN

PPS

STTT

258

010

0 8

OPS-

HV0

1870H0152

:k:8Hz

ANALOG<>

MANUAL: Individual menu options are manually

adjusted.

AUTO: Every menu option is automatically

adjusted.

Notes:

- Press the

button to select [AUTO].

- To choose a menu option: button

- To go to the next menu: MENU button

CLOCK

The figure below demonstrates how to adjust so that vertical flicker noise is not emitted.

(

buttons)

PHASE

The figure below demonstrates how to adjust so that horizontal flicker noise is not emitted.

(

buttons)

Note:

- Adjustments to PHASE should be made only after CLOCK has been correctly set.

H-POS (horizontal positioning) and V-POS (vertical positioning)

To center the Adjustment pattern within the boundaries of the screen, adjust the left-right (HPOS) values and the up-down (V-POS) values.

(

buttons)

Vertical flicker noise

Horizontal flicker noise

Screen frame

Adjusting the screen display (When using an analog signal)

GAIN CONTROL Menu

[]

GA I

LMON

CROL

235

BLACK LEVEL CONTRAST

ANALOG<>

HV0

1870H0152

:k:8Hz

MANUAL: Individual menu options are manually

adjusted.

AUTO: Every menu option is automatically

adjusted using the Auto Gain Control* function.

Notes:

- Press the

button to select [AUTO].

- To choose a menu option: button

- To go to the next menu: MENU button

* Auto Gain Control function

- The Auto Gain Control adjusts contrast and black level based on the brightest color of the image displayed. If you are not using the Adjustment Pattern it is necessary to have an area of 5 mm x 5 mm of white displayed, and if not adjustments may not be possible. (In such case, [OUT OF ADJUST] will appear and setting values remain unchanged.)

- When using the Auto Gain Control function, set [WHITE BALANCE] to other than [USER]. If [USER] is set, the Auto Gain Control function cannot be used.

BLACK LEVEL

Total screen brightness can be adjusted while watching the color pattern. (

buttons)

CONTRAST

While watching the color pattern, adjustments can be made so that all gradations appear.

(

buttons)

Color pattern

COLOR CONTROL Menu

HV0

1870H0152

:k:8Hz

ANALOG<>

OCLOROCN

OCLOROMD E

RsGBIVVID

WH I B L A

CTEA

[

]

ORCO

UESR

AT R-CONTRAST G-CONTRAST B-CONTRAST

DST

Notes:

- To choose a menu option: button

- To go to the next menu: MENU button

COLOR MODE

Color tone can be set as below. (

buttons)

sRGB: sRGB is international standard of color

representation specified by IEC (International Electrotechnical Commission). Color conversion is made in taking account of liquid crystal's characteristics and represents color tone close to it original image.

STD: Displays image with the color tone

results from original scheme of liquid crystal panel.

VIVID: Displays an image with dynamic and

VIVID primary colors.

- If [sRGB] or [VIVID] has been selected, items subsequent to [WHITE BALANCE] cannot be set.

WHITE BALANCE

- Use the

buttons to select [COOL], [·], [STD],

[·], [WARM] or [USER].

- Selecting [USER] will display the setting values for [R-CONTRAST], [G-CONTRAST] and [BCONTRAST], in order to make fine adjustments.

- Use the

button to select [R-CONTRAST], [G-

CONTRAST] and [B-CONTRAST].

COOL ...Color tone bluer than standard

• .........Color tone slightly bluer than standard

STD ...... Color tone standard setting

• .........Color tone slightly redder than standard

WARM ..Color tone redder than standard USER

R-CONTRAST .....

button for blue-green button for red

G-CONTRAST ..... button for purple

button for green

B-CONTRAST ..... button for yellow

button for blue

EnglishDeutschFrançaisItalianoEspañolEnglish

Adjusting the screen display (When using an analog signal)

MODE SELECT Menu

H-SO

M OO0D

V-

POD

T4IS

SLETCE

NOI

OPTIS

NIE

NOI

046027

[]

ELVSCAL I NG

ELV

HV0

1870H0152

:k:8Hz

PNI

SEVCAM

LANGUAG

ANALOG<>

Notes:

- Depending on the resolution of the input signal, even if menu options can be selected, the display may not change.

- To choose a menu option: button

- To complete adjustment: MENU button

OSD H-POSITION (OSD horizontal position)

The position of the OSD Menu can be moved to the left and right. (

buttons)

OSD V-POSITION (OSD vertical position)

The position of the OSD Menu can be moved up and down. (

buttons)

SCALING (Level of scaling)

Adjusts the image to optimum sharpness when Screen expansion is taken. (

buttons)

Notes:

- When the display mode is set to less than 1280 x 1024 pixels, the display is enlarged to cover the whole screen (i.e. the side ratio of the display may change).

- Display modes of 1280 x 1024 pixels cannot be changed.

INPUT (Input mode)

The input mode can be set. (

buttons) VESA: VESA mode MAC: Power Macintosh mode

400 LINES (degree of resolution)

You can specify the horizontal resolution of a 400line screen when using US text, etc. (

buttons) 640: 640 X 400 dot mode 720: 720 X 400 dot mode (US text etc.)

Note:

- As the resolution input for other than 400 lines is done automatically, there is no need to set it.

LANGUAGE

You can choose the language used in OSD Menu.

1.Press the

button. Language Selection Menu (LANGUAGE) will appear.

2.Chose the desired language by button.

3.Press MENU button or the

button, and

Language Selection Menu will disappear.

Adjusting the screen display (When using a digital signal)

Adjustments can be made using On Screen Display (OSD) Menu provided.

On Screen Display for adjustment

How to adjust

1.Press the MENU button. The COLOR CONTROL Menu will be displayed.

HV0

1870H0152

:k:8Hz

OCLOROCN T

OCLOROMD

RsGBIVVID

WH I B L A

CTEA

[

]

ORCO

UESR

AT R-CONTRAST G-CONTRAST B-CONTRAST

DST

DIGITA<

At this point relevant menu options can be adjusted. Each time the MENU button is pressed the next menu is selected. (COLOR CONTROL → MODE SELECT → OSD Menu disappears)

Note:

- The OSD Menu automatically disappears several seconds after the last command.

COLOR CONTROL Menu

HV0

1870H0152

:k:8Hz

OCLOROCN

OCLOROMD E

RsGBIVVID

WH I B L A

CTEA

[

]

ORCO

UESR

AT R-CONTRAST G-CONTRAST B-CONTRAST

DST

DIGITA<

Notes:

- To choose a menu option: button

- To go to the next menu: MENU button

COLOR MODE

Color tone can be set as below. (

buttons)

sRGB: sRGB is international standard of color

STD: Displays image with the color tone

results from original scheme of liquid crystal panel.

VIVID: Displays an image with dynamic and

VIVID primary colors.

- If [sRGB] or [VIVID] has been selected, items subsequent to [WHITE BALANCE] cannot be set.

WHITE BALANCE

- Use the

buttons to select [COOL], [·], [STD],

[·], [WARM] or [USER].

- Selecting [USER] will display the setting values for [R-CONTRAST], [G-CONTRAST] and [BCONTRAST], in order to make fine adjustments.

- Use the

button to select [R-CONTRAST], [G-

CONTRAST] and [B-CONTRAST].

COOL ...Color tone bluer than standard

• .........Color tone slightly bluer than standard

STD ...... Color tone standard setting

• .........Color tone slightly redder than standard

WARM ..Color tone redder than standard USER

R-CONTRAST .....

button for blue-green button for red

G-CONTRAST ..... button for purple

button for green

B-CONTRAST ..... button for yellow

button for blue

EnglishDeutschFrançaisItalianoEspañolEnglish

Adjusting the screen display (When using a digital signal)

MODE SELECT Menu

H-SO

M OOD

V-

POD

TIS

SLETCE

NOI

OPTISNOI

[]

ELVSCAL I NG

ELV

HV0

1870H0152

:k:8Hz

LANGUAG

DIGITA<

Notes:

- Depending on the resolution of the input signal, even if menu options can be selected, the display may not change.

- To choose a menu option: button

- To complete adjustment: MENU button

OSD H-POSITION (OSD horizontal position)

The position of the OSD Menu can be moved to the left and right. (

buttons)

OSD V-POSITION (OSD vertical position)

The position of the OSD Menu can be moved up and down. (

buttons)

SCALING (Level of scaling)

Adjusts the image to optimum sharpness when Screen expansion is taken. (

buttons)

Notes:

- When the display mode is set to less than 1280 x 1024 pixels, the display is enlarged to cover the whole screen (i.e. the side ratio of the display may change).

- Display modes of 1280 x 1024 pixels cannot be changed.

LANGUAGE

You can choose the language used in OSD Menu.

1.Press the

button. Language Selection Menu (LANGUAGE) will appear.

2.Chose the desired language by button.

3.Press MENU button or the

button, and

Language Selection Menu will disappear.

Monitor care and repair

Monitor care

Always remove the plug from the AC outlet when cleaning the monitor.

Cabinet and control panel section

Use a soft dry cloth to lightly wipe away any grime from the cabinet and control panel. If they are very dirty, apply neutral detergent to a dampened soft cloth, wring it out well and wipe away gr ime.

LCD panel section

Use a soft dry cloth to lightly wipe away dirt and dust from the surface of the LCD panel. (A soft cloth such as gauze or that used for lens cleaning is suitable.)

CAUTION!

- Never use thinner, benzine, alcohol, glass cleaner, etc, as this could lead to color change or change in shape.

- Never scratch the monitor with anything hard or apply strong pressure as this could leave marks or result in malfunction.

Storage

If the monitor will not be used for a long period of time, be sure to remove the power plug from the AC outlet.

CAUTION!

- Do not leave the monitor in contact with rubber or plastic items for long periods of time as this could lead to color change or change in shape.

Troubleshooting

If you think the monitor may be faulty, please check the following points before taking it to be repaired. If afterwards it still does not work, please contact the shop where you purchased the monitor or your nearest Sharp authorized Service Center.

The monitor's florescent tubes have a limited life span.

- If the screen darkens, persistently flickers or does not light up, it may be necessary to replace the florescent tube unit. Please inquire at the shop where you purchased the monitor or your nearest Sharp authorized Service Center. (Never attempt this replacement on your own.)

- In the initial period of use, due to the characteristics of florescent tubes the screen may flicker. (This is not a malfunction.) Should this happen, check by first turning off the power, then turning it on again.

No image appears on the monitor (Power LED is not lit)

- Are the AC adapter and power cord connected properly? (p.11)

No image appears on the monitor (Power LED is lit)

- Is the computer connected properly? (p.11)

- Is the computer turned on?

- Is the signal's input terminal switched to the correct one? (p.12)

- Does the computer's signal timing correspond to monitor specifications? (p.22)

- Is the computer in power-saving mode?

Control buttons do not work

- Is the adjustment lock on? (p.13)

The image appears distorted or interference appears on the image

- Does the computer's signal timing correspond to monitor specifications? (p.22)

- If you are using the analog signal, perform automatic screen adjustment. (p.14)

- If you can change the refresh rate on the computer you are using, change the value to a lower frequency.

EnglishDeutschFrançaisItalianoEspañolEnglish

Specifications

Product specifications

Model name

LL-T18A1-H (Frosty gray) / LL-T18A1-B (Black)

LCD display

46 cm measured diagonally TFT LCD module

Resolution (max.)

SXGA 1280 x 1024 pixels

Displayable colors (max.)

16.77 million colors (8 bit)

Brightness (max.)

250cd/m

Dot pitch

0.2805(H) x 0.2805(V) mm

Contrast ratio

350:1

Angle of visibility

Left-right 160°; Up-down 160° (contrast ratio

> =

Screen display size

Horizontal 359 mm x Vertical 287.2 mm

Video signal

Analog: Analog RGB (0.7Vp-p) [75Ω] Digital: DVI standard based on 1.0

Sync signal

Separate Sync (TTL level: +/-), Sync on Green, Composite Sync (TTL level: +/-)

Expansion compensation

Digital scaling (Enlarges VGA/SVGA/XGA etc. to full screen size.)

Plug & Play

VESA DDC1/DDC2B compatible

Power management

VESA: based on DPMS DVI: based on DMPM

Input signal terminal

Mini D-sub 15 pin (3 row), DVI-D 24 pin

Screen tilt

Upward 0° -15°

Screen swivel

90° from left through right (Turn table type)

Power supply

AC100 - 240V, 50/60Hz (Use special AC adapter, type NL-A61J of Sharp Corporation.)

Temperature of operating environment

5 - 35°C

Power consumption

Maximum 48W (Standby state: 2.7W) (Use special AC adapter.)

Dimensions

Approx. 422(W) x 217(D) x 420(H) mm

Weight

Approx. 7.0kg Display area only, approx. 5.4kg

Dimensions (Units: mm)

422

372

420

267

217

- Special AC adapter:

Approx. 1.8 m

Approx. H 110 mm x D 60 mm x H 30 mm

- Analog signal cable: Approx. 1.8m

- Digital signal cable, NL-C01E (purchased

separately): Approx. 2.0m

Specifications

Relevant signal timings (analog)

640x480

800x600

1024x768

1152

x864

1280

x960

1280x1024

720x400 640x480 832x624

1024

x768

1152

x870

1280x1024

1024

x768

1152

x900

1280x1024

31.5kHz

37.9kHz

37.5kHz

35.1kHz

37.9kHz

48.1kHz

46.9kHz

48.4kHz

56.5kHz

60.0kHz

67.5kHz

60.0kHz

64.0kHz

80.0kHz

31.5kHz

35.0kHz

49.7kHz

60.2kHz

68.7kHz

64.0kHz

80.0kHz

48.3kHz

53.6kHz

56.6kHz

61.8kHz

71.8kHz

71.7kHz

81.1kHz

60Hz 72Hz 75Hz 56Hz 60Hz 72Hz 75Hz 60Hz 70Hz 75Hz 75Hz 60Hz 60Hz 75Hz 70Hz

66.7Hz

74.6Hz 75Hz 75Hz 60Hz 75Hz 60Hz 66Hz 70Hz 66Hz

76.2Hz

67.2Hz 76Hz

25.175MHz

31.5MHz

36.0MHz

40.0MHz

50.0MHz

49.5MHz

65.0MHz

75.0MHz

78.75MHz

108.0MHz

135.0MHz

28.3MHz

30.2MHz

57.3MHz

80.0MHz

100.0MHz

108.0MHz

135.0MHz

64.13MHz

70.4MHz

74.25MHz

94.88MHz

108.23MHz

117.01MHz

134.99MHz

- Recommended resolution is 1280 x 1024.

- All are compliant only with non-interlaced.

- Frequencies for Power Macintosh and Sun Ultra series are reference values. To connect, another adapter (commercially available) may be required.

- If the monitor is receiving timing signals that are not compatible, [OUT OF TIMING] will appear. Follow your computer's instruction manual to set the timing so that it is compatible with the monitor.

- If the monitor is not receiving any signal (synch signal), [NO SIGNAL] will appear.

Power Macintosh series

Relevant signal timings (digital)

640x480

800x600

1024x768

1152x864 1280x960

1280x1024

720x400

31.5kHz

37.9kHz

37.5kHz

37.9kHz

48.1kHz

46.9kHz

48.4kHz

56.5kHz

60.0kHz

67.5kHz

60.0kHz

64.0kHz

31.5kHz

60Hz 72Hz 75Hz 60Hz 72Hz 75Hz 60Hz 70Hz 75Hz 75Hz 60Hz 60Hz 70Hz

25.175MHz

31.5MHz

40.0MHz

50.0MHz

49.5MHz

65.0MHz

75.0MHz

78.75MHz

108.0MHz

28.3MHz

- Recommended resolution is 1280 x 1024.

- All are compliant only with non-interlaced.

- A computer with an output terminal conforming to DVI (DVI-D24 pin or DVI-I29 pin) and with SXGA output capability can be connected here. (Depending on the type of computer to be connected, the display may not work correctly.)

- If the monitor is not receiving any signal (synch signal), [NO SIGNAL] will appear.

Vsync

Dot

frequency

Display mode

VESA

US text

Hsync

Sun Ultra series

Vsync

Dot

frequency

Display mode

VESA

Hsync

US text

EnglishDeutschFrançaisItalianoEspañolEnglish

Specifications

The analog RGB input connector pin

(Mini D-sub connector with 15 pins)

5 1234

6789

15 11121314

The DVI-D input connector pin

(DVI-D connector with 24 pins)

1 765432 8

13121110 16

17 23

21201918 24

No. Function

1 Red video signal input

2 Green video signal input

3 Blue video signal input

4 GND

5 GND

6 For red video signal GND

7 For green video signal GND

8 For blue video signal GND

9 DDC+5V

10 N.C.

11 GND

12 DDC data

13 For Hsync signal input

14 For Vsync signal input

15 DDC clock

No. Function No. Function

1 TMDS data 2- 13 N.C.

2 TMDS data 2+ 14 +5V

3 TMDS data 2/4 shield 15 GND

4 N.C. 16 Hot plug detection

5 N.C. 17 TMDS data 0-

6 DDC clock 18 TMDS data 0+

7 DDC data 19

TMDS data 0/5 shield

8 N.C. 20 N.C.

9 TMDS data 1- 21 N.C.

10 TMDS data 1+ 22 TMDS clock shield

11 TMDS data 1/3 shield 23 TMDS clock +

12 N.C. 24 TMDS clock -

Power management

The monitor is based on the VESA DPMS and the DVI DMPM standards. To activate the monitor's Power Management function, both the video card and the computer must conform to the VESA DPMS standard and the DVI DMPM standard. DPMS: Display Power Management Signalling

DMPM: Digital Monitor Power Management

DDC (Plug & Play)

This monitor supports the VESA DDC (Display Data Channel) standard. DDC is a signal standard for carrying out Plug & Play functions on the monitor or PC. It transfers information such as degree of resolution between the monitor and PC. You can use this function if your PC is DDC compliant and if it is set so that it can detect the Plug & Play monitor. There are many varieties of DDC due to the differences between systems. This monitor works with DDC1 and DDC2B.

DPMS mode Screen Power H-sync V-sync

consumption

ON Display on 48W Yes Yes

STANDBY No Yes

SUSPEND Display off 2.7W Yes No

OFF No No

DMPM mode Screen Power

consumption

ON Display on 48W

OFF Display off 2.7W

Installing set-up information and the ICC profile (For Windows)

Depending on the computer or OS, it may be necessary to use the computer to operate the installation of monitor set-up information etc. If so, follow the steps below to install the monitor set-up information. (Depending on the type of computer or OS, command names and methods may differ. Please follow the computer's own operation manual while reading this.)

About the ICC profile

An ICC (International Color Consortium) profile is a file that describes the color characteristics of the LCD monitor. By using an application that works together with an ICC profile, a high color resolution can be realized.

- Windows 98/2000/Me/XP all use the ICC profile.

- When installing Windows 98/2000/Me/XP setup information (described below), the ICC profile is also installed. If you would like to install the ICC program only, please refer to Installing the ICC profile on page 26.

- When using an ICC profile, set [COLOR MODE] and [WHITE BALANCE] to [STD].

Installing set-up information

For Windows 95

Installing monitor set-up information into Windows

95. This explanation assumes that the floppy disk drive is "A drive".

1. Place the Utility Disk (provided) into the computer's A drive.

2. Click on the [Start] button. From [Settings], choose [Control Panel].

3. Double click on [Display].

4. Click on [Settings], [Advanced Properties], and [Monitor], then [Change].

5. Click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:] then click [OK].

6. Confirm that the monitor details are selected, and click [OK].

7. Check that the monitor details are displayed, then click [Apply].

8. Click [OK], and close the window.

9. Remove the Utility Disk from the A drive.

For Windows 98

Installing monitor set-up information into Windows 98, and setting the monitor's ICC profile as a predetermined value. This explanation assumes that the floppy disk drive is "A drive".

If the "Add new Hardware Wizard" has appeared:

1. Place the Utility Disk (provided) into the computer's A drive.

2. Click [Next].

3. Check [Display a list of all the drivers in a specific location, so you can select the driver you want.], then click [Next].

4. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK].

5. Confirm that the monitor details are selected, then click [Next], [Next], and [Finish]. If the "Add New Hardware Wizard" appears, repeat the installation commands beginning from 2 above.

6. Remove the Utility Disk from the A drive.

If the "Add New Hardware Wizard" has not appeared:

1. Place the Utility Disk in the computer's A drive.

2. Click on the [Start] button. From [Settings], choose [Control Panel].

3. Double click on [Display].

4. Click on [Settings], [Advanced] and [Monitor].

5. In [Options], check [Automatically detect Plug & Play monitors] and click on [Change].

6. Click [Next].

7. Click on [Display a list of all the drivers in a specific location, so you can select the driver you want.], then click [Next].

8. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK].

9. Confirm that the monitor details are selected, then click [Next], [Next], and [Finish].

10. Check that the monitor details are displayed, then click [Apply].

11. Click [OK], and close the window.

12. Remove the Utility Disk from the A drive.

EnglishDeutschFrançaisItalianoEspañolEnglish

For Windows 2000

Installing monitor set-up information into Windows 2000, and setting the monitor's ICC profile as a predetermined value. This explanation assumes that the floppy disk drive is "A drive".

1. Place the Utility Disk (provided) into the computer's A drive.

2. Click on the [Start] button. From [Settings], choose [Control Panel].

3. Double click on [Display].

4. Click on [Settings], [Advanced] and [Monitor].

5. Click on [Properties], [Driver] and [Update Driver].

6. When [Upgrade Device Driver Wizard] appears, click [Next].

7. Check [Display a list of the known drivers for this device so that I can choose a specific driver] and click [Next].

8. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK].

9. Select the monitor from the list displayed and click [Next].

10. Click [Next], confirm that the monitor's name appears on the screen, and click [Finish]. If [The Digital Signature Not Found] appears, click [Yes].

11. Click on [Close].

12. Click [OK], and close the window.

13. Remove the Utility Disk from the A drive.

For Windows Me

Installing monitor set-up information into Windows Me, and setting the monitor's ICC profile as a predetermined value. This explanation assumes that the floppy disk drive is "A drive".

If the "Add new Hardware Wizard" has appeared:

1. Place the Utility Disk (provided) into the computer's A drive.

2. Check [Specify the location of the driver [Advanced]] and click [Next].

3. Check [Display a list of all the drivers in a specific location, so you can select the driver you want.], then click [Next].

4. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK].

5. Select the monitor details from the list, then click [Next], [Next], and [Finish]. If the "Add new Hardware Wizard" appears, repeat the installation commands beginning from 2 above.

6. Remove the Utility Disk from the A drive.

If the "Add New Hardware Wizard" has not appeared:

1. Place the Utility Disk in the computer's A drive.

2. Click on the [Start] button. From [Settings], choose [Control Panel].

3. Double click on [Display].

4. Click on [Settings], [Advanced] and [Monitor].

5. In [Options], check [Automatically detect Plug & Play monitors] and click on [Change].

6. Check [Specify the location of the driver [Advanced]] and click [Next].

7. Check [Display a list of all the drivers in a specific location, so you can select the driver you want.] and click [Next].

8. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK].

9. Select the monitor details, then click [Next], [Next], and [Finish].

10. Check that the monitor details are displayed, then click [Apply].

11. Click [OK], and close the window.

12. Remove the Utility Disk from the A drive.

Installing set-up information and the ICC profile (For Windows)

For Windows XP

Installing monitor set-up information into Windows XP, and setting the monitor's ICC profile as a predetermined value. This explanation assumes that the floppy disk drive is "A drive".

1. Place the Utility Disk in the computer's A drive.

2. Click on the [Start] button. Choose [Control Panel].

3. Switch to "Classic View".

4. Double click on [Display].

5. Click on [Settings], [Advanced] and [Monitor].

6. Click on [Properties], [Driver] and [Update Driver].

7. When [Hardware Update Wizard] appears, check [Install from a list or specific location [Advanced]] and click [Next].

8. Check [Don't search. I will choose the driver to install.] and click [Next].

9. Click on [Have Disk], confirm that [Copy manufacturer's files from:] is [A:], and click [OK].

10. Select the monitor from the list displayed and click [Next]. If [has not passed Windows Logo testing...] appears, click [Continue Anyway].

11. Confirm that the monitor's name appears on the screen.

12. Click on [Finish].

13. Click on [Close].

14. Click [OK], and close the window.

15. Remove the Utility Disk from the A drive.

Installing the ICC profile

Installing the monitor's ICC profile. (If the set-up information has already been installed, so too has the profile, and there is no need to install it.) This explanation assumes that the floppy disk drive is "A drive".

1. Place the Utility Disk in the computer's A drive.

2. Click on the [Start] button. From [Settings], choose [Control Panel].

3. Double click on [Display].

4. Click on [Settings] and [Advanced].

5. Click on [General] and from [Compatibility] select [Apply the new display setting without restarting], then click on [Color Management].

6. Click [Add], and select [3 ½ Floppy [A:]] as the file location.

7. Choose the color profile that you would like to install, and click on [Add].

8. Choose the profile and click on [Set As Default].

9. Click [OK], and close the window.

10. Remove the Utility Disk from the A drive.

- When using an ICC profile, set [COLOR MODE] and [WHITE BALANCE] to [STD].

Installing set-up information and the ICC profile (For Windows)

EnglishDeutschFrançaisItalianoEspañolEnglish

About the ColorSync profile

ColorSync is the Apple Corporation's color management system and is a function that enables color resolution to be realized when used with a compatible application. A ColorSync profile describes the color characteristics of the LCD monitor.

Notes:

- This monitor's ColorSync profile works with MacOS8.5 or above.

- When using the ColorSync profile, set [COLOR MODE] and [WHITE BALANCE] to [STD].

Setting up the ColorSync profile

Notes:

- A floppy disk drive is necessary. In addition, it is necessary to have PC Exchange or File Exchange installed in your system.

- Depending on the type of computer or OS, command names and methods may differ. Please follow the computer's own operation manual while reading this.

1.Place the Utility Disk (provided) into the computer's floppy disk drive.

2.Copy the profile to be used from the Mac folder on the Utility Disk to the ColorSync profile folder located within the system folder.

3.Using the ColorSync on the control panel, choose the profile to be used.

Information about the ColorSync profile (For MacOS)

Instructions for attaching a VESA compliant arm

An arm or stand based on the VESA standard (commercially available) can be attached to the monitor. Procurement of the arm or stand is at the customer's discretion.

Arms or stands able to be used

Attachments must satisfy the following.

- Compatible with the VESA standard

- Have a gap of 100 mm x 100 mm between the screw holes on the section to be attached

- Not be likely to fall off or break off after being attached to the monitor.

How to attach the arm or stand

- Be careful not to overly bend the cable or add extension cords as this could lead to malfunction.

- While following these instructions, please also refer to the installation instructions in the operation manual included with the arm or stand.

1.Ensure that both the monitor and computer are switched off.

2.Remove the AC adapter and the signal cable.

3.Remove the stand cover. Pull the lower section of the stand cover upward.

4.Being careful not to damage the monitor, spread out a soft cloth and lay the monitor on it displayside down.

5.Remove the four screws and then remove the stand from the monitor.

Notes:

- The stand is specially made for use with this monitor. Once having removed the stand, never attempt to attach it to another device.

- Once having removed the screws, store them together with the stand and if the stand is ever re-attached be sure to use the original screws. Using different screws could lead to a malfunction.

6.Attach the arm to the monitor with the four screws.

Note:

- The screws used to attach the arm should be M4 screws with a length of 8 mm ~ 10 mm protruding from the surface to be attached. Using different screws could cause the monitor to fall off or to be internally damaged.

8 - 10mm

7.Connect the AC adapter and the signal cable.

Stand cover

Screw used to attach arm

Arm Part of monitor to which arm is

attached

EnglishDeutschFrançaisItalianoEspañolEnglish

Inhaltsverzeichnis

Tipp und Sicherheitsvorkehrungen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Produktbeschreibung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Anschließen des Monitors und Ein- und Ausschalten des Monitors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Verbinden des Monitors mit einem Computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Anschließen des Monitors an eine Stromquelle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Einschalten des Monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Umschalten zwischen Eingangsanschlüssen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Ausschalten des Monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Einstellen der Bildschirmanzeige . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Zurücksetzen aller Einstellwerte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Einstellsperrfunktion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Einstellen der Hintergrundbeleuchtung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Einstellen der Bildschirmanzeige (bei Verwendung eines Analogsignals) . . . . . . . . . . . . . . . . . . . . . . . . 36

Automatische Bildschirmeinstellung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Manuelle Bildschirmeinstellung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Einstellen der Bildschirmanzeige (bei Verwendung eines Digitalsignals) . . . . . . . . . . . . . . . . . . . . . . . . 40

Pflege des Monitors und Reparaturen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Pflege des Monitors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Lagerung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Fehlersuche . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Technische Daten . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Installieren der Setup-Informationen und des ICC-Profils (Für Windows) . . . . . . . . . . . . . . . . . . . . . . . . 46

Informationen zum Profil ColorSync (Für MacOS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Anweisungen zum Anbringen eines VESA-kompatiblen Monitorarms . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Tipp und Sicherheitsvorkehrungen

- Das TFT-Farb-LCD-Panel wurde unter Einsatz

hochentwickelter Technologie gefertigt. Es jann jedoch vorkommen, dass an einigen Stellen Bildpunkte nicht aufleuchten oder permanent angezeigt werden. Wenn der Bildschirm von der Seite aus angesehen wird, können die Farben unregelmäßig oder zu hell erscheinen. Dies ist normal bei LCD-Monitoren und hat keinen Einfluss auf die Leistungsfähigkeit des Gerätes.

- Die Bildschirmanzeige sollte nicht über lange

Zeiträume hinweg stehenbleiben, da dies einen Einbrenneffekt zur Folge haben könnte.

- Wenn die Helligkeit auf die Mindesteinstellung gesetzt

wird, ist der Bildschirm eventuell schlecht lesbar.

- Die Qualität des Computersignals kann die

Anzeigequalität beeinträchtigen. Wir empfehlen den Einsatz eines Computers, der Videosignale hoher Qualität aussenden kann.

- Der Monitor darf niemals mit harten Gegenständen

abgerieben oder berührt werden.

- Wir bitten um Ihr Verständnis, dass Sharp Corporation

über die gesetzlich anerkannte Leistungshaftung hinaus keine Haftung für Fehler übernimmt, die sich aus der Verwendung durch den Kunden oder einen Dritten ergeben, und auch nicht für sonstige Funktionsstörungen oder Schäden, die während der Verwendung am Gerät entstehen.

- Eine Aktualisierung dieses Monitors und seines

Zubehörs ist vorbehalten.

Aufstellort

- Verwenden Sie den Monitor nicht an schlecht

belüfteten Orten mit hoher Staubentwicklung, hoher Luftfeuchtigkeit oder an Orten, an denen der Monitor mit Öl oder Dampf in Kontakt kommen könnte, da dies ein Brandrisiko birgt.

- Achten Sie darauf, dass der Monitor nicht mit Wasser

oder anderen Flüssigkeiten in Berührung kommt. Achten Sie darauf, dass keinerlei Gegenstände, beispielsweise Büroklammern oder sonstige spitze Gegenstände, in den Monitor gesteckt werden. Die Folge könnte ein Brand oder Stromschlag sein.

- Stellen Sie den Monitor nicht auf wacklige Unterlagen

oder auf unsichere Stellen. Setzen Sie den Monitor keinen starken Stößen oder Erschütterungen aus. Wenn der Monitor herunterfällt oder umkippt, könnte er Schaden nehmen.

- Stellen Sie den Monitor nicht an Stellen auf, die

direkter Sonneneinstrahlung ausgesetzt sind, und nicht in der Nähe von Heizungen oder an anderen Stellen, an denen hohe Temperaturen auftreten, da dies zu einer übermäßig starken Erhitzung mit der Folge eines Brandes führen könnte.

Das Netzkabel

- Beschädigen Sie das Netzkabel nicht, stellen Sie keine

schweren Gegenstände darauf, und überdehnen oder knicken Sie es nicht. Verwenden Sie keine Verlängerungskabel. Ein beschädigtes Kabel kann einen Brand oder Stromschlag verursachen.

- Nur das mit dem Monitor mitgelieferte Netzkabel

verwenden.

- Stecken Sie den Netzstecker direkt in die Netzsteckdose. Die Verwendung eines Verlängerungskabels kann aufgrund von Überhitzung zu einem Brand führen.

Checkliste für Monitor und Zubehör

- Prüfen Sie den Kartoninhalt auf Vollständigkeit.

- LCD-Monitor (1)

- Netzadapter (1)

(Modellbezeichnung: NL-A61J)

- Analogsignalkabel (1)

(Modellbezeichnung: 0LTGD15180001)

- Utility Disk (für Windows/Macintosh) (1)

- Bedienungsanleitung (1)

Hinweise:

- Verwenden Sie nur die mit dem Monitor mitgelieferten Kabel oder entsprechende Kabel, die separat erworben werden können.

- Das Digitalsignalkabel (DVI-D 24polig – DVI-D 24polig) muß separat gekauft werden. (Modellbezeichnung: NLC01E)

- Bewahren Sie den Karton für einen eventuellen Transport des Monitors auf.

- Sharp Corporation besitzt Urheberrechte am Programm Utility Disk. Eine Reproduktion ist ohne Genehmigung nicht zulässig.

- Die Form des mitgelieferten Zubehörs kann von den Abbildungen in diesem Heft abweichen.

Verwendung des Netzadapters

- Der Netzadapter darf nur für das angegebene Gerät verwendet werden.

- Stecken Sie den Netzadapter aus, wenn Sie ihn längere Zeit nicht benutzen.

- Stellen Sie keine Gegenstände auf dem Netzadapter ab.

- Verwenden Sie den Netzadapter nicht im Freien.

- Führen Sie keine Reparaturversuche an einem beschädigten oder nicht funktionstüchtigen Netzadapter aus. Überlassen Sie Reparaturarbeiten dem Kundendienst.

- Öffnen Sie den Netzadapter nicht.

- Reinigen Sie den Netzadapter nicht mit Wasser oder einem nassen Tuch.

Inhalt des Handbuchs

- In diesem Handbuch wird Microsoft Windows XP als "Windows XP" bezeichnet, Microsoft Windows Millennium als "Windows Me", Microsoft Windows 2000 als "Windows 2000", Microsoft Windows 98 als "Windows 98", Microsoft Windows 95 als "Windows 95" und Microsoft Windows Version 3.1 als "Windows 3.1". Falls keine Unterscheidung zwischen den Programmen erforderlich ist, wird der Begriff "Windows" verwendet.

- Microsoft und Windows sind eingetragene Warenzeichen der Microsoft Corporation.

- Macintosh ist ein eingetragenes Warenzeichen der Apple Computer, Inc.

- Alle andere Warenzeichen sind das Eigentum der jeweiligen Gesellschaften.

+ 91 hidden pages

SHARP LL-T18A1 User Manual [en, de, fr, es]

Specifications and Main Features

Frequently Asked Questions

User Manual
