Sharp LL-191A User Manual

LCD Monitor
LCD Farbmonitor
Moniteur LCD
Monitor LCD
Monitor LCD

LL-191A

OPERATION MANUAL
BEDIENUNGSANLEITUNG
MODE D'EMPLOI
MANUALE D'USO
MANUAL DE FUNCIONAMIENTO

Table of Contents/Inhaltsverzeichnis/Table des matières/Indice/Índice/

Notice for Users in the USA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Notice for Users in Europe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Notice for Users in the UK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Notice for Users in Australia . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

TCO'03 (LL-191A-W) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

TCO'99 (LL-191A-B) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

English . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Deutsch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Français . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Italiano . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Español. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 97

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Notice for Users in the USA

IMPORTANT:
To aid in reporting in case of loss or theft, please
record the monitor's model and serial numbers in
the space provided. The numbers are located on
the rear of the monitor.

Model No.:

Serial No.:

FCC Statement

WARNING – FCC Regulations state that any unauthorized changes or modifications to this equipment
not expressly approved by the manufacturer could void the user's authority to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device

pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the distance between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.

- Consult the dealer or an experienced radio/TV technician for help.

EnglishDeutschFrançaisItalianoEspañolEnglish

Use nothing but the included cables and AC cord to insure compliance with FCC regulation for Class
B computing equipment.

Declaration of Conformity

SHARP LCD Color Monitor LL-191A-W/LL-191A-B

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1)
this device may not cause harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.

Responsible Party: SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430
TEL: 1-800-BE-SHARP

* As an ENERGY STA R® Partner, SHARP has determined that this product meets the ENERGY

This product utilizes tin-lead solder, and fluorescent lamp containing a small amount of mercury.
Disposal of these materials may be regulated due to environmental considerations. For disposal or
recycling information, please contact your local authorities or the Electronics Industries
Alliance: www.eiae.org

®

STA R

guidelines for energy efficiency.

3

Notice for Users in Europe

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended
by 93/68/EEC.

Dieses Gerät entspricht den Anforderungen der EG-Richtlinien 89/336/EWG und 73/23/EWG mit
Änderung 93/68/EWG.

Ce matériel répond aux exigences contenues dans les directives 89/336/CEE et 73/23/CEE modifiées
par la directive 93/68/CEE.

Dit apparaat voldoet aan de eisen van de richtlijnen 89/336/EEG en 73/23/EEG, gewijzigd door 93/68/
EEG.

Dette udstyr overholder kravene i direktiv nr. 89/336/EEC og 73/23/EEC med tillæg nr. 93/68/EEC.

Quest' apparecchio è conforme ai requisiti delle direttive 89/336/EEC e 73/23/EEC, come emendata
dalla direttiva 93/68/EEC.

Η εγκατασταση ανταποκρινεται στιζ απαιτησειζ των οδηγιων τηζ Ευρωπαïκηζ Ενωσηζ 89/336/ΕΟΚ κατ
73/23/ΕΟΚ, óπωζ οι κανονισµοι αυτοι συµπληρωθηκαν απó την οδηγια 93/68/ΕΟΚ.

Este equipamento obedece às exigências das directivas 89/336/CEE e 73/23/CEE, na sua versão
corrigida pela directiva 93/68/CEE.

Este aparato satisface las exigencias de las Directivas 89/336/CEE y 73/23/CEE, modificadas por
medio de la 93/68/CEE.

Denna utrustning uppfyller kraven enligt riktlinjerna 89/336/EEC och 73/23/EEC så som komplette ras
av 93/68/EEC.

Dette produktet oppfyller betingelsene i direktivene 89/336/EEC og 73/23/EEC i endringen 93/68/EEC.

Tämä laite täyttää direktiivien 89/336/EEC ja 73/23/EEC vaatimukset, joita on muutettu direktiivillä 93/
68/EEC.

CAUTION:

TO PREVENT ELECTRICAL SHOCK, DISCONNECT THE AC CORD BEFORE SERVICING.

CAUTION:

FOR A COMPLETE ELECTRICAL DISCONNECTION, PULL OUT THE MAIN PLUG.

VORSICHT:

UM DIE STROMZUFUHR VOLLSTÄNDIG ZU UNTERBRECHEN, DEN NETZSTECKER HERAUSZIEHEN
ENTFERNEN.

ATTENTION :

POUR UN ARRET TOTAL DE L'APPAREIL, DEBRANCHEZ LA PRISE DU COURANT SECTEUR.

VARNING:

FÖR TOTAL ELEKTRISK URKOPPLING, KOPPLA UR KONTAKTEN OCH.

PRECAUCION:

PARA UNA COMPLETA DESCONEXION ELECTRICA DESENCHUFE LA CLAVIJA DE LA RED.

PRECAUCION:

A FIN DE EVITAR DESCARGAS ELÉCTRICAS, DESCONECTE EL ENCHUFE DE LA RED ANTES DE
REALIZAR CUALQUIER OPERACIÓN DE SERVICIO.

ATTENZIONE:

PER EVITARE FOLGORAZIONI, SCOLLEGATE IL CAVO DI COLLEGAMENTO ALLA RETE IN
ALTERNATA PRIMA DI EFFETTUARE UN INTERVENTO DI SERVIZIO TECNICO.

ATTENZIONE:

PER UNO SCOLLEGAMENTO ELETTRICO COMPLETO, TIRATE FUORI LA SPINA PRINCIPALE.

4

Notice for Users in the UK

FOR CUSTOMERS IN U.K.

IMPORTANT

The wires in this mains lead are coloured in accordance with the following code:

GREEN-AND-YELLOW : Earth
BLUE : Neutral
BROWN : Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured
markings identifying the terminals in your plug proceed as follows:

• The wire which is coloured GREEN-AND-YELLOW must be connected to the terminal in the plug
which is marked by the letter E or by the safety earth

• The wire which is coloured BLUE must be connected to the terminal which is marked with the

letter N or coloured black.

• The wire which is coloured BROWN must be connected to the terminal which is marked with the
letter L or coloured red.

Ensure that your equipment is connected correctly. If you are in any doubt consult a qualified
electrician.

"WARNING: THIS APPARATUS MUST BE EARTHED."

or coloured green or green-and-yellow.

EnglishDeutschFrançaisItalianoEspañolEnglish

Notice for Users in Australia

Service Inquiries

Please contact your dealer for service if required or contact Sharp Corporation of Australia on
1 300 13 50 22 for referral to your nearest Sharp authorized Service Center.

5

Congratulations!

The display you have just purchased carries the TCO'03 Displays
label. This means that your display is designed, manufactured and
tested according to some of the strictest quality and environmental
requirements in the world. This makes for a high performance
product, designed with the user in focus that also minimizes the
impact on our natural environment.

LL-191A-W

Some of the features of the TCO'03 Display requirements:

Ergonomics

• Good visual ergonomics and image quality in order to improve the working environment for the user
and to reduce sight and strain problems. Important parameters are luminance, contrast, resolution,
reflectance, colour rendition and image stability.

Energy

• Energy-saving mode after a certain time – beneficial both for the user and the environment

• Electrical safety

Emissions

• Electromagnetic fields

• Noise emissions

Ecology

• The product must be prepared for recycling and the manufacturer must have a certified environmental
management system such as EMAS or ISO 14 001

• Restrictions on

- chlorinated and brominated flame retardants and polymers

- heavy metals such as cadmium, mercury and lead.

The requirements included in this label have been developed by TCO Development in cooperation with
scientists, experts, users as well as manufacturers all over the world. Since the end of the 1980s TCO
has been involved in influencing the development of IT equipment in a more user-friendly direction. Our
labelling system started with displays in 1992 and is now requested by users and IT-manufacturers all
over the world.

For more information, please visit

www.tcodevelopment.com

6

LL-191A-B

Congratulations!

You have just purchased a TCO'99 approved and labelled product! Your choice has provided you with a
product developed for professional use. Your purchase has also contributed to reducing the burden on
the environment and also to the further development of environmentally adapted electronics products.

Why do we have environmentally labelled computers?

In many countries, environmental labelling has become an established method for encouraging the
adaptation of goods and services to the environment. The main problem, as far as computers and other
electronics equipment are concerned, is that environmentally harmful substances are used both in the
products and during their manufacture. Since it is not so far possible to satisfactorily recycle the majority
of electronics equipment, most of these potentially damaging substances sooner or later enter nature.
There are also other characteristics of a computer, such as energy consumption levels, that are
important from the viewpoints of both the work (internal) and natural (external) environments. Since all
methods of electricity generation have a negative effect on the environment (e.g. acidic and climate­influencing emissions, radioactive waste), it is vital to save energy. Electronics equipment in offices is
often left running continuously and thereby consumes a lot of energy.

What does labelling involve?

This product meets the requirements for the TCO'99 scheme which provides for international and
environmental labelling of personal computers. The labelling scheme was developed as a joint effort by
the TCO (The Swedish Confederation of Professional Employees), Svenska Naturskyddsforeningen
(The Swedish Society for Nature Conservation) and Statens Energimyndighet (The Swedish National
Energy Administration).
Approval requirements cover a wide range of issues: environment, ergonomics, usability, emission of
electric and magnetic fields, energy consumption and electrical and fire safety.
The environmental demands impose restrictions on the presence and use of heavy metals, brominated
and chlorinated flame retardants, CFCs (freons) and chlorinated solvents, among other things. The
product must be prepared for recycling and the manufacturer is obliged to have an environmental policy
which must be adhered to in each country where the company implements its operational policy.
The energy requirements include a demand that the computer and/or display, after a certain period of
inactivity, shall reduce its power consumption to a lower level in one or more stages. The length of time
to reactivate the computer shall be reasonable for the user.
Labelled products must meet strict environmental demands, for example, in respect of the reduction of
electric and magnetic fields, physical and visual ergonomics and good usability.
Below you will find a brief summary of the environmental requirements met by this product. The
complete environmental criteria document may be ordered from:

EnglishDeutschFrançaisItalianoEspañolEnglish

TCO Development

SE-114 94 Stockholm, Sweden
Fax: [phone]
Email (Internet): [e-mail]
Current information regarding TCO'99 approved and labelled products may also be
obtained via the Internet, using the address: http://www.tco-info.com/

7

Environmental requirements

Flame retardants

Flame retardants are present in printed circuit boards, cables, wires, casings and housings. Their
purpose is to prevent, or at least to delay the spread of fire. Up to 30% of the plastic in a computer casing
can consist of flame retardant substances. Most flame retardants contain bromine or chloride, and those
flame retardants are chemically related to another group of environmental toxins, PCBs. Both the flame
retardants containing bromine or chloride and the PCBs are suspected of giving rise to severe health
effects, including reproductive damage in fish-eating birds and mammals, due to the bio-accumulative*
processes. Flame retardants have been found in human blood and researchers fear that disturbances in
foetus development may occur.
The relevant TCO'99 demand requires that plastic components weighing more than 25 grams must not
contain flame retardants with organically bound bromine or chlorine. Flame retardants are allowed in the
printed circuit boards since no substitutes are available.

Cadmium**

Cadmium is present in rechargeable batteries and in the colour-generating layers of certain computer
displays. Cadmium damages the nervous system and is toxic in high doses. The relevant TCO'99
requirement states that batteries, the colour-generating layers of display screens and the electrical or
electronics components must not contain any cadmium.

Mercury**

Mercury is sometimes found in batteries, relays and switches. It damages the nervous system and is
toxic in high doses. The relevant TCO'99 requirement states that batteries may not contain any mercury.
It also demands that mercury is not present in any of the electrical or electronics components associated
with the labelled unit. There is however one exception. Mercury is, for the time being, permitted in the
back light system of flat panel monitors as there today is no commercially available alternative. TCO
aims on removing this exception when a mercury free alternative is available.

CFCs (freons)

The relevant TCO'99 requirement states that neither CFCs nor HCFCs may be used during the
manufacture and assembly of the product. CFCs (freons) are sometimes used for washing printed circuit
boards. CFCs break down ozone and thereby damage the ozone layer in the stratosphere, causing
increased reception on earth of ultraviolet light with e.g. increased risks of skin cancer (malignant
melanoma) as a consequence.

Lead**

Lead can be found in picture tubes, display screens, solders and capacitors. Lead damages the nervous
system and in higher doses, causes lead poisoning. The relevant TCO'99 requirement permits the
inclusion of lead since no replacement has yet been developed.

*

Bio-accumulative is defined as substances which accumulate within living organisms.

**

Lead, Cadmium and Mercury are heavy metals which are Bio-accumulative.

8

Table of Contents

Tips and safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Product description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Angle adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Connecting the monitor and turning the monitor on and off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Connecting the monitor to a computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Connection of headphones (commercially available) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Connecting the monitor to a power source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Turning the power on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Turning the power off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Adjusting the screen display and speaker volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Adjusting the backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Adjusting the speaker volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Setting display mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Checking product information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Adjusting the screen display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Automatic screen adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Manual screen adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Monitor care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Monitor care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Information for customers on environmentally friendly disposal of this SHARP product . . . . . . . . . 23

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Installing set-up information and the ICC profile (For Windows) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Information about the ColorSync profile (For MacOS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Instructions for attaching a VESA-compliant arm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

English

9

Tips and safety precautions

- The TFT color LCD panel used in this monitor is

made with the application of high precision
technology. However, there may be minute
points on the screen where pixels never light or
are permanently lit. Also, if the screen is viewed
from an acute angle there may be uneven colors
or brightness. Please note that these are not
malfunctions but common phenomena of LCDs
and will not affect the performance of the
monitor.

- Do not display a still picture for a long time, as

this could cause an afterimage to remain.

- If the brightness is adjusted to the minimum

setting it may be difficult to see the screen.

- The quality of the computer signal may influence

the quality of the display. We recommend using
a computer able to emit high quality video
signals.

- Never rub or tap the monitor with hard objects.

- Please understand that Sharp Corporation bears

no responsibility for errors made during use by
the customer or a third party, nor for any other
malfunctions or damage to this product arising
during use, except where indemnity liability is
recognized under law.

- This monitor and its accessories may be

upgraded without advance notice.

Location

- Do not use the monitor where ventilation is poor,

where there is a lot of dust, where humidity is
high, or where the monitor may come into
contact with oil or steam, as this could lead to
fire.

- Ensure that the monitor does not come into

contact with water or other fluids. Ensure that no
objects such as paper clips or pins enter the
monitor as this could lead to fire or electric
shock.

- Do not place the monitor on top of unstable

objects or in unsafe places. Do not allow the
monitor to come into contact with strong shocks
or vibrations. Causing the monitor to fall or
topple over may damage it.

- Do not use in places where the monitor will be

subject to direct sunlight, near heating
equipment or anywhere else where there is
likelihood of high temperature, as this may lead
to generation of excessive heat and outbreak of
fire.

The Power Cord

- Do not damage the power cord nor place heavy
objects on it, stretch it or over bend it. Also, do
not add extension cords. Damage to the cord
may result in fire or electric shock.

- Use only the power cord supplied with the monitor.

- Insert the power plug directly into the AC outlet.
Adding an extension cord may lead to fire as a
result of overheating.

- Do not remove or insert the power plug with wet
hands. Doing so could result in electric shock.

Monitor and accessory checklist

- Please check that the following items are
included in the package.

- LCD monitor (1)

- Analog signal cable (1)

(model name: 0NIT15G4-0015)

- Audio cable (1)

(model name: 0NIT17A3-U006)

- Power cord (1)

- CD-ROM (1)

- Operation manual (1)

Notes:

- Use only the cables supplied with the monitor.

- You are advised to retain the carton in case the
monitor needs to be transported.

- Sharp Corporation holds authorship rights to the
Utility Disk program. Do not reproduce it without
permission.

- The shape of the supplied accessories may not
be exactly same as shown in this manual.

Manual Scope

- In this manual, Microsoft Windows XP will be
referred to as "Windows XP", Microsoft Windows
Millennium as "Windows Me", Microsoft
Windows 2000 as "Windows 2000", Microsoft
Windows 98 as "Windows 98", Microsoft
Windows 95 as "Windows 95", and Microsoft
Windows Version 3.1 as "Windows 3.1". When
there is no need to distinguish between
programs, the term "Windows" will be used.

- Microsoft and Windows are registered
trademarks of Microsoft Corporation.

- Macintosh is a registered trademark of Apple
Computer, Inc.

- All other brand and product names are
trademarks or registered trademarks of their
respective holders.

10

Product description

1. AUTO button ............................ This button is used to perform automatic adjustment of the screen

(CLOCK, PHASE, H-POS and V-POS). (p.18)

2. MENU button ........................... This button is used to pop-up, select and close the OSD (On Screen

Display) Menu.

3. / MODE button ..................... When the OSD Menu is displayed:

This button is used to select menu options.

When the OSD Menu is not displayed:

This button is used to set DISPLAY MODE.

buttons ............................. When the OSD Menu is displayed:

4.

5. Speakers.................................. Audio entering via the external device connected to the monitor can

6. Headphone terminal ............... Headphones (commercially available) can be connected here.

7. Power button ............................ Pressing this button turns the power on.

8. Power LED ...............................

9. Main power switch

10. Power terminal

11. Analog RGB input terminal ..... The analog signal cable is connected here. The analog signal cable

12. Audio input terminal ................ A computer's audio output terminal can be connected here. The audio

13. Security lock anchor ................By connecting a security lock (commercially available) to the security

14. Ventilation openings ............... Never block the ventilation openings as this may lead to overheating

These buttons are used to select an option or adjust the value of the
selected option.

When the OSD Menu is not displayed:

These buttons are used to adjust backlight brightness and speaker
volume.

be heard.

Press the button again to turn the power off.

This LED is lit green when in use and orange when in power-saving mode.

included should be used.

cable included should be used.

lock anchor, the monitor is fixed so that it cannot be transported.
The security slot works in conjunction with Kensington Micro Saver
Security Systems.

inside the monitor and result in malfunction.

English

11

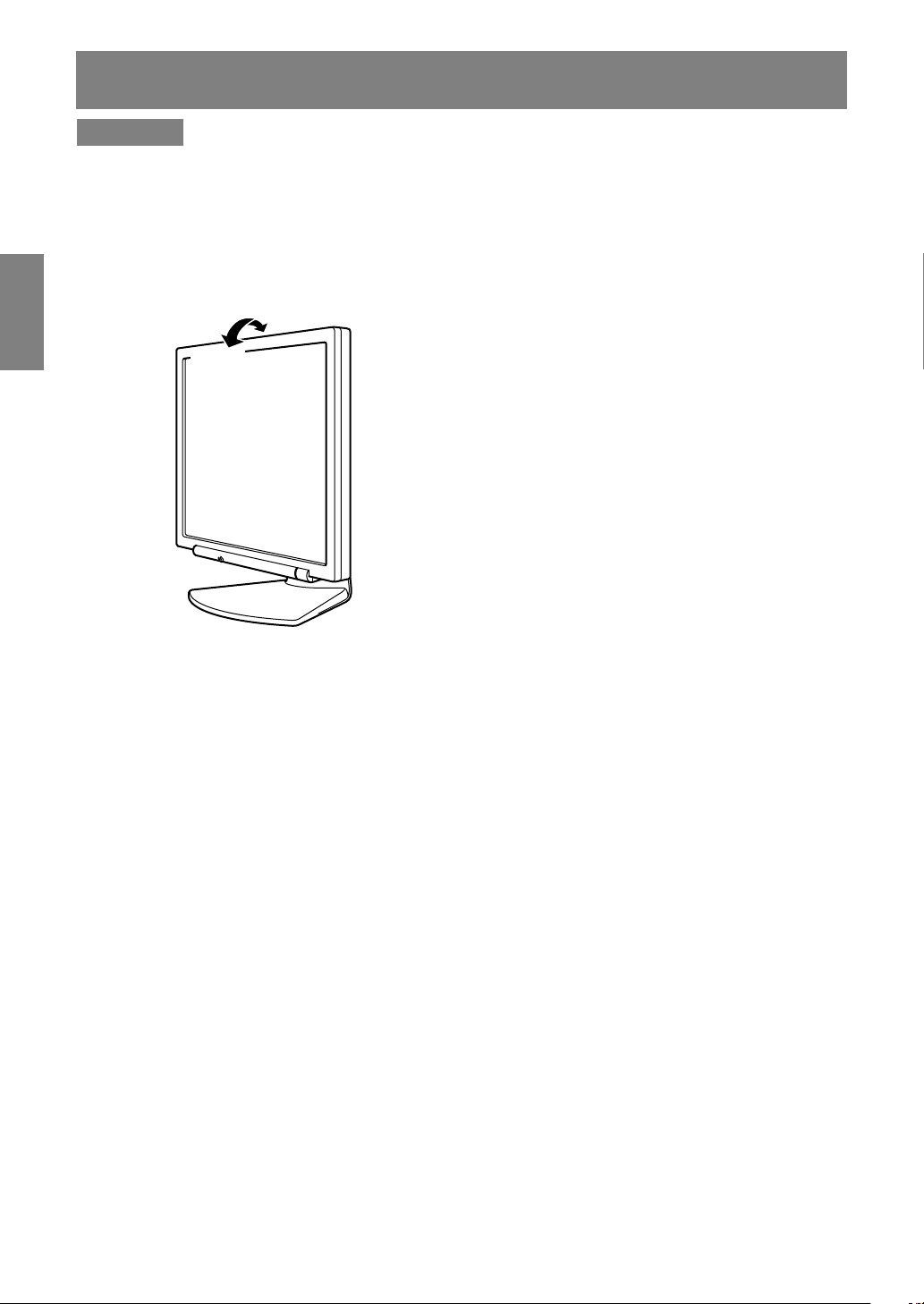

Angle adjustment

CAUTION!

- Be sure to hold both sides of the monitor when

adjusting the viewing angle. The LCD panel
used in this monitor is made of glass. Pressure
from hands on the LCD panel could cause
damage.

approx. 25°

approx. 5°

12

Connecting the monitor and turning the monitor on and off

CAUTION!

- When connecting, ensure that both the monitor

and computer are switched off.

- Be careful not to over bend the cable or add

extension cords as this could lead to a
malfunction.

Connecting the monitor to a computer

Connect the accessory analog signal cable to the
analog RGB output terminal of the computer.

Analog RGB terminal
(Mini D-sub 15 pin, 3 row)

Connect the accessory audio cable

When the accessory audio cable is connected to
the audio output terminal of the computer, the
sound of the connected computer is output from
the monitor speakers. You can also use the
headphone jack of the display.

Audio input terminal

Audio output terminal

Audio cable

English

Analog signal cable

- Paying attention to connector direction, firmly

insert the signal cable vertically into the
connector, and then tighten the screws at both
sides.

If connecting to a D-sub15 pin 2 row Apple Power
Macintosh, attach a Macintosh conversion adapter
(commercially available) to the analog signal
cable.

Macintosh conversion adapter

Note:

- If connecting to the Sun Ultra series, a

conversion adapter (commercially available)
may be required.

Analog RGB terminal
(Mini D-sub 15 pin, 3 row)

13

Connecting the monitor and turning the monitor on and off

Connection of headphones
(commercially available)

Headphones (commercially available) can be
connected.

Headphone terminal

Headphones

Notes:

- When the headphones are connected, no sound

can be heard from the monitor speakers.

- Use headphones with a cable less than 3 m in

length.

Connecting the monitor to a power
source

Turning the power on

1.Turn on the main power of the monitor.

Main power switch

- When switching the main power switch on and
off, always wait for an interval of at least 5
seconds. Rapid switching may result in
malfunction.

2.Press the monitor's power button.

3.Turn on the computer.

Turn on the

Press power button.

computer power
supply.

ON

Power terminal

AC outlet

Power cord

When a signal is input from the computer, the
power LED lights up green, and the screen is
displayed. (After power is turned on, it may take
a little time until the screen is displayed.)

Notes:

- If using the monitor for the first time or after
having changed the system settings during use,
perform an automatic screen adjustment. (p.18)

- Depending on the type of computer or OS, you
may need to install the monitor set-up
information on your system. (p.26)

- When connecting to a notebook, if the notebook
computer's screen is set to display at the same
time, the MS-DOS screen may not display
properly. In this case, change the setting to
display only the LCD monitor.

14

Connecting the monitor and turning the monitor on and off

Turning the power off

1.Turn the computer off.

2.Press the monitor's power button.
The power LED will disappear.

English

Turn the computer
off.

OFF

If the monitor will not be used for a long time, turn
off the main power switch of the monitor, and
remove the power plug from the outlet.

Press power button.

15

Adjusting the screen display and speaker volume

Note:

- All adjustments will be saved even after turning
the power off.

Resetting all adjustment values

All adjustment values can be returned to their
original ex-factory values in one command.

1.Turn off the monitor power.

2.Press the MENU button and the / MODE
button simultaneously, and while doing this
press the power button (i.e. turn the power on).
Continue to press the buttons until [ALL RESET]
appears on the screen. Reset is complete when
the displayed message disappears.

Notes:

- While [ALL RESET] is displayed, the control
buttons are disabled.

- It is not possible to reset values when the
adjustment lock is in place. Remove the
adjustment lock before attempting to operate
control buttons.

ADJUSTMENT Menu reset

Settings of items in the ADJUSTMENT Menu
(CLOCK, PHASE, H-POS, V-POS) can be returned
to their original ex-factory values.

1.Turn on the monitor power.

2.Press the MENU button and the
simultaneously. When [RESET] appears on the
screen, the reset is complete.

button

Adjustment lock function

By disabling the control buttons (i.e. setting the
lock) any attempted changes to adjusted values
will be voided.

1.Turn off the monitor power.

2.While pressing the MENU button, press the
power button (i.e. turn the power on).
Continue to press the buttons until
[

ADJUSTMENT LOCKED

The lock is set when the message is displayed.

Note:

- When the lock is in place, all buttons other than
the power button are disabled.

Adjustment lock release

1.Turn off the monitor power.

2.While pressing the MENU button, press the
power button (i.e. turn the power on).
Continue to press the buttons until [
UNLOCKED
released when the message is displayed.

] appears on the screen. The lock is

] appears on the screen.

ADJUSTMENT

Adjusting the backlight

1.Without the OSD Menu being displayed, press
the

or the button.

2.Check that [BRIGHT] is selected.
If it is not selected, press the / MODE button
and select [BRIGHT].

Notes:

- While [RESET] is displayed, the control buttons
are disabled.

- It is not possible to reset values when the
adjustment lock is in place. Remove the
adjustment lock before attempting to operate
control buttons.

3.Adjust by pressing the button (darker) or
button (lighter).

Note:

- On Screen display for adjustment disappears
several seconds after the last operation.

16

Adjusting the screen display and speaker volume

Adjusting the speaker volume

1.Without the OSD Menu being displayed, press
or the button.

the

2.Check that [VOLUME] is selected.

If it is not selected, press the / MODE button
and select [VOLUME].

3.Adjust by pressing the button (decrease) or

button (increase).

Note:

- On Screen display for adjustment disappears

several seconds after the last operation.

Setting display mode

Color tone or brightness can be changed with one
command.

STD

Displays image with the color tone results from
original scheme of liquid crystal panel.

OFFICE

Display brightness is lowered. (This mode saves
power.)

sRGB

sRGB is international standard of color
representation specified by IEC (International
Electrotechnical Commission).
Color conversion is made in taking account of
liquid crystal's characteristics and represents
color tone close to its original image.

VIVID

Displays an image with dynamic and vivid
primary colors.

- If [DISPLAY MODE] is set to [sRGB] or [VIVID],
[WHITE BALANCE] is set to [STD], and [GAMMA]
is set to [0].

English

How to set

Press the / MODE button when the OSD Menu is
not displayed.
Each time the button is pressed the next menu
item appears. (STD → OFFICE → sRGB → VIVID
→ STD)
On Screen display for adjustment disappears
several seconds after the last operation.

Checking product information

A model name (MODEL), a serial no. (S/N), and
usage time (USAGE TIME) of the monitor can be
checked.

1.Turn the power off.

2.While pressing the / MODE button, press the
monitor's power button (i.e. turn the power on).
The product information will display.

3.Press the MENU button.

Note:

- Please note that the indication of usage time at
purchase may not be 0 (zero), as a result of
factory inspection and other activities during
manufacture.

17

Adjusting the screen display

Automatic screen adjustment

Options in the ADJUSTMENT Menu can be
adjusted automatically (CLOCK, PHASE, H-POS,
V-POS).

Note:

- When setting up this monitor for the first time or
after having changed an aspect of the current
system, perform an automatic screen adjustment
before use.

Screen display for adjustment

First display an image that makes the entire
screen light.
If you are using Windows, you can use the
Adjustment Pattern on the accompanying CD­ROM.

Opening the Adjustment Pattern (for Windows)

This explanation is for Windows 95/98/2000/Me/
XP, and assumes that the CD-ROM drive is "D"
drive.

1.Load the accessory CD-ROM into the CD-ROM
drive of the computer.

2.Open [My Computer] and select CD-ROM. If
using Windows 3.1, open [File Manager] and
choose "D" drive.

3.Double click on [Adj_uty.exe] to run the
Adjustment Program. The Adjustment Pattern
will appear.

Adjustment Pattern

After completing the adjustments, press the
computer's [Esc] key to exit the Adjustment
Program.

Note:

- If your computer's display mode is set to 65K
colors, you may see the different color levels in
each color pattern or the gray scale may look
colored. (This is due to the specification of the
input signal and is not a malfunction.)

Adjusting the screen automatically

Automatic adjustment can be performed using
either the AUTO button or the MENU button.

AUTO button

1.Press the AUTO button.

2.Press the AUTO button again.
[ADJUSTING] will appear on the screen, and
after a few seconds [ADJUSTING] will disappear.
(The automatic adjustment is now complete.)

MENU button

1.Press the MENU button.
The ADJUSTMENT Menu will be displayed.

2.Press the button.
The screen will become dark and [ADJUSTING]
will be displayed. After a few seconds the
ADJUSTMENT Menu will return. (The automatic
adjustment is now complete.)

3.Press the MENU button 5 times to make the OSD
(On Screen Display) Menu disappear.

Notes:

- In most cases automatic adjustment is sufficient.

- It may not be possible to achieve correct
adjustment with the first automatic adjustment. In
such a case, try repeating the automatic
adjustment 2 or 3 times.

- If necessary due to any of the following, manual
adjustments (p.19) can be performed after the
automatic adjustment.

- When further fine adjustment is needed.

- When [OUT OF ADJUST] is displayed. (When

the screen displays an entirely dark image, the
automatic screen adjustment may be disabled.
When making an automatic adjustment, be
sure to either use the Adjustment Pattern or try
displaying an image that makes the entire
screen very bright.)

- When the computer's video input signals are

Composite Sync or Sync on Green. (Automatic
adjustments may not be possible.)

- Automatic adjustment may not be achieved
correctly depending on what is displayed on the
screen - moving pictures or the MS-DOS prompt
etc.

18

Adjusting the screen display

Manual screen adjustment

1.Display an image that makes the entire screen
light. (p.18)

2.Display the OSD Menu by pressing the MENU
button.

ADJUSTMENT Menu

MENU

GAIN CONTROL Menu

MENU

COLOR CONTROL Menu

Select the
option by
pressing the

/ MODE

button.

Select the
option by
pressing the

/ MODE

button.

Select the
option by
pressing the

/ MODE

button.

ADJUSTMENT Menu

AUTO

When [AUTO] is selected with the button, the
[CLOCK], [PHASE], [H-POS] and [V-POS] settings
are automatically adjusted.

CLOCK

The figure below demonstrates how to adjust so
that vertical flicker noise is not emitted.

(

buttons)

Vertical flicker noise

PHASE

The figure below demonstrates how to adjust so
that horizontal flicker noise is not emitted.

(

buttons)

Note:

- Adjustments to [PHASE] should be made only
after [CLOCK] has been correctly set.

English

MENU

MODE SELECT-1 Menu

MENU

MODE SELECT-2 Menu

MENU

The OSD Menu closes.

Notes:

- The OSD Menu automatically disappears
approximately 30 seconds after the last command.

- This chapter provides the procedure how to
adjust the screen by using Adjustment Pattern
(for Windows).

Select the
option by
pressing the

/ MODE

button.

Select the
option by
pressing the

/ MODE

button.

Horizontal flicker noise

H-POS (horizontal positioning) and V-POS
(vertical positioning)

To center the Adjustment Pattern within the
boundaries of the screen, adjust the left-right (H­POS) values and the up-down (V-POS) values.

buttons)

(

Screen frame

Adjustment

Pattern

19

Adjusting the screen display

GAIN CONTROL Menu

AUTO

When [AUTO] is selected with the button, the
[BLACK LEVEL] and [CONTRAST] settings are
automatically adjusted. After the automatic
adjustment, perform manual adjustment when
necessary.

BLACK LEVEL

Total screen brightness can be adjusted while
watching the color pattern. (

CONTRAST

While watching the color pattern, adjustments can
be made so that all gradations appear.

buttons)

(

Notes:
About AUTO (Auto Gain Control function)

- The Auto Gain Control adjusts contrast and
black level based on the brightest and darkest
colors of the image displayed.

- If you are not using the Adjustment Pattern it is
necessary to have black area and white area of
at least 5 mm x 5 mm on the screen. Adjustment
may not be possible without those areas.

- If the signal coming from the computer is
Composite Sync or Sync on Green, automatic
adjustment cannot be performed. Please
perform manual adjustment instead.

- If [OUT OF ADJUST] is displayed, perform
manual adjustment.

buttons)

Color pattern

COLOR CONTROL Menu

WHITE BALANCE

1.After selecting [WHITE BALANCE], press the
button.
The WHITE BALANCE menu will be displayed.

2.Use the buttons to select [COOL], [·], [STD],
[·], [WARM] or [USER].
COOL ... Color tone bluer than standard

• ......... Color tone slightly bluer than standard

STD ...... Color tone standard setting

• ......... Color tone slightly redder than standard

WARM .. Color tone redder than standard
USER

- Selecting [USER] will display the setting
values for [R-CONTRAST], [G-CONTRAST]
and [B-CONTRAST], in order to make fine
adjustments.

- Use the / MODE button to select
[R-CONTRAST], [G-CONTRAST] and
[B-CONTRAST].

R-CONTRAST .....

G-CONTRAST ..... button for purple

B-CONTRAST ...... button for yellow

3.Press the MENU button.

Notes:

- On settings other than [STD] not all gradations
can be displayed. To display all gradations, set
to [STD].

- If [DISPLAY MODE] is set to [sRGB] or [VIVID],
no other setting than [STD] can be selected.

button for blue-green
button for red

button for green

button for blue

GAMMA

Adjust so that dark and bright images are easy to
see. If the screen is dark and hard to see, increase
the numerical value. If it is bright and hard to see,

lower the numerical value. ( buttons)

- If [DISPLAY MODE] is set to [sRGB] or [VIVID],
[GAMMA] can not be set.

20

Adjusting the screen display

MODE SELECT-1 Menu

Note:

- Depending on the resolution of the input signal,
even if menu options can be selected, the
display may not change.

OSD H-POSITION (OSD horizontal position)

The position of the OSD Menu can be moved to
the left and right. (

OSD V-POSITION (OSD vertical position)

The position of the OSD Menu can be moved up
and down. (

SCALING (Level of scaling)

The sharpness of the image can be adjusted.
(

buttons)

Note:

- When the display mode is set to less than
1280 x 1024 pixels, the display is enlarged to
cover the whole screen (i.e. the side ratio of the
display may change).

400LINES (degree of resolution)

You can specify the horizontal resolution of a 400­line screen when using US text, etc. (

640: 640 x 400 dot mode
720: 720 x 400 dot mode (US text etc.)

Note:

- As the resolution input for other than 400 lines is
done automatically, there is no need to set it.

LANGUAGE

You can choose the language used in OSD Menu.

1.Press the
The Language Selection Menu will be displayed
on the screen.

2.Use the / MODE button to choose a language.

3.Press the MENU button.

buttons)

buttons)

buttons)

button.

MODE SELECT-2 Menu

INFORMATION

A model name (MODEL), a serial no. (S/N), and
usage time (USAGE TIME) of the monitor can be
checked.

1.After selecting [INFORMATION], press the
button.
The product information will display.

2.Press the MENU button.

OFF TIMER

Power is automatically shut off when the set time
elapses.

1.After selecting [OFF TIMER], press the

2.Set [ON]/[OFF] by pressing the
If selecting [ON], press the / MODE button and

set the shut-off time by pressing the
(Between 1 and 23 hours may be set, by the
hour.)

3.Press the MENU button.

- When [ON] is selected, the remaining time is
displayed in the upper right of the screen during
the last 5 minutes before the shut-off. (The
remaining time is displayed for approx. 5
seconds, on each minute.)

- If the power button is pressed after the first
display of the remaining time but before the
power shuts off, the OFF TIMER will be set to
one hour.
To subsequently turn the power off, press the
power button again. (When next turning on
power, power is again automatically shut off
when the set time elapses.)

- If the monitor is turned on when the [OFF TIMER]
is set to [ON], the set time appears on the display
for several seconds. (If there is no input signal,
[NO SIGNAL] is displayed.)

buttons.

button.

buttons.

English

21

Monitor care

Monitor care

Always remove the plug from the AC outlet when
cleaning the monitor.

Cabinet and control panel section

Use a soft dry cloth to lightly wipe away any grime
from the cabinet and control panel.
If they are very dirty, apply neutral detergent to a
dampened soft cloth, wring it out well and wipe
away grime.

LCD panel section

Use a soft dry cloth to lightly wipe away dirt and
dust from the surface of the LCD panel. (A soft
cloth such as gauze or that used for lens cleaning
is suitable.)

CAUTION!

- Never use thinner, benzine, alcohol, glass
cleaner, etc, as this could lead to color change
or change in shape.

- Never scratch the monitor with anything hard or
apply strong pressure as this could leave marks
or result in malfunction.

Storage

If the monitor will not be used for a long period of
time, be sure to remove the power plug from the
AC outlet.

CAUTION!

- Do not leave the monitor in contact with rubber
or plastic items for long periods of time as this
could lead to color change or change in shape.

Troubleshooting

If you think the monitor may be faulty, please
check the following points before taking it to be
repaired.
If afterwards it still does not work, please contact
the shop where you purchased the monitor or your
nearest Sharp authorized Service Center.

The monitor's fluorescent tubes have a limited
life span.

- If the screen darkens, persistently flickers or
does not light up, the fluorescent tube has
reached the end of its operational life span.
Please inquire at the shop where you
purchased the monitor or your nearest Sharp
authorized Service Center.

- In the initial period of use, due to the
characteristics of fluorescent tubes the screen
may flicker. (This is not a malfunction.) Should
this happen, check by first turning off the
power, then turning it on again.

No image appears on the screen (power LED is
not lit).

- Is the power cord connected properly? (p.14)

No image appears on the screen (power LED is lit).

- Is the computer connected properly? (p.13)

- Is the computer turned on?

- Does the computer's signal timing correspond to
monitor specifications? (p.25)

- Is the computer in power-saving mode?

Control buttons do not work.

- Is the adjustment lock on? (p.16)

The image appears distorted.

- Does the computer's signal timing correspond to
monitor specifications? (p.25)

- Perform automatic screen adjustment. (p.18)

- If you can change the refresh rate on the
computer you are using, change the value to a
lower frequency. (p.25)

No sound can be heard from the speakers.

- Is the audio cable connected correctly? (p.13)

- Perform the volume adjustment procedure. (p.17)

- Are the headphones connected?

- There is no sound from the speakers when the
monitor is in power-saving mode (the power
LED lights up orange).

22

Monitor care

Information for customers on
environmentally friendly disposal of
this SHARP product

If this product cannot be used any more, it should
be given away and disposed of in a legally correct
and environmentally sound way.

DO NOT DISPOSE OF THIS PRODUCT WITH
YOUR HOUSEHOLD WASTE OR MIXED WITH
OTHER WASTES ! YOU MIGHT ENDANGER THE
ENVIRONMENT !

Sharp Corporation is committed to protecting the
environment and conserving energy. Our goal is to
minimize the environmental impact of our products
by continually implementing and improving
product technologies, designs, and customer
information aimed at environmental conservation.

(1) For our customers in United Kingdom,

Germany, France, and Italy

Please contact your local authorities for
collection and recycling facilities, or contact a
recycling service company, which is licensed
for the recycling of electronic equipment.
SHARP recommends the recycling services of
MIREC, the General information on MIREC can
be obtained from http://www.mirec.com/.
MIREC services have to be paid for by the last
owner of the electronic equipment in question.

English

(2) For our customers in the USA

This product utilizes tin-lead solder, and a
fluorescent lamp containing a small amount of
mercury. Disposal of these materials may be
regulated due to environmental considerations.
For collection and recycling information,
please contact your local authorities or
the Electronics Industries Alliance:
http://www.eiae.org

(3) For our customers in Japan

Call toll free number 0120-845-530 for
recycling Information.

23

Specifications

Product specifications

Model name

LL-191A-W (White)/LL-191A-B (Black)

LCD display

48 cm measured diagonally TFT LCD module

Resolution (max.)

SXGA 1280 x 1024 pixels

Displayable colors (max.)

Approx.16.19 million colors (6 bit + FRC)

Brightness (max.)

220 cd/m

Dot pitch

0.294 (H) x 0.294 (V) mm

Contrast ratio

500:1

Angle of visibility

Left-right 160°; up-down 160°
(contrast ratio > 5)

Screen display size

Horizontal 376.3 mm x Vertical 301.1 mm

Video signal

Analog RGB (0.7 Vp-p) [75Ω]

Sync signal

Separate Sync (TTL level: +/-), Sync on
Green, Composite Sync (TTL level: +/-)

Expansion compensation

Digital scaling (Enlarges VGA/SVGA/XGA etc. to
full screen size.)

Plug & Play

VESA DDC2B compatible

Power management

VESA: based on DPMS

Speaker output

1 W + 1 W

Input signal terminal

Mini D-sub15 pin (3 row)

Audio input terminal

Mini stereo jack

Headphone terminal

Mini stereo jack

Screen tilt

Upward approx. 0 - 25°; downward approx. 0 - 5°

Power supply

AC100 - 240 V, 50/60 Hz

Temperature of operating environment

5 - 35°C

Power consumption

33 W (with no audio input)
(36 W maximum, 1.8 W when in power-saving
mode)

Dimensions

Approx. 419 (W) x 213 (D) x 409 (H) mm

Weight

Approx. 7.8 kg (approx. 5.7 kg excluding stand)
(Excluding cables.)

2

Dimensions (Units: mm)

- Analog signal cable: approx. 1.8 m

- Audio cable: approx. 1.8 m

Note:

- As a part of our policy of continuous
improvement, SHARP reserves the right to make
design and specification changes for product
improvement without prior notice. The
performance specification figures indicated are
nominal values of production units. There may
be some deviations from these values in
individual units.

24

Specifications

Relevant signal timings

Display mode

VESA

US text

Power
Macintosh
series

Sun Ultra
series

Hsync Vsync

Dot
frequency

- Recommended resolution is 1280 x 1024.

- All are compliant only with non-interlaced.

- Frequencies for Power Macintosh and the Sun
Ultra series are reference values. To connect,
another adapter (commercially available) may
be required.

- If the monitor is receiving timing signals that are
not compatible, [OUT OF TIMING] will appear.
Follow your computer's instruction manual to set
the timing so that it is compatible with the
monitor.

- If the monitor is not receiving any signal (synch
signal), [NO SIGNAL] will appear.

The analog RGB input connector pin

(Mini D-sub connector with 15 pins)

No. Function

1 Red video signal input

2 Green video signal input

3 Blue video signal input

4 GND

5 GND

6 For red video signal GND

7 For green video signal GND

8 For blue video signal GND

9 +5V

10 GND

11 GND

12 DDC data

13 For Hsync signal input

14 For Vsync signal input

15 DDC clock

Power management

The monitor is based on VESA DPMS (Display
Power Management Signaling).
To activate the monitor's power management
function, both the video card and the computer
must conform to the VESA DPMS standard.

DPMS: Display Power Management Signalling

DPMS mode Screen

ON Display on Yes Yes

STANDBY No Yes

SUSPEND Display off Yes No

OFF No No

Power

consumption

36 W

1.8 W

H-sync V-sync

English

DDC (Plug & Play)

This monitor supports the VESA DDC (Display
Data Channel) standard.
DDC is a signal standard for carrying out Plug &
Play functions on the monitor or computer. It
transfers information such as degree of resolution
between the monitor and computer. You can use
this function if your computer is DDC compliant
and if it is set so that it can detect the Plug & Play
monitor.
There are many varieties of DDC due to the
differences between systems. This monitor works
with DDC2B.

25

Installing set-up information and the ICC profile (For Windows)

Depending on the type of computer or OS, you
may need to install the monitor set-up information
on your system. If so, follow the steps below to
install the monitor set-up information. (Depending
on the type of computer or OS, command names
and methods may differ. Please follow the
computer's own operation manual while reading
this.)

About the ICC profile

An ICC (International Color Consortium) profile is
a file that describes the color reproduction
characteristics of the LCD monitor. Using an
application compatible with an ICC profile, highly
accurate color reproduction can be realized.

- Windows 98/2000/Me/XP all use the ICC profile.

- When installing Windows 98/2000/Me/XP set-up
information (described below), the ICC profile is
also installed. If you would like to install the ICC
profile only, please refer to Installing the ICC
profile on page 28.

- When using the ICC profile, set as follows:

- [DISPLAY MODE]: [STD] or [OFFICE]

- [WHITE BALANCE]: [STD]

- [GAMMA]: [0]

For Windows 95

Installing monitor set-up information into
Windows 95.
This explanation assumes that the CD-ROM drive
is "D" drive.

1. Load the accessory CD-ROM into the CD-ROM

drive of the computer.

2. Click on the [Start] button. From [Settings],

choose [Control Panel].

3. Double click on [Display].

4. Click on [Settings], [Advanced Properties], and

[Monitor], then [Change].

5. Click on [Have disk], confirm that [Copy

manufacturer's files from:] is [D:] then click [OK].

6. Confirm that the monitor details are selected,

and click [OK].

7. Check that the monitor details are displayed,

then click [Apply].

8. Click [OK], and close the window.

For Windows 98

Installing monitor set-up information into
Windows 98, and setting the monitor's ICC profile
as a predetermined value.
This explanation assumes that the CD-ROM drive
is "D" drive.

If the "Add New Hardware Wizard" has appeared:

1. Load the accessory CD-ROM into the CD-ROM
drive of the computer.

2. Click [Next].

3. Check [Display a list of all the drivers in a
specific location, so you can select the driver
you want.], then click [Next].

4. When [Models] is displayed, click on [Have
disk], confirm that [Copy manufacturer's files
from:] is [D:], and click [OK].

5. Confirm that the monitor details are selected,
then click [Next], [Next], and [Finish]. If the "Add
New Hardware Wizard" appears, repeat the
installation commands beginning from 2
above.

If the "Add New Hardware Wizard" has not
appeared:

1. Load the accessory CD-ROM into the CD-ROM
drive of the computer.

2. Click on the [Start] button. From [Settings],
choose [Control Panel].

3. Double click on [Display].

4. Click on [Settings], [Advanced] and [Monitor].

5. In [Options], check [Automatically detect Plug &
Play monitors] and click on [Change].

6. Click [Next].

7. Click on [Display a list of all the drivers in a
specific location, so you can select the driver
you want.], then click [Next].

8. When [Models] is displayed, click on [Have
disk], confirm that [Copy manufacturer's files
from:] is [D:], and click [OK].

9. Confirm that the monitor details are selected,
then click [Next], [Next], and [Finish].

10. Check that the monitor details are displayed,
then click [Apply].

11. Click [OK], and close the window.

26

Installing set-up information and the ICC profile (For Windows)

For Windows 2000

Installing monitor set-up information into
Windows 2000, and setting the monitor's ICC
profile as a predetermined value.
This explanation assumes that the CD-ROM drive
is "D" drive.

1. Load the accessory CD-ROM into the CD-ROM
drive of the computer.

2. Click on the [Start] button. From [Settings],
choose [Control Panel].

3. Double click on [Display].

4. Click on [Settings], [Advanced] and [Monitor].

5. Click on [Properties], [Driver] and [Update
Driver].

6. When [Upgrade Device Driver Wizard]
appears, click [Next].

7. Check [Display a list of the known drivers for
this device so that I can choose a specific
driver] and click [Next].

8. When [Models] is displayed, click on [Have
disk], confirm that [Copy manufacturer's files
from:] is [D:], and click [OK].

9. Select the monitor from the list displayed and
click [Next].

10. Click [Next], confirm that the monitor's name
appears on the screen, and click [Finish]. If
[The Digital Signature Not Found] appears,
click [Yes].

11. Click on [Close].

12. Click [OK], and close the window.

For Windows Me

Installing monitor set-up information into Windows
Me, and setting the monitor's ICC profile as a
predetermined value.
This explanation assumes that the CD-ROM drive
is "D" drive.

If the "Add New Hardware Wizard" has appeared:

1. Load the accessory CD-ROM into the CD-ROM
drive of the computer.

2. Check [Specify the location of the driver
[Advanced]] and click [Next].

3. Check [Display a list of all the drivers in a
specific location, so you can select the driver
you want.], then click [Next].

4. When [Models] is displayed, click on [Have
disk], confirm that [Copy manufacturer's files
from:] is [D:], and click [OK].

5. Select the monitor details from the list, then
click [Next], [Next], and [Finish]. If the "Add New
Hardware Wizard" appears, repeat the
installation commands beginning from 2
above.

If the "Add New Hardware Wizard" has not
appeared:

1. Load the accessory CD-ROM into the CD-ROM
drive of the computer.

2. Click on the [Start] button. From [Settings],
choose [Control Panel].

3. Double click on [Display].

4. Click on [Settings], [Advanced] and [Monitor].

5. In [Options], check [Automatically detect Plug &
Play monitors] and click on [Change].

6. Check [Specify the location of the driver
[Advanced]] and click [Next].

7. Check [Display a list of all the drivers in a
specific location, so you can select the driver
you want.] and click [Next].

8. When [Models] is displayed, click on [Have
disk], confirm that [Copy manufacturer's files
from:] is [D:], and click [OK].

9. Select the monitor details, then click [Next],
[Next], and [Finish].

10. Check that the monitor details are displayed,
then click [Apply].

11. Click [OK], and close the window.

English

27

Installing set-up information and the ICC profile (For Windows)

For Windows XP

Installing monitor set-up information into Windows
XP, and setting the monitor's ICC profile as a
predetermined value.
This explanation assumes that the CD-ROM drive
is "D" drive.

1. Load the accessory CD-ROM into the CD-ROM
drive of the computer.

2. Click on the [Start] button. Choose [Control
Panel].

3. Switch to "Classic View".

4. Double click on [Display].

5. Click on [Settings], [Advanced] and [Monitor].

6. Click on [Properties], [Driver] and [Update
Driver].

7. When [Hardware Update Wizard] appears,
check [Install from a list or specific location
[Advanced]] and click [Next].

8. Check [Don't search. I will choose the driver to
install.] and click [Next].

9. Click on [Have Disk], confirm that [Copy
manufacturer's files from:] is [D:], and click [OK].

10. Select the monitor from the list displayed and
click [Next].
If [has not passed Windows Logo testing...]
appears, click [Continue Anyway].

11. Confirm that the monitor's name appears on
the screen.

12. Click on [Finish].

13. Click on [Close].

14. Click [OK], and close the window.

Installing the ICC profile

Installing the monitor's ICC profile. (If the set-up
information has already been installed, so too has
the profile, and there is no need to install it.)
This explanation assumes that the CD-ROM drive
is "D" drive.

1. Load the accessory CD-ROM into the CD-ROM
drive of the computer.

2. Click on the [Start] button. From [Settings],
choose [Control Panel].

3. Double click on [Display].

4. Click on [Settings] and [Advanced].

5. Click on [General] and from [Compatibility]
select [Apply the new display setting without
restarting], then click on [Color Management].

6. Click [Add], and select CD-ROM as the file
location.

7. Choose the color profile that you would like to
install, and click on [Add].

8. Choose the profile and click on [Set As
Default].

9. Click [OK], and close the window.

- When using the ICC profile, set as follows:

- [DISPLAY MODE]: [STD] or [OFFICE]

- [WHITE BALANCE]: [STD]

- [GAMMA]: [0]

28

Information about the ColorSync profile (For MacOS)

About the ColorSync profile

ColorSync is Apple Computer's color management
system and enables color reproduction
characteristics to be realized when used with a
compatible application. A ColorSync profile
describes the color characteristics of the LCD
monitor.

Notes:

- This monitor's ColorSync profile works with
MacOS 8.5 or above.

- When using the ColorSync profile, set as
follows:

- [DISPLAY MODE]: [STD] or [OFFICE]

- [WHITE BALANCE]: [STD]

- [GAMMA]: [0]

Setting up the ColorSync profile

Notes:

- It is necessary to have PC Exchange or File
Exchange installed in your system.

- Depending on the type of computer or OS,
command names and methods may differ.
Please follow the computer's own operation
manual while reading this.

English

1.Load the accessory CD-ROM into the CD-ROM
drive of the computer.

2. Copy the profile to be used from the CD-ROM to
the ColorSync profile folder in the system folder.

3.Using the ColorSync on the control panel,
choose the profile to be used.

29

Instructions for attaching a VESA-compliant arm

The following stand or arm can be attached to the
monitor.

- Stand (sold separately)

Model name: NL-S02-H (Ivory)

NL-S02-B (Black)

- VESA-compatible arm (commercially available)

Compatible commercially available arms

Attachments must satisfy the following.

- Compatible with the VESA standard.

- Have a gap of 100 mm x 100 mm between the
screw holes on the section to be attached.

- Not be likely to fall off or break off after being
attached to the monitor.

How to attach the arm or stand

- Be careful not to over bend the cable or add
extension cords as this could lead to malfunction.

- While following these instructions, please also
refer to the installation instructions in the
operation manual included with the arm or stand.

CAUTION!

- Be careful not to get your fingers pinched
between the display and stand nor to let the
stand drop. These could lead to injury.

1.Remove the cables.

2.Spread out a soft cloth on a suitable horizontal
surface.

3.Being careful not to damage the monitor, gently
lay the monitor on it display-side down.

4.Remove the four screws and then remove the
stand from the monitor.

5.Attach the arm to the monitor with the four screws.

Note:

- The screws used to attach the arm should be M4
screws with a length of 6 - 8 mm protruding from
the surface to be attached. Using different
screws could cause the monitor to fall off or to be
internally damaged.

Screw used to attach arm

Arm
Part of monitor to which arm is

attached

Notes:

- The stand is specially made for use with this
monitor. Once having removed the stand, never
attempt to attach it to another device.

- Once having removed the screws, store them
together with the stand and if the stand is ever
re-attached be sure to use the original screws.
Using different screws could lead to a malfunction.

30
