Sharp LD-26SH3U User Manual

Download

26" LCD COLOR TV TÉLÉVISEUR ACL COULEUR 26" TV DE LCD A COLOR DE 26"

LD-26SH3U

OPERATION MANUAL MODE D'EMPLOI MANUAL DE FUNCIONAMIENTO

EnglishFrançaisEspañol

Products that have earned the ENERGY STAR are designed to protect the environment through superior energy efficiency.

English ...... E1

Français .... F1

Español ..... S1

ENGLISH

IMPORTANT: To aid in reporting in case of loss or theft, please record the TV's model and serial numbers in the space provided. The numbers are located on the rear of the TV.

Model No.:

Serial No.:

U.S.A. ONLY

IMPORTANT INFORMATION

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO

NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

The lightning flash with arrowhead symbol, within an

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

EnglishFrançaisEspañolItalianoEspañolEnglish

CAUTION:

DO NOT PLACE THIS PRODUCT ON AN UNSTABLE CART, STAND, TRIPOD, BRACKET, OR TABLE. THE PRODUCT MAY FALL CAUSING SERIOUS PERSONAL INJURY AND SERIOUS DAMAGE TO THE PRODUCT. USE ONLY WITH A CART, STAND, TRIPOD, BRACKET, OR TABLE RECOMMENDED BY THE MANUFACTURER OR SOLD WITH THE PRODUCT. FOLLOW THE MANUFACTURER'S INSTRUCTIONS WHEN INSTALLING THE PRODUCT AND USE MOUNTING ACCESSORIES RECOMMENDED BY THE MANUFACTURER. A PRODUCT AND CART COMBINATION SHOULD BE MOVED WITH CARE. QUICK STOPS, EXCESSIVE FORCE, AND UNEVEN SURFACES MAY CAUSE THE PRODUCT AND CART COMBINATION TO OVERTURN.

CAUTION:

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections.

IMPORTANT INFORMATION

FCC Statement

WARNING – FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

U.S.A. ONLY

Declaration of Conformity

SHARP 26" LCD Color TV LD-26SH3U

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Responsible Party: SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430-2135 TEL: 1-800-BE-SHARP

For Business Customers: URL http://www.sharpusa.com

"Note to CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National Electrical Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical."

This product utilizes tin-lead solder, and fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eia.org

U.S.A. ONLY

Table of Contents

Getting started

Tips and safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E5

Important safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E5

Product and accessory checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E9

Product description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E10

Main unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E10

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E12

Cable clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E13

Using headphones (commercially available) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E13

Angle adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E13

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E14

Using the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E14

Batteries for the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E14

Connection and preparation

Preparation steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E15

Connecting the TV to a home antenna terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E16

Connecting the TV to a power source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E19

Setting TV channels (EZ Setup) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E20

Connecting the TV to AV equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E21

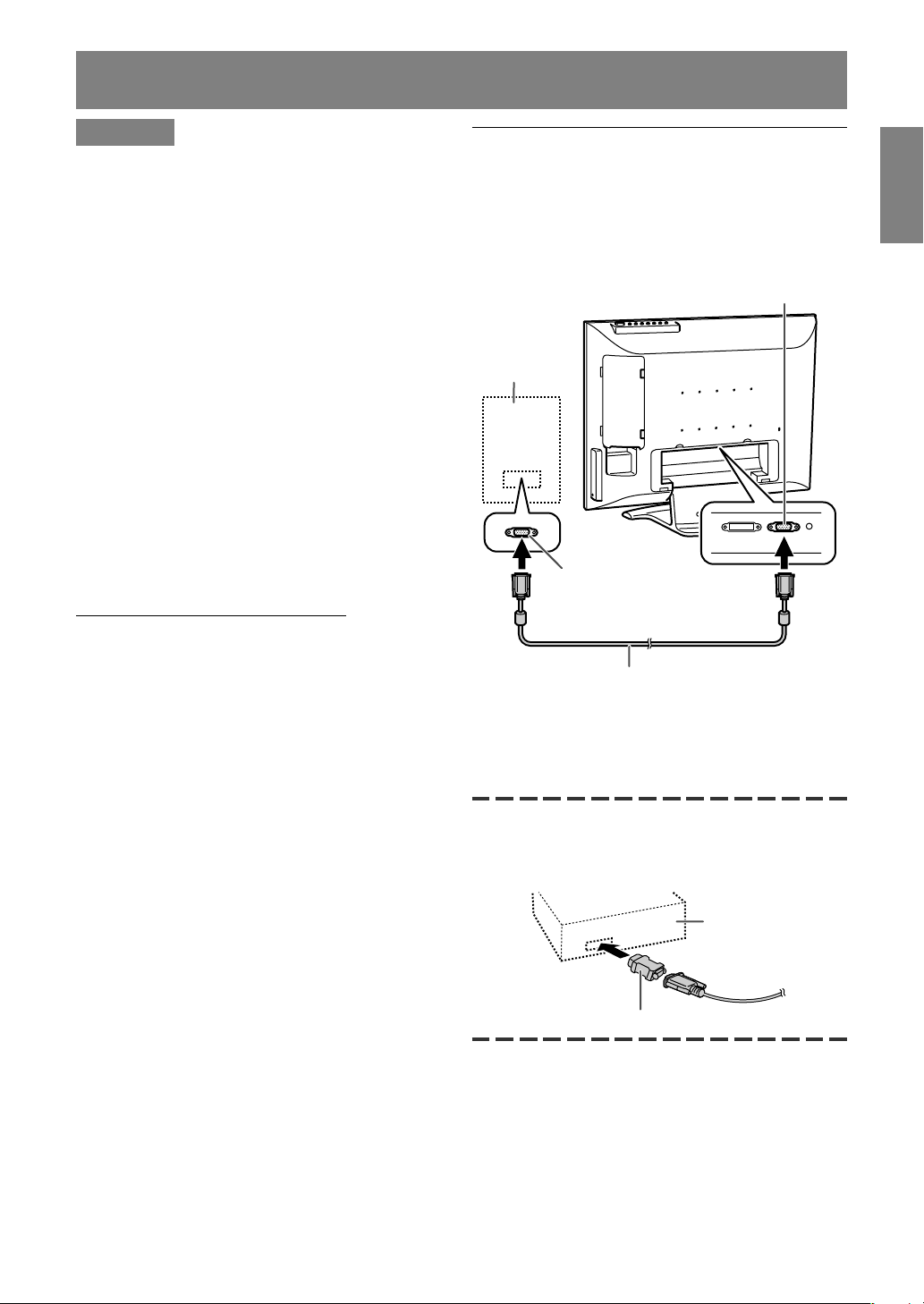

Connecting the TV to a computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E25

Analog connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E25

Digital connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E26

Connecting the audio cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E26

EnglishFrançaisEspañolItalianoEspañolEnglish

Basic operations

Basic adjustment screen operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E27

Basic operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E28

Turning power on/off. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E28

Switching display modes (INPUT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E29

Selecting channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E30

Adjusting the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E30

Enjoying surround sound (Virtual Dolby Surround) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E31

Muting the sound (MUTE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E31

TV/AV mode

Setting TV channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E32

Selecting broadcast (Air) or cable TV (Cable) for channel setting . . . . . . . . . . . . . . . . . . . . . . . . . . E32

Saving broadcast TV channels in the memory (CH Search) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E33

Setting channels manually (CH Memory) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E33

Watching TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E34

Selecting MTS (Multi ch TV Sound) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E34

Returning to previous channel (FLASHBACK) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E34

Enjoying DVDs, games, and other equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E35

Helpful features (in TV/AV mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E36

Adjusting the V-Chip settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E36

Setting the Closed Caption (CC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E40

Pausing the screen (FREEZE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E41

Using the menus in TV/AV mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E42

How to adjust using the menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E42

Menu setting items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E42

Table of Contents

PC mode

Adjusting the computer display automatically (for analog signals) . . . . . . . . . . . . . . . . . . . . . . . . . . . . E46

Using the menus in PC mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E47

How to adjust using the menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E47

Menu setting items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E47

PIP/Split mode

Watching two images simultaneously (PIP/SPLIT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E53

Displaying the images in PIP/Split mode (ON/OFF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E53

Selecting the active window (SELECT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E53

Changing between TV and AV modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E53

Swapping images (SWAP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E54

Adjusting the size or position of the small window (SIZE/MOVE). . . . . . . . . . . . . . . . . . . . . . . . . . . E54

Other features

Other features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E55

Changing the screen size (VIEW MODE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E55

Adjusting the picture mode (PICT MODE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E56

Checking your TV's current settings (DISPLAY) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E57

Switching power off after a specified length of time (SLEEP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E57

Preventing changes to adjusted values (Adjustment Lock) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E58

Resetting all adjustment values (ALL RESET) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E58

Outputting images and sound to AV equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E59

Appendix

Instructions for attaching a VESA-compliant mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E60

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E62

TV care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E65

TV care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E65

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E65

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E66

Tips and safety instructions

Thank you for your purchase of the Sharp 26" LCD Color TV. To ensure safety and many years of troublefree operation of your product, please read the important safety instructions carefully before using this product.

Important safety instructions

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your LCD Color TV, please read the following precautions carefully before using the product.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) Power Sources – This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

16) Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

17) Object and Liquid Entry – Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

18) Damage Requiring Service – Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the AC cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into the product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal

operation, e) If the product has been dropped or damaged in any way, and f) When the product exhibits a distinct change in performance – this indicates a need for service.

19) Replacement Parts – When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

20) Safety Check – Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21) Wall or ceiling mounting – When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.

EnglishFrançaisEspañolItalianoEspañolEnglish

Tips and safety instructions

- Water and Moisture – Do not use this product near water – for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

- Stand – Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer's instructions. Use only the mounting hardware recommended by the manufacturer.

- Ventilation – The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed.

- The Liquid Crystal panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the panel breaks.

- Heat – The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Precautions when transporting the TV

When transporting the TV, be sure to always carry the TV by two people holding it with two hands one hand on each side of the TV.

–

Tips and safety instructions

- If an outside antenna is connected to the equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

ANTENNA LEAD IN WIRE

GROUND CLAMP

ANTENNA

ELECTRIC SERVICE EQUIPMENT

NEC-NATIONAL ELECTRICAL CODE

GROUND CLAMPS POWER SERVICE GROUNDING

ELECTRODE SYSTEM (NEC ART 250, PART H)

DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

EnglishFrançaisEspañolItalianoEspañolEnglish

- For added protection for this equipment during a lightning

storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the equipment due to lightning and power-line surges.

- An outside antenna system should not be located in the

vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

- To prevent fire, never place any type of candle or flames on the top or near the TV set.

- To prevent fire or shock hazard, do not expose this product to dripping or splashing. No objects

filled with liquids, such as vases, should be placed on the product.

- To prevent fire or shock hazard, do not place the AC power cord under the TV set or other heavy

items.

Tips and safety instructions

- The TFT color LCD panel used in this TV is made with the application of high precision technology. However, there may be minute points on the screen where pixels never light or are permanently lit. Also, if the screen is viewed from an acute angle, there may be uneven colors or brightness. Please note that these are not malfunctions but common phenomena of LCDs and will not affect the performance of the TV.

- Do not display a still picture for a long period, as this could cause a residual image.

- If the brightness is adjusted to the minimum setting, it may be difficult to see the screen.

- The quality of the video signal may influence the quality of the display. We recommend using an equipment able to emit high quality video signals.

- Never rub or tap the TV with hard objects.

- Do not modify, disassemble, or repair the TV by yourself. Doing so may cause a fire, electric shock, or injury.

- Please understand that Sharp Corporation bears no responsibility for errors made during use by the customer or a third party, nor for any other malfunctions or damage to this product arising during use, except where indemnity liability is recognized under law.

- This TV and its accessories may be upgraded without advance notice.

Location

- Do not use the TV where ventilation is poor, where there is a lot of dust, where humidity is high, or where the TV may come into contact with oil or steam, as this could lead to fire.

- Ensure that the TV does not come into contact with water or other fluids. Ensure that no objects such as paper clips or pins enter the TV as this could lead to fire or electric shock.

- Do not place the TV on top of unstable objects or in unsafe places. Do not allow the TV to come into contact with strong shocks or vibrations. Causing the TV to fall or topple over may damage it.

- Do not use in places where the TV will be subject to direct sunlight, near heating equipment or anywhere else where there is likelihood of high temperature, as this may lead to generation of excessive heat and outbreak of fire.

Power cord

- Do not damage the power cord, place heavy objects on it, stretch it, or over bend it. Also, do not add extension cords. Damage to the cord may result in fire or electric shock.

- Use only the power cord supplied with the TV.

- Insert the power plug directly into the AC outlet. Adding an extension cord may lead to fire as a result of overheating.

- Do not remove or insert the power plug with wet hands. Doing so could result in electric shock.

- Unplug the power cord if it is not used for a long time.

- Do not attempt to repair the power cord if it is broken or malfunctioning. Refer the servicing to the service representative.

Manual scope

- In this manual, when there is no need to distinguish between the following programs, the term "Windows" will be used: Microsoft Windows XP, Microsoft Windows Millennium, Microsoft Windows 2000, Microsoft Windows 98, and Microsoft Windows 95.

- Microsoft and Windows are registered trademarks of Microsoft Corporation.

- Macintosh is a registered trademark of Apple Computer, Inc.

- Adobe and Reader are registered trademarks of Adobe Systems Incorporated.

- HDMI, the HDMI logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

- All other brand and product names are trademarks or registered trademarks of their respective holders.

- Actual screens and buttons may differ from those as shown in this manual.

- The procedures described in this manual use screenshots in ENGLISH (factory setting).

- The explanations in this manual use primarily the remote control. (Operations requiring the use of control buttons on the TV are specifically identified using the words "on the TV".)

Product and accessory checklist

Please check that the following items are included in the package.

- 26" LCD Color TV (1) Power cord (1)

PC analog signal cable (1) (model name: 0LTLS20276002)

- PC audio cable (1) (model name: 0LTLS05247001) Remote control (1)

"AAA" size (UM/SUM-4) dry battery (2)

- Cable clamp (2)

- CD-ROM (Utility Disk for Windows/Macintosh) (1)

- Operation manual (1)

Notes:

- The commercially available antenna cable is required.

- The digital signal cable (DVI-D – DVI-D) is to be purchased separately. (model name: NL-C04J)

- You are advised to retain the carton in case the TV needs to be transported.

- Sharp Corporation holds authorship rights to the Utility program. Do not reproduce it without permission.

- The shape of the supplied accessories may not be exactly the same as shown in this manual.

- This product comes with RICOH Bitmap Fonts produced and sold by RICOH COMPANY, LTD.

EnglishFrançaisEspañolItalianoEspañolEnglish

Main unit

Front view

Product description

ENTERMENUINPUT

POWERVOL

1. Control buttons (See page E29 for the INPUT button and E27 for the others. Also see page E30 for the

CH and VOL buttons.)

2. POWER button (See page E28.)

3. Speakers

4. Headphone terminal (See page E13.)

5. Remote control sensor (See page E14.)

6. OPC (Optical Picture Control) sensor (See OPC on page E43 or E49.)

7. OPC LED

Green: OPC is on. Off: OPC is off.

8. POWER LED

Green: in use Red: in standby mode Orange: in power-saving mode

(only for PC mode)

Off: power off

OPC POWER

5678

Removing/replacing the terminal cover

Removing the cover Replacing the cover

- Be careful not to pinch the cables.

E10

Main unit

Rear view

Product description

EnglishFrançaisEspañolItalianoEspañolEnglish

4 5 6

8 9

1. Antenna input terminal

2. Antenna output terminal

3. S-video input terminal

4. Video input terminal

5. Audio input terminal - Left

6. Audio input terminal - Right

7. Component input terminals

8. Video input terminal

9. Audio input terminal - Left

10. Audio input terminal - Right

11. S-video input terminal

12. Video input terminal

13. Audio input terminal - Left

14. Audio input terminal - Right

15. Video output terminal

16. Audio output terminal - Left

17. Audio output terminal - Right

18. Optional terminal (For factory use only)

19. HDMI input terminal

20. Audio input terminal - Left

21. Audio input terminal - Right

22. DVI input terminal (DVI-D 24 pin) (Also available as a digital RGB input terminal for PC mode)

23. PC analog RGB input terminal (Mini D-sub 15 pin)

24. PC audio input terminal

12 13 14

15 16

18 19 20 21 22 23 24 25

25. Power input terminal

26. Lug-hole for cable clamp (See page E13.)

AV-IN 1

AV-IN 2

AV-IN 3

AV-OUT

AV-IN 4

AV-IN 5

PC-IN

A Ventilation openings

Never block these openings as this may lead to overheating inside the TV and result in malfunction.

B Security lock anchor

By connecting a security lock (commercially available) to the security lock anchor, the TV is fixed so that it cannot be transported. The security slot works in conjunction with Kensington Micro Saver Security Systems.

E11

Remote control

Product description

10 11

POWER

FLASH

BACK

MENU PC

RETURN

7 8

VIEW MODE PICT MODE

SLEEP

ON/OFF SIZE/MOVE

DISPLAY INPUT

TV AV

ENTER

EXIT MTS MUTE

CC FREEZE

SWAP SELECT

PIP/SPLIT

1. POWER button

2. Channel buttons

13 14

3. FLASHBACK button

4. MENU button

5. buttons and ENTER button

6. CH (channel) buttons

7. RETURN button

8. EXIT button

9. VIEW MODE button

10. PICT MODE button

11. SLEEP button

12. PIP/SPLIT buttons

(ON/OFF, SIZE/MOVE, SWAP, and SELECT)

13. INPUT button

14. DISPLAY button

15. Input buttons (TV, AV, and PC)

16. VOL (volume) buttons

17. MUTE button

18. MTS (Multi ch TV Sound) button

VOLCH

19. FREEZE button

20. CC (Closed Caption) button

17 18

19 20

E12

Product description

Cable clamp

Use the supplied cable clamps to secure the cables connected to the terminals.

CAUTION!

- When adjusting the viewing angle, cables may be pulled. Therefore, ensure that the cables have sufficient slack.

Using headphones (commercially available)

Angle adjustment

Adjust to an easy to view angle.

CAUTION!

- Be sure to hold both sides of the TV when adjusting the viewing angle. The LCD panel used in this TV is made of glass. Pressure from hands on the LCD panel could cause damage.

- Be careful not to allow your fingers to be pinched.

- Do not put your hand or objects near the stand. When changing the viewing angle horizontally, the stand moves and may hit the objects or cause injury to your hand or fingertips.

approx. 5°

approx. 15°

EnglishFrançaisEspañolItalianoEspañolEnglish

You can connect headphones with a mini stereo jack (φ 3.5 mm) to the TV.

Headphone terminal

Headphones

Notes:

- When headphones are connected:

- No sound can be heard from the TV speakers. In addition, when "Output Select" is set to "Variable1" or "Variable2" in the Option menu, no sound via the audio output terminals can be heard either.

- The Virtual Dolby Surround function (see page E31) cannot be used.

- The Audio menu (see pages E43 and E50) cannot be adjusted.

E13

Remote control

Using the remote control

Use the remote control by pointing it towards the remote control sensor on the TV. Objects between the remote control and remote control sensor may prevent proper operation.

Remote control sensor

5 m (16' 4")

30°

30° (up/down/left/right)

Cautions regarding use of remote control

- Do not expose the remote control to shock. In addition, do not expose the remote control to liquid, and do not place in an area with high humidity.

- Do not install or place the remote control under direct sunlight. The heat may deform the unit.

- The remote control may not work properly if the remote control sensor of the TV is under direct sunlight or strong lighting, or a fluorescent light is near the TV. In such case, change the angle or place of the lighting or TV, or operate the remote control closer to the remote control sensor.

- Do not use the remote control simultaneously with remote controls of other equipment.

Batteries for the remote control

Before using the TV for the first time, install two ("AAA" size, UM/SUM-4) batteries (supplied). When the operable distance becomes shorter, replace the batteries immediately with new ("AAA" size, UM/SUM-4) batteries.

2.Insert two ("AAA" size, UM/SUM-4) batteries. Position the positive and negative ends of the batteries as indicated in the compartment.

3.Close the battery cover. Engage the claw on the cover into the battery housing and slide shut.

CAUTION!

Improper use of batteries can result in chemical leakage and/or explosion. Be sure to follow the instructions below.

- Place batteries with their terminals corresponding to the (+) and (–) indications.

- Different types of batteries have different characteristics. Do not mix batteries of different types.

- Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new battery and/or cause the old battery to leak chemicals.

- Remove batteries when they become weak. Chemicals that leak from batteries can cause a rash. If chemical leakage is found, wipe with a cloth.

- The batteries supplied with the TV may have a shorter life expectancy due to storage conditions.

- If the remote control will not be used for an extended period of time, remove the batteries from the remote control.

1.Open the battery cover. Slide the cover while pressing the ( ) part.

E14

Preparation steps

Use the following steps to connect and set up your TV.

...Required when using the TV as a television

...Required when using the TV as an AV monitor

...Required when using the TV as a computer monitor

EnglishFrançaisEspañolItalianoEspañolEnglish

Connecting the TV to a home antenna terminal

(See pages E16 through E18.)

- The commercially available antenna cable is required.

PCTV

Connecting the TV to a power source (See page E19.)

Setting TV channels (EZ Setup)

(See page E20.)

Connecting the TV to AV equipment (See pages E21 through E24.)

- Follow these steps to connect the TV to AV equipment and enjoy watching DVDs or playing games. For information on the connection using the AV-OUT terminals, see page E59.

Connecting the TV to a computer (See pages E25 and E26.)

- If your computer has an analog RGB output terminal, see Analog connection on page E25.

- If your computer has a digital RGB output terminal, see Digital connection on page E26. (When using the TV with a digital connection, the separately-sold digital signal cable is required.)

E15

Connecting the

to a home antenna terminal

CAUTION!

- When connecting, ensure that the TV is switched off.

The antenna requirements for good color television reception are more important than those for black & white television reception. For this reason, a good quality outdoor antenna is strongly recommended. The following is a brief explanation of the type of connections that are provided with the various antenna systems. (See page E10 for information on removing/replacing the terminal cover.)

1. A 75-ohm system is generally a round cable with F-type connector that can easily be attached to a terminal without tools (commercially available).

2. A 300-ohm system is a flat "twin-lead" cable that can be attached to a 75-ohm terminal through a 300-75-ohm adapter (commercially available).

75-ohm coaxial cable (round)

300-ohm twin-lead cable (flat)

F-type connector

Notes:

- The 75-ohm coaxial cable is recommended.

When you first receive this TV, it has no memory of any channels. To receive channels, perform the EZ Setup (see page E20) after the first power-on, or use "CH Setup" in the Setup menu (see pages E32 and E33).

Outdoor antenna connection

- Use one of the following two diagrams if you connect an outdoor antenna. A: Using a VHF/UHF combination outdoor antenna. B: Using separate VHF and/or UHF outdoor antennas.

- Connect the outdoor antenna cable lead-in to the antenna input terminal (ANT-IN) on the right side of the TV.

A. Combination VHF/UHF Antenna

300/75-ohm

VHF/UHF

antenna

75-ohm

coaxial cable

B. Separate VHF and/or

UHF Antennas

UHF

VHF

antenna

300-ohm twin-lead

75-ohm

coaxial cable

adapter

(commercially available)

Home Antenna terminal (75-ohm)

300-ohm twin-lead

Combiner

(commercially

available)

OUTIN

300-ohm twin-lead

VHF/UHF

antenna

Antenna input terminal (ANT-IN)

Antenna cable (commercially available)

CAUTION!

- When connecting the coaxial cable to the TV, do not tighten F-type connector with tools. If tools are used, it may cause damage to your TV. (The breaking of internal circuit, etc.)

F-type connector

E16

75-ohm coaxial cable

Connecting the TV to a home antenna terminal

Cable TV (CATV) connection

- A 75-ohm coaxial cable connector is built into the set for easy hookup. When connecting the 75-ohm coaxial cable to the set, screw the 75-ohm cable to the antenna input terminal (ANT-IN).

- Some cable TV companies offer "premium pay channels". Since the signals of these premium pay channels are scrambled, a cable TV converter/descrambler is generally provided to the subscriber by the cable TV company. This converter/descrambler is necessary for normal viewing of the scrambled channels. (Set your TV to channel 3 or 4, typically one of these channels is used. If this is unknown, consult your cable TV company.) For more specific instructions on installing cable TV, consult your cable TV company. One possible method of utilizing the converter/descrambler provided by your cable TV company is explained below. Please note: An RF switch provided with two inputs (A and B) is required (commercially available).

"A" position on the RF switch (commercially available): You can view all unscrambled channels by

using the TV's channel buttons.

"B" position on the RF switch (commercially available): You can view the scrambled channels via the

converter/descrambler by using the converter's channel keys.

EnglishFrançaisEspañolItalianoEspañolEnglish

RF switch (commercially available)

Antenna input terminal (ANT-IN)

OUT Cable TV converter/

descrambler

(commercially

available)

Two-set signal splitter (commercially available)

Cable TV Line

Note:

- Consult your SHARP Dealer or Service Center for the type of splitter, RF switch, or combiner that might be required.

E17

Connecting the TV to a home antenna terminal

Connection to an antenna input terminal of AV equipment

A different type of antenna cable is required depending on the shape of the antenna input terminal of the AV equipment to be connected.

Antenna input terminal of AV equipment

Note:

- The signal from the antenna output terminal is less powerful than when it first enters the TV. Please use a booster (commercially available), if necessary.

Antenna cable (commercially available)

Antenna output terminal (ANT-OUT)

E18

Connecting the TV to a power source

CAUTION!

- When connecting, ensure that the TV is switched off.

- Use only the power cord supplied with the TV.

- Be careful not to over bend the cable or add extension cords as this could lead to a malfunction.

See page E10 for information on removing/replacing the terminal cover.

1.Connect the power cord (supplied) to the power input terminal.

2.Place the power plug into an AC outlet.

EnglishFrançaisEspañolItalianoEspañolEnglish

Power input terminal

Power cord (supplied)

Note:

- If the TV does not operate, disconnect the power cord from the AC outlet and reconnect it again. The setup must be completed in the proper order for the TV to function.

AC outlet

E19

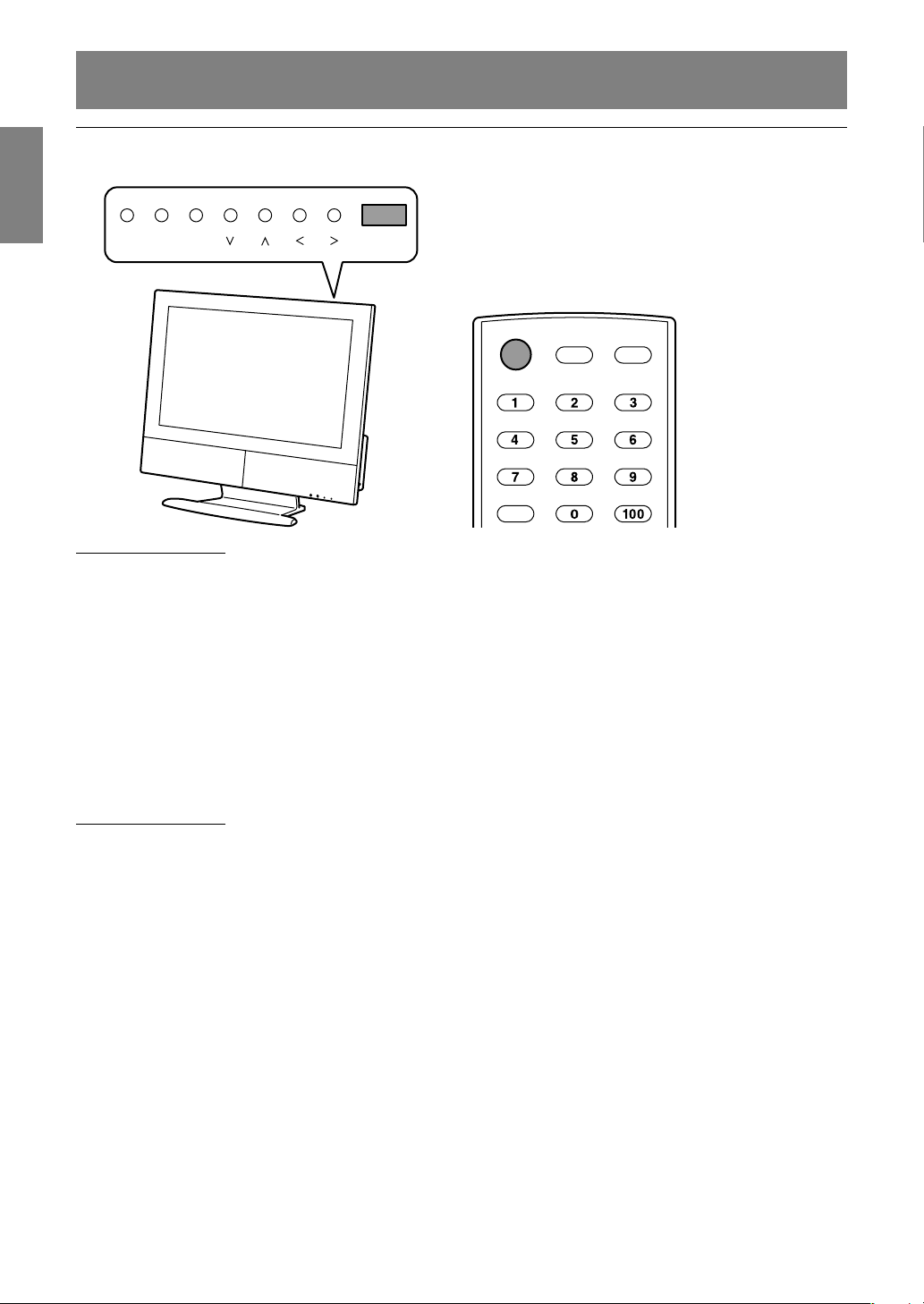

Setting TV channels (EZ Setup)

When you turn on the TV for the first time (see page E28), it will automatically memorize the broadcasting channels where you live. Make sure you have performed the following steps before you turn on the TV.

- Insert the batteries into the remote control. (See page E14.)

- Connect the antenna cable to the TV. (See pages E16 and E17.) Make sure what kind of connection (receiving mode) is made with your TV.

- Plug in the power cord to the TV and AC outlet. (See page E19.)

POWERVOL

POWER

DISPLAY INPUT

2.Press the buttons to select the desired language, and press the ENTER button.

Antenna setting

The air/cable selection screen will be displayed.

EZ Setup

Language Air/Cable CH Search

Selecting Air/Cable channels

Air Cable(STD) Cable(HRC) Cable(IRC)

3.Press the buttons to select the desired receiving mode, and press the ENTER button.

Channel search

The tuner will search through all available channels in your area and save them to the TV memory.

Note:

- To interrupt the search, press the RETURN

button. It will stop at the current channel.

EZ Setup

Language Air/Cable CH Search

Searching

FLASH

BACK

1.Press the POWER button on the TV to turn on the TV. When the POWER LED lights red, press the POWER button on the remote control.

Language setting

The language selection screen will be displayed.

EZ Setup

Language Air/Cable CH Search

Set the on-screen display language

English

Français

Español

Air [ 12]

When the search completes, the search screen becomes off and TV screen becomes minimum channel of TV memory.

Notes:

- You can also select the language using the Setup menu. (See pages E42 and E44, or E47 and E51 for information on using the menus.)

- Even if this setup fails to memorize channels in your area, you can still set the channels using "CH Setup" in the Setup menu. (See pages E32 and E33.)

- EZ Setup will start also after the ALL RESET operation (see the end of this manual).

E20

Connecting the TV to AV equipment

CAUTION!

- Ensure that the TV and all the equipment you are connecting to it are switched off before you begin.

See page E10 for information on removing/replacing the terminal cover.

Examples of equipment you can connect

Right side of the TV

AV-IN 3

AV-IN 1

AV-IN 2

AV-OUT

AV-IN 4 AV-IN 5

EnglishFrançaisEspañolItalianoEspañolEnglish

AV equipment with video output terminals

AV equipment with S-video output terminals

AV equipment with component output terminals

AV equipment with HDMI output terminals

AV equipment with DVI output terminals

: Available

Note:

- For information on the connection using the AV-OUT terminals, see page E59.

AV-IN 1 AV-IN 2 AV-IN 3 AV-IN 4 AV-IN 5

E21

Connecting the TV to AV equipment

AV equipment with video output terminals

Output terminals of AV equipment

Right side of the TV

VIDEO

(Yellow)

VIDEO

AV-IN 1 or AV-IN 3

AUDIO-L

AUDIO-R

(White)

(Red)

(White)

(Red)

AUDIO-L

AV-IN 2

AUDIO-R

RCA pin cable (commercially available)

Notes:

- When using the video input terminal of AV-IN 1 or AV-IN 3, do not connect the cable to the S-video input terminal of the same group.

- When using the video input terminal of AV-IN 2, do not connect the cable to the component input terminals of AV-IN 2.

AV equipment with S-video output terminals

Output terminals of AV equipment

S-VIDEO

S-video cable (commercially available)

S-VIDEO

VIDEO

Right side of the TV

AV-IN 1 or AV-IN 3

AUDIO-L

AUDIO-R

(White)

(Red)

(White)

(Red)

AUDIO-L

AUDIO-R

RCA pin cable (commercially available)

Note:

- When using the S-video input terminal of AV-IN 1 or AV-IN 3, do not connect the cable to the video input terminal of the same group.

E22

Connecting the TV to AV equipment

AV equipment with component output terminals

Output terminals of AV equipment

(Green) (Green)

(Blue) (Blue)

(Red) (Red)

Component video cable

VIDEO

Right side of the TV

AV-IN 2

(commercially available)

AUDIO-L

AUDIO-R

(White) (White)

(Red) (Red)

AUDIO-L

AUDIO-R

RCA pin cable (commercially available)

Note:

- When using the component input terminals, do not connect the cable to the video input terminal of AV-IN 2.

AV equipment with HDMI output terminals

Rear of the TV

HDMIOPTION AUDIO-L

EnglishFrançaisEspañolItalianoEspañolEnglish

Output terminals of AV equipment

HDMI

HDMI cable (commercially available)

Notes:

- To display an image via the HDMI input terminal, be sure to select "AV4" as the display mode. (See page E29.)

- If necessary, you can make adjustments for HDMI setup using the Option menu in AV4 mode. (See page E42 and HDMI Setup on page E45 for information on using the menus.)

E23

Connecting the TV to AV equipment

AV equipment with DVI output terminals

AUDIO-L AUDIO-R DIGITAL

Output terminals of AV equipment

(White) (Red)

Rear of the TV

AUDIO-L

AUDIO-R

(White)

(Red)

RCA pin cable

DVI OUT

(commercially available)

Digital signal cable (separately-sold, NL-C04J)

Notes:

- The DVI input terminal is used for either AV equipment or a computer. Before using this terminal, you need to set "DVI Select" to "AV" or "PC" in the Option menu. (See page E45 or E52.) Since the factory setting is "AV", you can use the DVI input terminal for AV equipment without changing any setting. To display an image, be sure to select "AV5" as the display mode. (See page E29.)

- Once you have set "DVI Select" to "PC" in the Option menu, be sure to set "DVI Select" back to "AV" before using the DVI input terminal for AV equipment. After making the connection, follow the procedure below. (Make sure that the connected equipment is switched off.)

1. Press the POWER button to turn on the TV. (See page E28.)

2. Press the MENU button to display the MENU screen.

(See pages E42 and E45, or E47 and E52 for information on using the menus.)

3. Select the Option menu.

4. Set "DVI Select" to "AV".

5. Press the MENU or EXIT button to exit the screen.

6. Press the INPUT or AV button to select "AV5" as the display mode.

(See page E29 for information on switching display modes.)

7. Turn on power to the connected equipment.

- If the image does not appear properly, turn off power to both the TV and the connected AV equipment. Again, set "DVI Select" to "AV" following steps 1 through 7 above.

E24

Connecting the TV to a computer

CAUTION!

- When connecting, ensure that the TV and all the equipment you are connecting to it are switched off.

- Be careful not to over bend the cable or add extension cords as this could lead to a malfunction.

Notes:

- When using the TV with an analog connection, perform an automatic screen adjustment (page E46) under the following conditions:

- Using the TV for the first time.

- After having changed the system settings

during use.

- When using the TV with a digital connection, automatic screen adjustment is unnecessary.

- When connecting to a notebook computer and the notebook computer's screen is set so that it is displaying at the same time, the MS-DOS screen may not be able to display properly. In this case, change the settings so that only the TV is displaying.

Installing the set-up information

Depending on the computer or OS, you may have to install the set-up information for the TV. Refer to "readmee.pdf" (in English) on the supplied CD-ROM. You need Adobe Reader installed on your computer to view this PDF file.

Analog connection

Connect the supplied PC analog signal cable to the analog RGB output terminal of the computer. See page E10 for information on removing/ replacing the terminal cover.

PC analog RGB input terminal (Mini D-sub 15 pin, 3 rows)

Computer

Analog RGB output terminal (Mini D-sub 15 pin, 3 rows)

PC analog signal cable (supplied)

- Paying attention to the connector direction, firmly insert the signal cable straight into the connector, and then tighten the screws at both ends.

EnglishFrançaisEspañolItalianoEspañolEnglish

If connecting to a D-sub 15 pin 2 row Apple Power Macintosh, attach a Macintosh conversion adapter (commercially available) to the analog signal cable.

Power Macintosh

Macintosh conversion adapter

E25

Connecting the TV to a computer

Digital connection

Connect the separately-sold digital signal cable (model name: NL-C04J) to the digital RGB output terminal of the computer. See page E10 for information on removing/ replacing the terminal cover.

- The TV has an input terminal for connecting to a computer with a DVI-compatible output terminal (DVI-D 24 pin or DVI-I 29 pin). (Depending on the type of computer to be connected, the display may not work correctly.)

DVI input terminal (DVI-D 24 pin)

Computer

Notes:

- The DVI input terminal is used for either AV equipment or a computer. Before using this terminal, you need to set "DVI Select" to "PC" in the Option menu. The factory setting is "AV". (See page E45 or E52.) After making the connection, follow the procedure below. (Make sure that the connected computer is switched off.)

1. Press the POWER button to turn on the TV.

(See page E28.)

2. Press the MENU button to display the MENU

screen. (See pages E42 and E45, or E47 and E52 for information on using the menus.)

3. Select the Option menu.

4. Set "DVI Select" to "PC".

5. Press the MENU or EXIT button to exit the

screen.

6. Press the INPUT or PC button to select

"PC DIGITAL" as the display mode. (See page E29 for information on switching display modes.)

7. Turn on power to the connected computer.

- If the image does not appear properly, turn off power to both the TV and the connected computer. Again, set "DVI Select" to "PC" following steps 1 through 7 above.

Digital RGB output terminal (DVI-D 24 pin or DVI-I 29 pin)

Digital signal cable (separately-sold)

- Paying attention to the connector direction, firmly insert the signal cable straight into the connector, and then tighten the screws at both ends.

Connecting the audio cable

Connect the supplied PC audio cable to the audio output terminal of the computer. See page E10 for information on removing/ replacing the terminal cover.

PC audio input terminal

Computer

Audio output terminal

E26

PC audio cable (supplied)

Basic adjustment screen operation

The explanations in this manual use primarily the remote control. (Operations requiring the use of control buttons on the TV are specifically identified using the words "on the TV".)

The following table shows the remote control buttons, their functions, and their corresponding control buttons on the TV.

Remote control Main unit

TV AV

MENU PC

ENTER

RETURN EXIT MTS MUTE

ENTERMENUINPUT

VOLCH

POWERVOL

EnglishFrançaisEspañolItalianoEspañolEnglish

Remote control Function Corresponding control buttons buttons on the TV MENU Displays the MENU screen. MENU

Exits the MENU screen.

Selects an item by moving CH *

the cursor up/down.

Selects an item by moving VOL *

the cursor left/right.

ENTER Goes to the next screen (submenu etc.). ENTER

Confirms the currently selected item.

RETURN Returns to the previous screen. – EXIT Exits the MENU screen. –

* Only when the Picture, Audio, Setup, or Option menu is displayed.

E27

Turning power on/off

Basic operations

POWERVOLCHENTERMENUINPUT

Turning power on

When the POWER LED is off:

1.Press the POWER button on the TV.

2.Turn on power to the connected equipment. After a while the POWER LED will light green, and then the display mode will be displayed for several seconds.

When the POWER LED is lit red (standby):

1.Press the POWER button on the remote control.

2.Turn on power to the connected equipment. The POWER LED will light green, and then the display mode will be displayed for several seconds.

Turning off power

1.Turn off power to the connected equipment.

2.Press the POWER button on the remote control. The POWER LED will light red (standby).

3.Press the POWER button on the TV. The POWER LED will go out.

POWER

FLASH

BACK

DISPLAY INPUT

Notes:

- Always wait at least 5 seconds between switching power off/on. Rapid switching may damage the TV or cause it to malfunction.

- After switching power on, it may take a little while before the screen displays an image.

- Do not turn off the power immediately after changing various settings on the screen. The changed values may not have been saved in the memory yet.

E28

Basic operations

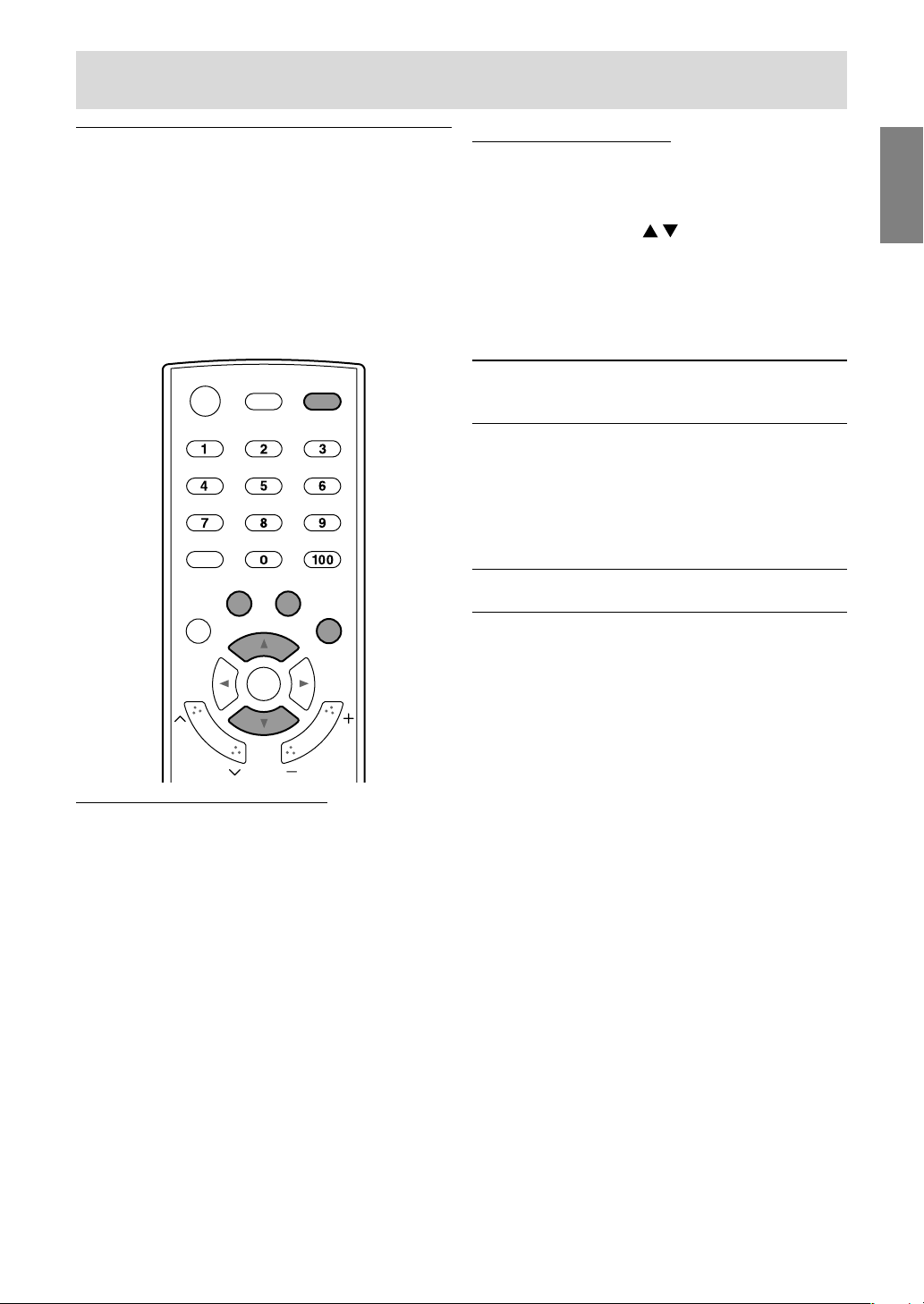

Switching display modes (INPUT)

Notes:

- To select AV5 mode, set "DVI Select" to "AV" (factory setting) beforehand using the Option menu. (See pages E42 and E45 for information on using the menus.)

- To select PC DIGITAL mode, set "DVI Select" to "PC" beforehand using the Option menu. (See pages E47 and E52 for information on using the menus.)

POWER

MENU PC

Using the TV, AV, or PC button

1.Press the TV, AV, or PC button. The TV will switch to the display mode for the button you pressed.

Notes:

- Each time you press the AV button, the input

changes in the order of AV1 → AV2 → AV3 →

AV4 → AV5 → AV1....

- Each time you press the PC button, the input

toggles between analog and digital.

FLASH

BACK

DISPLAY INPUT

TV AV

ENTER

VOLCH

Using the INPUT button

1.Press the INPUT button. "INPUT SOURCE" menu will be displayed.

2.Press the INPUT button to select the desired mode. You can also use the buttons to select.

Note:

- Between AV1, AV2, and AV3, only the modes

whose respective terminals are connected to the external equipment are selectable.

Display modes Number TV mode Displays the TV's image.

The number is the channel being received.

AV1 AV1 mode Displays the image from AV2 AV2 mode the equipment connected AV3 AV3 mode to the respective AV input AV4 AV4 mode terminals.

(HDMI)

AV5 AV5 mode

(DVI)

PC PC mode Displays the computer's

(analog/digital)

image.

Notes:

- Be sure to select the display mode appropriate for the connected equipment to display its image clearly.

- When you turn on the TV, the initial display mode will be the mode being used when the TV was last turned off.

- You can also switch display modes using the INPUT button on the TV.

- In PC mode, when there is no input signal, "No Signal" is displayed.

EnglishFrançaisEspañolItalianoEspañolEnglish

E29

Basic operations

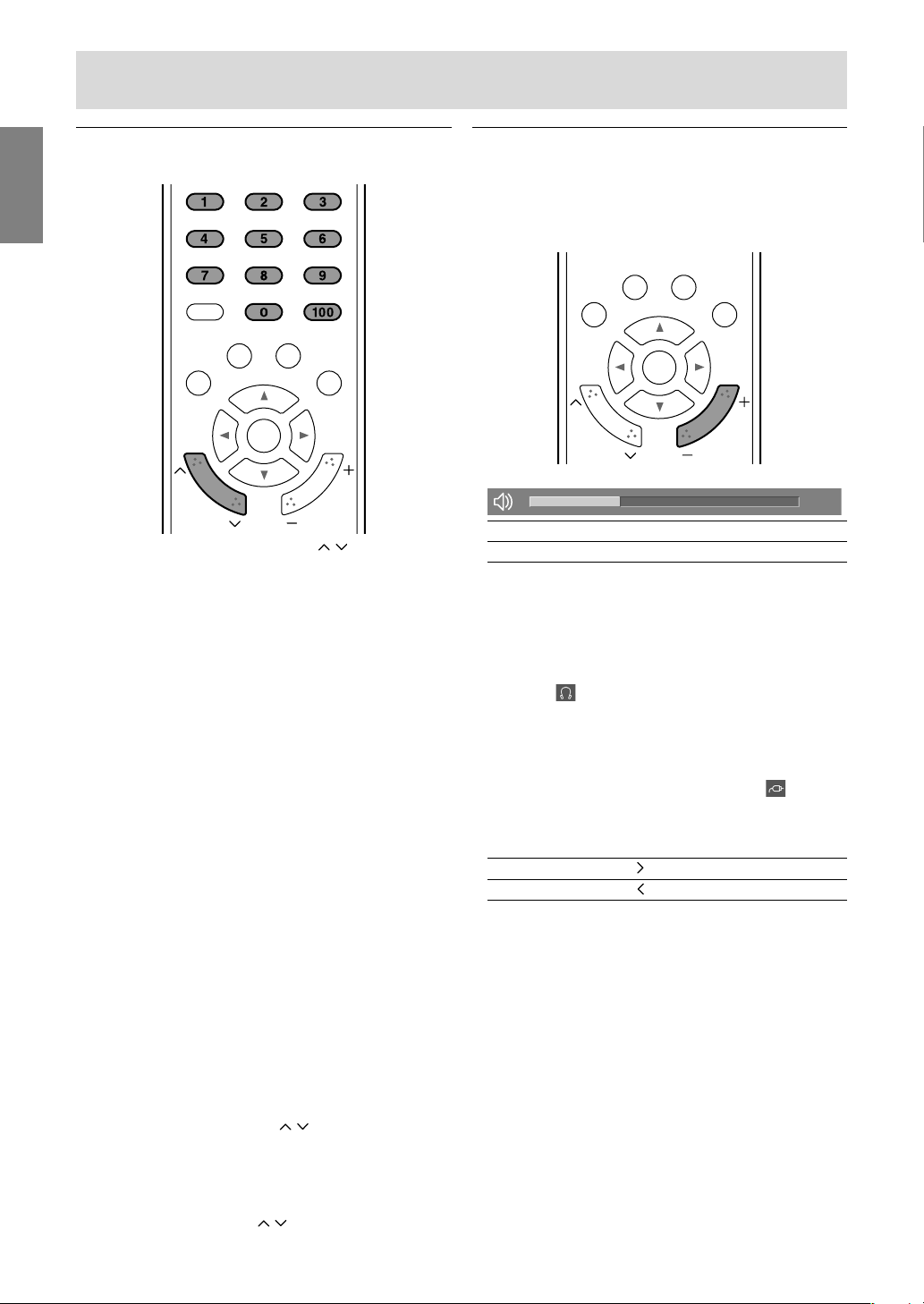

Selecting channels

FLASH

BACK

TV AV

MENU PC

ENTER

VOLCH

1.Select a channel using the CH buttons or channel buttons (0-9 and 100). Pressing one of these buttons automatically switches to TV mode if the TV is in AV or PC mode.

To select a 1- or 2-digit channel number (e.g., Channel 5):

Complete the following procedure within 5 seconds.

1.Press the 0 button.

2.Press the 5 button.

Note:

- When selecting a 1-digit channel number, you

must press the 0 button before the channel number.

To select a 3-digit channel number (e.g., Channel 115):

Complete the following procedure within 5 seconds.

1.Press the 100 button.

2.Press the 1 button.

3.Press the 5 button.

Adjusting the volume

The volume can be set individually for PC mode and TV/AV mode. Start by switching to the display mode for which you want to set the volume.

TV AV

MENU PC

ENTER

VOLCH

1.Press the VOL +/– buttons to adjust.

Increase VOL + button Decrease VOL – button

The screen for adjusting the volume will automatically disappear after several seconds.

Notes:

- When headphones are connected, these buttons automatically become the headphone volume control. (

- When "Output Select" is set to "Variable2" in the Option menu (see page E45 or E52), no sound can be heard from the TV speakers and you can adjust only the sound via the audio output terminals using the VOL +/– buttons. ( will appear on the screen.)

- You can also adjust the volume using the VOL buttons on the TV.

Increase VOL button Decrease VOL button

will appear on the screen.)

Notes:

- Use the channel buttons (0-9 and 100) to select the channels set to be skipped in "CH Memory" of the Setup menu. (See page E33.) You cannot select them using the CH buttons.

- The 3-digit channel number can be selected only when "Air/Cable" is set to "Cable" in the Setup menu. (See page E32.)

- You can also change the channel up/down one at a time using the CH buttons on the TV.

E30

Basic operations

Enjoying surround sound (Virtual Dolby Surround)

The Virtual Dolby Surround function allows you to enjoy powerful, realistic sound, just like in a movie theater.

Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories.

TV AV

MENU PC

ENTER

VOLCH

Muting the sound (MUTE)

This feature is helpful when you want to mute the sound such as when the phone rings or someone comes to the door.

TV AV

MENU PC

ENTER

VOLCH

RETURN EXIT MTS MUTE

1.Press the MUTE button. The sound will be muted and will appear on the screen.

will disappear after several seconds.

Notes:

- When headphones are connected, will

appear on the screen.

- When "Output Select" is set to "Variable2" in

the Option menu (see page E45 or E52), will appear on the screen.

EnglishFrançaisEspañolItalianoEspañolEnglish

RETURN EXIT MTS MUTE

1.Press the MENU button to display the MENU screen.

2.Press the buttons to select "Audio".

3.Press the buttons to select "Dolby Virtual", and press the ENTER button.

4.Press the buttons to select "On".

5.Press the MENU or EXIT button to exit the screen.

Notes:

- When headphones are connected or when "Output Select" is set to "Variable2" in the Option menu (see page E45 or E52), the Virtual Dolby Surround function cannot be used.

- You cannot get the Virtual Dolby Surround effect for sound output via the audio output terminals.

Canceling muting

1.Press the MUTE button again, or press the VOL +/– buttons.

Note:

- Muting will also be canceled when the TV

comes back from power-saving mode in PC mode or from power off/on.

Note:

- When "Output Select" is set to "Variable1" or "Variable2" in the Option menu, sound via the audio output terminals can be muted.

E31

Setting TV channels

The following table shows the channels this TV can receive.

VHF Channels 2 through 13 UHF Channels 14 through 69

Cable

Channel 1 (HRC and IRC mode only) Channels 2 through 125 (STD, HRC, and IRC)

(You must subscribe to a cable TV service to receive cable channels.)

When you first receive this TV, it has no memory of any channels. To receive channels, perform the EZ Setup (see page E20) after the first power-on, or use "CH Setup" in the Setup menu.

Channel setting methods

There are two ways to set channels.

Automatically setting channels you can receive (CH Search)

The TV will automatically set the channels it can receive in your area.

Setting channels one at a time (CH Memory)

This method is for manually setting the channels you want one by one. Use this method if you want to add other channels after using "CH Search".

Selecting broadcast (Air) or cable TV (Cable) for channel setting

It is necessary to set the receiving mode to "Air" or "Cable" channels to receive locally broadcast TV programs.

TV AV

MENU PC

ENTER

VOLCH

1.Press the TV button to select TV mode. A channel number will appear in the upper-right corner of the screen.

2.Press the MENU button to display the MENU screen.

3.Press the buttons to select "Setup".

MENU [Setup]

Picture Audio Setup Option

CH Setup V-Chip Position Language [English]

4.Press the buttons to select "CH Setup", and press the ENTER button. "CH Setup" screen will be displayed.

MENU [Setup

Air/Cable CH Search CH Memory

...

CH Setup]

Selecting Air/Cable channels

Air Cable(STD) Cable(HRC) Cable(IRC)

5.Press the buttons to select "Air/Cable", and press the ENTER button.

6.Press the buttons to select the desired mode, and press the ENTER button. Continue to Saving broadcast TV channels in

the memory (CH Search) or Setting channels manually (CH Memory) on page E33.

E32

Setting TV channels

Saving broadcast TV channels in the memory (CH Search)

"CH Search" allows you to search through available channels ("Air" or "Cable") in your area. The tuner saves them to TV memory automatically. After performing the steps of Selecting broadcast (Air) or cable TV (Cable) for channel setting on page E32, continue with the following steps.

1.Press the buttons to select "CH Search", and press the ENTER button.

MENU [Setup

Air/Cable CH Search CH Memory

2.Press the buttons to select "Yes", and press the ENTER button. The tuner will search through all available channels in your area and save them to the TV memory.

Note:

- To interrupt the search, press the RETURN

button. When the search completes, "CH Search" screen will return.

3.Press the MENU or EXIT button to exit the screen.

Notes:

- Searching channels are: Air channels:

VHF: 2 through 13 UHF: 14 through 69

Cable channels:

1 (HRC and IRC mode only) 2 through 125 (STD, HRC, and IRC)

- During CH Search, the TV will change channels automatically.

- If you search for channels but cannot receive any or if you interrupt the search, the channels that were set previously will be kept.

...

CH Setup]

Searching receivable channels

Ye s N o

Setting channels manually (CH Memory)

"CH Memory" allows you to set the channels you want one by one. After performing the steps of Selecting broadcast (Air) or cable TV (Cable) for channel setting on page E32, continue with the following steps.

1.Press the buttons to select "CH Memory", and press the ENTER button.

MENU [Setup

Air/Cable CH Search CH Memory

2.Press the buttons to select the desired adjustment item. To adjust the value, press the buttons. (See the table below for details.)

3.Press the MENU or EXIT button to exit the screen.

Item CH No.

Fine Tuning

Skip

...

CH Setup]

Memorizing broadcast channels

CH No. 11 Fine Tuning [ 0 ] Skip On Off

Description

Selects the channel to adjust. Adjusts the frequency slightly to improve the received signal. Sets the channel to be skipped or not when you select using the CH buttons.

EnglishFrançaisEspañolItalianoEspañolEnglish

E33

Watching TV

Selecting MTS (Multi ch TV Sound)

You can select MTS (Multi ch TV Sound) using the MTS button.

STEREO stereo audio SAP second audio program MONO monophonic audio

TV AV

MENU PC

ENTER

VOLCH

RETURN EXIT MTS MUTE

1.Press the MTS button. The audio changes in the following order depending on the broadcast you are receiving.

Receiving a stereo broadcast:

STEREO → MONO → STEREO...

Returning to previous channel (FLASHBACK)

You can return to the previous channel you were watching.

FLASH

BACK

1.Press the FLASHBACK button. The TV will return to the channel you were previously watching. Each time you press the button, the screen toggles between the currently selected channel and the previously selected one.

Receiving a monaural + SAP (Second Audio Program) broadcast:

MONO → SAP → MONO...

Receiving a stereo + SAP (Second Audio Program) broadcast:

ST(SAP) → SAP(ST) → MONO → ST(SAP)...

Notes:

- Switch to "MONO" if there is too much noise during a stereo broadcast.

- MTS operates only while in TV mode.

E34

Enjoying DVDs, games, and other equipment

You can enjoy additional pieces of AV equipment connected to your TV such as VCRs, DVD players, and game systems. (See pages E21 through E24, and E59.)

Equipment connected to AV-IN 1 Display mode "AV1" Equipment connected to AV-IN 2 Display mode "AV2" Equipment connected to AV-IN 3 Display mode "AV3" Equipment connected to AV-IN 4 Display mode "AV4" Equipment connected to AV-IN 5 Display mode "AV5"

Note:

- This manual refers to AV1 mode through AV5 mode as "AV mode".

POWER

MENU PC

FLASH

BACK

DISPLAY INPUT

TV AV

1.Press the AV or INPUT button to select AV mode.

Notes:

- Each time you press the AV button, the mode changes in the order of AV1 → AV2 → AV3 →

AV4 → AV5 → AV1....

- Pressing the INPUT button will display "INPUT SOURCE" menu. Select the desired mode from the menu. You can also use the INPUT button on the TV. (See page E29.)

- To select AV5 mode, set "DVI Select" to "AV" (factory setting) beforehand using the Option menu. (See pages E42 and E45, or E47 and E52 for information on using the menus.)

2.Turn on the connected AV equipment, and then play a tape, DVD, or game.

3.Adjust the volume. See page E30 for more information.

Notes:

- Sometimes no image will be displayed during fast searching of video.

- The display may flicker during slow playback of video depending on the VCR or videotape you are using.

- You cannot play shooting games that use gun controllers with this TV.

EnglishFrançaisEspañolItalianoEspañolEnglish

ENTER

VOLCH

E35

Helpful features (in TV/AV mode)

Adjusting the V-Chip settings

Important:

- Please refer to the end of this manual for "Clearing the secret number".

This function allows TV programs to be restricted and TV usage to be controlled based on FCC data. It prevents children from watching violent or sexual scenes that may be harmful.

- Restriction of TV programs includes two ratings that contain information about the program: the MPAA rating and the TV Parental Guidelines. The MPAA rating is restricted by age. TV Parental Guidelines are restricted by age and content.

- Since a TV program may use either the MPAA rating or the TV Guidelines, both should be adjusted for complete control.

Notes:

- All of the following conditions must be met to enable V-Chip Block:

1.The secret number is registered and V-Chip settings have been made. (See page E38.)

2."Status" is set to "On". (See page E39.)

- Even when V-Chip Block is activated, the image and sound can be output normally via the AV-OUT terminals to AV equipment.

Voluntary movie rating system (MPAA rating)

Rating

Age base

G PG PG-13 R NC-17 X

GENERAL AUDIENCES. All ages admitted. PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children. PARENTS STRONGLY CAUTIONED. Some material may be inappropriate for children under 13. RESTRICTED.

Under 17 requires accompanying parent or adult guardian (age varies in some jurisdictions). NO ONE 17 AND UNDER ADMITTED. X is an older rating that is unified with NC-17 but may be encoded in the data of older movies.

For example:

"PG-13" is blocked, this will also automatically block the higher ratings ("R", "NC-17", and "X").

MENU [Setup

MPAA TV Guidelines Status

...

V-Chip]

Setting ratings to block

G PG PG-13 R NC-17 X NONE

Notes:

- The MPAA rating is only age-based.

- When blocking is unnecessary, select "NONE".

E36

Helpful features (in TV/AV mode)

TV Parental Guidelines

Content base

Rating

(Fantasy

violence)

(Violence)

(Sexual

situation)

(Adult

language)

TV-Y (All children)

TV-Y7 (Direct to older children)

TV-G

Age

(General audience)

base

TV-PG (Parental guidance suggested)

TV-14 (Parents strongly cautioned)

TV-MA (Mature audience only)

: The content rating can be set.

Example 1:

When "TV-Y7" in the age-based rating is blocked, this will automatically block the higher ratings: "TV-G", "TV-PG", "TV-14", and "TV-MA". In addition, "D", "L", "S", "V", and "FV" in the content-based rating are automatically blocked unless you manually set them.

MENU [Setup

MPAA TV Guidelines Status

...

V-Chip]

Setting ratings to block

TV-Y TV-Y7 TV-G TV-PG TV-14 TV-MA NONE

D L S V FV

(Sexually

suggestive

dialog)

EnglishDeutschFrançaisItalianoEspañolEnglish

Example 2:

When the content-based rating: "D for TV-PG" is blocked, this will automatically block the higher rating: "D for TV-14".

MENU [Setup

MPAA TV Guidelines Status

...

V-Chip]

Setting ratings to block

TV-Y TV-Y7 TV-G TV-PG TV-14 TV-MA NONE

D L S V FV

Notes:

- Age-based ratings can be modified by the content-based ratings, but only in the combinations indicated by an "X" in the table above.

- Choosing a lower age-based rating blocks the higher age-based ratings regardless of content rating settings.

- When age-based blocking is unnecessary, select "NONE". Even in this case, you can select content-based blocking for all ages.

E37

Helpful features (in TV/AV mode)

Setting V-Chip for MPAA rating

FLASH

BACK

TV AV

MENU PC

ENTER

1.Press the TV button to select TV mode.

2.Press the MENU button to display the MENU screen.

3.Press the buttons to select "Setup".

4.Press the buttons to select "V-Chip", and press the ENTER button. "Enter Secret No." screen will be displayed.

5.Input the 4-digit secret number using the channel buttons (0-9).

Note:

- When you input the secret number for the first

time, press the ENTER button to register it. Otherwise, continue to the next step.

"V-Chip" screen will be displayed.

MENU [Setup

MPAA

TV Guidelines Status

...

V-Chip]

Setting ratings to block

G PG PG-13 R NC-17 X NONE

6.Press the buttons to select "MPAA", and press the ENTER button.

Press the buttons to select, for example, "PG". If you select "PG" to block, "PG-13", "R", "NC-17", and "X" are automatically blocked.

indicates that the rating is blocked.

MENU [Setup

MPAA TV Guidelines Status

...

V-Chip]

Setting ratings to block

G PG PG-13 R NC-17 X NONE

8.Press the MENU or EXIT button to exit the screen.

Notes:

- Set ratings are blocked only when you activate V-Chip Block (see page E39).

- If you select "G" to block, all ratings are automatically blocked.

- If you select "X" to block, "G", "PG", "PG-13", "R", and "NC-17" are not blocked.

Setting V-Chip for TV Parental Guidelines (TV Guidelines)

1.Repeat steps 1 to 5 of "Setting V-Chip for MPAA rating" on the left column. ("V-Chip" screen will be displayed.)

2.Press the buttons to select "TV Guidelines", and press the ENTER button.

3.Press the buttons to select, for example, "TV-Y7". If you select "TV-Y7" to block, "TV-G", "TV-PG", "TV-14", and "TV-MA" are automatically blocked. In addition, "D", "L", "S", "V", and "FV" in the content rating are automatically blocked.

indicates that the rating is blocked.

MENU [Setup

MPAA TV Guidelines Status

...

V-Chip]

Setting ratings to block

TV-Y TV-Y7 TV-G TV-PG TV-14 TV-MA NONE

D L S V FV

When setting an individual content-based rating item, do as follows: (1) Press the button to access them from the

currently selected age-based rating item.

(2) Press the

buttons to select an individual item, and then press the ENTER button to unblock ( is removed) or block. Repeat the same steps for other items.

4.Press the MENU or EXIT button to exit the screen.

E38

Helpful features (in TV/AV mode)

Activating or deactivating V-Chip Block (Status)

You can activate V-Chip Block after "Setting V-Chip for MPAA rating" and/or "Setting V-Chip for TV Parental Guidelines (TV Guidelines)".

1.Repeat steps 1 to 5 of "Setting V-Chip for MPAA rating" on page E38. ("V-Chip" screen will be displayed.)

2.Press the buttons to select "Status", and press the ENTER button.

3.Press the buttons to set "Status" to "On" (activated) or "Off" (deactivated).

Note:

- If "Status" is set to "Off", V-Chip Block will not

be activated.

4.Press the MENU or EXIT button to exit the screen.

Canceling V-Chip Block temporarily

1."V-CHIP HAS BEEN ACTIVATED" appears if you watch a program with the same Program Rating data you configured.

Note:

- "V-CHIP HAS BEEN ACTIVATED" will not be

displayed if "Status" is not configured to "On".

2.Press the ENTER button to display "Enter Secret No.".

3.Input the 4-digit secret number using the channel buttons (0-9). V-Chip Block is temporarily canceled.

EnglishDeutschFrançaisItalianoEspañolEnglish

Notes:

- If you display "V-Chip" screen again (see page E38), V-Chip Block will be activated again.

- If you turn the power on from off, V-Chip Block will be activated again.

E39

Helpful features (in TV/AV mode)

Setting the Closed Caption (CC)

This TV is equipped with an internal Closed Caption decoder. "Closed Caption" is a system which allows conversations, narration, and sound effects in TV programs and home videos to be viewed as captions on the TV screen.

- Not all programs and videos will offer Closed Captioning.

- The Closed Caption broadcasts can be viewed in 2 modes: Caption (CC) and Text (Text). For each mode, two channels are available: CH1 and CH2. The CC mode shows subscripts of dialogs and commentaries of TV dramas and news programs while allowing a clear view of the picture. The Text mode displays various information over the picture (such as TV program schedules and weather forecasts, etc.) that is independent of the TV programs.

RETURN

EXIT MTS MUTE

VIEW MODE PICT MODE

SLEEP

ON/OFF SIZE/MOVE

CC FREEZE

SWAP SELECT

1.Press the CC button to display the current setting.

TV Air

Audio

: SAP(ST)

: Off

Ratings

: R

PIP/SPLIT

2.Press the CC button to change the setting. The setting changes in the following order: Off → CC1 → CC2 → Text1 → Text2 → Off...

CC1 Caption mode for CH1 data CC2 Caption mode for CH2 data Text1 Text mode for CH1 data Text2 Text mode for CH2 data

Notes:

- Closed Caption may malfunction (white blocks, strange characters, etc.) if signal conditions are poor or if there are problems at the broadcast source.

- If no text broadcast is being received while viewing in the Text mode, the screen may become dark and blank for some programs. Should this occur, switch the Closed Caption mode to "Off".

E40

Helpful features (in TV/AV mode)

Pausing the screen (FREEZE)

This feature pauses the image from the TV or other connected AV equipment. This is helpful when you want to write down a recipe or phone number for purchasing tickets for an event.

RETURN

EXIT MTS MUTE

EnglishDeutschFrançaisItalianoEspañolEnglish

VIEW MODE PICT MODE

SLEEP

ON/OFF SIZE/MOVE

CC FREEZE

SWAP SELECT

PIP/SPLIT

1.Press the FREEZE button. The images will pause.

Canceling pausing

1.Press the FREEZE button again.

Notes:

- You cannot pause the image displayed in PIP/Split mode.

- Changing channels or switching the display mode (input) automatically cancels pausing.

E41

Using the menus in TV/AV mode

You can adjust TV and video images and perform various settings using the menus in TV/AV mode.

How to adjust using the menus

1.Press the TV or AV button to select TV or AV mode.

2.Press the MENU button to display the MENU screen.

3.Press the buttons to select the menu you want to set. A list of items will be displayed.

MENU [Setup]

Picture Audio Setup Option

CH Setup V-Chip Position Language [English]

4.Press the buttons to select the item you want to set.

Note:

- The items colored in gray cannot be selected.

5.Change the numbers/values.

- To adjust the value, press the

buttons.

- To open a submenu, press the ENTER button.

- To return to the previous screen, press the

RETURN button.

6.Press the MENU or EXIT button to exit the screen.

Note:

- If you do not press any buttons for about 30 seconds while in an adjustment screen, the settings you made up to that point will be applied and the screen will automatically disappear.

Menu setting items

Picture menu

OPC ..................................................... Page E43

Brightness ........................................... Page E43

Black Level .......................................... Page E43

Contrast ............................................... Page E43

Color .................................................... Page E43

Tint ....................................................... Page E43

Sharpness ........................................... Page E43

Flesh Tone ........................................... Page E43

3D-Y/C ................................................. Page E43

Color Temp. ......................................... Page E43

Audio menu

Treble ................................................... Page E43

Bass ..................................................... Page E43

Balance ............................................... Page E43

Dolby Virtual ....................... Pages E31 and E43

Setup menu

CH Setup* ................. Pages E32, E33, and E44

V-Chip ........... Pages E36 through E39, and E44

Position ................................................ Page E44

Language*** ....................................... Page E44

Option menu

Quick Shoot ......................................... Page E45

Output Select*** .................................. Page E45

DVI Select*** ....................................... Page E45

HDMI Setup** ...................................... Page E45

* TV mode only ** AV4 mode only *** The values set in TV/AV mode will be also

applied in PC mode.

E42

Using the menus in TV/AV mode

Picture menu (See page E42 for information on using the menus.)

The current picture mode (see page E56) is shown in the first line of the menu. The following adjustments, when applied, affect only the current picture mode.

Item OPC

Brightness

Black Level Contrast Color Tint Sharpness Flesh Tone 3D-Y/C

Color Temp.

Reset

Description

When set to "On", senses the surrounding light and automatically adjusts the backlight brightness. Make sure no object obstructs the OPC sensor, which could affect its ability to sense surrounding light. Adjusts the backlight brightness. If you adjust "Brightness" while "OPC" is "On", "OPC" is automatically set to "Off". Adjusts the overall brightness of the screen. Adjusts contrast. Adjusts the color depth. Adjusts the color tone. Adjusts the image quality. Adjusts the flesh tone color. Provides high quality images with minimal dot crawl and cross color noise. This adjustment is valid only for TV and images from the video input terminals (RCA pin).

- Standard

- Fast

- Slow Adjusts the color temperature (white balance).

- High

- Mid-High

- Middle

- Mid-Low

- Low Resets adjustment values for this menu to their original factory settings.

........

.................

...............

................

........

............

.........

.................

Normal adjustment For movie image For still image

Color tone bluer than "Middle". Color tone slightly bluer than "Middle". Standard setting for color tone. Color tone slightly redder than "Middle". Color tone redder than "Middle".

EnglishDeutschFrançaisItalianoEspañolEnglish

Audio menu (See page E42 for information on using the menus.)

When headphones are connected or when "Output Select" is set to "Variable2" in the Option menu, the Audio menu cannot be adjusted.

Item Treble Bass Balance Dolby Virtual Reset

Note:

- "Treble", "Bass", and "Balance" can be adjusted only when "Dolby Virtual" is set to "Off".

Description

Adjusts high-pitch sounds. Adjusts low-pitch sounds. Adjusts the balance between the right and left speakers. Turns the Virtual Dolby Surround function "On" or "Off". (See page E31.) Resets adjustment values for this menu to their original factory settings.

E43

Using the menus in TV/AV mode

Setup menu (See page E42 for information on using the menus.)

Item CH Setup

(TV mode only)

V-Chip

Position

Language

Description

Sets TV channels.

- Air/Cable

- CH Search

- CH Memory Allows TV programs to be restricted and TV usage to be controlled based on FCC data.

-MPAA

TV Guidelines

- Status

Adjusts the position of the image.

- H-Pos.

- V-Pos.

- Reset

Selects the language (English, French, or Spanish) on the screen.

........

.....

....

..............

.............

..............

Sets the receiving mode broadcast (Air) or cable TV (Cable). (See page E32.) Sets available channels automatically. (See page E33.) Sets channels manually. (See page E33.)

Sets whether MPAA block or unblock. (See pages E36 and E38.)

...

Sets whether TV Guidelines block or unblock. (See pages E37 and E38.) Sets whether the block setting status is on or off. (See page E39.)

Adjusts the image's horizontal position. Adjusts the image's vertical position. Resets the image's position to the TV's original factory setting.

E44

Using the menus in TV/AV mode

Option menu (See page E42 for information on using the menus.)

Item Quick Shoot Output Select

DVI Select

HDMI Setup

(AV4 mode only)

Description

Reduces the visual lag inherent in fast-motion scenes. Selects how to adjust the sound via the audio output terminals.

.....................

- Fixed

- Variable1

- Variable2

Set depending on equipment connected to the DVI input terminal.

-AV

-PC For information on connecting to AV equipment or a computer, see page E24 (AV equipment) or page E26 (computer). Sets the parameters related with HDMI setting.

- Signal Type

- Color Matrix

- Dynamic Range

- Auto View

..............

.........................

........................

.............

Set "Fixed" when connecting to a VCR for recording, etc.

The volume via the audio output terminals is fixed. (TV speaker volume can be adjusted.) Image and sound are simultaneously output via the output terminals. (Image and sound are output via the output terminals a little earlier than when image is displayed on the TV and sound is output from the TV

speakers.) Set to enjoy the sound from both the TV speakers and external speakers while watching the image on the TV.

The volume can be adjusted. (See page E30.)

Image is displayed on the TV at the same time as when

sound is output via the output terminals. (Sound is

output via the output terminals a little later than when

image is output via the output terminal.) Set to enjoy only the sound from the external speakers while watching the image on the TV.

The volume of the external speakers can be adjusted.

(See page E30.)

However, no sound can be heard from the TV speakers

with this setting. (Sound via the headphone terminal

can be output.)

Image is displayed on the TV at the same time as when

sound is output via the output terminals. (Sound is

output via the output terminals a little later than when

image is output via the output terminal.)

AV equipment (AV5 mode is available.) Computer (PC DIGITAL mode is available.)

..........

Selects the signal type from the HDMI input terminal. Unless the image quality looks obviously poor, select "Auto".

.........

Selects the internal color space conversion method when an RGB signal is input. Normally, select "Auto".

...

Selects the signal amplitude range. Normally, select "Standard". Sets whether or not to use "View Mode" based on signal recognition, including an HDMI signal.

EnglishDeutschFrançaisItalianoEspañolEnglish

E45

Adjusting the computer display automatically

(for analog signals)

When using the TV as a computer display for the first time or after having changed the system settings during use, perform an automatic screen adjustment. "Clock", "Phase", "H-Pos.", and "V-Pos." in "Fine Sync." of the Setup menu (PC mode) will be set to their optimum states.

Note:

- When using the TV with a digital connection, automatic screen adjustment is unnecessary.

TV AV

MENU PC

ENTER

VOLCH

RETURN EXIT MTS MUTE

1.Press the PC button to select the PC (analog) mode. "PC ANALOG" will appear in the upper-right corner of the screen. If "PC DIGITAL" appear, press the PC button again.

2.Display an image that makes the entire screen display light colors (such as a light desktop background). If you are using Windows, use the adjustment pattern on the supplied CD-ROM (see page E48).

3.Press the MENU button to display the MENU screen.

4.Press the buttons to select "Setup".

MENU [Setup]

Picture Audio Setup Option

Auto Sync. Fine Sync. Input Signal Scaling [1] Language [English]

6.Press the

buttons to select "On", and press

the ENTER button. The screen will go dark and "Adjusting" will be displayed. After a few seconds, the Setup menu will return.

7.Press the MENU or EXIT button to exit the screen.

Notes:

- If you want to select a screen resolution of 1360 x 768, 1280 x 768, or 1024 x 768 when using the TV with an analog connection, specify the horizontal resolution in "768 Lines" for "Input Signal" in the Setup menu (PC mode). (See pages E47 and E51 for information on using the menus.)

- If you want to select a screen resolution of 640 x 480 or 848 x 480 when using the TV with an analog connection, specify the horizontal resolution in "480 Lines" for "Input Signal" in the Setup menu (PC mode). (See pages E47 and E51 for information on using the menus.)

- It may not be possible to achieve correct adjustment with the first automatic adjustment. In such a case, try repeating the automatic adjustment 2 or 3 times.

- If necessary due to any of the following, manual adjustments can be performed after the automatic adjustment. (See page E47.)

- When further fine adjustment is needed.

- When the computer's video input signals are

Composite Sync or Sync on Green. (Automatic adjustments may not be possible.)

- When "Out of Adjust" is displayed. (When the

screen displays an entirely dark image, the automatic screen adjustment may be disabled. When making an automatic adjustment, be sure to either use the adjustment pattern or try displaying an image that makes the entire screen very bright.)

- Automatic adjustment may not be achieved correctly depending on what is displayed on the screen - moving pictures or the MS-DOS prompt etc.

5.Press the buttons to select "Auto Sync.", and press the ENTER button.

E46

Using the menus in PC mode

You can adjust the color of the computer screen image and perform various settings using the menus in PC mode.

How to adjust using the menus

1.Press the PC button to select PC mode.

2.When you adjust "Black Level" (Picture menu), "Contrast" (Picture menu), or "Fine Sync." (Setup menu), display an image that makes the entire screen display light colors beforehand. If you are using Windows, use the adjustment pattern on the supplied CD-ROM. (See page E48.) Otherwise, continue to the next step.

3.Press the MENU button to display the MENU screen.

4.Press the buttons to select the menu you want to set. A list of items will be displayed.

MENU [Setup]

Picture Audio Setup Option

Auto Sync. Fine Sync. Input Signal Scaling [1] Language [English]

5.Press the buttons to select the item you want to set.

Note:

- The items colored in gray cannot be selected.

6.Change the numbers/values.

- To adjust the value, press the

buttons.

- To open a submenu, press the ENTER button.

- To return to the previous screen, press the

RETURN button.

7.Press the MENU or EXIT button to exit the screen.

Menu setting items

Picture menu

Auto* .................................................... Page E49

OPC ..................................................... Page E49

Brightness ........................................... Page E49

Black Level* ........................................ Page E49

Contrast* ............................................. Page E49

Color Control ....................................... Page E49

Audio menu

Treble ................................................... Page E50

Bass ..................................................... Page E50

Balance ............................................... Page E50

Dolby Virtual ....................... Pages E31 and E50

Setup menu

Auto Sync.* ......................... Pages E46 and E51

Fine Sync.* .......................................... Page E51

Input Signal* ........................................ Page E51

Scaling ................................................ Page E51

Language** ......................................... Page E51

Option menu

Quick Shoot ......................................... Page E52

Output Select** .................................... Page E52

DVI Select** ......................................... Page E52

* When using the TV with a digital connection,

this item does not appear. (This item adjustment is not necessary.)

** The values set in PC mode will be also applied

in TV/AV mode.

EnglishDeutschFrançaisItalianoEspañolEnglish

Notes:

- If you do not press any buttons for about 30 seconds while in an adjustment screen, the settings you made up to that point will be applied and the screen will automatically disappear.

- This manual describes display adjustment based on the use of the adjustment pattern (for Windows).

E47

Using the menus in PC mode

Adjustment pattern

If you are using Windows, use the adjustment pattern on the supplied CD-ROM.

1.Load the supplied CD-ROM into the CD-ROM drive of the computer.

2.Open [My Computer] and select CD-ROM.

3.Double click on [Adj_uty.exe] to run the adjustment program. The adjustment pattern will appear.

Adjustment pattern

4.After completing the adjustments, press the computer's [Esc] key to exit the adjustment program.

Note:

- If your computer's display mode is set to 65K colors, you may see the different color levels in each color pattern or the gray scale may look colored. (This is due to the specification of the input signal and is not a malfunction.)

E48

Using the menus in PC mode

Picture menu (See page E47 for information on using the menus.)

The current picture mode (see page E56) is shown in the first line of the menu. The following adjustments, when applied, affect only the current picture mode. *When using the TV with a digital connection, this item does not appear.

Item Auto*

OPC

Brightness

Black Level*

Description

Automatically adjusts "Black Level" and "Contrast" based on the brightest and darkest colors of the image displayed. When set to "On", senses the surrounding light and automatically adjusts the backlight brightness. Make sure no object obstructs the OPC sensor, which could affect its ability to sense surrounding light. Adjusts the backlight brightness. If you adjust "Brightness" while "OPC" is "On", "OPC" is automatically set to "Off". Adjust screen brightness watching the color pattern.

Color pattern

EnglishDeutschFrançaisItalianoEspañolEnglish

Contrast* Color Control

Reset

Adjust contrast watching the color pattern so that all gradations appear.

- Color Mode

- Standard

- sRGB

- Vivid

- TV/AV

- Color Temp.

- High

- Mid-High

- Middle

- Mid-Low

- Low

- User

Resets adjustment values for this menu to their original factory settings.

........

.....

...........

.............

...........

........

.............

.....

..........

......

..............

.............

....................

Selects the color tone. Displays images using the original color tone of the LCD monitor. sRGB is an international standard for color representation defined by the IEC (International Electrotechnical Commission). Colors are converted by taking into account the liquid crystal's characteristics and thereby represent color tone close to the original image. Displays images in vivid primary colors. Provides a proper color tone to watch DVDs and TV programs that are received from the computer connected to the TV. Adjusts the color temperature (white balance). Set "Color Temp." to "Middle" if you want to display all gradations. Color tone bluer than "Middle". Color tone slightly bluer than "Middle". Standard setting for color tone. Color tone slightly redder than "Middle". Color tone redder than "Middle". Allows you to individually adjust red, green, and blue contrast. When "Color Temp." is set to "User", you can adjust red, green, and blue contrast individually.

Notes:

- Please note the followings about auto adjustment "Auto":

- If you are not using the adjustment pattern, it is necessary to have black area and white area of at

least 5 mm x 5 mm on the screen. Adjustment may not be possible without those areas.

- If the signal coming from the computer is Composite Sync or Sync on Green, automatic adjustment

may not be possible. Please perform manual adjustment instead.

- If "Out of Adjust" is displayed, perform manual adjustment. (To exit the adjustment program, press

the computer's [Esc] key.)

- "Color Temp." can be adjusted only when "Color Mode" is set to "Standard".

E49

Using the menus in PC mode

Audio menu (See page E47 for information on using the menus.)

When headphones are connected or when "Output Select" is set to "Variable2" in the Option menu, the Audio menu cannot be adjusted.

Item Treble Bass Balance Dolby Virtual Reset

Note:

- "Treble", "Bass", and "Balance" can be adjusted only when "Dolby Virtual" is set to "Off".

Description

E50

Using the menus in PC mode

Setup menu (See page E47 for information on using the menus.)

*When using the TV with a digital connection, this item does not appear.

Item Auto Sync.*

Fine Sync.*

Description

Automatically adjusts "Clock", "Phase", "H-Pos.", and "V-Pos.". (See page E46.)

- Clock

- Phase

..............

.............

Adjusts the clock so that no vertical flicker noise is emitted.

Vertical flicker noise

Makes an adjustment after "Clock" is properly adjusted so that no horizontal flicker noise is emitted.

Horizontal flicker noise

EnglishDeutschFrançaisItalianoEspañolEnglish

pattern

..............

.......

...

Adjusts the position of the adjustment pattern so that it appears centered on screen.

Screen frame

Resets adjustment values for this item to their original factory settings. Specifies the horizontal resolution of a 480-line screen. Specifies the horizontal resolution of a 768-line screen.

H-Pos., V-Pos.

Adjustment

- Reset

Input Signal*

Scaling Language

Note:

- To exit the adjustment program, press the computer's [Esc] key.

- 480 Lines

- 768 Lines Adjusts the image to optimum sharpness when it is enlarged. Selects the language (English, French, or Spanish) on the screen.

E51

Using the menus in PC mode

Option menu (See page E47 for information on using the menus.)

Item Quick Shoot Output Select

DVI Select

Description

Reduces the visual lag inherent in fast-motion scenes. Selects how to adjust the sound via the audio output terminals.

...............

- Fixed

- Variable1

- Variable2

Set depending on equipment connected to the DVI input terminal.

...................

-AV

..................

-PC

For information on connecting to AV equipment or a computer, see page E24 (AV equipment) or page E26 (computer).

Set "Fixed" when connecting to a VCR for recording, etc.

........

Set to enjoy the sound from both the TV speakers and external speakers while watching the image on the TV.

The volume can be adjusted. (See page E30.) Image is displayed on the TV at the same time as when sound is output via the output terminals. (Sound is output via the output terminals a little later than when image is output via the output terminal.)

........

Set to enjoy only the sound from the external speakers while watching the image on the TV.

The volume of the external speakers can be adjusted. (See page E30.) However, no sound can be heard from the TV speakers with this setting. (Sound via the headphone terminal can be output.) Image is displayed on the TV at the same time as when sound is output via the output terminals. (Sound is output via the output terminals a little later than when image is output via the output terminal.)

AV equipment (AV5 mode is available.) Computer (PC DIGITAL mode is available.)

E52

Watching two images simultaneously (PIP/SPLIT)

You can display the computer screen along with the TV or video image simultaneously in the following two ways.

PIP A small window appears on the whole

screen. You can resize and/or move the small window.

Split The computer screen and the TV or video

image appear side by side in two split windows.

Note:

- PIP/Split mode is available only when one source is from PC mode and the other source is from TV or AV (AV1, AV2, AV3, AV4, or AV5) mode.

Displaying the images in PIP/Split mode (ON/OFF)

ENTER

Returning to the normal screen

1.Press the ON/OFF button. "PIP/Split" menu will be displayed.

2.Press the ON/OFF button to select "Normal". You can also use the buttons to select.

Selecting the active window (SELECT)

displays on the active window which you can hear the sound, adjust the volume, and select channels, etc. To change the active window:

RETURN

EXIT MTS MUTE

VIEW MODE PICT MODE

SLEEP

ON/OFF SIZE/MOVE

1.Press the SELECT button.

will move to the other window.

CC FREEZE

SWAP SELECT

PIP/SPLIT

EnglishDeutschFrançaisItalianoEspañolEnglish

VOLCH

RETURN

EXIT MTS MUTE

VIEW MODE PICT MODE

SLEEP

ON/OFF SIZE/MOVE

CC FREEZE

SWAP SELECT

PIP/SPLIT

1.Press the ON/OFF button. "PIP/Split" menu will be displayed.

2.Press the ON/OFF button to select "PIP" or "Split". You can also use the buttons to select.

Notes:

- The information about the whole screen (PIP) or the left window (Split) appears in the upper-left corner of the screen. The information about the small window (PIP) or the right window (Split) appears in the upper-right corner of the screen.

- While displaying the images in PIP/Split mode, you cannot display the MENU screen.

Changing between TV and AV modes

While displaying the images in PIP/Split mode, you can change the display mode between TV and AV modes.

Note:

- The computer screen (PC mode) cannot be changed.

1.Press the SELECT button to set the TV or AV mode as the active window with .

2.Press the TV or AV button or press the INPUT button to select the desired mode.

E53

Watching two images simultaneously (PIP/SPLIT)

Swapping images (SWAP)

In PIP/Split mode, you can switch the images displayed on two windows with each other.

RETURN

EXIT MTS MUTE

VIEW MODE PICT MODE

SLEEP

ON/OFF SIZE/MOVE

1.Press the SWAP button.

[PIP mode]

Switches the images displayed in the whole screen and in the small window with each other.

[Split mode]

Switches the images displayed in the left and right windows with each other.

CC FREEZE

SWAP SELECT

PIP/SPLIT

Adjusting the size or position of the small window (SIZE/MOVE)

TV AV

MENU PC

ENTER

VOLCH

RETURN

EXIT MTS MUTE

VIEW MODE PICT MODE

SLEEP

ON/OFF SIZE/MOVE

Adjusting the size of the small window

1.Press the SIZE/MOVE button in PIP mode. "PIP Size" screen will be displayed. If "PIP Move" screen is displayed, press the SIZE/MOVE button again.

2.Press the buttons to adjust the size.

3.Press the ENTER button.

CC FREEZE

SWAP SELECT

PIP/SPLIT

Moving the small window

1.Press the SIZE/MOVE button in PIP mode. "PIP Move" screen will be displayed. If "PIP Size" screen is displayed, press the SIZE/MOVE button again.

2.Press the buttons to move the window.

3.Press the ENTER button.

Note:

- If you do not press any buttons for several seconds while in an adjustment screen, the settings you made up to that point will be applied and the screen will automatically disappear.

E54

Other features

Changing the screen size (VIEW MODE)

You can change the screen size to match the video on videotapes and DVDs.

TV AV

MENU PC

ENTER

VOLCH

RETURN EXIT MTS MUTE

VIEW MODE PICT MODE

1.Press the VIEW MODE button. "View Mode" menu will be displayed.

2.Press the VIEW MODE button to select the desired mode. You can also use the buttons to select.

CC FREEZE

Notes:

- Depending on the type of data received or the video software used, screen edges may be slightly cut off or the image may have a black border.

- When "ZOOM" cuts off captions or telops at the top or bottom of the screen, select "S. Stretch".

- The screen size cannot be changed while an image is paused. (See page E41.)

- The screen size cannot be changed when video signals of 1080i or 720p are input externally. The images are displayed in the ratio of 16:9.

- The screen size cannot be changed while displaying the images in PIP/Split mode. (See pages E53 and E54.)

- Be aware that the use of screen resize functions to enlarge/reduce images for profit or for public display may infringe on copyright protection provided under Copyright Law.

EnglishDeutschFrançaisItalianoEspañolEnglish

[TV/AV mode] Side Bar Displays 4:3 aspect ratio TV images

normally.

S. Stretch Expands 4:3 images to fill the entire

screen (16:9).

Zoom Expands the image to fill the screen

(16:9) with wide black bands across the top and bottom such as letterbox format movies.

Stretch Returns images horizontally reduced

from 16:9 to 4:3 back to 16:9 so they fill the entire screen.

[PC mode] Normal Displays the image without changing

its aspect ratio. When the image's resolution is lower than 1024 x 768, the image is expanded.

Stretch Expands the image so that it fills the

screen. (The aspect ratio may change.)

E55

Other features

Adjusting the picture mode (PICT MODE)

You can change the picture mode depending on the type of the image you are now watching. Each picture mode consists of the adjustments set in the Picture menu. (See pages E43 and E49.)

RETURN

EXIT MTS MUTE

VIEW MODE PICT MODE

SLEEP

ON/OFF SIZE/MOVE

1.Press the PICT MODE button. The currently selected picture mode will be displayed.

2.Press the PICT MODE button to select the desired mode. Each time you press the button, the mode changes as follows:

[TV/AV mode]

STANDARD → DYNAMIC → CINEMA → GAME → USER → STANDARD...

STANDARD Standard setting DYNAMIC For a clear and vivid image CINEMA For a movie GAME Lowers image brightness for

easier viewing.

USER Allows the user to customize

settings as desired. You can set "USER" for each display mode.

CC FREEZE

SWAP SELECT

PIP/SPLIT

Customizing the picture mode

For each display mode, you can register the adjustments set in the Picture menu as "USER" of the picture mode.

1.Press the TV, AV, or PC button to select the desired display mode.

2.Press the PICT MODE button to select "USER". (See the left column.)

3.Press the MENU button to display the MENU screen.

4.Press the buttons to select "Picture".

5.Press the buttons to select the desired item to adjust.

6.Adjust the values. (See pages E42 and E43, or E47 and E49 for information on using the menus.)

7.Press the MENU or EXIT button to exit the screen. Adjustments set in the Picture menu will be registered as "USER" for the currently selected display mode.

Notes:

- You can also customize the other picture modes ("STANDARD", "DYNAMIC", "CINEMA", and "GAME") in the same way.

- Selecting "Reset" in the Picture menu can reset adjustment values to their original factory settings.

[PC mode]

STANDARD → USER → STANDARD...

STANDARD Standard setting USER Allows the user to customize

settings as desired. You can set "USER" for each display mode.

Note:

- You can select a different picture mode for each display mode. (For example, select "STANDARD" for TV mode and "DYNAMIC" for AV1 mode.)

E56

Other features

Checking your TV's current settings (DISPLAY)

The information displayed will vary depending on the current display mode and other settings.

POWER

1.Press the DISPLAY button.

[TV mode]

Display mode, TV channel number, MTS mode, antenna type, CC setting, and V-Chip rating information will be displayed.

[AV mode]

Display mode, AV input terminal type, input signal resolution, CC setting, and V-Chip rating information will be displayed.

[PC mode]

Display mode, screen resolution, and horizontal/ vertical frequency will be displayed.

The information will disappear after several seconds.

Note:

- If the TV broadcast changes while the information is displaying, the broadcast and MTS mode may not match.

FLASH

BACK

DISPLAY INPUT

TV Air

Audio

: SAP(ST)

: Off

Ratings

: R

Switching power off after a specified length of time (SLEEP)

The TV can automatically switch off (standby) after a specified length of time. This is helpful if you want to use the TV at bedtime.

RETURN

EXIT MTS MUTE

VIEW MODE PICT MODE

SLEEP

ON/OFF SIZE/MOVE

1.Press the SLEEP button.

2.Specify in how many minutes you want the TV to switch off by pressing the SLEEP button. The time changes in the following order each time you press the button: Off → 30 min → 60 min → 90 min → 120 min → 150 min → Off

When the specified time elapses, the TV automatically switches off and clears the SLEEP timer.

Checking the time remaining on the SLEEP timer

1.Press the SLEEP button. The time remaining on the SLEEP timer will be displayed for several seconds.

Changing the specified time

1.Press the SLEEP button. The remaining time will be displayed.

2.Change the specified time by pressing the SLEEP button several times as needed.

Notes:

- When there are only 5 minutes remaining on the SLEEP timer, the remaining time will be displayed every minute.

- Pressing the POWER button while the SLEEP timer is operating will clear the timer.

- In PC mode, switching to the power-saving mode (with the POWER LED in orange) automatically clears the SLEEP timer.

CC FREEZE

SWAP SELECT

PIP/SPLIT

EnglishDeutschFrançaisItalianoEspañolEnglish

E57

Other features

Preventing changes to adjusted values (Adjustment Lock)

Disabling the control buttons other than the following buttons (TV and remote control) prevents adjusted values from being changed. The changing of adjusted values for both TV/AV mode and PC mode will be prevented.

[TV]

- POWER button

- VOL buttons

- INPUT button

- CH buttons

[Remote control]

- POWER button

- VOL buttons

- MUTE button

- INPUT button

- Input buttons (TV, AV, and PC)

- CH buttons

- Channel buttons (0-9 and 100)

- FLASHBACK button

Perform this procedure using the buttons on the TV.

1.Turn off the TV power.

2.While pressing the MENU button, press the POWER button (i.e. turn the power on). Continue to press the buttons until "Lock Adjustment?" appears on the screen.

3.Press the VOL button.

Resetting all adjustment values (ALL RESET)

All adjustment values will be reset for both PC mode and TV/AV mode (including channel settings and the secret number for V-Chip Block). Concerning the ALL RESET procedure, refer to the end of this manual.

Releasing the adjustment lock

Perform this procedure using the buttons on the TV.

1.Turn off the TV power.

2.While pressing the MENU button, press the POWER button (i.e. turn the power on). Continue to press the buttons until "Unlock Adjustment?" appears on the screen.

3.Press the VOL button.

CAUTION!

- When the adjustment lock is set, all buttons on the TV and remote control other than the above buttons are disabled. To use buttons other than the above buttons, release the adjustment lock.

E58

Other features

Outputting images and sound to AV equipment

CAUTION!

- Ensure that the TV and all the equipment you are connecting to it are switched off before you begin.

See page E10 for information on removing/replacing the terminal cover.

Right side of the TV

Input terminals of AV equipment

EnglishDeutschFrançaisItalianoEspañolEnglish

VIDEO

AUDIO-L

AUDIO-R

(Yellow)

(White)

(Red)

(Yellow)

(White)

(Red)

VIDEO

AUDIO-L

AV-OUT

AUDIO-R

RCA pin cable (commercially available)

The image displayed on the TV screen and the sound can be output via the AV-OUT terminals to AV equipment. (In PIP/Split mode, the image displayed in the active window and the sound can be output.)

Output from AV-OUT terminalsImage displayed on the TV screen TV image Image input from the video input terminal Image input from the S-video input terminal Image input from the component input terminals Image input from the DVI input terminal Image input from the HDMI input terminal Computer Image

: Available

* Only the sound is output.

After making the connection, select the item you want to set in "Output Select" using the Option menu, according to your requirements. (The factory setting is "Fixed". See pages E42 and E45, or E47 and E52 for information on using the menus.)

- Fixed ................ Use when connecting to a VCR for recording, etc. The volume of the sound via the

audio output terminals is fixed.

- Variable1 ......... Use to enjoy the sound from both the TV speakers and external speakers while

watching the image on the TV. VOL +/– buttons allow you to adjust the sound volume for both the TV and external speakers.

- Variable2 ......... Use to enjoy only the sound from the external speakers while watching the image on

the TV. No sound can be heard from the TV speakers with this setting. VOL +/– buttons allow you to adjust the sound volume for the external speakers.

E59

Instructions for attaching a VESA-compliant mount

An arm or stand based on the VESA standard (commercially available) can be attached to the TV. Procurement of the arm or stand is at the customer's discretion.

Arms or stands able to be used

Attachments must satisfy the following.

- Compatible with the VESA standard.

- The six screw holes on the section to be

attached have a gap of 100 mm between them.

- Not be likely to fall off or break off after being

attached to the TV.

How to attach the arm or stand

- Be careful not to over bend the cable or add

extension cords as this could lead to a malfunction.

- While following these instructions, please also

refer to the installation instructions in the operation manual included with the arm or stand.

- Because the TV is heavy, we recommend that

you perform the operation with two or more persons including yourself.

CAUTION!

- Be careful not to get your fingers pinched

between the display and stand nor to let the stand drop. These could lead to injury.

- Do not cover or block ventilation openings since

insufficient ventilation can cause overheating.

5.Remove the four screws and then remove the stand from the TV.

Notes:

- If the stand is hard to remove, pull it toward

you while holding it up slightly.

- The stand is specially made for use with this

TV. Once having removed the stand, never attempt to attach it to another equipment.

- Once having removed the screws, store them

together with the stand. If the stand is ever reattached, be sure to use the original screws. Using different screws could lead to a malfunction.

6.Attach the arm to the TV with the six screws.

1.Turn off the TV power using the POWER button on the TV.

2.Remove the terminal covers and the cables. See page E10 for information on removing the terminal cover.

3.Spread out a soft cloth on a flat surface. Being careful not to damage the TV, gently lay the TV on it display-side down.

4.Remove the two screws and then remove the rear cover of the stand.

Soft cloth

Note:

- The screws used to attach the arm should be M4 screws with a length of 10 mm protruding from the surface to be attached. Using different screws could cause the TV to fall off or to be internally damaged.

10 mm

Screw used to attach arm

Arm

Part of TV to which arm is attached

E60

Instructions for attaching a VESA-compliant mount

7.Reconnect the cables and replace the terminal covers. See page E10 for information on replacing the terminal cover.

Note:

- You can attach a stand or an arm that has four screw holes located at an interval of 100 mm. Please fully confirm that the stand or arm will not drop and the TV will not fall before use.

EnglishDeutschFrançaisItalianoEspañolEnglish

E61

Troubleshooting

If you think the TV may be faulty, please check the following points before taking it to be repaired. If the TV continues not to work after you have checked all the points mentioned below, please contact the shop where you purchased the TV or your nearest Sharp authorized Service Center.

The TV's fluorescent tubes have a limited life span.

- If the screen darkens, persistently flickers or does not light up, the fluorescent tube has reached

the end of its operational life span. Please inquire at the shop where you purchased the TV or your nearest Sharp authorized Service Center.

- In the initial period of use, due to the characteristics of fluorescent tubes the screen may flicker.

(This is not a malfunction.) Should this happen, check by first turning off the power, then turning it on again.

Problem

There is no picture. (POWER LED does not light.)

The remote control does not work.

Control buttons do not work. The adjustment screen does not appear. Control buttons do not work. The remote control does not work. There is no picture.

There is no TV picture.

A particular channel will not tune in. There are stripes or dots on TV picture. The picture wavers.

The TV picture is doubled.

There are color bands.

The TV picture is distorted.

There is no video picture. There is no game picture.

The TV picture does not move. The video picture does not move.

What to Check

- Is the power cord properly connected? Disconnect the power plug from the AC outlet and reconnect it again. (Page E19)

- Is power turned on? (Page E28)

- Have the batteries of the remote control run out? (Page E14)

- Are the batteries placed in the right direction in the remote control? (Page E14)

- Is the adjustment lock set? (Page E58)

Some kind of load noises from outside might interfere with normal operation.

- Turn off the power and turn it on after waiting at least 5 seconds, and then check the operation.

- If the problem cannot be solved, disconnect and reconnect the power plug from/to the AC outlet and check the operation.

- Is the TV connected to an antenna? Check the connection. (Pages E16 and E17)

- Is the TV switched to TV mode? (Page E29)

- Have you set TV channels properly? (Pages E32 and E33)

- Is there interference from automobiles, trains, neon signs, computers, or other sources?

- Place the antenna as far as possible away from potential

sources of interference.

- Place the antenna line as far as possible from the computer.

- Is the antenna facing the right direction? There may be reflected electric waves from nearby mountains or buildings. Try changing the antenna's height and direction.

- Is there interference from a nearby TV? Changing the antenna's height and direction may help.

- Try switching power off, waiting several seconds, and then turning power back on.

- Are the cables properly connected? (Pages E21 to E24 and E59)

- Have you switched to the display mode appropriate for the connected equipment? (Page E29)

- Have you turned on the connected equipment?

- Is the screen pausing? Did you press the FREEZE button? (Page E41)

E62

Troubleshooting

Problem

There is no sound from the TV speakers.

There is no sound from the audio output terminals. There is no picture. (POWER LED is lit orange.)

The image appears distorted.

AV5 mode cannot be selected.

PC DIGITAL mode cannot be selected. The image does not appear properly in AV5 (DVI) or PC (digital) mode.

The image does not appear properly in AV4 (HDMI) mode.

What to Check

- Adjust the volume. (Page E30)

- Are the audio cables properly connected? (Pages E21 to E24 and E26)

- Did you press the MUTE button? (Page E31)

- No sound can be heard from the TV speakers while headphones are connected.

- When "Output Select" is set to "Variable2" in the Option menu, no sound can be heard from the TV speakers. (Page E45 or E52)

- No sound can be heard from the TV speakers while the TV is in power-saving mode.

- When headphones are connected, sound can be output from these terminals only when "Fixed" is selected. (Page E13)

Is the TV properly connected to the computer? (Pages E25 and E26)

- Is the computer turned on?

- Is the PC signal input terminal (analog or digital) properly selected? (Page E29)

- Does the computer's signal timing correspond to TV specifications? (Page E67)

- Is the computer in power-saving mode? Try pressing a key on the keyboard or moving the mouse.

- Does the computer's signal timing correspond to TV specifications? (Page E67)

- If you are using the analog signal, perform automatic screen adjustment. (Page E46)

- Change the Vsync frequency (refresh rate) on the computer you are using to a low value if possible. (Page E67)

- Have you switched to the display mode appropriate for the connected equipment? (Page E29)

To select AV5 mode, set "DVI Select" to "AV" beforehand using the Option menu. (Pages E42 and E45) To select PC DIGITAL mode, set "DVI Select" to "PC" beforehand using the Option menu. (Pages E47 and E52)

- Have you switched to the display mode appropriate for the connected equipment? (Page E29)

- Turn off power to both the TV and the connected AV equipment, or both the TV and the connected computer. Reselect "DVI Select" setting following steps 1 through 7 on page E24 (for "AV") or page E26 (for "PC").

Try turning off/on the TV and the connected AV equipment in the following order:

- Turn off the AV equipment.

- Turn off the TV and turn it on after waiting at least 5 seconds.

- Turn on the AV equipment.

EnglishDeutschFrançaisItalianoEspañolEnglish

E63

Troubleshooting

Problem

"Temperature" is displayed on the screen.

POWER LED blinks red.

What to Check

If the temperature inside the TV rises, this message is displayed on the screen and then the TV switches to standby mode. Check the following points before turning the power on.

- Is the location where the TV is installed easily susceptible to temperature rises?

- Is there anything blocking the airflow in the ventilation openings?

- Has dust accumulated in the ventilation openings? (If dust has accumulated, remove it. If dust has accumulated inside of the TV, consult the shop where you purchased the TV or your nearest Sharp authorized Service Center.)

There is a problem with the fan of the ventilation openings. After turning off the power, consult the shop where you purchased the TV or your nearest Sharp authorized Service Center for the repair.

E64

TV care

Always make sure to turn your TV off and then unplug the TV from the AC outlet before cleaning the TV.

Cabinet and control panel section

Use a soft dry cloth to lightly wipe away any grime from the cabinet and control panel. If the cabinet or control panel is still dirty, apply a neutral cleaner (that is not acid or alkaline based) to a dampened soft cloth, wring it out well and wipe away grime.

LCD panel section

Use a soft dry cloth to lightly wipe away dirt and dust from the surface of the LCD panel. (A soft cloth such as gauze or that used for lens cleaning is suitable.)

Ventilation openings

If dust has accumulated, remove it. If dust has accumulated inside of the TV, consult the shop where you purchased the TV or your nearest Sharp authorized Service Center.

EnglishDeutschFrançaisItalianoEspañolEnglish

CAUTION!

- Never use thinner, benzine, alcohol, glass cleaner, etc., as this could lead to color change or change in shape.

- Never scratch the TV with anything hard or apply strong pressure as this could leave marks or result in malfunction.

Storage

If the TV will not be used for a long period of time, be sure to remove the power plug from the AC outlet.

CAUTION!

- Do not leave the TV in contact with rubber or plastic items for long periods of time as this could lead to color change or change in shape.

E65

Specifications

Product specifications

Model name

LD-26SH3U

LCD display

26" Advanced Super-V and Anti-Glare Low-Reflection TFT LCD module

Actual display size

2533/64" (64.8 cm) measured diagonally

Resolution (max.)

1366 x 768

Displayable colors (max.)

Approx. 16.77 million colors (8 bit)

Dot pitch (H x V)

0.4135 mm x 0.4135 mm

Brightness (max.)

450 cd/m (The screen brightness deteriorates over time. Constant brightness cannot be maintained.)

Contrast ratio

800:1

Angle of visibility

Left-right 170°; up-down 170° (contrast ratio

Screen display size (H x V)

564.8 mm x 317.6 mm (221/4" x 1233/64")

Video signal

Analog: Analog RGB (0.7 Vp-p) [75Ω] Digital: DVI standard based on 1.0

Sync signal

Separate Sync (TTL level: +/–), Sync on Green, Composite Sync (TTL level: +/–)

Video signal format

NTSC

Expansion compensation

Digital scaling (Enlarges VGA/SVGA/XGA etc. to full screen size.) [Enlarged display (full screen, fixed aspect ratio)]

- 1:1 display is not possible.

Plug & Play

VESA DDC2B compatible

Power management

VESA: based on DPMS DVI: based on DMPM

Speaker output

20 W in total

10)

Input terminals

Video image: RCA pin x 3 Component image: x 1 S-video image: x 2 HDMI: x 1 DVI-D 24 pin x 1 (Also used as a computer digital signal input terminal) Audio: RCA pin (L/R x 4) Antenna: F-type Computer signal:

Analog: mini D-sub 15 pin (3 rows) x 1 Digital: DVI-D 24 pin x 1 (Also used as a DVI image input terminal)

Computer audio: mini stereo jack (φ 3.5 mm) x 1

Output terminals

Video image: RCA pin x 1 Audio: RCA pin (L/R x 1) Headphone: mini stereo jack (φ 3.5 mm) x 1 Antenna: F-type

Receivable TV channels

VHF: 2 through 13; UHF: 14 through 69; Cable: 1 through 125

Screen tilt

Upward approx. 0° - 5°; downward approx. 0° - 5°

Screen swivel

Approx. 30° from left through right

Power supply

100 VAC - 240 VAC, 50/60 Hz

Temperature of operating environment

5°C - 35°C (41°F - 95°F)

Power consumption

118 W; 0.1 W in standby; 1.0 W in power-saving mode

Dimensions (W x D x H)

Approx. 667 mm x 280 mm x 559 mm (Approx. 2617/64" x 111/32" x 221/64")

Weight

Approx. 18.5 kg; 40.7 lb. (with stand) Approx. 15.6 kg; 34.4 lb. (without stand)

E66

Dimensions (Units: mm (inch))

Specifications

667 (2617/64)

110 (411/32)

- Power cord: approx. 1.8 m (5' 10")

/16)

/64)

- PC analog signal cable: approx. 1.8 m (5' 10")

- PC audio cable: approx. 1.8 m (5' 10")

- Digital signal cable, NL-C04J (purchased

559 (22

500 (19

398 (1543/64)

280 (111/32)

separately): approx. 2.0 m (6' 6")

Note:

- As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

Relevant signal timings (PC mode)

Screen resolution Hsync Vsync

VESA

Wide US text Power

Macintosh series

640X480

600

800

848

480

768

1024

768

1280

768

1360

720

1280

400

720

480

640

624

832

768

1024

31.5kHz

37.9kHz

37.5kHz

35.1kHz

37.9kHz

48.1kHz

46.9kHz

31.0kHz

48.4kHz

56.5kHz

60.0kHz

47.8kHz

60.3kHz

47.7kHz

44.7kHz

31.5kHz

35.0kHz

49.7kHz

60.2kHz

60Hz 72Hz 75Hz 56Hz 60Hz 72Hz 75Hz 60Hz 60Hz 70Hz 75Hz 60Hz 75Hz 60Hz 60Hz 70Hz

66.7Hz

74.6Hz 75Hz

Dot frequency

25.175MHz

31.5MHz

36.0MHz

40.0MHz

50.0MHz

49.5MHz

33.75MHz

65.0MHz

75.0MHz

78.75MHz

79.5MHz

102.25MHz

85.5MHz

74.4MHz

28.3MHz

30.2MHz

57.3MHz

80.0MHz

Analog Digital

: Available

EnglishDeutschFrançaisItalianoEspañolEnglish

- Recommended resolution is 1360 x 768, 1280 x 768, or 1024 x 768.

- All are compliant only with non-interlaced.

- Depending on the type of computer to be connected, the display may not work correctly even when the above relevant signals are input.

- Frequencies for Power Macintosh are reference values. To connect, another adapter (commercially available) may be required.

- For digital connection, the TV can be connected to a computer with a DVI-compatible output terminal (DVI-D 24 pin or DVI-I 29 pin). (Depending on the type of computer to be connected, the display may not work correctly.)

- If the TV is receiving timing signals that are not compatible, "Out of Timing" will appear. Follow your computer's operation manual to set the timing so that it is compatible with the TV.

- If the TV is not receiving any signal (sync signal), "No Signal" will appear.

E67

Specifications

The analog RGB input connector pin

(Mini D-sub connector with 15 pins)

No.

Red video signal input

Green video signal input

Blue video signal input

N.C.

GND

For red video signal GND

For green video signal GND

For blue video signal GND

+5V

GND

N.C.

DDC data

For Hsync signal input

For Vsync signal input

DDC clock

Function

The DVI-D input connector pin

(DVI-D connector with 24 pins)

Function FunctionNo.

TMDS data 2–

TMDS data 2+

TMDS data 2/4 shield

N.C.

DDC clock

DDC data

N.C.

TMDS data 1–

TMDS data 1+

TMDS data 1/3 shield

N.C.

No.

N.C.

+5V

GND

Hot plug detection

TMDS data 0–

TMDS data 0+

TMDS data 0/5 shield

N.C.

TMDS clock shield

TMDS clock +

TMDS clock –

Power management

The monitor is based on the VESA DPMS and the DVI DMPM standards. To activate the power management function, the video card and the computer used with it must also conform to these standard.

DPMS: Display Power Management Signaling

DPMS mode

ON STANDBY SUSPEND OFF

Screen

Display on

Display off

Power

consumption

118 W

1.0 W

H-sync V-sync

Ye s

DMPM: Digital Monitor Power Management

DMPM mode Screen

ON OFF

Display on Display off

Power

consumption

118 W

1.0 W

DDC (Plug & Play)

This monitor supports the VESA DDC (Display Data Channel) standard. DDC is a signal standard for carrying out Plug & Play functions on the monitor or computer. It transfers information such as degree of resolution between the monitor and computer. You can use this function if your computer is DDC compliant and if it is set so that it can detect the Plug & Play monitor. There are many varieties of DDC due to the differences between systems. This monitor works with DDC2B.

E68
