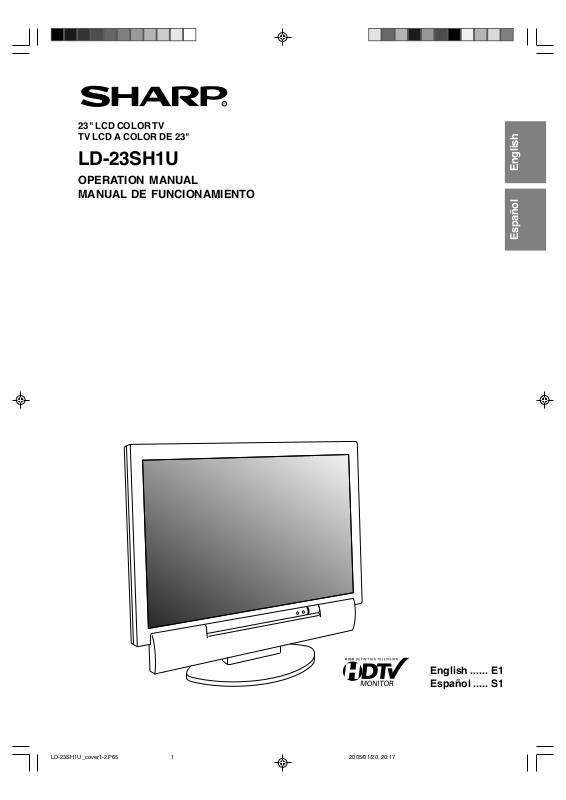

23" LCD COLOR TV TV LCD A COLOR DE 23"

LD-23SH1U

OPERATION MANUAL MANUAL DE FUNCIONAMIENTO

EnglishEspañol

English ...... E1

Español ..... S1

ENGLISH

IMPORTANT: To aid in reporting in case of loss or theft, please record the TV's model and serial numbers in the space provided. The numbers are located on the rear of the TV.

Model No.:

Serial No.:

U.S.A. ONLY

IMPORTANT INFORMATION

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO

NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

The lightning flash with arrowhead symbol, within an

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

EnglishDeutschFrançaisItalianoEspañolEnglish

CAUTION:

DO NOT PLACE THIS PRODUCT ON AN UNSTABLE CART, STAND, TRIPOD, BRACKET, OR TABLE. THE PRODUCT MAY FALL CAUSING SERIOUS PERSONAL INJURY AND SERIOUS DAMAGE TO THE PRODUCT. USE ONLY WITH A CART, STAND, TRIPOD, BRACKET, OR TABLE RECOMMENDED BY THE MANUFACTURER OR SOLD WITH THE PRODUCT. FOLLOW THE MANUFACTURER'S INSTRUCTIONS WHEN INSTALLING THE PRODUCT AND USE MOUNTING ACCESSORIES RECOMMENDED BY THE MANUFACTURER. A PRODUCT AND CART COMBINATION SHOULD BE MOVED WITH CARE. QUICK STOPS, EXCESSIVE FORCE, AND UNEVEN SURFACES MAY CAUSE THE PRODUCT AND CART COMBINATION TO OVERTURN.

CAUTION:

This product satisfies FCC regulations when shielded cables and connectors are used to connect the unit to other equipment. To prevent electromagnetic interference with electric appliances such as radios and televisions, use shielded cables and connectors for connections.

IMPORTANT INFORMATION

FCC Statement

WARNING – FCC Regulations state that any unauthorized changes or modifications to this equipment not expressly approved by the manufacturer could void the user's authority to operate this equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

U.S.A. ONLY

Declaration of Conformity

SHARP 23" LCD color TV LD-23SH1U

This device complies with part 15 of the FCC rules. Operation is subject to the following conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Responsible Party: SHARP ELECTRONICS CORPORATION

Sharp Plaza, Mahwah, New Jersey 07430-2135 TEL: 1-800-BE-SHARP

For Business Customers: URL http://www. sharpusa. com

"Note to CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the National Electrical Code that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical."

This product utilizes tin-lead solder, and fluorescent lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eia.org

U.S.A. ONLY

Table of Contents

Getting started

Tips and safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E5

Important safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E5

Product and accessory checklist . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E9

Product description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E10

Main unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E10

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E11

Cable clamp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E12

Using headphones (commercially available) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E12

Angle adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E12

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E13

Using the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E13

Batteries for the remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E13

Connection and preparation

TV preparation steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E14

Basic adjustment screen operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E15

Connecting the TV to a home antenna terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E16

Connecting the TV to AV equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E18

Connecting the TV to a computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E20

Connecting the TV to a power source . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E22

Setting TV channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E23

Selecting broadcast (AIR) or cable TV (CABLE) for channel setting . . . . . . . . . . . . . . . . . . . . . . . . E24

Saving broadcast TV channels in the memory (CHANNEL SEARCH) . . . . . . . . . . . . . . . . . . . . . . E24

Adding weak or additional channels or erasing unwanted channels from TV memory (CHANNEL MEMORY)

Adjusting the computer display automatically (for analog signals) . . . . . . . . . . . . . . . . . . . . . . . . . . . . E26

. . E25

EnglishDeutschFrançaisItalianoEspañolEnglish

Common operations

Common operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E27

Turning power on/off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E27

Switching display modes (INPUT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E27

Adjusting the backlight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E28

Adjusting the volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E29

Enjoying surround sound (Virtual Dolby Surround) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E29

Selecting the language on the screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E30

TV/AV mode

Watching TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E31

Watching TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E31

Selecting MTS (Multi ch TV Sound) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E32

Returning to previous channel (FLASHBACK) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E32

Setting the Closed Caption (CLOSED CAPTION) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E33

Adjusting the V-chip settings (V-CHIP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E34

Enjoying DVDs, games, and other equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E38

Handy features (for TV/AV mode) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E39

Pausing the screen (FREEZE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E39

Switching power off after a specified length of time (SLEEP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E39

Using the menus in TV/AV mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E40

How to adjust using the menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E40

Menu setting items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E40

Table of Contents

PC mode

Watching TV or video on the computer screen (MULTI SCREEN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E43

Selecting the video and audio sources . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E43

Listening to the TV or another audio source while viewing the computer screen (SOUND) . . . . . . . . E44

Using the menus in PC mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E45

How to adjust using the menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E45

Menu setting items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E45

Installing set-up information and the ICC profile (For Windows) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E51

Information about the ColorSync profile (For MacOS) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E54

Other features

Other features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E55

Changing the screen size (VIEW MODE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E55

Checking the current channel and audio mode on screen (DISPLAY) . . . . . . . . . . . . . . . . . . . . . . E55

Muting the sound (MUTE) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E56

Changing BRIGHT MODE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E56

Preventing changes to adjusted values (ADJUSTMENT LOCK) . . . . . . . . . . . . . . . . . . . . . . . . . . . E56

Resetting all adjustment values (ALL RESET) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E56

Appendix

Instructions for attaching a VESA-compliant mount . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E57

TV care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E58

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E58

TV care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E59

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E59

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E60

Tips and safety instructions

Thank you for your purchase of the Sharp 23" LCD color TV. To ensure safety and many years of troublefree operation of your product, please read the important safety instructions carefully before using this product.

Important safety instructions

Electricity is used to perform many useful functions, but it can also cause personal injuries and property damage if improperly handled. This product has been engineered and manufactured with the highest priority on safety. However, improper use can result in electric shock and/or fire. In order to prevent potential danger, please observe the following instructions when installing, operating and cleaning the product. To ensure your safety and prolong the service life of your LCD color TV, please read the following precautions carefully before using the product.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) Power Sources – This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

16) Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

17) Object and Liquid Entry – Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

18) Damage Requiring Service – Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the AC cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into the product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by following the operating instructions.

Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal

operation, e) If the product has been dropped or damaged in any way, and f) When the product exhibits a distinct change in performance – this indicates a need for service.

19) Replacement Parts – When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

20) Safety Check – Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21) Wall or ceiling mounting – When mounting the product on a wall or ceiling, be sure to install the product according to the method recommended by the manufacturer.

EnglishDeutschFrançaisItalianoEspañolEnglish

Tips and safety instructions

- Water and Moisture – Do not use this product near water – for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

- Stand – Do not place the product on an unstable cart, stand, tripod or table. Placing the product on an unstable base can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer's instructions. Use only the mounting hardware recommended by the manufacturer.

- Ventilation – The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer's instructions are followed.

- The Liquid Crystal panel used in this product is made of glass. Therefore, it can break when the product is dropped or applied with impact. Be careful not to be injured by broken glass pieces in case the panel breaks.

- Heat – The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Precautions when transporting the TV

When transporting the TV, be sure to always carry the TV by two people holding it with two hands one hand on each side of the TV.

–

Tips and safety instructions

- If an outside antenna is connected to the equipment, be sure the antenna system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.

EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE, ANSI/NFPA 70

ANTENNA LEAD IN WIRE

GROUND CLAMP

ANTENNA

ELECTRIC SERVICE EQUIPMENT

NEC-NATIONAL ELECTRICAL CODE

GROUND CLAMPS POWER SERVICE GROUNDING

ELECTRODE SYSTEM (NEC ART 250, PART H)

DISCHARGE UNIT (NEC SECTION 810-20)

GROUNDING CONDUCTORS (NEC SECTION 810-21)

EnglishDeutschFrançaisItalianoEspañolEnglish

- For added protection for this equipment during a lightning

storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna. This will prevent damage to the equipment due to lightning and power-line surges.

- An outside antenna system should not be located in the

vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.

- To prevent fire, never place any type of candle or flames on the top or near the TV set.

- To prevent fire or shock hazard, do not expose this product to dripping or splashing. No objects

filled with liquids, such as vases, should be placed on the product.

- To prevent fire or shock hazard, do not place the AC power cord under the TV set or other heavy

items.

Tips and safety instructions

- The TFT color LCD panel used in this TV is made with the application of high precision technology. However, there may be minute points on the screen where pixels never light or are permanently lit. Also, if the screen is viewed from an acute angle, there may be uneven colors or brightness. Please note that these are not malfunctions but common phenomena of LCDs and will not affect the performance of the TV.

- Do not display a still picture for a long period, as this could cause a residual image.

- If the brightness is adjusted to the minimum setting, it may be difficult to see the screen.

- The quality of the video signal may influence the quality of the display. We recommend using an equipment able to emit high quality video signals.

- Never rub or tap the TV with hard objects.

- Please understand that Sharp Corporation bears no responsibility for errors made during use by the customer or a third party, nor for any other malfunctions or damage to this product arising during use, except where indemnity liability is recognized under law.

- This TV and its accessories may be upgraded without advance notice.

Location

- Do not use the TV where ventilation is poor, where there is a lot of dust, where humidity is high, or where the TV may come into contact with oil or steam, as this could lead to fire.

- Ensure that the TV does not come into contact with water or other fluids. Ensure that no objects such as paper clips or pins enter the TV as this could lead to fire or electric shock.

- Do not place the TV on top of unstable objects or in unsafe places. Do not allow the TV to come into contact with strong shocks or vibrations. Causing the TV to fall or topple over may damage it.

- Do not use in places where the TV will be subject to direct sunlight, near heating equipment or anywhere else where there is likelihood of high temperature, as this may lead to generation of excessive heat and outbreak of fire.

Power cord

- Do not damage the power cord, place heavy objects on it, stretch it, or over bend it. Also, do not add extension cords. Damage to the cord may result in fire or electric shock.

- Use only the power cord supplied with the TV.

- Insert the power plug directly into the AC outlet. Adding an extension cord may lead to fire as a result of overheating.

- Do not remove or insert the power plug with wet hands. Doing so could result in electric shock.

Use of AC adapter

- Do not use the AC adapter for other than the specified equipment.

- Unplug the AC adapter if it is not used for a long time.

- Do not place any objects on the AC adapter.

- Do not use the AC adapter outdoors.

- Do not attempt to repair the AC adapter if it is broken or malfunctioning. Refer the servicing to the service representative.

- Do not try to open the AC adapter.

- Do not use water or wet cloth for cleaning the AC adapter.

Manual scope

- In this manual, Microsoft Windows XP will be referred to as "Windows XP", Microsoft Windows Millennium as "Windows Me", Microsoft Windows 2000 as "Windows 2000", Microsoft Windows 98 as "Windows 98", and Microsoft Windows 95 as "Windows 95". When there is no need to distinguish between programs, the term "Windows" will be used.

- Microsoft and Windows are registered trademarks of Microsoft Corporation.

- Macintosh is a registered trademark of Apple Computer, Inc.

- All other brand and product names are trademarks or registered trademarks of their respective holders.

- Actual screens and buttons may differ from those as shown in this manual.

Product and accessory checklist

Please check that the following items are included in the package.

- 23" LCD color TV (1)

- AC adapter (1) (model name: NL-A72J)

- Power cord (1)

- PC analog signal cable (1) (model name: 0LTLS20276002)

- PC audio cable (1) (model name: 0LTLS05247001)

- Antenna cable (1) (model name: 0LTLU00000004)

- Remote control (1)

- "AAA" size (UM/SUM-4) dry battery (2)

- Cable clamp (1)

CD-ROM (Utility Disk for Windows/Macintosh) (1)

- Operation manual (1)

Notes:

- The digital signal cable (DVI-D – DVI-D) is to be purchased separately. (model name: NL-C04J)

- You are advised to retain the carton in case the TV needs to be transported.

- Sharp Corporation holds authorship rights to the Utility program. Do not reproduce it without permission.

- The shape of the supplied accessories may not be exactly the same as shown in this manual.

EnglishDeutschFrançaisItalianoEspañolEnglish

Main unit

Front view/right view

Product description

INPUT

1. Speakers

2. Control buttons

3. Headphone terminal

4. Remote sensor window

5. POWER button

6. Power LED

Green: in use Red: in standby mode Orange: in power-saving mode

(only for PC mode)

Off: power off

Removing/replacing the terminal cover

Removing the cover

ENTER/

3 4

5 6

Replacing the cover

BRIGHT MODE

VOL/BRIGHT

E10

- Be careful not to pinch the cables.

Product description

Main unit

Rear view/left view

1 2 3 4 6

1. Power input terminal

2. PC digital RGB input terminal (DVI-D 24 pin)

PC analog RGB input terminal (mini D-sub 15 pin)

4. PC audio input terminal

5. Lug-hole for cable clamp (See next page.)

6. Antenna input terminal

7. Video input terminal

8. Audio input terminal - Left

9. Audio input terminal - Right

10. S-video input terminal

11. Video input terminal

12. Audio input terminal - Left

13. Audio input terminal - Right

14. Component input terminals

A Ventilation openings

Never block the ventilation openings as this may lead to overheating inside the TV and result in malfunction.

B Security lock anchor

By connecting a security lock (commercially available) to the security lock anchor, the TV is fixed so that it cannot be transported. The security slot works in conjunction with Kensington Micro Saver Security Systems.

AV-IN 1

AV-IN 2

Remote control

9 10 11 12 13

2 3

4 5

1. POWER button

2. FREEZE button

3. SLEEP button

4. buttons and ENTER button

5. BRIGHT MODE button

6. DISPLAY button

7. CC (Closed Caption) button

8. Channel buttons

9. Dolby Virtual button

10. Input buttons (PC, TV, AV1, and AV2)

11. VIEW MODE button

12. MULTI button

13. MENU button

14. BRIGHT button

15. MUTE button

16. MTS (Multi ch TV Sound) button

17. VOL buttons

18. CH (channel) buttons

19. FLASHBACK button

POWER

PC AV2AV1TV

FREEZE

SLEEP

BRIGHT

MODE

DISPLAY

VIEW MODE

MULTI

ENTER

CC MTS MUTE

Virtual

BRIGHT

VOL

FLASHBACK

EnglishDeutschFrançaisItalianoEspañolEnglish

10 11

12 13

16 17

E11

Product description

Cable clamp

Use the supplied cable clamp to secure the cables connected to the terminals.

CAUTION!

- When adjusting the viewing angle, cables may be pulled. Therefore, ensure that the cables have sufficient slack.

Angle adjustment

Adjust to an easy to view angle.

CAUTION!

- Be sure to hold both sides of the TV when adjusting the viewing angle. The LCD panel used in this TV is made of glass. Pressure from hands on the LCD panel could cause damage.

- Be careful not to allow your fingers to be pinched.

approx. 20°

approx. 5° approx. 45°

approx. 45°

Using headphones (commercially available)

You can connect headphones with a mini stereo jack (φ 3.5 mm) to the TV.

Headphone terminal

Headphones

Notes:

- When headphones are connected, no sound can be heard from the TV speakers.

- When headphones are connected, the Virtual Dolby Surround function (see page E29) cannot be used.

- When headphones are connected, the AUDIO ADJUST menu (see pages E41 and E48) cannot be adjusted.

E12

Remote control

Using the remote control

Use the remote control by pointing it towards the remote sensor window on the TV. Objects between the remote control and sensor window may prevent proper operation.

Remote sensor window

5 m (16' 4")

30°

30° (up/down/left/right)

Cautions regarding use of remote control

- Do not expose the remote control to shock. In addition, do not expose the remote control to liquid, and do not place in an area with high humidity.

- Do not install or place the remote control under direct sunlight. The heat may deform the unit.

- The remote control may not work properly if the remote sensor window of the TV is under direct sunlight or strong lighting, or a fluorescent light is near the TV. In such case, change the angle or place of the lighting or TV, or operate the remote control closer to the remote sensor window.

- Do not use the remote control simultaneously with remote controls of other equipment.

Batteries for the remote control

Before using the TV for the first time, install two ("AAA" size, UM/SUM-4) batteries (supplied). When the operable distance becomes shorter, replace the batteries immediately with new ("AAA" size, UM/SUM-4) batteries.

1.Open the battery cover. Slide the cover while pressing the ( ) part.

2.Insert two ("AAA" size, UM/SUM-4) batteries. Position the positive and negative ends of the batteries as indicated in the compartment.

EnglishDeutschFrançaisItalianoEspañolEnglish

3.Close the battery cover. Engage the claw on the cover into the battery housing and slide shut.

CAUTION!

Improper use of batteries can result in chemical leakage and/or explosion. Be sure to follow the instructions below.

- Place batteries with their terminals corresponding to the (+) and (–) indications.

- Different types of batteries have different characteristics. Do not mix batteries of different types.

- Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new battery and/or cause the old battery to leak chemicals.

- Remove batteries when they become weak. Chemicals that leak from batteries can cause a rash. If chemical leakage is found, wipe with a cloth.

- The batteries supplied with the TV may have a shorter life expectancy due to storage conditions.

- If the remote control will not be used for an extended period of time, remove the batteries from the remote control.

E13

TV preparation steps

Use the following steps to connect and set up your TV.

...Required when using the TV as a television

...Required when using the TV as an AV monitor

...Required when using the TV as a computer monitor

Connecting the TV to a home antenna terminal

(See pages E16 and E17.)

PCTV

Connecting the TV to AV equipment (See pages E18 and E19.)

- Follow these steps to connect the TV to AV equipment and enjoy watching DVDs or playing games.

Connecting the TV to a computer (See pages E20 and E21.)

- If your computer has an analog RGB output terminal, see Analog connection on page E20.

- If your computer has a digital RGB output terminal, see Digital connection on page E21. (When using the TV with a digital connection, the separately-sold digital signal cable is required.)

Connecting the TV to a power source (See page E22.)

Setting TV channels (See pages E23 through E25.)

Adjusting the computer display automatically (See page E26.)

- Required when using the TV with an analog connection. (Not required when using the TV with a digital connection.)

E14

Basic adjustment screen operation

The explanations in this manual use primarily the remote control. (Operations requiring the use of control buttons on the TV are specifically identified using the words "on the TV".)

The following table shows the remote control buttons and their corresponding control buttons on the TV. Refer to this table when using control buttons on the TV. (For information on each control button's position on the TV, refer to page E10.)

Remote control buttons Function Corresponding control buttons on the TV MENU Displays the MENU screen. MENU*

ENTER Confirms the currently ENTER/BRIGHT MODE

* On the adjustment screen, moves down the cursor to select an item. If the cursor reaches the bottom

item, it returns to the top item.

Exits the MENU screen. INPUT Selects an item by moving MENU* the cursor up/down. Adjusts the value. VOL/BRIGHT< >

selected item.

EnglishDeutschFrançaisItalianoEspañolEnglish

E15

Connecting the TV to a home antenna terminal

CAUTION!

- When connecting, ensure that the TV is switched off.

The antenna requirements for good color television reception are more important than those for black & white television reception. For this reason, a good quality outdoor antenna is strongly recommended. The following is a brief explanation of the type of connections that are provided with the various antenna systems. (See page E10 for information on removing/replacing the terminal cover.)

1. A 75-ohm system is generally a round cable with F-type

F-type connector

connector that can easily be attached to a terminal without tools (commercially available).

75-ohm coaxial cable (round)

2. A 300-ohm system is a flat "twin-lead" cable that can be attached to a 75-ohm terminal through a 300-75-ohm adapter (commercially available).

300-ohm twin-lead cable (flat)

Notes:

- The 75-ohm coaxial cable is recommended.

- TV memory for channels is empty at shipment. To receive channels, use the CHANNEL SETTING menu. (See pages E23 through E25.)

Outdoor antenna connection

- Use one of the following two diagrams if you connect an outdoor antenna. A: Using a VHF/UHF combination outdoor antenna. B: Using separate VHF and/or UHF outdoor antennas.

- Connect the outdoor antenna cable lead-in to the antenna input terminal (ANT) on the left side of the TV.

VHF/UHF

antenna

A. Combination VHF/UHF Antenna

300-ohm twin-lead

300/75-ohm

adapter

(commercially available)

VHF/UHF

antenna

Antenna cable (supplied)

Antenna input terminal (ANT)

CAUTION!

- When connecting the coaxial cable to the TV, do not tighten F-type connector with tools. If tools are used, it may cause damage to your TV. (The breaking of internal circuit, etc.)

F-type connector

75-ohm coaxial cable

E16

Home Antenna terminal (75-ohm)

(commercially

Combiner

available)

OUT

75-ohm

coaxial cable

B. Separate VHF and/or

UHF Antennas

UHF

VHF

antenna

300-ohm twin-lead

75-ohm coaxial cable

Connecting the TV to a home antenna terminal

Cable TV (CATV) connection

- A 75-ohm coaxial cable connector is built into the set for easy hookup. When connecting the 75-ohm coaxial cable to the set, screw the 75-ohm cable to the antenna input terminal (ANT).

- Some cable TV companies offer "premium pay channels". Since the signals of these premium pay channels are scrambled, a cable TV converter/descrambler is generally provided to the subscriber by the cable TV company. This converter/descrambler is necessary for normal viewing of the scrambled channels. (Set your TV to channel 3 or 4, typically one of these channels is used. If this is unknown, consult your cable TV company.) For more specific instructions on installing cable TV, consult your cable TV company. One possible method of utilizing the converter/descrambler provided by your cable TV company is explained below. Please note: An RF switch provided with two inputs (A and B) is required (commercially available).

"A" position on the RF switch (commercially available): You can view all unscrambled channels by

using the TV's channel buttons.

"B" position on the RF switch (commercially available): You can view the scrambled channels via the

converter/descrambler by using the converter's channel keys.

RF switch (commercially available)

OUT IN Cable TV converter/

descrambler

(commercially

available)

Note:

- Consult your SHARP Dealer or Service Center for the type of splitter, RF switch, or combiner that might be required.

Two-set signal splitter (commercially available)

Cable TV Line

EnglishDeutschFrançaisItalianoEspañolEnglish

E17

Connecting the TV to AV equipment

CAUTION!

- Ensure that the TV and all the equipment you are connecting to it are switched off before you begin.

See page E10 for information on removing/replacing the terminal cover.

Examples of equipment you can connect

VCRs Video cameras Home video game systems Videodisc players DVD players etc.

AV equipment with video output terminals

Left side of the TV

AV-IN 1 or AV-IN 2

(Yellow) (Yellow)

(White) (White)

Equipment with S-video output terminals

VCRs Video cameras Home video game systems Videodisc players DVD players etc.

Equipment with component output terminals

DVD players etc.

VCR etc.

(Red) (Red)

RCA pin cable (commercially available)

Note:

- When you are using the video input terminal, do not connect cables to the S-video input terminal and the component input terminals.

E18

Connecting the TV to AV equipment

AV equipment with S-video output terminals

Left side of the TV

AV-IN 1

(White) (White)

(Red) (Red)

RCA pin cable (commercially available)

S-video cable (commercially available)

Note:

- When you are using the S-video input terminal, do not connect the cable to the video input terminal.

AV equipment with component output terminals

VCR etc.

EnglishDeutschFrançaisItalianoEspañolEnglish

Left side of the TV

AV-IN 2

DVD player etc.

RCA pin cable (commercially available)

(White) (White)

(Red) (Red)

(Green) (Green)

(Blue) (Blue)

(Red) (Red)

Component video cable (commercially available)

Note:

- When you are using the component input terminals, do not connect the cable to the video input terminal.

E19

Connecting the TV to a computer

CAUTION!

- When connecting, ensure that the TV and all the equipment you are connecting to it are switched off.

- Be careful not to over bend the cable or add extension cords as this could lead to a malfunction.

Notes:

- When using the TV with an analog connection, perform an automatic screen adjustment (page E26) under the following conditions:

- Using the TV for the first time.

- After having changed the system settings

during use.

- When using the TV with a digital connection, automatic screen adjustment is unnecessary.

- Depending on the computer or OS, you may have to install the set-up information for the TV. (See page E51.)

- When connecting to a notebook computer and the notebook computer's screen is set so that it is displaying at the same time, the MS-DOS screen may not be able to display properly. In this case, change the settings so that only the TV is displaying.

Analog connection

Connect the supplied PC analog signal cable to the analog RGB output terminal of the computer. See page E10 for information on removing/ replacing the terminal cover.

PC analog RGB input terminal (Mini D-sub 15 pin, 3 rows)

Computer

PC analog signal cable (supplied)

Analog RGB output terminal (

Mini D-sub 15 pin, 3 rows

)

- Paying attention to the connector direction, firmly insert the signal cable straight into the connector, and then tighten the screws at both ends.

If connecting to a D-sub 15 pin 2 row Apple Power Macintosh, attach a Macintosh conversion adapter (commercially available) to the analog signal cable.

Power Macintosh

Macintosh conversion adapter

E20

Connecting the TV to a computer

Digital connection

Connect the separately-sold digital signal cable (model name: NL-C04J) to the digital RGB output terminal of the computer. See page E10 for information on removing/ replacing the terminal cover.

- The TV has an input terminal for connecting to a computer with a DVI-compatible output terminal (DVI-D 24 pin or DVI-I 29 pin). (Depending on the type of computer to be connected, the display may not work correctly.)

PC digital RGB input terminal (DVI-D 24 pin)

Computer

Connecting the audio cable

Connect the supplied PC audio cable to the audio output terminal of the computer. See page E10 for information on removing/ replacing the terminal cover.

PC audio input terminal

Audio output terminal

PC audio cable (supplied)

Computer

EnglishDeutschFrançaisItalianoEspañolEnglish

Digital signal cable (separately-sold)

- Paying attention to the connector direction, firmly insert the signal cable straight into the connector, and then tighten the screws at both ends.

Digital RGB output terminal

E21

Connecting the TV to a power source

CAUTION!

- When connecting, ensure that the TV is switched off.

- Always use the AC adapter that came with the TV.

- Be careful not to over bend the cable or add extension cords as this could lead to a malfunction.

See page E10 for information on removing/replacing the terminal cover.

1.Connect the AC adapter to the power input terminal.

Power input terminal

AC adapter (supplied)

2.Plug the power cord into the AC adapter and then place the power plug into an AC outlet.

Power cord (supplied)

AC outlet

AC adapter (supplied)

Note:

- If the TV does not operate, disconnect the power cord from the AC outlet and reconnect it again. The setup must be completed in the proper order for the TV to function.

E22

Setting TV channels

The following table shows the channels this TV can receive.

VHF Channels 2 through 13 UHF Channels 14 through 69

Cable

Channel 1 (HRC and IRC mode only) Channels 2 through 125 (STD, HRC, and IRC)

(You must subscribe to a cable TV service to receive cable channels.)

TV memory for channels is empty at shipment. To receive channels, use the CHANNEL SETTING menu.

Note:

- Release the adjustment lock (see page E56) if it has been set. You cannot use the CHANNEL SETTING menu while the adjustment lock is set.

Channel setting methods

There are two ways to set channels.

Automatically setting channels you can receive (CHANNEL SEARCH)

The TV will automatically set the channels it can receive in your area.

Setting channels one at a time (CHANNEL MEMORY)

This method is for manually setting the channels you want one by one. Use this method if you want to add other channels after using "CHANNEL SEARCH".

Displaying the CHANNEL SETTING menu

POWER

PC AV2AV1TV

FREEZE

SLEEP

BRIGHT

MODE

MULTI

VIEW MODE

ENTER

Virtual

BRIGHT

1.Press the POWER button on the TV to turn on the TV. When the power LED lights red, press the POWER button on the remote control.

2.Press the TV button to select TV mode. A channel number will appear in the upper-right corner of the screen.

3.Press the MENU button to display the MENU screen.

VIDEO ADJUST AUDIO ADJUST CHANNEL SETTING SCREEN ADJUST MODE SELECT CLOSED CAPTION V-CHIP BLOCK

>> >> >> >> >> >> >>

TV/AV

4.Press the buttons to select "CHANNEL SETTING", and press the ENTER button. The CHANNEL SETTING menu will be displayed.

CHANNEL SETTING

RETURN

AIR/CABLE CABLE MODE CHANNEL SEARCH CHANNEL MEMORY

[

AIR

[

STD

] ]

>> >>

TV/AV

EnglishDeutschFrançaisItalianoEspañolEnglish

E23

Setting TV channels

Selecting broadcast (AIR) or cable TV (CABLE) for channel setting

It is necessary to set the receiving mode to "AIR" or "CABLE" channels to receive locally broadcast TV programs.

1.Display the CHANNEL SETTING menu. (See page E23.)

2.Press the buttons to select "AIR/CABLE", and press the ENTER button.

3.Press the buttons to select the desired mode ("AIR" or "CABLE"), and press the ENTER button. If you select "CABLE": (1) Press the buttons to select "CABLE

MODE", and press the ENTER button.

(2) Press the buttons to select the desired

mode ("STD", "HRC", or "IRC").

4.Press the MENU button to exit the screen.

Saving broadcast TV channels in the memory (CHANNEL SEARCH)

"CHANNEL SEARCH" allows you to search through available channels ("AIR" or "CABLE") in your area. The tuner saves them to TV memory automatically.

1.Display the CHANNEL SETTING menu. (See page E23.)

2.Press the buttons to select "CHANNEL SEARCH", and press the ENTER button.

CHANNEL SEARCH

AIR

3.Press the ENTER button. The tuner will search through all available channels in your area and save them to the TV memory.

Note:

- To interrupt Channel Search, press the MENU

button. Channel Search will stop at the current channel and will not save any higher channels.

4.When Channel Search completes, the CHANNEL SEARCH screen becomes off and TV screen becomes minimum channel of TV memory. If TV memory is empty, TV channel will be CH 2 (AIR and CABLE: STD) or CH 1 (CABLE: HRC and IRC).

TV/AV

Notes:

- Searching channels are: AIR channels:

VHF: 2 through 13 UHF: 14 through 69

CABLE channels:

1 (HRC and IRC mode only) 2 through 125 (STD, HRC, and IRC)

- During Channel Search, the TV will change channels automatically.

- When Channel Search completes, all channels, which were set previously, will be erased.

- If you search for channels but cannot receive any, TV memory becomes empty.

E24

Setting TV channels

Adding weak or additional channels or erasing unwanted channels from TV memory (CHANNEL MEMORY)

Using "CHANNEL MEMORY", you can add channels that could not be saved by "CHANNEL SEARCH" because the signal was too weak.

1.Display the CHANNEL SETTING menu. (See page E23.)

2.Press the buttons to select "CHANNEL MEMORY", and press the ENTER button.

CHANNEL MEMORY

AIR

3.Press the CH buttons or the buttons to select each desired channel to add or erase. You can also use the channel buttons.

4.Press the button to add the channel to the TV memory. To erase the channel from the TV memory, press the button.

5.Press the MENU button to exit the screen.

TV/AV

EnglishDeutschFrançaisItalianoEspañolEnglish

E25

Adjusting the computer display automatically

(for analog signals)

When using the TV as a computer display for the first time or after having changed the system settings during use, perform an automatic screen adjustment. "CLOCK", "PHASE", "H-POS", and "V-POS" will be set to their optimum states.

Note:

- When using the TV with a digital connection, automatic screen adjustment is unnecessary.

POWER

PC AV2AV1TV

FREEZE

SLEEP

BRIGHT

MODE

MULTI

VIEW MODE

ENTER

Virtual

BRIGHT

1.Press the POWER button on the TV to turn on the TV. When the power LED lights red, press the POWER button on the remote control.

2.Press the PC button to select the PC (analog) mode. "PC" and "ANALOG" will appear in the upperright corner of the screen. If "PC" and "DIGITAL" appear, press the PC button again.

3.Turn on the computer, and then display an image that makes the entire screen display light colors (such as a light desktop background). If you are using Windows, use the adjustment pattern on the supplied CD-ROM (see page E46).

4.Press the MENU button to display the MENU screen.

The cursor is positioned at "ADJUSTMENT".

ADJUSTMENT GAIN CONTROL AUDIO ADJUST COLOR CONTROL MODE SELECT MULTI SCREEN

>> >> >> >> >> >>

<PC>

5.Press the ENTER button. The ADJUSTMENT menu will be displayed.

ADJUSTMENT

RETURN AUTO CLOCK PHASE H-POS V-POS RESET

[

127

[

200

[

]

<PC>

6.Press the ENTER button to auto-adjust the settings. The screen will go dark and "ADJUSTING" will be displayed. After a few seconds, the ADJUSTMENT menu will return.

7.Press the MENU button to exit the screen.

Notes:

- If you want to select a screen resolution of 1360 x 768, 1280 x 768, or 1024 x 768 when using the TV with an analog connection, specify the horizontal resolution for a 768-line screen in the MODE SELECT menu (PC mode). (See page E49.)

- If you want to select a screen resolution of 640 x 480 or 848 x 480 when using the TV with an analog connection, specify the horizontal resolution for a 480-line screen in the MODE SELECT menu (PC mode). (See page E49.)

- It may not be possible to achieve correct adjustment with the first automatic adjustment. In such a case, try repeating the automatic adjustment 2 or 3 times.

- If necessary due to any of the following, manual adjustments can be performed after the automatic adjustment. (See page E45.)

- When further fine adjustment is needed.

- When the computer's video input signals are

Composite Sync or Sync on Green. (Automatic adjustments may not be possible.)

- When "OUT OF ADJUST" is displayed. (When

the screen displays an entirely dark image, the automatic screen adjustment may be disabled. When making an automatic adjustment, be sure to either use the adjustment pattern or try displaying an image that makes the entire screen very bright.)

- Automatic adjustment may not be achieved correctly depending on what is displayed on the screen - moving pictures or the MS-DOS prompt etc.

E26

Common operations

POWER

Virtual

PC AV2AV1TV

SLEEP

ENTER

BRIGHT

FREEZE

VIEW MODE

MULTI

BRIGHT

MODE

Turning power on/off

POWER

PC AV2AV1TV

FREEZE

MULTI

SLEEP

BRIGHT

MODE

Turning power on

When the power LED is off:

1.Press the POWER button on the TV.

2.Turn on power for the connected equipment. After a while the power LED will light green, and then the display mode will be displayed for several seconds.

When the power LED is lit red (standby):

1.Press the POWER button on the remote control.

2.Turn on power for the connected equipment. The power LED will light green, and then the display mode will be displayed for several seconds.

Turning off power

1.Turn off power for the connected equipment.

2.Press the POWER button on the remote control. The power LED will light red (standby).

3.Press the POWER button on the TV. The power LED will go out.

Notes:

- Always wait at least 5 seconds between switching power off/on. Rapid switching may damage the TV or cause it to malfunction.

- After switching power on, it may take a little while before the screen displays an image.

- Do not turn off the power immediately after changing various settings on the screen. The changed values may not have been saved in the memory yet.

VIEW MODE

ENTER

Virtual

BRIGHT

Switching display modes (INPUT)

1.Press the PC, TV, AV1, or AV2 button. The TV will switch to the display mode for the button you pressed. Each time you press the PC button, the input toggles between analog and digital.

STEREO

Display modes Number

AV1

AV2

PC PC mode

TV mode Displays the TV's image.

The number is the channel being received.

AV1 mode Displays the image from

the equipment connected to the AV1 input.

AV2 mode Displays the image from

the equipment connected to the AV2 input. Displays the computer's

(analog/digital) image.

EnglishDeutschFrançaisItalianoEspañolEnglish

E27

POWER

Virtual

PC AV2AV1TV

SLEEP

ENTER

BRIGHT

FREEZE

VIEW MODE

MULTI

BRIGHT

MODE

Common operations

Notes:

- When you turn on the TV, the initial display mode will be the mode being used when the TV was last turned off. (The factory setting is TV.)

- The CH buttons or channel buttons (0-9 and

100) also automatically switch to TV mode, except for the following cases when in PC mode.

- When watching TV in the PIP/SPLIT window.

(See page E43.)

- When listening to the TV. (See page E44.) In these cases, press the TV button to switch the display mode to TV.

- Pressing the INPUT button on the TV also changes the display mode. Each time you press the button, the input changes in the following order: Number (TV) → AV1 → AV2 → PC (analog) → PC (digital) → Number (TV)...

- In PC mode, when there is no input signal, "NO SIGNAL" is displayed.

Adjusting the backlight

The brightness of the backlight can be set individually for PC mode and TV/AV mode. Start by switching to the display mode for which you want to adjust the backlight.

1.Press the BRIGHT button.

<PC>

BRIGHT 31

2.Press the buttons to adjust the brightness.

Increase Decrease button

The screen for adjusting the brightness will automatically disappear after several seconds.

tton

Note:

- You can also adjust the brightness using the control buttons on the TV.

1.Press the VOL/BRIGHT buttons.

2.Press the MENU button to select "BRIGHT".

3.Press the VOL/BRIGHT buttons to adjust the

brightness.

Increase VOL/BRIGHT > button Decrease VOL/BRIGHT < button

The screen for adjusting the brightness will automatically disappear after about 15 seconds.

E28

Common operations

POWER

Virtual

PC AV2AV1TV

SLEEP

ENTER

BRIGHT

FREEZE

VIEW MODE

MULTI

BRIGHT

MODE

Adjusting the volume

The volume can be set individually for PC mode and TV/AV mode. Start by switching to the display mode for which you want to set the volume.

POWER

PC AV2AV1TV

FREEZE

MULTI

SLEEP

BRIGHT

MODE

DISPLAY

CC MTS MUTE

1.Press the VOL +/– buttons to adjust.

VOLUME 30

VIEW MODE

ENTER

Virtual

BRIGHT

VOL

FLASHBACK

<PC>

Enjoying surround sound (Virtual Dolby Surround)

The Virtual Dolby Surround function allows you to enjoy powerful, realistic sound, just like in a movie theater.

Manufactured under license from Dolby Laboratories. "Dolby", "Pro Logic" and the double-D symbol are trademarks of Dolby Laboratories.

EnglishDeutschFrançaisItalianoEspañolEnglish

Increase VOL + button Decrease VOL – button

The screen for adjusting the volume will automatically disappear after several seconds.

Notes:

- When headphones are connected, these buttons automatically become the headphone volume control. (

will appear on the screen.)

- You can also adjust the volume using the control buttons on the TV.

1.Press the VOL/BRIGHT buttons.

2.Press the MENU button to select "VOLUME".

3.Press the VOL/BRIGHT buttons to adjust the

volume.

Increase VOL/BRIGHT > button Decrease VOL/BRIGHT < button

The screen for adjusting the volume will automatically disappear after about 15 seconds.

1.Press the Dolby Virtual button. Each time you press the button, the function turns "ON" or "OFF".

Note:

- When headphones are connected, the Virtual Dolby Surround function cannot be used.

E29

Common operations

Selecting the language on the screen

You can select the language (English/Spanish/ French) using the MODE SELECT menu while in any mode. (The selected language will be displayed in all modes.)

POWER

PC AV2AV1TV

FREEZE

SLEEP

BRIGHT

MODE

MULTI

VIEW MODE

ENTER

Virtual

BRIGHT

1.Press the MENU button to display the MENU screen.

2.Press the buttons to select "MODE SELECT", and press the ENTER button.

3.Press the buttons to select "LANGUAGE", and press the ENTER button.

4.Press the buttons to select the language you want to display.

5.Press the MENU button to exit the screen.

E30

Watching TV

TV memory for channels is empty at shipment. The first time you use the TV or when you move to a new area, set the channels using the CHANNEL SETTING menu. (See page E23.)

POWER

PC AV2AV1TV

FREEZE

SLEEP

BRIGHT

MODE

DISPLAY

MULTI

CC MTS MUTE

VIEW MODE

ENTER

Virtual

BRIGHT

VOL

FLASHBACK

Notes:

- To switch the display mode to TV in the following cases when in PC mode, press the TV button.

- When watching TV in the PIP/SPLIT window.

(See page E43.)

- When listening to the TV. (See page E44.)

- The 3-digit channel number can be selected only when the receiving mode is set to "CABLE" in the CHANNEL SETTING menu. (See pages E23 and E24.)

- You can also change the channel up/down one at a time using the CH buttons on the remote control and the TV.

EnglishDeutschFrançaisItalianoEspañolEnglish

1.Select a channel using the CH buttons or channel buttons. Pressing one of these buttons automatically switches to TV mode if the TV is in PC or AV mode.

To select a 1- or 2-digit channel number (e.g., Channel 5):

Complete the following procedure within 4 seconds.

1.Press the 0 button.

2.Press the 5 button.

Note:

- When selecting a 1-digit channel number, do

not fail to press the 0 button first.

To select a 3-digit channel number (e.g., Channel 115):

Complete the following procedure within 4 seconds.

1.Press the 100 button.

2.Press the 1 button.

3.Press the 5 button.

2.Adjust the volume. See page E29 for more information.

E31

Watching TV

Virtual

MULTI

Selecting MTS (Multi ch TV Sound)

You can select MTS (Multi ch TV Sound) using the MTS button.

STEREO stereo audio SAP second audio program MONO monophonic audio

POWER

PC AV2AV1TV

FREEZE

MULTI

SLEEP

BRIGHT

MODE

DISPLAY

CC MTS MUTE

1.Press the MTS button. The audio changes in the following order depending on the broadcast you are receiving.

Receiving a stereo broadcast:

STEREO → STEREO → MONO → STEREO...

Receiving a monaural + SAP (Second Audio Program) broadcast:

MAIN → SAP → MONO → MAIN...

VIEW MODE

ENTER

Virtual

BRIGHT

Returning to previous channel (FLASHBACK)

You can return to the previous channel you were watching.

POWER

PC AV2AV1TV

FREEZE

SLEEP

BRIGHT

MODE

DISPLAY

1.Press the FLASHBACK button. The TV will return to the channel you were previously watching.

VIEW MODE

ENTER

BRIGHT

CC MTS MUTE

VOL

FLASHBACK

Receiving a stereo + SAP (Second Audio Program) broadcast:

ST (SAP) → SAP (ST) → MONO → ST (SAP)...

Note:

- Switch to "MONO" if there is too much noise during a stereo broadcast.

E32

Watching TV

Setting the Closed Caption (CLOSED CAPTION)

This TV is equipped with an internal Closed Caption decoder. "Closed Caption" is a system which allows conversations, narration, and sound effects in TV programs and home videos to be viewed as captions on the TV screen.

- Not all programs and videos will offer Closed Captioning.

- The Closed Caption broadcasts can be viewed in 2 modes: Caption (CAPTION) and Text (TEXT). For each mode, two channels are available: CH1 and CH2. The CAPTION mode shows subscripts of dialogs and commentaries of TV dramas and news programs while allowing a clear view of the picture. The TEXT mode displays various information over the picture (such as TV program schedules and weather forecasts, etc.) that is independent of the TV programs.

Perform this procedure using the CC button or the CLOSED CAPTION menu. Here we will describe the procedure using the CC button. (See page E42 for information on using the menus.)

1.Press the CC button to display the CC/TEXT

POWER

PC AV2AV1TV

FREEZE

SLEEP

MULTI

Virtual

VIEW MODE

screen.

CC/TEXT : OFF

EnglishDeutschFrançaisItalianoEspañolEnglish

ENTER

BRIGHT

MODE

BRIGHT

2.Press the CC button to change the setting.

DISPLAY

CC MTS MUTE

The setting changes in the following order: OFF → CC1 → CC2 → TEXT1 → TEXT2 → OFF...

VOL

CC1 Caption mode for CH1 data CC2 Caption mode for CH2 data TEXT1 Text mode for CH1 data TEXT2 Text mode for CH2 data

Notes:

- If a broadcast has Closed Caption and the MUTE button is pressed, the TV enters the Caption mode automatically. Pressing the MUTE button again will return the TV to its previous condition.

- Closed Caption may malfunction (white blocks, strange characters, etc.) if signal conditions are poor or if there are problems at the broadcast source.

- If no text broadcast is being received while viewing in the Text mode, the screen may become dark and blank for some programs. Should this occur, switch the Closed Caption mode to "OFF".

E33

Watching TV

Adjusting the V-chip settings (V-CHIP)

Important:

- Please refer to the end of this manual for "Clearing the secret number".

This function allows TV programs to be restricted and TV usage to be controlled based on FCC data. It prevents children from watching violent or sexual scenes that may be harmful.

- Restriction of TV programs includes two ratings that contain information about the program: the MPAA rating and the TV Parental Guidelines. The MPAA rating is restricted by age. TV Parental Guidelines are restricted by age and content.

- Since a TV program may use either the MPAA rating or the TV Guidelines, both should be adjusted for complete control.

Voluntary movie rating system (MPAA rating)

Rating

GENERAL AUDIENCES. All ages admitted. PARENTAL GUIDANCE SUGGESTED. Some material may not be suitable for children. PARENTS STRONGLY CAUTIONED. Some material may be inappropriate for children under 13. RESTRICTED. Under 17 requires accompanying parent or adult guardian. NO ONE 17 AND UNDER ADMITTED. X is an older rating that is unified with NC-17 but may be encoded in the data of older movies.

Age base

G PG PG-13 R NC-17 X

For example:

PG-13 in the age-based rating is blocked, this will also automatically block the higher ratings (R, NC-17, and X).

Note:

- The MPAA rating is only age-based.

E34

Watching TV

TV Parental Guidelines

Content base

Rating

TV-Y (All children)

TV-Y7 (Direct to older children)

TV-G (General audience)

Age

TV-PG

base

(Parental guidance suggested) TV-14

(Parents strongly cautioned)

TV-MA (Mature audience only)

FV (Fantasy violence)

: The content rating can be set.

Example 1:

When TV-Y7 in the age-based rating is set to BLOCK, this will automatically block the higher ratings: TV-G, TV-PG, TV-14, and TV-MA. In addition, D, L, S, V, and FV in CONTENT are automatically blocked unless you manually set BLOCK CONTENT.

(Violence)

(Sexual

situation)

(Adult

language)

(Sexually

suggestive

dialog)

EnglishDeutschFrançaisItalianoEspañolEnglish

Example 2:

When the content-based rating: "D for TV-PG" is blocked, this will automatically block the higher rating: "D for TV-14".

Notes:

- Age-based ratings can be modified by the content-based ratings, but only in the combinations indicated by an "X" in the table above.

- Choosing a lower age-based rating blocks the higher age-based ratings regardless of content rating settings.

E35

Watching TV

Setting V-chip for MPAA rating

POWER

PC AV2AV1TV

FREEZE

SLEEP

BRIGHT

MODE

DISPLAY

MULTI

CC MTS MUTE

VIEW MODE

ENTER

Virtual

BRIGHT

VOL

FLASHBACK

1.Press the TV button to select TV mode.

2.Press the MENU button to display the MENU screen.

VIDEO ADJUST AUDIO ADJUST CHANNEL SETTING SCREEN ADJUST MODE SELECT CLOSED CAPTION V-CHIP BLOCK

>> >> >> >> >> >> >>

TV/AV

3.Press the buttons to select "V-CHIP BLOCK", and press the ENTER button. "INPUT SECRET NO." screen will be displayed.

4.Input the 4-digit secret number using the channel buttons (0-9).

Note:

- When you input the secret number for the first

time, press the ENTER button to register it. Otherwise, continue to the next step.

The V-CHIP BLOCK menu will be displayed.

V-CHIP BLOCK

RETURN MPAA TV GUIDELINES STATUS

RESET

[

OFF

TV/AV

>> >>

]

5.Press the buttons to select "MPAA", and press the ENTER button.

6.Press the buttons to select, for example, "PG", and press the ENTER button.

7.Press the buttons to select "BLOCK". If you set "PG" to "BLOCK", then "PG-13", "R", "NC-17", and "X" are automatically blocked.

8.Press the MENU button to exit the screen.

Notes:

- Set ratings are blocked only when you activate V-chip Block (see page E37).

- If you set "G" to "BLOCK", all ratings are automatically blocked.

- If you set "X" to "BLOCK", then "G", "PG", "PG-13", "R", and "NC-17" are not blocked.

Setting V-chip for TV Parental Guidelines (TV GUIDELINES)

1.Repeat steps 1 to 4 of "Setting V-chip for MPAA rating" on the left column. (The V-CHIP BLOCK menu will be displayed.)

2.Press the buttons to select "TV GUIDELINES", and press the ENTER button.

3.Press the buttons to select, for example,

"TV-Y7", and press the ENTER button.

4.Press the buttons to select "BLOCK".

TV GUIDELINES

RETURN TV-Y TV-Y7 TV-G TV-PG TV-14 TV-MA BLOCK CONTENT

[

-----

[

BLOCK

[

BLOCK

[

BLOCK

[

BLOCK

[

BLOCK

If you set "TV-Y7" to "BLOCK", then "TV-G", "TV-PG", "TV-14", and "TV-MA" are automatically blocked. In addition, "D", "L", "S", "V", and "FV" in CONTENT are automatically blocked.

5.Press the MENU button to exit the screen.

TV/AV

] ] ] ] ] ]

E36

Watching TV

Setting V-chip for Block Content (BLOCK CONTENT)

1.Repeat steps 1 to 4 of "Setting V-chip for MPAA rating" on page E36. (The V-CHIP BLOCK menu will be displayed.)

2.Press the buttons to select "TV GUIDELINES", and press the ENTER button.

3.Press the buttons to select "BLOCK CONTENT", and press the ENTER button.

BLOCK CONTENT

Y7 FV

Select the desired cell (with character) on the screen

S V V

TV/AV

D D

using the buttons.

5.Press the ENTER button. Each time you press the button, the color of the selected cell switches between black (blocked) and gray (unblocked).

6.Press the MENU button to exit the screen.

Note:

- If you set "TV-14" to "BLOCK", "TV-MA" is automatically blocked. Contents "D", "L", "S", and "V" are automatically blocked in the table on page E35.

Activating or deactivating V-chip Block (Setting STATUS)

You can activate V-chip Block after "Setting V-chip for MPAA rating" and/or "Setting V-chip for TV Parental Guidelines (TV GUIDELINES)".

Canceling V-chip Block temporarily

1."V-CHIP HAS BEEN ACTIVATED" appears if you watch a program with the same Program Rating data you configured.

Note:

- "V-CHIP HAS BEEN ACTIVATED" will not be

displayed if "STATUS" is not configured to "ON".

2.Press the ENTER button to display "INPUT SECRET NO.".

3.Input the 4-digit secret number using the

channel buttons (0-9). V-chip Block is temporarily canceled. If you input an incorrect secret number, "SECRET NO. IS INCORRECT" is displayed. In this case, input the correct secret number.

Notes:

- If you display the V-CHIP BLOCK menu again (see page E36), V-chip Block will be activated again.

- If you turn the power on from off, V-chip Block will be activated again.

Resetting the V-chip Block settings

The settings will be reset to the default status. However, the secret number will not be cleared.

1.Repeat steps 1 to 4 of "Setting V-chip for MPAA rating" on page E36. (The V-CHIP BLOCK menu will be displayed.)

2.Press the buttons to select "RESET", and press the ENTER button.

3.Press the MENU button to exit the screen.

EnglishDeutschFrançaisItalianoEspañolEnglish

1.Repeat steps 1 to 4 of "Setting V-chip for MPAA rating" on page E36. (The V-CHIP BLOCK menu will be displayed.)

2.Press the buttons to select "STATUS", and press the ENTER button.

3.Press the buttons to set "STATUS" to "ON" (activated) or "OFF" (deactivated).

Note:

- If "STATUS" is set to "OFF", V-chip Block will

not be activated.

4.Press the MENU button to exit the screen.

Note:

- When "STATUS" in the V-CHIP BLOCK menu is "ON", TV/AV-IN SOUND is not available in PC mode (see page E44).

E37

Enjoying DVDs, games, and other equipment

You can enjoy two additional pieces of AV equipment connected to your TV such as VCRs, DVD players, and game systems. (See page E18.)

Equipment connected to AV-IN 1 Display mode "AV1" Equipment connected to AV-IN 2 Display mode "AV2"

Note:

- Since the use of AV1 and AV2 is the same, this manual refers to AV1 mode and AV2 mode as "AV mode".

POWER

PC AV2AV1TV

FREEZE

SLEEP

BRIGHT

MODE

DISPLAY

MULTI

CC MTS MUTE

VIEW MODE

ENTER

Virtual

BRIGHT

VOL

FLASHBACK

1.Press the AV1 or AV2 button to select the AV1 or AV2 mode.

AV1

VIDEO

2.Turn on the connected AV equipment, and then play a tape, DVD, or game.

3.Adjust the volume. See page E29 for more information.

Notes:

- Sometimes no image will be displayed during fast searching of video.

- The display may flicker during slow playback of video depending on the VCR or videotape you are using.

- You cannot play shooting games that use gun controllers with this TV.

E38

Handy features (for TV/AV mode)

POWER

PC AV2AV1TV

FREEZE

VIEW MODE

SLEEP

ENTER

BRIGHT

MODE

BRIGHT

DISPLAY

CC MTS MUTE

Virtual

MULTI

Pausing the screen (FREEZE)

This feature pauses the image from the TV or other connected AV equipment. This is handy when you want to write down a recipe or the address for a prize contest.

POWER

PC AV2AV1TV

FREEZE

MULTI

SLEEP

BRIGHT

MODE

1.Press the FREEZE button. The images will pause.

Canceling pausing

1.Press the FREEZE button again.

Notes:

- You cannot pause the image displayed in the PIP/SPLIT window.

- Changing channels or switching the display mode (input) automatically cancels pausing.

- The screen size cannot be changed using the VIEW MODE button while an image is paused. The SCREEN ADJUST menu also cannot be adjusted while an image is paused.

VIEW MODE

ENTER

Virtual

BRIGHT

Switching power off after a specified length of time (SLEEP)

The TV can automatically switch off (standby) after a specified length of time. This is handy if you want to use the TV at bedtime.

1.Press the SLEEP button.

2.Specify in how many minutes you want the TV to switch off by pressing the SLEEP button. The time changes in the following order each time you press the button: 30 min → 60 min → 90 min → 120 min → 150 min → --- min → 30 min

When the specified time elapses, the TV automatically switches off and clears the SLEEP timer.

Checking the time remaining on the SLEEP timer

1.Press the DISPLAY button. The time remaining on the SLEEP timer will be displayed for about 5 seconds. You can also check the time remaining by pressing the SLEEP button once.

EnglishDeutschFrançaisItalianoEspañolEnglish

Changing the specified time

1.Press the SLEEP button. The remaining time will be displayed.

2.Change the specified time by pressing the SLEEP button several times as needed.

Notes:

- When there are only 5 minutes remaining on the SLEEP timer, the remaining time will be displayed every minute.

- Pressing the POWER button while the SLEEP timer is operating will clear the timer.

- Switching to PC mode automatically clears the SLEEP timer.

- You can also set the SLEEP timer from the MODE SELECT menu. (See page E42.)

E39

Using the menus in TV/AV mode

You can adjust TV and video images and perform various settings using the menus in TV/AV mode.

- All the menus except for the CHANNEL SETTING menu are common for TV and AV modes. All the values set in TV mode will be also applied in AV mode.

How to adjust using the menus

1.Press the TV, AV1 or AV2 button to select TV or AV mode.

2.Press the MENU button to display the MENU screen.

VIDEO ADJUST AUDIO ADJUST CHANNEL SETTING SCREEN ADJUST MODE SELECT CLOSED CAPTION V-CHIP BLOCK

3.Press the buttons to select the menu you want to set, and press the ENTER button. A list of items will be displayed in the menu.

4.Press the buttons to select the item you want to set, and press the ENTER button.

5.Press the buttons to change the numbers/ values. You can continue to set other items. Do the following to return to the previous screen: (1) Press the buttons to select "RETURN". (2) Press the ENTER button.

6.Press the MENU button to exit the screen.

Note:

- If you do not press any buttons for about 30 seconds while in an adjustment screen, the settings you made up to that point will be applied and the screen will automatically disappear.

>> >> >> >> >> >> >>

TV/AV

Menu setting items

VIDEO ADJUST menu

CONTRAST ......................................... Page E41

BLACK LEVEL .................................... Page E41

COLOR ................................................ Page E41

TINT ..................................................... Page E41

SHARPNESS ...................................... Page E41

FLESH TONE....................................... Page E41

VIDEO SELECT ................................... Page E41

WHITE BALANCE ............................... Page E41

AUDIO ADJUST menu

TREBLE ............................................... Page E41

BASS ................................................... Page E41

BALANCE ............................................ Page E41

DOLBY VIRTUAL**............. Pages E29 and E41

CHANNEL SETTING menu

AIR/CABLE* ....................... Pages E24 and E41

CABLE MODE*................... Pages E24 and E41

CHANNEL SEARCH* ........ Pages E24 and E41

CHANNEL MEMORY*........ Pages E25 and E41

SCREEN ADJUST menu

VIEW MODE** .................... Pages E42 and E55

POSITION ............................................ Page E42

MODE SELECT menu

SLEEP TIMER** ................. Pages E39 and E42

LANGUAGE ........................ Pages E30 and E42

CLOSED CAPTION menu

CC/TEXT** ......................... Pages E33 and E42

V-CHIP BLOCK menu

MPAA .................................. Pages E36 and E42

TV GUIDELINES ................ Pages E36 and E42

STATUS ............................... Pages E37 and E42

* TV mode only ** You can also set this item directly using the

remote control, instead of the adjustment screen.

E40

Using the menus in TV/AV mode

VIDEO ADJUST menu (See page E40 for information on using the menus.)

Item CONTRAST BLACK LEVEL COLOR TINT SHARPNESS FLESH TONE VIDEO SELECT

WHITE BALANCE

RESET

AUDIO ADJUST menu (See page E40 for information on using the menus.)

When headphones are connected, the AUDIO ADJUST menu cannot be adjusted.

Description

Adjusts contrast. Adjusts the overall brightness of the screen. Adjusts the color depth. Adjusts the color tone. Adjusts the image quality. Adjusts the flesh tone color. Selects the type of image to display improving the quality of the images. This adjustment is invalid for images from the S-video and component input terminals. Adjusts the color temperature.

.................

- STD

- WARM Resets adjustment values for this menu to their original factory settings.

.............

Standard setting for color tone. Color tone redder than standard.

EnglishDeutschFrançaisItalianoEspañolEnglish

Item TREBLE BASS BALANCE DOLBY VIRTUAL

RESET

Note:

- "TREBLE", "BASS", and "BALANCE" can be adjusted only when "DOLBY VIRTUAL" is set to "OFF".

Description

Adjusts high-pitch sounds. Adjusts low-pitch sounds. Adjusts the balance between the right and left speakers. Turns the Virtual Dolby Surround function "ON" or "OFF". You can also set this item directly using the remote control, instead of the adjustment screen. (See page E29.) Resets adjustment values for this menu to their original factory settings.

CHANNEL SETTING menu (TV mode only) (See page E40 for information on using the menus.)

Item AIR/CABLE

CABLE MODE CHANNEL SEARCH CHANNEL MEMORY

Description

Sets the receiving mode broadcast (AIR) or cable TV (CABLE). (See page E24.) Set this item when "AIR/CABLE" is set to "CABLE". (See page E24.) Sets available channels automatically. (See page E24.) Sets channels manually. (See page E25.)

E41

Using the menus in TV/AV mode

SCREEN ADJUST menu (See page E40 for information on using the menus.)

The SCREEN ADJUST menu cannot be adjusted while an image is paused. (See page E39.) The SCREEN ADJUST menu cannot be adjusted when video signals of 1080i or 720p are input externally.

Item VIEW MODE

POSITION

RESET

Description

Selects the screen size.

- NORMAL

- WIDE

- ZOOM1

- ZOOM2

- FULL

You can also set this item directly using the remote control, instead of the adjustment screen. (See page E55.)

- Depending on the type of data received or the video software used, screen edges may be slightly cut off or the image may have a black border.

Adjusts the position of the image.

- V-POSITION

- H-POSITION

- RESET

Resets adjustment values for this menu to their original factory settings.

........

..............

...........

...............

............

Displays 4:3 aspect ratio TV images normally. Expands 4:3 images horizontally to fill the entire screen (16:9). Expands the image to fill the screen (16:9) with wide black bands across the top and bottom such as letterbox format movies. Can be used when "ZOOM1" cuts off captions or telops at the top or bottom of the screen. Returns images horizontally reduced from 16:9 to 4:3 back to 16:9 so they fill the entire screen.

...

Adjusts the image's vertical position.

...

Adjusts the image's horizontal position. Resets the image's position to the TV's original factory setting.

MODE SELECT menu (See page E40 for information on using the menus.)

Item SLEEP TIMER

LANGUAGE

RESET

Description

Specifies how many minutes until the TV switches off (standby). You can also set this item directly using the remote control, instead of the adjustment screen. (See page E39.) Selects the language (English, Spanish, or French) on the screen. (See page E30.) Resets adjustment values for this menu to their original factory settings.

CLOSED CAPTION menu (See page E40 for information on using the menus.)

Item CC/TEXT

Description

Sets the CC/TEXT mode. (See page E33.)

V-CHIP BLOCK menu (See page E40 for information on using the menus.)

Item MPAA TV GUIDELINES

STATUS

RESET

Description

Sets whether MPAA block or unblock (-----). (See page E36.) Sets whether TV GUIDELINES block or unblock (-----). (See pages E36 and E37.) Sets whether the block setting status is ON or OFF. (See page E37.) When "STATUS" in the V-CHIP BLOCK menu is "ON", TV/AV-IN SOUND is not available in PC mode (see page E44). Resets adjustment values for this menu (excluding the secret number) to their original factory settings.

E42

Watching TV or video on the computer screen

POWER

Virtual

PC AV2AV1TV

SLEEP

ENTER

BRIGHT

FREEZE

VIEW MODE

MULTI

BRIGHT

MODE

(MULTI SCREEN)

In PC mode you can simultaneously display TV or video images and your computer screen. The MULTI SCREEN function has the following two types of windows.

PIP The TV or video image appears in a small

window (PIP window) on the computer screen.

SPLIT The computer screen and the TV or video

image appear side by side in two split windows.

POWER

PC AV2AV1TV

FREEZE

SLEEP

BRIGHT

MODE

MULTI

VIEW MODE

ENTER

Virtual

BRIGHT

1.Press the PC button to select PC mode.

2.Press the MULTI button. The TV/AV screen (PIP/SPLIT window) will appear on the computer screen. Each press of the MULTI button changes the screen display as follows: Normal computer screen → PIP → SPLIT → Normal computer screen...

The MULTI SCREEN function lets you do the following:

- Press each button as described below.

- Change the channel of the TV shown in the

PIP/SPLIT window.

1.Press the channel buttons (0-9 and 100) or the CH buttons.

- Adjust the volume. (See page E29.)

- Move the PIP window.

1.When the adjustment screen is not displayed, press the

buttons.

- Adjust the following items using the menus. (See pages E45 and E50.)

- Change the size of the PIP window.

- Designate the position of the computer screen.

- Select the video source. (See right column.)

- Select the audio source. (See right column.)

Selecting the video and audio sources

EnglishDeutschFrançaisItalianoEspañolEnglish

Select either TV, AV1, or AV2 as your PIP/SPLIT window's video source. You can also select the source of audio you want to hear while the PIP/ SPLIT window is displayed.

1.Press the MENU button in PC mode to display the MENU screen.

2.Press the buttons to select "MULTI SCREEN", and press the ENTER button.

3.Press the buttons to select "SUB SOURCE", and press the ENTER button.

4.Press the buttons to select the image you want to view.

5.Press the buttons to select "SOUND", and press the ENTER button.

6.Press the buttons to select the audio you want to hear. PC: Computer audio SUB SOURCE: TV or video audio

7.Press the MENU button to exit the screen.

Note:

- To switch the audio mode for TV audio, press the MTS button. (See page E32.)

E43

Listening to the TV or another audio source while

viewing the computer screen (SOUND)

You can listen to the TV or another audio source while the TV is displaying the computer screen.

POWER

PC AV2AV1TV

FREEZE

SLEEP

BRIGHT

MODE

MULTI

VIEW MODE

ENTER

Virtual

BRIGHT

1.Press the MENU button in PC mode to display the MENU screen.

2.Press the buttons to select "MODE SELECT", and press the ENTER button.

3.Press the buttons to select "SOUND", and press the ENTER button.

4.Press the

buttons to select the audio you

want to hear.

5.Press the MENU button to exit the screen.

Notes:

- To switch the channel for TV audio, press the CH buttons or the channel buttons (0-9 and 100).

- To switch the audio mode for TV audio, press the MTS button. (See page E32.)

- This setting is disabled while the PIP/SPLIT window is displayed. The audio source (SOUND) set in the MULTI SCREEN menu takes precedence.

- When "STATUS" in the V-CHIP BLOCK menu is "ON" (see page E37), TV/AV-IN SOUND is not available in PC mode.

E44

Using the menus in PC mode

You can adjust the color of the computer screen image and make MULTI SCREEN settings using the menus in PC mode.

How to adjust using the menus

1.Press the PC button to select PC mode.

2.When you adjust with the ADJUSTMENT menu or the GAIN CONTROL menu, display an image that makes the entire screen display light colors beforehand. If you are using Windows, use the adjustment pattern on the supplied CD-ROM. (See page E46.) Otherwise, continue to the next step.

3.Press the MENU button to display the MENU screen.

ADJUSTMENT GAIN CONTROL AUDIO ADJUST COLOR CONTROL MODE SELECT MULTI SCREEN

4.Press the buttons to select the menu you want to set, and press the ENTER button. A list of items will be displayed in the menu.

5.Press the buttons to select the item you want to set, and press the ENTER button.

6.Press the buttons to change the numbers/ values. You can continue to set other items. Do the following to return to the previous screen: (1) Press the buttons to select "RETURN". (2) Press the ENTER button.

7.Press the MENU button to exit the screen.

Notes:

- If you do not press any buttons for about 30 seconds while in an adjustment screen, the settings you made up to that point will be applied and the screen will automatically disappear.

- This manual describes display adjustment based on the use of the adjustment pattern (for Windows).

>> >> >> >> >> >>

<PC>

Menu setting items

ADJUSTMENT menu

AUTO* ................................ Pages E26 and E47

CLOCK* ..............................................Page E47

PHASE* .............................................. Page E47

H-POS* ............................................... Page E47

V-POS* ................................................ Page E47

GAIN CONTROL menu

AUTO* ................................................. Page E48

BLACK LEVEL* .................................. Page E48

CONTRAST* ...................................... Page E48

AUDIO ADJUST menu

TREBLE ..............................................Page E48

BASS .................................................. Page E48

BALANCE ........................................... Page E48

DOLBY VIRTUAL**............ Pages E29 and E48

COLOR CONTROL menu

COLOR MODE ................................... Page E49

WHITE BALANCE .............................. Page E49

MODE SELECT menu

VIEW MODE** ................... Pages E49 and E55

480 LINES*......................................... Page E49

768 LINES*......................................... Page E49

SOUND ............................................... Page E49

SCALING ............................................Page E49

LANGUAGE ....................... Pages E30 and E49

MULTI SCREEN menu

MULTI SCREEN DISPLAY**

........................................... Pages E43 and E50

PIP SIZE ............................................. Page E50

PIP POSITION** ................ Pages E43 and E50

PC POSITION ..................................... Page E50

SUB SOURCE ................... Pages E43 and E50

SOUND .............................. Pages E43 and E50

EnglishDeutschFrançaisItalianoEspañolEnglish

* When using the TV with a digital connection, this

item adjustment is not necessary.

**You can also set this item directly using the

remote control, instead of the adjustment screen.

E45

Using the menus in PC mode

Adjustment pattern

If you are using Windows, use the adjustment pattern on the supplied CD-ROM.

1.Load the supplied CD-ROM into the CD-ROM drive of the computer.

2.Open [My Computer] and select CD-ROM.

3.Double click on [Adj_uty.exe] to run the adjustment program. The adjustment pattern will appear.

Adjustment pattern

4.After completing the adjustments, press the computer's [Esc] key to exit the adjustment program.

Note:

- If your computer's display mode is set to 65K colors, you may see the different color levels in each color pattern or the gray scale may look colored. (This is due to the specification of the input signal and is not a malfunction.)

E46

Using the menus in PC mode

ADJUSTMENT menu (See page E45 for information on using the menus.)

When using the TV with a digital connection, this menu adjustment is not necessary.

Item AUTO

CLOCK

PHASE

H-POS, V-POS

Description

Automatically adjusts "CLOCK", "PHASE", "H-POS", and "V-POS". (See page E26.) Adjusts the clock so that no vertical flicker noise is emitted.

Vertical flicker noise

Makes an adjustment after "CLOCK" is properly adjusted so that no horizontal flicker noise is emitted.

Horizontal flicker noise

Adjusts the position of the adjustment pattern so that it appears centered on screen.

Screen frame

EnglishDeutschFrançaisItalianoEspañolEnglish

Adjustment

pattern

RESET

Note:

- To exit the adjustment program, press the computer's [Esc] key.

Resets adjustment values for this menu to their original factory settings.

E47

Using the menus in PC mode

GAIN CONTROL menu (See page E45 for information on using the menus.)

When using the TV with a digital connection, this menu adjustment is not necessary.

Item AUTO

BLACK LEVEL

CONTRAST RESET

Notes about auto adjustment:

- If you are not using the adjustment pattern, it is necessary to have black area and white area of at least 5 mm x 5 mm on the screen. Adjustment may not be possible without those areas.

- If the signal coming from the computer is Composite Sync or Sync on Green, automatic adjustment may not be possible. Please perform manual adjustment instead.

- If "OUT OF ADJUST" is displayed, perform manual adjustment. (To exit the adjustment program, press the computer's [Esc] key.)

Description

Automatically adjusts "BLACK LEVEL" and "CONTRAST" based on the brightest and darkest colors of the image displayed. Adjust screen brightness watching the color pattern.

Color pattern

Adjust contrast watching the color pattern so that all gradations appear. Resets adjustment values for this menu to their original factory settings.

AUDIO ADJUST menu (See page E45 for information on using the menus.)

When headphones are connected, the AUDIO ADJUST menu cannot be adjusted.

Item TREBLE BASS BALANCE DOLBY VIRTUAL

RESET

Notes:

- "TREBLE", "BASS", and "BALANCE" can be adjusted only when "DOLBY VIRTUAL" is set to "OFF".

- Even in PC mode, the TV/AV mode's AUDIO ADJUST menu will appear when:

- Watching and listening to TV or video in the PIP/SPLIT window. (See pages E43 and E50.)

- Listening to the TV. (See pages E44 and E49.)

Description

E48

Using the menus in PC mode

COLOR CONTROL menu (See page E45 for information on using the menus.)

Item COLOR MODE

WHITE BALANCE

RESET

Note:

- "WHITE BALANCE" will be automatically set to "STD" when "COLOR MODE" is set to "sRGB" or "VIVID".

Description

Selects the color tone.

................

- STD

- sRGB

- VIVID Adjusts the color temperature. Set "WHITE BALANCE" to "STD" if you want to display all gradations.

- COOL2

- COOL1

- STD

- WARM1

- WARM2

- USER Resets adjustment values for this menu to their original factory settings.

..............

...........

................

.............

Displays images using the original color tone of the LCD monitor. sRGB is an international standard for color representation defined by the IEC (International Electrotechnical Commission). Colors are converted by taking into account the liquid crystal's characteristics and thereby represent color tone close to the original image. Displays images in vivid primary colors.

Color tone bluer than standard. Color tone slightly bluer than standard. Standard setting for color tone.

..........

Color tone slightly redder than standard.

..........

Color tone redder than standard. Allows you to individually adjust red, green, and blue contrast.

EnglishDeutschFrançaisItalianoEspañolEnglish

MODE SELECT menu (See page E45 for information on using the menus.)

Item VIEW MODE

480 LINES

768 LINES

SOUND

SCALING LANGUAGE

RESET

Description

Selects the screen size.

- NORMAL

- FULL

You can also set this item directly using the remote control, instead of the adjustment screen. (See page E55) Specifies the horizontal resolution of a 480-line screen. (For analog signals)

- 640

- 848 Specifies the horizontal resolution of a 768-line screen. (For analog signals)

- 1024

- 1280

- 1360 Selects the audio to listen to while displaying the computer screen. When the PIP/SPLIT window is displayed, the audio set by "SOUND" in the MULTI SCREEN menu takes precedence. (See page E50.) When "STATUS" in the V-CHIP BLOCK menu is "ON" (see page E37), TV/AV-IN SOUND is not available in PC mode. Adjusts the image to optimum sharpness when it is enlarged. Selects the language (English, Spanish, or French) on the screen. (See page E30.) Resets adjustment values for this menu to their original factory settings.

........

...............

.................

...............

Displays the image without changing its aspect ratio. When the image's resolution is lower than 1024 x 768, the image is expanded. Expands the image so that it fills the screen. (The aspect ratio may change.)

640 x 480 dot mode 848 x 480 dot mode

1024 x 768 dot mode 1280 x 768 dot mode 1360 x 768 dot mode

E49

Using the menus in PC mode

MULTI SCREEN menu (See page E45 for information on using the menus.)

Item MULTI SCREEN DISPLAY

PIP SIZE PIP POSITION

PC POSITION

SUB SOURCE SOUND

RESET

Description

Designates whether the computer screen and TV or video images are displayed simultaneously.

- OFF

..................

- PIP

- SPLIT

You can also set this item directly using the remote control, instead of the adjustment screen. (See page E43.) Changes the size of the PIP window. Adjusts the position of the PIP window. To move up and down, press the buttons. To move left and right, press the While displaying the PIP window, you can also set this item directly using the remote control, instead of the adjustment screen. (See page E43.) Designates the position of the computer screen when the PIP window is displayed. This item is enabled when the computer's "VIEW MODE" is set to "NORMAL". Selects the video source of the PIP/SPLIT window. Selects the audio you want to hear while displaying the PIP/SPLIT window.

-PC

- SUB SOURCE

Resets adjustment values for this menu to their original factory settings.

..............

......................

The TV or video image appears in a small window (PIP window) on the computer screen. The computer screen and the TV or video image appear side by side in two split windows.

buttons.

Computer audio

...

TV or video audio

Note:

- "PIP SIZE", "PIP POSITION", and "PC POSITION" can only be set when "MULTI SCREEN DISPLAY" is set to "PIP".

E50

Installing set-up information and the ICC profile (For Windows)

Depending on the type of computer or OS, you may need to install the monitor set-up information on your system. If so, follow the steps below to install the monitor set-up information. (Depending on the type of computer or OS, command names and methods may differ. Please follow the computer's own operation manual while reading this.)

About the ICC profile

An ICC (International Color Consortium) profile is a file that describes the color reproduction characteristics of the LCD monitor. Using an application compatible with an ICC profile, highly accurate color reproduction can be realized.

- Windows 98/2000/Me/XP all use the ICC profile.

- When installing Windows 98/2000/Me/XP set-up information (described below), the ICC profile is also installed. If you would like to install the ICC profile only, please refer to Installing the ICC profile on page E53.

- When using the ICC profile, set "COLOR MODE" and "WHITE BALANCE" to "STD".

For Windows 95

Installing monitor set-up information into Windows 95. This explanation assumes that the CD-ROM drive is "D" drive.

1. Load the supplied CD-ROM into the CD-ROM

drive of the computer.

2. Click on the [Start] button. From [Settings],

choose [Control Panel].

3. Double click on [Display].

4. Click on [Settings], [Advanced Properties], and

[Monitor], then [Change].

5. Click on [Have disk], confirm that [Copy

manufacturer's files from:] is [D:] then click [OK].

6. Confirm that the monitor details are selected,

and click [OK].

7. Check that the monitor details are displayed,

then click [Apply].

8. Click [OK], and close the window.

9. Eject the CD-ROM from the CD-ROM drive.

For Windows 98

Installing monitor set-up information into Windows 98, and setting the monitor's ICC profile as a predetermined value. This explanation assumes that the CD-ROM drive is "D" drive.

If the "Add New Hardware Wizard" has appeared:

1. Load the supplied CD-ROM into the CD-ROM drive of the computer.

2. Click [Next].

3. Check [Display a list of all the drivers in a specific location, so you can select the driver you want.], then click [Next].

4. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [D:], and click [OK].

5. Confirm that the monitor details are selected, then click [Next], [Next], and [Finish]. If the "Add New Hardware Wizard" appears, repeat the installation commands beginning from 2 above.

6. Eject the CD-ROM from the CD-ROM drive.

If the "Add New Hardware Wizard" has not appeared:

1. Load the supplied CD-ROM into the CD-ROM drive of the computer.

2. Click on the [Start] button. From [Settings], choose [Control Panel].

3. Double click on [Display].

4. Click on [Settings], [Advanced], and [Monitor].

5. In [Options], check [Automatically detect Plug & Play monitors] and click on [Change].

6. Click [Next].

7. Click on [Display a list of all the drivers in a specific location, so you can select the driver you want.], then click [Next].

8. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [D:], and click [OK].

9. Confirm that the monitor details are selected, then click [Next], [Next], and [Finish].

10. Check that the monitor details are displayed, then click [Apply].

11. Click [OK], and close the window.

12. Eject the CD-ROM from the CD-ROM drive.

EnglishDeutschFrançaisItalianoEspañolEnglish

E51

Installing set-up information and the ICC profile (For Windows)

For Windows 2000

Installing monitor set-up information into Windows 2000, and setting the monitor's ICC profile as a predetermined value. This explanation assumes that the CD-ROM drive is "D" drive.

1. Load the supplied CD-ROM into the CD-ROM drive of the computer.

2. Click on the [Start] button. From [Settings], choose [Control Panel].

3. Double click on [Display].

4. Click on [Settings], [Advanced], and [Monitor].

5. Click on [Properties], [Driver], and [Update Driver].

6. When [Upgrade Device Driver Wizard] appears, click [Next].

7. Check [Display a list of the known drivers for this device so that I can choose a specific driver] and click [Next].

8. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [D:], and click [OK].

9. Select the monitor from the list displayed and click [Next].

10. Click [Next], confirm that the monitor's name appears on the screen, and click [Finish]. If [The Digital Signature Not Found] appears, click [Yes].

11. Click on [Close].

12. Click [OK], and close the window.

13. Eject the CD-ROM from the CD-ROM drive.

For Windows Me

Installing monitor set-up information into Windows Me, and setting the monitor's ICC profile as a predetermined value. This explanation assumes that the CD-ROM drive is "D" drive.

If the "Add New Hardware Wizard" has appeared:

1. Load the supplied CD-ROM into the CD-ROM drive of the computer.

2. Check [Specify the location of the driver [Advanced]] and click [Next].

3. Check [Display a list of all the drivers in a specific location, so you can select the driver you want.], then click [Next].

4. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [D:], and click [OK].

5. Select the monitor details from the list, then click [Next], [Next], and [Finish]. If the "Add New Hardware Wizard" appears, repeat the installation commands beginning from 2 above.

6. Eject the CD-ROM from the CD-ROM drive.

If the "Add New Hardware Wizard" has not appeared:

1. Load the supplied CD-ROM into the CD-ROM drive of the computer.

2. Click on the [Start] button. From [Settings], choose [Control Panel].

3. Double click on [Display].

4. Click on [Settings], [Advanced], and [Monitor].

5. In [Options], check [Automatically detect Plug & Play monitors] and click on [Change].

6. Check [Specify the location of the driver [Advanced]] and click [Next].

7. Check [Display a list of all the drivers in a specific location, so you can select the driver you want.] and click [Next].

8. When [Models] is displayed, click on [Have disk], confirm that [Copy manufacturer's files from:] is [D:], and click [OK].

9. Select the monitor details, then click [Next], [Next], and [Finish].

10.Check that the monitor details are displayed, then click [Apply].

11.Click [OK], and close the window.

12.Eject the CD-ROM from the CD-ROM drive.

E52

Installing set-up information and the ICC profile (For Windows)

For Windows XP

Installing monitor set-up information into Windows XP, and setting the monitor's ICC profile as a predetermined value. This explanation assumes that the CD-ROM drive is "D" drive.

1. Load the supplied CD-ROM into the CD-ROM drive of the computer.

2. Click on the [Start] button. Choose [Control Panel].

3. Click on [Appearance and Themes] and [Display]. When using the Classic View, double click on [Display].

4. Click on [Settings], [Advanced], and [Monitor].

5. Click on [Properties], [Driver], and [Update Driver]. [Hardware Update Wizard] appears. When you are asked whether to search Windows Update for the device driver, check [No, not this time] and click [Next].

6. Check [Install from a list or specific location [Advanced]] and click [Next].

7. Check [Don't search. I will choose the driver to install.] and click [Next].

8. Click on [Have Disk], confirm that [Copy manufacturer's files from:] is [D:], and click [OK].

9. Select the monitor from the list displayed and click [Next]. If [has not passed Windows Logo testing...] appears, click [Continue Anyway].

10. Confirm that the monitor's name appears on the screen.

11. Click on [Finish].

12. Click on [Close].

13. Click [OK], and close the window.

14. Eject the CD-ROM from the CD-ROM drive.

Installing the ICC profile

Installing the monitor's ICC profile. (If the set-up information has already been installed, so too has the profile, and there is no need to install it.)

1. Load the supplied CD-ROM into the CD-ROM drive of the computer.

2. Click on the [Start] button. From [Settings], choose [Control Panel].

3. Double click on [Display]. When using the Category View click on [Appearance and Themes] and [Display].

4. Click on [Settings] and [Advanced].

5. Click on [General] and from [Compatibility] select [Apply the new display setting without restarting], then click on [Color Management].

6. Click [Add], and select CD-ROM as the file location.

7. Choose the color profile that you would like to install, and click on [Add].

8. Choose the profile and click on [Set As Default].

9. Click [OK], and close the window.

10. Eject the CD-ROM from the CD-ROM drive.

- When using the ICC profile, set "COLOR MODE"

and "WHITE BALANCE" to "STD".

on Windows XP,

EnglishDeutschFrançaisItalianoEspañolEnglish

E53

Information about the ColorSync profile (For MacOS)

About the ColorSync profile

ColorSync is Apple Computer's color management system and enables color reproduction characteristics to be realized when used with a compatible application. A ColorSync profile describes the color characteristics of the LCD monitor.

Notes:

- This monitor's ColorSync profile works with MacOS 8.5 or above.

- When using the ColorSync profile, set "COLOR MODE" and "WHITE BALANCE" to "STD".

Setting up the ColorSync profile

Notes:

- It is necessary to have PC Exchange or File Exchange installed in your system.

- Depending on the type of computer or OS, command names and methods may differ. Please follow the computer's own operation manual while reading this.

1.Load the supplied CD-ROM into the CD-ROM drive of the computer.

2.Copy the profile to be used from the CD-ROM to the ColorSync profile folder.

3.Using the ColorSync on the control panel, choose the profile to be used.

E54

Other features

Changing the screen size (VIEW MODE)

You can change the screen size to match the video on videotapes and DVDs.

POWER

PC AV2AV1TV

FREEZE

MULTI

SLEEP

BRIGHT

MODE

[TV/AV mode]

1.Press the VIEW MODE button. The mode switches in the following order each time you press the button: NORMAL → WIDE → ZOOM1 → ZOOM2 → FULL → NORMAL...

NORMAL Displays 4:3 aspect ratio TV images

normally.

WIDE Expands 4:3 images horizontally to

fill the entire screen (16:9).

ZOOM1 Expands the image to fill the screen

(16:9) with wide black bands across the top and bottom such as letterbox format movies.

ZOOM2 Can be used when "ZOOM1" cuts off

captions or telops at the top or bottom of the screen.

FULL Returns images horizontally reduced

from 16:9 to 4:3 back to 16:9 so they fill the entire screen.

[PC mode]

1.Press the VIEW MODE button. The mode switches in the following order each time you press the button: NORMAL → FULL → NORMAL...

NORMAL Displays the image without changing

its aspect ratio. When the image's resolution is lower than 1024 x 768, the image is expanded.

FULL Expands the image so that it fills the screen.

(The aspect ratio may change.)

VIEW MODE

ENTER

Virtual

BRIGHT

Notes:

- Depending on the type of data received or the video software used, screen edges may be slightly cut off or the image may have a black border.

- You can also change the screen size using the menus. (See pages E42 and E49.)

- The screen size cannot be changed while an image is paused. (See page E39.)

- The screen size cannot be changed when video signals of 1080i or 720p are input externally. The images are displayed in the ratio of 16:9.

- Be aware that the use of screen resize functions to enlarge/reduce images for profit or for public display may infringe on copyright protection provided under Copyright Law.

Checking the current channel and audio mode on screen (DISPLAY)

You can check your TV's current display mode, type of PC input terminal, TV channel, MTS mode, time remaining on the SLEEP timer, and other items.

1.Press the DISPLAY button. Various information about the current state will be displayed.

STEREO

The information will disappear after several seconds.

Notes:

- The information displayed will vary depending on the current display mode and other settings.

- If the TV broadcast changes while the information is displaying, the broadcast and MTS mode may not match.

EnglishDeutschFrançaisItalianoEspañolEnglish

E55

Other features

Muting the sound (MUTE)

This feature is handy when you want to mute the sound such as when the phone rings or someone comes to the door.

1.Press the MUTE button. The sound will be muted and "MUTE" will be displayed. "MUTE" will disappear after several seconds.

Canceling muting

1.Press the MUTE button again, or press the VOL buttons.

Changing BRIGHT MODE

You can lower energy consumption by decreasing screen brightness. If "OFF" is selected, images will disappear and only sound will be output.

1.Press the BRIGHT MODE button. The mode changes in the following order each time you press the button: BRIGHT → DARK1 → DARK2 → OFF → BRIGHT...

Notes:

- You can set screen brightness individually for PC mode and TV/AV mode.

- You can set screen brightness using the ENTER/BRIGHT MODE button on the TV.

- While "BRIGHT MODE" is set to "OFF", you can operate MTS, MUTE, Dolby Virtual, and VOL buttons on the remote control. However, an adjustment screen will not be displayed. And when you operate the other buttons, the display will be turned on with the mode "BRIGHT".

Preventing changes to adjusted values (ADJUSTMENT LOCK)

[Remote control]

- POWER button

- VOL buttons

- MUTE button

- Input buttons (PC, TV, AV1, and AV2)

- CH buttons

- Channel buttons (0-9 and 100)

- FLASHBACK button

Perform this procedure on the TV.

1.Turn off the TV power.

2.While pressing the MENU button, press the POWER button (i.e. turn the power on). Continue to press the buttons until "LOCK ADJUSTMENT?" appears on the screen.

3.Press the VOL/BRIGHT > button.

Releasing the adjustment lock

Perform this procedure on the TV.

1.Turn off the TV power.

2.While pressing the MENU button, press the POWER button (i.e. turn the power on). Continue to press the buttons until "UNLOCK ADJUSTMENT?" appears on the screen.

3.Press the VOL/BRIGHT > button.

CAUTION!

- When the adjustment lock is set, all buttons on the TV and remote control other than the above buttons are disabled. To use buttons other than the above buttons, release the adjustment lock.

Resetting all adjustment values (ALL RESET)

All adjustment values will be reset for both PC mode and TV/AV mode (including channel settings and the secret number for V-chip Block). Concerning the ALL RESET procedure, refer to the end of this manual.

Disabling the control buttons other than the following buttons (TV and remote control) prevents adjusted values from being changed. The changing of adjusted values for both PC mode and TV/AV mode will be prevented.

[TV]

- POWER button

- VOL/BRIGHT buttons

- INPUT button

- CH buttons

E56

Instructions for attaching a VESA-compliant mount

An arm or stand based on the VESA standard (commercially available) can be attached to the TV. Procurement of the arm or stand is at the customer's discretion.

Arms or stands able to be used

Attachments must satisfy the following.

- Compatible with the VESA standard.

- The six screw holes on the section to be attached have a gap of 100 mm between them.

- Not be likely to fall off or break off after being attached to the TV.

How to attach the arm or stand

- Be careful not to over bend the cable or add extension cords as this could lead to a malfunction.

- While following these instructions, please also refer to the installation instructions in the operation manual included with the arm or stand.

CAUTION!

- Be careful not to get your fingers pinched between the display and stand nor to let the stand drop. These could lead to injury.

- Do not cover or block the vents and openings since insufficient ventilation can cause overheating.

4.Remove the six screws and then remove the stand from the TV.

EnglishDeutschFrançaisItalianoEspañolEnglish

Notes:

- The stand is specially made for use with this

TV. Once having removed the stand, never attempt to attach it to another equipment.

- Once having removed the screws, store them

together with the stand. If the stand is ever reattached, be sure to use the original screws. Using different screws could lead to a malfunction.

5.Attach the arm to the TV with the six screws.

1.Remove the cables.

2.Spread out a soft cloth on a flat surface. Being careful not to damage the TV, gently lay the TV on it display-side down.

3.Remove the two screws and then remove the rear cover of the stand.

Note:

- The screws used to attach the arm should be M4 screws with a length of 6 mm - 8 mm protruding from the surface to be attached. Using different screws could cause the TV to fall off or to be internally damaged.

6 mm - 8 mm

Screw used to attach arm

Arm Part of TV to which arm is

attached

6.Reconnect the cables.

E57

TV care

Troubleshooting

If you think the TV may be faulty, please check the following points before taking it to be repaired. If afterwards it still does not work, please contact the shop where you purchased the TV or your nearest Sharp authorized Service Center.

The TV's fluorescent tubes have a limited life span.

- If the screen darkens, persistently flickers or does not light up, the fluorescent tube has reached the end of its operational life span. Please inquire at the shop where you purchased the TV or your nearest Sharp authorized Service Center.

- In the initial period of use, due to the characteristics of fluorescent tubes the screen may flicker. (This is not a malfunction.) Should this happen, check by first turning off the power, then turning it on again.

Problem

There is no picture. (Power LED does not light.)

There is no picture. (Power LED is lit orange.)

The image appears distorted.

The remote control does not work.

There is no TV picture.

A particular channel will not tune in. There are stripes or dots on TV picture. The picture wavers.

The TV picture is doubled.

There are color bands.

The TV picture is distorted.

What to Check

Are the AC adapter and power cord properly connected? Disconnect the power plug from the AC outlet and reconnect it again

- Is power turned on? (Page E27)

Is the TV properly connected to the computer?

- Is the computer turned on?

- Is the PC signal input terminal (analog or digital) properly selected? (Page E27)

- Does the computer's signal timing correspond to TV specifications? (Page E61)

- Is the computer in power-saving mode? Try pressing a key on the keyboard or moving the mouse.

- Does the computer's signal timing correspond to TV specifications? (Page E61)

- If you are using the analog signal, perform automatic screen adjustment. (Page E26)

- Change the Vsync frequency (refresh rate) on the computer you are using to a low value if possible. (Page E61)

- Have the batteries of the remote control run out? (Page E13)

- Are the batteries placed in the right direction in the remote control? (Page E13)

- Is the adjustment lock set? (Page E56)

- Is the TV connected to an antenna? Check the connection. (Pages E16 and E17)

- Is the TV switched to TV mode? (Page E27)

- Have you set TV channels properly? (Pages E23 to E25)

- Did you set "BRIGHT MODE" to "OFF"? (Page E56)

- Have you set TV channels properly? (Pages E23 to E25)

- Is there interference from automobiles, trains, neon signs, computers, or other sources?

- Place the antenna as far as possible away from potential

sources of interference.

- Place the antenna line as far as possible from the computer.

- Is the antenna facing the right direction? There may be reflected electric waves from nearby mountains or buildings. Try changing the antenna's height and direction.

- Is there interference from a nearby TV? Changing the antenna's height and direction may help.

- Try switching power off, waiting several seconds, and then turning power back on.

E58

(Pages E20 and E21)

. (Page E22)

TV care

Problem

There is no video picture. There is no game picture.

The TV picture does not move. The video picture does not move. There is no sound.

Control buttons do not work. The adjustment screen does not appear. Control buttons do not work. The remote control does not work. There is no picture.

What to Check

- Are the cables properly connected? (Pages E18 and E19)

- Have you switched to AV mode? (Page E27)

- Did you set "BRIGHT MODE" to "OFF"? (Page E56)

- Have you turned on the connected equipment?

- Is the screen pausing? Did you press the FREEZE button? (Page E39)

- Are the audio cables properly connected? (Pages E18, E19 and E21)

- Did you press the MUTE button? (Page E56)

- No sound can be heard from the TV speakers while headphones are connected.

- Adjust the volume. (Page E29)

- No sound can be heard from the TV speakers while the TV is in power-saving mode.

- When "STATUS" in the V-CHIP BLOCK menu is "ON", TV/AV-IN SOUND is not available in PC mode. (Pages E37 and E44)

- Is the adjustment lock set? (Page E56)

Some kind of load noises from outside might interfere with normal operation.

- Turn off the power and turn it on after waiting at least 5 seconds, and then check the operation.

- If the problem cannot be solved, disconnect and reconnect the power plug from/to the AC outlet and check the operation.

EnglishDeutschFrançaisItalianoEspañolEnglish

TV care

Always remove the plug from the AC outlet when cleaning the TV.

Cabinet and control panel section

Use a soft dry cloth to lightly wipe away any grime from the cabinet and control panel. If they are very dirty, apply neutral detergent to a dampened soft cloth, wring it out well and wipe away grime.

LCD panel section

Use a soft dry cloth to lightly wipe away dirt and dust from the surface of the LCD panel. (A soft cloth such as gauze or that used for lens cleaning is suitable.)

CAUTION!

- Never use thinner, benzine, alcohol, glass cleaner, etc., as this could lead to color change or change in shape.

- Never scratch the TV with anything hard or apply strong pressure as this could leave marks or result in malfunction.

Storage

If the TV will not be used for a long period of time, be sure to remove the power plug from the AC outlet.

CAUTION!

- Do not leave the TV in contact with rubber or plastic items for long periods of time as this could lead to color change or change in shape.

E59

Specifications

Product specifications

Model name

LD-23SH1U

LCD display

23" TFT LCD module

Actual display size

23" (58.3 cm) measured diagonally

Resolution (max.)

1366 x 768

Displayable colors (max.)

Approx. 16.77 million colors (8 bit)

Dot pitch (H x V)

0.372 mm x 0.372 mm

Brightness (max.)

500 cd/m

(The screen brightness deteriorates over time. Constant brightness cannot be maintained.)

Contrast ratio

550:1

Angle of visibility

Left-right 176°; up-down 176° (contrast ratio > 10)

Screen display size (H x V)

508.2 mm x 285.7 mm

Video signal

Analog: Analog RGB (0.7 Vp-p) [75Ω] Digital: DVI standard based on 1.0

Sync signal

Separate Sync (TTL level: +/–), Sync on Green, Composite Sync (TTL level: +/–)

Video signal format

NTSC

Expansion compensation

Digital scaling (Enlarges VGA/SVGA/XGA etc. to full screen size.) [Enlarged display (full screen, fixed aspect ratio)]

- 1:1 display is not possible.

Plug & Play

VESA DDC2B compatible

Power management

VESA: based on DPMS DVI: based on DMPM

Speaker output

5 W + 5 W

Input terminals

Video image: RCA pin x 2 Component image: x 1 S-video image: x 1 Audio: RCA pin (L/R x 2) Antenna: F-type Computer signal:

Analog: mini D-sub 15 pin (3 rows) x 1 Digital: DVI-D 24 pin x 1

Computer audio: mini stereo jack (φ 3.5 mm) x 1

Receivable TV channels

VHF: 2 through 13; UHF: 14 through 69; Cable: 1 through 125

Headphone terminal

Mini stereo jack (φ 3.5 mm)

Screen tilt

Upward approx. 0° - 20°; downward approx. 0° - 5°

Screen swivel

Approx. 90° from left through right

Power supply

100 VAC - 240 VAC, 50/60 Hz (Uses special AC adapter, type NL-A72J of Sharp Corporation)

Temperature of operating environment

5°C - 35°C (41°F - 95°F)

Power consumption

95 W*; 5.5 W in standby; 5.5 W in power-saving mode *When "BRIGHT MODE" is set to "BRIGHT".

62 W in "DARK1" and 52 W in "DARK2".

(Uses special AC adapter)

Dimensions (W x D x H)

Approx. 589 mm x 223 mm x 479 mm (Approx. 2313/64" x 825/32" x 1855/64")

Weight

Approx. 13 kg; 28.7 lb. (excluding signal cable and AC adapter) Approx. 10.2 kg; 22.5 lb. (excluding stand)

Dimensions (Units: mm (inch))

100 (315/16)

223 (825/32)

/64)

479 (18

589 (2313/64)

/32)

431 (16

319 (129/16)

- PC analog signal cable: approx. 1.8 m (5' 10")

- PC audio cable: approx. 1.8 m (5' 10")

- Antenna cable: approx. 4 m (13' 1")

- Digital signal cable, NL-C04J (purchased separately): approx. 2.0 m (6' 6")

- Special AC adapter:

Approx. 1.8 m (5' 10")

Dimensions (W x D x H) Approx. 170 mm x 85 mm x 40 mm (Approx. 645/64" x 323/64" x 137/64")

E60

Specifications

Note:

- As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

Relevant signal timings (PC mode)

60Hz 72Hz 75Hz 56Hz 60Hz 72Hz 75Hz 60Hz 70Hz 75Hz 60Hz 60Hz 60Hz 75Hz 60Hz 70Hz

75Hz

Dot frequency

25.175MHz

31.5MHz

36.0MHz

40.0MHz

50.0MHz

49.5MHz

65.0MHz

75.0MHz

78.75MHz

33.3MHz

74.4MHz

81.0MHz

102.977MHz

84.7MHz

28.3MHz

30.2MHz

57.3MHz

80.0MHz

Analog Digital

Screen resolution

VESA

Wide

US text Power

Macintosh series

640X480

800

1024

848

1280

1360

720

640

832

1024

600

768

480

720 768

768 400 480 624

768

47.986kHz

Hsync Vsync

31.5kHz

37.9kHz

37.5kHz

35.1kHz

37.9kHz

48.1kHz

46.9kHz

48.4kHz

56.5kHz

60.0kHz

31.1kHz

44.7kHz

60.15kHz

47.7kHz

31.5kHz

35.0kHz

49.7kHz

60.2kHz

66.7Hz

74.6Hz

- Recommended resolution is 1360 x 768, 1280 x 768, or 1024 x 768.

- All are compliant only with non-interlaced.

- Depending on the type of computer to be connected, the display may not work correctly even when the above relevant signals are input.

- Frequencies for Power Macintosh are reference values. To connect, another adapter (commercially available) may be required.

- For digital connection, the TV can be connected to a computer with a DVI-compatible output terminal (DVI-D 24 pin or DVI-I 29 pin). (Depending on the type of computer to be connected, the display may not work correctly.)

- If the TV is receiving timing signals that are not compatible, "OUT OF TIMING" will appear. Follow your computer's operation manual to set the timing so that it is compatible with the TV.

- If the TV is not receiving any signal (sync signal), "NO SIGNAL" will appear.

EnglishDeutschFrançaisItalianoEspañolEnglish

E61

Specifications

The analog RGB input connector pin

(Mini D-sub connector with 15 pins)

No. Function

1 Red video signal input 2 Green video signal input 3 Blue video signal input 4 N.C. 5 GND 6 For red video signal GND 7 For green video signal GND 8 For blue video signal GND

9 +5V 10 GND 11 N.C. 12 DDC data 13 For Hsync signal input 14 For Vsync signal input 15 DDC clock

The DVI-D input connector pin

(DVI-D connector with 24 pins)

No. Function No. Function

1 TMDS data 2– 13 N.C. 2 TMDS data 2+ 14 +5V 3 TMDS data 2/4 shield 15 GND 4 N.C. 16 Hot plug detection 5 N.C. 17 TMDS data 0– 6 DDC clock 18 TMDS data 0+ 7 DDC data 19 TMDS data 0/5 shield 8 N.C. 20 N.C.

9 TMDS data 1– 21 N.C. 10 TMDS data 1+ 22 TMDS clock shield 11 TMDS data 1/3 shield 23 TMDS clock + 12 N.C. 24 TMDS clock –

Power management

The monitor is based on the VESA DPMS and the DVI DMPM standards. To activate the power management function, the video card and the computer used with it must also conform to these standard.

DPMS: Display Power Management Signaling

DPMS mode Screen

ON Display on 95 W Yes Yes

STANDBY No Yes

SUSPEND Display off 5.5 W Yes No

OFF No No

Power

consumption

H-sync V-sync

DMPM: Digital Monitor Power Management

DMPM mode Screen

ON Display on 95 W

OFF Display off 5.5 W

Power

consumption

DDC (Plug & Play)

This monitor supports the VESA DDC (Display Data Channel) standard. DDC is a signal standard for carrying out Plug & Play functions on the monitor or computer. It transfers information such as degree of resolution between the monitor and computer. You can use this function if your computer is DDC compliant and if it is set so that it can detect the Plug & Play monitor. There are many varieties of DDC due to the differences between systems. This monitor works with DDC2B.

E62
