MODEL

LC-70UD20E LC-70UD20EN LC-70UD20KN

LC-60UD20E LC-60UD20EN LC-60UD20KN

OPERATION MANUAL

LCD COLOUR TELEVISION

CE Statement:

Hereby, SHARP Electronics declares that this LCD TV is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at: http://www.sharp.eu/documents-of-conformity

NOTE

This LCD TV is designed for indoor use only.

CE Statement:

Hereby, SHARP Electronics declares that the 3D glasses are in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at: http://www.sharp.eu/documents-of-conformity

ASA

Introduction

Dear SHARP customer

Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble-free operation of your product, please read

Important safety precautions carefully before using this product.

Contents

[ ENGLISH ]

Introduction .......................................................................1

Dear SHARP customer ................................................1

Contents ......................................................................1

Important safety precautions .......................................2

Preparation .......................................................................4

Using the remote control unit ......................................4

Part names and functions ................................................5

TV (front/side view) ......................................................5

TV (rear view) ...............................................................5

Remote control unit .....................................................6

Quick guide .......................................................................7

Operation overview ......................................................7

Inserting the CA card into the CI module ....................9

Recording CAM PIN setting ........................................9

CI plus 1.3 Standard ....................................................9

Using the HOME screen ............................................10

Using the Menu screen ..............................................11

Using Software keyboard ..........................................11

Initial auto installation ....................................................12

Initial auto installation ................................................12

Watching TV ....................................................................16

Daily operation ...........................................................16

Favourite Channel Information ..................................18

Operator profile .........................................................18

EPG ...........................................................................19

Teletext ......................................................................22

Connecting external devices .........................................24

Introduction to connections .......................................24

Video connections .....................................................25

Audio connections .....................................................27

AQUOS LINK ...................................................................28

Controlling HDMI devices using AQUOS LINK .........28

AQUOS LINK connection ..........................................29

AQUOS LINK setup ...................................................30

Operating an AQUOS LINK device ............................30

Using a Smartphone with the TV ...............................32

Basic adjustment ............................................................33

Picture settings ..........................................................33

Audio settings ............................................................36

Power save settings ..................................................37

View settings .............................................................38

Individual setting — PIN ............................................41

Individual setting — Clock .........................................41

Individual setting — Language ..................................42

Useful viewing functions ................................................43

Optional features settings ..........................................43

Additional features .....................................................46

Miracast (Mirroring) ....................................................48

Other useful features .....................................................49

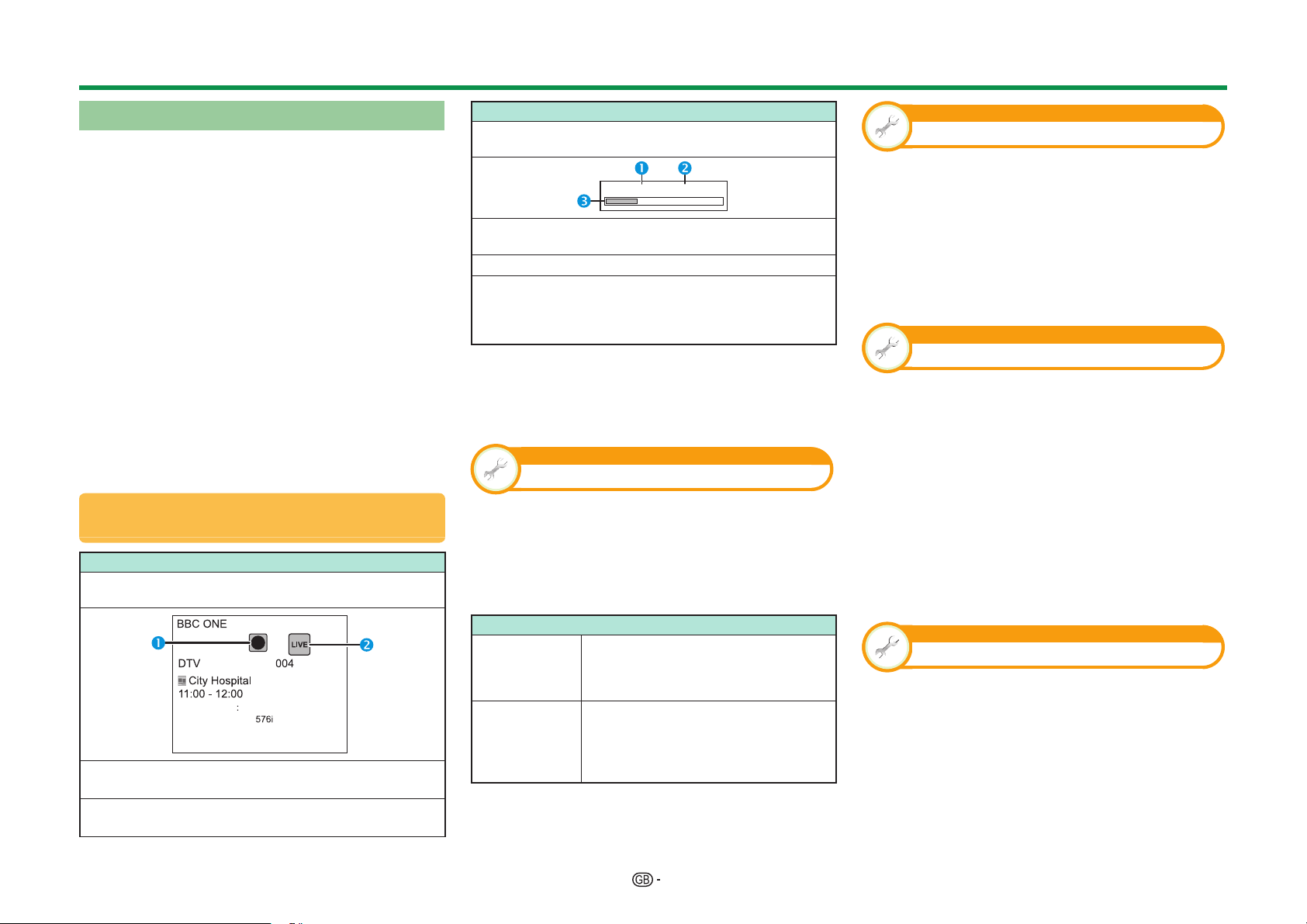

USB-recording ...........................................................49

How to operate USB-recording .................................50

SD/USB media/Home network ..................................53

Selecting the picture size for photo mode.................54

USB device compatibility ..........................................56

Home network server compatibility ...........................56

Selecting the picture size for video mode .................56

Connecting a PC .............................................................57

Connecting a PC .......................................................57

Displaying a PC image on the TV ..............................57

PC control of the TV ..................................................60

Network setup ................................................................62

Connecting to the network ........................................62

Net TV ..............................................................................64

What is Net TV? .........................................................64

NETFLIX .....................................................................64

Operations in Net TV .................................................64

Enjoying 3D image viewing............................................65

Before using the 3D glasses ......................................65

Preparing for the 3D glasses .....................................66

Using the 3D glasses .................................................67

Cautions for 3D image viewing ..................................69

Display format for 3D and 2D images .......................70

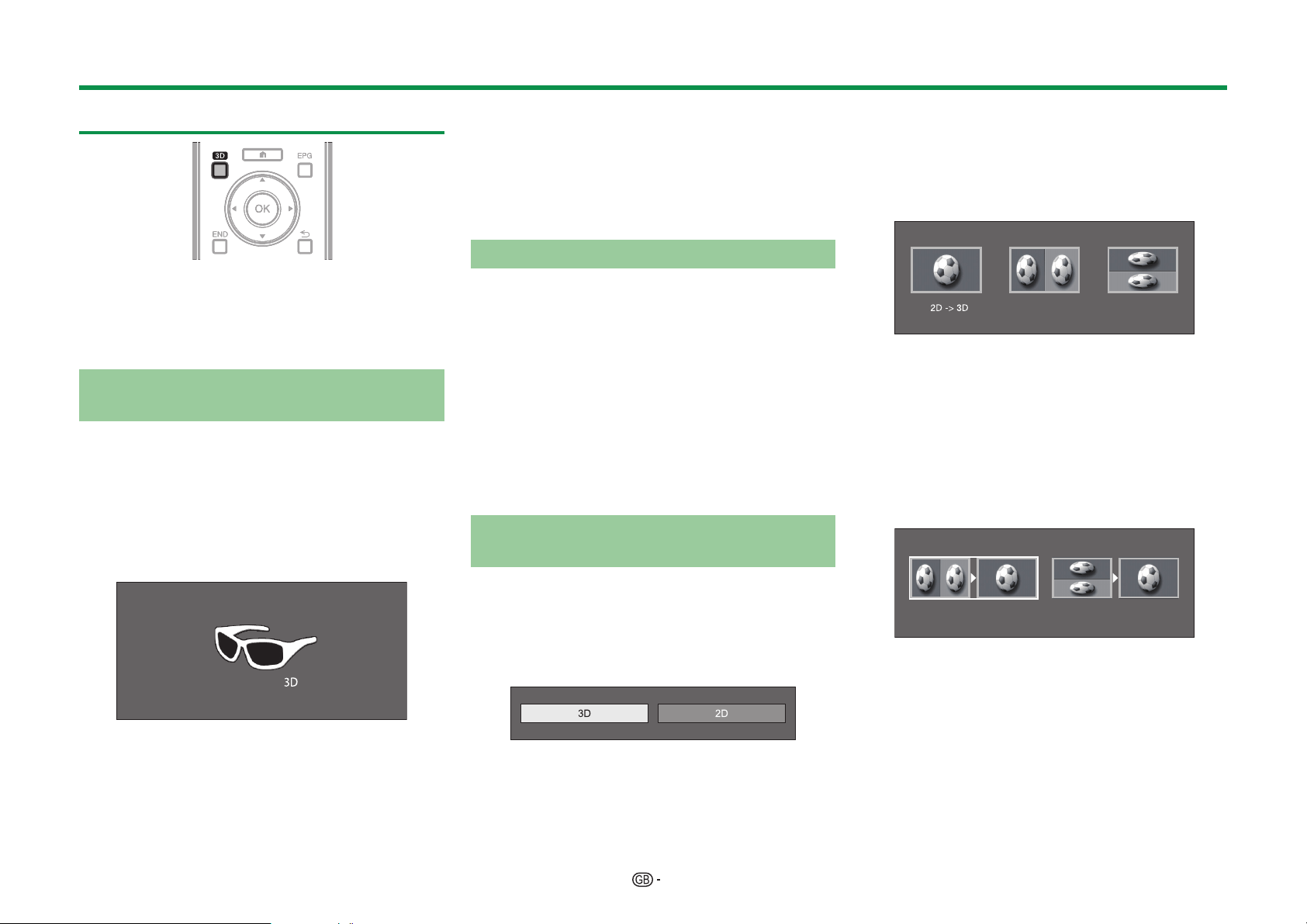

Viewing 3D images ....................................................71

Configuring the TV settings to enhance 3D image

viewing ....................................................................72

Specifications — 3D glasses ....................................74

Troubleshooting — 3D Images ..................................74

Appendix .........................................................................75

Troubleshooting .........................................................75

Updating your TV via DVB-T/T2/C/S/S2 ...................77

Getting update information ........................................77

Information on the software licence for this

product ....................................................................78

Deactivating Netflix function ......................................78

Updating your TV via USB/network ...........................78

Trademarks ................................................................ 79

Software licences for Net TV .....................................80

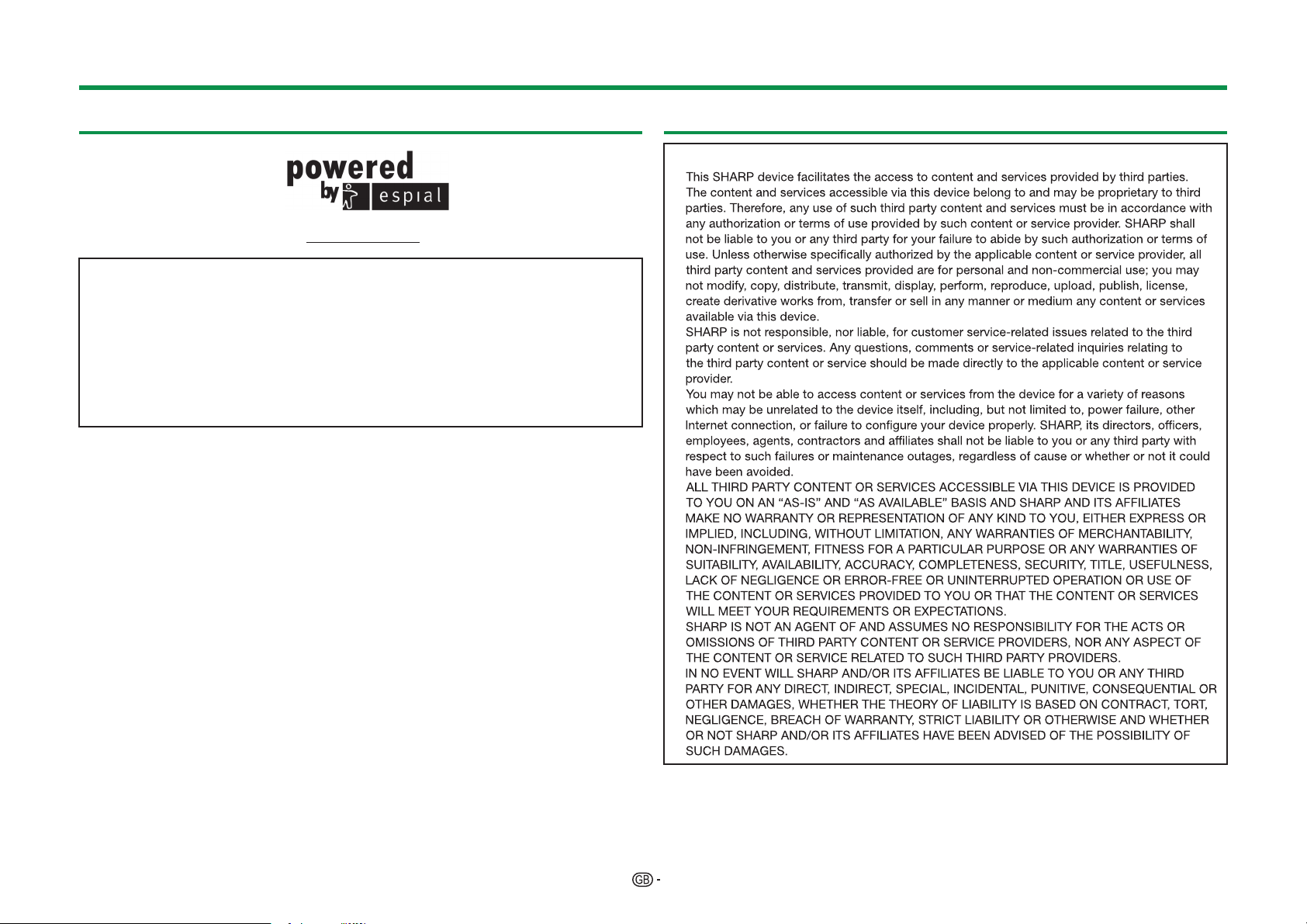

Disclaimers for services using the Internet ................80

Specifications ............................................................81

Specifications (Wireless LAN) ....................................82

Specifications (Bluetooth

Environmental specifications .....................................83

Mounting the TV on a wall .........................................83

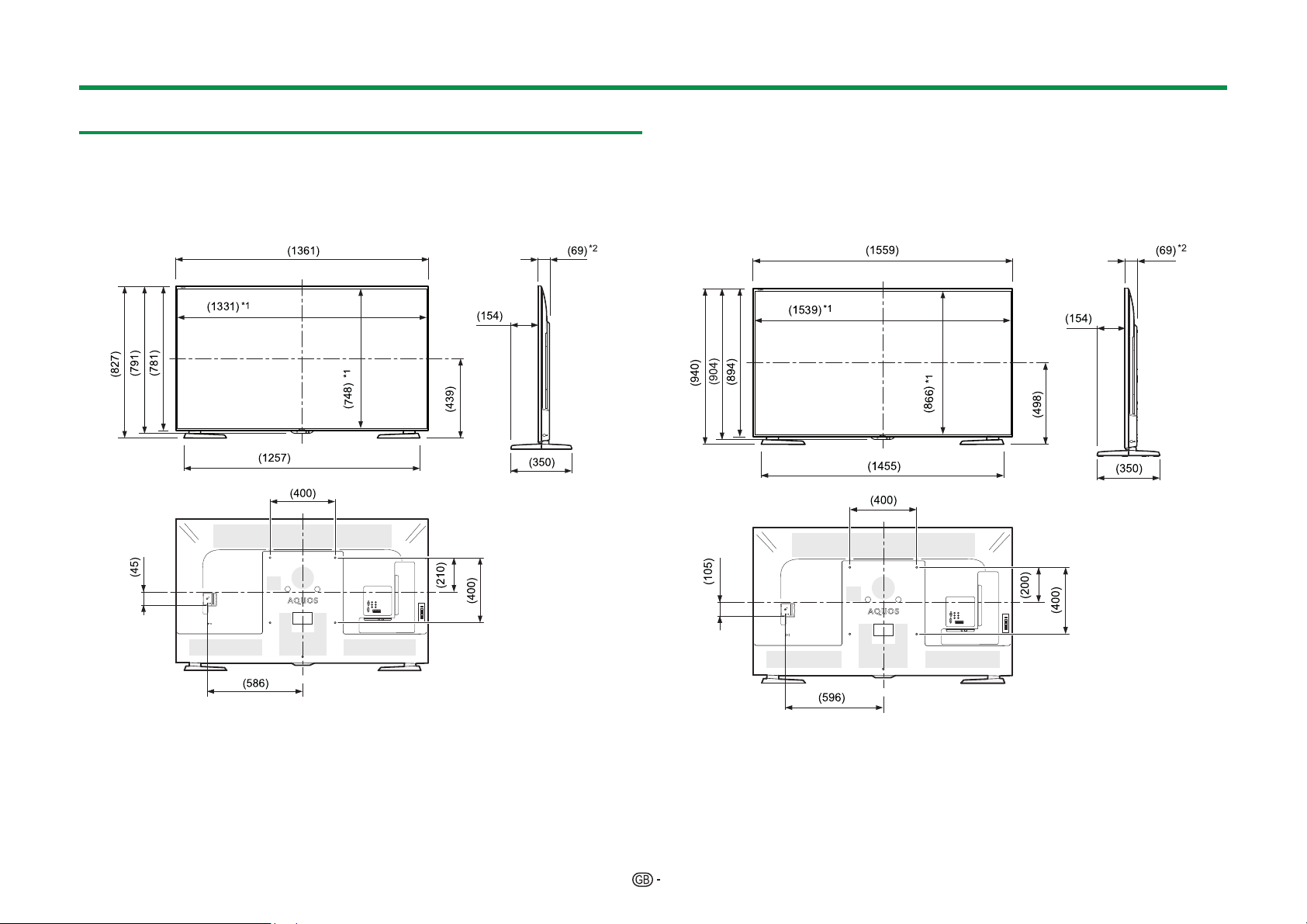

Dimensional drawings ...............................................85

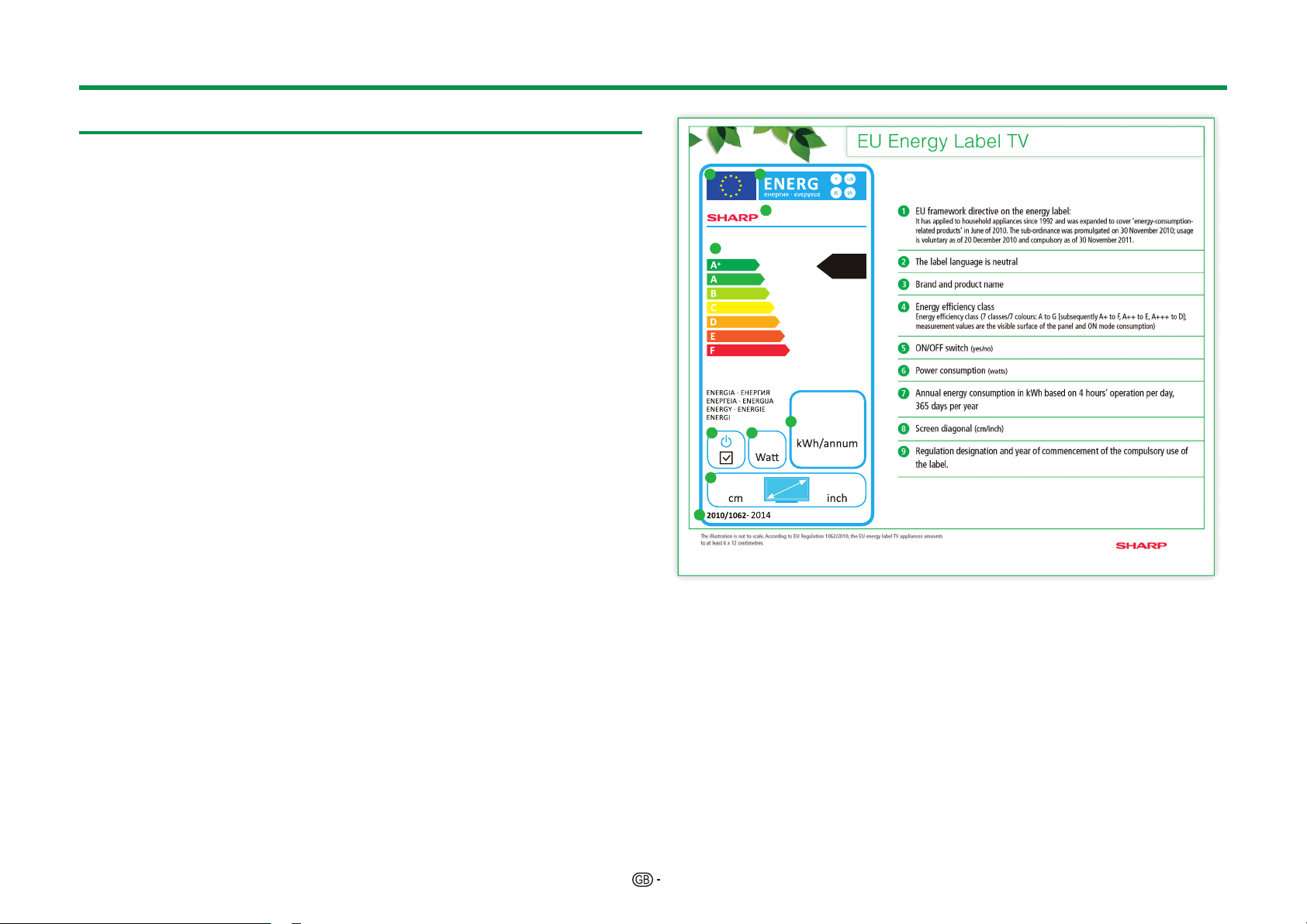

EU Energy Label for Televisions ................................86

) ........................................82

NOTE

• The illustrations and the OSD in this operation manual are for explanation purposes and may vary slightly from the actual operations.

• The examples used throughout this manual are based on 60 inch models.

Introduction

Important safety precautions

• Cleaning—Unplug the AC cord from the AC outlet before cleaning the product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.

• Use a soft damp cloth to gently wipe the panel when it is dirty. To protect the panel, do not use a chemical cloth to clean it. Chemicals may cause damage or cracks in the cabinet of the TV.

• Water and moisture—Do not use the product near water, such as bathtub, washbasin, kitchen sink, laundry tub, swimming pool and in a wet basement.

• Do not place vases or any other water-filled containers on this product. The water may spill onto the product causing fire or electric shock.

• Stand—Do not place the product on an unstable cart, stand, tripod or table. Doing so can cause the product to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the manufacturer’s instructions. Use only the mounting hardware recommended by the manufacturer.

• When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, excessive force and uneven floor surface can cause the product to fall from the cart.

• Ventilation—The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are followed. For ventilation, leave a free space of, at least, 10 cm all around the set.

• The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or impact applied. If the LCD panel is broken, be careful not to be injured by broken glass.

• Heat sources—Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating products (including amplifiers).

• To prevent fire, never place any type of candle or naked flames on the top or near the TV set.

• To prevent fire or shock hazard, do not place the AC cord under the TV set or other heavy items.

• Headphones—Do not set the volume at a high level. Hearing experts advise against extended listening at high volume levels.

• Do not display a still picture for a long time, as this could cause an afterimage to remain.

• There is power consumption always if main plug is connected.

• Servicing—Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous conditions. Request a qualified person to perform servicing.

The LCD panel is a very high technology product, giving you fine picture details. Due to the very large number of pixels, occasionally a few non-active pixels may appear on the screen as a fixed point of blue, green or red. This is within product specifications and does not constitute a fault.

Precautions when transporting the TV

When transporting the TV, never carry it by putting pressure onto the display. Be sure to always carry the TV by two or more people holding it with two hands—one hand on each side of the TV.

Devices connected to the protective earthing of the building installation through the MAINS connection or through other devices with a connection to protective earthing and to a television distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to a television distribution system therefore has to be provided through a device providing electrical isolation within a certain frequency range (galvanic isolator, see EN 60728-11).

NOTE

• For requirements in Norway and Sweden, the requirements for isolation are also relevant for devices that can be connected to television distribution systems.

Caring for the cabinet

• Use a soft cloth (cotton, flannel, etc.) and gently wipe the surface of the cabinet.

• Using a chemical cloth (wet/dry sheet type cloth, etc.) may deform the components of the main unit cabinet or cause cracking.

• Wiping with a hard cloth or using strong force may scratch the surface of the cabinet.

• If the cabinet is very dirty, wipe with a soft cloth (cotton, flannel, etc.) soaked in neutral detergent diluted with water and thoroughly wrung out, and then wipe with a soft dry cloth.

• Avoid using benzene, thinner, and other solvents, as these may deform the cabinet and cause the paint to peel off.

• Do not apply insecticides or other volatile liquids. Also, do not allow the cabinet to remain in contact with rubber or vinyl products for a long period of time. Plasticizers inside the plastic may cause the cabinet to deform and cause the paint to peel off.

Introduction

Caring for the front panel

• Turn off the main power and unplug the AC cord from the wall outlet before handling.

• Gently wipe the surface of the front panel with a soft cloth (cotton, flannel, etc.). To protect the front panel, do not use a dirty cloth, liquid cleaners, or a chemical cloth (wet/dry sheet type cloth, etc.). This may damage the surface of the front panel.

• Wiping with a hard cloth or using strong force may scratch the surface of the front panel.

• Use a soft damp cloth to gently wipe the front panel when it is really dirty (It may scratch the surface of the front panel when wiped strongly).

• If the front panel is dusty, use an anti-static brush, which is commercially available, to clean it.

WARNING

To prevent the spread of fire, keep candles or other open flames away from this product at all times.

3D glasses

Prevention of accidental ingestion

• Keep the accessory out of the reach of small children. Small children can accidentally swallow these parts.

• If a child accidentally swallows any of these parts, seek immediate medical attention.

Do not disassemble

• Do not disassemble or modify the 3D glasses except when recycling the batteries. Do not modify the 3D glasses.

Caution for lithium battery

• Batteries must not be exposed to excessive heat such as direct sunlight or fire.

• Replace only with the same or equivalent type of battery. The battery may explode if improperly replaced.

• Take care not to reverse the battery poles (+ and –) when loading the battery. Follow the correct procedure when loading the battery. Loading the battery incorrectly may damage the battery or cause it to leak battery fluid, which could result in a fire, injury or damage.

Handling the 3D glasses

• Do not drop, exert pressure on, or step on the 3D glasses. Doing so may damage the glass section, which may result in injury.

• Be careful not to trap your finger in the hinge section of the 3D glasses. Doing so may result in injury.

• Pay special attention when children are using this product.

Using the 3D glasses

• The 3D glasses vision should be limited. Security advisory establishes a maximum of 3 hours visualization, and in any case no more than one show length, break included.

• Use the 3D glasses only for the specified purpose.

• Do not move around while wearing the 3D glasses. The surrounding area appears dark, which may result in falling or other accidents that may cause injury.

Caring for the 3D glasses

• Use only the cloth provided with the 3D glasses to clean the lenses. Remove dust and soil from the cloth. Any dust or other soiling on the cloth may result in scratches. Do not use solvents such as benzene or thinners as doing so may damage the coating.

• When cleaning the 3D glasses, take care not to allow water or other fluids to come into contact with the glasses.

• Always store the 3D glasses in the case provided when not in use.

• When storing the 3D glasses, avoid very humid or hot locations.

Viewing 3D images

• If you experience dizziness, nausea, or other discomfort while viewing 3D images, discontinue use and rest your eyes.

• Do not use the 3D glasses if they are cracked or broken.

Preparation

Using the remote control unit

Inserting the batteries

Before using the TV for the first time, insert the two supplied “AAA” size batteries. When the batteries become depleted and the remote control unit fails to operate, replace the batteries with new “AAA” size batteries.

1 Open the battery cover.

2 Insert the two supplied “AAA” size batteries.

• Place batteries with their terminals corresponding to the (e) and (f) indications in the battery compartment.

3 Close the battery cover.

CAUTION

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Do not mix batteries of different types. Different types of batteries have different characteristics.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old batteries.

• Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you find any chemical leakage, wipe thoroughly with a cloth.

• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

• If you will not be using the remote control unit for an extended period of time, remove the batteries from it.

Note on disposing batteries

The batteries provided contain no harmful materials such as cadmium, lead or mercury. Regulations concerning used batteries stipulate that batteries may no longer be thrown out with the household rubbish. Deposit any used batteries free of charge into the designated collection containers set up at commercial businesses.

Angle of the remote control unit

Use the remote control unit by pointing it towards the remote control sensor. Objects between the remote control unit and sensor may prevent proper operation.

5 m

Remote control sensor

Cautions regarding the remote control unit

• Do not expose the remote control unit to shock. In addition, do not expose the remote control unit to liquids, and do not place in an area with high humidity.

• Do not install or place the remote control unit under direct sunlight. The heat may cause deformation of the unit.

• The remote control unit may not work properly if the remote control sensor of the TV is under direct sunlight or strong lighting. In such cases, change the angle of the lighting or the TV, or operate the remote control unit closer to the remote control sensor.

Part names and functions

TV (front/side view)

a (Standby/ON)

MENU (Menu)

b (Input source)

:r/s

Illumination LED*

(Programme

[Channel])

i+/- (Volume)

Remote control sensor (Page 4)/

OPC sensor (Page 34)

This panel emits a signal towards the 3D glasses you wear when viewing 3D images. Refer to page 73 for details.

I 3D mode: Blue illumination

2D mode: White illumination

TV (rear view)

TV (rear view) — continued

Antenna terminal

USB 3 port

USB 2 (HDD) port

ETHERNET terminal

DIGITAL AUDIO OUTPUT terminal

J The HDMI 3 and PC terminals can both use the same audio input terminal (HDMI 3/PC AUDIO

(L/R)). However, the proper item must be selected in the “Audio select” menu (refer to page 44 for details).

Satellite antenna terminal

HDMI 3/PC AUDIO (L/R) Jack *2

K When the headphone is connected to the OUTPUT terminal, the audio can be output from the

speakers (Page 45).

L HDCP 2.2 copy protected signal can be viewed via HDMI4 only.

WARNING

• Excessive sound pressure from earphones and headphones can cause hearing loss.

• Do not set the volume at a high level. Hearing experts advise against extended listening at high volume levels.

NOTE

• Use a product with the specified dimensions for optimal connection to HDMI cable/USB device.

− HDMI: Body: (depth) 12 mm or less/(length) 32 mm or less

− USB: Body: (depth) 10 mm or less/(length) 57 mm or less Connector: (depth) 7 mm or less

Part names and functions

Remote control unit

LC-60UD20E LC-70UD20E

LC-60UD20EN LC-60UD20KN LC-70UD20EN LC-70UD20KN

115

1 >a (Standby/On) (Page 16)

2 ATV

Access conventional analogue TV mode.

DTV

Access digital TV mode.

SAT

Access satellite mode.

RADIO

DTV/SAT: Switch between radio and data mode.

7 8

920

18 19

• When only data broadcasting (no radio broadcasting) is transmitted by DVB, the radio broadcasting will be skipped.

3 EXT MEDIA buttons

EXT MEDIA buttons are used for AQUOS LINK functions and USB-recording functions, etc.

• AQUOS LINK (Pages 28_31):

22 23

Interactively operate compatible system devices using a single remote control unit.

• USB-recording (Pages 49_52): Record a programme you are watching.

4 Numeric buttons 0_9

Set the channel. Enter desired numbers. Set the page in teletext mode.

• When the five Nordic countries (Sweden, Norway, Finland, Denmark or Iceland) are selected in the country setting from initial auto installation (Page 12), DTV services are four

22 25 23 24

digits. When another country is selected, DTV services are three digits.

5 A (Flashback)

Return to the previously selected channel or external input.

6 AV MODE (Page 33)

Select audio/video settings.

f (Wide mode) (Pages 43, 56 and 57)

Select a wide mode.

7 7 (Sound mode) (Page 17)

Select a sound multiplex mode.

8 i+/- (Volume)

Increase/decrease TV volume.

9 e (Mute)

TV sound on/off.

(HOME)

Display the “HOME” screen for enjoying Internet connection and Home network functions, as well as performing settings for the TV.

Q 3D (Pages 65_74)

Select between 3D and 2D image viewing.

W a/b/c/d (Cursor)

Select a desired item.

;

Execute a command. ATV/DTV/SAT: Display “CH list” when no other “Menu” screen is running.

E >

ATV/DTV/SAT: Exit the “Menu” screen. AQUOS NET+: Return to the start page.

RCONTROL (Pages 50, 52 and 55)

Display a panel to operate some functions on the screen.

T p (Display information) (Page 17)

Display the station information (channel number, signal, etc.) on the screen.

P. INFO

Display programme information transmitted through digital video broadcasting (DTV/SAT only).

Y b (INPUT) (Page 16)

Select an input source.

U ECO (Standard/Advanced/Off)

(Page 37)

Select “Energy save” setting.

I m (Teletext) (Page 22)

ATV: Display analogue teletext. DTV/SAT: Select MHEG-5 or teletext for DTV/SAT.

O :r/s

ATV/DTV/SAT: Select the TV channel.

PMENU

“Menu” screen on/off (Page 11).

A EPG (Pages 19_21)

DTV/SAT: Display the EPG screen.

S6 (Return)

ATV/DTV/SAT: Return to the previous screen. AQUOS NET+: Return to the previous page (This may not function for some services).

D Buttons for useful operations

[ (Subtitle) (Pages 22 and 42)

Switch subtitle languages on/off.

k (Reveal hidden teletext) (Page 22) 1 (Subpage) (Page 22) 3 (Freeze/Hold) (Page 22)

Freeze a moving image on the screen. Teletext: Stop updating teletext pages automatically or release the hold mode.

FR/G/Y/B (Colour) buttons

The coloured buttons are correspondingly used to select the coloured items on the screen (e.g., EPG, MHEG-5, teletext).

G NETFLIX button

Display the Netflix screen. (See page 64.)

• Netflix is available in certain countries. Unlimited membership required. More information at www.netflix.com

Quick guide

Operation overview

Follow the steps below one by one when using the TV. Some steps may not be necessary depending on your TV installation and connection.

1. Preparation — Connecting the TV

NOTE

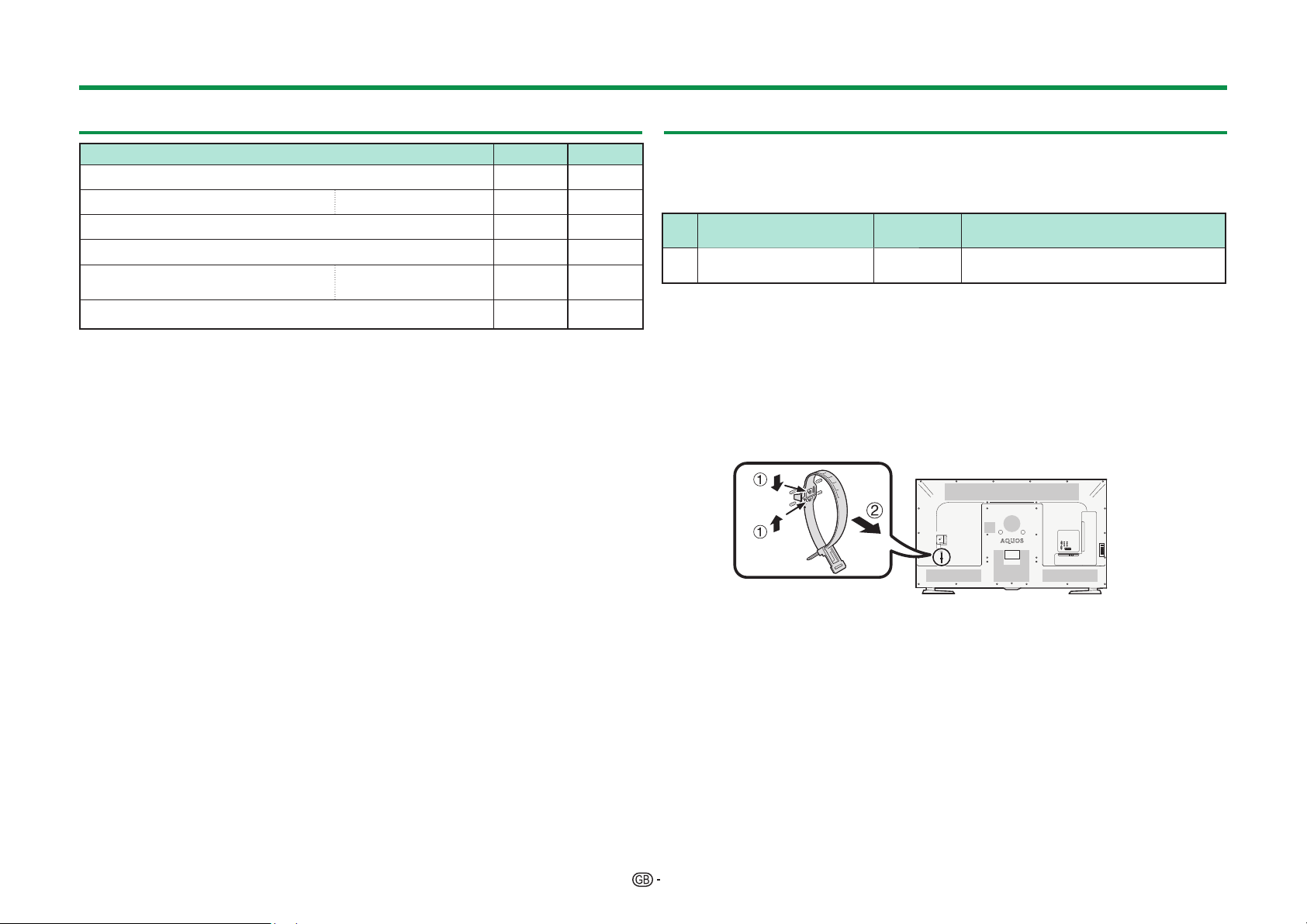

• The cable tie can be moved from to .

• Place the TV close to the AC outlet, and keep the power plug within reach.

• Product shape varies in some countries.

Plug the standard DIN45325 plug (IEC 169-2)

75 q coaxial cable. Connect the satellite antenna cable.

Insert a CA card into the CI slot to watch scrambled

broadcasts (Page 9). Plug in the AC cord.

2. Preparation — Setting the TV

Press a on the TV (Page 16).

Run the initial auto installation (Page 12).

w Language setting w Home/Store setting w Country setting w PIN setting w Channel search setting

• Digital search

− Terrestrial

− Cable

• Analogue search

• Satellite search

Start searching channels

Congratulations!

Now you can watch TV.

• If necessary, adjust the antenna to attain maximum signal reception (Page 15).

Quick guide

3. Daily operation

1 Turn on/off the TV

(Page 16)

• You can turn on/off the power using both the remote control and the TV.

2 Switch between digital, satellite and

analogue broadcast

(Page 16)

3 Change channels

(Page 16)

• You can also select a channel from “HOME” > “CH list”.

4 Select a programme using EPG

(Pages 19_21)

4. Advanced features

1 Use USB-recording function

(Pages 50_52)

5. Enjoy additional features

1 Connect external devices

Connection overview (Pages 24_32)

• Be sure to turn off the TV and any devices before making any connections.

Switch input sources (Page 16)

2 Enjoy photos, music and video stored

in SD/USB media/Home network

(Pages 53_56)

3 Display a PC image on the TV screen

(Pages 57_61)

4 Enjoy internet service* with the TV

(Pages 10 and 62_64)

* The following service is now

available:

• YouTube™ (Page 10)

• Net TV (Pages 62–64)

2 Adjust TV settings and enjoy internet

service

(Pages 33_48)

• You can launch Internet connection and Home network functions, as well as perform settings for the TV from the “HOME” screen.

5 Watch 3D images

(Pages 65_74)

• Some menu items are greyed out in 3D mode. This is not a malfunction.

Quick guide

Inserting the CA card into the CI module

In order to receive coded digital stations, a common interface module (CI module) and a CA card must be inserted in the CI slot of the TV.

1 Carefully insert the CI module in the CI slot with

the contact side forward.

2 The logo on the CI module must be facing

outward from the rear of the TV.

Checking CI module information

Go to “TV Menu” > “Setup” > “Option” > “CI setting” > “CI menu”.

• This menu is only available for digital stations.

• The content of this menu depends on the provider of the CI module.

Module

General information on CI module displays.

Adjustment parameters of each CA card displays.

Enquiry

You can input numerical values such as passwords here.

NOTE

• It takes a few minutes to certify the licence key when you insert a CA card into the CI+ compatible CI module for the first time. This process may fail when there is no antenna input or you have never run “Auto installation”.

• The CI+ compatible CI module sometimes upgrades its firmware. You may not receive any TV images before upgrading. You can only use the power button during upgrading.

• Copy protected content may not be output or may be output with a copy control signal. The protect icon* is displayed when P.INFO is pressed while watching copy protected contents.

* Protect icon: X

• If the TV displays an update confirmation message for the CA card while receiving CI+ compatible broadcasts, follow the screen prompts.

• Make sure that the CI module is properly inserted.

• If the old CAM is used, authentication may fail. In such cases, contact the contracted service provider.

Recording CAM PIN setting

When a CAM PIN code is required for recording a programme, it is necessary to enter the CAM PIN code in advance.

1 Go to “TV Menu” > “Setup” > “Option” >

“CI setting” > “Recording CAM PIN setting”.

2 Enter the CAM PIN code.

NOTE

• If a PIN code is not entered or is entered incorrectly, the programme will not be able to be recorded/played back.

CI plus 1.3 Standard

CI Plus is an advanced development of the DVB Common Interface Standard.

1 Regarding security

There are some regulations in recording functions. The playback of encrypted programmes is strongly dependent on which CA module is used. The playback of encrypted recordings may sometimes not be possible, or only during limited time. Programme providers, who use the CI Plus standard, can assign different rights for their broadcast programmes. Exercise caution when using USB-recording to record broadcast programmes (Pages 49–52).

2 Operator service list management (Operator

profile) Under the 1.3 specification the CAM may provide the channel listing parameters (channel number, frequency etc.) and these can be updated while in use. Refer to “Operator profile” on page 18.

Quick guide

Using the HOME screen

You can easily launch this “HOME” screen to enjoy Internet connection and Home network functions and to perform settings for the TV.

1 Display the HOME screen

Press (HOME) and the “HOME” screen will be displayed.

2 Select an item

Press a/b/c/d to select the desired service or menu, and then press ;.

See the right column for details on the operations in the “HOME” screen.

3 Exit the HOME screen

The operation will exit the “HOME” screen if you press (HOME) before it is completed.

This product is embedded with LC Font technology, which was developed

LCFONT

by SHARP Corporation for clearly displaying easy-to-read characters on LCD screens.

Tips: HOME menu contents

Main information

display zone

Featured and

recommended

function zone

Other function icons

Main information display zone

Various information, including the time, currently displayed programming, and current setting status are shown. Switching between the current setting status can be done using the coloured buttons.

Featured and recommended function zone

Available and recommended functions are shown.

Other function icons

Other function icons are shown.

Regarding the instructions in the manual

In this manual, the following expression is often used in order to simplify instructions.

• Go to “TV Menu” > “Setup” > ...

This indicates how to navigate through the Menu screen using the a/b/c/d and ; buttons.

Quick guide

Using the Menu screen

You need to call up the OSD to perform settings for the TV. The OSD for the settings is called “Menu”. The “Menu” enables various settings and adjustments.

Display the Menu screen

Go to “TV Menu”.

• You can also display the Menu screen via the HOME menu screen (Page 10).

Selecting in the Menu

Press c/d to select the desired menu,

and then press ;. Press 6 to return to the previous menu category.

Press c/d to select the desired sub-

menu, and then press ;. Press a/b to select the item you want to

select/adjust, and then press ;.

CH list

:Back:Enter

Setup


AV m od e

THX room mode setting

OPC

Backlight

[Off]

About the guide display

The guide display below the menu bar shows operations for the OSD.

• The bar above is an operational guide for the remote control unit. The bar will change in accordance with each menu setting screen.

NOTE

• “Menu” options differ according to the selected input modes, but the operating procedures are the same.

• Items with 4 cannot be selected for various reasons.

• Some items cannot be selected depending on signal types, optional settings or connected devices.

Selecting options

Press a/b or c/d to

configure the control for improving TV viewing, and then press ;.

EXAMPLE

Backlight

Yes No

NOTE

• Refer to the guide display below the menu bar to see when to press the ; button.

SetupCH list

:Select

:Back:Enter

Using Software keyboard

Use the software keyboard when you need to input text.

1 Char. Set

Changes character set into the alphabet, numbers, symbols, etc.

2 Caps

Changes characters to capital/lower case.

3 Done

Confirm the entry.

4 Cancel

Abort input and close the software keyboard.

5 R/G/Y/B (Colour)

buttons

Selects the coloured items on the screen.

Char.Set

Caps

Done

Cancel

Cursor Left Caps Char.Set Cursor Right

6 Input cursor

Press c/d to move the cursor when highlighted.

7 Input field

The text you enter is displayed as you type it in.

8 Character

Input characters by using these buttons.

9 ?

Put a line break.

NOTE

• Depending on the application, there may be a different software keyboard than the one indicated above.

Clear

Delete

0 Clear

Erases the character string.

• When the cursor is somewhere in a line: The character string to the right of the cursor will be erased.

• When the cursor is at the right end of a line: The entire line will be erased.

Q Delete

If the cursor is at the right end of a line, this erases text one character at a time.

• You can also delete text by pressing 6 on the remote control unit.

Initial auto installation

When the TV is powered on for the first time after purchase, the initial auto installation wizard appears. Follow the menus and make the necessary settings one after another.

Confirm the following before turning on the power

Is the antenna cable connected?

Is the AC cord plugged in?

1 Press a on the TV.

• The initial auto installation wizard appears.

2 Setting the OSD language.

Press a/b/c/d to select the desired language, and then press ;.

3 Selecting the location of the TV.

HOME

Press c/d to select where you will use this TV, and then press ;.

• The confirmation screen pops up only when

selecting “STORE”. Press c/d to select “Yes” or “No”.

• HOME: “STANDARD” will be the default value for the “AV mode” setting.

• STORE: “DYNAMIC (Fixed)” will be the default value for the “AV mode” setting. If the “AV mode” is changed, the TV will automatically switch back to “DYNAMIC (Fixed)” when there is no operation using the TV or remote control unit for 30 minutes.

• STORE: A demonstration image will be displayed after initial auto installation is completed. If you have chosen “STORE” by mistake, go to “TV Menu” > “Setup” > “View setting” > “Reset” > select “HOME” again.

STORE

4 Setting the country.

Press a/b/c/d to select your country or area, and then press ;.

• This setting screen only appears during the initial auto installation.

NOTE

• Some functions may not display or be selectable depending on the country setting or cable provider selection.

5 Setting the PIN.

1 Press c/d to select “Yes”, and then press

• When “No” is selected, the PIN code setting is skipped.

Enter a four-digit number as a PIN using the 0–9 buttons.

3 Enter the same four-digit number as in step

2 to confirm.

4 Press ;.

NOTE

• When “France” or “Italy” is selected in the country setting, the PIN code setting cannot be skipped.

• “0000” cannot be set as the PIN code.

• When the PIN code setting is skipped, the default PIN code (“1234”) will automatically be set.

• To change the PIN setting, refer to Individual setting — PIN (Page 41). To reset the PIN setting (PIN input will no longer be needed), refer to Reset the PIN (Page 76).

6 Starting channel search.

Digital search

Analogue search

Satellite search

Press a/b to select “Digital search”, “Analogue search” or “Satellite search”, and then press ;.

• After performing “Digital search” or “Analogue search”, the screen switches to the “Satellite search” setting. You should then execute “Yes” if you want to search for satellite channels.

• To watch both digital broadcasts and analogue broadcasts, you should perform “Digital search” or “Analogue search” from “Auto installation” under the “Setup” menu (Page 38).

• When you select “Satellite search”, only satellite broadcasts will be searched.

• If you want to search for more broadcasts, execute “Additional search” from the “Programme setup” menu (Pages 38_40).

NOTE

• If you turn off the power on the TV while performing a channel search, the initial auto installation wizard will not appear. The auto installation function allows you to execute the installation again from “TV Menu” > “Setup” > “View setting” (Page 38).

• The initial auto installation wizard will abort if you leave the TV unattended for 30 minutes before searching for channels.

• When “Italy” or “France” is selected in the country setting, the default age restriction value is set to 18.

Initial auto installation

Digital broadcast setting

Press c/d to select “Terrestrial” or “Cable”, and then press ;.

Terrestrial

Searching for terrestrial broadcasts

The TV searches for, sorts and stores all the receivable TV stations according to their settings and the connected antenna.

• To abort the initial auto installation in progress,

press 6.

NOTE

• A region or service selection screen may display depending on the country settings or cable providers selections. Follow the screen prompts to make the selections.

After searching for terrestrial channels, the screen switches to the “Satellite search” setting (Page

14).

Searching for cable broadcasts

To change each item to the appropriate settings:

1 Press a/b to select

the menu, and then press ;.

2 Press a/b/c/d or

0_9 to select or input the appropriate item/ value, and then press ;.

Cable

Scrambled stations [Yes]

Search method [Channel]

Start frequency

Network ID [None]

Symbol rate 1

Symbol rate 2

QAM modulation 1

QAM modulation 2

Reset

Search start

3 Press a/b to select “Search start”, and then

press ;.

4 Press c/d to select “Yes” to start searching

cable broadcasts, and then press ;.

5 The TV searches for, sorts and stores all the

receivable TV stations according to their settings and the connected antenna.

• To abort the initial auto installation in progress,

press 6.

After searching for cable channels, the screen switches to the “Satellite search” setting (Page

14).

Menu Description Selectable items

Scrambled stations

Search method

Start frequency

Network ID

Symbol rate 1/ Symbol rate 2*

QAM modulation 1

QAM modulation 2

Specifies if you need to add payTV services.

Specifies how you search for channels.*

Specifies the network.*

Input the value received for

CATV.*

Yes, No

Channel,

Frequency, Quick

From 47.0_858.0 MHz

None, 0_65535

1000_9000

16, 32, 64, 128, 256

None, 16, 32, 64, 128, 256

I Set up “Symbol rate 2” if the cable provider uses

several symbol rates.

J Details about the “Search method” items are as

follows: _Channel: Extracts all information from a channel (quick, but needs corresponding TV stations).

_Frequency: Checks every frequency in range (slow). _Quick: All services are searched by one frequency.

This menu works only when your cable provider provides the frequency and the network ID (e.g., Homing channel). When “Quick” is selected, “Scrambled stations” is automatically set to “Yes”, and “None” for the “Network ID” menu cannot be selected.

K Set this to register only the specified network ID

without registering any special services.

L The symbol rates are specified by the cable provider.

Analogue broadcast setting

The TV searches for, sorts and stores all the receivable TV stations according to their settings and the connected antenna.

• To abort the initial auto installation in progress,

press 6.

After searching for analogue channels, the screen switches to the “Satellite search” setting (Page

14).

Initial auto installation

Searching for satellite broadcasts

Press a/b to select “Satellite search”, and then press ;.

Digital search

Analogue search

Satellite search

• The antenna connection setting screen is displayed.

Single satellite

2 satellites on toneburst switchbox

Max. 4 satellites on DiSEqC multiswitch

Communal satellite system

NOTE

• You can select the antenna connection method from the four types. Consult your dealers before using a method other than “Single satellite”.

“Single satellite” setting

1 Press a/b to select “Single satellite”, and then

press ;.

2 Press a/b/c/d to select your favorite

satellite, and then press ;.

Atlantic Bird 1

Euro Bird 1

NOTE

• Follow the instructions on the screen for “2 satellites on toneburst switchbox”, “Max. 4 satellites on DiSEqC multiswitch” and “Communal satellite system” settings.

• To set multiple satellite channels, go to “Max. 4 satellites on DiSEqC multiswitch”.

• When a power supply is needed for your satellite antenna, follow the procedure below in order to supply the voltage specified by your service provider, etc.: Go to “TV Menu” > “Setup” > “View setting” > “Channel settings” > “Antenna setup-DIGITAL” > “Satellite setup” > “Change setting” > “Communal satellite system”.

Search start:

DVB-S/S2 channel searching.

1 Press c/d to select “Yes”, and then press ;.

• To change the settings for “Scrambled stations”,

press a/b to select the item to be reconfigured and then perform “Search start”.

Scrambled stations

Search start Start search?

[Yes]

Yes No

2 The TV searches for and stores all the receivable

TV stations according to their settings and the connected antenna.

• Select “Yes” to sort the search result in alphabetical order.

• To abort the initial auto installation in progress, press 6.

NOTE

• Scrambled stations: Specifies if you need to choose pay-TV services.

• Follow the procedure to perform “Manual search” if you want to configure the frequency or symbol rate and start to search after performing the auto searching during the initial auto installation.

− Go to “TV Menu” > “Setup” > “View setting” > “Channel settings” > “Programme setup” > “Satellite setting” > “Manual search”.

Initial auto installation

Checking signal strength and channel strength (DVB-T/T2/C/S/S2)

If you install a DVB-T/T2/C/S/S2 antenna for the first time or relocate it, you should adjust the alignment of the antenna to receive a good reception while checking the antenna setup screen.

1 Go to “TV Menu” > “Setup” > “View setting” >

“Channel settings” > “Antenna setup-DIGITAL”.

2 Press a/b to select “Digital setup” or “Satellite

setup”, and then press ;.

Checking signal strength

3 Press a/b to select “Signal strength”, and then

press ;.

Signal strength for DVB-T/T2/C

Supply voltage

Signal strength

Channel strength

Signal strength for DVB-S/S2

Signal strength

Channel strength

CH No. Signal strength

Current Max.

Quality

Current Max.

Signal strength

Current Max.

Quality

Current Max.

Checking channel strength

Press a/b to select “Channel strength”, and

then press ;.

• You can input a specified frequency band using the

0_9 numeric buttons.

Channel strength of DVB-T/T2

Supply voltage

Signal strength

Channel strength

Frequency

CH No. Signal strength

Current Max.

Quality

Current Max.

MHz

Channel strength of DVB-C

Supply voltage

Signal strength

Channel strength

Frequency

Symbol rate

QAM modulation

Signal strength

Current

Quality

Current Max.

Max.

Channel strength of DVB-S/S2

Signal strength

Channel strength

Frequency

Symbol rate

Band

Signal strength

Current Max.

Quality

Vert/Low

5 Position and align the antenna so that the

maximum possible values for “Signal strength” and “Quality” are obtained.

NOTE

• The values of “Signal strength” and “Quality” indicate when to check the appropriate alignment of the antenna.

Supplying power to the antenna

You must supply power to the antenna in order to receive digitally/terrestrially broadcast stations after connecting the antenna cable to the antenna terminal on the rear of the TV.

1 Go to “TV Menu” > “Setup” > “View setting” >

“Channel settings” > “Antenna setup-DIGITAL” > “Supply voltage”.

2 Press c/d to select “On”, and then press ;.

MHz

Current Max.

Watching TV

Daily operation

Switching on/off

Turning on/off the power

Press a on the TV or >a on the remote control unit.

Standby mode

From standby, press a on the TV or >a on the remote control unit.

Switching between digital, satellite and analogue broadcasts

Watching digital broadcasts

Watching satellite broadcasts

NOTE

• If multiple satellite services are set, each time you press the SAT button the channel switches as follows.

SAT1 SAT2

Watching analogue broadcasts

SAT3SAT4

Changing channels

Selecting an external video source

Once the connection is made, press b to display the “INPUT” screen, and then press b or a/b to switch over to the appropriate external source with ;.

CH list

INPUT

Switchable

NOTE

• You can also select an external video source from “HOME” > “Input change”.

• Only HDMI inputs which are not set for “Input skip” (Page 44) and properly connected inputs can be selected.

NOTE

• If you are not going to use this TV for a long period of time, be sure to remove the AC cord from the AC outlet.

• Weak electric power is still consumed even when the TV is turned off.

With :r/s With 0_9

Watching TV

Selecting a sound mode

DTV/SAT mode

If multi sound modes are received, each time you press 7 the mode switches as follows.

Audio (ENG) STEREO

L/R LRLR

Audio (ENG) CH A

CH A CH B CH AB

Audio (ENG) MONO

Press c/d to select L or R sound when the STEREO or DUAL MONO screen is displayed.

Audio (ENG) STEREO

L/R LRLR

NOTE

• The sound mode screen disappears in six seconds.

• Selectable items vary depending on the received broadcasts.

• When the “Audio description setting” menu is set to “On”, the audio description sound is selected depending on the main audio.

ATV mode

Each time you press 7, the mode switches as shown in the following tables.

NICAM TV broadcasts selection Signal Selectable items Stereo

Bilingual

Monaural

NICAM STEREO, MONO NICAM CH A, NICAM CH B, NICAM CH AB,

MONO NICAM MONO, MONO

A2 TV broadcasts selection Signal Selectable items Stereo Bilingual Monaural

STEREO, MONO CH A, CH B, CH AB MONO

NOTE

• When no signal is input, the sound mode will display “MONO”.

Channel display

You can display the channel information by pressing p on the remote control unit.

DTV mode ATV mode

Audio (ENG) STEREO Video Subtitle Off >> New information

I Four digit numbers (e.g., 0001) are displayed after

selecting the five Nordic countries in the country setting or for some cable operators. Also, operator profiles use four digits.

SAT mode

Audio (ENG) STEREO Video Subtitle Off >> New information

J Satellite channels are displayed by four digit numbers

(e.g., 0001).

K You can set four satellite stations to “SAT1”, “SAT2“,

“SAT3“, “SAT4”.

Auto

Subtitle

MONO

Time display in channel information

You can display the time information included in DTV, SAT and teletext broadcasts.

NOTE

• Skip step 1 if receiving DTV/SAT broadcasts.

1 Select a TV channel (the time information is

automatically captured).

2 Press p. The channel display will appear on the

TV.

3 Press p again within the several seconds

that the channel display is on the screen. Time information will be shown in the lower-right corner of the screen for several seconds.

4 Even when you change the TV channel, you can

display the time information with steps 2 and 3 above.

Operation without a remote control unit

You can operate the menu settings using the TV control buttons.

TV control buttons Remote control buttons

:r/s

i+/-

; a/b d/c

Watching TV

Favourite Channel Information

Before installation

This function allows you to group your favourite channels in a separate list. Pre-setting “My favourite” in advance allows you to select your favourite channels more conveniently.

NOTE

• “My Favourite” can only be used for DTV and SAT modes, a separate list will be stored for each input source DTV, SAT1/2/3/4.

• The maximum number of channels you can register in “My favourite” is:

− 50 for TV broadcast which will be allocated 001-050, as favourite channel numbers

− 50 for Radio broadcast which will be allocated 051- 100, as favourite channel numbers and

− 50 for Data broadcast which will be allocated 101- 150, as favourite channel numbers

How to add / remove / move your favourite channels

Press the ; button to display the on-screen channel list.

• If you have already set your favourite channels,

you will be able to see “CH list” or “My favourite” depending on your previous selection.

Function buttons used to edit “My favourite”

Buttons Description

Add to “My favourite” list or remove

R button

B button

from “My favourite” list. The “

” mark will be added to or

removed from the selected channel. Move channel position in “My

favourite” list. (“My favourite” channel numbers will be sequentially allocated.)

Selecting channels from “My favourite” list

1 How to move between “My favourite” list and

“CH list”.

1 Press the ; button when you watching DTV

or SAT to bring up the “CH list”.

2 Press the d key and select “My favourite”

list.

2 Move up and down the displayed channel list by

using the a/b keys then press the ; button to select the desired channel.

NOTE

• When watching your favourite channels via “My favourite” list, you can directly select other favourite channel by entering the favourite channel number on the remote control.

• Selecting the EPG function while using “My favourite” channel list, will only show details for the favourite channels you have added. (To view details of all available channels via the EPG, please switch back to “CH list” mode from “My favourite” by following the steps shown in 1 (1) and reselect “CH List” before pressing the EPG button.)

Operator profile

In case your CI Plus CAM supports Operator Profile, your CAM will inform you and guide you through the Operator Profile installation. When operator's profile is added by the CAM, it will be displayed in the CH list menu. Each profile will be stored as an independent list in the TV. You can delete operator profile you added.

Go to “TV Menu” > “Setup” > “View setting” > “Channel settings” > “Programme setup” > “Operator profile management”.

NOTE

• The TV supports 2 operator profiles.

• Operator profile can have mixed services such as T/C/ S1/S2/S3/S4, but will only be displayed based on the network and media type you select.

NOTE

• If you delete a channel via the “Manual adjust” option (“TV Menu” > “Setup” > “View setting” > “Channel settings” > “Programme setup” > “Digital setting” > “Manual adjust”), this will be deleted from both the “CH list” and “My favourite” list.

Watching TV

EPG

EPG is a programme list that is displayed on the screen. With the EPG, you can check the schedule for DTV/SAT/RADIO/DATA, view detailed information about them and tune to an event currently on-air.

Useful settings for using EPG

View setting

EPG

If you want to use the EPG for digital stations, select “Yes”. The EPG data must be automatically captured while the TV is in standby mode. After setting to “Yes”, it may take some time to turn off the power using the remote control unit or the TV due to the data capture process.

Go to “TV Menu” > “Setup” > “View setting” > “Individual setting” > “Standby search” > “EPG”.

Option

Display range setup

The “Display range setup” allows you to select three types of time spans for display on the screen.

Go to “TV Menu” > “Setup” > “Option” > “EPG setup” > “Display range setup”.

Item

Mode 1 (Wide angle)

Mode 2 (Zoom)

Mode 3 (Vertical angle)

Displays six hours of programme information.

Displays three hours of programme information.

Changes to the EPG display format with a vertical time span.

Option

Genre icon setup

You can grey out or place a mark on desired genres and smoothly search for programmes you frequently watch.

1 Go to “TV Menu” > “Setup” > “Option” > “EPG

setup” > “Genre icon setup”.

2 Press a/b to select the desired genre, and then

press ;.

Genre icon list

Icon Genre Icon Genre

Movie/Drama Music/Ballet/Dance

News/Current affairs

Show/Game show

Sports

Children’s/Youth programmes

3 Press a/b to select a level to pick out or

search for programmes you want to watch (“Standard”, “Light”, “Remark”).

Arts/Culture (without music)

Social/Political issues/Economics

Education/Science/ Factual topics

Leisure hobbies

Watching TV

Selecting a programme using EPG

The illustrations on this page are explained using three digit services.

Display/Close the EPG screen

Press EPG.

AM PM

Programme info. Search by genre Search by date Timer list

Select

NOTE

• You can also display the EPG screen from “TV Menu” > “EPG” > “EPG”.

Select a programme

1 Select the time span

Press c/d to select the time span you want to search.

• Continue to press d to display

programmes in the next time span.

Enter Back Exit

3 Check programme

information

4 Search a programme in a
