1. Part Names

1- 1. TV 1- 2. Remote Control Unit

2. Watching TV

2- 1. Displaying an External Equipment Image 2- 2. Initial Installation

3. Direct Button Operation

3- 1. Changing Channels 3- 2. Changing Volume 3- 3. MUTE 3- 4. FREEZE 3- 5. FLASHBACK 3- 6. SmartCentral 3- 7. NETFLIX 3- 8. AUDIO 3- 9. Sleep Timer 3- 10. AV MODE 3- 12. Closed Captions and Digital Closed Captions 3- 14. VIEW MODE

4. On-Screen Display Menu

4- 1. Introduction 4- 3. On -Screen Display Menu Operation 4- 4. Menu Operation Buttons 4- 5. Initial Setup 4- 14. Information 4- 17. Picture Settings 4- 21. Audio Settings 4- 22. Smart TV 4- 25. System Options

5. Enjoying Photo/Music/Video Playback

5- 1. Preparation 5- 2. Selecting the Folders to Play Back 5- 4. Playing Back Files on a USB Memory Device/Home Network Server 5- 9. Presetting Remote Control Function 5- 12. Operating the Connected Equipment

6. Using LINK Operation

6- 1. Controlling HDMI Equipment Using LINK Operation 6- 3. Link Operation Menu 6- 5. Using a Smartphone with the TV

7. Using a PC

7- 1. Adjusting the PC Image 7- 2. Setting Audio Input 7- 3. Control of the TV 7- 4. PC Compatibility Chart

8. Using the Internet

8- 1. Connecting to the Internet 8- 2. Internet Setup 8- 5. Entering Text (Software Keyboard) 8- 7. Using the Browser 8- 11. Using Keyboard and Mouse 8- 12. Using Applications via the Internet 8- 14. Notes

9. Using the Miracast devices

9- 1. Miracast devices

10. Appendix

10-1. Removing the Stand 10-2. Setting the TV on the Wall 10-6. Troubleshooting

11. Specifications

11-1. TV 11-2. Wireless LAN

12-1. Trademarks

13. Dimensional Drawings

14. Software License

ENG Contents

ENG Important1

ENG Important2

ENG Important3

ENG Important4

ENG Important5

Part Names

(Front)

*1 *2

(Side)

(Rear)

*1 See the Setup Guide. *2

*3 *4 *5

See page 4-18. See page 4-26.

See pages 2-1 and 4-4 for button operations.

And see page 6-1 for external equipment connection. See page 7-2 for details on the Audio Select function. See page 6-2. for details on the Audio Return Channel. See page 6-5. for details on the MHL function. See page 4-12 for details on the Input Select function.

The illustrations and on-screen displays in this operation manual are for explanation purposes

and may vary slightly from the actual operations.

The examples used throughout this manual are based on the LC- 60LE660U model.

ENG 1- 1

Part Names

1 POWER: 2

AUDIO operation.

(See pages 5-9 to 5-12 for details.)

* To enter the code registration mode, you need to press an appropriate button ( or

3 4 5

Operation is used.

(See pages 6-1 to 6-4 for details.)

(See page 3-9.)

(See pages 3-1

(See page 3-12 to 3 -13)

(See page 3-10.)

(See page 3-3.)

(See page 3-2.)

(See page 4-1.)

14 15 16 17

(See page 4-7.)

While watching, you can toggle the selected channels by pressing

19 20

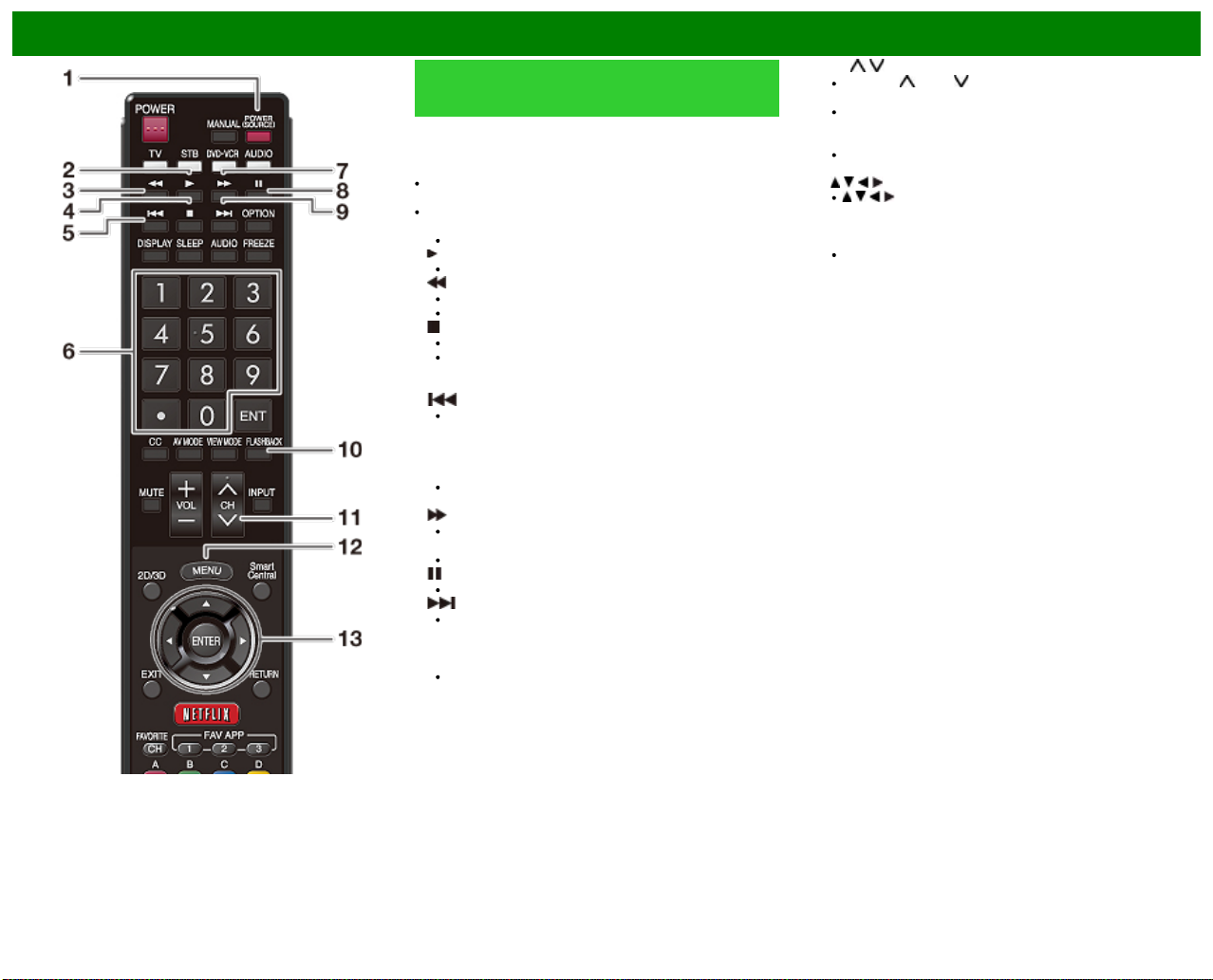

Remote Control Unit

Switch the TV power on or enter standby.

TV, STB, DVD•VCR, AUDIO: Switches the remote control for TV, STB, BD, DVD, VCR and

AUDIO) and DISPLAY at the same time. External equipment operational buttons: Operate the external equipment. DISPLAY: Display the channel information. OPTION: Display the Link Operation Menu screen. This button will function only when LINK

SLEEP: Set the sleep timer.

0–9: Set the channel.

• (DOT): Set the channel.

CC: Display captions from a closed-caption source.

AV MODE: Select an audio or video setting.

MUTE: Mute the sound.

VOL+/-: Set the volume.

MENU: Display the menu screen.

2D/3D: This button is not available.

/ / / , ENTER: Select a desired item on the screen.

EXIT: Turn off the menu screen.

FAVORITE CH: Set the favorite channels.

A, B, C, D: Select 4 preset favorite channels in 4 different categories.

MANUAL: Display the operation manual.

POWER (SOURCE): Turns the power of the external equipment on and off.

and 5-12.)

A, B, C and D.

STB, DVD•VCR

NOTE

When using the remote control unit,

point it at the TV.

ENG 1- 2

Part Names

21 FREEZE:

(See page 3-4.)

(See page 3-8.)

23 24

(See page 3-5.)

(See pages 3-14 to 3 -16.)

(See page 2-1.)

(See page 3-1.)

(See page 3-6.)

29 30

If you press the NETFLIX button when the TV is turned off, the TV turns on and the NETFLIX screen is displayed.

(See page 3-7.)

(See page 8-12.)

Remote Control Unit (Continue)

Set the still image. Press again to return to normal screen.

AUDIO: Selects the MTS/SAP or the audio mode during multichannel audio broadcasts.

ENT: Jumps to a channel after selecting with the 0–9 buttons.

FLASHBACK: Return to the previous channel or external input mode.

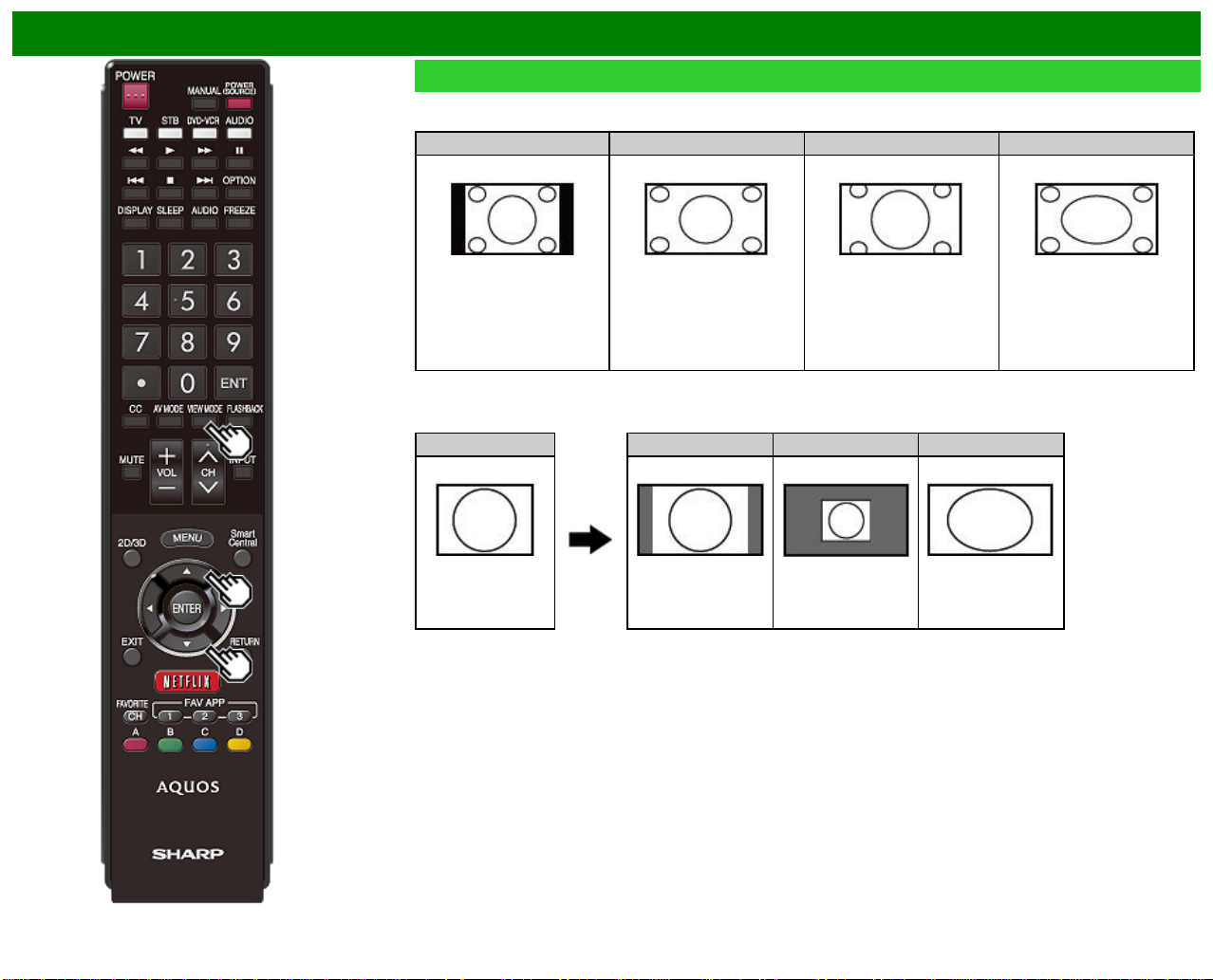

VIEW MODE: Select the screen size.

INPUT: Select a TV input source.

CH / : Select the channel.

SmartCentral: Display the application window.

RETURN: Return to the previous menu screen.

NETFLIX: Display the Netflix screen.

FAV APP 1, 2, 3: You can assign your favorite applications to these buttons.

NOTE

When using the remote control unit,

point it at the TV.

ENG 1- 3

Watching TV

To view external source images, select the input source by pressing unit or on the TV.

Displaying an External Equipment Image

INPUT on the remote control

Example

You can also select the input source by pressing INPUT. Each time INPUT is pressed, the input source toggles.

1 Press INPUT.

The INPUT list screen displays.

2 Press

/ to select the input source.

An image from the selected source

automatically displays.

ENG 2- 1

Watching TV

Initial Installation

Perform the following steps before you press POWER on the remote control unit.

1. Insert the batteries into the remote control unit.

2. Connect the antenna cable to the TV.

3. Plug in the AC cord to the AC outlet.

Language (Language setting)

Select from among 3 languages: English, French and Spanish.

1 Press

/ to select the desired language listed on the

screen, and then press ENTER.

Location & Time

Make settings for the country, area and time zone where you use the TV.

2 Press

3 Press / to select the time zone where you are using

/ to select "United States", "Canada" or

"Mexico", and then press ENTER.

the TV, and then press ENTER.

The time zone differs depending on the selected

country.

The factory preset value is the time zone for the capital

of the selected country.

Example

ENG 2- 2

Watching TV

Initial Installation (Continue)

4 Press / to select the Daylight Savings Time, and then

press ENTER.

"Auto" is the default selection.

TV Location

Select "Home" or "Store" for the location where you plan to install the TV. This product qualifies for ENERGY STAR in Home mode default setting.

5 Press / to select "Home" or "Store".

Press ENTER to enter the setting.

Home: AV MODE is set to "STANDARD (ENERGY

STAR)".

Store: AV MODE is set to "DYNAMIC (Fixed)". Picture

Reset and Feature Demo can be set.

Picture Reset: AV MODE will be set to "DYNAMIC (Fixed)" regardless of whether Picture Reset is "On" or "Off".

If you select "On" and there is no operation for 30

minutes:

- AV MODE will be reset to "DYNAMIC (Fixed)".

When "Off" is selected:

- Even after 30 minutes elapses, AV MODE is not reset to "DYNAMIC (Fixed)".

Feature Demo: When "On" is selected, after all the settings are completed, the Feature Demo screen is displayed if there is no operation for several minutes.

NOTE

ENERGY STAR qualification is based on AV MODE

"STANDARD (ENERGY STAR).

ENG 2- 3

Watching TV

Initial Installation (Continue)

Antenna & Cable/STB

Select the type of connection you will use to watch TV.

6 Press

To watch TV via an antenna or cable connection (without using a set-top box):

Select "Antenna & Cable", and then go to step 7. To watch TV via a set-top box:

/ to select "Antenna & Cable" or "Set-top box",

and then press ENTER.

Select "Set-top box", and then press ENTER. Check that the set- top box connected to the TV is on.

To watch TV, select the input source corresponding to the terminal connected to the set- top box.

See page 4-12 for details on the Input Skip function.

Press INPUT to select the input source corresponding to the terminal connected to the set- top box. Make the necessary settings on the connected external equipment.

See the operation manual of the connected equipment for

setting up the equipment.

Air/Cable (Antenna setting)

Make sure what kind of connection is made with your TV when selecting "Air" or "Cable".

7 Press Press ENTER to enter the setting.

/ to select "Air" or "Cable".

ENG 2- 4

Watching TV

Initial Installation (Continue)

CH Search (Channel search)

Channel auto search makes the TV look for all channels viewable in the set area.

8 When "Air" is selected in Antenna setting: Press

/ to select "Start", and then press ENTER.

When "Cable" is selected in Antenna setting:

Press

/ to select "Analog & Digital Search Start" to search both analog and digital broadcasts, or to select "Analog Search Start" to search only analog broadcasts, and then press ENTER.

The Channel search will start automatically. To exit the Channel search screen, select "Cancel", and

then press ENTER.

Smart TV

When you connect to the Internet on the TV, select the desired connection method and follow the instructions shown on the display.

Wireless LAN connection is possible only when the WPS

(push button) method is used. If any other method is used, make settings by Smart TV > Internet Setup.

(See pages 8-2 to 8-4.)

9 Press

10 Press / to select "Wired" or "Wireless", and then

/ to select "Yes", and then press ENTER.

press ENTER.

ENG 2- 5

Watching TV

Initial Installation (Continue)

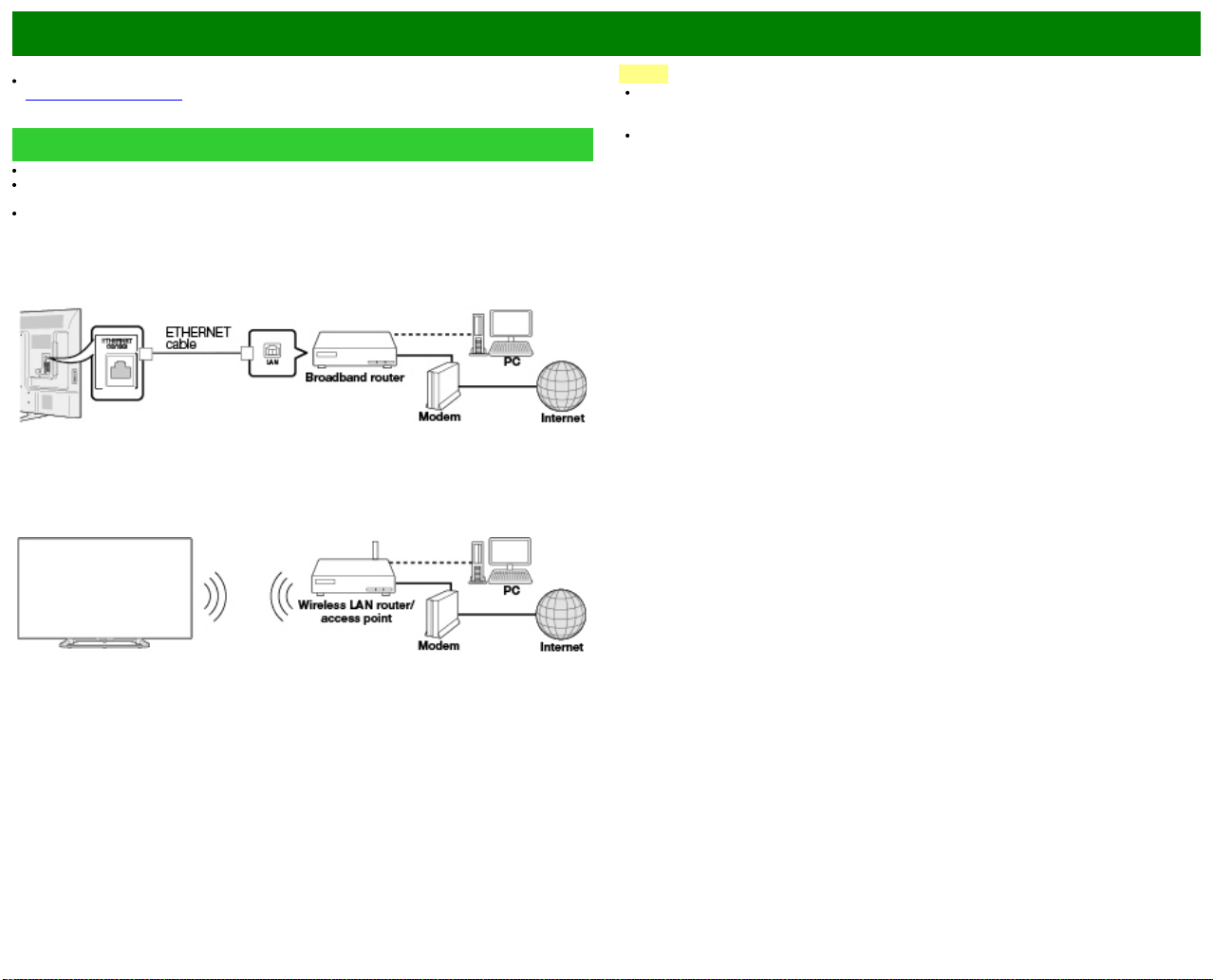

Connection using an ETHERNET cable:

Select "Wired" and press ENTER. Confirm that the TV is properly connected with the

router, and then press "Next". Follow the instructions on the display to perform the connection test.

Wireless LAN connection by the WPS method:

Select "Wireless" and press ENTER. Follow the instructions on the display, and finalize the

connection after testing its viability.

NOTE

After you finish configuring the network settings,

configure the "TV Name Setting".

(See pages 4-24, 7-3.)

When you change the network settings, refer to Smart TV

> Internet Setup.

(See pages 8-2 to 8-4.)

Completed

11 The settings confirmation screen is displayed. Confirm

the information displayed on the screen, and then press

ENTER.

Examples of the settings confirmation screen When "Antenna & Cable" was selected in step 6.

ENG 2- 6

Watching TV

Initial Installation (Continue)

NOTE

If no channel is found, confirm the type of connection

made with your TV and try "Easy Setup" again.

(See page 4-5.)

When "Set-top box" was selected in step 6.

Click "OK" to display the confirmation screen for input

source switching.

Show the input list: You can check the current connection

status of external equipment. Confirm which input terminal is connected to the set -top box.

OK: Clicking "OK" will complete the Easy Setup procedure.

NOTE

For changing the settings of the Initial Installation, perform

"Easy Setup" on the Initial Setup menu on

page 4-5.

ENG 2- 7

Direct Button Operation

Changing Channels

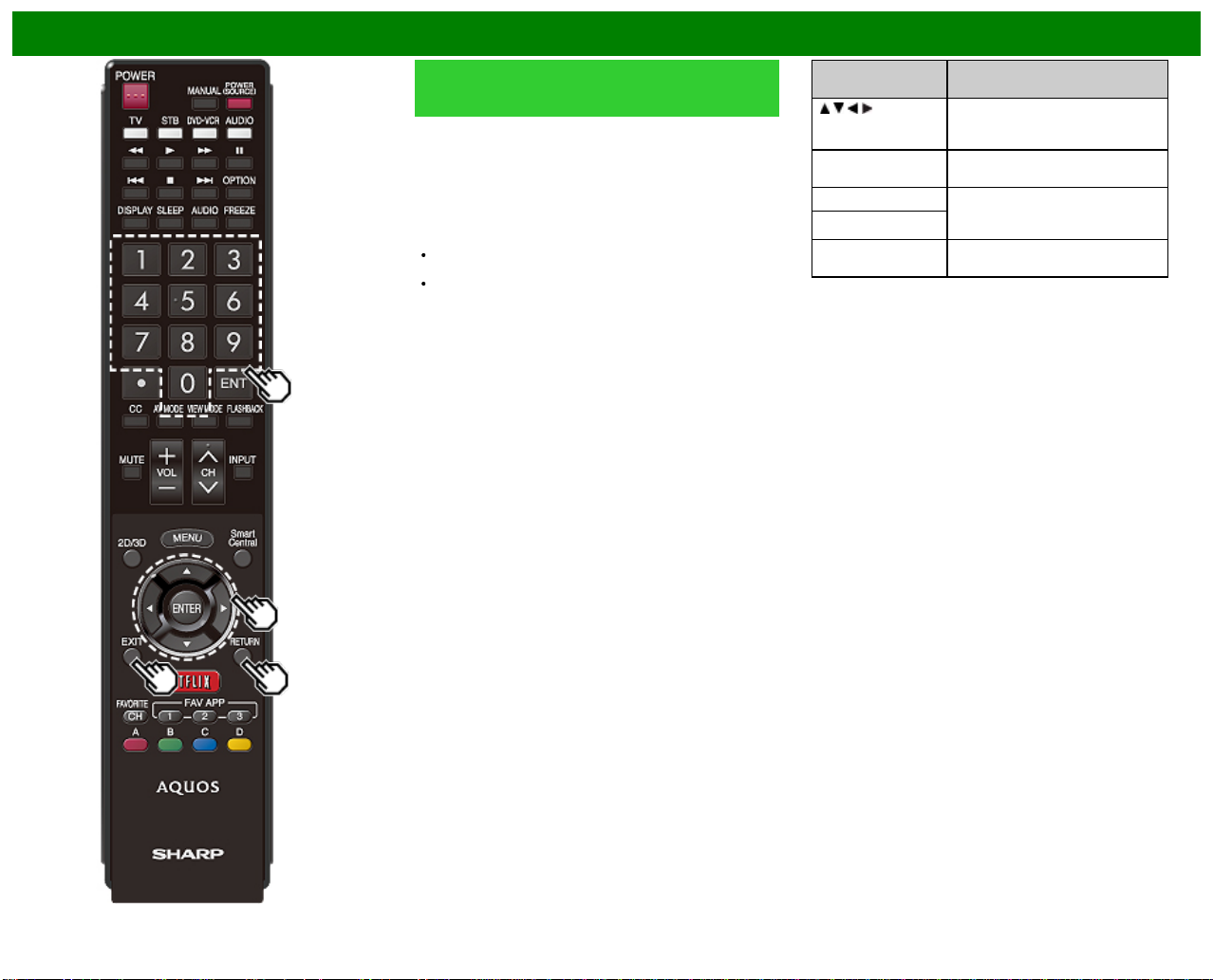

You can change channels in several ways.

Method 1 Using CH Method 2 Using remote control buttons 0-9, • (DOT).

Examples: To select a 1 or 2-digit channel number (e. g., Channel

Press 5 To select a 3 -digit channel number (e. g., Channel

Press 1 To select a 4 -digit channel number (e. g., Channel

Press 2

/ on the remote control unit or on the TV.

5):

ENTER

115):

1 5 ENTER

22.1):

2 • (DOT) 1 ENTER

NOTE

When selecting a 1 -digit channel number, it is not

necessary to press 0 before the number.

When you enter 0-9 only, channel selection will be made

if there is no operation within a few seconds. If you push "0" by itself, nothing will happen. Complete the above steps within a few seconds. When you enter 0-9 and • (DOT), channel selection will

be made if there is no operation within a few seconds.

ENG 3- 1

Direct Button Operation

Changing Volume

You can change the volume by pressing VOL+/- on the TV or on the remote control unit.

To increase the volume, press VOL +. To decrease the volume, press VOL -.

Audio status

Output device

Speaker Variable sound Mute

When "Output Select" is set to "Variable", the indicator on

the screen changes as shown below.

NOTE

See page 4-12 for details on the Output Select function.

Output Select

Fixed Variable

ENG 3- 2

Direct Button Operation

MUTE

Mutes the current sound output. Press MUTE.

" " will be displayed on the screen for 30 minutes, and

the sound is silenced.

NOTE

Within 30 minutes of pressing MUTE, mute can be

canceled by pressing VOL+/- or MUTE.

Mute will be canceled after 30 minutes have passed.

However, the TV will not suddenly output a loud sound as the volume level is set to 0 automatically.

ENG 3- 3

Direct Button Operation

FREEZE

Allows you to capture and freeze a moving image that you are watching. Press FREEZE.

A moving image is captured. Press FREEZE again to cancel the function.

NOTE

When this function is not available, "No displaying still

image available." will display. The still image automatically goes out after 30 minutes. If you are using the freeze function and a broadcast

activates the V-CHIP BLOCK, the freeze function will be

canceled and a V- CHIP BLOCK message will appear.

ENG 3- 4

Direct Button Operation

FLASHBACK

Press FLASHBACK to switch to the previously tuned channel or previous input mode.

Press FLASHBACK again to switch back to the currently

tuned channel.

NOTE

FLASHBACK will not work if no channel has been

changed after the TV is turned on.

ENG 3- 5

Direct Button Operation

SmartCentral

Allows you to directly activate various types of applications.

1 Press SmartCentral to display the application window.

Press SmartCentral again to switch back to the

currently tuned channel.

2 Press

NOTE

/ to select the desired application, and then

press ENTER.

If " " is displayed, check the USB connection. If " " or " " is displayed, check your TV’s

network settings and connection.

See page 5-2, 8-7 to 8-12 for details of viewable

applications. When this function is not available, "Can not operate this

function now" will display.

ENG 3- 6

Direct Button Operation

NETFLIX

Displays the Netflix screen.

Press NETFLIX.

NOTE

If you press the NETFLIX button when the TV is turned off, the TV turns on and the NETFLIX screen is displayed.

To enjoy Netflix, you need to make:

—a broadband Internet connection

(See page 8-1.)

—settings of Internet Setup

(See pages 8-2 to 8-4.)

—adjustments for Netflix

(See page 8-13.)

ENG 3- 7

Direct Button Operation

Examples: when receiving MTS and SAP

AUDIO

MTS/SAP stereo mode

The TV has a feature that allows reception of sound other than the main audio for the program. This feature is called Multi-channel Television Sound (MTS). The TV with MTS can receive mono sound, stereo sound and Secondary Audio Programs (SAP). The SAP feature allows a TV station to broadcast other information, which could be audio in another language or something completely different like weather information.

You can enjoy Hi-Fi stereo sound or SAP broadcasts where available.

Stereo broadcasts: View programs like live sporting

events, shows and concerts in dynamic stereo sound. SAP broadcasts: Receive TV broadcasts in either MAIN

or SAP sound.

MAIN sound: The normal program soundtrack (either in

mono or stereo).

SAP sound: Listen to a second language, supplementary

commentary or other information. (SAP is mono sound.)

If stereo sound is difficult to hear.

Obtain a clearer sound by manually switching to fixed

mono -sound mode.

You can change MTS as shown below to match the television broadcast signal. Press AUDIO to toggle between audio modes.

STEREO mode:

STEREO + SAP mode: MAIN + SAP mode: MONO mode: MONO

Digital broadcasting audio mode

The types of audio transmitted in a digital broadcast include SURROUND as well as MONO and STEREO. In addition, it is possible for multiple audio tracks to accompany a single video track. Press AUDIO to toggle between audio modes.

Example: when receiving Digital broadcasting

NOTE

MTS only operates while in TV mode. You can have the same settings by choosing "Change

Audio" on the menu items.

(See page 4-25.)

ENG 3- 8

Direct Button Operation

Sleep Timer

Allows you to set a time when the TV automatically switches to standby. Press SLEEP.

The remaining time displays when the sleep timer has

been set. Each time you press SLEEP, the remaining time switches

as shown below.

When set, the time automatically starts counting down. If you want to adjust the sleep timer, you can press

SLEEP twice then change the time setting. When it is 5 minutes before the time expires, the

remaining time will start to keep appearing every minute.

NOTE

Select "Off" by pressing SLEEP to cancel the sleep timer. The TV will enter standby when the remaining time

reaches 0.

ENG 3- 9

Direct Button Operation

AV MODE

AV MODE gives you several viewing options to choose from to best match the surrounding environment of the TV, which can vary due to factors like room brightness, type of program watched or the type of device connected. You can use USER Mode to create customized settings for each TV input. These settings will be automatically saved on each input for convenience. Press AV MODE. Current AV MODE displays.

Press AV MODE again before the mode displayed on the

screen disappears. The mode changes as shown below:

ENG 3- 10

Direct Button Operation

AV MODE (Continue)

STANDARD (ENERGY STAR): For a highly defined image

in a normal lighting.

MOVIE: For a movie. PC: For PC. USER: Allows the user to customize settings as desired.

You can set the mode for each input source.

DYNAMIC: For a clear-cut image emphasizing high

contrast, useful for sports viewing.

DYNAMIC (Fixed): Changes the image and sound settings

to the factory preset values. No adjustments are allowed.

NOTE

You can select a different AV MODE item for each input

mode. (For example, select STANDARD (ENERGY STAR) for TV input and DYNAMIC for COMPONENT.)

You can have the same settings by choosing "AV MODE"

on the menu items.

(See page 4-17.)

ENG 3- 11

Direct Button Operation

Closed Captions and Digital Closed Captions

Your TV is equipped with an internal Closed Caption decoder. It allows you to view conversations, narration and sound effects as subtitles on your TV. Closed Captions are available on some TV programs and on some VHS home video tapes at the discretion of the program provider. Digital Closed Caption service is a new caption service available only on digital TV programs (also at the discretion of the service provider). It is a more flexible system than the original Closed Caption system, because it allows for a variety of caption sizes and font styles. When the Digital Closed Caption service is in use, it will be indicated by the appearance of a 3- letter abbreviation that also indicates the language of the Digital Closed Captions: ENG (English), SPA (Spanish), FRA (French) or other language codes. Not all programs and VHS videotapes offer closed captions. Please look for the " be shown. In the Closed Caption system, there can be more than one caption service provided. Each is identified by its own number. The "CC1" and "CC2" services display subtitles of TV programs superimposed over the program’s picture. In the Closed Caption system, the "Text1" or "Text2" services display text that is unrelated to the program being viewed (e.g., weather or news). These services are also superimposed over the program currently being viewed.

" symbol to ensure that captions will

1 Press CC.

This will present the Closed Caption information

display.

2 Press CC while the Closed Caption information is still on

the screen.

Press repeatedly until you select the desired closed

caption service.

Depending on the number of caption services in the

signal being received, you will see information such as 1/2 or 1/4 displayed. 1/2 means "the first of two services".

Example:

If a program has three services (Digital CC(ENG), CC1 and Text1), the closed caption display will toggle in this sequence:

The CC button keeps a record of the last service selected

in its memory. If the last closed caption mode (e.g. 1/3 ENG) you selected is not available for the next program, or on another channel, the closed caption service that is available is automatically selected, and this service appears in parentheses, e.g. "1/3(CC1)". Closed Caption services that appear in parentheses will not be stored in the CC button’s memory as your last selected service. Only services that you have selected with the CC button are stored.

ENG 3- 12

Direct Button Operation

Closed Captions and Digital Closed Captions (Continue)

Examples:

In a case where there are two closed caption services provided (for instance, Digital CC(ENG) and CC1), and Digital CC(ENG) is displayed as your current selection, if Digital CC(ENG) is not broadcast for the next program, the other closed caption service, CC1, will be displayed in parentheses. A closed caption service appears in parentheses because the service you selected is not available and a different service is displayed on your screen. "1/1(CC1)" is displayed instead of "1/2/ENG".

NOTE

See page 4-26 for detailed closed caption settings.

When the program contains no closed caption, "-- "

displays in the closed caption information.

If the language code, e.g. "ENG", is not found on Digital

TV programs, "- -" will be shown.

Four kinds of closed caption service (CC1, CC2, Text1,

Text2) are potentially available, but a broadcast may contain none or only some of these services at the discretion of the program provider.

When a web page is displayed, Closed Captions are not

available.

You can have the same settings by choosing "Change

CC" on the menu items.

(See page 4-25.)

ENG 3- 13

+ 94 hidden pages
