SERVICE MANUAL
In the interests of user-safety (Required by safety regulations in some countries) the set should
be restored to its original condition and only parts identical to those specified should be used.
SAFETY PRECAUTION
IMPORTANT SERVICE SAFETY
PRECAUTION............................................................ i
PRECAUTIONS A PRENDRE LORS DE LA
REPARATION ........................................................... ii
PRECAUTIONS FOR USING LEAD-FREE
SOLDER ...................................................................iii
CHAPTER 1. SPECIFICATIONS
[1] SPECIFICATIONS .................................................1-1
CHAPTER 2. OPERATION MANUAL
[1] OPERATION MANUAL ..........................................2-1
CHAPTER 3. DIMENSIONS
[1] DIMENSIONS ........................................................3-1
LC-65D64U
No. S77L8LC65D64U
LCD COLOR TELEVISION
LC-65D64UMODEL
CONTENTS

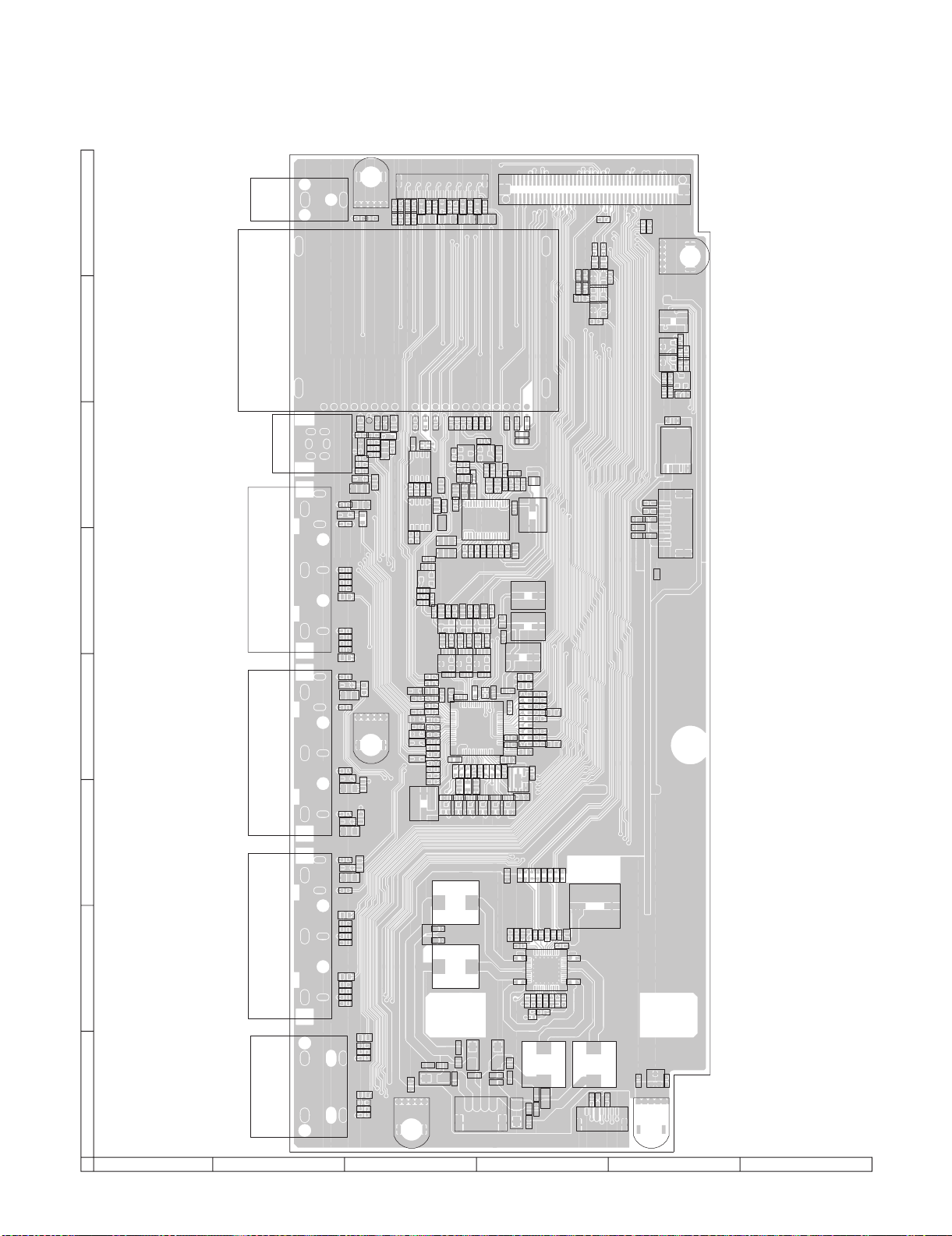

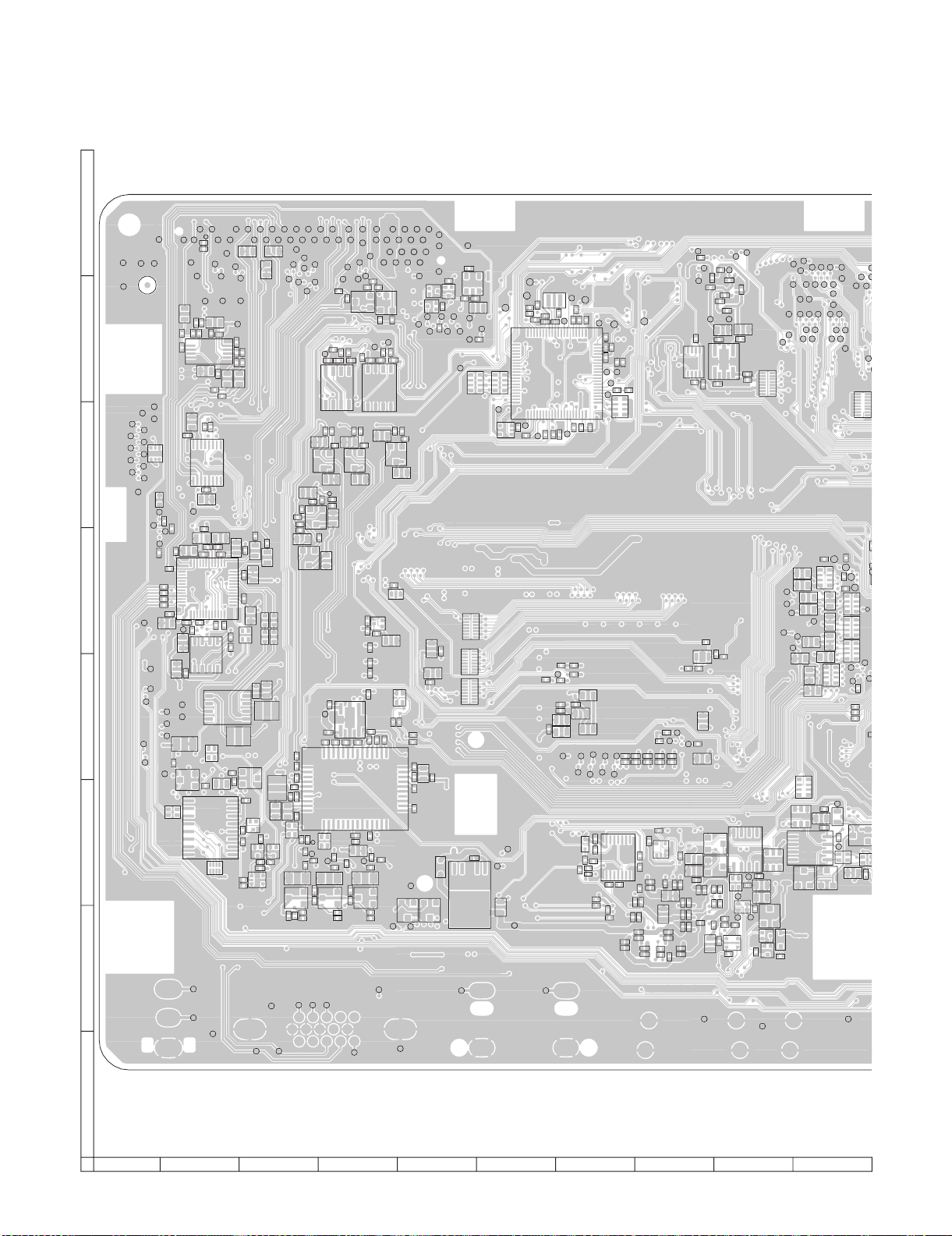

CHAPTER 9. PRINTED WIRING BOARD ASSEMBLIES

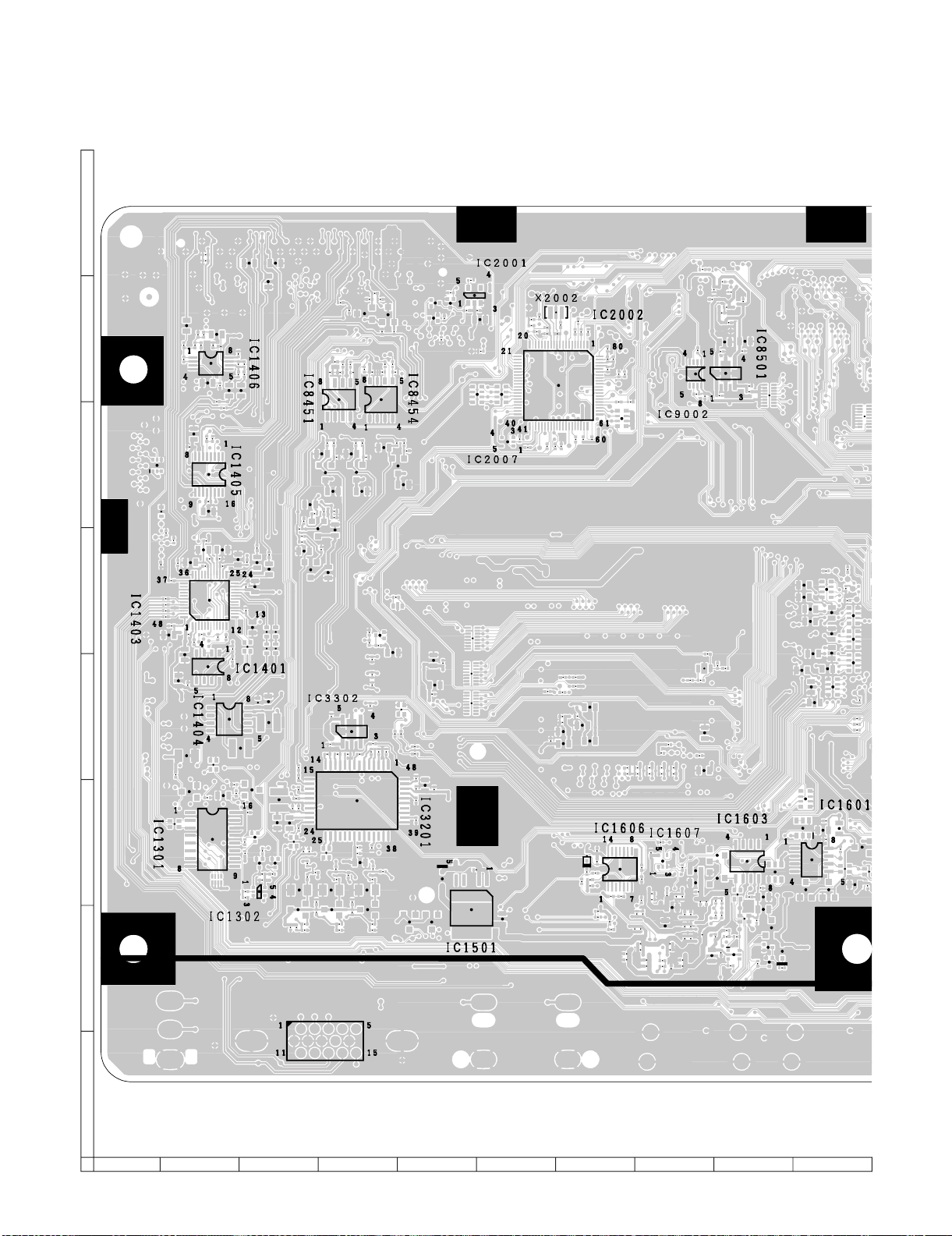

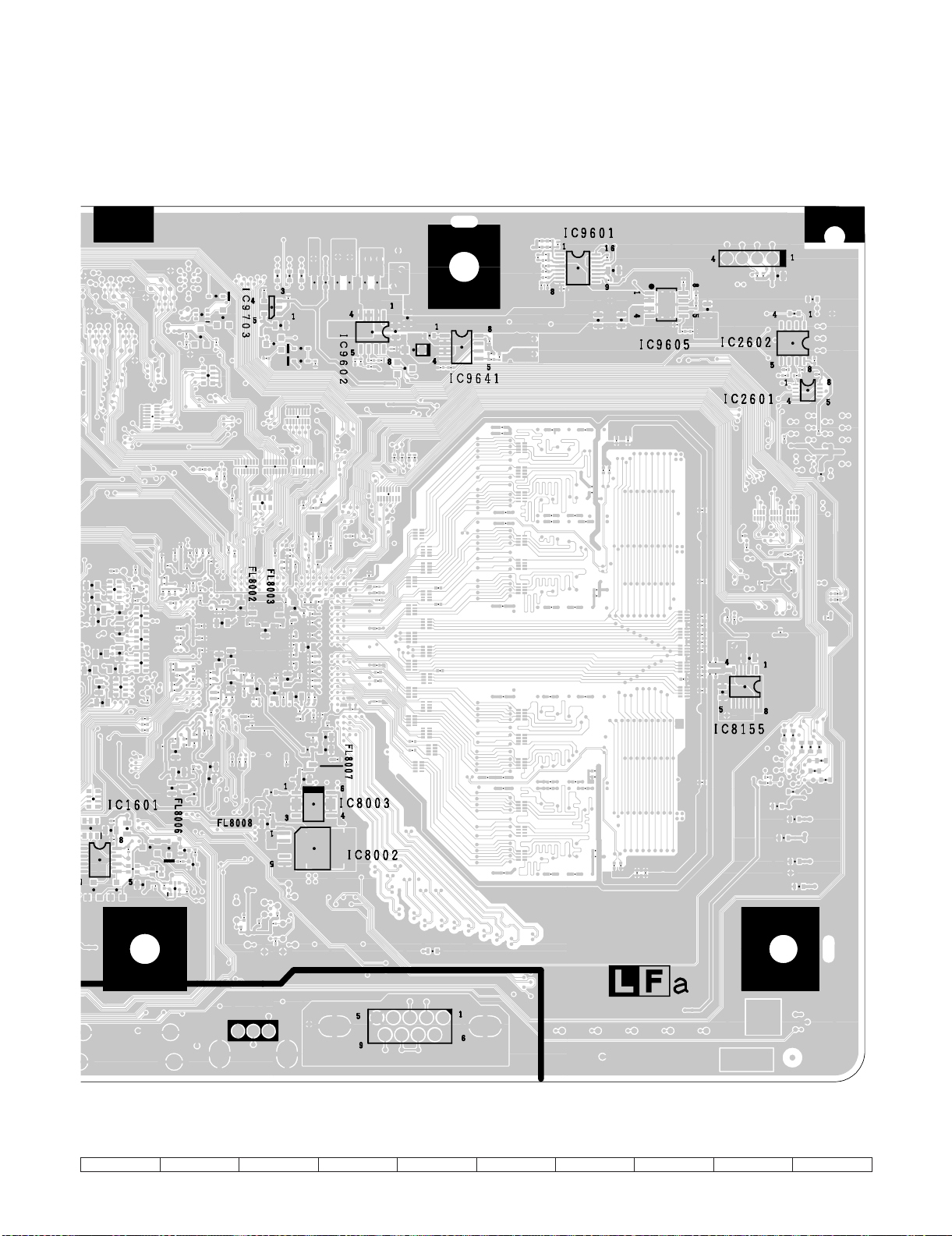

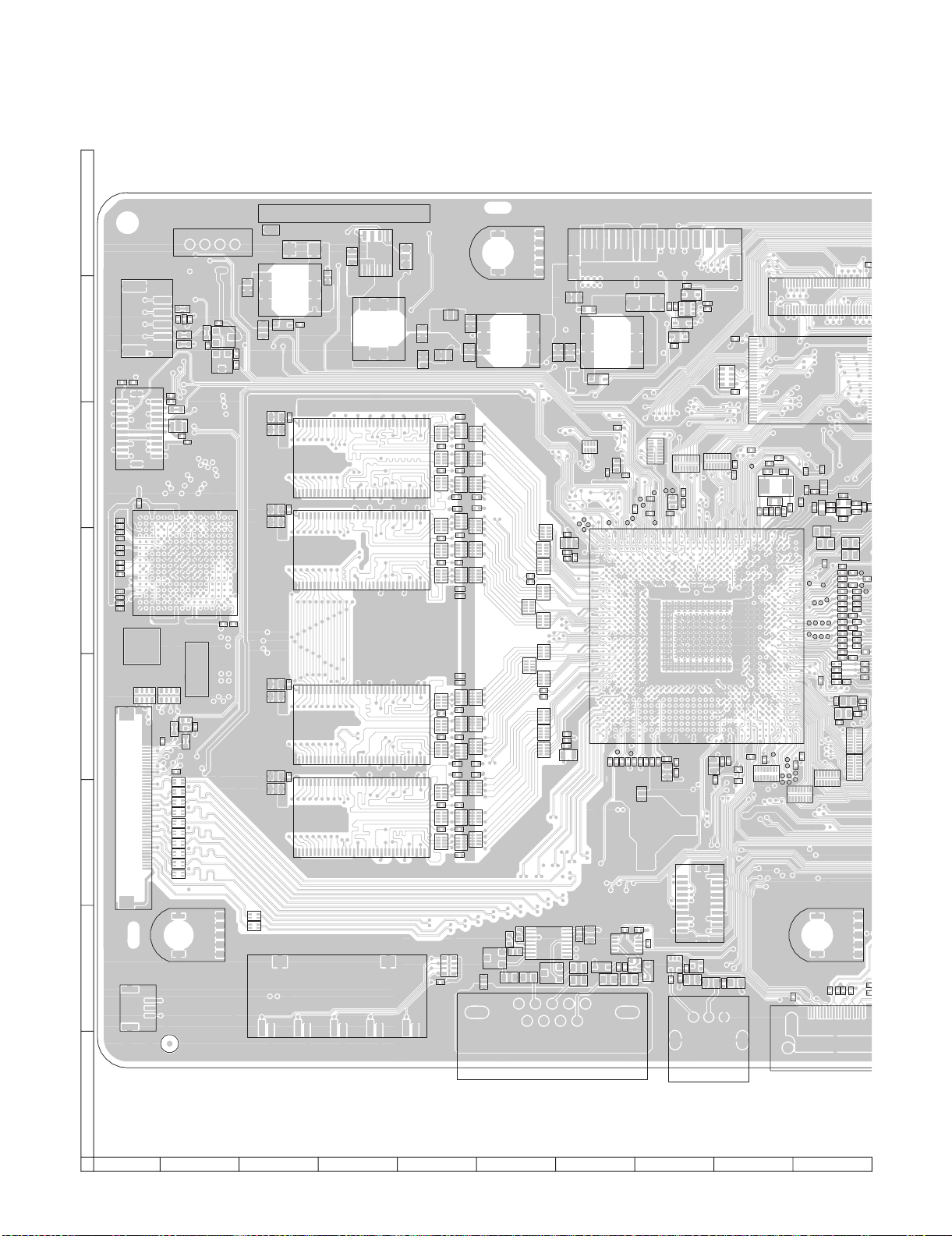

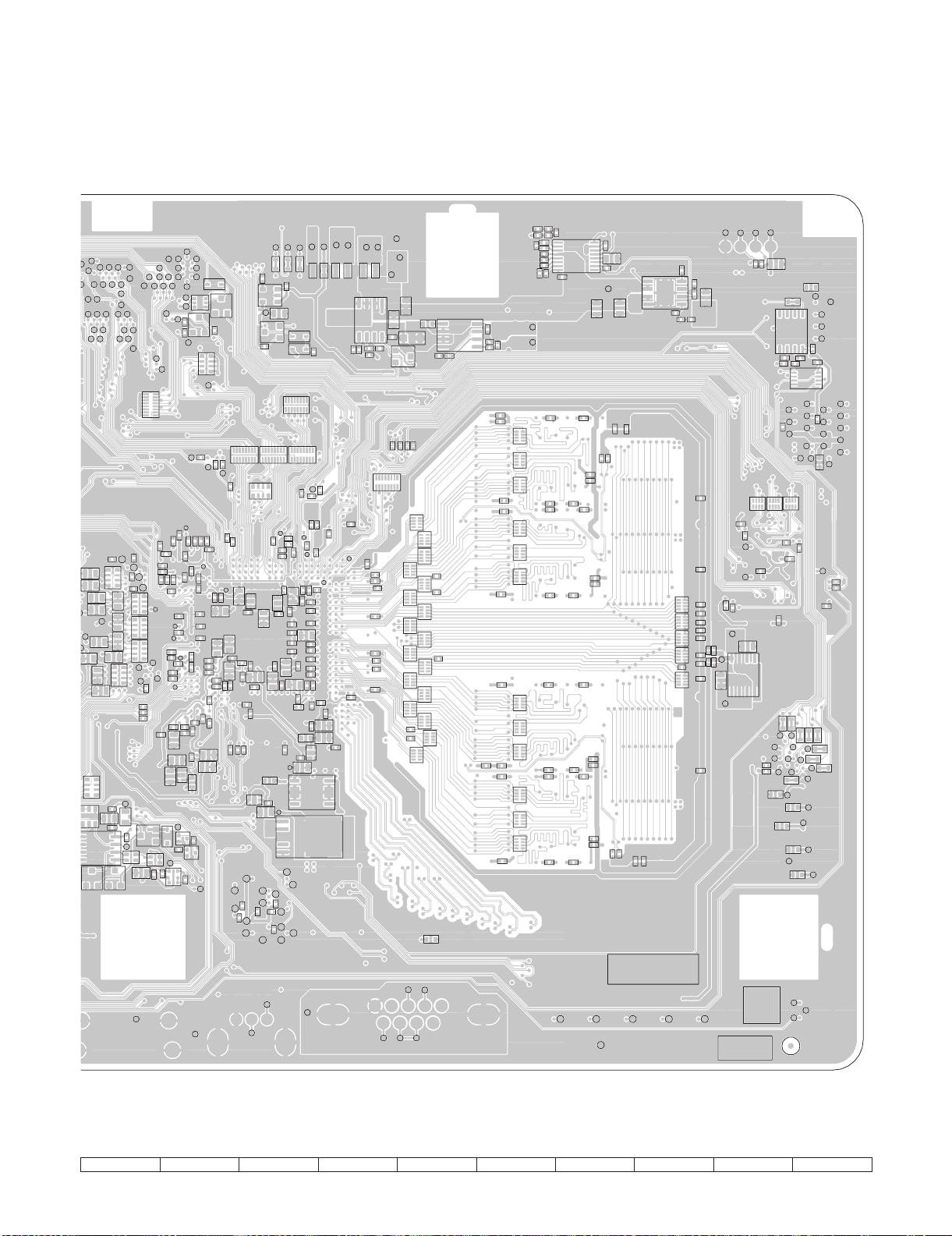

[1] MAIN Unit...............................................................9-1
[2] TERMINAL Unit......................................................9-9
[3] SIDE Unit .............................................................9-11
[4] R/C, LED Unit.......................................................9-13
[5] KEY Unit...............................................................9-14

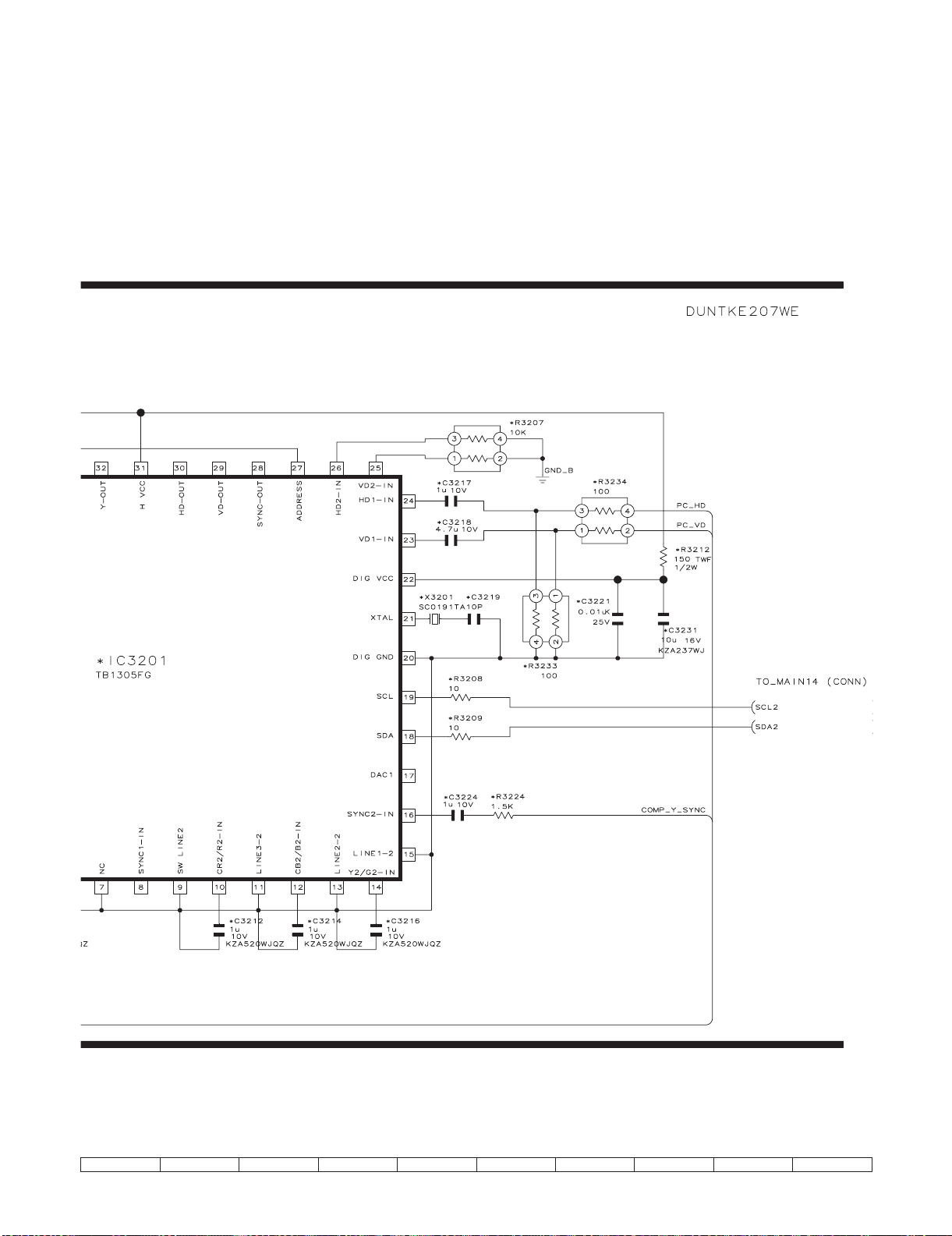

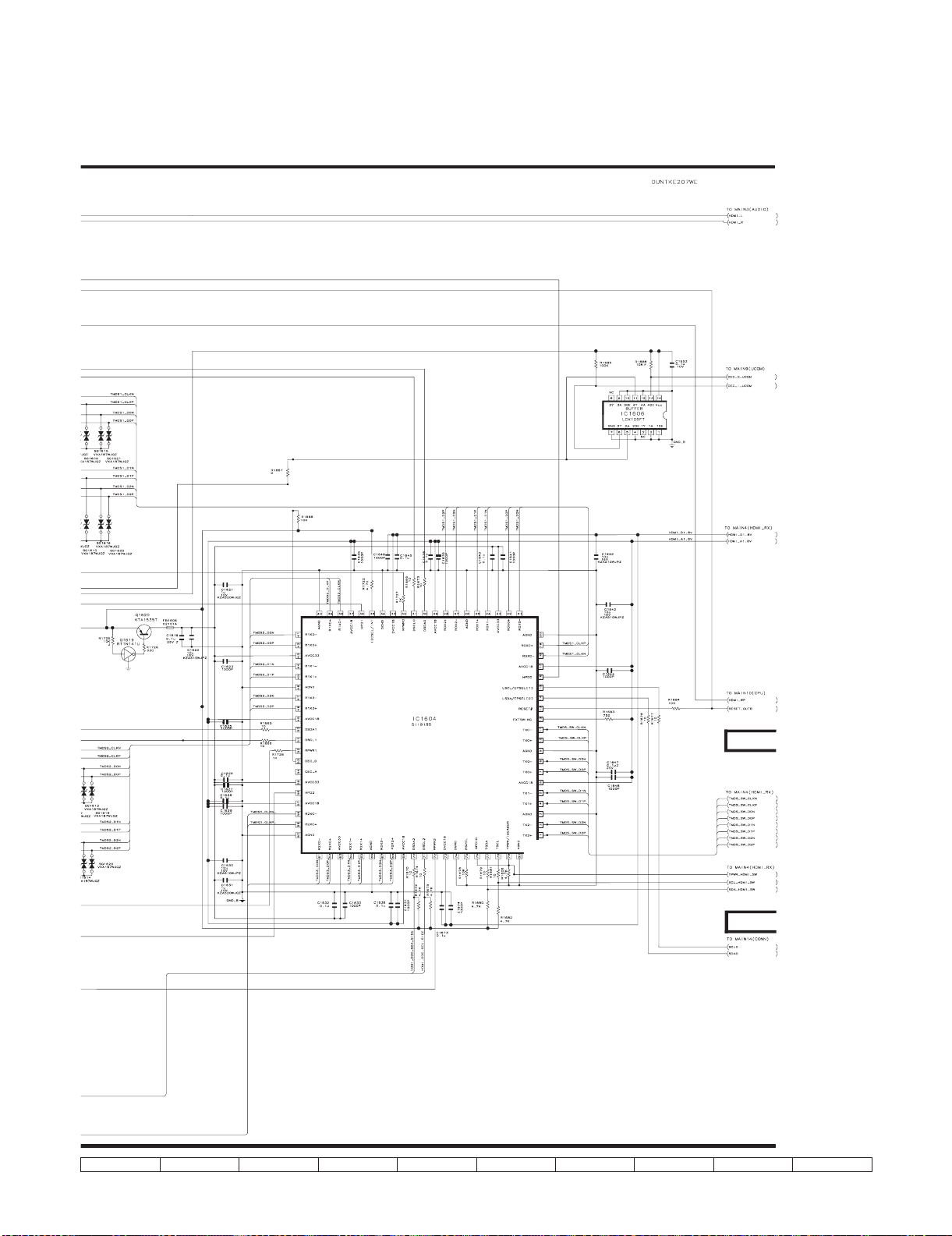

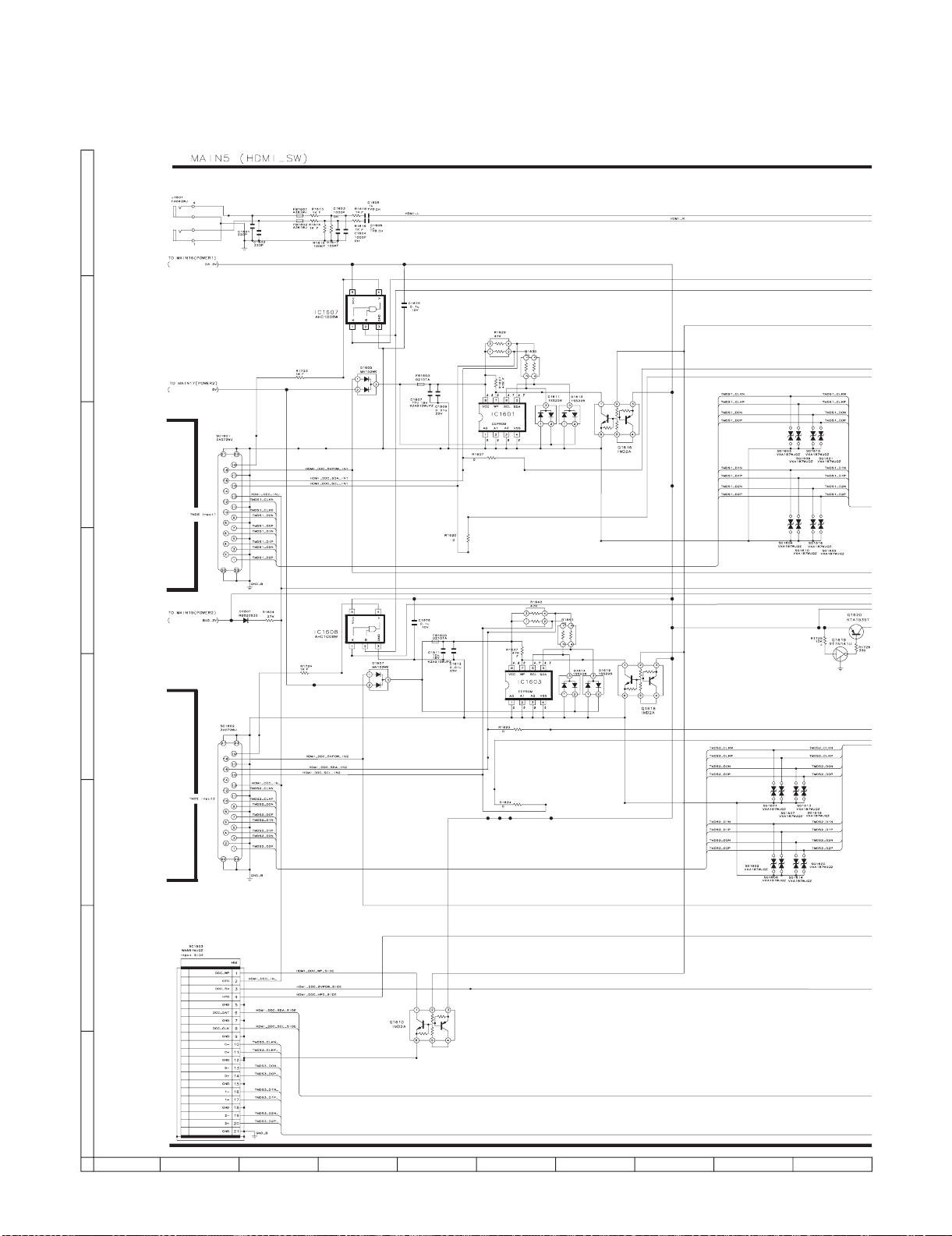

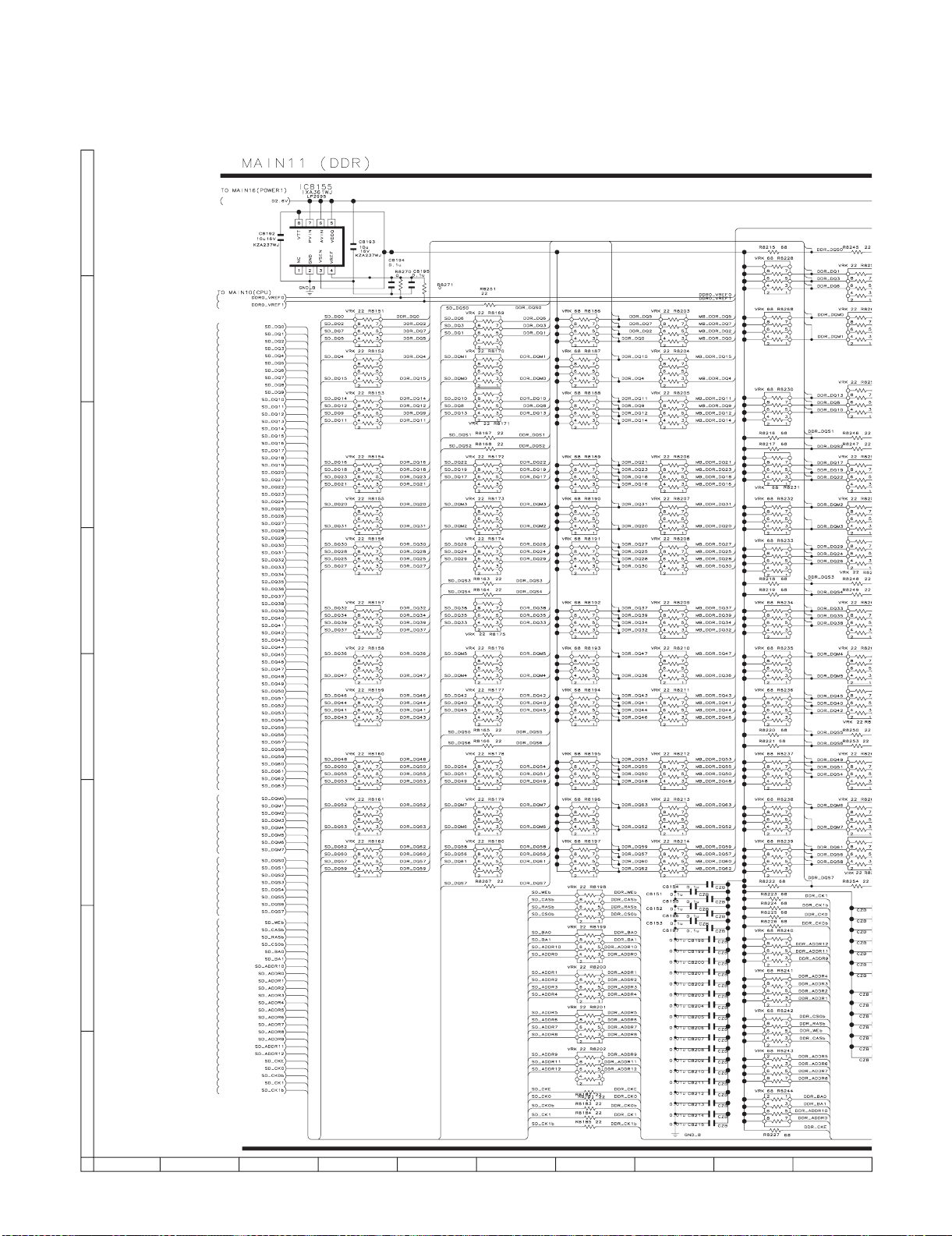

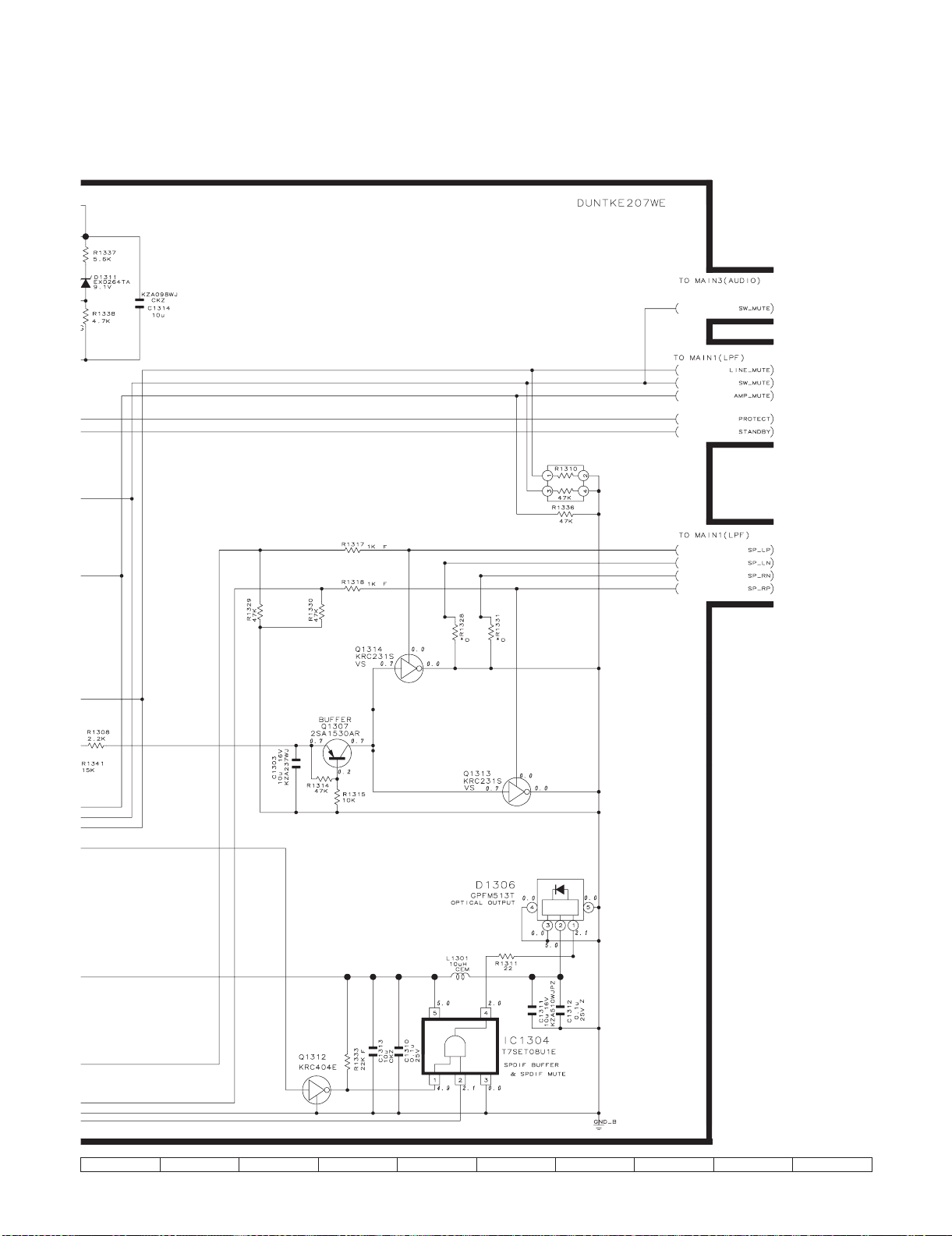

CHAPTER 10. SCHEMATIC DIAGRAM
[1] DESCRIPTION OF SCHEMATIC DIAGRAM.......10-1
[2] R/C, LED Unit.......................................................10-2

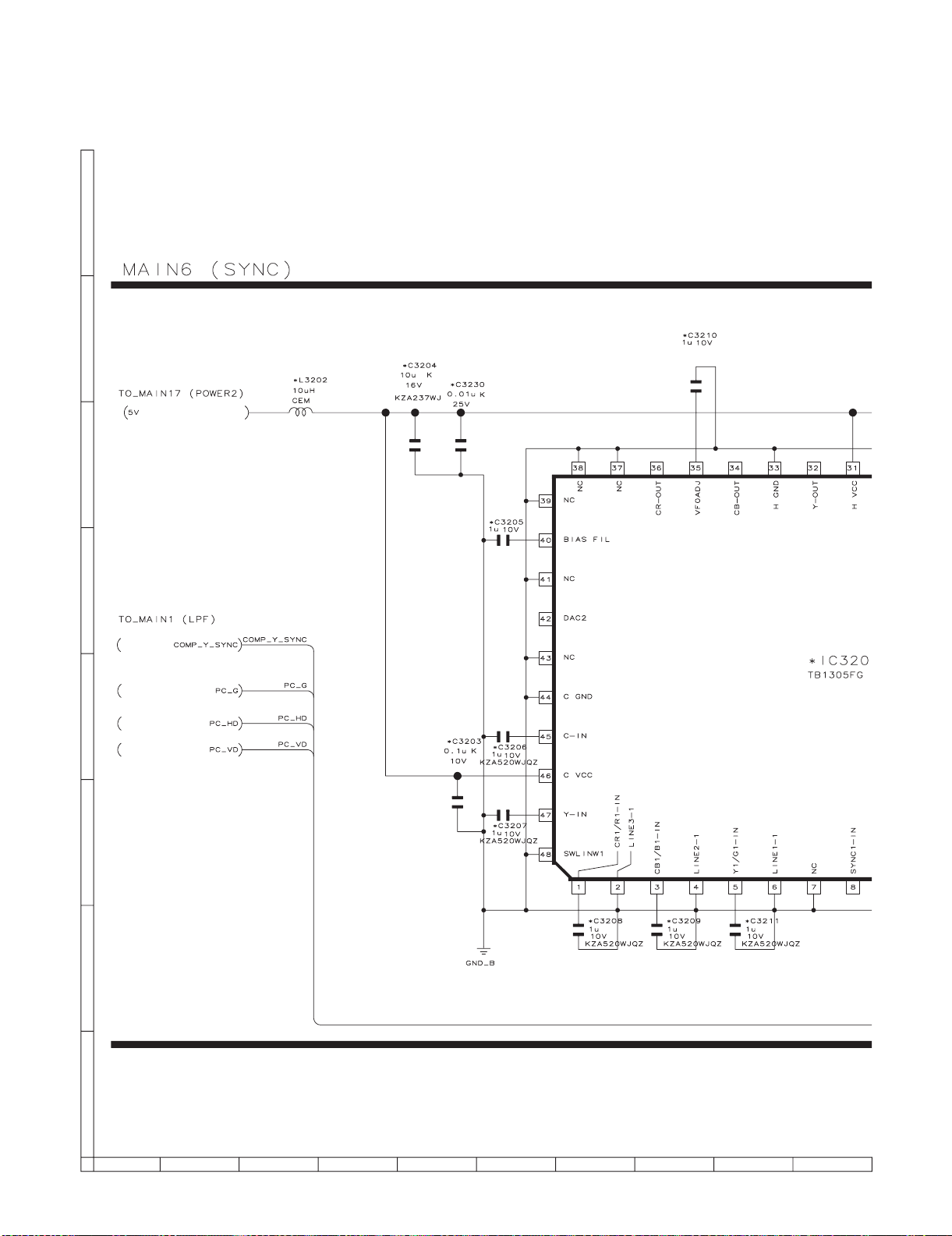

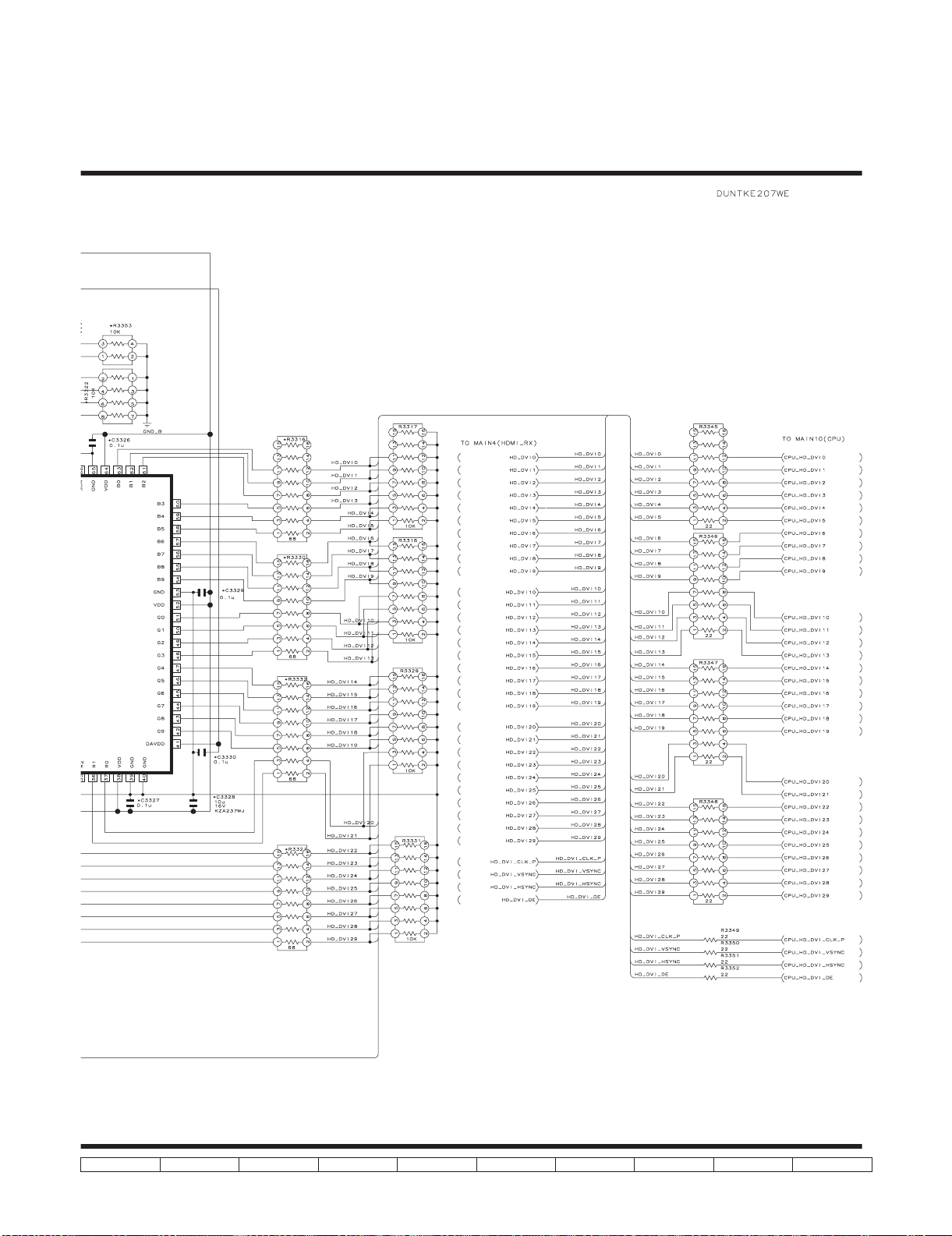

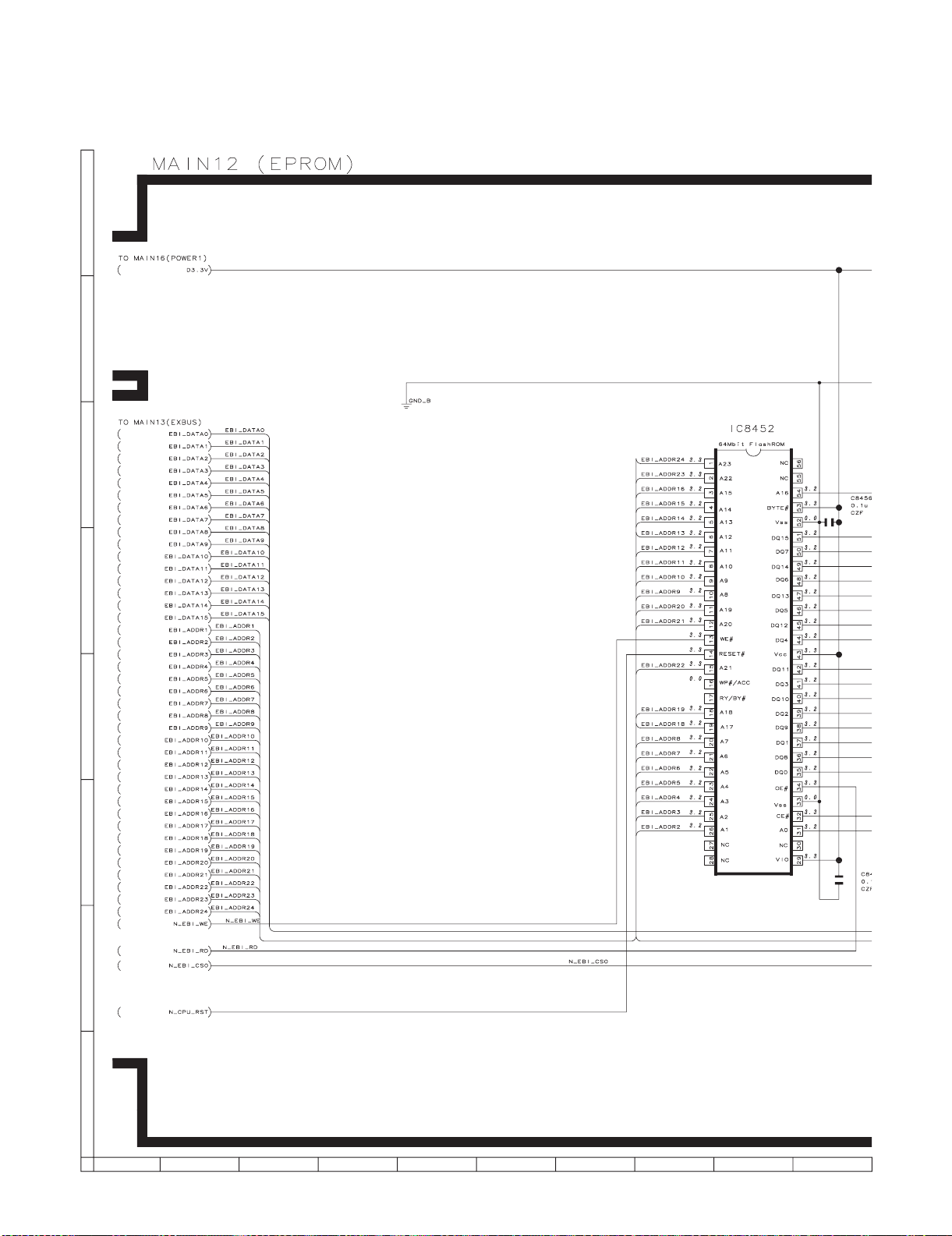

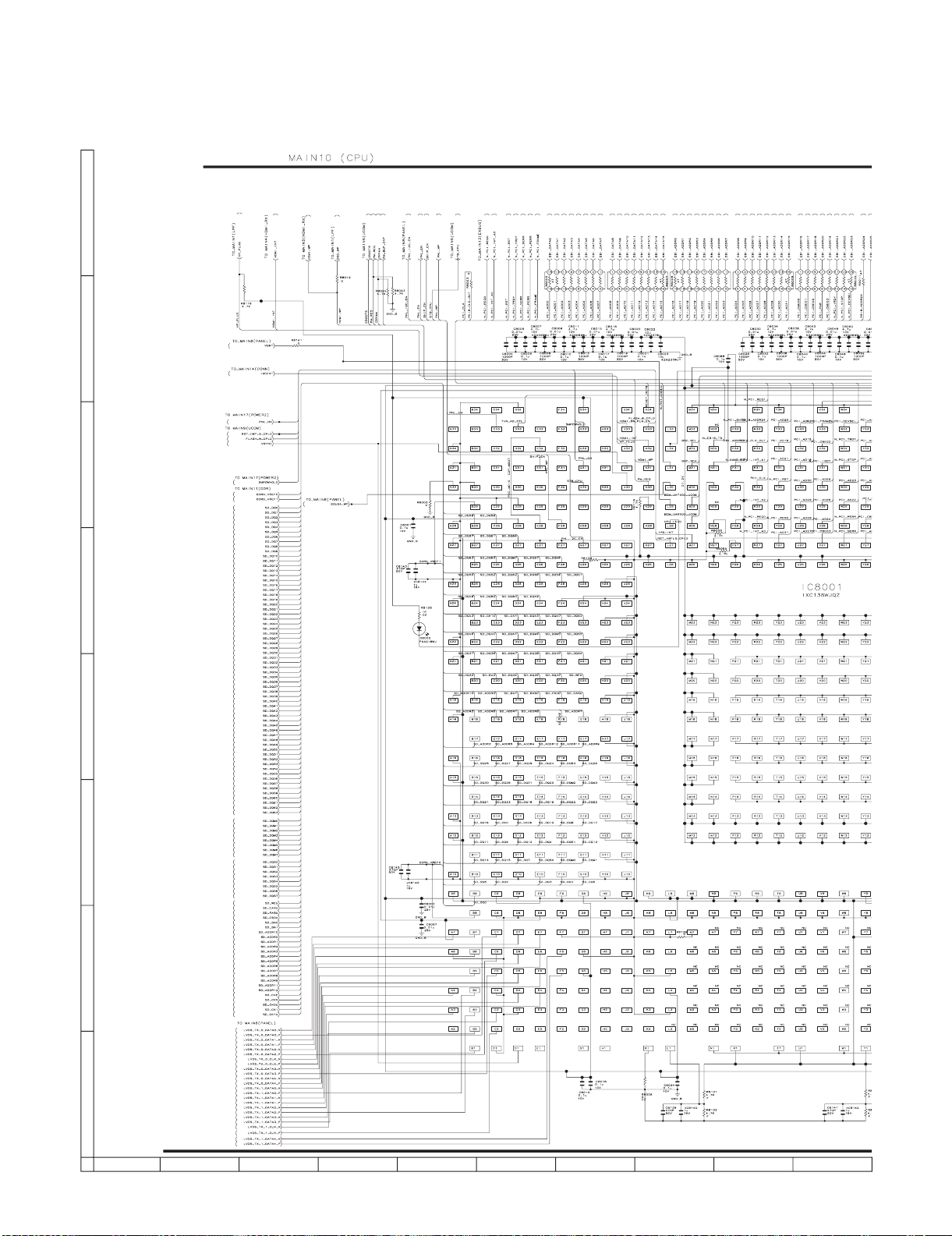

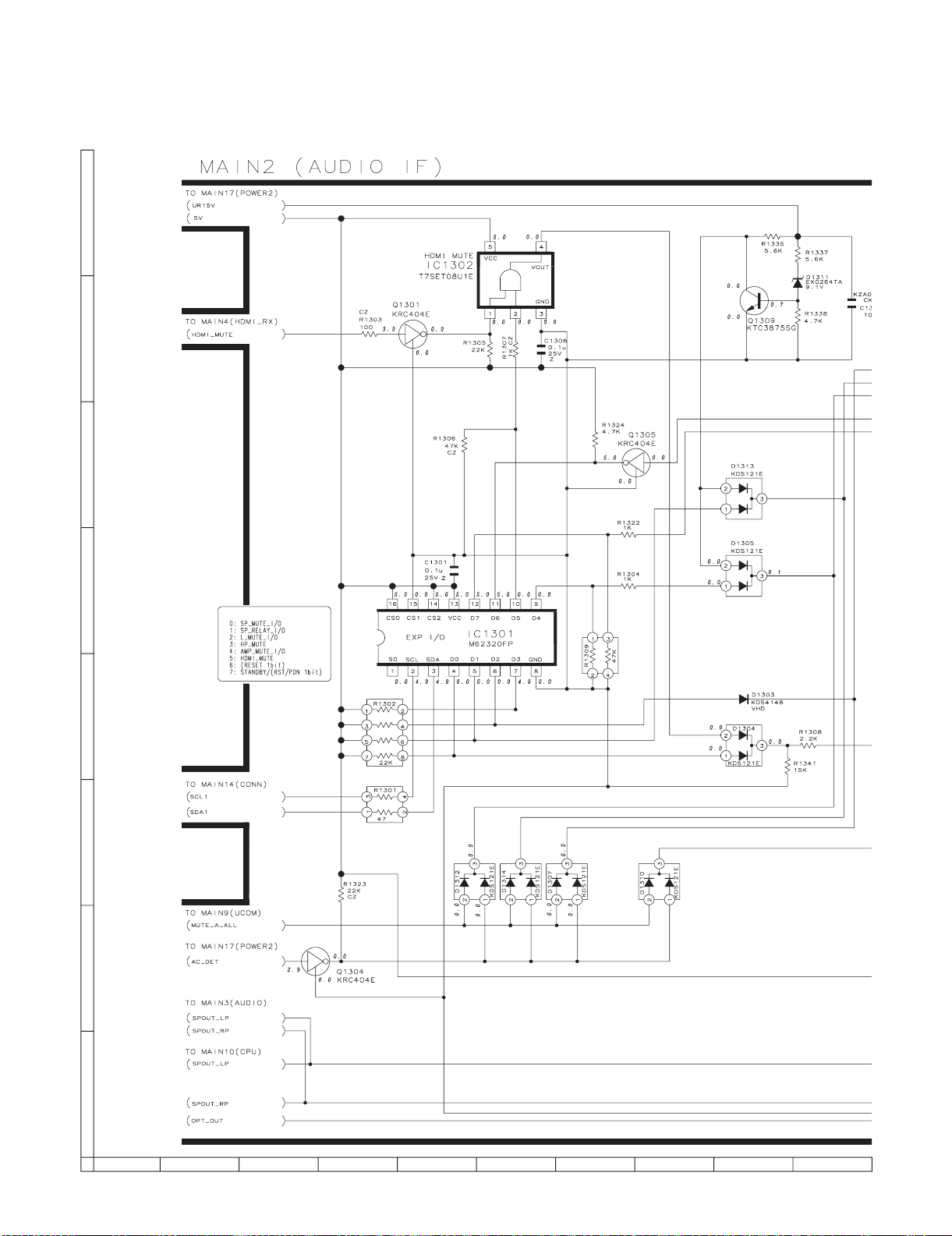

[3] MAIN Unit.............................................................10-3
[4] TERMINAL Unit..................................................10-37
[5] SIDE Unit ...........................................................10-43
[6] KEY Unit.............................................................10-47
Parts Guide
CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS ...........................4-1
CHAPTER 5. ADJUSTMENT
[1] ADJUSTMENT PROCEDURE ...............................5-1
CHAPTER 6. TROUBLE SHOOTING TABLE
[1] TROUBLE SHOOTING TABLE..............................6-1
CHAPTER 7. MAJOR IC INFORMATIONS
[1] MAJOR IC INFORMATIONS..................................7-1
CHAPTER 8. OVERALL WIRING/BLOCK DIAGRAM
[1] OVERALL WIRING DIAGRAM ..............................8-1
[2] SYSTEM BLOCK DIAGRAM .................................8-3
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the
safety and performance of the set.
This document has been published to be used for
after sales service only.
The contents are subject to change without notice.
LC-65D64U
LC-65D64U
SAFETY PRECAUTION
Service Manual
IMPORTANT SERVICE SAFETY PRECAUTION
Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and the
servicing guidelines which follow:
WARNING
1. For continued safety, no modification of any circuit should be
attempted.
2. Disconnect AC power before servicing.
CAUTION: FOR CON T I NUED PROTECTION
AGAINST A RISK OF FIRE REPLACE ONLY WITH
SAME TYPE FUSE.
F0001 (250V 15A)
F0003 (250V 1.6A)
• Use an AC voltmeter having with 5000 ohm per volt, or higher, sensitivity or measure the AC voltage drop across the resistor.
• Connect the resistor connection to all exposed metal parts having a
return to the chassis (antenna, metal cabinet, screw heads, knobs
and control shafts, escutcheon, etc.) and measure the AC voltage
drop across the resistor.
All checks must be repeated with the AC cord plug connection
reversed. (If necessary, a nonpolarized adaptor plug must be used
only for the purpose of completing these checks.)
Any reading of 0.75 Vrms (this corresponds to 0.5 mA rms AC.) or
more is excessive and indicates a potential shock hazard which
must be corrected before returning the monitor to the owner.
F0101 (250V 8A)
F0701 (250V 8A)
DVM
BEFORE RETURNING THE RECEIVER (Fire & Shock Hazard)
Before returning the receiver to the user, perform the following
safety checks:
3. Inspect all lead dress to make certain that leads are not pinched,
and check that hardware is not lodged between the chassis and
other metal parts in the receiver.
4. Inspect all protective devices such as non-metallic control knobs,
insulation materials, cabinet backs, adjustment and compartment
covers or shields, isolation resistor-capacitor networks, mechanical
insulators, etc.
5. To be sure that no shock hazard exists, check for leakage current in
the following manner.
• Plug the AC cord directly into a 110-240 volt AC outlet.
• Using two clip leads, connect a 1.5k ohm, 10 watt resistor paralleled by a 0.15µF capacitor in series with all exposed metal cabinet
parts and a known earth ground, such as electrical conduit or electrical ground connected to an earth ground.
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
TO EXPOSED
METAL PARTS
AC SCALE
1.5k ohm
10W
0.15µF
TEST PROBE
CONNECT TO
KNOWN EARTH
GROUND
SAFETY NOTICE
Many electrical and mechanical parts in LCD color television have
special safety-related characteristics.
These characteristics are often not evident from visual inspection, nor
can protection afforded by them be necessarily increased by using
replacement components rated for higher voltage, wattage, etc.
Replacement parts which have these special safety characteristics are
identified in this manual; electrical components having such features
are identified by " " and shaded areas in the Replacement Parts List
and Schematic Diagrams.
///////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
For continued protection, replacement parts must be identical to those
used in the original circuit.
The use of a substitute replacement parts which do not have the same
safety characteristics as the factory recommended replacement parts
shown in this service manual, may create shock, fire or other hazards.
i
LC-65D64U
PRECAUTIONS A PRENDRE LORS DE LA REPARATION
Ne peut effectuer la réparation qu' un technicien spécialisé qui s'est parfaitement accoutumé à toute vérification de sécurité et aux
conseils suivants.
•
AVERTISSEMENT
1.
N'entreprendre aucune modification de tout circuit. C'est dangereux.
2.
Débrancher le récepteur avant toute réparation.
PRECAUTION: POUR LA PROTECTION CONTINUE CONTRE LES RISQUES D'INCENDIE,
REMPLACER LE FUSIBLE
F0001 (250V 15A)
F0003 (250V 1.6A)
F0101 (250V 8A)
F0701 (250V 8A)
VERIFICATIONS CONTRE L'INCEN-DIE ET LE
CHOC ELECTRIQUE
Avant de rendre le récepteur à l'utilisateur, effectuer les vérifications suivantes.
Inspecter tous les faisceaux de câbles pour s'assurer que les fils
3.
ne soient pas pincés ou qu'un outil ne soit pas placé entre le châssis et les autres pièces métalliques du récepteur.
4.
Inspecter tous les dispositifs de protection comme les boutons de
commande non-métalliques, les isolants, le dos du coffret, les couvercles ou blindages de réglage et de compartiment, les réseaux
de résistancecapacité, les isolateurs mécaniques, etc.
5.
S'assurer qu'il n'y ait pas de danger d'électrocution en vérifiant la
fuite de courant, de la facon suivante:
•
Brancher le cordon d'alimentation directem-ent à une prise de courant de 110-240V. (Ne pas utiliser de transformateur d'isolation
pour cet essai).
A l'aide de deux fils à pinces, brancher une résistance de 1.5 kΩ
10 watts en parallèle avec un condensateur de 0.15µF en série
avec toutes les pièces métalliques exposées du coffret et une terre
connue comme une conduite électrique ou une prise de terre
branchée à la terre.
•
Utiliser un voltmètre CA d'une sensibilité d'au moins 5000Ω/V pour
mesurer la chute de tension en travers de la résistance.
•
Toucher avec la sonde d'essai les pièces métalliques exposées qui
présentent une voie de retour au châssis (antenne, coffret métallique, tête des vis, arbres de commande et des boutons, écusson,
etc.) et mesurer la chute de tension CA en-travers de la résistance.
Toutes les vérifications doivent être refaites après avoir inversé la
fiche du cordon d'alimentation. (Si nécessaire, une prise
d'adpatation non polarisée peut être utilisée dans le but de terminer ces vérifications.)
La tension de pointe mesurèe ne doit pas dépasser 0.75V (correspondante au courant CA de pointe de 0.5mA).
Dans le cas contraire, il y a une possibilité de choc électrique qui
doit être supprimée avant de rendre le récepteur au client.
DVM
ECHELLE CA
1.5k ohm
10W
µ
F
0.15
SONDE D'ESSAI
AUX PIECES
METALLIQUES
EXPOSEES
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
BRANCHER A UNE
TERRE CONNUE
AVIS POUR LA SECURITE
De nombreuses pièces, électriques et mécaniques, dans les téléviseur ACL présentent des caractéristiques spéciales relatives à la sécurité, qui ne sont souvent pas évidentes à vue. Le degré de protection ne peut pas être nécessairement augmentée en utilisant des
pièces de remplacement étalonnées pour haute tension, puissance,
etc.
Les pièces de remplacement qui présentent ces caractéristiques sont
identifiées dans ce manuel; les pièces électriques qui présentent ces
particularités sont identifiées par la marque " " et hachurées dans la
liste des pièces de remplacement et les diagrammes schématiques.
/////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////
Pour assurer la protection, ces pièces doivent être identiques à celles
utilisées dans le circuit d'origine. L'utilisation de pièces qui n'ont pas
les mêmes caractéristiques que les pièces recommandées par l'usine,
indiquées dans ce manuel, peut provoquer des électrocutions, incendies, radiations X ou autres accidents.
ii
LC-65D64U
PRECAUTIONS FOR USING LEAD-FREE SOLDER
Employing lead-free solder
• “PWBs” of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on the PWBs and service manuals. The
alphabetical character following LF shows the type of lead-free solder.
Example:
Indicates lead-free solder of tin, silver and copper. Indicates lead-free solder of tin, silver and copper.
Using lead-free wire solder
• When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional lead wire solder may cause damage or accident due to cracks.
As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40 °C, we recommend you to use a dedicated soldering
bit, if you are not familiar with how to obtain lead-free wire solder or soldering bit, contact our service station or service branch in your area.
Soldering
• As the melting point of lead-free solder (Sn-Ag-Cu) is about 220 °C which is higher than the conventional lead solder by 40 °C, and as it has poor
solder wettability, you may be apt to keep the soldering bit in contact with the PWB for extended period of time. However, Since the land may be
peeled off or the maximum heat-resistance temperature of parts may be exceeded, remove the bit from the PWB as soon as you confirm the
steady soldering condition.
Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded. Make sure to turn on and off the power of the bit as
required.
If a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after every use of it.
When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.
• Be careful when replacing parts with polarity indication on the PWB silk.
Lead-free wire solder for servicing
PARTS CODE
ZHNDAi123250E BL J φ0.3mm 250g (1roll)
ZHNDAi126500E BK J φ0.6mm 500g (1roll)
ZHNDAi12801KE BM J φ1.0mm 1kg (1roll)
PRICE
RANK
PART
DELIVERY
DESCRIPTION
iii
LC-65D64U
CHAPTER 1. SPECIFICATIONS
[1] SPECIFICATIONS
Item Model: LC-65D64U
LCD panel
Number of dots 6,220,800 dots (1920 1080 3 dots)
TV-standard (CCIR) American TV Standard ATSC/NTSC System
VHF/UHF VHF 2-13ch, UHF 14-69ch
CATV 1-135ch (non-scrambled channel only)
TV
Function
Receiving
Channel
Digital Terrestrial
Broadcast (8VSB)
Digital cable
(64/256 QAM)
Audio multiplex BTSC System
Audio out 15W 2
INPUT 1 AV in, COMPONENT in
INPUT 2 AV in, S-VIDEO in
INPUT 5 HDMI in with HDCP
INPUT 6 Audio in, HDMI in with HDCP
INPUT 7 15-pin mini D-sub female connector, Audio in (Ø 3.5 mm jack)
Rear
Terminals
ANTENNA 75 Unbalance, F Type 1 for Analog (VHF/UHF/CATV) and Digital (AIR/CABLE)
DIGITAL AUDIO OUTPUT
OUTPUT Audio out
RS-232C 9-pin D-sub male connector
INPUT 3 AV in, COMPONENT in
Side
INPUT 4 HDMI in with HDCP
USB Software update
OSD language English/French/Spanish
Power Requirement
Power Consumption 525 W (0.35 W Standby with AC 120V)
TV + stand 121.3 lbs./55.0 kg
Weight
TV only 110.3 lbs./50.0 kg
Dimension
(W H D)
*2
TV + stand 60
TV only 60
Operating temperature 32°F to 104°F (0°C to 40°C)
*1
Emergency alert messages via Cable are unreceivable.
*2
The dimensional drawings are shown on the inside back cover.
As part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product
improvement without prior notice. The performance specification figures indicated are nominal values of production units.
There may be some deviations from these values in individual units.
65" Advanced Super View & BLACK TFT LCD
(Screen size 64
2-69ch
*1
1-135ch (non-scrambled channel only)
Optical Digital audio output 1 (PCM/Dolby Digital)
AC 120 V, 60 Hz (FOR NORTH AMERICA)
AC 110-240 V, 50/60 Hz (FOR OTHERS)
11
/6440 157/8inch
11
/643711/6437/8inch
++ +
33
/64measured diagonally)
Service Manual
"
LC-65D64U
1 – 1
LC-65D64U
LC-65D64U
CHAPTER 2. OPERATION MANUAL
[1] OPERATION MANUAL
Part names
TV (Front)
NOTE
*OPC: Optical Picture Control
TV (Rear/Side)
Service Manual
Remote control sensor
OPC sensor*
OPC indicator
SLEEP indicator
POWER indicator
POWER button
MENU button
INPUT 3
terminals
HDMI terminal
(INPUT 4)
USB terminal
Antenna/Cable in INPUT 1 terminals
INPUT button
Channel buttons
(CH /)
Volume buttons
(VOL+/–)
RS-232C
terminal
DIGITAL AUDIO
OUTPUT terminal
HDMI terminal
(INPUT 5)
HDMI terminals
(INPUT 6)
INPUT 7 terminals
(PC-IN)
INPUT 2 terminals
AUDIO OUTPUT
terminals
AC INPUT terminal
2 – 1
Part names
LC-65D64U
Remote control unit
116
2
3
4
5
6
7
8
9
10
11
12
13
14
15 29
17
18
19
20
21
22
23
24
25
26
27
28
1 TV POWER: Switch the TV power on or enters standby.
2 DISPLAY: Display the channel information.
3 SOURCE POWER: Turns the power of the external equipment
on and off.
4 External equipment operational buttons:
equipment.
50_9: Set the channel.
6 (DOT):
7INPUT:
8VOL/:Set the volume.
9 SURROUND: Select Surround settings.
10 FREEZE: Set the still image. Press again to return to normal
11 EXIT: Turn off the menu screen.
12 OPTION: Display the AQUOS LINK MENU screen. This button
13 REC STOP: Stops one touch recording. This button will function
14 SLEEP:Set the sleep timer.
15 AUDIO: Selects the MTS/SAP or the audio mode during multi-
16 FUNCTION:
17 LIGHT : When pressed all buttons on the remote control unit
18 VIEW MODE: Select the screen size.
19 ENT: Jumps to a channel after selecting with the
20 FLASHBACK:Return to the previous channel or external input
21 CH / : Select the channel.
22 MUTE: Mute the sound.
23 MENU: Display the menu screen.
24 ////ENTER: Select a desired item on the screen.
25 RETURN: Return to the previous menu screen.
26 FAVORITE CH
27 FAVORITE:Set the favorite channels.
28 CC: Display captions from a closed-caption source.
Select a TV input source. (TV, INPUT 1, INPUT 2, INPUT 3,
INPUT 4, INPUT 5, INPUT 6, INPUT 7)
screen.
will function only when AQUOS LINK is used.
only when AQUOS LINK is used.
channel audio broadcasts.
Switches the remote control for TV, CBL/SAT, VCR,
DVD and AUDIO operation. Indicator lights up for the current
mode.
*Toenterthecoderegistrationmode,youneedtopress
FUNCTION and DISPLAY at the same time.
will light. The lighting will turn off if no operations are performed
within about 5 seconds. This button is used for performing
operations in low-light situations.
mode.
A, B, C, D: Select 4 preset favorite channels in 4 different
categories.
While watching, you can toggle the selected channels by pressing
A, B, C and D.
Operate the external
0_9 buttons.
NOTE
When using the remote control unit, point it at the TV.
29 AV MODE: Select an audio or video setting.
(When the input source is TV, INPUT 1, 2 or 3: STANDARD,
MOVIE, GAME, USER, DYNAMIC (Fixed), DYNAMIC. When the
input source is INPUT 4, 5, 6 or 7: STANDARD, MOVIE, GAME,
PC, USER, DYNAMIC (Fixed), DYNAMIC)
2 – 2
LC-65D64U
Appendix
Removing the stand
Before detaching (or attaching) the stand, unplug the AC cord from the AC INPUT terminal.
Do not remove the stand from the TV unless using an optional wall mount bracket to mount it.
Before attaching/detaching the stand
Before performing work make sure to turn off the TV.
1 2
CAUTION
Unfasten the four screws used to secure the stand in
Detach the stand from the TV.
place.
NOTE
To attach the stand, perform the above steps in reverse order.
Setting the TV on the wall
CAUTION
This TV should be mounted on the wall only with the AN-65AG1 (SHARP) wall mount bracket. The use of other wall
mount brackets may result in an unstable installation and may cause serious injuries.
Installing the TV requires special skill that should only be performed by qualified service personnel. Customers
should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or mounting
that results in accident or injury.
Using an optional bracket to mount the TV
You can ask a qualified service professional about using an optional AN-65AG1 bracket to mount the TV to the wall.
Carefully read the instructions that come with the bracket before beginning work.
Hanging on the wall
AN-65AG1 wall mount bracket.
(See the bracket instructions for details.)
About setting the TV angle
O
O
O
/10
5
/
0
Vertical mounting Angular mounting
NOTE
Detach the cable clamp on the rear of the TV when using the optional mount bracket.
To use this TV mounted on a wall, remove the covers at the 4 locations on the rear of the TV, and then use the screws
supplied with the wall mount bracket to secure the bracket to the rear of the TV.
2 – 3
Appendix
Troubleshooting
LC-65D64U
Problem
No power
Unit cannot be operated.
Remote control unit does not
operate.
Picture is cut off/with sidebar
screen.
Strange color, light color, or color
misalignment
Power is suddenly turned off.
No picture
Possible Solution
Check if you pressed TV POWER on the remote control unit.
If the indicator on the TV does not light up, press POWER on the TV.
Is the AC cord disconnected?
Has the power been turned on?
External influences such as lightning, static electricity, may cause improper operation.
In this case, operate the unit after first turning on the power of the TV or unplugging
the AC cord and replugging it in after 1 or 2 minutes.
Is the FUNCTION set correctly? Set it to the TV setting position.
Are batteries inserted with polarity ( , ) aligned?
Are batteries worn out? (Replace with new batteries.)
Are you using it under strong or fluorescent lighting?
Is a fluorescent light illuminated near the remote control sensor?
Is the image position correct?
Are screen mode adjustments such as picture size made correctly?
Adjust the picture tone.
Is the room too bright? The picture may look dark in a room that is too bright.
Check the input signal setting.
Is the sleep timer set?
Check the power control settings.
The unit's internal temperature has increased. Remove any objects blocking vent or
clean.
Is connection to other components correct?
Is correct input signal source selected after connection?
Is the correct input selected?
Is picture adjustment correct?
Is "On" selected in "Audio Only"?
Is a non-compatible signal being input?
_
+
No sound
The TV sometimes makes a
cracking sound.
Is the volume too low?
Is "Variable" selected in "Output Select"?
Have you pressed MUTE on the remote control unit?
This is not a malfunction. This happens when the cabinet slightly expands and
contracts according to change in temperature. This does not affect the TV's
performance.
Troubleshooting-Digital broadcasting
The error message about reception of broadcast
The example of an error message
displayed on a screen
Failed to receive broadcast.
No broadcast now.
Error code
E202
E203 Check the broadcast time in the program guide.
Check the antenna cable. Check that the antenna is correctly
setup.
Possible Solution
Cautions regarding use in high and low temperature environments
When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails or appear slightly delayed.
This is not a malfunction, and the unit will recover when the temperature returns to normal.
Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a
heater, as this may cause the cabinet to deform and the Liquid Crystal panel to malfunction.
Storage temperature: 4°F to 140°F ( 20°C to 60°C)
__
++
2 – 4
LC-65D64U
Preparation
PC compatibility chart
It is necessary to set the PC correctly to display XGA and WXGA signal.
DDC is a registered trademark of Video Electronics Standards Association.
Power Management is a registered trademark of Sun Microsystems, Inc.
VGA and XGA are registered trademarks of International Business Machines Corp.
PC Horizontal Frequency VESA StandardResolution Vertical Frequency
PC
720 x 400
VGA
XGA 1024 x 768
WXGA 1360 x 768
640 x 480
800 x 600SVGA
31.5 kHz
31.5 kHz
37.9 kHz
37.5 kHz
35.1 kHz
37.9 kHz
48.1 kHz
46.9 kHz
48.4 kHz
56.5 kHz
60.0 kHz
47.7 kHz
64.0 kHzSXGA 1280 x 1024 60 Hz O
64.0 kHzSXGA+ 1400 x 1050 60 Hz O
75.0 kHzUXGA 1600 x 1200 60 Hz O
70 Hz
60 Hz
72 Hz
75 Hz
56 Hz
60 Hz
72 Hz
75 Hz
60 Hz
70 Hz
75 Hz
60 Hz
O
O
O
O
O
O
O
O
O
O
O
2 – 5
Basic adjustment settings
Menu items for TV/INPUT 1/2/3 Menu items for HDMI/PC-IN
Picture Picture
LC-65D64U
OPC
Backlight
Contrast
Brightness
Color
Tint
Sharpness
Advanced
C.M.S.-Hue
C.M.S.-Saturation
Color Temp.
Active Contrast
Fine Motion
I/P Setting
Film Mode
3D-Y/C
Monochrome
Range of OPC
Reset
Treble
Bass
Balance
Surround
Bass Enhancer
Reset
No Signal Off
No Operation Off
Audio
Power Control
OPC
Backlight
Contrast
Brightness
Color
Tint
Sharpness
Advanced
C.M.S.-Hue
C.M.S.-Saturation
Color Temp.
Active Contrast
Fine Motion
I/P Setting
Film Mode
Monochrome
Range of OPC
Reset
Treble
Bass
Balance
Surround
Bass Enhancer
Reset
No Signal Off
No Operation Off
Audio
Power Control
EZ Setup
CH Setup
Antenna Setup-DIGITAL
Input Skip
Input Label
Parental CTRL
Position
Language
Reset
AQUOS LINK Setup
Audio Only
Digital Noise Reduction
Input Select
Output Select
Color System
Caption Setup
Digital Caption Info. .
Program Title Display
Favorite CH
Game Play Time
Operation Lock Out
Audio Setup
Identification
Software Update
Setup
Option
Digital Setup
Setup
Input Skip
Input Signal
Auto Sync.
Input Label
Fine Sync.
Position
Language
Reset
Option
AQUOS LINK Setup
Audio Only
Digital Noise Reduction
HDMI Setup
Output Select
Game Play Time
Operation Lock Out
Digital Setup
Software Update
NOTE
Some menu items may not be displayed depending on the
selected input source.
2 – 6
LC-65D64U
LC-65D64U
CHAPTER 3. DIMENSIONS
[1] DIMENSIONS
Service Manual
Unit: inch (mm)
3023/32(780)
40 (1016)
(650)
32
/
19
25
32
/
27
2
(325)
16
/
13
12
(944)
64
/
11
37
(72)
5629/64(1433.5)
11
60
/64(1528)
1721/64(440)
(806.5)
4
/
3
31
(566)
32
/
9
22
1
/
6
(153)
7
3
/
32
7
15
/8(403)
(98)
8
3 – 1
LC-65D64U
CHAPTER 4. REMOVING OF MAJOR PARTS
Service Manual
[1] REMOVING OF MAJOR PARTS
1. Remove the 6 black sheets.
2. Remove the 20 lock screws, 1 lock screw, 3 lock screws, 2 lock screws, 4 lock clips and detach the Rear Cabinet.
3. Remove the 4 lock screws and detach the Stand.
1
2
Black Sheet
Front Cabinet
1
LC-65D64U
1
2
Rear Cabinet
1
2
Flat head screw
1
1
Black Sheet
2
3
2
Stand
CAUTION: In the case of assembly, the new sheet (PSPAKA237WJ00 and PSPAGA386WJ00) can be stuck on these screws.
4 – 1
LC-65D64U
4. Remove the 4 lock screws and detach the Control Shield.
5. Remove the 8 lock screws and detach the MAIN Shield.
6. Remove the 6 lock screws and detach the AV Shield.
5
MAIN Shield
Control Shield
4
4 – 2
AV Shield
6
LC-65D64U
7. Disconnect all the connectors from all the PWBs.
8. Remove the Speaker (L) (R).
9. Remove the 2 lock screws, 3 lock screws and detach the Mini AV KEY Ass'y.
10.Remove the 2 lock screws, 2 lock screws and detach the Mini AV Shield, SIDE Unit, Mini AV KEY Cover from the Mini AV KEY Angle.
11.Remove the Operation Button and KEY Unit from the Mini AV KEY Cover.
Operation Button
KM
Mini AV KEY Cover
11
KEY Unit
SIDE Unit
Mini AV Shield
9
10
HM
10
Mini AV KEY Angle
VD
US
LW
LP/PL
LP
LB
PD
RA
KM
MA
US
7
LC-2
LA-2
LW
9
HM
VD
MA
PL
PD
7
7
LA
PE
SP
PE
PP2
PP1
PP3
PQ
PP2
PP3
PP1
PQ
7
LC-1
LA-1
LB
8
Speaker (R)
8
Speaker (L)
4 – 3
LC-65D64U
12.Remove the 8 lock screws, 1 lock screw and detach the SUB POWER Unit.
13.Remove the 5 lock screws, 2 lock screws and detach the Tray Chassis, Terminal Bottom Angle.
14.Remove the 2 lock screws and detach the Barrier Sheet.
15.Remove the 16 lock screws, 4 lock screws and detach the Inverter Shield.
15
15
Inverter Shield
Tray Chassis
Terminal Bottom Angle
13
15
13
15
14
Inverter Shield
12
12
Barrier Sheet
SUB POWER Unit
4 – 4
16.Remove the 2 lock screws, 4 lock Shafts and detach the Terminal Side Angle.
17.Remove the 6 lock screws and detach the POWER Unit.
18.Remove the 5 lock screws and detach the TERMINAL Unit.
19.Remove the 3 lock screws and detach the Radiator Angle.
20.Remove the 2 lock screws and detach the MAIN Unit.
19
Radiator Angle
LC-65D64U
17
POWER Unit
16
16
16
Terminal Side Angle
MAIN Unit
18
TERMINAL Unit
20
4 – 5
LC-65D64U
21.Remove the 2 lock screws and detach the LCD Panel Module.
22.Remove the R/C, LED Unit.
23.Remove the 12 lock screws and detach the Panel Fix Angle-B.
24.Remove the 10 lock screws and detach the Panel Fix Angle-C.
25.Remove the 12 lock screws and detach the Panel Fix Angle.
Panel Fix
Angle-B
Panel Fix
Angle-C
23
25
Panel Fix Angle
23
Panel Fix
Angle-B
Panel Fix
Angle-C
24
21
R/C, LED Unit
22
Panel Fix Angle
25
24
21
4 – 6
LC-65D64U
LC-65D64U
CHAPTER 5. ADJUSTMENT
Service Manual
[1] ADJUSTMENT PROCEDURE
The adjustment values are set to the optimum conditions at the factory before shipping. If a value should become improper or an adjustment is
required due to part replacement, make an adjustment according to the following procedure.
1. After replacement of any PWB unit and/or IC for repair, please note the following.
• When replacing the following units, make sure to prepare the new units loaded with updated software.
MAIN Unit: DUNTKE207FM01
2. Upgrading of each microprocessor software
CAUTION: Never “POWER OFF” the unit when software upgrade is ongoing.
Otherwise the system may be damaged beyond recovery.
2.1. Software version upgrade
The model employs the following software.
•Main software
• Monitor microprocessor software.
The main software and the monitor microprocessor software can be upgraded by using a general-purpose USB Memory.
The followings are the procedures for upgrading, explained separately for the main software, and the monitor microprocessor software.
2.2. Main software version upgrade
2.2.1 Get ready before you start
• USB Memory of 128MB or higher capacity.
• PC running on Windows 98/98SE/ME/2000/XP operating system.
• USB Memory reader/writer or PC with a USB port.
• The file system of a USB memory is FAT. (FAT32 is not applied)
• Use the USB memory without other functions. (lock and memory reader...etc)
2.2.2 Preparations
To upgrade the main software, it is necessary to get ready the USB Memory for version upgrade before you start.
Follow the steps below and create the USB Memory for version upgrade.
1. Copy the file D64UAxxx.USB (named temporarily) for version upgrade to the root directory (folder) of the USB Memory.
NOTE: In the USB Memory drive, do not store other folders or unrelated files, or more than one file for version upgrade.
Now the USB Memory for version upgrade is ready.
2.2.3 How to upgrade the software
1. Unplug the AC cord.
2. Insert the USB Memory for version upgrade (prepared as above) into the service socket located Right side from center at terminals, above HDMI4
terminal in the rear of the unit.
3. Plug in the AC cord with power button pressed down after 5 seconds, unpress the power button.
4. After the unit startup, the system upgrade screen as shown below appears within 20-40 seconds.
5 – 1
LC-65D64U
5. Even a single failure in the process will trigger the upgrade failure screen.
UPGRADE FAILURE
NOTE: In the event of a failure, repeat the upgrade process. If the process repeatedly fails, it is likely that the hardware need fixing.
6. Upon completion of the whole process, the upgrade success screen as shown below appears. You can check the new software version on this
screen. The version information appears after the upgrade is complete.
UPGRADE SUCCESS
7. Unplug the AC cord and remove the USB Memory for version upgrade.
8. Now the software version upgrade is complete.
NOTE: When you are done with the software version upgrade, start the set, go to the top page of the adjustment process screen and check the main
software version information.
5 – 2
LC-65D64U
2.3. Monitor microprocessor software version upgrade
Create the USB memory for monitor microprocessor software version upgrade in the same manner as explained in the “Main software version
upgrade”.
Copy the file D64UVAxx.USB and SALEMxxx.BIN (named temporarily) for monitor microprocessor software version upgrade to the USB memory.
2.3.1 How to upgrade the software
1. Unplug the AC cord.
2. Insert the USB memory for version upgrade (prepared as above) into the service socket located Right side from center at terminals, above HDMI4
terminal in the rear of the unit.
3. Plug in the AC cord with power button pressed down.
4. After 5 seconds, unpress the power button.
CAUTION: • The moment this operation is done, the upgrading of the monitor microprocessor software starts. While the upgrade is ongoing, never
5. After the unit startup, the upgrade starts. The power led will blink continuously. Also, an upgrade screen will be shown during a minor upgrade.
power off the unit. Otherwise the upgrade will fail and the system may be serious damaged beyond recovery (inability to start).
• After the monitor microprocessor software is upgraded, also perform the 'Industry Init'.
6. If the upgrade fails, power led will stop blinking. Also, the upgrade failure screen will be shown if upgrade screen was shown at 5.
UPGRADE FAILURE
NOTE: In the event of a transient failure, upgrade will be automatically retried up to three times. If the process repeatedly fails, hardware may be the
cause.
7. Up on completion of the whole process, power and OPC LED will blink alternately. Also, the upgrade success screen will be shown if upgrade
screen was shown at 5.
UPGRADE SUCCESS
8. Unplug the AC cord and remove the USB Memory for version upgrade.
9. Now the software version upgrade is complete.
NOTE: When you are done with the software version upgrade, start the set, go to the top page of the adjustment process screen and check the mon-
itor microprocessor software version information and panel size information.
5 – 3
LC-65D64U
3. Entering and exiting the adjustment process mode
1) Before entering the adjustment process mode, the AV position RESET in the video adjustment menu.
2) While holding down the “VOL (–)” and “INPUT” keys at a time, plug in the AC cord of the main unit to turn on the power.
The letter “<K>” appears on the screen.
3) Next, hold down the “VOL (–)” and “CH ( )” keys at a time.
(The “VOL (–)” and “CH ( )” keys should be pressed and held until the display appears.)
Multiple lines of blue characters appearing on the display indicate that the unit is now in the adjustment process mode.
When you fail to enter the adjustment process mode (the display is the same as normal startup), retry the procedure.
4) To exit the adjustment process mode after the adjustment is done, unplug the AC cord from the outlet to make a forced shutdown. (When the
power was turned off with the remote controller, once unplug the AC cord and plug it again. In this case, wait 10 seconds or so before plugging.)
CAUTION: Use due care in handling the information described here lest your users should know how to enter the adjustment process mode. If the
4. Remote controller key operation and description of display in adjustment process mode
1) Key operation
Remote controller key Main unit key Function
CH ( / ) CH ( / )
VOL (+/–) VOL (+/–) Changing a selected item setting (+1/ –1)
Cursor (UP/DOWN) ————— Turing a page (PREVIOUS/NEXT)
Cursor (LEFT/RIGHT) ————— Changing a selected line setting (+10/ –10)
INPUT ————— Input switching (toggle switching)
ENTER ————— Executing a function
settings are tampered in this mode, unrecoverable system damage may result.
Moving an item (line) by one (UP/DOWN)
(TUNER→INPUT1→INPUT2→INPUT3→INPUT4→INPUT5→INPUT6→INPUT7)
*Input mode is switched automatically when relevant adjustment is started so far as the necessary input signal is available.
2) Description of display
(1) Current page/ (5) Destination
Total pages
1/32 [INFO] INPUT5 AUTO USA 65_UNDER
MAIN Version 1.09 (U 2007/07/19 2 A)
BOOT Version D64U 1.01
Monitor Version 1.02
Monitor BOOT Version 1.00
EQ DATA CHECKSUM ROM
TEMPERATURE 7B
LAMP ERROR 0
MONITOR ERR CAUSE 0
NORMAL STANDBY CAUSE
ERROR STANDBY CAUSE 1) 0 2) 0 3) 0
(2) Current page title
(3) Current selected input
(4) Current color system
0
0H 0M 0H 0M 0H 0M
4) 0 5) 0
0H 0M 0H 0M
(6) LCD Panel size/Speaker type
(7) Adjustment
process menu
header
(8) Parameters
5 – 4
LC-65D64U
5. List of adjustment process mode menu
The character string in brackets [ ] will appear as a page title in the adjustment process menu header.
Page Line Item Description Remarks (adjustment detail, etc.)
1 [INFO]
1 MAIN Version Main software version
2BOOT Version
3 Monitor Version Monitor software version
4 Monitor BOOT Version
5 EQ DATA CHECKSUM Audio data checksum
6 TEMPERATURE Panel temperature
7 LAMP ERROR Number of termination due to lamp error
8 MONITOR ERR CAUSE
9 NORMAL STANDBY CAUSE Refer to *1 under the list for details
10 ERROR STANDBY CAUSE Refer to *2 under the list for details
2 [INIT]
1 INDUSTRY INIT (+Cause)
2 INDUSTRY INIT Initialization to factory settings
3 HOTELMODE Hotel mode
4 Center Acutime Accumulated main operation time
5 RESET Reset
6 Backlight Acutime Accumulated monitor operation time
7 RESET Reset
8 LAMP ERROR RESET Reset LAMP ERROR
9 VIC XPOS X-coordinate setting for VIC READ
10 VIC YPOS Y-coordinate setting for VIC READ
11 VIC COLOR Collected color data setting for VIC READ
12 VIC SIGNAL TYPE Signal type setting for VIC READ
13 VIC READ Picture level acquisition function Level appears in green on the upper right
3 [N358MAIN]
1 N358 ALL ADJ (INPUT1) CVBS and TUNER signal level adjustment
2 N358 ALL ADJ (INPUT2)
3 N358 MAIN ADJ (INPUT1) CVBS signal level adjustment
4 N358 MAIN ADJ (INPUT2)
5 TUNER DAC ADJ TUNER signal level adjustment
6 VCOM ADJ VCOM adjustment value
7 N358 CONTRAST A_GAIN
8 N358 CONTRAST D_GAIN
9 N358 CONTRAST OFFSET
10 TUNER CONTRAST A_GAIN
11 TUNER CONTRAST D_GAIN
4 [TUNER TEST]
1 TUNER VCHIP TEST (69ch) Tuning test and VCHIP test (69 ch)
2 TUNER VCHIP TEST (7ch) Tuning test and VCHIP test (7 ch)
3 TUNER VCHIP TEST (10ch) Tuning test and VCHIP test (10 ch)
4 TUNER VCHIP TEST (15ch) Tuning test and VCHIP test (15 ch)
5 INSPECT USB TERM
6 HDMI CEC TEST
5 [COMP15KMAIN]
1 COMP15K ADJ (INPUT1) Component 15K picture level adjustment (main)
2 COMP15K ADJ (INPUT3)
3 COMP15K Y A_GAIN
4 COMP15K Cb A_GAIN
5 COMP15K Cr A_GAIN
6 COMP15K Y D_GAIN
7 COMP15K Cb D_GAIN
8 COMP15K Cr D_GAIN
9 COMP15K Y OFFSET Y OFFSET adjustment value
10 COMP15K Cb OFFSET Cb OFFSET adjustment value
11 COMP15K Cr OFFSET Cr OFFSET adjustment value
5 – 5
LC-65D64U
Page Line Item Description Remarks (adjustment detail, etc.)
6 [HDTV]
1 COMP33K ADJ (INPUT1) Component 33K picture level adjustment (main)
2 COMP33K ADJ (INPUT3)
3 COMP33K Y A_GAIN
4 COMP33K Cb A_GAIN
5 COMP33K Cr A_GAIN
6 COMP33K Y OFFSET Y OFFSET adjustment value
7 COMP33K Cb OFFSET Cb OFFSET adjustment value
8 COMP33K Cr OFFSET Cr OFFSET adjustment value
7 [ANALOG RGB]
1 ANALOG RGB ADJ Analog RGB picture level adjustment
2R CUTOFF
3 G CUTOFF
4 B CUTOFF
5 R DRIVE
6 G DRIVE
7 B DRIVE
8 [M GAMMA IN]
1 LEV1 Standard value 1 Adjustment gradation setting.
2 LEV2 Standard value 2
3 LEV3 Standard value 3
4 LEV4 Standard value 4
5 LEV5 Standard value 5
6 LEV6 Standard value 6
9 [M GAMMA R1]
1 MG1R WB adjustment Point 1, R adjustment value Parameter for six-point adjustment
2 MG1G WB adjustment Point 1, G adjustment value
3 MG1B WB adjustment Point 1, B adjustment value
4 MG2R WB adjustment Point 2, R adjustment value
5 MG2G WB adjustment Point 2, G adjustment value
6 MG2B WB adjustment Point 2, B adjustment value
7 MG3R WB adjustment Point 3, R adjustment value
8 MG3G WB adjustment Point 3, G adjustment value
9 MG3B WB adjustment Point 3, B adjustment value
10 [M GAMMA R4]
1 MG4R WB adjustment Point 4, R adjustment value Parameter for six-point adjustment
2 MG4G WB adjustment Point 4, G adjustment value
3 MG4B WB adjustment Point 4, B adjustment value
4 MG5R WB adjustment Point 5, R adjustment value
5 MG5G WB adjustment Point 5, G adjustment value
6 MG5B WB adjustment Point 5, B adjustment value
7 MG6R WB adjustment Point 6, R adjustment value
8 MG6G WB adjustment Point 6, G adjustment value
9 MG6B WB adjustment Point 6, B adjustment value
11 [SOUND 1]
1 Audio Switch
2 Flat Mode
3 ADC Volume 1
4 ADC Volume 2
5 ADC Volume 3
6 ADC Volume 4
7 ADC Volume 5
8 ADC Volume 6
9 LR Fanc Vol AIN
10 LR Fanc Vol HDMI
11 LR Fanc Vol ATV
12 LR Fanc Vol DTV
13 Input Trim
5 – 6
LC-65D64U
Page Line Item Description Remarks (adjustment detail, etc.)
12 [SOUND 2]
1Eala
2 Eala Bass
3 Eala D
4 Eala Surround Gain
5 Eala Bass Surround Gain
6 Eala Bass LPF Fc
7 Eala Bass LPF Gain
8 Eala Bass Treble HPF F0
9 Eala Bass Treble HPF Gain
10 Eala Bass Output Gain
11 Eala Bass Attack Time
12 Eala Bass Release Time
13 [SOUND 3]
1 Eala D Surround Width
2 Eala D Bass Enhancer
3 Eala D Dialogue Boost
4 Eala D Bass Doubler
5 Eala D F0
6 Eala D DRC Ratio
7 Eala D DRC Threshold Level
14 [SOUND 4]
1EQ_MODE
2 PEQ1_F0
3 PEQ1_Q
4 PEQ1_GAIN
5 PEQ2_F0
6 PEQ2_Q
7 PEQ2_GAIN
8 PEQ3_F0
9 PEQ3_Q
10 PEQ3_GAIN
15 [SOUND 5]
1 PEQ4_F0
2 PEQ4_Q
3 PEQ4_GAIN
4 PEQ5_F0
5 PEQ5_Q
6 PEQ5_GAIN
7 PEQ6_F0
8 PEQ6_Q
9 PEQ6_GAIN
10 PEQ7_F0
11 PEQ7_Q
12 PEQ7_GAIN
16 [SOUND 6]
1 Output Trim
2 Clipper Level
3 Sub Vol Default
4 Sub Vol Eala
5 Sub Vol Eala Bass
6 Sub Vol Eala D
7 Sub Vol Eala Bass D
8 SW Fanc Vol AIN
9 SW Fanc Vol HDMI
10 SW Fanc Vol ATV
11 SW Fanc Vol DTV
5 – 7
LC-65D64U
Page Line Item Description Remarks (adjustment detail, etc.)
17 [SOUND 7]
1 BE ATT
2 BASS VOL0 MIN
3 BASS VOL0 CENTER
4 BASS VOL0 MAX
5 BASS VOL60 MIN
6 BASS VOL60 CENTER
7 BASS VOL60 MAX
8 BASS CENTER ATT
18 [SOUND 8]
1 TREBLE VOL0 MIN
2 TREBLE VOL0 CENTER
3 TREBLE VOL0 MAX
4 TREBLE VOL60 MIN
5 TREBLE VOL60 CENTER
6 TREBLE VOL60 MAX
7 TREBLE CENTER ATT
19 [M PWM]
1 PANNEL SELECT
2PWM
3PWN FREQ
4 PWM DUTY
5OSC FREQ
6 OSC DUTY
20 [M BRI DA1]
1 BRIGHTNESS DA0
2 BRIGHTNESS DA1
3 BRIGHTNESS DA2
4 BRIGHTNESS DA3
5 BRIGHTNESS DA4
6 BRIGHTNESS DA5
7 BRIGHTNESS DA6
8 BRIGHTNESS DA7
9 BRIGHTNESS DA8
10 BRIGHTNESS DA9
11 BRIGHTNESS DA10
12 BRIGHTNESS DA11
21 [M BRI DA2]
1 BRIGHTNESS DA12
2 BRIGHTNESS DA13
3 BRIGHTNESS DA14
4 BRIGHTNESS DA15
5 BRIGHTNESS DA16
6 BRIGHTNESS DA17
7 BRIGHTNESS DA18
8 BRIGHTNESS DA19
9 BRIGHTNESS DA20
10 BRIGHTNESS DA21
11 BRIGHTNESS DA22
22 [M BRI DA3]
1 BRIGHTNESS DA23
2 BRIGHTNESS DA24
3 BRIGHTNESS DA25
4 BRIGHTNESS DA26
5 BRIGHTNESS DA27
6 BRIGHTNESS DA28
7 BRIGHTNESS DA29
8 BRIGHTNESS DA30
9 BRIGHTNESS DA31
10 BRIGHTNESS DA32
5 – 8
LC-65D64U
Page Line Item Description Remarks (adjustment detail, etc.)
23 [M ADL1]
1 OPC33 ADLEVEL 0
2 OPC33 ADLEVEL 1
3 OPC33 ADLEVEL 2
4 OPC33 ADLEVEL 3
5 OPC33 ADLEVEL 4
6 OPC33 ADLEVEL 5
7 OPC33 ADLEVEL 6
8 OPC33 ADLEVEL 7
9 OPC33 ADLEVEL 8
10 OPC33 ADLEVEL 9
11 OPC33 ADLEVEL 10
12 OPC33 ADLEVEL 11
24 [M ADL2]
1 OPC33 ADLEVEL 12
2 OPC33 ADLEVEL 13
3 OPC33 ADLEVEL 14
4 OPC33 ADLEVEL 15
5 OPC33 ADLEVEL 16
6 OPC33 ADLEVEL 17
7 OPC33 ADLEVEL 18
8 OPC33 ADLEVEL 19
9 OPC33 ADLEVEL 20
10 OPC33 ADLEVEL 21
11 OPC33 ADLEVEL 22
25 [M ADL3]
1 OPC33 ADLEVEL 23
2 OPC33 ADLEVEL 24
3 OPC33 ADLEVEL 25
4 OPC33 ADLEVEL 26
5 OPC33 ADLEVEL 27
6 OPC33 ADLEVEL 28
7 OPC33 ADLEVEL 29
8 OPC33 ADLEVEL 30
9 OPC33 ADLEVEL 31
26 [M V6THE]
1V6 OS THERMO 1
2V6 OS THERMO 2
3V6 OS THERMO 3
4V6 OS THERMO 4
5V6 OS THERMO 5
6V6 OS THERMO 6
7V6 OS THERMO 7
27 [M V5THE]
1V5 OS THERMO 1
2V5 OS THERMO 2
3V5 OS THERMO 3
4V5 OS THERMO 4
5V5 OS THERMO 5
6V5 OS THERMO 6
7V5 OS THERMO 7
28 [M TEMP]
1BL TEMP1
2BL TEMP2
3BL TDUTY
29 [M EEP SET]
1 MONITOR TIME OUT
2 MONITOR MAX TEMP
3 MONITOR ERROE CAUSE RESET
30 [M TESTPTRN]
1 LCD TEST PATTERN
2 TV TEST PATTERN 1
3 TV TEST PATTERN 2
5 – 9
LC-65D64U
Page Line Item Description Remarks (adjustment detail, etc.)
31 [MEMORY CLR]
1 KEY LOCK (1217)
2 KOUTEI AREA ALL CLEAR
3 A MODE AREA CLEAR
4 BACKUP AREA CLEAR
5 B MODE AREA CLEAR
6 EXECUTION
32 [ETC]
1 EEP SAVE Writing setting values to EEPROM.
2 EEP RECOVER Reading setting values from EEPROM.
3 STANDBY CAUSE RESET Reset stand by cause.
4 SETTING FOR ADJ
*1 Details of P1.9(NORMAL STANDBY CAUSE)
2 No operation off in the cause of “no operation off”
3 No signal off in the cause of “no signal off”
4 PC power management mode 1 in the cause of “Standby mode MODE1”
5 PC power management mode 2 in the cause of “Standby mode MODE2”
6 Off timer in the cause of “SLEEP timer”
8 Command from RS232C in the cause of command by RS-232C
*2 Details of P1.10(ERROR STANDBY CAUSE)
11 Prolonged unspecified-signal input in PC mode in the cause of continuous “out of range”, PC input mode
17 Temperature error in the cause of abnormal temperature
1A Monitor trouble detected in the cause of abnormal monitor mode
1B Fan lock in the cause of fan lock
6. Special features
* STANDBY CAUSE (Page 1/32)
Display of a cause (code) of the last standby
The cause of the last standby is recorded in EEPROM whenever possible.
Checking this code will be useful in finding a problem when you repair the troubled set.
* EEP SAVE (Page 32/32)
Storage of EEP adjustment value
* EEP RECOVER (Page 32/32)
Retrieval of EEP adjustment value from storage area
7. Video signal adjustment procedure
*Adjustment process mode menu is listed in section 5.
7.1. Signal check
Signal generator level adjustment check (Adjustment to the specified level)
• Composite signal : 0.714Vp-p ± 0.02Vp-p (Pedestal to white level)
• 15K component signal : Y level : 0.714Vp-p ± 0.02Vp-p (Pedestal to white level)
PB, PR level : 0.7Vp-p ± 0.02Vp-p
• 33K component signal : Y level : 0.7Vp-p ± 0.02Vp-p (Pedestal to white level)
PB, PR level : 0.7Vp-p ± 0.02Vp-p
• Analog RGB : RGB level : 0.7Vp-p ± 0.02Vp-p (Pedestal to white level)
7.2. Entering the adjustment process mode
Enter the adjustment process mode according to the steps described in section 3.
5 – 10
7.3. N358 composite signal adjustment (Tuner)
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment N358 signal Feed the NTSC (3.58) split field color bar signal (75% color saturation)
to VIDEO 1 input. Feed the RF signal (by use of US-10ch) to TUNER-A.
[Video input signal] [US-10CH]
100% white 100% white
2 Auto adjustment
performance
Page 3/32 Bring the cursor on [•N358 ALL ADJ] and press [ENTER].
[•N358 ALL ADJ FINISH] appears when finished.
7.4. Component 15K signal adjustment
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment 480i signal Feed the 100% color bar signal to INPUT 1 component input.
LC-65D64U
100% white
2 Auto adjustment
performance
Page 5/32 Bring the cursor on [•COMP 15K ADJ] and press [ENTER].
[•COMP 15K ADJ FINISH] appears when finished.
7.5. Component 33K signal adjustment
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment 1080i signal Feed the 100% color bar signal to INPUT 1 component input.
100% white
2 Auto adjustment
performance
Page 6/32 Bring the cursor on [•COMP 33K ADJ] and press [ENTER].
[•COMP 33K ADJ FINISH] appears when finished.
7.6. Analog RGB signal adjustment
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment Analog RGB signal: XGA
(1024 x 768) 60Hz
SYNC: HV separate
Feed the XGA 100% color bar signal to ANALOG RGB input.
2 Auto adjustment
performance
100% Color saturation
100% white 0% black
Bring the cursor on [•ANALOG RGB ADJ] and press [ENTER].
[•ANALOG RGB ADJ OK] appears when finished.
XGA
100% color bar
5 – 11
LC-65D64U
7.7. Tuner/V-Chip test
Adjustment item Adjustment conditions Adjustment procedure
1 Adjustment NTSC RF signal
US-7 (AIR) ch
2 Auto adjustment
performance
Feed the NTSC signal to RF ANTENNA input.
Bring the cursor on [•TUNER VCHIP TEST (*07ch)] and press
[ENTER]. (*Select the channel according to the RF signal.)
[•A-OK (***.**)/VM-OK] appears in blue when finished. (If [A-NG/VMNG] appears in yellow or red, the test is incomplete.)
Make sure a displacement of ±0.0625 MHz from the center frequency is
acceptable.
5 – 12
LC-65D64U
8. Adjustment of white balance
8.1. White balance adjustment
Adjustment item Adjustment conditions Adjustment procedure
1 Setting For detailed adjustment procedure, refer to “Kameyama Model Integral Monitor WB
2 Automatic adjust-
ment execution
[Command]
Process mode
KRSW0001
KKT10037
Setting
KYOF0000
OSDS0001
SBSL0016
Multi-point adjustment
mode
MSET0001
Adjustment value initialization
MSET0004
Point 6
WBI60928
MG6G****
MG6B****
MG6R****
Point 5
WBI50800
MG5G****
MG5B****
MG5R****
Adjustment Specifications V1.6”.
1) Make the following settings for the set.
AV MODE: [DYNAMIC]
Backlight: +16
Active Backlight: OFF
Aging time: Min. 60 minutes
2) Connect the white balance adjustment tool to the set.
[Adjustment procedure]
1) Using the remote controller, transmit the “monitor adjustment process” code.
2) Set the 6th point to the specified gradation level. With the strongest color being fixed,
turn down the R, G and B settings to their reference levels.
3) Set the 5th point to the specified gradation level. Correct the G setting (800 x 6thpoint G setting / 928) (rounded off), and make the R and B settings to their reference
levels.
4) Set the 4th point to the specified gradation level. Correct the G setting (656 x 6thpoint G setting / 928) (rounded off), and make the R and B settings to their reference
levels.
5) Set the 3rd point to the specified gradation level. Correct the G setting (528 x 6thpoint G setting / 928) (rounded off), and make the R and B settings to their reference
levels.
6) Set the 2nd point to the specified gradation level. Correct the G setting (352 x 6thpoint G setting / 928) (rounded off), and make the R and B settings to their reference
levels.
7) Set the 1st point to the specified gradation level. Correct the G setting (176 x 6thpoint G setting / 928) (rounded off), and make the R and B settings to their reference
levels.
8) With the MSET0003 command, write the adjustment values and turn off the AC
power.
* Initial R, G and B settings at point 6: Gradation level set at 928
* Initial R, G and B settings at points 1 thru 5: Corrected G setting at each point
(This is because the adjustment is made to achieve the same remainder of RGB setting /
4 at each point.)
[Adjustment value]
•As per the “standard set” submitted by Engineering Department Teaching set
[Adjustment reference] Instrument: Minolta CA-210 Engineering instrument
Point 4 Level Reference Adj. spec Ins. spec
WBI40656 Point 6 928 X=0.272 ±0.0010 ±0.002
MG4G**** y=0.277
MG4B**** Point 5 800 X=0.272 ±0.0010 ±0.002
MG4R**** y=0.277
Point 4 656 X=0.272 ±0.0010 ±0.002
Point 3 y=0.277
WBI30528 Point 3 528 X=0.272 ±0.0020 ±0.004
MG3G**** y=0.277
MG3B**** Point 2 352 X=0.272 ±0.0030 ±0.006
MG3R**** y=0.277
Point 1 176 X=0.272 ±0.0030 ±0.006
y=0.277
Point 2
WBI20352
MG2G****
MG2B****
MG2R****
Point 1
WBI10176
MG1G****
MG1B****
MG1R****
Writing
MSET0003
Note Set conditions for inspection
AV MODE: [DYNAMIC] (Reset)
Monochro: ON
Active Backlight: OFF
Aging Time: Min. 60 minutes
5 – 13
LC-65D64U
8.2. Adjusting procedure by use of [RS-232C]
1. Get ready the PC with COM port (RS-232C) running on Windows 95/98/ME/2000/XP operating system, as well as the RS-232C cross cable.
2. Start the unit with the RS-232C cable connected.
3. Start the terminal software. (The freeware readily available on the Internet will do.)
4. Make the following settings.
Baud rate 9,600 bps
Data LENGTH 8 bit
Parity bit None
Stop bit 1 bit
Flow control None
5. If the settings are correct, the terminal software indicates “ERR” against pressing of the “ENTER” key.
6. After the settings are done correctly, it is possible to make an adjustment by typing in the command shown in the table below and pressing the
“ENTER” key on the keyboard.
7. Command entry is successful if the terminal software indicates “OK” when the “ENTER” is pressed. If “ERR” is shown, retry to enter the command.
8. Send the process mode switching command to switch from the RS232C operation mode to the process mode.
KRSW0001: “ERR” is returned.
KKT10037: When “OK” is returned, the process mode becomes active. When “ERR”, start over from KRSW0001.
9. Send each adjustment command.
9. Initialization to factory settings
CAUTION: When initialization is performed, all user setting data including the channel settings are initialized. Be cautious when making this adjust-
ment.
(The adjustments done in the adjustment process mode are not initialized.)
Adjustment item Adjustment conditions Adjustment procedure
1 Initialization It turns off with AC power
supply.
After the adjustment, cancel the adjustment process mode.
To exit the adjustment process mode, unplug the AC power cable from the outlet to make a
forced shutdown. (When the power was turned off with the remote controller, once unplug the
power cable and plug it again. In this case, wait 10 seconds or so before plugging.)
Enter the adjustment process mode.
Bring the cursor on to [INDUSTRY INIT] in page 2/32.
Set to [ON] using [VOL] key, and press [ENTER] to execute the initialization.
When the version number screen shows up on the green background and “SUCCESS”
gets displayed at the top on screen, it means the procedure has been successfully carried out.
(If an error occurs, “ERROR” is displayed on the red background.)
•Turn off the AC power.
*Never shut off the power during the initialization process.
The following settings are initialized in this adjustment.
1) User setting
2) Channel data (e.g. broadcast frequencies)
3) Password data
4) Operation time
5) Auto installation flag
6) V-CHIP block setting
5 – 14
LC-65D64U
10. Model number ID plug
Model numbers are identified by inserting the destination ID plug (QCNCMA275WJQZ) in its specified slot of the destination ID connector SC9201/
SC9202 (QCNCWA715WJQZY).
㪋㪈
䇼㪣㪮䇽
㪪㪚㪐㪉㪇㪉
㪩㪪㪄㪉㪊㪉㪚
㪛㪄㫊㫌㪹㩷㪘㫌㪻㫀㫆
㪛㪄㫊㫌㪹
㪟㪛㪤㪠㩷㪘㫌㪻㫀㫆
㪟㪛㪤㪠
㪟㪛㪤㪠
㪦㫇㫋㫀㪺㪸㫃㩷㪦㫌㫋㫇㫌㫋
䇼㪟㪤䇽
㪈㪉㪈
㪈
㪙㪚㪤㪊㪌㪌㪊
㪤㪘㪠㪥
㪜㪉㪇㪎
䇼㪩㪘䇽
㪈
䇼㪬㪪䇽
㪈㪈㪋
㪈㪉㪇
䇼㪣㪧䇽
㪈㪌
䇼㪢㪤䇽
㪈㪋
㪋㪈
䇼㪣㪙䇽
䇼㪧㪛䇽
㪪㪚㪐㪉㪇㪈
䇼㪤㪘䇽
㪏㪇
㪛㪼㫊㫋㫀㫅㪸㫋㫀㫆㫅㩷㪠㪛㩷㪺㫆㫅㫅㪼㪺㫋㫆㫉㩷㫃㫆㪺㪸㫋㫀㫆㫅㫊
㪪㪚㪐㪉㪇㪈 㪪㪚㪐㪉㪇㪉
㪣㪚㪄㪍㪌㪛㪍㪋㪬 㽸 㽲
㪧㫃㫌㪾㩷㫃㫆㪺㪸㫋㫀㫆㫅㫊
㽲㽴㽶㽸㽹
㪈
㽳
㽵
㪈㪉
㪉
㽷
㪛㪼㫊㫋㫀㫅㪸㫋㫀㫆㫅㩷㪠㪛㩷㪺㫆㫅㫅㪼㪺㫋㫆㫉 㪛㪼㫊㫋㫀㫅㪸㫋㫀㫆㫅㩷㪠㪛㩷㫇㫃㫌㪾
䋨㪨㪚㪥㪚㪮㪘㪎㪈㪌㪮㪡㪨㪱㪰䋩 䋨㪨㪚㪥㪚㪤㪘㪉㪎㪌㪮㪡㪨㪱䋩
5 – 15
LC-65D64U
MEMO
5 – 16
LC-65D64U
CHAPTER 6. TROUBLE SHOOTING TABLE
Service Manual
[1] TROUBLE SHOOTING TABLE
No video (1)
LC-65D64U
COMPOSITE: No external input video
[INPUT-1]
Is INPUT-1 selected on the input select
menu screen? Is the INPUT-SELECT for the
input signal?
NO
Select INPUT-1 on the input
select menu screen for the right
input signal.
Does the INPUT-1 V3_PLUG
detection function?
Check the line between pin (7)
of input terminal (J501) and pin
(37) of IC501 (AV_SWITCH).
YES
Is there the COMPOSITE video signal input
at pin (38) of IC501 (AV_SWITCH)?
NO
Check the line between pin (6)
of J501 and pin (38) of IC501.
YES
COMPOSITE: No external input video
[INPUT-2]
Is INPUT-2 selected on the input select menu
screen?
NO
Select INPUT-2 on the input
select menu screen.
Does the INPUT-2 V2_PLUG
detection function?
Check the line between pin (7) of
input terminal (J503) and pin (35)
of IC501 (AV_SWITCH).
YES
Is there the COMPOSITE video signal input at
pin (36) of IC501 (AV_SWITCH)?
NO
Check the line between pin (6) of
J503 and pin (36) of IC501.
YES
COMPOSITE: No external input video
Is INPUT-3 selected on the input select
menu screen?
YES
Is there the COMPOSITE Video signal input
at pin (34) of IC501 (AV_SWITCH)?
YES
[INPUT-3]
NO
Select INPUT-3 on the input
select menu screen.
Does the INPUT-3 V1_PLUG
detection function?
Check the line between pin (7)
of input terminal (J901) and pin
(33) of IC501 (AV_SWITCH).
J901 pin (7) P901 pin (7)
P501 pin (7) IC501 pin
(33)
NO
Check the line between pin (6)
of J901 and pin (34) of IC501.
J901 pin (6) P901 pin (5)
P501 pin (5) IC501 pin
(34)
Is there the COMPOSITE video signal output at pin (30) of IC501?
NO
Check IC501 and its peripheral
YES
Is there the COMPOSITE video signal output at pin (59) of connector (SC501) on the TERMINAL
unit?
YES
Is there the COMPOSITE video signal input at pin (59) of connector (SC2203) on the MAIN unit? NO Check the SC501 and SC2203
YES
Is there the COMPOSITE video signal input at pin (AN16) of IC8001 (CPU)? NO Check the line between SC2203
YES
Are the LVDS signal outputs at the LVDS 1st channel and 2nd channel of IC8001?
LVDS_TX_0_DATA0_P/N(C7/B7), LVDS_TX_0_DATA1_P/N(E7/D7), LVDS_TX_0_DATA2_P/N(C6/
B6), LVDS_TX_0_DATA3_P/N(C5/B5), LVDS_TX_0_DATA4_P/N(E5/D5), LVDS_TX_0_CLK_P/
N(E6/D6), LVDS_TX_1_DATA0_P/N(B4/A4), LVDS_TX_1_DATA1_P/N(E4/D4),
LVDS_TX_1_DATA2_P/N(B3/A3), LVDS_TX_1_DATA3_P/N(B1/B2), LVDS_TX_1_DATA4_P/N(F5/
F6), LVDS_TX_1_CLK_P/N(C2/C3).
YES
Check the panel module.
NO
NO
circuits.
Check the line between IC501
and SC501 (Q501 and Q502,
etc.).
connectors.
and IC8001 (Q2216, etc.).
Check IC8001 and its peripheral
circuits (IC8151 thru IC8154,
etc.).
6 – 1
LC-65D64U
No video (2)
COMPONENT: No external input video [INPUT-1] COMPONENT: No external input video [INPUT-3]
Is INPUT-1 selected on the input select menu screen?
Is the INPUT-SELECT for the input signal?
NO
Select INPUT-1 on the input select menu screen for the
right input signal.
Does the INPUT-1 C2_PLUG detection function? Does the INPUT-3 C1_PLUG detection function?
Check the line between pin(7) of input terminal(J502) and
pin(58) of IC501(AV_SW).
YES
Are there the COMPONENT video signal inputs at pins(59)(Y)/
(60)(Pb) and (61)(Pr) of IC501(AV_SW)?
NO
Check the line between the input terminals of J502 and
IC501.
J902 pin(6)(Y) pin(5)(Pb) pin(4)(Pr)
IC501 pin(59) pin(60) pin(61)
YES
Are there the COMPONENT video signal outputs at pins(30)(Y)/(28)(Pb) and (27)(Pr) of IC501?
YES
Is INPUT-3 selected on the input select menu screen?
Is the INPUT-SELECT for the input signal?
Select INPUT-3 on the input select menu screen for the
right input signal.
Check the line between pin(7) of input terminal(J902) and
pin(50) of IC501(AV_SW).
YES
Are there the COMPONENT video signal inputs at pins(51)(Y)/(53)(Pb)
and (55)(Pr) of IC501(AV_SW)?
YES
J902 pin(7) P901 pin(15)
P501 pin(15) IC501 pin(50)
Check the line between the input terminals of J902 and
IC501.
J902 pin(6)(Y) pin(5)(Pb) pin(4)(Pr)
P901 pin(13) pin(11) pin(9)
P501 pin(13) pin(11) pin(9)
IC501 pin(51) pin(53) pin(55)
Check IC501 and its peripheral circuits.
NO
NO
NO
Are there the COMPONENT video signal outputs at pins(59),(57) and
(55) of connector(SC501) on the TERMINAL unit?
YES
Are there the COMPONENT video signal inputs at pins(59),(57) and
(55) of connector(SC2203) on the MAIN unit?
YES
Is there the COMPONENT video signal input at pin(16) of IC3201(SYNC)?
[Format: 480i]
Are there the COMPONENT video signal inputs at pins(AM21)(Y)/
(AN21)(Pb) and (AL21)(Pr) of IC8001(CPU)?
NO Check the line between IC501 and SC501 (Q501 thru
Q506, etc.).
NO Check the line between SC501 and SC2203 connectors.
NO
Check the line between SC2203 and IC3201 (Q2209, etc.).
[Format: 480p/720p/1080i/1080p]
Are there the COMPONENT video signal inputs at pins(10)(Y)/(4)(Pb)
and (16)(Pr) of IC3301(ADC)?
6 – 2
LC-65D64U
NO
Check the line between the connector of SC2203 and
IC8001(Q2202, Q2203 and Q2206, etc.).
[Format: 480p/720p/1080i/1080p]
Are there the HD_DVI[29:0], HD_DVI_CLK_P, HD_DVI_VSYNC,
HD_DVI_HSYNC, HD_DVI_DE signal outputs from IC3301?
[Format: 480p/720p/1080i/1080p]
Are there the HD_DVI[29:0], HD_DVI_CLK_P, HD_DVI_VSYNC,
HD_DVI_HSYNC, HD_DVI_DE signal inputs to IC8001(CPU)?
YES
Are the LVDS signal outputs at the LVDS 1st channel and 2nd channel of IC8001?
LVDS_TX_0_DATA0_P/N(C7/B7), LVDS_TX_0_DATA1_P/N(E7/D7), LVDS_TX_0_DATA2_P/N(C6/B6), LVDS_TX_0_DATA3_P/N(C5/B5),
LVDS_TX_0_DATA4_P/N(E5/D5), LVDS_TX_0_CLK_P/N(E6/D6),
LVDS_TX_1_DATA0_P/N(B4/A4), LVDS_TX_1_DATA1_P/N(E4/D4), LVDS_TX_1_DATA2_P/N(B3/A3), LVDS_TX_1_DATA3_P/N(B1/B2),
LVDS_TX_1_DATA4_P/N(F5/F6), LVDS_TX_1_CLK_P/N(C2/C3),
YES NO
Check the panel module. Check IC8001 and its peripheral circuits.(IC8151 thru IC8154, etc.)
Check the line between the connector of SC2203 and
IC3301.
YES
Check IC3301 and its peripheral circuits.
YES
Check the line between IC3301 and IC8001.
YES
NO
NO
NO
6 – 3
LC-65D64U
S-VIDEO: No external input video [INPUT-2]
Is INPUT-2 selected on the input select menu screen?
NO
Does the INPUT-2 S1_PLUG
detection function?
Check the line between pin(6) of
input terminal(J504) and pin(41)
of IC501(AV_SW).
YES
Are there the S-VIDEO signal inputs at pins(42)(Y) and (44)(C) of
IC501(AV_SW)?
NO
Check the line between
pins(3)(Y)/(4)(C) of J504 and
pins(42)/(44) of IC501.
YES
Are there the S-VIDEO signal outputs at pins(59)(Y) and (57)(C) of
connector(SC501) on the TERMINAL unit?
No video (3)
NO Check the line between IC501 and SC501 (Q501 thru Q504,
etc.).
YES
Are there the S-VIDEO signal inputs at pins(59)(Y) and (57)(C) of connector(SC2203) on the MAIN unit?
YES
Are there the S-VIDEO signal inputs at pins(AL17)(Y) and (AL16)(C) of
IC8001(CPU)?
YES
Are the LVDS signal outputs at the LVDS 1st channel and 2nd channel
of IC8001?
LVDS_TX_0_DATA0_P/N(C7/B7), LVDS_TX_0_DATA1_P/N(E7/D7),
LVDS_TX_0_DATA2_P/N(C6/B6), LVDS_TX_0_DATA3_P/N(C5/B5),
LVDS_TX_0_DATA4_P/N(E5/D5), LVDS_TX_0_CLK_P/N(E6/D6),
LVDS_TX_1_DATA0_P/N(B4/A4), LVDS_TX_1_DATA1_P/N(E4/D4),
LVDS_TX_1_DATA2_P/N(B3/A3), LVDS_TX_1_DATA3_P/N(B1/B2),
LVDS_TX_1_DATA4_P/N(F5/F6), LVDS_TX_1_CLK_P/N(C2/C3),
YES
Check the panel module.
NO Check the line between SC501 and SC2203 connectors.
NO Check the line between SC2203 and IC8001 (Q2201 and
Q2205, etc.).
Check IC8001 and its peripheral circuits.(IC8151 thru IC8154,
etc.)
NO
6 – 4
No video (4)
No video at UHF/VHF broadcast signal reception No video at digital broadcast signal reception
Is the specified TV signal selected on the input select menu screen?
LC-65D64U
Is there the analog video signal output (VIDEO) at pin(13) of
tuner(TU1101)?
NO
Check TU1101 and its peripheral
circuits (SDA/SCL_3_5, etc.).
YES
Is there the analog video signal input (TUN_CVBS) at pin(40) of
IC501(AV_SW)?
NO
Check the line between pin(13) of
TU1101 and pin(40) of
YES
Is there the analog video signal output at pin(30) of IC501? Are there the video signal inputs at pins(70) and (72) of connec-
YES
Is there the analog video signal output at pin(59) of connector(SC501)
on the TERMINAL unit?
YES
IC501(AV_SW).
NO
Check IC501 and its peripheral
circuits.
NO
Check the line between IC501
and SC501(Q501 and Q502,
etc.).
Are there the video signal outputs (IF_OUT_P/N) at the pins(19) and
(20) of tuner(TU1101)?
NO
Check TU1101 and its peripheral
circuits (SDA/SCL_3_5, etc.).
YES
Are there the video signal outputs at pins(70) and (72) of connector(SC501) on the TERMINAL unit?
NO
Check the line between TU1101
and SC501.
YES
tor(SC2203) on the MAIN unit?
NO
Check the line between SC2203
YES
Are there the video signal inputs at pin(AM33) and (AM34) of
IC8001(CPU)?
and SC501 connectors.
NO
Check the line between IC8001
and SC2203 (L2204, C2229,
etc.).
Is there the analog video signal input at pin(59) of connector(SC2203)
on the MAIN unit?
NO
Check the line between SC2203
and SC501 connectors.
YES
Is there the analog video signal input at pin(AM19) of IC8001(CPU)?
NO
Check the line between IC8001
and SC2203 (Q2214, etc.).
YES
Are the LVDS signal outputs at the LVDS 1st channel and 2nd channel of IC8001?
LVDS_TX_0_DATA0_P/N(C7/B7), LVDS_TX_0_DATA1_P/N(E7/D7), LVDS_TX_0_DATA2_P/N(C6/B6), LVDS_TX_0_DATA3_P/N(C5/B5),
LVDS_TX_0_DATA4_P/N(E5/D5), LVDS_TX_0_CLK_P/N(E6/D6),
LVDS_TX_1_DATA0_P/N(B4/A4), LVDS_TX_1_DATA1_P/N(E4/D4), LVDS_TX_1_DATA2_P/N(B3/A3), LVDS_TX_1_DATA3_P/N(B1/B2),
LVDS_TX_1_DATA4_P/N(F5/F6), LVDS_TX_1_CLK_P/N(C2/C3),
YES
Check the panel module.
YES
NO
Check IC8001 and its peripheral
circuits.(IC8151 thru IC8154, etc.)
6 – 5
LC-65D64U
[HDMI signal input] No video (5)
HDMI: No external input video [INPUT-4] HDMI: No external input video [INPUT-5]
Is INPUT-4 selected on the input select menu screen? Is INPUT-5 selected on the input select menu screen?
YES
NO
Select INPUT-4 on the input select menu screen for
the right input signal.
Does the HOT PLUG detection function? Does the HOT PLUG detection function?
Does the DDC5V signal come from pin(18) of SC801
to pin(72) of IC1604(HDMI-SW)?
NO
Check the line between the input terminals of SC801 and IC1604.
SC801 pin(18) IC801 pin(39)
SC802 pin(19) SC1603 pin(3)
IC1604 pin(72)
YES
Does the HPD signal come from pin(56) of IC1604 to
pin(19) of SC801?
NO
Check the line between IC1604 and
SC801.
IC1604 pin(56) SC1603 pin(4)
SC802 pin(18) IC801 pin(25)
IC807 pin(4) SC801 pin(19)
Select INPUT-5 on the input select menu screen for the
right input signal.
Does the DDC5V signal come from pin(18) of SC1601
to pin(32) of IC1604(HDMI-SW)?
Check the line between the input terminals
of SC1601 and IC1604.
YES
Does the HPD signal come from pin(16) of IC1604 to
pin(19) of SC1601?
YES
Check the line between IC1604 and
SC1601.
IC1604 pin(16) IC1607 pin(4)
SC1601 pin(19)
NO
NO
NO
Are there the TMDS signal inputs at pins(27/28)(CLK-/+), (29/30)(D0-/+),
(32/33)(D1-/+), (34/35)(D2-/+), all of IC803?
NO
Is IC802(EEPROM) accessed by I2C, with HDMI connected, to read the DDC_I2C SCL/SDA data?
NO NO
Check the DDC line and its peripheral circuits. (IC801
YES
Are there the TMDS signal inputs at pins(58/59)(CLK-/+), (61/62)(D0-/+),
(64/65)(D1-/+), (67/68)(D2-/+), all of IC1604?
YES
Are there the TMDS signal inputs at pins(39/40)(CLK-/+), (43/44)(D0-/+), (47/48)(D1-/+),
(51/52)(D2-/+), all of IC1502(HDMI-Rx)?
Are there the HD_DVI[29:0], HD_DVI_CLK_P, HD_DVI_VSYNC, HD_DVI_HSYNC,
HD_DVI_DE signal outputs to IC1502?
Are there the HD_DVI[29:0], HD_DVI_CLK_P, HD_DVI_VSYNC, HD_DVI_HSYNC,
HD_DVI_DE signal inputs to IC8001?
and its peripherals).
NO
Check the TMDS line between IC803 and IC1604
(SC802 and SC1603, etc.).
YES
YES
Are there the TMDS signal inputs at pins(18/19)(CLK-/+), (21/
22)(D0-/+), (24/25)(D1-/+), (27/28)(D2-/+), all of IC1604?
YES
NO
Is IC1601(EEPROM) accessed by I2C, with HDMI connected, to read the DDC_I2C SCL/SDA data?
Check the DDC line and its peripheral circuits. (IC1601
and its peripherals).
NO Check IC1502, IC1604 and their peripheral
circuits.
NO Check IC1502 and their peripheral circuits.
NO Check the line between IC1502 and
IC8001.
YES
6 – 6
LC-65D64U
Are the LVDS signal outputs at the LVDS 1st channel and 2nd channel of IC8001?
LVDS_TX_0_DATA0_P/N(C7/B7), LVDS_TX_0_DATA1_P/N(E7/D7),
LVDS_TX_0_DATA2_P/N(C6/B6), LVDS_TX_0_DATA3_P/N(C5/B5),
LVDS_TX_0_DATA4_P/N(E5/D5), LVDS_TX_0_CLK_P/N(E6/D6),
LVDS_TX_1_DATA0_P/N(B4/A4), LVDS_TX_1_DATA1_P/N(E4/D4),
LVDS_TX_1_DATA2_P/N(B3/A3), LVDS_TX_1_DATA3_P/N(B1/B2),
LVDS_TX_1_DATA4_P/N(F5/F6), LVDS_TX_1_CLK_P/N(C2/C3),
YES
Check the panel module.
Check IC8001 and its peripheral circuits.(IC8151 thru IC8154, etc.)
NO
6 – 7
LC-65D64U
HDMI: No external input video [INPUT-6]
Is INPUT-6 selected on the input select menu screen?
NO
Select INPUT-6 on the input select menu screen for the right input
signal.
Does the HOT PLUG detection function?
Does the DDC5V signal come from pin(18) of SC1602 to pin(52) of
IC1604(HDMI-SW)?
Check the line between the input terminals of
SC1602 and IC1604.
YES
Does the HPD signal come from pin(36) of IC1604 to pin(19) of
SC1602?
[HDMI signal input] No video (5)
NO
NO
Check the line between IC1604 and SC1602.
IC1604 pin(36) IC1608 pin(4)
YES
Are there the TMDS signal inputs at pins(38/39)(CLK-/+), (41/42)(D0-/+), (44/
45)(D1-/+), (47/48)(D2-/+), all of IC1604?
Is IC1603(EEPROM) accessed by I2C, with HDMI connected, to
read the DDC_I2C SCL/SDA data?
Check the DDC line and its peripheral circuits.(IC1603 and its
peripherals).
YES
Are there the TMDS signal inputs at pins(39/40)(CLK-/+), (43/44)(D0-/+), (47/
48)(D1-/+), (51/52)(D2-/+), all of IC1502(HDMI-Rx)?
Are there the HD_DVI[29:0], HD_DVI_CLK_P, HD_DVI_VSYNC,
HD_DVI_HSYNC, HD_DVI_DE signal outputs to IC1502?
Are there the HD_DVI[29:0], HD_DVI_CLK_P, HD_DVI_VSYNC,
HD_DVI_HSYNC, HD_DVI_DE signal inputs to IC8001?
SC1602 pin(19)
NO
NO
YES
YES
NO Check IC1502, IC1604 and their peripheral circuits.
NO Check IC1502 and their peripheral circuits.
NO Check the line between IC1502 and IC8001.
YES
Are the LVDS signal outputs at the LVDS 1st channel and 2nd channel of IC8001?
LVDS_TX_0_DATA0_P/N(C7/B7), LVDS_TX_0_DATA1_P/N(E7/D7),
LVDS_TX_0_DATA2_P/N(C6/B6), LVDS_TX_0_DATA3_P/N(C5/B5),
LVDS_TX_0_DATA4_P/N(E5/D5), LVDS_TX_0_CLK_P/N(E6/D6),
LVDS_TX_1_DATA0_P/N(B4/A4), LVDS_TX_1_DATA1_P/N(E4/D4),
LVDS_TX_1_DATA2_P/N(B3/A3), LVDS_TX_1_DATA3_P/N(B1/B2),
LVDS_TX_1_DATA4_P/N(F5/F6), LVDS_TX_1_CLK_P/N(C2/C3),
YES
Check the panel module.
6 – 8
Check IC8001 and its peripheral circuits. (IC8151 thru
IC8154, etc.)
NO
No video (6)
PC: No external input video [INPUT-7]
Is INPUT-7 selected on the input select menu screen?
NO
Select INPUT-7 on the input select menu screen for the right input
signal.
Is IC2202(EEPROM) accessed by I2C, with PC connected, to read
the DDC_I2C SCL/SDA data?
Check the DDC line and its peripheral circuits. (IC2202 and its
peripherals).
YES
Is there the video signal input at pin(8) of IC3201(SYNC)?
Are there the VSYNC/HSYNC signal inputs at pins(23) and (24) of IC3201?
YES
Are there the video signal inputs at pins(6)(G), (2)(B) and (14)(R) of IC3301(ADC)?
Are there the VSYNC/HSYNC signal inputs at pins(71) and (70) of IC3301(ADC)?
LC-65D64U
NO Check the line between SC2201 and IC3201
(Q2211, IC2201, etc.).
NO Check the line between SC2201 and IC3301
(Q2211, IC2201, etc.).
YES
Are there the HD_DVI[29:0], HD_DVI_CLK_P, HD_DVI_VSYNC, HD_DVI_HSYNC,
HD_DVI_DE signal outputs from IC3301?
YES
Are there the HD_DVI[29:0], HD_DVI_CLK_P, HD_DVI_VSYNC, HD_DVI_HSYNC,
HD_DVI_DE signal inputs to IC8001(CPU)?
YES
Are the LVDS signal outputs at the LVDS 1st channel and 2nd channel of IC8001?
LVDS_TX_0_DATA0_P/N(C7/B7), LVDS_TX_0_DATA1_P/N(E7/D7),
LVDS_TX_0_DATA2_P/N(C6/B6), LVDS_TX_0_DATA3_P/N(C5/B5),
LVDS_TX_0_DATA4_P/N(E5/D5), LVDS_TX_0_CLK_P/N(E6/D6),
LVDS_TX_1_DATA0_P/N(B4/A4), LVDS_TX_1_DATA1_P/N(E4/D4),
LVDS_TX_1_DATA2_P/N(B3/A3), LVDS_TX_1_DATA3_P/N(B1/B2),
LVDS_TX_1_DATA4_P/N(F5/F6), LVDS_TX_1_CLK_P/N(C2/C3),
YES
Check the panel module.
NO Check IC3301 and its peripheral circuits.
NO Check the line between IC3301 and IC8001.
Check IC8001 and its peripheral circuits. (IC8151
thru IC8154, etc.)
NO
6 – 9
LC-65D64U
No audio (1)
INPUT-1 No audio INPUT-2 No audio
Is INPUT-1 selected on the input select menu screen? Is INPUT-2 selected on the input select menu screen?
NO
Is the audio output selected for “VARIABLE”
on the menu screen?
Set the audio output to “FIXED”. Set the audio output to “FIXED”.
YES
Does the audio signal come from pins(4)(L) and (5)(R) of
input terminal(J501) to pins(8)(L) and (13)(R) of
IC501(AV_SW) on the TERMINAL unit?
NO
Check the line between J501 and IC501. Check the line between J503 and IC501.
YES
Does the audio signal come from pins(20)(L) and (18)(R) of IC501 to pins(51)(L) and (53)(R) of connector(SC501)?
YES
Are there the audio signal inputs at pins(51)(L) and (53)(R) of connector(SC2203)
on the MAIN unit?
YES
Does the audio signal come from pins(51)(L) and (53)(R) of SC2203 to pins(35)(L)
and (36)(R) of IC1403(CODEC)?
YES
Does the audio signal come from pins(4)(COD_LRCK), (5)(COD_BCK) and
(6)(COD_SDOUT) of IC1403 to pins(AK24), (AH24) and (AJ24) of IC8001(CPU)?
Does the audio signal come from pins(4)(L) and (5)(R) of
input terminal(J503) to pins(7)(L) and (12)(R) of
IC501(AV_SW) on the TERMINAL unit?
NO Check the line between SC501 and SC2203.
NO Check the line between IC1403 and SC2203.
NO Check the line between IC1403 and IC8001.
Is the audio output selected for “VARIABLE” on
the menu screen?
YES
YES
Check the line between IC501 and SC501 its
peripheral circuits.
NO
NO
NO
YES
Does the audio signal come from pins(AJ25)(DSP_LRCK), (AK25)(DSP_BCKIN),
(AL25)(DSP_SDIN1) and (L32)(DSP_SDIN2) of IC8001 to pins(2), (3), (6) and (5)
of IC1402(SOUND_DSP)?
YES
Does the audio signal come from pins(19)(DSP_SDOUT1) and
(21)(DSP_SDOUT3) of IC1402 to pins(11) and (12) of IC1403(CODEC)?
Does the audio signal come from pins(AJ25)(DSP_LRCK), (AK25)(DSP_BCKIN)
and (AL24)(DSP_MCLK) of IC8001 to pins(8), (9) and (10) of IC1403?
YES
Does the audio signal come from pins(17)(SP_LP) and (18)(SP_RP) of IC1403 to
pins(21)(SP_LP) and (25)(SP_RP) of connector(SC2203) on the MAIN unit?
YES
Are there the audio signal inputs at pins(21)(SP_LP) and (25)(SP_RP) of connec-
tor(SC501) on the TERMINAL unit?
YES
Does the audio signal come from pins(21)(SP_LP) and (25)(SP_RP) of SC501 to
pins(5)(SP_LP) and (9)(SP_RP) of IC2701(AMP) on the TERMINAL unit?
YES
Is the audio output from IC2701 as specified? NO Check IC2701 and its peripheral circuits.
NO
NO Check the line between IC1402 and IC1403.
NO Check the line between IC8001 and IC1403.
NO Check the line between SC2203 and
NO Check the line between SC501 and SC2203.
NO
Check the line between IC8001 and IC1402.
IC1403(Q1313, Q1314, etc.).
Check the line between SC501 and IC2701,
and their peripheral circuits (AMP_MUTE line,
etc.).
YES
Check the connector(P2701), speakers and their peripheral circuits.
6 – 10
INPUT-3 No audio
LC-65D64U
No audio (1)
Is INPUT-3 selected on the input select menu screen?
YES
Does the audio signal come from pins(4)(L) and (5)(R) of input
terminal(J901) to pins(3)(L) and (1)(R) of P901 on the SIDE unit?
YES
Are there the audio signal inputs at pins(3)(L) and (1)(R) of P501
on the TERMINAL unit?
YES
Does the audio signal come from pins(3)(L) and (1)(R) of P501 to
pins(6) and (11) of IC501 on the TERMINAL unit?
YES
Does the audio signal come from pins(20)(L) and (18)(R) of
IC501 to pins(51)(L) and (53)(R) of connector(SC501)?
YES
Are there the audio signal inputs at pins(51)(L) and (53)(R) of
connector(SC2203) on the MAIN unit?
YES
Does the audio signal come from pins(51)(L) and (53)(R) of
SC2203 to pins(35)(L) and (36)(R) of IC1403(CODEC)?
YES
Does the audio signal come from pins(4)(COD_LRCK),
(5)(COD_BCK) and (6)(COD_SDOUT) of IC1403 to pins(AK24),
(AH24) and (AJ24) of IC8001(CPU)?
NO
NO
NO
NO
NO
NO
NO
NO
Is the audio output selected for “VARIABLE” on the menu
screen?
Set the audio output to “FIXED”.
Check the line between J901 and P901, and their peripheral circuits.
Check the line between P501 and P901.
Check the line between P501 and IC501, and their peripheral circuits.
Check the line between IC501 and SC501 its peripheral circuits.
Check the line between SC501 and SC2203.
Check the line between IC1403 and SC2203.
Check the line between IC1403 and IC8001.
YES
Does the audio signal come from pins(AJ25)(DSP_LRCK),
(AK25)(DSP_BCKIN), (AL25)(DSP_SDIN1) and
(L32)(DSP_SDIN2) of IC8001 to pins(2), (3), (6) and (5) of
IC1402(SOUND_DSP)?
YES
Does the audio signal come from pins(19)(DSP_SDOUT1) and
(21)(DSP_SDOUT3) of IC1402 to pins(11) and (12) of
IC1403(CODEC)?
Does the audio signal come from pins(AJ25)(DSP_LRCK),
(AK25)(DSP_BCKIN) and (AL24)(DSP_MCLK) of IC8001 to
pins(8), (9) and (10) of IC1403?
YES
Does the audio signal come from pins(17)(SP_LP) and
(18)(SP_RP) of IC1403 to pins(21)(SP_LP) and (25)(SP_RP) of
connector(SC2203) on the MAIN unit?
YES
Are there the audio signal inputs at pins(21)(SP_LP) and
(25)(SP_RP) of connector(SC501) on the TERMINAL unit?
YES
Does the audio signal come from pins(21)(SP_LP) and
(25)(SP_RP) of SC501 to pins(5)(SP_LP) and (9)(SP_RP) of
IC2701(AMP) on the TERMINAL unit?
YES
Is the audio output from IC2701 as specified?
NO
NO
NO
NO
NO
NO
NO
Check the line between IC8001 and IC1402.
Check the line between IC1402 and IC1403.
Check the line between IC8001 and IC1403.
Check the line between SC2203 and IC1403(Q1313, Q1314,
etc.).
Check the line between SC501 and SC2203.
Check the line between SC501 and IC2701, and their peripheral
circuits (AMP_MUTE line, etc.).
Check IC2701 and its peripheral circuits.
YES
Check the connector(P2701), speakers and their peripheral circuits.
6 – 11
LC-65D64U
No audio (2)
[HDMI analog audio input] INPUT-6 No audio [PC analog audio input] INPUT-7 No audio
Is INPUT-6 selected on the input select menu screen? Is INPUT-7 selected on the input select menu screen?
NO
Is the audio output selected for “VARIABLE” on the
menu screen?
Set the audio output to “FIXED”. Set the audio output to “FIXED”.
Is the HDMI audio output selected for “Digital” on the
menu screen?
Set the HDMI audio output to “Analog”.
YES
Does the audio signal come from pins(4)(L) and (2)(R) of input terminal(J1601) to pins(43)(L) and (44)(R) of IC1403(CODEC) on the MAIN
unit?
NO
Check the line between J1601 and IC1403, and their
peripheral circuits.
YES
Does the audio signal come from pins(4)(COD_LRCK), (5)(COD_BCK) and (6)(COD_SDOUT) of IC1403 to pins(AK24), (AH24) and (AJ24) of
IC8001(CPU)?
YES
Does the audio signal come from pins(AJ25)(DSP_LRCK),
(AK25)(DSP_BCKIN), (AL25)(DSP_SDIN1) and (L32)(DSP_SDIN2) of IC8001
to pins(2), (3), (6) and (5) of IC1402(SOUND_DSP)?
Does the audio signal come from pins(2)(L) and (3)(R) of input
terminal(J2201) to pins(46)(L) and (47)(R) of IC1403(CODEC) on
the MAIN unit?
NO
Is the audio output selected for “VARIABLE” on the
menu screen?
YES
Check the line between J2201 and IC1403, and their
peripheral circuits.
YES
Check the line between IC1403 and IC8001.
Check the line between IC8001 and IC1402.
NO
NO
NO
YES
Does the audio signal come from pins(19)(DSP_SDOUT1) and
(21)(DSP_SDOUT3) of IC1402 to pins(11) and (12) of IC1403(CODEC)?
Does the audio signal come from pins(AJ25)(DSP_LRCK),
(AK25)(DSP_BCKIN) and (AL24)(DSP_MCLK) of IC8001 to pins(8), (9) and
(10) of IC1403?
YES
Does the audio signal come from pins(17)(SP_LP) and (18)(SP_RP) of IC1403
to pins(21)(SP_LP) and (25)(SP_RP) of connector(SC2203) on the MAIN unit?
YES
Are there the audio signal inputs at pins(21)(SP_LP) and (25)(SP_RP) of connector(SC501) on the TERMINAL unit?
YES
Does the audio signal come from pins(21)(SP_LP) and (25)(SP_RP) of SC501
to pins(5)(SP_LP) and (9)(SP_RP) of IC2701(AMP) on the TERMINAL unit?
YES
Is the audio output from IC2701 as specified? NO Check IC2701 and its peripheral circuits.
YES
Check the connector(P2701), speakers and their peripheral circuits.
NO Check the line between IC1402 and IC1403.
NO
NO Check the line between SC2203 and IC1403(Q1313,
NO Check the line between SC501 and SC2203.
NO Check the line between SC501 and IC2701, and their
Check the line between IC8001 and IC1403.
Q1314, etc.).
peripheral circuits (AMP_MUTE line, etc.).
6 – 12
MEMO
LC-65D64U
6 – 13
LC-65D64U
No audio (3)
No audio at UHF/VHF broadcast signal reception No audio at digital broadcast signal reception
Is TV selected on the input select menu screen? Is TV selected on the input select menu screen?
NO
Is the audio output selected for “VARIABLE” on the menu
screen?
Set the audio output to “FIXED”. Set the audio output to “FIXED”.
YES
Is there the SIF signal output at pin(15) of tuner(TU1101) on the TERMINAL unit?
NO
Check the tuner(TU1101) and its peripheral circuits. Check the tuner(TU1101) and its peripheral circuits.
YES
Does the SIF signal come from pin(15) of tuner(TU1101) to pin(75) of
connector(SC501)?
NO
Check the line between TU1101 and SC501, and their
peripheral circuits(Q1101, Q1102, etc.).
YES
Is there the SIF signal input at pin(75) of connector(SC2203) on the
MAIN unit?
NO
Check the line between SC501 and SC2203. Check the line between SC2203 and SC501 connec-
YES
Does the SIF signal come from pin(75) of SC2203 to pin(AN23) of
IC8001(CPU) on the MAIN unit?
NO
Check the line between IC8001 and SC2203. Check the line between IC8001 and SC2203 (L2204,
YES
Does the audio signal come from pins(4)(COD_LRCK), (5)(COD_BCK) and (6)(COD_SDOUT) of IC1403 to pins(AK24), (AH24) and (AJ24) of
IC8001(CPU)?
YES
Does the audio signal come from pins(AJ25)(DSP_LRCK),
(AK25)(DSP_BCKIN), (AL25)(DSP_SDIN1) and (L32)(DSP_SDIN2) of
IC8001 to pins(2), (3), (6) and (5) of IC1402(SOUND_DSP)?
Are there the video signal outputs (IF_OUT_P/N) at the pins(19)
and (20) of tuner(TU1101) on the TERMINAL unit?
Are there the video signal outputs at pins(70) and (72) of connector(SC501) on the TERMINAL unit?
Are there the video signal inputs at pins(70) and (72) of connector(SC2203) on the MAIN unit?
Are there the video signal inputs at pin(AM33) and (AM34) of
IC8001(CPU)?
Check the line between IC1403 and IC8001.
NO
Is the audio output selected for “VARIABLE” on the
menu screen?
YES
YES
Check the line between TU1101 and SC501.
YES
YES
tors.
C2229, etc.).
YES
Check the line between IC8001 and IC1402.
NO
NO
NO
NO
NO
NO
YES
Does the audio signal come from pins(19)(DSP_SDOUT1) and
(21)(DSP_SDOUT3) of IC1402 to pins(11) and (12) of IC1403(CODEC)?
Does the audio signal come from pins(AJ25)(DSP_LRCK),
(AK25)(DSP_BCKIN) and (AL24)(DSP_MCLK) of IC8001 to pins(8), (9) and
(10) of IC1403?
YES
Does the audio signal come from pins(17)(SP_LP) and (18)(SP_RP) of
IC1403 to pins(21)(SP_LP) and (25)(SP_RP) of connector(SC2203) on the
MAIN unit?
YES
Are there the audio signal inputs at pins(21)(SP_LP) and (25)(SP_RP) of connector(SC501) on the TERMINAL unit?
YES
Does the audio signal come from pins(21)(SP_LP) and (25)(SP_RP) of
SC501 to pins(5)(SP_LP) and (9)(SP_RP) of IC2701(AMP) on the TERMI-
NAL unit?
YES
6 – 14
NO Check the line between IC1402 and IC1403.
NO
NO
NO Check the line between SC501 and SC2203.
NO
Check the line between IC8001 and IC1403.
Check the line between SC2203 and IC1403(Q1313,
Q1314, etc.).
Check the line between SC501 and IC2701, and
their peripheral circuits (AMP_MUTE line, etc.).
LC-65D64U
Is the audio output from IC2701 as specified? NO Check IC2701 and its peripheral circuits.
YES
Check the connector(P2701), speakers and their peripheral circuits.
6 – 15
LC-65D64U
INPUT-4 No audio (HDMI connected)
INPUT-5 No audio (HDMI connected)
INPUT-6 No audio (HDMI connected)
No audio (4)
[INPUT-4 input]
Is INPUT-4 selected on the input select menu screen?
[INPUT-5 input]
Is INPUT-5 selected on the input select menu screen?
[INPUT-6 input]
Is INPUT-6 selected on the input select menu screen?
YES
[INPUT-4 input] If no video appears, refer to “No external input video (HDMI) [INPUT-4]”.
[INPUT-5 input] If no video appears, refer to “No external input video (HDMI) [INPUT-5]”.
[INPUT-6 input] If no video appears, refer to “No external input video (HDMI) [INPUT-6]”.
YES
Is the HDMI_MUTE line as specified? NO Check Q1301, IC1302 and their peripheral
YES
Does the HDMI_SPDIF signal come from pin (78) of IC1502(HDMI-Rx) to pins(AM11)
and (AN11) of IC8001(CPU)?
YES
Does the audio signal come from pins(4)(COD_LRCK), (5)(COD_BCK) and
(6)(COD_SDOUT) of IC1403 to pins(AK24), (AH24) and (AJ24) of IC8001(CPU)?
YES
Does the audio signal come from pins(AJ25)(DSP_LRCK), (AK25)(DSP_BCKIN),
(AL25)(DSP_SDIN1) and (L32)(DSP_SDIN2) of IC8001 to pins(2), (3), (6) and (5) of
IC1402(SOUND_DSP)?
NO
NO Check the line between IC1502 and IC8001,
NO Check the line between IC1403 and IC8001.
NO
Is the audio output selected for “VARIABLE”
on the menu screen?
Set the audio output to “FIXED”.
circuits.
and their peripheral circuits.
Check the line between IC8001 and IC1402.
YES
Does the audio signal come from pins(19)(DSP_SDOUT1) and (21)(DSP_SDOUT3) of
IC1402 to pins(11) and (12) of IC1403(CODEC)?
Does the audio signal come from pins(AJ25)(DSP_LRCK), (AK25)(DSP_BCKIN) and
(AL24)(DSP_MCLK) of IC8001 to pins(8), (9) and (10) of IC1403?
YES
Does the audio signal come from pins(17)(SP_LP) and (18)(SP_RP) of IC1403 to
pins(21)(SP_LP) and (25)(SP_RP) of connector(SC2203) on the MAIN unit?
YES
Are there the audio signal inputs at pins(21)(SP_LP) and (25)(SP_RP) of connec-
tor(SC501) on the TERMINAL unit?
YES
Does the audio signal come from pins(21)(SP_LP) and (25)(SP_RP) of SC501 to
pins(5)(SP_LP) and (9)(SP_RP) of IC2701(AMP) on the TERMINAL unit?
YES
Is the audio output from IC2701 as specified? NO Check IC2701 and its peripheral circuits.
YES
Check the connector(P2701), speakers and their peripheral circuits.
NO Check the line between IC1402 and IC1403.
NO Check the line between IC8001 and IC1403.
NO Check the line between SC2203 and
IC1403(Q1313, Q1314, etc.).
NO Check the line between SC501 and SC2203.
NO
Check the line between SC501 and IC2701,
and their peripheral circuits (AMP_MUTE line,
etc.).
6 – 16
No audio signal at Digital Audio Output terminal (Analog sound heard)
No INPUT-4/5/6(HDMI) audio No audio at digital broadcast signal reception
LC-65D64U
If no video appears, refer to “No external input video (HDMI)
[INPUT-4/5/6]”.
Is the HDMI_MUTE line as specified? Check the tuner(TU1101) and its peripheral circuits.
NO
Check Q1301, IC1302 and their peripheral circuits. Are there the video signal outputs (IF_OUT_P/N) at the pins(19) and
YES
Does the HDMI_SPDIF signal come from pin (78) of
IC1502(HDMI-Rx) to pins(AM11) and (AN11) of IC8001(CPU)?
NO
Check the line between IC1502 and IC8001, and
their peripheral circuits.
Are there the video signal outputs (IF_OUT_P/N) at the pins(19) and
(20) of tuner(TU1101) on the TERMINAL unit?
NO
YES
(20) of tuner(TU1101) on the TERMINAL unit?
NO
Check the tuner(TU1101) and its peripheral circuits.
YES
Are there the video signal outputs at pins(70) and (72) of connector(SC501) on the TERMINAL unit?
NO
Check the line between TU1101 and SC501.
YES
Are there the video signal inputs at pins(70) and (72) of connector(SC2203) on the MAIN unit?
NO
Check the line between SC2203 and SC501 connec-
YES
tors.
Are there the video signal inputs at pin(AM33) and (AM34) of
IC8001(CPU)?
NO
Check the line between IC8001 and SC2203 (L2204,
YES
Is there the SPDIF signal (OPT_OUT) output at pin(AP11) of IC8001(CPU)?
YES
Is there the SPDIF signal (OPT_OUT) input at pin(2) of
IC1304(SPDIF_BUFF&MUTE)?
YES
Is there the MUTE signal input at pin(1) of IC1304? NO Check the MUTE_A_ALL and ACDET signals, and their peripheral
YES
Is there the SPDIF signal input at pin(1) of D1306(OPTICAL OUTPUT)?
YES
Check the speakers and their peripheral circuits.
NO Check the line between IC8001 and IC1304.
NO Check D1306 and its peripheral circuits.
YES
Check the IC8001 and its peripheral circuits.
circuits(Q1304, Q1312, D1310, etc.).
No optical output under the following conditions as per HDMI requirements.
*Audio contents protected.
*Audio frequency beyond 48kHz.
*Audio bit length beyond 16bits.
C2229, etc.).
NO
6 – 17
LC-65D64U
No monitor audio output
Is the audio output from the monitor set at “VARIABLE” or “FIXED”
on the menu screen?
YES
Are there the audio signal outputs at pins(24)(LINE_L) and
(25)(LINE_R) of IC1403(CODEC)?
YES
Does the audio signal come from pins(24)(LINE_L) and
(25)(LINE_R) of IC1403 to pins(29) and (31) of SC2203 on the
MAIN unit?
YES
Are there the audio signal inputs at pins(29)(LINE_L) and
(31)(LINE_R) of SC501 on the TERMINAL unit?
YES
Does the audio come from pins(29)(LINE_L) and (31)(LINE_R) of
SC501 to pins(2)(L) and (4)(R) of J505?
NO Check the bus line(SCL0/SDA0) and IC1403.
NO Check IC1403 and its peripheral circuits.
NO
NO Check the line between SC501 and SC2203 connectors.
NO Check the line between J505 and SC501, and their peripheral cir-
Check the line between IC1403 and SC2203.
cuits.
Check the LINE_MUTE line and its peripheral circuits(Q507 thru
Q509, etc.).
6 – 18
MEMO
LC-65D64U
6 – 19
LC-65D64U

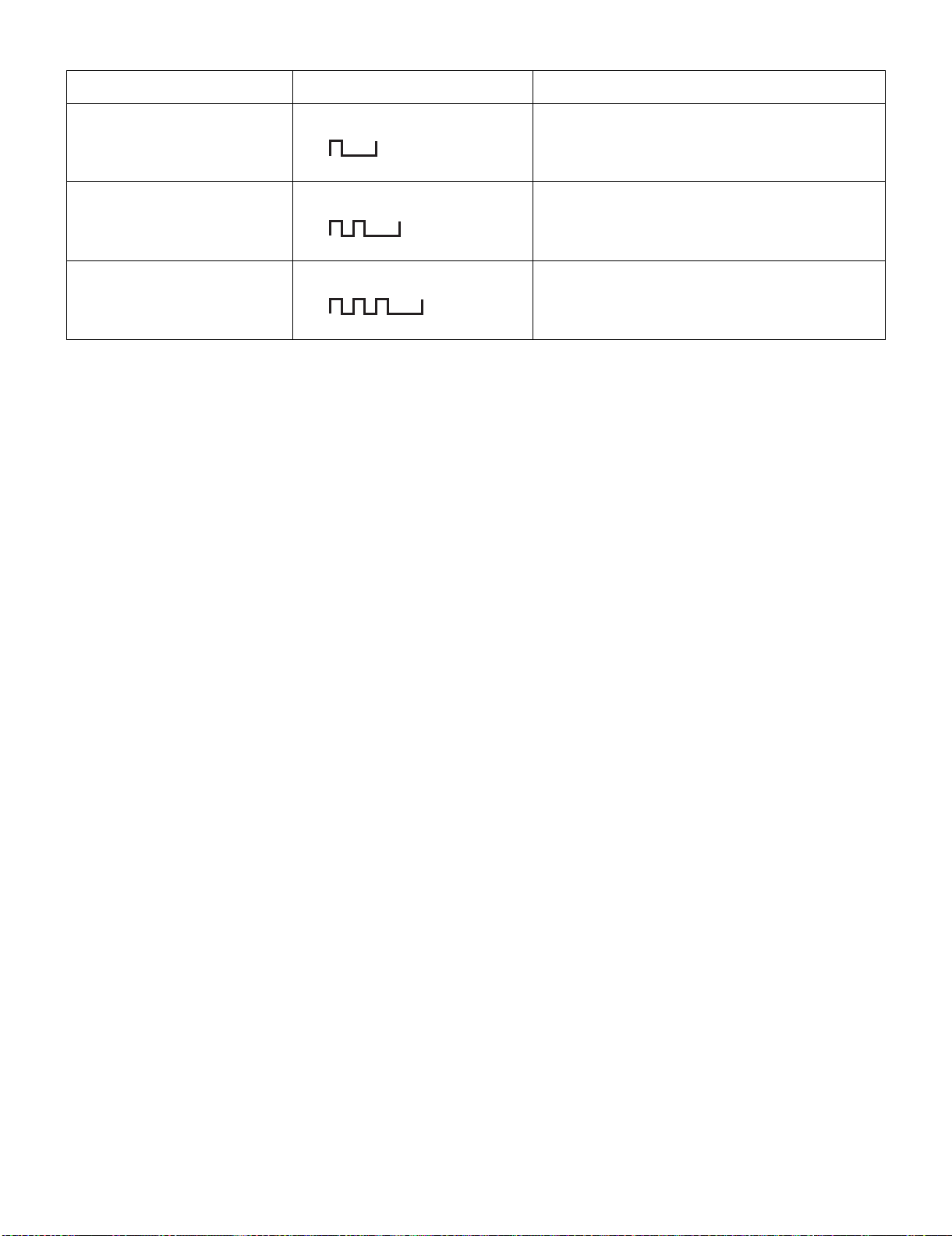

LED flashing timing chart for error notification.
250ms 1sec
1) Power LED (The power LED (Green) which lights during TV reception flashes.)
Error type Power red LED operation (1 cycle) Pins are microprocessor pins.
Lamp failure
Flashes once: Fast
Power failure
Flashes twice
Communication failure with main CPU
Flashes 3 times
H: On
L: Off
H: On
L: Off
H: On
L: Off
ERR_PNL (pin 43): L failure. Confirmed after 10 consecutive
matches at 500 ms intervals (detected only when the backlight is on).
Note that after five match counts, the lamp cannot be activated except in the monitoring process. (For the first time,
only the inverter is reset, and error OFF is not activated)
Accumulated counts are cleared to 0 when the corresponding
setting in the process A is made or when the power is turned
on with [CH_DOWN] and [VOL_UP] on the unit down or after
continuous illumination for 3 minutes.
Refer to “Power failure details”.
Refer to “Communication failure details”.
Communication line failure or main CPU communication failure. → Check debug statements for the main CPU.
Vsync
Failure
Flashes 4 times
Monitor temperature failure
Flashes 5 times
2) Power failure details (Power LED flashes twice and OPC LED flashes)
Error type Notification LED operation (1 cycle) Pins are microprocessor pins unless otherwise specified.
PS_ON
DET_10V failure
Flashes once
DET_D3V3 failure
Flashes twice
DET_6V failure
Flashes 3 times
H: On
L: Off
H: On
L: Off
H: On
L: Off
H: On
L: Off
H: On
L: Off
VSYNC (pin 52) failure (uninput). Operation failure.
Detected during operation (interruption).
Detected during operation (interruption).
If the panel temperature is 60°C or more for 15 seconds or
more in a row, CAUTION appears on the OSD of AVC
(flashes in red in the lower right screen).
If the panel temperature is 60°C or more for 25 seconds or
more in a row, error standby is activated.
(MONITOR MAX TEMP on page 24 of process A: Change of
temperature failure AD value): Thermistor
DET_10V (pin 57). UR10V or A9V is not applied.
If error is detected during operation, the power is turned on
again by interrupt handling (instantaneous blackout processing).
DET_D3V3 (pin 59) failure (L). D3.3V is not applied.
If error is detected during operation, error standby is activated
by polling.
DET_6V (pin 56) failure (L). D5V or A5V is not applied.
If error is detected during operation, error standby is activated
by polling.
PNL_12V failure
Flashes 5 times
Main failure
Flashes 7 times
H: On
L: Off
H: On
L: Off
DET_PNL_12V (pin 58) failure (L). Panel power is not
applied.
If error is detected during operation, error standby is activated
by polling.
Main microprocessor detection error.
The details are displayed in “ERROR STANDBY CAUSE” on
page 1 of process A for the main microprocessor.
6 – 20
3) Communication failure details (Power LED flashes 3 times and OPC LED flashes)
Error type Notification LED operation (1 cycle)
Initial communication
reception failure
Flashes once
H: On
L: Off
Initial communication from the main CPU is not received.
(After canceling the reset, request for the monitor model No.
is not received.)
Communication line failure or main CPU start-up failure.
LC-65D64U
Basically, communication logs are analyzed by a bus
monitor or debug print logs are analyzed.
Time-out setting reception failure
Start-up confirmation reception failure
Flashes twice
Regular communication failure
Flashes 3 times
H: On
L: Off
H: On
L: Off
Time-out setting and start-up mode change cannot be
received from the main CPU. (Start-up communication until
time-out setting and start-up mode change is not received.)
Main CPU start-up failure or monitor microprocessor’s reception failure.
Regular communication that is performed at 1 second intervals in the normal operation is interrupted.
Main CPU operation failure or monitor microprocessor’s
reception failure.
6 – 21
LC-65D64U
LC-65D64U
CHAPTER 7. MAJOR IC INFORMATIONS
Service Manual
[1] MAJOR IC INFORMATIONS
1. MAJOR IC INFORMATIONS
1.1. IC501 (VHiSM5351AF-1Q)
This I2C bus-controlled audio/video switch is designed to switch video signal between two-system color difference (component) signal, one-system S
video signal and three-system composite signal, and to switch audio signal between three-system signal.
The analog audio/video signal from the INPUT-1 or INPUT-2 and INPUT-3 input terminal is fed into this IC for selection.
The video output signal from this IC flows through a low-pass filter into the video signal processing circuit IC8001 (iXC138WJQZ).
The audio output signal from this IC flows into audio codec IC1403 (AK4682EQ).
1.2. IC2701 (VHiYDA147SZ-1Y)
The Class-D type digital audio power amplifier YDA147SZ gives maximum continuous output of 15 W/ch.
1.3. IC803 (VHiSii9181+-1Q)
The Sii9181 is TMDS Switch devices supporting Revision 1.3 of the HDMI Specification.
It is a single HDMI input, single output device used to buffer the TMDS signal.
The Sii9181 is used to receive a set of HDMI/DVI signals from the HDMI/DVI receiver-port, and to generate a HDMI/DVI fully compliant stream as an
output.
It also provides DDC/HDCP, HPD, and +5V switching to allow full compliance to the HDMI/DVI Specification.
On this IC, the INPUT-4 HDMI port is switched.
1.4. IC1403 (VHiAK4682EQ-1Y)
This IC provides for 2-channel A/D and 4-channel D/A (192-kHz sampling).
The analog audio signal from IC501 or INPUT-6 (HDMI-analog audio) or INPUT-7 input terminal is fed into this IC for selection.
The selected signal flows through A/D-unit into the video signal processing circuit IC8001 (iXC138WJQZ).
The digital audio signal (I2S) from IC1402 flows into audio power amplifier IC2701 and AUDIO OUTPUT terminal via each D/A-unit.
1.5. IC1502 (VHiSii9125+-1Q)
The Sii9125 supports the HDMI V1.3 specification and allows receipt of 10/12-bit color depth up to 1080p resolutions.
A single Sii9125 provides two HDMI input ports.
This IC decodes TMDS signal to Digital Video signal.
Compatible with the HDCP system, encrypted signals can also be received.
This IC responds to the INPUT-4, 5, 6 HDMI (High-Definition Multimedia Interface) selected by IC1604.
1.6. IC1604 (VHiSii9185+-1Q)
The Sii9185 is the TMDS Switch devices supporting Revision 1.3 of the HDMI Specification.
This IC is used to select a single set of HDMI/DVI signals from one of three HDMI/DVI receiver-ports, and to generate a fully compliant HDMI/DVI
stream as an output.
It also provides DDC/HDCP, HPD, and +5V switching to allow full compliance to the HDMI/DVI Specification.
On this IC, the INPUT-4, 5, 6 HDMI port are switched.
1.7. IC2002 (RH-iXB986WJN7Q)
The monitor microprocessor is intended to communicate with the main microprocessor and to operate the system.
It also controls power of the entire system.
1.8. IC3201 (VHiTB1305FG-1Q)
The TB1305FG has function sync separation and H/V format detector for TV component video signals. (INPUT1/3 and INPUT7)
This IC is controlled by I2C Bus interface.
1.9. IC3301 (VHiTHC7981+-1Q)
The THC7981 is 10bit A/D Converter for analog video signal. (Component: INPUT1 and 3, analog RGB: INPUT7)
This IC is controlled by I2C Bus interface and corresponds from 10 to 170MSPS for Full spec HD-TV.
7 – 1
LC-65D64U
1.10. IC8001 (RH-iXC138WJQZQ)
This LSI is FULL HIGH-DEFINITION 1080P DIGITAL TV SYSTEM-ON-A-CHIP. It combines a cable/terrestrial 4/1024-QAM and 8/16-VSB receiver, a
transport processor, a digital audio processor, a high definition (HD) MPEG video decoder, 2D graphics processing, digital processing of analog video
and audio, analog video digitizer and DAC functions, stereo high-fidelity audio DACs, a 330-MHz millions of instructions per second (MIPS) processor, and a peripheral control unit providing a variety of television control functions.
The cable/terrestrial receiver directly samples a tuner output with an analog-to-digital converter (ADC). The LSI digitally resamples and demodulates
the signal with recovered clock and carrier timing, filters and equalizes the data, and passes soft decisions to an ATSC A/53 and ITU-T J.83 Annex A/
B/C-compatible decoder. It has an MPEG-2 Digital Video Broadcasting (DVB)-compliant transport processor with advanced section filtering capability,
DVB descrambler, and an MPEG-2 (MP@HL profile) video decoder.
Audio support includes a BTSC and a Dolby AC3/MPEG-2 Layer 1, 2, audio decoder. The LSI provides analog and digital audio/video outputs. A
SPDIF output and a pair of analog outputs (L-R) are provided via the integrated audio DACs. The NTSC analog video decoder is supported by its own
motion adaptive deinterlacing and 3D comb filtering, including 1080i deinterlacing.
The LSI includes advanced 2D graphics processing. Two transport stream inputs are included. The LSI incorporates a complete MIPS32(r)-based
microprocessor subsystem including caches with bridging to memory and a local bus, where external peripherals can be attached. Integrated peripherals include two USB 2.0, three UARTs, counter/timers and GPIO controllers.
1.11. IC8452 (RH-iXC268WJQZQ)
The 64-Mbit page mode flash memory device stores the main CPU program.
7 – 2
LC-65D64U
㪢㪼㫐
㪈㪌
㪣㪜㪛
㪠㪥㪭㪄㪉㵘㪬㪥㪠㪫
㪈
㪊
㪙㪄㪙
㪈
㪈㪉
㪠㪥㪭㪄㪈㵘㪬㪥㪠㪫
㪙㪄㪙
㪍㪈
㪣㪚㪛㩷㪚㫆㫅㫋㵘㪬㪥㪠㪫
㪏
㪈
㪪㪚㪍㪉㪇㪈
㪇㪅㪌㪪㪣㩷㪥㪘㪉㪉
㪈
㪋㪈
㪈㪉
㪈
㪋
㪈
㪤㪘㪠㪥
㪜㪉㪇㪎
㪈
㪋㪈
䌈䌄䌍䌉
㪟㪛㪤㪠㩷㪘㪬㪛㪠㪦
㪦㪧㪫㪠㪚㪘㪣
㪦㪬㪫㪧㪬㪫
㪙㪚㪤㪊㪌㪌㪊
䇼㪧㪛䇽
䇼㪣㪮䇽
䇼䌐㪜䇽
䇼㪧㪛䇽
䇼㪧㪣䇽
䇼㪩㪘䇽
䇼㪢㪤䇽
㪍㪌㩹㩹㪣㪚㪛㩷㪧㪸㫅㪼㫃
㪈㪐
䇼㪪㪩䇽
䇼㪣㪘㪄㪉䇽
䇼㪣㪚㪄㪉䇽
㪫㪜㪩㪤㪠㪥㪘㪣
㪜㪉㪇㪏
䇼㪣㪘䇽
㪛㪄㫊㫌㪹
㪘㪬㪛㪠㪦
㪈
㪈㪉
㪈
㪛䊶㪘㵘㪫㪬㪥㪜㪩
㪪
㪭㪆㪣㪩
㪍
㪈
䇼㩷㪧㪜㩷䇽
㪈㪌
㪈
㪈
㪎㪐
㪏㪇
㪉
㪭㪆㪣㪩
㪚㫆㫄㫇㫆㫅㪼㫅㫋
㪟㪛㪤㪠
㪬㪪㪙 㪟㪧
㪈㪉㪈
㪈㪉㪈
䇼㪟㪤䇽
䇼㪬㪪䇽
䇼㪭㪛䇽
㪪㪠㪛㪜
㪜㪉㪇㪐
䇼㪟㪤䇽
㪈㪈㪋 㪈
㪈㪌
䇼㪬㪪䇽
䇼㪭㪛䇽
䇼㪩㪘䇽
㪧㪧㪦㪮㪜㪩㵘㪬㪥㪠㪫
㪈
㪈㪉
㪍㪈
䇼㪣㪙䇽
㪋
㪈
䌈䌄䌍䌉
㪛㪄㫊㫌㪹
㪩㪪㪄㪉㪊㪉㪚
㪈㪈㪋
㪈㪈㪌
䇼㪢㪤䇽
㪈㪋
㪈
㪉㪇
䇼㪤㪘䇽 䇼㪤㪘䇽
㪏㪇
㪈㪉㪈
㪨㪚㪥㪮㪄㪞㪈㪊㪋㪮㪡㪨㪱
㪨㪚㪥㪮㪄㪞㪈㪉㪌㪮㪡㪨㪱
㪨㪚㪥㪮㪄㪞㪈㪊㪊㪮㪡㪨㪱
㪨㪚㪥㪮㪄㪞㪈㪊㪉㪮㪡㪧㪱
㪨㪚㪥㪮㪄㪞㪈㪉㪎㪮㪡㪨㪱
㪨㪚㪥㪮㪄㪞㪈㪌㪐㪮㪡㪨㪱
㪨㪚㪥㪮㪄㪞㪈㪉㪍㪮㪡㪨㪱
㪨㪚㪥㪮㪄㪞㪈㪉㪋㪮㪡
㪨㪚㪥㪮㪄㪞㪈㪊㪇㪮㪡㪨㪱
㪨㪧㪮㪙㪟㪜㪊㪇㪌㪮㪡㪨㪱
㪈㪉㪈
㪈㪉㪈 㪈㪉㪈
㪈㪉㪈 㪈㪉㪈
㪈㪉㪈 㪈㪉㪈
㪠㪥㪭㪄㪊㵘㪬㪥㪠㪫
㪌㪈
㪨㪚㪥㪮㪄㪞㪉㪎㪎㪮㪡㪨㪱
㪙㪄㪙
㪙㪄㪙
䇼㪣㪮䇽
䇼㪣㪧䇽
䇼㪣㪧䇽
㪪㪚㪍㪉㪇㪊
LC-65D64U
CHAPTER 8. OVERALL WIRING/BLOCK DIAGRAM
Service Manual
[1] OVERALL WIRING DIAGRAM
H
G
F
E
D
C
B
A
12345678910
8 – 1
㪠㪥㪭㪄㪋㵘㪬㪥㪠㪫
㪈㪈㪉
㪙㪄㪙
㪠㪥㪭㪄㪌㵘㪬㪥㪠㪫
㪊
㪈
㪈㪈㪉
㪙㪄㪙
㪐
㪈
㪣㪚㪛㩷㪚㫆㫅㫋㵘㪬㪥㪠㪫
㪏㪇
㪈
㪪㪚㪍㪉㪇㪉
㪇㪅㪌㪪㪣㩷㪥㪘㪉㪉㪉
㪏㪇
㪈
㪪㪚㪍㪉㪇㪈
㪇㪅㪌㪪㪣㩷㪥㪘㪉㪉㪉
㪈
㪘㪭㪄㪪㪮
㪘㪤㪧
㪈㪉
㪈
䇼㪪㪧䇽
㪍㪌㩹㪣㪚㪛㩷㪧㪸㫅㪼㫃
㪈㪐㪉㪇㬍㪈㪇㪏㪇
䇼㪪㪣䇽
䇼㪣㪘㪄㪈䇽
䇼㪣㪚㪄㪈䇽
㪫㪜㪩㪤㪠㪥㪘㪣
㪜㪉㪇㪏
䇼㪘㪚䇽
䇼㪣㪙䇽
㪪
㪭㪆㪣㪩
㪚㫆㫄㫇㫆㫅㪼㫅㫋
㪭㪆㪣㪩
㪣㪩㪄㫆㫌㫋
㪍
㪋
㪈
㪈
䇼㩷㪧㪜㩷䇽
㪧㪦㪮㪜㪩㵘㪬㪥㪠㪫
㪪㪬㪙
㪧㪦㪮㪜㪩
㪬㪥㪠㪫
䇼㪧㪧㪉䇽
㪈㪏
䇼㪧㪨䇽
㪈㪏
䇼㪧㪨䇽
㪈
㪊
㪈
㪉
㪈
㪊
㪈
㪊
㪈
㪉
㪈
㪊
䇼㪧㪧㪉䇽
䇼㪧㪧㪊䇽
䇼㪧㪧㪈䇽
䇼㪧㪧㪈䇽
䇼㪧㪧㪊䇽
㪈
㪈㪉
㪈㪈㪉
㪈
㪈㪉
㪈㪈㪉
㪈
㪈㪉
㪈㪈㪉
㪈
㪏㪇
㪈
㪏㪇
㪨㪚㪥㪮㪄㪞㪈㪉㪊㪮㪡㪨㪱
㪨㪚㪥㪮㪄㪞㪈㪊㪌㪮㪡㪨㪱
㪨㪚㪥㪮㪄㪞㪉㪎㪍㪮㪡㪨㪱
㪡㪨㪱
㪡㪨㪱
㪨㪚㪥㪮㪄㪞㪈㪉㪋㪮㪡㪨㪱
㪠㪥㪭㪄㪍㵘㪬㪥㪠㪫
㪙㪄㪙
㪙㪄㪙
䇼㪣㪮䇽
䇼㪣㪧䇽
㪪㪚㪍㪉㪇㪊
㪪㪚㪍㪉㪇㪋
㪨㪚㪥㪮㪄㪞㪉㪎㪌㪮㪡㪨㪱
LC-65D64U
10 11 12 13 14 15 16 17 18 19
8 – 2
%QPPGEVQTHQT
2#0'.&GVGEV
;%D%T&
%8$5
+%
$%/
&KIKVCN#8FGEQFG/CKP%27
2416'%6
+(VQ/#+0+ (
+(VQ/#+0+ (
0A%27A456
+%
%1&'%
#-'3
.QECN$752%+
.8&5176
75$
+(KP
&68+5
&6852&+(
+%A
+%A
4'5'6
7#46#
7#46$
+1
#)%#(6
4)$KP
*8
*&/+KP
%8$55;2D2T
&KIKVCN+0
&8+#=?
&8+%.&8+*5;0%
&8+85;0%
&8+&'
+%A
#859+6%*
5/#(
/#+0
5+(
52&+(
-';
ޣ-/ޤ
;2D2T
ޣ4#ޤ
%8$5
*&/+A.4
4%
12%
.'&
+0
+%
5QWPF&52
8*+0,7;
#+0.4
+0
+0
176
176
*&/+
+%
/%
126+%#.
176
+%
6/&559
5++
+%
&#%
/(2
+%
(.#5*
/D
%8$5
4:AZ
.4
8
8
*&/+#WFKQ
+0276
+0276
8.4
8.4
+0
ޣ4#ޤ
2
㩉㩖㩎ᦠㄟߺ↪
㩄㩒㩂㩊
*&/+A.4
8
8
+%
+1
/
8
)#+0
㪠㪚㪉㪎㪇㪈
㪪㪧㩷㪘㪤㪧
㪰㪛㪘㪈㪋㪎㪪㪱
#/28
8
+%
866
+%
&&4
/D
2
࠺ࡃ࠶ࠣ
㩄㩒㩂㩊
5
*2A2.7)
:VCN
/*\
.+0'A.4
52176A.4
&KUENGVG
/WVG
.+0'A/76'
&KUENGVG
/WVG
#/2A/76'
56#0&$;
+%
8
0A54'5'6
+P
+P
5GNA
+%
''241/
+0
+0276
*&/+A/76'
4)$A.4
4)$#WFKQ
/KPK2NWI
*&/+
4:AZ
+%
''241/
+P
8
䇼㪪㪧䇽
㪧㪉㪎㪇㪈
㪜㪯㪫㪄㪪㪧
52
+%
)CVG
5%
2
/1&'.A&'6=?
4)$A.4
+0
&52A/%.-&52A$.-+0&52A.4%-
126A176
8A#
8A#
+%
+%
/WVG
+5
%8$5.4
58KFGQ
#WFKQ1WV
8
:VCN
/*
ޣ-/ޤ
4
(
4
%08UU
*2.4
65
8+&'1
8+&'1
/CKP
1WV
%1/2
8+&'1
%8$5
%8$5
.'&
+%
*&/+4:
5++
8
/*\
::VCN
/*\
/*\
+%
6*%
5
%1/2
5+&'
.4
%1/2%8$5
5%
*&/+A
+5
+%
)CVG
5%
:VCN
/*\
:VCN
0A&$)A456
+%
5;0%
6$
+% -*\8
6GTOKPCN
+%
6/&5
5++
+%
''241/
8
+%
''241/
MDKV
+%
-*\
7#46%
+%
2TQNFKQO
65+0176
+0276
+0276
/CKP;8
/CKP%%D
/CKP%T
*&8&
+0276
+0276
;2D2T
%8$5
8.4
%8$5
5+&'
%1/2
%8$5.4
%QORQPGPV
4(+0
67
#PCNQI
&KIKVCN
6WPGT
&A+(
#)%#(6
+%
8
㪠㪚㪐㪇㪇㪊
㪩㪪㪉㪊㪉㪚㩷㪫㫏㪩㫏
㪠㪪㪣㪏㪊㪉㪉㪇
6Z&4Z&
45%
8
8DTV
2
+%
-*\8
+%A
+% -*\8
+%
-*\8
+%
4GUGV
65
176
4'5'6A176D
4'5'6A176D
%1&A.4%-%1&A$%-
&52A5&+0
%1&A5&176
&52A5&176
+%
&#%
/(2
(TQO*&/+4Z
#+0.4
,
75$
6Q6GTOKPCN
(TQO5+&'
0QRKP4%2CUUVJTQWIJ
/*\
(TQO%27
&57$
4)$
+%
''241/
#7&+1
1WV
6GTOKPCN
%8$5
㪤㪜㪥㪬
㪧㪦㪮㪜㪩
㪠㪥㪧㪬㪫
㪚㪟㪄㪬㫇㪆㪛㫆㫎㫅
㪭㫆㫃㪄㪬㫇㪆㪛㫆㫎㫅
%QPPGEVQTHQT
/QFGN&GVGEV
%QPPGEVQT
2#0'.&GVG
6Q456
*16'.
LC-65D64U
[2] SYSTEM BLOCK DIAGRAM
H
G
F
E
D
C
B
A
12345678910
8 – 3
LC-65D64U
ޣ.9ޤ2
R
219'4
((%
+08'46'4
㪣㪚㪛
㪧㪘㪥㪜㪣
㪈㪐㪉㪇㬍㪈㪇㪏㪇
ޣ.#ޤ
R
㧮㧸
㧸㧯㧰
%106
8
8
ޣ2&ޤ219'4˴22+0
ޣ.#ޤ
RKP
ޣ.2ޤ
2
RKP
9CXGNGPIVJ
ޣ.$ޤ
2
RKP
+08'46'4
ޣ.#ޤ
RKP
ޣ.%ޤ
RKP
ޣ.%ޤ
RKP
ޣ.2ޤ
2
RKP
ޣ.9ޤ5%
R
((%
䌃䌯䌮䌤䌯䌲
䌃䌯䌮䌤䌯䌲
.8&5176
75$
7#46$
+1
4Z&6Z&
-';
ޣ-/ޤ2R
6JGTOKUVGT
-';-';56#0&$;219
25A10
$78
8QP
#%A&'6
ޣ4#ޤ2R
12%A.'&219A.'&A4219A.'&A).'&A;1;#-7
4%
12%
.'&
+%
/%
/QPKVQT/KEQO
7#46
$78
(4#/'4.7&6'/2=?15A5'6
˴#8
˴#8
˴&8
˴&8
˴&8
˴&8
˴8.8
˴&8
˴&8
˴GVE
+%
''241/A5%.5&#
'44A20.
+%
''241/
5%5,
+1
+1
+1
#%A&'6
8DTV
+1
6*'4/1
#&
12%
#&
+06
4%
+1
748
$CEM7R
˴$78
$78
2/A4'3%$1165
+1
0A54'5'6
+1
ޣ4#ޤ2R
+%
866
+%
&&4
/D
2
࠺ࡃ࠶ࠣ↪
㩄㩒㩂㩊
92
5*+2A'020'.A'0
*2A2.7)
*2 2.7)
#&
#(6
+%
)CVG
9*(7
5%
20.A&'6=?
/1&'.A&'6=?
92
+1
ޣ-/ޤ2R
456A*(.5A%2.&
(.#5A9A%2.&
45A$7(A%06
%08UU
4Z&6Z&
*&/+A%'%A+0
%'%A+A7%1/
%'%A1A7%1/
㪠㫉㪪㫀㫄㫇㫃㪼
IC8502
IrSimple
.'&
+%
)CVG
$78
5%
/*\
:VCN
/*\
$78
+%
7#46%
(TQO%27
56$A%27
56$
(TQO%27
41/5'.
+%
4GUGV
$78
20.A10
(TQO%27
&'6A20.8&'6A8&'6A8
6Q*&/+
(TQO%27
&'6'%6
&'6A20.8
$78
((%((%
219'4
ޣ#%ޤ
R
ޣ22ޤ219'4
2+0
ޣ22ޤ219'4
2+0
ޣ22ޤ219'4
2+0
ޣ.$ޤ
RKP
ޣ23ޤ2+0
㪤㪜㪥㪬
㪧㪦㪮㪜㪩
㪠㪥㪧㪬㪫
㪚㪟㪄㪬㫇㪆㪛㫆㫎㫅
㪭㫆㫃㪄㪬㫇㪆㪛㫆㫎㫅
219'4
/#+0
%QPPGEVQTHQT
/QFGN&GVGEV
%QPPGEVQTHQT
2#0'.&GVGEV
10 11 12 13 14 15 16 17 18 19
8 – 4
LC-65D64U
MAIN Unit (Side-A)
LC-65D64U
CHAPTER 9. PRINTED WIRING BOARD ASSEMBLIES
Service Manual
[1] MAIN Unit
H
G
F
E
D
C
B
A
12345678910
9 – 1
LC-65D64U
10 11 12 13 14 15 16 17 18 19
9 – 2
LC-65D64U
MAIN Unit (Side-A Chip)
P2203
FDC1
L2607
L2602
L2608
L2611
L2603
LUG2201
L2606
L2601
SC9202
R9203
R8245
R8255
R8269
R9206
C8151
R8215
R8228
R8268
R8186
R8187
FB9003
D9005
R9021
C9009
C9008
C9007
FB9002
IC9003
SC9001
D9001
FB9001
R9020
C9002
C9001
D9002
FB9004
R9023
IC9001
R9002
R9001
R9022
C9003
Q9001
D9007
R9024
R1311
IC1304
C1310
C1313
R1333
Q1312
P9202
C1311
D1306
C1312
L1301
R1603
LUG2203
SC1601
SG1603
SG1609
SG1615
SG1621
SG16
SG16
R8052
R8070
R8049
R8050
R8048
TP8
R8076
R8092
R3347
R3348
TP8076
TP8078
R8091
R8074
R8073
R8072
R8109
R8044
R8045
R8046
R8056
R8071
R8110
R8047
R8054
R8058
C8089
C8091
C8137
R8051
C8138
R8060
C8130
C8129
C8133
C8132
C8131
C8148
C8147
C8120
C8117
C8118
C8119
C8127
C8126
C8125
C8128
R8094
R8061
C8124
C8122
C8123
C8121
R8040
R3346
R8026
TP8064
TP8069
C8107
TP8058
C8093
TP8071
TP8067
TP8066
TP8056
TP8065
TP8061
TP8057
R8146
TP8068
TP8060
TP8070
R8144
R3345
TP8014
TP8013
TP8045
TP8015
TP8012
TP8011
TP8051
TP8048
TP8006
R8143
R8024
R9209
R9003
R9007
R8104
C8141
R8103
C8142
IC8001
R8101 R8102
C8140
C8139
R8139
R8006
TP8043
R8128
FL8005
R8126
R8127
R8113
TP8044
R8125
TP8079
R8117
R8124
TP8001
TP8083
TP8024
TP8021
R8002
TP8022
C8144
C8146
R8106
C8143
R8105
C8145
R8107
R8108
R8162
R8151
R8152
R8153
R8154
R8156
R8157
R8159
R8160
R8161
R8183
R8182
R8155
R8158
R8185
R8184
R8188
R8189
R8190
R8191
R8192
R8193
R8194
C8154
C8155
R8230
R8231
R8232
R8233
R8234
R8235 R8236
C8196
C8197
C8198
C8199
R8220
R8216
R8217
R8218
R8219
C8152
C8153
R8257
R8258
R8259
R8260
R8261
R8262
R8263
R8246
R8247
R8248
R8249
R8250
IC8152
IC8151
IC8154
C8164
C8165
C8171
C8166
C8173
C8172
C8191
R8620R8615
BAR3
R2635
TL2663
Q2603
IC8601
TL2665
L2609
L2604
L2610
L2605
L2612
R2616
R2603
R2602
R2601
BAR1
P2601
R8609
R8610
R8608
R8607
R8619
R8617
R8618
R8601
R8602
R8604
R8603
R8605
R8606
C2605
R2620
C8607
P2602
P2603
C2604
R2619
TL2654
FL2615
TL2668
R2629
TL2666
TL2667
R2623
R2636
C2606
R2621
P9001
TL2653
R2634
R2633
Q2602
Q2601
R2632
C2610
C9616
KOUJO1
C9625
C8190
C8189
C8186
D9607
L9603
C8175
C8174
R9618
D9606
C9612
C9613
IC8153
Q9602
L9602
D9608
C9622
C9620
R8253
R8254
C9621
R8264
R8265
R8266
FL8004
C8203
C8202
R8221
R8222
C8204
R8237
R8238
R8239
C9646
C8201
C8200
C9645
R8195
R8196
R8197
LUG2202
L9641
C9618
C9631
C9619
TP8082
C9624
R8032
D9602
L9601
R8135
R8025
D8002
R8035
TP8081
TP8002
TP8010
R8132
D9601
R8123
R8023
TP8042
P9701
R8018
TP8047
R8003
TP8016
R9615
C9711
D9609
FL8001
R9704
D9702
R8008
R9705
Q9702
R8130
R8011
D9701
R9736
C9709
R8005
R9302
R8453
R9307
R8082
R8083
TP8049
R8015
R8089
C8135
R8069
R8087
L8001
X8001
R8086
R8095
C8136
R8085
C8134
R8088
R2280
IC8452
R8099
C2247
R2279
C2241
L2207
R8098
P9301
C2246
C2239
C2240
C2237
L2205
L2206
C2238
C2235
C2236
R9306
C2229
L2204
VER1
H
G
F
E
D
C
B
A
12345678910
9 – 3
LC-65D64U
R1603
LUG2203
SC1601
SG1603
SG1609
SG1615
SG1621
SG1610
SG1604
SG1622
SG1616
Q1619
R1725
R1730
R1726
R1601
IC1608
Q1620
C1676
TP1633
R1727
SG1601
SC1602
SG1607
SG1613
SG1619
R1677
SG1602
R1676
SG1608
R1733
IC1604
SG1614
R1734
SG1620
R1728
R1735
R1736
R1679
R1681
R1605
R1606
R1625
C1601
FB1601
R1613
R1617
C1604
R1618
J1601
C1605
C1509
Q1610
FB1602
R8012
C1602
R1614
SC1603
R1615
C3202
C1603
R1619
L3202
C1606
Q2213
R2261
R2262
R2259
R2260
IC2202
R2237
C2228
FB2208
C2227
D2201
FB2205
R2241
C2222
D2207
C2221
FB2204
SC2201
R2240
C2220
D2206
C2219
R3233
FB2203
R2239
C2218
D2205
C2217
D2202
R2242
R2229
C2213
R2226
FB2206
R2252
D1310
C2216
C2215
D2208
IC2201
R2234
C2214
R2227
R2233
R2238
D1304
C2223
FB2207
R2230
D2203
C2203
C2205
R2212
L2202
FB2202
R2208
R2225
C2212
R1304
C2201
C2207
R2215
FB2201
R2204
R2223
C2211
J2201
TH2001
LUG2205
P2202
P2002
R1435
R1436
FB2003
FB2004
D1308
D1309
C2004
R2008
C2005
R2009
R1416
R1337
R1312
R1418
D1313
R1407
D1314
P2201
D1305
D1311
D1312
R1336
R1309
D1303
C1432
D1307
C1419
R1308
C1431
X1401
C3219
R1341
R1423
C1401
C1404
C1438
C1439
C1437
C1457
X3201
C2230
FB3304
R3306
R3307
R3308
R3310
R3312
R3313
Q2216
C3314
C3321
C3336
C3320
C3305
C3306
C3307
C3308
C3309
C3310
C3311
C3312
R2272
C3313
C3337
C3319
R2275
FB3303
R2278
C3322
R3342
C3332
R3315
R3340
C3331
C3323
TL3304
C3324
R3335
R3334
C3325
R3322
IC3301
R3326
R9012
R3321
R3331
R3327
C3328
C3327
C3330
C3301
FB3301
FB3302
R3316
R3330
R3332
TL3302
FB1505
C1563
X1501
C1564
C1517
FB1506
C1577
C1508
R1518
C1542
C1546 C1553 C1561 C1574 C1576
C1541
C1545 C1551 C1558 C1572 C1575
R1512
R1517
FB1501
R1511
C1578
C1506
C1502
C1573
C1503
FB1502
C1516
C1520
C1522
C1590
C1589
R1532
C1537
C1538
C1504
C1588
C1587
C1521
C1586
C1585
IC1502
R1531
C1584
C1583
C1582
C1581
C1580
C1579
R1529
C1511
C1518
C1514
L1501
C1544
C1550 C1560 C1567
C1571
C1642
C1543 C1549
C1557
C1565 C1570
C1505
LF1
R1509
R1515
TP1501
R1528
R1525
R8052
R8070
R8049
R8050
R8048
TP8077
R8076
R8092
R3347
R3348
TP8076
TP8078
R8091
R8074
R8073
R8072
R8109
R8044
R8045
R8046
R8056
R8071
R8110
R8047
R8054
R8058
C8089
C8091
C8137
R8051
C8138
R8060
C8130
C8129
C8133
C8132
C8131
C8148
C8147
C8120
C8117
C8118
C8119
C8127
C8126
C8125
C8128
R8094
R8061
C8124
C8122
C8123
C8121
R8040
R3346
R8026
TP8064
TP8069
C8107
TP8058
C8093
TP8071
TP8067
TP8066
TP8056
TP8065
TP8061
TP8057
R8146
TP8068
TP8060
TP8070
R8144
TP8014
TP8013
P8045
R2280
IC8452
R8099
C2247
R2279
C2241
L2207
R8098
P9301
C2246
C2239
C2240
C2237
L2205
L2206
C2238
C2235
C2236
R9306
C2229
L2204
C8458
R9303
R9304
R9311
R8502
C9301
IC9301
R8503
IC8502
R9319
R9305
C8513
C2020
R8508
X8501
R2066
R8515
R8513
R8512
R8514
R8510
R8511
C8515
R8509
C8514
IC2004
R2015
C2018
R2061
R2060
C2017
R9006
R9005
R9004
IC9004
C9010
C2024
R9738
R9739
R9741
R9013
SC9201
R9740
R2068
R2048
R2014
R2051
C2015
IC2008
C2026
R2072
R2052
C2014
R2016
R2077
R2017
R2041
D2003
R2075
P2001
R2035
R2220
C2234
Q2206
R2216
R2283
R2218
R2273
R2276
TP2202
TP2204
R1325
R1331
R1327
R2211
C2233
Q2203
Q1303
R2203
R2282
R2309
R2207
R2316
R2310
R2210
R2281
C2209
Q1313
IC2203
C2231
Q2202
R2206
SC2203
R2202
R2312
R2270
R2311
R2269
R2235
R2209
R9014
Q2201
R2205
R2201
C2232
TP2203
R2219
R2217
Q2205
R2277
R2213
R2274
IC9704
C9708
R1413
R1403
C1405
R2010
R1412
R2047
R1449
FB2005
IC1402
C1412
R1417
C9719
C1411
R1419
R1421
R1420
C1417
FDC3
C1418
LUG2204
10 11 12 13 14 15 16 17 18 19
9 – 4
LC-65D64U
MAIN Unit (Side-B)
H
G
F
E
D
C
B
A
12345678910
9 – 5
LC-65D64U
10 11 12 13 14 15 16 17 18 19
9 – 6
LC-65D64U
MAIN Unit (Side-B Chip)
TL2328
R1301
R1335
Q1309
TL2259
TL2232
R1338
TL2230
R1302
IC1301
C1303
R1315
R1314
R1306
R1307
C1301
R1322
R1324
Q1307
TL2258
IC1302
Q1305
C1308
R1305
Q1301
R1303
TL2264
R1323
TL2261
Q1304
C3231
R3212
C3218
R3208
C2224
Q2210
TL2263
R2253
C3222
R3234
R2243
R2244
R2249
C3217
C3221
R3209
C3224
R2304
TL2290
TL2262
TP2205
R2256
R2294
R2299
R2305
R2245
C2225
TL2260
TL2291
R2254
Q2211
R3207
R2257
R2246
R2250
R2295
TL2293
R2300
IC3201
C3229
C3230
R2247
C2226
C3204
TL2292
R2255
Q2212
R2248
R2251
R2258
C3210
TL2295
R2296
R2301
TL2296
TL2231
TL2297
TL2294
D2210
C3205
C3206
C3203
C3207
C3201
D2211
C3228
D1503
TL1602
C1501
IC1501
TL1621
TL1620
C1507
TL1503
TL1601
TL1512
R1608
R1680
R1682
TL1510
R1604
D1601
R1667
R1674
R1675
TL1508
R1686
C1653
R1688
R1670
TL1502
R1672
R1610
C1632
C1633
IC1606
C1629
C1628
C1636
C1673
C1626
C1627
C1637
R1678
R1687
R1685
C1674
C1647
C1648
C1675
R1684
R1662
R1666
IC1607
C1625
C1624
C1652
C1630
R1683
C1631
C1623
C1622
C1643
C1644
R1729
C1635
C1645
C1639
FB1606
C1620
C1634
C1646
C1638
C1619
C1621
TL1603
C1640
C1641
D1619
D1614
C1617
R1722
R1673
R1671
R1665
R1663
C1618
R1669
R1668
R1624
Q1609
R1623
TL1614
TL1613
R1641
R1640
TL1618
R1637
TL1615
IC1603
C1612
FB1605
TL1607
R1609
C1611
R1724
Q1606
Q1603
D1607
Q1618
R1616
D1604
Q1616
IC1601
R3343
D1611
C1607
C1609
R1602
D1613
TL1611
TL1616
R1630
FB1603
R1627
TL1604
C1613
D1605
R1629
C1615
C8078
C
C
C8
TL80
TP8
R8084
TL8005
R8081
R8080R8041
R3351
R3350
R3352
TP8074
R8020
TL8008
R8019
TL8006
TP8072
R8021
TP8073
R8042
R8077
R8111
R8062
TP8075
R8043
R8075
R8022
R8068
R8067
TL2330
R8078
R8063
R8064
R8057
R8053
R8066
TL2334
TL2336
TL2332
TL2333
TL2335
TL2331
R3349
R3344
C1539
R3319
C1540
FL1501
R1527
R1504
R1526
TL1513
TL1515
C1524
C1523
TL1514
R1503
C1526
C1525
R1502
C1528
C1527
C1530
C1529
C1515
C1519
TL1501
TL1507
TL1509
FB1507
FB1509
C1512
TL1511
C1513
R1521
R1522
C1556
TL1504
R1523
C1562
C1559
R1519
FB1508
TL1506
C1548
R1506
R3329
R3317R3318
C3329
C3334
C3335
C3326
R2302
R2303
R3353
R2298
C2208
R2297
FL3301
R3320
C3208
C3302
C3209
Q3301
C3315
C3317C3318
R3341
C3211
C3316
R3314
C3333
R3235
Q2207
C2202
C3232
IC3302
C3212
C2242
C3303
C3214
C2204
R2271
R2268
C2206
Q2215
R2236
C3304
TP2201
R2267
C3216
TL3301
Q2214
Q2209
R2315
R2264
R2265
R3224
R2285
R2224
R2222
R2263
C1434
R1428
C1430
R1432
C1436
C1433
R1427
R1434
C1435
C1429
R1431
C1426
C1428
R1426
R1425
C1427
C1425
C1423
R1433
R1401
R1402
R1406
IC1404
R1405
C1424
C1422
R1310
C1441
IC1405
IC1401
C1440
C1446
C1444
IC1403
R1422
C1415
C1421
R1404
R1450
C1403
TL2210
C1408
C1414
C1409
C1314
C1402
R1414
TL2211
TL2321
TL2325
C2028
C2029
C1406
R1415
C1407
FB2001
C2027
TL2327
TL2326
TL2324
R1411
R1410
R1409
R1408
TL2003
TL2002
TL2005
TL2004
TL2322
TL2329
TL2323
TL2320
TL2318
TL2213
TL2319
TL2215
TL2202
TL2214
TL2257
TL2254
TL2216
TL2218
TL2220
TL2203
TL2300
TL2212
TL2217
TL2219
TL2222
FDC4
TL2221
TL2201
TL2250
TL2284
Q2204
TL2316
C1443
C1454
R1448
TL2302
C1456
TL2283
TL2301
TL2317
C1445
R1445
C1452
TL2248
R2313
R2314
TP2206
C1451
R1443
IC1406
R1440
TL2289
R1437
TL2255
R1439
C1449
TL2288
C1442
R1447
R1446
TL2286
TL2246
R1438
C1450
TL2287
TL2256
C1448
TL2252
TL2285
TL9720
TL2253
TL2243
R1442
C1453
C1455
C1447
TL2282
R2306
R1441
R1444
TL2281
TL2280
TL2279
TL2278
R2307
R2308
TL2274
TL2277
TL2251
TL2273
TL2244
TL2245
TL2272
TL2239
TL2247
TL2298
TL2299
TL2238
TL2314
TL2313
TL2237
TL2240
TL2271
R2292
TL8456
TL2270
C8451
TL2269
R2287
R9010
R2290
TL2276
C8453
R2286
R1318
TL2241
IC8451
TL2267
TL2275
R8456
TL2268
R2284
C8452
R1330
R8457
TL2235
TL2234
R2221
TL2229
TL2266
Q1302
TL2233
R2266
R2214
R1328
TL2265
R9011
C8460
R1326
TL8454
TL2228
TL2311
R1321
C8462
R2293
TL2227
TL2310
IC8454
TL8455
R1329
TL2226
R8474
TL2309
Q1314
C8461
TL2225
TL2308
R8475
R1317
TL2224
R2289
Q2217
TL2307
R2291
TL2223
R2288
TL2306
TL2312
TL2305
TL2006
TL2209
TL2208
TL2304
TL2207
TL2007
TL2303
TL2008
Q2007
Q2001
TL2315
TL2242
TL2236
TL2009
TL2010
R2026
R2003
R2076
TL2011
Q2006
TL2012
TL8453
R2007
TL2249
TL2013
TL2014
C2002
C2003
C2001
R2025
IC2001
TL2001
R2012
TP2005
TL9213
IC2007
R2042
TP2004
R2004
TL9219
R2078
TL9212
R2046
R2006
C2016
TP2015
R2001
C2010
R2049
R2058
X2002
IC2002
R2036
R2044
TP2009
R2034
TP2012
C2013
TP2007
R2070
R2029
R2050
TL9211
R2071
R2011
R2005
R2019
TP2013
TP2003
TP2014
TP2001
C2008
C2012
R2013
TL9210
TP2011
R2033
R9201
R2023
R9205
R2032
R2024
TL9209
R9009
TL8506
TL8508
IC9002
R8507
TL8507
R9008
TL8503
C9004
C8510
C8505
C8504
C8512
C8511
R8506
C8503
C8509
C8456
TL8504
TL8502
C8507
IC8501
TL8501
C8502
C8501
TL8505
R8501
C8506
C8508
R9312
TL9357
TL9354
TL9352
TL9336
TL9353
TL9337
TL9380
TL9335
TL9338
TL9334
TL9339
TL9345
TL9340
TL9344
TL9341
TL9333
TL9342
TL9332
TL9343
TL9330
TL9329
TL9346
TL9327
TL9347
TL9379
TL9331
TL9328
TL9348
TL9349
TL9350
TL9326
TL9381
TL9310
TL9351
TL9383
TL9316
TL9317
TL9355
R9308
TL93
TL93
TL93
TL
H
G
F
E
D
C
B
A
12345678910
9 – 7
LC-65D64U
Q1616
IC1601
R3343
D1611
C1607
C1609
R1602
D1613
TL1611
TL1616
R1630
FB1603
R1627
TL1604
C1613
D1605
R1629
C1615
TL1609
R1607
D1603
TL1619
C8082
R1612
Q1607
Q1605
FL8006
Q1602
R1620
TL1303
TL1606
FB8003
R1723
C8014
TL9206
TL9204
TL9202
TL9221
TL9203
R9202
R9212
TL1304
FL8008
TL9205
TL9224
TL9240
R9207
TL1302
C8086
FB8001
R8004
R9208
TL9239
TL8029
TL9222
TL9208
TL9223
R9211
R9204
TL9201
TL8033
TL9241
TL9207
C8085
TL9009
IC8002
IC8003
TL9010
TL9007
TL9006
TL9004
TL9008
C9006
C8221
C8220
R8203R8204R8205
C8156
C8161
C8160
TL9238
C8162
C8163
C8158
C8170
C8169
TL9237
TL9275
R8226
R8225
TL9236
C8218
C8219
LF2
TL9235
C8217
TL9234
BAR4
BAR2
R2615
FB2608
TL2639
FB2606
TL2628
TL2623
TL2657
TL2642
FB2607
FB2605
TL2205
TL2206
FDC2
FB2604
TL2626
TL2204
TL2603
TL2625
TL2627
TL2643
TL2624
TL2659
R8613
R8614
C8609
FB2602
TL2660
TP8626
TL2664
TL2661
TL2658
TL2662
TL2647
R8612
TL2644
TL2656
TL2646
R8027
TL2641
C8608
TL2655
TL2645
R8036
C8605
TL2651
R8028
TL2640
TL2602
R2622
C8611
R8033
R8611
IC8155
C8192
TP8625
TP8622
C8606
R8616
C8610
TL8151
C8193
TL9605
C8195
C8194
TL8152
R8270
R8271
C8207
C8208
C8209
C8210
C8211
C8212
C8213
C8214
C8215
C8216
R8240
R8243
R8241R8244
R8242
R8227
R8224
R8223
C8188
C8187
C8167
C8168
C8185
C8184
C8177
C8157
C8183
C8182
C8181
C8179
C8180
C8159
R8206
R8207
R8208
R8209
R8210
R8211
R8212
R8213
C8226
C8227
C8222
C8224
C8225
C8223
R8181
R8170
R8164
R8165
R8202
R8171
R8173
R8200R8198
R8176
R8178
R8179
R8169
R8180
R8172
R8174
R8201
R8199
R8175
R8177
R8251
R8167
R8034
R8166
R8168
R8163
C8029
C8031
C8041
C8055
R8267
C8001
C8002
R8120
TP8025
C8087
R9018
C8016
R8116
C8076
C8026
R8122
R8114
TP8023
C8012
C8028
R8129
C8024
R8093
FL8007
R8138
C8046
C8030
R8141
R8118
TL1505
C8033
C8035
C8045
C8037
C8039
C8047
C8049
C8053
R8059
C8044
R8031
C8068
TP8009
C8051
C8009
FB8002
TP8041
R8001
C8088
C8050
C8032
C8019
C8034
C8023
C8010
C8013
C8015
C8017
C8067
R8065
C8057
R8097
R8096
FL8003
R9315
R9310
C8008
R9313
C8063
TP8020
C8020
C8018
R9317
FL8002
C8062
C8006
C8007
C8060
R8136
C8036
C8021
C8059
C8058
R8137
C8005
R8013
C8065
C8038
R9324
C8022
C8025
R8014
C8004
C8040
R8140
C8054
TP8046
C8042
R8017
C8056
TL9303
C8011
C8066
C8061
C8075
R8100
C8070
C8079
C8090
C8027
C8048
C8052
C8003
C8073
TL9386
R8131
C8043
TP8050
C8084
C8096
C8094
C8102
C8106
R8145
C8104
C8109
C8099
R8039
C8074
C8114
C8101
C8092
C8105
R8038
TP8055
C8064
C8116
C8072
C8095
TP8052
C8103
C8098
C8080
C8115
C8069
TP8054
TP8063
C8112
C8097
TP8062
R8142
C8149
R8090
C8100
C8078
C8083
C8071
C8077
C8081
TL8007
TP8059
R8084
TL8005
R8081
R8080R8041
R3351
R3350
R3352
TP8074
R8020
TL8008
R8019
TL8006
TP8072
R8021
TP8073
R8042
R8077
R8111
R8062
TP8075
R8043
R8075
R8022
R8068
R8067
TL2330
R8078
R8063
R8064
R8057
R8053
R8066
32
54
TL9337
TL9334
TL9339
TL9345
TL9340
TL9344
TL9341
TL9333
TL9342
TL9332
TL9343
TL9330
TL9329
TL9346
TL9327
TL9347
TL9379
TL9331
TL9328
TL9348
TL9349
TL9350
TL9326
TL9381
TL9310
TL9351
TL9383
TL9316
TL9317
TL9355
R9308
TL9315
TL9313
TL9359
TL9314
TL9302
TL9312
TL9382
TL9311
TL9378
TL9320
TL9322
TL9324
TL9301
TL9375
TL9318
TL9325
TL9384
TL9385
R9318
R9316
TL9319
TL9321
TL9323
Q9701
R8016
Q9301
TL8457
R9301
D9703
R9314
D9713
R8007
TL9722
R9628
C9718
D9603
R8010
TL9724
IC9703
C9713
TL9729
TL9708
C9710
TL9731
R9309
TL9717
D9642
D9643
R8009
TL9732
TL9733
TL9734
R9645
TL9716
TL9730
TL9702
TL9727
TL9715
TL9728
R9625
TL9710
R9611
R9610
C9604
TL9725
TL9711
IC9602
R9612
TL9726
TL9603
C9607
TL9701
TL9723
R8029
C9629
D9605
R8037
D9641
C9643
R8030
R8055
C9642
R9641
C9644
IC9641
R9643
R9642
C9641
C8228
C8229
R9644
R8214
TL9604
TL9602
R9601
C9606
R9603
R9604
R9605
R9606
C9601
C9605
C9610
R9608
R9607
C8178
R9613
C9602
R9602
IC9601
C8176
C9617
TL9601
R9629
C9611
C9609
C8206
C9614
C8205
IC9605
R9614
R9616
C9608
R9617
C9615
R9609
C9623
TL9005
TL9003 TL9002
R9035
R9034
TL9001
C9005
R2638
C2607
TP2602
TL2634
TP2601
R2604
TL2652
R2637
IC2602
TL2629
C2608
IC2601
TL2631
TL2635
TL2648
TL2649
TL2630
FB2603
TL2601
C2602
C2609
TL2609
TL2610
TL2621
TL2637
TP2604
TP2606
TL2638
R2631
TL2632
TL2669
TL2633
TL2636
TP2603
TP2605
TL2650
10 11 12 13 14 15 16 17 18 19
9 – 8
LC-65D64U
[2] TERMINAL Unit
TERMINAL Unit
H
(Side-A)
G
F
E
D
C
B
A
123456
9 – 9
LC-65D64U
H
TERMINAL Unit
(Side-A Chip)
G
F
E
D
C
B
A
TP503
J506
FB524
R585
TP1101
FB1102
FB1101
C1101
FB520
R565
D519
D520
C563
R569
J504
J503
J502
J501
J505
C562
R566
C561
C565
R572
FB521
C566
D521
R574
FB519
R563
C560
D518
R560
FB517
R554
R552
C556
C555 R594
FB518
R558
R555
C558
C557
FB516
C553
D517
R548
R545
TP501
FB515
D516
C551
R542
C548
FB513
D515
R541
C573
FB502
D522
R591
R590
C535
C538
R535
FB511
R536
C540
C542
R539
FB512
R540
C569
R580
R579
FB522
C570
R582
R581
FB523
R510
C502
TU1101
C1102
R509
FB505
R512
C511
FB506
R511
R1101
C1105
R1105
C1103
D514
C536
C532
D513
C527
D523
D509
D508
R2714
TP2702
R1111
R1104
P501
FB507
FB508
R514
D507
D510
R516 R522 R529
R515
R1114
R1102
R1103
R1116
IC1102
C1104
C1106
R1106
C1131
R1112
IC1101
TP1102
C1116
C1114
R597
R596
Q510
C575
R595
R593
R550
R551
C554
Q502 Q504 Q506
R547
R549
R546 R556 R567
Q501
R543 R553 R564
R527
R538
C574
C539
C513
R537
R533
R531
R589
R588
R523
C522
R520
R518
C512 C510
R517
C520
C517
C514
C504 C505 C506 C507 C508 C509
C541
D501 D502
L2704
C2731
C2728
C2727
L2703
FB2705
C2737
D2701
FB509
R1115
R1119
R1126
R1124
C1113
R1122
C564
C544
R501
C2742
C1117
R557
C530
C2738
FB510
D511
D512
C1107
R1113
R1109
R1118
Q1101
R1123
C1132
C1133
C1115
C1118
C1119
C559
R562
R561
R559
R568
Q503
C545
IC501
R502
R503
R504
C524
C518
D503
D2702
FB2704
C2743 C2744
P2701
R526
R1110
R1107
Q1102
C1112
R1120
R1121
C1120
C1121
IC1103
C1124
C1123
R1125
R1127
R573
R571
FB514
R570
Q505
C546
R544
R505
R506
R507
R508
D504 D505 D506
D2703
C2745
C1109
C1108
C1111
C1110
R1117
R1128
C1125
C1126
C1128
C1122
R1129
L1101
C1129
C1130
C1127
R1130
C552
C549
C550
C547
C577
C576
C543
C534
R534
R532
C533
C537
R530
C531
R528
C529
C501
R525
C528
C526
C525
R524
C523
R521
C519
C521
R519
C516
C503
C515
R513
C578
IC503
D524
R2713
R2707
R2705
R2704
R2710
R2706
R2703
R2754
R2753
R2717
R2715
C2713
C2707
C2706
C2748
C2716
IC2701
C2723 C2724
R2744
R2742
R2731
R2741
Q2704
R2752
FB2703
L2702
C2740
C2726
FB2702
C2730
C2725
D2704
C2741
C2705
R2730
R2702
C2704
C2711
R2725
R2709
C2712
R2726
C2717
R587
R586
C571
R583
R584
SC501
R575
C567
R576
C2710
FB525
R2701
L2701
FB504
Q508
Q509
Q507
P502
R577
C568
R578
FB503
FB2701
R2708
C2703
C2747
R2718
FB2709
FB2708
FB2707
FB2706
R2719
D2705
TP2701
TP502
C2736
R2751
Q2703
R2747
R2750
Q2702
C2739
R2749
R2740
R2746
Q2701
R2745
R2743
C2735
C572
IC502
P2702
CAME1
C2746
123456
9 – 10
LC-65D64U
[3] SIDE Unit
H

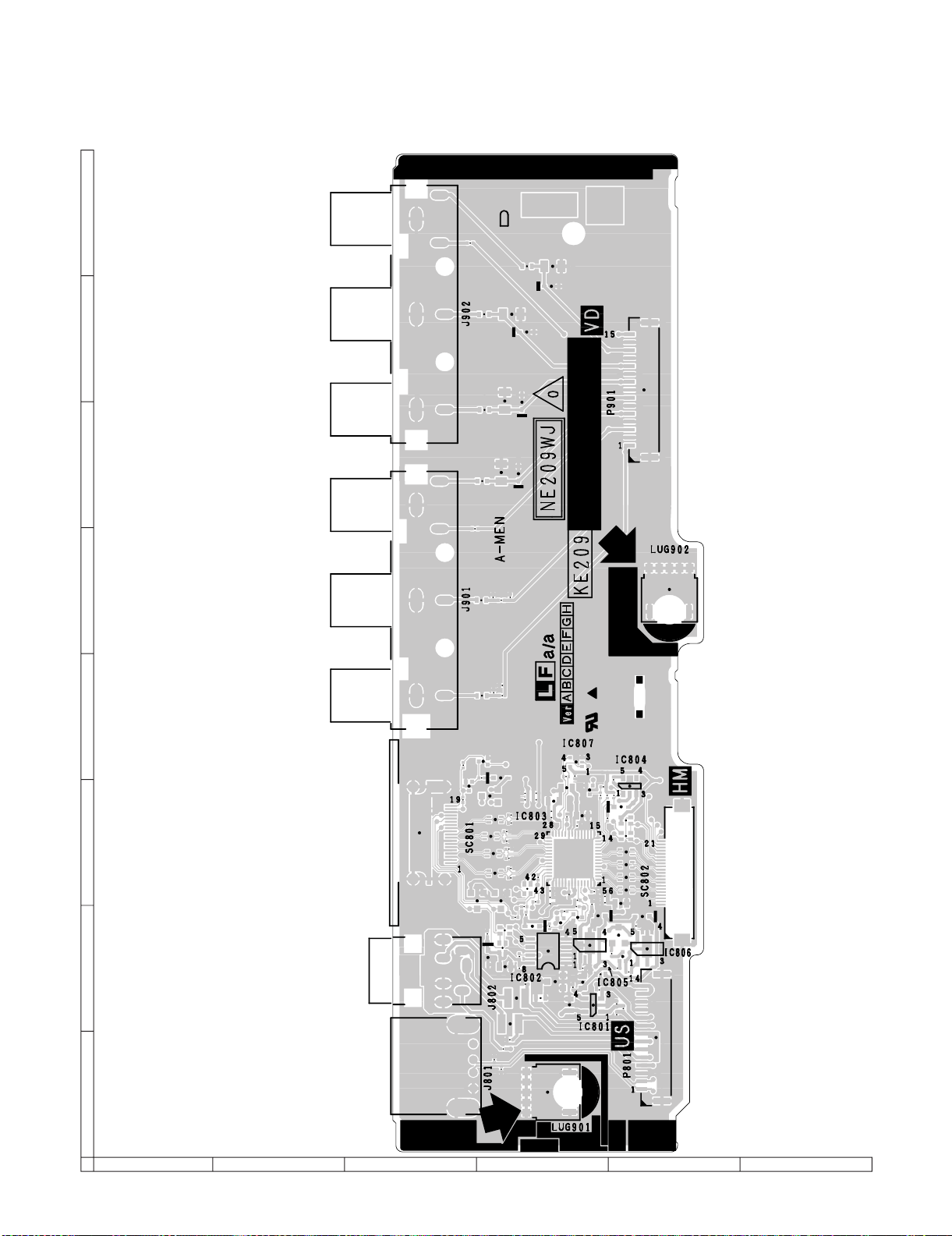

SIDE Unit (Side-A)
G
F
E
D
C
B
A
123456
9 – 11
LC-65D64U
H
R915
SIDE Unit
(Side-A Chip)
J902
G
FB905
k3
R912
FB904
D905
k2
R911
D904
k1
P901
R913
D906
FB906
F
E
J901
R914
FB901
FB902
R906
D903
R907
C903
R909
LUG902
v1
C904
R910
FB903
R908
D
Q802
R834
R803
D803
Q801
R801
C
B
SC801
J802
D801
L803
L804
D804
L801
L802
R806
D802
D805
R815
R807
C802
R812
SG802
SG806
SG803
SG807
SG808
SG801
SG805
SG804
C806
C807
R816
R823
R822
R820
R821
R819
J801
VA802
VA801
A
D810
R802
C803
C808
C809
R810
R814
R831
R837
IC802
C816
R838
C813
C815
C814
C812
C811
C810
R818
R808
D806
LUG901
FB802
R824
Q805
IC807
R817
C818
IC803
R811
C817
Q804
C801
C829
R833
C827
IC804
Q803
R828
D809
R826
R825
C819
R813
R827
R829
L805
L806
L807
L808
R832
C820
C821
C822
C823
D807
Q807
IC805
Q806
R836
C824
C826
R835
FB805
C804
R804
C828
IC801
C805
R805
R809
D808
C825
SC802
IC806
P801
123456
9 – 12
LC-65D64U
[4] R/C, LED Unit
3
H
R/C, LED Unit (Side-A) R/C, LED Unit (Side-A Chip)
G
F
E
D
R101
C102
R102
R117
R137
Q104
R138
R110
R127
R122
C105
R136
Q103
Q105
R105
R123
Q107
SLD101
RMC101
D101
R132
IC101
R135
D103
R109
D114
R106
D115
C107
R108
R104
R121
Q106
R124
C104
R107
Q102
R126
C108
C101
C110
R103
RMC102
C
R119
R120
D116
R116
IC102
R118
C103
C111
B
P101
R139 R140
P102
A
123456
9 – 13
[5] KEY Unit
H
LC-65D64U
S155
KEY Unit (Side-A) KEY Unit (Side-A Chip)
G
F
E
D
R153
D152
S154
S152
R151
D151
S151
R152
S153
R154
S156
C
S157
B
D155
A
P151
123456
9 – 14
LC-65D64U
LC-65D64U
CHAPTER 10. SCHEMATIC DIAGRAM
Service Manual
[1] DESCRIPTION OF SCHEMATIC DIAGRAM
1. VOLTAGE MEASUREMENT CONDITION:
1) The voltages at test points are measured on exclusive AC adaptor and the stable supply voltage of AC 120V. Signals are fed by a color bar signal
generator for servicing purpose and the above voltages are measured with a 20k ohm/V tester.
2. INDICATION OF RESISTOR & CAPACITOR:
RESISTOR
1) The unit of resistance "Ω" is omitted.
(K=kΩ=1000Ω, M=MΩ).
2) All resistors are ± 5%, unless otherwise noted.
(K= ± 10%, F= ± 1%, D= ± 0.5%)
3) All resistors are 1/16W, unless otherwise noted.
CAPACITOR
1) All capacitors are µF, unless otherwise noted.
(P=pF=µµF).
2) All capacitors are 50V, unless otherwise noted.
CAUTION:
This circuit diagram is original one, therefore there may be a slight
difference from yours.
SAFETY NOTES:
1) DISCONNECT THE AC PLUG FROM THE AC OUTLET
BEFORE REPLACING PARTS.
2) SEMICONDUCTOR HEAT SINKS SHOULD BE REGARDED AS
POTENTIAL SHOCK HAZARDS WHEN THE CHASSIS IS
OPERATING.
IMPORTANT SAFETY NOTICE:
PARTS MARKED WITH " " ( ) ARE IMPORTANT
FOR MAINTAINING THE SAFETY OF THE SET. BE SURE TO
REPLACE THESE PARTS WITH SPECIFIED ONES FOR MAINTAINING THE SAFETY AND PERFORMANCE OF THE SET.
AVIS DE SECURITE IMPORTANT:
LES PIECES MARQUEES " " ( ) SONT IMPORTANTES POUR MAINTENIR LA SECURITE DE L'APPAREIL.
NE REMPLACER CES PIEDES QUE PAR DES PIECES DONT LE
NUMERO EST SPECIFIE POUR MAINTENIR LA SECURITE ET
PROTEGER LE BON FONCTIONNEMENT DE L'APPAREIL.
10 – 1
[2] R/C, LED Unit
H
G
F
LC-65D64U
E
D
C
B
A
123456
10 – 2
LC-65D64U
[3] MAIN Unit
•MAIN Unit-1/17
H
G
F
E
D
C
B
A
12345678910
10 – 3

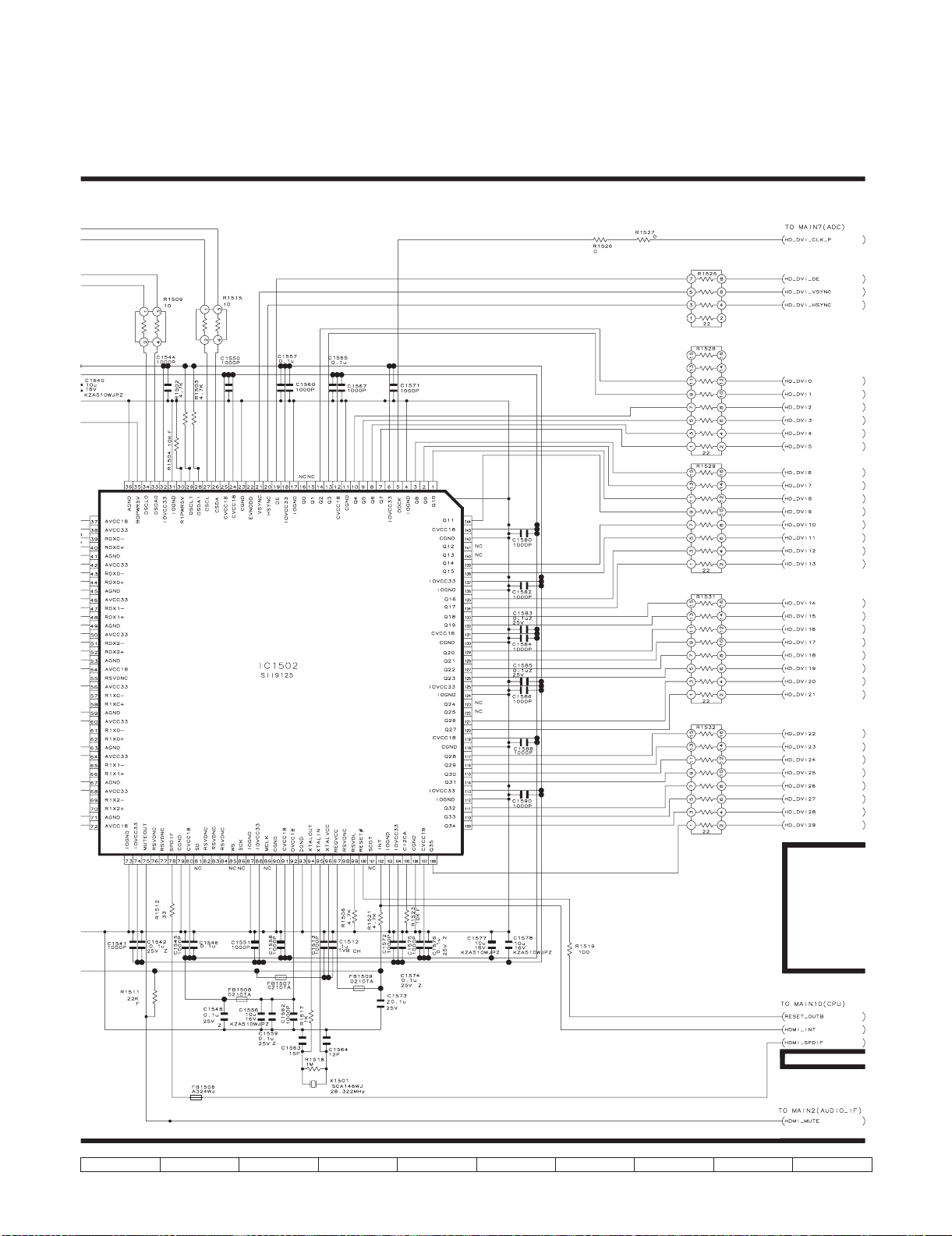

LC-65D64U
IXC272WJ
10 11 12 13 14 15 16 17 18 19
10 – 4
LC-65D64U
•MAIN Unit-2/17
H
G
F
E
D
C
B
A
12345678910
10 – 5
LC-65D64U
10 11 12 13 14 15 16 17 18 19
10 – 6
LC-65D64U
•MAIN Unit-3/17
H
G
F
E
D
C
B
A
12345678910
10 – 7
LC-65D64U
10 11 12 13 14 15 16 17 18 19
10 – 8
LC-65D64U
•MAIN Unit-4/17
H
G
F
E
D
C
B
A
12345678910
10 – 9

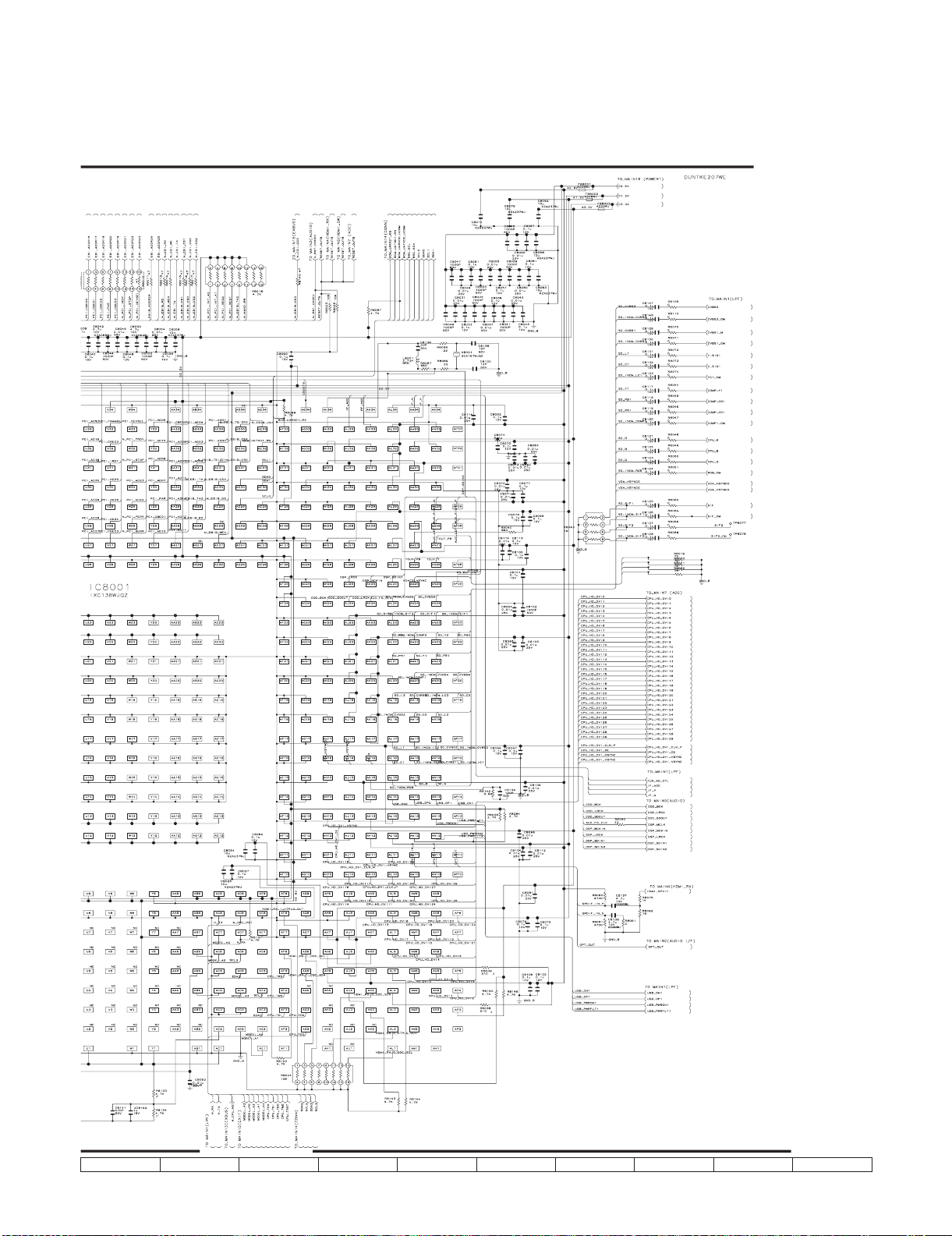

LC-65D64U
10 11 12 13 14 15 16 17 18 19
10 – 10
LC-65D64U
IXC270WJ
IXC271WJ
•MAIN Unit-5/17
H
G
F
E
D
C
B
A
12345678910
10 – 11

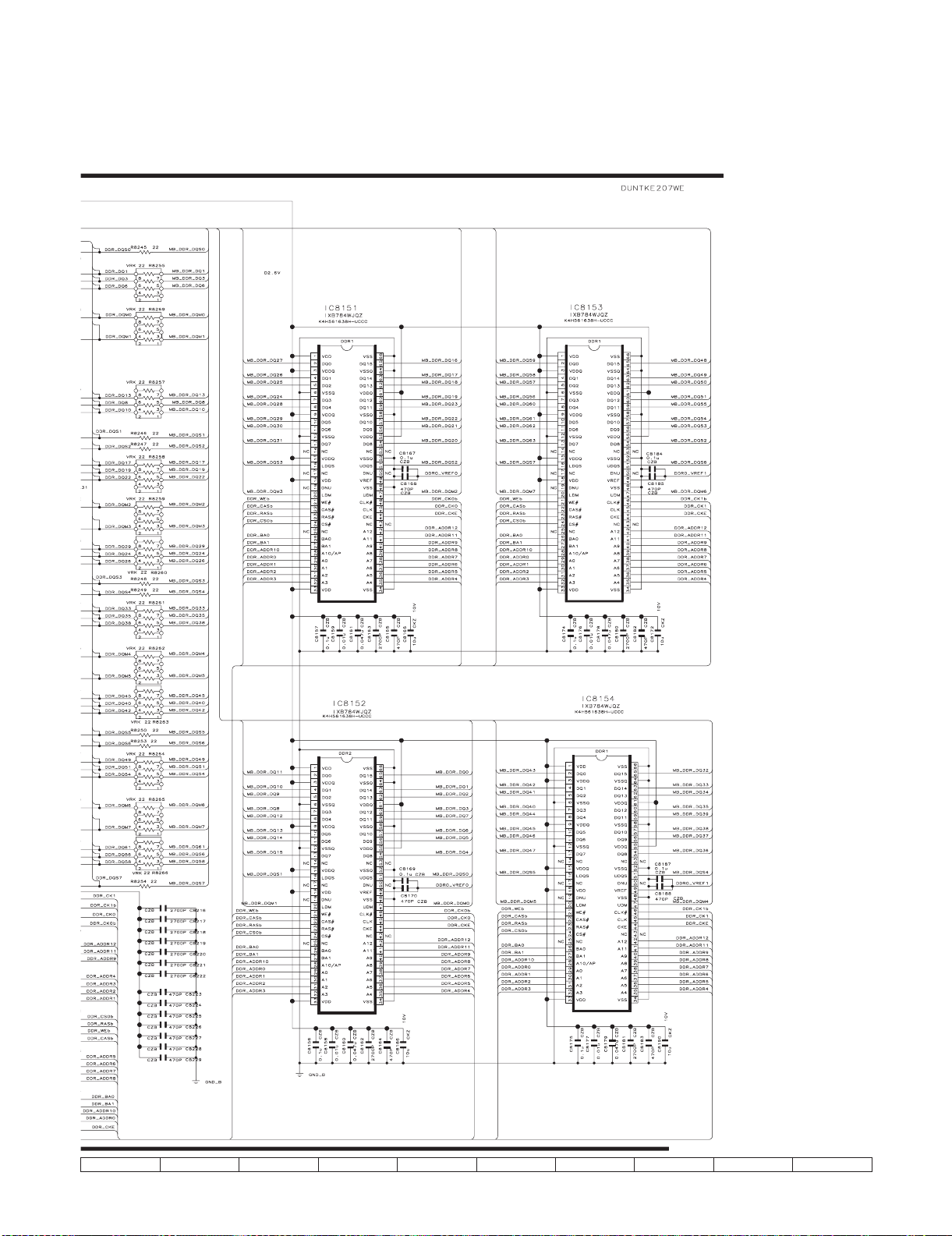

LC-65D64U
10 11 12 13 14 15 16 17 18 19
10 – 12
LC-65D64U
•MAIN Unit-6/17
H
G
F
E
D
C
B
A
12345678910
10 – 13
LC-65D64U
10 11 12 13 14 15 16 17 18 19
10 – 14
LC-65D64U
•MAIN Unit-7/17
H
G
F
E
D
C
B
A
12345678910
10 – 15
LC-65D64U
10 11 12 13 14 15 16 17 18 19
10 – 16
LC-65D64U
•MAIN Unit-8/17
H
G
F
E
D
C
B
A
12345678910
10 – 17
LC-65D64U
10 11 12 13 14 15 16 17 18 19
10 – 18
LC-65D64U
•MAIN Unit-9/17
H
G
F
E
D
C
B
A
12345678910
10 – 19
LC-65D64U
10 11 12 13 14 15 16 17 18 19
10 – 20
LC-65D64U
• MAIN Unit-10/17
H
G
F
E
D
C
B
A
12345678910
10 – 21
LC-65D64U
10 11 12 13 14 15 16 17 18 19
10 – 22
LC-65D64U
• MAIN Unit-11/17
H
G
F
E
D
C
B
A
12345678910
10 – 23
LC-65D64U
10 11 12 13 14 15 16 17 18 19
10 – 24
LC-65D64U
IXC268WJ
• MAIN Unit-12/17
H
G
F
E
D
C
B
A
12345678910
10 – 25
Loading...
