Sharp LC-42SV32B Schematic

LC-42SV32B

[2]

SHARP

SERVICE MANUAL

LCD COLOUR TELEVISION

MODEL

In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its orig­inal condition and only parts identical to those specified should be used.

SAFETY PRECAUTION

IMPORTANT SERVICE SAFETY PRECAUTION ..................2

PRECAUTIONS FOR USING LEAD-FREE SOLDER ...........3

CHAPTER 1. OPERATION MANUAL

[1] SPECIFICATIONS ............................................................4

[2] OPERATION MANUAL .....................................................5

[3] DIMENSIONS .................................................................11

CHAPTER 2. REMOVING OF MAJOR PARTS

[1] ASSY/PANEL REMOVAL................................................12

[2] SET RE-ASSEMBLY.......................................................18

CHAPTER 3. ADJUSTMENT PROCEDURE

[1] ADJUSTMENT PROCEDURE ........................................19

[2] SOFTWARE UPGRADE PRODUCE ..............................24

CHAPTER 4. TROUBLESHOOTING TABLE

[1] TROUBLESHOOTING TABLE .......................................32

CHAPTER 5. MAJOR IC INFORMATIONS

[1] MAJOR IC INFORMATION .............................................38

DETAIL ICS INFORMATION ..........................................48

Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified ones for maintaining the
safety and performance of the set.

SHARP CORPORATION

CONTENTS

CHAPTER 6. BLOCK DIAGRAM/WIRING DIAGRAM

[1] BLOCK DIAGRAM ..........................................................57

[2] WIRIGN DIAGRAM ……..................................................59

CHAPTER 7. PRINTED WIRING BOARD

[1] MAIN UNIT PRINTED WIRING BOARD …..……............60

[2] POWER UNIT PRINTED WIRING BOARD ....................62

[3] KEY UNIT PRINTED WIRINGBOARD ............................64

[4] IR UNIT PRINTED WIRING BOARD ..............................64

CHAPTER 8. SCHEMATIC DIAGRAM

[1] MAIN SCHEMATIC DIGRAM .........................................65

[2] POWER SCHEMATIC DIGRAM .....................................82

[3] KEY SCHEMATIC DIGRAM …………….........................83

[4] IR SCHEMATIC DIGRAM ..........................

CHAPTER 9. PARTS GAUILD

[1] SPARE PARTS LIST .........................

[2] CABINET PARTS .........................................

[3] PACKING PARTS …………………………...……………107

This document has been published to be used for

after sales service only.

The contents are subject to change without notice.

LC-42SV32B

..................

...........................

...............

...84

..85

.105

1

LC-42SV32B

SAFETY PRECAUTION

IMPORTANT SERVICE SAFETY PRECAUTION

■

Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and the

servicing guidelines which follow:

■ WARNING

1. For continued safety, no modification of any circuit should be
attempted.

2. Disconnect AC power before servicing.

CAUTION:
FOR CONTINUED PROTECTION AGAINST A

RISK OF FIRE REPLACE ONLY WITH SAME
TYPE FUSE.

F901/F902 (5A/250V)

■

BEFORE RETURNING THE RECEIVER
(Fire & Shock Hazard)

Before returning the receiver to the user, perform the following

safety checks:

3. Inspect all lead dress to make certain that leads are not pinched,

and check that hardware is not lodged between the chassis and

other metal parts in the receiver.

4. Inspect all protective devices such as non-metallic control knobs,

insulation materials, cabinet backs, adjustment and compartment

covers or shields, isolation resistor-capacitor networks, mechanical

insulators, etc.

5. To be sure that no shock hazard exists, check for leakage current in

the following manner.

• Plug the AC cord directly into a 220~240 volt AC outlet.

• Using two clip leads, connect a 1.5k ohm, 10 watt resistor paralleled

by a 0.15µF capacitor in series with all exposed metal cabinet

parts and a known earth ground, such as electrical conduit or

electrical ground connected to an earth ground.

//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

SAFETY NOTICE

Many electrical and mechanical parts in LCD color television have

special safety-related characteristics.

These characteristics are often not evident from visual inspection,

nor.

can protection afforded by them be necessarily increased by using

replacement components rated for higher voltage, wattage, etc.

Replacement parts which have these special safety characteristics

are identified in this manual; electrical components having such

features are identified by “

Replacement Parts List and Schematic Diagrams.

//////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////////

” and shaded areas in the

• Use an AC voltmeter having with 5000 ohm per volt, or higher, sen-

sitivity or measure the AC voltage drop across the resistor.

• Connect the resistor connection to all exposed metal parts having a

return to the chassis (antenna, metal cabinet, screw heads, knobs

and control shafts, escutcheon, etc.) and measure the AC voltage

drop across the resistor.

All checks must be repeated with the AC cord plug connection

reversed. (If necessary, a nonpolarized adaptor plug must be used

only for the purpose of completing these checks.)

Any reading of 1.05 V peak (this corresponds to 0.7 mA peak AC.)

or more is excessive and indicates a potential shock hazard which

must be corrected before returning the monitor to the owner.

DVM

AC SCALE

1.5k ohm
10W

0.15 µF

TEST PROBE

TO EXPOSED
METAL PARTS

CONNECT TO KNOWN

EARTH GROUND

For continued protection, replacement parts must be identical to those

used in the original circuit.

The use of a substitute replacement parts which do not have the same

safety characteristics as the factory recommended replacement parts

shown in this service manual, may create shock, fire or other hazards.

2

LC-42SV32B

PRECAUTIONS FOR USING LEAD-FREE SOLDER

■ Using lead-free wire solder

• When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional lead wire solder may cause damage or
accident due to cracks.

As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40 °C, we recommend you to use a dedicated soldering bit, if

you are not familiar with how to obtain lead-free wire solder or soldering bit, contact our service station or service branch in your area.

Soldering

• As the melting point of lead-free solder (Sn-Ag-Cu) is about 220 °C which is higher than the conventional lead solder by 40 °C, and as it has poor solder
wettability, you may be apt to keep the soldering bit in contact with the PWB for extended period of time. However, Since the land may be peeled off or
the maximum heat-resistance temperature of parts may be exceeded, remove the bit from the PWB as soon as you confirm the steady soldering
condition.
Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded. Make sure to turn on and off the power of the bit as required.
If a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after every use of it.
When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.

• Be careful when replacing parts with polarity indication on the PWB silk.

3

LC-42SV32B

CHAPTER 1.

OPERATION MANUAL

[1] SPECIFICATIONS

LCD screen size 42” Class (42” Diagonal)

Resolution 2,073,600 pixels (1,920 x 1,080)

Receiving System Standard SBTVD / NTSC / PAL-M / PAL-N System

TV
Function

Audio out 8W x 8W

Receiving
Channel

Audio multiplex (A/D) MTS / AAC System

Item LC-42SV32B

VHF/UHF VHF 7-13ch, UHF 14-69ch

CATV 1-135ch (non-scrambled channel only)

Digital Terrestrial Broadcast
(ISDB-T)

ANTENNA CABLE

INPUT 2 COMPONENT in, AUDIO in

7-69ch

75 ohm Unbalance, F Type x 1 for Analog (VHF/UHF/CATV) and
Digital (AIR/CABLE)

INPUT 3 15-pin mini D-sub female connector

Rear

Terminals

Side

OSD language Portuguese/Spanish/English

Power Requirement 110-240V @ 50/60Hz

Power Consumption 170 W (< 1 W Standby with AC 120 V)

Weight

INPUT 4 HDMI in with HDCP

INPUT 5 HDMI in with HDCP

AUDIO IN PC/HDMI Audio in ( Ø 3.5mm jack)

RS-232C D-sub 9 pin for service

AUDIO OUT Audio out (Ø 3.5 mm stereo jack)

INPUT 1 AV in, AUDIO in

USB Multi-Media use, Software update

TV + stand 40.8 lbs / 18.5 kg

TV only 34.2 lbs / 15.5 kg

TV + stand 1,015 x 706 x 270 (mm)

Dimension*1 (W / H / D)

TV only 1,015 x 655 x 97 (mm)

Operating temperature 32°F to + 104°F (0°C to + 40°C)

*1 The dimensional drawings are shown on the inside back cover.

• As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without

prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in
individual units.

4

[2] OPERATION MANUAL

A

Remote Control

LC-42SV32B

NOTE

• When using the remote control unit, point it at the TV.

1

POWER: Switch the power on or enter standby mode.

2 MUTE: Mute the sound.

3 INPUT: Select a TV input source.

4 0–9: Set the channel.

5 • (DOT)

6 DISPLAY: Display the current channel (or input source)

information on the screen.

7 VOL +/-: Set the volume.

8

(Enter): Confirm a selected item.

9 Navigation buttons: Select a desired item on the screen.

10 CC: Display captions during closed-caption source.

11 SURROUND: Display the surround setting menu.

12 FREEZE: Set the still image. Press again to return to

normal screen.

13 Sticker: No function.

14 EXIT: Turn off the menu screen.

15 FAVORITE CH:

, B, C, D: Select 4 preset favorite channels in 4 different

categories. While watching, you can toggle the selected

channels by pressing A, B, C and D.

16 ENT: Jumps to a channel after selecting with the 0–9

buttons.

17 MENU: Display the menu screen.

18 CH +/-: Select the channel.

19 VIEW MODE: Select the Picture Mode.

20 AV MODE: Select an adjusted picture settings. (Standard,

Movie, Power Saver, User, Dynamic)

21 FLASHBACK: Press to switch to the previously tuned

channel. Press again to switch back to the currently tuned

channel.

22 SLEEP: Allows you to set a time when the TV

automatically switches to standby. This display will disappear

after few seconds, and the sleep timer starts to count down

automatically.

• If you want to adjust the sleep timer again, you can press

this button repeatedly then change the time setting.

• The TV will enter into the standby mode when the remaining

time reaches zero.

23 AUDIO: Display the MTS/SAP setting menu.

24 RETURN: Return to the previous menu screen.

25

5

LC-42SV32B

TV (Front)

TV (Side/Rear)

6

Preparation
Supplied Accessories

Note

• Always use the AC cord supplied with the TV.

• The illustrations above are for explanation purposes and may vary slightly from the actual accessories

LC-42SV32B

Attaching/Detaching the Stand

• Before attaching (or detaching) the stand, unplug the AC cord from the AC IN terminal.

• Before attaching (or detaching) the stand, spread a cushion under the TV to prevent it from being damaged.

Caution

• Attach the stand in the correct direction.

• Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.

1 Put the TV face down on a safe surface that is covered by a soft and smooth cloth.

2 Adjust the TV stand to the bottom of the TV.

3 Fasten the screws by using a cross-head screwdriver (Not supplied).

Caution

• To avoid damages, do not push too hard or put excessive pressure to the stand neck while turning the TV to suit your comfortable viewing

angle.

Note

• To detach the stand, perform the steps in reverse order.

Detaching the Stand Neck for Wall Mounting

Caution

• Please use with care while disassembling the cabinet, stand, and pillar for wall mounting.

• Detach the stand neck in the correct direction.

• Do not remove the stand neck from the TV unless mounting it with an optional wall mount

7

LC-42SV32B

Loosen the 4 screws that secure the stand neck by using a cross-head screwdriver.Remove the stand cover from the TV set.

Note

• To attach the stand neck, perform the steps in reverse order.

• Do not over tighten the screws and install the TV set without the stand cover.

• At the time of purchasing wall bracket, please check if there is enough space between the wall bracket and TV terminals for the terminal connection.

Wall Mounting

VESA-compatible wall bracket

Preparation

TV screen size (Inches)

42" 400 x 200 mm Metric 6 x 10 mm

Installing Batteries in the Remote Control Unit

1 Remove the battery compartment from the remote control.

2 Insert two "AAA" size batteries (supplied with the product).

(millimeters) (W x H)

Screw type

8

LC-42SV32B

• Place the batteries with their terminals corresponding to the (+) and (-) indications in the battery compartment.

3 Close the battery cover.

Cautuion

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

• Do not mix batteries of different types. Different types of batteries have different characteristics.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage of old batteries.

• Remove batteries as soon as they are worn out. Chemicals that leak from batteries come in contact with skin can cause a rash. If you find any chemical

leakage, wipe thoroughly with a cloth.

• The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

• If you will not be using the remote control unit for an extended period of time, remove batteries from it.

• The batteries (batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Using the Remote Control Unit

Use the remote control unit by pointing towards the remote control sensor on the TV. Objects between the remote control unit and the remote control

sensor may prevent proper operation.

9

LC-42SV32B

Appendix

Troubleshooting

Problem Possible Solution

• Check if you pressed

No power

• Unit cannot be operated.

• Remote control unit does not operate.

• Picture is cut off/with sidebar screen. • Are screen mode adjustments such as picture size made correctly?

• Strange color, light color, or color

misalignment

• Power is suddenly turned off.

• No picture

• No sound

• The TV sometimes makes a cracking

sound.

not light up, press

• Is the AC cord disconnected?

• Has the power been turned on?

• External influences such as lightning, static electricity, may cause improper operation. In

this case, operate the unit after first turning off the power of the TV or unplugging the AC cord
and re-plugging it after 1 or 2 minutes.

• Is the SOURCE set correctly? Set it to the TV setting position.

• Are batteries inserted with polarity (+, -) aligned?

• Are batteries worn out? (Replace with new batteries.)

• Are you using it under strong or fluorescent lighting?

• Is a fluorescent light illuminated near the remote control sensor?

• Adjust the picture tone.

• Is the room too bright? The picture may look dark in a room that is too bright.

• Is the sleep timer set?

• The unit’s internal temperature has increased. Remove any objects blocking vent.

• Is connection to other components correct?

• Is the correct input selected?

• Is picture adjustment correct?

• Is the volume too low?

• Have you pressed MUTE on the remote control unit?

• This is not a malfunction. This happens when the cabinet slightly expands and contracts

according to change in temperature. This does not affect the TV’s performance

(Power) on the remote control unit. If the indicator on the TV does

on the TV.

Cautions regarding use in high and low temperature environments

• When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails or appear slightly delayed. This is not a

malfunction, and the unit will recover when the temperature returns to normal.

• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near a heater, as this

may cause the cabinet to deform and the Liquid Crystal panel to malfunction.Storage temperature: -4°F to +140°F (-20°C to +60°C)

Information on the Software License for This Product

Software composition

The software included in this product is comprised of various software components whose individual copyrights are held by SHARP or by third parties.

Software developed by SHARP and open source software

The copyrights for the software components and various relevant documents included with this product that were developed or written by SHARP are
owned by SHARP and are protected by the Copyright Act, international treaties, and other relevant laws. This product also makes use of freely
distributed software and software components whose copyrights are held by third parties. These include software components covered by a GNU
General Public License (hereafter GPL), a GNU Lesser General Public License (hereafter LGPL) or other license agreement.

Acknowledgements

The following open source software components are included in this product:
Linux kernel/Modutils/Glibc/Zlib/Libpng

10

[3] DIMENSIONS

LC-42SV32B

Note

• At the time of purchasing wall bracket, please check if there is enough space between the wall bracket and TV terminals for the terminal connection.

11

LC-42SV32B

CHAPTER 2.

REMOVING OF MAJOR PARTS

[1] ASSY/PANEL REMOVAL

Note: Put the TV face down on a safe surface that is covered by a soft and smooth cloth to avoid damaging LCD Panel.

Front View

Fig 1

Back View

Step 1. Remove the base.
A. Remove 4 screws as fig 3 and put out the base.

Fig 2

Fig 3

12

B. Remove 4 screws as Fig 4 to detach the base _neck.

LC-42SV32B

Step 2. Remove the rear cover.
Remove 14 screws as Fig 5

Fig 4

Fig 5

13

LC-42SV32B

Step 3. Remove the power board.
Remove 5 screws and unplug 2 cables as Fig 6

Fig 6

14

Step 4. Remove the scaler board.
Remove 5 screws and unplug 4 cables as Fig 7

LC-42SV32B



Step 5. Remove the bracket.

A. Remove 8 screws as Fig 8

Fig 7

Fig 8

15

LC-42SV32B

B. Remove 15 screws as Fig 9

Fig 9

16

Step 6. Separate the panel and bezel.
Remove 2 screws as Fig 10

LC-42SV32B

Step 7. Bezel assy.
The bezel assy as Fig 11

Fig 10

Fig 11

17

LC-42SV32B

[2] SET RE-ASSEMBLY

To re-assemble the whole set, execute all processes in reverse order.

Note

a. While re-assembling, make sure that all cables are placed and connected in their original position.

b. Pay special attention not to damage the EMC foams at the SSB shielding. Check that EMC foams are put

correctly on their places.

18

LC-42SV32B

CHAPTER 3.

ADJUSTMENT PROCEDURE

[1] ADJUSTMENT PROCEDURE

1. OSD Menu

OSD tree - As following

Level 1 Level 2 Level 3 Level 4 Level 5 Attributes

Video
AV Mode User, Dynamic, Standard, Movie, Power Saver
Backlight 0~50~100
Brightness 0~50~100
Contrast 0~50~100

Tint => Hue -50~0~50
Sharpness 0~10~20

Gamma

Color Temperature

R Gain -100~100
G Gain -100~100
B Gain -100~100

C.M.S.-Hue R, Y, G, C, B, M, Reset
C.M.S.-Saturation R, Y, G, C, B, M, Reset
C.M.S.-Value R, Y, G, C, B, M, Reset

Flesh Tone On/Off

Blue Stretch On/Off
Gamma Adjustment Dark/Middle/Bright
Game Mode On/Off
HDMI Mode Auto/Graphic/Video

Effect Off/Low/Middle/High
Mode Mode 1/Mode 2
Demo Partition All/Right/Left
Demo
Adaptive Backlight On/Off
VGA Mode Graphic/Video
VGA => PC
Auto Adjust
H.Position 0~50~100
V.Position 0~50~100
Phase 0~31
Clock 0~255
3D
3D Mode Off/Auto/2D to 3D/Side by Side/Top and Bottom
L-R Switch On/Off
Depth of Field 0~32
3D to 2D Off/Right/Left
Audio
Sound Mode Personal/Rock/Pop/Live/Dance/Techno/Classic/Soft

Equalizer 1KHz -6~0~6
Equalizer 3KHz -6~0~6

Balance L50~0~R50
Bass 0~50~100
Treble 0~50~100

Color =>
Saturation

Color
Temperature

Advanced
Video

Equalizer
100Hz
Equalizer
300Hz

Equalizer
10KHz

0~50~100

Middle
Bright
Dark

User
Cool

Normal

Warm

Noise Reduction =>
Digital Noise
Reduction
MPEG Noise
Reduction

Adaptive Luma
Control => Active

Contrast

DI Film Mode =>

Film Mode

MJC => Motion

Enhancement

-6~0~6

-6~0~6

-6~0~6

Off/Low/Medium/Strong/Auto

Off/Low/Medium/Strong

Off/Low/Medium/Strong

Auto
Off

19

LC-42SV32B

Equalizer Off/Rock/Pop/Live/Dance/Techno/Classic/Soft
Subwoofer Off/Low/Medium/High

Speaker

TV
Tuner Mode Cable/Air

Update CH
CH Skip Channel list

Audio Mode

A Channel list
B Channel list
C Channel list
D Channel list
All Data Clear

Application On/Off
Auto Startup On/Off
Application List
Network if RJ45 connector exist

Internet Connection On/Off
Connection Type

Scan Show current access point
Manual
Auto
PIN
PBC
Information

Address Type Auto/Manual
IP Address

Primary DNS
Secondary DNS
Connection Test
Applications
DLNA On/Off
Netflix
Deactivate
ESN
Vudu
Deactive
My Network Places On/Off

Setup
Language
View Mode Stretch

Sound
Surround

SPIDIF Type

=> Digital
Output Type

Auto Volume
Control
Wall Mount
Audio Setup

Auto CH
Search

Analog CH
Name Edit
Analog CH
Fine Tune
Digital CH
Tuning

Digital Dual
Mono

Favorite
Channels

GINGA
Settings

Configuration
=> Network

Setup

Software
Update

On/Off

1. if "CEC ARC Func" in factory meny is YES
=> Auto (CEC)/On/Off

2. if "CEC ARC Func" in factory meny is NO
=> On/Off

Off/PCM/Dolby Digital

On/Off

Yes/No

Major
Major & Minor
Stereo
SAP
Mono
Main + Sub
Main
Sub

Wireless Setup =>
Wireless Setting

IP Setting => IP

Setup

Subnet Mask =>

Netmask

Default Gateway

=> Gateway

20

LC-42SV32B

Side bar
Smart stretch
Zoom
Dot by Dot

DPMS On/Off
Blue Mute On/Off

Time Setup

Time Zone

Time

Date
Time
Power On Timer On/Once/Off

Timer
Power Off Timer On/Once/Off
Timer
Sleep Timer Off/10/20/30/40/50/60/90/120 Minutes
Auto Sleep Off/1/2/5 Hours
Caption Setup
Caption Off/On/On-Mute

Superimpose Setup Off/Language1/Language2
Digital Caption Style
Caption Style As Broadcaster/Custom
Font Size Large/Small/Medium
Font Style Style1-3
Font Color Black/White/Green/Blue/Red/Cyan/Yellow/Magenta
Font Opacity Solid/Translucent/Transparent
Background Color Black/White/Green/Blue/Red/Cyan/Yellow/Magenta

Window Color Black/White/Green/Blue/Red/Cyan/Yellow/Magenta
Window Opacity Solid/Translucent/Transparent
Location Store/Home
DCR Demo Off/On
Input Label Input list

APP 1 Netflix/USB Media/Home Network
APP 2 Netflix/USB Media/Home Network
APP 3 Netflix/USB Media/Home Network
Reset

Demo Mode
Demo Mode Select Connected TV/Feature Demo/Auto Play
Auto Play Setting Continuous/10 min./20 min.
Power Control
Audio Only Off/On
No Signal Off Enable/Disable
Power Saving Off/On
No Operation Off Enable/Disable

Version Info
Reset
Parental
Password
Channel Block Channel list
Digital Rating
Program Block
Rating Enable On/Off
U.S. TV Ratings None/TV-Y/TV-Y7/TV-G/TV-PG/TV-14/TV-MA
U.S. Movie Ratings None/G/PG/PG-13/R/NC-17/X

DivX(R)
Registration

Program Title
Display
FAV APP Key
Assign

Icon Light Up
Setting

Auto
Synchronization

Power On
Channel

Analog Closed
Caption
Digital Closed
Caption

Yes/No

Off/On

No Operation To
Sleep

CC1/CC2/CC3/CC4/TEXT1/TEXT2/TEXT3/TEXT4

Language 1 - 8

Background
Opacity

Off/1/2/4 Hours

On/Off

Solid/Translucent/Transparent

Automatic

As Broadcaster/GMT+ 0:00/GMT+ 1:00/ GMT+
2:00/GMT+ 3:00/GMT+ 3:30/GMT+ 4:00/ GMT+
4:30/GMT+ 5:00/GMT+ 5:30/GMT+ 5:45/GMT+
6:00/GMT+ 6:30/GMT+ 7:00/GMT+ 8:00/GMT+
9:00/GMT+ 9:30/GMT+ 10:00/GMT+ 11:00/GMT+
12:00/GMT+ 12:45/GMT+ 13:00/GMT- 12:00/GMT­11:00/GMT- 10:00/GMT- 9:00/GMT- 8:00/GMT­7:00/GMT- 6:00/GMT- 5:00/GMT- 4:00/GMT- 3:30/GMT­3:00/GMT- 2:00/GMT- 1:00

21

LC-42SV32B

Age Rating Off/Below 10/Below 12/ Below 14/Below 16/Below 18
Content Rating

Input Block Input list

New Password
Confirm Password
Clean All
USB
Multi-Media
Option

CEC Setup
CEC Function On/Off
Auto Turn Off On/Off
Multi-Media

Change
Password

DivX(R)
Registration
DivX(R)
Deactivation

Canadian English
Ratings
Canadian French
Ratings

E/C/C8+/G/PG/14+/18+

E/G/8 ans+/13 ans+/16 ans+/18 ans+

Off/Drugs/Violence/Sex/Violence & Drugs/Sex &
Drugs/Violence & Sex/Violence, Sex & Drugs

22

LC-42SV32B

2. ADC Adjustment and White Balance Adjustment

It’s no need to do the white balance for this model, do ADC only.

1. Turn on the TV, press “Menu”, then press number key 1 + 9 + 9 + 9 and “RETURN”, it will achieve the factory mode. Select the item of Current source

and press right key to choose computer

2. Select the item of WD Pat, choose 80(80IRE), fix the item of Scalar G Gain, adjust the item of Scalar R B Gain, choose Color temp. and press right key

to continue adjustment; Choose 20(20IRE), fix the item of Scalar G Offset, adjust the item of Scalar R B Offset, choose Color temp. and press right key to

continue adjustment.

Color Temp.

Normal Warm Cool
x (center) 0.2850 ± 0.0090 0.3130 ± 0.0090 0.2740 ± 0.0090
y (center) 0.2930 ± 0.0090 0.3210 ± 0.0090 0.2740 ± 0.0090

23

LC-42SV32B

[2] SOFTWARE UPGRADE PROCEDURE

FW Upgrade

Step 1: Ready for F/W Upgrade

1.1 Change the software file name to ” upgrade.pkg” ,eg:

After change:

1.2 Prepare a USB memory (The file system of USB memory must be FAT16 or FAT 32).

1.3 Copy the file (upgrade.pkg) from your computer to the USB memory root directory, and remove it from computer’s USB port!

Note: 1) Note the version of this F/W before you change the software file name.

2) The software file name must be changed, or TV can’t detect the F/W.

Step 2: F/W Upgrade

2.1 AC on (Power plug)

2.2 Plug the USB memory on the USB port on the side I/O port of TV.

2.3 TV AC power off  AC power on

2.4 TV will upgrade by itself after detect the USB drive condition and the content of the pkg file.

Note: TV’s LED will flash during upgrade process

2.5 After finish upgrade process, TV will reboot by itself.

2.6 Remove USB drive from TV.

2.7 Check if the software version is correct. Press “MENU+1999+RETURN”, enter factory model.

24

2.8 If the FW version is correct, please do factory reset in user menu.

LC-42SV32B

25

LC-42SV32B

The Writing VGA & HDMI EDID

Take other model for example

Step1. Ready for writing EDID

Tool: 715G089-B/C

Cable: a USB cable, a VGA cable, and a DVI to HDMI cable.

715G089-B/C USB cable

VGA cable DVI to HDMI cable

USB port driver TpvEdid.exe (ISP TOOL) VGA&HDMI EDID

26

Step2. Connection for VGA EDID writing and turn on the TV

Connect to PC

USB port by USB

cable.

Step3. Install TPVedid tool.

LC-42SV32B

Connect to TV

VGA port by

VGA cable.

3.1 Read the VGA EDID file.

1. Double click this icon to install.

2. Double click this icon to run.

2. Select VGA EDID file correctly.

27

1. Click “Read File”

LC-42SV32B

3.2 Select “FtdiUSB” communication type. And test the EDID.

2. Tick ”FtdiUSB(1)”

1. Click “FPD” to open

this interface.

3. Click ”Text EDID”, if

communicate fluently, will

appears “edid write

protected”

3.3 Start to write EDID.

1. Click ”Write EDID” to start

writing. Blue “OK” represents

write EDID successfully.

28

3.4 Click “Read EDID”.

LC-42SV32B

1.Click ”Read EDID” to start

reading EDID from TV. Blue

“OK” represents read EDID

successfully.

Step4. Click “FPD” to open another interface as follows to check the whether the info is the same as you loaded previously.

29

LC-42SV32B

Step5. When the tool displays “NG” in the yellow blank, which represent writing failly. Please check the whether the connection of tool and cables is nomal

and retry. Another way is to change a new ISP board and retry.

Step6. Write HDMI EDID.

1. Connection for writing HDMI EDID.

Connect to PC

USB port by USB

cable.

Connect to one of TV HDMI port by DVI to

HDMI cable.

30

LC-42SV32B

2. Because the TV has three HDMI ports, please connect the “DVI to HDMI” cable to corresponding HDMI port and load correct EDID file one by one.

HDMI one.

3. The other steps are the same as VGA EDID writing. Please refer to the above steps to write EDID for HDMI port.( HDMI2, written steps are the same

with HDMI1)

31

LC-42SV32B

p

CHAPTER 4.

TROUBLESHOOTING TABLE

[1] TROUBLESHOOTING TABLE



Are the power cord and harness in the unit properly connected?

LINE_FILTER_UNIT:

Is F901/F902 normal?

POWER_UNIT

Is C9824(+390V) output? (Set the main power SW to ON.)

Is a voltage of +5V applied to pin (12,13) of connector (CN902)?
(Set the main power SW to ON.)

Are 12 and 24V output as for the power on/off switch when it is on?

No sound output in all modes?

TERMINAL UNIT:

Is the audio signal output of IC U401 normal?

Is audio signal input to pin (27/28/29/30) of IC U602 (AMP)?

Is MUTE circuit [AMP_MUTE_LINE, POWERUP_LINE] normal?

Is the audio signal output of pin (1,2) (R) and pin (3,4) (L) of
CN601(AOUDIO-CONNECTOR) normal?

Check Speaker (right and left) and wire harness.

 YES

YES

YES

YES





YES

YES

YES

YES

The sound is not emitted from the speaker though the picture has come out.

Power unit operation check.

NO

NO

NO

NO

NO

NO

NO

NO

NO

Connect the power cord and harness properly, and turn on the

ower.

LINE_FILTER_UNIT:
Isn't NR901,IC901,L9901,L9902,etc. out of order? Moreover,
whether the short-circuit with the circumference circuit is
checked.

POWER_UNIT:
BD901, FB9902, D9802, etc. out of order?
Moreover, whether the short-circuit with the circumference circuit
is checked.

Does the PFC circuit operate normally?
(IC9801, Q9801, L9804 and etc. And, the circuit around the
protection circuit etc. is checked.)

Does the switching circuit operate normally?
Check circuit around the primary side (IC9301, T9301,
D9335,etc.), the secondary side (D9350, L9350, ZD9301, etc.),
and the protection circuit.

Does the inverter circuit operate normally?
Check circuit around the primary side (T9101, Q9101, Q9102,
etc.), the secondary side (D9151, D9153, D9152 etc.), and the
protection circuit.

Check IC U401 and its peripheral circuits.

Check the line between IC U401 and IC U602.

Check the AMP_MUTE_LINE and POWERUP_LINE. (Q605,
Q610 etc.)

Check IC U602 and its peripheral circuits.

32

(

No sound (during the reception of TV broadcasting)



Does not the sound go out though the picture has come out when TV is received?

MAIN UNIT:

Is the IF signal output from pin (1/2/4/5) of Tuner (TU101)?



NO

YES

Is the IF signal sent to pin (AD17/AE17) of IC U401?

NO

YES

Refer to “No sound output in all modes”.

No sound from external input devices (1)



Does not the sound of the audio signal input to Component go out?

MAIN UNIT:

Is the audio signal properly sent to pin (8)(YPbPr_L_In) and pin
(11)(YPbPr_R_In) of CN111?



NO

YES

Is the audio signal properly sent to pin (AC20) (YPbPr_L_In) and
pin (AE23) (YPbPr_R_In) of IC U401?

NO

YES

Refer to “No sound output in all modes”.

No sound from external input devices (2)



Does not the sound of the audio signal input to (Composite, Y/C) go out?

MAIN UNIT:

Is the audio signal properly sent to pin (4) (SIDE_AudioLIN) and pin
(7) (SIDE_AudioRIN) of CN128?



NO

YES

Is the audio signal properly sent to pin (AC21) (AV2_L_In) and pin

AE24) (AV2_R_In) of IC U401?

NO

YES

Refer to “No sound output in all modes”.

LC-42SV32B

Check the tuner and its peripheral circuits. Replace as required.

Check IC U401 its peripheral circuits.

Check the connection to CN111 and the external input device.

Check the line between CN111 and IC U401.

Check the connection to CN128 and the external input device.

Check the line between CN128 and IC U401.

33

LC-42SV32B

No sound from external input devices (3)



Does not the sound of the audio signal input to (VGA) go out?

MAIN UNIT:

Is the audio signal properly sent to pin (2) (VGA_L_In) and pin (3)
(VGA_R_In) of CN102?



NO

YES

Is the audio signal properly sent to pin (AD22) (VGA_L_In) and pin

NO

YES

Refer to “No sound output in all modes”.

No sound from external input devices (4)



Does not the sound of the audio signal input to (HDMI1/2) go out?



Is picture of the signal input from HDMI 1/2 displayed?

NO

YES

Refer to “No sound output in all modes”.

No picture on the display (1)



The picture doesn't appear in all modes.

MAIN UNIT:

Is LVDS signal output from 1st_channel and 2nd_channel of IC U401 in each mode?
(O0/O1/O2/O3/OCK (for 32)), (E0/E1/E2/E3/E4/ECK/O0/O1/O2/O3/O4/OCK (for 42))



NO

YES

Is the above-mentioned LVDS signals output to connector
CN409(for32), CN408(for 42)?

NO

YES

Is LCD controller's control signal normal?

NO

PANEL_UNIT:

Similarly, is the LVDS signal input to connector of the panel

YES

NO

YES

Check the panel module.

Check the connection to CN102 and the external input device.

Check the line between CN102 and IC U401.

Refer to “Does not the picture of the HDMI signal input to
HDMI1/2 go out?”.

Check IC U401 and its peripheral control circuits.

Check the line between IC U401 and CN409, CN408.

Control signals BRIGHT_ADJ, INVERTER_ON_OFF,
PANEL_VCC_ON/OFF, and it peels off and whether normality is
checked.

Wire harness is checked. (Main board to Panel module )

34

No picture on the display (2)



Does not the picture come out when VHF/UHF is received?

TERMINAL UNIT:

Is TUNER_CVBS signal output from TUNER (TU101)?



MAIN_UNIT:

Is picture signal input from pin TUNER (TU101) to IC U401?

YES

YES

Refer to “The picture doesn't appear in all modes.”

No picture on the display (3)



Does not the picture come out when TV is received?

TERMINAL UNIT:

Is the voltage of regulation for a TUNER circuit and the power
supply terminal of IC U401 supplied?

Is IF signal output from pin (1/2/4/5) of TUNER (TU101) to pin
(AD17/AE17) of IC U401?

MAIN_UNIT:

Do X400 (27MHz) oscillate?

Refer to “The picture doesn't appear in all modes.”



YES

YES

YES

<External input (Component)>No picture on the display (4)



Does not the picture of the component video signal input to Component go out?

TERMINAL_UNIT:



Is Component Y/Pb/Pr signal sent to pin (2)/Y, (4)/Pb, (6)/Pr of
AV1(CN111) ?

MAIN_UNIT:

Is Component Y/Pb/Pr signal sent to pin (AB13)/Y, (AB14)/Pb,
(AC14)/Pr of IC U401?

YES

YES

Refer to “The picture doesn't appear in all modes.”

NO

NO

NO

NO

NO

NO

NO

LC-42SV32B

Check whether I2C is normally accessed between TU101 and IC
U401.

Check the line between IC U401 and TU101.

Each power supply circuit is checked.

Check the tuner, IC U401 and their peripheral circuits. Replace
as required.

Check X400 and its peripheral circuits.

Check the setting of an external input device that connects of
CN111.

Check the line between IC U401 and CN111

35

LC-42SV32B

<External input AV (Composite)>No picture on the display (5)



Does not the picture of the composite video signal input to AV(Composite) go out?

TERMINAL UNIT:

Is CVBS signal sent to pin (2) of AV (CN128) ?



NO

MAIN_UNIT:

Is CVBS signal sent to pin (A17) of IC U401?

Refer to “The picture doesn't appear in all modes.”

YES

YES

NO

<External input HDMI1 >No picture on the display (6)



Does not the picture of the HDMI signal input to HDMI1 go out?

MINI AV_UNIT:

Is the HOT_PLUG detection function of pin (19) of a HDMI terminal
(CN502) normal?

Is TMDS signal input into pin ((41,42)/( RR1X0), (44,45)/( RR1X1),
(47,48)/(

Is TMDS signal output from pin ((1/2/4/5/7/8/10/11)/(M_RX1) of IC
U501?

Refer to “The picture doesn't appear in all modes.”



RR1X2), (38,39)/( RR1XC)) of IC U501?

YES

YES

YES

NO

NO

NO

<External input HDM2 >No picture on the display (7)



Does not the picture of the HDMI signal input to HDMI2 go out?

MINI AV_UNIT:

Is the HOT_PLUG detection function of pin (19) of a HDMI terminal
(CN503) normal?

Is TMDS signal input into pin ((21,22)/(RR0X0), (24,25)/(RR0X1),
(27,28)/(RR0X2), (18,19)/(RR0XC)) of IC U501?

Is TMDS signal output from pin ((1/2/4/5/7/8/10/11)/(M_RX1) of IC
U501?

Refer to “The picture doesn't appear in all modes.”



YES

YES

YES

NO

NO

NO

Check the setting of an external input device that connects of
CN128.

Check the line between IC U401 and CN128.

Check the line between pin (36) of IC U505 and CN502.

NO

Check the connection and setup with the external HDMI devices.

Check the line between IC U501 and CN502.

Check IC U501 and peripheral circuits.

Check the line between pin (16) of IC U505 and CN503.

NO

Check the connection and setup with the external HDMI devices.

Check the line between IC U501 and CN503.

Check IC U501 and peripheral circuits.

36

<External input VGA>No picture on the display (8)



Does not the picture of the PC IN(ANALOG) video signal input to VGA (15pin-D-SUB terminal) go out?

TERMINAL_UNIT:

Is R/G/B/H/V signal sent to pin (1)/R, (2)/G, (3)/B, (13)/H, (14)/V of
VGA (CN101)?

MAIN_UNIT:

Is R/G/B/H/V signal sent to pin (AC10)/R, (AC9)/G, (AD9)/B,
(W12)/H, (W11)/V of IC U401?

Refer to “The picture doesn't appear in all modes.”



YES

YES

NO

NO

Check the setting of an external input device that connects of
CN101.

Check the line between IC U401 and CN101.

LC-42SV32B

37

LC-42SV32B

CHAPTER 5.

MAJOR IC INFORMATIONS

[1] MAJOR IC INFORMATION

2.1 U401(MT5366RANG)

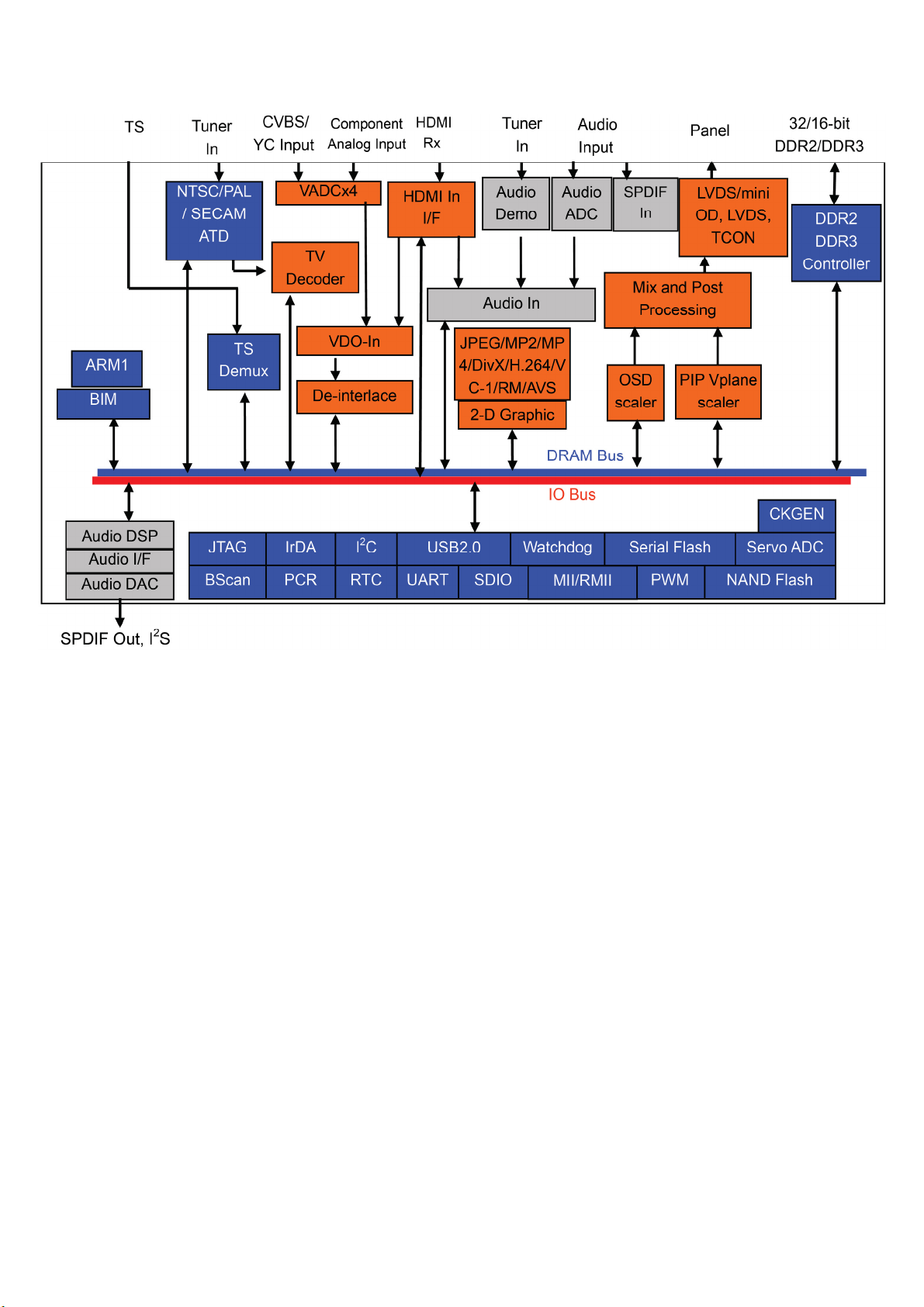

General Description

The MediaTek MT5365/66 family is a backend decoder and a TV controller and offers high integration for advanced applications. It combines a transport

de-multiplexer, a high definition video decoder, an AC3 audio decoder, a dual-link LVDS/mini-LVDS transmitter, and an NTSC/PAL/SECAM TV decoder

with a 3D comb filter (NTSC/PAL). The MT5365/66 enables consumer electronics manufactures to build high quality, low cost and feature-rich DTV.

World-Leading Audio/Video Technology: The MT5365/66 supports Full-HD MPEG1/2/4/DiviX/VC1/RM/H.264/AVS video decoder standards, and JPEG.

The MT5365/66 also supports MediaTek MDDiTM de-interlace solution can reach very smooth picture quality for motions. A 3D comb filter added to the

TV decoder recovers great details for still pictures. The special color processing technology provides natural, deep colors and true studio quality video.

Also, the MT5365/66 family has built-in high resolution and high-quality audio codec.

Rich Features for High Value Products: The MT5365/66 family enables true singlechip experience. It integrates high-quality HDMI1.3 (partial HDMI1.4),

high speed VGA ADC, dual-channel LVDS, USB2.0 receiver, Ethernet, TCON and panel overdrive.

Key Features

1. Worldwide multi-standard analog TV demodulator

2. A transport demultiplexer

3. A muti-standard video decoder

4. An AC3/MPEG2 audio decoder

5. HDMI1.3 receiver (cover HDMI1.4 partial Spec)

HDMI 1.4

Spec.

Optional Yes No Yes Yes

6. Audio codec

7. TCON

8. Ethernet

9. Panel overdrive control

10. Local dimming

General Features

Host CPU

ARM1176JZS-756MHz

16K I-Cache and 16K D-Cache

14K Boot ROM

JTAG ICE interface

Watch Dog timers

Transport Demultiplexer

New generation 2 demux design

Supports two serial transport stream input with one serial transport stream output, or one parallel transport stream input

Supports ATSC, DVB-T, DVB-C transport stream input

Support DES / 3-DES / DVB / AES / Multi-2 de-scramblers

Up to 8 even/odd keys for descrambling

Supports 32 PID filters and 32 section filters

Supports 32 PID filters for recording

Supports hardware CRC-32 check

Supports PCR recovery function

Supports a micro-processor for stream process and video start code detection

MPEG2 Decoder

Ethernet
Channel

3D over

HDMI

4Kx2K

Audio Return

Channel

38

Additional

Color Space

MPEG MP@ML, MP@HL

Supports de-blocking filter

MPEG1 Decoder

MPEG4 Decoder

ASP@L5

H.264 (MPEG4.10) HD Decoder (AVC)

MP@L4.0, HP@L4.0, constrained BP@L3 video standard

VC-1 (SMPTE421M)

MP@HL, AP@L3(Partial Support, support up to 1920x1080)

WMV9 decoder MP@HL

DivX

Decoder: DIVX3 / DIVX4 / DIVX5 / DIVX6 / XviD

Certification Profile: DIVX Home Theater / DIVX HD 1080P / DIVX PLUS

AVS Decoder

Jizhun profile @Level 6.0.1

RMVB Decoder

RealVideo8/9/10

Soreson H.263

Still Image decoding

JPEG (base-line or progressive)

De-mosquito engine

2D/3D for all AV inputs

2D Graphics

Supports multiple color modes

Point, horizontal/vertical line primitive drawings

Rectangle fill and gradient fill functions

Bitblt with transparent options

Alpha blending and optional pre-multiplied alpha composition Bitblt

Stretch Bitblt

YCbCr to RGB color space conversion

Support index to direct mode bitblt

Image Resizer

Supports 16bpp/32bpp direct color format.

Supports 420/422 video format.

Supports 420/422/444 JPEG format.

Arbitrary ratio vertical/horizontal scaling of video, from 1/128X to 128X

Simple DMA.

OSD Plane

Three linking list OSDs with multiple color mode and two of them has up-scaler

Video Plane

Supports video freeze and over scan.

Flesh tone management

Gamma correction

Color Transient Improvement (CTI)

2D Peaking

Saturation/hue adjustment

Brightness and contrast adjustment

Black and White level extender

Adaptive Luma management

Automatic detect video, film and mixed-mode source

3:2/2:2 pull down source detection

39

LC-42SV32B

LC-42SV32B

Supports FHD motion-adaptive de-interlace in 32bit dram interface

Supports excellent low angle image processing

Brilliant boundary shaping for moving object

Advanced non-linear panorama scaling.

Programmable zoom viewer

Progressive scan output

Supports alpha blending for OSD on video plane.

Dithering processing for flat panel display

Frame rate conversion.

Supports FHD panel and VGA dot-to-dot

Supports PIP/POP, (dual de-interlace, one HD and one SD)

OD

Support 60Hz Full-HD and WXGA panel over drive.

TCON

Flexible timing control with programmable timing

i. Horizontal timing control

ii. Vertical timing control

iii. Multi-line timing control

iv. Multi-frame timing control

Support gate power modulation timing

Support 1/2/4/8 frame inversion, 1-line inversion, 2-line inversion, and could up to 255-line dot inversion

Local Dimming

Block division: up to 800 total blocks, up to 100 horizontal blocks

Support 50K ~ 50M SPI clock rate

LVDS

Support 6/8/10/12-bit one-link, or 6/8/10-bit dual-link LVDS transmitter,

Built-in spread spectrum for EMI performance

Programmable panel timing output

Mini-LVDS

Single port 6/8-bit 6 pairs mini-LVDS output for WXGA 60Hz panel

Single port 6/8-bit 3 pairs mini-LVDS output for WXGA 60Hz panel

Dual port 6/8-bit 3 pairs mini-LVDS output for WXGA 60Hz panel

Single port 8bit 6 pairs mini-LVDS output for FHD 60Hz panel

Dual port 8 bit 6 pair mini-LVDS output for FHD 60Hz panel

Dual port 8bit 3 pairs mini-LVDS output for FHD 60Hz panel

CVBS In

On-chip 54 MHz 10-bit video ADC

Supports PAL (B,G,D,H,M,N,I,Nc), NTSC, NTSC-4.43, SECAM

NTSC/PAL supports 3D/2D comb filter

Built-in motion-adaptive 3D Noise Reduction

VBI data slicer for CC/TT decoding

Supports 2 S-Video.

MT5366RANG support 3-channel CVBS. MT5365 support 2-channel CVBS.

Supports SCART connector

VGA In

Supports VGA input up to UXGA 162 MHz

Supports full VESA standards

Component Video In

Supports two component video inputs

Supports 480i / 480p / 576i / 576p / 720p / 1080i / 1080p

Audio ADC

40

LC-42SV32B

MT5366RANG support 7-pair L/R input, MT5365 support 1-pair L/R input

Audio digital input

MT5366RANG support 5 bit (10 channel) I2S audio input (muxed with GPIO), MT5365 support 2 bit (4 channel) I2S audio input (muxed with GPIO).

HDMI Receiver

One channel HDMI1.4

v. Maximum data rate can be up to 3.3 GHz

vi. Support 3D video format

vii. Audio Return channel

EIA/CEA-861B

CEC

Video bypass

TV bypass

CVBS Monitor (any AV input)

TV audio demodulator

Supports BTSC / EIA-J / A2 / NICAM / PAL FM / SECAM world-wide formats

Standard automatic detection

Stereo demodulation, SAP demodulation

Mode selection (Main/SAP/Stereo)

Audio DAC

MT5366RANG support 4-pair audio DACs, MT5365 support 2-pair audio DACs

DRAM Controller

16/32-bit DDR2/DDR3 interface, (MT5365 only support 16-bit DRAM)

MT5365 Support DDR2 1026 MHz, DDR3 1188MHz. MT5366RANG Support DDR2 1026MHz, DDR3 1242MHz.

Supports 512Mb or 1 Gb DDR2 DRAM device and 1Gb or 2Gb DDR3 device. MT5365 has 16-bit data bus offers up to 256MB space (one x16 DRAM

device), and MT5366RANG has 32-bit data bus offers up to 512MB space (two x16 DRAM device).

Supports DDR2-800/DDR2-1066/DDR3-1333/DDR3-1600 device

Audio DSP

Supports Dolby Digital AC-3 decoding (ATSC)

MPEG-1 layer I/II decoding

Support WMA / HE-AAC

Dolby Prologic II

Audio output: 5.1ch + 2ch (down mix) + 2ch(bypass)

Pink noise and white noise generator

Equalizer

Bass management

3D surround processing with virtual surround

Audio and video lip synchronization

Supports bass/treble

Automatic volume control

MT5366RANG supports 5-bit (10-channel) main audio I2S output interface, MT5365 support 2-bit (4-channel) main audio I2S output interface: each of

these channels is up to 24-bit resolution.

S/PDIF interface

Support SPDIF in bypass

One SPDIF out

Analog TV IF Demodulator

Supports world-wide analog TV standard

Accept Low IF frequency

Full digital AGC control and carrier recovery

Embedded SAW filter and IF Amplifier. Cost effective TV front-end structure and no more costs on

viii. External analog SAW filters (Video/Audio)

ix. External analog IF demodulator

41

LC-42SV32B

x. Extra peripheral circuit on CVBS signal data path

xi. External SAW filter and IF VGA on tuner

Peripherals

MT5366RANG support three built-in UARTs with Tx and Rx FIFO, MT5365 support two UART (one is muxed with GPIO).

MT5366RANG support MII/RMII interface (built-in Ethernet MAC), MT5365 support RMII only.

Seven basic serial interfaces; one is for the tuner, one is the master for general purpose, and one is the slave for VGA DDC, the other four extra slave

serial interfaces used for HDMI EDID data (three are muxed with GPIO).

MT5366RANG support three PWMs, MT5365 support two PWMs (one is muxed with GPIO).

IR receiver

Real-time clock and watchdog controller

Built-in 2-link USB2.0/1.1,USB port0 supports external hub,

Built-in uP for standby mode

Support SDIO interface pin muxed with smart card

Supports two serial flash or one serial and one NAND flash

MT5366RANG supports six-input low-speed ADC, MT5365 support five-input low-speed ADC.

Supports boundary scan (JTAG)

IC Outline

The MT5366RANG is 21x21mm 479 balls PBGA Package, MT5365 is 256-pin LQFP package with EPAD

3.3V/1.12V/1.2V and 1.8V for DDR2 or 1.5V for DDR3

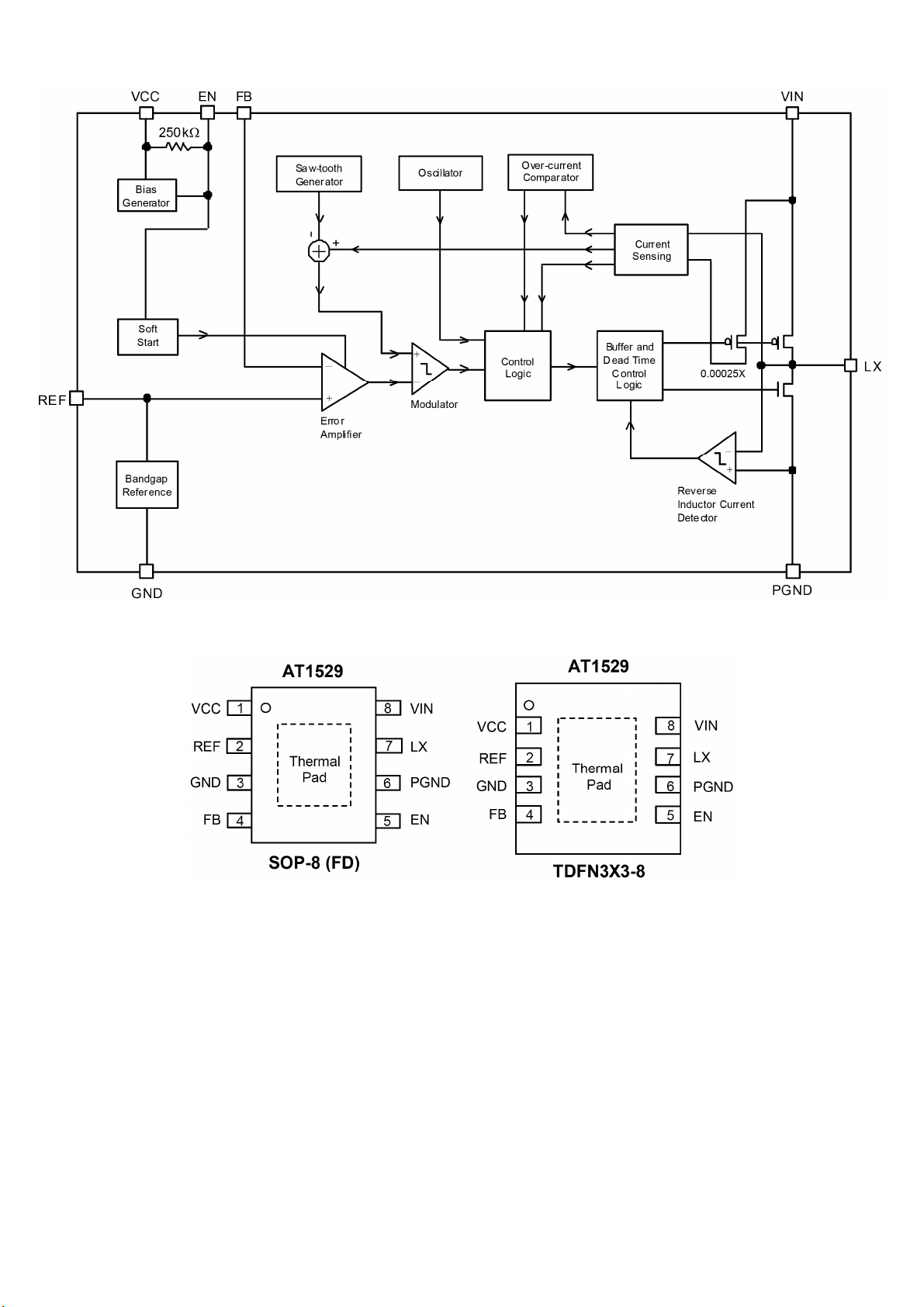

2.2 U703(AT1529F11U)

General Description

The AT1529 high-efficiency, DC/DC buck converter delivers up to 3.2A of output current. The device operates from an input voltage of 2.5V to 6V and

provides an output voltage from 0.8V to VIN, making the AT1529 ideal for on-board post-regulation applications.

The AT1529 operate at a fixed frequency of 1MHz with an efficiency of up to 94%. The high operating frequency minimizes the size of external

components. Internal soft-start control circuitry reduces inrush current. Short-circuit and thermal-overload protections improve design reliability.

The AT1529 are available in a space-saving SOP-8 and TDFN3X3-8 package.

Features

Ceramic Input and Output Capacitors

Efficiency Up to 94%

Operate from 2.5V to 6V supply

Adjustable Output from 0.8V to VIN

Internal Soft-Start

Short-Circuit and Thermal-Overload Protection

Input Over Voltage Protection

RoHS Compliant

Applications

ASIC/DSP/µP/FPGA Core and I/O Voltages

Set-Top Boxes

Cellular Base Stations

Networking and Telecommunications

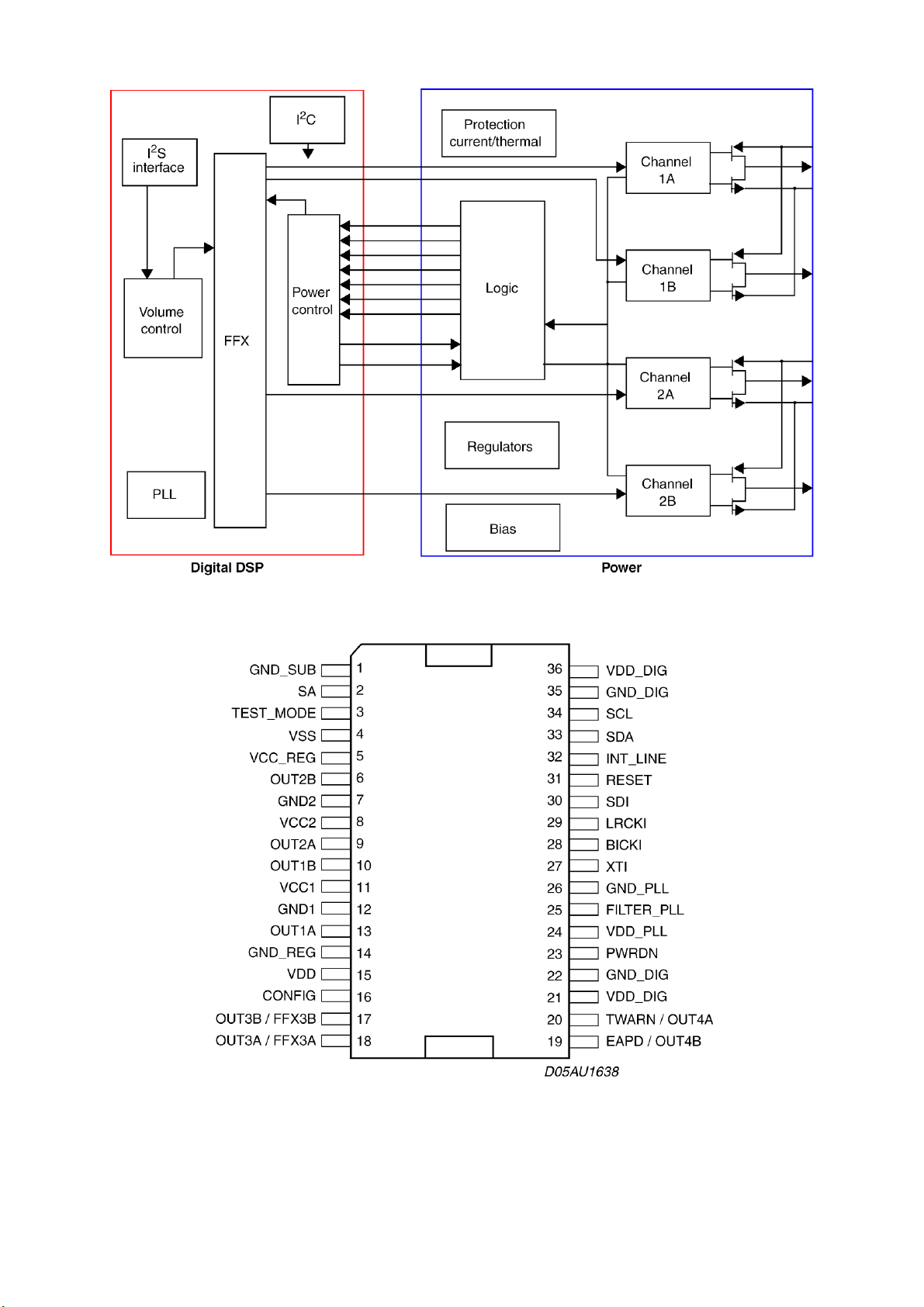

2.3 U602(STA339BWTR)

General Description

The STA339BW is an integrated solution of digital audio processing, digital amplifier control, and FFX-power output stage, thereby creating a high-power

single-chip FFX® solution comprising high-quality, high-efficiency, all digital amplification.

STA339BW is based on FFX (fully flexible amplification) processor, a STMicroelectronics proprietary technology. FFX is the evolution and the enlargement

of the ST ternary technology: the new processor can be configured to work in ternary, binary, binary differential and phase shift PWM modulation schemes.

STA339BW contains the ternary, binary and binary differential implementations, a subset of the full capability of the FFX processor.

42

LC-42SV32B

The STA339BW is part of the Sound Terminal™ family that provides full digital audio streaming to the speaker, offering cost effectiveness, low power

dissipation and sound enrichment.

The STA339BW power section consists of four independent half-bridges. These can be configured via digital control to operate in different modes. 2.1

channels can be provided by two half-bridges and a single full-bridge, providing up to 2 x 9 W + 1 x 20 W of power output. Two channels can be provided

by two full-bridges, providing up to 2 x 20 W of power. The IC can also be configured as 2.1 channels with 2 x 20 W provided by the device and external

power for FFX power drive.

Also provided in the STA339BW are a full assortment of digital processing features. This includes up to 8 programmable 28-bit biquads (EQ) per channel

and bass/treble tone control. Available presets enable a time-to-market advantage by substantially reducing the amount of software development needed

for certain functions. This includes audio preset volume loudness, preset volume curves and preset EQ settings. There are also new advanced AM radio

interference reduction modes. Dual band DRC dynamically equalizes the system to provide speaker linear frequency response regardless output power

level. This feature independently processes the two bands, controlling, dynamically, the output power level in each band and so providing a better sound

quality.

The serial audio data input interface accepts all possible formats, including the popular I2S format. Three channels of FFX processing are provided. This

high-quality conversion from PCM audio to FFX PWM switching waveform provides over 100 dB SNR and dynamic range.

Features

 Wide voltage supply range

– 5 V to 26 V (operating range)

– 30 V (absolute maximum rating)

 3 power output configurations

– 2 channels of ternary PWM (stereo mode) (2 x 20 W into 8  at 18 V)

– 3 channels - left, right using binary and LFE using ternary PWM (2.1 mode) (2 x 9 W + 1 x 20W into 2 x 4 , 1 x 8  at 18 V)

– 2 channels of ternary PWM (2 x 20 W) + stereo lineout ternary

 2.1 channels of 24-bit FFX®100 dB SNR and dynamic range

 Selectable 32 to 192 kHz input sample rates

 I2C control with selectable device address

 Digital gain/attenuation +48 dB to -80 dB with 0.5 dB/step resolution

 Soft volume update with programmable ratio

 Individual channel and master gain/attenuation

 Two independent DRC configurable as a dualband anti-clipper (B2DRC) or independent limiters/compressors

 EQ-DRC for DRC based on filtered signals

 Dedicated LFE processing for bass boosting with 0.5 dB/step resolution

 Audio presets:

– 15 preset crossover filters

– 5 preset anti-clipping modes

– Preset night-time listening mode

 Individual channel and master soft/hard mute.

 Independent channel volume and DSP bypass

 Automatic zero-detect mute

 Automatic invalid input-detect mute

 2-channel I2S input data interface

 Input and output channel mapping

 Up to 8 user-programmable biquads per channel with 28-bit resolution

 3 coefficients banks for EQ presets storing with fast recall via I2C interface

 Bass/treble tones and de-emphasis control

 Selectable high-pass filter for DC blocking

 Advanced AM interference frequency switching and noise suppression modes

 Selectable high- or low-bandwidth noise-shaping topologies

 Variable max power correction for lower full-power THD

 Selectable clock input ratio

 96 kHz internal processing sample rate, 24 to 28-bit precision

43

LC-42SV32B

 Thermal overload and short-circuit protection embedded

 Video apps: 576 x Fs input mode supported

 Fully compatible with STA339BWS.

2.4 U501(SiI9185ACTU)

General Description

Features

44

LC-42SV32B

2.5 U606(MAX9728AETC+)

General Description

The MAX9728A/MAX9728B stereo headphone amplifiers are designed for display and notebook applications or portable equipment where board space is

at a premium. These devices use a unique, patented DirectDrive™ architecture to produce a ground-referenced output from a single supply, eliminating

the need for large DC-blocking capacitors, saving cost, board space, and component height. The MAX9728A offers an externally adjustable gain, while the

MAX9728B has an internally preset gain of -1.5V/V. The MAX9728A/MAX9728B deliver up to 60mW per channel into a 32 load and have low 0.02%

THD+N. An 80dB at 1kHz power-supply rejection ratio (PSRR) allows these devices to operate from noisy digital supplies without an additional linear

regulator. Comprehensive clickand-pop circuitry suppresses audible clicks and pops on startup and shutdown.

The MAX9728A/MAX9728B operate from a single 4.5V to 5.5V supply, consume only 3.5mA of supply current, feature short-circuit and thermal-overload

protection, and are specified over the extended -40°C to +85°C temperature range. The devices are available in tiny 12-pin Thin QFN (3mm x 3mm x

0.8mm) and 14-pin TSSOP packages (5mm x 4.4mm x 1.1mm).

Features

 No Bulky DC-Blocking Capacitors Required

 Low-Power Shutdown Mode, < 0.1µA

 Adjustable Gain (MAX9728A) or Fixed -1.5V/V Gain (MAX9728B)

 Low 0.02% THD+N

 High PSRR (80dB at 1kHz) Eliminates LDO

 Integrated Click-and-Pop Suppression

 4.5V to 5.5V Single-Supply Operation

 Low Quiescent Current (3.5mA)

 Available in Space-Saving Packages

12-Pin Thin QFN (3mm x 3mm x 0.8mm)

14-Pin TSSOP (5mm x 4.4mm x 1.1mm)

Applications

Notebook PCs

DVD Players

LCD/PDP Displays

CRT TVs

Multimedia Monitors

2.6 U116(MAX3232ECPWR)

General Description

The MAX3232E device consists of two line drivers, two line receivers, and a dual charge-pump circuit with ±15-kV IEC ESD protection pin to pin (serial-

port connection pins, including GND). The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous

communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V

supply. The devices operate at data signaling rates up to 250 kbit/s and a maximum of 30-V/ms driver output slew rate.

Features

· ESD Protection for RS-232 Bus Pins

– ±15 kV (HBM)

– ±8 kV (IEC61000-4-2, Contact Discharge)

– ±15 kV (IEC61000-4-2, Air-Gap Discharge)

· Meets or Exceeds the Requirements of TIA/EIA-232-F and ITU v.28 Standards

· Operates With 3-V to 5.5-V VCC Supply

· Operates up to 250 kbit/s

· Two Drivers and Two Receivers

· Low Supply Current . . . 300 mA Typ

· External Capacitors . . . 4 ´ 0.1 mF

· Accepts 5-V Logic Input With 3.3-V Supply

· Pin Compatible to Alternative High-Speed Device (1 Mbit/s)

– SNx5C3232

45

LC-42SV32B

Applications

· Battery-Powered Systems

· PDAs

· Notebooks

· Laptops

· Palmtop PCs

· Hand-Held Equipment

2.7 U406(CXD2828ER)

General Description

The Sony CXD2828ER is an ISDB-T and SBTVD-T demodulator that conforms to the ARIB STD-B31 standards. It receives signal from the tuner and

outputs signal in TS format after demodulation.

Features

・ All internal clocks derived from signal fixed 41MHz/20.5MHz frequency crystal (<±100ppm).

・ High performance differential ADC

・ Fast 400kHz I2C compatible bus interface

・ Gateway I2C interface for dedicated tuner control

・ Automatic IF AGC and optional programmable GPIO interface

・ Configurable parallel and serial MPEG-2 TS outputs

・ Built-in de-interleave memory（No external memory required）

・ 3.3V, 2.5V, 1.2V supplies

・ Temperature range -20 to +85℃

・ 48 pin VQFN 7mm x 7mm package (0.5mm pin pitch)

・ Very low operating power consumption (Clear channel)

ISD　 B-T：180mW (typ.)

・ Power standby mode (Shutdown: Clock stop mode)

　 Sleep：25mW(typ.)

Shutdown　 ：under 1mW(typ.)

Features ISDB-T

・ Conforms to ARIB STD-B31

・ Supports Low-IF, 57MHz-IF tuner.

・ Excellent phase noise resistance

・ Excellent multipath equalization performance

・ Automatic detection of mode/guard internal lengths.

・ EWS (Emergency Warning System) flag output

・ Read function of AC Carrier information corresponding to the earthquake broadcasting. (ARIB STD-B31 v1.8)

Applications

・ Set Top boxes

・ PC TV

・ PVRs and recordable DVD players

2.8 U407(M24C02)

General Description

These I²C-compatible electrically erasable programmable memory (EEPROM) devices are organized as 2048/1024/512/256/128 x 8 (M24C16, M24C08,

M24C04, M24C02 and M24C01).

In order to meet environmental requirements, ST offers these devices in ECOPACK® packages. ECOPACK® packages are Lead-free and RoHS

compliant.

ECOPACK is an ST trademark. ECOPACK specifications are available at: www.st.com.

I²C uses a two-wire serial interface, comprising a bidirectional data line and a clock line. The devices carry a built-in 4-bit Device Type Identifier code (1010)

46

LC-42SV32B

in accordance with the I²C bus definition.

The device behaves as a slave in the I²C protocol, with all memory operations synchronized by the serial clock. Read and Write operations are initiated by

a Start condition, generated by the bus master. The Start condition is followed by a device select code and Read/Write bit (RW), terminated by an

acknowledge bit.

When writing data to the memory, the device inserts an acknowledge bit during the 9th bit time, following the bus master’s 8-bit transmission. When data is

read by the bus master, the bus master acknowledges the receipt of the data byte in the same way. Data transfers are terminated by a Stop condition after

an Ack for Write, and after a NoAck for Read.

Features

 Two-wire I²C serial interface Supports 400 kHz protocol

 Single supply voltage:

– 2.5 V to 5.5 V for M24Cxx-W

– 1.8 V to 5.5 V for M24Cxx-R

– 1.7 V to 5.5 V for M24Cxx-F

 Write Control input

 Byte and Page Write (up to 16 bytes)

 Random and Sequential Read modes

 Self-timed programming cycle

 Automatic address incrementing

 Enhanced ESD/latch-up protection

 More than 1 million write cycles

 More than 40-year data retention

 Packages

– ECOPACK® (RoHS compliant)

2.9 U409(M24C32)

General Description

2

C-compatible electrically erasable programmable memory (EEPROM) devices are organized as 8192x8 bits (M24C64) and 4096x8 bits (M24C32),

These I

and operate down to 2.5 V (for the –W version of each device), and down to 1.8 V (for the -S version of each device).

The M24C64 and M24C32 are available in Plastic Dual-in-Line, Plastic Small Outline and Thin Shrink Small Outline packages.

Features
Compatible with I2C Extended Addressing

Two Wire I2C Serial Interface Supports 400 kHz Protocol

Single Supply Voltage:

– 4.5V to 5.5V for M24Cxx

– 2.5V to 5.5V for M24Cxx-W

– 1.8V to 3.6V for M24Cxx-S

Hardware Write Control

BYTE and PAGE WRITE (up to 32 Bytes)

RANDOM and SEQUENTIAL READ Modes

Self-Timed Programming Cycle

Automatic Address Incrementing

Enhanced ESD/Latch-Up Behavior

More than 1 Million Erase/Write Cycles

More than 40 Year Data Retention

47

LC-42SV32B

[2] DETAILED ICS INFORMATION

3.1 U401(MT5366RANG)

Block Diagram

48

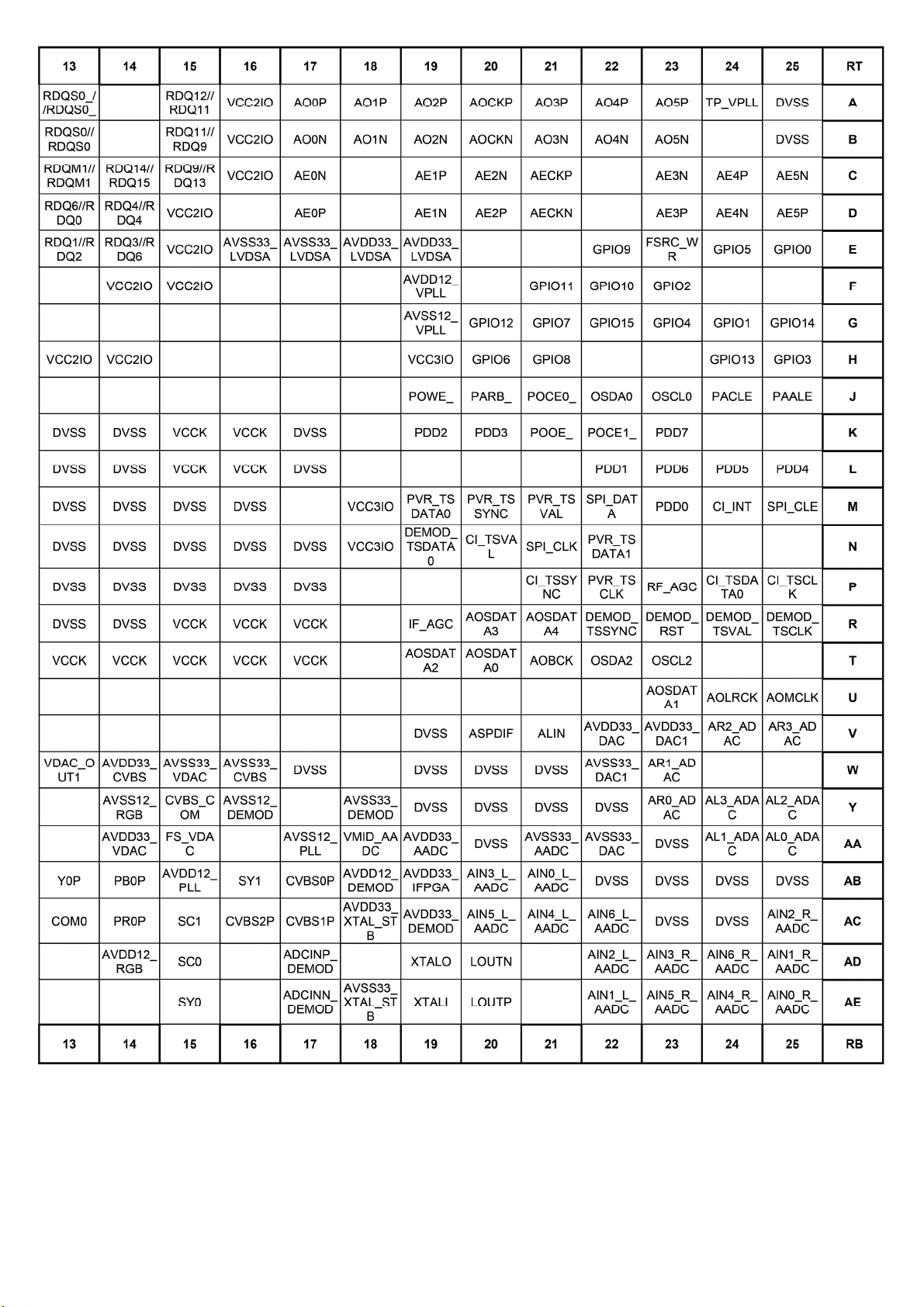

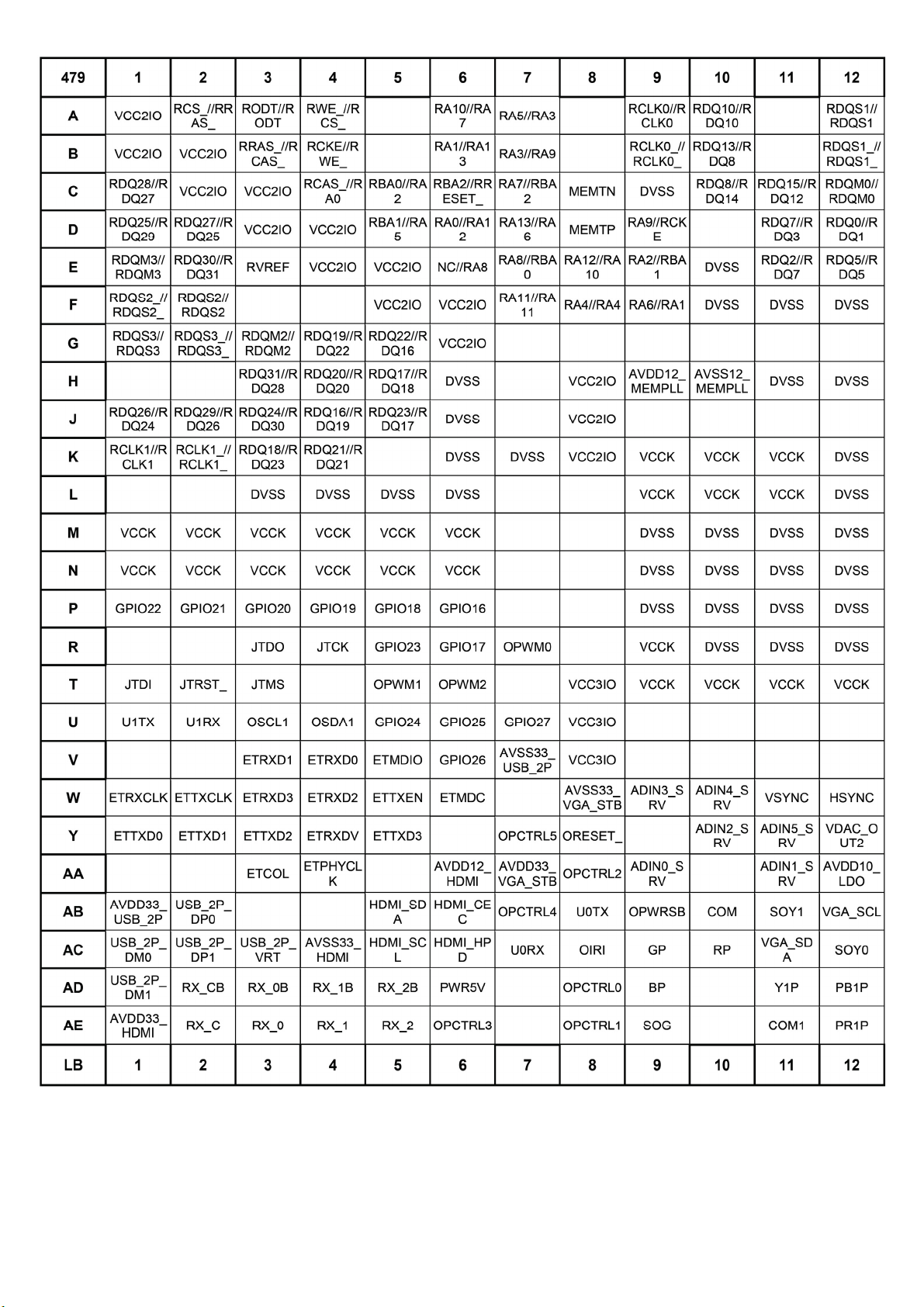

Pin Connections and Short Description

LC-42SV32B

49

LC-42SV32B

50

3.2 U703(AT1529F11U)

Block Diagram

LC-42SV32B

Pin Connections and Short Description

51

LC-42SV32B

3.3 U602(STA339BWTR)

Block Diagram

Pin Connections and Short Description

52

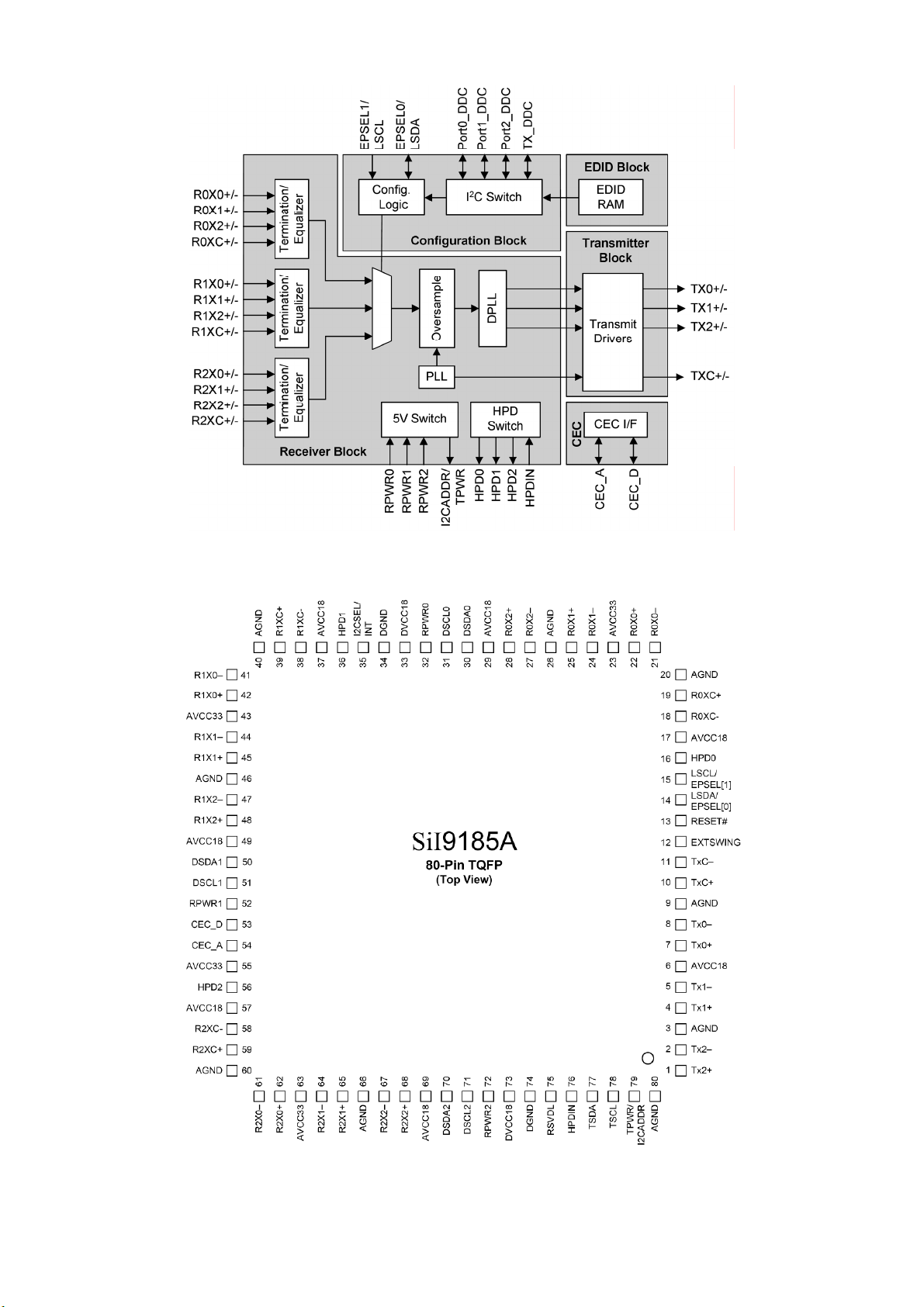

3.4 U501(SiI9185ACTU)

Block Diagram

LC-42SV32B

Pin Connections and Short Description

53

LC-42SV32B

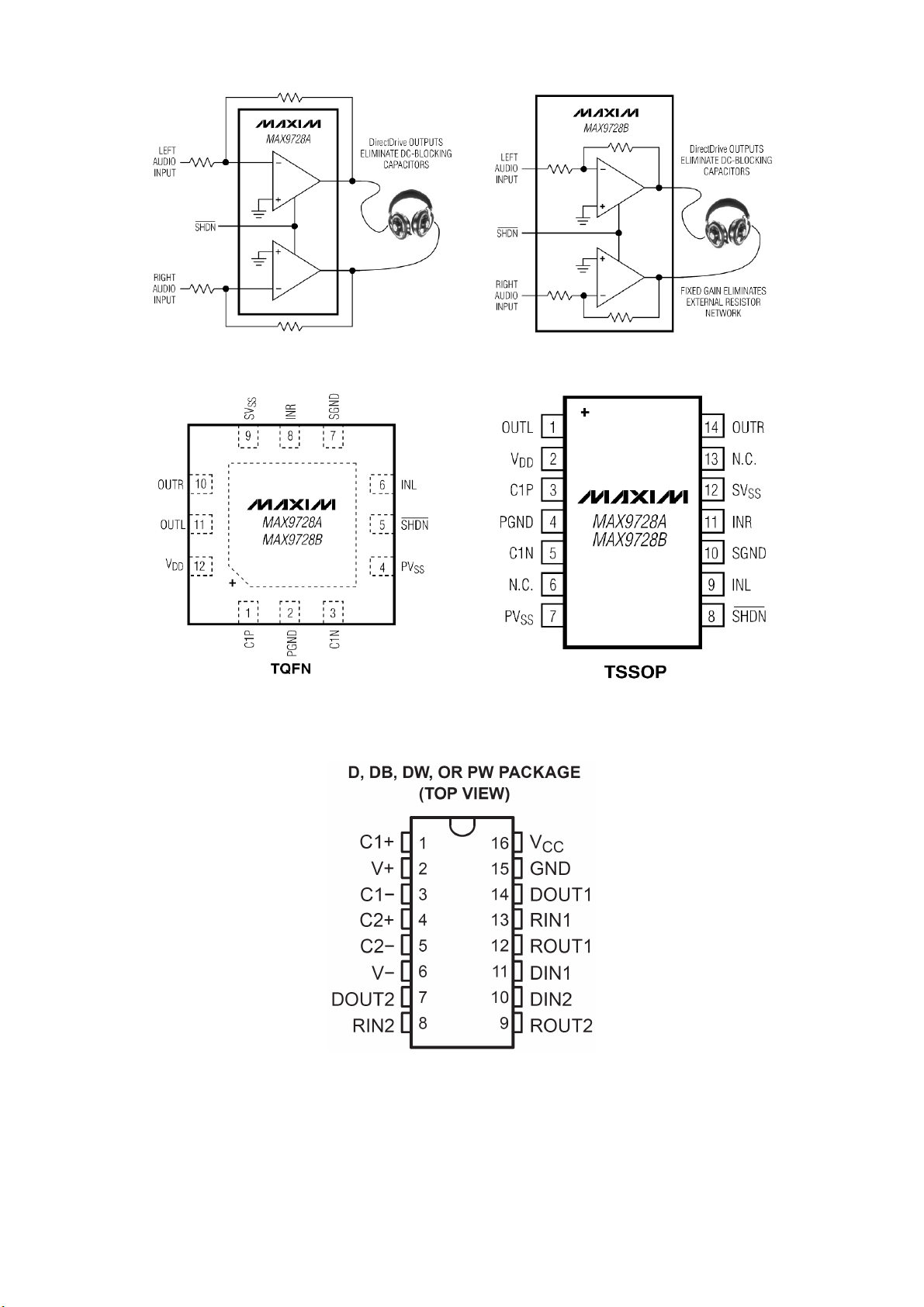

3.5 U606(MAX9728AETC+)

Block Diagram

Pin Connections and Short Description

3.6 U116(MAX3232ECPWR)

Pin Connections and Short Description

54

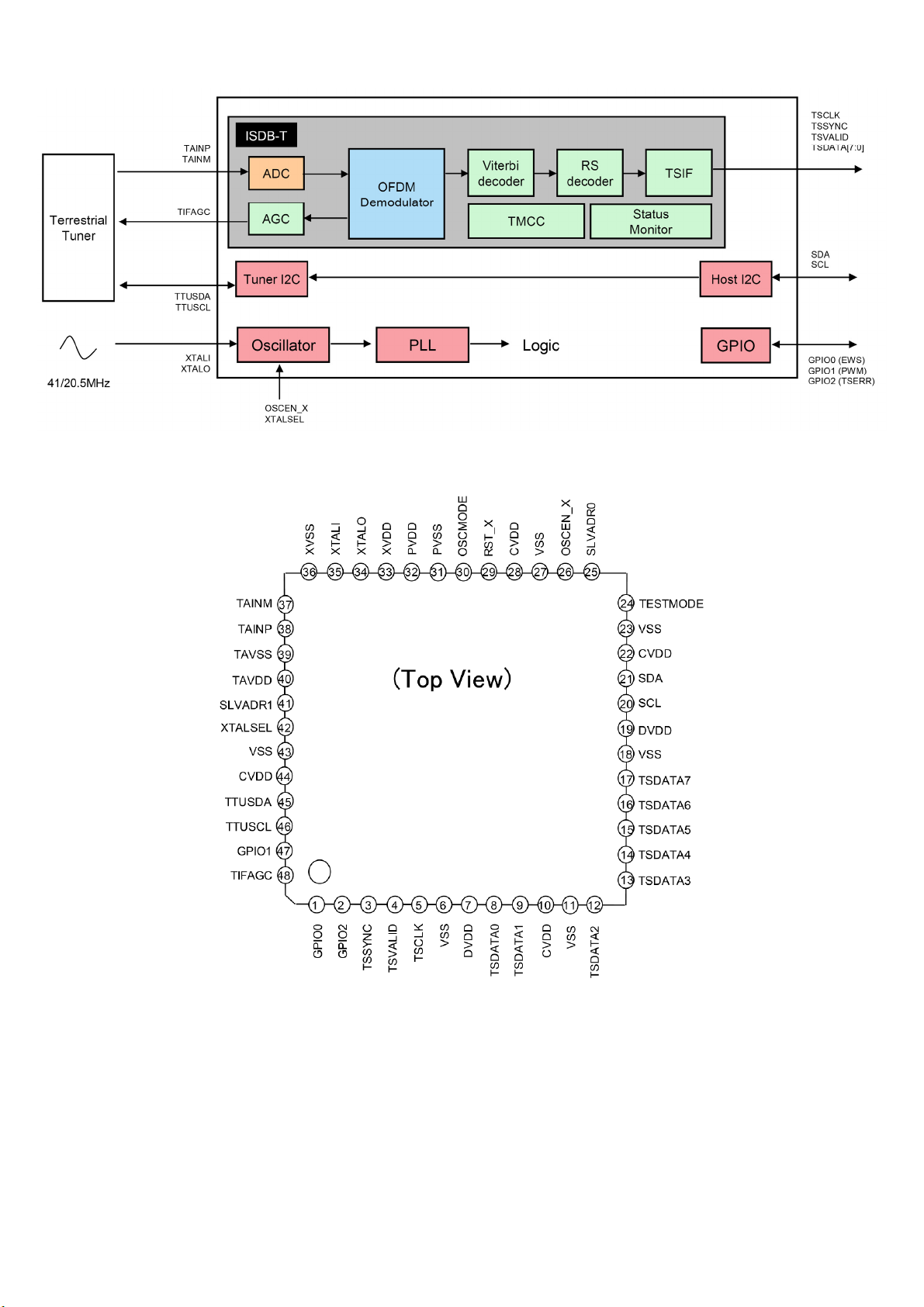

3.7 U406(CXD2828ER)

Block Diagram

Pin Connections and short description

LC-42SV32B

55

LC-42SV32B

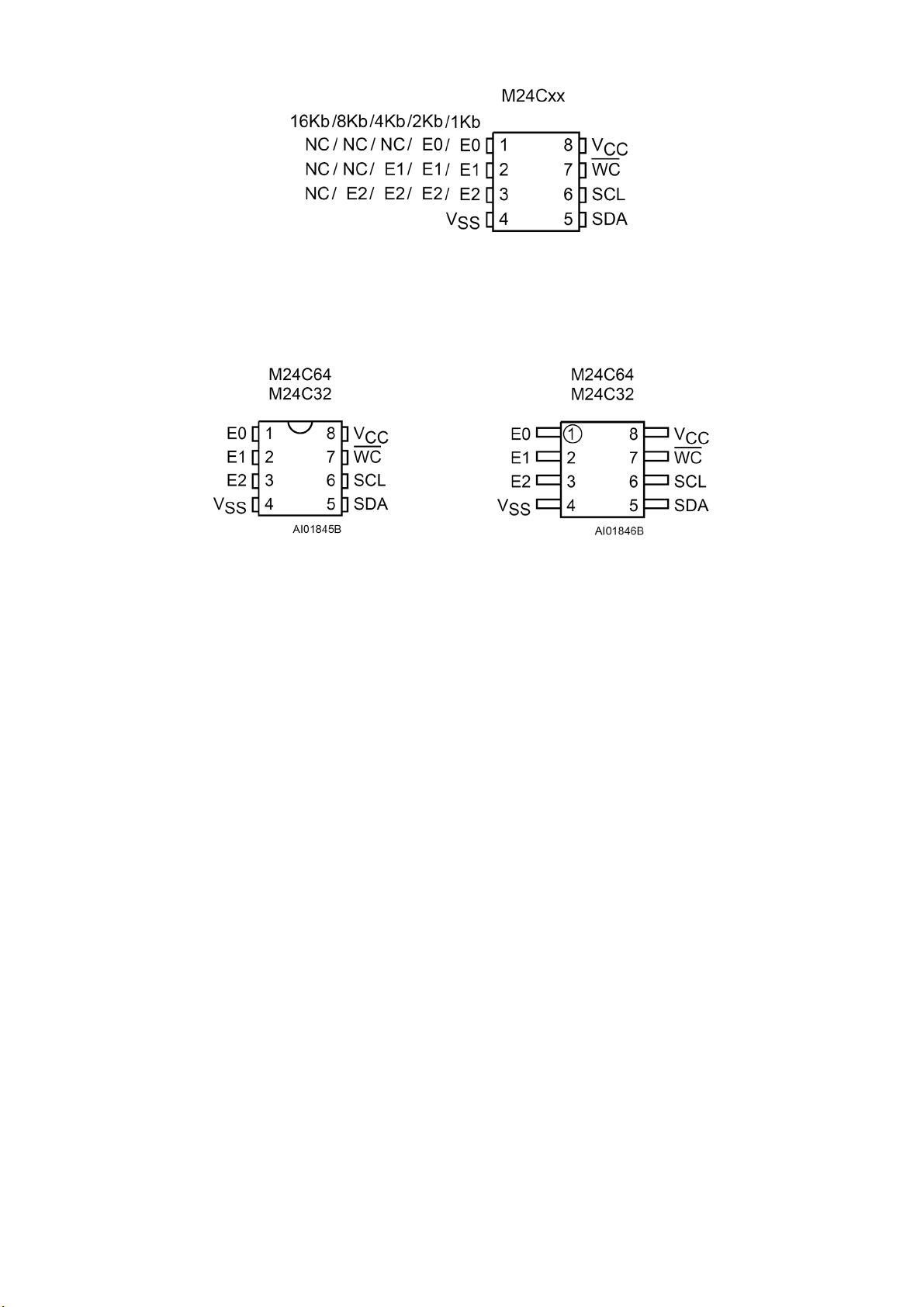

3.8 U407(M24C02)

Pin Connections and short description

3.9 U409(M24C32)

Pin Connections and Short Description

DIP Connections SO and TSSOP Connections

56

LC-42SV32B

CHAPTER 6.

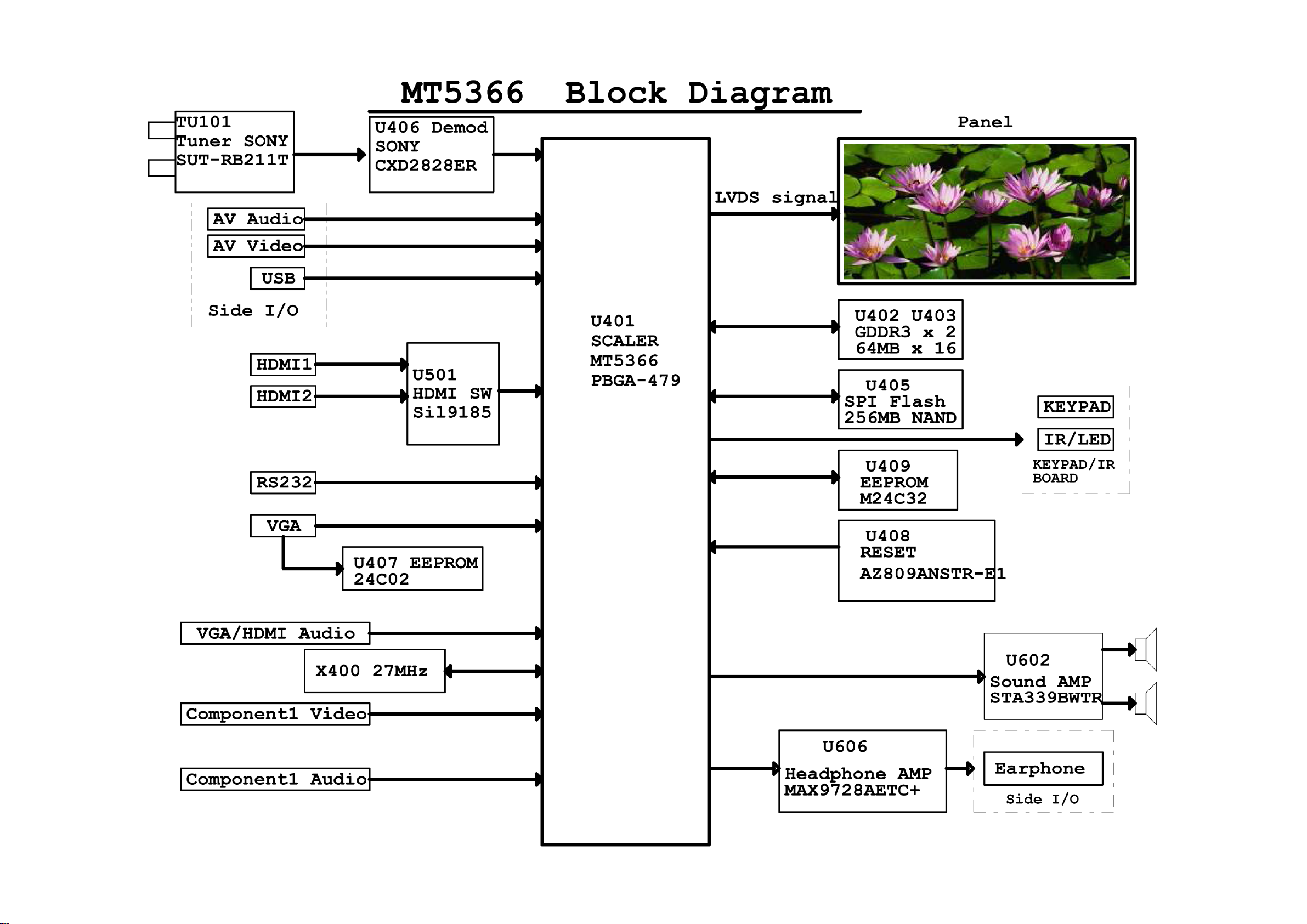

[1] BLOCK DIAGRAM

BLOCK DIAGRAM/WIRING DIAGRAM

57

LC-42SV32B

58

[2] WIRING DIAGRAM

LC-42SV32B

CN016

095G 82513XM02

095G801851XM26

CN903

CN902

095G 82513XM05

CN701

095G8013 4XM17

CN601

CN408

095G801413XM22

CN407

CN001

59

LC-42SV32B

CHAPTER 7.

PRINTED WIRING BOARD

[1] MAIN UNIT PRINTED WIRING BOARD

MAIN UNIT(Side-A)

X4

R14

L63 L64 L65 L66

C637

R632

Q610

CN407

X3

R653 R656

CN601

C654

C647

C650

C651

C655 C658

C659

C662

C665 C666

C672

C671

C670

C632

C669

C626

U602

S1

FB64

FB604

R649R651

Q609

R663

R658

C674

C639

R640 R641

R648

R665

R666

C675

R642

C646

C676

R643

R667

Q608

Q605

C638

R661

C668

R660

R662

C667

R1147

C625

R633

C633

R668

R644

R669

C627

R634
C628

C631

FB61

U607

Q607

C630

FB62

C673

C643

FB605

R664

C645

FB606

R659

Q606

C644

FB607

C719

U701

R707

C720

C704

C495

ZD424

ZD423

C493

ZD426

C494

ZD422

ZD421

ZD425

R492

R493

C492

R491

R490

C491

FB125

R495

R478

R476

R477

Q703

Q702

R704

C706

R703

C702

C731

C664

D104

U508

FB704

C663

ZD116

C712

C713

R714

C714

R713

C1124

D103

D102

C532

D501

C521

R541

R540

R545

R528

R542

C1149

R709

U703

R712

FB500

R501

ZD517

C520

R544

FB701

CN701

R705

R706

C705

U415

R4054

R4055

C707

FB707

C709

C708

R505
C501

R530

R529

R525

R523

R513

ZD513

FB502

C503

D504

ZD514

C1148

C408

L701

C721

R735

R715

R514

C525

C515

C511

C529

C502

R508

R509

ZD510

ZD511

ZD512

CN502

R510

R511

ZD515

ZD518

ZD516

CN503

C409

C715

C718

C716

C717

R2

ZD503

U504 U505

U506 U507

ZD502

R416

R480

U501

C514

C533

D503

C1147

R548

R519

R3

C509

R520

R502

R534

R533
R515
R516
R503

C512

C530

C507

R522

C528

C524

U702

C2102

C2103

CN410

C510

R524

C517

C505

C710

C711

R4113

R4114

R4116

C421

C407
R415

C406

C289

R413

C292

R445

R444

R4103

R443

R447

FB506

FB507

C518

U502

C516

C534

FB505

CN102

RP400

RP402

RP404

RP406

C404

R412

R414

R4112

C405

U403

R406

R401

C424

R4115

R424
R423

C727

U705

R172

R143

C123

C125

ZD114

ZD115

C1145C1146

R498

R556

RP405

R4119

C422

R136

RP401

RP403

RP407

RP409

RP411

C4011

C126

R144

FB102

C121

R134

FB101

C116

R125

FB100

C484

C555

R7

C728

Q103

R121

R120

R135

ZD112 ZD113

ZD109

R4125

C415

R4124

R407

TP401

TP400

C418

HS1

C115

C118

R732

R122

R127

R4127

R119

C119

U110

R131

U111

D100D101

ZD111

ZD108

CN101

U402

U401

R4106

C122

C124

C120

R133

R137

R141

R4128

C117

R126

ZD110

C428

C450

C464

C127

C136

C141

C135

C129

R150

R156

R158

R166

R182

CN105

C481

R4122

C402

C401
R402

R403

C400

R4120

R4121

C416

R1150

R1149

C1116

C1114

R1154

C455

C454

R461

R1148

R1153

SCREW1

X1

X2

FB267

R283

U262

C273

C274

C263

R291

R294

R295

C270

X402

CN106

C623

U606

C619

R620

CN602

R609

FB603

R670

R176

ZD127

C150

R177

C151

ZD128

C148

R181

R17

R282

FB266

RP261

R265
R269
R296

R281

FB263

FB268

C269

R11

R624

R626

Q612

R674

Q613

C1143C1144

R174

FB141

CN128

ZD126

R270

R264

R263

R267

C620

C615

C281

FB264

C272

C621

C617

Q403 Q404

C622

C618

R280

C283

C282

R629

R630

R285

R627 R628

R262

R273

R286
R261
R277

R278
C262

C284

R271

FB262

C634

C635

R10

R289

R288

R631

R619

R12

R287

R292

R622

C624

C613

R621

C614

RP262

R290

R274

FB66

FB602

C640

FB601

C641

C642

CN409

R4005

C490

C489

FB404

R4002

CN408

R4009

R4008

R6

C471

U411

R475 R479

C483

R625

R623

C470

C457

R1

R459

C447C448

R425

U405

R4111

C496

X400

R429

R430

C159C160

FB115

C174

FB119

FB126

C1117C1118

R1152

C165

R1105

C1113

C1112

R1151

R1120

C186

C185
C184

X100

R4

C1105

C164

C1109C1111

C1106

U406

R1166

R1164

R1165

R1163

R1175

R1174

R1162

C1103

C1104

R1116

C180

R1157

R1160

C198

R1117

R1104

R1158

R1159

C194

C199

C176

C188

C195

R1155

FB116

FB117

C192

FB129

C191

R1112

C177

C181

R1111

R1109

R1113

C1102

R9

R1161

R353

C1107

C133

C130

FB112

R1114 R1115

C132

C134

C158

FB111

U113

CN103

C153

ZD130

ZD129

C154

TU102 TU101

C155

C152

U112

R178

R179

CN111

R180

R16

R8

SCREW4

X5

Q1

ZD117

FB103

R149R153

C131

R159

ZD118

FB105

R157

R162

C138

ZD120

FB107

R165

C139

R163

C1141

C143 C145

R169

C1142

ZD122ZD123

R171

SCREW2

SCREW3

X6

60

MAIN UNIT(Side-B)

R279

C261
C278
C277

C2104

C285
C286

C288

C287

C296

C2105

FB265

C265

C280

C279

C294C295
C293

C276

FB261

R275
R276

C266

R284

C268

C275

C267

C271

C264

R427

U404

U409

C436

R436
R432
R434
R433
C435

R4053

TP496

TP495

R463

TP485

R421

TP490

TP492

C488

Q402

R4006

C485

R4004

FB401

R4007

R4000

Q400

R4001

C482

R496

TP489

R499

C486

R422

R420

C1108 R1156

R1173

R465

C458

C460

R471

R469

R173

R175

C465

TP402

C467

R473

FB402

C487

R431

R458

TP409

R460

TP491

C462
C461
C469

R457

C463

C4006

TP484

R467

C147

C149

R4104

R418
C453

C449

C426

R472

C468

R468

C444

R470

R453

C466

C417

C411

C441

C443

TP423

R474

C437

C413

C425

C446

R4107

R4105

R454

C434

C451

C452

R4020

C438

ZD124

C456

R400

C430

C445

C403

C420

C431

R560

R462

C556

R411

C414

C427

C433
R419

R497

R410

R4123

C432

R417

C442

C429

C440

R449R448

C439

R455

C423

R4118

R4117

C4009

TP494

R456

U408

R408

R452

R4129

RP408

RP410

C4007

C4008

C410

R4130

C419

C2100

C290

R426

C299

C291
C297C298

C725

R733

R734

R728

C726

R724

R722

R725

R721

Q704

R730

R726

R442

R440

CN406

Q706

R439

R731

R438

R720

R446

R441

Q705

R437

R450

R723

R451

C660

R657

C661

C656

R655

C657

C652

R654

C653

C648

R652

LC-42SV32B

R15

C649

R13

R4126

C1123

C1121

R1137

R1139

ZD131

C1119

R1140

C1122

U407

U116

C1120

FB140

R1138

R1142

R1141

R1144

ZD132

ZD134

R1136

ZD133

Q108

R1146

R1145

C142
R160
R161
R164

C113

C114

R167
R168

R107

R111

Q109

R118
R170

C523

C526

C527

R512

C508

C531

C506

C504

R5

61

LC-42SV32B

[2] POWER UNIT PRINTED WIRING BOARD

POWER UNIT (Side-A)

MH3

SCREW4

PIN26

PIN29

L9104

C9152

IC9103

CN903

C9151

D9156

J9116

C9153

J9115

PIN21

PIN3

IC9102

D9151

D9152

FB910

PIN4

C933

HS21

C932

C9115

J9123

PIN8

PIN10

C9160

D9153

HS22

PIN9

PIN14 PIN15

T9101

PIN16 PIN17

Q9102

PIN18PIN19 PIN20

Q9101

C9155

PIN11

L9105

PIN12PIN13

PIN22

J9121

J9122

J9108

CN902

J9124

L9350

C9156

C9353

ZD951
ZD952

FB909

T9301

C9329

J9112

C9354

D9350

HS20

C930

PIN24

D9335

IC9352

PIN5

SCREW3

J9111

R9360

PIN6

C931

J9120

J9128

MH4

R981

PIN7

IC9351

IC9350

C929

SCREW2

MH1

HS12

C928

J931

PIN1

PIN2

L9804

FB908

R9802

R9801

C9823

Q9801

D9802

HS11

J9127

PIN28

J9113

J9118

FB9907

J9117

C9814

C9826

FB9902

C9810

FB9901

C9124

J945

C9128

RV9904

C9811

D9804

HS10

BD901

J9105

J9107

C9119

J9106

J9114

J9103

J9102

J9104

RV9907

L9902

RV9908

D9105

D9301

HS13

C9824

C9825

C9902

C9903

J9101

C9108

J9119

C9904

RV9905

L9901

RV9906

C9905

R9104

FB9909

C9901

SCREW1

MH6

D9330

IC9301

J9110

R9348

J9125

NR902

C901

PIN23

F902

C9333

J9126

C9337

PIN27

NR901

CN901

ZD9301ZD9101

J9109

RV9903

PIN25

F901

RV9901

C9331

Q1

SG9907

62

POWER UNIT (Side-B)

LC-42SV32B

S19

R982

R9361

C9356

R9363

C978

R9339

R983

Q970

Q9350

Q9321

R9355

D955

C9355

R9354

R9358

R9359

R9356

R9357

D9303

C9308

C9309

R9351

R9350

R9331

R9337

R9311

C9321

C9374

C9350C9351

R9301

R9309

R9310

R9302

C9157

R9307

R9308

R9111

D9102

R9110

R9106

R9105 R9107

JR9101

C9109

C9118

R9119

IC9101

R9117

D9103

R9121

R9116

R9162

C9117

R9125

R9123

C9127

R9156

R9157

C9813

Q907

JR9801

R9819

R9823

C9154

C9819

R9821 R9822

R9155

C9158

R9818

JR9102

D9154

C9818

C9817

C9159

C9816

R9154

R9153

R9159

R9160

R9158

IC9801

R9817

C9815

R9815

R9161

R9151

R9152

C9812

R9811

R9810

S17

R9824

IC901

R903

R902

R901

R9306

R9305 R9304

R9109

C9107

C9114

C9126

C9116

R9122

R9820

S16

R9814

R9832

R9813

D9805

63

LC-42SV32B

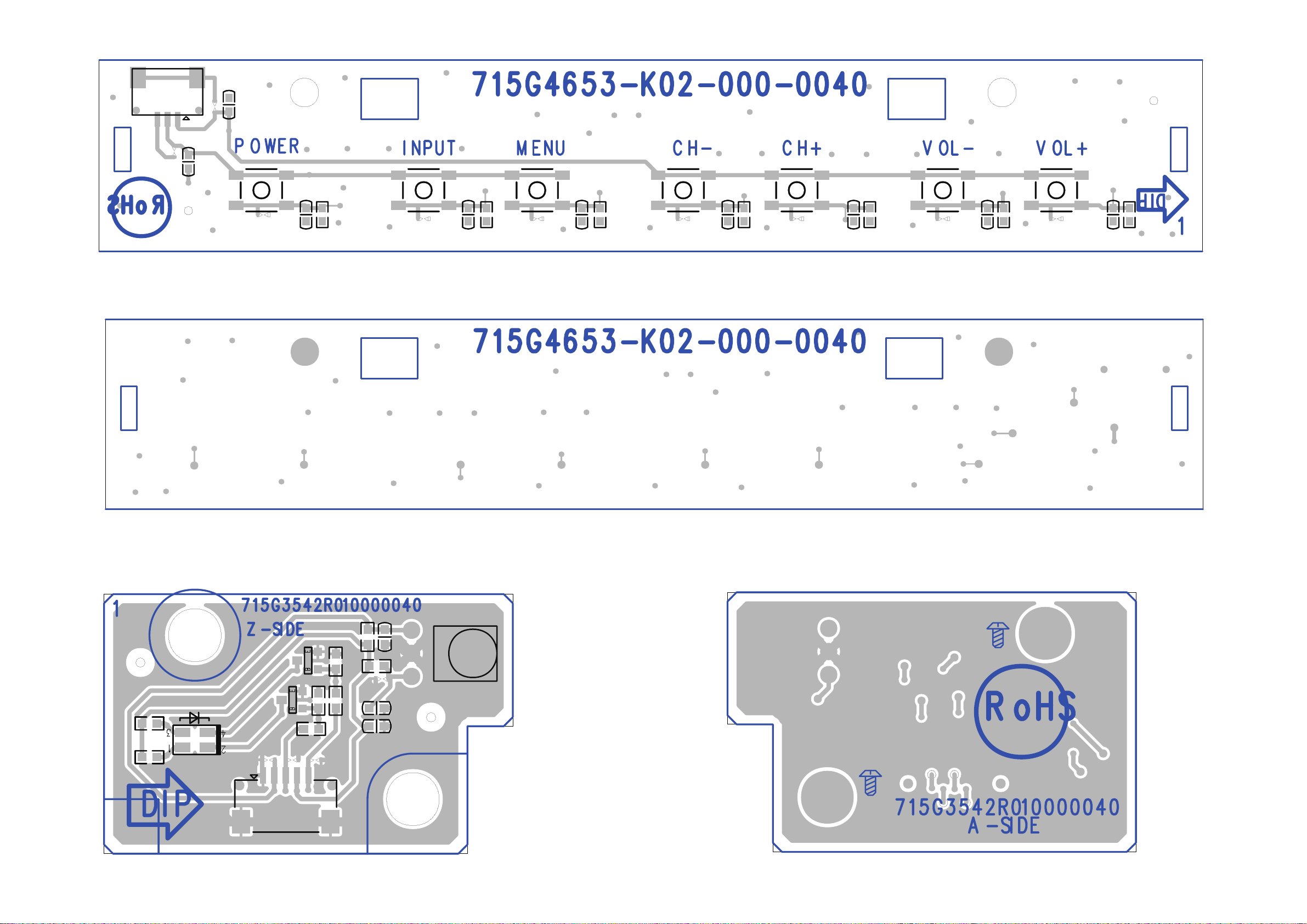

[3] KEY UNIT PRINTED WIRING BOARD

KEY UNIT (Side-A)

KEY UNIT (Side-B)

CN016

CN11

CN20

C023

CN10

C024

SW021

CN9

CN1 CN2

SW020

C020

R017

SW017

C021

C016

R020

SW022

C017

R021

SW016

C018

R022

SW019

C019

R016

R018

SW018

CN3CN4CN5CN6 CN7CN8

C022

CN21

R019

[4] IR UNIT PRINTED WIRING BOARD

IR UNIT (Side-A) IR UNIT (Side-B)

R1

M5

R002

R001

LED001

CN001

TP2 TP4TP5

Q001

R004

Q002

R008

R007

R003

R005

R006

TP6

C001

C003

C002

U001

M7

TP004 TP002

TP003 TP001

R2

64

LC-42SV32B

CHAPTER 8.

SCHEMATIC DIAGRAM

[1] MAIN SCHEMATIC DIAGRAM

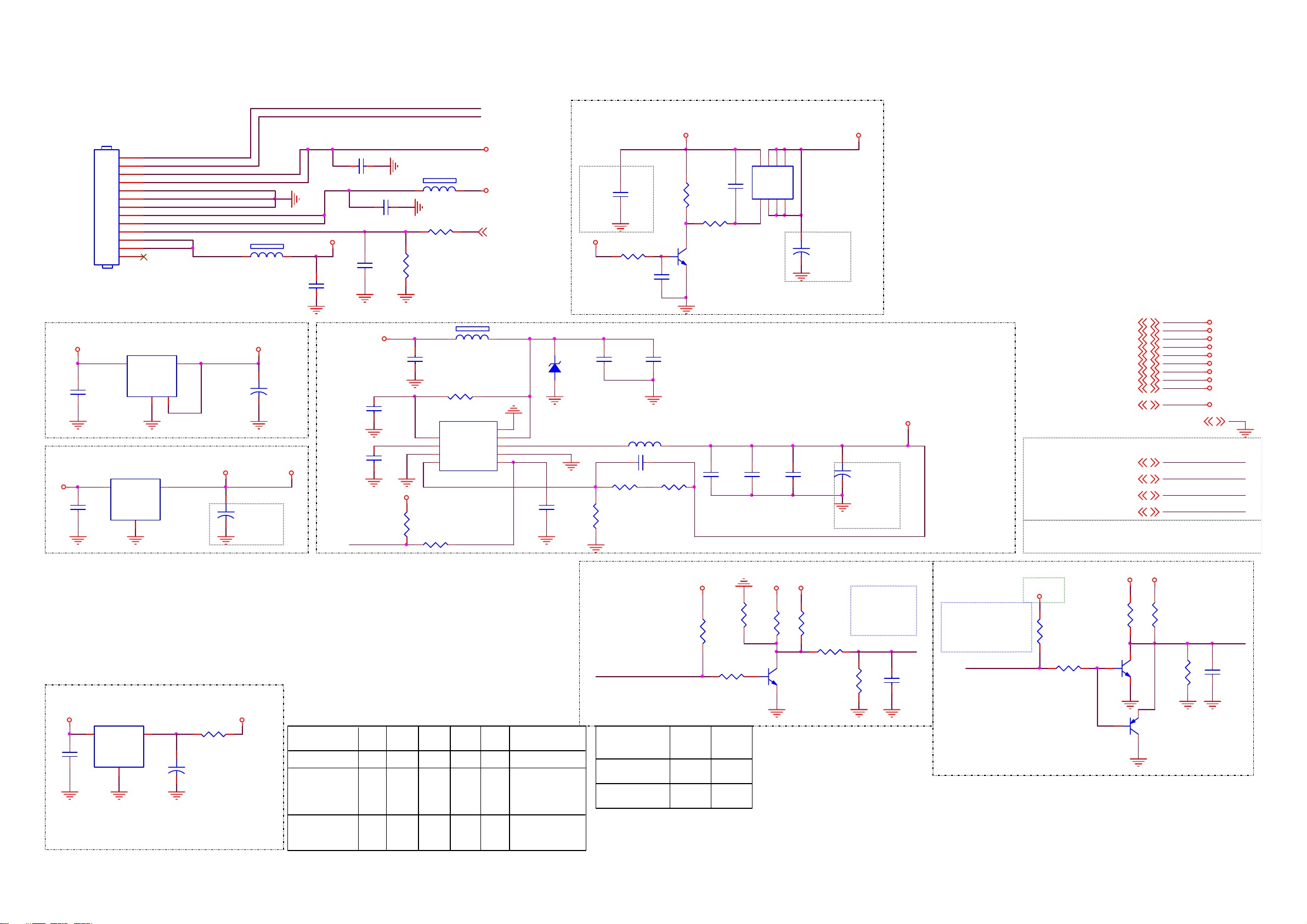

02 SYSTEM POWER

H:7.7mm

+5VSB

C711

1UF 10V

+5V_SW

CN701

CONN

C720
1UF 10V

MAIN POWER

1
2
3
4
5
6
7
8
9
10
11
12
13

U702

3

VI

VO

GND14

TJ3940S-3.3

4

U701
G1084-33TU3Uf

VIN3VOUT

2

GND

1

2

DVDD3V3

FB701

+

100UF 16V

1 2

120R/6000mA

C1149

1N 50V

3V3SB

C710

+

100UF 16V

H:7mm

AVDD3V3

C719

H:7.7mm

24V

+5VSB

C712

0.1uF 50V

C713

0.1uF 50V

C1147

1N 50V

C1148

1N 50V

+5VSB

1K 1/10W

OPWRSB

INVERTER_ON_OFF
BRIGHT_ADJ

(+16V) for 22"

FB704 120R /6000mA

1 2

C705

1uF 25V

3V3SB

R715

R706
100K 1/10W

R705

1K 1/10W

1 2

C707

1uF 25V

R709

10OHM1/10W

U703

1

VCC

2

REF

3

GND

4

FB

AT1529F11U

GMT

R735

10K 1/10W

+12V

EMI solution 09/01/11"

+24V

STANDBY 13

HI = > POWER_ON

LO = > POWER_OFF

FB707
80OHM 4A

VIN

PGND

EN

LX

9
8
7
6
5

E-PAD

+5V Switch

VCCK

2.7K 1/10W

NC/4U7 6V3

ZD116

RLZ6.8B

1 2

C721
1uF 25V

1K8 1/10W 1%

R714

R2

4.7K 1/10W

C708
1uF 25V

L701 4.7uH

R712

+5VSB

C731

10N 50V

R707

C706

C714 NC/1nF 50V

R70322K 1/10W

C709
10uF 10V

R713

100R 1/10W 5%

R1

8

5

S

D6D7D

C702
1uF25V

R704

51K 1/10W

Q703
BC847C

4

D1D2D3G

+

Q702
AON4421

Vout = 0.8x(R1+R2)/R2

C716

0.1uF 50V

modify vcck feed back voltage

C717

10uF 10V

C718

10uF 10V

+5V_SW

C704

220uF 16V

SMD H=7.7

C715

+

100UF 16V

H:10.5mm

VCCK

+24V11
+5V_SW5,7,10,12, 13,14,15,16,17

+5VSB3, 4,6,9,17

+12V14,17

3V3SB6,7,9, 13,17

DVDD3V34,5,7,8,9,10, 11,12,13,14,15,16,18

AVDD3V34,5,7, 8,9, 10,11,12,13,14,15,16,18

AVDD1V27,8,9,12,14,15

VCCK9

Control Interface

OPWRSB9

BL_DIMMI NG13

BL_ON/OFF13

STANDBY13

OPWRSB

BL_DIMMING

BL_ON/ OFF

STANDBY

Detection

GND3,4,5,6,7,8, 9,10, 11,12,13,14,15,16,17, 18

+24V
+5V_SW
+5VSB
+12V
3V3SB
DVDD3V3
AVDD3V3
AVDD1V2
VCCK

24V24V

09/01 change temp

1.2 x (1+ 0/110) = 1.2V

3

C727

1UF 10V

U705
G912T63U

VI

GND

1

VO

2

DVDD3V3

08/30 change
to 10*9

AVDD1V2

R732

0R05 4A 1/4W

+

C728
100UF 16V

26",32",40"

BKL C ONT ROL
TYPE

PWM CONTROL

CM O26W/
SEC32F/SEC40F

DC-CONTROL
(3V3)

SEC32W AP12

DC-CONTROL
(5V)

R119

N/C

N/C

4K7

R120

4K7

1K

N/C

R123

100R

5K6

5K6

R624

N/C

N/C

15K

C127

REMARK

N/C

SEC32W AP12

22U

OLD Inverte r lm p
260K

NEW Inverter

22U

lmp 28K

BRIGHT ADJUST

R725

4.7K 1/10W

BL_DIMMI NG

INVERTER
ON/OFF

3V3

5V

R721 R722

N/C

DVDD3V3 +5V_SW

R731

4.7K 1/10W

R720

R723

NC/15K 1/10W

2K

N/C4K7

DVDD3V3

R724

1K 1/10W

R728

NC/4K7 1/ 10W

100R 1/ 10W 5%

Q705
MMBT3 904

Bright_Adj
Max:3.3V
Min: 0V

R733

NC/1K 1/10W

BRIGHT_ADJ

C726

NC/22 10V

INVERTER ON/OFF

3V3SB

INVERTER ON/OFF
H: OFF
L: ON

BL_ON/OFF

R726
10K 1/10W

R730

4.7K 1/10W

+5V_SW

R721

NC/4K7 1/10W

1

DVDD3V3

R722

2K 1/10W

INVERTER_ON_OFF

Q704
MMBT3 904

R734

NC/1K 1/10W

23

NC/MMBT3906 PNP
Q706

C725

10uF 10V

65

LC-42SV32B

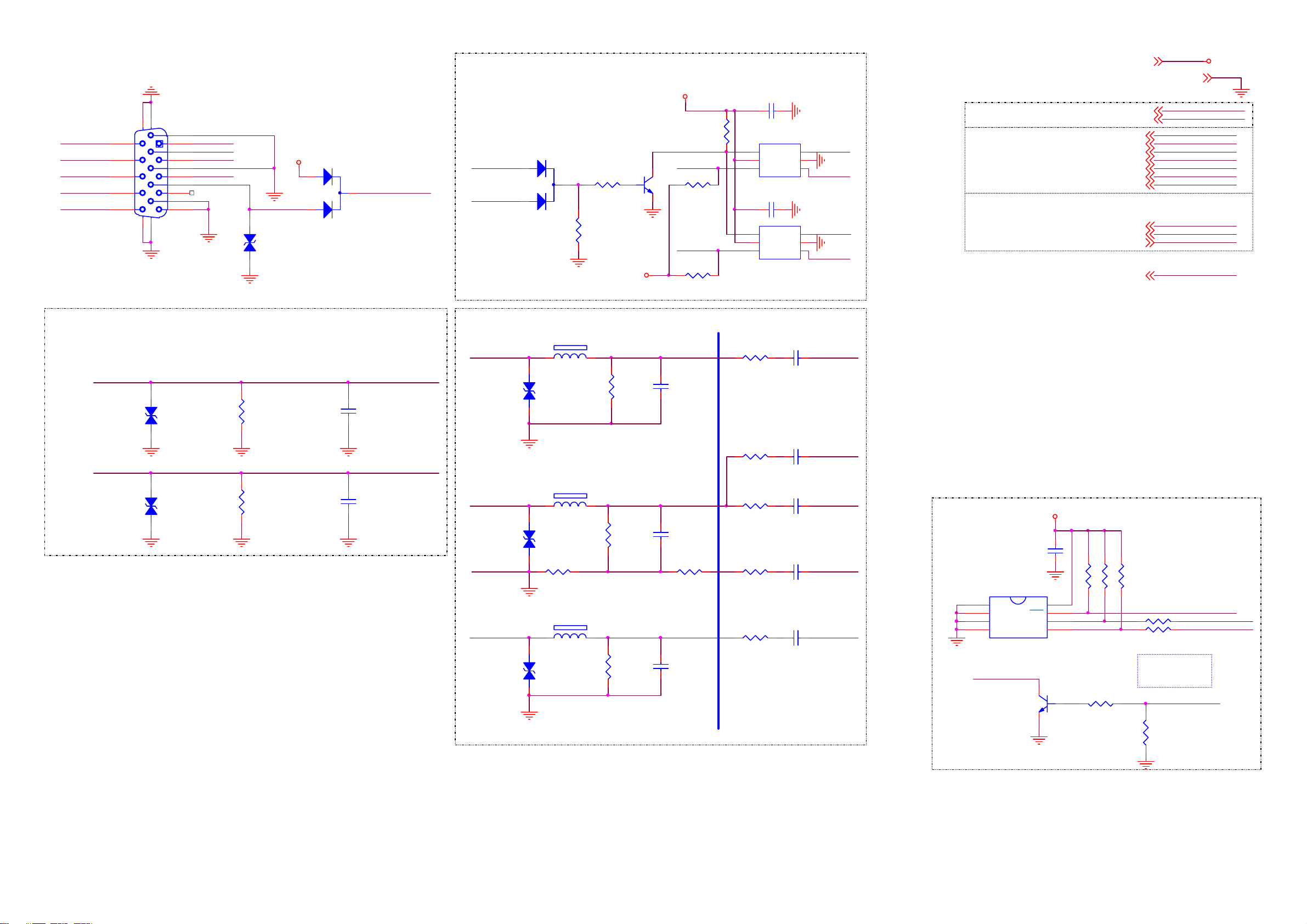

03 VGA

VGA CONNECTOR

1716

18 19

6
1
7
2
8
3
9
4
10
5

CN101

D-SUB 15P

RED
G_G
GRN

BLUHSYNC#

12

ZD108
TVM1 G5R 5M10 0R

+5VSB

1

2

VGA11

VGASDA#

VSYNC#

VGASCL#

11

12

13

14

15

H:8.5mm

VGA SYNC SLICER

Wake Up TV From Power Saving Mode

VSYNC#

12

ZD110
TVM1 G5R 5M100R

R126
NC/2.2K 1/10W

D100
BAV70

VGA_PLUGPWR

3

C117
NC/5pF

VSYNC

UART_SW

VGA11

BLU

VGA Switch

D101

1

2

BAV70

R121

10K 1/10W

3

R120

1K 1/10W

VGA_PLUGPWR

BC847C

Q103

Near VGA CONN.

1 2

FB10080 OHM

12

ZD109

TVM1 G5R 5M10 0R

R125

75R 1/10W 1%

VGA_PLUGPWR

R119

10K 1/10W

VGASCL#

R107 10K 1/10W

VGASDA#

R111 10K 1/10W

C116

15PF50V

C113

0.1uF 50V

U110

6

S

5

VCC

4

A

NC7SB3157P6X

0.1uF 50V
C114

U111

6

S

5

VCC

4

A

NC7SB3157P6X

L:B0 connected to A
H:B1 connected to A

GND

GND

B1

B0

B1

B0

1
2
3

1
2
3

Near MT5366

R122

68 OHM +-5% 1/16W

C115
10N 50V

VGASCL

U0RX

VGASDA

U0TX

BP

+5VSB2, 4,6, 9,17

I2C

Video Input

VGASCL12
VGASDA12

VSYNC12

HSYNC12

BP12

SOG12

GP12

VGACOM12

RP12

VSYNC
HSYNC
BP
SOG
GP
VGACOM
RP

Other Control Interface

U0TX9,17

U0RX9,17

UART_SW13

VGA_EEPROM_WP13

U0TX
U0RX
UART_SW

VGA_EEPROM_WP

GND2,4,5,6,7,8,9,10, 11,12,13,14,15,16,17,18

VGASCL
VGASDA

+5VSB

HSYNC#

12

ZD111
TVM1 G5R 5M100R

R131
NC/2.2K 1/10W

C119
NC/5pF

HSYNC

GRN

G_G

RED

FB101 80 OHM

1 2

12

ZD112

TVM1 G5R 5M10 0R

R135
0R01

1 2

FB102

12

ZD113

TVM1 G5R 5M10 0R

75R 1/10W 1%

80 OHM

75R 1/10W 1%

R134

R144

C121

15PF50V

0R01

C126

15PF50V

R136

R127

0R05 1/16W

R133

68 OHM +-5% 1/16W

R137

100R 1/16W 5%

R141

68 OHM +-5% 1/16W

C118

1.5nF 50V

C120
10N 50V

VGACOM

C122
10N 50V

C124
10N 50V

SOG

GP

RP

VGA EEPROM

C142

100N 16V

U407

1

E0

2

E1

3

E2
VSS4SDA

M24C02-WD W6P

VGADDCWP

Q109

BC847C

VGA_PLUGPWR

8

VCC

7

WC

6

SCL

5

R160 10K 1%

R161 10K 1%

R170

2.2K 1/16W

R164 10K 1%

R167 33R 1/16W 5%
R168 33R 1/16W 5%

H = > En ab le
L = > Prote ct

VGA_EEPROM_WP

R118

4K7 1/16W 5%

VGADDCWP

VGASCL
VGASDA

66

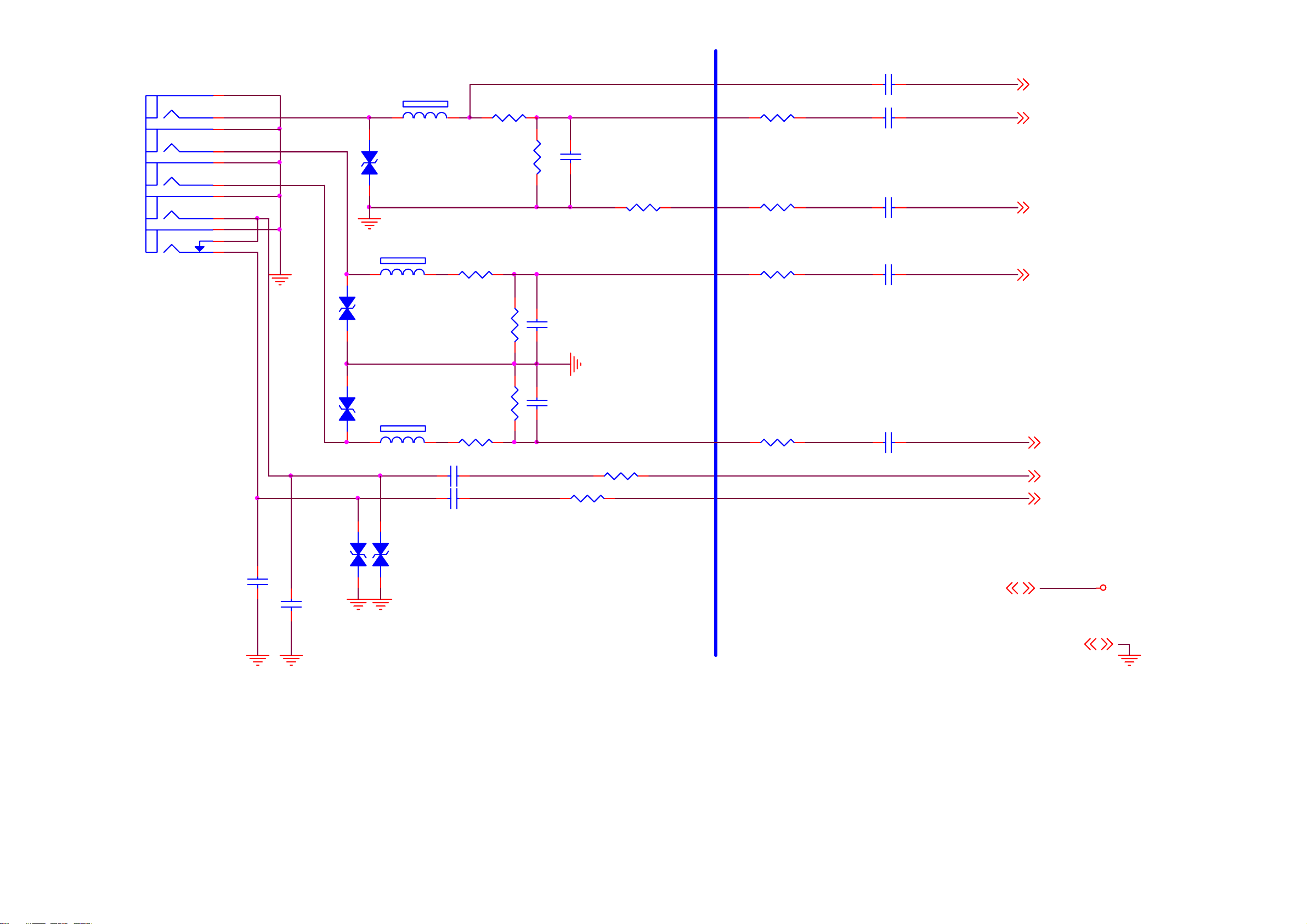

04 YPBPR

LC-42SV32B

CN111

A

B

C

D

E

RCA JACK

H:8.5mm

1

2
3

4
5

6
7

8
9
10
11

Y_IN_1

PB_IN_1

PR_IN_1

1 2

FB10380 OHM

12

ZD117

TVM1G5R5M100R

1 2

12

FB10580 OHM

ZD118

TVM1G5R5M100R

ZD120
TVM1G5R5M100R

18R 1/10W 5%

56R 1/10W 1%

R157
18R 1/10W 5%

R162

56R 1/10W 1%

R163

56R 1/10W 1%

R149

R153

C131

15PF50V

C138

15PF50V

C139

15PF50V

R159
0R01 1/16W

R150

68 OHM +-5% 1/16W

R156

68 OHM +-5% 1/16W

R158

68 OHM +-5% 1/16W

C127

1.5nF 50V
C129
10N 50V

C136
10N 50V

C135
10N 50V

SOY0 12

Y0P 12

COM0 12

PB0P 12

C1142

1N 50V

YPbPr1L_IN

ZD122

TVM1G5R5M100R

C1141

1N 50V

1 2

1 2

FB10780 OHM

12

12

R165
18R 1/10W 5%

C143

10uF 10V

C145

10uF 10V

ZD123
TVM1G5R 5M100R

R169

30K 1/10W 5%

R171

30K 1/10W 5%

YPbPr1 Audio Input

NEARLY CONN.

R166

68 OHM +-5% 1/16W

C141
10N 50V

PR0P 12

YPbPr_L_In1 12

YPbPr_R_In1 12

AVDD3V32,7,12,14

GND2,3,5,6,7,8,9,10,11,12,13,14,15,16,17,18

AVDD3V3

67

LC-42SV32B

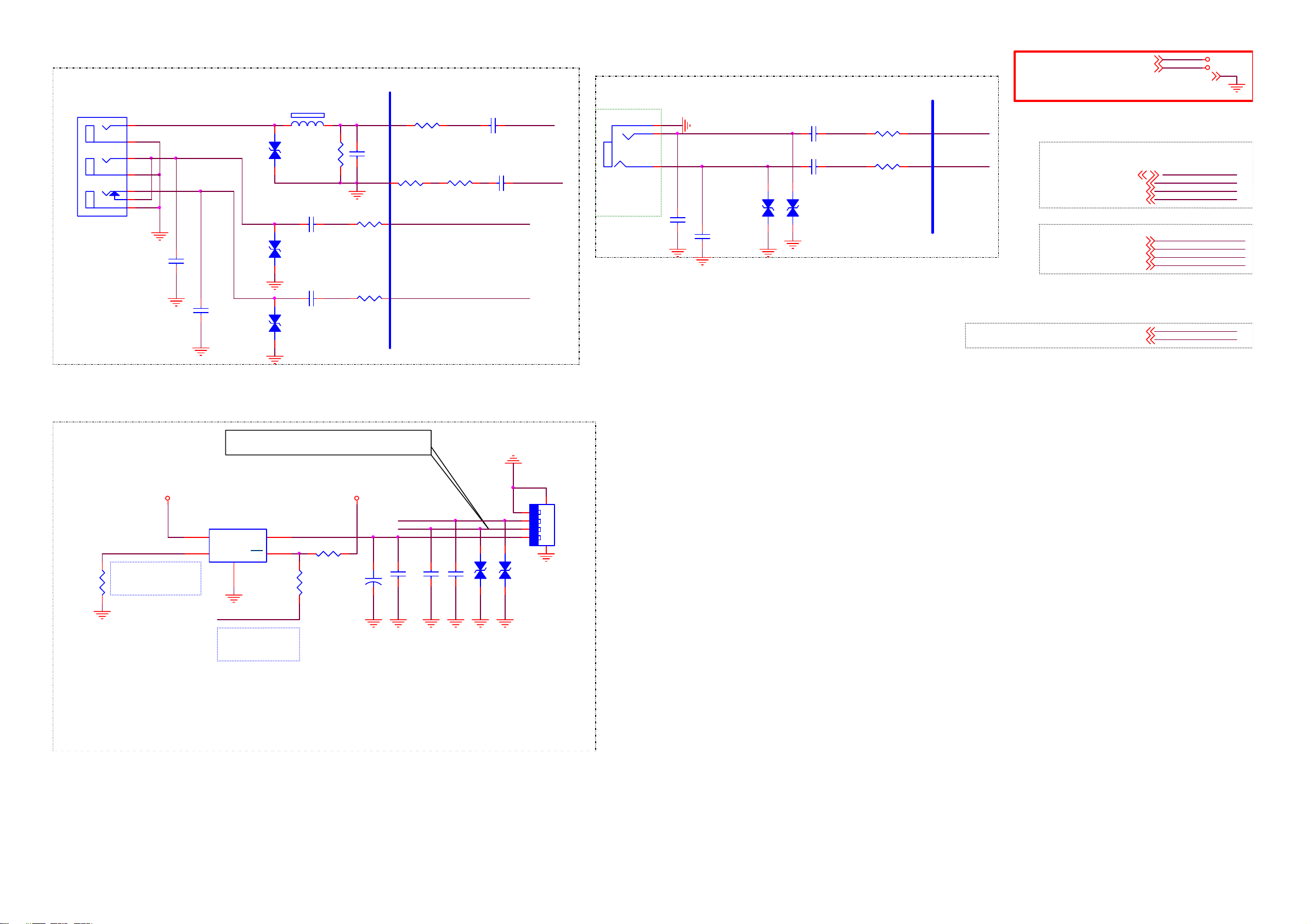

05 SIDE AV/USB/PC AUDIO IN

Side AV(CVBS)Video & Audio input

CN128

A

B

C

JACK

H:8.5mm

2

1

4

3

7
6
5

C1143

1N 50V

SIDE_CVBS_IN

SIDE_AudioLIN

SIDE_AudioRIN

C1144
1N 50V

FB141 80 OHM

1 2

12

75R 1/10W 1%

ZD126

TVM1 G5R 5M100R

12

ZD127
TVM1 G5R 5M100R

12

ZD128
TVM1 G5R 5M100R

R174

C150

10uF 10V

C151

10uF 10V

C148

47pF 50V

R176

30K 1/16W

R177

30K 1/16W

R173

100OHM1/16W

R181
0R05 1/16W

R175

100R 1/ 16W 5%

Near MT5366

C147 47N 16V

C149

47N 16V

AV2_L_In

AV2_R_In

CVBS1P

CVBS_COM

VGA Audio Input

CN102

PHONE JACK

H:8.4mm

C1146

1N 50V

1
2

3

VGA_Audio_L_In

VGA_Audio_R_In

ZD114

TVM1G 5R5M100R

C1145
1N 50V

GND2,3,4,6,7,8,9,10, 11,12,13,14,15,16,17, 18

DVDD3V3
+5V_SW

C123
10uF 10V

R172
30K 1/10W 5%

VGA_L_In

DVDD3V32,4,7,8,9,10, 11,12, 13,14,15,16,18

+5V_SW2,7, 10,12, 13,14,15,16,17

Side AV Video & Audio

C125
10uF 10V

12

12

ZD115
TVM1G 5R5 M100R

R143
30K 1/10W 5%

Near CONN.

VGA_R_In

Audio Input

USB

CVBS_COM12

CVBS1P12

AV2_L_In12

AV2_R_In12

USB_DP014

USB_DM014

USB_PWR _EN013

USB_OC_COM13

VGA_L_In12

VGA_R_In12

CVBS_COM

CVBS1P
AV2_L_In
AV2_R_In

USB_DP0
USB_DM0
USB_PWR_EN0
USB_OC_COM

VGA_L_In
VGA_R_In

R180

USB_PWR_EN0

HI = > POWER ON

4.7K 1/10W

LO = > POWER OFF

+5V_SW

EQUAL LENGTH and DIFFERENTIAL
IMPEDANCE 90ohm

Near Connector

Power Distribution
Switch

U112
G5250K1T1U

4

IN

1

EN

USB_OC _COM

HI = > NORM AL
LO=> OC

GND

2

OUT

OC

5

3

DVDD3V3

R178

10K 1/10W

C152

100UF 16V
R179
100R 1/10W 1%

USB PORT 0

CN103
USB CONN

65

TVM1G5R5M100R

12

ZD130

TVM1G5R5M100R

4
3
2

1234

1

USB_DP0
USB_DM0

12

ZD129

C155 10pF 50V

C154 10pF 50V

+

C153

10uF 10V

68

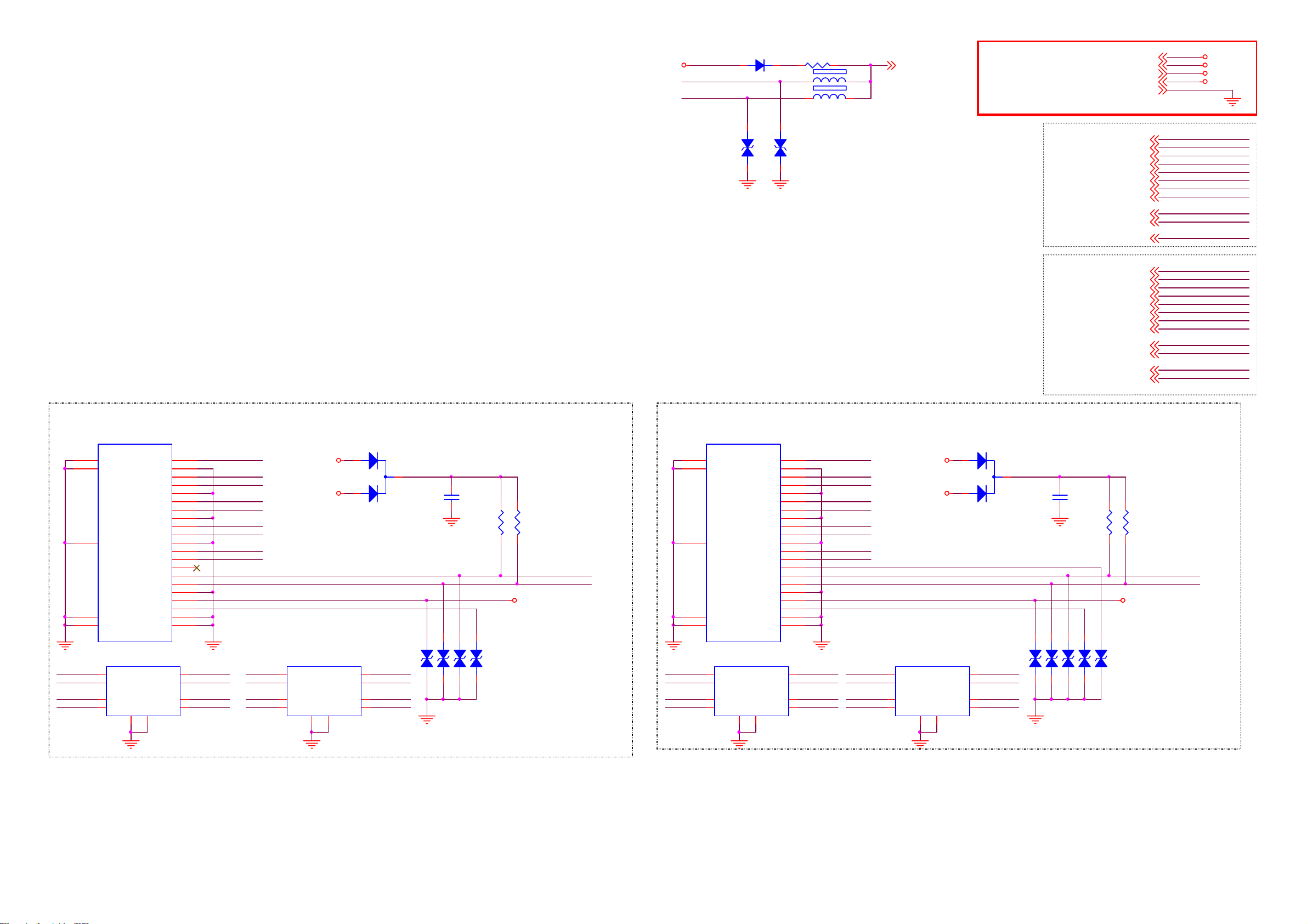

06 HDMI CONNECTOR

LC-42SV32B

3V3SB

D501

BAS316

CEC_A1

CEC_A0

NC/TVM1G5R5M100R

27K 1/10W 5%

R501

12

ZD502

ZD503

1 2

NC/TVM1G5R5M100R

1 2

1 2

HD_CEC 7

FB50030R/700mA

FB50230R/700mA

HDMI 2

HDMI 1

RR1X0­RR1X0+
RR1X1­RR1X1+
RR1X2­RR1X2+
RR1XC­RR1XC+

DDC_SCL1
DDC_SDA1

HPD1

RR0X0­RR0X0+
RR0X1­RR0X1+
RR0X2­RR0X2+
RR0XC­RR0XC+

DDC_SCL0
DDC_SDA0

HEC+
HEC-

OPWR1_5V
OPWR0_5V
3V3SB
+5VSB

OPWR1_5V7
OPWR0_5V7

3V3SB2,7, 9,13, 17

+5VSB2,3,4,9,17

GND2,3,4,5,7,8,9,10, 11,12, 13,14,15,16,17,18

RR1X0-7

RR1X0+7

RR1X1-7

RR1X1+7

RR1X2-7
RR1X2+7
RR1XC-7

RR1XC+7

DDC_SCL17
DDC_SDA17

HPD17

RR0X0-7
RR0X0+7

RR0X1-7
RR0X1+7

RR0X2-7
RR0X2+7
RR0XC-7

RR0XC+7

DDC_SCL07
DDC_SDA07

HEC+7
HPD07

PORT 2

CN502 HDMI

22

SHELL3

23

SHELL4

24

SHELL5

25

SHELL6

26

SHELL7

D2 Shield

D1 Shield

D0 Shield

CK Shield

CE Remote

DDC CLK

DDC DATA

100ohm differentia l impedance
for TMDS traces.

D2+

D2-

D1+

D1-

D0+

D0-

CK+

CK-

NC

GND

+5V
HP DET
SHELL1
SHELL2

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

RR1X2+

RR1X2­RR1X1+

RR1X1­RR1X0+

RR1X0­RR1XC+

RR1XC­CEC_A1

DDC_SDA1

OPWR1_5V
HPD1

H:7.8mm

RR1XC­RR1XC+ RR1X1+

RR1X0­RR1X0+

U504

1

IN1

2

IN2

4

IN3

5

IN4

OUT1
OUT2

OUT3
OUT4

GND

GND

NC/RClamp0524P.TCT

3

8

10
9

7
6

RR1XC­RR1XC+

RR1X0­RR1X0+

RR1X1-

RR1X2­RR1X2+

1

IN1

2

IN2

4

IN3

5

IN4

+5VSB

OPWR1_5V

U505

GND

8

D503

1

2

BAV70

RR1X1-

10

OUT1
OUT2

OUT3
OUT4

GND

NC/RClamp0524P.TCT

3

9

7
6

RR1X1+

RR1X2­RR1X2+

3

C502

100N 16V

100ohm differential impedance
for TMDS traces.

D2+

D2-

D1+

D1-

D0+

D0-

CK+

CK-

NC

GND

+5V
HP DET
SHELL1
SHELL2

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21

RR0X2+

RR0X2­RR0X1+

RR0X1­RR0X0+

RR0X0­RR0XC+

RR0XC­CEC_A0
HEC+
DDC_SCL0
DDC_SDA0

OPWR0_5V
HPD0

+5VSB

OPWR0_5V

1

2

D504

BAV70

3

C503

100N 16V

ZD514 TVM1G5R5M100R

ZD515 TVM1G5R5M100R

HPWR0

ZD516 TVM1G5R5M100R

ZD517 TVM1G5R5M100R

ZD518 TVM1G5R5M100R

R510 47K 1/16W 5%

R511 47K 1/16W 5%

OPWR0_5VOPWR1_5V

DDC_SCL0
DDC_SDA0

ZD510 TVM1G5R5M100R

ZD511 TVM1G5R5M100R

HPWR1

ZD513 TVM1G5R5M100R

ZD512 TVM1G5R5M100R

R508 47K 1/16W 5%

R509 47K 1/16W 5%

DDC_SCL1DDC_SCL1
DDC_SDA1

PORT 1

CN503 HDMI

22

SHELL3

23

SHELL4

24

SHELL5

25

SHELL6

26

SHELL7

D2 Shield

D1 Shield

D0 Shield

CK Shield

CE Remote

DDC CLK

DDC DATA

H:7.8mm

RR0XC- RR0X1-

1 2

1 2

1 2

1 2

RR0XC+

RR0X0­RR0X0+

U506

1

IN1

2

IN2

4

IN3

5

IN4

OUT1
OUT2

OUT3
OUT4

GND

GND

NC/RClamp0524P.TCT

3

8

10
9

7
6

RR0XC­RR0XC+

RR0X0­RR0X0+

RR0X1­RR0X1+

RR0X2­RR0X2+

U507

1

IN1

2

IN2

4

IN3

5

IN4

GND

GND

NC/RClamp0524P.TCT

3

8

OUT1
OUT2

OUT3
OUT4

10
9

7
6

RR0X1+

RR0X2­RR0X2+

1 2

1 2

1 2

1 2

1 2

69

LC-42SV32B

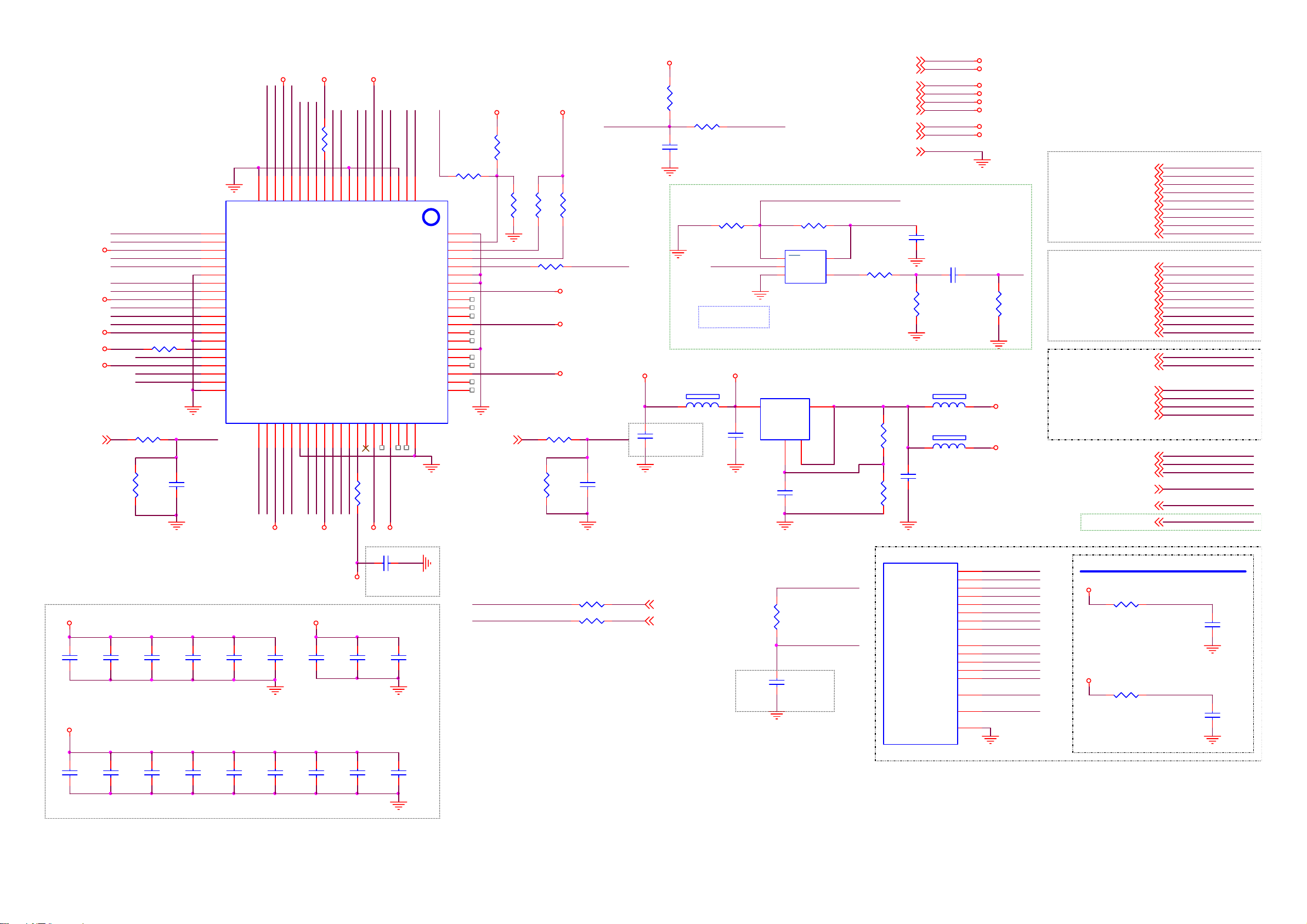

07 HDMI SWITCH

HDMISW_SCL#

HPD0

15

17

16

HPD0

R0XC-

AVCC18

RR1X1+

RR1X1-

C509

0.1uF 50V

AVCC1V8

HDMISW_RST#

HDMISW_SDA#

14

13

LSCL/PSEL1

LSDA/PSEL0

RR1X2-

RR1X2+

10uF 10V

AVCC1V8

RR0XC-

RR0XC+

19

20

U501

SiI9185ACTU

RR0X0­RR0X0+

3V3SB_9185

AVCC1V8

DVDD1V8

3V3SB_9185

AVCC1V8

OPWR1_5V6

NC/100K 1/10W

3V3SB_9185 DVDD1V8

C504

10uF 10V

RR0X1­RR0X1+

RR0X2­RR0X2+

DDC_SDA0
DDC_SCL0
RPWR0_5V

R513 4.7K 1/10W

HPD1

RR1XC­RR1XC+

R519

0R01

R520

C505

10uF 10V

C514

NC/1uF 25V

C506

0.1uF 50V

RPWR 1_5V

21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40

C507

0.1uF 50V

R0X0­R0X0+
AVCC33
R0X1­R0X1+
AGND
R0X2­R0X2+
AVCC18
DSDA0
DSCL0
RPWR0
DVDD18
DGND
I2CSEL/INT
HPD1
AVCC18
R1XC­R1XC+
AGND

0.1uF 50V

18

AGND

R0XC+

R1X0-41R1X0+42AVCC3343R1X1-44R1X1+45AGND46R1X2-47R1X2+48AVCC1849DSDA150DSCL151RPWR152CEC_D53CEC_A54AVCC3355HPD256AVCC1857R2XC-58R2XC+59AGND

RR1X0-

RR1X0+

3V3SB_9185 AVCC 1V8

C508

PCB LAYOUT: Place all decoupling capacitors (0. 1uf)as close to the pin

AVCC1V8

as possible.

1K 1/16W 5%

R512

M_RX1_C

M_RX1_CB

12

10

11

TXC-

RESET#

ExtSWING

DDC_SDA1

DDC_SCL1

3V3SB_9185

C510

AVCC1V8

M_RX1_0B

M_RX1_0

9

6

7

8

TX0-

TX0+

TXC+

AGND

RPWR 1_5V

R548

10K 1/10W

3V3SB_9185

C511

0.1uF 50V

M_RX1_2

M_RX1_1B

M_RX1_1

M_RX1_2B

3

1

4

2

5

TX2-

TX1-

AVCC18

TPW R/ I2C ADDR

C533

10N 50V

TX1+

AGND

DVDD18

RPWR2

AVCC18

AVCC33

60

AVCC1V8

C512

0.1uF 50V

TX2+

HPDIN

DSCL2

DSDA2

TPWR

R502

NC/0R05 1/16W

80

AGND

79
78

TSC L

77

TSD A

76
75

TEST

DGND

74
73
72
71
70
69
68

R2X2+

67

R2X2-

66

AGND

65

R2X1+

64

R2X1-

63
62

R2X0+

61

R2X0-

OPWR0_5V6

EMI solution 09/01/11"

3V3SB_9185

R533
NC/10K 1/16W 5%

R534

4.7K 1/10W

HDMI_SCL
HDMI_SDA
HPDIN

R503 0R05 1/ 16W

NC/100K 1/10W

HDMISW_SCL#

HDMISW_SDA#

R525

R515

R523

0R01

3V3SB_9185

R516

10K 1%

10K 1%

HDMI_HPD

DVDD1V8

AVCC1V8

3V3SB_9185

RPWR0_5V

C515

NC/1uF 25V

R529 0R01

R530 0R01

3V3SB_9185

R514
10K 1%

HDMISW_RST#

C501
1uF 25V

3V3SB

FB505

1 2

220R/2000mA

C534

10N 50V

EMI solution 09/01/11"

OSCL1 9,11,14

OSDA1 9,11,14

R505

NC/0R05 1/16W

NC/10K+ -5%1/16W

HDMI_SW_RST

R545

SPDIF_OUT

HI = > Disable
LO = > Enab le

3V3SB_9185

3

C516

1uF 16V

C517

NC/10U 10V

EMI solution 09/01/11"

R540

10K 1%

U508

1

OE

VCC

2

A
GND3Y

SN74LVC1G125DBVR

ARC

U502
G1117T63Uf

VIN

VOUT

GND

TH

1

4

R528
0R05 1/16W

HDMI_CEC

C532

NC/22PF 50V

5

4

180R 1/ 10W 1%

2

120R 1% 1/10W

56R 1/10W 1%

HD_CEC

AVDD1V22,8,9,12,14,15
AVDD3V32,4,5, 8,9, 10,11,12,13,14,15,16,18

+5V_SW2,5, 10,12, 13,14,15,16,17
+5VSB2,3,4, 6,9,17

3V3SB2,6, 9,13,17

DVDD3V32,4,5,8, 9,10, 11,12,13,14,15,16,18

OPWR1_5V6
OPWR0_5V6

GND2,3,4,5,6,8,9,10,11,12,13,14,15,16, 17,18

ARC_OE

DVDD3V3

R541

82R 1/10W 1%

R522

R524

R542

U401G

AVDD33_HDMI

AVDD12_HDMI

C521
100N 16V

HECC+

1uF 25V

FB506

1 2

220R/2000mA

FB507

1 2

220R/2000mA

C518

10uF 10V

MT5366

RX_0

RX_0B

RX_1

RX_1B

RX_2

RX_2B

RX_C

RX_CB

HDMI_CEC
HDMI_HPD

HDMI_SCL

HDMI_SDA

PWR5V

AVSS33_HDMI

MT5366GSNG

C520

AE3
AD3
AE4
AD4
AE5
AD5
AE2
AD2

AB6
AC6
AC5
AB5
AD6

AE1

AA6

AC4

AVDD1V2
AVDD3V3

DVDD3V3

OPWR1_5V
OPWR0_5V

+5V_SW
+5VSB
3V3SB

HEC+

100K1/16W

R544

DVDD1V8

AVCC1V8

M_R X1_0
M_RX1_0B
M_R X1_1
M_RX1_1B
M_R X1_2
M_RX1_2B
M_R X1_C
M_RX1_CB

HDMI_CEC
HDMI_HPD
HDMI_SCL
HDMI_SDA

TPW R

AVDD33_HDMI

AVDD12_HDMI

HDMI 2

HDMI 1

HDMI_SW_RST13

Analog Power

AVDD3V3

R556
0R01

AVDD1V2

R560
0R01

RR1X0-6

RR1X0+6

RR1X1-6

RR1X1+6

RR1X2-6
RR1X2+6
RR1XC-6

RR1XC+6

HPD16

RR0X0-6
RR0X0+6

RR0X1-6
RR0X1+6

RR0X2-6
RR0X2+6
RR0XC-6

RR0XC+6

HPD06

OSDA19,11,14

OSCL19,11,14

DDC_SDA16
DDC_SCL16
DDC_SDA06
DDC_SCL06

HEC+6
HPD06

SPDIF_OUT12

HD_CEC6

ARC_OE13

RR1X0­RR1X0+
RR1X1­RR1X1+
RR1X2­RR1X2+
RR1XC­RR1XC+
HPD1

RR0X0­RR0X0+
RR0X1­RR0X1+
RR0X2­RR0X2+
RR0XC­RR0XC+
HPD0

OSDA1
OSCL1

DDC_SDA1
DDC_SCL1
DDC_SDA0
DDC_SCL0

HEC+
HEC­SPDIF_OUT

HD_CEC

HDMI_SW_RST

ARC_OE

( 17 mA )

AVDD33_HDMI

C555

100N 16V

( 61 mA )

AVDD12_HDMI

C556

100N 16V

C523

10uF 10V

C524

10uF 10V

C525

0.1uF 50V

C526

0.1uF 50V

C527

0.1uF 50V

C528

0.1uF 50V

C529

0.1uF 50V

C530

0.1uF 50V

C531

0.1uF 50V

70

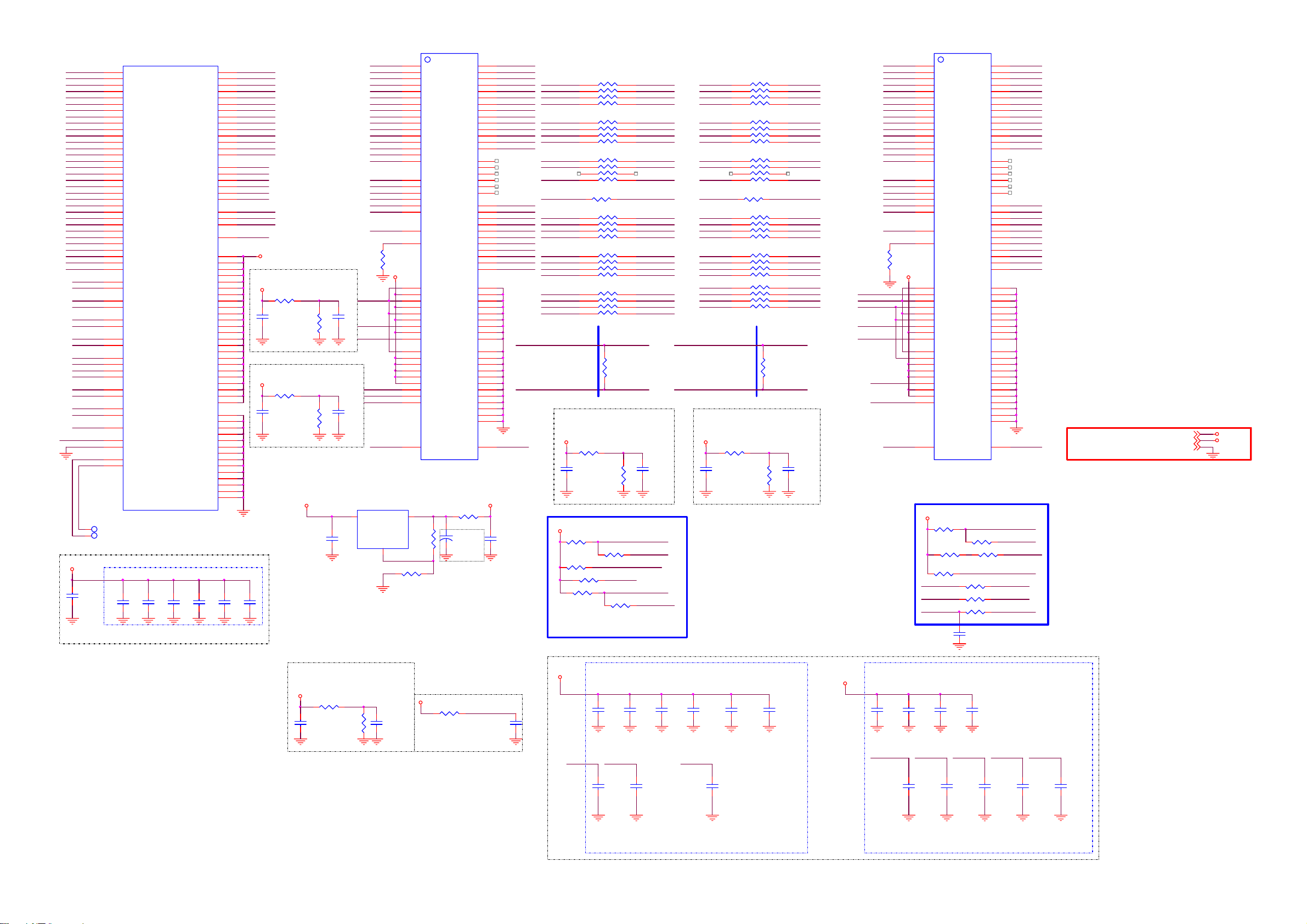

08 DDR3 DRAM

RDQ0
RDQ1
RDQ2
RDQ3
RDQ4
RDQ5
RDQ6
RDQ7
RDQ8
RDQ9
RDQ10
RDQ11
RDQ12
RDQ13
RDQ14
RDQ15
RDQ16
RDQ17
RDQ18
RDQ19
RDQ20
RDQ21
RDQ22
RDQ23
RDQ24
RDQ25
RDQ26
RDQ27
RDQ28
RDQ29
RDQ30
RDQ31

RDQS0
RDQS0#

RDQS1
RDQS1#

RDQS2
RDQS2#

RDQS3
RDQS3#

RDQM0
RDQM1
RDQM2
RDQM3

RCLK0
RCLK0#

RCLK1
RCLK1#

1_RST#

AVDD12_MEMPLL

MEMTP
MEMTN

TP40 0
TP40 1

DDRV

C425

10UF 6. 3V

MT5366

U401B

D13

RDQ6//RDQ0

D12

RDQ0//RDQ1

E13

RDQ1//RDQ2

D11

RDQ7//RDQ3

D14

RDQ4//RDQ4

E12

RDQ5//RDQ5

E14

RDQ3//RDQ6

E11

RDQ2//RDQ7

B10

RDQ13//RDQ8

B15

RDQ11//RDQ9

A10

RDQ10/ /RDQ10

A15

RDQ12/ /RDQ11

C11

RDQ15/ /RDQ12

C15

RDQ9//RDQ13

C10

RDQ8//RDQ14

C14

RDQ14/ /RDQ15

G5

RDQ22/ /RDQ16

J5

RDQ23/ /RDQ17

H5

RDQ17/ /RDQ18

J4

RDQ16/ /RDQ19

H4

RDQ20/ /RDQ20

K4

RDQ21/ /RDQ21

G4

RDQ19/ /RDQ22

K3

RDQ18/ /RDQ23

J1

RDQ26/ /RDQ24

D2

RDQ27/ /RDQ25

J2

RDQ29/ /RDQ26

C1

RDQ28/ /RDQ27

H3

RDQ31/ /RDQ28

D1

RDQ25/ /RDQ29

J3

RDQ24/ /RDQ30

E2

RDQ30/ /RDQ31

B13

RDQS0//RDQS0

A13

RDQS0_//RDQS0_

A12

RDQS1//RDQS1

B12

RDQS1_//RDQS1_

F2

RDQS2//RDQS2

F1

RDQS2_//RDQS2_

G1

RDQS3//RDQS3

G2

RDQS3_//RDQS3_

C12

RDQM0//RDQM0

C13

RDQM1//RDQM1

G3

RDQM2//RDQM2

E1

RDQM3//RDQM3

A9

RCLK0/ /RCLK0

B9

RCLK0_//RCLK0_

K1

RCLK1/ /RCLK1

K2

RCLK1_//RCLK1_

C6

RBA2// RRESET_

H9

AVDD12_MEMPLL

H10

AVSS12_MEMPLL

D8

MEMTP

C8

MEMTN

C426

100N 16V

100N 16V

MT5366 DE-CAP.

U401B

RCAS_//RA0

RA6//RA1

RBA0// RA2

RA5//RA3
RA4//RA4

RBA1// RA5

RA13//RA6
RA10//RA7

NC//RA8

RA3//RA9
RA12//RA10
RA11//RA11

RA0//RA12
RA1//RA13

RCKE/ /RWE_

RODT//RODT

RRAS_/ /RCAS_

RWE_//RCS_

RCS_//RRAS_

RA9//RCKE

RA8//RBA0
RA2//RBA1
RA7//RBA2

RVREF

VCC2I O
VCC2I O
VCC2I O
VCC2I O
VCC2I O
VCC2I O
VCC2I O
VCC2I O
VCC2I O
VCC2I O
VCC2I O
VCC2I O
VCC2I O
VCC2I O
VCC2I O
VCC2I O
VCC2I O
VCC2I O
VCC2I O
VCC2I O
VCC2I O
VCC2I O
VCC2I O
VCC2I O

Main Chi p B otto m Side

100N 16V

C428

100N 16V

C427

DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS
DVSS

C429

LC-42SV32B

DDR3#1

1_A0

C4

1_A1

F9

1_A2

C5

1_A3

A7

1_A4

F8

1_A5

D5

1_A6

D7

1_A7

A6

1_A8

E6

1_A9

B7

1_A10

E8

1_A11

F7

1_A12

D6

1_A13

B6

1_WE#

B4

1_ODT

A3

1_CAS#

B3

1_CS#

A4

1_RAS#

A2

1_CKE

D9

1_BA0

E7

1_BA1

E9

1_BA2

C7

RVREF5

E3

C16
B16
A16
F15
E15
D15
H14
H13
C2
D3
K8
J8
H8
B1
F6
E5
D4
C3
B2
A1
E4
F5
G6
F14

L3
L4
L5
L6
K6
C9
F11
F12
E10
J6
F10
H11
K7
H12

C430

100N 16V

DDRV

RVREF_as closed to U402

DDRV

R402

1K 1/16W 1%

C401

100N 16V

1K 1/16W 1%

RVREF_as closed to U402

DDRV

R410

1K 1/16W 1%

C402

100N 16V

1K 1/16W 1%

DRAM POWER DDRV

C431

100N 16V

240 OHM +-5% 1/16W

RVREF1

C400

R403

100N 16V

RVREF2

R411

DVDD3V3

100N 16V

C408

1uF 25V

RDQ0
RDQ1
RDQ2
RDQ3
RDQ4
RDQ5
RDQ6
RDQ7
RDQ8
RDQ9
RDQ10
RDQ11
RDQ12
RDQ13
RDQ14
RDQ15

RDQS1
RDQS1#
RDQS0
RDQS0#
RDQM1
RDQM0

B_RST# CLK0#

R400

1_DDR V_C1

1_DDR V_F1

1_DDR V_H9

1_DDR V_N9
1_DDR V_R9

1_DDR V_R1

C403

RVREF1

U415

VIN3VOUT

ADJ/ GND

1

U402

E3
F7
F2
F8
H3
H8
G2
H7
D7
C3
C8
C2
A7
A2
B8
A3

C7
B7
F3
G3
D3
E7

T2

ZQ1

L8

DDRV

A1
A8
C1
C9
D2
E9
F1
H2
H9

B2
D9
G7

K8
N1
N9
R9
R1

H1

H5TQ1G63DFR -H9C

2

R4054

120R 1% 1/ 10W

R405524R 1/10W 1%

DQL0
DQL1
DQL2
DQL3
DQL4
DQL5
DQL6
DQL7
DQU0
DQU1
DQU2

A10/AP
DQU3
DQU4
DQU5
DQU6
DQU7

UDQS
UDQS#
LDQS
LDQS#
UDM
LDM

RESET#

ZQ

VDDQ_0
VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8

VDD_0
VDD_1
VDD_2
VDD_3K2VSS_3
VDD_4
VDD_5
VDD_6
VDD_8
VDD_7

VREFD Q

A11

A12/BC#

NC

NC_0
NC_1
NC_2
NC_3
NC_4
NC_6

BA0
BA1
BA2

CK#
CS#

CAS#

ODT

RAS#

WE#

CKE

VSSQ_0
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8

VSS_0
VSS_1
VSS_2

VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11

VREF CA

DDRV

R416

0R05 4A 1/4W

C409

+

220uF 16V

H:6.7mm

B_A0

Damping for DDR#1 ADDR/CMD

N3

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9

CK

P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3

J1
J9
L1
L9
M7
T7

M2
N8
M3
J7
K7
L2
K3
K1
J3
L3
K9

B1
B9
D1
D8
E2
E8
F9
G1
G9

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

M8

B_A1
B_A2
B_A3
B_A4
B_A5
B_A6
B_A7
B_A8
B_A9
B_A10
B_A11
B_A12
B_A13

B_BA0
B_BA1
B_BA2
CLK0

B_CS#
B_CAS#
B_ODT
B_RAS#
B_WE#
B_CKE

Damping and Termination for CLK

RP400 100 OHM 1/16W

A_BA0
A_A5
A_A7
A_RST#

A_A9
A_A13
A_A2
A_A3

A_A0
A_BA2

A_WE#

A_CS#

A_ODT
A_CAS#
A_RAS#
A_A11

A_A1
A_A4
A_A6
A_A8

A_CKE 1_A12
A_A10
A_A12
A_BA1

1
2
3
4

RP402 100 OHM 1/16W

1
2
3
4

RP404 100 OHM 1/16W

1
2
3
4

0R05 1/16W

R4129

RP406 100 OHM 1/16W

1
2
3
4

RP408 100 OHM 1/16W

1
2
3
4

RP410 100 OHM 1/16W

1
2
3
4

1_BA0

8

1_A5

7

1_A7

6

1_RST#

5

1_A9

8

1_A13

7

1_A2

6

1_A3

5

1_A0

8

1_BA2

7
6

1_WE#

5

1_CS#

1_ODT

8

1_CAS#

7

1_RAS#

6

1_A11

5

1_A1

8

1_A4

7

1_A6

6

1_A8

5

1_CKE

8

1_A10

7

1_A12

6

1_BA1

5

Near MT5366 NEAR DRAM NEAR DRAMNear MT5366

RCLK1

RCLK1#

CLK1 CLK0

R406
100R 1/16W 5%

RVREF_as closed to U403

RVREF2

C410

100N 16V

DDRV

R412

1K 1/16W 1%

C404

R414

1K 1/16W 1%

For 2 layer Layout

R4120

R4121

0R01

1_DDR V_H9

R4123

0R05

R4124

R4125

0R01

DDRV

0R01

0R01

100N 16V

R4122

0R01

RVREF3

1_DDRV_F1

1_DDR V_R1

1_DDRV_N9

C405

100N 16V

1_DDR V_C1

1_DDR V_R9

Damping for DDR#2 ADDR/CMD

NEAR BRANCHNEAR BRANCH

RP401 100 OHM 1/16W

1_BA0
1_A5
1_A7
1_RST#

1_A3
1_A2
1_A13
1_A9

1_A0
1_BA2

1_WE#

1_CS#

1_ODT
1_CAS#
1_RAS#
1_A11

1_A8
1_A6
1_A4
1_A1

1_BA1

1_A10
1_CKE

1

8

2

7

3

6

4

5

RP403100 O HM 1/16W

RP405 100 OHM 1/16W

R4130

RP409 100 OHM 1/16W

RP411 100 OHM 1/16W

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

0R05 1/16W

RP407 100 OHM 1/16W

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

1

8

2

7

3

6

4

5

Damping and Termination for CLK

RCLK0

R407
100R 1/16W 5%

RCLK0#

CLK0#CLK1#

RVREF_as closed to U403

DDRV

R413

1K 1/16W 1%

C406

100N 16V

RVREF4

R415

1K 1/16W 1%

C407

100N 16V

B_BA0
B_A5
B_A7
B_RST#

B_A3
B_A2
B_A13
B_A9

B_A0
B_BA2

B_WE#

B_CS#

B_ODT
B_CAS#
B_RAS#
B_A11

B_A8
B_A6
B_A4
B_A1

B_BA1
B_A12
B_A10
B_CKE

2_DDR V_A8
2_DDR V_C1
2_DDR V_C9

2_DDR V_F1

2_DDR V_H9

DDR3#2

RDQ16
RDQ17
RDQ18
RDQ19
RDQ20
RDQ21
RDQ22
RDQ23
RDQ24
RDQ25
RDQ26
RDQ27
RDQ28
RDQ29
RDQ30
RDQ31

RDQS3
RDQS3#
RDQS2
RDQS2#
RDQM3
RDQM2

A_RST#

ZQ2

R401

240 OHM +- 5% 1/16W

DDRV

2_DDR V_N1

2_DDR V_R1

RVREF3

U403U402

U403

E3

DQL0

F7

DQL1

F2

DQL2

F8

DQL3

H3

DQL4

H8

DQL5

G2

DQL6

H7

DQL7

D7

DQU0

C3

DQU1

C8

DQU2

C2
A7
A2
B8
A3

C7
B7
F3
G3
D3
E7

T2

L8

A1
A8
C1
C9
D2
E9
F1
H2
H9

B2
D9
G7

K8
N1
N9
R9
R1

H1

H5TQ1G63DFR -H9C

DDRV

0R01

0R01

2_DDR V_N1

2_DDR V_H9

2_DDR V_C9

A10/AP
DQU3
DQU4

A12/BC#
DQU5
DQU6
DQU7

UDQS
UDQS#
LDQS
LDQS#
UDM
LDM

RESET#

ZQ

VDDQ_0
VDDQ_1
VDDQ_2
VDDQ_3
VDDQ_4
VDDQ_5
VDDQ_6
VDDQ_7
VDDQ_8

VDD_0
VDD_1
VDD_2
VDD_3K2VSS_3
VDD_4
VDD_5
VDD_6
VDD_8
VDD_7

VREFD Q

NC_0
NC_1
NC_2
NC_3
NC_4
NC_6

BA0
BA1
BA2

CK#
CS#

CAS#

ODT

RAS#

WE#

CKE

VSSQ_0
VSSQ_1
VSSQ_2
VSSQ_3
VSSQ_4
VSSQ_5
VSSQ_6
VSSQ_7
VSSQ_8

VSS_0
VSS_1
VSS_2

VSS_4
VSS_5
VSS_6
VSS_7
VSS_8

VSS_9
VSS_10
VSS_11

VREF CA

For 2 layer Layout

R4119

0R01
R4113
0R05

R4115

R4116

0R01

R4117

0R05

R4118

0R05

C4009
10uF 10V

A0
A1
A2
A3
A4
A5
A6
A7
A8
A9

A11

NC

CK

R4112

R4114
0R05

N3
P7
P3
N2
P8
P2
R8
R2
T8
R3
L7
R7
N7
T3

J1
J9
L1
L9
M7
T7

M2
N8
M3
J7
K7
L2
K3
K1
J3
L3
K9

B1
B9
D1
D8
E2
E8
F9
G1
G9

A9
B3
E1
G8
J2
J8
M1
M9
P1
P9
T1
T9

RVREF4

M8

2_DDR V_F1

2_DDRV_C 1

2_DDR V_N1

2_DDR V_H9

2_DDR V_R1

2_DDR V_C9

2_DDR V_A8

A_A0
A_A1
A_A2
A_A3
A_A4
A_A5
A_A6
A_A7
A_A8
A_A9
A_A10
A_A11
A_A12
A_A13

A_BA0
A_BA1
A_BA2
CLK1
CLK1#
A_CS#
A_CAS#
A_ODT
A_RAS#
A_WE#
A_CKE

DVDD3V32,4,5, 7,9,10,11, 12,13,14,15,16,18

AVDD 1V22,7, 9,12,14,15

GND2,3,4, 5,6,7,9, 10,11,12,13,14,15,16, 17,18

DVDD3V3
AVDD 1V2

RVREF_as closed to MT5363

DDRV

R417

1K 1/16W 1%

C432

100N 16V

RVREF5

R419

1K 1/16W 1%

C433
100N 16V

AVDD1V2

0R05 1/16W

AV1V2_MEMPLL

AVDD12_MEMPLL

R418

C434

100N 16V

DDRV

C411
10UF 6. 3V

1_DDR V_N9 1_DDRV_C 1 1_DD RV_H9

C415

100N 16V

DRAM DE-CAP.

C4006

C413

10UF 6. 3V

100N 16V

C416

100N 16V

71

C414

100N 16V

DDR#1 Bottom Side

C417

100N 16V

C418

100N 16V

C449

100N 16V

DDRV

C419

C4008

C4007

10UF 6. 3V

2_DDR V_N1 2_DDR V_A82_DDRV_C 1 2_DDR V_H9

10UF 6.3V

C421

100N 16V

100N 16V

100N 16V

C422

C420

100N 16V

C423

100N 16V

DDR#2 Bottom Side

2_DDR V_C9

C424

100N 16V

C4011

100N 16V

LC-42SV32B

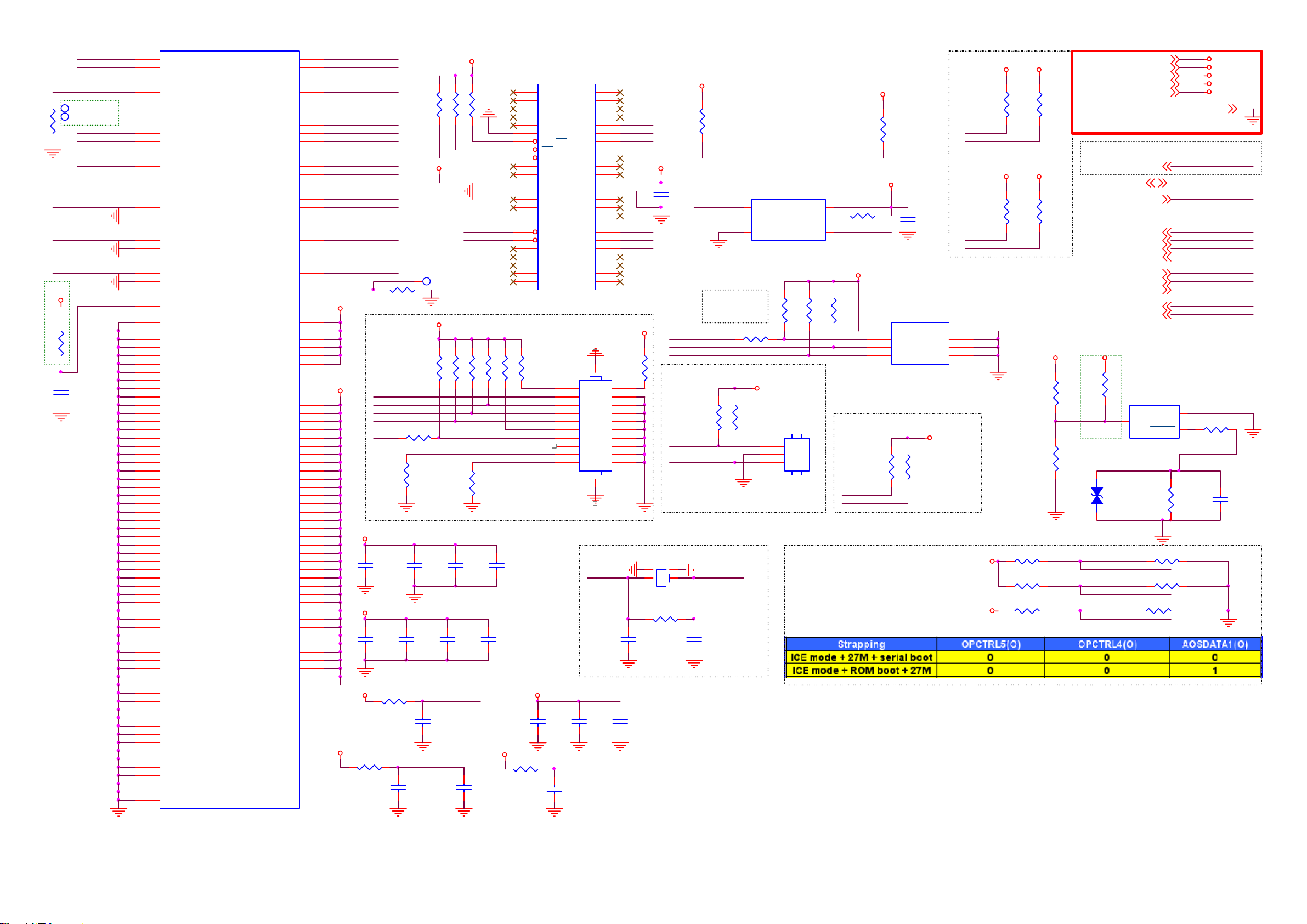

09 FLASH/XTAL/JTAG/UART

U401A

R4

JTCK

T1

JTDI

R3

JTDO

T3

JTMS

T2

JTRST_

J22

OSDA0

J23

OSCL0

U4

OSDA1

U3

OSCL1

T22

OSDA2

T23

OSCL2

AE19

XTA LI

AD19

XTA LO

AC18

AVDD33_XTAL_STB

AE18

AVSS33_XTAL_STB

AA7

AVDD33_VGA_STB

W8

AVSS33_VGA_STB

AB15

AVDD12_PLL

AA17

AVSS12_PLL

AA12

AVDD10_LDO

A25

DVSS

B25

DVSS

Y21

DVSS

Y22

DVSS

AB22

DVSS

AA23

DVSS

AB23

DVSS

AC23

DVSS

AB24

DVSS

AA20

DVSS

Y20

DVSS

W20

DVSS

Y19

DVSS

W19

DVSS

M9

DVSS

H6

DVSS

N9

DVSS

L12

DVSS

L13

DVSS

L14

DVSS

P9

DVSS

R10

DVSS

W21

DVSS

AC24

DVSS

AB25

DVSS

M11

DVSS

M12

DVSS

M13

DVSS

M14

DVSS

M15

DVSS

M16

DVSS

N11

DVSS

N12

DVSS

N13

DVSS

N14

DVSS

N15

DVSS

N16

DVSS

P11

DVSS

P12

DVSS

P13

DVSS

P14

DVSS

P15

DVSS

P16

DVSS

R11

DVSS

R12

DVSS

R13

DVSS

R14

DVSS

K12

DVSS

K13

DVSS

M10

DVSS

N10

DVSS

P10

DVSS

K14

DVSS

K17

DVSS

L17

DVSS

N17

DVSS

P17

DVSS

W17

DVSS

V19

DVSS

MT5366GSNG

R426

3V3SB

MTK

JTRST#

TP4 95

10K 1/10W

TP4 96

AVDD33_XTAL_STB

AVDD33_REG_STB

AVDD12_PLL

AVDD10_LDO

R4104

1.3K 1%

C437

4.7UF 10V

U401A

JTCK
JTDI
JTDO
JTMS

OSDA0
OSCL0

OSDA1
OSCL1

OSDA2
OSCL2

OXTAL_I
OXTAL_O

U0TX

U0RX

U1RX

U1TX

POWE_

POOE_
POCE1_
POCE0_

PDD7
PDD6
PDD5
PDD4
PDD3
PDD2
PDD1

PDD0
PARB_
PACLE
PAALE

OPWRSB

ORESET_

OIRI

FSRC_WR

VCC3IO
VCC3IO
VCC3IO
VCC3IO
VCC3IO
VCC3IO

VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK
VCCK

AB8
AC7

U2
U1

J19
K21
K22
J21
K23
L23
L24
L25
K20
K19
L22
M23
J20
J24
J25

AB9

Y8

AC8

E23

T8
M18
H19
V8
U8
N18

M1
M2
M3
M4
M5
M6
N1
N2
N3
N4
N5
N6
K10
K11
K9
L9
R9
K15
K16
L10
T9
T10
T11
T12
T13
T14
T15
T16
L11
L15
R15
L16
R16
R17
T17

U0TX
U0RX

U1RX
U1TX

POWE#
POOE#
POCE1#
POCE0#
PDD7
PDD6
PDD5
PDD4
PDD3
PDD2
PDD1
PDD0
PARB#
PACLE
PAALE

OPWRSB

ORESET#

OIRI

FSRC_WR

DVDD3V3

VCCK

VCCK

VCCK

AVDD1V2

3V3SB

R461
0R01

R431

4.7K 1/10W

JTRST#
JTDI
JTMS
JTCK

JTDO

33R 1/ 10W 5%

C439

4.7UF 10V

C443

100N 16V

R460
0R01

AVDD33_XTAL_STB

TP4 02

10K 1/10W

R446

R450
10K 1/10W

C440

10uF 6.3V

C444

100N 16V

( 42 mA )

AVDD12_PLL

C450

100N 16V

C454

10uF 10V

DVDD3V3

R420 4.7K 1/16W

R421 NC/4.7K 1/10W

R422 4.7K 1/16W

DVDD3V3

PACLE
PAALE
POWE#
Flash_WP#

E-Fuse

DVDD3V3

R439

10K 1/10W

R437

R438

10K 1/10W

R451
10K 1/10W

C441

100N 16V

C445

100N 16V

C455

100N 16V

NAND Flash

U405

1
2
3
4
5
6

PARB#

7

POOE#

8

POCE1#

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23

Default 2G bit NAND Flash used

U405

NC1

NC29

NC2

NC28

NC3

NC27

NC4

NC26
NC5
NC6
RY/BY1
RE

NC25

CE1

NC24

NC7
NC8

NC23
VCC1

VCC2
VSS1
NC9

NC22

NC10

NC21

CLE

NC20
ALE
WE
WP
NC11

NC19

NC12

NC18

NC13

NC17

NC14
NC1524NC16

JTAG Port

R441

10K 1/10W

R440

10K 1/10W

JTAG_DBGRQ
JTAG_DBGACK

C442

100N 16V

C446

100N 16V

3V3SB

R462
0R01

CN406

R442

1K 1/10W

TVTR EF #1

1
3
5
7

9
11
13
15
17
19

CN406

DVDD3V3

C451

4.7UF 10V

( 13 mA )( 10 mA )

AVDD33_REG_STB

C456

100N 16V

I/O7
I/O6
I/O5
I/O4

VSS2

I/O3
I/O2
I/O1
I/O0

OXTAL_I

C452

100N 16V

256MB

48
47
46
45

PDD7

44

PDD6

43

PDD5

42

PDD4

41
40

DVDD3V3

39
38
37

100N 16V

36
35
34
33

PDD3

32

PDD2

31

PDD1

30

PDD0

29
28
27
26
25

H27U2G8F2CTR-BC

DVDD3V3

R480

21

NC/0oHM

2
4
6
8
10
12
14
16
18
20

22

NC/CONN

C453

100N 16V

DVDD3V3

R425

NC/4.7K 1/10W

POCE0# Flash_WP#

C435

Serial Flash

POCE0#
PDD7
Flash_WP#

SYSTEM EEPROM

LO = > WRITE
HI = > WP

SYS_EEPROM_WP
OSCL0
OSDA0

UART Port 0

R444

4.7K 1/16W

U0TX

U0RX

FOR CODE DOWNL OA D AND DEBUG

27MHz CRYSTAL

X4 00

2
1

R459
NC/100K 1/10W

C447
27P 50V

27MHz

4
3

OXTAL_O

C448
27P 50V

U404

1

CS#

2

SO/SIO1

3

WP#/SIO2
GND4SI/SIO0

NC/MX25L6445EM2I-10G

R436
0R01 1/16W

3V3SB

R445

4.7K 1/16W

CONN

NC/SIO3

R432

4.7K 1/16W

CN410

CN410

1
2
3

VCC

SCLK

R433

STRAPPING

64Mb

8

R4053NC/4.7K 1/10W

7
6
5

DVDD3V3

R434

4.7K 1/16W

4.7K 1/16W

UART Port 1

4.7K 1/16W

U1TX
U1RX

2nd I2C

DVDD3V3

R427

4.7K 1/10W

DVDD3V3

OSDA1
OSCL1

R423

3rd I2C

PDD6

DVDD3V3

POOE#

C436

NC/100N 16V

DVDD3V3

OSDA2
OSCL2

R429

U409

U409

8

VCC

7

WC

6

SCL

5

SDA

M24C32-WMN6TP

I2C ADDRESS "A0"

R448

R449

4.7K 1/16W

ZD124 and C438 near U401 should be
very close to U401

E0
E1
E2

VSS

DVDD3V3

1
2
3
4

3V3SB

DVDD3V3

R453 NC/10K 1/10W

R455 NC/10K 1/10W

R457 10K 1%

DVDD3V3

R424

4.7K 1/16W

DVDD3V3

R430

4.7K 1/10W

+5VSB

NC/820R +-1%

NC/1K8 +-1%

4.7K 1/16W

4.7K 1/10W

DVDD3V32,4,5,7,8, 10,11, 12,13,14,15,16,18

+5VSB2,3,4,6,17
3V3SB2,6, 7,13,17

VCCK2

AVDD1V22,7,8,12, 14,15

Control Interface

U408

GND

RESET

OPWRSB

SYS_EEPROM_WP

OSDA1
OSCL1
OSDA2
OSCL2

OPCTRL5
OPCTRL4
AOSDATA1

U0TX
U0RX

1

2

ORESET#

100K 1/10W

3V3SB

R447

R443

OPWRSB2

OIRI13,17

SYS_EEPROM_WP13

OSDA17,11,14

OSCL17,11,14

OSDA215

OSCL215

OPCTRL513
OPCTRL413

AOSDATA112

U0TX3,17

U0RX3,17

820R 1/10W 1%

12

TVM1 G5R 5M100R

RESET Circuit

R4103

U408

3

Vcc

AZ809ANSTR-E1

ZD124

R454 10K 1%

OPCTRL5

R456 10K 1/10W

OPCTRL4

R458 NC/10K 1%

AOSDATA1

R452

DVDD3V3
+5VSB
3V3SB
VCCK
AVDD1V2

GND2,3,4,5,6,7,8,10,11,12, 13,14, 15,16,17,18

OIRI

R408

100R 1/16W 5%

C438

15pF 50V

72

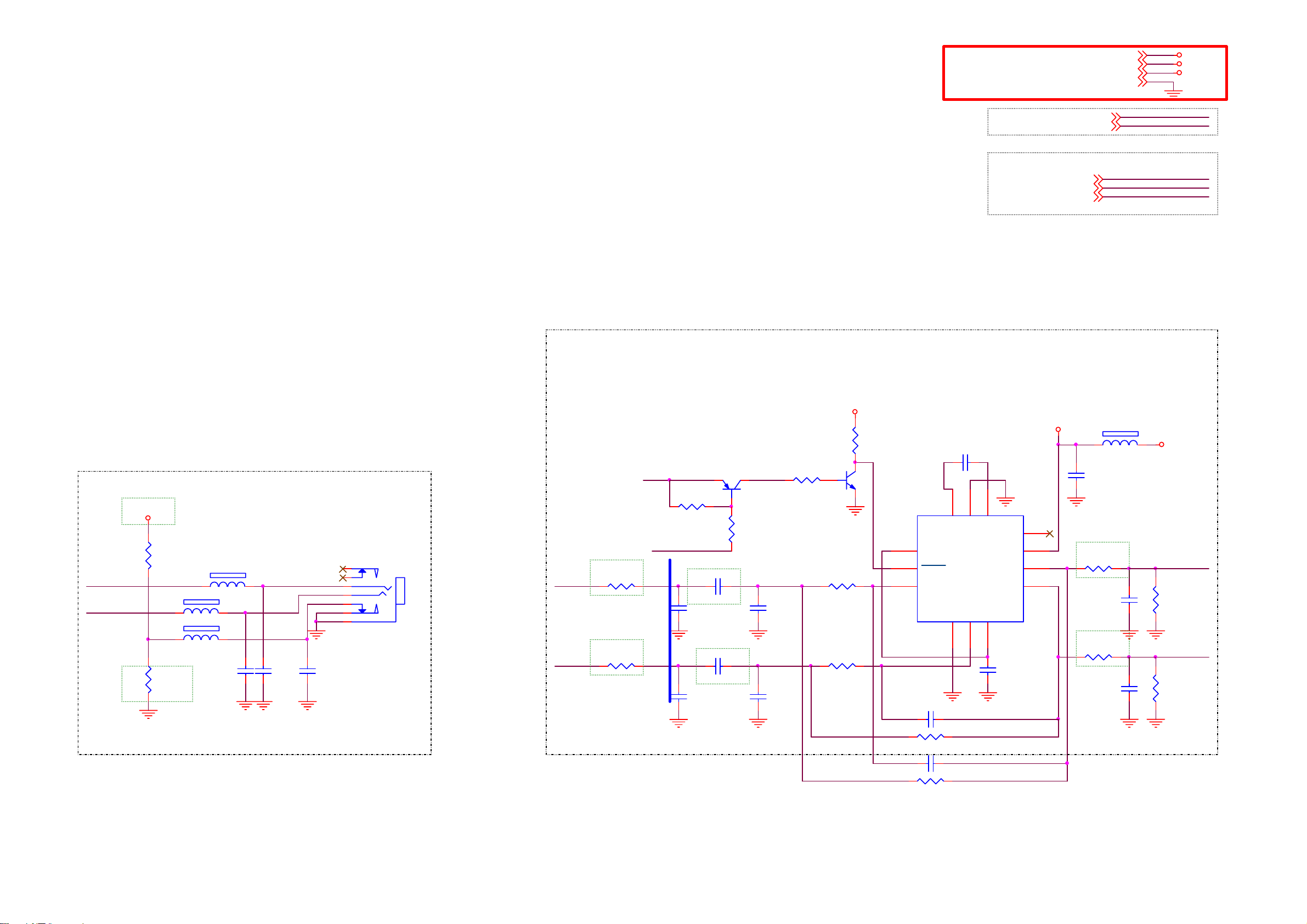

10 PREAMP/HEADPHONE OUT

LC-42SV32B

DVDD3V32,4,5,7,8,9,11,12,13,14,15,16,18 DVDD3V3

AVDD3V32,4,5,7,8,9,11,12,13,14,15,16, 18
+5V_SW2,5,7,12,13,14,15,16,17

GND2,3,4,5,6,7,8,9,11,12,13,14, 15,16, 17,18

AR0O12

AL0O12

AR0O
AL0O

Audio Mute Control

HPDET#13
V_MUTE17
A_MUTE11,17

HPDET#
V_MUTE
A_MUTE

AVDD3V3

+5V_SW

DVDD3V3

HPOUT_RT

HPOUT_LT

R609
47K 1/10W 5%

1 2

FB602

1 2

HPDET#

1 2

C640

R670
NC/470K 1/16W 5%

2.2NF

FB60130R/600mA

30R/600mA

FB603
30R/600mA

C641

2.2NF

EMI 09/03

C642

0.1uF 50V

5
4
3
2
6
7
1

CN602

CONN

PreAmp output for Headphone/Line out

HP_PWR

R620
10K 1/10W

Q612
MMBT3906 PNP

2 3

1

L:MUTE

V_MUTE

R626

47K 1/10W 5%

H:UN-MUTE

A_MUTE

R623

AL0O

AR0O

18K 1/10W

C617

NC/330pF 50V

R625

18K 1/10W

C621

NC/330pF 50V

C615

1uF 16V

C620

1uF 16V

C622

330pF 50V

Near MT5366

change R623,R625 from 20K to 10 for 6dB Gain

R674
4K7 1/10W 5%

R624
10K 1/10W

C618

330pF 50V

Q613

MMBT3904

R627

43K 1/10W 1%

MAX9728AETC+

R628

43K 1/10W 1%

C619 1uF 25V

2

3

C1N

4

PVss

5

SHDN

6

IN_L

U606

C634 47pF 50V

R629 20K 1/10W

C635 47pF 50V

R630 20K 1/10W

PGND

SGND

IN R

7

8

1

C1P

OUTL

OUTR

SVss

9

C623

1uF 25V

TH1

VDD

HP_PWR

13

12

11

10

FB66

1 2

120R/3000mA

C614

2U2 16V

R619

0 OHM 1/8W

C613

330pF 50V

R631

0 OHM 1/8W

C624

330pF 50V

change R619,R631 from 150 to 0 for
output loss

+5V_SW

HPOUT_LT

R621

47K 1/16W 5%

HPOUT_RT

R622

47K 1/16W 5%

73

LC-42SV32B

11 AUDIO AMP

Audio Amp

AMP3V3

FB61

1 2

120R/3000mA

C627

FB62

100N 16V

1 2

120R/3000mA

AOSDATA0
SPK_MUTE

1
2

74LVC1G08GW

R644 NC/47K 1/16W

U607

B
A
GND3Y

PLL_Vdd

VCC

C628
100N 16V

AMP3V3

5

4

AMP3V3

R634

C630
4N7 50V

SOUND_INT

C633
100N 16V

2K2 1/16W 5%

C631
680pF 50V

FB604

1 2

SPK_INT
OSDA1
OSCL1

I2S_MUTEB#

AMP3V3

FB605 120R/3000mA

AOMCLK

AOBCLK

120R/3000mA

FB606 120R/3000mA

AOLRCK

AMP_RESET#

FB607 120R/3000mA

R641 100R 1/16W 5%
R642 100R 1/16W 5%
R643 100R 1/16W 5%

C637
100N 16V

PLL_GND OSDA1

1 2

1 2

1 2

R640 0R01 1/16W

100N 16V

R633

0R01 1/16W

PLL_FILTER

AMP3V3

C638

AMP3V3

PLL_Vdd

SPK_INT_A
OSDA1_A
OSCL1_A

C639

100N 16V

C643

NC/10PF 50V

R632
10K 1%

C625

1N 50V

U602

19

EAPD/OUT4B

20

TWAR N/ OU T4A

21

VDD_DIG

22

GND_DIG

23

PWRDN

24

VDD_PLL

25

FILTER_PLL

26

GND_PLL

27

XTI

28

BICKI

29

LRCKI

30

SDI

31

RESET

32

INT_LINE

33

SDA

34

SCL

35

GND_DIG

36

VDD_DIG

37

Therm al Pad

C645
NC/10PF 50V

STA339BWTR

C644
NC/10PF 50V

OUT3A
OUT3B

CONFIG

VDD

GND_REG

OUT1A

GND1

VCC1
OUT1B
OUT2A

VCC2

GND2

OUT2B

VCC_REG

VSS

TEST_MODE

SA

GND_SUB

AMP3V3

DVDD3V32,4,5,7,8,9,10,12,13,14,15,16,18

+12V2,14,17
+24V2

SPK_INT13

AOBCLK12
AOLRCK12
AOMCLK12

AMP24V

18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1

C626 100nF 50V

LOUT+

LOUT­ROUT+

ROUT-

C632 100nF 50V

Speaker out

AOSDATA012

SP_Amp_MUTE13
AMP_RESETN13

A_MUTE10,17

OSCL17,9,14
OSDA17,9,14

DVDD3V3

+12V
+24V

SPK_INT

AOBCLK
AOLRCK
AOMCLK
AOSDATA0

I2S_MUTEB#
AMP_RESETN
A_MUTE

OSCL1

GND2,3,4, 5,6,7,8,9, 10,12,13,14,15,16,17,18

AMP_RESETN

R649
NC/ 10K 1/16W 5%

R651
1K 1/16W

R648
10K

AMP_RESET#

Q605
MMBT3 904

C646
NC/2.2U10V

SPK_INT_A

OSDA1_A

OSCL1_A

C676
NC/1N 50V

C675
NC/1N 50V

A_MUTE

C674
1N 50V

R669

10K 1/10W

R668

10K 1/10W

SPK_MUTE

Q610

PMBS3906

ROUT-

FB64

1 2

120R/3000mA

C667

10UF 6.3V

LOUT+

R653
22 OHM 1/4W

C654
330P 50V

LOUT­ROUT+

R656
22 OHM 1/4W

C663
330P 50V

AMP3V3

L63
22UH

L64 22UH

L65
22UH

L66
22UH

C668

0.1UF 50V

C648

0.1UF50V
C652

0.1UF50V

C656

0.1UF50V

C660

0.1UF50V

+24V

R652

6.2 OHM 1/4W

C649 0.1UF50V

C653 0.1UF50V

R654

6.2 OHM 1/4W

R655

6.2 OHM 1/4W

C657 0.1UF50V

C661 0.1UF50V

R657

6.2 OHM 1/4W

+

C665

330UF 35V

C650 0.22uF 50V

C659 0. 22uF 50V

C647
1N 50V

C655
1N 50V

C658
1N 50V

C664
1N 50V

C669
1uF 50V

C651
1N 50V

C662
1N 50V

C670
1uF 50V

LOUT1+
LOUT1­ROUT1+
ROUT1-

C671

0.1UF 50V

CN601
CONN

4
3
2
1

5 6

C672

0.1UF50V

L

L+
L­R+
R-

R

AMP24VDVDD3V3

+

C666

330UF 35V

74

H:10.5mmH:10.5mm

12 A/V INTERFACE

VGA_R_I n
VGA_L_In

AV2_R_In
AV2_L_In
YPbPr_R_In1
YPbPr_L_In1

AVDD33_AADC

VMID_AADC

C461

100N 16V

1uF 10V

C462

AE25
AB21
AD25
AE22
AC25
AD22
AD23
AB20
AE24
AC21
AE23
AC20
AD24
AC22

AA19
AA21

AA18

U401F

U401F

AIN0_R_AADC
AIN0_L_AADC
AIN1_R_AADC
AIN1_L_AADC
AIN2_R_AADC
AIN2_L_AADC
AIN3_R_AADC
AIN3_L_AADC
AIN4_R_AADC
AIN4_L_AADC
AIN5_R_AADC
AIN5_L_AADC
AIN6_R_AADC
AIN6_L_AADC

AVDD33_AADC
AVSS33_AADC

VMID_AADC

AR0_ADAC

AL0_ADAC

AR1_ADAC

AL1_ADAC

AR2_ADAC

AL2_ADAC

AR3_ADAC

AL3_ADAC

AVDD33_DAC

AVDD33_DAC1

AVSS33_DAC

AVSS33_DAC1

ALIN

ASPDIF

AOBCK
AOLRCK
AOMCLK

AOSDATA4
AOSDATA3
AOSDATA2
AOSDATA1
AOSDATA0

Y23
AA25

W23
AA24

V24
Y25

V25
Y24

V22
V23

AA22
W22

V21
V20
T21
U24
U25
R21
R20
T19
U23
T20

AR0O
AL0O

AVDD33_DAC

AVDD33_DAC1

AU_D IN

AOBCLK
AOLRC K
AOMCLK

AOSDATA1
AOSDATA0

TP409

R4126

0R05 4A 1/4W

SPDIF_OUT

ADAC_PWR

R463

47ohm 1/10W +/-1%

AVDD3V3

R467
0R01

Analog Power

( 1 mA )

AVDD33_DAC

C457

+

470UF 16V

H:9mm

( 13 mA )

AVDD33_AADC

R465 0R01

C458
100N 16V

C463

100N 16V

AVDD33_DAC1

C460
100N 16V

AVDD3V32,4,5,7,8,9,10,11,13, 14,15, 16,18

AVDD1V22,7,8,9,14,15

+5V_SW2,5,7,10,13,14,15,16,17

ADAC_PWR

SPDIF_OUT7

AR0O10
AL0O10

VGA_R_In5
VGA_L_In5

AV2_R_In5
AV2_L_In5
YPbPr_R_In14
YPbPr_L_In14

AOBCLK11
AOLRC K11
AOMCLK11
AOSDATA011

AVDD3V3

AVDD1V2
+5V_SW

ADAC_PWR

SPDIF_OUT

AR0O
AL0O

VGA_R_In
VGA_L_In

AV2_R_In
AV2_L_In
YPbPr_R_In1
YPbPr_L_In1

AOBCLK
AOLRCK
AOMCLK
AOSDATA0

LC-42SV32B

FAT_IN+
FAT_IN-

AVDD33_DEMOD
AVDD33_IFPGA

AVDD12_DEMOD

IF_AGCT

CVBS1P

CVBS_COM

AVDD33_CVBS

AD17
AE17

AC19
AB19

Y18

AB18

Y16

R19

P23

AD20
AE20

AD15
AC15
AE15
AB16
AC16
AC17
AB17

Y15

W14
W16

MT5366GSNG

U401C

U401C

ADCINP_DEMOD
ADCINN_DEMOD

AVDD33_DEMOD
AVDD33_IFPGA
AVSS33_DEMOD

AVDD12_DEMOD
AVSS12_DEMOD

IF_AGC
RF_AGC

LOUTN
LOUTP

SC0
SC1
SY0
SY1
CVBS2P
CVBS1P
CVBS0P
CVBS_COM

AVDD33_CVBS
AVSS33_CVBS

HSYNC

VSYNC

RP

GP

BP

COM

SOG

VGA_SDA

VGA_SCL

COM1

PB1P

PR1P

Y1P

SOY1

COM0

PB0P

PR0P

Y0P

SOY0

AVDD12_RGB

AVSS12_RGB

FS_VDAC
VDAC_OUT1
VDAC_OUT2

AVDD33_VDAC

AVSS33_VDAC

W12
W11
AC10
AC9
AD9
AB10
AE9
AC11
AB12

AE11
AD12
AE12
AD11
AB11

AC13
AB14
AC14
AB13
AC12

AD14
Y14

AA15
W13
Y12

AA14
W15

HSYNC
VSYNC
RP
GP
BP
VGACOM
SOG

R4127 NC/0R05 1/16W

R4128 NC/0R05 1/16W

COM0
PB0P
PR0P
Y0P
SOY0

AVDD12_RGB

VDAC_FS

MON ITO R_ OUT

AVDD33_VDAC

VGASDA

VGASCL

TP423

R4020

75 OHM 1/16W

Analog Power

( 86 mA ) ( 9.5 mA )

R468
0R01

AVDD3V3

R470
0R01

AVDD3V3

R472
0R01

R474
560R

+5V_SW

C471

1UF 10V

AVDD12_RGB

( 65 mA )

AVDD33_CVBS

( 42 mA )

AVDD33_VDAC

U411

G1117-33T63Uf

3

VI

C464

100N 16V

C466

100N 16V

C468

100N 16V

AVDD3V3

2

VO

GND14

4

AVDD3V3AVDD1V2

R469
0R01

R471
0R01

AVDD1V2

R473
0R01

AVDD33_DEMOD

( 20 mA )

AVDD33_IFPGA

( 37 mA )

AVDD12_DEMOD

R479 NC/0R01

R475

0R01

C465

100N 16V

C467

100N 16V

C469

100N 16V

ADAC_PWR

C470
10uF 6.3V

AOSDATA19

HSYNC3
VSYNC3
RP3
GP3
BP3
VGACOM3
SOG3

VGA_EEPROM_WP3,13

VGASCL3
VGASDA3

CVBS1P5

CVBS_COM5

COM04
PB0P4
PR0P4
Y0P4
SOY04

FAT_IN-16
FAT_IN+16

IF_AGCT16

AOSDATA1

HSYNC
VSYNC
RP
GP
BP
VGACOM
SOG

VGA_EEPROM_WP

VGASCL
VGASDA

CVBS1P

CVBS_COM

COM0
PB0P
PR0P
Y0P
SOY0

FAT_IN­FAT_IN+

IF_AGCT

GND2,3, 4,5, 6,7,8,9,10,11,13,14,15,16,17,18

75

LC-42SV32B

13 GPIO INTERFACE

ADI N0_SRVAD IN1_SRV

R4106

10K 1%

R4105

10K 1%

ADIN 4_SRV

R4107

10K 1%

UART_SW

TP49 0

TP49 1
TP49 2
TP48 9

TP48 4
TP48 5

TP49 4

USB_OC_C OM

KEY_MENU_L_R_SOURCE
ADIN 4_SRV
KEY_UP_DN_DCSW

ARC_OE

SYS_EEPR OM_W P

LVDS_PW R_EN

HPDET#

USB_PWR _EN0

HDMI_SW_RST
SP_Amp_MUTE
SPK_INT

LED_POWER _GREEN

STANDBY
AMP_RESETN
VGA_EEPROM_WP
BL_ON/OF F

PHY RST#

OPCTRL1

MUTE _C TL
OPCTRL4
OPCTRL5

ADIN 0_SRV
ADIN 1_SRV

GPIO_7
GPIO_8
GPIO9

GPIO_12

E25

G24

F23
H25
G23

E24
H20
G21
H21

E22

F22

F21
G20
H24
G25
G22

AD8
AE8
AA8
AE6
AB7

AA9

AA11

Y10

W10
Y11

W9

P6
R6
P5
P4
P3
P2
P1
R5
U5
U6
V6
U7

Y7

U401E

GPIO0
GPIO1
GPIO2
GPIO3
GPIO4
GPIO5
GPIO6
GPIO7
GPIO8
GPIO9
GPIO10
GPIO11
GPIO12
GPIO13
GPIO14
GPIO15
GPIO16
GPIO17
GPIO18
GPIO19
GPIO20
GPIO21
GPIO22
GPIO23
GPIO24
GPIO25
GPIO26
GPIO27

OPCTRL0
OPCTRL1
OPCTRL2
OPCTRL3
OPCTRL4
OPCTRL5

ADIN 0_SRV
ADIN 1_SRV
ADIN 2_SRV
ADIN 3_SRV
ADIN 4_SRV
ADIN 5_SRV

MT5366GSNG

DEMOD_TSCLK
DEMOD_TSVAL

DEMOD_TSSYNC

DEMOD_TSDATA0

CI_TSC LK
CI_TSVAL

CI_TSSYNC

CI_TSDATA0

PVR_TSCLK

PVR_TSVAL
PVR_TSSYN C
PVR_TSDATA0

PVR_TSDATA1

SPI_C LK

SPI_DATA

SPI_C LE

CI_INT

DEMOD_RST

ETCOL
ETTXEN
ETTXD3
ETTXD2
ETTXD1
ETTXD0

ETTXCLK

ETRXDV
ETRXD3
ETRXD2
ETRXD1
ETRXD0

ETRXCLK

ETPHYC LK

ETMDIO

ETMDC

OPWM2
OPWM1
OPWM0

R25
R24
R22
N19

P25
N20
P21
P24

P22
M21
M20
M19

N22

N21
M22
M25
M24
R23

AA3
W5
Y5
Y3
Y2
Y1
W2
Y4
W3
W4
V3
V4
W1
AA4
V5
W6

T6
T5
R7

DEMOD_TSCLK
DEMOD_TSVAL
DEMOD_TSSYNC
DEMOD_TSDATA0

ETCOL
ETTXEN
ETTXD3
ETTXD2
ETTXD1
ETTXD0
ETTXCLK_REF_CLK
ETRXDV
ETRXD3
ETRXD2
ETRXD1
ETRXD0
ETRXCLK_C50M_O
PHY _REFCLK_E
ETMDIO
ETMDC

BL_DIMMING

DVDD3V3

R4111

NC/ 10K 1/16W

DEMOD_RST

C496
NC/100N 16V

DEMOD_RST15, 16

UART_SW3

SPK_INT11

AMP_RESETN11

SP_Amp_MUTE11

LVDS_PW R_EN14
MUTE _C TL17

HPDET#10

SYS_ EEPROM_WP9

ARC_OE7

VGA_EEPRO M_W P3

STANDBY2
USB_PWR _EN05
USB_OC_C OM5

OPCTRL117

OPCTRL49

OPCTRL59

DEMOD_TSCLK15
DEMOD_TSVAL15
DEMOD_TSSYNC15
DEMOD_TSDATA015

OIRI9,17

BL_DIMMING2

BL_ON/OFF2

HDMI_SW_RST7

DEMOD_RST

UART_SW
SPK_INT
AMP_RESETN

SP_Amp_MUTE

LVDS_PW R_EN
MUTE _C TL

HPDET#
SYS_EEPR OM_W P
ARC_OE
VGA_EEPROM_WP

STANDBY

USB_PWR _EN0

USB_OC_C OM

OPCTRL1

OPCTRL4

OPCTRL5

DEMOD_TSCLK
DEMOD_TSVAL
DEMOD_TSSYNC
DEMOD_TSDATA0

OIRI

BL_DIMMING

BL_ON/OF F

HDMI_SW_RST

R476

2K2 1/10W 1%

LED_POWER_GREEN

OIRI

KEY_UP_DN_DCSW
KEY_MENU_L_R_SOURCE

NC/ 10K 1/16W 5%

R492

SMD/0402

3V3SB 3V3SB

TO IR/KEY BOARD

R477

2K2 1/10W 1%

SMD/0402

R493 100R 1/16W 5%
R478 100R 1/16W 5%

R491 22 OH M 1%

SMD/0402

R490 22 OH M 1%

SMD/0402

C494
100N 16V

SMD/0402

SMD/0402
SMD/0402

100N 16V

SMD/0402

OIRI_IRboard

C491

C492
10N 50V

SMD/0402

LED_G

C495
100N 16V

SMD/0402

Key 1
Key 2

TVM1G 5R 5M100 R

12

12

ZD421

TVM1G5 R5M10 0R

ZD422
TVM1G 5R 5M100 R

4.7K 1/10W

12

ZD423

TVM1G 5R 5M100 R

12

ZD424

DVDD3V3

R495

12

ZD425

TVM1G 5R5 M100 R

TVM1G 5R5 M100 R

FB125

220R/ 2000mA

KEY_EN

12

ZD426

12

100N 16V

SMD/0402

C493

+5V_SW

DVDD3V32,4, 5,7,8,9, 10,11,12,14, 15,16,18

3V3SB2, 6,7,9,17

24V2

+5V_SW2,5,7, 10,12,14,15,16, 17
VCCK2,9
AVDD3V32,4,5,7,8,9, 10,11,12,14,15,16,18
LVDSVDD14

ADAC_PW R12

CN407

1
2
3
4
5
6
7
8

9
10
11
12
13

CONN

MII Interface

ETCOL18
ETTXEN18
ETTXD318
ETTXD218
ETTXD118
ETTXD018

ETTXCLK_R EF_CLK18

ETRXDV18
ETRXD318
ETRXD218
ETRXD118

ETRXD018
ETRXCLK_C50M_O18
PHY _REFCLK_E18

ETMDIO18

ETMDC18

PHY RST#18

GND2, 3,4,5,6, 7,8,9,10, 11,12,14, 15,16,17,18

DVDD3V3

3V3SB

24V

+5V_SW
VCCK
AVDD3V3
LVDSVDD
ADAC_PW R

ETCOL
ETTXEN
ETTXD3
ETTXD2
ETTXD1
ETTXD0
ETTXCLK_R EF_CLK
ETRXDV
ETRXD3
ETRXD2
ETRXD1
ETRXD0
ETRXCLK_C50M_O
PHY _REFCLK_E
ETMDIO
ETMDC
PHY RST#

76

14 LVDS OUTPUT

USB_VRT

R497

5.1K 1/16W

Clos e to 5366.

OSDA1

Q403 NC/2N7002

OSCL1

Q404 NC/2N7002

AVDD33_USB_2P

USB_DP0
USB_DM0

DVDD3V3

NC/0R05 1/16W

NC/0R05 1/16W

DVDD3V3

R4008

R4009

U401D

AB1

AVDD33_USB_2P

V7

AVSS33_USB_2P

AC3

USB_2P_VRT

AB2

USB_2P_DP0

AC1

USB_2P_DM0

AC2

USB_2P_DP1

AD1

USB_2P_DM1

Panel_12V

LVDS_SDA
E4N
E3N

E2N
E1N

O4N
O3N

OCKN

O2N
O1N
O0N
LVDS_f ormat

AVDD33_LVDSA
AVDD33_LVDSA

AVSS33_LVDSA
AVSS33_LVDSA

AVDD12_VPLL

AVSS12_VPLL

TP_VPLL

AE0P

AE0N

AE1P

AE1N

AE2P

AE2N

AECKP

AECKN

AE3P

AE3N

AE4P

AE4N

AE5P

AE5N

AO0P

AO0N

AO1P

AO1N

AO2P

AO2N
AOCKP
AOCKN

AO3P

AO3N

AO4P

AO4N

AO5P

AO5N

MT5366GSNG

42

40
38
36
34
32
30
28
26
24
22
20
18
16
14
12
10

8
6
4
2

41

CN408

39
37
35
33
31
29
27
25
23
21
19
17
15
13
11
9
7
5
3
1

CONN

E18
E19

E16
E17

F19
G19

A24

D17
C17
C19
D19
D20
C20
C21
D21
D23
C23
C24
D24
D25
C25

A17
B17
A18
B18
A19
B19
A20
B20
A21
B21
A22
B22
A23
B23

AVDD33_LVDSTX

AVDD12_VPLL

E0P
E0N
E1P
E1N
E2P
E2N
ECKP

ECKN

E3P
E3N
E4P
E4N

O0P
O0N
O1P
O1N
O2P
O2N

OCKP

OCKN

O3P
O3N
O4P
O4N

LVDS_SCL
E4P
E3P

ECKPECKN

E2P
E1P
E0PE0N
O4P
O3P

OCKP

O2P
O1P
O0P

C481

100uF16V

+

DVDD3V3

NC/0R05 1/16W

R4005

NC/0R05 1/16W

R4002

C49010U 16V

Analog Power

AVDD3V3

R498
0R01

LVDSVDD

Panel_12V

FB404

1 2

120R/6000mA

C489

100N 16V

( ?? mA )

AVDD33_USB_2P

Panel_12V

LVDS_f ormat

O0N
O0P

O1N
O1P

O2N
O2P

OCKN
OCKP

O3N
O3P

FPC Connector

C484

100N 16V

30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10

9
8
7
6
5
4
3
2
1

AVDD3V3

R496
0R01

C482

100N 16V

AVDD1V2

R499
0R01

C485

100N 16V

CN409

CONN

31 32

( 180 mA )

AVDD33_LVDSTX

C483

100N 16V

( 6.5 mA )

AVDD12_VPLL

C486

100N 16V

+5V_SW

+12V

FB401 NC/120R/6000mA

1 2

1 2

FB402 120R/6000mA

HI = > LVDS POWER ON

LO = > LVDS POWER OFF

LVDS_PWR_EN

R4006

4.7K 1/10W

R4004 20K 1/10W

R4007

NC

R4000

47K 1/10W 5%

C488

0.1uF 50V

+12V2,17

AVDD3V32,4,5,7,8,9, 10,11,12,13,15,16,18

AVDD1V22, 7,8,9,12,15

+5V_SW2,5,7,10, 12,13, 15,16,17

AVDD1V22, 7,8,9,12,15

LVDSVDD

DVDD3V32,4,5,7,8, 9,10, 11,12,13,15,16,18

GND2,3, 4,5,6,7,8,9,10,11,12, 13,15, 16,17,18

LVDS_PWR _EN13

USB_DP05
USB_DM05

OSDA17,9,11

OSCL17,9,11

C487

330N 25V

R4001

47K 1/10W 5%

LVDS_PWR_EN

USB_DP0
USB_DM0

OSDA1
OSCL1

5

8

S

D6D7D

4

LVDS POWER Control

Q402
BC847C

D1D2D3G

Q400
AON4421

LC-42SV32B

+12V

AVDD3V3
AVDD1V2
+5V_SW

AVDD1V2

LVDSVDD

DVDD3V3

LVDSVDD

FOR FULL HD PANELFOR WXGA PANEL

FOR 26" ~ 40" PANEL_12Vcc

77

LC-42SV32B

15 SBTVD DEMOD

T_AVDD2V5_demod

NC/0R05 1/16W

T_DVDD1V2

TUNER_DATA_Demod

TUNER_CLK_Demod

IF_AGC

FAT_IN+_C

FAT_IN-_C

C180

100N 16V

R1104

C188

100N 16V

C164

12P 50V

T_AVDD2V5_demod

C184

100N 16V

37

TAI NM

38

TAI NP

39

TAVS S

40

TAVD D

41

SLVADR1

42

XTALSEL

43

VSS3

44

CVDD4

45

TTUSDA

46

TTUSCL

47

GPIO1

48

TIF AGC

49

E-Pad

X1 00

41.0MHz

1

36

XVSS

GPIO0

1

35

XTALI

GPIO22TSSYNC

24

34

3

3

R1105

470R 1/10W 1%

T_AVDD1V2

C185

100N 16V

32

33

PVDD

XVDD

XTALO

TSVALID4TSCLK

5

C165

12P 50V

30

31

PVSS

OSCMOD E

VSS1

7

6

C181

100N 16V

T_DVDD1V2

C186

100N 16V

DEMOD_RST

28

29

RST_X

CVDD3

TSDATA19TSDATA08DVDD1

26

27

CVSS3

OSCEN_X

CVDD1

11

10

C177

100N 16V

R1120

0R05 1/ 16W

25

SLVADR0

TESTMODE

CVSS2

CVDD2

SDA

SCL

DVDD2

VSS2

TSD ATA7

TSD ATA6

TSD ATA5

TSD ATA4

TSD ATA3

TSDATA212CVSS1

CXD2828ER

U406

FB126

T_AVDD1V2

T_DVDD1V2

T_DVDD3V3

120R/3000mA

1 2

FB119

120R/3000mA

1 2

FB115

120R/3000mA

AVDD1V2

+5V_SW

12

DVDD3V3

FB111

1 2

220R/2000m A

C158

1uF 16V

NC/10U 10V

3

C132

VIN

U113
G1117T63Uf

VOUT

GND

1

4

2

TH

120R 1% 1/10W

120R 1% 1/10W

R1114

R1115

Vo= 1.25 x (1+120R/120R) = 2.5V

+5V_SW TO AVDD2V5_demod for DEMOD IC

24

23

22

21

20

19

18

17

16

15

14

13

C174

100N 16V

T_DVDD1V2

R1116

R1117

T_DVDD3V3

C176

100N 16V

R1112 22R 1/10W 5%

R1111

22R 1/ 10W 5%

0R05 1/16W

0R05 1/16W

C159

NC/ 10PF 50V

FB112

60 OHM
C130

NC/10P 50V

SMD/0402

OSDA2

OSCL2

C160

NC/ 10PF 50V

DEMOD_TSDATA0

DEMOD_TSCLK

12

C133

10PF 50V

T_AVDD2V5_demod

AVDD2V5_t uner

FB116 220R/2000mA

1 2

FB117 220R/2000mA

1 2

AVDD2V5_dem od

C134

+

100UF 16V

AVDD2V5_dem od

DEMOD_RST13,16

DEMOD_TSCLK
DEMOD_TSVAL
DEMOD_TSSYNC
DEMOD_TSDATA0

TUNER_CLK_Demod16

TUNER_DATA_Demod16

DVDD3V32,4,5, 7,8,9,10,11,12,13,14, 16,18

AVDD1V22,7,8,9, 12,14

+5V_SW2,5,7,10,12,13,14,16,17

GND2,3,4, 5,6,7,8,9,10,11,12, 13,14,16, 17,18

AVDD2V5_t uner16

DEMOD_RST

OSCL29

OSDA29

FAT_IN-_C16
FAT_IN+_C16

IF_AGC16

OSCL2
OSDA2

DEMOD_TSCLK 13
DEMOD_TSVAL 13
DEMOD_TSSYNC 13
DEMOD_TSDATA0 13

FAT_IN-_C
FAT_IN+_C

IF_AGC
TUNER_CLK_Demod
TUNER_DATA_Demod

DVDD3V3

AVDD1V2
+5V_SW

AVDD2V5_t uner

T_DVDD3V3

T_DVDD1V2

R1109 22R 1/10W 5%

R1113 22R 1/10W 5%

DEMOD_TSVAL

DEMOD_TSSYNC

78

16 TUNER

CASE112CASE213CASE314CASE4

15

IFOUT1P

IFOUT1N

AGC1

IFOUT2P

IFOUT2N

AGC2

SCL

SDA

17

CASE516CASE6

1

2

3

4

5

6

7

8

IFOUT1P

IFOUT1N

TIF AGC

Analog_IFOUT2P

Analog_IFOUT2N

Analog_IF AGC

T_SC L

T_SD A

Close to TUNER

+5V_T1

C191

100N 16V

Close to TUNER

A2.5V

C194

100N 16V

FB129 220R/ 2000mA

1 2

C192

10uF 10V

C195

10uF 10V

+5V_SW

AVDD2V5_t uner

Close to TUNER

T_SC L
T_SD A

C198

39pF 50V

SMD/0402

3.3K 1/16W

SMD/0402

R1159 200R 1/ 10W 1%
R1160 200R 1/ 10W 1%

C199

39pF 50V

SMD/0402

R1157

DVDD3V3

R1158

3.3K 1/16W

SMD/0402

TUNER_CLK_Demod
TUNER_D ATA_Demod

+5V_SW2,5, 7,10,12,13,14,15, 17
DVDD3V32,4,5, 7,8,9, 10,11,12,13, 14,15,18

GND2,3, 4,5,6,7,8,9, 10,11,12,13,14,15, 17,18

AVDD2V5_t uner15

Tuner I/O Interface

FAT_IN-12

FAT_IN+12

FAT_IN-_C15
FAT_IN+_C15

DEMOD_RST13,15

IF_AGCT12

IF_AGC15

TUNER_CLK_Demod15

TUNER_DATA_Demod15

FAT_IN­FAT_IN+

FAT_IN-_C
FAT_IN+_C

DEMOD_RST

IF_AGCT

IF_AGC

TUNER_CLK_Demod
TUNER_DATA_Demod

LC-42SV32B

+5V_SW
DVDD3V3

AVDD2V5_t uner

A2.5V

RESET

ANT_5V

TU1 01
SUT-RB211T

TU1 02
NC/SUT-RA217

12

IF_P

IF_N

AGC

I2C_SCL

I2C_SDA

A2.5V

RESET

TH18TH29TH310TH411TH5

9

10

11

C1107

10N 50V

1

2

3

4

5

6

7

A2.5V

+5V_T1

Analog_IFOUT2P

Analog_IFOUT2N

Analog_IFAGC

T_SC L

T_SD A

A2.5V

DEMOD_RST

DEMOD_RST

R353

10K 1%

Close to TUNER

TIF AGC

C1103

10N 50V

SMD/0402

Close to TUNER

Analog_IFAGC

C1104

10N 50V

SMD/0402

R1162

4.7K 1/16W

SMD/0402

R1174

4.7K 1/16W

SMD/0402

Close to ISDB-T Demod

R1161

22K 1/16W

R1175
NC/0R01

Close to MT5366

R1173

22K 1/16W

10K 1%

C1102

100N 16V

C1108

R1155

R1156

10K 1%

47N 16V

IF_AGC

IF_AGCT

IFOUT1P

R1151

NC/0R05 1/16W

C1112

NC/ 47pF 50V

Analog_IFOUT2P

Analog_IFOUT2N

C1118

NC/ 47pF 50V

IFOUT1N

R1152

NC/0R05 1/16W

Close to TUNER

Impedance Contrl 100ohm and
route the se path w ith differential
pattern on top layer.

C1113

1uF 25V

C1117

1uF 25V

FAT_IN2+

FAT_IN2-

R1153

0R05 1/16W

R1154
0R05 1/16W

Close to MT5366

IF BPF

C1114
47pF 50V

C1116
47pF 50V

R1148 100R 1/16W 5%

R1149 100R 1/16W 5%

FAT_IN+

R1150

150R 1/10W 5%

FAT_IN-

C1105

IFOUT1P

IFOUT1N

1uF 25V

C1106
1uF 25V

Close to TUNER

FAT_IN1+

FAT_IN1-

C1109
82pF 50V

R1163
47 OHM 1/16W

R1165
47 OHM 1/16W

C1111
82pF 50V

Close to ISDB-T Demod

R1164
47 OHM 1/16W

R1166
47 OHM 1/16W

FAT_IN+_C

FAT_IN-_C

79

LC-42SV32B

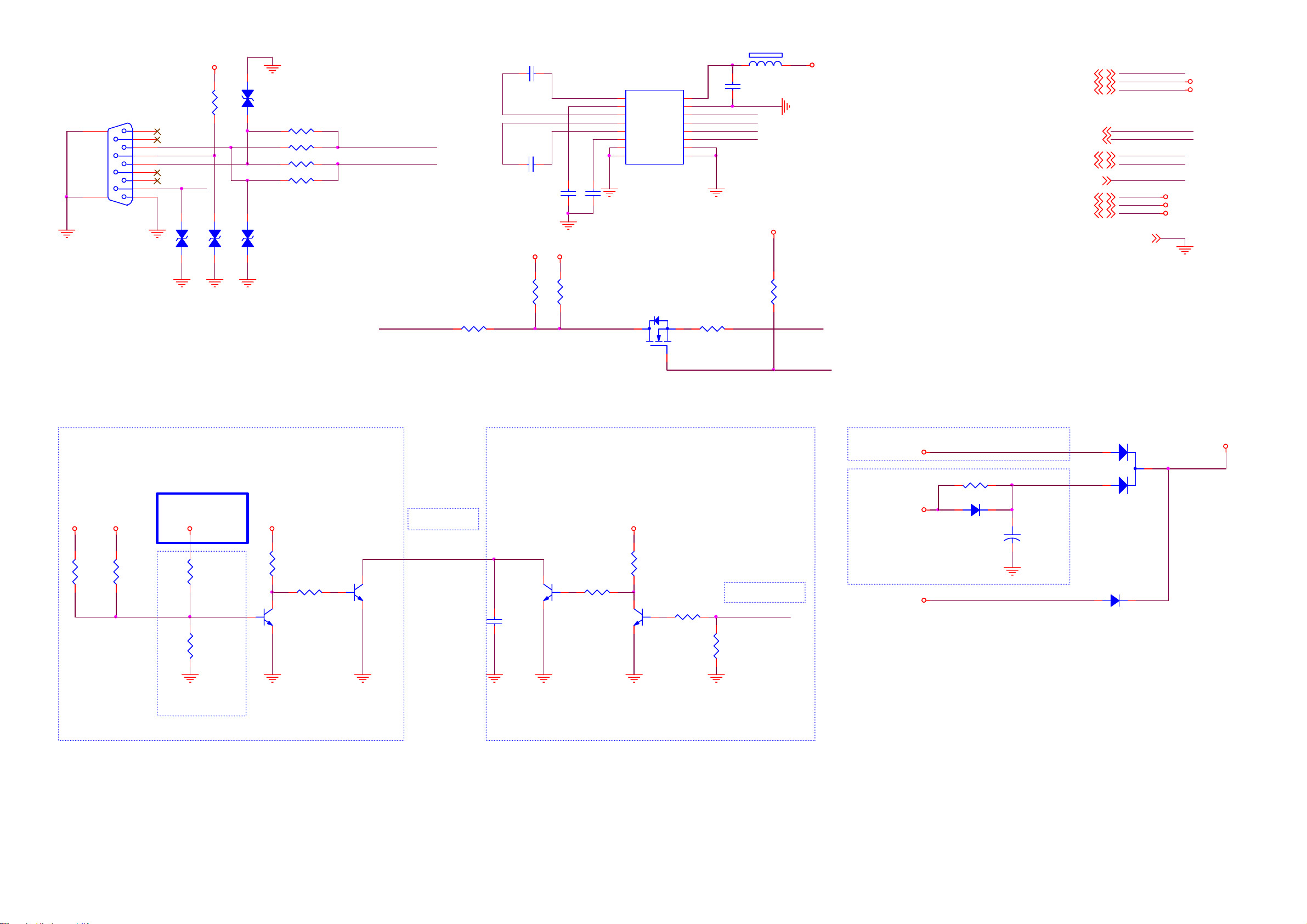

17 RS-232

CN105

11

10

D-SUB 9P

H:8.5mm

TVM1G 5R5M100R

1
6
2
7
3
8
4
9
5

+5VSB

R1136

NC/1K 1/16W

SMD/0402

REMOTE_5V

12

ZD132

NC/TVM1G5R5M100R

1 2

12

12

ZD133

TVM1G 5R5 M100R

ZD131
TVM1 G5R 5M100R

R1137 100R 1/16W 5%

SMD/0402

R1138NC/100R 1/16W 5%

SMD/0402

R1139NC/100R 1/16W 5%

SMD/0402

R1140 100R 1/16W 5%

SMD/0402

ZD134

RS232

TXD_1 2

RXD_12

REMOTE_5V

1uF 25V

1uF 25V

C1121

10K 1%

R1144100R 1/16W 5%

R1141

C1119

C1123 1uF 25V

C1122 1uF 25V

+5VSB3V3SB

R1142

NC/ 10K 1/16W 5%

1

C1+

2

V+

3

C1-

4

C2+

5

C2-

6

V-

7

DOUT2
RIN28ROUT2

Q108
2N7002

U116

16

VCC

15

GND

RIN1

DIN1
DIN2

14
13
12
11
10
9

DOUT1

ROUT1

MAX3232ECPWR

1uF 25V

TXD_ 12
RXD_12
U0RX
U0TX

R1145

0R05 1/ 16W

FB140
80 OHM

C1120

3V3SB

12

R1146

4.7K 1/10W

IR_LINK

OIRI

3V3SB

MUTE_C TL13
V_MUTE10
A_MUTE10,11

U0TX3,9

U0RX3,9

OIRI9,13

OPCTRL113

3V3SB2,6,7,9,13

+5VSB2,3,4,6, 9
+12V2,14

+5V_SW2,5,7,10, 12,13,14,15,16

MUTE_C TL

U0TX
U0RX

OIRI
IR_LINK

3V3SB

GND2,3,4,5,6,7,8,9, 10,11,12,13,14,15,16,18

+5VSB
+12V
+5V_SW

V_MUTE
A_MUTE

Mute Circuit

For AC OFF Pop Noise

First Drop

+12V +5V_SW V_MUTE+5VSB V_MUTE

R660
NC/27K 1/10W

R661
NC/10K 1/10W

R662
10K 1/10W

R666

2.2K 1/10W

Power Detect

R658
10K 1/10W

R663

1K 1/10W 1%

Q608
MMBT3 904

Q606
MMBT3 904

HI = > UN-M UT E
LO = > M UT E

A_MUTE

For AC ON Pop Noise

DC ON Pop Nose
DC OFF Pop Noise

Q607

MMBT3904

C673

220N 25V

R664

1K 1/10W 1%

MMBT3904

Q609

R659
10K 1/10W

1K 1/10W 1%

R665

LO = > M UT E
HI = > UN- M UTE

MUTE_CTL

R667

4.7K 1/10W

First Arrival

+5VSB

Last Drop

+12V

+5V_SW

R11470R01

NC/BAS32L

NC/100uF 25V

D103

C1124

D102

1

V_MUTE

3

2

BAV70

+

D104

NC/BAS32L

V_MUTE

80

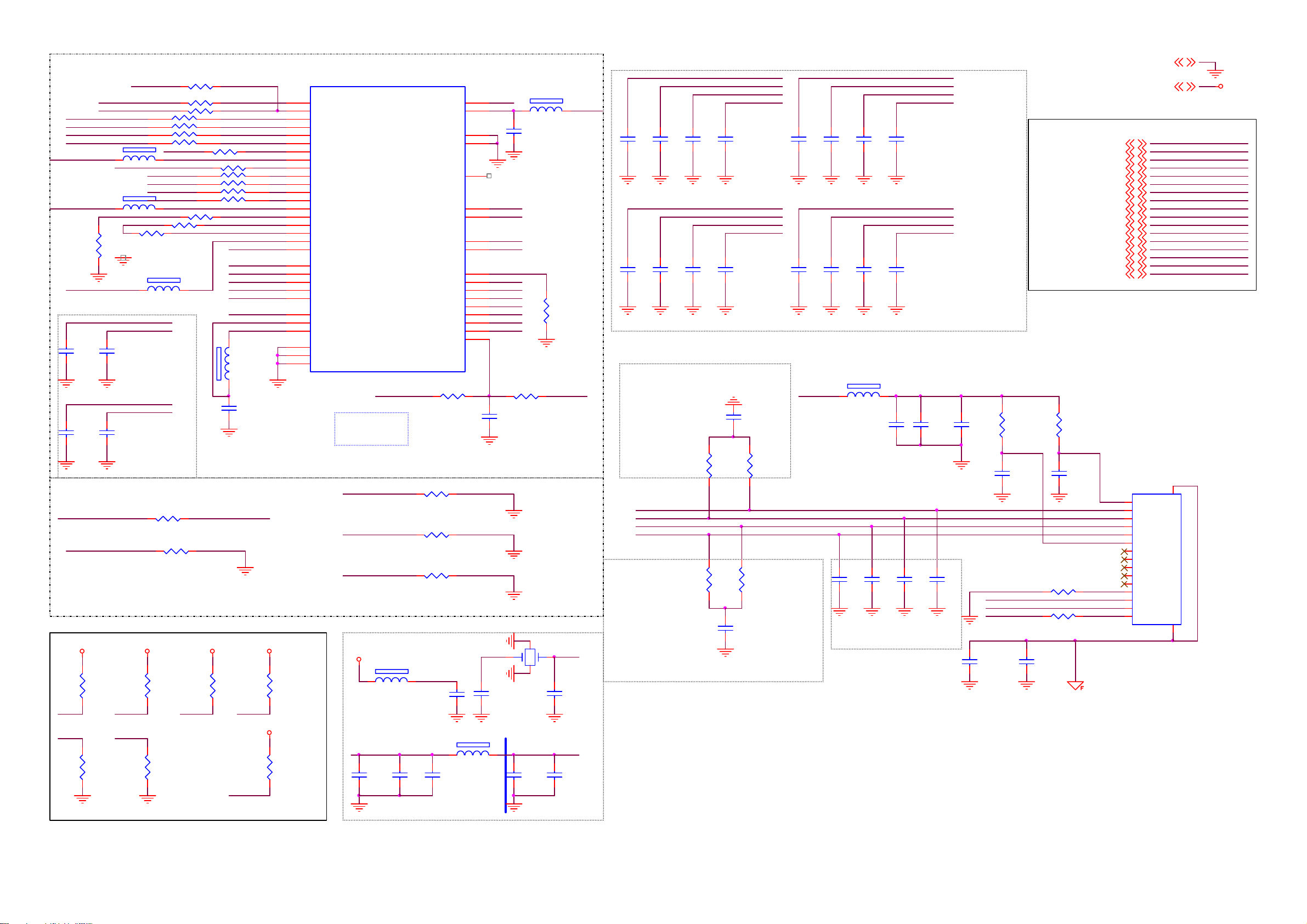

18 ETHERNET

ETTXD0
ETTXD1
ETTXD2
ETTXD3

ETTXCLK_REF_CLK

NC/120R/ 500mA

ETRXCLK_C50M_O

R296

PHY _REF CLK_E

C2102

NC/5PF 50V

C2104

NC/5PF 50V

SET PHY ADDRESS 00001

LED0/PHY AD0

LED1/PHYAD1

R287
NC/5.1K 1%

SPD

ISOL

R291
NC/5.1K 1%

DV33_MII

ETMDC
ETMDIO

FB266

1 2

NC/120R/ 500mA

FB267

1 2

ETCOL

NC/5.1K 1%

NC/5.1K 1%

1 2

ETTXCLK_REF_CLK
ETRXCLK_C50M_O

C2103

NC/5PF 50V

TX_CLK
RX_CLK

C2105

NC/5PF 50V

R262 NC/1K5 1/16W 5%

R263 NC/0R05 1/16W
R264 NC/0R05 1/16W

NC/22R

ETTXEN

ETRXDV

RP262

NC/22R

1
2
3
4

8
7
65RP261

ETRXD0
ETRXD1
ETRXD2

ETRXD3

R269 NC/0R05 1/16W
R270 NC/5.1K 1%

R271

FB268

NC/120R/ 500mA

R265 NC/0R05 1/16W

R267 NC/0R05 1/16W

Add EMI
solution(05/10)

R280
NC/5.1K 1%

LINK

FULL DUPLEX

DV33_MII

R288
NC/5.1K 1%

DPLX AN_ENA APS

RPTR

R292
NC/5.1K 1%

DV33_MII

R282
NC/5.1K 1%

DV33_MIIDV33_MII

8
7
6
5

X1
X2

LED0/ PHY AD0
LED1/ PHY AD1
LED2/ PHY AD2
LED3/ PHY AD3
LED4/ PHY AD4

REGIN
DV33_MII
INI

1 2

NC/120R/ 500mA

R289
NC/5.1K 1%

MII_SNIB

MD C
MD IO
TXD0
TXD1
TXD2
TXD3

TX_EN
TX_CLK
RX_DV

RXD0

1

RXD1

2

RXD2

3

RXD3

4

RX_CLK
COL
CRS/LEDMOD
RX_ER/FIBMOD

FB263

C261
NC/100N 16V

NEAR TRANSFORMER(CN106)

DV33_MII

R290
NC/5.1K 1%

DV33_MII

R294
NC/5.1K 1%

U262

25

MDC

26

MDIO

6

TXD0

5

TXD1

4

TXD2

3

TXD3

2

TXEN

7

TXC

22

RXDV

21

RXD0

20

RXD1

19

RXD2

18

RXD3

16

RXC

1

COL

23

CRS

24

RXER/FXEN

46

X1

47

X2

9

LED0/PHY AD0

10

LED1/PHY AD1

12

LED2/PHY AD2

13

LED3/PHY AD3

15

LED4/PHY AD4

8

PWFBIN

14

DVDD33

48

DVDD33

11

DGND

17

DGND

45

DGND

NC/RTL8201CP-VD -LF

PHY RST#

LO = > RESET
HI = > NORM AL

LED2/PHY AD2

PWFBOUT

AVDD33

AGND
AGND

NC

TPR X-

TPR X+

TPTX-

TPTX+

RTSET

ISOLATE

RPTR

SPEED

DUPLEX

ANE

LDPS

MII/SNIB/RTT3

RESETB

R295

NC/0R05 1/16W

R279
NC/5.1K 1%

LINKED IN 10BT/ACT(BLINKING)

LED3/PHY AD3

R281
NC/5.1K 1%

LINKED IN 100BT/ACT(BLINKING)

LED4/PHY AD4

R283
NC/5.1K 1%

COLLIISON

DVDD3V3

FB264

1 2

NC/120R/ 500mA

REGOUT

C275

NC/10uF 10V

DV33_MII

C272
NC/10uF 10V

C280

NC/10uF 10V

FB265

1 2

NC/120R/ 500mA

C276
NC/100N 16V

NEAR U261
Pin32

32
36

29
35

27

30
31

33
34

28
43
40
39
38
37
41
44
42

REGOUT

MD I_R N
MD I_R P

MD I_TN
MD I_TP

ISOL
RPTR
SPD
DPLX

AN_ENA

APS
MII_SNIB

C263
NC/1uF 16V

X1

C273
NC/27P 50V

FB262

1 2

NC/120R/ 500mA

C262
NC/100N 16V

R274

NC/10K 1%

X4 02

24

1

NC/25MHz

REGIN

C277

NC/10N 50V

NEAR U261
Pin8

DV33_MII

R273
NC/2K 1/10W

DV33_MII

X2

3

C274
NC/27P 50V

C278
NC/100N 16V

C297

NC/5PF 50V

NC/5PF 50V

C285

NC/5PF 50V

NC/5PF 50V

C298

C286

C299
NC/5PF 50V

NC/5PF 50V

C287

NC/5PF 50V

NC/5PF 50V

C2100

C288

Add EMI solution(05/10)

TRANSFORMER(CN106)

NC/49.9 OHM 1% 1/16W

MDI_ TP
MDI_ TN
MDI_ RP
MDI_ RN

NC/49.9 OHM 1% 1/16W

NEAR
PHY(U261)

NEAR

R277

R286

ETTXD0
ETTXD1
ETTXD2
ETTXD3

C289

NC/5PF 50V

TXD0
TXD1
TXD2
TXD3

C293

NC/5PF 50V

REGOUT

C264
NC/100N 16V

R278
NC/49.9 OHM 1% 1/16W

R261
NC/49.9 OHM 1% 1/16W

C271
NC/100N 16V

ETRXD0
ETRXD1
ETRXD2
ETRXD3

MII Interface

C290

NC/5PF 50V

NC/5PF 50V

C294

NC/5PF 50V

NC/5PF 50V

C291

C295

C292

NC/5PF 50V

RXD0
RXD1
RXD2
RXD3

C296

NC/5PF 50V

ETCOL13
ETTXEN13
ETTXD313
ETTXD213
ETTXD113
ETTXD013

ETTXCLK_REF_CLK13

ETRXDV13
ETRXD313
ETRXD213
ETRXD113

ETRXD013
ETRXCLK_C50M_O13
PHY _REFCLK_E13

ETMDIO13

ETMDC13

PHY RST#13

MII ETHERNET PHY

FB261

1 2

NC/100ohm

C265

NC/10uF 10V

C281

NC/10PF 50V

NC/10PF 50V

C282

C279

NC/10uF 10V

C283
NC/10PF 50V

C284

NC/10PF 50V

Add EMI
solution(05/10)

C266
NC/1N 50V

NC/100N 16V

R275
NC/0R05 1/16W

C267

NC/1N 50V

LED3/PHY AD3
DV33_MII
LED0/PHY AD0

C269

R276
NC/0R05 1/16W

C268
NC/1N 50V

R284NC/510R 1/16W 5%

NC/510R 1/16W 5%

C270

NC/100N 16V

R285

LC-42SV32B

GND2,3,4,5,6,7, 8,9,10,11,12,13,14, 15,16,17

DVDD3V32,4,5,7,8,9,10,11,12,13,14,15,16

ETCOL
ETTXEN
ETTXD3
ETTXD2
ETTXD1
ETTXD0
ETTXCLK_REF_CLK
ETRXDV
ETRXD3
ETRXD2
ETRXD1
ETRXD0
ETRXCLK_C50M_O
PHY _REF CLK_E
ETMDIO
ETMDC
PHY RST#

DVDD3V3

Ethernet DTE Device

Activity LED: Yellow

Link LED: Green

CN106

1

TCT P1

2

TD+ P2

3

TD- P3

4

RD+ P4

5

RD- P5

6

RCT P6

7

NC P7

8

NC P8

9

NC P9

10

NC P10

11

NC P11

12

Y- P12

13

Y+ P13

14

G- P14

15

G+ P15

NC/RJ 45 CONN+LED 15P

16

TH1

TH2

17

RJ45

SEPARATE GROUND

81

LC-42SV32B

[2] POWER SCHEMATIC DIAGRAM

FB9902
BEAD

BD901
GBJ1008

3

RV9908
DSPL201M-A21F

C9903
470pF 250V

RV9906
DSPL201M-A21F

R901

300K 1/4W

F902
FUSE

!

HS10

HEAT SINK

1
2

BD901

HS11

HEAT SINK

1
2

D9802

HS12

HEAT SINK

1
2

Q9801

HS13

HEAT SINK

1
2

Q9101,Q9102

1

4

0.47uF 305V

!

!

124

!

CAP004DG

1

NC

2

D1

3

D1
NC4NC

C901 47pF

!

-

+

FB9901

1 2

BEAD

2

3

L9902

20.0mH

!

1

4

C9902

C9905
470pF 250V

!

3

C9901

0.47uF 305V

R902
NC

IC901

NC

D2
D2

RV9901
TVR14561KSY

CN901

3

AC SOCKET

HEAT SINK

HEAT SINK

1 2

2

RV9907
DSPL201M-A21F

C9904
470pF 250V

!!

RV9905

L9901

DSPL201M-A21F

13mH

R903
300K 1/4W

8
7
6
5

F901
FUSE

!

12

HS20

HEAT SINK

1
2

D9350

HS21

1
2

D9151,D9152

HS22

1
2

D9153

t

NR902

1 2

t

NR901

1 2

C9810
1UF450V

RV9903
Varistor-NC

SG9907
DA38-452MT-A21F-M-NC

Vcc_1

+

C9814
22uF/50V

R9817

33K 1/8W 5%

D9301
PR1007

FB908
BEAD

1 2

7

1

R9810

NC

C9813
100NF 50V

C9816
NC

R9104

B+

0.1R

R9105

1MOHM +-1% 1/4W

R9106

1MOHM +-1% 1/4W

R9107

1MOHM +-1% 1/4W

C9107
100NF 50V

R9109

13KOHM +-1% 1/8W

C928

470pF 250V

!

11128

2

R9811
10K 1/8W

L9804
170uH

!

C929
470pF 250V

!

D9804
IN5408G-04

R9832

22OHM +-5% 1/8W

6

5

8

ZCD

OUT7VCC

GND

IC9801
LD7591GS

INV1COMP2RAMP3CS

4

R9818

10K 1/8W

C9817
47N 50V

R9304

C9108

10uF/50V

D9805

SS0520

R9813

75 OHM 1%

R9824

1K 1/8W

C9812
56PF 50V

C9818
470NF 50V

R9304,R9305,R9306

1.5M 1% 1/4W

Vcc_1

+

C9109

100NF 50V

C9126
220PF

C9823
220PF

D9802
FMNS-1106S

12

R9814
10K 1/8W

R9815
470OHM +-5% 1/8W

R9801

0.2 OHM +-5% 2WS

C9815
220PF

R9305

FB

C9114

470NF 50V

R9121

470OHM +-5% 1/8W

1 2

C9826
10NF 1KV

Q9801
STW26NM60N

R9802

0.2 OHM +-5% 2WS

C9819
NC

IC9101

SSC9512S-TL

1

Vsen

2

Vcc

3

FB

4

GND

5

Css

6

OC

7

RC

8

Reg
RV9COM

D9105
UF4007

C9117

1U 25V

R9122
120OHM +-5% 1/8W

FB9907
BEAD

R9819
NC

R9306

NC
NC

VGH

VS

VB
NC
NC

VGL

R9820
1MOHM +-1% 1/4W

R9821
1MOHM +-1% 1/4W

R9822
1MOHM +-1% 1/4W

R9823
19K1 +-1% 1/8W

SS0520

47OHM +-5% 1/8W

18
17
16
15
14
13
12
11
10

R9119

10R 1/8W 5%

C9119
10PF 3KV

!

RV9904
NC

C9321
470NF 50V

D9102

R9110

1U 25V

47OHM +-5% 1/8W

C9116
1N 50V

1 2

12

C9118

FB910
BEAD

B+_390V

D9103

SS0520

R9116

+

C9824

100uF M 450V

R9311
560K +-5% 1/8W

R9111

10K 1/8W

12

ZD9101

MTZJ T-72 16B

12

R9117

10K 1/8W

C932
470pF 250V

!

Q9101

TK10A50D

Q9102

TK10A50D

C9124

100PF

+

100uF M 450V

FB_1

C9309
1N 50V

C933
470pF 250V

!

C9825

4.7M OHM +-5% 1/4W

R9301

2.4 OHM 1/4W

Vcc_1

2SD1624T-TD-E

+

C9337
10uF/50V

!

2
3

6
7

C9115
18NF

R9125
24K 1/8W

C9128

4.7uF 50V

FB9909
BEAD

1 2

C9811
10NF 1 KV

R9337

FB/OLP4VCC

3

GND

2

BR

1

S/OCP

R9302

2.4 OHM 1/4W

Q9321

ZD9301

MTZJ T-72 16B

1 2

T9101

POWER X'FMR

C9127

100NF 50V

+

B+

1NF

IC9301
A6069H

D/ST
D/ST

R9339

10K 1/8W

!

13

10
9

15
8

12
11

14

560OHM +-5% 1/8W

R9348

0.1R

C9329

Vcc

4

R9123

5

7
8

C9333

22uF/50V

IC9351
TLP781F

D9330
PR1007

FB

4

D9303
1N4148W

C9308

+

100NF 50V

+5VS

R9360
1K 1/6W 5%

1

23

D9153

3

MBRF2060CT

2

1

IC9102
TLP781F

!

R9401,R9402,R9403,R9404
100K 1/4W

R9307

R9309

R9310

R9308

R9331

2.4 OHM 1/4W

Vcc

D9335
PR1007

+

C9331
100UF 50V

C9356
100NF 50V

D9151
FMEN-2308

3

2

1

D9152

3

FMEN-2308

2

1

+

C9155
1000UF 35V

R9156
4K7 +-5% 1/8W

R9157
3K 1/8W

IC9103
AS431AZTR-E1

R9361
10K 1/8W

C9159
100NF 50V

Q9350
RK7002BM

1

23

L9105

3.5uH

1

2

3
4

5

FB909
BEAD

1 2

R9363
330K 1% 1/8W

C9151

1000UF 35V

+

+

D9154
1N4148W

Q907

PMBS3906

R9158
5K1 +-5% 1/8W

T9301

POWER X'FMR

!

C930

470pF 250V

!

PS_ON

C9152

1000UF 35V

+

C9156
470UF 25V

R950,R951 100OHM 1/4W
C950,C951 0.001uF

6
7

9
10

3

1

C931
470pF 250V

!

L9104

3.0uH+-10%

C9153

47UF 50V

C9157
100NF 50V

R9155
33K 1/8W 5%

C9158
220N 50V

R9350

R9351

D9350
MBRF2060CT

2

+

C9353
470UF 25V

FB_1

4

!

AS431AZTR-E1

R912,R913,R914,R915

5.1K 1/4W

+

R9151

R9152

R9153

12V

R9159
56K 1/8W +/-1%

R9160
2KOHM +-1% 1/8W

C9350

C9351

IC9350
TLP7 81F

IC9352

24V

+5VS

R9354
220R 1/8W 5%

1

23

C9355

220N 50V

R9154

R9161
20K5 1/8W 1%

L9350

3.5uH

24V

NC

24V

R9355
1K 1/8W

R9356

1K 1/8W

R9359

C9154

100NF 50V

+

C9354

470UF 25V

A5V

ON/OF F

PDIM

D9156
SR506

47UF 50V

+5V

R9357

2.4K 1% 1/8W

R9358
2K2 1/8W 1%

C9160

C9374
100NF 50V

1
2
3
4
5
6
7
8

9
10
11
12
13

+

+5V

2.5A

CN903

CONN

R9162

A5V

+24V

Q970
PMBS3904

ON/OF F

PDIM

12V

+24V

PS_ON

+5V

GDZJ 16B

ZD951

R983
1K 1/8W

C978
100NF 50V

CN902

1
2
3
4
5
6
7
8

9
10
11
12
13

CONN

24V

12V

ZD952
GDZJ 30B

1 2

1 2

1

2

D955

BAV70

3

R981
1K 1/6W 5%

R982
10K 1/8W

82

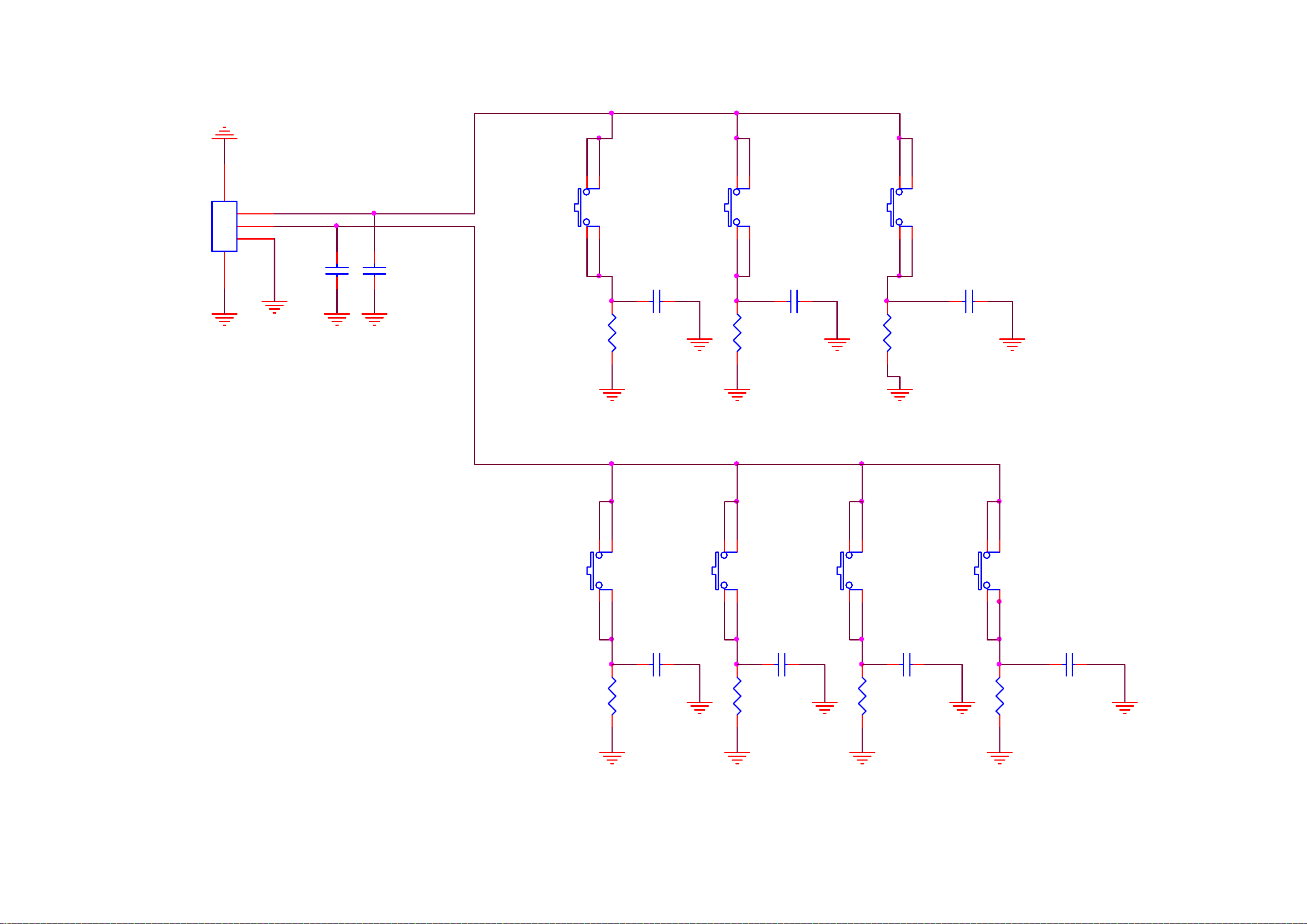

[3] KEY SCHEMATIC DIAGRAM

LC-42SV32B

CN016

CONN

MENU

1.4V

45

1
2
3

C024

100N 50V

key2

C023

100N 50V

Key 1

SW016

TACT SW FWRD H1.5MM

C018

R022
1K62 1/10W 1%

SOURCE

0.93V

100N 50V

R021
820R 1/10W 1%

SW022

TACT SW FWRD H1.5MM

C017

100N 50V

POWER

0.47V

SW021
TACT SW FWRD H1.5MM

R020

360R 1%

C016

100N 50V

CH-

1.87V

SW019

TACT SW FWRD H1.5MM

腹ビ叫い

R016

2.94K 1%

C019

100N 50V

CH+

1.4V

SW020

TACT SW FWRD H1.5MM

C020

100N 50V

R017
1K62 1/10W 1%

VOL+

0.47V

SW018

TACT SW FWRD H1.5MM

C022

100N 50V

R019
360R 1%

VOL-

0.93V

SW017

TACT SW FWRD H1.5MM

C021

100N 50V

R018
820R 1/10W 1%

83

LC-42SV32B

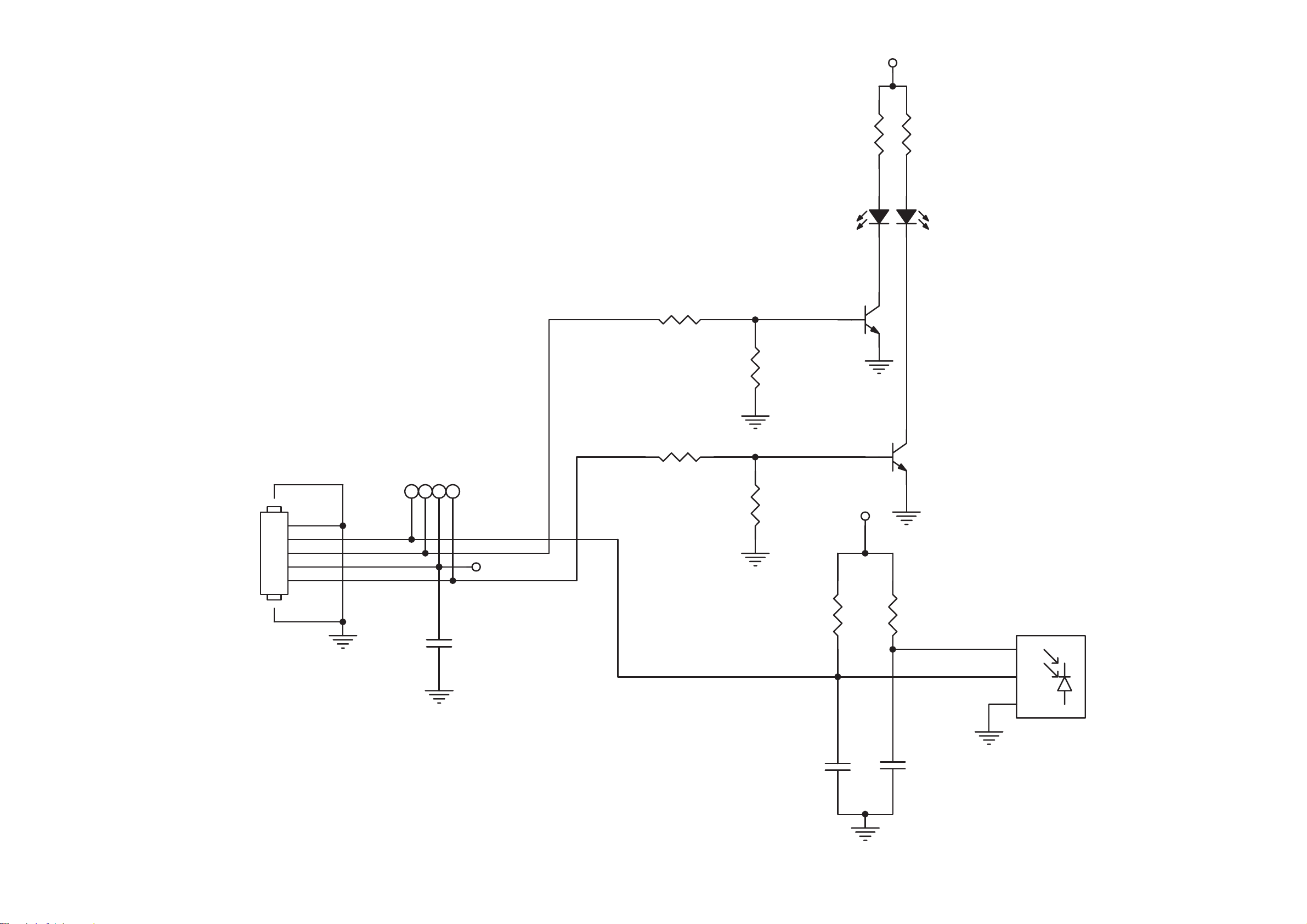

[4] IR SCHEMATIC DIAGRAM

DV33SB

CN001

67

R001

1KOHM +-5% 1/10W

1

R002
220 OHM +-5% 1/10W

3

LED001

GR

GPTD1210RGC

2

4

R004

2.2KOHM +-5% 1/10W

R008

NC/10K 1/10W 5%

R003

TP0011TP003

1
2
3
4
5

--------><------|

-------><-----|

----><----|

TP004

TP002

1

1

1

RC6

LED_R

DV33SB

LED_G

2.2KOHM +-5% 1/10W

R007

NC/10K 1/10W 5%

Q001

BC847C

Q002

BC847C

DV33SB

R006

R005

2.7KOHM +-5% 1/10W

C003

CONN 3P 1.25MM LOCK

100N 50V

C002

NC/100P 50V

84

100 OHM +-5% 1/10W

--------><----|

----><----|

C001

1U 10V

U001

3

VS

1

OUT

2

GND

KSM-603TM2M

LC-42SV32B

CHAPTER 9.

PARTS GUIDE

[1] SPARE PARTS LIST

Item Parts Code Sharp Code Description

705TXBBCP10 9JRBR70500025 705 ASS'Y FOR BRAZIL PACKING
040G 58162435A 9JRBR40000010 PN LABEL FOR MANUAL PE BAG
045G 77500 9JRBR45000011 BARCODE RIBBON
045G 77501 9JRBR45000006 BAR CODE RIBBON X300X75
051G 2 14 9JRBR51000005 FUSE GEL
052G 1185 9JRBR52000010 MIDDLE TAPE (Y1200141)
052G 1185 1 9JRBR52000002 BIG TAPE(Y1200141)
052G 1186 9JRBR52000003 SMALL TAPE
052G 2191 A 9JRBR52000004 PAPER TAPE
052G 2191 A 9JRBR52000004 PAPER TAPE
078G0110575 Y 9JRBR78000001 SPEAKER 16 OHM 11W 126X34 - YES
092GB1JX1A31GG 9JRBR92000002 BATTERY 1.5V GLR03A
095G8013 4XM17 9JRBR95000010 HARNESS 4P(2506)-B&R+B&W 800+400MM
095G801413XM22 9JRBR95000006 HARNESS 13P(2008)-3P+5P 1000+450MM
095G801851XM26 9JRBR95000007 HARNESS 51P-40P(A12511) 550MM
0M1G 140 6120 9JRBR01000004 SCREW M4X6
0M1G 940 6120 9JRBR01000005 SCREW 4X6
0M1G 940 12 47 CR3 9JRBR01000034 SCREW 4X12
0M1G 940 12 47 CR3 9JRBR01000034 SCREW 4X12
0M1G1730 10120 9JRBR01000036 SCREW 3X10
0M1G1740 14 47 CR3 9JRBR01000006 SCREW
0M1G1740 16 47 CR3 9JRBR01000030 SCREW
0Q1G 130 8120 9JRBR01000015 SCREW 3X8
0Q1G 330 8 47 CR3 9JRBR01000014 SCREW 3X8
0Q1G 330 8 47 CR3 9JRBR01000014 SCREW 3X8
0Q1G 330 8 47 CR3 9JRBR01000014 SCREW 3X8
0Q1G 940 8 47 CR3 9JRBR01000037 SCREW 4X8
0Q1G 940 16 47 CR3 9JRBR01000025 SCREW 4X16
0Q1G 940 16 47 CR3 9JRBR01000025 SCREW 4X16
0Q1G 940 16 47 CR3 9JRBR01000025 SCREW 4X16
0Q1G 940 25 47 CR3 9JRBR01000016 SCREW
0Q1G1030 8 47 CR3 9JRBR01000017 SCREW 3X8
389G224A15NLSS 9JRBR38900001 AC POWER CORD 1500MM
398GRABD4NESPR 9JRBR39800001 REMOTE SHARP RC2444606/01
750TAU420H9213N000 9JRBR75000002 LCD T420HW09 V250 XM AUO
A15T0282201CKD 9JRBR15000029 BKT-VESA-BTM
A15T1174103CKD 9JRBR15000030 BKT_PANEL
A33T0536ADTY1T0100 9JRBR33000002 COVER_FUNCTION
A33T0537PAA 1T0100 9JRBR33000012 KEY-PAD
A34T1032ACNBYT01BC 9JRBR34000016 BEZEL 42"SHARP
P01G0037 1 9JRBR01000032 SCREW 5X70 _PARTIAL THREAD
P01T0006 1 9JRBR01000033 SCREW (PH+W6#X15 HI-LO W=13)
P12G 65018 9JRBR12000006 HEAT PAD
P12G 65020 9JRBR12000009 HEAT PAD OTHER YES 94V-V0
P12T 61037 9JRBR12000010 RUBBER RING (35X27X7.5 MM)
P15T0603104CKD 9JRBR15000032 PLATE
P15T0605102CKD 9JRBR15000033 BRACKET _PANEL-R
P15T0607101CKD 9JRBR15000034 BRACKET
P15T0609101CKD 9JRBR15000035 BRACKET
P15T1052102CKD 9JRBR15000036 BRACKET _MB_L_
P15T1122101CKD 9JRBR15000003 BRACKET _NECK

MODEL: LC-42SV32B

85

LC-42SV32B

U409 056G113353A 9JRBR56000027 IC M24C32-WMN6T SO-8 ST
U407 056G1133913 9JRBR56000028 EEPROM M24C02-WDW6P 2KB TSSOP8

U405 056G2233 43 9JRBR56000029 FLASH H27U2G8F2CTR-BC 2GB TSOP-48
SMTF-U405 100TEKAM011S1X 9JRBR10000009 MCU ASS'Y-056G2233 43
SMTF-U409 100TEKAM012S2X 9JRBR10000010 MCU ASS'Y-056G113353A
SMTF-U407 100TEKAMV05S1D 9JRBR10000011 MCU ASS'Y-056G1133913

CN410 033G3802 3 9JRBR33000005 WAFER 2.0MM 3P
CN407 033G380213B YH 9JRBR33000007 WAFER 2.0MM 13P

CN111 088G 78F151XCL 9JRBR88000004 RCA JACK V/T 11P G/BL/R/W/R 1*5 H=8.6
CN128 088G 78G132AYG 9JRBR88000005 RCA JACK R/A 7P Y/W/R 1*3 H=10.5
CN102 088G302F3G1VYG 9JRBR88000006 PHONE JACK V/T 3P GREEN H=8.4
CN602 088G302G7B1ACL 9JRBR88000007 PHONE JACK R/A 7P BLACK H=10.5
CN103 088G352F6B2ACL 9JRBR88000008 USB CONN R/A 6P BLACK 8.4MM
CN105 088G353F9M1XCL 9JRBR88000001 D-SUB CONN SCREWED V/T 9P BLACK H=8.4
CN101 088G353FFF1XCL 9JRBR88000002 D-SUB CONN SCREWED V/T 15P BLUE H=8.6

TU101 094GNTSC MN2Y 9JRBR94000001 TUNER BRAZIL SUT-RB211TN

CN601 311GW250B04DBX 9JRBR31100002 WAFER 2.5MM 4P

P15T1400101CKD 9JRBR15000039 BRACKET _STAND
P15T1405101CKD 9JRBR15000040 BRACKET _SIDE_IO
P33T0148 1 1C0100 9JRBR33000001 LENS_IR
P33T0150 1 1C0100 9JRBR33000013 CLIP
P34T0390PAA LG01BB 9JRBR34000009 REAR_COVER 42"
P34T0391ACN 1L0200 9JRBR34000005 BASE
P34T0751PAA 1L0100 9JRBR34000007 BASE _NECK
P36G0016 1 9JRBR36000007 MESH-SPK
P44GN019101 9JRBR44000015 CUSHION_TL
P44GN019201 9JRBR44000006 CUSHION_TR
P44GN019301 9JRBR44000007 CUSHION_BL
P44GN019401 9JRBR44000008 CUSHION_BR
P45T 46023 9JRBR45000003 P.E. BAGX1200X1000X0.72MM
Q11T5002 2 9JRBR11000002 WIRE-CLIP
Q11T5002 2 9JRBR11000002 WIRE-CLIP
Q12G6300253 9JRBR12000008 RUBBER PAD
Q12T6300 25 3 9JRBR12000004 FOOT PAD SILICONE
Q16G0001 10 4 9JRBR16000002 EVA WASHER
Q16G0001 10 5 9JRBR16000003 EVA WASHER
Q36T 600 36 14 GP 9JRBR36000008 NON-WOVEN FABRIC
Q45G 77 5 9JRBR45000007 PE PACKING (Y1900241)
Q45G2010M0101A 9JRBR45000008 PE BAG FOR MANUAL
Q45T 99609 60 9JRBR45000010 EPE COVER
Q50G 500 TV005 9JRBR50000002 CABLE TIE
Q52G1501150523 W 9JRBR52000007 INSULATING PLATE
X40G 420843 2A 9JRBR40000005 LC-42SV32B RATING LABEL
X40G0001843 1A 9JRBR40000004 CARTON LABEL
X40G0002843 3A 9JRBR40000021 FRONT CABINET LABEL
X41G42MV84301A 9JRBR41000002 LC-42SV32B MANUAL
Z40G0002843B9A 9JRBR40000013 LABEL SIDE SIDE LABEL
705TXBBCA10 9JRBR70500021 705 ASS'Y FOR BRAZIL PCBA
756TXCCB02S0710002 9JRBR75600007 MAIN BOARD-CBPFC4FSX7C

X6 009G6005 1 9JRBR09000001 GND TERMINAL
X5 009G6005 1 9JRBR09000001 GND TERMINAL
X4 009G6005 1 9JRBR09000001 GND TERMINAL
X2 009G6005 1 9JRBR09000001 GND TERMINAL

040G 45762412B 9JRBR40000008 CBPC LABEL
055G 23520 9JRBR55000001 IPA
055G 23524 9JRBR55000002 WELDING FLUX WITHOUT PB

86

CN701 311GW250B13BBX 9JRBR31100003 WAFER 2.5MM 13P R/A 35MM 7MM

TU101 394GNTSC0MN04Y 9JRBR39400001 TUNER BRAZIL SUT-RB211TV

P12G 65011 9JRBR12000002 HEAT PAD FOR U401
P85T0171101CKD 9JRBR85000003 SHIELD-IC FOR U401
P90T0066201 9JRBR90000001 HEAT SINK FOR U602
Q55G 100620500 9JRBR55000006 TIN STICK(SN-0.5AG)

U401 056G 562A36 9JRBR56000006 SCALER MT5366RANG/B PBGA-479

U411 056G 563114 9JRBR56000007 LDO G1117-33T63UF 1A 3.3V SOT-223

U701 056G 563121 9JRBR56000008 LDO G1084-33TU3UF 5A 3.3V TO-263T

U113 056G 563126 9JRBR56000009 LDO G1117T63UF 1A ADJ SOT-223

U502 056G 563126 9JRBR56000009 LDO G1117T63UF 1A ADJ SOT-223

U705 056G 563146 9JRBR56000010 LDO G912T63U 1A 1.2V SOT-223

U415 056G 563227 9JRBR56000011 IC LDO G1084TU3UF 5A/ADJUST TO263T

U703 056G 563344 9JRBR56000012 DC/DC AT1529F11U 3.2A SOP-8

U702 056G 563380 9JRBR56000013 LDO TJ3940S-3.3 1A 3.3V SOT223

U406 056G 575 31 9JRBR56000014 DEMODULATOR CXD2828ER-T4 VQFN-48

U112 056G 581 9 9JRBR56000015 IC G5250K1T1U SOT23-5

U116 056G 586 22 9JRBR56000016 RECEIVER MAX3232ECPWR TSSOP-PW

U602 056G 593 39 9JRBR56000017 IC STA339BWTR POWERSSO36

U402 056G 615145 9JRBR56000018 DRAM H5TQ1G63DFR-H9C 1GB BGA-96

U403 056G 615145 9JRBR56000018 DRAM H5TQ1G63DFR-H9C 1GB BGA-96

U606 056G 616916 9JRBR56000019 IC MAX9728AETC+ TQFN-EP-12

U501 056G 634 21 9JRBR56000021 IC SII9185ACTU TQFP-80

U408 056G 643 46 9JRBR56000022 IC RESET AZ809ANSTR-E1 SOT-23 2.93V

U110 056G 7SB157 F 9JRBR56000026 IC NC7SB3157P6X MAA06A SC-70 FAIRCHIL

U111 056G 7SB157 F 9JRBR56000026 IC NC7SB3157P6X MAA06A SC-70 FAIRCHIL

U409 056G113353A 9JRBR56000027 IC M24C32-WMN6T SO-8 ST

U407 056G1133913 9JRBR56000028 EEPROM M24C02-WDW6P 2KB TSSOP8

U405 056G2233 43 9JRBR56000029 FLASH H27U2G8F2CTR-BC 2GB TSOP-48

U607 056G4LVCG08 PP 9JRBR56000030 IC 74LVC1G08GW TSSOP-5

U508 056G74LS 10 9JRBR56000031 LOGIC SN74LVC1G125DBVR SOT-23

Q610 057G 417 6 9JRBR57000001 PMBS3906/PHILIPS-SMT(06)

Q609 057G 417511 9JRBR57000002 MMBT3904

Q613 057G 417511 9JRBR57000002 MMBT3904

Q704 057G 417511 9JRBR57000002 MMBT3904

Q705 057G 417511 9JRBR57000002 MMBT3904

Q608 057G 417511 9JRBR57000002 MMBT3904

Q607 057G 417511 9JRBR57000002 MMBT3904

Q606 057G 417511 9JRBR57000002 MMBT3904

Q605 057G 417511 9JRBR57000002 MMBT3904

Q612 057G 417907 T 9JRBR57000004 TRA PMBT3906 PNP -200MA/-40V SOT-23

Q703 057G 477900 T 9JRBR57000006 TRA SIG SM BC847C (KEC0) R

Q402 057G 477900 T 9JRBR57000006 TRA SIG SM BC847C (KEC0) R

Q109 057G 477900 T 9JRBR57000006 TRA SIG SM BC847C (KEC0) R

Q103 057G 477900 T 9JRBR57000006 TRA SIG SM BC847C (KEC0) R

Q108 057G 763904 9JRBR57000010 TRA FET 2N7002 SOT-23 PHILIPS

Q400 057G 763941 9JRBR57000011 MOSFET AON4421 DFN

Q702 057G 763941 9JRBR57000011 MOSFET AON4421 DFN

RP411 061G 1261018JF 9JRBR61000003 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP410 061G 1261018JF 9JRBR61000003 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP409 061G 1261018JF 9JRBR61000003 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP408 061G 1261018JF 9JRBR61000003 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP407 061G 1261018JF 9JRBR61000003 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP406 061G 1261018JF 9JRBR61000003 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP405 061G 1261018JF 9JRBR61000003 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP404 061G 1261018JF 9JRBR61000003 RST CHIP AR 8P4R 100 OHM +-5% 1/16W

LC-42SV32B

87

LC-42SV32B

RP403 061G 1261018JF 9JRBR61000003 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP402 061G 1261018JF 9JRBR61000003 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP401 061G 1261018JF 9JRBR61000003 RST CHIP AR 8P4R 100 OHM +-5% 1/16W
RP400 061G 1261018JF 9JRBR61000003 RST CHIP AR 8P4R 100 OHM +-5% 1/16W

R640 061G0402000 FF 9JRBR61000005 RST CHIPR MAX0R01 1/16W FENGHUA

R633 061G0402000 FF 9JRBR61000005 RST CHIPR MAX0R01 1/16W FENGHUA

R436 061G0402000 FF 9JRBR61000005 RST CHIPR MAX0R01 1/16W FENGHUA

R159 061G0402000 FF 9JRBR61000005 RST CHIPR MAX0R01 1/16W FENGHUA

R4129 061G0402000 JT 9JRBR61000006 RST CHIPR MAX0R05 1/16W TZAI YUAN

R181 061G0402000 JT 9JRBR61000006 RST CHIPR MAX0R05 1/16W TZAI YUAN

R1154 061G0402000 JT 9JRBR61000006 RST CHIPR MAX0R05 1/16W TZAI YUAN
R1153 061G0402000 JT 9JRBR61000006 RST CHIPR MAX0R05 1/16W TZAI YUAN

R528 061G0402000 JT 9JRBR61000006 RST CHIPR MAX0R05 1/16W TZAI YUAN

R503 061G0402000 JT 9JRBR61000006 RST CHIPR MAX0R05 1/16W TZAI YUAN

R418 061G0402000 JT 9JRBR61000006 RST CHIPR MAX0R05 1/16W TZAI YUAN

R4130 061G0402000 JT 9JRBR61000006 RST CHIPR MAX0R05 1/16W TZAI YUAN
R1145 061G0402000 JT 9JRBR61000006 RST CHIPR MAX0R05 1/16W TZAI YUAN
R1120 061G0402000 JT 9JRBR61000006 RST CHIPR MAX0R05 1/16W TZAI YUAN
R1117 061G0402000 JT 9JRBR61000006 RST CHIPR MAX0R05 1/16W TZAI YUAN
R1116 061G0402000 JT 9JRBR61000006 RST CHIPR MAX0R05 1/16W TZAI YUAN

R419 061G04021001FY 9JRBR61000007 RST CHIP 1K 1/16W 1%

R417 061G04021001FY 9JRBR61000007 RST CHIP 1K 1/16W 1%

R415 061G04021001FY 9JRBR61000007 RST CHIP 1K 1/16W 1%

R414 061G04021001FY 9JRBR61000007 RST CHIP 1K 1/16W 1%

R413 061G04021001FY 9JRBR61000007 RST CHIP 1K 1/16W 1%

R412 061G04021001FY 9JRBR61000007 RST CHIP 1K 1/16W 1%

R411 061G04021001FY 9JRBR61000007 RST CHIP 1K 1/16W 1%

R410 061G04021001FY 9JRBR61000007 RST CHIP 1K 1/16W 1%

R403 061G04021001FY 9JRBR61000007 RST CHIP 1K 1/16W 1%

R402 061G04021001FY 9JRBR61000007 RST CHIP 1K 1/16W 1%

R353 061G04021002FI 9JRBR61000008 TEST ONLY RST 0402 10K 1% 1/16W TA-I

R4105 061G04021002FI 9JRBR61000008 TEST ONLY RST 0402 10K 1% 1/16W TA-I
R4106 061G04021002FI 9JRBR61000008 TEST ONLY RST 0402 10K 1% 1/16W TA-I

R454 061G04021002FI 9JRBR61000008 TEST ONLY RST 0402 10K 1% 1/16W TA-I

R457 061G04021002FI 9JRBR61000008 TEST ONLY RST 0402 10K 1% 1/16W TA-I

R514 061G04021002FI 9JRBR61000008 TEST ONLY RST 0402 10K 1% 1/16W TA-I

R515 061G04021002FI 9JRBR61000008 TEST ONLY RST 0402 10K 1% 1/16W TA-I

R516 061G04021002FI 9JRBR61000008 TEST ONLY RST 0402 10K 1% 1/16W TA-I

R540 061G04021002FI 9JRBR61000008 TEST ONLY RST 0402 10K 1% 1/16W TA-I

R632 061G04021002FI 9JRBR61000008 TEST ONLY RST 0402 10K 1% 1/16W TA-I

R164 061G04021002FI 9JRBR61000008 TEST ONLY RST 0402 10K 1% 1/16W TA-I

R161 061G04021002FI 9JRBR61000008 TEST ONLY RST 0402 10K 1% 1/16W TA-I

R160 061G04021002FI 9JRBR61000008 TEST ONLY RST 0402 10K 1% 1/16W TA-I

R1156 061G04021002FI 9JRBR61000008 TEST ONLY RST 0402 10K 1% 1/16W TA-I
R1155 061G04021002FI 9JRBR61000008 TEST ONLY RST 0402 10K 1% 1/16W TA-I
R1141 061G04021002FI 9JRBR61000008 TEST ONLY RST 0402 10K 1% 1/16W TA-I

R173 061G0402101 JF 9JRBR61000009 RST CHIPR 100 OHM +-5% 1/16W FENGHUA

R1149 061G0402101 JT 9JRBR61000010 RST CHIP 100R 1/16W 5% TZAI YUAN

R137 061G0402101 JT 9JRBR61000010 RST CHIP 100R 1/16W 5% TZAI YUAN

R175 061G0402101 JT 9JRBR61000010 RST CHIP 100R 1/16W 5% TZAI YUAN

R406 061G0402101 JT 9JRBR61000010 RST CHIP 100R 1/16W 5% TZAI YUAN

R407 061G0402101 JT 9JRBR61000010 RST CHIP 100R 1/16W 5% TZAI YUAN

R408 061G0402101 JT 9JRBR61000010 RST CHIP 100R 1/16W 5% TZAI YUAN

R478 061G0402101 JT 9JRBR61000010 RST CHIP 100R 1/16W 5% TZAI YUAN

R493 061G0402101 JT 9JRBR61000010 RST CHIP 100R 1/16W 5% TZAI YUAN

R1148 061G0402101 JT 9JRBR61000010 RST CHIP 100R 1/16W 5% TZAI YUAN

88

R1144 061G0402101 JT 9JRBR61000010 RST CHIP 100R 1/16W 5% TZAI YUAN
R1140 061G0402101 JT 9JRBR61000010 RST CHIP 100R 1/16W 5% TZAI YUAN
R1137 061G0402101 JT 9JRBR61000010 RST CHIP 100R 1/16W 5% TZAI YUAN

R643 061G0402101 JT 9JRBR61000010 RST CHIP 100R 1/16W 5% TZAI YUAN

R642 061G0402101 JT 9JRBR61000010 RST CHIP 100R 1/16W 5% TZAI YUAN

R641 061G0402101 JT 9JRBR61000010 RST CHIP 100R 1/16W 5% TZAI YUAN

R651 061G0402102 JF 9JRBR61000011 RST CHIPR 1KOHM +-5% 1/16W FENGHUA

R512 061G0402102 JT 9JRBR61000012 RST CHIP 1K 1/16W 5% TZAI YUAN

R648 061G0402103 JI 9JRBR61000013 TEST ONLY RST 0402 10K 5% 1/16W TA-I

R544 061G0402104 JY 9JRBR61000014 RST CHIPR 100KOHM +-5% 1/16W YAGEO

R4104 061G04021301FI 9JRBR61000015 RST 0402 1.3K 1% 1/16W TA-I

R491 061G0402220 JF 9JRBR61000017 RST CHIPR 22 OHM +-5% 1/16W FENGHUA

R490 061G0402220 JF 9JRBR61000017 RST CHIPR 22 OHM +-5% 1/16W FENGHUA

R127 061G04022209FY 9JRBR61000018 RST CHIPR 0402 22 OHM +-1% 1/16W

R170 061G0402222 JF 9JRBR61000019 RST CHIPR 2.2KOHM +-5% 1/16W FENGHUA

R634 061G0402222 JT 9JRBR61000020 RST CHIP 2K2 1/16W 5% TZAI YUAN

R1161 061G0402223 JF 9JRBR61000021 RST CHIPR 22KOHM 5% 1/16W FENGHUA
R1173 061G0402223 JF 9JRBR61000021 RST CHIPR 22KOHM 5% 1/16W FENGHUA

R400 061G0402241 JT 9JRBR61000022 RST CHIPR 240 OHM +-5% 1/16W TZAI YUAN

R401 061G0402241 JT 9JRBR61000022 RST CHIPR 240 OHM +-5% 1/16W TZAI YUAN

R176 061G0402303 JI 9JRBR61000024 RST 0402 30K 5% 1/16W

R177 061G0402303 JI 9JRBR61000024 RST 0402 30K 5% 1/16W

R167 061G0402330 JT 9JRBR61000025 RST CHIP 33R 1/16W 5% TZAI YUAN

R168 061G0402330 JT 9JRBR61000025 RST CHIP 33R 1/16W 5% TZAI YUAN

R424 061G0402332 JY 9JRBR61000027 RST CHIPR 3.3KOHM 5% 1/16W YAGEO

R423 061G0402332 JY 9JRBR61000027 RST CHIPR 3.3KOHM 5% 1/16W YAGEO

R1158 061G0402332 JY 9JRBR61000027 RST CHIPR 3.3KOHM 5% 1/16W YAGEO
R1157 061G0402332 JY 9JRBR61000027 RST CHIPR 3.3KOHM 5% 1/16W YAGEO
R1163 061G0402470 JF 9JRBR61000028 RST CHIPR 47 OHM 5% 1/16W FENGHUA
R1164 061G0402470 JF 9JRBR61000028 RST CHIPR 47 OHM 5% 1/16W FENGHUA
R1165 061G0402470 JF 9JRBR61000028 RST CHIPR 47 OHM 5% 1/16W FENGHUA
R1166 061G0402470 JF 9JRBR61000028 RST CHIPR 47 OHM 5% 1/16W FENGHUA

R444 061G0402472 JF 9JRBR61000029 RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R445 061G0402472 JF 9JRBR61000029 RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R448 061G0402472 JF 9JRBR61000029 RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R449 061G0402472 JF 9JRBR61000029 RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R434 061G0402472 JF 9JRBR61000029 RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R433 061G0402472 JF 9JRBR61000029 RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R432 061G0402472 JF 9JRBR61000029 RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R422 061G0402472 JF 9JRBR61000029 RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R420 061G0402472 JF 9JRBR61000029 RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R1174 061G0402472 JF 9JRBR61000029 RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA
R1162 061G0402472 JF 9JRBR61000029 RST CHIPR 4.7KOHM +-5% 1/16W FENGHUA

R118 061G0402472 JT 9JRBR61000030 RST CHIP 4K7 1/16W 5% TZAI YUAN

R510 061G0402473 JT 9JRBR61000031 RST CHIP 47K 1/16W 5% TZAI YUAN

R511 061G0402473 JT 9JRBR61000031 RST CHIP 47K 1/16W 5% TZAI YUAN

R621 061G0402473 JT 9JRBR61000031 RST CHIP 47K 1/16W 5% TZAI YUAN

R622 061G0402473 JT 9JRBR61000031 RST CHIP 47K 1/16W 5% TZAI YUAN

R509 061G0402473 JT 9JRBR61000031 RST CHIP 47K 1/16W 5% TZAI YUAN

R508 061G0402473 JT 9JRBR61000031 RST CHIP 47K 1/16W 5% TZAI YUAN

R497 061G0402512 JI 9JRBR61000032 RST 0402 5.1K 5% 1/16W

R474 061G0402561 JI 9JRBR61000033 RST 0402 560R 5% 1/16W

R166 061G0402680 JF 9JRBR61000034 RST 0402 68R 5% 1/16W

R158 061G0402680 JF 9JRBR61000034 RST 0402 68R 5% 1/16W

R156 061G0402680 JF 9JRBR61000034 RST 0402 68R 5% 1/16W

R122 061G0402680 JF 9JRBR61000034 RST 0402 68R 5% 1/16W

LC-42SV32B

89

LC-42SV32B

R133 061G0402680 JF 9JRBR61000034 RST 0402 68R 5% 1/16W

R141 061G0402680 JF 9JRBR61000034 RST 0402 68R 5% 1/16W

R150 061G0402680 JF 9JRBR61000034 RST 0402 68R 5% 1/16W

R4020 061G0402750 JY 9JRBR61000035 RST CHIPR 75OHM +-5% 1/16W YAGEO

R465 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R467 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R468 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R469 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R470 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R471 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R472 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R473 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R475 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R496 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R498 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R499 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R519 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R523 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R560 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R556 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R530 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R529 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R462 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R1147 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R135 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R136 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R4112 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO
R4115 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO
R4116 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO
R4119 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R461 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R460 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R4125 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO
R4124 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO
R4122 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO
R4121 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO
R4120 061G0603000 FY 9JRBR61000037 RST CHIPR MAX 0R01 1/10W YAGEO

R709 061G0603100 JY 9JRBR61000039 RST CHIPR 10OHM 1/10W YAGEO

R179 061G06031000FT 9JRBR61000040 RST CHIP 100R 1/10W 1%

R665 061G06031001FT 9JRBR61000041 RST CHIP 1K 1/10W 1%

R664 061G06031001FT 9JRBR61000041 RST CHIP 1K 1/10W 1%

R663 061G06031001FT 9JRBR61000041 RST CHIP 1K 1/10W 1%

R728 061G0603101 JT 9JRBR61000043 RST CHIP 100R 1/10W 5% TZAI YUAN

R713 061G0603101 JT 9JRBR61000043 RST CHIP 100R 1/10W 5% TZAI YUAN

R120 061G0603102 JF 9JRBR61000044 RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R442 061G0603102 JF 9JRBR61000044 RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R705 061G0603102 JF 9JRBR61000044 RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R715 061G0603102 JF 9JRBR61000044 RST CHIPR 1K OHM +-5% 1/10W FENGHUA

R724 061G0603102 JY 9JRBR61000045 RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO

R548 061G0603103 JF 9JRBR61000046 RST CHIPR 10K OHM +-5% 1/10W FENGHUA

R441 061G0603103 JY 9JRBR61000047 RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R450 061G0603103 JY 9JRBR61000047 RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R451 061G0603103 JY 9JRBR61000047 RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R456 061G0603103 JY 9JRBR61000047 RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R620 061G0603103 JY 9JRBR61000047 RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R624 061G0603103 JY 9JRBR61000047 RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

90

R658 061G0603103 JY 9JRBR61000047 RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R659 061G0603103 JY 9JRBR61000047 RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R662 061G0603103 JY 9JRBR61000047 RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R668 061G0603103 JY 9JRBR61000047 RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R669 061G0603103 JY 9JRBR61000047 RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R726 061G0603103 JY 9JRBR61000047 RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R735 061G0603103 JY 9JRBR61000047 RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R440 061G0603103 JY 9JRBR61000047 RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R107 061G0603103 JY 9JRBR61000047 RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R111 061G0603103 JY 9JRBR61000047 RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R119 061G0603103 JY 9JRBR61000047 RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R121 061G0603103 JY 9JRBR61000047 RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R178 061G0603103 JY 9JRBR61000047 RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R426 061G0603103 JY 9JRBR61000047 RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R437 061G0603103 JY 9JRBR61000047 RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R438 061G0603103 JY 9JRBR61000047 RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R439 061G0603103 JY 9JRBR61000047 RST CHIPR 10KOHM £«-5£¥ 1/10W YAGEO

R452 061G0603104 JF 9JRBR61000048 RST CHIPR 100KOHM 5% 1/10W FENGHUA

R706 061G0603104 JF 9JRBR61000048 RST CHIPR 100KOHM 5% 1/10W FENGHUA

R522 061G06031200FY 9JRBR61000049 RST 0603 120R 1% 1/10W

R4054 061G06031200FY 9JRBR61000049 RST 0603 120R 1% 1/10W
R1115 061G06031200FY 9JRBR61000049 RST 0603 120R 1% 1/10W
R1114 061G06031200FY 9JRBR61000049 RST 0603 120R 1% 1/10W
R1150 061G0603151 JT 9JRBR61000050 RST CHIP 150R 1/10W 5% TZAI YUAN

R165 061G0603180 JT 9JRBR61000051 RST CHIP 18R 1/10W 5% TZAI YUAN

R157 061G0603180 JT 9JRBR61000051 RST CHIP 18R 1/10W 5% TZAI YUAN

R149 061G0603180 JT 9JRBR61000051 RST CHIP 18R 1/10W 5% TZAI YUAN

R541 061G06031800FY 9JRBR61000052 RST CHIP 180R 1/10W 1%

R712 061G06031801FT 9JRBR61000053 RST CHIP 1K8 1/10W 1%

R625 061G0603183 JF 9JRBR61000054 RST CHIPR 18KOHM 5% 1/10W FENGHUA

R623 061G0603183 JF 9JRBR61000054 RST CHIPR 18KOHM 5% 1/10W FENGHUA

R1160 061G06032000FT 9JRBR61000055 RST CHIP 200R 1/10W 1%
R1159 061G06032000FT 9JRBR61000055 RST CHIP 200R 1/10W 1%

R722 061G06032001FY 9JRBR61000056 RST CHIPR 2KOHM +-1% 1/10W YAGEO

R4004 061G06032002FF 9JRBR61000057 RST CHIPR 20KOHM +-1% 1/10W FENGHUA

R629 061G06032002FF 9JRBR61000057 RST CHIPR 20KOHM +-1% 1/10W FENGHUA

R630 061G06032002FF 9JRBR61000057 RST CHIPR 20KOHM +-1% 1/10W FENGHUA

R1113 061G0603220 JT 9JRBR61000058 RST CHIP 22R 1/10W 5% TZAI YUAN
R1112 061G0603220 JT 9JRBR61000058 RST CHIP 22R 1/10W 5% TZAI YUAN
R1109 061G0603220 JT 9JRBR61000058 RST CHIP 22R 1/10W 5% TZAI YUAN
R1111 061G0603220 JT 9JRBR61000058 RST CHIP 22R 1/10W 5% TZAI YUAN

R476 061G06032201FY 9JRBR61000059 RST CHIP 2K2 1/10W 1%

R477 061G06032201FY 9JRBR61000059 RST CHIP 2K2 1/10W 1%

R666 061G0603222 JF 9JRBR61000060 RST CHIPR 2.2K OHM +-5% 1/10W FENGHUA

R703 061G0603223 JF 9JRBR61000062 RST CHIPR 22KOHM 5% 1/10W FENGHUA

R4055 061G06032409FY 9JRBR61000063 RST CHIP 24R 1/10W 1%

R707 061G0603272 JF 9JRBR61000064 RST CHIPR 2.7KOHM 5% 1/10W FENGHUA

R501 061G0603273 JT 9JRBR61000065 RST CHIP 27K 1/10W 5% TZAI YUAN

R172 061G0603303 JT 9JRBR61000066 RST CHIP 30K 1/10W 5% TZAI YUAN

R171 061G0603303 JT 9JRBR61000066 RST CHIP 30K 1/10W 5% TZAI YUAN

R169 061G0603303 JT 9JRBR61000066 RST CHIP 30K 1/10W 5% TZAI YUAN

R143 061G0603303 JT 9JRBR61000066 RST CHIP 30K 1/10W 5% TZAI YUAN

R446 061G0603330 JT 9JRBR61000067 RST CHIP 33R 1/10W 5% TZAI YUAN

R628 061G06034302FY 9JRBR61000068 RST CHIP 43K 1/10W 1%

R627 061G06034302FY 9JRBR61000068 RST CHIP 43K 1/10W 1%

R1105 061G06034700FT 9JRBR61000069 RST CHIP 470R 1/10W 1%

LC-42SV32B

91

LC-42SV32B

R463 061G06034709FY 9JRBR61000070 RST CHIP R 47OHM 1/10W +/-1%

R714 061G0603472 JF 9JRBR61000071 RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R725 061G0603472 JF 9JRBR61000071 RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R730 061G0603472 JF 9JRBR61000071 RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R731 061G0603472 JF 9JRBR61000071 RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R667 061G0603472 JF 9JRBR61000071 RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R534 061G0603472 JF 9JRBR61000071 RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R513 061G0603472 JF 9JRBR61000071 RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R495 061G0603472 JF 9JRBR61000071 RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R431 061G0603472 JF 9JRBR61000071 RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R430 061G0603472 JF 9JRBR61000071 RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R429 061G0603472 JF 9JRBR61000071 RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R427 061G0603472 JF 9JRBR61000071 RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R4006 061G0603472 JF 9JRBR61000071 RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R180 061G0603472 JF 9JRBR61000071 RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R1146 061G0603472 JF 9JRBR61000071 RST CHIPR 4.7KOHM +-5% 1/10W FENGHUA

R674 061G0603472 JT 9JRBR61000072 RST CHIP 4K7 1/10W 5% TZAI YUAN

R626 061G0603473 JT 9JRBR61000073 RST CHIP 47K 1/10W 5% TZAI YUAN

R609 061G0603473 JT 9JRBR61000073 RST CHIP 47K 1/10W 5% TZAI YUAN

R4001 061G0603473 JT 9JRBR61000073 RST CHIP 47K 1/10W 5% TZAI YUAN
R4000 061G0603473 JT 9JRBR61000073 RST CHIP 47K 1/10W 5% TZAI YUAN

R704 061G0603513 JF 9JRBR61000074 RST CHIPR 51K OHM +-5% 1/10W FENGHUA

R153 061G06035609FT 9JRBR61000075 RST CHIP 56R 1/10W 1%

R162 061G06035609FT 9JRBR61000075 RST CHIP 56R 1/10W 1%

R163 061G06035609FT 9JRBR61000075 RST CHIP 56R 1/10W 1%

R524 061G06035609FT 9JRBR61000075 RST CHIP 56R 1/10W 1%

R144 061G06037509FY 9JRBR61000076 RST CHIP 75R 1/10W 1%

R174 061G06037509FY 9JRBR61000076 RST CHIP 75R 1/10W 1%

R125 061G06037509FY 9JRBR61000076 RST CHIP 75R 1/10W 1%

R134 061G06037509FY 9JRBR61000076 RST CHIP 75R 1/10W 1%

R4103 061G06038200FY 9JRBR61000077 RST CHIP 820R 1/10W 1%

R542 061G06038209FT 9JRBR61000078 RST CHIP 82R 1/10W 1% TZAI YUAN

R619 061G0805000 JI 9JRBR61000079 RST 0805 MAX0.05R 5% 1/8W TA-I

R631 061G0805000 JI 9JRBR61000079 RST 0805 MAX0.05R 5% 1/8W TA-I

R4126 061G12060004JF 9JRBR61000112 RST CHIPR MAX0R05 4A 1/4W FENGHUA

R416 061G12060004JF 9JRBR61000112 RST CHIPR MAX0R05 4A 1/4W FENGHUA

R732 061G12060004JF 9JRBR61000112 RST CHIPR MAX0R05 4A 1/4W FENGHUA

R4123 061G12060004JT 9JRBR61000113 RST CHIPR 1206 MAX0R05 4A 1/4W TZAI YUAN
R4118 061G12060004JT 9JRBR61000113 RST CHIPR 1206 MAX0R05 4A 1/4W TZAI YUAN
R4117 061G12060004JT 9JRBR61000113 RST CHIPR 1206 MAX0R05 4A 1/4W TZAI YUAN
R4114 061G12060004JT 9JRBR61000113 RST CHIPR 1206 MAX0R05 4A 1/4W TZAI YUAN
R4113 061G12060004JT 9JRBR61000113 RST CHIPR 1206 MAX0R05 4A 1/4W TZAI YUAN

R653 061G1206220 JF 9JRBR61000119 RST CHIPR 22 OHM +-5% 1/4W FENGHUA

R656 061G1206220 JF 9JRBR61000119 RST CHIPR 22 OHM +-5% 1/4W FENGHUA

R657 061G1206629 JT 9JRBR61000126 RST CHIPR 6.2 OHM +-5% 1/4W TZAI YUAN

R655 061G1206629 JT 9JRBR61000126 RST CHIPR 6.2 OHM +-5% 1/4W TZAI YUAN

R654 061G1206629 JT 9JRBR61000126 RST CHIPR 6.2 OHM +-5% 1/4W TZAI YUAN

R652 061G1206629 JT 9JRBR61000126 RST CHIPR 6.2 OHM +-5% 1/4W TZAI YUAN

C133 065G040210031J T 9JRBR65000002 CAP 0402 10PF 5% 50V NP0

C674 065G040210232K Y 9JRBR65000003 CAP CHIP 0402 1N 50V X7R +/-10%

C625 065G040210232K Y 9JRBR65000003 CAP CHIP 0402 1N 50V X7R +/-10%

C731 065G040210332K Y 9JRBR65000004 CAP CHIP 0402 10N 50V X7R +/-10%

C534 065G040210332K Y 9JRBR65000004 CAP CHIP 0402 10N 50V X7R +/-10%

C533 065G040210332K Y 9JRBR65000004 CAP CHIP 0402 10N 50V X7R +/-10%

C492 065G040210332K Y 9JRBR65000004 CAP CHIP 0402 10N 50V X7R +/-10%

C141 065G040210332K Y 9JRBR65000004 CAP CHIP 0402 10N 50V X7R +/-10%

92

C136 065G040210332K Y 9JRBR65000004 CAP CHIP 0402 10N 50V X7R +/-10%

C135 065G040210332K Y 9JRBR65000004 CAP CHIP 0402 10N 50V X7R +/-10%

C129 065G040210332K Y 9JRBR65000004 CAP CHIP 0402 10N 50V X7R +/-10%

C124 065G040210332K Y 9JRBR65000004 CAP CHIP 0402 10N 50V X7R +/-10%

C122 065G040210332K Y 9JRBR65000004 CAP CHIP 0402 10N 50V X7R +/-10%

C120 065G040210332K Y 9JRBR65000004 CAP CHIP 0402 10N 50V X7R +/-10%

C115 065G040210332K Y 9JRBR65000004 CAP CHIP 0402 10N 50V X7R +/-10%

C1107 065G040210332K Y 9JRBR65000004 CAP CHIP 0402 10N 50V X7R +/-10%
C1104 065G040210332K Y 9JRBR65000004 CAP CHIP 0402 10N 50V X7R +/-10%
C1103 065G040210332K Y 9JRBR65000004 CAP CHIP 0402 10N 50V X7R +/-10%

C491 065G040210412K 3 9JRBR65000005 CAP CHIP 0402 100N 16V X7R +/-10%

C452 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C453 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C455 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C456 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C458 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C460 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C461 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C463 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C464 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C465 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C466 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C450 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C449 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C446 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C445 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C444 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C443 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C442 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C441 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C435 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C434 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C433 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C467 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C639 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C638 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C637 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C633 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C628 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C627 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C556 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C555 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C521 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C503 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C502 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C495 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C494 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C493 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C489 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C486 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C485 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C484 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C483 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C482 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C469 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C468 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

LC-42SV32B

93

LC-42SV32B

C432 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C405 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C404 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C403 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C402 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C4011 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C401 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C400 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C194 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C191 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C188 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C186 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C185 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C184 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C181 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C180 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C177 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C176 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C174 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C142 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C1102 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C406 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C431 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C430 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C429 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C428 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C427 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C426 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C424 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C423 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C422 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C421 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C407 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C410 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C413 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C414 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C415 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C416 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C417 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C418 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C419 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C420 065G040210412K Y 9JRBR65000005 CAP 0402 100NF 10% 16V X7R

C727 065G0402105A5K 3 9JRBR65000007 CAP CHIP 0402 1UF K 10V X5R

C720 065G0402105A5K 3 9JRBR65000007 CAP CHIP 0402 1UF K 10V X5R

C711 065G0402105A5K 3 9JRBR65000007 CAP CHIP 0402 1UF K 10V X5R

C471 065G0402105A5K 3 9JRBR65000007 CAP CHIP 0402 1UF K 10V X5R

C462 065G0402105A5K M 9JRBR65000007 CAP 0402 1UF 10% 10V X5R

C438 065G040215031J A 9JRBR65000008 CAP 0402 15PF 5% 50V NP0

C139 065G040215031J Y 9JRBR65000008 CAP CHIP 0402 15PF J 50V NPO

C138 065G040215031J Y 9JRBR65000008 CAP CHIP 0402 15PF J 50V NPO

C131 065G040215031J Y 9JRBR65000008 CAP CHIP 0402 15PF J 50V NPO

C126 065G040215031J Y 9JRBR65000008 CAP CHIP 0402 15PF J 50V NPO

C121 065G040215031J Y 9JRBR65000008 CAP CHIP 0402 15PF J 50V NPO

C116 065G040215031J Y 9JRBR65000008 CAP CHIP 0402 15PF J 50V NPO

C118 065G040215232K T 9JRBR65000009 CAP CHIP 0402 1.5NF K 50V X7R

C127 065G040215232K Y 9JRBR65000009 CAP CHIP 0402 1.5NF 50V X7R

94

C447 065G040233031J Y 9JRBR65000010 CAP CHIP 0402 33P 50V NP0 +/-5%

C448 065G040233031J Y 9JRBR65000010 CAP CHIP 0402 33P 50V NP0 +/-5%

C624 065G040233131J T 9JRBR65000011 CAP CHIP 0402 330PF 50V J NPO

C613 065G040233131J T 9JRBR65000011 CAP CHIP 0402 330PF 50V J NPO

C198 065G040239031J Y 9JRBR65000012 CAP CHIP 0402 39PF 50V NPO +/-5%

C199 065G040239031J Y 9JRBR65000012 CAP CHIP 0402 39PF 50V NPO +/-5%

C1108 065G040247312K 3 9JRBR65000013 CHIP CAP 47NF16V X7R 10%

C147 065G040247312K 3 9JRBR65000013 CHIP CAP 47NF16V X7R 10%

C149 065G040247312K 3 9JRBR65000013 CHIP CAP 47NF16V X7R 10%

C1111 065G040282031J Y 9JRBR65000014 CAP CHIP 0402 82PF J 50V NPO
C1109 065G040282031J Y 9JRBR65000014 CAP CHIP 0402 82PF J 50V NPO

C155 065G060310031D F 9JRBR65000015 CAP CHIP 0603 10PF D 50V NPO

C154 065G060310031D F 9JRBR65000015 CAP CHIP 0603 10PF D 50V NPO

C655 065G060310232K Y 9JRBR65000016 CAP CHIP 0603 1N 50V X7R +/-10%

C658 065G060310232K Y 9JRBR65000016 CAP CHIP 0603 1N 50V X7R +/-10%

C662 065G060310232K Y 9JRBR65000016 CAP CHIP 0603 1N 50V X7R +/-10%

C664 065G060310232K Y 9JRBR65000016 CAP CHIP 0603 1N 50V X7R +/-10%

C651 065G060310232K Y 9JRBR65000016 CAP CHIP 0603 1N 50V X7R +/-10%

C647 065G060310232K Y 9JRBR65000016 CAP CHIP 0603 1N 50V X7R +/-10%

C1149 065G060310232K Y 9JRBR65000016 CAP CHIP 0603 1N 50V X7R +/-10%
C1148 065G060310232K Y 9JRBR65000016 CAP CHIP 0603 1N 50V X7R +/-10%
C1147 065G060310232K Y 9JRBR65000016 CAP CHIP 0603 1N 50V X7R +/-10%
C1146 065G060310232K Y 9JRBR65000016 CAP CHIP 0603 1N 50V X7R +/-10%
C1145 065G060310232K Y 9JRBR65000016 CAP CHIP 0603 1N 50V X7R +/-10%
C1144 065G060310232K Y 9JRBR65000016 CAP CHIP 0603 1N 50V X7R +/-10%
C1143 065G060310232K Y 9JRBR65000016 CAP CHIP 0603 1N 50V X7R +/-10%
C1142 065G060310232K Y 9JRBR65000016 CAP CHIP 0603 1N 50V X7R +/-10%
C1141 065G060310232K Y 9JRBR65000016 CAP CHIP 0603 1N 50V X7R +/-10%

C656 065G060310432K 3 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C657 065G060310432K 3 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C660 065G060310432K 3 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C672 065G060310432K 3 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C671 065G060310432K 3 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C668 065G060310432K 3 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C661 065G060310432K 3 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C653 065G060310432K 3 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C652 065G060310432K 3 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C649 065G060310432K 3 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C648 065G060310432K 3 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C632 065G060310432K A 9JRBR65000017 CAP 0603 100NF 10% 50V X7R

C626 065G060310432K A 9JRBR65000017 CAP 0603 100NF 10% 50V X7R

C512 065G060310432K F 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C525 065G060310432K F 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C526 065G060310432K F 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C527 065G060310432K F 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C528 065G060310432K F 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C529 065G060310432K F 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C530 065G060310432K F 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C531 065G060310432K F 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C716 065G060310432K F 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C713 065G060310432K F 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C642 065G060310432K F 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C712 065G060310432K F 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C113 065G060310432K F 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C114 065G060310432K F 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C488 065G060310432K F 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

LC-42SV32B

95

LC-42SV32B

C506 065G060310432K F 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C507 065G060310432K F 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C508 065G060310432K F 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C509 065G060310432K F 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C511 065G060310432K F 9JRBR65000017 CAP CHIP 0603 0.1UF K 50V X7R

C620 065G060310512K 3 9JRBR65000018 CAP 0603 1UF 10% 16V X7R

C615 065G060310512K 3 9JRBR65000018 CAP 0603 1UF 10% 16V X7R

C516 065G060310512K 3 9JRBR65000018 CAP 0603 1UF 10% 16V X7R

C158 065G060310512K 3 9JRBR65000018 CAP 0603 1UF 10% 16V X7R

C520 065G060310525K 3 9JRBR65000019 NO-SUGGEST CAP 0603 1UF 10% 25V X5R

C501 065G060310525K 3 9JRBR65000019 NO-SUGGEST CAP 0603 1UF 10% 25V X5R

C408 065G060310525K 3 9JRBR65000019 NO-SUGGEST CAP 0603 1UF 10% 25V X5R

C1123 065G060310525K 3 9JRBR65000019 NO-SUGGEST CAP 0603 1UF 10% 25V X5R
C1122 065G060310525K 3 9JRBR65000019 NO-SUGGEST CAP 0603 1UF 10% 25V X5R

C619 065G060310525K 3 9JRBR65000019 NO-SUGGEST CAP 0603 1UF 10% 25V X5R

C623 065G060310525K 3 9JRBR65000019 NO-SUGGEST CAP 0603 1UF 10% 25V X5R

C705 065G060310525K 3 9JRBR65000019 NO-SUGGEST CAP 0603 1UF 10% 25V X5R

C707 065G060310525K 3 9JRBR65000019 NO-SUGGEST CAP 0603 1UF 10% 25V X5R

C708 065G060310525K 3 9JRBR65000019 NO-SUGGEST CAP 0603 1UF 10% 25V X5R

C721 065G060310525K 3 9JRBR65000019 NO-SUGGEST CAP 0603 1UF 10% 25V X5R

C1105 065G060310525K 3 9JRBR65000019 NO-SUGGEST CAP 0603 1UF 10% 25V X5R
C1106 065G060310525K 3 9JRBR65000019 NO-SUGGEST CAP 0603 1UF 10% 25V X5R
C1113 065G060310525K 3 9JRBR65000019 NO-SUGGEST CAP 0603 1UF 10% 25V X5R
C1117 065G060310525K 3 9JRBR65000019 NO-SUGGEST CAP 0603 1UF 10% 25V X5R
C1119 065G060310525K 3 9JRBR65000019 NO-SUGGEST CAP 0603 1UF 10% 25V X5R
C1120 065G060310525K 3 9JRBR65000019 NO-SUGGEST CAP 0603 1UF 10% 25V X5R
C1121 065G060310525K 3 9JRBR65000019 NO-SUGGEST CAP 0603 1UF 10% 25V X5R

C440 065G060310605M 3 9JRBR65000020 MLCC 0603 10UF 6.3V X5R +-20% TDK

C470 065G060310605M 3 9JRBR65000020 MLCC 0603 10UF 6.3V X5R +-20% TDK

C165 065G060312031J Y 9JRBR65000021 CAP CHIP 0603 12P 50V NP0 +/-5%

C164 065G060312031J Y 9JRBR65000021 CAP CHIP 0603 12P 50V NP0 +/-5%

C640 065G060322232K A 9JRBR65000023 CAP 0603 2.2NF K 50V X7R

C641 065G060322232K A 9JRBR65000023 CAP 0603 2.2NF K 50V X7R

C673 065G060322422K Y 9JRBR65000024 CAP 0603 220N 25V X7R 10%

C618 065G060333131J F 9JRBR65000025 CAP CHIP 0603 330PF J 50V NPO

C622 065G060333131J F 9JRBR65000025 CAP CHIP 0603 330PF J 50V NPO

C654 065G060333131J Y 9JRBR65000026 CAP CHIP 0603 330P 50V NP0 +/-5%

C663 065G060333131J Y 9JRBR65000026 CAP CHIP 0603 330P 50V NP0 +/-5%

C1116 065G060347031J F 9JRBR65000027 CAP CHIP 0603 47PF J 50V NPO

C148 065G060347031J F 9JRBR65000027 CAP CHIP 0603 47PF J 50V NPO

C634 065G060347031J F 9JRBR65000027 CAP CHIP 0603 47PF J 50V NPO

C635 065G060347031J F 9JRBR65000027 CAP CHIP 0603 47PF J 50V NPO

C1114 065G060347031J F 9JRBR65000027 CAP CHIP 0603 47PF J 50V NPO

C630 065G060347232K Y 9JRBR65000028 CAP CHIP 0603 4N7 50V X7R +/-10%

C437 065G0603475A5K T 9JRBR65000029 CAP CHIP 0603 4.7UF K 10V X5R

C451 065G0603475A5K T 9JRBR65000029 CAP CHIP 0603 4.7UF K 10V X5R

C631 065G060368131J Y 9JRBR65000030 CAP CHIP 0603 680PF J 50V NP0

C702 065G080510522K T 9JRBR65000035 CAP 0805 1UF 10% 25V X7R

C667 065G080510606K 3 9JRBR65000036 NO-SUGGEST CAP 0805 10UF 10% 6.3V X6S

C425 065G080510606K 3 9JRBR65000036 NO-SUGGEST CAP 0805 10UF 10% 6.3V X6S

C411 065G080510606K 3 9JRBR65000036 NO-SUGGEST CAP 0805 10UF 10% 6.3V X6S

C4008 065G080510606K 3 9JRBR65000036 NO-SUGGEST CAP 0805 10UF 10% 6.3V X6S
C4007 065G080510606K 3 9JRBR65000036 NO-SUGGEST CAP 0805 10UF 10% 6.3V X6S
C4006 065G080510606K 3 9JRBR65000036 NO-SUGGEST CAP 0805 10UF 10% 6.3V X6S

C490 065G080510615K 3 9JRBR65000037 CAP CHIP 0805 10U 16V X5R +/-10%

C454 065G0805106A5K 3 9JRBR65000038 CHIP 10UF 10V X5R 10%

96

C504 065G0805106A5K 3 9JRBR65000038 CHIP 10UF 10V X5R 10%

C505 065G0805106A5K 3 9JRBR65000038 CHIP 10UF 10V X5R 10%

C510 065G0805106A5K 3 9JRBR65000038 CHIP 10UF 10V X5R 10%

C518 065G0805106A5K 3 9JRBR65000038 CHIP 10UF 10V X5R 10%

C523 065G0805106A5K 3 9JRBR65000038 CHIP 10UF 10V X5R 10%

C524 065G0805106A5K 3 9JRBR65000038 CHIP 10UF 10V X5R 10%

C709 065G0805106A5K 3 9JRBR65000038 CHIP 10UF 10V X5R 10%

C717 065G0805106A5K 3 9JRBR65000038 CHIP 10UF 10V X5R 10%

C718 065G0805106A5K 3 9JRBR65000038 CHIP 10UF 10V X5R 10%

C725 065G0805106A5K 3 9JRBR65000038 CHIP 10UF 10V X5R 10%

C4009 065G0805106A5K 3 9JRBR65000038 CHIP 10UF 10V X5R 10%

C123 065G0805106A5K 3 9JRBR65000038 CHIP 10UF 10V X5R 10%

C125 065G0805106A5K 3 9JRBR65000038 CHIP 10UF 10V X5R 10%

C143 065G0805106A5K 3 9JRBR65000038 CHIP 10UF 10V X5R 10%

C145 065G0805106A5K 3 9JRBR65000038 CHIP 10UF 10V X5R 10%

C150 065G0805106A5K 3 9JRBR65000038 CHIP 10UF 10V X5R 10%

C151 065G0805106A5K 3 9JRBR65000038 CHIP 10UF 10V X5R 10%

C153 065G0805106A5K 3 9JRBR65000038 CHIP 10UF 10V X5R 10%

C192 065G0805106A5K T 9JRBR65000039 CHIP 10UF 10V X5R 0805

C195 065G0805106A5K T 9JRBR65000039 CHIP 10UF 10V X5R 0805

C614 065G080522512K 3 9JRBR65000041 CAP CHIP 0805 2U2 16V X7R +/-10%

C487 065G080533422K Y 9JRBR65000042 CAP CHIP 0805 330N 25V X7R +/-10%

C439 065G0805475A2K 3 9JRBR65000045 CAP 0805 4.7UF 10% 10V X7R

C670 065G120610532K 3 9JRBR65000047 CAP 1206 1UF 10% 50V X7R

C669 065G120610532K 3 9JRBR65000047 CAP 1206 1UF 10% 50V X7R

C650 065G120622432K Y 9JRBR65000048 CAP CHIP 1206 0.22UF K 50V X7R

C659 065G120622432K Y 9JRBR65000048 CAP CHIP 1206 0.22UF K 50V X7R

C728 067G311C1013CT 9JRBR67000010 EC SMD 100UF 20% 16V RV 6.3*7.7

C719 067G311C1013CT 9JRBR67000010 EC SMD 100UF 20% 16V RV 6.3*7.7

C134 067G311C1013CT 9JRBR67000010 EC SMD 100UF 20% 16V RV 6.3*7.7

C152 067G311C1013CT 9JRBR67000010 EC SMD 100UF 20% 16V RV 6.3*7.7

C710 067G311C1013CT 9JRBR67000010 EC SMD 100UF 20% 16V RV 6.3*7.7

C715 067G311C1013CT 9JRBR67000010 EC SMD 100UF 20% 16V RV 6.3*7.7

C704 067G311F2213LT X01 9JRBR67000012 EC SMD 220UF 20% 16V 6.3*7.7

C409 067G311F2213LT X01 9JRBR67000012 EC SMD 220UF 20% 16V 6.3*7.7

C666 067G311F3316RT 9JRBR67000013 EC 330UF 20% 35V 10*10.5

C665 067G311F3316RT 9JRBR67000013 EC 330UF 20% 35V 10*10.5

C457 067G311R4713CT 9JRBR67000014 EC SMD 470UF 20% 16V ZV 8*10.5

U409 070GHDCP500HDC 9JRBR70000002 HDCP CODE

FB507 071G 56A221 TA 9JRBR71000005 IND FXD 0805 EMI 100MHZ 220R R
FB506 071G 56A221 TA 9JRBR71000005 IND FXD 0805 EMI 100MHZ 220R R
FB505 071G 56A221 TA 9JRBR71000005 IND FXD 0805 EMI 100MHZ 220R R
FB129 071G 56A221 TA 9JRBR71000005 IND FXD 0805 EMI 100MHZ 220R R
FB125 071G 56A221 TA 9JRBR71000005 IND FXD 0805 EMI 100MHZ 220R R
FB117 071G 56A221 TA 9JRBR71000005 IND FXD 0805 EMI 100MHZ 220R R
FB116 071G 56A221 TA 9JRBR71000005 IND FXD 0805 EMI 100MHZ 220R R
FB111 071G 56A221 TA 9JRBR71000005 IND FXD 0805 EMI 100MHZ 220R R
FB402 071G 56K121 TA 9JRBR71000005 CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB404 071G 56K121 TA 9JRBR71000005 CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB701 071G 56K121 TA 9JRBR71000005 CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB704 071G 56K121 TA 9JRBR71000005 CHIP BEAD 120R/6000MA HCB2012KF-121T60
FB707 071G 57B800 TA 9JRBR71000006 CHIP BEAD 80OHM 4A 1206 HCB3216KF-800T40

FB66 071G 59A121 TA 9JRBR71000007 CHIP BEAD 120R/3000MA HCB1608KF-121T30

FB64 071G 59A121 TA 9JRBR71000007 CHIP BEAD 120R/3000MA HCB1608KF-121T30

FB62 071G 59A121 TA 9JRBR71000007 CHIP BEAD 120R/3000MA HCB1608KF-121T30

FB61 071G 59A121 TA 9JRBR71000007 CHIP BEAD 120R/3000MA HCB1608KF-121T30

LC-42SV32B

97

LC-42SV32B

FB607 071G 59A121 TA 9JRBR71000007 CHIP BEAD 120R/3000MA HCB1608KF-121T30
FB606 071G 59A121 TA 9JRBR71000007 CHIP BEAD 120R/3000MA HCB1608KF-121T30
FB605 071G 59A121 TA 9JRBR71000007 CHIP BEAD 120R/3000MA HCB1608KF-121T30
FB604 071G 59A121 TA 9JRBR71000007 CHIP BEAD 120R/3000MA HCB1608KF-121T30
FB126 071G 59A121 TA 9JRBR71000007 CHIP BEAD 120R/3000MA HCB1608KF-121T30
FB119 071G 59A121 TA 9JRBR71000007 CHIP BEAD 120R/3000MA HCB1608KF-121T30
FB115 071G 59A121 TA 9JRBR71000007 CHIP BEAD 120R/3000MA HCB1608KF-121T30
FB603 071G 59C300 TA 9JRBR71000008 CHIP BEAD 0603 30R 25% FCM1608CF-300T06
FB601 071G 59C300 TA 9JRBR71000008 CHIP BEAD 0603 30R 25% FCM1608CF-300T06
FB602 071G 59C300 TA 9JRBR71000008 CHIP BEAD 0603 30R 25% FCM1608CF-300T06
FB112 071G 59C600 TA 9JRBR71000009 CHIP BEAD 0603 60R 25% 600MA
FB102 071G 59C800 M 9JRBR71000010 CHIP BEAD 80 OHM 0603 400MA
FB103 071G 59C800 M 9JRBR71000010 CHIP BEAD 80 OHM 0603 400MA
FB141 071G 59C800 M 9JRBR71000010 CHIP BEAD 80 OHM 0603 400MA
FB140 071G 59C800 M 9JRBR71000010 CHIP BEAD 80 OHM 0603 400MA
FB107 071G 59C800 M 9JRBR71000010 CHIP BEAD 80 OHM 0603 400MA
FB105 071G 59C800 M 9JRBR71000010 CHIP BEAD 80 OHM 0603 400MA
FB101 071G 59C800 M 9JRBR71000010 CHIP BEAD 80 OHM 0603 400MA
FB100 071G 59C800 M 9JRBR71000010 CHIP BEAD 80 OHM 0603 400MA
FB500 071G 59K300 TA 9JRBR71000011 CHIP BEAD 0603 30R 25% 700MA
FB502 071G 59K300 TA 9JRBR71000011 CHIP BEAD 0603 30R 25% 700MA

L701 073G253S 46 S 9JRBR73000003 SMD CHOKE 4.7UH

CN503 088G 34021A VA 9JRBR88000003 HDMI HEADER V/T 21P BLACK H=10.5 HF
CN502 088G 34021A VA 9JRBR88000003 HDMI HEADER V/T 21P BLACK H=10.5 HF

ZD123 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD124 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD126 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD127 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD128 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD129 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD130 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD131 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD132 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD134 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD421 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD422 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD423 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD424 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD425 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD426 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD108 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD109 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD110 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD111 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD112 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD113 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD122 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD120 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD118 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD117 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD115 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD114 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R

L66 073G253S112 X1 9JRBR73000004 SMD CHOKE 22UH 20% 1.8A 3SMCH75-220M
L65 073G253S112 X1 9JRBR73000004 SMD CHOKE 22UH 20% 1.8A 3SMCH75-220M
L63 073G253S112 X1 9JRBR73000004 SMD CHOKE 22UH 20% 1.8A 3SMCH75-220M
L64 073G253S112 X1 9JRBR73000004 SMD CHOKE 22UH 20% 1.8A 3SMCH75-220M

98

D102 093G 64 42 PP 9JRBR93000008 BAV70 SOT-23

D504 093G 64 42 PP 9JRBR93000008 BAV70 SOT-23

D503 093G 64 42 PP 9JRBR93000008 BAV70 SOT-23

D100 093G 64 42 PP 9JRBR93000008 BAV70 SOT-23

D101 093G 64 42 PP 9JRBR93000008 BAV70 SOT-23

X100 093G 22S941 C 9JRBR93000010 CRYSTAL 7M41000001 41M 20PPM 12P

D501 093G 64S900 T 9JRBR93000018 DIODE BAS316 SOD-323 PHILIPS

CN408 311GW125F40ACH 9JRBR31100004 WAFER 1.25MM 40P V/T 29.6MM 5.4MM

715G5091M01000004K 9JRBR71500005 MAIN BOARD PCB

C481 067G311F1013NT 9JRBR67000011 CAP S105C 100UF M 16V

ZD510 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD511 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD512 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD513 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD514 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD515 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD516 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD517 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R
ZD518 093G 64 37 T 9JRBR93000007 ESD TVM1G5R5M100R

X400 093G 22SA15 J 9JRBR93000011 CRYSTAL NXH27.000AC20F-BK8-2 27M 30PPM

055G 23520 9JRBR55000001 IPA
052G 2191 A 9JRBR52000004 PAPER TAPE
055G 100610 9JRBR55000003 TIN CREAM W/O PB
052G6026 2 9JRBR52000011 MESH PRINTTING PAPER

R182 061G04022209FY 9JRBR61000018 RST CHIPR 0402 22 OHM +-1% 1/16W

C714 065G060318131J Y 9JRBR65000022 CAP CHIP 0603 180P 50V NP0 +/-5%

ZD116 093G 39S510 T 9JRBR93000016 ZENER RLZ6V8B 6.8V 500MW LL-34
R4107 061G04021002FI 9JRBR61000008 TEST ONLY RST 0402 10K 1% 1/16W TA-I

X12G8008 1 9JRBR12000005 HEAT PAD FOR U602
KEPFCXA6C 9JRBR99000015 KEY BOARD

CN016 033G8032 3F HR 9JRBR33000011 CONNECTOR 3P 1.25

R017 061G06031621FY 9JRBR61000136 RST CHIP 1K62 1/10W 1%

R022 061G06031621FY 9JRBR61000136 RST CHIP 1K62 1/10W 1%

R016 061G06032941FY 9JRBR61000138 RST 0603 2.94K 1% 1/10W

R020 061G06033600FY 9JRBR61000139 RST CHIPR 360OHM 1/10W YAGEO

R019 061G06033600FY 9JRBR61000139 RST CHIPR 360OHM 1/10W YAGEO

R018 061G06038200FT 9JRBR61000140 RST CHIP 820R 1/10W 1%

R021 061G06038200FT 9JRBR61000140 RST CHIP 820R 1/10W 1%

C023 065G060310432K Y 9JRBR65000017 CAP 0603 100NF 10% 50V X7R

C024 065G060310432K Y 9JRBR65000017 CAP 0603 100NF 10% 50V X7R

C022 065G060310432K Y 9JRBR65000017 CAP 0603 100NF 10% 50V X7R

C021 065G060310432K Y 9JRBR65000017 CAP 0603 100NF 10% 50V X7R

C020 065G060310432K Y 9JRBR65000017 CAP 0603 100NF 10% 50V X7R

C019 065G060310432K Y 9JRBR65000017 CAP 0603 100NF 10% 50V X7R

C018 065G060310432K Y 9JRBR65000017 CAP 0603 100NF 10% 50V X7R

C017 065G060310432K Y 9JRBR65000017 CAP 0603 100NF 10% 50V X7R

C016 065G060310432K Y 9JRBR65000017 CAP 0603 100NF 10% 50V X7R

SW022 077G 607 2 FD 9JRBR77000001 CHIP TACT SW BY FORWARD SFKQGMA2125T-PL
SW021 077G 607 2 FD 9JRBR77000001 CHIP TACT SW BY FORWARD SFKQGMA2125T-PL
SW020 077G 607 2 FD 9JRBR77000001 CHIP TACT SW BY FORWARD SFKQGMA2125T-PL
SW019 077G 607 2 FD 9JRBR77000001 CHIP TACT SW BY FORWARD SFKQGMA2125T-PL
SW018 077G 607 2 FD 9JRBR77000001 CHIP TACT SW BY FORWARD SFKQGMA2125T-PL
SW017 077G 607 2 FD 9JRBR77000001 CHIP TACT SW BY FORWARD SFKQGMA2125T-PL
SW016 077G 607 2 FD 9JRBR77000001 CHIP TACT SW BY FORWARD SFKQGMA2125T-PL

715G4653K02000004S 9JRBR71500010 KEY BOARD PCB
IRPFCXA7C 9JRBR99000041 IR BOARD

LC-42SV32B

99

LC-42SV32B

U001 056G 627911 9JRBR56000036 IR 38KHZ KSM-603TM2M

U001 356G0927911 #N/A IR RECEIVER KSM-603TM2M. 38K

CN001 033G8032 5F X 9JRBR33000008 WAFER 5P 1.25MM S1315-05RVB-S03-K

Q001 057G 419513 9JRBR57000013 BC847C

Q002 057G 419513 9JRBR57000013 BC847C

R006 061G0603101 JI 9JRBR61000135 RST 0603 100R 5% 1/10W TA-I

R001 061G0603102 JY 9JRBR61000045 RST CHIPR 1KOHM +-5£¥ 1/10W YAGEO

R002 061G0603221 JF 9JRBR61000137 ST CHIPR 220 OHM +-5% 1/10W FENGHUA

R003 061G0603222 JF 9JRBR61000060 RST CHIPR 2.2K OHM +-5% 1/10W FENGHUA

R004 061G0603222 JF 9JRBR61000060 RST CHIPR 2.2K OHM +-5% 1/10W FENGHUA

R005 061G0603272 JF 9JRBR61000064 RST CHIPR 2.7KOHM 5% 1/10W FENGHUA

C001 065G060310512K T 9JRBR65000018 CAP 0603 1UF 10% 16V X7R

LED001 081G 14 6 GP 9JRBR81000002 LED GPTD1210RGC GUANGPU

IC9102 056G 139 10 9JRBR56000032 IC TLP781F PHOTOCOUPLER DIP-4
IC9350 056G 139 10 9JRBR56000032 IC TLP781F PHOTOCOUPLER DIP-4
IC9351 056G 139 10 9JRBR56000032 IC TLP781F PHOTOCOUPLER DIP-4
IC9301 056G 379121 9JRBR56000004 IC STR- A6069H DIP-8

RV9901 061G 46 17 W 9JRBR61000132 VARISTOR 560V 10% 16*19 TVR14561KSY

NR901 061G 58309MEW 9JRBR61000133 NTCR 3 OHM 7A ¡À20% SCK15037MMY502
NR902 061G 58309MEW 9JRBR61000133 NTCR 3 OHM 7A ¡À20% SCK15037MMY502

C9901 063G107K474AUS A 9JRBR63000002 CAP X2 0.47UF 10% 305V BULK ( B )
C9902 063G107K474AUS A 9JRBR63000002 CAP X2 0.47UF 10% 305V BULK ( B )
C9810 063G210K105GHU 9JRBR63000003 CAP MPP 1UF 10% 450V
C9115 063G211J1835HU 9JRBR63000005 CAP MPPB 18NF 5% 1KV
C9905 065G306K4712B3 9JRBR65000073 Y1 CAP 470PF +-10% 250VAC CD SERIES
C9904 065G306K4712B3 9JRBR65000073 Y1 CAP 470PF +-10% 250VAC CD SERIES
C9903 065G306K4712B3 9JRBR65000073 Y1 CAP 470PF +-10% 250VAC CD SERIES

C933 065G306K4712B3 9JRBR65000073 Y1 CAP 470PF +-10% 250VAC CD SERIES

C932 065G306K4712B3 9JRBR65000073 Y1 CAP 470PF +-10% 250VAC CD SERIES

C931 065G306K4712B3 9JRBR65000073 Y1 CAP 470PF +-10% 250VAC CD SERIES

C930 065G306K4712B3 9JRBR65000073 Y1 CAP 470PF +-10% 250VAC CD SERIES

C929 065G306K4712B3 9JRBR65000073 Y1 CAP 470PF +-10% 250VAC CD SERIES

C928 065G306K4712B3 9JRBR65000073 Y1 CAP 470PF +-10% 250VAC CD SERIES

C9824 067G 42Z10115K 9JRBR67000018 EC 100UF 20% 450V 18*40
C9825 067G 42Z10115K 9JRBR67000018 EC 100UF 20% 450V 18*40
C9353 067G204V331 3K 9JRBR67000022 CS CAP 330UF 16V 10*12 MM
C9354 067G215P4713KV 9JRBR67000028 EC 470UF 20% 16V 10*12
C9151 067G515L1027KV 9JRBR67000026 EC 1000UF 20% 50V 12.5*25 6000 HR
C9152 067G515L1027KV 9JRBR67000026 EC 1000UF 20% 50V 12.5*25 6000 HR
L9804 073G 174161 N 9JRBR73000008 PFC CHOKE 170UH 5% 85UH YUVA-1234
L9105 073G 253 91 H 9JRBR73000006 IND CHOKE 3.5UH+-10% DADONG
L9350 073G 253 91 H 9JRBR73000006 IND CHOKE 3.5UH+-10% DADONG
L9104 073G 253150 H 9JRBR73000009 CHOKE COIL 3.0UH 10% GBQM4.776.804
L9902 073L 174 49 HG 9JRBR73000010 LINE FILTER 20.0MH MIN
L9901 073T 174106 VP 9JRBR73000007 LINE FILTER 13MH MIN VOC
T9101 080GL52P 51 N 9JRBR80000005 X'FMR 800UH 10% 210UH ER39 YUVA-1826
T9301 080GL52T 5 N2 9JRBR80000004 X'FMR 1.0MH 10%

CN901 087G 501908 S 9JRBR87000001 FOR SHARP AC SOCKET 2P V/T H=21.8

D9804 093G 52918 9JRBR93000027 RECTIFIER 1N5408G-04 X0 3A 1000V DO201AD
D9156 093G 60334 9JRBR93000028 SCHOTTKY SR506-44 5A 60V DO-201AD

CN903 095G 82513XM02 9JRBR95000008 HARNESS 13P(SCN)-14P(CI0114) 220MM

055G 23520 9JRBR55000001 IPA

715G3542R01000004S 9JRBR71500009 IR BOARD PCB
ADTV12420XE3C 9JRBR99000014 POWER BOARD
009G6005 1 9JRBR09000001 GND TERMINAL
040G 45762412B 9JRBR40000008 CBPC LABEL

100
