Sharp LC-32LE600E, LC-40LE600E, LC-46LE600E Operating Manual

LC-32LE600E LC-40LE600E
LC-46LE600E

LCD COLOUR TELEVISION
TELEWIZOR KOLOROWY LCD
LCD SZÍNESTELEVÍZIÓ
TELEVIZOR S BAREVNOU LCD OBRAZOVKOU
TELEVÍZOR S FAREBNOU LCD OBRAZOVKOU

КОЛЬОРОВИЙ ТЕЛЕВІЗОР З

РІДКОКРИСТАЛІЧНИМ ДИСПЛЕЄМ

VÄRVILINE LCD-TELER
ŠĶIDRO KRISTĀLU EKRĀNA (LCD) KRĀSU

TELEVIZORS
SPALVINIS LCD TELEVIZORIUS
ΤΗΛΕΟΡΑΣΗ ΜΕ ΕΓΧΡΩΜΗ ΟΘΟΝΗ LCD

(ΥΓΡΩΝ ΚΡΥΣΤΑΛΛΩΝ)
LCD RENKLİ TELEVİZYON

OPERATION MANUAL
INSTRUKCJA OBSŁUGI
KEZELÉSI ÚTMUTATÓ
NÁVOD K OBSLUZE
NÁVOD NA OBSLUHU
ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ
KASUTUSJUHEND
LIETOŠANAS

ROKASGRĀMATA
NAUDOJIMO INSTRUKCIJA
ΕΓΧΕΙΡΙΔΙΟ ΛΕΙΤΟΥΡΓΙΑΣ
KULLANMA KILAVUZU

ENGLISH

SHARP ELECTRONICS (Europe) GmbH

Sonninstraße 3, D-20097 Hamburg

SHARP CORPORATION

http://www.sharp-eu.com

Printed in Poland
Wydrukowano w Polsce
Készült Lengyelországban
Vytištěno v Polsku
Vytlačené v Poľsku
Надруковано в Польщі
Trükitud Poolas
Iespiests Polijā
Išspausdinta Lenkijoje
Τυπώθηκε στην Πολωνία
Polonya’da basılmıştır

TINS-E287WJZZ

09P07-PL-NG

POLSKIMAGYARČESKY

SLOVENSKY

УКРАЇНСЬКА

EESTI

PIN

LC-32LE600E/LC-40LE600E

LC-46LE600E

E287WJZZ

OPERATION MANUAL/INSTRUKCJA OBSŁUGI/KEZELÉSI ÚTMUTATÓ/NÁVOD K

OBSLUZE/NÁVOD NA OBSLUHU/ІНСТРУКЦІЯ З ЕКСПЛУАТАЦІЇ/KASUTUSJUHEND/

LIETOŠANAS ROKASGRĀMATA/NAUDOJIMO INSTRUKCIJA/ΕΓΧΕΙΡΙΔΙΟ ΛΕΙΤΟΥΡΓΙΑΣ/

KULLANMA KILAVUZU

3

LATVISKI

LIETUVIŠKAI

ΕΛΛΗΝΙΚΑ

TÜRKÇE

Cover_PL01_LE600E.indd 1Cover_PL01_LE600E.indd 1 2009/07/14 14:26:502009/07/14 14:26:50

SPECIAL NOTE FOR USERS IN THE U.K.

The mains lead of this product is fitted with a non-rewireable (moulded) plug incorporating a 13A
fuse. Should the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked or

ASA

and of the same rating as above, which is also indicated on the pin face of the plug, must be used.
Always refit the fuse cover after replacing the fuse. Never use the plug without the fuse cover fitted.
In the unlikely event of the socket outlet in your home not being compatible with the plug supplied,
cut off the mains plug and fit an appropriate type.

DANGER:

The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and
disposed of in a safe manner.
Under no circumstances should the cut-off plug be inserted elsewhere into a 13A socket outlet, as a
serious electric shock may occur.
To fit an appropriate plug to the mains lead, follow the instructions below:

IMPORTANT:

The wires in the mains lead are coloured in accordance with the following code:

Blue: Neutral
Brown: Live

As the colours of the wires in the mains lead of this product may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:

The wire which is coloured blue must be connected to the plug terminal which is marked N or coloured black.
The wire which is coloured brown must be connected to the plug terminal which is marked L or coloured red.

Ensure that neither the brown nor the blue wire is connected to the earth terminal in your three-pin
plug.
Before replacing the plug cover make sure that:

If the new fitted plug contains a fuse, its value is the same as that removed from the cut-off plug.
The cord grip is clamped over the sheath of the mains lead, and not simply over the lead wires.

IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.

•

•

•

•

( ) LC-46LE600E

[ ] LC-40LE600E

[[ ]] LC-32LE600E

46o/40o/36

o

(

470.0)/[420.0 ]/[[390.0

(

470,0)/[420,0 ]/[[390,0

(

1099.0 )/[ 964.0 ]/

(

1099,0 )/[ 964,0 ]/

]]

]]

]]

]]

(

502.0

502,0

554,0

554.0
[[

[[

[[

[[

/

/

/

/

]

]

]

]

612.0

612,0

[

[

664,0

664.0
/

/

[

[

)

)

/

/

)

)

688.0

688,0

(

(

740,0

740.0

(

(

]]

]]

200.0

200,0

[[

[[

/

/

]

]

300.0

300,0

[

[

/

/

)

)

400.0

400,0

(

(

]]

]]

135,0

135.0
[[

[[

/

/

]

]

170,0

170.0
[

[

/

/

)

)

175,0

175.0
(

(

1023.4 )/[ 887.8 ]/

(

1023,4 )/[ 887,8 ]/

(

400.0 )/[ 300.0 ]/

(

400,0 )/[ 300,0 ]/

[[

700.0

[[

700,0

)

575.6
(

]]
]]

[[

]]

767.0

[[

]]

767,0

]]

]]

]]

]]

)

]

]

394,5

394.5

575,6

500,4

500.4
(

[

[

[[
[[

[[

200.0
200,0

[[

]]
]]

]]

]]

321.0

321,0

[[

[[

/

/

]

]

377.0

377,0

[

[

/

/

)

)

415.0

415,0

(

(

(

123.2

[

[[

(

123,2

[

[[

)

]

99.0
]]

83.0

)

]

99,0

]]

83,0

(

357.0 )/[ 309.0 ]/

(

357,0 )/[ 309,0 ]/

(
[

[[

(
[

[[

93.2

93.1

91.9

93,2
93,1
91,9

[[

271.9

[[

271,9

)
]
]]

)
]
]]

]]
]]

Cover_PL02_LE600E.indd 1Cover_PL02_LE600E.indd 1 2009/07/14 14:27:492009/07/14 14:27:49

OPERATION MANUAL

The illustrations and the OSD in this operation manual are for explanation purposes and may vary slightly from the actual operations.

•
The examples used throughout this manual are based on the LC-46LE600E model.

•
LC-32LE600E, LC-40LE600E and LC-46LE600E models are compatible with H.264 (MPEG4 H.264, MPEG4 AVC, MPEG4 AVC/H.264)

•
compressed broadcasts.

ENGLISH

Dear SHARP customer

Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many years of trouble-free
operation of your product, please read the Important Safety Precautions carefully before using this product.

Contents

ENGLISH

Contents ...................................................................... 1

Introduction ................................................................. 2

Important Safety Precautions ................................ 2

Remote control unit .............................................. 3

TV (Front view) ...................................................... 4

TV (Rear view) ....................................................... 4

Preparation.................................................................. 5

Supplied accessories ............................................ 5

Attaching the stand unit ........................................ 5

Inserting the batteries............................................ 6

Using the remote control unit ................................ 6

Cautions regarding the remote control unit ...... 6

Quick guide ................................................................. 7

Initial installation overview...................................... 7

Before turning on the power ................................. 8

Initial auto installation ............................................ 9

Checking signal strength ................................. 9

Watching TV .............................................................. 10

Daily operation .................................................... 10

Switching on/off ............................................ 10

Switching between digital and analogue

broadcasts ................................................. 10

Changing channels ....................................... 10

Selecting an external video source ................ 10

Selecting a sound mode ............................... 10

EPG .................................................................... 11

Teletext ............................................................... 12

Using the MHEG-5 application (UK only) ............. 12

Connecting external devices ................................... 13

Video connections .............................................. 13

HDMI connection .......................................... 13

Component connection ................................ 14

VIDEO connection ......................................... 14

SCART connection ....................................... 14

Audio connections .............................................. 15

Speaker/amplifier connection ........................ 15

Inserting the CA Card into the CI Module ............ 15

Menu operation......................................................... 16

What is the MENU? ............................................ 16

Basic Operation ............................................ 16

Basic adjustment ...................................................... 17

Picture Settings .................................................. 17

AV MODE...................................................... 18

Audio Settings .................................................... 18

Setting audio input ........................................ 19

Automatic volume adjustment ....................... 19

Outputting audio only .................................... 19

AQUOS LINK Settings ........................................ 19

What you can do with AQUOS LINK ............. 19

Controlling AQUOS LINK devices using remote

control unit ................................................. 19

Power Save Settings ........................................... 20

Channel Settings ................................................ 20

Auto Installation ............................................ 20

Channel detail settings .................................. 20

Password/Parental lock settings ................... 22

Language Settings .............................................. 22

Useful viewing functions .......................................... 23

Selecting the picture size .................................... 23

Display Settings .................................................. 23

Channel display............................................. 23

Time and Title display ................................... 23

Other useful features ............................................... 24

Setting when using external devices ................... 24

Input source settings ..................................... 24

Skipping specified inputs .............................. 24

Reset .................................................................. 24

Identification ....................................................... 24

Software update ................................................. 24

Connecting a PC ....................................................... 25

Connecting a PC ................................................ 25

Adjusting the PC image automatically ........... 25

Adjusting the PC image manually .................. 25

RS-232C port specifications ............................... 26

PC compatibility chart ......................................... 27

RS-232C command list ...................................... 27

Appendix ................................................................... 28

Troubleshooting .................................................. 28

Specifications ..................................................... 29

Optional accessory ............................................. 30

Environmental specifications ............................... 30

Trademarks ......................................................... 30

End of life disposal .............................................. 31

Rating table for Child Lock .................................. 32

Abbreviation list .................................................. 32

1

LC-LE600E_GB3.indd 1LC-LE600E_GB3.indd 1 2009/07/14 14:37:412009/07/14 14:37:41

Introduction

Important Safety Precautions

Cleaning—Unplug the AC cord from the AC outlet before cleaning the product. Use a damp cloth to clean the product. Do not use

•
liquid cleaners or aerosol cleaners.

Use a soft damp cloth to gently wipe the panel when it is dirty. To protect the panel, do not use a chemical cloth to clean it.

•
Chemicals may cause damage or cracks in the cabinet of the TV.

Water and moisture—Do not use the product near water, such as bathtub, washbasin, kitchen sink, laundry tub, swimming pool and

•
in a wet basement.

Do not place vases or any other water-filled containers on this product. The water may spill onto the product

•
causing fire or electric shock.

Stand—Do not place the product on an unstable cart, stand, tripod or table. Doing so can cause the product

•
to fall, resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod,
bracket or table recommended by the manufacturer or sold with the product. When mounting the product on
a wall, be sure to follow the manufacturer’s instructions. Use only the mounting hardware recommended by the
manufacturer.

When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, excessive

•
force and uneven floor surface can cause the product to fall from the cart.

Ventilation—The vents and other openings in the cabinet are designed for ventilation. Do not cover or block

•
these vents and openings since insufficient ventilation can cause overheating and/or shorten the life of the
product. Do not place the product on a bed, sofa, rug or other similar surface, since they can block ventilation
openings. This product is not designed for built-in installation; do not place the product in an enclosed place
such as a bookcase or rack, unless proper ventilation is provided or the manufacturer’s instructions are
followed.

The LCD panel used in this product is made of glass. Therefore, it can break when the product is dropped or

•
impact applied. If the LCD panel is broken, be careful not to be injured by broken glass.

Heat sources—Keep the product away from heat sources such as radiators, heaters, stoves and other heat-

•
generating products (including amplifiers).

To prevent fire, never place any type of candle or naked flames on the top or near the TV set.•

To prevent fire or shock hazard, do not place the AC cord under the TV set or other heavy items.•

Headphones—Do not set the volume at a high level. Hearing experts advise against extended listening at high volume levels.•

Do not display a still picture for a long time, as this could cause an afterimage to remain.•

There is power consumption always if main plug is connected.•

Servicing—Do not attempt to service the product yourself. Removing covers can expose you to high voltage and other dangerous

•
conditions. Request a qualified person to perform servicing.

The LCD panel is a very high technology product, giving you fine picture details.
Due to the very large number of pixels, occasionally a few non-active pixels may appear on the screen as a fixed point of blue, green or
red. This is within product specifications and does not constitute a fault.

Precautions when transporting the TV

When transporting the TV, never carry it by holding onto the speakers. Be sure to always carry the TV by two people holding it with two
hands—one hand on each side of the TV.

2

LC-LE600E_GB3.indd 2LC-LE600E_GB3.indd 2 2009/07/14 14:37:422009/07/14 14:37:42

Introduction

Remote control unit

1

B (Standby/On)

(Page 10)

2

Buttons for useful operations
m (Teletext)

ATV: Display analogue teletext
(Page 12).
DTV: Select MHEG-5 and teletext
for DTV (Page 12).

k (Reveal hidden Teletext)

(Page 12)

[ (Subtitle)

Switch subtitle languages on/off
(Pages 12 and 22).

3 (Freeze/Hold)

Press to freeze a moving image on
the screen.
Teletext: Stop updating teletext
pages automatically or release the
hold mode.

1 (Subpage)

(Page 12)

v (Top/Bottom/Full)

Set the area of magnification in
teletext mode (Page 12).

3

Numeric buttons 0_9

Set the channel.
Enter desired numbers.
Set the page in teletext mode.

•

When the four Nordic countries
(Sweden, Norway, Finland or
Denmark) are selected in the
country setting from the initial
auto installation (Page 9), TV
channels are four digits. When
another country is selected, TV
channels are three digits.

4

A (Flashback)

Press to return to the previously
selected channel or external input.

5

DTV

Press to access to a digital TV
channel.

6

ATV

Press to access to an analogue TV
channel.

7

2 (Sound mode)

Select a sound multiplex mode
(Page 10).

8

i+/- (Volume)

Increase/decrease TV volume.

9

e (Mute)

TV sound on/off.

1
2

3

4
5
6

7
8
9

10

11

12

13
14

0

f (WIDE MODE)

Select a wide mode (Page 23).

Q

#

Select a video setting (Page 18).

W

a/b/c/d (Cursor)

Select a desired item on the setting
screen.

;

Execute a command within the
“MENU” screen.
ATV/DTV: Display the programme
list when no other “MENU” screen
is running.

E

END

Exit the “MENU” screen.

R

R/G/Y/B (Colour) buttons

The coloured buttons are
correspondingly used to select the
coloured items on the screen (e.g.,

15
16

17
18

19
20
21

22

23

24

25

EPG, MHEG-5, Teletext).

T

b (INPUT SOURCE)

Select an input source (Page 10).

Y

EPG

DTV: Display the EPG screen (Page

11).

U

RADIO

DTV: Switch to Radio mode.

I

P. INFO

Press to display programme
information which is transmitted
through digital video broadcasting in
the upper left corner of the screen
(DTV only).

O

:r/s

Select the TV channel.

P

p (Display information)

Press to display the station
information (channel number, signal,
etc.) in the upper right corner of the
screen (Page 23).

A

ECO (Standard/Advanced/Off)

Select “Energy Save” setting (Page

20).

S

@

“MENU” screen on/off.

D

6 (Return)

Return to the previous “MENU”
screen.

F

SLEEP

Press to schedule a time for the TV
to automatically standby.

G

AQUOS LINK buttons

If external equipment such as a
AQUOS BD Player is connected via
HDMI cables and is AQUOS LINK
compatible, you can use these
AQUOS LINK buttons. See page 19
for details.

•

On this model, < key
does not work.

3

LC-LE600E_GB3.indd 3LC-LE600E_GB3.indd 3 2009/07/14 14:37:422009/07/14 14:37:42

Introduction

TV (Front view)

TV (Rear view)

1

2

3

4

5

1 2 34

8 9 10

6

11

12

13

14

1

B (Standby/On indicator)

2

5

6

7

8

9

*1

7

*2

OPC indicator

3

Remote control sensor

4

OPC sensor

5

a (Power button)

6

@ (Menu button)

7

b (Input source button)

8

:r/s (Programme [channel]
buttons)

i+/- (Volume buttons)

9

COMMON INTERFACE slot

1

SERVICE terminal (USB terminal

2

for service personnel only)
HDMI 3 (HDMI) terminal

3

EXT 8 terminals

4

Headphones

5

AC INPUT terminal

6

MAIN POWER switch

7

EXT 4 (ANALOGUE RGB)

8

terminal

9

HDMI 1 (HDMI) terminal

10

HDMI 2 (HDMI) terminal

11

Antenna terminal

12

HDMI 2/PC AUDIO (R/L) jack

13

DIGITAL AUDIO OUTPUT
terminal

14

RS-232C terminal

15

EXT 3 (COMPONENT/AUDIO)
terminals

16

EXT 1 (RGB) terminal

17

EXT 2 (AV) terminal

18

OUTPUT (AUDIO) terminals

WARNING

Excessive sound pressure from earphones

•
and headphones can cause hearing loss.

•

Do not set the volume at a high level.
Hearing experts advise against extended
listening at high volume levels.

•

The SERVICE terminal is reserved only
for qualified service personnel. Do not
connect anything to the terminal.

15 16 17 18

When the MAIN POWER switch is turned off (a), the amount of electric power consumed will be reduced to 0.01 W or less. However,

I

unlike when unplugging the AC cord, the power is not completely disconnected.

J

The HDMI 2 and EXT 4 terminals can both use the same audio input terminal (HDMI 2/PC AUDIO (R/L)). However, the proper item must
be selected in the “PC Audio Select” menu (Refer to page 19 for details).

4

LC-LE600E_GB3.indd 4LC-LE600E_GB3.indd 4 2009/07/14 14:37:432009/07/14 14:37:43

Preparation

Supplied accessories

Remote control unit ( x 1) AC cord ( x 1) Cable clamp ( x 1) Stand unit ( x 1)

For 32 inch models

Product shape varies in

some countries.

Pages 3 and 6 Page 8 Page 8 Page 5

Operation manual (This publication)

•
“AAA” size zinc-carbon battery ( x 2) ... Page 6

•

For 40/46 inch models

Attaching the stand unit

Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal.

•
Before performing work, spread cushioning over the surface on which you will be laying the TV. This will prevent it

•
from being damaged.

CAUTION

Attach the stand in the correct direction.

•

Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.

•

Confirm that there are eight screws with the

1

stand unit.

Models Screws

32 inch models

40/46 inch models

2

Attach the supporting post for the stand unit
onto the base using the four screws with the
screw driver as shown.

AB

CD

Inserting the stand.

3

Insert the stand into the openings on the

1

bottom of the TV (Hold the stand so it will not
drop from the edge of the base area).

2

Insert and tighten the four screws into the four
holes on the rear of the TV.

Soft cushion

32 inch models: Use Screws B in the table in step 1.

*

40/46 inch models: Use Screws D in the table in step 1.

*

Supporting
post

32 inch models: Use Screws A in the table in step 1.

*

40/46 inch models: Use Screws C in the table in step 1.

*

NOTE

To detach the stand unit, perform the steps in reverse order.

•
A screw driver is not supplied with this product.

•

5

LC-LE600E_GB3.indd 5LC-LE600E_GB3.indd 5 2009/07/14 14:37:432009/07/14 14:37:43

Preparation

Inserting the batteries

Before using the TV for the first time, insert two supplied “AAA” size zinc-carbon batteries. When the batteries become
depleted and the remote control unit fails to operate, replace the batteries with new “AAA” size batteries.

Open the battery cover.

1
2

Insert two supplied “AAA” size batteries.

Place batteries with their terminals corresponding to the (e)

•

and (f) indications in the battery compartment.

Close the battery cover.

3

CAUTION

Improper use of batteries can result in chemical leakage or explosion. Be sure to follow the instructions below.

Do not mix batteries of different types. Different types of batteries have different characteristics.

•
Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries or cause chemical leakage in old

•
batteries.

•

Remove batteries as soon as they have worn out. Chemicals that leak from batteries can cause a rash. If you find any chemical leakage,
wipe thoroughly with a cloth.

•

The batteries supplied with this product may have a shorter life expectancy due to storage conditions.

•

If you will not be using the remote control unit for an extended period of time, remove the batteries from it.

Note on disposing batteries:

The batteries provided contain no harmful materials such as cadmium, lead or mercury.
Regulations concerning used batteries stipulate that batteries may no longer be thrown out with the household rubbish.
Deposit any used batteries free of charge into the designated collection containers set up at commercial businesses.

Using the remote control unit

Use the remote control unit by pointing it towards the remote control sensor. Objects between the remote control unit
and sensor may prevent proper operation.

5 m

Remote control sensor

Cautions regarding the remote control unit

Do not expose the remote control unit to shock. In addition, do not expose the remote

•
control unit to liquids, and do not place in an area with high humidity.
Do not install or place the remote control unit under direct sunlight. The heat may cause

•
deformation of the unit.
The remote control unit may not work properly if the remote control sensor of the TV is

•
under direct sunlight or strong lighting. In such cases, change the angle of the lighting or
the TV, or operate the remote control unit closer to the remote control sensor.

6

LC-LE600E_GB3.indd 6LC-LE600E_GB3.indd 6 2009/07/14 14:37:442009/07/14 14:37:44

Quick guide

Initial installation overview

Follow the steps below one by one when using the TV for the first time. Some steps may not be necessary depending
on your TV installation and connection.

Run the

Preparation

Connect an antenna cable to the



antenna terminal (Page 8).

If necessary, insert a CA



card into the CI slot to watch
scrambled broadcasts (Page 15).

Turn on (;) the MAIN POWER



switch on the left side of the TV
(Page 4).



Turn on the power using a on
the TV (Page 10).

Run the initial auto installation



(Page 9).

initial

settings

Language setting

✔

English

Watch TV

Congratulations!



Now you can watch TV.



If necessary, adjust the antenna
to attain maximum signal
reception (Page 9).

Connect external

devices

Connect external devices



such as a DVD player/
recorder as instructed (Pages
13_14).

Português

Connect the AC cord to the TV



(Page 8).

Home/Store setting

✔

Country setting

✔

Installation start

✔

HOME

STORE

Austria

Finland

Connect external audio



devices such as speakers/
amplifier as instructed (Page

15).

confirmation

Start

Skip

Product shape varies in some

countries.

Start searching

channels

7

LC-LE600E_GB3.indd 7LC-LE600E_GB3.indd 7 2009/07/14 14:37:452009/07/14 14:37:45

Quick guide

Before turning on the power





1

2



*



Cable clamp (Bundle the cables with the clamp)




Standard DIN45325 plug (IEC 169-2) 75 q coaxial cable



Turn on (;) the MAIN POWER switch on the left side of the TV.



AC cord (Product shape varies in some countries)

The AC cord is supplied either with a ferrite core or without a ferrite core. Neither

*

type causes unnecessary electrical wave emissions or interference.

Supplying power to the antenna

When an active antenna is used, power must be supplied to the antenna using the following procedures after
connecting the antenna cable to the antenna terminal on the rear of the TV in order to receive terrestrial digital
signals.

Press @ and the “MENU” screen displays.

1

Press c/d to select “Setup”.

2

Press a/b to select “Antenna Setup”, and then press ;.

3

Press a/b to select “Supply Voltage”, and then press ;.

4

Press c/d to select “On”, and then press ;.

5

Mounting the TV on a wall

This TV should be mounted on a wall only with the wall mount bracket and attachment* available from SHARP (Page 30).

•

The use of other wall mount brackets may result in an unstable installation and may cause serious injuries.
Mounting the LCD colour TV requires special skills and should only be performed by qualified service personnel. Customers

•

should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or mounting that
results in accident or injury.

You can ask qualified service personnel about using an optional bracket and attachment* to mount the TV to a wall.

•
To use this TV mounted on a wall, first remove the adhesive tape at the two locations on the rear of the TV, and then use the screws

•
supplied with the wall mount bracket to secure the bracket to the rear of the TV.
When you mount the TV on a wall, you should attach the supporting post.

•
Only for 40 inch models.

*

Place the TV close to the AC outlet,
and keep the power plug within
reach.

8

LC-LE600E_GB3.indd 8LC-LE600E_GB3.indd 8 2009/07/14 14:37:472009/07/14 14:37:47

Quick guide

Initial auto installation

When the TV is powered on for the first time after
purchase, the initial auto installation wizard appears.
Follow the menus and make the necessary settings one
after another.

Confirm the following before turning on
the power

Is the antenna cable connected?

E

Is the AC cord plugged in?

E

Is the MAIN POWER switch turned on (;)?

E

Press a on the TV.

1

The initial auto installation wizard appears.

•

Setting the OSD language.

2

English

Português

Press a/b to select the desired language, and
then press ;.

Selecting the location of the TV.

3

HOME

STORE

Press a/b to select where you will use this TV,
and then press ;.

HOME: “STANDARD” will be the default value for the “AV

•
MODE” setting.

•

STORE: “DYNAMIC (Fixed)” will be the default value for
the “AV MODE” setting. If the “AV MODE” is changed,
the TV will automatically switch back to “DYNAMIC
(Fixed)” when there is no signal input from the TV or
remote control unit for 30 minutes.

Setting the country.

4

Austria

Starting channel search.

5

Start

Skip

Press a/b to select “Start” or “Skip”, and then
press ;.

If you want to search for more broadcasts, execute

•
“Additional Search” from the “Programme Setup” menu
(Page 21).

The TV searches for, sorts and stores all the

6

receivable TV stations according to their
settings and the connected antenna.

To abort the initial auto installation in progress, press 6.

•

NOTE

If you turn off the power on the TV after performing step 5 or

•
if you select “Skip” on step 5, the initial auto installation wizard
will not appear. The auto installation function allows you to
execute the installation again from the “Setup” menu (Page 20).

•

The initial auto installation wizard will abort if you leave the TV
unattended for 10 minutes before searching for channels in
step 6.

•

After initial auto installation is completed, the default PIN is
automatically set to “1234”. To change the PIN setting, refer to
Password/Parental lock settings (Page 22). To clear the PIN
setting (PIN input will no longer be needed), refer to CLEARING
THE PIN (Page 24).

•

When “Italy” is selected in the country setting, the default PIN is
automatically set to “1234” and the default age restriction value
is set to 18.

Checking signal strength

If you install an antenna for the first time or relocate it, you
should adjust the alignment of the antenna to receive a
good reception while checking the antenna setup screen.

Press @ and the “MENU” screen

1

displays.
Press c/d to select “Setup”.

2

Press a/b to select “Antenna Setup”, and

3

then press ;.
Press a/b to select “Signal Strength”.

4

NOTE

The values of “Signal Strength” indicates when to check the

•
appropriate alignment of the antenna.

Finland

Press a/b to select your country or area, and
then press ;.

This setting screen only appears during the first

•
installation.

9

LC-LE600E_GB3.indd 9LC-LE600E_GB3.indd 9 2009/07/14 14:37:482009/07/14 14:37:48

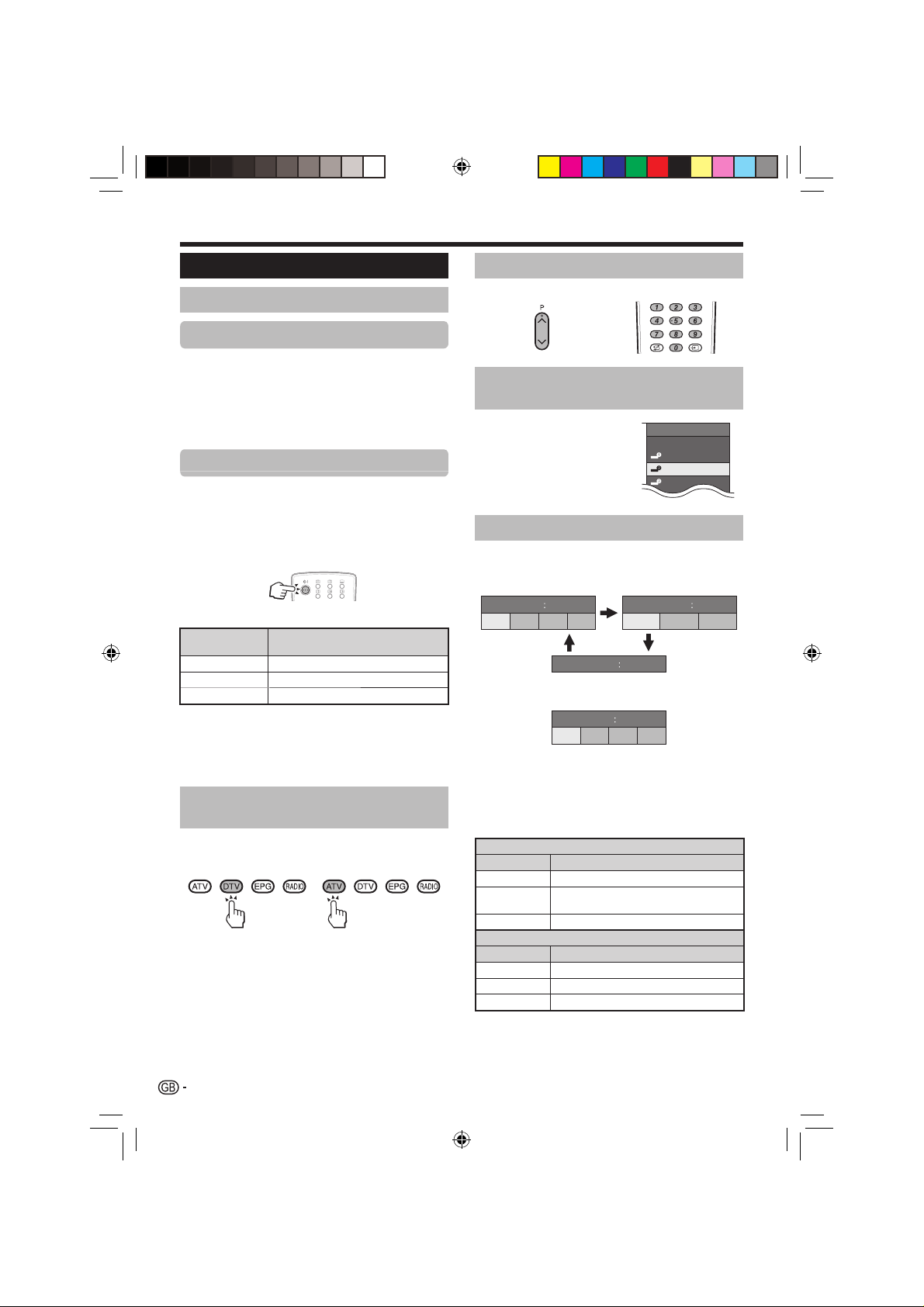

Watching TV

Daily operation

Switching on/off

Turning on/off the power

Turn on (;) the MAIN POWER switch on the

1

left side of the TV (Page 4).
Press a on the TV.

2

Switch it off by pressing a on the TV.

When turning off the power using a on the TV, EPG data

•
will be lost.

Standby mode

To standby mode

E

If the TV is switched on, you can switch it to standby by
pressing B on the remote control unit.

E

Switching on from standby

From standby, press B on the remote control unit.

TV indicator status

B (Standby/On

indicator)

Off

Green

Red

NOTE

If you are not going to use this TV for a long period of time, be

•

sure to remove the AC cord from the AC outlet or turn off (a)
the MAIN POWER switch on the left side of the TV (Page 4).

•

A small amount of electric power is still consumed even when
a is turned off.

Power off

Power on

Standby

Status

Switching between digital and
analogue broadcasts

To dial the first
DTV service on the
programme list

NOTE

If the TV cannot search digital broadcasts, the analogue

•
broadcasts are set from 001 channel.

To dial the first
ATV service on the
programme list

Changing channels

With :r/s: With 0_9:

Selecting an external video
source

Once the connection is made,
press b to display the “INPUT
SOURCE” screen, and then press
b or a/b to switch over to
the appropriate external source
with ;.

INPUT SOURCE
TV

EXT 1

EXT 2

EXT 3

Selecting a sound mode

DTV mode

E

If multi sound modes are received, each time you press
2 the mode switches as follows.

Audio (ENG) STEREO

L/R LRLR

Audio (ENG)

Press c/d to select L or R sound when the STEREO or
DUAL MONO screen is displayed.

Audio (ENG) STEREO

L/R LRLR

NOTE

The sound mode screen disappears in six seconds.

•
Selectable items vary depending on the received broadcasts.

•

ATV mode

E

Each time you press 2, the mode switches as shown
in the following tables.

NICAM TV broadcasts selection

Signal Selectable items

Stereo

Bilingual

Monaural

Signal Selectable items

Stereo

Bilingual

Monaural

NOTE

When no signal is input, the sound mode will display “MONO”.

•

NICAM STEREO, MONO

NICAM CH A, NICAM CH B, NICAM CH AB,
MONO

NICAM MONO, MONO

A2 TV broadcasts selection

STEREO, MONO

CH A, CH B, CH AB

MONO

Audio (ENG) CH A

CH A

CH B CH AB

MONO

10

LC-LE600E_GB3.indd 10LC-LE600E_GB3.indd 10 2009/07/14 14:37:492009/07/14 14:37:49

Watching TV

EPG

EPG is a programme list that is displayed on the screen. With the EPG, you can check the schedule of DTV/RADIO, view
detailed information about them, tune to an event currently on-air.

Basic Operation

The illustrations on this page are explained
using three digit channels.

Display/Close the EPG

E

screen

Press EPG.

Search for a programme on the main screen

E

1

Search for a channel and programme

1

Press a/b to select the channel you want to search, and then press d to move the cursor to the
programme table.

If a or b are displayed on the left of the channels, continue to press a/b to display next or previous screen.

•

Press a/b to select the desired programme, and then press ; to display the programme

2

information.

Searching for a programme using colour buttons on the remote control unit

[DTV-TV]

Filter All types

Enter Back Exit Prev Next Programme Info. Filter

Select

[Mon] [Mon]

Prev Next FilterProgramme Info.

Search for a programme on the

2

previous day

Press R to move to the programme table for
the previous day.

Search for a programme on the next

3

day

Press G to move to the programme table for
the next day.

Check programme information

4

1

Press a/b to select the programme you want
to check.

Press Y to display the programme information.

2

Press Y or 6 to go back to the EPG screen.

3

Search a programme in a category

5

1

Press B.

2

Press d to select the desired filter category.

Each time you press d, the filter category switches (e.g.,

•
“Movie”, “News”, etc.).

Press ; or B to display the programme table

3

for the selected category.
Press B or 6 to go back to the EPG screen.

4

11

LC-LE600E_GB3.indd 11LC-LE600E_GB3.indd 11 2009/07/14 14:37:502009/07/14 14:37:50

Watching TV

Teletext

What is Teletext?

Teletext broadcasts pages of information and
entertainment to specially equipped TV. Your TV receives
teletext signals broadcast by a TV network, and decodes
them into graphical format for viewing. News, weather
and sports information, stock exchange prices and
programme previews are among the many services
available.

Turning Teletext on/off

Select a TV channel or external source

1

providing a teletext programme.
Press m to display the Teletext.

2

Many stations use the TOP operating system, while

•
some use FLOF (e.g., CNN). Your TV supports both
these systems. The pages are divided into topic groups
and topics. After switching on the teletext, up to 1,000
pages are stored for fast access.

•

If you select a programme with no teletext signal, “No
Teletext available” displays.

•

The same message displays during other modes if no
teletext signal is available.

TELETEXT

•

Each time you press m, the screen switches as shown
above.

•

Press m again to display the teletext on the right screen
and the normal image on the left screen.

Teletext Language

If teletext information is not displayed correctly, select the
language type from among nine kinds of language tables;
“West Europe”, “East Europe”, “Russia”, “Russia-2”,
“Greek”, “Turkey”, “Arab/Hbrw”, “Farsian”, or “Arab”.

Go to “MENU” > “Digital Setup” > “Teletext

1

Language” > “Decode Page Lang.”.
Press c/d to select a receivable teletext

2

broadcasting language in your area, and then
press ;.

NOTE

Teletext can be displayed only when it is sent by a network. Not

•
used to convert between languages.

TELETEXT

Buttons for teletext operations

Buttons Description

:r/s

Colour (R/G/
Y/B)

Numeric
buttons 0_9

v (Top/
Bottom/Full)

k (Reveal
hidden Teletext)

3 (Freeze/
Hold)

[ (Subtitle for
Teletext)

1 (Subpage)

Increase or decrease the page number.

Select a group or block of pages displayed
in the coloured brackets at the bottom of
the screen by pressing the corresponding
Colour (R/G/Y/B) on the remote control
unit.

Directly select any page from 100 to 899
by using the 0_9 numeric buttons.

Switch the teletext image to Top, Bottom
or Full.

Reveal or hide hidden information such as
an answer to a quiz.

Stop updating teletext pages automatically
or release the hold mode.

Display the subtitle or exit the subtitle
screen.

Subtitles will not be displayed when

•
the service does not contain subtitle
information.

Reveal or hide subpages.

Move to the previous subpage (R).

•
Move to the following subpage (G).

•
These two buttons are shown on the

•
screen by the symbols “e” and “f”.

Using the MHEG-5 application
(UK only)

Some services bring you programmes with the MHEG
application encoded, letting you experience DTV
interactively. When provided, the MHEG-5 application will
start when you press m.

12

LC-LE600E_GB3.indd 12LC-LE600E_GB3.indd 12 2009/07/14 14:37:512009/07/14 14:37:51

Connecting external devices

Before connecting ...

E

Be sure to turn off the TV and any devices before making any connections.

•
Firmly connect a cable to a terminal or terminals.

•
Carefully read the operation manual of each external device for possible connection types. This also helps you get the best possible

•
audiovisual quality to maximise the potential of the TV and the connected device.

•

Refer to page 25 for connecting a PC to the TV.

NOTE

The cables illustrated in pages 13_15 are commercially available items.

•

Video connections

HDMI connection

Example of connectable devices

DVD player/recorder

E

Blu-ray player/recorder

E

Game console

E

The HDMI connections permit digital video and
audio transmission via a connection cable from a
player/recorder. The digital picture and sound data are
transmitted without data compression and therefore lose
none of their quality. Analogue/digital conversion is no
longer necessary in the connected devices, which also
would result in quality losses.



HDMI-certified cable



ø 3.5 mm stereo minijack cable




DVI/HDMI cable





AQUOS LINK functions

One touch play

When images are played back from the connected HDMI
device, the TV will automatically switch to the appropriate
input source.

Standby

When the TV enters standby mode, the connected HDMI
device enters standby mode as well.

NOTE

The availability of the AQUOS LINK function depends on the

•
HDMI device used. Depending on the manufacturer and type of
equipment used, it is possible that the described functions may
be completely or partially unusable.

DVI/HDMI conversion

Using a DVI/HDMI cable, the digital video signals of
a DVD can also be played via the compatible HDMI
connection. The sound must be fed in additionally.

When connecting a DVI/HDMI cable to the HDMI terminal, the

•
image may not come in clearly.

When using the HDMI 2 terminal

E

You must set the audio signal input source
depending on the type of HDMI cable connected
(Refer to page 19 for details).

HDMI-certified cable

Go to “MENU” > “Option” > “PC Audio
Select” > select “EXT 4 (RGB)”.

DVI/HDMI cable

Go to “MENU” > “Option” > “PC Audio
Select” > select “HDMI 2”.

NOTE

Video noise may occur depending on the type of HDMI cable

•
used. Make sure to use a certified HDMI cable.

•

When playing the HDMI image, the best possible format for the
picture will be detected and set automatically.

Supported video signal:

576i, 576p, 480i, 480p, 1080i, 720p, 1080p
See page 27 for PC signal compatibility.

13

LC-LE600E_GB3.indd 13LC-LE600E_GB3.indd 13 2009/07/14 14:37:512009/07/14 14:37:51

Connecting external devices

YPB

PR

(

(

CB)

CR)

Component connection

SCART connection

Example of connectable devices

VCR

E

DVD player/recorder

E

You will enjoy accurate colour reproduction and high
quality images through the EXT 3 terminal when
connecting a DVD player/recorder or other device.





YPB

LRPR

(CB)

(CR)

COMPONENTAUDIO

Audio cable Component cable

VIDEO connection

Example of connectable devices

VCR

E

DVD player/recorder

E

Game console

E

Camcorder

E

You can use the EXT 8 terminal when connecting to a
game console, camcorder, a DVD player/recorder or
other device.



Example of connectable devices

DecoderE

EXT 1 (RGB) terminal

E



SCART cable

Example of connectable devices

VCR

E

DVD player/recorder

E

EXT 2 (AV) terminal

E



SCART cable

AV cable

NOTE

Do not connect a decoder to the EXT 2 terminal.

•

14

LC-LE600E_GB3.indd 14LC-LE600E_GB3.indd 14 2009/07/14 14:37:522009/07/14 14:37:52

Connecting external devices

Audio connections

Speaker/amplifier connection

Connect an amplifier with external speakers as shown below.

Connecting an amplifier with digital

E Connecting an amplifier with

audio input

E

analogue audio input



DIGITAL AUDIO IN

Optical audio cable

After connecting

E

Digital audio output setting

After connecting an amplifier with digital audio input and external speakers as shown, you should set an audio
output format compatible with the programme you are watching or the device connected.



Audio cable

AUX1 I N

LR

Go to “MENU” > “Option” > “Digital Audio Output” > select “PCM” or “Dolby Digital”.

NOTE

When set to “Dolby Digital”, Dolby Digital is output when the Dolby Digital or Dolby Digital Plus audio formats are received. When

•
set to “PCM”, PCM is output no matter what audio formats are received.

Inserting the CA Card into the CI Module

Checking CI Module information

Go to “MENU” > “Digital Setup” > “CI Menu”.

The content of this menu depends on the provider of the CI Module.

•

Module

General information on CI Module displays.

Carefully insert the CI Module in

1

the CI slot with the contact side
forward.
The logo on the CI Module must

2

be facing outward from the rear
of the TV.

Menu

Adjustment parameters of each CA Card displays.

Enquiry

You can input numerical values such as passwords here.

NOTE

Make sure that the CI Module is properly inserted.

•

LR

AUX OUT

15

LC-LE600E_GB3.indd 15LC-LE600E_GB3.indd 15 2009/07/14 14:37:532009/07/14 14:37:53

Menu operation

What is the MENU?

You need to call up the OSD to perform settings for the TV. The OSD for the settings is called “MENU”.

•
The “MENU” enables various settings and adjustments.

•

Basic Operation

Display the MENU

Screen

Press a/b/c/d to select/adjust

Press @ and the “MENU” screen
displays.


DYNAMIC

OPC [Off]
Backlight
Contrast
Brightness
Colour
Tint
Sharpness
Advanced
Reset

the desired menu, and adjust the item
to the desired level, and then press
;. Press 6 to return to the previous
“MENU” page.

Selecting in the MENU

Selecting options

Exit the MENU screen

The operation will exit the “MENU”
screen if you press > before it is
completed.

NOTE

“MENU” options differ in the selected input modes, but the operating procedures are the same.

•
Items with 4 cannot be selected for various reasons.

•
The “MENU” screen will disappear if left unattended for several seconds.

•

Operation without a remote control unit

This function is useful when there is no remote control unit within your reach.

Press @ and the “MENU” screen displays.

1
2

Press :r/s instead of a/b or i+/- instead of c/d to select the item.

3

Press b to complete the setting.

Select an item

ECO

ECO picture control [On]

Energy Save

No Signal Off

No Operation Off

On

[Disable]

[Disable]

[Off]

About the Guide Display

The Guide Display at the bottom of the screen shows operations with the
OSD.

The bar above is an operational guide for the remote control unit. The bar will

•
change in accordance with each menu setting screen.

Select Enter Back End

16

LC-LE600E_GB3.indd 16LC-LE600E_GB3.indd 16 2009/07/14 14:37:532009/07/14 14:37:53

Basic adjustment

Picture Settings


DYNAMIC

OPC [Off]
Backlight
Contrast
Brightness
Colour
Tint
Sharpness
Advanced
Reset


OPC

Automatically adjusts the brightness of the screen.

Item

On:Display

On

Off

NOTE

When set to “On”, the TV senses the surrounding light and

•
automatically adjusts the backlight brightness. Make sure no
object obstructs the OPC sensor, which could affect its ability
to sense surrounding light.

Displays the OPC effect on the screen
while adjusting the brightness of the
screen.

Automatically adjusts.

The brightness is fixed at the value set
in “Backlight”.


Picture adjustments

Adjusts the picture to your preference with the following
picture settings.

Adjustment items

Selectable

items

Backlight

Contrast

Brightness

Colour

Tint

Sharpness

c (Cursor) d (Cursor)

The screen dims The screen brightens

For less contrast For more contrast

For less brightness For more brightness

For less colour
intensity

Skin tones become
purplish

For less sharpness For more sharpness

For more colour
intensity

Skin tones become
greenish


Advanced

This TV provides various advanced functions for
optimising the picture quality.


DYNAMIC

Colour Temp. High

Film Mode
Active Contrast
DNR
OPC Max.
OPC Min.

Colour Temp.

Adjusts the colour temperature to give the best white
image.

Item

High

Mid-High

Middle

Mid-Low

Low

White with bluish tone.

Intermediate tone between “High” and
“Middle”.

Natural tone.

Intermediate tone between “Middle”
and “Low”.

White with reddish tone.

Film Mode

Automatically detects a film-based source (originally
encoded at 24 or 25 frames per second, depending on
the vertical frequency), analyses it and then recreates
each still film frame for high-definition picture quality.

Active Contrast

Automatically adjusts the contrast of an image according
to the scene.

DNR

“DNR” produces a clearer image (“Off”, “High”, “Middle”,
“Low”).

NOTE

This function may not be available depending on the input

•
signal type.

[On]
[On]

[Middle]

17

LC-LE600E_GB3.indd 17LC-LE600E_GB3.indd 17 2009/07/14 14:37:552009/07/14 14:37:55

Basic adjustment

Range of OPC

The brightness level range of the OPC sensor’s automatic
adjustments can be set according to your preferences.
The adjustment range of the OPC sensor can be set to a
maximum of e 16 and a minimum of f 16.

NOTE

This function is available only when the “OPC” setting is set to

•
“On” or “On:Display”.
The maximum setting cannot be set to a smaller number than

•
the minimum setting.

•

The minimum setting cannot be set to a bigger number than
the maximum setting.

•

The maximum and minimum settings cannot be set to the
same number.

•

Depending on the brightness of the surrounding light, the OPC
sensor might not operate if the adjustment range is small.

AV MODE

“AV MODE” gives you several viewing options to choose
from to best match the system environment, which
can vary due to factors like room-brightness, type of
programme watched or the type of image input from
external equipment.

Press #.

1
2

Each time you press #, the mode
changes.

You can also switch the mode on the “Picture” and

•

“Audio” menu screen by pressing #.

Item

STANDARD

MOVIE

GAME

PC*

USER

DYNAMIC (Fixed)

DYNAMIC

NOTE

The item marked with * is available only when selecting “HDMI

•
1”, “HDMI 2”, “HDMI 3” or “EXT 4” from the “INPUT SOURCE”
menu.

For a highly defined image in a normally
bright room.

For viewing a movie in a darkened room.

For playing of video games.

For PC.

Allows you to customise settings as
desired. You can set the mode for each
input source.

For a clear-cut image emphasising
high contrast for sports viewing (The
“Picture” and “Audio” settings cannot
be adjusted).

For a clear-cut image emphasising high
contrast for sports viewing.

Audio Settings

Audio

DYNAMIC

Treble
Bass
Balance
Surround
Type
Audio Description
Reset

LR

[Off]

[Normal]

Audio

Audio Adjustment

You can adjust the sound quality to your preference with
the following settings.

Selectable

items

Treble

Bass

Balance

c (Cursor) d (Cursor)

For weaker treble For stronger treble

For weaker bass For stronger bass

Decrease audio from
the right speaker

Decrease audio from
the left speaker

Audio

Surround

This function allows you to enjoy realistic live sound.

Audio

Type

Item

Normal

Audio Description

Hard of Hearing

Audio stream is output normally.

Selecting this item enables you to adjust
the settings for the visually impaired
(see below).

Audio for the hearing impaired is output
on the TV speakers by default when the
programme contains audio information.

18

LC-LE600E_GB3.indd 18LC-LE600E_GB3.indd 18 2009/07/14 14:37:562009/07/14 14:37:56

Basic adjustment

Audio

Audio Description

Available only when you set “Audio Description” in the
“Type” menu above.

Item

Speaker

Headphone

Volume

When set to “On”, audio for the visually
impaired is output from the TV speakers.

When set to “On”, audio for the visually
impaired is output from the headphone
terminal.

Adjust the volume of the speakers or
headphones.

Setting audio input

Option

PC Audio Select

When using the EXT 4 terminal or HDMI 2 terminal, you
must select which terminal uses the AUDIO (R/L) jack for
analogue audio input.

Item

When connecting devices (including a

HDMI 2

EXT 4 (RGB)

*

HDMI signals have priority when the signal includes audio.

NOTE

You must set this to “EXT 4 (RGB)” when connecting devices

•
(including a PC) with an HDMI-certified cable to the HDMI 2
terminal. If “HDMI 2” is set, there will be no sound output.

PC) with DVI/HDMI cable to the HDMI
2 terminal and inputting analogue audio
signals from the AUDIO (R/L) jack*.

When connecting a PC to the EXT 4
terminal, and inputting analogue audio
signals from the AUDIO (R/L) jack.

Automatic volume adjustment

Option

Auto Volume

Different sound sources sometimes do not have the
same volume level, such as a programme and its
commercial breaks. The Automatic Volume Control (Auto
Volume) reduces this problem by equalizing levels.

Outputting audio only

Option

Audio Only

When listening to music from a music programme, you
can set the TV off and enjoy audio only.

Item

Off

On

Both screen images and audio are
output.

Audio is output without a screen image.

AQUOS LINK Settings

Option

AQUOS LINK Control

Set to “On” to enable interactive operation of compatible
HDMI devices (DVD player/recorders, Blu-ray player/
recorders).

What you can do with AQUOS
LINK

One Touch Play

When the TV is in standby mode, it will automatically turn on
and play back the image from the HDMI source.

Controlling AQUOS LINK devices
using remote control unit

AQUOS LINK allows you to operate the HDMI-connected
device with a single remote control unit.

Buttons for AQUOS LINK operation

Buttons Description

PLAY I

FWD J

REV G

STOP H

REC E

REC STOP H

B

NOTE

Open the remote control unit’s flip cover when using the

•
butttons above.

Starts playback.

Scans forward.

Scans backward.

Stops playback.

Records the programme being watched via
the recorder’s tuner.

Stops recording.

Turns the HDMI-connected device on/off.

19

LC-LE600E_GB3.indd 19LC-LE600E_GB3.indd 19 2009/07/14 14:37:572009/07/14 14:37:57

Basic adjustment

Power Save Settings

ECO

ECO picture control
Energy Save [Standard]
No Signal Off
No Operation Off [Disable]

[On]

[Disable]

ECO

ECO picture control

This function automatically detects the image source and
decreases the power consumption while keeping the
brightness of the image unchanged.

NOTE

This function does not work when “AV MODE” is set to

•
“DYNAMIC (Fixed)”.

•

This function does not work when “Energy Save” is set to
“Standard” or “Advanced”.

ECO

Energy Save

This function enables you to automatically reduce the
backlight brightness in order to decrease the power
consumption and increase the backlight life span.

Item

Off

Standard

Advanced

NOTE

•

This function does not work when “AV MODE” is set to
“DYNAMIC (Fixed)”.

“Energy Save” status icons

E

Icon Description

The backlight brightness is the same
value of your settings in the selected
“AV MODE”.

Reduces the backlight brightness.

Reduces the backlight brightness more
than “Standard”.

“Energy Save” is set to “Standard”.

“Energy Save” is set to “Advanced”.

ECO

No Signal Off

When set to “Enable”, the TV will automatically enter
standby mode if there is no signal input for 15 minutes.

ECO

No Operation Off

The TV will automatically enter standby mode if no
operations are performed during the time span you set
(“30 min.” or “3 hr.”).

Channel Settings

Auto Installation

Setup

Auto Installation

The TV automatically detects and stores all available
channels in your area. This function also allows you to
perform the channel setting for digital and analogue
individually and reconfigure the settings after the initial
auto installation has been completed.

After selecting “Yes” on the screen, you can
set language and channel search the same as
in the initial auto installation.

NOTE

PIN input is required when executing “Auto Installation”. The

•
default PIN is “1234”. To change the PIN setting, refer to
Password/Parental lock settings (Page 22). To clear the PIN
setting (PIN input will no longer be needed), refer to CLEARING
THE PIN (Page 24).

•

You cannot set the Home/Store setting and the country
setting in “Auto Installation” in the “Setup” menu. If you want
to reconfigure those settings, automatically execute initial auto
installation after executing “Reset” from the “Setup” menu.

Channel detail settings

Setup

Programme Setup

You can reconfigure the DTV/ATV channel settings
automatically or manually.

NOTE

PIN input is required when executing “Programme Setup”.

•
The default PIN is “1234”. To change the PIN setting, refer to
Password/Parental lock settings (Page 22). To clear the PIN
setting (PIN input will no longer be needed), refer to CLEARING
THE PIN (Page 24).

20

LC-LE600E_GB3.indd 20LC-LE600E_GB3.indd 20 2009/07/14 14:37:582009/07/14 14:37:58

Basic adjustment

Additional Search

Use this menu to add new channels automatically after
auto installation has been completed.

Manual Search

Add new services within a specified channel bandwidth.

NOTE

You can search the channel bandwidth by pressing ; after

•
setting the value for both “From Channel” and “To Channel”
using c/d.

•

You can perform “Manual Search” with a service number only
when the four Nordic countries (Sweden, Norway, Finland or
Denmark) have been selected in the country setting (Page 9).
When another country has been selected, “Manual Search” is
not shown on the menu screen.

Channel Edit

This menu allows you to reconfigure some settings for
the channel currently selected.

Label

When a TV channel sends its Network Name, the “Auto
Installation” detects the information and assigns a
name to it. However, you can change channel names
individually.

Press a/b/c/d to select each character of

1

the new name for the channel, and then press
;.

Repeat step 1 above until the name is fully

2

spelt out.

NOTE

The name can be six characters or less.

•
If a channel name is less than six characters, select “END” to

•
set the channel name.

Frequency

You can adjust the frequency to the desired position (only
for analogue channels).

NOTE

Adjust while checking the background picture as a reference.

•
You can set the frequency by pressing c/d. Each time you

•
press c or d, the value is changed in increments of 0.05 MHz.

Channel Skip

Channels with a ✔ mark are passed over when pressing
:r/s on the TV or remote control unit.

Press a/b to select the desired channel.

1

Press ; to set a ✔ mark at the channel that

2

you want to skip.

Channel Sort

The item position of channels can be sorted.

Press a/b to select the channel whose item

1

position you want to move, and then press
;.

Channel Number Channel Name Channel Sort

Press a/b to move it to the desired position,

2

and then press ;.

Channel Number Channel Name Channel Sort

Repeat steps 1 and 2 until all desired channel

3

items are sorted.

Decoder

When connecting a decoder to the TV, you need to select
channels that need to be decoded.

Channel Lock

When the channel is locked, you must enter your PIN
whenever you tune to the channel.

NOTE

See “Child Lock” for setting a PIN.

•
When “Channel Lock” is set for a channel, “Child lock has been

•
activated” displays, and the image and sound of the channel
are blocked.
When pressing 6 while “Child lock has been activated”

•
displays, the PIN input window will display. Inputting the correct
PIN unlocks the “Child Lock” temporarily until the power is
turned off.
In case you select “Italy” in the country setting (Page 9), the PIN

•
input window displays every time you tune in to the channels
with “Channel Lock” applied.

Colour System

Select the optimum colour system to receive (“Auto”,
“PAL”, “SECAM”, “NTSC”) (only for analogue channels).

Sound System

Select the optimum sound systems (Broadcasting
systems) to receive (“B/G”, “A2 B/G”, “D/K”, “A2 D/K”,
“A2 D/K1”, “A2 D/K2”, “I”, “L”, “L’”) (only for analogue
channels).

21

LC-LE600E_GB3.indd 21LC-LE600E_GB3.indd 21 2009/07/14 14:37:592009/07/14 14:37:59

Basic adjustment

Password/Parental lock settings

Setup

Child Lock

Allows you to use a PIN to protect certain settings from
being accidentally changed.

NOTE

PIN input is required when executing “Child Lock”. The default

•
PIN is “1234”. To clear the PIN setting (PIN input will no longer
be needed), refer to CLEARING THE PIN (Page 24).

Change PIN

Register a four-digit password number to use the “Child
Lock” function.

Enter the four-digit number as a PIN using

1

0_9 numeric buttons.

Enter the same four-digit number as in step 1

2

to confirm.

NOTE

To view a locked channel, you must enter the PIN (See page

•
21 for locking channels). When you select a locked channel,
a PIN prompt message pops up. Press 6 to display the PIN
input window.

•

As a precautionary measure, make a note of your PIN on
the back of this operation manual, cut it out and keep it
in a safe place that children cannot reach.

Cancel PIN

Allows you to reset your PIN.

Parental rating

This function allows DTV channels to be restricted. It
prevents children from watching violent or sexual scenes
that may be harmful.

NOTE

“Universal viewing” and “Parental approval pref.” are ratings

•
used exclusively in France.

•

Refer to page 32 for details about ratings.

Language Settings

Setup

Language

You can select an OSD language from the “Setup”
menu. Select from among 23 languages. Refer to the
OSD language column in the specification table for the
selectable languages (Page 29).

Digital Setup

Subtitle

Set up to two preferred subtitle languages (including
subtitles for the hearing impaired) to display if subtitles
are available.

Selectable items

1st Language

E

2nd Language

E

For hearing impaired

E

Switching subtitle languages

E

Each time you press [ on the remote control unit, the
subtitle switches.

Off 1st Language

2nd Language

Set “For hearing impaired” to “Yes”

E

Subtitles for the hearing impaired have priority over each
of the subtitle language settings (e.g., “1st Language”,
“2nd Language”, etc.).

EXAMPLE

1st Language

(For hearing impaired)

NOTE

Subtitles will not be displayed when the programme does not

•
contain subtitle information.

1st Language

Option

Digital Audio Language

Select the preferred language from “1st Digital Audio
Language” (“2nd Digital Audio Language”) to set up
the first (second) priority language for digital audio.
This setting is effective only when more than one audio
language is available.

Switching the multi audio languages

E

Each time you press 2 on the remote control unit, the
audio language switches.

NOTE

You can set up to two preferred multi audio languages if the

•
audio languages are available.

22

LC-LE600E_GB3.indd 22LC-LE600E_GB3.indd 22 2009/07/14 14:38:002009/07/14 14:38:00

Useful viewing functions

Selecting the picture size

You can select the picture size. Selectable picture size
varies with the type of signal received.

Item (for SD [Standard-Definition] signals)

Auto

Normal

Zoom 14:9

Panorama

Full

Cinema 16:9

Cinema 14:9

Item (for HD [High-Definition] signals)

Auto

Full

Underscan

Dot by Dot

Full

Cinema

Normal

Dot by Dot

NOTE

Some items do not appear depending on the type of received

•
signal.
Connect the PC before making adjustments for the PC input.

•
Selectable picture size may vary with input signal type.

•
HDMI: 480i/480p/576i/576p/720p/1080i/1080p
ANALOGUE RGB: 576p/720p (60 Hz)/1080i/1080p

This mode allows the TV to switch
automatically among the different picture
sizes.

Keeps the original aspect ratio in a full
screen display.

For 14:9 letterbox pictures. A thin side
bar appears on each side, and you may
also see bars on the top and bottom
with some programmes.

In this mode, the picture is stretched
toward each side of the screen. The
picture may appear similar to “Full”
depending on broadcast signals.

For 16:9 squeeze pictures.

For 16:9 letterbox pictures. Bars may
appear on the top and bottom with
some programmes.

For 14:9 letterbox pictures. Bars may
appear on the top and bottom with
some programmes.

This mode allows the TV to switch
automatically among the different picture
sizes.

Displays with an Overscan image. Crops
all sides of screen.

Displays with an Underscan image.
Displays with the High-Definition image
adjusted optimally. Noise may appear
on the edge of the screen with some
programmes.

Displays an image with the same
number of pixels on the screen.

Item (for PC)

An image fully fills the screen.

For letterbox pictures. Bars may appear
on the top and bottom with some
programmes.

Keeps the original aspect ratio in a full
screen display.

Displays an image with the same
number of pixels on the screen.

Press f.

1

The “WIDE MODE” menu displays.

•
The menu lists the “WIDE MODE” options selectable for

•
the type of video signal currently received.

Press f or a/b while the “WIDE MODE”

2

menu displays on the screen.

As you toggle the options, each is immediately reflected

•
on the screen. There is no need to press ;.

Basically, if you set “Auto” in the “WIDE
MODE” menu, the optimum “WIDE MODE”
is automatically chosen for every broadcast
or programme played using a VCR or DVD
player/recorder.

Display Settings

Channel display

You can display the channel information by pressing p
on the remote control unit.

DTV mode ATV mode

TV

Audio (ENG) STEREO

Video

Subtitle

Four digit numbers (e.g., 0001) are displayed after selecting the

*

five Nordic countries in the country setting.

Time display in channel information

E

You can display the time information included in DTV and
teletext broadcasts.

Select a TV channel.

1

Press p. The channel display will appear on the

2

TV.

Each time you press p, the display format of the time display

•
and the channel information switches.

TV

Audio MONO
Video

Time and Title display

Option

Programme Title Display

This function allows you to display programme
information such as the title and airtime by tuning a
channel.

Digital Setup

Time Zone

Set up the proper time zone in your area.

23

LC-LE600E_GB3.indd 23LC-LE600E_GB3.indd 23 2009/07/14 14:38:012009/07/14 14:38:01

Other useful features

Setting when using external
devices

Input source settings

Setup

Input Label

You can label each input source with a custom
description.

Press b to select the desired input source.

1
2

Go to “MENU” > “Setup” > “Input Label”.

3

Press a/b/c/d to select each character of
the new name for the input source, and then
press ;.

CLEAR
BACK

END

4

Repeat until the label is fully spelt out.

NOTE

The label can be six characters or less.

•
When you want to set an input source label of less than six

•
characters, select “END” to set the name.

INPUT SOURCE
TV

EXT 1

DVD

EXT 3

NOTE

You cannot change labels if the input source is “TV”.

•

Skipping specified inputs

Reset

Setup

Reset

If complex adjustments are made so that the settings
cannot be restored to normal, you can reset the settings
to the factory preset values.

Go to “MENU” > “Setup” > “Reset”.

1
2

Press c/d to select “Yes”, and then press
;.

After the reset has completed, the power shuts off and

•
then comes back on. The screen will have returned to its
original settings.

NOTE

PIN input is required when executing “Reset”. The default

•

PIN is “1234”. To change the PIN setting, refer to Password/
Parental lock settings (Page 22). To clear the PIN setting (PIN
input will no longer be needed), refer to CLEARING THE PIN
(Page 24).

Identification

Setup

Identification

You can check the TV ID on the screen for reporting to
customer service.

Software update

If you use DVB-T, the TV automatically receives the
update service and updates new software. When a
confirmation message is received about the software
update on the screen, follow the screen prompts.

CAUTION

Do not disconnect the AC cord when the software update

•
is in progress. If you have the problem, ask qualified service
personnel.

Setup

Input Skip

This setting allows you to set the input source you want
to skip during “INPUT SOURCE” selection operations.

[Yes]

[No]
[No]

CLEARING THE PIN

If you lose or forget your PIN, you can clear the PIN
following these steps.

Go to “MENU” > “Setup” > “Child Lock”.

1
2

Enter the four-digit number on page 32 to
clear your PIN.

NOTE

As a precautionary measure, make a note of your PIN on the

•
back of this operation manual, cut it out and keep it in a safe
place that children cannot reach.

24

LC-LE600E_GB3.indd 24LC-LE600E_GB3.indd 24 2009/07/14 14:38:022009/07/14 14:38:02

Connecting a PC

Connecting a PC

HDMI Connection

PC HDMI 1, 2 or 3



HDMI-certified cable

PC HDMI 2*





DVI/HDMI cable ø 3.5 mm stereo

When using the HDMI 2 terminal, you must select the proper

*

item in the “PC Audio Select” menu depending on the type of
HDMI cable connected (Refer to page 19 for details).

Analogue Connection

PC EXT 4*



minijack cable





RGB cable ø 3.5 mm stereo

PC EXT 4*



minijack cable



Adjusting the PC image
automatically

This function enables the screen to be automatically
adjusted to its best possible condition when the analogue
terminals of the TV and PC are connected with a
commercially available DVI/RGB conversion cable, etc.

Setup

Auto Sync.

NOTE

“Auto Sync.” may fail if the PC image has low resolution, has

•
unclear (black) edges, or is moved while executing “Auto
Sync.”.
Be sure to connect the PC to the TV and switch it on before

•
starting “Auto Sync.”.

•

“Auto Sync.” can be executed only when inputting analogue
signals through the EXT 4 terminal.

Adjusting the PC image manually

Ordinarily you can easily adjust the picture as necessary
to change image position using “Auto Sync.”. In some
cases, however, manual adjustment is needed to
optimise the image.

Setup

Fine Sync.

Press a/b to select the specific adjustment

1

item.
Press c/d to adjust the item to the desired

2

position.

H-Pos.

V-Pos.
Clock
Phase



DVI/RGB conversion

 ø 3.5 mm stereo

cable

When using the EXT 4 terminal, you must select “EXT 4 (RGB)”

*

in the “PC Audio Select” menu (Refer to page 19 for details).

NOTE

The PC input terminals are DDC1/2B-compatible.

•
Refer to page 27 for a list of PC signals compatible with the TV.

•
When connecting to a PC, the input signal type is automatically

•
detected.



minijack cable

H-Pos.

V-Pos.

Clock

Phase

NOTE

For resetting all adjustment items to the factory preset values,

•

press a/b to select “Reset”, and then press ;.

•

“Clock” and “Phase” in the “Fine Sync.” menu can be adjusted
only when inputting analogue signals through the EXT 4
terminal.

Item

Centres the image by moving it to the
left or right.

Centres the image by moving it up or
down.

Adjusts when the image flickers with
vertical stripes.

Adjusts when characters have low
contrast or when the image flickers.

25

LC-LE600E_GB3.indd 25LC-LE600E_GB3.indd 25 2009/07/14 14:38:032009/07/14 14:38:03

Connecting a PC

RS-232C port specifications

PC Control of the TV

When a programme is set, the TV can be controlled

•
from the PC using the RS-232C terminal. The input
signal (PC/video) can be selected, the volume can be
adjusted and various other adjustments and settings
can be made, enabling automatic programmed
playing.

•

Use an RS-232C serial control cable (cross type)
(commercially available) for the connections.

NOTE

This operation system should be used by a person

•
who is accustomed to using PCs.

RS-232C serial control cable (cross type)

Communication conditions

Set the RS-232C communications settings on the PC
to match the TV’s communications conditions. The TV’s
communications settings are as follows:

Baud rate:

Data length:

Parity bit:

Stop bit:

Flow control:

Communication procedure

Send the control commands from the PC via the RS­232C connector.
The TV operates according to the received command
and sends a response message to the PC.
Do not send multiple commands at the same time. Wait
until the PC receives the OK response before sending the
next command.
Make sure to send “A” with the carriage return and
confirm that “ERR” returns before operating.

Command format

Eight ASCII codes +CR

C1 C2 C3 C4 P1 P2 P3 P4

9,600 bps

8 bits

None

1 bit

None

Parameter

Input the parameter values, aligning left, and fill with
blank(s) for the remainder (Be sure that four values are
input for the parameter).
When the input parameter is not within an adjustable
range, “ERR” returns (Refer to “Response code format”).

0

0009

100

0055

When “?” is input for some commands, the present
setting value responds.

????

Response code format

Normal response

OK

Return code (0DH)

Problem response (communication error or incorrect
command)

ERR

Return code (0DH)



Command four digits: Command. The text of four



characters.



Parameter four digits: Parameter 0_9, blank, ?,
minus



Return code (0DH): ?

26

LC-LE600E_GB3.indd 26LC-LE600E_GB3.indd 26 2009/07/14 14:38:042009/07/14 14:38:04

Connecting a PC

PC compatibility chart

Resolution

Horizontal
Frequency

VGA 640 x 480 31.5 kHz 60 Hz

SVGA 800 x 600 37.9 kHz 60 Hz

XGA 1,024 x 768 48.4 kHz 60 Hz

WXGA 1,280 x 768 47.7 kHz 60 Hz

WXGA 1,360 x 768 47.7 kHz 60 Hz

SXGA 1,280 x 1,024 64.0 kHz 60 Hz

SXGA+ 1,400 x 1,050 65.3 kHz 60 Hz

VGA, SVGA, XGA, WXGA, SXGA and SXGA+ are
registered trademarks of International Business
Machines Corporation.

RS-232C command list

CONTROL ITEM COMMAND PARAMETER CONTROL CONTENTS

POWER
SETTING

INPUT
SELECTION A

CHANNEL D C C H * * * _ THREE DIGIT DIRECT

AV MODE
SELECTION

VOLUME V O L M * * _ _

AUDIO
CHANGE

P O W R 0 _ _ _ POWER OFF

ITGD____INPUT SWITCHING

ITVD____TV (CHANNEL FIXED)

IAVD*___

DCCH****FOUR DIGIT DIRECT

DCCH????Reply current TV channel

CHUP____CHANNEL UP

CHDW____CHANNEL DOWN

A V M D 0 _ _ _ TOGGLE

A V M D 1 _ _ _ STANDARD

A V M D 2 _ _ _ MOVIE

A V M D 3 _ _ _ GAME

A V M D 4 _ _ _ USER

A V M D 5 _ _ _ DYNAMIC (Fixed)

A V M D 6 _ _ _ DYNAMIC

AVMD7___PC

AVMD????

ACHA____TOGGLE

(TOGGLE)

EXT 1_4, 8 (1_4, 8),
HDMI 1_3 (5_7)

CHANNEL (1_999) (Non­Nordic countries)

CHANNEL (1_9999)
(Nordic countries only)

number

1_7

VOLUME (0_60)

Vertical

Frequency

Analogue (D-

Sub)

Digital (HDMI) VESA Standard

✔✔✔

✔✔✔

✔✔✔

✔✔

✔✔✔

✔✔

✔✔

NOTE

This TV has only limited PC compatibility, correct operation can

•
only be guaranteed if the video card conforms exactly to the
VESA 60 Hz standard. Any variations from this standard will
result in picture distortions.

CONTROL ITEM COMMAND PARAMETER CONTROL CONTENTS

WIDE MODE W I D E 0 _ _ _ TOGGLE (AV)

MUTE M U T E 0 _ _ _ TOGGLE

SURROUND A C S U 0 _ _ _ SURROUND TOGGLE

SLEEP TIMER O F T M 0 _ _ _ OFF

TEXT T E X T 0 _ _ _ TEXT OFF

W I D E 1 _ _ _ NORMAL (AV)

W I D E 2 _ _ _ ZOOM 14:9 (AV)

W I D E 3 _ _ _ PANORAMA (AV)

W I D E 4 _ _ _ FULL (AV)

W I D E 5 _ _ _ CINEMA 16:9 (AV)

W I D E 6 _ _ _ CINEMA 14:9 (AV)

M U T E 1 _ _ _ MUTE ON

M U T E 2 _ _ _ MUTE OFF

A C S U 1 _ _ _ SURROUND ON

A C S U 2 _ _ _ SURROUND OFF

O F T M 1 _ _ _ SLEEP TIMER 30 MIN

O F T M 2 _ _ _ SLEEP TIMER 1 HOUR

O F T M 3 _ _ _ SLEEP TIMER 1 HOUR

O F T M 4 _ _ _ SLEEP TIMER 2 HOUR

O F T M 5 _ _ _ SLEEP TIMER 2 HOUR

T E X T 1 _ _ _ TEXT ON (TOGGLE)

DCPG***_

30 MIN

30 MIN

DIRECT PAGE JUMP
(100_899)

27

LC-LE600E_GB3.indd 27LC-LE600E_GB3.indd 27 2009/07/14 14:38:052009/07/14 14:38:05

Appendix

Troubleshooting

Problem Possible Solution

No power.•

The TV cannot be operated.• External influences such as lightning, static electricity, etc., may cause improper operation. In this

Remote control unit does not operate.•

Picture is cut off.• Is the image position correct?

Strange colour, light colour, or dark

• Adjust the picture tone.
colour, or colour misalignment.

Power is suddenly turned off.• The TV’s internal temperature has increased. Remove any objects blocking the vent or clean.

No picture.•

No sound.• Is the volume too low?

The TV sometimes makes a cracking

• This is not a malfunction. This happens when the cabinet slightly expands and contracts according to
sound.

•

Turn on (;) the MAIN POWER switch on the left side of the TV (Page 4).

•

Check if you pressed B on the remote control unit. If the indicator on the TV lights up red, press
B.
Is the AC cord disconnected?

•

Check if you pressed a on the TV.

•

•
case, operate the TV after first turning off the power, or unplugging the AC cord and re-plugging it in
after one or two minutes.

•

Are batteries inserted with polarity (e, f) aligned?

•

Are batteries worn out? (Replace with new batteries.)

•

Are you using it under strong or fluorescent lighting?

•

Is a fluorescent light illuminating to the remote control sensor?

•
Are screen mode adjustments (WIDE MODE) such as picture size made correctly? (Page 23)

•

•
Is the room too bright? The picture may look dark in a room that is too bright.

•
Check the “Colour System” setting (Page 21).

•

•
Is sleep timer set? Set to “Off” by pressing SLEEP on the remote control unit (Page 3).

•
Is “No Signal Off” or “No Operation Off” activated?

•

•

Are connections to external equipment correct? (Pages 13_14)

•

Is the correct input source selected? (Page 10)

•

Is a non-compatible signal being input? (Page 27)

•

Is the picture adjustment correct? (Pages 17_18)

•

Is the antenna connected properly? (Page 8)

•

Is “On” selected in “Audio Only”? (Page 19)

•

•

Make sure that headphones are not connected.

•

Check if you pressed e on the remote control unit.

•

Is the proper item selected in the “PC Audio Select” menu when connecting devices to the HDMI 2
terminal or the EXT 4 terminal? (Pages 13 and 19)

•
changes in temperature. This does not affect the TV’s performance.

Cautions regarding use in high and low temperature environments

When the TV is used in a low temperature space (e.g., room, office), the picture may leave trails or appear slightly delayed. This is not

•
a malfunction, and the TV will recover when the temperature returns to normal.
Do not leave the TV in a hot or cold location. Also, do not leave the TV in a location exposed to direct sunlight or near a heater, as this

•
may cause the cabinet to deform and the LCD panel to malfunction.
Storage temperature: e 5 °C to e 35 °C.

Information on the software license for this product

Software composition

The software included in this product is comprised of various software components whose individual copyrights are held by SHARP or by
third parties.

Software developed by SHARP and open source software

The copyrights for the software components and various relevant documents included with this product that were developed or written
by SHARP are owned by SHARP and are protected by the Copyright Act, international treaties, and other relevant laws. This product also
makes use of freely distributed software and software components whose copyrights are held by third parties. These include software
components covered by a BSD-like License or other license agreement.
We are unable to answer any questions about the source code for the open source software. The source code for the software
components whose copyrights are held by SHARP is not distributed.

Acknowledgements

The following open source software components are included in this product:

• Freetype • unicode • Teletext font • libpng • zlib

28

LC-LE600E_GB3.indd 28LC-LE600E_GB3.indd 28 2009/07/14 14:38:062009/07/14 14:38:06

Appendix

Specifications

Item

LCD panel

Resolution 2,073,600 pixels (1,920 x 1,080)

Video Colour System PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60

TV-Standard

TV Function

Viewing angles 176 ° (H), 176 ° (V)

Audio amplifier 10 W x 2

Speaker (35 mm x 100 mm) x 2

Terminals

OSD language

Power Requirement

Power Consumption (Method IEC62087) 92 W (0.3 W Standby) 132 W (0.3 W Standby) 160 W (0.3 W Standby)

Weight

Operating temperature

The HDMI 2 and EXT 4 terminals can both use the same audio input terminal.

*

As a part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product

•
improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be
some deviations from these values in individual units.

NOTE

Refer to the inside back cover for dimensional drawings.

•

Receiving
Channel

TV-Tuning System

STEREO/BILINGUAL NICAM/A2

Antenna

RS-232C D-Sub 9 pin male connector

EXT 1 SCART (AV input, Y/C input, RGB input, TV output)

EXT 2 SCART (AV input/monitor output, Y/C input)

EXT 3 COMPONENT IN (Y/P

EXT 4 15 pin mini D-sub

HDMI 1 (EXT 5) HDMI

HDMI 2 (EXT 6) HDMI

HDMI 3 (EXT 7) HDMI

EXT 8 RCA pin (AV input)

SERVICE USB

HDMI 2/PC AUDIO (R/L) Ø 3.5 mm jack*

DIGITAL AUDIO OUTPUT Optical Digital audio output

C. I. (Common Interface) EN50221, R206001

OUTPUT

Headphones Ø 3.5 mm jack (Audio output)

Analogue CCIR (B/G, I, D/K, L/L’)

Digital DVB-T (2K/8K OFDM)

VHF/UHF

CATV

LCD COLOUR TV (32
o), LC-32LE600E

Advanced Super View &
BLACK TFT LCD (32 o)

E5_E69 ch (Digital), E2_E69 ch, F2_F10 ch, I21_I69 ch, IR A_IR J ch

Hyper-band, S1_S41 ch

Auto Preset 999 ch (non-Nordic), Auto Preset 9999 ch (Nordic), Auto Label, Auto
Sort

UHF/VHF 75 q Din type (Analogue & Digital)

RCA pin (AUDIO R/L)

Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek,
Hungarian, Italian, Latvian, Lithuanian, Norwegian, Polish, Portuguese, Russian,
Slovak, Slovene, Spanish, Swedish, Turkish, Ukrainian

AC 220_240 V, 50 Hz

10.5 kg (Without stand),

12.5 kg (With stand)

0 °C to e 40 °C

LCD COLOUR TV (40
o), LC-40LE600E

Advanced Super View &
BLACK TFT LCD (40 o)

B(CB

)/PR(CR), RCA pin (AUDIO R/L))

12.3 kg (Without stand),

15.4 kg (With stand)

LCD COLOUR TV (46
o), LC-46LE600E

Advanced Super View &
BLACK TFT LCD (46 o)

18.5 kg (Without stand),

22.5 kg (With stand)

29

LC-LE600E_GB3.indd 29LC-LE600E_GB3.indd 29 2009/07/14 14:38:062009/07/14 14:38:06

Appendix

Optional accessory

The listed optional accessory is available for this LCD colour TV. Please purchase them at your nearest shop.

•

Additional optional accessories may be available in the near future. When purchasing, please read the newest catalogue for compatibility
and check the availability.

No. Part name Part number Notes

1 Wall mount bracket (32 inch models) AN-37AG5

2 Wall mount bracket (40 inch models) AN-37AG2

3 Attachment (40 inch models) AN-37P30

4 Wall mount bracket (46 inch models) AN-52AG4

Environmental specifications

Item 32 inch models 40 inch models 46 inch models

On-Mode (W) (HOME MODE)

I

Energy-Save-Mode (W)

J

Standby-Mode (W)

K

Off Mode (W)

L

Annual Energy Consumption (kWh)

M

Annual Energy Consumptioning

N

Energy-Save-Mode (kWh)

Measured according to IEC 62087 Ed. 2

I

For further information about the Energy Save function, please see related pages in this operation manual

J

Measured according to IEC 62301 Ed. 1

K

Measured according to IEC 62301 Ed. 1

L

Annual energy consumption is calculated on the basis of the On-Mode (HOME MODE) power consumption, watching TV 4 hours a day,

M

365 days a year

N

Annual energy consumption is calculated on the basis of the Energy-Save-Mode power consumption, watching TV 4 hours a day, 365
days a year

NOTE

The power consumption of On-Mode varies depending on the images the TV displays.

•

Advanced 54 W 70 W 81 W

Power button 0.28 W 0.28 W 0.28 W

MAIN POWER
switch

Advanced 78.8 kWh 102.2 kWh 118.3 kWh

The centre of the TV screen is 5 mm below the mark “B” on
the wall bracket.

The centre of the TV screen is 20 mm below the mark “B” on
the wall bracket.

The centre of the TV screen is 1.3 mm below the mark “b” on
the wall bracket.

60 W 72 W 89 W

0.30 W 0.30 W 0.30 W

0.01 W or less 0.01 W or less 0.01 W or less

87.6 kWh 105.1 kWh 129.9 kWh

Trademarks

“HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.”•

Manufactured under license from Dolby Laboratories.

•

•

“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

The “HD TV 1080p” Logo is a trademark of EICTA.

•

The DVB logo is the registered trademark of the Digital Video Broadcasting—DVB—project.•

30

LC-LE600E_GB3.indd 30LC-LE600E_GB3.indd 30 2009/07/14 14:38:062009/07/14 14:38:06

Appendix

End of life disposal

A. Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that
requires proper treatment, recovery and recycling of used electrical and electronic equipment.
Following the implementation by member states, private households within the EU states may return their
used electrical and electronic equipment to designated collection facilities free of charge*. In some countries*
your local retailer may also take back your old product free of charge if you purchase a similar new one.

Attention: Your
product is marked
with this symbol.
It means that used
electrical and
electronic products
should not be
mixed with general
household waste.
There is a separate
collection system for
these products.

*) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these
separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment,
recovery and recycling and thus prevent potential negative effects on the environment and human health
which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of
disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if
you don’t purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch
or www.sens.ch.

B. Information on Disposal for Business Users

1. In the European Union

If the product is used for business purposes and you want to discard it:

Please contact your SHARP dealer who will inform you about the take-back of the product. You might be
charged for the costs arising from take-back and recycling. Small products (and small amounts) might be
taken back by your local collection facilities.

For Spain: Please contact the established collection system or your local authority for take-back of your used
products.

2. In other Countries outside the EU

If you wish to discard of this product, please contact your local authorities and ask for the correct method of
disposal.

The battery supplied with this product contains traces of Lead.

For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household
waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in
accordance with legislation. Please contact your local authority for details on the collection and recycling
schemes.

For Switzerland: The used battery is to be returned to the selling point.

For other non-EU countries: Please contact your local authority for correct method of disposal of the used
battery.

31

LC-LE600E_GB3.indd 31LC-LE600E_GB3.indd 31 2009/07/14 14:38:072009/07/14 14:38:07
