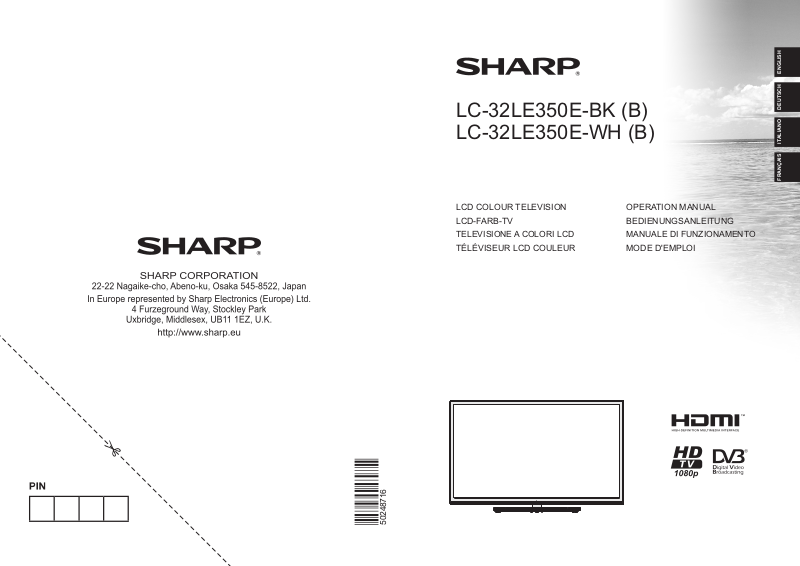

Sharp LC-32LE350E-BK-B, LC-32LE350E-WH-B User Manual
ENGLISH
LC-32LE350E-BK (B)
LC-32LE350E-WH (B)
LCD COLOUR TELEVISION OPERATION MANUAL
LCD-FARB-TV BEDIENUNGSANLEITUNG
TELEVISIONE A COLORI LCD MANUALE DI FUNZIONAMENTO
TÉLÉVISEUR LCD COULEUR MODE D'EMPLOI
DEUTSCH
ITALIANO
FRANÇAIS
Contents
Features ................................................................. 3
Dear SHARP customer ........................................... 3
Introduction ............................................................. 3
Important safety precautions .................................. 4
Environmental Information ..................................... 7
Package Contents .................................................. 7
Viewing the TV ...................................................... 8
TV Control button & Operation ............................... 8
Standby Notifi cations .............................................. 8
Inserting the Batteries into the Remote .................. 8
Connect Power ...................................................... 8
Antenna/Cable Connection..................................... 8
Notifi cation .............................................................. 9
Specifi cation .......................................................... 9

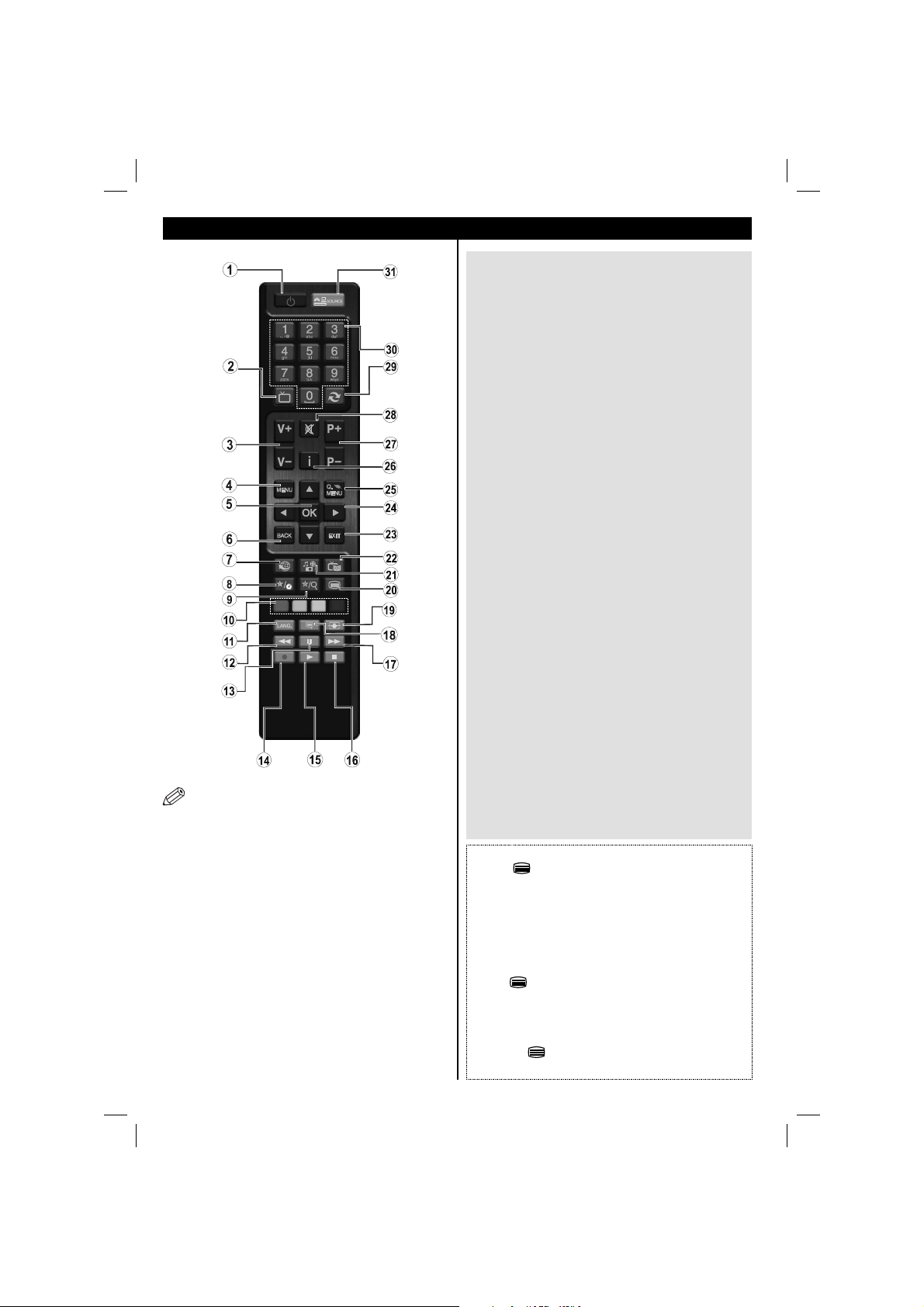

Viewing remote control ........................................ 10
Viewing the Connections .......................................11
Switching On/Off ................................................... 12
To Switch the TV On ......................................... 12
To Switch the TV to Standby ............................12
To Switch the TV Off ......................................... 12
First Time Installation............................................ 12
Aerial Installation ..............................................12
Cable Installation .............................................. 12
Media Playback via USB Input ............................. 12
Recording a Programme ...................................... 12
Timeshift Recording ............................................. 13
Instant Recording ................................................. 13
Watching Recorded Programmes ....................... 13
Recording Confi guration ....................................... 13
Quick Menu .......................................................... 13
TV Menu Features and Functions ........................ 14
Picture Menu Contents ..................................... 14
Advanced Settings ...........................................14
Sound Menu Contents ......................................15
Settings Menu Contents ...................................15
Other Settings: Displays other setting options of
the TV set: ........................................................15
Install and Retune Menu Contents ...................16
General TV Operation .......................................... 17
Using the Channel List ........................................ 17
Confi guring Parental Settings ............................... 17
Electronic Programme Guide (EPG) .................... 17
Programme Options .........................................17
Software upgrade search via user interface ..... 17
Background search and upgrade mode ...........17
3 AM search and upgrade mode ......................17
Manual Software Update .................................. 18
English - 1 -
Troubleshooting & Tips ......................................... 18
Tv will not turn on .............................................18
Poor picture ......................................................18
No picture .........................................................18
No sound ..........................................................18
Remote control - does not operate ...................18
Input sources - can not be selected .................18
Recording unavailable .....................................18
USB is too slow ...............................................18
Internet Connection Not Available / DLNA Mode
Not Operating ...................................................18
Invalid Domain .................................................18
Connectivity Functions ......................................... 19
Connecting to a Wired Network ........................19
Connecting to a Wireless Network ...................19
Confi guring Network Settings ...........................20
Confi guring Wired Device Settings ...................20
Network Type ....................................................20
Confi guration Status .........................................20
IP Address ........................................................20
Confi guring Wired Network Settings in Advanced
Mode ................................................................20
Information .......................................................20
Connecting to your Cell Phone via WiFi
(Optional) .......................................................... 20
Wireless Network Not Available ........................21
Connection is Slow ........................................... 21
Distruption during playback or slow reactions ..21
Using DLNA Network Service ........................... 21
Step 1: Nero Media Home ................................ 21
Step 2: Connect to a Wired or Wireless Network .... 21
Step 3: Play Shared Files via Media Browser ..21
Internet Portal ................................................... 21
Appendix B: HBBTV System ................................ 23
Supported File Formats for USB Mode ................ 24
AV and HDMI Signal Compatibility ...................... 24
PC Input Typical Display Modes .......................... 24
Dimensional Drawings .......................................... 25
End of life disposal ............................................... 26
Installing the Stand .............................................. 27
Uninstalling the Stand .......................................... 28

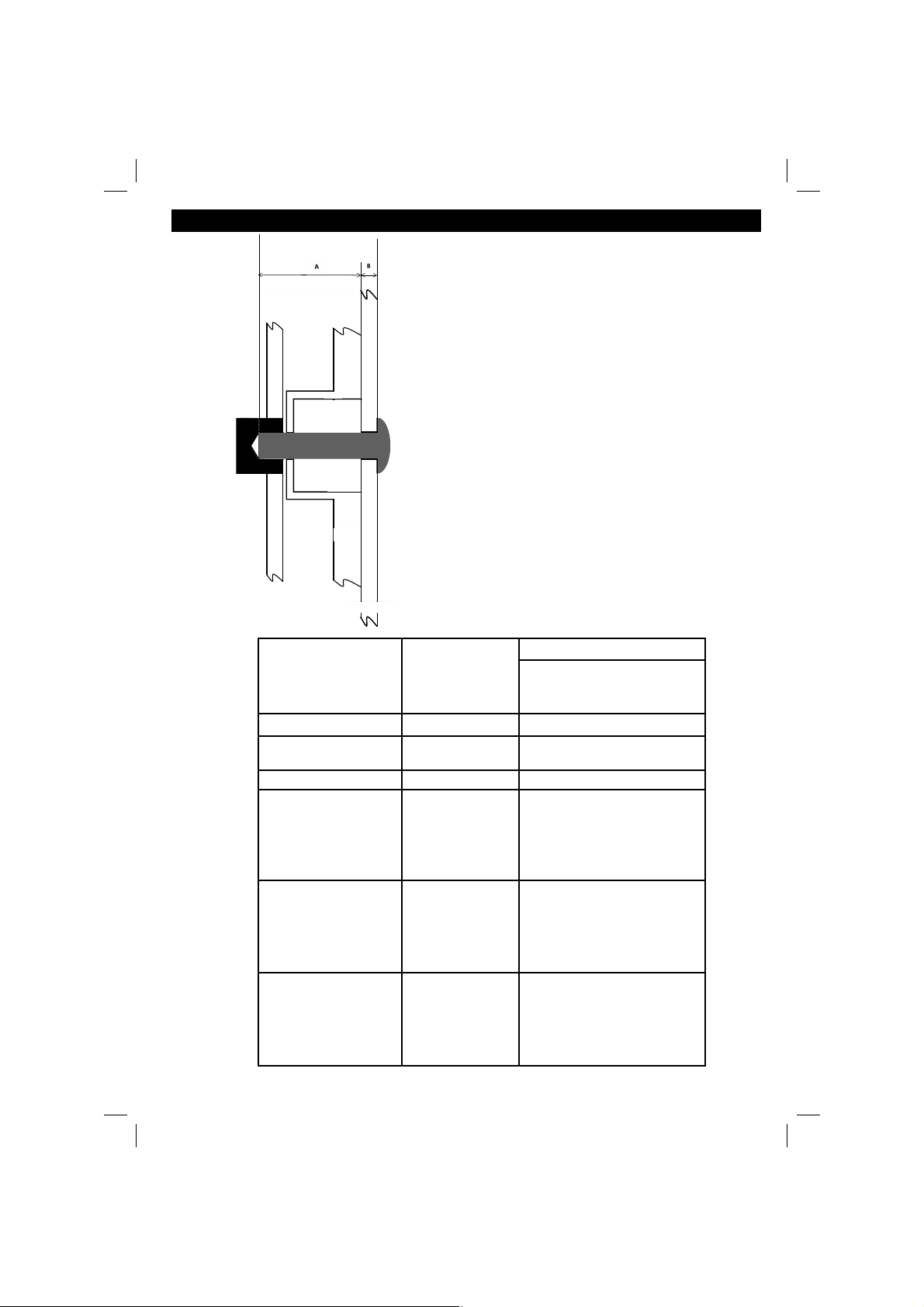

Screw Dimensions Wall Mounting ........................ 29
A01_[GB]_MB95S_4847UK_DVBT_C_32205LED(BMS)_DLNA_HBBTV_MMH_ROCKER_GOLD22_50248716_basic IB.indd 1A01_[GB]_MB95S_4847UK_DVBT_C_32205LED(BMS)_DLNA_HBBTV_MMH_ROCKER_GOLD22_50248716_basic IB.indd 1 19.06.2013 12:28:0719.06.2013 12:28:07
SPECIAL NOTE FOR USERS IN THE U.K.
The mains lead of this product is fi tted with a non-rewireable (moulded) plug incorporating a 5A fuse. Should
the fuse need to be replaced, a BSI or ASTA approved BS 1362 fuse marked
as above, which is also indicated on the pin face of the plug, must be used.
Always refi t the fuse cover after replacing the fuse. Never use the plug without the fuse cover fi tted.
In the unlikely event of the socket outlet in your home not being compatible with the plug supplied, cut off the
mains plug and fi t an appropriate type.
DANGER:
The fuse from the cut-off plug should be removed and the cut-off plug destroyed immediately and disposed
of in a safe manner.
Under no circumstances should the cut-off plug be inserted elsewhere into a 5A socket outlet, as a serious
electric shock may occur.
To fi t an appropriate plug to the mains lead, follow the instructions below:
IMPORTANT:
The wires in the mains lead are coloured in accordance with the following code:
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this product may not correspond with the coloured
markings identifying the terminals in your plug, proceed as follows:
• The wire which is coloured blue must be connected to the plug terminal which is marked N or coloured black.
• The wire which is coloured brown must be connected to the plug terminal which is marked L or coloured red.
Ensure that neither the brown nor the blue wire is connected to the earth terminal in your three pin plug.
Before replacing the plug cover make sure that:
• If the new fi tted plug contains a fuse, its value is the same as that removed from the cut-off plug.
• The cord grip is clamped over the sheath of the mains lead, and not simply over the lead wires.
IF YOU HAVE ANY DOUBT, CONSULT A QUALIFIED ELECTRICIAN.
ASA
or and of the same rating
English - 2 -
A01_[GB]_MB95S_4847UK_DVBT_C_32205LED(BMS)_DLNA_HBBTV_MMH_ROCKER_GOLD22_50248716_basic IB.indd 2A01_[GB]_MB95S_4847UK_DVBT_C_32205LED(BMS)_DLNA_HBBTV_MMH_ROCKER_GOLD22_50248716_basic IB.indd 2 19.06.2013 12:28:0719.06.2013 12:28:07
Features
• Remote controlled colour LCD TV.
• Fully integrated digital/cable TV (DVB-T/C)
• HDMI inputs are for connecting a device that has
a HDMI socket.
• USB input.
• OSD menu system.
• Scart socket for external devices (such as DVD
Players, PVR, video games, etc.)
• Stereo sound system.
• Teletext.
• Headphone connection.
• Automatic programming system.
• Manual tuning.
• Automatic power down after up to six hours.
• Sleep timer.
• Child lock.
• Automatic sound mute when no transmission.
• NTSC playback.
• AVL (Automatic Volume Limiting).
• PLL (Frequency Search).
• PC input.
• Plug&Play for Windows 98, ME, 2000, XP, Vista,
Windows 7.
• Game Mode (Optional).
• Ethernet (LAN) for Internet connectivity and service.
• 802.11n WIFI Support (Optional).
• DLNA.
• HBBTV.
•
•
•
Dear SHARP customer
Thank you for your purchase of the SHARP LCD
colour TV product. To ensure safety and many years
of trouble-free operation of your product, please read
Important safety precautions carefully before using
this product.
Introduction
Please read the corresponding instructions of this
handbook prior to the fi rst usage of the device, even
when the usage of electronic devices is familiar
to you. Please take notice of the chapter SAFETY
PRECAUTIONS. Carefully keep the handbook as
future reference. When selling the device or giving it
away, provide these direction for use.
Thank you for choosing this product. This manual will
guide you for the proper operation of your TV.
Before operating the TV, please read this
manual thoroughly. Please do keep this
manual in a safe place for future references.
This device is intended to receive and display TV
programs. The different connection options make
an additional expansion of the reception and display
sources possible (receiver, DVD player, DVD recorder,
VCR, PC etc.). This device is only suitable for the
operation in dry interiors. This appliance is intended
solely for private domestic use and may not be used
for industrial and commercial purposes. We exclude
liability in principle, if the device is not used as
intended, or unauthorized modifi cations have been
made. To operate your LCD TV in extreme ambient
conditions may cause the damage of the device.
• The illustrations and the OSD in this operation
manual are for explanation purposes and may vary
slightly from the actual operations.
• The examples used throughout this manual
are based on the L
C-32LE350E-BK (B) /
LC-32LE350E-WH (B) model.
•
English - 3 -
A01_[GB]_MB95S_4847UK_DVBT_C_32205LED(BMS)_DLNA_HBBTV_MMH_ROCKER_GOLD22_50248716_basic IB.indd 3A01_[GB]_MB95S_4847UK_DVBT_C_32205LED(BMS)_DLNA_HBBTV_MMH_ROCKER_GOLD22_50248716_basic IB.indd 3 19.06.2013 12:28:0719.06.2013 12:28:07
Important safety precautions
• Cleaning—Unplug the AC cord from the AC outlet before cleaning the product. Use a damp cloth to clean
the product. Do not use liquid cleaners or aerosol cleaners.
• Use a soft damp cloth to gently wipe the panel when it is dirty. To protect the panel, do not use a chemical
cloth to clean it. Chemicals may cause damage or cracks in the cabinet of the TV.
• Water and moisture—Do not use the product near water, such as bathtub, washbasin, kitchen sink, laundry
tub, swimming pool and in a wet basement.
• Do not place vases or any other water-fi lled containers on this product. The water may spill onto the product
causing fi re or electric shock.
• Stand—Do not place the product on an unstable cart, stand, tripod or table. Doing so can
cause the product to fall, resulting in serious personal injuries as well as damage to the product.
Use only a cart, stand, tripod, bracket or table recommended by the manufacturer or sold
with the product. When mounting the product on a wall, be sure to follow the manufacturer’s
instructions. Use only the mounting hardware recommended by the manufacturer.
• When relocating the product placed on a cart, it must be moved with utmost care. Sudden
stops, excessive force and uneven fl oor surface can cause the product to fall from the cart.
• Ventilation—The vents and other openings in the cabinet are designed for ventilation. Do not
cover or block these vents and openings since insuffi cient ventilation can cause overheating
and/or shorten the life of the product. Do not place the product on a bed, sofa, rug or other
similar surface, since they can block ventilation openings. This product is not designed for
built-in installation; do not place the product in an enclosed place such as a bookcase or
rack, unless proper ventilation is provided or the manufacturer’s instructions are followed.
• The LCD panel used in this product is made of glass. Therefore, it can break when the
product is dropped or impact applied. If the LCD panel is broken, be careful not to be injured
by broken glass.
• Heat sources—Keep the product away from heat sources such as radiators, heaters, stoves
and other heat-generating products (including amplifi ers).
• To prevent fi re, never place any type of candle or naked fl ames on the top or near the TV set.
• To prevent fi re or shock hazard, do not place the AC cord under the TV set or other heavy items.
• Headphones—Do not set the volume at a high level. Hearing experts advise against extended listening at
high volume levels.
• Do not display a still picture for a long time, as this could cause an afterimage to remain.
• There is power consumption always if main plug is connected.
• Servicing—Do not attempt to service the product yourself. Removing covers can expose you to high voltage
and other dangerous conditions. Request a qualifi ed person to perform servicing.
The LCD panel is a very high technology product, giving you fi ne picture details.
Due to the very large number of pixels, occasionally a few non-active pixels may appear on the screen as a
fi xed point of blue, green or red. This is within product specifi cations and does not constitute a fault.
Precautions when transporting the TV
When transporting the TV, never carry it by holding onto the speakers. Be sure to always carry the TV by two
people holding it with two hands—one hand on each side of the TV.
WARNING
To prevent the spread of fi re, keep candles or other open fl ames away from this product
at all times.
English - 4 -
A01_[GB]_MB95S_4847UK_DVBT_C_32205LED(BMS)_DLNA_HBBTV_MMH_ROCKER_GOLD22_50248716_basic IB.indd 4A01_[GB]_MB95S_4847UK_DVBT_C_32205LED(BMS)_DLNA_HBBTV_MMH_ROCKER_GOLD22_50248716_basic IB.indd 4 19.06.2013 12:28:0819.06.2013 12:28:08
Safety Precautions
Read the following recommended safety
precautions carefully for your safety.
Power Source
The TV set should be operated only from a 220-240V
AC, 50Hz outlet. Ensure that you select the correct
voltage setting for your convenience.
Power Cord
Do not place the set, a piece of furniture, etc. on the
power cord (mains lead) or pinch the cord. Handle the
power cord by the plug. Do not unplug the appliance
by pulling from the power cord and never touch the
power cord with wet hands as this could cause a short
circuit or electric shock. Never make a knot in the cord
or tie it with other cords. The power cords should be
placed in such a way that they are not likely to be
stepped on. A damaged power cord can cause fi re or
give you an electric shock. When it is damaged and
needs to be replaced, it should be done by qualifi ed
personnel.
Moisture and Water
Do not use this device in a humid and
damp place (avoid the bathroom, the
sink in the kitchen, and near the washing
machine). Do not expose this device to
rain or water, as this may be dangerous
and do not place objects filled with
liquids, such as fl ower vases, on top.
Avoid from dripping or splashing.
If any solid object or liquid falls into the cabinet, unplug
the TV and have it checked by qualifi ed personnel
before operating it any further.
Cleaning
Before cleaning, unplug the TV set
from the wall outlet. Do not use liquid or
aerosol cleaners. Use soft and dry cloth.
Ventilation
The slots and openings on the TV set
are intended for ventilation and to ensure reliable
operation. To prevent overheating, these openings
must not be blocked or covered in anyway.
Heat and Flames
The set should not be placed near to
open fl ames and sources of intense heat
such as an electric heater. Ensure that
no open fl ame sources, such as lighted
candles, are placed on top of the TV. Batteries should
not be exposed to excessive heat such as sunshine,
fi re or the like.
Lightning
In case of storm and lightning or when
going on holiday, disconnect the power
cord from the wall outlet.
Replacement Parts
When replacement parts are required, make sure that
the service technician has used replacement parts,
which are specifi ed by the manufacturer or have the
same specifi cations as the original one. Unauthorized
substitutions may result in fi re, electrical shock or
other hazards.
Servicing
Please refer all servicing to qualifi ed
personnel. Do not remove the cover
yourself as this may result in an electric
shock.
Waste Disposal
• Packaging and packaging aids are recyclable and
should principally be recycled. Packaging materials,
such as a foil bag should be kept away from children
• Batteries, including those which are heavy metal
free, should not be disposed of with household
waste. Please dispose of used batteries in an
environmentally friendly manner. Find out about the
legal regulations which apply in your area.
• Do not try to recharge batteries, there is a danger
of explosion. Replace batteries only with the same
or equivalent type.
This symbol on the product or on its packaging means
that your electrical and electronic device
should be disposed at the end of its
service life separately from your
household wastes. There are separate
collection systems for recycling in the EU.
For more information, please contact the
local authority or the dealer where you
purchased the product.
Disconnecting the Device
The mains plug is used to disconnect the TV set
from the mains and therefore it must remain readily
operable.
Headphone Volume
Excessive sound pressure from earphones
and headphones can cause hearing loss.
Installation
To prevent injury, this device must be securely
attached to the wall in accordance with the installation
instructions when mounted to the wall (if the option
is available).
English - 5 -
A01_[GB]_MB95S_4847UK_DVBT_C_32205LED(BMS)_DLNA_HBBTV_MMH_ROCKER_GOLD22_50248716_basic IB.indd 5A01_[GB]_MB95S_4847UK_DVBT_C_32205LED(BMS)_DLNA_HBBTV_MMH_ROCKER_GOLD22_50248716_basic IB.indd 5 19.06.2013 12:28:0819.06.2013 12:28:08
LCD Screen
The LCD panel is a very high technology product with
about a million thin fi lm transistors, giving you fi ne
picture details. Occasionally, a few non-active pixels
may appear on the screen as a fi xed blue, green or
red point. Please note that this does not affect the
performance of your product.
Warning! Do not leave your TV in standby or operating
mode when you leave your house.
Connection to a Television Distribution
System (Cable TV etc.) from Tuner
Device connected to the protective earthing of the
building installation through the mains connection or
through other apparatus with a connection to protective
earthing-and to a television distribution system using
coaxial cable, may in some circumstances create a
fi re hazard.
Connection to a cable distribution system has
therefore to be provided through a device providing
electrical isolation below a certain frequency range
(galvanic isolator, see EN 60728-11).
Note:The HDMI connection between PC and TV
may cause radio interference in which case it is
recommended to use VGA(DSUB-15) connection.
• “HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.”
• The “HD TV 1080P” Logo is a trademark of
DIGITALEUROPE.
• The DVB logo is the registered trademark of the
Digital Video Broadcasting—DVB—project.
Electrical device not in the hands of children
Never let children use any electrical device
unsupervised. Children cannot always recognise
possible dangers. Batteries / accumulators can be
life threatening when swallowed. Store batteries out
of the reach of small children. In case of swallowing
a battery medical aid has to be sought immediately.
Also keep the packaging foils away from children as
there is danger of suffocation.
The Standby Off/On button doesn´t separate this
device completely from mains. Moreover the device
consumes power in the standby operation. In order to
separate the device completely from mains, the mains
plug has to be pulled from the mains socket. Because
of that the device should be set up in a way, that an
unobstructed access to mains socket is guaranteed,
so that in case of emergency the mains plug can be
pulled immediately. To exclude the danger of fi re, the
power cord should principally be separated from the
mains socket prior to a longer period of non-usage,
i.e. during vacations.
English - 6 -
A01_[GB]_MB95S_4847UK_DVBT_C_32205LED(BMS)_DLNA_HBBTV_MMH_ROCKER_GOLD22_50248716_basic IB.indd 6A01_[GB]_MB95S_4847UK_DVBT_C_32205LED(BMS)_DLNA_HBBTV_MMH_ROCKER_GOLD22_50248716_basic IB.indd 6 19.06.2013 12:28:0919.06.2013 12:28:09
Environmental Information
This television is designed to consume less energy
to save environment. You not only help to save the
environment but also you can save money by reducing
electricity bills thanks to the energy effi ciency feauture
of this TV. To reduce energy consumption, you should
take the following steps:
You can use Power Save Mode setting, located in the
Picture Settings menu. If you set Power Save Mode
as Eco, the TV will switch to energy-saving mode
and luminance level of TV set will be decreased to
optimum level. Note that some picture settings will be
unavailable to be changed when the TV is in Power
Save Mode.
Package Contents
TV
LED TV
If Picture Off is selected, “Screen will be off in 15
seconds.” message will be displayed on the screen.
Select PROCEED and press OK to continue. The
screen will be off in 15 seconds. If you disable Power
Save Mode, Picture mode will be automatically set
to Dynamic.
When the TV is not in use, please switch off or
disconnect the TV from the mains plug. This will also
reduce energy consumption.
Disconnect power when going away for longer time.
It is highly recommended to activate Power Save Mode
setting to reduce your annual power consumption. And
also it is recommended to disconnect the TV from the
mains plug to save energy more when you do not use.
Please helps us to save environment by following
these steps.
Repair Information
Please refer all servicing to qualifi ed personnel. Only
qualifi ed personnel must repair the TV. Please contact
your local dealer, where you have purchased this TV
for further information.
Batteries: 2 X AAA
Instruction Book
Remote Control
Quick Guide
Nero media home CD
1 X Video & Audio
Connection Cable
Note: You should check the accessories after
purchasing. Make sure that each accessory is
included.
As the manufacturer’s specification supports
communication on cable lengths shall be smaller
than 3m.
English - 7 -
A01_[GB]_MB95S_4847UK_DVBT_C_32205LED(BMS)_DLNA_HBBTV_MMH_ROCKER_GOLD22_50248716_basic IB.indd 7A01_[GB]_MB95S_4847UK_DVBT_C_32205LED(BMS)_DLNA_HBBTV_MMH_ROCKER_GOLD22_50248716_basic IB.indd 7 19.06.2013 12:28:0919.06.2013 12:28:09
Viewing the TV
TV Control button & Operation
TV/AV
+
P/CH
+
1. Standby button
2. TV/AV button
3. Programme Up/Down buttons
4. Volume Up/Down buttons
Standby Notifi cations
1) If the TV does not receive any input signal (e.g.
from an aerial or HDMI source) for 5 minutes, the TV
will go into standby. When you next switch-on, the
following message will be displayed: “Standby Cause
No Signal” Press OK to continue.
2) If the TV has been left on and not been operated
for a while, the TV will go into standby. When you next
switch-on, the following message will be displayed.
“Standby Cause No Operation” Press OK to
continue.
Inserting the Batteries into the Remote
Lift the cover on the back of the remote upward
gently. Install two AAA batteries. Make sure to
match the + and - ends of the batteries in the
battery compartment (observe the correct polarity)
Replace the cover.
Connect Power
IMPORTANT: The TV set is designed to operate on
220-240V AC, 50 Hz socket. After unpacking, allow
the TV set to reach the ambient room temperature
before you connect the set to the mains. Plug the
power cable to the mains socket outlet.
Antenna/Cable Connection
Connect the “aerial” or “cable TV” plug to AERIAL
INPUT (ANT) socket located on the back of the TV.
Aerial or Cable
HDMI3
HDMI2
VGA
SPDIF
, switch is used for turning the TV on or off.
English - 8 -
A01_[GB]_MB95S_4847UK_DVBT_C_32205LED(BMS)_DLNA_HBBTV_MMH_ROCKER_GOLD22_50248716_basic IB.indd 8A01_[GB]_MB95S_4847UK_DVBT_C_32205LED(BMS)_DLNA_HBBTV_MMH_ROCKER_GOLD22_50248716_basic IB.indd 8 19.06.2013 12:28:1019.06.2013 12:28:10
Notifi cation
Manufactured under license from Dolby Laboratories.
TRADEMARK ACKNOWLEDGMENT
“Dolby” and the double-D symbol are trademarks of
Dolby Laboratories.
“DLNA, the DLNA Logo and DLNA CERTIFIED are
trademarks, service marks, or certifi cation marks of
the Digital Living Network Alliance.”
“HDMI, the HDMI logo and High-Defi nition Multimedia
Interface are trademarks or registered trademarks of
HDMI Licensing LLC.”
“YouTube and the YouTube logo are trademarks of
Google Inc.”
Information for Users on Disposal of Old
Equipment and Batteries
[European Union only]
These symbols indicate that equipment with these
symbols should not be disposed of as general
household waste. If you want to dispose of the
product or battery, please consider the collection
systems or facilities for appropriate recycling.
Notice: The sign Pb below the symbol for batteries indicates
that this battery contains lead.
Specifi cation
TV Broadcasting PAL B/G D/K K
Receiving Channels VHF (BAND I/III) - UHF
Number of Preset
Channels
Channel Indicator On Screen Display
RF Aerial Input 75 Ohm (unbalanced)
Operating Voltage 220-240V AC, 50Hz.
Audio German+Nicam Stereo
Operation
temperature and
(BAND U) - HYPERBAND
10000
5ºC up to 45ºC, 85%
humidity max
operation humidity:
Audio Output Power
(WRMS.) (10% THD)
Power Consumption 65W
Weight 8,9
TV Dimensions DxLxH
(with foot)
TV Dimensions DxLxH
(without foot)
2 x 6
205 x 743 x
67 x 743 x 451
493
Battery
Products
English - 9 -
A01_[GB]_MB95S_4847UK_DVBT_C_32205LED(BMS)_DLNA_HBBTV_MMH_ROCKER_GOLD22_50248716_basic IB.indd 9A01_[GB]_MB95S_4847UK_DVBT_C_32205LED(BMS)_DLNA_HBBTV_MMH_ROCKER_GOLD22_50248716_basic IB.indd 9 19.06.2013 12:28:1119.06.2013 12:28:11
Loading...
