MODEL
LC-32LE345X
LCD COLOUR TELEVISION
OPERATION MANUAL
Supplied accessories
Remote control unit
Restraining
band
Safety restrains Operation manual
Screw for band
“AAA” size battery (g2)
Screws for
clamps
Clamps
Contents
Supplied accessories ..........................................1
Dear SHARP customer ........................................2
Important Safety Precautions ............................2
Important information .........................................2
Trademarks ..........................................................3
Attaching the stand .............................................3
Antenna connection ............................................3
Connecting external devices .............................. 4
Remote control unit ............................................6
Part names ...........................................................7
Turning the TV on/standby ................................. 8
Initial auto installation ......................................... 8
Menu operation....................................................8
CHANNEL menu ..................................................8

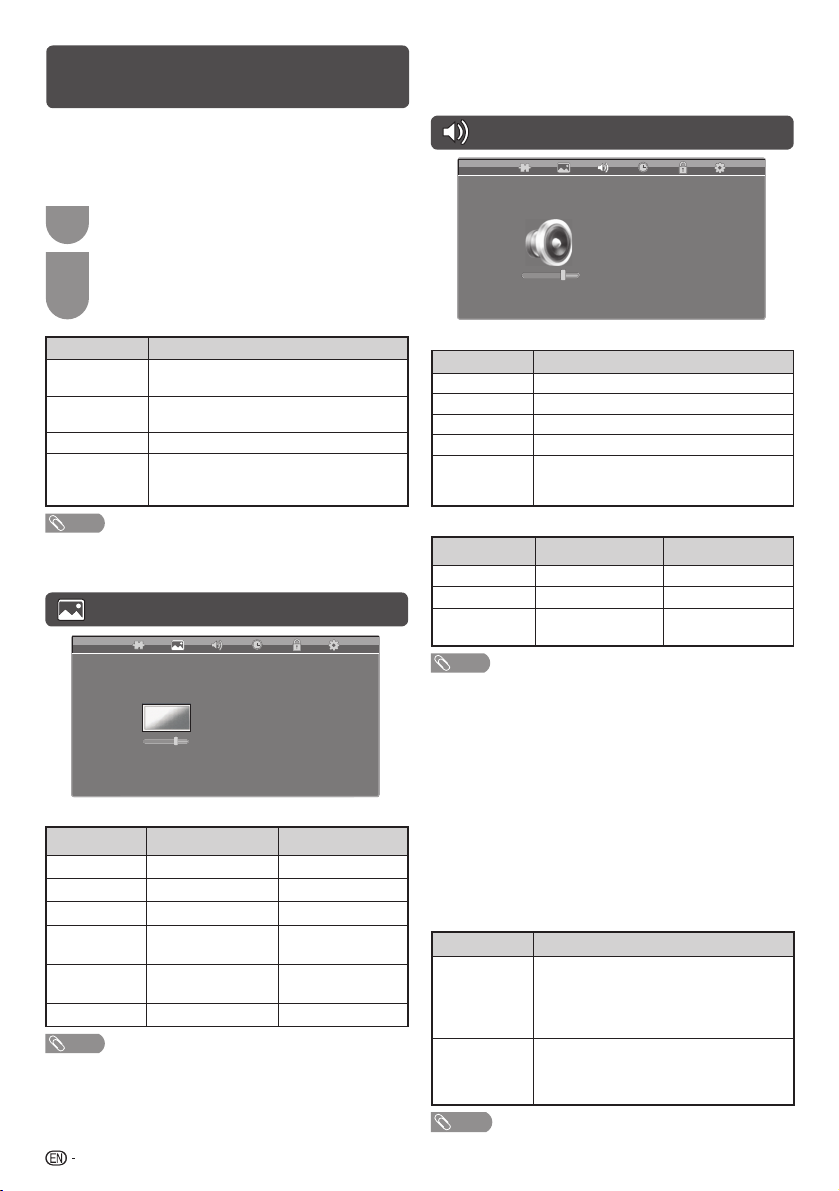

Selecting a preset Picture Mode ......................10
PICTURE menu ..................................................10
SOUND menu ..................................................... 10
TIME menu .........................................................11
Page
Stand unit
Stand base
Screws (g 4)
Page
LOCK menu ........................................................ 11
SETUP menu ......................................................12
SCREEN menu (PC input mode only) ..............14
Programme Guide .............................................15
Info ......................................................................15
RADIO mode ...................................................... 16
Switching the analogue audio format .............16
EPG .....................................................................18
Colour adjustment and still image ................... 19
ECO mode ..........................................................19
Teletext function ................................................20
PC compatibility chart ......................................20
USB Media Player .............................................. 20
Appendix ............................................................24
Specifi cations ....................................................25
Protection against overturning ........................26
Dimensional drawings.......................................27
CLEARING THE PASSWORD ............................28
1
Dear SHARP customer
Thank you for your purchase of the SHARP LCD colour TV product. To ensure safety and many
years of trouble-free operation of your product, please read the Important Safety Precautions
carefully before using this product.
Important Safety Precautions
• Cleaning — Unplug the AC cord from the AC outlet before cleaning the product. Use a soft damp cloth to clean the
product. Do not use liquid cleaners, aerosol cleaners or chemical cloth to clean it, as such materials may damage the
product.
• Water and moisture — Do not use the product near water, such as bathtub, washbasin, kitchen sink, laundry tub,
swimming pool and in a wet basement.
• Do not place vases or any other water-fi lled containers on this product.
The water may spill onto the product causing fi re or electric shock.
• Stand — Do not place the product on an unstable cart, stand, tripod or table. Doing so can cause the product to fall,
resulting in serious personal injuries as well as damage to the product. Use only a cart, stand, tripod, bracket or table
recommended by the manufacturer or sold with the product. When mounting the product on a wall, be sure to follow the
manufacturer’s instructions. Use only the mounting hardware recommended by the manufacturer.
• When relocating the product placed on a cart, it must be moved with utmost care. Sudden stops, excessive force and
uneven fl oor surface can cause the product to fall from the cart.
• Ventilation — The vents and other openings in the cabinet are designed for ventilation. Do not cover or block these vents
and openings since insuffi cient ventilation can cause overheating and/or shorten the life of the product. Do not place the
product on a bed, sofa, rug or other similar surface, since they can block ventilation openings. This product is not designed
for built-in installation; do not place the product in an enclosed place such as a bookcase or rack, unless proper ventilation
is provided or the manufacturer’s instructions are followed.
• The LCD panel used in this product is made of glass. Therefore, it can break when the product is struck forcefully or with a
sharp object. If the LCD panel is broken, be careful not to be injured by broken glass.
• Heat sources — Keep the product away from heat sources such as radiators, heaters, stoves and other heat-generating
products (including amplifi ers).
• To prevent fi re, never place any type of candle or naked fl ames on the top or near the TV set.
• To prevent fi re or shock hazard, do not place the AC power cord under the TV set or other heavy items.
• Do not place heavy objects on this product or stand on it. Doing so could cause injury if the product overturns. Take
special care near children and pets.
• The LCD panel is a very high technology product with 1,049,088 pixels, giving you fi ne picture details.
Due to the very large number of pixels, occasionally a few non-active pixels may appear on the screen as a fi xed point of
blue, green or red.
This is within product specifi cations and does not constitute a fault.
• Precautions when transporting the TV
When transporting the TV, never carry it by holding or otherwise putting pressure onto the display. Be sure to always carry
the TV by two people holding it with two hands — one hand on each side of the TV.
• Do not display a still picture for a long time, as this could cause an afterimage to remain.
• Install the product on the place where the AC cord can be unplugged easily from the AC outlet, or from the AC INPUT
terminal on the rear of the product.
• If a television is not positioned in a suffi ciently stable location, it can be potentially hazardous due to falling. Many injuries,
particularly to children, can be avoided by taking simple precautions such as:
• Using cabinets or stands recommended by the manufacturer of the television.
• Only using furniture that can safely support the television.
• Ensuring the television is not overhanging the edge of the supporting furniture.
• Not placing the television on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture
and the television to a suitable support.
• Not standing the televisions on cloth or other materials placed between the television and supporting furniture.
• Educating children about the dangers of climbing on furniture to reach the television or its controls.
Important information
This product qualifi es for ENERGY STAR when “Home” is selected for “TV location”.
Setting “TV Location” to “Home” allows the TV to achieve an energy-saving status for household use.
2
Trademarks
• “HDMI, the HDMI logo and High-Defi nition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing
LLC in the United States and other countries.”
• Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
• Products that have earned the ENERGY STAR® are designed to protect the environment through energy effi ciency.
•
DivX®, DivX Certifi ed® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.
• ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an
offi cial DivX Certifi ed® device that plays DivX video. Visit divx.com for more information and software tools to convert
your fi les into DivX videos.
• ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certifi ed® device must be registered in order to play purchased DivX
Video-on-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup
menu. Go to vod.divx.com for more information on how to complete your registration.
Attaching the stand
• Before attaching (or detaching) the stand, unplug the AC cord from the AC outlet.
• Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from
being damaged.
Confi rm the screws supplied with the TV.
1
Screws (m4)
(used in step 3)
Insert the stand base to the stand post on
2
the bottom of the TV. (1)
Insert and tighten the 4 screws into the 4
3
holes on the bottom of the stand base. (2)
NOTE
• To detach the stand, perform the steps in reverse order.
CAUTION
• Do not attach or detach the stand without holding it.
Doing so can cause the stand to fall, resulting in serious personal injuries as well as damage to the stand.
Stand
Screw
Soft cushion
Screw driver
Antenna connection
Connecting the antenna cable
To enjoy a clearer picture, use an outdoor antenna.
Standard DIN45325 plug (IEC169-2)
75-ohm coaxial cable (round cable)
Antenna cable
(commercially available)
Room antenna terminal (75-ohm type)
CAUTION
• TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH
THE AC CORD CONNECTED.
To antenna terminal
3
Connecting external devices
You can connect many types of external equipment to your TV, like a VCR, game console, camcorder, DVD
player, Digital TV STB (Set Top Box) and PC. To view external source images, select the input source from
INPUT on the remote control unit or INPUT on the TV.
CAUTION
• To protect all equipment, always turn off the TV before connecting to a VCR, game console, camcorder, DVD player,
Digital TV STB (Set Top Box), PC or other external equipment.
• Refer to the relevant operation manual (VCR, DVD player, etc.) carefully before making connections.
Connecting a VCR, game console or camcorder
A VCR, game console, camcorder and some other audiovisual equipment can be conveniently connected
using the INPUT 4 or INPUT 5 terminals.
When using component cable
(commercially available)
When using composite cable (commercially
available)
5
VIDEO
VCR/Game console/Camcorder
INPUT 5
R-AUDIO-L
VCR/Game console/Camcorder
Connecting a DVD player/Digital TV STB (Set Top Box)
You can use the INPUT 1/INPUT 2/INPUT 3 (HDMI), INPUT 4 terminals when connecting to a DVD player/
Digital TV STB (Set Top Box) and other audiovisual equipment.
When using HDMI-certifi ed cable
(commercially available)
INPUT 1
1
AUDIO IN
DVD player/
Digital TV STB
(Set Top Box)
(R/L)
When using component cable
(commercially available)
DVD player/Digital TV STB (Set Top Box)
4
Connecting external devices
Connecting a PC
You can use the INPUT 6 PC terminals when
connecting to a PC of ANALOGUE RGB terminal.
ANALOGUE RGB
ANALOGUE
PC
AUDIO IN
(R/L)
INPUT 6
PC
6
(Continued)
You can use the INPUT 1 (HDMI) terminal when
connecting to a PC of DIGITAL DVI terminal.
DIGITAL DVI
DVI- I
INPUT 1
1
AUDIO IN
(R/L)
PC
Connecting a USB device
Connect a USB device to the TV.
Using Digital Audio Output
It is possible to output audio through the DIGITAL
AUDIO OUTPUT terminal. PCM audio outputs from
the terminal.
DIGITAL
AUDIO
Optical fi bre cable
(commercially
available)
CAUTION
• Do not disconnect a USB device from the TV while
transferring fi les, when a screen is in “USB” mode.
NOTE
• The compatibility of USB HDDs may not be guaranteed.
NOTE
• The DIGITAL AUDIO OUTPUT terminal usually outputs the same audio from the speakers. (The audio of the content you
are viewing is output from the terminal.)
• The DIGITAL AUDIO OUTPUT terminal does not output some signals, depending on devices and software.
• The DIGITAL AUDIO OUTPUT terminal does not output any signal during HDMI digital input.
To optical digital input of external audio devices
OUTPUT
5
Remote control unit
9 a/b/c/d (Cursor)
1
2
3
4
5
6
7
8
9
10
11
12
13
1 POWER (STANDBY/ON)
To switch the power on and off. (See page 8.)
2 DISPLAY
Display the channel or input information.
3 SLEEP
Set the Sleep timer. (See page 11.)
4 0 – 9
Set the channel.
TELETEXT mode: Set the page. (See page 20.)
5 A (Flashback)
Press A to return to the previous selected channel or
external input mode.
6 P-MODE
Select a video setting. (See page 10.)
7 VOLk/VOL
Set the volume.
(VOLk) Increase the volume.
(VOLl) Decrease the volume.
8 e (Mute)
Press e s Mutes sound.
Press e again s Restores sound.
Mute will be cancelled after 30 minutes. However, the
TV will not suddenly output loud sound as the volume
level will be set to 0 automatically. Increase the volume
level by pressing VOL k.
l
GUIDE INFO RADIO
EPG
P-MODE
LCDTV
14
15
16
17
18
19
20
Inserting the batteries
Before using the TV for the fi rst time, insert two “AAA” size batteries (supplied). When the batteries become
depleted and the remote control fails to operate, replace the batteries with new “AAA” size batteries.
1
Open the battery cover.
2
Insert the two supplied “AAA” size batteries.
Select a desired item on the setting screen.
ENTER
Execute a command.
10 COLOUR ADJ. (FREEZE)
Freeze a motion picture on the screen and adjust the
colour tone of the still image. (See page 19.)
11 Colour (Red/Green/Yellow/Blue)
The coloured buttons are correspondingly used to select
the coloured items on the screen.
TELETEXT mode: Select a page. (See page 20.)
12 EPG
DTV mode: To display EPG (Electronic Programme
Guide) screen. (See pages 18 to 19.)
GUIDE
DTV mode: Display the programme channel list. (See
page 15.)
INFO
DTV mode: Display the programme information. (See
page 15.)
RADIO
Press to access RADIO mode. (See page 16.)
13 m (TELETEXT), k (Reveal hidden for TELETEXT),
3 (Hold), [ (SUBTITLE for TELETEXT)
Use for TELETEXT mode. (See page 20.)
14 ECO
Reduce overall power consumption based on user
preferences. (See page 19.)
15 PHOTO
Display your pictures directly on the TV screen. (See page
21.)
16 INPUT (INPUT SOURCE)
Select an input source.
17 CHr/CH
TV input mode: Select the channel.
(CHr) Increase the channel number.
(CH
TELETEXT mode: Select the page. (See page 20.)
18 MPX
Select the sound multiplex mode.
19 MENU
Display the menu screen.
20 RETURN
MENU mode: Return to the previous menu screen.
s
) Decrease the channel number.
s
3
Close the battery cover.
•
Place batteries with their terminals corresponding to the (e)
CAUTION
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fi re or the like.
6
and (f) indications in the battery compartment.
Part names
TV (Front)
Remote control sensor
POWER indicator
Lighted (Red) The TV is in standby mode.
Lighted (Green) The TV is on.
TV (Rear)
6
INPUT 2
DIGITAL
AUDIO
OUTPUT
INPUT 1
1
AUDIO IN
(R/L)
R-AUDIO-L
AUDIO OUT
R-AUDIO-L R-AUDIO-L
INPUT 6
PC
INPUT 4
Y
INPUT 5
6
ANTENNA
4
5
VIDEO
1 POWER (On/Off) button
2 MENU button
13
3 INPUT button
4 Channel up (r)/down (
5 Volume up (e)/down (f) buttons
14
6 INPUT 1*/INPUT 2/INPUT 3 (HDMI)
) buttons
s
terminal
7 INPUT 4 terminals
8 AUDIO OUT terminals
9 INPUT 5 terminals
10 Antenna input terminal
1
2
12
11
3
4
11 INPUT 6 PC terminal*
12 DIGITAL AUDIO OUTPUT terminal
13 USB terminal**
14 Headphone jack (Ǿ 3.5 mm)
• The speakers do not output volume
when headphones are plugged in.
5
87
* The INPUT 1 and INPUT 6 PC terminals can both use the same analogue audio input terminal. However, the proper item
must be selected in the “HDMI Audio Select” menu. (See page 13.)
9
10
** USB terminal use for USB Media Player. (See page 20.)
• The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations.
Regarding the headphone jack
• Use headphones with a stereo mini plug ( 3.5 mm).
• Be sure to unplug headphones from the jack when they are not
in use.
• The speakers do not output volume when headphones are
plugged in.
• The “SOUND” menu cannot be operated when headphones are
plugged in.
Volume display when headphones are plugged in
HP Volume
11
7
Turning the TV on/standby
Menu operation
Standby mode
• Switching on from standby
From standby, press POWER on the remote control or
press POWER on the TV.
• To standby mode
If the TV
is switched on, you can switch it to standby by
pressing POWER on the remote control or press POWER
on the TV.
NOTE
• If you are not going to use this TV for a long period of
time, be sure to remove the AC cord from the AC outlet.
• Minor power is consumed when the unit is in standby
mode.
• When AC cord is connected, the POWER indicator lights
in orange.
After few seconds, the POWER indicator will change to
red or green lights, and then the TV can be operated.
Initial auto installation
When the TV powers on for the first time after
purchase, the initial auto installation wizard appears.
Follow the menus and make the necessary settings
one after another.
Press POWER to turn on the TV.
1
Press c/d to select “Home” or “Store”, and
2
then press ENTER.
Home:
• “Standard” will be the default value for the “Picture
Mode” setting.
Store:
• “Dynamic” will be the default value for the “Picture
Mode” setting. If the “Picture Mode” is changed,
the TV will automatically switch back to “Dynamic”
when there is no further change to TV setting for
30 minutes.
• The confi rmation screen appears only when
selecting “Store”.
c/d
Press
• To change the Store mode to Home mode,
please refer to page 14 to reset the unit.
Press a/b to select your country channels
listed on the screen, and then press ENTER.
• Auto installation will be executed.
• You do not need to do anything during the auto
search.
• If you want to skip ATV or DTV tuning, press
MENU to exit. Press
NOTE
• You can set initial auto installation manually in the
“First Time Installation” on the “SETUP” menu
screen. (See page 14.)
to select “Yes” or “No”.
c/d
to select “Yes” or “No”.
Press MENU and the MENU screen
1
displays.
Press c/d to select the desired menu.
2
(CHANNEL, PICTURE, SOUND, TIME,
LOCK, SETUP)
Press a/b to select the desired menu item.
3
Press ENTER to proceed if necessary.
Press a/b or c/d to select the desired
4
item or adjust the item to the desired level.
Press ENTER if necessary.
CHANNEL menu
Auto Tuning
ATV Manual Tuning
DTV Manual Tuning
CHANNEL
H
Auto Tuning
You can run auto tuning again, even after setting up
the preset channels.
Press MENU and the MENU screen
1
displays.
Press c/d to select “ ” (CHANNEL).
2
Press a/b to select “Auto Tuning”, and
3
then press ENTER.
If you have already set the password, enter
4
it here.
• See page 11 for setting a password.
Press c/d to select “ATV+DTV”, “DTV” or
5
“ATV”, and then press ENTER.
You do not need to do anything during the
auto search. Press MENU to exit.
• If you want to skip ATV or DTV tuning, press
MENU to exit. Press c/
Programme Edit
Signal Information
Software Update(OAD) On
d
to select “Yes” or “No”.
8
CHANNEL menu (Continued)
H
ATV Manual Tuning
You can set some channel items manually.
Repeat steps 1 and 2 in Auto Tuning.
1
Press a/b to select “ATV Manual Tuning”,
2
and then press ENTER.
If you have already set the password, enter
3
it here.
• See page 11 for setting a password.
Press a/b to select your desired item, and
4
then press c/d to adjust the settings.
Current CH
Select the channel you want to edit.
• Selected channel will be automatically refl ected in the
background.
Colour System
Select the optimum colour system to receive. (PAL,
SECAM, NTSC3.58, NTSC4.43, PAL60).
Sound System
Select the optimum sound system (Broadcasting
system) to receive. (BG, DK, I, M).
Fine-Tune
Start searching from current channel.
• Instead of pressing c/d to adjust the frequency, you
can set by directly entering the frequency number of the
channel with 0 — 9.
Search
Tune the frequency of the stored channel to your
desired position.
• Adjust while checking the background picture as a
reference.
NOTE
• The frequency shown below the On-Screen Display shows
the real-time frequency of the displayed channel.
H
DTV Manual Tuning
You can also automatically search by performing the
procedure below.
Repeat steps 1 and 2 in Auto Tuning.
1
Press a/b to select “DTV Manual Tuning”,
2
and then press ENTER.
If you have already set the password, enter
3
it here.
• See page 11 for setting a password.
The “DTV Manual Tuning” screen will appear,
4
and then press ENTER.
• You do not need to do anything during the auto
search.
H
Programme Edit
Use this menu to set up a channel individually.
Repeat steps 1 and 2 in Auto Tuning.
1
Press a/b to select “Programme Edit”, and
2
then press ENTER.
If you have already set the password, enter it here.
3
• See page 11 for setting a password.
Press a/b to select the channel you
4
want to edit, and then press R, G, Y, B on
the remote control if necessary or press
RETURN to MENU screen.
Delete
Channels can be erased individually.
Press R to erase the selected channel.
Label
To enter the name of the channel. Maximum 5
alphanumeric can be input. Press G to start labelling.
• Pres
s a/b: To select a desired alphanumeric.
• Pr
ess c/d: To move to the desired alphanumeric
position.
Press ENTER to save.
Move
Channel positions can be moved freely.
Press Y to select the channel you want to move.
Press a/b to move it to the desired position, and
then press Y
Skip
Channels with “Skip” set to “On” are passed over when
using CH
image from the TV.
Press B to skip the selected channel.
Press B again to cancel the skip.
H
Signal Information
If you install a DVB-T antenna for the first time or
relocate it, you should adjust the alignment of the
antenna to receive a good reception while checking
the antenna setup screen.
1
2
H
Software Update (OAD)
• This function is for automatically download the data for the
version update software over digital broadcasts when the
“Software Update (OAD)” is set to “On”.
• To download, follow the instructions when the download
message appears during a digital broadcast.
CAUTION
• Do not disconnect the AC cord when the software
upgrade is in progress, as this may cause the
upgrade to fail. If problem arises ask a qualifi ed
service personnel before the software upgrade
period expires.
again or ENTER
s
r
/
even if selected while watching the
Repeat steps 1 and 2 in Auto Tuning.
Press a/b to select “Signal Information”,
and then press ENTER.
• The “Signal Information” screen will appear.
to save.
9
Selecting a preset Picture
Mode
“Picture Mode” gives you several viewing options to
choose from to best match the system environment,
which can vary due to factors like room-brightness,
type of programme watched or the type of image
input from external equipment.
Press P-MODE.
1
Each time you press P-MODE, the mode
2
changes.
• You can also switch the mode in the “Picture
Mode” menu on the “PICTURE” menu screen.
Selected item Description
Dynamic
Standard
Mild
Personal
NOTE
• You can select a different Picture Mode item for each input
mode. (For example, select Standard for TV input and
Dynamic for VIDEO input.)
For a clear-cut image emphasising high
contrast for sports viewing.
For a highly defi ned image in a normally
bright room.
For a softer picture brightness.
Allows the user to customise settings as
desired. You can set the mode for each
input source.
PICTURE menu
Picture Mode
Backlight
Contrast
Brightness
H
Picture adjustments
Selected item
Backlight
Contrast
Brightness
Colour
Colour
Tint
Sharpness
Active Contrast
Noise Reduction
c
button
The screen dims
For less contrast For more contrast
For less brightness For more brightness
For less colour
intensity
Tint
Skin tones become
reddish
Sharpness
NOTE
For less sharpness For more sharpness
• “Picture adjustments” cannot be changed during “Dynamic”,
“Standard” or “Mild” mode.
H
Active Contrast
Automatically adjusts the contrast of an image according
to the scene. (On, Off)
10
Personal
+16
20
0
0
0
-4
Off
Middle
d
button
The screen brightens
For more colour
intensity
Skin tones become
greenish
H
Noise Reduction
Reduces noise on screen and produces a clearer
video image. (Off, Low, Middle, High)
SOUND menu
Standard
Off
PCM
Fixed
Off
0
0
0
SOUND
H
Sound Mode
Sound Mode
Treb le
Bass
Balance
Auto Volume
Digital Audio Output
Output Volume Select
Surround
Selected item Description
Standard
Music
Movie
News
Personal
H
Sound adjustments
Selected item
Treble
Bass
Balance
NOTE
Select the normal sound.
Emphasizes music over voice.
Provides the best sound for movies.
For a news programme.
Allows the user to customise settings as
desired. You can set the mode for each
input source.
c
button
d
button
For weaker treble For stronger treble
For weaker bass For stronger bass
Decrease audio from
the right speaker
Decrease audio from
the left speaker
• Sound adjustments cannot be changed during “Standard”,
“Music”, “Movie” or “News”.
H
Auto Volume
Different sound sources, fairly often do not have the
same volume level, for example the changing from
movie to the advertisements. Auto Volume solves
this problem and equalises the volume levels.
(On, Off)
H
Digital Audio Output
This function allows you to select your favourite
audio output system. (PCM, Auto, Off)
H
Output Volume Select
Allows you to select what controls the audio output.
Selected item Description
Fixed
Variable
NOTE
• When “Output Volume Select” is set to “Variable”, all
SOUND menu item cannot be adjusted.
• Sound via speakers is adjusted with
VOL k/l on the remote control unit
or the TV.
• Sound via the AUDIO OUT terminal is
not adjustable and constantly outputs.
• Sound via the AUDIO OUT terminal is
adjusted with VOL k/l on the remote
control unit or the TV.
• Sound via speakers is muted.
H
Surround
SOUND
menu
(Continued)
When you set to “On”, you can enjoy surround
sound, the same as if you were in a movie theatre.
Selected item Description
On
Off
Makes it possible to enjoy natural,
realistic surround sound.
Outputs the normal sound.
TIME menu
NOTE
• If the input source is PC, the TV will automatically power
off in about 5 minutes after the TV goes into a state of
receiving no signal.
• When a TV programme fi nishes, and the TV receives
signal input, this function may not operate.
LOCK menu
LOCK
Lock System
Set Password
Block Programme
Parental Guidance
Off
NO BLOCK
01/Jan 09:20
GMT +8
Off
30 min.
Enable
H
TIME
Clock
Clock
Time Zone
Sleep Timer
No Operation Off
No Signal Off
Display date and clock time.
H
Time Zone
This function enables you to select your local time
zone.
NOTE
• This function lets you select the right time zone in case the
time displayed in the EPG does not match the local time
of your area.
H
Sleep Timer
This function is conveniently used when, for instance,
going to bed while watching TV.
(Off, 10min, 20min, 30min, 60min, 90min, 120min,
180min, 240min)
NOTE
• When the time has been set, countdown automatically
starts.
• Select “Off” to cancel the Sleep Timer.
• You can also select “Sleep Timer” by pressing SLEEP.
H
No Operation Off
You can set the TV to automatically power off when
no TV operation is performed for more than 3 hours.
(30 min, 3 hours, Disable)
• Five minutes before the power shuts down, the remaining
time displays every minute.
H
No Signal Off
You can set the TV to automatically power off in
about 15 minutes after the TV goes into a state of
receiving no programme signals. (Enable, Disable)
• Five minutes before the power shuts down, the remaining
time displays every minute.
H
Lock System (ATV and DTV input mode only)
You can block the viewing of any selected channel
(On, Off).
Password must be set fi rst to allow “Lock System”
to function.
Press MENU and the MENU screen
1
displays.
Press c/d to select “ ” (LOCK).
2
Press a/b to select “Lock System”, and
3
then press ENTER.
If you already set the password, enter it here.
4
Press c/d to select “On” or “Off”, and then
5
press ENTER.
NOTE
• See “Set Password” for setting a password.
• If “Lock System” is set to “On” for a channel, “Please enter
password” is displayed when you select the channel, and
the image and sound of the channel is blocked.
H
Set Password
Allows you to use a password to protect certain
settings from being accidentally changed.
Repeat steps 1 and 2 in Lock System.
1
Press a/b to select “Set Password”, and
2
then press ENTER.
Enter the old 4-digit number as a password
3
using 0 — 9, and then enter the new 4-digit
number as a password.
Enter the same 4-digit number in step 3 to
4
confi rm.
11
LOCK menu (Continued)
H
Block Programme
Allows you to prevent unauthorized user such a
children from watching unsuitable programmes.
Repeat steps 1 and 2 in Lock System.
1
Press a/b to select “Block Programme”,
2
and then press ENTER.
The “Block Programme” screen will appear.
Press a/b to select the programme you
3
want to lock, and then press G.
H
Parental Guidance
This function allows TV channels to be restricted.
It prevents children from watching violent or sexual
scenes that may be considered inappropriate.
Repeat steps 1 and 2 in Lock System.
1
Press a/b to select “Parental Guidance”,
2
and then press ENTER.
Press a/b to select your desired rating,
3
and then press ENTER.
When the country setting is set to “Australia”.
Selected item Description
NO BLOCK (–)
Restricted
and above (R)
Adult
Violence and
above (AV)
Mature adult
and above
(MA)
Mature and
above (M)
Parental
guidance and
above (PG)
General and
above (G)
BLOCK ALL
Cancel the blocking.
Not for children under age 18. Strong
elements of sex and/or violence.
Not for children under age 15. Strong
elements of sex and/or violence.
Mature adult only. This programme is
specifi cally designed to be viewed by
adults and therefore may be unsuitable
for children under 15.
Mature audience only. This programme
is specifi cally designed to be viewed by
adults and therefore may be unsuitable
for children under 15.
Content is such that parents may
not want their children to view the
programme.
Content is not offensive to most viewers.
Block all programmes.
When the country setting is set to “New Zealand”
Selected item Description
BLOCK ALL
General and
above (G)
Parental
guidance
recommended
and above
(PGR)
Adults only
and above
(AO)
NO BLOCK
Block all programmes.
Content is not offensive to most viewers.
Programme is suited to more mature
viewers.
Adults only. This programme contains
material of an adult nature handled in
such a way that is unsuitable for children.
Cancel the blocking.
.
SETUP menu
TT Language
Audio Languages
Subtitle Languages
Hearing Impaired
Wide Mode
SETUP
H
TT Language
DivX ( R ) VOD
Demo
Identification
Software Update (USB)
First Time Installation
Reset
Select from among 6 kinds of text language: West
Europe, East Europe, Cyrillic, Arabic, Farsi, Maori.
NOTE
• Teletext can display only when it is sent by a network. Not
used to convert between languages.
H
Audio Languages
Set up to two preferred multi audio languages to
display if the audio languages are available.
Press MENU and the MENU screen
1
displays.
Press c/d to select “ ” (SETUP).
2
Press a/b to select “Audio Languages”,
3
and then press ENTER.
Press c/d to select “Primary” or
4
“Secondary”.
Press a/b/c/d to select the desired
5
language, and then press ENTER.
West Europe
English
English
Off
Auto
Off
NOTE
• If audio for the selected language is not included in a
received broadcast, audio will not be output for that
language.
12
SETUP menu (Continued)
y
H
Subtitle Languages
You can display subtitles for the hearing impaired in
the Teletext broadcast if the subtitle languages are
available.
Press MENU and the MENU screen
1
displays.
Press c/d to select “ ” (SETUP).
2
Press a/b to select “Subtitle Languages”,
3
and then press ENTER.
Press c/d to select “Primary” or
4
“Secondary”.
Press a/b/c/d to select the desired
5
language, and then press ENTER.
NOTE
• If subtitles for the selected language are not included in
a received broadcast, subtitles will not be shown for that
language.
H
Hearing Impaired (DVB Subtitle)
Press [ to display the subtitle, and then press
a
/b to select the subtitle languages.
Set “Hearing Impaired” to “On”
(Hearing impaired) Primary
••••••••
Off
Set “Hearing Impaired” to “Off”
Primary Secondary
••••
Off
NOTE
• This function is valid only if broadcaster is transmitting
multilingual subtitles.
H
Wide Mode
(Hearing impaired)
You can manually select the size of a picture
appeared on your screen.
Selectable picture size varies with the type of signal
received.
Press a/b while the wide mode menu displays on
the screen.
• As you toggle down the options, each mode is
immediately refl ected on the TV.
Secondar
Selected item Description
Auto
4:3
16:9
Zoom1
Zoom2
Just Scan
H
HDMI Audio Select (HDMI input mode only)
Keeps the original aspect ratio and
enlarges the picture as much as possible.
For 4:3 “standard” pictures. A side bar
appears on each side.
For 16:9 squeeze pictures.
Normal image size will be slightly
enlarged.
Further enlarge the Zoom1 image size.
Display with Just Scan image. Noise may
appear on the edge of the screen with
some programmes.
You must select Analogue if uses the AUDIO IN (R/L)
jack for analogue audio input when using INPUT 1
(HDMI) terminal.
Option Description
Digital
Analogue
Select “Digital” if the Devices (DVD,
Blu ray Player, Set Top Box or etc) is
connected using HDMI cable to INPUT 1
(HDMI) terminal.
Select “Analogue” if the Devices (PC
or etc) is connected using DVI/HDMI
convert cable to INPUT 1 (HDMI) terminal
and AUDIO IN (R/L) jack is used to input
Analogue Audio Signals.
Digital
INPUT 1
1
DVD player
Analogue
DVI- I
INPUT 1
1
AUDIO IN
(R/L)
PC
13
SETUP menu (Continued)
H
DivX ( R ) VOD
Please see USB Media Player on page 23.
H
Demo
When “Demo” is set to “On”, after all the settings are
completed, the Demo screen is displayed if there is
no operation for several minutes. (On, Off)
H
Identifi cation
You can check the current version of the software on
the screen.
H
Software Update (USB)
This function allows you to update the TV to the
latest software using a USB device. You must
update the software through the USB terminal.
H
First Time Installation
You can set initial auto installation manually.
Press MENU and the MENU screen displays.
1
Press c/d to select “ ” (SETUP).
2
Press a/b to select “First Time Installation”,
3
and then press ENTER.
If you have already set the password, enter
4
it here.
• See page 11 for setting a password.
The language screen appears, and then
5
press ENTER.
Press c/d to select “Home” or “Store”, and
6
then press ENTER.
• The confi rmation screen appears only when
selecting “Store”.
d
Press c/
Press a/b to select your country channels
7
listed on the screen, and then press ENTER.
• Auto installation will be executed.
• You do not need to do anything during the auto
search.
to select “Yes” or “No”.
SCREEN menu (PC
input mode only)
Adjusting the PC image automatically
Auto Adjust
This function enables the screen to be automatically
adjusted to its best possible condition when the
analogue terminals of the TV and PC are connected
with a commercially available RGB cable, etc.
NOTE
• Auto Adjust is likely to succeed when an input PC image
has wide vertical stripes (e.g. pattern with high contrast
stripes, or cross-hatched).
It may fail when an input PC image is solid (low contrast).
Adjusting the PC image manually
Ordinarily you can easily adjust the picture as
necessary to change image position using Auto
Adjust. In some cases, however, manual adjustment
is needed to optimise the image.
Selected item Description
H-Offset
V-Offset
Size
Phase
Position
Reset
Centres the image by moving it to the left
or right.
Centres the image by moving it up or
down.
Adjusts the image size to shrink or
expand.
Adjusts when characters have low
contrast or when the image fl ickers.
Reset all adjustment item to factory preset
values.
H
Reset
If complex adjustments are made and the settings
cannot be restored to normal, you can reset the
settings to the factory preset values.
NOTE
• If you execute “Reset”, all the settings such as “PICTURE”,
“SOUND” and “SETUP” will be reset to the factory preset
values.
14
EPG
GUIDE INFO
RADIO
Programme Guide
You can check the current channel list of DTV/ATV
respectively.
GUIDE
EPG
Press GUIDE to display the programme
1
channel list.
Press a/b to select your desired
2
programme, and then press ENTER.
Press RETURN or GUIDE to exit.
3
INFO RADIO
Info
While watching DTV you can check the extended
programme information on the screen using INFO
on the remote control.
General INFO screen
• Station name
• Title
• Date
• Time for the current programme
• Video system
• Audio system
• Parental guidance
NOTE
• If there is more information, pressing a/b allows you to
go to the next page or return to the previous page.
• You can cancel this info by pressing INFO.
15
P-MODE
RADIO mode
GUIDE INFO RADIO
EPG
P-MODE
Switching the analogue
audio format
You can switch between multiple audio modes
when watching a multiple audio or stereo broadcast
programme.
LCDTV
RADIO: Press to switch to radio mode. After
switching from DTV, ATV or external input mode to
radio mode, the TV jumps to the most recently tuned
radio channel.
In the NICAM TV broadcasts
When receiving a stereo signal
Each time you press MPX, the mode switches
between NICAM STEREO and Mono.
Stereo mode
NICAM STEREO Mono
When receiving a bilingual signal
Each time you press MPX, the mode switches
among NICAM CH A, NICAM CH B, NICAM CH AB
and Mono.
Bilingual mode
NICAM CH A NICAM CH B
Mono
NICAM CH AB
When receiving a monaural signal
Each time you press MPX, the mode switches
between NICAM Mono and Mono.
Monaural mode
NICAM Mono Mono
16
Switching the analogue
audio format (Continued)
In the TV mode of A2 TV broadcasts
When receiving a stereo signal
Each time you press MPX, the mode switches
between Stereo and Mono.
Stereo mode
Stereo Mono
When receiving a bilingual signal
Each time you press MPX, the mode switches
among CH A, CH B and CH AB.
Bilingual mode
CH A
When receiving a monaural signal
When you press MPX, “Mono” displays.
CH B CH AB
Monaural mode
Mono
17
EPG
P-MODE
EPG
GUIDE INFO RADIO
What is an EPG?
An “EPG (Electronic Programme Guide)” is a programme schedule, which is displayed on the TV screen. The
EPG is broadcasted together with DTV. The TV screen shows the EPG when the viewer presses EPG on
the remote control, provided that the TV is receiving the digital broadcasting signal. The EPG enables you to
search for a programme, do timer view the programme schedule in detail.
Basic Operation
H Display the EPG screen
Press EPG
1
.
01 Jan 2007
20:00-23:00 01 Jan 2007 20:02
ABC TV Sydney
PROGRAMME GUIDE
01 Jan
10 ABC TV Sydney 20:00-23:00 Play School
11 ABC HDTV
23:00-02:00
12 ABC2
13 ABC TV
3
Prev Day
R
Move View
Play School
Next Day
G
Display
Schedule
Y
ENTER
Enter
Reminder
B
2
2
2 Press a/b/R/G to select the time span you want to search.
• Continue to press b to display programmes in the next time span.
3 Press a/b to select the desired programme.
H Close the EPG screen
Press EPG again or MENU to exit.
4
NOTE
• For “New Zealand delivery model”, the EPG screen and operation differ due to the use of MHEG EPG. The EPG screen
and operation vary depending on the broadcasts.
Reminder timer setting
You can schedule a reminder for future programmes. Channel will automatically change on time as scheduled.
Press EPG.
1
Press a/b/R/G to select the programme you want to watch.
2
Press B to set reminder time.
3
Reminder setting
10 ABC TV Sydney–+
05 Minute
15 Hour
Jan Month
01 Date
Once Mode
Press ENTER to save reminder timer.
4
• “Timer Save Success” will display.
NOTE
• “Timer Overlap” will display if same time is set twice.
• “Timer Past” will display if past time is set.
Press ENTER to display the reminder schedule list.
5
Schedule List 20:02 01th Jan
Time
20:02
Press MENU or EPG to exit.
6
Date
Mon. 01 Jan
R
Delete
Programme Title
Play School
Channel Name
10 ABC TV Sydney
18
EPG (Continued)
Viewing the reminder schedule list
Press EPG.
1
Press Y to display the reminder schedule list.
2
Press a/b to display next or previous
3
screen.
Press MENU or EPG to exit.
4
Cancelling the reminder timer setting
Press EPG.
1
Press Y to display the reminder schedule list.
2
Press a/b to select a programme you want
3
to cancel.
Press R to delete a programme from
4
reminder list.
Press MENU or EPG to exit.
5
Colour adjustment and still
Allows you to adjust the colour tone of a still image.
Press COLOUR ADJ. (FREEZE), the
1
moving image will be captured and colour
adjustment screen displays.
Press a/b/c/
2
your desired setting.
• When “Picture Mode” is “Dynamic”, “Standard” or
“Mild”, it will automatically change “Picture Mode”
to “Personal”.
Button Description
a
b
c
d
R
G
B
ENTER
NOTE
• The colour adjustment screen and still image will
automatically goes out after 30 minutes.
d
to adjust the colour to
White with greenish tone.
White with reddish tone.
White with bluish tone.
White with yellowish tone.
Reveal/hide the setting screen.
Set adjustment to last user setting.
Close the setting screen and unfreeze
image.
Save/exit setting.
ECO mode
This function enables you to reduce the backlight
brightness in order to decrease the power
consumption and increase the backlight life span as
shown in the following table.
Selected item Description
ECO 1
ECO 2
ECO OFF
ECO status will be displayed on the channel
information window.
NOTE
• ECO mode will not function when “Picture Mode” is in
“Dynamic” mode.
Reduces the backlight brightness.
Reduces the backlight brightness more
than “ECO 1”.
Normal setting of backlight brightness.
19
Teletext function
What is Teletext?
Teletext broadcasts pages of information and
entertainment to specially equipped television sets.
News, weather reports, sports information, stock
exchange prices and programme previews are
among the many services available.
Turning on and off Teletext
Select a TV channel or external input source
1
providing the Teletext programme.
Press m to display the Teletext.
2
Each time you press m, the screen switches
3
as shown below.
PC compatibility chart
Resolution
VGA
640 g 480
SVGA
800 g 600
XGA
1024 g 768
WXGA
1360 g 768
VGA, SVGA, XGA and WXGA are registered trademarks of
International Business Machines Corporation.
Horizontal
Frequency
31.5 kHz 60 Hz
37.9 kHz 60 Hz
48.4 kHz 60 Hz
47.7 kHz 60 Hz
Vertical
Frequency
VESA
Standard
✓
✓
✓
✓
USB Media Player
H
Selecting modes
TELETEXT
NOTE
• If you select a programme with no Teletext signal,
“No teletext available.” is displayed.
• The same message displays during other modes
if no Teletext signal is available.
• New Zealand delivery model can receive MHEG
data broadcasting.
Button functions
Buttons Description
CH (r/s)
Colour
(Red/Green/
Yellow/Blue)
0 — 9
(Reveal
k
hidden for
TELETEXT)
(Hold)
3
(Subtitle
[
for
TELETEXT)
NOTE
• Teletext can display only when it is sent by network. Not
used to convert between languages.
Increase or decrease the page number.
You can select a group or block
of pages displayed in the coloured
brackets at the bottom of the screen
by pressing the corresponding Colour
(Red/Green/Yellow/Blue) on the
remote control unit.
Directly select any page from 100 to
899 by using 0 — 9.
To reveal hidden information such as an
answer to a quiz.
To stop updating Teletext pages
automatically or release the hold mode.
Display the subtitle during Teletext
page.
• Subtitle will not be displayed when
the service does not contain subtitle
information.
USB
PHOTO MUSIC MOVIE
Press INPUT to select the “MEDIA” mode.
1
Press c/d to select “PHOTO”, “MUSIC” or
2
“MOVIE”, and then press ENTER.
Press c/d to select your USB directory,
3
and then press ENTER.
Press a/b/c/d to select the desired
4
folder, and then press ENTER.
NOTE
•
“Wide Mode” is fi xed during “PHOTO”, “MUSIC” and “MOVIE”.
• Depending on the USB device, the TV may not be able to
recognise the contained data.
• Use only alphanumeric characters for naming fi les.
• A fi le name with more than 10 characters may not be
displayed all (depending on the character set).
• Files in USB 1.1 devices may not be played properly.
• Operation using USB hubs is not guaranteed.
• The compatibility of USB HDDs may not be guaranteed.
• Multi drive USB is not supported.
20
USB Media Player
(Continued)
PHOTO slideshow
C:\Ski Action 1/2
You can select the duration for each photo to
display, and also the duration for the slideshow to
play.
Duration for photos to display
Duration for slideshow to play
Continuous3 Hrs1 Hr
1 Min10 Sec5 Sec3 Sec
Return
R
Delete Back
Ski Action.jpg
Ski Action.jpg Japan-hokkaid.. Island.jpg
Resolution:
Size:
Date:
Time:
RETURN
1024 g 768
335 KBytes
2011/08/04
10:12:12
When you press PHOTO, the TV screen will
automatically play the photo slideshow.
• During photo slideshow, press a/b to select the next/
previous photo or press c/d to rotate the photo.
• If there is no USB drive, the TV will switch to Selecting
modes screen.
• Photo slideshow will autoplay only for the photos located
on the top layer of USB drive. To enable autoplay for
photos located in a subfolder, you need to manually select
the subfolder, and then press PHOTO.
• The TV will automatically power off after the
selected playtime ends.
NOTE
•
Background music will autoplay during a slideshow only if the
music fi le is located in the same folder with the photo fi les.
•
If you want to stop the photo slideshow, press RETURN to
exit.
List of fi les compatible with USB mode
USB device
File system
Photo fi le format
Music fi le format
USB Memory, USB card reader
(Mass Storage class)
FAT/FAT32/NTFS
JPEG (.jpg) (DCF2.0 compliant),
BMP, PNG
MP3 (.mp3)
Bitrate: 32 k, 40 k, 48 k, 56 k, 64
80 k, 96 k, 112 k, 128 k, 160 k,
192 k, 224 k, 256 k, 320 kbps
Sampling frequency: 32 k, 44.1 k,
48 kHz
* NTFS compressed fi le is not supported.
Video fi le format
File extension Container Video Audio
DivX 3.11/4/4.12/5.x/6
*.avi AVI
*.mkv MKV
*.mp4
*.mov
MP4
XviD
H.264
MPEG4
Motion Jpeg
H.264
MPEG4
H.264
MPEG4
*.vob VOB MPEG2
*.mpg/*.mpeg PS
*.ts/*.trp/*.tp TS
MPEG2
MPEG1
H.264
MPEG2
*.asf ASF VC-1
*.divx DivX DivX 3.11/4/4.12/5.x/6 MP3
*
MP3
MP2
Dolby Digital
LPCM
ADPCM
AAC
MP2
Dolby Digital
AAC
MP3
LPCM
ADPCM
AAC
Dolby Digital
MP2
Dolby Digital
MPEG
LPCM
Dolby Digital
MP2
Dolby Digital
LPCM
ADPCM
k,
NOTE
• Files may not be playable depending on the bitrate or resolution.
21
USB Media Player (Continued)
Control panel for photo/music/movie mode operations
• Press B to display the control panel below.
Button/menu Description Photo Music Movie
ENTER
G/
When selecting a folder icon: Enter this directory.
When selecting a thumbnail:
Play the selected fi le.
Play/Pause.
Fast-backward. Each time you press fast-backward,
the speed will change (2x, 4x, 8x, 16x).
Fast-forward. Each time you press fast-forward, the
speed will change (2x, 4x, 8x, 16x).
Play the previous fi le.
Play the next fi le.
Stop playback and return to the list of fi les.
Repeat all the fi les. Each time you press ENTER,
the mode will switch between Repeat t No repeat.
Play/cancel the background music.
Mute. Press ENTER to toggle between mute and
unmute.
Two loop. Press ENTER to set the current playback
time starting point. Press ENTER to set the loop
end of the current playing time and start loop
playback. Press ENTER button to cancel the loop.
Show playlists. Select a fi le from the playlists to start
playback.
Display information about the fi le.
Slow-forward.
Each time you press slow-forward, the speed will
change.
Step-forward.
Each time you press ENTER, the picture will change
to the next still picture.
Set time for music/movie playback. –
Rotate clockwise 90º.
Rotate counterclockwise 90º.
Zoom in an image. Select to display larger image
size.
Zoom out an image. Select to display smaller image
size.
Pan image up, down, left or right after you zoom in.
Press ENTER to exit.
Select playback length of a slideshow.
Select photo display interval.
✓✓✓
✓✓✓
–
–
✓✓✓
✓✓✓
✓✓✓
✓✓✓
✓
–
––
✓✓✓
✓✓✓
––
––
✓
✓
✓
✓
✓
✓
✓
✓✓
✓✓
––
✓
✓✓
––
––
––
––
––
––
––
–
✓
✓
✓
NOTE
• Press Y to change subtitle for Movie mode.
• Files in folder which are not related to a selected mode cannot be accessed.
• “Unsupported fi le” alert will pops up for a selected fi le of invalid format.
22
USB Media Player (Continued)
DivX® setup
This is the function to confi rm your registration code.
Press MENU and the MENU screen displays.
1
Press c/d to select “ ” (SETUP).
2
Press a/b to select “DivX ( R ) VOD”, and then press ENTER.
3
• Copy the 10 digit code down.
DivX
You need to visit the DivX main page to register your TV. Please follow the online instruction to create DivX
account and DivX registration video download.
Your registration is complete when you play the DivX registration video on TV.
DivX
You can fi nd the deregistration code (8~10 digit). Please use this code to deactivate on DivX website.
• Visit vod.divx.com for more information about DivX® VOD.
VOD Register
( R )
VOD Deregister
( R )
NOTE
23
Appendix
Troubleshooting
The problems described below are not always caused by malfunctions. Check the TV again before having
the TV serviced.
Problem Possible Solution
• No power. • Check if you pressed POWER on the remote control unit. (See page 8.)
• Unit cannot be operated. • External infl uences such as lightning, static electricity, etc., may cause improper operation.
• Remote control unit
does not operate.
• Picture is cut off. • Are screen mode adjustments such as picture size made correctly? (See pages 13 and 14.)
• Strange colour, light
colour, or dark, or colour
misalignment.
• Power is suddenly
turned off.
• No picture. • Is the connection to external equipment correct? (See pages 4 and 5.)
• No sound. • Is the volume too low? (See page 6.)
• The TV sometimes
makes a cracking sound.
If the indicator on the TV lights up red, press POWER.
• Is the AC cord disconnected?
• Has the power been turned on? (See page 8.)
In this case, operate the unit after fi rst turning the power off the TV or unplugging the AC
cord and re-plugging it in after 1 or 2 minutes.
• Are batteries inserted with polarity (e, f) aligned? (See page 6.)
• Are batteries worn out? (Replace with new battery.)
• Are you using it under strong or fl uorescent lighting?
• Is a fl uorescent light shining on the remote control sensor?
• Adjust the picture tone. (See page 10.)
• Is the room too bright? The picture may look dark in a room that is too bright.
• Check the colour system setting. (See page 9.)
• The unit’s internal temperature has increased.
Remove any objects blocking the vent or clean.
• Is the sleep timer set? (See pages 6 and 11.)
• Is the correct input selected?
• Is the picture adjustment correct? (See page 10.)
• Is the antenna connected properly? (See page 3.)
• Make sure that headphones are not connected.
• This is not a malfunction. This happens when the cabinet slightly expands and contracts
according to changes in temperature. This does not affect the TV’s performance.
Cautions regarding use in high and low temperature environments
• When the unit is used in a low temperature space (e.g. room, offi ce), the picture may leave trails or appear slightly
delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal.
• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct sunlight or near
a heater, as this may cause the cabinet to deform and the LCD panel to malfunction.
Storage temperature: f20°C to e60°C.
24
Specifi cations
Item
LCD panel
Resolution
Video Colour System PAL/SECAM/NTSC 3.58/NTSC 4.43/PAL 60
TV
Function
Viewing angles H : 176º V : 176º
Audio amplifi er/Speakers
Terminals Antenna input
OSD language English
Power Requirement AC 110 — 240 V, 50/60 Hz
Power Consumption 58 W (0.8 W Standby)
Dimensions
Weight
Operating Temperature 0°C — 40°C
• As a part of policy of continuous improvement, SHARP reserves the right to make design and specifi cation changes
TV- Standard
Receiving
Channel
TV-Tuning System Auto Preset 99 ch
STEREO/BILINGUAL NICAM: B/G, I, D/K A2 stereo: B/G
INPUT 1 HDMI (HDMI input), AUDIO in ( 3.5 mm jack)
INPUT 2/INPUT 3 HDMI (HDMI input) / HDMI (HDMI input)
INPUT 4 AUDIO in, COMPONENT in
INPUT 5 VIDEO in, AUDIO in
INPUT 6 PC 15 pin mini D-sub, AUDIO in (common use with INPUT 1) (
AUDIO OUT AUDIO out
USB USB
DIGITAL AUDIO
OUTPUT
Headphone
without stand
with stand
for product improvement without prior notice. The performance specifi cation fi gures indicated are nominal values of
production units. There may be some deviations from these values in individual units.
Model
LC-32LE345X
80 cm
1,049,088 pixels (1366 g 768)
Analogue PAL: B/G, D/K, I SECAM: B/G, D/K, K/K
Digital DVB-T
VHF/UHF 44.25—863.25 MHz
CATV S1—S41ch (including Hyperband)
5 W g 2 / 3.14 g 14.4 cm 2pcs
UHF/VHF 75 q DIN type
Optical Digital Audio Output
3.5 mm stereo
750 (W) g 478 (H) g 55 (D) mm
750 (W) g 508 (H) g 222 (D) mm
7.6 kg (without stand) / 8.5 kg (with stand)
1
3.5 mm jack)
Optional accessory
Additional optional accessories may be available in the near future.
•
When purchasing, please read the newest catalogue for
Part name Model number
Wall mount bracket AN-130AG1
compatibility and check the availability.
CAUTION
• This TV should be mounted on the wall only with the listed (SHARP) wall mount bracket. The use of other wall mount
brackets may result in an unstable installation and may cause serious injuries.
• Installing the Liquid Crystal Television requires special skill that should only be performed by qualifi ed service personnel.
Customers should not attempt to do the work themselves. SHARP bears no responsibility for improper mounting or
mounting that results in accident or injury.
• Carefully read the instructions that come with the bracket before beginning work.
25
Protection against overturning
There is a danger of the product overturning in the case of a disaster or sudden collision. Carry out the
following tip-resistant measurement for your safety.
Anchoring the TV to the wall or a pillar
Fix the product with the 2 clamps
1
(supplied), using the screws
(supplied).
Fix the TV to the wall using
2
extrastrong ties (commercially
available).
Fixing the TV to the table
Lay the TV down on cushioning
1
(such as a blanket) over a table.
Thick soft cloth
(ex. Blanket)
View from the top
Cup hook
(commercially available)
Screws for attaching clamps (supplied)
Restraining band
(supplied)
Stand
Tie (commercially
available)
Wall
Clamps
(supplied)
Table
Screw for band
(supplied)
Attach the band (supplied) to the
2
bottom of the stand using the
screw (supplied).
Transfer the product to the table
3
where you intend to fi x the TV.
Fix the TV to the table by the
4
band with a screw (commercially
Screw
(commercially
available)
available).
• Use a screw (commercially available) whose
shape is compatible with the band.
CAUTION
• As this product is heavy, use a table that is wide enough to support the product and capable of withstanding
the product’s weight. The table should be set where it will not be overturned.
26
Table
Restraining band
(supplied)
Dimensional drawings
408
750
700.2
Unit: mm
55
478
100
100
394.7
508
258
91
222
27
CLEARING THE PASSWORD
P-MODE
If you forget the password, clear the password using the following procedure.
Press MENU to display the MENU screen, and then press c/d to
1
select “
Press a/b to select “Set Password”, and then press ENTER and
2
the password input screen display.
Enter “3001” using 0 – 9 to clear your password.
3
Enter the 4-digit number as a password using 0 – 9. The new
4
password is now set.
” (LOCK).
The Password is .
NOTE
• As a precautionary measure, make a note of your password above, remove it from this manual, and keep it in a familiar
place.
28
Printed in Malaysia
TINS-F499WJZZ
12P06-MA-NP
Loading...
