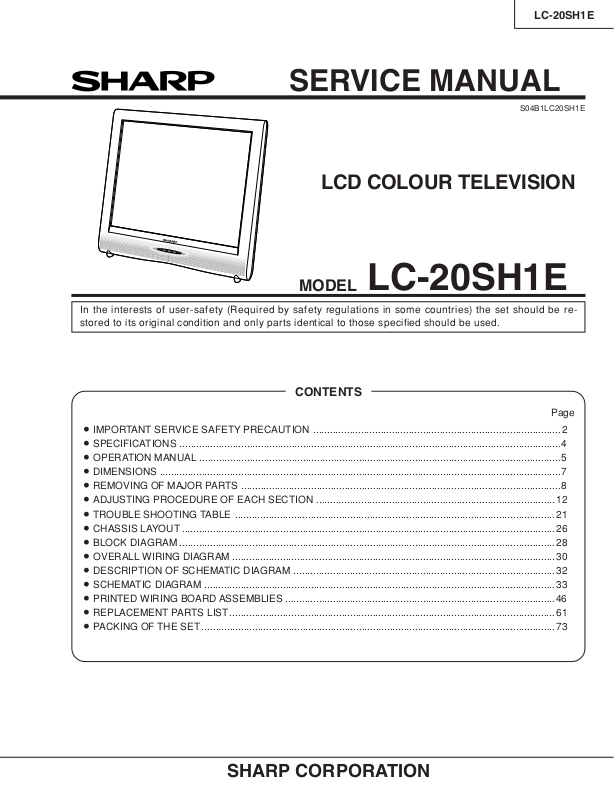

Sharp LC-20SH1E Schematic

LC-20SH1E

SERVICE MANUAL

S04B1LC20SH1E

LCD COLOUR TELEVISION

MODEL

In the interests of user-safety (Required by safety regulations in some countries) the set should be restored to its original condition and only parts identical to those specified should be used.

CONTENTS

» IMPORTANT SERVICE SAFETY PRECAUTION ........................................................................................2

» SPECIFICATIONS ........................................................................................................................................ 4

» OPERATION MANUAL ................................................................................................................................. 5

» DIMENSIONS ...............................................................................................................................................7

» REMOVING OF MAJOR PARTS .................................................................................................................. 8

» ADJUSTING PROCEDURE OF EACH SECTION ..................................................................................... 12

» TROUBLE SHOOTING TABLE .................................................................................................................. 21

» CHASSIS LAYOUT .....................................................................................................................................26

» BLOCK DIAGRAM ......................................................................................................................................28

» OVERALL WIRING DIAGRAM ...................................................................................................................30

» DESCRIPTION OF SCHEMATIC DIAGRAM ............................................................................................. 32

» SCHEMATIC DIAGRAM .............................................................................................................................33

» PRINTED WIRING BOARD ASSEMBLIES ................................................................................................ 46

» REPLACEMENT PARTS LIST....................................................................................................................61

» PACKING OF THE SET ..............................................................................................................................73

LC-20SH1E

Page

SHARP CORPORATION

LC-20SH1E

IMPORTANT SERVICE SAFETY PRECAUTION

Service work should be performed only by qualified service technicians who are thoroughly familiar with all safety checks and the servicing guidelines which follow:

WARNING

1. For continued safety, no modification of any circuit should be attempted.

2. Disconnect AC power before servicing.

CAUTION: FOR CONTINUED PROTECTION AGAINST A RISK OF FIRE REPLACE ONLY WITH SAME TYPE F6700 (1.25A, 250V), F6701 (1.25A, 250V), F6702 (1.25A, 250V), F6703 (1.25A, 250V) F6704 (1.25A, 250V) AND F7701 (3.15A, 250V) FUSE.

BEFORE RETURNING THE RECEIVER (Fire & Shock Hazard)

Before returning the receiver to the user, perform the following safety checks:

1. Inspect all lead dress to make certain that leads are not pinched, and check that hardware is not lodged between the chassis and other metal parts in the receiver.

2. Inspect all protective devices such as non-metallic control knobs, insulation materials, cabinet backs, adjustment and compartment covers or shields, isolation resistor-capacitor networks, mechanical insulators, etc.

3. To be sure that no shock hazard exists, check for leakage current in the following manner.

• Plug the AC cord directly into a 220~240 volt AC outlet.

• Using two clip leads, connect a 50k ohm, 10 watt

resistor paralleled by a 0.15µF capacitor in series with all exposed metal cabinet parts and a known earth ground, such as electrical conduit or electrical ground connected to an earth ground.

• Use an AC voltmeter having with 5000 ohm per volt, or higher, sensitivity or measure the AC voltage drop across the resistor.

• Connect the resistor connection to all exposed metal parts having a return to the chassis (antenna, metal cabinet, screw heads, knobs and control shafts, escutcheon, etc.) and measure the AC voltage drop across the resistor. All checks must be repeated with the AC cord plug connection reversed. (If necessary, a nonpolarized adaptor plug must be used only for the purpose of completing these checks.) Any reading of 0.75V peak (this corresponds to 0.5 mA. peak AC.) or more is excessive and indicates a potential shock hazard which must be corrected before returning the monitor to the owner.

DVM

AC SCALE

50k ohm

10W

0.15 µF

TEST PROBE

TO EXPOSED METAL PARTS

CONNECT TO KNOWN EARTH GROUND

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

SAFETY NOTICE

Many electrical and mechanical parts in LCD television have special safety-related characteristics. These characteristics are often not evident from visual inspection, nor can protection afforded by them be necessarily increased by using replacement components rated for higher voltage, wattage, etc. Replacement parts which have these special safety characteristics are identified in this manual; electrical

and shaded areas in the

Schematic Diagrams.

For continued protection, replacement parts must be identical to those used in the original circuit. The use of a substitute replacement parts which do not have the same safety characteristics as the factory recommended replacement parts shown in this service manual, may create shock, fire or other hazards.

components having such features are identified by " å"

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

Replacement Parts Lists and

LC-20SH1E

Precautions for using lead-free solder

1 Employing lead-free solder

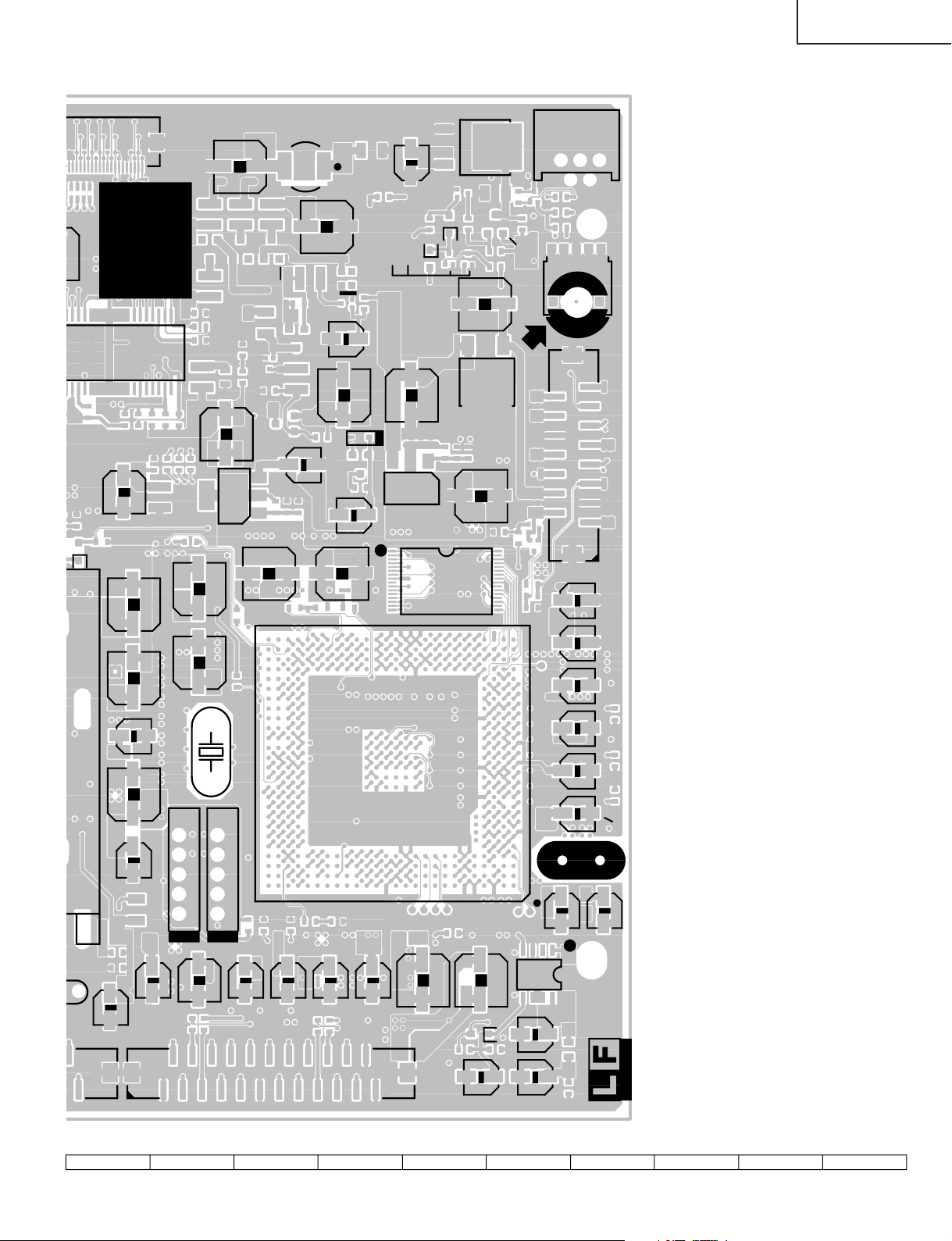

"MAIN PWB" of this model employs lead-free solder. The LF symbol indicates lead-free solder, and is attached on the PWBs and service manuals. The alphabetical character following LF shows the type of lead-free solder. Example:

L Fa

Indicates lead-free solder of tin, silver and copper.

2 Using lead-free wire solder

When fixing the PWB soldered with the lead-free solder, apply lead-free wire solder. Repairing with conventional lead wire solder may cause damage or accident due to cracks. As the melting point of lead-free solder (Sn-Ag-Cu) is higher than the lead wire solder by 40°C, we recommend you to use a dedicated soldering bit, if you are not familiar with how to obtain lead-free wire solder or soldering bit, contact our service station or service branch in your area.

3 Soldering

As the melting point of lead-free solder (Sn-Ag-Cu) is about 220°C which is higher than the conventional lead solder by 40°C, and as it has poor solder wettability, you may be apt to keep the soldering bit in contact with the PWB for extended period of time. However, Since the land may be peeled off or the maximum heat-resistance temperature of parts may be exceeded, remove the bit from the PWB as soon as you confirm the steady soldering condition. Lead-free solder contains more tin, and the end of the soldering bit may be easily corroded. Make sure to turn on and off the power of the bit as required. If a different type of solder stays on the tip of the soldering bit, it is alloyed with lead-free solder. Clean the bit after every use of it. When the tip of the soldering bit is blackened during use, file it with steel wool or fine sandpaper.

Be careful when replacing parts with polarity indication on the PWB silk.

Lead-free wire solder for servicing

Part No. ★ Description Code ZHNDAi123250E J φ0.3mm 250g(1roll) BL ZHNDAi126500E J φ0.6mm 500g(1roll) BK ZHNDAi12801KE J φ1.0mm 1kg(1roll) BM

Precautions on removing the Sub PWB

• CAUTION

Before taking out and servicing the Sub unit, be sure to discharge the C7703 electrolytic capacitor. Otherwise you may get an electric shock by the capacitor’s charging voltage.

LC-20SH1E

SPECIFICATIONS

Items

LCD panel

Number of dots 921,600 dots Video colour system PAL/SECAM/NTSC TV TV-Standard (CCIR) B/G, I, D/K, L/L’

TV-Tuning System Auto preset 200 ch. STEREO/BILINGUAL NICAM, A2 stereo AUTO PRESET YES

CATV ~Hyper Band Brightness 430 cd/m Viewing angles H: 170° V: 170° Audio amplifier 2.1 W × 2 Speakers 11 cm × 4 cm 2 pcs. Terminals EXT1 21-pin Euro-SCART

EXT2 S-VIDEO, VIDEO, AUDIO

OUT AUDIO

Antenna DIN

Headphones 3.5 mm ø jack (side) OSD language English/Spanish/German/French/Italian/Swedish/Dutch/Russian/Portuguese/

Power requirement AC 220 V–240 V, 50/60 Hz Power consumption 74 W (1.0 W Standby) AC 220 V–240 V

Weight (approx.) 6.3 kg, w/o accessories

■ As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

Model

LC-20SH1E

20" Advanced Super View& BLACK TFT LCD

Turkish/Greek/Finnish/Polish

OPERATION MANUAL

Part Names of the Main Unit

Controls

NOTE

•

(Input), P (

)/(

)(Channel),

(–)/(+) (Volume) and MENU on the control panel of the main unit have the same functions as

the same buttons on the remote control. Fundamentally, this operation manual provides a description based on operation using th

remote control.

OPC sensor

Remote sensor

OPC (Optical Picture Control) indicator

The OPC indicator lights up green when the

“Backlight” is set

to “Auto (OPC)”.

STANDBY/ON indicator

STANDBY/ON indicator lights up green when the power is on, and red when in

the standby mode (the indicator will not light when the main power is off).

The screen angle can be tilted backwards

between 12 and 30 degrees. (It cannot be

set to vertical.) When changing the angle,

make sure to hold the stand and adjust the

screen to the best viewable angle.

(MAIN POWER)

Upper control panel

(Input)

P (

)/( ) (Channel)

(–)/(+) (Volume)

How to adjust the angle

12°

30°

Adjustable range

Speaker

The examples used throughout this manual are based on the LC-20SH1E model.

Terminals

Stand

AC INPUT

terminal

Round lock for Kensington

Security Standard slot

Rear View

Antenna terminal

EXT1

Headphone jack

RGB

(21-pin Euro-SCART)

AUDIO OUT

EXT2

(L)

(R)

VIDEO

AUDIO (L)

AUDIO (R)

S-VIDEO

How to Fix the Cables

Pull the cables connected to each terminal. Insert the cables into the stand hole and fix the cables.

How to Prevent the LCD TV Set from Falling Over

To prevent the LCD TV set from falling over in case

of earthquakes and so on, strap it onto the wall by

threading one end of the string through the loop of

the stand (1) and fastening the LCD TV set with

the string attached to the hook on the wall or the

post, etc. (2).

(An example of strapping the LCD TV set onto the

wall is shown on the right.)

• The string and hook are commercially available.

Stand

Stand hole

LC-20SH1E

Part Names of the Remote Control

(Sound)

Switches to the sound mode.

BACKLIGHT

Selects the brightness and

OPC of the display.

ROTATE

Rotates the display in every

direction.

Upwards/Downwards

Selection, Zoom display

function (Teletext mode)

(Mute)

Switches the sound on and off.

(Power)

Displays the menu.

Returns to the previous screen.

(Flashback)

Returns to the previous channel.

Channel Select

Blue, Status Display

Turns on the status display

when the menu is not displayed.

Yellow

(+)/(

)

(

Volume

)

( )/( ) (Input)

Switches the input source

between EXT1, EXT2

and TV modes.

OK, Programme Table

END

Returns to normal screen.

Right/Left Selection

(Teletext)

Displays the Teletext mode

screen.

(Reveal)

Displays hidden information

such as solutions to riddles

and puzzles.

(Hold)

Temporarily holds the

current Teletext page.

(Subtitle)

Displays the Teletext

Subtitle directly.

(Subpage)

Displays the Teletext

Subpage directly.

Red, Picture Menu

Green, Sound Menu

P ( )/( ) (Channel)

Installing Batteries in the Remote Control

Before using the LCD TV set for the first time, install the two

“AA” size batteries (supplied) in the remote control. When the

batteries become depleted and the remote control fails to operate, replace the batteries with new

“AA” size batteries.

Open the battery cover.

Insert two “AA” size batteries.

Close the battery cover.

• Place batteries with their

terminals corresponding

to the (+) and (

–)

indications in the battery

compartment.

Caution!

Precautions regarding batteries

Improper use of batteries can result in a leakage of chemicals and/or explosion. Be sure to follow the instructions below.

• Place batteries with their terminals corresponding to the (+) and (

–) indications.

• Different types of batteries have different characteristics. Do not mix batteries of different types.

• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new batteries and/or cause old

batteries to leak chemicals.

• Remove batteries as soon as they are depleted. Chemicals that leak from batteries can cause a rash. If chemical

leakage is found, wipe it off with a cloth.

• The batteries supplied with the LCD TV set may have a shorter operating time due to storage conditions.

• If the remote control is not to be used for an extended period of time, remove the batteries from the remote control.

• Align the tab on the battery cover (

1) and place

it while pressing the tab (

2) to close it.

Using the Remote Control

Use the remote control by pointing it towards the remote sensor

window of the main unit. Objects between the remote control and

sensor window may prevent proper operation.

Cautions regarding use of the remote control

• Do not apply shock to the remote control. In addition, do not

expose the remote control to liquids, and do not place it in an area

with high humidity.

• Do not install or place the remote control under direct sunlight. The

heat may cause deformation of the unit.

• The remote control may not work properly if the remote sensor

window is under direct sunlight or strong lighting. In such a case,

change the angle of the lighting or main unit, or operate the remote

control closer to the remote sensor window.

• Detach the cover

while pressing the

(

) part.

STANDBY/ON

indicator

OPC indicator

Remote sensor

OPC sensor

Preparation

DIMENSIONS

LC-20SH1E

418

12°

161

175

30°

Unit: mm

215

246

403.3

375

121

342

427

300.8

346

242

480

100

205

178

LC-20SH1E

REMOVING OF MAJOR PARTS

1. Remove the stand fixing screws (4 pcs.).

2. Remove the cabinet B fixing screws (7 pcs.).

3. Remove the cabinet B after opening from the direction of an arrow.

4. Detach the connector from each PWB.

Cabinet A

Cabinet B

Stand

Main PWB

CN2

SC4201

CN3

Operation PWB

SC105

SC1201

SC1202

SC1203

SC102

P7701

P3601

CN1

SC104

P3901

P3301

SC106

P3902

Sub PWB

SC3601

SC4001

R/C,LED PWB

P6704

SC6701

P6703

P6702

P6701

P6700

Inverter PWB

LC-20SH1E

5. Remove the 2 lock screws from the main PWB and undo the hooks a. Detach the chassis frame, together with its terminals, from the main PWB.

6. Remove the 2 lock screws from the sub PWB and undo the hooks b, c and d. Detach the chassis frame together with its terminals, from the sub PWB.

7. Remove the 3 lock screws from the inverter PWB and take out the inverter PWB.

8. Remove the 2 lock screws from the R/C, LED PWB and take out the R/C, LED PWB.

9. Remove the 2 lock screws from the operation panel (top cover), and detach the operation panel (top cover).

10. Remove the 3 lock screws from the operation PWB, and detach the operation PWB.

11. Remove the 4 lock screws each from the right and left speakers and take out both the speakers.

Main PWB

Chassis Frame

Speaker (R)

Operation panel

(Top Cover)

Sub PWB

Operation

PWB

Inverter PWB

Speaker (L)

R/C,LED PWB

LC-20SH1E

» Precautions in handling the LCD panels

1. Work in a clean room (with humidities below 50%).

2. Be sure to wear an anti-static armband.

3. Handle the panels on an electro-conductive mat.

4. Be careful not to fall, shake and shock the panels.

12. Remove the 3 lock screws from the LCD panel and detach the LCD panel.

13. Remove the reflection/deflection sheet, diffusion sheet and diffusion plate.

14. Detach the lamp holders -R (top), -L (top) and -R (bottom), -L (bottom) from the lamp unit.

15. Detach the reflection sheet from the back shield.

(PSLDMA495WJFW)

Lamp Holder -L (Bottom)

(LHLDZA412WJKZ)

Back shield

20" LCD Panel Unit

Lamp Holder -L (Top)

(LHLDZA414WJKZ)

(PSHEPA233WJZZ)

Reflection/deflection Sheet

(PSHEPA231WJZZ)

Lamp Holder -R (Top)

(LHLDZA415WJKZ)

Diffusion Plate

(PCOVUA048WJZZ)

Diffusion Sheet

Reflection Sheet

(PSHEPA226WJZZ)

Lamp Holder -R (Bottom)

(LHLDZA413WJKZ)

Lamp Unit, x5

(KLMP-A046WJZZ)

LC-20SH1E

» Precautions at the time of the side B(back) service of main, sub and Inverter unit.

1. Remove only SC1203 of the FFC for connection between Main unit (SC1203) and LCD panel, and connect the extended cable (QCNW-A553WJZZ) for service.

2. Remove only SC1202 of the FFC for connection between Main unit (SC1202) and LCD panel, and connect the extended cable (QCNW-B556WJZZ) for service.

3. Remove only SC1201 of the FFC for connection between Main unit (SC1201) and LCD panel, and connect the extended cable (QCNW-A555WJZZ) for service.

4. Remove only SC105 of the FFC for connection between Main unit (SC105) and Operation unit (SC4201), and connect the extended cable (QCNW-D444WJQZ) for service.

5. Remove only SC3601 of the FFC for connection between Sub unit (SC3601) and R/C, LED unit (SC4001), and connect the extended cable (QCNW-D445WJQZ) for service.

6. Remove the PWB unit fixing screws (main unit : 2pcs, sub unit : 2pcs., inverter unit : 3pcs.)

Main PWB

CN1

CN2

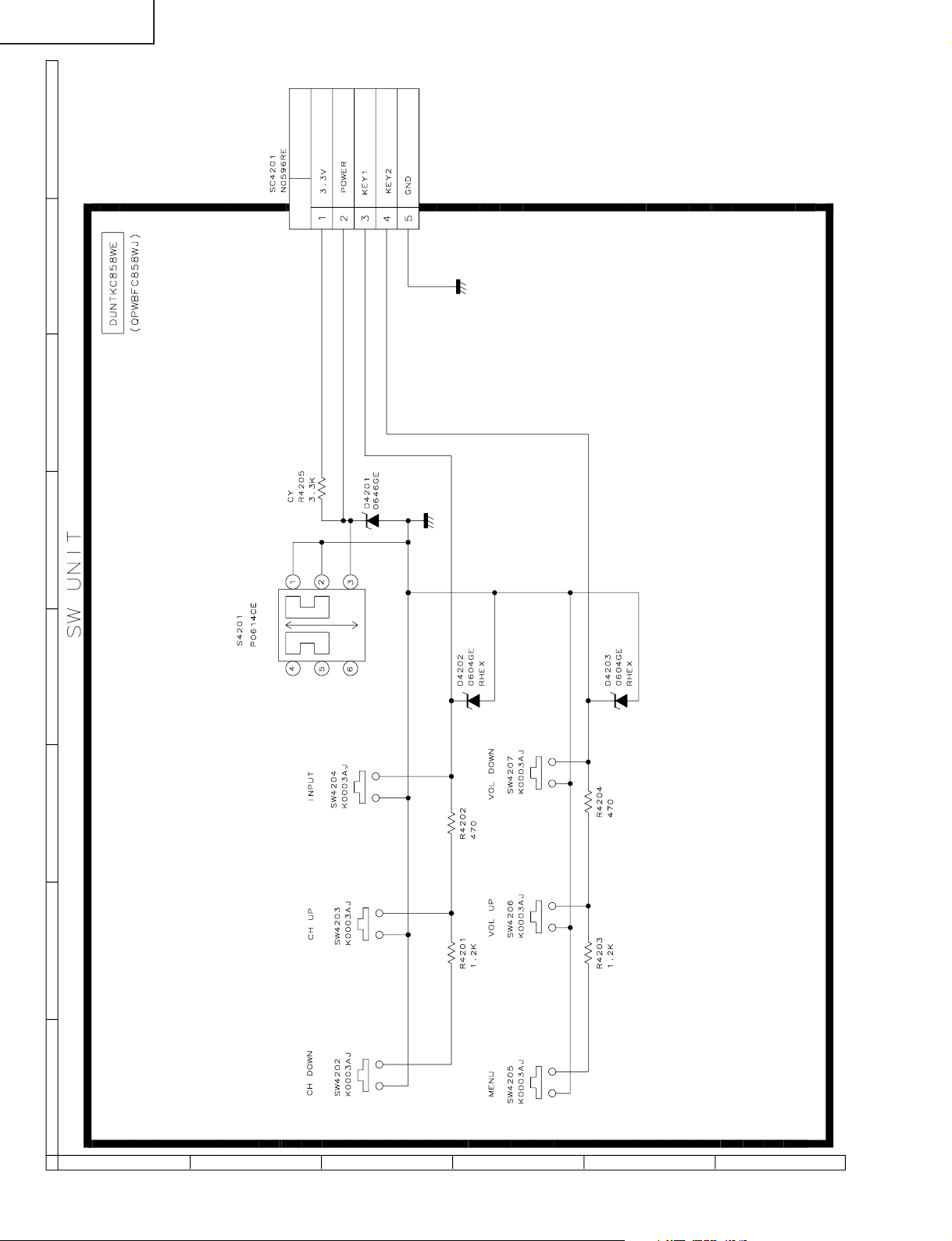

Operation PWB

SC4201

CN3

SC105

SC1201

SC1202

SC1203

Inverter PWB

Inverter

PWB

(Side B)

Main PWB

(Side B)

Sub PWB

(Side B)

SC3601

SC4001

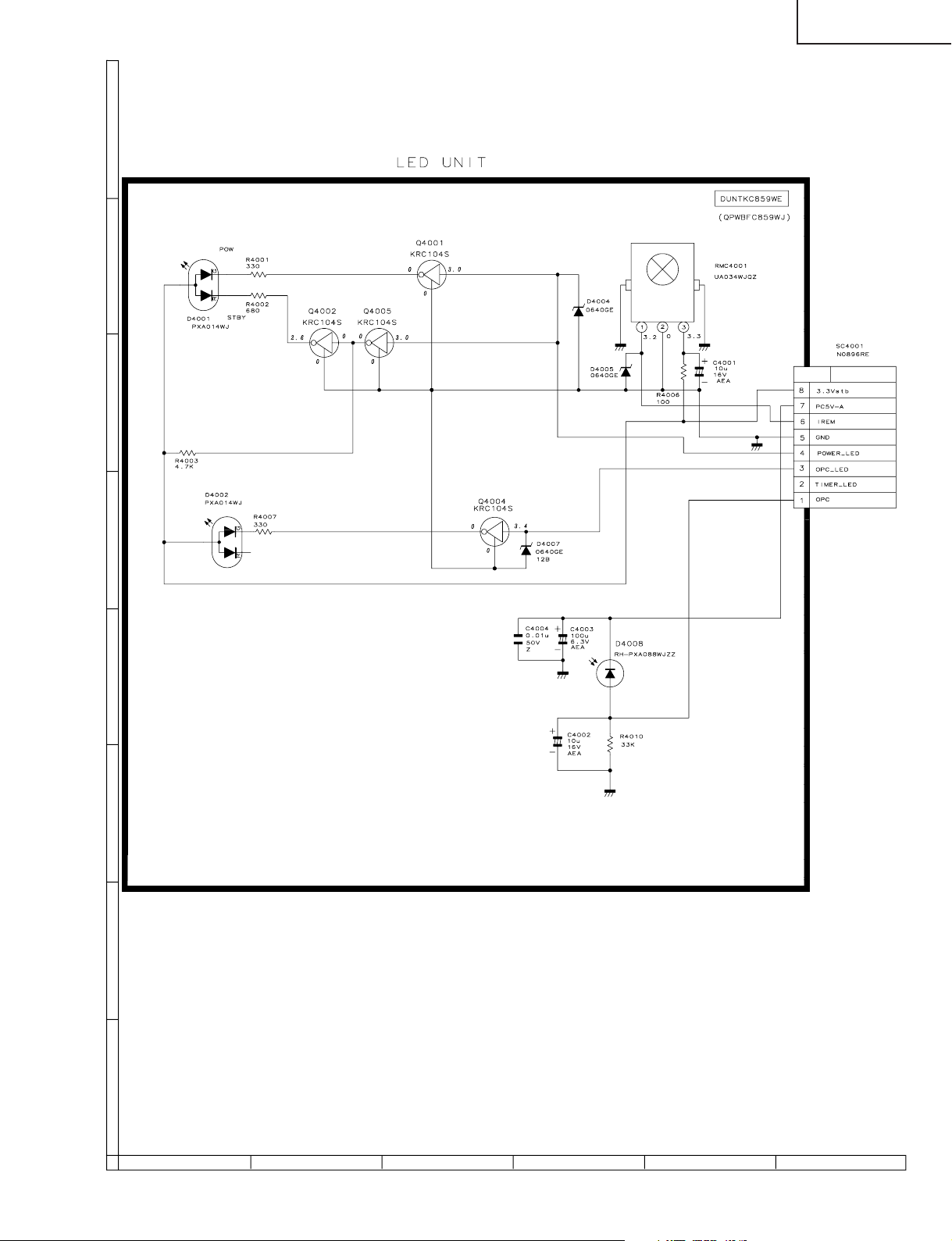

R/C, LED PWB

Sub PWB

Step Part No. Description

1 QCNW-A553WJZZ Extension Cable 30-pin Main (SC1203)-LCD Panel 2 QCNW-A556WJZZ Extension Cable 50-pin Main (SC1202)-LCD panel 3 QCNW-A555WJZZ Extension Cable 20-pin Main (SC1201)-LCD panel 4 QCNW-D444WJQZ Extension Cable 5-pin Operation (SC4201)-Main (SC105) 5 QCNW-D445WJQZ Extension Cable 8-pin R/C, LED (SC4001)-Sub (SC3601)

LC-20SH1E

ADJUSTING PROCEDURE OF EACH SECTION

The best adjustment is made before shipping. If any position deviation is found or after part replacement is performed, adjust as follows.

Preparation for adjustments

Use a stable AC power source. LC-20SH1E AC Power : 230V

1. Adjusting procedure

Complete Set → Power ON → Enter Adjustment Process Mode (By Remote Control) → RF AGC adjustment → DCXO adjustment → Common Bias adjustment → White Balance adjustment

2. Entering the adjustment process mode

• After power on, press the adjustment process mode key on the service remote control.

• Switching on the TV set, holding pushed the "Input" and "Volume (–)" Key at once, the TV set enters in the "K"

mode. In this condition, pushing "Volume (–)" and "P (Ù)" Key, the adjust mode appears.

3. Key operation in the adjustment process mode

• Use the "UP" or "DOWN" cursor key to select the adjustment mode item.

• Use the "LEFT" or "RIGHT" cursor key to change the data.

4. Initialization

When the EEPROM (IC101) has been replaced or when the EEPROM has been initialized, readjust the each adjust the each adjustments.

4-1. When the EEPROM has been replaced:

1) Plug in the AC cord to an AC power outlet and turn on the power.

2) When the setting is finished, the LED turns from red to green. In about 15 seconds, the initialization is completed.

4-2. When initializing the EEPROM data and making readjustments:

1) Enter the Adjustment Process mode.

2) Select the INIT TV item and press the "RIGHT" cursor key to enable the item.

3) Unplug the power cable and plug it again in the AC power outlet. Turn on the power.

4) When the setting is finished, the LED turns from red to green. In about 5 seconds, the initialization is completed.

<Note>

When the INIT TV item has been enabled in the adjustment process, be sure to unplug the power cable and plug it in again. Then start adjustments. Otherwise the readjusted data cannot be put in memory.

4-3. Setting the screen size (inches)

1) Enter the Adjustment Process mode.

2) Check the model number.

3) Hold down the "LEFT" or "RIGHT" cursor key longer than 2 seconds, and select a screen size (LC-20SH1E).

SH1E Main Ver

INCH SIZE 20

Scaler Ver *.**.**

*.**

5. Adjustment

5-1. RF AGC adjustment

1) Feed the colour bar signal.

2) In Adjustment Mode, select the RF AGC AUTO ("OFF") and press the " RIGHT" cursor key to start the adjustment.

3) Automatic adjustment is complete when it display "OK" is displayed.

4) RF AGC data will be in the range of 0-63. If "NOK" is displayed, adjustment failed.

LC-20SH1E

SH1E Main Ver

Scaler Ver *.**.**

RF AGC AUTO OK

*.**

RF AGC Auto adjustment complete RF AGC data (Example)

5-2. DCXO adjustment

1) Feed the colour bar signal.

2) In Adjustment Mode, select the DCXO AUTO ("OFF") and press " RIGHT" cursor key to start the adjustment.

3) Automatic adjustment is complete when "OK" is displayed. If "NOK" is displayed, adjustment failed.

SH1E Main Ver

DCXO AUTO OK

Scaler Ver *.**.**

*.**

DCXO Auto adjustment complete DCXO data

5-3. Common bias adjustment

1) Select the EXT-Video input and without signal.

2) In Adjustment Mode, select the COM BIAS and vary the data until the contrast becomes the sharpest. (Black looks most sinking.)

5-4. White balance adjustment

[A] White balance pre-adjustment

1) Feed the 100% white signal.

2) In Adjustment Mode, select the AWBSD ("OFF") and press the " RIGHT" cursor key to start the adjustment.

3) Automatic adjustment is complete when "OK" is displayed.

[B] White balance adjustment Adjust "R CUTOFF2", "G CUTOFF2", "B CUTOFF2", "WB R GAIN", "WB G GAIN" and "WB B GAIN" in the adjustment processing to obtain the same colour as the standard set.

6. Factory setting

6-1. Make the factory setting using the adjustment remote control.

Model Key Name Remote Control Code OSD Language Setting A3IK20SH1E Shipment Setting 1 1000 0011 1111 110 German (00001 FEh) A3IK20SH1K Shipment Setting 2 1000 0000 1010 110 English (00002 A8h)

A3IK20SH1R Shipment Setting 3 1000 0110 1011 110 Russian (00003 EBh) A3IK20SH1F Shipment Setting 4 1000 0100 1011 110 French (00004 E9h)

A3IK20SH1I Shipment Setting 6 1000 0000 1011 110 Italian (00005 E8h)

6-2. Different factory settings.

Model Language Country Color System Sound System A3IK20SH1E German Germany PAL B/G A3IK20SH1K English UK PAL I

A3IK20SH1R Russian Russia SECAM D/K A3IK20SH1F French France SECAM L/L'

A3IK20SH1I Italian Italy PAL B/G

LC-20SH1E

7. Lamp error detection

7-1. Functional description

This LCD colour television has a function (lamp error detection) to be turned OFF automatically for safety when the lamp or lamp circuit is abnormal. If the lamp or lamp circuit is abnormal, or some other errors happen, and the lamp error detection is executed, the followings occur. 1 The main unit of television is turned OFF 5 seconds after it is turned ON. (The power LED on the front

side of TV turns from green to red.)

2 If the situation 1 happens 5 times sequentially, television can not be turned ON. (The power LED remains

red.)

7-2. Countermeasures 7-2-1. Check when turning OFF the lamp error detection

If the power has been turned off 5 times because of lamp error, hold down the unit’s "INPUT" and "Volume (–)" kye simultaneously and turn on the unit’s power switch. The TV set gets back on power in the "K" mode. In this state, press the unit’s "Volume (–)" and "P (Ù)" key simultaneously. The Adjustment Process mode shows up. This enables the operation check to detect errors in the lamp or lamp circuit. Check whether "ERROR NO RESET" of the adjustment process is 1 or more. If it is 1 or more, it indicates the lamp error detection was executed.

7-2-2. Resetting of the lamp error count

After confirming that the lamp or lamp circuit is normal, reset the lamp error count. Select "ERROR NO RESET" of the adjustment process and set the number to 0 using the "LEFT" or "RIGHT" cursor key.

SH1E Main Ver *.**

ERROR NO RESET 5

Afterwards, perform the operation check to confirm that the lamp error detection does not function.

Scaler Ver *.**.**

Reset 0

8. Hotel mode

8-1. How to enter the Hotel mode.

1) Turn on the power and enter the Adjustment Process mode.

2) Using the "UP" or "DOWN" cursor key on the remote controller, select the Hotel mode.

3) Using the "RIGHT" cursor key on the remote controller, change the setting from "0" to "1". Now the Hotel mode shows up.

Adjustment Process menu

LC-20SH1E

Hotel mode = "0"

Hotel mode 0

EXT CONTROL OFF

Hotel mode = "1"

Hotel mode 1

Max. volume **

On program ***

EXT CONTROL OFF

4) Using the "UP" or "DOWN" cursor key on the remote controller, select "Max. volume" and "On program". Make the setting with the "LEFT" or "RIGHT" cursor key.

5) Finally quit the Adjustment Process mode and turn off the power. The TV set comes on in the Hotel mode after the next switch-on.

8-2. Hotel mode settings

1) Max. volume (0-60) You can set the maximum volume at your desired level.

2) On program (0-199) You can select a desired channel when switching on the TV set.

8-3. Canceling the Hotel mode

1) Turn on the power and enter the Adjustment Process mode.

2) Using the "UP" or "DOWN" cursor key, select the Hotel mode.

3) Using the "LEFT" cursor key, change the setting from "1" to "0".

4) Finally quit the Adjustment Process mode and turn off the power. The TV set comes on out of the Hotel mode after the next switch-on.

LC-20SH1E

9. Software Loading

1) Upgrading the software or after replacement of IC151, IC501 or Main PWB, make sure to upload the processors with updated software.

2) Please use the dedicated Interface JIG (JIGINF-001) and supplied programs for upgrading the software.

3) This model employs two software;

• SCALER microprocessor software

• MAIN microprocessor software

Please upload the SCALER microprocessor software first follow by MAIN microprocessor software.

1. SCALER microprocessor

1) Set Interface JIG switch to position "SCALER".

2) Power ON the set and plug Interface JIG connector to P2002.

3) Run the ISP_Tool.exe program.

LC-20SH1E

4) First click [SST / ATMEL] and then follow by [Identify] to identify the flash memory.

Confirm the item below in Comment Window.

5) Click [Select Intel HEX File …] to open the source files. The source file name are "Sedna_Sharp****.hex"

Confirm the source file is loaded correctly.

6) Next click the [Erase] to erase all the data in the flash memory. Confirm the erase process is complete without any error.

7) Then click [Program] to start uploading the source file into the flash memory. After uploading process is complete, confirm there are no error.

8) Click [Verify] to verify the uploaded data and confirm there are no error.

LC-20SH1E

9) Finally click [Restart System] to initialize. Confirm "Reset done" in Comment Window.

10) Power OFF the set by unplugging AC Cord, remove the JIG from the plug and wait for 1 minute before power ON again.

Notes: If any error occur during any process, power OFF the set and repeat the all the process again. If

these still fail, please erase Main Software and repeat the whole process again. To erase Main software, please refer to MAIN microprocessor step No. 1) to 5) only.

2. MAIN microprocessor

1) Set JIG switch to position "LOC".

2) Power ON the set and plug Interface JIG connector to P2002.

3) Run the WISP.exe program.

4) First click [Enter ISP Mode] then click [Send]. If the following window appear, click [Yes]

Confirm ISP status "Ready".

If "Entering ISP is not successful" occur, repeat step No. 4) again. If still fail, unplug the AC cord and repeat from step No. 2) again.

LC-20SH1E

5) Then click [Erase Flash], follow by [Send]. Confirm the Program, PK26 & Character are all "OK" and ISP status is "Ready".

If "Failed" occur, unplug the AC cord and repeat the whole process again from beginning.

LC-20SH1E

6) Next click [Write Flash] and load the source file by clicking [Browse]. The source file name are "LC20SH1_****.hex". Once the data is loaded successfully click [Send]. Confirm the Program, PK26 & Character are all "OK" and ISP status is "Ready".

If "Failed" occur, unplug the AC cord and repeat the whole process again from beginning.

7) Finally click [Verify Flash] and [Send] to verify the flash memory. Confirm the Program, PK26 & Character are all "OK" and ISP status is "Ready". If "Failed" occur, unplug the AC cord and repeat the whole process again from beginning.

8) Power OFF the set and remove the JIG.

No No

No Yes

Yes

Yes No

Yes

No picture and No sound

Back light lamp failure to light up

Replace F7701.

Is Q7702 base

voltage at "L"

state?

Check all output

voltage line for

short circuit.

Do fuse F7701

function?

Are T7701 secondary

output at C7720,

C7721, C7722, C7723

and C7725 voltage

normal?

Check Q6700-

Q6716 and their

peripheral parts for

short circuiting.

Is there any short

circuit in INV +B

line?

Check the OFL1

line, OFL2 line,

IC1201 and their

peripheral parts.

Check the OFL line,

Q3600, Q3601 and

their peripheral

parts.

Check Q6700-

Q6716 and their

peripheral parts.

Replace the back

light lamp with new

one and check

again.

Do fuse F6700-

F6704 function?

Are the pins (40)

and (138) of IC1201

in the "H" state?

Are the outputs of

Q3600 and Q3601

in the "L" state?

Is the pins (4) and

(7) of T6700-T6704

normal?

Is the pin (10) of

T6700-T6704

normal?

Check the error

amp circuit D6702-

D6711, Q6706,

Q6713, Q6717 and

their peripheral

parts.

Remove F7701 and

check the load side.

Is there short-

circuit?

Is there any short-

circuit in T7701

primary side

periphery?

Check IC7702,

IC7704 and their

peripheral parts.

Check IC7701 and

its peripheral parts.

Is T7701 primary

switching waveform at

pin (1) of IC7701

normal?

TROUBLE SHOOTING TABLE

LC-20SH1E

Yes

No S-Video

output

No Picture (1/3)

No picture at all.

No Video 2

output

Check the power

line.

No TV output

Is output Q801,

Q802 and Q803

normal?

Is input / output

of IC1201

normal?

Check LCD panel

voltages and

waveform.

Check IC501 and

its peripheral

parts.

Check IC1201

and its peripheral

parts.

Is voltage at pins

(7) and (9) of

tuner normal?

Is output at pin

(11) of tuner

normal?

Is input / output

of SF201

normal?

Is output of

IC801 normal?

Check IC801 and

its peripheral

parts.

Check SF201 and

its peripheral

parts.

Check tuner and

its peripheral

parts.

Is video input at

pin (B21) of

IC501 normal?

Check the V1_V

line and its

peripheral parts.

Is input at pins

(C18) and (D18)

of IC501 normal?

Check the V1_SY

and V1_SC line

and their

peripheral parts.

TROUBLE SHOOTING TABLE (Continued)

Yes

No No

No Picture (2/3)

R/G/B

CVBS

No Video 1 Output (SCART)

Is input at pin (C18)

of IC501 normal?

Check V1_SY line

and its peripheral

parts.

Is input at pins (U23),

(V23) and (V24) of

IC501 normal?

Check SC_R, SC_G,

SC_B line and their

peripheral parts.

No TELETEXT

output

No Video from

SCART

Check Q3908,

Q3909 and their

peripheral parts.

Is output at pin (B23)

of IC501 normal?

Check IC501 and its

peripheral parts.

Check IC501 and its

peripheral parts.

No No

Yes

Is output of U/D normal?

No Picture (3/3)

Color is unusual

Gradation defect

Is output R0-R7 at

SC1202 normal?

Is output G0-G7 at

SC1202 normal?

Is output B0-B7 at

SC1202 normal?

Check R1205 and its

peripheral parts.

Check R1206 and its

peripheral parts.

Check R1207 and its

peripheral parts.

No picture image

Is input/output of SPIO

and SPOI normal?

Check R1216 and its

peripheral parts.

Check R1210 and its

peripheral parts.

Is output V0, V7, V21,

V64, V112, V176, V235

and V255 normal?

Check IC1101 and its

peripheral parts.

TROUBLE SHOOTING TABLE (Continued)

LC-20SH1E

No No No

Yes

No No

Yes

No Sound (1/2)

Check the L_MUTE,

SO_DEF line and their

peripheral parts.

Check IC501 and its

peripheral parts.

Check Q3901, Q3904,

Q3905 and their

peripheral parts.

Is output at pin (3) of

D3901 in "L" state?

Is output at pins (C16)

and (D16) of IC501

normal?

Check the line and its

peripheral parts.

No Sound from

headphone

Is input at pins (2) and

(3) of J3701 normal?

Check IC3301 and

its peripheral parts.

Check IC501, R_IN,

L_IN line and their

peripheral parts.

Muting effect is on.

Check the SP_Mute

line and its peripheral

No sound from

front speaker.

Is input at pin (9) of

IC3301 in "H" state?

Is output at pins (C17)

and (D17) of IC501

normal?

Is output at pins (2), (4),

(10) and (12) of IC3301

normal?

Check front speaker

and connection cable.

No Sound from

output line

TROUBLE SHOOTING TABLE (Continued)

Yes

No Sound (2/2)

TV sound failure

SCART sound failure

No sound from SCART

Check IC501 and its

peripheral parts.

Is output at pins (E23)

and (F25) of IC501

normal?

Check Q3902, Q3903,

Q3906, Q3907 and their

peripheral parts.

Check the SC_L,

SC_R line and their

peripheral parts.

Is input at pins (F24)

and (F25) of IC501

normal?

Check SF202 and its

peripheral parts.

Is input/output of

SF202 normal?

Check IC501 and its

peripheral parts.

LC-20SH1E

CHASSIS LAYOUT

MAIN Unit

IC2201

SC1203

IC101

IC801

SC1202

TU201

IC1201

P2002

SC1201

IC1101

X101

IC703

IC501

IC701

IC151

OPERATION Unit

SC4201

POWER

S4201

SC105

IC751

IC704

SC102

X501

IC7706

INPUT

SW4204

IC7705

P7701

SW4205

SF201

SF202

IC702

P3902

IC3301

SC106

SC3601

IC7704

IC7703

IC7701

IC7702

C7703

SC104

P3901

SC3901

J5001

J3901

J3701

P3301

J5000

D7701

D7703

T7701

L7702

R/C, LED Unit

D4001 D4002

POWER

87109654321

D4008 OPC

RMC4001

R/C

OPC

INVERTER Unit

LC-20SH1E

SW4205

D7703

SW4203

D7713

CH UP

DOWN

SW4202

SW4206

VOLVOL

DOWN

SW4207

SUB Unit

P3601

T1.25A L 250V

F6703

F6700

F6701

SC6701

T1.25A L 250V

F6704

F6702 T1.25A L 250V

P6704

T6700

P6703

T6701T6702T6703

P6702

4001

T7701

D4002

OPC

L7702

R7709

SC4001

L7701

VA7701

T3.15AL

F7701

CN7701

P6700 P6701

T6704

1716 1918151413121110

LC-20SH1E

0 0

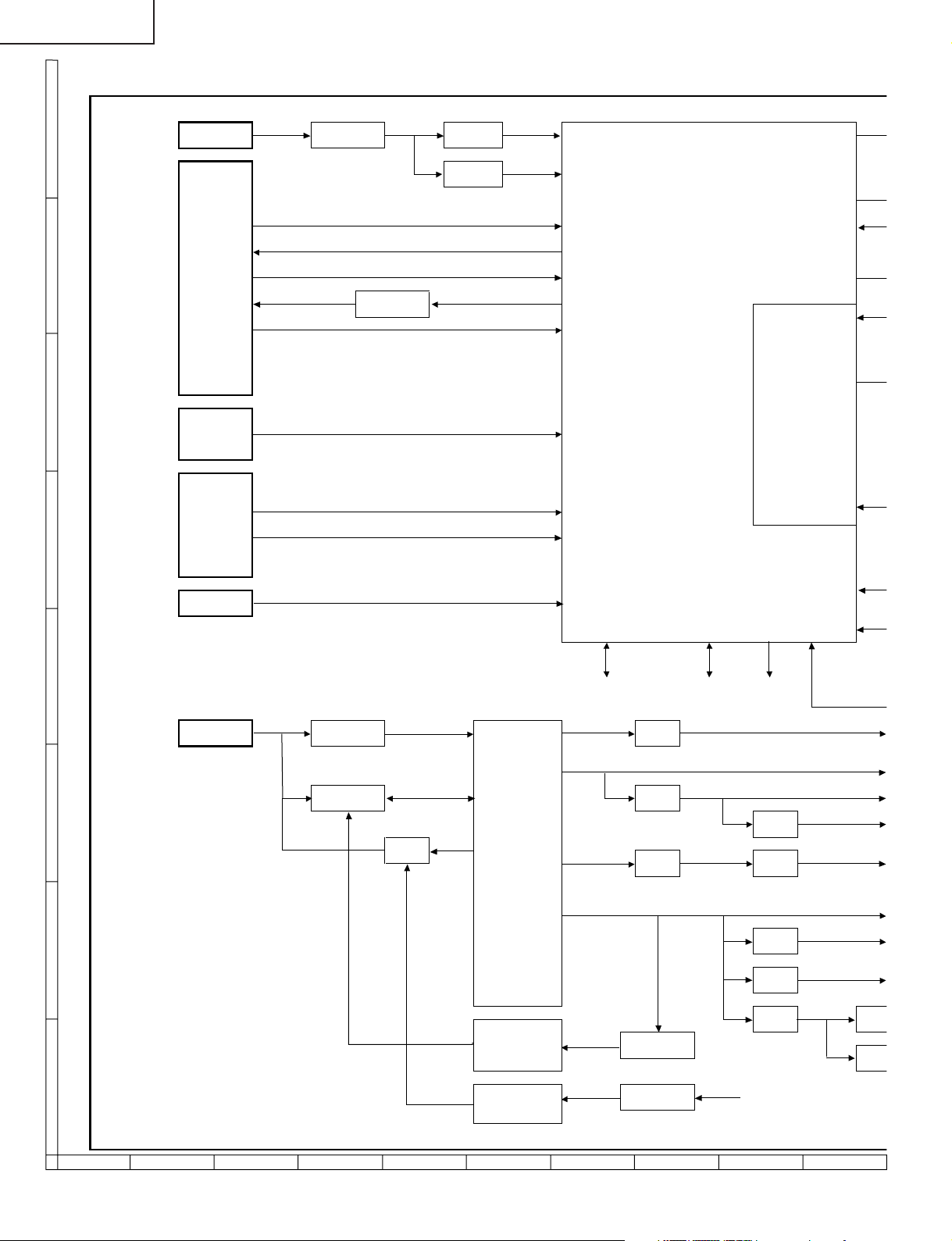

BLOCK DIAGRAM

ANTENNA TUNER

SCART

SC3901

(AV1)

AUDIO IN

AUDIO OUT

VIDEO IN

VIDEO OUT

R/G/B IN

SC_ RIN / SC_LI

SC_ ROUT / SC_LOUT

SC_ VIN R/G

OUTPUT DRIVER

AMP Q3908 & Q3909

SC_ R / SC_G / SC_B

SF201

SF202

J5000

S-INPUT

(AV2)

V1_SY / V1_SC

VIF R_I

SIF

IC501

Y/U

R/G

RX RX

AV2

J5001

VIDEO INPUT

AUDIO INPUT

V1_V

VI.R / VI.L

KEY

KEY1 / KEY2

MPCLK / MPDA I

C POW

CN7701

AC CORD

BRIDGE DIODE

D7701

S.M.P.S

IC7701

Q7701

SWITCHING

TRANS

T7701

Q7703

Q7711

Q7708

PC-13V

REG

IC7705

REG IC751

REG IC702

REG IC703

FEEDBACK

IC7702

Q7704

ERROR AM

IC7704

IC77

REG IC

IC7703

Q7702

POW

87109654321

LC-20SH1E

R_IN / L_IN SP_L/R (-)

Y/U/V

Y/U/V IN

R/G/B

R/G/B SCALER

RX0-RX4 RX0N-RX4N

YUV

IC801

R/G/B

Q801-Q803

LVDS TO TTL

IC2201

AUDIO POWER AMP

IC3301

SP_L/R (+)

MPCLK / MPDA

DPS

IC1201

DHS / DVS / LLC1_CLOCK

FLASH

MEMORY

VSYNC / HOUT

IC151

PROM

IC101

REV

GRADATION

POWER

MPCLK / MPDA

IC1101

R0-R7, G0-G7, B0-B7

V0, V7, V21, V64, V112 V176, V235, V255

VCOM, CSCOM

SPEAKER

HEADPHONE

JACK

LCD

PANEL

P3301

J3701

SC1201

SC1202

SC1203

REG

IC7706

REG IC704

PC35V

INV +B

PC12V

PC9V

PC-8V

3.3V_SW

3.3Vstb

REG IC701

PC5V-A

PC5V

1.8V_SW

OFL REVERSE Q3600, Q3601

INVERTER

DRIVE Q6700-Q6705 Q6707-Q6712 Q6714-Q6716

OFL1 / OFL2

LMP ERR

LAMP ERROR

DETECTOR

Q6706, Q6713,

Q6717

DC/AC

TRANS

T6700-T6704DC/AC

INV +B

BACK

LIGHT

LAMP

REMOTE CONTROL RECEIVER

OPC

SENSOR

P6700 ~ P6704

1716 1918151413121110

LC-20SH1E

YOBI1

OVERALL WIRING DIAGRAM

123456789101112131415

CSCOM

SC1201 NA002WJ

LCD GRADUATION LCD SOURCE

(QCNW-C949WJQZ) (QCNW-C948WJQZ)

VLS

GND

VLS

V255

CSCOM

VCOM

V235

181920

V17

V64

V112

V176

VSH

V32

V21

12345678910111213141516171819202122232425262728293031323334353637383940414243444546474849

G7G6G5

R2R1R0

VSH

SC1202 N0687FJ

GND

G3G2G1

302928272625242322

GND

B2B1B0

LBR

SPIO

SP0I

GND

POLA

YOBI9

YOBI8

YOBI3

YOBI2

YOBI7

YOBI6

YOBI5

YOBI10

YOBI4

YOBI1

VLS

YOBI10

SC1203 N0206FJ

YOBI9

YOBI8

YOBI7

YOBI6

YOBI5

YOBI4

YOBI3

YOBI2

MAIN

DUNTKC860WE

(QPWBXC860WJ)

PC35V

SHORT_DET

POWER_FAIL

SHORT_DET

POWER_FAIL

GND

POW

PC5V

PC-13V

GND

POW

PC5V

PC-13V

SC104 WA010WJ

P3901 MA012WJ

GND

SC_R

SC_RIN

SC_LIN

SC_ROUT

SC_LOUT

151413121110987654321

GND

SC_R

SC_LIN

SC_RIN

SC_ROUT

SC_LOUT

GND

AV_CTL

RGB_CTL

SC_VOUT

GND

SC_VIN

GND

SC_VIN

SC_G

SC_B

SC_G

GND

L_IN

R_IN

L_MUTE

stb3.3V

AUDIO_OUT_L

AUDIO_OUT_R

SC106 WA251WJ

123456789101112131415161718192021

L_IN

GND

R_IN

SO_DEF

L_MUTE

AUDIO_OUT_R

AUDIO_OUT_L

P3902 MA250WJ

GND

0FL2

OFL1

PC9V

PC12V

LMP_ERR

PC12V

OFL1

PC9V

VSH3.3V

1098765432

GND

LMP_ERR

VSH3.3V

SC102 WA010WJ

151413121110987654321

151413

0FL2

P7701 MA012WJ

SPMUTE

VI_L

GND

VI_R

V1_V

V1_SY

V1_SC

OPC_LED

VI_L

GND

VI_R

V1_V

V1_SY

V1_SC

S_SW1

OPC_LED

OPC

TIMER_LED

POWER_LED

TIMER_LED

POWER_LED

IREM

GND

POWER3.3V

GND

3.3Vstb

GND

SUB

DUNTKC857WE

(QPWBFC857WJ)

87109654321

LC-20SH1E

VLS

LCD GATE

YOBI5

YOBI4

YOBI3

YOBI2

(QCNW-C947WJQZ)

VEE

VGL

YOBI1

VEE

GND

GSP1

VSH3.3V

VGH

GND

VGH

GCK

GSP2

GLBR

POWER

CSCOM

(QCNW-B813WJPZ )

SC105 N0596RE SC4201 N0596RE

3.3Vstb 3.3Vstb

POWER

KEY1 KEY1

KEY2 KEY2

GND GND

P6700 NA391WJ

POWER

DUNTKC858WE

( Q PWBFC858WJ)

LED

DUNTKC859WE

(QPWBFC859WJ)

IREM

GND

PC5V-A

3.3Vstb

SC4001 N0896RE

1234567

OPC_LED

POWER_LED

OPC

TIMER_LED

INVERTER

DUNTKC856W E

( QPWBFC856WJ) (KLMP-A046WJZZ)

OFL1

INV +B

INV GND

SC6701 Z1338CE

13121110987654321

INV GND

P6701 NA391WJ

P6702 NA391WJ

P6703 NA391WJ

P6704 NA391WJ

OFL2

VSH3.3

LMP ERR

SIG.GND

BACKLIGHT

(QCNW-B814WJPZ)

1234567

PC5V-A

3.3Vstb

SC3601 N0895RE

OPC

IREM

GND

OPC_LED

TIMER_LED

POWER_LED

13121110987654321

INV +B

INV GND

OFL1

INV +B

P3601 Z1338CE

INV +B

OFL2

VSH3.3

LMP ERR

SIG.GND

2928272625242322212019181716151413121110987654321

YOBI6

YOBI9

YOBI8

YOBI7

YOBI10

SUB

DUNTKC857WE

(QPWBFC857WJ)

(QCNW-C853WJQZ)

SP_R (-)

SP_R (+)

P3301 N0442CE

123

SP_L (+)

SP_L (-)

1716 1918151413121110

LC-20SH1E

DESCRIPTION OF SCHEMATIC DIAGRAM

VOLTAGE MEASUREMENT CONDITION:

1. The voltages at test points are measured on the stable supply voltage of AC 220-240V. Signals are fed by a colour bar signal generator for servicing purpose and the above voltages are measured with a 20k ohm/V tester.

INDICATION OF RESISTOR & CAPACITOR:

RESISTOR

1. The unit of resistance “Ω” is omitted. (K=kΩ=1000 Ω, M=MΩ).

2. All resistors are ± 5%, unless otherwise noted. (J= ± 5%, F= ± 1%, D= ± 0.5%)

3. All resistors are 1/16W, unless otherwise noted.

4. All resistors are Carbon type, unless otherwise noted.

C : Solid S : Oxide Film T : Special N : Metal Coating

CAPACITOR

1. All capacitors are µF, unless otherwise noted. (P=pF=µµF).

2. All capacitors are 50V, unless otherwise noted.

3. All capacitors are Ceramic type, unless otherwise noted.

(ML): Mylar (TA): Tantalum (PF): Polypro Film (ST): Styrol

: Cement

CAUTION:

This circuit diagram is original one, therefore there may be a slight difference from yours.

IMPORTANT SAFETY NOTICE:

PARTS MARKED WITH “å” ( ) ARE IMPORTANT FOR MAINTAINING THE SAFETY OF THE SET. BE SURE TO REPLACE THESE PARTS WITH SPECIFIED ONES FOR MAINTAINING THE SAFETY AND PERFORMANCE OF THE SET.

LC-20SH1E

654321

SCHEMATIC DIAGRAM

INVERTER Unit

LC-20SH1E

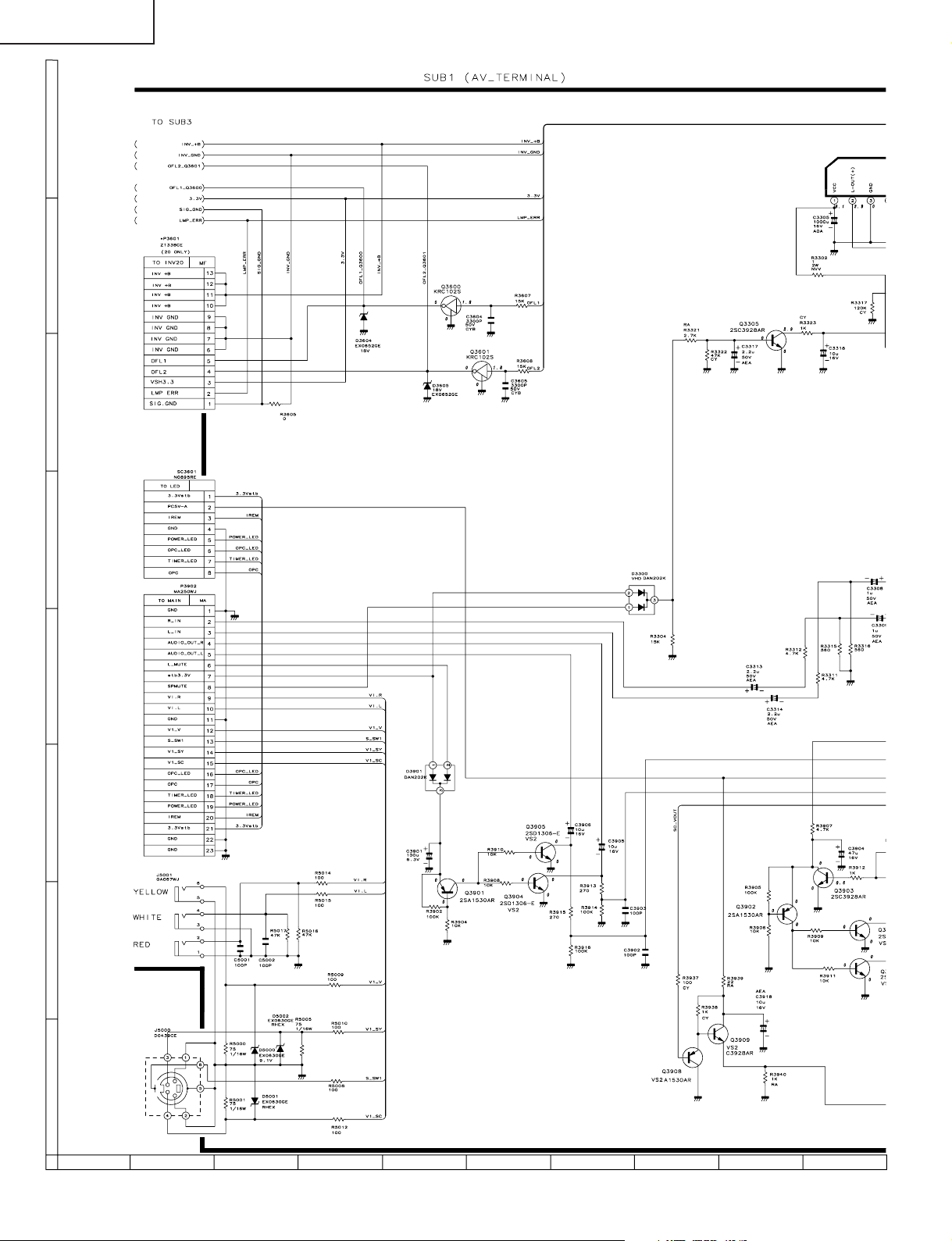

SUB Unit-1/2

87109654321

LC-20SH1E

1716 1918151413121110

LC-20SH1E

SUB Unit-2/2

87109654321

LC-20SH1E

1716 1918151413121110

LC-20SH1E

MAIN Unit-1/3

87109654321

LC-20SH1E

1716 1918151413121110

LC-20SH1E

MAIN Unit-2/3

87109654321

LC-20SH1E

1716 1918151413121110

LC-20SH1E

MAIN Unit-3/3

87109654321

LC-20SH1E

1716 1918151413121110

LC-20SH1E

OPERATION Unit

654321

LC-20SH1E

654321

R/C, LED Unit

LC-20SH1E

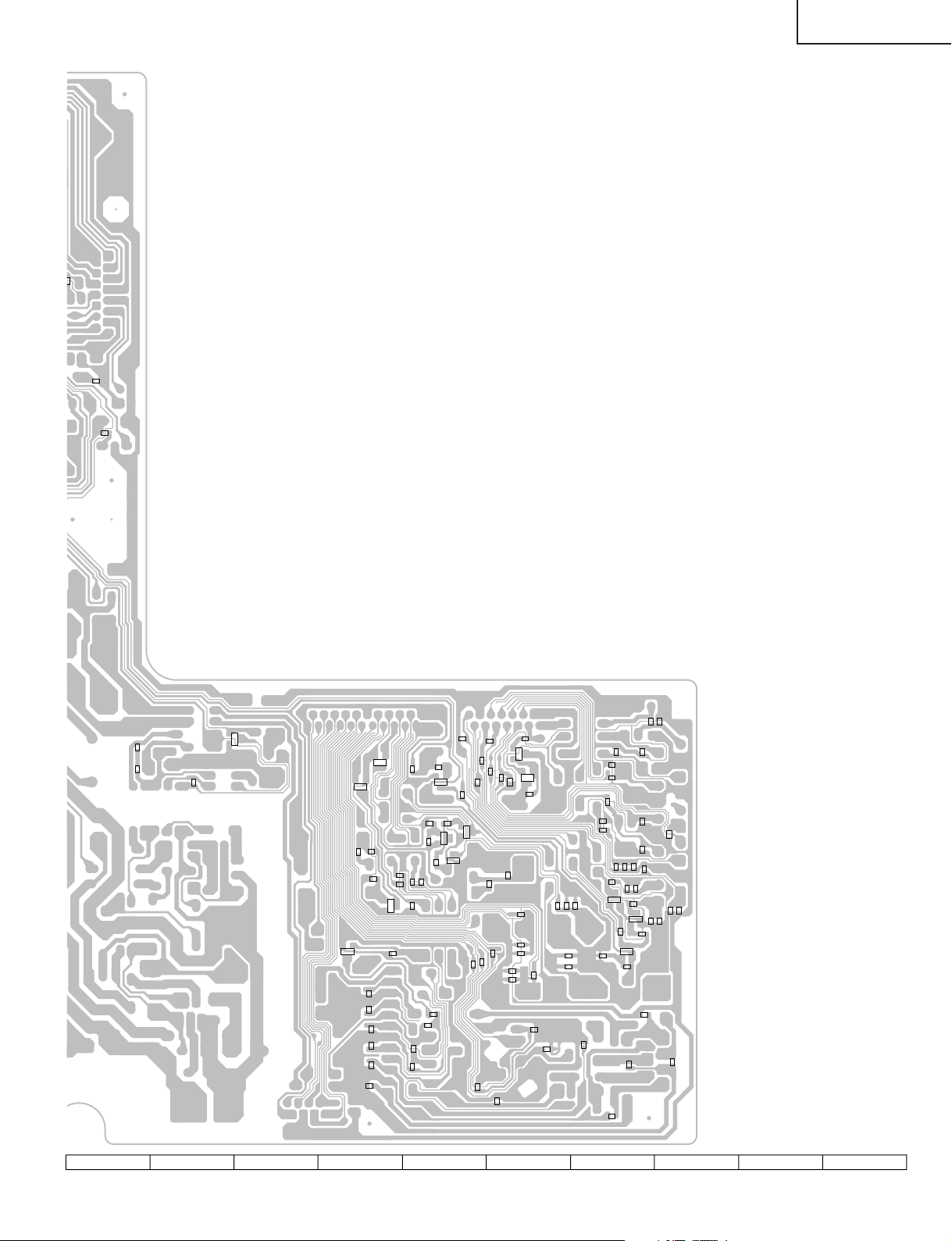

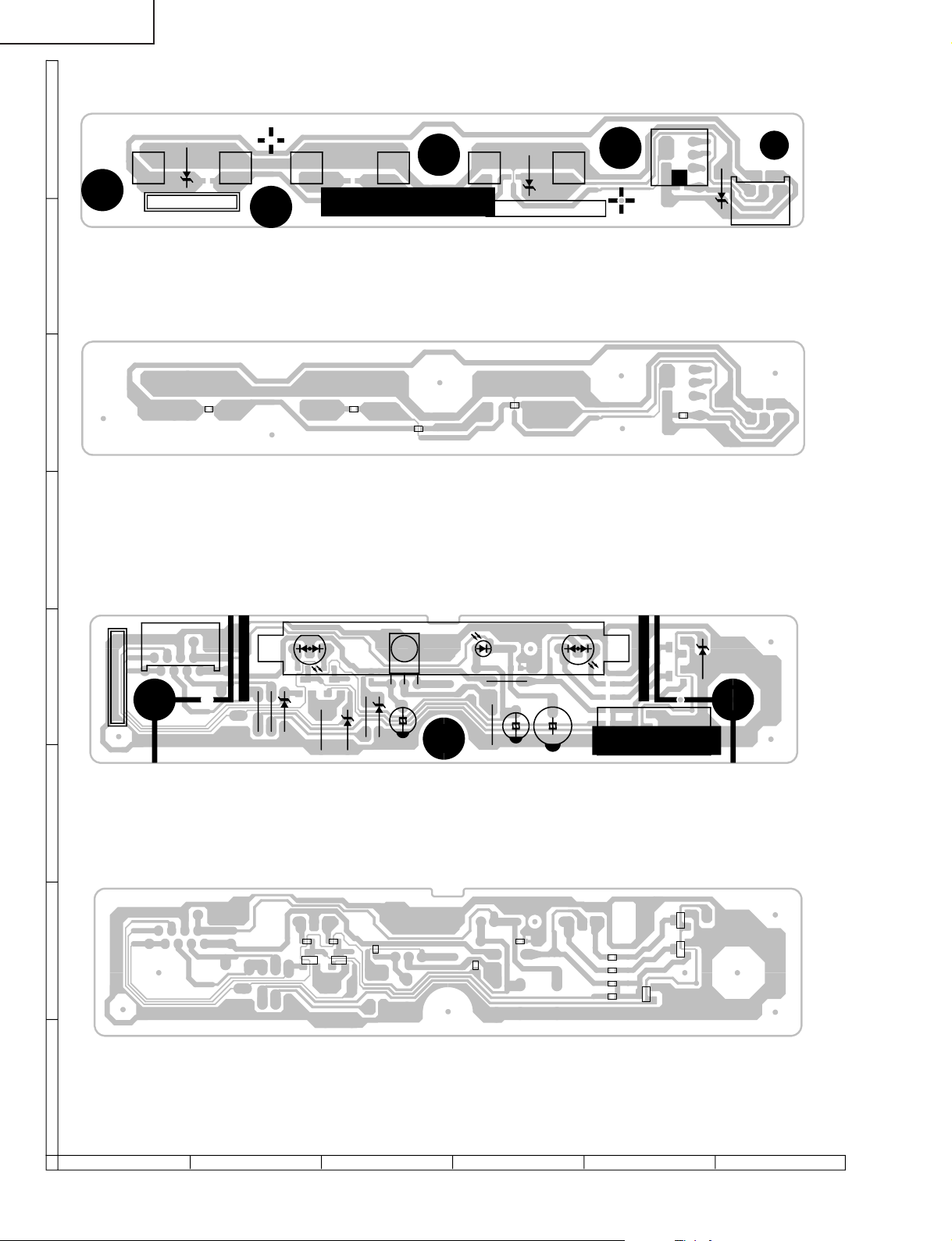

PRINTED WIRING BOARD ASSEMBLIES

SC1202

SC1201

R1210

IC2201

L2202

IC1201

R1205

108

109144

C1207

C2201

C2203

R1206 R1207

R22** 07 08 03 04 05 06

SC1203

IC101

CN107

C816

P2002

KC860WE

R1120

R1214

R1211

Q105

CN108

R1116

IC1101

C127

C722

R1104

C764

R123

D101

120

C551

L203

MAIN Unit (Side-A)

C205

TU201

C206

R219

L202

XC860WJN4

C207

C204

SC104

SF203

C201

R201

87109654321

LC-20SH1E

SC1201

R123

D101

C722

R1104

C764

C551

R767

C766

L751

C1119

C759

R713

C760

Q755

D1103

D759

Q752

C752

Q756

D755

R755

C704

Q753

Q751

D751

IC701

C1120

Q754

C753

IC751

SC105

Q702

Q758

C702

IC704

SC102

C709

C703

IC703

C751

201

C556

C111

C820

C117

X101

SF201

C124 C126

C801

SF202

L203

C301

C804 C420

R304

C304

R305

SC106

R301

C303

C215C216

C710

IC501

C822

D702

R704

C535

C549

100

IC151

C521

C525

C523

X501

C720

C152

C501

C524

C512

C513

IC702

FB808

C724

C826

C825

1716 1918151413121110

LC-20SH1E

C763

C1114

C1104

C127

R122

R1116

R124

D101

R1104

SC1201

IC1101

R123

R1101

C764

C1105

SC1202

C2201

C1207

R1242

L2201

R1205

R1206 R1207

R2232

SC1203

IC2201

L2202

C816

IC101

C2206

IC1201

R2203 R2204 R2205 R2206R2207 R2208

P107 P108

C2203

P2002

R1209

R1210

R1214

R1218

R1211

C1203

R1240

C1216

R1120

C722

R1102

Q105

C551

TU201

C117

C126

C124

C801

L203

R219

SF203

C205

C206

L202

C204

C207

R306

C220

C201

R201

TP101

SC104

MAIN Unit (Chip Parts Side-A)

87109654321

LC-20SH1E

R1116

R124

D101

R1104

SC1201

IC1101

R123

R1101

C764

C551

C1105

C1114

C763

R767

R1111

R148

R1106

R149

R103

R146

C556

C1113

C1108

C1110

R1115

R1118

D1101

R1109

C1115

C1120

IC703

C766

R1117

D1103

R1129 R1130

R138

L752

Q753

C754

C111

R766

D759

R710

Q754

C712

R752

Q752

R753

R143

C709

R711

L751

R757

C760

R754

R162

C752

C753

C710

D755

Q757

C751

R163

D751

Q751

R751

C1119

R755

R713

C759

C704

IC701

R762

D756

IC151

D757

R702

Q756

C701

Q759

R764

Q755

R701

IC751

C702

IC704

C703

C758

Q758

R761

R2233

R721

R708

R763

R147

Q702

Q701

Q703

R719

R718

R720

SC105

R141

R221

R220

TP102

SC102

C152

C820

C301

R304

R161

X101

SF202

R239

C304

R305

C117

C126

C124

C801

SF201

L203

R201

C220

C804 C420

C201

C366

SC106

C367

R301

R142

R144

C303

IC501

C215C216

TL233

TL232

C822

TL230

TL231

C535

R704

C549

D702

C724

R703

TL210

TL202

TL204

C720

C826

IC702

C521

C501

C524

C833 C834 C835

C525

C523

C512

X501

C513

FB808

C825

1716 1918151413121110

LC-20SH1E

Q1106

R705

SC105

R140

R135

R706

R1124

Q1105

R722

R715

C1116

R714

R1114

Q1102

R769

R1123

C1109

Q1103

D1104

R1105

R1107

R1110

C1112

R110

Q106

R707

R139

R145

R717

C761

R716

FB101

FB102

FB103

C102

C104

Q202

C107

C105

C103

FB104

C369

D704

C417 C416 C415

R423

X101

R807

SF202

D208

C557

D701

SF201

Q204

FB***

803

801

809

105

106

107 109 108

Q203

C711

R709

C151

R151

R125

C106

R109

C511

FB151

R136

R137

R152

R2230

R2231

R112

R104

C505

C109

R129

R111

R107R108

R127

C580 C582 C579 C575

R577

C578 C574

FB507

R544

FB533

C570 C514

FB508

C721

C518

C517

R552

C536

R557

C817

R558

R817

C547

R816

C558

C552

C306

C412

C410

C217

C821 C805 C803

R801

C123

R827 R804 R826

C302

C419

Q201

R213

R368

R369

R822

R823

R819

C827

R828

Q801Q802Q803

C830

FB805

FB806

C305

R214

MAIN Unit (Side-B)

87109654321

R1243

R1224

R1225

LC-20SH1E

1123

109

557

D1104

R1105

R1107

R1110

D701

C1112

FB***

803

801

809

105

106

R1121

C1117

Q1106

Q101

R1122

C1107

C1106

R133

R1215 R1216

D703

C725

Q1202

R1222 D1202

R134

R164

Q102

R116

Q104

R1208

Q1206

R120

Q103

FB1201

Q1201

441 1

R132

R131

R117

R118

R119

C554

R810

C815

R803

C812

C119

R808

C814

C1214C1215

D1205D1206

C808

Q1203

D1201

R1230 C1213

C809

C813

C101

C811

C2205

R101

R102

C807

C2204

D1204

R1228

FB807

R809

IC801

D1203

Q1204 Q1205

SF201

Q201

R213

Q204

R214

107 109 108

Q203

SF203

C162

C161

Q205

C203

C163

D206

D202

R223

R367

D205

R365

R811

FB201

R208

C213

R813

R814

D203

TU201

R209

R210

1716 1918151413121110

LC-20SH1E

TL150

TL149

TL148

TL151

TL147

R706

R110

Q106

R705

TL1209

TL1203

TL1206

TL1

TL1205

TL1208

TL1202

R1124

C1118

R1127

R1128

R1123

R1112

R1114

R1113

TL1201

R1125

R1103

TL1204

R1126

Q1106

TL1207

TL1

C765

C761

C1116

Q1105

D207

R213

R1110

FB803

FB801

FB809

FB105

FB106

FB107

FB109

FB108

R802

C802

C231

Q204

C234

C235

R222

R214

C1112

R233

D1104

C12

R231

Q203

C1109

Q1102

D704

R207

TL106TL107

TL105

R212

R216

D208

Q201

Q1103

R203

TL104

TL103

R1105

R1107

D701

C557

C548

C550

C113

C116

C118

C122

TL102

R111

FB401

TL114

R714

R722

R715

FB101

FB102

FB103

FB104

C104

C102

C107

C110

R106

C417

C416

C415

R423

C105

C103

R807

R805

R806

C806

C810

R217

C408

C419

Q202

C369

C368

C418

R368

R369

R370

R371

TL109TL110

TL112

TL108

TL111

TL113

TL158 TL159

R769

R105

R215

D204

D201

R202

R206

R204 R205

TL152TL154

R707

TL135

TL133

TL134

R831

R834

R835

R836

R833

TL137

TL139

TL141

TL143

TL160

TL146

R832

C511

FB532

R575

R576

R573

R574

R571

R570

R140

R135

FB531

C510

FB507

R544

FB533

R709

C581

C576

C571

TL136

TL138

TL140

TL142

TL144

TL145

FB502

FB504

FB501

C504

C580

C582

C579

C575

C578

C574

C570

C514

R712

C519

Q803

R822

Q802

Q801

R139

FB151

C520

C151

C721

R145

FB508

R824

R823

R151

R136

C518

R820R821

R819

R137

R577

C522

C507

C506

R152

C832

R830

C829

C828

C827

C517

C515

R2230

R553

R549

R550

R551

R552

C831

R829

R828

R2231

R554

C536

FB535

C723

C819

C830

R717

R112

C817

C818

FB806

R559

R557

C332

TL240

C128

R104

R548

R558

C331

R817

C823

FB805

R108

C547

R825

R816

R815

TL161

R125

R126

C505

R716

C558

C306

R303

TL157

R113

R107

C409

R302

C305

C109

FB804

FB802

C552

C411

C412

C414

TL118

C106

C711

C410

C413

C218

TL117

R109

R129

R127

C821

C805

C803

R801

C123

R827

R804

R826

C302

C217

FB204

C421

TL116

TL115

MAIN Unit (Chip Parts Side-B)

87109654321

LC-20SH1E

TL1215

TL1203

TL1209

TL1218

TL1212

TL1206

TL1217

TL1211

TL1205

TL1202

C1118

TL1201

R1113

R1125

R1110

TL1204

R1103

Q1106

TL1207

R1126

D1104

C1112

R1127

R1128

R1123

R1112

R1114

1109

R1105

R1107

103

D701

TL1208

TL1210

C765

TL1214

TL1213

R1121

C1117

C1106

TL1216

TL1220

TL1219

C1107

R1243

R1122

D703

C725

R133

R134

R1215

R1216

R1217

R1222

D1202

TL171

TL170

TL177

TL178

TL1221

C1215

C1204

TL172

TL179

TL1223

TL1225

TL1222

TL1224

Q1206

TL183

TL184

TL187

TL186

TL1226

TL1227

C1205

R1212

R1213

C1206

TL173

TL188

TL1229

TL1231

TL1228

TL1230

R1208

TL174

TL185

TL180

TL181

TL1232

TL1235

TL1234

TL1233

Q1202

R1221

R1223

TL176

TL175

TL182

TL189

TL1238

TL1237

TL1236

FB1201

Q1201

TL1241

TL1240

TL1239

TL1242

R1220

C1202

R132

R131

TL1243

C1210

R1201

R1202

D1206

TL1244

TL1247

TL1246

TL1245

Q1203

R1229

TL1250

TL1249

TL1248

R1219

R1203

R1204

TL1253

TL1252

TL1251

R1230

C1213

TL1256

TL1255

TL1257

TL1254

C1214

R1233

TL1259

TL1258

R1241

D1205

TL1262

TL1261

TL1263

TL1260

D1201

TL1265

TL1267

TL1264

TL1266

C101

TL1268

TL1270

TL1269

C2205

R102

R2224

R2225

R2226

R2228

R2227

R101

C2204

FB807

R1225

D1204

C2202

TL1300

TL1297

TL1294

TL1291

TL1288

TL1285

TL1282

TL1279

TL1276

TL1273

R1224

D1203

Q1204

R1226

R1227

Q1205

R1228

TL1299

TL1293

TL1287

TL1281

TL1275

TL1296

TL1290

TL1284

TL1278

TL1272

TL1298

TL1295

TL1292

TL1289

TL1286

TL1283

TL1280

TL1277

TL1274

TL1271

L103

C557

C548

C550

C113

C116

C118

C122

TL102

D207

R213

FB803

FB801

FB809

FB105

FB106

FB107

FB109

FB108

R802

C802

C231

Q204

C234

C235

R222

R214

R233

C121

R231

Q203

C232

R114

R232

R234

TL119

R115

R235

TL120

Q101

C233

TL122

TL155 TL156TL159

Q102 Q103Q104

R116

R120

C554

R237

C208

R236

C358

R224

R364

C162

TL153

TL125

C161

TL123 TL124

R164

TL126

R118

C362

R366

TL127

C203

Q205

R363

C163

TL128

R117

TL129

R119

C361

TL121

R211

TL130

C119

R362

C360

D202

C359

R367

C363

R365

R223

D206

D205

FB201

R811

C808

C815

R208

C213

R812

C813

R810

R813

C809

C812

IC801

R218

C811

R803

C807

R808

D203

C814

R814

R809

R209

R210

1716 1918151413121110

LC-20SH1E

R3605

P3601

HM6708

FB7704

C6704

P6700

1213

H.V.CAUTION

HM6707

T6704

P6701

P6702

P6703

HM6706

1213

H.V.CAUTION

HM6705

HM6704

1213

H.V.CAUTION

HM6703

HM6702

1213

HM6701

HOT

FH7701

F7701

903

309

C7747

C6700

305

414

T6703

C6724

311

C6716

308

106

302

R6736

904

C6705

T6702

107

T6701

C6706

804

R6739

306

COLD

R6741

FH7702

202

116

113

304

R6714

316

201

412

802

R6712

R6713

R6700

R6738

801

C6718

L6703

HM7003

HM7002

DUNTKC857WE

803

403

108

F6700

T1.6A L 250V

C6709

L6701

L6700

301

F6702

R6715

L6702

319

R7707

R7709

103

805

806

C7725

C7727

C7717

T1.6A L 250V

RDA7702

C7716

T7701

C7706

R7701 230

HM7004

HM7005HM7006

HM7701

315

L7704

D7713

T3.15AL

P7722

CN7701

VA7701

C7701

102

L7701 L7702

C7702

R7722

R7702

R7708

235

FB7703

HM7009

416

Q7711

402

HM7010

(QKITPC857WJN4)

D3605

D3604

R7745

C7741

C7723

D7716

C7724

Q7704

233

D7704

C7732

L7703

R7756

121

R7757

D7703

D7714

C7704

C7710

C7714

415

D7701

413

C7731

R7729

C7708

R7742

317

R7732

C7728

C7733

C7720

122

123

D7707

C7703

QPWBFC857WJN4

R7746

Q7703

C7737

D7721 D7723

D7722

R7755

115

C7742

901

Q7708

R7739

D7717

114

HM7008

D7706

D7705

323

C7721

D7718

HM7007

111

C7736

206

C7743

R7717

R7716

IC7705 3

C7738

D7731

205

C7744

R7705

212

D7730

HM7011

C7707

C7713

R7712

324

D7732

IC7706

331

C7719

IC7704

IC7702

R7748

401

R7706

D7711

C7709

D7725

R7747

211

P7701

115

HM7012

D7715

313

C7722

FB7

231

87109654321

IC7705

C7738

LC-20SH1E

D7731

P7701

205

C7744

R7705

D7732

212

D7730

HM7011

C7707

C7713

R7712

324

IC7706

331

R7706

C7709

D7725

211

401

D7711

R7747

115

C7719

HM7012

D7715

IC7704

IC7702

R7748

313

C7722

FB7701

231

IC7703

D7709

D7710

C7740

D7708

R7749

C7711

C7739

R7718

R7727

320

R7737

R7703

R7704

307

SUB Unit (Wiring Side)

R7713

R7710

FB7702

C7746

209

C7715

332

Q7701

R7714

C7712

D7729

RDA7701

HOT

C7705

C7745

HM3302

R3302

333

HM3301

321

C3305

COLD

R3325

109

SC3601

P3902

C3906

208

328

303

322

C3905

D3301

P3901

C3918

115

R3940

R3913

D5001

P3301

R3941

104

325

C3910

105

C3320

314

101

C3911

J3901

C3904

R3327

D3913

D3912

D3908

207

D3911

L3301

D3914 D3915

R3326

J3701

SC3901

C3319

123

C3907

D3903

R3939

D5000

C3901

C3313

C3314

330

R3321

411

203

C3317

204

410

J5001

C3309

C3308

L3302

D5002

C3306

326

327

C3318

J5000

IC3301

1716 1918151413121110

LC-20SH1E

R6710

C6719

Q6700

R6709

Q6701

C6710

D6715

Q6706

R6708

R6728

C6701

C6711

R6702

C6707

C6708

C6714

C6717

C6702

R6711

D6716

C6703

R6703

C6712

R6701

D6701

D6705

R6716

Q3600

R3607

C3605

C3604

R3608

Q3601

Q7714

R7744

R7711

Q7712

R7726

R7738

Q7706

R7741

Q7710

Q7707

Q7713

R7743

R7735

RJ4

R7733

RJ1

R7740

Q6702

R7730

R6743

RJ2

R6704

C6715

Q6709

R6717

C6713

D6703

Q6708

C6720

R6724

Q6707

C6723

D6707

Q6713

R6725

R6726

R6727

RJ3

R7719 R7720

D6712

R6722

D6710

R6723

C6722

87109654321

LC-20SH1E

RJ4

R7733

RJ1

R7719

R7720

SUB Unit (Chip Parts Side)

Q7702

D3901

R7715

Q3305

R3307

D3300

R3306

R3313

C3329

C3330

C3307

C3310

C3331

C3332

Q3300

R3322

R3316

R3311

R3917

R3328

R3312

R3304

R3317

R3904

R3324

R3902

R3315

R3323

R3912

Q3903

R3910

R3908

Q3905

Q3901

R3907

C3909

R5012

C3912

Q3904

R3922

R3934

R3935

R3937

C3914

Q3908

D3916

Q3909

R3928

R3942

R3938

R5009

R5000

R3915

R3916

R5015

R5017

R5008

R5010

C5002

C5001

R5016

RJ5

C3326

R5005

R5014

C3903

R3914

R5001

C3902

C3325

C3917

R3924

R3906

R3920

R3931

R3930

C3328

Q3906

R3925

R3926

R3909

R3936

R3921

R3905

Q3902

C3916

C3322

R3918

Q3907

C3323

R3911

R3929

C3327

C3913

R3933

R3927

C3324

R3919

C3908

C3321

R3923

D3917

C3915

1716 1918151413121110

LC-20SH1E

INVERTER Unit (Wiring Side)

INVERTER Unit (Chip Parts Side)

87109654321

LC-20SH1E

1716 1918151413121110

LC-20SH1E

CH DOWN

SW4202

SW4203

OPERATION Unit (Wiring Side)

R4201

R4203

QPWBFC858WJN4

D4203

VOL +VOL -

SW4206SW4207

R4204

MENUCH UP

SW4205

INPUT

SW4204

D4202

DUNTKC858WE

R4202

S4201

POWER

(QKITPC857WJN4)

R4205

D4201

SC4201

OPERATION Unit (Chip Parts Side)

QPWBFC859WJN4

396

390

D4002

D4006

391

OPC

D4007

394

R/C

D4005

RMC4001

C4001

D4008

392

393

C4002

(QKITPC857WJN4)

SC4001

POWEROPC D4001

C4003

D4004

DUNTKC859WE

R/C, LED Unit (Wiring Side)

Q4001

R4007

R4005

Q4003

Q4004

R4006

R4010

C4004

R4001

R4002

R4003

R4009

Q4002

Q4005

R/C, LED Unit (Chip Parts Side)

654321

LC-20SH1E

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

PARTS LIST

PARTS REPLACEMENT

Replacement parts which have these special safety characteristics identified in this manual; electrical components having such features are identified by and Schematic Diagrams. The use of a substitute replacement part which does no have the same safety characteristic as the factory recommended replacement parts shown in this service manual may create shock, fire or other hazards.

"HOW TO ORDER REPLACEMENT PARTS"

To have your order filled promptly and correctly, please furnish the following informations.

1. MODEL NUMBER 2. REF. NO.

3. PART NO. 4. DESCRIPTION

Ref. No. Part No. ★ Description Code

PRINTED WIRING BOARD ASSEMBLIES

NOTE: THE PARTS HERE SHOWN ARE SUPPLIED AS AN

ASSEMBLY BUT NOT INDEPENDENTLY.

Q6700 VS2SC5886A+-1Y J 2SC5886A AD Q6701 VS2SC5886A+-1Y J 2SC5886A AD Q6702 VS2SA1530AR-1Y J 2SA1530AR AB Q6703 VS2SC5886A+-1Y J 2SC5886A AD Q6704 VS2SC5886A+-1Y J 2SC5886A AD Q6705 VS2SA1530AR-1Y J 2SA1530AR AB Q6706 VSUPA606T//-1Y J UPA606T AD Q6707 VS2SC5886A+-1Y J 2SC5886A AD Q6708 VS2SC5886A+-1Y J 2SC5886A AD Q6709 VS2SA1530AR-1Y J 2SA1530AR AB Q6710 VS2SC5886A+-1Y J 2SC5886A AD Q6711 VS2SC5886A+-1Y J 2SC5886A AD Q6712 VS2SA1530AR-1Y J 2SA1530AR AB Q6713 VSUPA606T//-1Y J UPA606T AD Q6714 VS2SC5886A+-1Y J 2SC5886A AD Q6715 VS2SC5886A+-1Y J 2SC5886A AD Q6716 VS2SA1530AR-1Y J 2SA1530AR AB Q6717 VSUPA606T//-1Y J UPA606T AD

D6700 VHDDAN202K/-1Y J Diode AB D6701 VHDDAN202K/-1Y J Diode AB

å and shaded areas in the Replacement Parts Lists

★ MARK: SPARE PARTS-DELIVERY SECTION

(NOT REPLACEMENT ITEM)

DUNTKC856FM01 – INVERTER Unit — DUNTKC857WE04 – SUB Unit — DUNTKC858WE04 – OPERATION Unit — DUNTKC859WE04 – R/C, LED Unit — DUNTKC860FM03 – MAIN Unit —

LCD PANEL

RLCDTA025WJZZ J 20" LCD Panel Unit DB

DUNTKC856FM01

INVERTER UNIT

TRANSISTORS

DIODES

D6702 VHDMA157A//-1Y J Diode AC D6703 VHDMA157A//-1Y J Diode AC D6704 VHDDAN202K/-1Y J Diode AB D6705 VHDDAN202K/-1Y J Diode AB D6707 VHDMA157A//-1Y J Diode AC D6708 VHDMA157A//-1Y J Diode AC D6709 VHDDAN202K/-1Y J Diode AB D6710 VHDMA157A//-1Y J Diode AC D6711 VHDDAN202K/-1Y J Diode AB

COILS

L6700 RCiLPA373WJZZ J Coil AC L6701 RCiLPA373WJZZ J Coil AC L6702 RCiLPA373WJZZ J Coil AC L6703 RCiLPA373WJZZ J Coil AC L6704 RCiLPA373WJZZ J Coil AC

TRANSFORMERS

T6700 RTRNZA075WJZZ S Transformer T6701 RTRNZA075WJZZ S Transformer T6702 RTRNZA075WJZZ S Transformer T6703 RTRNZA075WJZZ S Transformer T6704 RTRNZA075WJZZ S Transformer

CAPACITORS

C6700 RC-FZA116WJZZ S 0.27 250V Film C6703 VCKYCY1CB683KY J 0.068 16V Ceramic AC C6704 RC-EZA465WJZZ J 1000 16V Electrolytic AE C6705 RC-FZA116WJZZ S 0.27 250V Film C6708 VCKYCY1CB683KY J 0.068 16V Ceramic AC C6709 RC-EZA465WJZZ J 1000 16V Electrolytic AE C6710 RC-KZ0072TAZZY J 1 25V Ceramic AC C6711 RC-KZ0072TAZZY J 1 25V Ceramic AC C6712 RC-FZA116WJZZ S 0.27 250V Film C6715 VCKYCY1CB683KY J 0.068 16V Ceramic AC C6716 RC-EZA465WJZZ J 1000 16V Electrolytic AE C6717 RC-FZA116WJZZ J 0.27 250V Film C6720 VCKYCY1CB333KY J 0.033 16V Ceramic AA C6721 RC-EZA465WJZZ J 1000 16V Electrolytic AE C6722 RC-KZ0072TAZZY J 1 25V Ceramic AC C6723 RC-KZ0072TAZZY J 1 25V Ceramic AC C6724 RC-FZA116WJZZ S 0.27 250V Film C6727 VCKYCY1CB333KY J 0.033 16V Ceramic AA C6728 RC-EZA465WJZZ J 1000 16V Electrolytic AE C6729 RC-KZ0072TAZZY J 1 25V Ceramic AC

RESISTORS

R6700 VRD-RA2EE182JY J 1.8k 1/4W Carbon AA R6701 VRS-TW2ED122JY J 1.2k 1/4W Metal Oxide AA R6702 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R6703 VRD-RA2BE333JY J 33k 1/8W Carbon AA R6704 VRD-RA2EE182JY J 1.8k 1/4W Carbon AA R6705 VRS-TW2ED122JY J 1.2k 1/4W Metal Oxide AA R6706 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R6707 VRS-CY1JF333JY J 33k 1/16W Metal Oxide AA R6708 VRS-CY1JF471JY J 470 1/16W Metal Oxide AA R6709 VRS-CY1JF824JY J 820k 1/16W Metal Oxide AA R6710 VRS-CY1JF471JY J 470 1/16W Metal Oxide AA R6711 VRS-CY1JF824JY J 820k 1/16W Metal Oxide AA R6712 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA R6713 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA R6714 VRD-RA2EE182JY J 1.8k 1/4W Carbon AA R6715 VRS-TW2ED122JY J 1.2k 1/4W Metal Oxide AA R6716 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R6717 VRS-CY1JF333JY J 33k 1/16W Metal Oxide AA R6718 VRD-RA2EE182JY J 1.8k 1/4W Carbon AA R6719 VRS-TW2ED122JY J 1.2k 1/4W Metal Oxide AA R6720 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R6721 VRS-CY1JF333JY J 33k 1/16W Metal Oxide AA R6722 VRS-CY1JF471JY J 470 1/16W Metal Oxide AA R6723 VRS-CY1JF824JY J 820k 1/16W Metal Oxide AA R6724 VRS-CY1JF471JY J 470 1/16W Metal Oxide AA R6725 VRS-CY1JF824JY J 820k 1/16W Metal Oxide AA R6726 VRD-RA2BE562JY J 5.6k 1/8W Carbon AA R6727 VRD-RA2BE562JY J 5.6k 1/8W Carbon AA

LC-20SH1E

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKC856FM01

INVERTER UNIT (Continued)

R6728 VRD-RA2EE182JY J 1.8k 1/4W Carbon AA R6729 VRS-TW2ED122JY J 1.2k 1/4W Metal Oxide AA R6730 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R6731 VRS-CY1JF333JY J 33k 1/16W Metal Oxide AA R6732 VRS-CY1JF471JY J 470 1/16W Metal Oxide AA R6733 VRS-CY1JF824JY J 820k 1/16W Metal Oxide AA R6734 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA R6743 VRS-CY1JF563JY J 56k 1/16W Metal Oxide AA R6744 VRS-TW2ED561JY J 560 1/4W Metal Oxide AA R6745 VRS-TW2ED561JY J 560 1/4W Metal Oxide AA R6746 VRS-TW2ED561JY J 560 1/4W Metal Oxide AA R6747 VRS-TW2ED561JY J 560 1/4W Metal Oxide AA R6748 VRS-TW2ED561JY J 560 1/4W Metal Oxide AA

MISCELLANEOUS PARTS

å F6700 QFS-ZA002WJZZ J Fuse, 1.25A/250V AD å F6701 QFS-ZA002WJZZ J Fuse, 1.25A/250V AD å F6702 QFS-ZA002WJZZ J Fuse, 1.25A/250V AD å F6703 QFS-ZA002WJZZ J Fuse, 1.25A/250V AD å F6704 QFS-ZA002WJZZ J Fuse, 1.25A/250V AD

P6700 QPLGNA391WJZZ J Plug, 2-pin AD P6701 QPLGNA391WJZZ J Plug, 2-pin AD P6702 QPLGNA391WJZZ J Plug, 2-pin AD P6703 QPLGNA391WJZZ J Plug, 2-pin AD P6704 QPLGNA391WJZZ J Plug, 2-pin AD SC6701 QSOCZ1338CEZZ J Socket, 13-pin AD

DUNTKC857WE04

SUB UNIT

INTEGRATED CIRCUITS

IC3301 VHiAN17821A-1 J AN17821A AH IC7701 VHiSTRW67652E J I.C. AL

å IC7702 RH-FXA003WJZZ J PC123Y82 AD å IC7703 RH-FXA003WJZZ J PC123Y82 AD

IC7704 VHiSE005N++-F S I.C. AF IC7705 VHiKA7809AP-1 J KIA7809API AE IC7706 VHiPQ050ES1-1+ J PQ050ES1MXP AE

TRANSISTORS

Q3305 VS2SC3928AR-1Y J 2SC3928AR AB Q3600 VSKRC102S//-1Y J KRC102S AA Q3601 VSKRC102S//-1Y J KRC102S AA Q3901 VS2SA1530AR-1Y J 2SA1530AR AB Q3902 VS2SA1530AR-1Y J 2SA1530AR AB Q3903 VS2SC3928AR-1Y J 2SC3928AR AB Q3904 VS2SD1306-E-1Y J 2SD1306-E AC Q3905 VS2SD1306-E-1Y J 2SD1306-E AC Q3906 VS2SD1306-E-1Y J 2SD1306-E AC Q3907 VS2SD1306-E-1Y J 2SD1306-E AC Q3908 VS2SA1530AR-1Y J 2SA1530AR AB Q3909 VS2SC3928AR-1Y J 2SC3928AR AB Q7701 VS2SA1013//1E+ J 2SA1013 AD Q7702 VSKRC104S//-1Y J KRC104S AA Q7703 VS2SB1443TV1E+ J 2SB1443TV AE Q7704 VS2SB1443TV1E+ J 2SB1443TV AE Q7706 VSKRC101S//-1Y S KRC101S AA Q7707 VSKRC104S//-1Y J KRC104S AA Q7708 VS2SC2235Y/1E+ J 2SC2235Y AE Q7710 VSKRA102S//-1Y J KRA102S AA Q7711 VS2SB1443TV1E+ J 2SB1443TV AE Q7712 VSKRC104S//-1Y J KRC104S AA Q7713 VS2SA1530AR-1Y J 2SA1530AR AB Q7714 VSKRC102S//-1Y J KRA102S AA

D3300 VHDDAN202K/-1Y J Diode AB

DIODES

D3604 RH-EX0652GEZZY J Zener Diode, 18V AB D3605 RH-EX0652GEZZY J Zener Diode, 18V AB D3901 VHDDAN202K/-1Y J Diode AB D3903 VHD1SS119//-1Y J Diode AA D3908 RH-EX0630GEZZY J Zener Diode, 9.1V AA D3911 RH-EX0630GEZZY J Zener Diode, 9.1V AA D3912 RH-EX0630GEZZY J Zener Diode, 9.1V AA D3913 RH-EX0630GEZZY J Zener Diode, 9.1V AA D3914 RH-EX0630GEZZY J Zener Diode, 9.1V AA D3915 RH-EX0630GEZZY J Zener Diode, 9.1V AA D3916 RH-EX0612GEZZY J Zener Diode AB D3917 RH-EX1244CEZZY J Zener Diode AB D5000 RH-EX0630GEZZY J Zener Diode, 9.1V AA D5001 RH-EX0630GEZZY J Zener Diode, 9.1V AA D5002 RH-EX0630GEZZY J Zener Diode, 9.1V AA D7701 RH-DX0476CEZZ J Diode AG D7703 VHDSF30JC6+1E S Diode AG D7705 RH-DX0490CEZZY J Diode AC D7706 RH-DX0490CEZZY J Diode AC D7707 RH-DX0321CEZZY J Diode AC D7708 RH-DX0066GEZZY J Diode AC D7709 VHD1SS244//-1Y J Diode AB D7710 VHD1SS244//-1Y J Diode AB D7711 VHD1SS244//-1Y J Diode AB D7713 VHDSF30JC6+1E S Diode AG D7714 RH-DXA059WJZZ S Diode AD D7715 RH-DX0461CEZZ J Diode AG D7716 VHD10ELS4//-1Y J Diode AD D7717 VHD10ELS4//-1Y J Diode AD D7718 RH-DXA059WJZZ S Diode AD D7721 VHD1SS119//-1Y J Diode AA D7722 VHD1SS119//-1Y J Diode AA D7723 VHD1SS119//-1Y J Diode AA D7725 RH-EX0618GEZZY J Zener Diode, 6.2V AB

LC-20SH1E

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKC857WE04

SUB UNIT (Continued)

D7729 RH-EX0640GEZZY J Zener Diode AA D7731 VHD1SS119//-1Y J Diode AA D7732 VHD1SS119//-1Y J Diode AA

å VA7701 RH-VXA022WJZZ J Varistor AD

COILS

L3301 VP-CF3R3K0000Y J Peaking 3.3µH AC L3302 VP-CF3R3K0000Y J Peaking 3.3µH AC

å L7701 RCiLFA161WJZZ S Coil AD å L7702 RCiLFA162WJZZ S Coil AD

L7703 RCiLP0175CEZZ+ J Coil AD L7704 RCiLPA308WJZZ S Coil AD

TRANSFORMER

å T7701 RTRNWA152WJZZ S Transformer AL

CAPACITORS

C3305 VCEA0A1CW108M+ J 1000 16V Electrolytic AD C3306 VCEAEA1CW106M+ J 10 16V Electrolytic AB C3307 VCKYCY1HB102KY J 1000p 50V Ceramic AA C3308 VCEAEA1HW105M+ J 1 50V Electrolytic AB C3309 VCEAEA1HW105M+ J 1 50V Electrolytic AB C3310 VCKYCY1HB102KY J 1000p 50V Ceramic AA C3313 VCEAEA1HW225M+ J 2.2 50V Electrolytic AB C3314 VCEAEA1HW225M+ J 2.2 50V Electrolytic AB C3317 VCEAEA1HW225M+ J 2.2 50V Electrolytic AB C3318 VCEAEA1CW106M+ J 10 16V Electrolytic AB C3319 VCEAEA1CW476M+ J 47 16V Electrolytic AB C3320 VCEAEA1CW476M+ J 47 16V Electrolytic AB C3321 VCKYCY1HB102KY J 1000p 50V Ceramic AA C3322 VCKYCY1HB102KY J 1000p 50V Ceramic AA C3323 VCKYCY1HB102KY J 1000p 50V Ceramic AA C3324 VCKYCY1HB102KY J 1000p 50V Ceramic AA C3325 VCKYCY1CF104ZY J 0.1 16V Ceramic AA C3326 VCKYCY1CF104ZY J 0.1 16V Ceramic AA C3327 VCCCCY1HH221JY J 220p 50V Ceramic AA C3328 VCCCCY1HH221JY J 220p 50V Ceramic AA C3604 VCKYCY1HB332KY J 3300p 50V Ceramic AA C3605 VCKYCY1HB332KY J 3300p 50V Ceramic AA C3901 VCEAEA0JW107M+ J 100 6.3V Electrolytic AB C3902 VCCCCY1HH101JY J 100p 50V Ceramic AA C3903 VCCCCY1HH101JY J 100p 50V Ceramic AA C3904 VCEAEA1CW476M+ J 47 16V Electrolytic AB C3905 VCEAEA1CW106M+ J 10 16V Electrolytic AB C3906 VCEAEA1CW106M+ J 10 16V Electrolytic AB C3907 VCEAEA0JW476M+ J 47 6.3V Electrolytic AB C3908 VCCCCY1HH101JY J 100p 50V Ceramic AA C3909 VCCCCY1HH331JY J 330p 50V Ceramic AA C3910 VCEAEA1CW106M+ J 10 16V Electrolytic AB C3911 VCEAEA1CW106M+ J 10 16V Electrolytic AB C3912 VCCCCY1HH331JY J 330p 50V Ceramic AA C3913 VCCCCY1HH101JY J 100p 50V Ceramic AA C3914 VCCCCY1HH221JY J 220p 50V Ceramic AA C3915 VCCCCY1HH101JY J 100p 50V Ceramic AA C3916 VCCCCY1HH101JY J 100p 50V Ceramic AA C3917 VCCCCY1HH221JY J 220p 50V Ceramic AA C3918 VCEAEA1CW106M+ J 10 16V Electrolytic AB C5001 VCCCCY1HH101JY J 100p 50V Ceramic AA C5002 VCCCCY1HH101JY J 100p 50V Ceramic AA

å C7701 RC-FZA022WJZZ J 0.22 275V Film AD å C7702 RC-FZA022WJZZ J 0.22 275V Film AD

C7703 RC-EZA556WJZZ J 150 400V Electrolytic AN C7704 RC-FZA180WJZZ S 0.1 580V Film AC C7705 RC-KZA305WJZZ S 560p 2kV Ceramic AB

å C7706 RC-KZ0105GEZZ J 2200p 250V Ceramic AD å C7707 RC-KZ0103GEZZ J 1000p 250V Ceramic AD

C7708 VCEA4A1CN226M+ S 22 16V Electrolytic AB C7709 VCQYTA1HM152J+ J 1500p 50V Mylar AA C7711 VCKYPA1HB471K+ J 470p 50V Ceramic AA C7712 VCEA4A1VN476M+ S 47 35V Electrolytic AB C7713 VCEA4A1VN106M+ S 10 35V Electrolytic AB

C7715 VCQYTA1HM104J+ J 0.1 50V Mylar AB C7720 RC-EZA155WJZZ J 2200 10V Electrolytic AE C7721 RC-EZA168WJZZ+ S 220 25V Electrolytic AB C7722 RC-EZA172WJZZ J 1000 25V Electrolytic AE C7723 RC-EZA184WJZZ+ J 100 50V Electrolytic AD C7724 VCEA4A1AN108M J 1000 10V Electrolytic AD C7725 RC-EZA173WJZZ J 1500 25V Electrolytic AF C7727 RC-EZA173WJZZ J 1500 25V Electrolytic AF C7728 RC-EZA153WJZZ+ J 470 10V Electrolytic AD C7729 RC-EZA172WJZZ J 1000 25V Electrolytic AE C7731 VCEA4A1CN226M+ S 22 16V Electrolytic AB C7732 VCEA4A1AN227M+ J 220 10V Electrolytic AC C7733 VCEA4A1CN226M+ S 22 16V Electrolytic AB C7736 VCEA0A1HW227M+ J 220 50V Electrolytic AB C7737 VCEA4A1CN107M+ J 100 16V Electrolytic AB C7738 VCEA4A1CN107M+ J 100 16V Electrolytic AB C7739 VCEA4A1HN225M+ J 2.2 50V Electrolytic AC C7740 VCQYTA1HM104J+ J 0.1 50V Mylar AB C7741 VCEA0A1EW227M+ J 220 25V Electrolytic AB C7742 VCEA0A1AW227M+ J 220 10V Electrolytic AB C7743 VCEA4A1CN106M+ J 10 16V Electrolytic AC C7744 VCEA4A1CN106M+ J 10 16V Electrolytic AC C7747 RC-EZA173WJZZ J 1500 25V Electrolytic AF

RESISTORS

RJ1 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA RJ2 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA RJ3 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA RJ5 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R3302 VRN-VV3DB1R0J J 1 2W Metal Film AB R3304 VRS-CY1JF153JY J 15k 1/16W Metal Oxide AA R3311 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R3312 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R3315 VRS-CY1JF681JY J 680 1/16W Metal Oxide AA R3316 VRS-CY1JF681JY J 680 1/16W Metal Oxide AA R3317 VRS-CY1JF124JY J 120k 1/16W Metal Oxide AA R3321 VRD-RA2BE272JY J 2.7k 1/8W Carbon AA R3322 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R3323 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R3324 VRS-CY1JF124JY J 120k 1/16W Metal Oxide AA R3325 VRD-RA2BE683JY J 68k 1/8W Carbon AA R3326 VRD-RM2HD151JY J 150 1/2W Carbon AA R3327 VRD-RM2HD151JY J 150 1/2W Carbon AA R3607 VRS-CY1JF153JY J 15k 1/16W Metal Oxide AA R3608 VRS-CY1JF153JY J 15k 1/16W Metal Oxide AA R3902 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R3904 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R3905 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R3906 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R3907 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R3908 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R3909 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R3910 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R3911 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R3912 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R3913 VRD-RA2BE271JY J 270 1/8W Carbon AA R3914 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R3915 VRS-CY1JF271JY J 270 1/16W Metal Oxide AA R3916 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R3917 VRS-CY1JF823JY J 82k 1/16W Metal Oxide AA R3918 VRS-CY1JF271JY J 270 1/16W Metal Oxide AA R3919 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R3920 VRS-CY1JF271JY J 270 1/16W Metal Oxide AA R3921 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R3922 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R3923 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R3924 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R3925 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R3926 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R3927 VRS-CY1JF750JY J 75 1/16W Metal Oxide AA R3928 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R3929 VRS-CY1JF750JY J 75 1/16W Metal Oxide AA R3930 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R3931 VRS-CY1JF750JY J 75 1/16W Metal Oxide AA R3933 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA

LC-20SH1E

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKC857WE04

SUB UNIT (Continued)

R3934 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R3935 VRS-CY1JF750JY J 75 1/16W Metal Oxide AA R3936 VRS-CY1JF750JY J 75 1/16W Metal Oxide AA R3937 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R3938 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R3939 VRD-RA2BE220JY J 22 1/8W Carbon AA R3940 VRD-RA2BE102JY J 1k 1/8W Carbon AA R3941 VRD-RA2BE750JY J 75 1/8W Carbon AA R3942 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R5000 VRS-CY1JF750JY J 75 1/16W Metal Oxide AA R5001 VRS-CY1JF750JY J 75 1/16W Metal Oxide AA R5005 VRS-CY1JF750JY J 75 1/16W Metal Oxide AA R5008 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R5009 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R5010 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R5012 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R5014 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R5015 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R5016 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R5017 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA

å R7702 RR-HZ0014GEZZY J 12M 1W

R7703 VRN-VV3AB1R0J J 1 1W Metal Film AA R7704 VRN-VV3ABR82J J 0.82 1W Metal Film AA R7705 RR-DZA030WJZZ S 330k 2W

R7706 VRD-RM2HD220JY J 22 1/2W Carbon AA R7707 RR-DZA033WJZZ J 180k 3W

R7708 RR-DZA033WJZZ J 180k 3W

R7709 VRW-KP3HC3R3K J 3.3 5W Cement AC R7710 VRD-RM2HD102JY J 1k 1/2W Carbon AA R7711 VRS-CY1JF222JY J 2.2k 1/16W Metal Oxide AA R7712 VRD-RM2HD220JY J 22 1/2W Carbon AA R7713 VRD-RA2BE562JY J 5.6k 1/8W Carbon AA R7714 VRD-RA2BE102JY J 1k 1/8W Carbon AA R7715 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R7716 VRN-VV3ABR22J J 0.22 1W Metal Film AA R7717 VRN-SV2HC1R0J J 1 1/2W Metal Film AA R7718 VRD-RM2HD221JY J 220 1/2W Carbon AA R7719 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R7720 VRS-CY1JF271JY J 270 1/16W Metal Oxide AA R7721 VRD-RA2BE102JY J 1k 1/8W Carbon AA R7722 VRN-SV2HC1R0J J 1 1/2W Metal Film AA R7726 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R7727 VRN-RA2BK221FY S 220 1/8W Metal Film AA R7729 VRD-RA2BE222JY J 2.2k 1/8W Carbon AA R7730 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R7732 VRD-RM2HD221JY J 220 1/2W Carbon AA R7733 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R7735 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R7737 VRD-RA2BE102JY J 1K 1/8W Carbon AA R7738 VRS-CY1JF563JY J 56k 1/16W Metal Oxide AA R7739 VRD-RM2HD222JY J 2.2k 1/2W Carbon AA R7740 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R7741 VRS-CY1JF182JY J 1.8k 1/16W Metal Oxide AA R7742 VRD-RA2BE223JY J 22k 1/8W Carbon AA R7743 VRS-CY1JF563JY J 56k 1/16W Metal Oxide AA R7744 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R7745 VRD-RA2EE102JY J 1k 1/4W Carbon AA R7746 VRS-VV3AB560J J 56 1W Metal Oxide AA R7747 VRD-RA2BE101JY J 100 1/8W Carbon AA R7748 VRD-RA2BE102JY J 1k 1/8W Carbon AA R7749 VRD-RA2BE102JY J 1k 1/8W Carbon AA

Coat-insulated fixed anti-surge

Spesial Carbon Film

Spesial Carbon Film Spesial Carbon Film

FB7704 RBLN-0090GEZZY J Ferrite Bead AB J3701 QJAKJ0101SEZZ J Jack, Headphone AE J3901 QJAKFA031WJZZ J Jack, Audio Out (L/R) AE J5000 QSOCD0439CEZZ J Socket S-Video AF J5001 QJAKGA067WJZZ J Jack, Audio (L/R)/Video AE P3301 QPLGN0442CEZZ J Plug, 4-pin (TS) AB P3601 QPLGZ1338CEZZ J Plug, 13-pin (MF) AE P3901 QCNCMA012WJZZ J Plug, 15-pin (MB) AD P3902 QCNCMA250WJZZ S Plug, 23-pin AD P7701 QCNCMA012WJZZ J Plug, 15-pin AD SC3601 QSOCN0895REZZ J Socket, 8-pin AC SC3901 QSOCZA056WJZZ S Socket, AV-IN1 AG

å CN7701 QSOCAA003WJZZ J Socket, 2-pin AD

RDA3301 RDA7701 RDA7702

PRDARA176WJFW S Heat Sink, for IC3301 AD PRDARA158WJFW S Heat Sink, for IC7701 AC PRDARA159WJFW S Heat Sink, for D7703/D7713 AC LX-BZ3100CEF7 S Screw, x3 AA

(21-pin Euro-SCART)

(AC INPUT Terminal)

å F7701 QFS-C3229CEZZ J Fuse, 3.15A/250V AD

MISCELLANEOUS PARTS

FH7701 QFSHD1017CEZZ+ J Fuse Holder AC FH7702 QFSHD1018CEZZ+ J Fuse Holder AC FB7702 RBLN-0020CEZZ J Ferrite Bead AB

LC-20SH1E

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTC858WE04

OPERATION UNIT

D4201 RH-EX0646GEZZY J Zener Diode AA D4202 RH-EX0604GEZZY J Zener Diode AB D4203 RH-EX0604GEZZY J Zener Diode AB

R4201 VRS-CY1JF122JY J 1.2k 1/16W Metal Oxide AA R4202 VRS-CY1JF471JY J 470 1/16W Metal Oxide AA R4203 VRS-CY1JF122JY J 1.2k 1/16W Metal Oxide AA R4204 VRS-CY1JF471JY J 470 1/16W Metal Oxide AA R4205 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA

S4201 QSW-P0614CEZZ J MAIN POWER AF SW4202 SW4203 SW4204 SW4205 SW4206 SW4207

QSW-K0003AJZZ+ J CH(Ù)AB QSW-K0003AJZZ+ J CH(ù)AB QSW-K0003AJZZ+ J INPUT AB QSW-K0003AJZZ+ J MENU AB QSW-K0003AJZZ+ J VOL(+) AB QSW-K0003AJZZ+ J VOL(–) AB

MISCELLANEOUS PARTS

SC4201 QSOCN0596REZZ J Socket, 5-pin AB

DIODES

RESISTORS

SWITCHES

DUNTKC859WE04

R/C, LED UNIT

Q4001 VSKRC104S//-1Y J KRC104S AA Q4002 VSKRC104S//-1Y J KRC104S AA Q4004 VSKRC104S//-1Y J KRC104S AA Q4005 VSKRC104S//-1Y J KRC104S AA

D4001 RH-PXA014WJZZ+ J STANDBY/ON Indicator AD D4002 RH-PXA014WJZZ+ J OPC Indicator AD D4004 RH-EX0640GEZZY J Zener Diode AA D4005 RH-EX0640GEZZY J Zener Diode AA D4007 RH-EX0640GEZZY J Zener Diode AA D4008 RH-PXA088WJZZ J OPC Sensor AG

C4001 VCEAEA1CW106M+ J 10 16V Electrolytic AB C4002 VCEAEA1CW106M+ J 10 16V Electrolytic AB C4003 VCEAEA0JW107M+ J 100 6.3V Electrolytic AB C4004 VCKYCY1HF103ZY J 0.01 50V Ceramic AA

R4001 VRS-CY1JF331JY J 330 1/16W Metal Oxide AA R4002 VRS-CY1JF681JY J 680 1/16W Metal Oxide AA R4003 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R4006 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R4007 VRS-CY1JF331JY J 330 1/16W Metal Oxide AA R4010 VRS-CY1JF333JY J 33k 1/16W Metal Oxide AA

SC4001 QSOCN0896REZZ J Socket, 8-pin AC RMC4001

RRMCUA034WJQZ J R/C Receiver AE LHLDZA486WJZZ S LED Holder AD

TRANSISTORS

DIODES

CAPACITORS

RESISTORS

MISCELLANEOUS PARTS

LC-20SH1E

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKC860FM03

MAIN UNIT

TUNER

NOTE: THE PARTS HERE SHOWN ARE SUPPLIED AS AN

ASSEMBLY BUT NOT INDEPENDENTLY.

TU201 VTUVT1Y5ED501 S Tuner AS

INTEGRATED CIRCUITS

IC101 VHiM24C64WN-1Y J M24C64-WMN6T AL IC151 VHi39VF01WH-1Q J I.C. AN IC501 RH-iXB219WJZZQ J I.C. BK IC701 VHiLM1117MJ-1Y J LM1117MPX-ADJ AF IC702 VHiMM1563DF-1Y J MM1563DFBE AE IC703 VHiLM1117MJ-1Y J LM1117MPX-ADJ AF IC704 VHiBA05FP++-1Y J BA05FP-E2 AF IC751 VHiNJ79M08D-1Y J NJM79M08DL1A AF IC801 RH-iX3251CEZZY J TDA9178T/N1 AY IC1101 VHiBD8120FP-1Y J BD8120FP AX IC1201 RH-iXA370WJZZQ J LR38819 AY IC2201 VHiTLVDF84B-1Y J THC63LVDF84B AT

TRANSISTORS

Q101 VSFMMT718//-1Y J FMMT718 AE Q102 VS2SC3928AR-1Y J 2SC3928AR AB Q103 VSFMMT718//-1Y J FMMT718 AE Q104 VS2SC3928AR-1Y J 2SC3928AR AB Q105 VSUM5K1NTR+-1Y J UM5K1NTR AC Q201 VS2SC3928AR-1Y J 2SC3928AR AB Q202 VS2SC3928AR-1Y J 2SC3928AR AB Q205 VS2SC3928AR-1Y J 2SC3928AR AB Q701 VSDTA144EE/-1Y J DTA144EE AA Q702 VSDTA124EE/-1Y J DTA124EE AB Q751 VS2SC3928AR-1Y J 2SC3928AR AB Q752 VS2SA1530AR-1Y J 2SA1530AR AB Q753 VSDTC144EE/-1Y J DTC144EE AA Q754 VSFMMT718//-1Y J FMMT718 AE Q755 VSDTC144EE/-1Y J DTC144EE AA Q756 VSDTC144EE/-1Y J DTC144EE AA Q757 VSDTC144EE/-1Y J DTC144EE AA Q758 VS2SC3928AR-1Y J 2SC3928AR AB Q759 VSDTA144EE/-1Y J DTA144EE AA Q801 VS2SC3928AR-1Y J 2SC3928AR AB Q802 VS2SC3928AR-1Y J 2SC3928AR AB Q803 VS2SC3928AR-1Y J 2SC3928AR AB Q1105 VS2SC4520//-1Y J 2SC4520 AE Q1106 VS2SA1729//-1Y J 2SA1729 AF

DIODES

D101 VHDHSU119//-1Y J Diode AB D202 RH-EXA101WJZZY J Zener Diode AB D203 VHDRB481K++-1Y J Diode AD D204 VHD1SS390++-1Y J Diode AB D205 VHDHSU119//-1Y J Diode AB D206 VHDHSU119//-1Y J Diode AB D208 VHD1SS390++-1Y J Diode AB D701 VHDHSU119//-1Y J Diode AB D702 VHDHSU119//-1Y J Diode AB D703 VHDHSU119//-1Y J Diode AB D704 VHD1SS119//-1Y J Diode AA D751 RH-EXA099WJZZY J Zener Diode AB D755 VHDRB481K++-1Y J Diode AD D756 VHDHSU119//-1Y J Diode AB D757 VHDHSU119//-1Y J Diode AB D759 VHD1SS250//1EY J Diode AB D1103 VHD1SS250//1EY J Diode AB D1104 VHD1SS250//1EY J Diode AB

PACKAGED CIRCUITS

X101 RCRSAA058WJZZ J Crystal AD X501 RCRSAA037WJZZ J Crystal AE

FILTERS AND COILS

SF201 RFiLCA102WJZZ S S.A.W Filter AH

SF202 RFiLCA103WJZZ S S.A.W Filter AM L202 RCiLPA143WJZZY J Coil AD L751 RCiLPA143WJZZY J Coil AD L752 VPCNN470J5R4NY J Peaking 47µH AB L2201 VPCNN2R7JR85NY J Peaking 2.7µH AB L2202 VPCNN2R7JR85NY J Peaking 2.7µH AB

CAPACITORS

C101 VCKYCY1CF224ZY J 0.22 16V Ceramic AB C102 VCKYCY1CF224ZY J 0.22 16V Ceramic AB C104 VCKYCY1CF224ZY J 0.22 16V Ceramic AB C106 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C107 VCKYCY1CF224ZY J 0.22 16V Ceramic AB C109 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C110 VCKYCY1CF224ZY J 0.22 16V Ceramic AB C111 VCEAPF0JW227MY J 220 6.3V Electrolytic AD C113 VCKYCY1CF224ZY J 0.22 16V Ceramic AB C116 VCKYCY1CF224ZY J 0.22 16V Ceramic AB C117 VCEAPF0JW107MY J 100 6.3V Electrolytic AC C118 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C119 VCKYCY1CF224ZY J 0.22 16V Ceramic AB C121 VCKYCY1CF224ZY J 0.22 16V Ceramic AB C122 VCKYCY1CF224ZY J 0.22 16V Ceramic AB C123 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C124 VCEAPF0JW107MY J 100 6.3V Electrolytic AC C126 VCEAPF1CW106MY J 10 16V Electrolytic AB C127 VCKYCY1CB223KY J 0.022 16V Ceramic AB C128 VCCCCY1HH101JY J 100p 50V Ceramic AA C151 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C152 VCEAPF1CW106MY J 10 16V Electrolytic AB C161 VCCCCY1HH101JY J 100p 50V Ceramic AA C162 VCCCCY1HH101JY J 100p 50V Ceramic AA C163 VCCCCY1HH101JY J 100p 50V Ceramic AA C201 VCEAPF1CW106MY J 10 16V Electrolytic AB C203 VCKYCY1HF333ZY S 0.033 50V Ceramic AA C204 VCEAPF1CW476MY J 47 16V Electrolytic AC C205 VCEAPF1CW476MY J 47 16V Electrolytic AC C206 VCEAPF0JW227MY J 220 6.3V Electrolytic AD C207 VCEAPF1HW225MY J 2.2 50V Electrolytic AB C208 VCKYCY1HB103KY J 0.01 50V Ceramic AA C213 VCKYCY1HB103KY J 0.01 50V Ceramic AA C215 VCEAPF1CW106MY J 10 16V Electrolytic AB C216 VCEAPF1HW225MY J 2.2 50V Electrolytic AB C217 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C218 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C220 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C301 VCEAPF1HW475MY J 4.7 50V Electrolytic AC C302 VCKYCY1HB392KY J 3900p 50V Ceramic AA C303 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C304 VCEAPF1HW225MY J 2.2 50V Electrolytic AB C305 VCCCCY1HH101JY J 100p 50V Ceramic AA C306 VCCCCY1HH101JY J 100p 50V Ceramic AA C331 VCCCCY1HH101JY J 100p 50V Ceramic AA C332 VCCCCY1HH101JY J 100p 50V Ceramic AA C358 VCCCCY1HH101JY J 100p 50V Ceramic AA C359 VCCCCY1HH101JY J 100p 50V Ceramic AA C360 VCCCCY1HH101JY J 100p 50V Ceramic AA C361 VCCCCY1HH101JY J 100p 50V Ceramic AA C362 VCKYTV1EB474KY J 0.47 25V Ceramic AC C363 VCKYTV1EB474KY J 0.47 25V Ceramic AC C366 VCCCCY1HH101JY J 100p 50V Ceramic AA C367 VCCCCY1HH101JY J 100p 50V Ceramic AA C368 VCKYTV1EB474KY J 0.47 25V Ceramic AC C369 VCKYTV1EB474KY J 0.47 25V Ceramic AC C409 VCCCCY1HH101JY J 100p 50V Ceramic AA C410 VCCCCY1HH101JY J 100p 50V Ceramic AA C411 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C412 VCCCCY1HH101JY J 100p 50V Ceramic AA C413 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C414 VCKYCY1HB103KY J 0.01 50V Ceramic AA C415 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C416 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C417 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C418 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C419 VCCCCY1HH101JY J 100p 50V Ceramic AA

LC-20SH1E

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKC860FM03

MAIN UNIT (Continued)

C420 VCEAPF1CW106MY J 10 16V Electrolytic AB C421 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C501 VCEAPF0JW226MY J 22 6.3V Electrolytic AB C504 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C505 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C506 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C507 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C510 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C511 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C512 VCEAPF0JW226MY J 22 6.3V Electrolytic AB C513 VCEAPF1CW106MY J 10 16V Electrolytic AB C514 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C515 VCKYCY1HB102KY J 1000p 50V Ceramic AA C517 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C518 VCKYCY1HB102KY J 1000p 50V Ceramic AA C519 VCCCCY1HH8R0DY J 8.0p 50V Ceramic AA C520 VCCCCY1HH8R0DY J 8.0p 50V Ceramic AA C521 VCEAPF0JW226MY J 22 6.3V Electrolytic AB C522 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C523 VCEAPF0JW226MY J 22 6.3V Electrolytic AB C524 VCEAPF0JW226MY J 22 6.3V Electrolytic AB C525 VCEAPF0JW226MY J 22 6.3V Electrolytic AB C535 VCKYCY1CF224ZY J 0.22 16V Ceramic AB C536 VCKYCY1CF224ZY J 0.22 16V Ceramic AB C547 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C548 VCKYCY1CF224ZY J 0.22 16V Ceramic AB C549 VCEAPF0JW107MY J 100 6.3V Electrolytic AC C550 VCKYCY1CF224ZY J 0.22 16V Ceramic AB C551 VCEAPF0JW107MY J 100 6.3V Electrolytic AC C552 VCKYCY1CF224ZY J 0.22 16V Ceramic AB C554 VCKYCY1CF224ZY J 0.22 16V Ceramic AB C556 VCEAPF0JW107MY J 100 6.3V Electrolytic AC C557 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C558 VCKYCY1CF224ZY J 0.22 16V Ceramic AB C570 VCKYCY1CB333KY J 0.033 16V Ceramic AA C571 VCCCCY1HH100DY J 10p 50V Ceramic AA C574 VCKYCY1CB333KY J 0.033 16V Ceramic AA C575 VCKYCY1CB333KY J 0.033 16V Ceramic AA C576 VCCCCY1HH100DY J 10p 50V Ceramic AA C578 VCKYCY1CB333KY J 0.033 16V Ceramic AA C579 VCKYCY1CB223KY J 0.022 16V Ceramic AB C580 VCKYCY1CB333KY J 0.033 16V Ceramic AA C581 VCCCCY1HH100DY J 10p 50V Ceramic AA C582 VCKYCY1CB333KY J 0.033 16V Ceramic AA C701 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C702 VCEAPF1CW476MY J 47 16V Electrolytic AC C703 VCEAPF0JW107MY J 100 6.3V Electrolytic AC C704 VCEAPF1CW476MY J 47 16V Electrolytic AC C709 VCEAPF1CW106MY J 10 16V Electrolytic AB C710 VCEAPF1CW476MY J 47 16V Electrolytic AC C711 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C712 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C720 VCEAPF1CW106MY J 10 16V Electrolytic AB C721 VCKYCY1HB471KY J 470p 50V Ceramic AA C722 VCEAPF1CW476MY J 47 16V Electrolytic AC C723 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C724 VCEAPF1CW106MY J 10 16V Electrolytic AB C725 VCKYCY1CF224ZY J 0.22 16V Ceramic AB C751 VCEASN1HN225MY J 2.2 50V Electrolytic AB C752 VCEAPF1CW106MY J 10 16V Electrolytic AB C753 VCEAPF1CW107MY J 100 16V Electrolytic AC C754 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C758 RC-KZ0075TAZZY J 2.2 16V Ceramic AC C759 VCEASN1HN225MY J 2.2 50V Electrolytic AB C760 VCEAPF1CW107MY J 100 16V Electrolytic AC C761 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C763 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C764 VCEASN1HN475MY J 4.7 50V Electrolytic AC C765 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C766 VCEAPF0JW227MY J 220 6.3V Electrolytic AD C801 VCEAPF1HW105MY J 1 50V Electrolytic AB

C802 VCKYCY1HB682KY J 6800p 50V Ceramic AA C803 VCKYCY1CF224ZY J 0.22 16V Ceramic AB C804 VCEAPF1CW106MY J 10 16V Electrolytic AB C805 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C806 VCKYCY1CF334ZY J 0.33 16V Ceramic AB C807 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C808 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C809 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C810 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C811 VCCCCY1HH220JY J 22p 50V Ceramic AA C812 VCCCCY1HH220JY J 22p 50V Ceramic AA C813 VCCCCY1HH220JY J 22p 50V Ceramic AA C814 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C815 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C816 VCEAPF1CW106MY J 10 16V Electrolytic AB C817 RC-KZ0074TAZZY J 10 6.3V Ceramic AF C818 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C819 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C820 VCEAPF1CW476MY J 47 16V Electrolytic AC C821 VCKYCY1HB102KY J 1000p 50V Ceramic AA C822 VCEAPF0JW107MY J 100 6.3V Electrolytic AC C823 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C825 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C826 VCEAPF1CW106MY J 10 16V Electrolytic AB C827 RC-KZ0074TAZZY J 10 6.3V Ceramic AF C828 RC-KZ0074TAZZY J 10 6.3V Ceramic AF C829 RC-KZ0074TAZZY J 10 6.3V Ceramic AF C830 VCCCCY1HH470JY J 47p 50V Ceramic AA C831 VCCCCY1HH470JY J 47p 50V Ceramic AA C832 VCCCCY1HH470JY J 47p 50V Ceramic AA C833 VCKYCY1HB271KY J 270p 50V Ceramic AA C834 VCKYCY1HB271KY J 270p 50V Ceramic AA C835 VCKYCY1HB271KY J 270p 50V Ceramic AA C1104 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1106 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1107 RC-KZA041WJZZY J 10 10V Ceramic AC C1108 VCCCCY1HH560JY J 56p 50V Ceramic AB C1109 RC-KZA041WJZZY J 10 10V Ceramic AC C1110 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1116 VCKYTV1CB105KY J 1 16V Ceramic AC C1117 VCKYTV1CB105KY J 1 16V Ceramic AC C1118 VCKYCY1EB104KY J 0.1 25V Ceramic AB C1119 RC-KZA041WJZZY J 10 10V Ceramic AC C1120 VCEASN1HN106MY J 10 50V Electrolytic AC C1202 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1203 RC-KZ0117TAZZY J 4.7 6.3V Ceramic AD C1210 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1213 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1214 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1215 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C1216 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2201 VCEAPF1CW106MY J 10 16V Electrolytic AB C2202 VCKYCY1HB103KY J 0.01 50V Ceramic AA C2203 VCEAPF1CW106MY J 10 16V Electrolytic AB C2204 VCKYCY1HB103KY J 0.01 50V Ceramic AA C2205 VCKYCY1EF104ZY J 0.1 25V Ceramic AA C2206 VCCCCY1HH470JY J 47p 50V Ceramic AA

RESISTORS

R101 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA R102 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA R103 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R104 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R105 VRS-CY1JF153JY J 15k 1/16W Metal Oxide AA R106 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R107 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R108 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R109 VRS-CY1JF222JY J 2.2k 1/16W Metal Oxide AA R111 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R113 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R114 VRS-CY1JF2R2JY J 2.2 1/16W Metal Oxide AA R115 VRS-CY1JF2R2JY J 2.2 1/16W Metal Oxide AA R116 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R117 VRS-CY1JF2R2JY J 2.2 1/16W Metal Oxide AA R118 VRS-CY1JF2R2JY J 2.2 1/16W Metal Oxide AA

LC-20SH1E

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKC860FM03

MAIN UNIT (Continued)

R119 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R120 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R122 VRS-CY1JF153JY J 15k 1/16W Metal Oxide AA R123 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R124 VRS-CY1JF154JY J 150k 1/16W Metal Oxide AA R125 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA R126 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R127 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R129 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R131 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R132 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R133 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R134 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R136 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R137 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R138 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R139 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R140 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R141 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R142 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R143 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R144 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R145 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA R146 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R147 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R148 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R149 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R151 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R152 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R161 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA R164 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA R201 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R202 VRS-CY1JF122JY J 1.2k 1/16W Metal Oxide AA R203 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R204 VRS-CY1JF122JY J 1.2k 1/16W Metal Oxide AA R205 VRS-CY1JF122JY J 1.2k 1/16W Metal Oxide AA R206 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R207 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R208 VRS-CY1JF392JY J 3.9k 1/16W Metal Oxide AA R209 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R210 VRS-CY1JF153JY J 15k 1/16W Metal Oxide AA R211 VRS-CY1JF332JY J 3.3k 1/16W Metal Oxide AA R212 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R217 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R218 VRS-CY1JF681JY J 680 1/16W Metal Oxide AA R219 VRS-CJ1JF102JY J 1k 1/16W Metal Oxide AA R220 VRS-CY1JF122JY J 1.2k 1/16W Metal Oxide AA R221 VRS-CY1JF122JY J 1.2k 1/16W Metal Oxide AA R224 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R237 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R239 VRS-CY1JF222JY J 2.2k 1/16W Metal Oxide AA R301 VRS-CY1JF391JY J 390 1/16W Metal Oxide AA R302 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R303 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R304 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R305 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R306 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R362 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R363 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R364 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R365 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R366 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R367 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R368 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R369 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R370 VRD-RA2BE103JY J 10k 1/8W Carbon AA R371 VRD-RA2BE103JY J 10k 1/8W Carbon AA R423 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R544 VRS-CY1JF823JY J 82k 1/16W Metal Oxide AA R548 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R549 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA

R550 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R551 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R552 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R553 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R554 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R557 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R558 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R559 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R570 VRS-CY1JF100JY J 10 1/16W Metal Oxide AA R571 VRS-CY1JF470JY J 47 1/16W Metal Oxide AA R573 VRS-CY1JF100JY J 10 1/16W Metal Oxide AA R574 VRS-CY1JF470JY J 47 1/16W Metal Oxide AA R575 VRS-CY1JF100JY J 10 1/16W Metal Oxide AA R576 VRS-CY1JF470JY J 47 1/16W Metal Oxide AA R577 VRS-CY1JF123JY J 12k 1/16W Metal Oxide AA R701 VRS-CY1JF121JY J 120 1/16W Metal Oxide AA R702 VRS-CY1JF271JY J 270 1/16W Metal Oxide AA R704 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R705 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R709 VRS-TW2HF000JY J 0 1/2W Metal Oxide AA R710 VRS-CY1JF271JY J 270 1/16W Metal Oxide AA R711 VRS-CY1JF471JY J 470 1/16W Metal Oxide AA R714 VRS-TW2HF1R0JY J 1 1/2W Metal Oxide AA R715 VRS-TW2HF1R0JY J 1 1/2W Metal Oxide AA R716 VRS-TW2HF101JY J 100 1/2W Metal Oxide AA R717 VRS-TW2HF101JY J 100 1/2W Metal Oxide AA R718 VRS-VV3AB270J J 27 1W Metal Oxide AA R721 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA R722 VRS-TW2HF1R0JY J 1 1/2W Metal Oxide AA R751 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R752 VRS-CY1JF272JY J 2.7k 1/16W Metal Oxide AA R753 VRS-TW2ED102JY J 1k 1/4W Metal Oxide AA R754 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R755 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R757 VRS-TW2ED103JY J 10k 1/4W Metal Oxide AA R761 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R762 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R764 VRS-CY1JF223JY J 22k 1/16W Metal Oxide AA R766 VRS-TW2HF330JY J 33 1/2W Metal Oxide AA R767 VRS-TW2HF472JY J 4.7k 1/2W Metal Oxide AA R769 VRS-CY1JF562JY J 5.6k 1/16W Metal Oxide AA R801 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R802 VRS-CY1JF123JY J 12k 1/16W Metal Oxide AA R803 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R804 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R805 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R806 VRS-CY1JF105JY J 1M 1/16W Metal Oxide AA R807 VRS-CY1JF393JY J 39k 1/16W Metal Oxide AA R808 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R809 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R810 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R811 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R812 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R813 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R814 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R815 VRS-CY1JF100JY J 10 1/16W Metal Oxide AA R816 VRS-CY1JF273JY J 27k 1/16W Metal Oxide AA R817 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R819 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R820 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R821 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R822 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R823 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R824 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R825 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R826 VRS-CY1JF104JY J 100k 1/16W Metal Oxide AA R827 VRS-CY1JF473JY J 47k 1/16W Metal Oxide AA R828 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R829 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R830 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R831 VRS-CY1JF121JY J 120 1/16W Metal Oxide AA R832 VRS-CY1JF121JY J 120 1/16W Metal Oxide AA R833 VRS-CY1JF121JY J 120 1/16W Metal Oxide AA R834 VRS-CY1JF750JY J 75 1/16W Metal Oxide AA R835 VRS-CY1JF750JY J 75 1/16W Metal Oxide AA

LC-20SH1E

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

DUNTKC860FM03

MAIN UNIT (Continued)

R836 VRS-CY1JF750JY J 75 1/16W Metal Oxide AA R1101 VRS-CY1JF273JY J 27k 1/16W Metal Oxide AA R1102 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R1103 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R1104 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R1112 VRS-CY1JF181JY J 180 1/16W Metal Oxide AA R1113 VRS-CY1JF102JY J 1k 1/16W Metal Oxide AA R1114 VRS-CY1JF181JY J 180 1/16W Metal Oxide AA R1117 VRS-TW2HF5R6JY J 5.6 1/2W Metal Oxide AA R1118 VRS-TW2HF5R6JY J 5.6 1/2W Metal Oxide AA R1121 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1122 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1123 VRS-TW2HF000JY J 0 1/2W Metal Oxide AA R1124 VRS-TW2HF101JY J 100 1/2W Metal Oxide AA R1126 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1128 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1129 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA R1130 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1203 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R1204 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R1205 VRK-CD1JJ220JY J 22 1/16W Metal Compo. AC R1206 VRK-CD1JJ220JY J 22 1/16W Metal Compo. AC R1207 VRK-CD1JJ220JY J 22 1/16W Metal Compo. AC R1208 VRS-CY1JF220JY J 22 1/16W Metal Oxide AA R1209 VRS-CY1JF220JY J 22 1/16W Metal Oxide AA R1210 VRS-CA1JF220JY J 22 1/16W Metal Oxide AA R1211 VRS-CA1JF101JY J 100 1/16W Metal Oxide AA R1214 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R1215 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R1216 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R1217 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R1218 VRS-CY1JF220JY J 22 1/16W Metal Oxide AA R1223 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R1230 VRS-CY1JF472JY J 4.7k 1/16W Metal Oxide AA R1240 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R1241 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R1242 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R1243 VRS-CY1JF000JY J 0 1/16W Metal Oxide AA R2203 VRS-CB1JF470JY J 47 1/16W Metal Oxide AA R2204 VRS-CB1JF470JY J 47 1/16W Metal Oxide AA R2205 VRS-CB1JF470JY J 47 1/16W Metal Oxide AA R2206 VRS-CB1JF470JY J 47 1/16W Metal Oxide AA R2207 VRS-CB1JF470JY J 47 1/16W Metal Oxide AA R2208 VRS-CB1JF470JY J 47 1/16W Metal Oxide AA R2224 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2225 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2226 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2227 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2228 VRS-CY1JF101JY J 100 1/16W Metal Oxide AA R2232 VRS-CY1JF100JY J 10 1/16W Metal Oxide AA R2233 VRS-CY1JF103JY J 10k 1/16W Metal Oxide AA

FB531 RBLN-0062TAZZY J Ferrite Bead AB FB532 RBLN-0062TAZZY J Ferrite Bead AB FB533 RBLN-0062TAZZY J Ferrite Bead AB FB535 RBLN-0062TAZZY J Ferrite Bead AB FB801 RBLN-0062TAZZY J Ferrite Bead AB FB802 RBLN-0062TAZZY J Ferrite Bead AB FB803 RBLN-0062TAZZY J Ferrite Bead AB FB804 RBLN-0062TAZZY J Ferrite Bead AB FB805 RBLN-0062TAZZY J Ferrite Bead AB FB806 RBLN-0062TAZZY J Ferrite Bead AB FB807 RBLN-0062TAZZY J Ferrite Bead AB FB808 RBLN-0062TAZZY J Ferrite Bead AB FB809 RBLN-0062TAZZY J Ferrite Bead AB FB1201 RBLN-0083GEZZY J Ferrite Bead AB P2002 QPLGNA144WJZZY J Plug, 20-pin AF SC102 QCNCWA010WJZZYJ Connector, 15-pin AE SC104 QCNCWA010WJZZYJ Connector, 15-pin AE SC105 QSOCN0596REZZ J Socket , 5-pin AB SC106 QCNCWA251WJZZYS Connector, 23-pin AF SC1201 QSOCNA002WJPZY J Socket, 20-pin AD SC1202 QSOCN0687FJZZY J Socket, 50-pin AF SC1203 QSOCN0206FJZZY J Socket, 30-pin AF TP101 QLUGHA006WJZZY J Lug AC TP102 QLUGHA006WJZZY J Lug AC

FB101 RBLN-0062TAZZY J Ferrite Bead AB

MISCELLANEOUS PARTS

FB102 RBLN-0062TAZZY J Ferrite Bead AB FB103 RBLN-0062TAZZY J Ferrite Bead AB FB104 RBLN-0062TAZZY J Ferrite Bead AB FB105 RBLN-0062TAZZY J Ferrite Bead AB FB106 RBLN-0062TAZZY J Ferrite Bead AB FB107 RBLN-0062TAZZY J Ferrite Bead AB FB108 RBLN-0062TAZZY J Ferrite Bead AB FB109 RBLN-0062TAZZY J Ferrite Bead AB FB151 RBLN-0062TAZZY J Ferrite Bead AB FB201 RBLN-0062TAZZY J Ferrite Bead AB FB204 RBLN-0062TAZZY J Ferrite Bead AB FB401 RBLN-0062TAZZY J Ferrite Bead AB FB501 RBLN-0062TAZZY J Ferrite Bead AB FB502 RBLN-0062TAZZY J Ferrite Bead AB FB504 RBLN-0062TAZZY J Ferrite Bead AB FB507 RBLN-0062TAZZY J Ferrite Bead AB FB508 RBLN-0062TAZZY J Ferrite Bead AB

LC-20SH1E

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

25 XEBS940P20000 J Screw, x5 AB

CABINET AND MECHANICAL PARTS

1 CCABAA703WJ01 S Cabinet A Ass’y BB 1-1 1-2 HDECQA452WJSA S R/C, LED Cover 1-3 HDECQA459WJSA S LED Cover 1-4 HDECQA478WJSA S Leg Cover, x2 1-5 XEBSN30P08000 J Screw, x1 AA

2 CCABBA456WJ01 S Cabinet B Ass’y BC 2-1 2-2 GLEGGA042WJZZ S Rubber Leg, x2 2-3 LANGFA085WJFW J Kensington Angle AC 2-4 LANGTA155WJFW S Reinforcement Angle 2-5 PZETKA109WJZZ S Insulating Spacer, x1 2-6 XEBSN30P08000 J Screw, x1 AA

3 CDAi-A140WJ01 S Stand Ass’y BB 3-1 CDAi-A140WJ02 S Stand Base Ass’y 3-1-1 GDAi-A140WJSA S Stand Base 3-1-2 GLEGGA041WJSA S Rubber Leg, x2 3-1-3 PSPAZA083WJZZ J Spacer, x2 AB 3-2 GCOVAB023WJSA S Stand Cover 3-3 XESSN40P10000 J Screw, x8 AB

Not Available

– Cabinet A —

– Cabinet B —

26 XEBSN30P08000 J Screw, x7 AA 27 XEBSN40P10000 J Screw, x8 AB 28 XHBS830P10000 S Screw, x2 AA 29 XHPS730P08WS0 S Screw, x7 AA 30 TLABZA792WJZZ S EICTA Label AL 31 TLABSA028WJSB J

GOST Label (LC-20SH1E(R))

4 CCOVAA976WJ01 S Top Cover Ass’y AP 4-1 4-2 JBTN-A353WJSA S Operation Button 4-3 JBTN-A354WJSA S Power Button 4-4 MSPRCA014WJFW J Spring, for Power Button AB 4-5 XEBSN30P08000 J Screw, x1 AA

5 5-1 RLCDTA025WJZZ J 20" LCD Panel Unit DB 5-2 5-2-1 PSLDMA495WJFW J Back Shield AW 5-2-2 LHLDZA412WJKZ J Lamp Holder-L(Bottom) AG 5-2-3 LHLDZA413WJKZ J Lamp Holder-R(Bottom) AF 5-2-4 PMLT-A150WJZZ J Light Shielding Spacer, x2 AD 5-2-5 PSHEPA226WJZZ J Reflection Sheet AN 5-2-6 TCAUZA031WJZZ J Caution Label AB

å 5-3 KLMP-A046WJZZ J Lamp Unit, x5 AV

5-4 LHLDZA414WJKZ J Lamp Holder-L(Top) AL 5-5 LHLDZA415WJKZ J Lamp Holder-R(Top) AL 5-6 PCOVUA048WJZZ J Diffusion Plate AY 5-7 PSHEPA231WJZZ J Reflection/deflection Sheet BB 5-8 PSHEPA233WJZZ J Diffusion Sheet AM 5-9 PSPAZA447WJZZ J Spacer, x1 AC 5-10 QCNW-C947WJQZ J Connecting Cord AE 5-11 XBPS726P05J00 J Screw, x3 AA

6 GCOVAA984WJKA S Bass-Conne Cover AD 7 LCHSMA146WJKA S Chassis Frame AR 8 LX-BZ3442CEF9 J Screw, x4 AB 9 PSPAZA614WJZZ S Spacer, x1 AD 10 PSPAZA615WJZZ S Spacer, x1 AB 11 PSPAZA640WJKZ S Spacer, x1 AL 12 PSPAZA641WJKZ S Spacer, x1 AF 13 PSPAZA642WJKZ S Spacer, x1 AH 14 QCNW-B813WJPZ S Connecting Cord AC 15 QCNW-B814WJPZ S Connecting Cord AC 16 QCNW-C853WJQZ S Connecting Cord AE 17 QCNW-C948WJQZ S Connecting Cord AE 18 QCNW-C949WJQZ S Connecting Cord AC 19 QEARPA125WJFW S Grounding Part, x1 AC 20 QEARZA041WJZZ J Grounding Part, x1 AE 21 RCORFA032WJZZ J Core, x1 AK 22 TLABMB271WJZZ S Model Label AE

22 TLABMB473WJZZ S Model Label

23 24 VSP1104PB038A J Speaker, x2 AK

Not Available

– Top Cover —

– 20" LCD Panel Unit Ass’y —

– Back Shield Ass’y —

(LC-20SH1E/E(R)/E(F)/E(K))

(LC-20SH1E(I))

– Serial No. Label —

CABINET AND MECHANICAL PARTS

Inverter PWB

Sub PWB

4-5

4-1

4-2

4-3

4-4

1-3

1-2

4-5

1-4

1-1

5-6

5-4

5-5

5-3

3-2

3-3

3-1

2-3

2-2

2-1

2-4

2-5

2-6

5-2

5-2-2

5-2-3

3-1-3

3-1-2

3-1-1

5-2-5

5-2-6

5-2-1

5-2-4

5-8

5-7

5-1

5-11

5-10

R/C, LED PWB

Operation PWB

5-9

Main PWB

LC-20SH1E

654321

LC-20SH1E

Ref. No. Part No. ★ Description Code Ref. No. Part No. ★ Description Code

SUPPLIED ACCESSORIES

å X1 QACCBA016WJPZ J AC Cord (LC-20SH1E(K)) AR å X1 QACCKA006WJPZ J AC Cord AL

X2 RRMCGA339WJSA S Wireless Remote Control AS X3 TiNS-B517WJN2 S Operation Manual X4 TiNS-B634WJN2 S Instruction Book

X5 TiNS-B635WJN2 S Instruction Book

X6 TiNS-B636WJZZ S Instruction Book

X7 TGAN-1688CEN1 J Guarantee Card AN

X8 TGAN-A077WJZZ J Guarantee Card AE

Not Available

(LC-20SH1E/E(R)/E(F)/E(I))

(LC-20SH1E/E(F))

(LC-20SH1E)

(LC-20SH1E(R))

(LC-20SH1E(K))

(LC-20SH1E(R))

– "AA" size Battery, x2 —

SERVICE JIGS

(USE FOR SERVICING)

PACKING PARTS

(NOT REPLACEMENT ITEM)

S1 SPAKCB640WJZZ – Packing Case — S2 SPAKPA188WJZZ – Wrapping Paper — S3 SPAKXA620WJZZ – Buffer Material — S4 SSAKAA010WJZZ – Polyethylene Bag —

(E(R)/E(K)/E(I)x1, E(F)x2, Ex3) S5 TLABKA002WJZZ – Carton Label, x1 — S6 TLABSA029WJZZ – GOST Label (LC-20SH1E(R)) —

QCNW-A553WJZZ J Extension Cable, 30-pin BA

QCNW-A556WJZZ J Extension Cable, 50-pin AU

QCNW-A555WJZZ J Extension Cable, 20-pin AU

QCNW-D444WJQZ J Extension Cable, 5-pin AQ

QCNW-D445WJQZ J Extension Cable, 8-pin AQ

JiGiNF-001 J Parallel Part-IIC CC

Supplied Accessories

AC cord

(SC1203-LCD)

(SC1202-LCD)

(SC1201-LCD)

(SC4201-SC105)

(SC4001-SC3601)

Interface Jig

Wireless remote control

X2X1 X3 X9

Operation manual

LC-13SH1E LC-15SH1E LC-20SH1E

“AA” size batteries (×2)

*Product shape may vary

from country to country.

PACKING OF THE SET

LC-20SH1E

Only for LC-20SH1E/E(F)

Only for LC-20SH1E

X3, X6, X7, X8

LC-20SH1E

No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission of the publisher.

TQ1841-S

Jan. 2005 Printed in Japan

Design and Production Information

Design : Japan Production : SEES

MI. KG

SHARP CORPORATION AV Systems Group Quality & Reliability Control Center Yaita, Tochigi 329-2193, Japan

Sharp LC-20SH1E Schematic

Specifications and Main Features

Frequently Asked Questions

User Manual
