LC-13B4M
LC-15B4M
LC-20B4M
LCD COLOUR TELEVISION
ENGLISH
Printed on post-consumer recycled paper.
OPERATION MANUAL
P
O
W
E
R
S
L
E
E
P
Printed in Japan
TINS-A742WJZZ
03P05-JKM
CONTENTS
LC-13B4M
LC-15B4M
LC-20B4M
LCD COLOUR TELEVISION
ENGLISH
OPERATION MANUAL
ENGLISH
Page
DEAR SHARP CUSTOMER ................................ 2
IMPORTANT SAFETY PRECAUTIONS ......... 2, 3
SUPPLIED ACCESSORIES ................................ 4
PREPARATION ................................................ 5, 6
Preparing and Using the Remote Control .. 5
Batteries for Remote Control ....................... 5
Power Connection ......................................... 6
Antenna Connection ...................................... 6
LOCATION OF USERS CONTROL ..... 7, 8, 9, 10
Removing the Back Cover ........................... 9
Listening with Headphones ......................... 9
BASIC OPERATION ............................. 11, 12, 13
Turning on POWER...................................... 11
Switching TV/VIDEO AV1/AV2/
COMPONENT/TV Mode ............................. 11
Sound Volume .............................................. 12
ON/OFF Standby .......................................... 12
Changing the Channels ............................... 13
SELECTING THE MENU ITEMS ....................... 14
Selecting a Menu Item ................................. 14
PRESET................................................. 15, 16, 17
On-Screen Display Language Selection ...15
Presetting the Channels (AUTO) ................ 15

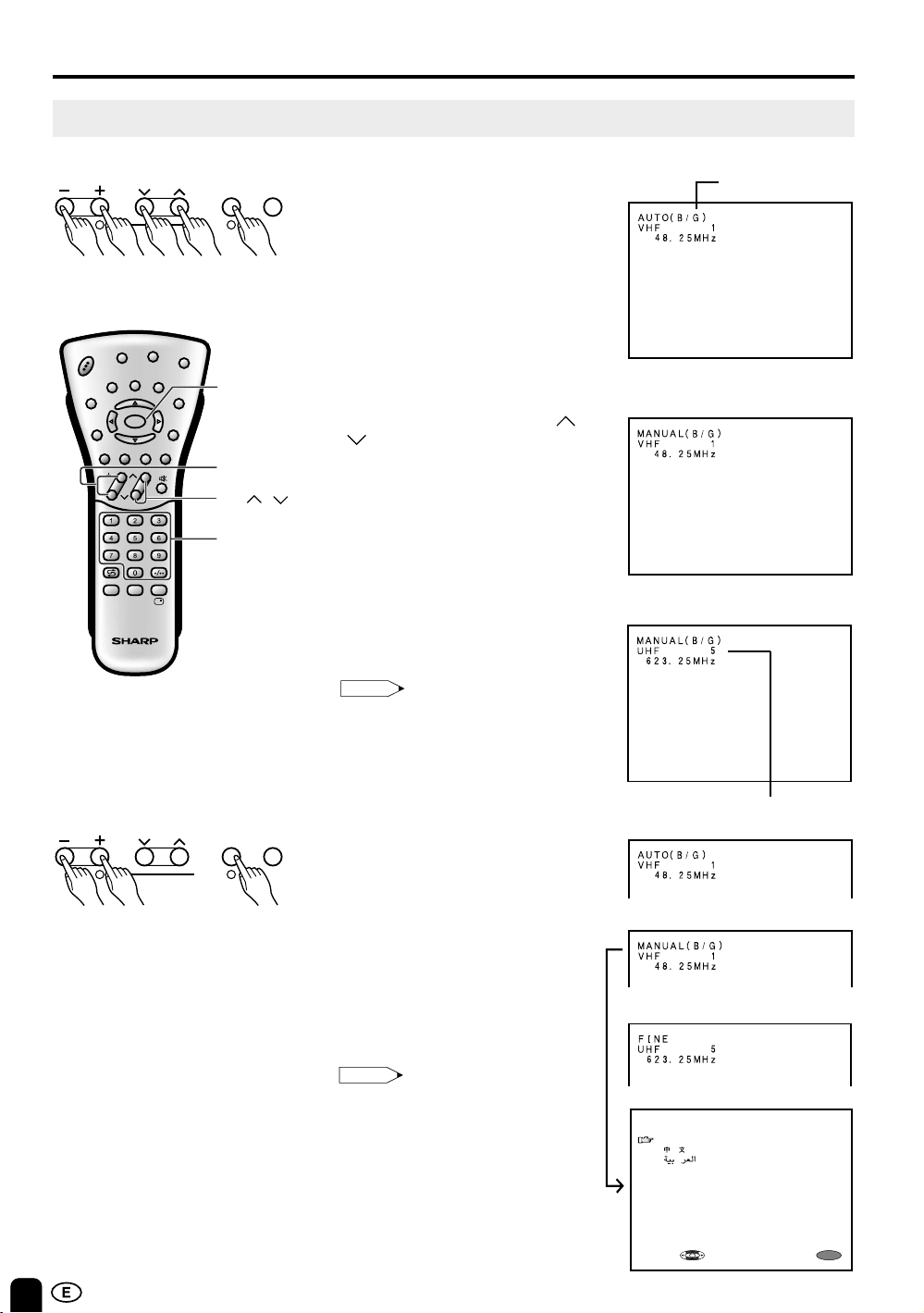

Presetting the Channels (MANUAL) ..........16
Channel Setting ............................................ 17
ADJUSTMENT ............. 18, 19, 20, 21, 22, 23, 24
Adjusting the SLEEP TIMER Setting .........18
Adjusting the PICTURE Settings ........ 19, 20
Adjusting the FEATURE Settings ....... 21, 22
Adjusting the BRIGHTNESS Settings........ 23
Adjusting the DISPLAY MODE Settings.... 24
NICAM BROADCASTS SELECTION ............... 25
IGR (German stereo system) BROADCASTS ....
Teletext ................................................. 27, 28, 29
CONNECTING WITH EXTERNAL
DEVICES ............................................. 30, 31, 32
How to Fix the Cables ................................. 32
TROUBLESHOOTING ................................ 33, 34
SPECIFICATIONS.............................................. 35

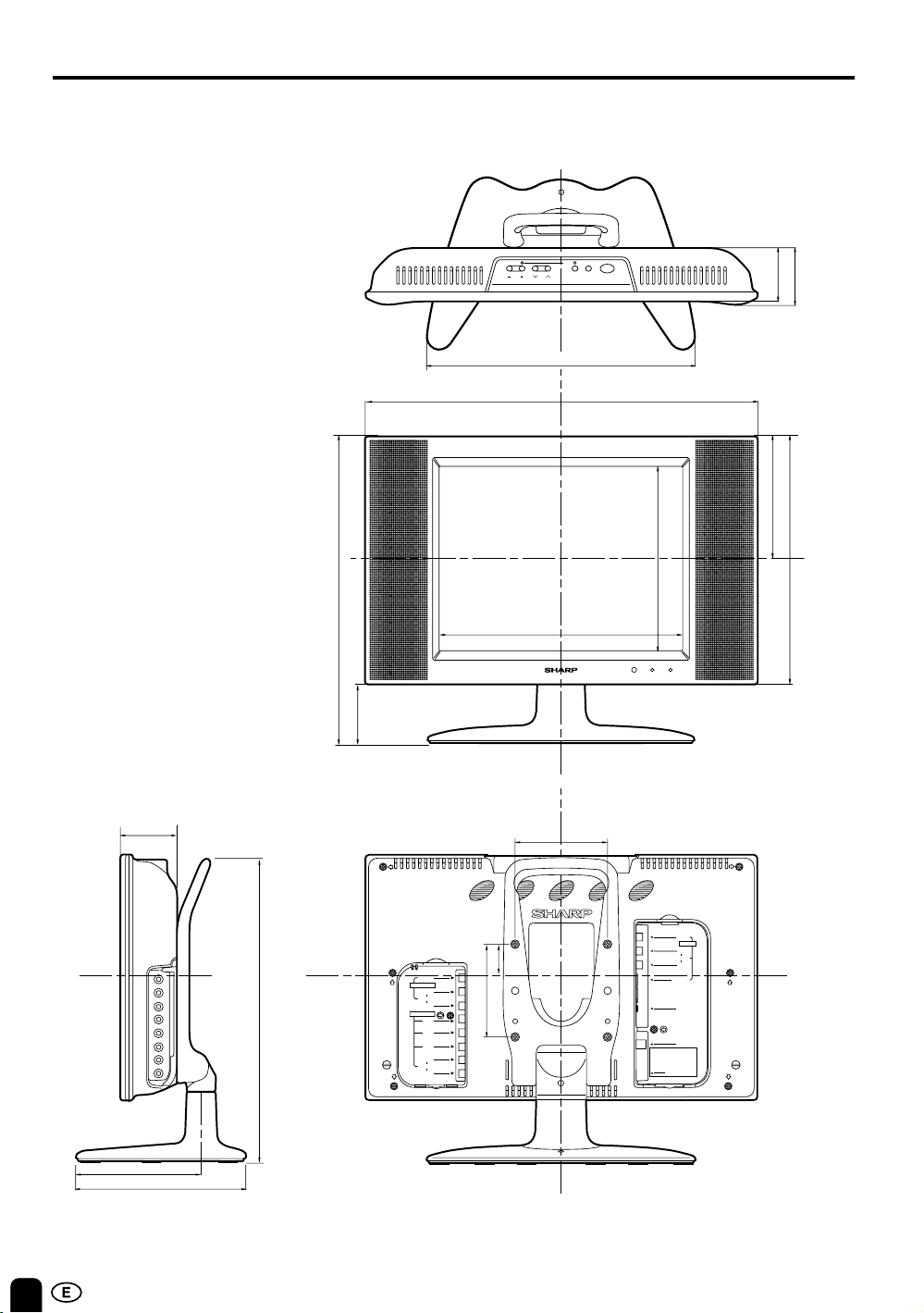

DIMENSIONAL DRAWINGS ................ 36, 37, 38
Page
26
1
DEAR SHARP CUSTOMER
Thank you for your purchase of the Sharp LCD Colour TV product. To ensure safety
and many years of trouble-free operation of your product, please read the IMPORTANT
SAFETY PRECAUTIONS carefully before using this product.
IMPORTANT SAFETY PRECAUTIONS
Electricity is used to perform many useful functions, but it can also cause personal injuries and
property damage if improperly handled. This product has been engineered and manufactured with the
highest priority on safety. However, improper use can result in electric shock and/or fire. In order to
prevent potential danger, please observe the following instructions when installing, operating and
cleaning the product. To ensure your safety and prolong the service life of your LCD colour TV
product, please read the following precautions carefully before using the product.
■ Read instructions—All operating instructions must be read and understood before the product is
operated.
■ Keep this manual in a safe place—These safety and operating instructions must be kept in a safe
place for future reference.
■ Observe warnings—All warnings on the product and in the instructions must be observed closely.
■ Follow instructions—All operating instructions must be followed.
■ Attachments—Do not use attachments not recommended by the manufacturer. Use of inadequate
attachments can result in accidents.
■ Power source—This product must operate on a power source specified on the specification label. If
you are not sure of the type of power supply used in your home, consult your dealer or local power
company. For units designed to operate on batteries or another power source, refer to the
operating instructions.
■ Power cord protection—The power cords must be routed properly to prevent people from stepping
on them or objects from resting on them. Check the cords at the plugs and product.
■ If you plan to use a DC power supply unit other than the AC adapter supplied with the product,
make sure the power supply unit provides stable voltage with minimum fluctuations. Unstable
power supply can cause problems in the product.
■ Overloading—Do not overload AC outlets or extension cords.
Overloading can cause fire or electric shock.
■ Entering of objects and liquids—Never insert an object into the product through vents or openings.
High voltage flows in the product, and inserting an object can cause electric shock and/or short
internal parts. For the same reason, do not spill water or liquid on the product.
■ Servicing—Do not attempt to service the product yourself. Removing covers can expose you to
high voltage and other dangerous conditions. Request a qualified service person to perform
servicing.
■ Repair—If any of the following conditions occurs, unplug the power cord from the AC outlet, and
request a qualified service person to perform repairs.
a. When the power cord or plug is damaged.
b. When a liquid was spilled on the product or when objects have fallen into the product.
c. When the product has been exposed to rain or water.
d. When the product does not operate properly as described in the operating instructions.
Do not touch the controls other than those described in the operating instructions. Improper
adjustment of controls not described in the instructions can cause damage, which often re-
quires extensive adjustment work by a qualified technician.
e. When the product has been dropped or damaged.
f. When the product displays an abnormal condition. Any noticeable abnormality in the product
indicates that the product needs servicing.
■ Replacement parts—In case the product needs replacement parts, make sure that the service
person uses replacement parts specified by the manufacturer, or those with the same characteristics and performance as the original parts. Use of unauthorized parts can result in fire, electric
shock and/or other danger.
■ Safety checks—Upon completion of service or repair work, request the service technician to
perform safety checks to ensure that the product is in proper operating condition.
■ Wall or ceiling mounting—When mounting the product on a wall or ceiling, be sure to install the
product according to the method recommended by the manufacturer.
2
IMPORTANT SAFETY PRECAUTIONS (Continued)
■ Cleaning—Unplug the power cord from the AC outlet before cleaning the
product. Use a damp cloth to clean the product. Do not use liquid cleaners or aerosol cleaners.
■ Water and moisture—Do not use the product near water, such as bathtub,
washbasin, kitchen sink and laundry tub, swimming pool and in a wet
basement.
■ Stand—Do not place the product on an unstable cart, stand, tripod or
table. Placing the product on an unstable base can cause the product to
fall, resulting in serious personal injuries as well as damage to the
product. Use only a cart, stand, tripod, bracket or table recommended by
the manufacturer or sold with the product. When mounting the product on
a wall, be sure to follow the manufacturer’s instructions. Use only the
mounting hardware recommended by the manufacturer.
■ When relocating the product placed on a cart, it must be moved with
utmost care. Sudden stops, excessive force and uneven floor surface can
cause the product to fall from the cart.
■ Ventilation—The vents and other openings in the cabinet are designed for
ventilation. Do not cover or block these vents and openings since insufficient
ventilation can cause overheating and/or shorten the life of the product. Do not
place the product on a bed, sofa, rug or other similar surface, since they can
block ventilation openings. This product is not designed for built-in installation; do
not place the product in an enclosed place such as a bookcase or rack, unless
proper ventilation is provided or the manufacturer’s instructions are followed.
■ The LCD panel used in this product is made of glass. Therefore, it can break
when the product is dropped or applied with impact. Be careful not to be
injured by broken glass pieces in case the LCD panel breaks.
■ Heat sources—Keep the product away from heat sources such as radiators,
heaters, stoves and other heat-generating products (including amplifiers).
■ To prevent fire, never place any type of candle or naked flames on the top or
near the TV set.
■ To prevent fire or shock hazard, do not expose this product to dripping or
splashing. No objects filled with liquids, such as vases, should be placed on
the product.
■ The LCD panel is a very high technology product with 921,600 thin film transistors, giving you fine
picture details.
Occasionally, a few non-active pixels may appear on the screen as a fixed point of blue, green or red.
Please note that this does not affect the performance of your product.
3
SUPPLIED ACCESSORIES
Make sure the following accessories are provided with the product.
Wireless Remote Control (×1)
Antenna Cable (×1)
“AAA” size (UM/SUM-4) Dry Battery (×2)
AC Cord (×1)
*Product shape varies in some countries.
AC Adapter (×1)
Operation Manual (×1)
LC-13B4M
LC-15B4M
LC-20B4M
LCD COLOUR TELEVISION
OPERATION MANUAL
P
O
W
E
R
S
L
E
E
P
Printed on post-consumer recycled paper.
UBATU0026GEZZUADP-0212CEZZ
Printed in Japan
TINS-A742WJZZ
03P05-JKM
Cable Clamp (×2)
ENGLISH
4
PREPARATION
Preparing and Using the Remote Control
■ Use the remote control by pointing it towards the remote sensor window.
Objects between the remote control and sensor window may prevent proper
operation.
Cautions regarding use of remote control
■ Do not expose the remote control to shock.
In addition, do not expose the remote control to liquids, and do not place in
an area with high humidity.
■ Do not install or place the remote control under direct sunlight.
The heat may cause deformation of the unit.
■ The remote control may not work properly if the remote sensor window of the
main unit is under direct sunlight or strong lighting. In such case, change the
angle of the lighting or LCD TV set, or operate the remote control closer to
the remote sensor window.
SLEEPPOWER
SLEEP indicator
Power/Standby indicator
Remote sensor window
Batteries for Remote Control
Before using the LCD TV set for the first time, install two (“AAA” size, UM/SUM-4) batteries (supplied).
When the batteries become depleted and the remote control fails to operate, replace the batteries with
new (“AAA” size, UM/SUM-4) batteries.
1 Open the battery
cover.
2 Insert two (“AAA” size,
UM/SUM-4) batteries.
3 Close the battery
cover.
■ Slide the cover while
pressing the ([) part.
–
Caution!
■ Position the positive and
negative ends of the
batteries as indicated in the
compartment.
■ Engage the claw on the
cover into the battery
housing and slide shut.
Cautions regarding batteries
Improper use of batteries can result in a leakage of chemicals and/or explosion. Be sure to follow the
instructions below.
• Place batteries with their terminals corresponding to the (+) and (–) indications.
• Different types of batteries have different characteristics. Do not mix batteries of different types.
• Do not mix old and new batteries. Mixing old and new batteries can shorten the life of new
batteries and/or cause old batteries to leak chemicals.
• Remove batteries as soon as they are non-operable.
Chemicals that leak from batteries can cause a rash. If chemical leakage is found, wipe with a
cloth.
• The batteries supplied with the product may have a shorter life expectancy due to storage conditions.
• If the remote control is not used for an extended period of time, remove batteries from the remote
control.
5
PREPARATION (Continued)
Power Connection
R
E
W
O
P
N
I
A
M
O
E
D
I
V
/
V
T
U
N
E
M
H
C
L
O
V
U
S
E
T
H
E
A
C
A
D
A
P
(
P
A
R
T
N
T
H
E
M
O
POWER INPUT
AC adapter
T
O
D
HEAD
PHONE
ANT.
S
U
P
E
R
.
L
O
E
L
DC13V
P
L
I
E
D
.
C
A
T
E
D
O
N
L
A
B
E
L
.
)
DC input terminal
DC 12V (LC-13B4M/
LC-15B4M)
DC 13V (LC-20B4M)
Plug into AC
outlet.
Household
power outlet
AC cord*
* Product shape varies in some countries.
Note:
• Use a commercially available AC plug adapter, if necessary, depending on the design of the wall outlet.
• Always turn the main power switch of the LCD TV set to OFF when connecting the AC adapter.
• Always unplug the AC adapter from the product and power outlet when not using for long periods of time.
Antenna Connection
• Using the supplied antenna cable, connect the room
antenna terminal to the antenna input terminal on the
TV set. (Refer to the figure below.)
Room antenna terminal
(75-ohm type)
H
E
A
D
P
H
O
N
E
R
E
W
O
P
N
I
A
M
O
E
D
I
V
/
V
T
U
N
E
M
H
C
L
O
V
A
N
T
.
U
S
E
T
H
E
S
U
P
A
P
C
L
I
A
E
D
D
A
P
T
E
R
(
.
P
A
R
T
N
O
.
L
O
T
C
H
A
E
T
E
M
D
O
O
D
N
E
L
L
A
B
E
L
.
)
P
O
W
E
R
IN
P
U
T
D
C
13V
Antenna terminal
Antenna cable (supplied)
To antenna input terminal
6
LOCATION OF USERS CONTROL
Main unit (front view)
Upper control panel
MENU
PRESET
1
TV/VIDEO MAIN POWER
LC-20B4M
VOL
CH
2
LC-13B4M
LC-15B4M
VOL (
VOL
-
)/(+)
2
CH( )/( )
CH
PRESET
MENU
1
MENU
TV/VIDEO
TV/VIDEO
MAIN POWER
MAIN POWER
To change the vertical angle of the
LCD TV set, tilt the screen up to 5
degrees forward or 10 degrees
backward. The TV set can also be
rotated 25 degrees to right and left.
Please adjust the angle so that the
TV set can be watched most
comfortably. (See How to adjust
the angle on page 8.)
P
O
W
E
R
S
L
E
E
P
Speaker
SLEEP indicator
Remote sensor window
The SLEEP indicator lights up red when the
SLEEP TIMER is set to on.
Power/Standby indicator
A green indicator lights when the power is on
and a red indicator lights when in the standby
mode (the indicator will not light when the
main power is off).
* The examples used throughout this manual are based on the LC-20B4M
model. There may be a slight difference in the illustrations, if you are
using the LC-13B4M and LC-15B4M models.
Note:
•
TV/VIDEO, CH ( )/( ), and VOL (–)/(+) on the main unit have the same functions as the same buttons on the remote
control. Fundamentally, this operation manual provides a description based on operation with the remote control.
7
LOCATION OF USERS CONTROL (Continued)
Main unit (rear view)
O
E
D
I
V
T
U
O
/
2
N
I
-
V
A
L
O
I
D
U
A
R
T
N
E
N
O
P
M
O
C
Y
B
P
R
P
L
O
I
D
U
A
R
VIDEO
AUDIO (L)
AUDIO (R)
Y
B
P
P
R
AUDIO (L)
AUDIO (R)
AV-IN2/OUT
COMPONENT
R
E
W
O
P
N
I
A
How to adjust the angle
Tilt the display by grabbing onto the
carrying handle while securely
holding down the stand with your
other hand.
M
O
E
ID
/V
V
T
U
N
E
M
H
C
L
O
V
Carrying handle
AV-IN1
AUDIO (L)
AUDIO (R)
S-VIDEO
HEADPHONE
Antenna terminal
POWER INPUT
DC 12V(LC-13B4M/
LC-15B4M)
DC 13V(LC-20B4M)
VIDEO
V
ID
E
O
A
V
-
IN
1
L
A
U
D
IO
R
S
-
V
ID
E
O
H
E
A
D
P
H
O
N
E
A
N
T
.
U
S
E
T
H
E
S
U
P
A
P
C
LIE
A
D
D
A
P
T
E
R
.
(P
A
R
T
N
O
. L
O
T
C
H
A
E
T
E
M
D
O
O
D
N
E
L LA
B
E
L
.)
P
O
W
E
R
I
N
P
U
T
D
C
1
3
V
8
LOCATION OF USERS CONTROL (Continued)
A
IN
Removing the Back Cover
■ Before connecting a connection cord into the rear terminal, remove the
back cover. Push in the tab and pull out the back cover carefully.
■ To mount the cover, insert the 2 hooks on the bottom of the cover
into the cabinet and press on the upper part of the back cover until
the tab locks in place with a click.
Listening with Headphones
■ Plug the headphone mini-plug into the HEADPHONE jack located on the rear of the TV set.
R
E
W
O
P
N
I
A
M
O
E
D
I
V
/
V
T
U
N
E
M
H
C
L
O
V
M
O
E
ID
/V
V
T
U
N
E
HM
C
L
O
V
▼ On-screen display
< Rear terminal
VOLUME
60
Headphones
Note:
• Headphones are not included in the supplied accessories.
• No sound will be heard from the main unit speakers when a headphone mini-plug is connected into the
HEADPHONE jack.
9
LOCATION OF USERS CONTROL (Continued)

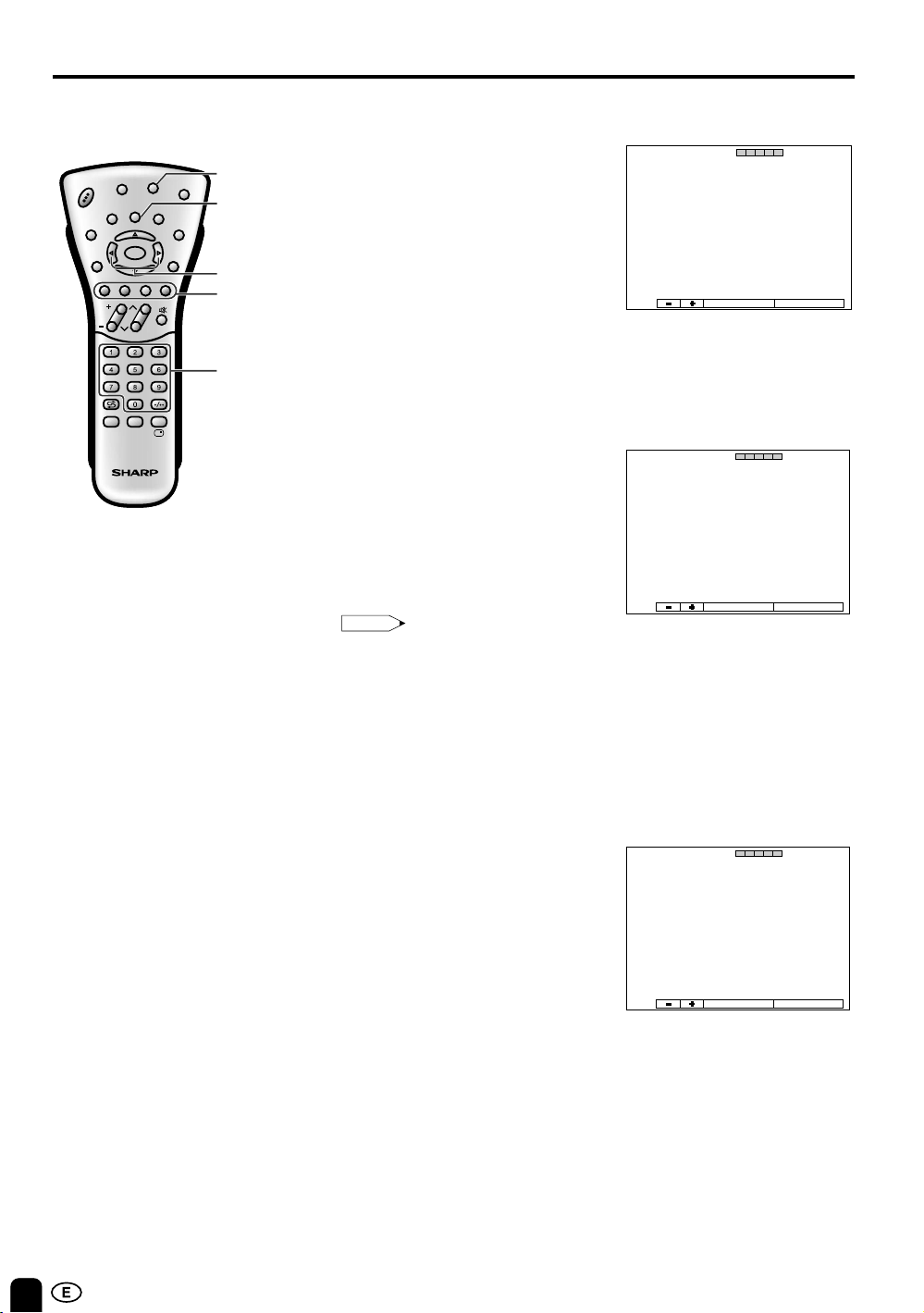

Remote control
Selects the brightness
BRIGHT
of the display.
(P.23)
HOLD
Temporarily holds the
current Teletext page.
(P.29)
POWER
(P.12)
MENU
Displays the TV menu.
(P.14)
SUBTITLE
Displays the Teletext
Subtitle directly.
(P.29)
MPX
Switches Audio
mode. (P.25)
Right / Left Selection
(P.14)
Red
(P.28)
Green
(P.28)
VOL (+)/(
(P.12)
CHANNEL SELECT
(P.13)
Flashback
Returns to the previous
channel.
SLEEP
(P.18)
DIS.MODE
(P.24)
SUBPAGE
Displays the Teletext
Subpage directly.
(P.28)
TEXT
Displays the Teletext mode
screen. (P.27)
REVEAL
Displays hidden information
TEXTBRIGHT
T
IDE
W
E
X
T
TV/ VIDEOPOWER
T
SUBPAGE
HOLD
SUBPAGE
REVEAL
HOLD
SUBTITLE END
SUBTITLE
REVEAL
END
E
ROTATE
such as solutions to riddles
and puzzles. (P.29)
TV/VIDEO
Switches the input source
between AV1, AV2, COMPONENT
and TV mode. (P.11)
END
(P.29)
MENU
MENU
OKMPX
MENUSOUND
M
Upwards/Downwards
Selection, zoom display
function (Teletext mode)
(P.14)
OK
(P.29)
CH
CHVOL
Cyan
(P.28)
-
)
Yellow
(P.28)
MUTE
Switches the sound on and off.
(P.12)
TV/VIDEO
CH ( )/( )
Selects next higher channel.
Selects next lower channel.
(P.13)
DISPLAY
SLEEP DIS.MODE
Press....Displays receiving channel
for 10 seconds. Channel
indication reduces in size
after about 10 seconds.
Press again...Removes display.
10
BASIC OPERATION
Turning on POWER
Control section of main unit
MAIN POWER
MAIN POWER
MENU
VOL
TV/VIDEO
CH
1
2
PRESET
P
O
W
E
R
S
L
E
E
P
Power/Standby indicator
Switching TV/VIDEO AV1/AV2/COMPONENT/TV Mode
1 Press MAIN POWER, located on
the upper part of the main unit to
ON.
2 The Power/Standby indicator
instantaneously changes from red
to green and the main unit is turned
on.
Note:
• Input mode indication disappears after
several seconds.
▼ On-Screen Display
TEXTBRIGHT
TEXT
E
D
I
W
T
SUBPAGE
HOLD
SUBPAGE
REVEAL
R
E
D
V
L
E
O
A
H
SUBTITLE END
E
L
T
I
T
B
U
S
SLEEP DIS.MODE
L
MENU
MENU
CH
CHVOL
TV/VIDEO
1 Turn on the power of the connected
AV1 mode
video equipment.
2 Press TV/VIDEO and select the
applicable input source. The screen
displays AV1, AV2, COMPONENT
or TV mode at the upper right
R
O
T
TV/VIDEOPOWER
A
T
E
TV/
VIDEO
E
N
D
E
OKMPX
MENUSOUND
M
corner each time TV/VIDEO is
pressed.
Note:
• AV input mode indication remains for 5
seconds.
• AV1: Video equipment connected to the
AV1 input terminals.
An S-video input terminal is
additionally provided for the AV1
input. If both S-video terminal and
normal video terminals are
connected with cables, the Svideo input terminal is selected as
the high priority.
• AV2: AV2 mode is used to adjust the
preset settings and IN or OUT can
be selected. AV2 indication is not
displayed when OUT is selected.
(For details on setting AV-OUT,
see page 22.)
• COMPONENT:
Video equipment connected to the
COMPONENT input terminals.
AV2 mode
COMPONENT mode
COMPONENT
TV mode
11
BASIC OPERATION (Continued)
Sound Volume
TEXTBRIGHT
TEXT
E
D
I
W
HOLD
OLD
H
SUBTITLE END
E
L
T
I
T
B
U
S
SUBPAGE
SUBPAGE
MENU
MENU
CH
CHVOL
T
REVEAL
R
R
O
POWER
T
TV/VIDEOPOWER
A
T
E
E
V
E
A
L
E
N
D
E
OKMPX
MENUSOUND
M
MUTE
VOL(+)/(–)
TV/VIDEO
SLEEP DIS.MODE
ON/OFF Standby
1 Press VOL (+) to increase sound
volume. The segment of indicator
increases.
2 Press VOL (–) to decrease sound
volume. The segment of indicator
decreases.
To mute sound
1 Press MUTE to temporarily turn off
the sound.
Screen displays the MUTE mark.
2 Press MUTE or VOL (+)/(–) to turn
the sound back to the previous level.
MUTE is automatically cleared when
the following buttons are pressed:
POWER, VOL (+)/(–), MUTE.
TEXTBRIGHT
TEXT
E
D
I
W
T
SUBPAGE
HOLD
SUBPAGE
REVEAL
R
E
V
LD
E
O
A
H
SUBTITLE END
E
L
T
I
T
B
U
S
SLEEP DIS.MODE
L
MENU
MENU
MENUSOUND
CH
CHVOL
TV/VIDEO
R
O
POWER
T
TV/VIDEOPOWER
A
T
E
To turn off the LCD TV
Press POWER on the remote control.
E
N
D
E
OKMPX
M
The Power/Standby indicator will turn
red. (Standby position)
To turn the LCD TV back on
Press POWER again.
The Power/Standby indicator will turn
green.
12
BASIC OPERATION (Continued)
Changing the Channels
Changing channels using CHANNEL SELECT on the remote control.
• To handle the increasing number of channels available, this LCD TV set allows you to select up to
100 positions (Channels 0 to 99). One-digit and two-digit methods of selection can be used. Follow
the procedure shown below to select channels.
TEXTBRIGHT
TEXT
E
D
I
W
T
SUBPAGE
HOLD
SUBPAGE
REVEAL
R
E
V
LD
E
A
HO
SUBTITLE END
E
L
T
I
T
B
U
S
SLEEP DIS.MODE
L
MENU
MENU
MENUSOUND
CH
CHVOL
TV/VIDEO
R
O
T
TV/VIDEOPOWER
A
T
E
E
N
D
E
OKMPX
M
To select a one-digit channel
(e.g., Channel 5):
1 Press the button.
2 If “5-” is indicated and the picture
does not change, press the
-/--
B/G
button to switch over to the 1-digit
select mode and press
CH ( )/
( )
CHANNEL
SELECT
again.
To select a two-digit channel
(e.g., Channel 15):
1 Press the
-/--
button to set the
2-digit select mode.
2 Press the button.
3 Press the button.
Note:
• Complete this procedure within 4 seconds,
otherwise the selection will not be made.
B/G
Changing channels with CH ( )/( ) on the remote control.
Press CH ( ) and the channels change in the order shown below:
1 → 2 → 3 → . . . → 98 → 99 → 0 → 1 → 2 → 3 → . . .
Press CH (
) and the channels change in the order shown below:
3 → 2 → 1 → 0 → 99 → 98 → . . . → 3 → 2 → 1 → . . .
13
SELECTING THE MENU ITEMS
MENU
SELECT:
ADJUST:
EXIT:
CH-SETTING
RETURN
POSITION [CH15 ]
COLOUR SYSTEM [AUTO ]
SOUND SYSTEM [B/G ]
SKIP [OFF ]
FINE [783.25MHz]
NICAM [ON ]
IGR [ON ]
PICTURE (AV1)
RETURN
CONTRAST [ 50]
COLOUR SYSTEM [AUTO]
COLOUR [ 0]
BLACK LEVEL [ 0]
SHARPNESS [ 0]
RESET
MENU
SELECT: ENTER:
EXIT:
TINT [ 0]
0
0
0
0
0
FEATURE
RETURN
BRIGHTNESS [BRIGHT ]
AUTO POWER OFF [OFF ]
DISPLAY MODE [NORMAL ]
AV2 IN/OUT [IN ]
BLUE BACK [ON ]
LANGUAGE [ENGLISH]
MENU
SELECT:
ADJUST:
EXIT:
SLEEP TIMER
RETURN
SLEEP TIMER [---REMAIN]
MENU
SELECT:
ADJUST:
EXIT:
Selecting a Menu Item
• This LCD TV set allows you to adjust the picture and sound, and set the channels and other features
using the On-Screen Display. Select the desired menu item by following the steps below and then refer
to the indicated page for details.
SLEEP TIMER
menu ----------------- Page 18
TEXTBRIGHT
TEXT
E
D
I
W
T
SUBPAGE
HOLD
SUBPAGE
REVEAL
R
E
V
LD
E
O
A
H
SUBTITLE END
E
L
T
I
T
B
U
S
SLEEP DIS.MODE
L
MENU
MENU
OKMPX
MENUSOUND
M
CH
CHVOL
TV/VIDEO
R
O
T
TV/VIDEOPOWER
A
T
E
</>
E
N
D
E
MENU
]/[
1 Press MENU to display the MENU
screen.
2 Press ]/[ to select the desired
menu item.
•
The “ ” mark moves up or down.
•
The “ ” mark indicates the selected
menu item.
3 Press </> to enter.
MENU
SLEEP TIMER
FEATURE
CH-SETTING
PICTURE menu
(TV mode) ---------- Page 19
PICTURE (TV)
RETURN
CONTRAST [ 50]
TINT [ 0]
COLOUR [ 0]
BLACK LEVEL [ 0]
SHARPNESS [ 0]
RESET
0
0
0
0
0
SELECT: ENTER:
EXIT:
MENU
Note:
• The displayed items differ depending
on the setting conditions.
• The selected item changes to yellow.
• Items in purple cannot be selected.
SELECT: ENTER:
EXIT:
(AV mode) --------- Page 19
FEATURE menu --- Page 21
CH-SETTING
menu ---------------- Page 17
MENU
* The screen indications shown above are larger than actual for easy reading.
14
PRESET
On-Screen Display Language Selection
Upper control panel
VOL CH MENU TV/VIDEO
PRESET
12
1,2,43
* In this example, the LC-20B4M
model is used. Refer to page 7
if you are using the LC-13B4M
and LC-15B4M models.
■ MENU on the LCD TV set can also
be used to select the language.
1 Press MENU (PRESET-1) on the
upper part of the LCD TV set for
more than 2 seconds to display the
PRESET mode screen.
2 Press MENU (PRESET-1) twice
to display the LANGUAGE select
mode screen. Press MENU
(PRESET-1) again to change the
PRESET mode as shown below.
AUTO → MANUAL → LANGUAGE →
Note:
•
Instead of pressing MENU for more than
2 seconds, you can display the
LANGUAGE select mode by selecting
FEATURE → LANGUAGE on the
Menu screen.
NORMAL
SCREEN
3 Press CH ( )/( ) to select the
language you wish to display.
4 Press MENU (PRESET-1) to
return to the normal screen.
ENGLISH
SELECT:
EXIT:
MENU
Presetting the Channels (AUTO)
Upper control panel
VOL CH MENU TV/VIDEO
PRESET
12
■ Automatically tunes in and presets
receivable TV stations.
Make sure the antenna cable is
properly connected.
1 Press MENU (PRESET-1) on the
upper part of the LCD TV set for
12
more than two seconds. The
AUTO mode screen appears.
2 Press VOL (–)/(+) (PRESET-2)
TEXTBRIGHT
TEXT
E
D
I
W
T
SUBPAGE
HOLD
SUBPAGE
REVEAL
R
E
D
V
L
E
O
A
H
SUBTITLE END
E
L
T
I
T
B
U
S
SLEEP DIS.MODE
L
MENU
MENU
MENUSOUND
M
CH
CHVOL
TV/VIDEO
R
O
T
TV/VIDEOPOWER
A
T
E
E
N
D
E
OKMPX
MENU
on the upper part of the LCD TV
set.
All the TV stations in your area
that can be received by the LCD
TV set are automatically preset.
3 The screen shows whatever is on
channel 1 when full auto channel
preset is finished.
Note:
•
When starting PRESET after setting the
SOUND SYSTEM with MENU of the
Remote Control, the SOUND SYSTEM
for all channels are stored into memory.
•
Unused channels are automatically
skipped.
•
The Preset mode is only available in the
TV mode and cannot be operated in the
AV mode.
(Auto mode screen)
Sound System
15
PRESET (Continued)
Presetting the Channels (MANUAL)
Upper control panel
VOL CH MENU TV/VIDEO
PRESET
12
4
TEXTBRIGHT
TE
E
D
I
XT
W
T
SUBPAGE
HOLD
SUBPAGE
REVEAL
R
E
D
V
L
E
O
A
H
MENU
MENU
L
OKMPX
MENUSOUND
M
SUBTITLE END
E
L
T
I
T
B
U
S
R
TV/VIDEOPOWER
E
N
E
1,2,63
O
T
A
T
E
MENU
D
VOL(+)/(–)
CH
CHVOL
CH ( )/( )
CHANNEL
TV/VIDEO
SLEEP DIS.MODE
SELECT
Upper control panel
VOL CH MENU TV/VIDEO
PRESET
12
4
1,2,3,5
■ Setting a channel to a desired TV
station:
1 Press MENU (PRESET-1) on the
upper part of the LCD TV set for
more than 2 seconds. The AUTO
mode screen appears.
2 Press MENU (PRESET-1) to
display the MANUAL mode screen.
Press MENU (PRESET-1) again
to change the MANUAL mode as
shown below.
AUTO → MANUAL → LANGUAGE →
NORMAL
SCREEN
3 Select the channel position using
CHANNEL SELECT or CH ( )/
).
(
4 Press VOL (+)/(–) to locate the
channel you want to preset to the
position. Search is initiated and
when a TV signal is received
during the search, the search
stops.
5 Repeat steps 3 and 4 above, to
preset the channel positions for
other broadcasts, etc.
6 Press MENU (PRESET-1) to
return to the normal screen.
Note:
•
SYSTEM may not have been set correctly,
if noise can be heard or if there is no
sound.
In such case, reset to SOUND SYSTEM
using MENU.
■ In a weak reception area, or under
bad reception conditions.
1 Press MENU (PRESET-1) on the
upper part of the LCD TV set for
more than 2 seconds. The AUTO
mode screen appears.
2 Press MENU (PRESET-1) to
display the MANUAL mode screen.
3 While the MANUAL mode screen
is displayed, press MENU (PRE-
SET-1) for more than 2 seconds.
The channel position number
remains in green.
Sound System
Auto mode screen
Manual mode screen
Channel position
number
➡
➡
16
Note:
• While the MANUAL mode screen is
displayed, press MENU (PRESET-1).
(The LANGUAGE mode screen will
appear.)
4 Adjust for good reception using
VOL (+)/(–).
5 After finishing the adjustment,
press MENU (PRESET-1) to
continue channel presetting.
ENGLISH
SELECT:
EXIT:
MENU
Channel Setting
PRESET (Continued)
(MENU screen)
MENU
SLEEP TIMER
FEATURE
CH-SETTING
SELECT: ENTER:
TEXTBRIGHT
TEXT
E
D
I
W
T
SUBPAGE
HOLD
SUBPAGE
REVEAL
R
E
D
V
L
E
O
A
H
SUBTITLE END
E
L
T
I
T
B
U
S
L
MENU
MENU
MENUSOUND
CH
CHVOL
1 Press MENU to display the MENU
R
O
T
TV/VIDEOPOWER
A
T
E
</>
E
N
D
E
OKMPX
M
MENU
]/[
screen.
2 Press ]/[ to move the cursor to
CH-SETTING.
3 Press </> to display
CH-SETTING screen.
4 Press ]/[ to select the desired
function mode.
5 Each time you press </>, the
setting for individual items is as
mentioned under Selected item:
6 Press MENU to return to the
SLEEP DIS.MODE
TV/VIDEO
CHANNEL
SELECT
normal screen.
Selected item
POSITION The channel position changes to the upper or lower number.
COLOUR SYSTEM The mode changes in the following order:
SOUND SYSTEM The mode changes in the following order:
(CH-SETTING screen)
CH-SETTING
RETURN
POSITION [CH15 ]
COLOUR SYSTEM [AUTO ]
SOUND SYSTEM [B/G ]
SKIP [OFF ]
FINE [783.25MHz]
NICAM [ON ]
IGR [ON ]
PA L
ADJUST:
SECAM
SELECT:
AUTO
N443
B/G I D/K M
N358
EXIT:
EXIT:
MENU
MENU
SKIP The mode changes in the following order:
ON ←→ OFF
Channel numbers with a “| (RED)” mark on the left are set to SKIP.
To turn off SKIP, press CHANNEL SELECT to select the desired channel,
and then set the SKIP mode on the CH-SETTING menu to “OFF”.
FINE The frequency changes to allow fine tuning.
NICAM The broadcast sound system changes in the following order:
ON (NICAM sound) ←→ OFF (Monaural TV sound)
IGR Stereo system changes in the following order:
ON (IGR sound) ←→ OFF (Monaural TV sound)
Note:
• Switching COLOUR SYSTEM
Set the system to AUTO for normal TV reception. The AUTO mode automatically detects the receiving signal
system and changes the reception system of the LCD TV set. When the picture or sound is not stable, switching to
an appropriate system may improve the picture or sound quality.
• When using FINE tuning, the channel number changes from green to yellow.
• To return the channel to its original frequency setting, follow the manual channel preset procedure. (Please see
page 16 “Presetting the Channels (MANUAL)” for details.)
• In AV mode, items in purple cannot be selected.
17
ADJUSTMENT
Adjusting the SLEEP TIMER Setting
To use Direct Key function
TEXTBRIGHT
TEXT
E
D
I
W
T
SUBPAGE
HOLD
SUBPAGE
REVEAL
R
E
D
V
L
E
O
A
H
SUBTITLE END
E
L
T
I
T
B
U
S
L
MENU
MENU
OKMPX
MENUSOUND
M
CH
CHVOL
POWER
R
O
T
TV/VIDEOPOWER
A
T
E
</>
E
N
D
E
MENU
]/[
1 Press SLEEP to display the
SLEEP TIMER screen.
2 Press SLEEP to set the sleep
timer (in minutes).
•
Each time you press SLEEP, the
timer changes as follows:
--- 30 60 90 120
The setting is turned off when --- is
displayed.
---REMAIN
SLEEP DIS.MODE
TV/VIDEO
SLEEP
3 Press MENU to return to the main
screen.
To use MENU item
1 Press MENU to display the MENU
screen.
2 Press ]/[ to move the cursor to
SLEEP TIMER.
3 Press </> to display the SLEEP
TIMER screen.
4 Press </> to set the sleep timer
(in minutes).
The setting can be set in
increment of 30 minutes and in the
range between 30 and 120
minutes.
The setting is turned off when --- is
displayed.
6 REMAIN
0
MENU
SLEEP TIMER
FEATURE
CH-SETTING
SELECT: ENTER:
SLEEP TIMER
RETURN
SLEEP TIMER [120
SELECT:
ADJUST:
0
REMAIN]
EXIT:
EXIT:
MENU
MENU
5 Press MENU to return to the main
screen.
Note:
• When you set the SLEEP TIMER, the SLEEP indicator lights.
• After you set the SLEEP TIMER, if you turn off the MAIN POWER on the TV set or press POWER on the remote
control, the SLEEP TIMER setting is cancelled and the SLEEP indicator goes out.
• 5 minutes before the SLEEP TIMER turns off the TV, 5 REMAIN is displayed on the screen for 4 seconds. The
SLEEP TIMER counts down and shows a similar 4-second display for each remaining minute until the timer turns
off the TV.
18
ADJUSTMENT (Continued)
Adjusting the PICTURE Settings
TEXTBRIGHT
TEXT
E
D
I
W
T
SUBPAGE
HOLD
SUBPAGE
REVEAL
R
E
D
V
L
E
O
A
H
SUBTITLE END
E
L
T
I
T
B
U
S
SLEEP DIS.MODE
L
MENU
MENU
MENUSOUND
M
CH
CHVOL
TV/VIDEO
1 Press MENU to display the MENU
R
O
T
TV/VIDEOPOWER
A
T
E
</>
E
N
D
E
OKMPX
MENU
]/[
screen.
2 Press ]/[ to move the cursor to
PICTURE.
3 Press </> to display the
PICTURE menu screen.
4 Press ]/[ to move the cursor
and select the desired adjustment
item.
All of adjustment items are shown
in the diagram on page 20.
MENU
SLEEP TIMER
FEATURE
CH-SETTING
SELECT: ENTER:
MENU
SLEEP TIMER
FEATURE
CH-SETTING
SELECT: ENTER:
PICTURE (TV)
RETURN
CONTRAST [ 50]
TINT [ 0]
COLOUR [ 0]
BLACK LEVEL [ 0]
SHARPNESS [ 0]
RESET
SELECT: ENTER:
PICTURE (TV)
RETURN
CONTRAST [ 50]
TINT [ 0]
COLOUR [ 0]
BLACK LEVEL [ 0]
SHARPNESS [ 0]
RESET
MENU
EXIT:
MENU
EXIT:
0
0
0
0
0
MENU
EXIT:
0
0
0
0
0
5 Press </> to display the screen
for the selected adjustment item.
6 Press </> to make adjustment.
To adjust another item, move the
cursor by pressing ]/[ while the
MENU screen is displayed.
See the diagram on page 20 for
details of each item settings.
7 Press MENU to return to the main
screen.
SELECT: ENTER:
RETURN
COLOUR
0
-
SELECT:
ADJUST:
EXIT:
+
EXIT:
MENU
MENU
19
ADJUSTMENT (Continued)
Selected item Press <. Press >.
CONTRAST Decrease contrast Increase contrast
TINT Toward purple Toward green
COLOUR Lower colour intensity Higher colour intensity
BLACK LEVEL Less bright More bright
SHARPNESS Soft picture Hard picture
COLOUR SYSTEM Press > to select COLOUR SYSTEM.
(AV1/AV2) → AUTO → PAL → SECAM → N358 → N443 → PAL60
(COMPONENT) → AUTO → PAL → NTSC
Note:
• COLOUR SYSTEM is displayed only in the AV mode.
Switching the COLOUR SYSTEM
Set the system to AUTO for normal reception. The AUTO mode automatically detects the receiving
signal system and changes the reception system of the set.
When the picture or sound is not stable, switching to an appropriate system may improve the picture
or sound quality.
20
ADJUSTMENT (Continued)
Adjusting the FEATURE Settings
■ The FEATURE items can be set by
TEXTBRIGHT
TEXT
E
D
I
W
T
SUBPAGE
HOLD
SUBPAGE
REVEAL
R
E
D
V
L
E
O
A
H
SUBTITLE END
E
L
T
I
T
B
U
S
L
MENU
MENU
MENUSOUND
M
CH
CHVOL
R
O
T
TV/VIDEOPOWER
A
T
E
</>
E
N
D
E
OKMPX
MENU
]/[
the user.
1 Press MENU to display the MENU
screen.
MENU
SLEEP TIMER
FEATURE
CH-SETTING
SELECT: ENTER:
EXIT:
MENU
SLEEP DIS.MODE
TV/VIDEO
2 Press ]/[ to move the cursor to
FEATURE.
3 Press </> to display FEATURE
screen.
4 Check the factory setting of each
item on the FEATURE screen.
The user can change the settings
by using ]/[ and </>.
See the diagram on page 22 for
details of each item settings.
5 Press MENU to return to the main
screen.
MENU
SLEEP TIMER
FEATURE
CH-SETTING
SELECT: ENTER:
FEATURE
RETURN
BRIGHTNESS [BRIGHT ]
AUTO POWER OFF [OFF ]
DISPLAY MODE [NORMAL ]
AV2 IN/OUT [IN ]
BLUE BACK [ON ]
LANGUAGE [ENGLISH]
SELECT:
ADJUST:
EXIT:
EXIT:
MENU
MENU
21
ADJUSTMENT (Continued)
Selected item
BRIGHTNESS
AUTO POWER OFF
(only TV mode)
DISPLAY MODE
Factory setting
[BRIGHT] Maximum brightness
[OFF] This feature is inactive.
[NORMAL] Normal image
orientation
ABC
Setting change
[NORMAL] Brightness 60% → Suitable for
viewing in well-lit areas. Saves
energy.
[DARK] Brightness 20% → Sufficiently bright
when viewing in dim areas.
[ON] The power of the LCD TV set is turned
off when there is no signal for 5 minutes.
[MIRROR] Mirror image → To display mirror
images for special uses.
ABC
[UPSIDE DOWN] Upside down image → To
display upside down images for special uses.
ABC
[REVERSE + INVERT] Reversed and inverted
image → To display images reversed and
inverted for special uses.
ABC
AV2 IN/OUT
BLUE BACK
LANGUAGE
■ In BLUE BACK, PICTURE setting displayed in purple cannot be selected.
■ AV2 IN/OUT cannot be selected in AV2 mode. Also, AV2 mode cannot be selected, when selecting AV2 OUT.
[IN]
[ON] The screen is turned blue
when there is no signal.
[ENGLISH]
[OUT ] Line Output is selected, Output
[OUT
[OFF] This feature is inactive.
[ ]
[]
volume is fixed, Speaker output is
available.
] Line Output is selected, Output
volume is variable, Speaker output
is Mute.
22
Adjusting the BRIGHTNESS Settings
You can set the brightness of the screen.
Directly setting the BRIGHTNESS
TEXTBRIGHT
TEXT
E
D
I
W
T
SUBPAGE
HOLD
SUBPAGE
REVEAL
R
E
D
V
L
E
O
A
H
SUBTITLE END
E
L
T
I
T
B
U
S
SLEEP DIS.MODE
L
MENU
MENU
MENUSOUND
M
CH
CHVOL
TV/VIDEO
R
O
T
TV/VIDEOPOWER
A
T
E
BRIGHT
E
N
D
E
OKMPX
1 Press BRIGHT to display the
BRIGHTNESS screen.
2 Press BRIGHT to change the
setting.
BRIGHT NORMAL DARK
Note:
• The BRIGHTNESS screen automatically
disappears in 3 seconds.
• [BRIGHT]: maximum brightness
[NORMAL]: 60% brightness (suitable for
viewing in a well-lit area and saves
energy)
[DARK]: 20% brightness (sufficiently bright
when viewing in a dimly lit area)
ADJUSTMENT (Continued)
BRIGHTNESS[BRIGHT]
TEXTBRIGHT
TEXT
E
D
I
W
T
SUBPAGE
HOLD
SUBPAGE
REVEAL
R
E
D
V
L
E
O
A
H
SUBTITLE END
E
L
T
I
T
B
U
S
SLEEP DIS.MODE
L
MENU
MENU
MENUSOUND
M
CH
CHVOL
TV/VIDEO
Setting the BRIGHTNESS on the
MENU screen
1 Press MENU to display the MENU
R
O
T
TV/VIDEOPOWER
A
T
E
</>
E
N
D
E
OKMPX
MENU
]/[
screen.
2 Press ]/[ to move the cursor to
FEATURE.
3 Press </> to display FEATURE
screen.
MENU
SLEEP TIMER
FEATURE
CH-SETTING
SELECT: ENTER:
EXIT:
MENU
4 Press ]/[ to move the cursor to
BRIGHTNESS.
5 Press </> to set the brightness.
6 Press MENU to return to the main
screen.
FEATURE
RETURN
BRIGHTNESS [BRIGHT ]
AUTO POWER OFF [OFF ]
DISPLAY MODE [NORMAL ]
AV2 IN/OUT [IN ]
BLUE BACK [ON ]
LANGUAGE [ENGLISH]
SELECT:
ADJUST:
EXIT:
MENU
23
ADJUSTMENT (Continued)
DISPLAY MODE [NORMAL]
DISPLAY MODE [MIRROR]
DISPLAY MODE [UPSIDE DOWN]
DISPLAY MODE [REVERSE+INVERT]
ABC
ABC
ABC
ABC
Adjusting the DISPLAY MODE Settings
You can set the orientation of the picture.
Directly setting the DISPLAY MODE
TEXTBRIGHT
T
E
EX
D
I
T
W
T
SUBPAGE
HOLD
SUBPAGE
REVEAL
R
E
D
V
L
E
O
A
H
MENU
MENU
L
OKMPX
MENUSOUND
M
SUBTITLE END
E
L
T
I
T
B
U
S
R
O
T
TV/VIDEOPOWER
A
T
E
E
N
D
E
1 Press DIS.MODE to display the
DISPLAY MODE screen.
2 Press DIS.MODE to change the
setting.
MIRROR UPSIDE DOWNNORMAL
SUBTITLE END
E
L
T
I
T
B
U
S
CH
CHVOL
TV/VIDEO
SLEEP DIS.MODE
TEXTBRIGHT
TEX
E
D
I
T
W
T
SUBPAGE
HOLD
SUBPAGE
REVEAL
R
E
D
V
L
E
O
A
H
L
MENU
MENU
CH
CHVOL
REVERSE + INVERT
Note:
• The DISPLAY MODE screen automatically
disappears in 3 seconds.
• [NORMAL]: normal image
DIS.MODE
R
O
T
TV/VIDEOPOWER
A
T
E
</>
E
N
D
E
OKMPX
MENUSOUND
M
MENU
]/[
[MIRROR]: mirror image
[UPSIDE DOWN]: upside down image
[REVERSE+INVERT]: reversed and
inverted image
Setting the DISPLAY MODE on the
MENU screen
1 Press MENU to display the MENU
screen.
2 Press ]/[ to move the cursor to
FEATURE.
3 Press </> to display FEATURE
screen.
MENU
SLEEP TIMER
FEATURE
CH-SETTING
SELECT: ENTER:
EXIT:
MENU
SLEEP DIS.MODE
24
TV/VIDEO
4 Press ]/[ to move the cursor to
DISPLAY MODE.
5 Press </> to set the DISPLAY
MODE.
6 Press MENU to return to the main
screen.
FEATURE
RETURN
BRIGHTNESS [BRIGHT ]
AUTO POWER OFF [OFF ]
DISPLAY MODE [NORMAL ]
AV2 IN/OUT [IN ]
BLUE BACK [ON ]
LANGUAGE [ENGLISH]
SELECT:
ADJUST:
EXIT:
MENU
NICAM BROADCASTS SELECTION
Enables selection of reception mode when receiving a NICAM signal.
To let you enjoy NICAM broadcasting, this LCD
TV receives NICAM system stereo, bilingual, and
TEXTBRIGHT
TEXT
E
D
I
W
T
SUBPAGE
HOLD
SUBPAGE
REVEAL
R
E
D
V
L
E
O
A
H
SUBTITLE END
E
L
T
I
T
B
U
S
SLEEP DIS.MODE
L
MENU
MENU
MENUSOUND
M
CH
CHVOL
TV/VIDEO
monaural broadcasts.
R
O
T
TV/VIDEOPOWER
A
T
E
Stereo
TV set is receiving a stereo broadcast.
E
N
D
E
OKMPX
MPX
•
Each time you press
MPX
, the mode switches
between NICAM STEREO and MONO.
When MONO is selected, the TV sound is
output in monaural.
Bilingual
TV set is receiving a bilingual broadcast.
• Pressing MPX changes the audio mode in the
order shown on the right.
• M1=main sound, M2=sub sound, or
MONO=monaural sound, can be selected.
(When stereo
sound is received)
(When main sound
is selected)
(When sub sound
is selected)
(When monaural
sound is selected)
49
NICAM
STEREO
49
MONO
49
NICAM
49
NICAM
49
MONO
M1
M2
Monaural
TV set is receiving a monaural broadcast.
(When monaural
sound is received)
49
NICAM
MONO
• Each time you press MPX, the mode switches
between NICAM MONO and MONO.
49
MONO
Note:
• If approximately 3 seconds pass without a button being pressed, the mode setting is automatically terminated and the TV set returns to normal mode.
• The setting can be selected individually for each channel position.
TEXTBRIGHT
TEXT
E
D
I
W
T
SUBPAGE
HOLD
SUBPAGE
REVEAL
R
E
V
LD
E
O
A
H
SUBTITLE END
E
L
T
I
T
B
U
S
L
MENU
MENU
MENUSOUND
CH
CHVOL
R
O
T
TV/VIDEOPOWER
A
T
E
</>
E
N
D
E
OKMPX
M
MENU
]/[
MPX
If the sound quality is poor due to a weak signal or
other problems during NICAM broadcast reception,
set the “OFF” position of the NICAM to change the
TV sound to monaural.
1 Press MENU to display the MENU
screen.
2 Press ]/[ to select
“CH-SETTING”.
3 Press </> to display the
CH-SETTING
RETURN
POSITION [CH15 ]
COLOUR SYSTEM [AUTO ]
SOUND SYSTEM [B/G ]
SKIP [OFF ]
FINE [783.25MHz]
NICAM [OFF ]
IGR [ON ]
SELECT:
ADJUST:
CH-SETTING menu.
(When off position is selected)
SLEEP DIS.MODE
TV/VIDEO
4 Press ]/[ to select “NICAM”.
5 Press </> to select “OFF”.
When the NICAM sound is set to the
“OFF” position, the TV sound is output
in monaural.
EXIT:
NICAM
MENU
15
[
Note:
• When the NICAM sound is set to the “OFF” position, MPX cannot be used to change the audio mode (stereo
and bilingual settings).
25
IGR (German stereo system ) BROADCASTS
Enables selection of reception mode when receiving an IGR Stereo signal.
To let you enjoy IGR broadcasting, this TV receives
(When stereo
sound is received)
STEREO
TEXTBRIGHT
TEXT
E
D
I
W
T
SUBPAGE
HOLD
SUBPAGE
REVEAL
R
E
V
LD
E
O
A
H
SUBTITLE END
E
L
T
I
T
B
U
S
L
MENU
MENU
OKMPX
MENUSOUND
M
CH
CHVOL
IGR system stereo and bilingual broadcasts.
R
O
T
TV/VIDEOPOWER
A
T
E
E
N
D
E
Stereo
TV set is receiving a stereo broadcast.
• Each time you press MPX, the mode switches
between STEREO and MONO.
MPX
When MONO is selected, the TV sound is output
in monaural.
Bilingual
(When main
sound is received)
49
TV/VIDEO
TV set is receiving a bilingual broadcast.
• Pressing MPX changes the audio mode in the
order shown on the right.
SLEEP DIS.MODE
• MAIN=main sound or SUB=sub sound, can be
selected.
(When sub
sound is received)
Note:
:
• If approximately 3 seconds pass without a button being pressed, the mode setting is automatically terminated and the TV set returns to normal mode.
• The setting can be selected individually for each channel position.
(CH-SETTING menu)
CH-SETTING
RETURN
POSITION [CH15 ]
COLOUR SYSTEM [AUTO ]
SOUND SYSTEM [B/G ]
SKIP [OFF ]
FINE [783.25MHz]
NICAM [ON ]
IGR [OFF ]
SELECT:
ADJUST:
EXIT:
(When off position is selected)
TEXTBRIGHT
TEXT
E
D
I
W
T
SUBPAGE
HOLD
SUBPAGE
REVEAL
R
E
D
V
L
E
O
A
H
SUBTITLE END
E
L
T
I
T
B
U
S
L
MENU
MENU
CH
CHVOL
If the sound quality is poor due to a weak signal
or other problems during IGR broadcast
reception, set the “OFF” position of the IGR to
change the TV sound to monaural.
R
O
T
TV/VIDEOPOWER
A
T
E
</>
1 Press MENU to display the MENU
screen.
E
N
D
E
OKMPX
MENUSOUND
M
MENU
]/[
MPX
2 Press ]/[ to select
“CH-SETTING”.
3 Press </> to display the
CH-SETTING menu.
4 Press ]/[ to select “IGR”.
5 Press </> to select “OFF”.
TV/VIDEO
SLEEP DIS.MODE
When the IGR sound is set to the
“OFF” position, the TV sound is
output in monaural.
49
49
MONO
MAIN
49
SUB
MENU
15
[
26
[ is displayed if IGR is
received when IGR is set to
OFF.
Note:
Note:
• When the IGR sound is set to the “OFF” position, MPX cannot be used to change the audio mode (stereo and
bilingual settings).
Teletext
369 SHARP-TEXT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
02: 52: 21
100 200
369 SHARP-TEXT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
02: 52: 21
100 200
■ What is Teletext?
Teletext is an information service organized like a magazine, which is
provided by some TV stations in addition to regular television
broadcasting. Your LCD TV set receives special Teletext signals
broadcast by a TV station, processes the information and displays it
graphically on the screen. News, weather and sports information,
stock exchange prices, programme reviews and closed captioning for
the deaf are among the many services available through Teletext.
■ Teletext mode
Teletext is activated with TEXT on the remote control and is also
closed with it. The LCD TV set can be controlled in Teletext mode
directly by inputting commands with the remote control and indirectly
through the on-screen display (menu system).
■ Operating instructions in Teletext mode
• The FLOF system for teletext is transmitted in Singapore currently.
• The TOP system for teletext is transmitted in Australia currently.
• If TOP Teletext is broadcast, a control line and TOP line can be
displayed on the screen. The TOP line involves the operating
instructions associated with all of the coloured buttons if TOP text is
transmitted, or the operating instructions for only Red and Green if
TOP text is not being transmitted.
• If there are subpages, a control line holding the operating
instructions for subpages can be displayed on line 24.
27
369 SHARP-TEXT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
02: 52: 21
100 200
Teletext (Continued)
[1] Turning on and off Teletext
mode
TEXTBRIGHT
TEXT
E
D
I
W
T
SUBPAGE
HOLD
SUBPAGE
REVEAL
R
E
V
LD
E
A
HO
SUBTITLE END
E
L
T
I
T
B
U
S
SLEEP DIS.MODE
L
MENU
MENU
OKMPX
MENUSOUND
M
CH
CHVOL
TV/VIDEO
TV/VIDEOPOWER
R
E
N
E
O
T
A
T
D
E
TEXT
SUBPAGE
</>
Coloured
buttons
CHANNEL
SELECT
1 Select a TV channel that is
broadcasting the Teletext
programme.
2 Press TEXT. The Teletext
screen appears.
To turn off the Teletext mode, press
|
TEXT again.
[2] Using the TOP line
When TOP Teletext is being
broadcast, you can display the
TOP line, which contains the
operating instructions on the
screen.
369 SHARP-TEXT
1 Use the Coloured buttons to
operate the Teletext screen.
• Press Red to display the previous
page and Green to display the next
page. Yellow and Cyan are as
indicated on the TOP line.
Note:
• By using the Red button the previously selected page will appear down to
the first page which showed up directly after switching on the video text.
Therefore the Red button has no function directly after switching on the
video text.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
100 200
02:52:21
28
[3] Changing subpages
If a page has been selected
from among several subpages,
you can display a control line
which contains the subpage
numbers.
1 Press SUBPAGE. The control
line with the subpage numbers is
displayed on line 24, and the
number of the currently selected
subpage is displayed in blue.
2 Press </> to select the desired
subpage number. The selected
subpage is displayed.
• You can also use CHANNEL
SELECT to select the desired
subpage.
3 Press SUBPAGE to turn off the
control line with the subpage
numbers.
369 SHARP-TEXT
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
02:52:21
100 200
TEXTBRIGHT
TEXT
E
D
I
W
T
SUBPAGE
HOLD
SUBPAGE
REVEAL
R
E
D
V
L
E
O
A
H
SUBTITLE END
E
L
T
I
T
B
U
S
L
MENU
MENU
MENUSOUND
M
CH
CHVOL
Teletext (Continued)
[4] Using the TOP table
When TOP Teletext is being
broadcast, you can display the
SUBTITLE
HOLD
TEXT
R
O
T
TV/VIDEOPOWER
A
T
E
REVEAL
</>
E
N
D
E
END
OKMPX
OK
MENU
]/[
TOP table with the current
programme data if one exists.
1 Press OK to display the TOP
table. The Teletext page is
temporarily turned off.
2 Press ]/[ to select the desired
item. Press </> to select topics
(column 1) or subtopics (column 2)
if they exist.
3 Press OK. A page associated with
the selected item is displayed.
SLEEP DIS.MODE
TV/VIDEO
4 Press END to exit.
[5] Using Teletext menu
To select the character set
1 Press MENU to display the
“CHARACTER SET” screen.
2 Press ]/[ to select the desired
character set.
• The colour of the letters will turn to
yellow. When selecting the character
set, pressing </> will change the
letters to magenta for an instant and
then return them back to yellow.
3 Press MENU to exit.
[6] Useful Features for Teletext
| The HOLD on the remote control
can be used to hold the current
teletext page. Press the button
again to cancel the hold mode.
|]/[ can be used to zoom the
current teletext page as below.
ABC
DEF
ABC DEF
CHARACTER SET
ARABIC/HEBREW
WEST EUROPE
EAST EUROPE
TURKISH/GREEK
SELECT:
ADJUST:
EXIT:
MENU
* The screen displays each mode each
time ]/[ is pressed.
| The SUBTITLE can be used to
quickly activate subtitles.
* Press TEXT to deactivate subtitles.
| The REVEAL can be used to
display hidden information such as
solutions to riddles and puzzles.
Press the button again to hide the
information.
29
CONNECTING WITH EXTERNAL DEVICES
You can enjoy picture and sound by connecting a VCR or a home video game system to the terminals
located on the rear of the TV set.
When connecting an external device, turn off the power of the main unit first to prevent any possible
damage.
Example of external devices that can be connected
External devices that can be connected
to AV-IN2 terminal
<Example>
• VCR
External devices that can be connected
to COMPONENT terminal
<Example>
• DVD, etc.
External devices that can be connected
to AV-IN1 terminal
<Example>
• Camcorder
• Home video game system
* If your external device has an S-Video terminal,
S-VIDEO connection is recommended.
R
E
W
O
P
N
I
A
M
O
E
D
I
V
/
V
T
U
N
E
M
H
C
L
O
V
* If your external device has a component
terminal, COMPONENT connection is
recommended (you can view high-quality
pictures).
Note:
:
• For the cable, use a commercially available audio/video cord.
• Only connect audio/video signals to AV-IN1 and AV-IN2/OUT terminals. Connecting other signals may result in
a malfunction.
• AV-IN1 has 2 video input terminals: VIDEO and S-VIDEO. When you connect external devices to both terminals
(and if you select AV-IN1), you can only view pictures from the S-VIDEO terminal. To view the picture from the
VIDEO terminal, do not connect any external devices to the S-VIDEO terminal.
• For more information about external device connections, see the manuals of your external devices.
30
CONNECTING WITH EXTERNAL DEVICES (Continued)
Connecting a VCR, DVD player or a Camcorder (AV-IN1/AV-IN2/OUT/COMPONENT)
VIDEO
AV-IN2/OUT
AUDIO
COMPONENT
P
P
AUDIO
To AV-IN2/OUT terminal
L
R
Y
B
R
L
R
To video/audio output
terminal
To COMPONENT input
Video
Audio(L)
Audio(R)
VCR
(VIDEO) terminal
R
E
W
O
P
N
I
A
M
O
E
D
I
V
/
V
T
U
N
E
M
H
C
L
O
V
Y
P
B
P
R
Audio(L)
Audio(R)
To COMPONENT input
(AUDIO) terminal
To AV-IN1 terminal
DVD Player
V
ID
E
O
A
V
-IN
L
A
U
D
IO
R
S
-V
ID
E
O
H
E
A
D
P
H
O
N
E
A
N
T
.
USE THE SUPPLIED
AC ADAPTER.
(PART NO. LOCATED ON
THE MODEL LABEL.)
POWER INPUT
DC13V
1
To video/audio output
terminal
To S-VIDEO input terminal
Video
Audio(L)
Audio(R)
S-video
Camcorder
VCR
To S-video output terminal
Note:
• If your VCR (or other external devices) has an S-Video terminal, S-VIDEO connection is recommended. (Use an
• When you connect external devices to both S-VIDEO and VIDEO terminals (and if you select AV-IN1), you can
• You cannot view multiple or synthesized pictures by connecting two or more external devices. When connecting
• When a monaural audio source is connected to only one of the AUDIO input terminals, sound will be heard not
:
S-video cord.)
only view pictures from the S-VIDEO terminal.
an external device, use care to connect the video and audio cables to the corresponding terminals.
from both speakers but from only one speaker.
31
CONNECTING WITH EXTERNAL DEVICES (Continued)
Outputting video and audio (video output)
You can output video and audio data from the TV set through the AV output terminals (AV-OUT).
• When using as an OUTPUT terminal, select FEATURE in the MENU and set AV2 IN/OUT to OUT.
(See page 21.)
• The factory setting for AV2 IN/OUT is IN.
O
E
ID
V
T
U
2/O
V-IN
A
L
IO
D
U
A
R
T
EN
N
O
P
M
O
C
Y
R
E
W
O
P
N
I
A
M
O
E
D
I
V
/
V
T
U
N
E
M
H
C
L
O
V
Connect to a VCR,
audio amplifier, etc.
Note:
• AV2 has 2 OUT modes (see page 22).
• When using the S-VIDEO input for AV-IN1, no video output will be made to the AV output terminal, but audio
output will be made for connection to external audio systems.
• When using the COMPONENT input, no video output will be made to the AV output terminal, but audio output
will be made for connection to external audio systems.
How to Fix the Cables
• Fix cables and cords with the attached cable
clamps so that they do not get caught when
mounting the cover.
• Connect the cables and cords after fixing the
cable clamps.
Cable clamps
R
E
W
O
P
N
I
A
M
O
E
D
I
V
/
V
T
U
N
E
M
H
C
L
O
V
32
TROUBLESHOOTING
■ Before calling for repair service, check the following items for possible remedies to
the encountered symptoms.
TV set
Sound
Problem Check item
• Make sure the AC adapter is properly inserted in the
There is no
picture or
sound.
There is no
picture.
There is no
picture from
AV-IN 1.
There is no
sound.
There is no
picture or
sound, just
noise.
power outlet.
• Reception other than those of broadcasting stations
can be considered.
• Make sure the input mode is set to TV.
• Make sure the MAIN POWER switch of the main unit
is on.
• Make sure the BLACK LEVEL is properly adjusted.
• Fluorescent lamp may have reached the end of
service life.
• Make sure the S-Video terminal is free of connections.
• Make sure the volume is not set to minimum.
• Make sure the sound is not set to mute.
• Make sure the antenna cable is properly connected.
• Bad reception can be considered.
Reference
Pages
6
–
11
11
19, 20
35
31
12
12
6
–
Picture is not
clear.
Picture is light
or improperly
tinted.
The picture is
too dark.
Remote control does not work.
• Make sure the antenna cable is properly connected.
• Bad reception can be considered.
• Check colour adjustment.
(NTSC mode)
• Check if BRIGHTNESS is set to DARK.
• Check CONTRAST and BLACK LEVEL adjustment.
• Fluorescent lamp may have reached the end of
service life.
• Check if batteries in the remote control have sufficient
power.
• Make sure the remote sensor window is not under
strong fluorescent lighting.
6
–
19, 20
21, 23
19, 20
35
5
5
33
TROUBLESHOOTING (Continued)
Antenna
Problem Check item
• The reception may be weak.
The picture is
not sharp.
The picture
moves.
The picture is
doubled or
tripled.
The picture is
spotted.
• The state of the broadcast may also be bad.
• Make sure the antenna is facing the right direction.
• Make sure the outside antenna is not disconnected.
• Make sure the antenna is facing the right direction.
• There may be reflected electric waves from mountains or
buildings.
• There may be interference from automobiles, trains, high
voltage lines, neon lights, etc.
• There may be interference between the antenna cable and
power cable. Try positioning them further apart.
• Is the unit receiving interference from other devices?
There are
stripes on the
screen or
colours fade.
Transmission antennas of radio broadcasting stations or
amateur radios, and cellular phones may also cause
interference.
• Use the unit as far apart as possible from devices that may
cause possible interference.
■ Cautions regarding use in high and low temperature environments
• When the unit is used in a low temperature space (e.g. room, office), the picture may leave trails or appear
slightly delayed. This is not a malfunction, and the unit will recover when the temperature returns to normal.
• Do not leave the unit in a hot or cold location. Also, do not leave the unit in a location exposed to direct
sunlight or near a heater, as this may cause the cabinet to deform and the LCD panel to malfunction.
(Storage temperature: –20°C to +60°C)
34
SPECIFICATIONS
LCD COLOUR TV COMPARISON
MODEL
ITEMS
LCD panel
Number of dots
Video colour systems
TV Standard
TV Tuning System
TV
FUNCTION
4-LINE DIGITAL COMB FILTER
Brightness
Lamp life
Viewing angles
Audio output
Speakers
Terminals
Headphone jack
OSD LANGUAGE
Power requirement
Weight
Accessories
STEREO/BILINGUAL
Universal R/C for TV only
AUTO PRESET
CATV
AV2 IN/OUT
Component
LC-13B4M
13" (33 cm) Advanced Super
View & BLACK TFT LCD
921,600 dots VGA
World multi system
I/DK/M/BG
Auto preset tuning
NICAM-BG, I, DK/IGR-BG
Yes
Yes
S1~S41 ch. Hyper Band
Ye s
430 cd/m
60,000 Hours
H: 170° V: 170°
2.1W×2
4 × 7 cm Oval, 2 pcs
AV1
Composite Video, S-Video, Audio
Composite Video/Audio
Y, P
3.5 mm ø jack (Rear)
English/Chinese/Arabic
DC 12 V, AC110-240 V, 50/60Hz
4.4 kg w/o accessories
Wireless Remote Contorol, Batteries, Cable clamps, AC adapter, AC cord,
Operation manual, Antenna cable
2
B
, PR/Audio
LC-15B4M LC-20B4M
15" (38 cm) Advanced Super
View & BLACK TFT LCD
5.2 kg w/o accessories
19.7" (50 cm) Advanced Super
View & BLACK TFT LCD
2.5W×2
5 cm ø, 2 pcs
DC 13V, AC110-240 V, 50/60Hz
8.7 kg w/o accessories
■ As a part of policy of continuous improvement, SHARP reserves the right to make design and specification
changes for product improvement without prior notice. The performance specification figures indicated are nominal
values of production units. There may be some deviations from these values in individual units.
35
DIMENSIONAL DRAWINGS
LC-13B4M
338
Unit: mm
2
1
PRESET
MAINPOWER
MENU
TV/VIDEO
CH
VOL
292.6
429
200.8
267
58
133.5
61.5
271.5
61.5
137.5
187.8
333.3
66.5
VIDEO
AV-IN 2/OUT
AUDIO
COMPONENT
P
P
AUDIO
POWER
SLEEP
100
VIDEO
AV-IN1
L
AUDIO
33
L
R
Y
B
R
L
R
100
R
S-VIDEO
HEAD
PHONE
ANT.
USE THE SUPPLIED
AC ADAPTER.
(PART NO. LOCATED ON
THE MODEL LABEL.)
POWER INPUT
DC12V
36
DIMENSIONAL DRAWINGS (Continued)
LC-15B4M
381.7
VOL
307
Unit: mm
1
2
PRESET
MAINPOWER
MENU
TV/VIDEO
CH
322.2
484
231
149.5
303
58
63.2
63.2
149.5
198
366.2
78.7
VIDEO
AV-IN 2/OUT
AUDIO
COMPONENT
AUDIO
POWER
SLEEP
100
L
R
Y
P
B
P
R
L
R
100
38.2
S-VIDEO
USE THE SUPPLIED
AC ADAPTER.
(PART NO. LOCATED ON
THE MODEL LABEL.)
POWER INPUT
DC12V
VIDEO
AV-IN1
L
AUDIO
R
HEAD
PHONE
ANT.
37
DIMENSIONAL DRAWINGS (Continued)
LC-20B4M
471.5
381.5
193.5 188
CHVOL TV/VIDEOMENU MAIN POWER
2
PRESET
420
630
1
403.3
300.8
Unit: mm
68.6
76.1
76.1
110.7
470.3
AV-IN 2/OUT
COMPONENT
POWER
SLEEP
VIDEO
AV-IN1
L
AUDIO
VIDEO
L
AUDIO
R
Y
P
B
R
P
L
AUDIO
R
100
51.5
100
R
S-VIDEO
HEAD
PHONE
ANT.
USE THE SUPPLIED
AC ADAPTER.
(PART NO. LOCATED ON
THE MODEL LABEL.)
POWER INPUT
DC13V
38
249.6
