1 Slide the back cover lever to unlock (1), hook a nail on the slot and
remove the back cover (2)
2 Pull out the tray straight (1). Set the FOMA card on
the tray with the IC (gold) side turned down (2) and
push the tray all the way in (3)
3 Turn a recycle mark side up, match tab
and attach the battery pack
4 Insert the tab of the top of the
back cover into the FOMA
terminal slot (1), insert it in the
direction of the arrow (2) and
securely push five tab areas down
with both hands (3)
5 Slide the back cover lever to lock
Turn off the power and insert the FOMA card/battery pack while holding the
FOMA terminal with your both hands. Note that excessive force may damage
the FOMA terminal, FOMA card and battery pack.
The battery pack is not waterproof.
Securely close the back cover. If not closed securely, the back cover may
come off and the battery pack may fall out due to vibration. May damage the
waterproof performance and allow water to seep.
そ
の
他
111
Charging
1
2
Charging LED
Connector (Turn the
side with the arrows up)
FOMA AC Adapter 01/02
It is recommended that the accompanying desktop holder be used for charging
to prevent water from seeping caused by forgetting to close the external
connector terminal cover.
The AC adapter and desktop holder are not waterproof. Never try to charge the
battery pack when the FOMA terminal is wet.
1 Insert the AC adapter into the connector terminal of the desktop holder
2 Insert the AC adapter power plug into an outlet
3 Put the left part of the FOMA terminal on the desktop holder (1) and
push it in the direction of the arrow until it clicks (2)
Charge start sound is heard, charging LED illuminates, and charging starts.
4 Hold the desktop holder and lift the FOMA terminal out when charging is
complete
そ
の
他
Charge end sound is heard and charging LED turns off when charging is
complete.
Pull the AC adapter out of the outlet when left unused for a long period of
time.
When charge start sound is not heard or when charging LED does not
illuminate, check that the FOMA terminal is placed securely in the desktop
holder (except when terminal is turned off, manner mode is set or charge start
sound is silent).
When placing the FOMA terminal in the desktop holder, be careful not to
catch a strap.
112

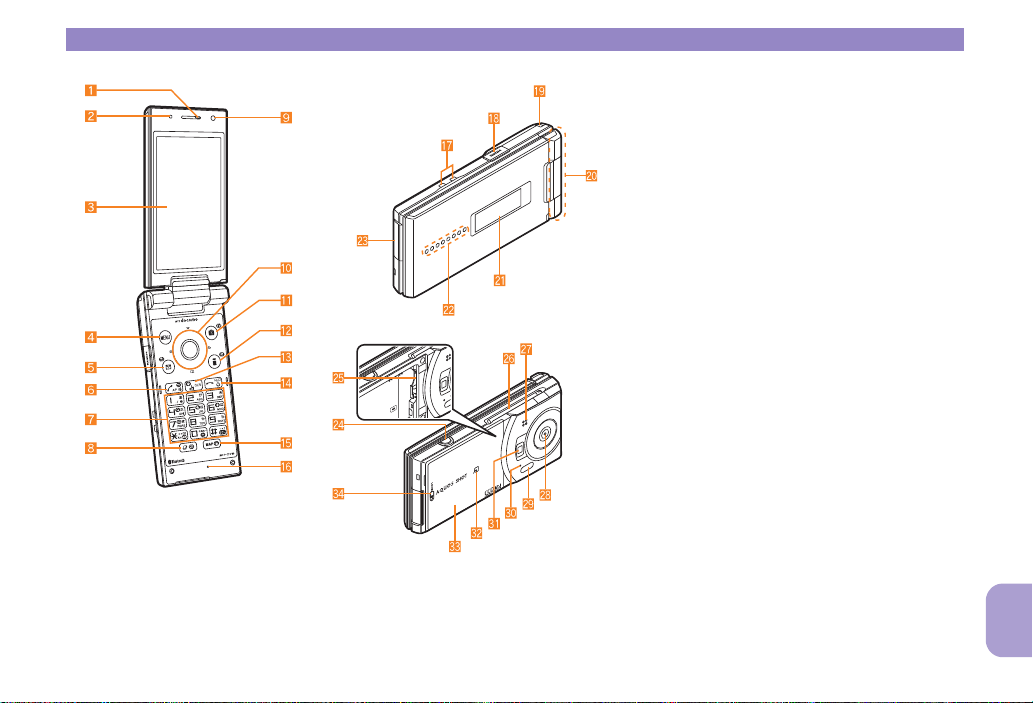

Part Names and Functions
1 Earpiece
2 Brightness sensor
3 Main display/Touch panel
4 z: MENU key/Operation guidance key
5 m: Mail/Operation guidance key
6 s: Start/Hands-free/Eco key
7 1 to 9, *, 0 and #: Dial/Character entry keys
8 $: Multi/VeilView key
9 Sub camera
a w&t&: Multi-guide key
b C: Camera/TV/Operation guidance key
c i (,): i-mode/Operation guidance key
d c (J): i-Channel/Clear key
e H: Power/End key
f y: MAP/GPS key
g Mouthpiece/Microphone
h Charger terminal
i HDMI terminal
j Strap hole
k FOMA antenna
l Sub display
m Called/Charging LED
n External connector terminal
o &: Side key
p microSD Card slot
q 1Seg antenna
r Speaker
s Main camera
t Infrared port
u Out-microphone for shooting
v Picture Light
w b mark
x Back cover
y Back cover lever
Key illustrations are examples and may look different from actual keys.
そ
の
他
113
そ
Icon display area
の
他
Main icons
Viewing Display/Icon
Battery level
bbbbb (High b Low)
Signal status
bbbb (Strong b Weak)
When [] appears, the handset is outside the service area
or in a place with no signal.
i-mode
Hands-free
GPS
Restriction
i-mode mail/SMS/Area Mail/Information received
i-appli
Alarm/Schedule
Bluetooth
Ir communication
Self mode
FOMA card error
3G/GSM
Full Browser
Music&Video Channel program reservation
Manner mode
Silent/Vibrator
Public mode (Drive mode)
Record message
Keypad dial lock
microSD Card
Software update
1Seg being recorded
IC card lock
Music&Video Channel
Personal data lock
Basic Operations
Turning power on/off
Turning power on
1 H (for 2+ seconds)
Turning power off
1 H (for 2+ seconds)
Changing screen display to English
1 ][本体設定]/[文字表示/入力]/[バイリンガル]/[English]
Making initial setting
The initial setting screen automatically appears when the power is turned on for
the first time. Make the initial setting according to instructions on the screen.
※ Terminal security code (four to eight digits) is set to [0000] by default but can
be changed by user.
114
Checking your own phone number
1 ]0
Character entry
※ Operate in the character entry screen.
Switching entry modes
1 m/select the entry mode with v&/t&
Switching upper/lower case
1 Enter a character/*
Deleting characters
1 Move the cursor to the character and c
To delete all characters: At the end of the message, c (for 1+ seconds)
Using phrases
1 z/[Quote phrase/phone]/[Enter phrase]/select a phrase/t&
Entering pictograms/symbols
1 C
To switch between pictogram and Deco-mail pictogram: CTo switch between single- and double-byte symbols: z
2 Select a pictogram/symbol/t&
Entering emoticons
1 z/[Pict/Symbol/Emoticon]/[Emoticon]/select a category/select an
emoticon/t&
Character entry example
Ex.) When entering “電話”
1 m/[あ] with v&
2 4 (four times)/* (once)/0 (three times)/r&/0 (once)
3 C
4 t&
Changing ring tone
1 ][Setting]/[Sound/Vibration/Manner]/[Ring tone]
2 Select an item/select the field of ring tone type/t&/select a ring tone
type/t&
3 Select the field of ring tone/t&/select a ring tone/t&/C
Lock/Security
Changing terminal security code
1 ][Setting]/[Lock/Security]/[Change security code]/enter the
current terminal security code/t&
2 Select the [New terminal security code] field/t&/enter the new terminal
security code/t&
3 Select the [New terminal security code-check] field/t&/enter the new
1 ][Setting]/[Lock/Security]/[UIM]/select the PIN code to lock/
t&/enter the terminal security code/t&
2 Select the Enter PIN code field/enter the current PIN code/t&
3 Select the New PIN code field/t&/enter the new PIN code/t&
4 Select the New PIN code - check field/t&/enter the new PIN code
again/t&/C
Various lock functions
All lock
1 ][Setting]/[Lock/Security]/[Lock settings]/[All lock]/enter the
terminal security code/t&
Keypad dial lock
1 ][Setting]/[Lock/Security]/[Keypad dial lock]/enter the terminal
the terminal security cod e/t&/[Yes]/select the time setting/t&/
[OK]
IC card lock
1 ^r& (for 1+ seconds)/[Yes]
Side key lock
1 ^t& (for 1+ seconds)/[Side key lock]
Omakase Lock
Omakase Lock is a service to lock the personal data and IC card functions in case
of loss, etc. by only your request to DOCOMO via phone.
This is a paid service. Refer to “Mobile Phone User’s Guide [i-mode] FOMA
version” for details on Omakase Lock.
Enable/Disable Omakase Lock
s 0120-524-360Office hours: 24 hours (open all year round)
※ Available from mobile phones and PHSs (including non-DOCOMO phones).
※ Unavailable from part of IP phones.
Incoming call restriction
Rejecting a call with no caller ID
1 ][Setting]/[Lock/Security]/[Call rejection setting]/enter the
terminal security code/t&
2 Select the reason/t&
3 Select the setting field/t&/[Call Rejection]/C
Rejecting a call from a caller unset in phonebook
[Unregistered caller]/enter the terminal security code/t&
2 Select the setting/t&
Voice/Videophone Calls
Making a voice/videophone call
1 ^enter a phone number
2 s (Phone)/C (V.phone)
3 H to end the call
Receiving a voice/videophone call
1 When a call is received, the ring tone sounds and the called LED flashes
2 s
3 H to end the call
Making a call with redials/received calls
1 ^r& (I) (Redial)/q& (M) (Received calls)
2 Select a phone number
3 s (Phone)/C (V.phone)
Overseas use
Making a call outside your country of stay (including Japan)
1 ^0 (for 1+ seconds)/enter the country code, area code (city
code) and other party’s phone number/s (Phone)/C (V.phone)
When the area code (city code) begins with “0”, omit the “0” when dialing
(Include “0” when making a call to some countries or regions such as Italy).
Making a call in your country of stay
1 ^enter a phone number
2 s (Phone)/C (V.phone)
Making a call to a WORLD WING subscriber overseas
Even when making a call to the phone in your country of stay, make an
international call to Japan if the call recipient is a WORLD WING subscriber
overseas.
1 ^0 (for 1+ seconds)/enter “81”/enter the other party’s mobile
phone number excluding the first “0”/s (Phone)/C (V.phone)
116
Mail
Composing and sending i-mode mail
1 ^m/[Compose new message]/select the [To] field/t&/
[Direct input]*1/enter an address/t&
2 Select the [Sub] field/t&/enter a subject/t&/[Msg]/enter
messages/t&/C
*1 To select a recipient from a phonebook, select [Search phonebook].
*2 To attach a file, select the attachment field (None)/t&/select the file to
attach.
*2
Checking new i-mode mail
1 ^m/[Check new mail/message]
Replying to i-mode mail
1 In the received mail details screen, z/[Reply/Forward]
2 Select the reply method/t&
3 Compose and send a mail
Forwarding i-mode mail
1 In the received mail details screen, z/[Reply/Forward]/[Forward]
2 Enter an address and send a mail
Displaying a mail in Inbox/Outbox/Unsent messages
1 ^m
2 Select the mailbox/t&
3 Select a mail/t&
※ [ ] appears in the stand-by display when a mail is received.
Phonebook
Adding entries to phonebook
1 ][TEL function]/[Phonebook]/[Add to phonebook]
2 Enter a name/t&/[]/enter a phone number/t&/select a phone
type icon/t&/[]/enter a mail address/t&/select a mail address
type icon/t&/C
Hold the b mark of the FOMA terminal over the scanning device to use as
electronic money or railway tickets, or retrieve ToruCa.
の
When the FOMA terminal is stolen or lost, immediately contact your provider of
他
Osaifu-Keitai compatible service for handling methods.
Bluetooth function
The Bluetooth word mark and logos are owned by Bluetooth SIG, Inc. and any
use of such marks by NTT DOCOMO, INC. is under license. Other trademarks
and trade names are those of their respective owners.
Registering Bluetooth device
Set the other party’s Bluetooth device to the registration stand-by status.
1 ][Tool]/[Bluetooth]/[List/cnnct/discnnct]/[Yes]
2 Select a Bluetooth device to register/z/[Register Devices]
3 Enter the Bluetooth passkey/t&
Connecting to registered Bluetooth devices
1 ][Tool]/[Bluetooth]/[List/cnnct/discnnct]
2 Select a Bluetooth device to connect to/t&
General Notes
Introduction of options and related devices
Battery Pack SH23 FOMA AC Adapter 01 for Global use
FOMA AC Adapter 01/02 Desktop Holder SH31
Main specifications
Size
Weight$$ g (with battery pack attached)
Continuous
talk time
Continuous
stand-by time
Charge time
* Approximate value
FOMA/3G
GSMVoice call: $$ min
FOMA/3G
GSM
FOMA AC Adapter 01/02 $$ min
FOMA DC Adapter 01/02 $$ min
3G/GSM
setting: 3G
3G/GSM
setting: AUTO
3G/GSM
setting: AUTO
$$ (H) × $$ (W) × $$ (D) mm ($$ at
thickest point) (when folded)
Voice call: $$ min
Videophone: $$ min
When mobile: $$ hr
When mobile: $$ hr
At rest: $$ hr
At rest: $$ hr
*
*
*
*
*
*
*
*
*
*
*
118
Repairs
(Business hours: 24 hours (open all year round))
From DOCOMO mobile phones
(In Japanese only)
r (No prefix) 113 (toll free)
※ Unavailable from land-line phones, etc.
From land-line phones
(In Japanese only)
s 0120-800-000 (toll free)
※ Available from mobile phones and PHSs (including non-DOCOMO phones).
※ Unavailable from part of IP phones.
Please confirm the phone number before you dial.For Applications or Repairs and After-Sales Service, please contact the
above-mentioned information center or the docomo Shop, etc. near you on the
NTT DOCOMO website or the i-mode site.
NTT DOCOMO website: http://www.nttdocomo.co.jp/english/
i-mode site: iMenu/お客様サポート (user support)/ドコモショップ
(docomo Shop) (In Japanese only)
Loss or theft FOMA terminal or payment of cumulative
cost overseas <docomo Information Center>
(available 24 hours a day)
From DOCOMO mobile phones
International call access code for the country
you stay
*
You are charged a call fee to Japan when calling from a land-line phone, etc.
※ If you use SH-07B, you should dial the number +81-3-6832-6600
(to enter “+”, press the “0” key for 1+ seconds).
From land-line phones
<Universal number>
International prefix number for the universal
number
* You might be charged a domestic call fee according to the call rate for the
country you stay.
※ Refer to DOCOMO International Services website for international call access
codes for major countries and international prefix numbers for the universal
number.
-81-3-6832-6600* (toll free)
-8000120-0151
*
Failures encountered overseas
<Network Support and Operation Center>
(available 24 hours a day)
From DOCOMO mobile phones
International call access code for the country
you stay
* You are charged a call fee to Japan when calling from a land-line phone,
etc.
※ If you use SH-07B, you should dial the number +81-3-6718-1414
(to enter “+”, press the “0” key for 1+ seconds).
From land-line phones
<Universal number>
International prefix number for the universal
number
* You might be charged a domestic call fee according to the call rate for the
country you stay.
※ Refer to DOCOMO International Services website for international call access
codes for major countries and international prefix numbers for the universal
number.
If you lose your FOMA terminal or have it stolen, immediately take the steps
necessary for suspending the use of the FOMA terminal.
If the FOMA terminal you purchased is damaged, bring your FOMA terminal to
a repair counter specified by DOCOMO after returning to Japan.
-81-3-6718-1414* (toll free)
-8005931-8600
*
そ
の
他
121
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
