MODEL
EC-6312P
VACUUM CLEANER
OPERATION MANUAL
CONTENTS
•IMPORTANT SAFETY
INSTRUCTIONS.................................. 2
•PRECAUTIONS (Important) .............. 3
•OPERATING INSTRUCTIONS
AND PARTS LIST............................... 4
•HOW TO EMPTY THE BAG .............. 5
•MAINTENANCE .................................. 6
•BEFORE REQUESTING SERVICE ... 7
•DESCRIPTION OF ACCESSORIES... 7
•WARRANTY........................................ 9
PAGE
SPECIFICATIONS
FEATURES
MODEL
EC-6312P
Voltage
(AC)
120V
Power
consumption
1200W
Dust disposal
system
Paper bag
Accessories
Floor nozzle, Telescopic Pipe
Hose Assembly
Crevice tool, Soft brush
1
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed including the following:
Read all instructions carefully before using this vacuum cleaner.
WARNING
Do not use outdoors or on wet surfaces.
1
Do not leave vacuum cleaner unattended
2
when plugged in. Unplug from outlet when
not in use and before user-servicing.
Close supervision is necessary when used
3
by or near children.
Do not allow this vacuum to be used as a toy.
Use only as intended as described in this
manual.
Use only the manufacturer’s recommended
4
attachments and paper bag.
Never operate this vacuum cleaner if it has a
5
damaged cord or plug, if it is not working
properly, if it has been dropped, damaged,
exposed to weather or dropped into water.
Return the vacuum cleaner to a Sharp Authorized Servicer in the United States for
examination and repair.
Do not pull or carry this vacuum cleaner by
6
the power cord. Do not use the power cord as
a handle, close a door on the cord, or pull the
cord around sharp edges or corners. Keep
cord away from heated surfaces.
Never disconnect the plug by pulling on the
7
cord. To disconnect from an outlet, grasp the
plug, not the cord.
Never operate this vacuum cleaner with any
8
air opening blocked. Keep the air openings
free of dust, lint, hair and any other similar
material.
When the secondary filter becomes dirty,
rinse in warm water. Filters should be completely dry before reusing.
Never drop or insert any object into any
9
opening.
To reduce the risk of fire, electric shock, or injury:
Keep hair, face, fingers and loose clothing
10
away from all openings, and any moving
parts.
Do not use this vacuum to pick up lit ciga-
11
rettes, hot ashes, matches or similar materials, razor blades, needles, pins or other
sharp objects.
Never operate this vacuum cleaner without
12
the paper bag and filter in place.
Before removing the plug from the outlet,
13
turn the switch to the “OFF” position.
Use extra caution when cleaning on stairs.
14
Never handle plug, cord or vacuum cleaner
15
with wet hands.
Do not use in the presence of flammable or
16
combustible liquids or fumes.
Do not place heavy objects on the vacuum
17
cleaner.
Do not step on the hose or pull the hose
18
forcibly.
Do not pick up objects such as waste paper
19
or cloth which may clog the hose.
Do not expose this vacuum cleaner to high
20
temperatures while operating or storing.
Store this vacuum cleaner in a dry place.
21
Use the carrying handle on the top of the
22
body to carry this vacuum cleaner.
Before servicing this vacuum cleaner, allow
23
all metal parts to cool .
Rewind the cord by holding the plug to
24
prevent any injury.
SAVE THESE INSTRUCTIONS
This vacuum cleaner is intended for household use only.
WARNING
Operate vacuum cleaner only at the voltage specified on the nameplate.
2
PRECAUTIONS (Important)
Do not vacuum an area which contains moistures, water or inflammable matter, needles, pins, razor
blades, etc.
Keep the vacuum
cleaner away from
heat sources such
as a heater during
operation or after
use.
Direct heat may damage the vacuum.
Do not pull the power cord out beyond the red tape.
When connecting or disconnecting the
power cord, hold the plug, not the power
cord.
When pressing the
cord rewind button,
hold the plug, as the
cord may rapidly
retract, causing
injury.
Red tape
Do not step on the hose or place
heavy objects on it.
Do not pull the hose forcibly.
The hose may be damaged.
Do not operate the vacuum with
the suction port or exhaust port
blocked.
The motor will overheat.
CAUTION: To reduce the risk of electric shock, this vacuum cleaner has a polarized plug
(one blade is wider than the other.) This plug will fit in a polarized outlet only one way. If
the plug does not properly fit in the outlet, reverse the plug. If it still does not fit, contact
a qualified electrician to install the proper outlet. Do not change the plug in any way.
If the cord of this appliances is damaged, it must only be replaced by the repair
shop appointed by SHARP. In order to avoid hazard.
Caution
3
OPERATING INSTRUCTIONS AND PART LIST
ON / OFF SWITCH
With the cord plugged into an electrical outlet, start or stop the
vacuum cleaner by pressing the
switch.
Switch
TELESCOPIC PIPE
When extend or
shorten, push the
button.
Button
Accessories
CORD REWIND BUTTON
To rewind the cord, press the cord
rewind button while holding the plug.
If cord is not retracted completely, pull
it out a little and press the cord rewind
button again.
cord rewind
button
Air slide valve
Suction
hose
ACCESSORIES
Crevice tool
1
Use for door tracks, narrow spots,etc.
Soft brush with crevice tool.
2
Use for carved furniture, table tops,
etc.
Soft brush
Crevice tool
POWER CONTROL
To control suction
power, turn the
power control knob.
Low:
For curtains and delicate materials.
Medium:
For deep-pile velvet carpets and
delicate carpeting.
High:
For ordinary carpets and floors.
knob
Telescopic
pipe
Carrying
handle
Case cover
release button
Floor nozzle
Dust
Indicator
FLOOR NOZZLE
2-STEP FLOOR NOZZLE
Ideal for the daily cleaning of carpets and hard floors.
• Press the lever (A) for cleaning hard floors.
• Press the lever (B) for cleaning carpets.
B
A
AIR SLIDE VALVE
ON/OFF
switch
Power
control
Open the controller
on the hose handle
to control the air or
to release any items
suck in the nozzle.
DUST INDICATOR
Cord rewind
button
If dust indicator change to "red", the
bag is full and must be changed or
dispose the dust.
HOW TO TIDY UP
1. Rewind the power cord first, then wind the suction hose
around the extension pipe.
2. Insert the holder in the hole
on the body as shown.
Holder
Hole
close
open
4
HOW TO DISPOSE THE DUST BAG
When the dust indicator turns red, dispose the dust as shown below.
If the vacuum cleaner takes in excassive amounts of fiber (thread, cottony material etc.), the
indicator may not turn red even if the paper bag is filled.
HOW TO DISPOSE THE DUST BAG
Before open the case cover, make
sure to take off the hose.
Open the case cover as shown.
1
Case cover
Press the
case cover
release
button.
Take the plate of
dust bag from the
2
fixing plate.
Fixing plate
Plate
Dust bag
Pick the plate of
3
dust bag and lift it
up slowly.
HOW TO SET THE DUST BAG
Use genuine SHARP dust bags.
Insert the plate of dust bag into the
1
2
groove till end of fixing plate firmly.
Groove of
fixing plate
Dust
bag
Close the case cover until
it clicks.
Case cover
Plate
Note
The case cover cannot be closed without dust bag.
Do not push the case cover hardly.
T o avoid damaging motor , never use a broken dust bag, or never operate
the vacuum cleaner without the dust bag.
To keep the suction power highly efficient and lengthen a life of motor,
please dispose the dust frequently.
5
MAINTENANCE
CLEANING THE UNIT
When cleaning the unit, use a dampened cloth with lukewarm water.
Never clean or spray with a liquid such as insecticide,
benzine, thinner or oil.
CLEANING THE MOTOR PRE-FILTER
When the filter becomes dirty, wash it gently with water.
• Pull up the holder and pull out the pre-filter.
After drying completely, set the filter to the body properly.
Do not operate the vacuum cleaner without the pre-filter.
Thinner
Benzine
Holder
Filter
CLEANING THE AIR OUTLET FILTER
When the filter become dirty, wash the filter in the air outlet
gently with water.
Push ( ) the knob of cover, pull up ( ) the
cover and remove the filter.
To close, press the cover until it snaps into place.
1
2
Air outlet
Knob
Cover
2
1
Filter
6
BEFORE REQUESTING SERVICE
If you experience any difficulties with your vacuum cleaner, use this Troubleshooting Guide first before
asking for service.
NOTE
TROUBLESHOOTING GUIDE
Problem
Motor does not start
when the power switch
is in the ON position.
Decrease in suction.
Bag check indicator
changes to orange
without bag full.
Suction is weak or
decreases suddenly.
Cord will not rewind.
Please request service if the problem still persists or if the problem is not defined in the Troubleshooting guide.
Always remember to have the vacuum cleaner turned OFF and the plug disconnected from
the power outlet before working on the vacuum cleaner.
Check
Make sure the vacuum cleaner is plugged
in and the outlet is working.
Check to see if paper bag is filled with
dust or fine dust has clogged paper bag.
Check to see if hose, telescopic pipe or
floor nozzle is clogged.
Does the paper bag need to be replaced?
Check to see if hose, telescopic pipe
floor nozzle, inner pipe or dust cups
are clogged.
Is the cord entangled?
Make sure the vacuum is plugged into
an outlet.
Plug into another outlet.
Replace the paper bag.
Remove any foreign object that may
have become jammed in the floor nozzle,
hose or telescopic pipe.
Replace the paper bag.
Remove any foreign objects that may
have become jammed in the floor nozzle,
hose, pipe or dust cups etc.
Pull the cord out about 2~3 feet and press
the cord rewind button again.
Possible remedy

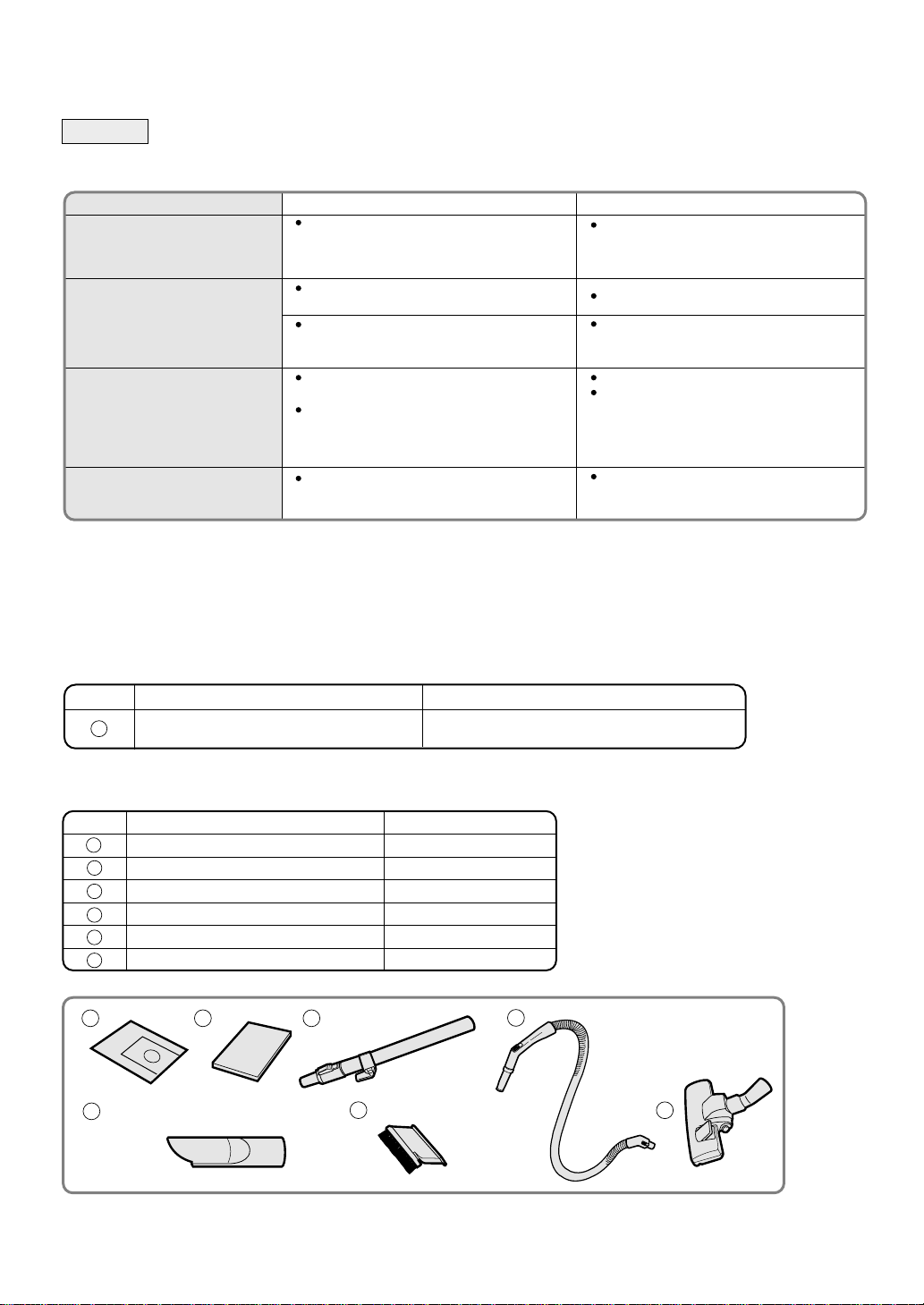

DESCRIPTION OF ACCESSORIES
For replacement accessories, contact your local dealer, call the Sharp Accessories and Supply Center
at 1-800-642-2122, or visit SHARP’s web site (http://www.sharp-usa.com).
ITEM
1
PART DESCRIPTION
PAPER BAG
For other parts, please contact your nearest Sharp Dealer. If your dealer does not stock these parts,
you may order them by calling 1-800-BE-SHARP.
ITEM
2
3
4
5
6
7
1
5
PART DESCRIPTION
SECONDARY FILTER
TELESCOPIC PIPE
HOSE ASSEMBLY
CREVICE TOOL SHPPAR7445
SOFT BRUSH
FLOOR NOZZLE
2
3
6
PART NUMBER
EC-05PC4( 5PCS IN 1PACK)
PART NUMBER
SHPPAR7434
SHPPAR7444
SHPPAR7430
SHPPAR7446
SHPPAR7429
4
7
7
CONSUMER LIMITED WARRANTY
SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp
brand product (the “Product”), when shipped in its original container, will be free from defective
workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the
defective Product or part thereof with a new or remanufactured equivalent at no charge to the
purchaser for parts or labor for the period(s) set forth below.
This warranty does not apply to any appearance items of the Product nor to the additional excluded
item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which
has been subjected to improper voltage or other misuse, abnormal service or handling, or which has
been altered or modified in design or construction.
In order to enforce the rights under this limited warranty, the purchaser should follow the steps set
forth below and provide proof of purchase to the servicer.
The limited warranty described herein is in addition to whatever implied warranties may be granted
to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE
DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an
implied warranty lasts, so the above limitation may not apply to you.
Neither the sales personnel of the seller nor any other person is authorized to make any warranties
other than those described herein, or to extend the duration of any warranties beyond the time period
described herein on behalf of Sharp.
The warranties described herein shall be the sole and exclusive warranties granted by Sharp and
shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the
manner and for the period of time described herein, shall constitute complete fulfillment of all
liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall
constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or
otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects
in the Product which were caused by repairs or attempted repairs performed by anyone other than
an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or
consequential economic or property damage. Some states do not allow the exclusion of incidental
or consequential damages, so the above exclusion may not apply to you.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS WHICH VARY FROM STATE TO STATE.
Model Specific Section
Your Product Model Number &
Description:
Warranty Period for this Product:
Additional Item(s) Excluded from
Warranty Coverage (if any):
Where to Obtain Service:
What to do to Obtain Service:
TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP.
EC-6312P Home use Vacuum Cleaner.
(Be sure to have this information available when you need
service for your product.)
One (1) year parts and labor.
Appearance items of the product, accessories, filters, or any
printed materials.
At a Sharp Authorized Servicer located in the United States.
To find the location of the nearest Sharp Authorized Servicer,
call Sharp toll free at 1-800-BE-SHARP.
Ship prepaid or carry in your Product to a Sharp Authorized
Servicer. Be sure to have Proof of Purchase available. If you
ship the Product, be sure it is insured and packaged securely.
SHARP ELCTRONICS CORPORATION
Sharp Plaza, Mahwah, New Jersey 07430-2135
SHARP CORPORATION
Osaka, Japan
Printed in Chaina
8
01HE CTINSEA000VBRZ
1
ASPIRADORA
INSTRUCCIONES DE OPERACION
INSTRUCCIONES DE SEGURIDAD IMPORTANTES
Cuando utilice un aparato eléctrico, deben seguirse siempre las precauciones básicas, incluyendo las
siguiente:
Lea todas las instrucciones cuidadosamente antes de usar esta aspiradora.
ADVERTENCIA /
No utilice en exteriores o sobre superficies
1
mojadas.
No deje la aspiradora desatendida cuando
2
esté enchufado. Desenchúfelo del
tomacorriente cuando no lo utilice y antes
de realizar el servicio.
Deberá tenerse mucho cuidado cuando se
3
utilice por o cerca de niños. No deje que la
aspiradora sea utilizada como un juguete.
Utilice el aparato sólo para el uso específico
4
tal como se describe en este manual. Utilice
sólo los accesorios y bolsas de papel
recomendados por el fabricante.
No utilice esta aspiradora si el cable o
5
clavija están dañados; si no funciona
correctamente; si se ha caído al suelo,
dañado, expuesto al aire libre o se ha caído
en el aqua. Envíe la aspiradora a un Centro
de servicio autorizado de Sharp en los
Estados Unidos, para su inspección y
reparación.
No tire ni transporte esta aspiradora
6
sujetando del cable eléctrico. No utilice el
cable eléctrico como un mango, cierre la
puerta con el cable entre medio, ni tire del
cable en esquinas o bordes afilados.
Mantenga el cable alejado de auperficies
calientes.
No desconecte la clavija tirando del cable.
7
Para desconectarlo de un tomacorriente,
sujete la clavija, no el cable.
No haga funcionar la aspiradora con una
8
de sus aberturas de aire bloqueadas.
Mantenga las aberturas de aire libres de
polvo, pelusa, pelos y otros materiales
similares. Cuando el filtro secundario se
ensucia, lávelo en agua caliente. Los filtros
deben secarse completamente antes de
volverse a usar.
Para reducir el peligro de incendio, descargas eléctricas o
heridas:
No deje caer ni inserte objetos en ninguna
9
abertura.
Mantenga el pelo, cara, dedos y su ropa suelta
10
alejados de todas las aberturas, y las partes
móviles.
No utilice esta aspiradora para recoger
11
cigarrillos, ceniza caliente, cedillas ni materiales
similares, hojas de afeitar, agujas, pasadores
u otros objetos puntiagudos.
No haga funcionar esta aspiradora sin una
12
bolsa de papel y filtros instalados.
Antes de desenchufar la clavija del
13
tomacorriente, desconecte todos los controles
a sus posiciones “OFF”.
Tenga especial cuidado cuando limpie las
14
escaleras.
No toque la clavija, cable eléctrico o aspiradora
15
con las manos mojadas.
No utilice cerca de líquidos o vapores
16
inflamables o combustibles.
No coloque objetos pesados en la aspiradora.
17
No pise la manguera ni de ella a la fuerza.
18
No recoja objetos grandes tales como panel o
19
trapos ya que taparán la manguera.
No exponga la aspiradora a altas temperraturas
20
mientras lo utiliza o durante el almacenaje.
Guarde esta aspiradora en un lugar seco.
21
Utilice la manija de transporte en la parte de
22
arriba del cuerpo para transportar la aspiradora
de polvo.
Antes de realizar el servicio de esta asiradora,
23
deje que todas las partes metálicas se enfríen.
Embobine el cable sosteniendo la punta para
24
evitar cualquier lesión
GUARDE ESTAS INSTRUCCIONES
Esta aspiradora fue diseñadas sólo para uso como electrodoméstico.
ADVERTENCIA
Utilice la aspiradora sólo con el voltaje especificado en la placa de especificaciones.
9
ANTES DE SOLICITAR EL SERVICIO
Si tiene dificultades con su aspiradora, utilice primero este gráfico de localización y reparación de
averías antes de solicitar el servicio.
NOTA
GRAFICO DE LOCALIZACION Y REP ARACION DE A VERIAS
El motor no arranca cuando .
Disminuye la succi n.
El indicador de comprobaci n
de la de la bolsa cambia a
naranja sin que la bolsa est
llena.
La potencia de succi n es
d bil o disminuye
s bitamente.
El cable el ctrico no se
rebobina.
Solicite el service en el caso de que el problema continúa o si el problema no está explicado en el
gráfico de localización y reparación de averías.
Acuérdese siempre de poner en OFF la aspiradora y de desconectar la clavija del
tomacorriente antes de manipular la aspiradora.
Problema
Comprobaci n
Compruebe si la clavija del cable de
alimentaci n est completamente
insertada en el tomacorriente y que
ste tiene corriente.
Compruebe si la bolsa de papel est
llena de polvo.
Compruebe si la manquera, tubo
de telescopio o cabeza de la boquilla
no est n tapadas.
Necesita ser cambiada la bolsa de
papel?
Compruebe si la manguera, tubo
telescopio, compartimiento parapolvo
o cabeza de la boquilla no est n
tapadas.
El cord n est anudado?
Compruebe que la clavija de la
aspiradora est insertada en el
tomacorriente.
Cambie la bolsa de papel.
Extraiga los objetos extran s que
pueden haberse atascado en la cabeza
de la boquilla, manguera o tubo.
Cambie la bolsa de papel.
Extraiga los objetos extran s que
pueden haberse atascado en la cabeza
de la boquilla, manquera tubo o
compartimiento parapolvo.
Tire del cable el ctrico unos 2-3 pies y
vuelva a presionar el bot n de
rebobinado del cable.
Remedio posible
DESCRIPCION DE LOS ACCESORIOS
Para el cambio de accesorios, llame a su concesionario local. llame al Centro de accesorios y suministro
de Sharp discando el 1-800-642-2122 o visite nuestra página de Internet de SHARP (http://www.sharpusa.com).
ITEM
DESCRIPCION DE LAS PIEZAS
1
BOLSA DE PAPEL
Para las demás piezas, llame a su concesionario de Sharp más cercano. Si su concesionario no tiene
esas piezas en inventario, puede hacer el pedido llamando a 1-800-BE-SHARP.
ITEM
DESCRIPCION DE LAS PIEZAS
FILTRO SECUNDARIO
2
3
TUBO EXTENSION
4
CONJUNTO DE MANGUERA
5
SOPORTE DE APENDICES
6
CEPILLO EXTRAIBLE
7
CABEZA DE LA BOQUILLA
1
2
5
NUMERO DE PIEZA
SHPPAR7434
SHPPAR7444
SHPPAR7430
SHPPAR7445
SHPPAR7446
SHPPAR7429
3
6
NUMERO DE PIEZA
EC-05PC4( 5PZAS EN 1PAQUETE)
4
7
10
Su número de modelo y descripción del producto
SHARP ELECTRONICS CORPORATION garantiza al primer comprador del producto que
este producto de marca Sharp (el “Producto”), cuando es embarcado en su recipiente original, está libre
de materiales y fabricación defectuosa y acorda que a su opción, reparará el defecto o reemplazará el
producto o la parte defectuosa sin cargar al comprador las partes o trabajo durante el periodo(s) de tiempo
establecido abajo.
Esta garantía no se aplica a los itemes de apariencia del producto o a los ítemes adicionales
excluidos establecidos abajo, ni a ningún producto cuyo exterior haya sido dañado o deformado, que haya
sometido a mal uso, servicio o manejo anormal o se haya alterado o modificado en diseño o construcción.
Para aplicar el derecho bajo esta garantía limitada, el comprador debe seguir los pasos
establecidos abajo y proporcionar una prueba de la compra al reparador.
La garantía limitada descrita aquí es una adición a otras garantías que se aplican por ley a
los compradores.
TODAS LAS GARANTIAS APLICADAS INCLUYENDO LAS GARANTIAS DE VENTAS Y
CORRESPONDENCIA DE USO ESTAN LIMITADAS AL PERIODO(S) DESDE LA FECHA DE LA COMPRA
ESTABLECIDA ABAJO.
Algunos estados no permiten limitaciones de tiempo de las garantías implicadas, por eso la limitación de
encima tal vez no se aplique a su caso.
Ni en personal de ventas ni el vendedor u otra persona queda autorizada a realizar otras
garantías que no sean las descritas aquí o la extensión de la duración de las garantías másallá del periodo
de tiempo descrito aquí por Sharp.
Las garantías descritas aquí deben ser solamente las garantías garantizadas por Sharp y
deben ser el único y exclusivo remedio disponible para el cliente. La corrección de defectos, de la forma
y durante el periodo de tiempo descrito aquí, debe constituir un cumplimiento completo de todas las
obligaciones y responsabilidades de Sharp al cliente con respecto al producto y debe constituir una
completa satisfacción de todas las reclamaciones, basándose en el contrato, negligencia, obligación
estricta o similar. En ningún caso debe obligarse ni responsabilizarse a Sharp de los daños o defectos del
producto que fueron causados por reparaciones o intentos de reparaciones causados por cualquiera que
no sea un reparador de servicio autorizado. Sharp no se responsabilizará de ninguna forma de los daños
econónmicos consecuentes o accidentales ni de los daños a la propiedad. Algunos estados no permiten
la exclusión de daños consecuentes o accidentales, por eso la exclusión de encima tal vez no se aplique
a su caso.
LA GARANTIA LE DA LOS DERECHOS LEGALES ESPECIFICOS. TAMBIEN PUEDE TENER OTROS
DERECHOS QUE VARIAS DE ESTADO A ESTADO.
Sección especilica al modelo
Su número de modelo del producto:
Periodo de garantia para este Producto:
Item(es) adicional(es) excluido(s) de la
garantia (si los hubiera):
Donde obtener el servicio:
Que hacer gara obtener el servicio:
PARA RECIBIR INSUMOS, ACCESOROS O INFORMACION DE PRODUCTOS, LLAME AL 1-800-BE-SHARP.
EC-6312P Aspiradora para uso en el hogar.
(Tenga esta infomación disponible cuando necesite el
servicio para su producto.)
Un (1) año de partes y trabajo.
Items de apariencia del producto, accesorios, filtros o
materiales impresos.
De una estación de servicio autorizada Sharp en los
Estados Unidos. Para buscar el lugar de la eatación de
servicio autorizada Sharp más cercana, llame a Sharp
libre de cargo al número 1-800-BE-SHARP (1-800-237-
4277).
Haga el envio pagando el flete o lleve el producto a una
estación de servicio autorizada Sharp. Tenga a mano una
Prueba de Compra del aparato. Si envia el producto por
correo, asegúirese de comprar un seguro y realicc un
embalaje correcto.
SHARP ELCTRONICS CORPORATION
Sharp Plaza, Mahwah, New Jersey 07430-2135
SHARP CORPORATION
Osaka, Japan
Printed in Chaina
01HE CTINSEA000VBRZ
1
11
12
Printed in Chaina
01HE CTINSEA000VBRZ
1
Loading...
