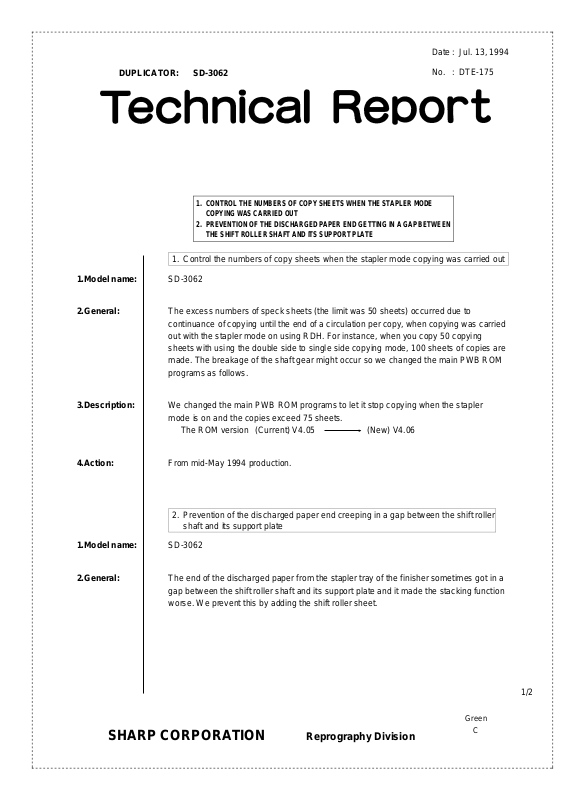

SHARP DTE175 Technical Report

Date: Jul. 13, 1994

DUPLICATOR: SD-3062

1. CONTROL THE NUMBERS OF COPY SHEETS WHEN THE STAPLER MODE COPYING WAS CARRIED OUT

2. PREVENTION OF THE DISCHARGED PAPER END GETTING IN A GAP BETWEEN THE SHIFT ROLLER SHAFT AND ITS SUPPORT PLA TE

1. Control the numbers of copy sheets when the stapler mode copying was carried out

1.Model name: SD-3062

2.General: The excess numbers of speck sheets (the limit was 50 sheets) occurred due to

continuance of copying until the end of a circulation per copy, when copying was carried out with the stapler mode on using RDH. For instance, when you copy 50 copying sheets with using the double side to single side copying mode, 100 sheets of copies are made. The breakage of the shaft gear might occur so we changed the main PWB ROM programs as follows.

No. : DTE-175

3.Description: We changed the main PWB ROM programs to let it stop copying when the stapler mode is on and the copies exceed 75 sheets.

The ROM version (Current) V4.05 (New) V4.06

4.Action: From mid-May 1994 production.

2. Prevention of the discharged paper end creeping in a gap between the shift roller shaft and its support plate

1.Model name: SD-3062

2.General: The end of the discharged paper from the stapler tray of the finisher sometimes got in a

gap between the shift roller shaft and its support plate and it made the stacking function worse. We prevent this by adding the shift roller sheet.

SHARP CORPORATION Reprography Division

1/2

Green

3.Description:

The stapler tray

The shift roller sheet

Position the glued side of double-surface tape

Rear side

±0.5

4.Action: From mid-May 1994 production.

Ref.

No.

Model

name

Version P/G No.

Current parts New parts

Parts code Parts code

Attach only on the rear side

Added

Shift roller sheet

Price

Parts name

rank

The discharge roller

The stapler tray

The shift roller shaft

Effec-

Inter-

tive

change-

time

Note

ability

SD-3062 All

2 50 — PSHEP3722FCZZ AC Shift roller sheet —

1. Interc ha ng ea bl e. 4. N ot i nt er ch an ge ab l e.

2. Current type can be used in place of new type. New type cannot be used in place of current type.

3. Current type cannot be used in place of new type. New type can be used in place of current type.

Parts marked with “ ” is important for maintaining the safety of the set. Be sure to replace these parts with

speci fie d ones fo r m ai n ta in i ng t he s a fe ty and perf o rma nc e o f th e s et .

77 -80 VHI27C02002FC VHI27C02006FC BC IC

5. Interchangeable if replaced with same types of relate d parts in use .

6. Others.

Mid-

’94/5

New

part

2/2
