Date: May. 10, 1994
COPIER : SD-3062
[Service Information]
No. : DTE-153
CORRECTIONS MADE TO THE PARTS GUIDE.
1.Model name: SD-3062
2.General: Some of the parts used from the star t of mass production have not been included in the
parts guide, and corrections of the parts guide have been made accordingly.
3. Description: Please refer to the following parts list and illustrations.
4.Action: From the start of mass production.
1Exteriors
Version PG. No.
All 1 -2 GCAB-0770FCZZ — —
7 Front frame
Version PG. No.
All 7 — PSHEP3645FCZZ AD
Current parts New parts
Old New Price rank
Current parts New parts
Old New Price rank
Parts name
Left exterior upper
Parts name
Staple tool sheet
1/6
Green
C
SHARP CORPORATION Reprography Division
A Added staple tool shee t
47 Finisher exteries.
Staple fixing frame
Version PG. No.
Current parts New parts
Old New Price rank
All A — PSHEZ2877FCZZ AE
Parts name
Connector protect sheet
B FIN exterior sheet
A Connector protect sheet
2/6

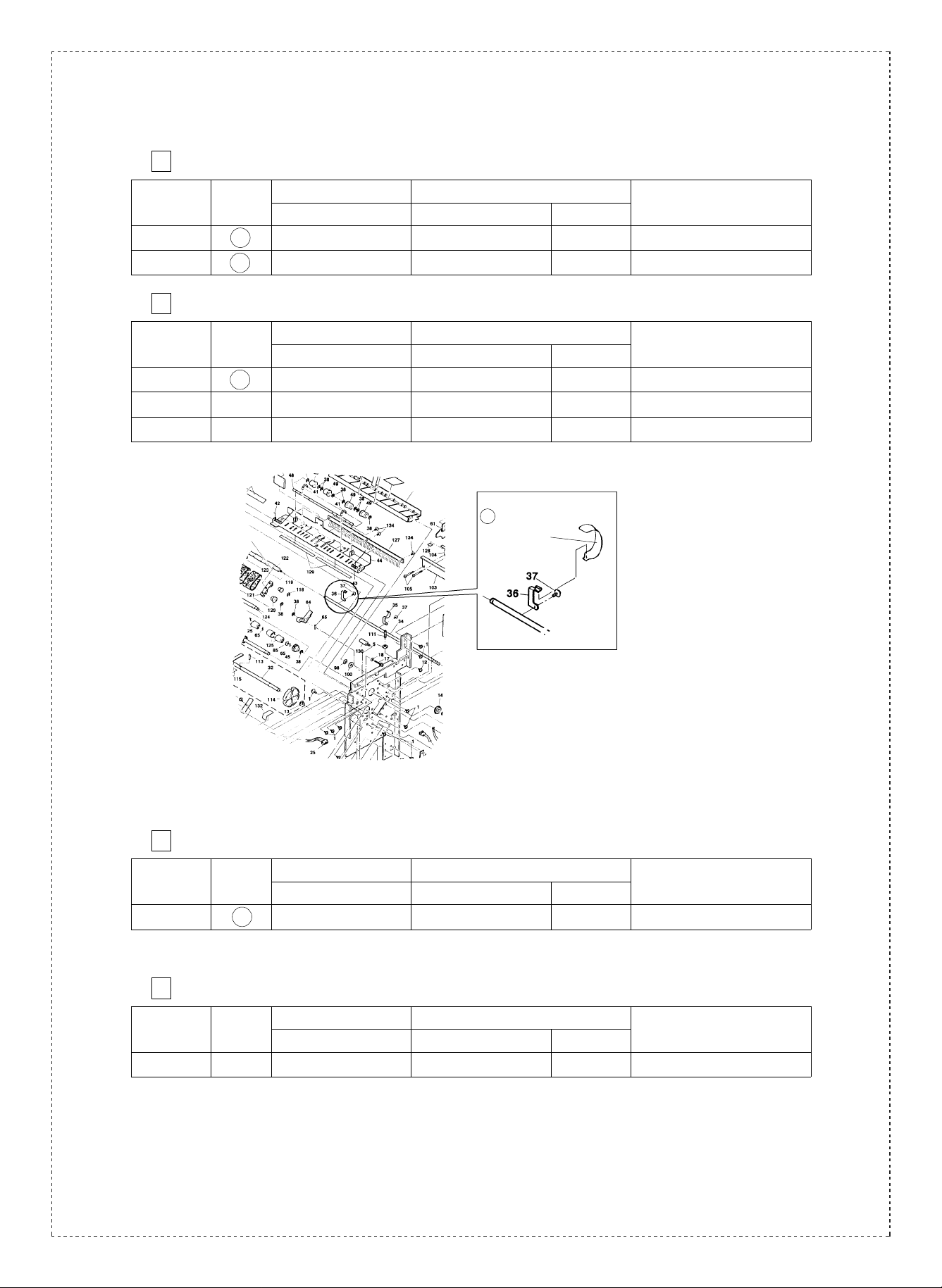

48 Finisher ST fixing frame unit.
Version PG. No.
Current parts New parts
Old New Price rank
All 15 NSFTZ2003FCZZ NSFTZ2003FCZ1 AN
All 54 PSHEZ3621FCZZ PSHEZ3621FCZ1 AB
50 Finisher frame unit.
Version PG. No.
Current parts New parts
Old New Price rank
All A — PSHEP3644FCZZ —
All 51 MLEVF0635FCZZ MLEVF0635FCZ1 AD
200V series 131 PSHEP3618FCZZ PSHEP3653FCZZ AA
A Added upper limit
switch sheet
Parts name
Staple shaft
ST jump up sheet
Parts name
Upper limit switch sheet
Open detect lever
Paper drop sheet
51 Finisher elevator frame unit.
Version PG. No.
Current parts New parts
Old New Price rank
All 16 LPLTM4479FCZZ LPLTM4479FCZL AB
52 Finisher staple tray pusher unit.
Version PG. No.
Current parts New parts
Old New Price rank
All 51 PSHEP3625FCZZ PSHEP3654FCZZ AB
Parts name
Idle support plate FIN
Parts name
Rear plate guide sheet
3/6
53 Finisher gate frame unit.
Version PG. No.
Current parts New parts
Old New Price rank
All 24 PSHEP3637FCZZ PSHEP3658FCZZ AB
All A — PSHEP3618FCZZ AA
A Sheet
24
Parts name
Gate sheet
Sheet
55 Finisher tray unit.
Version PG. No.
Current parts New parts
Old New Price rank
All 6 NGERW0321FCZZ NGERW0321FCZ1 AD
All 11 NGERW0322FCZZ NGERW0322FCZ1 AE
All A — PSHEZ3214FCZZ AB
Parts name
Tray transport wheel
Tray transport gear
Connector protect sheet
4/6
A Added connector pr ot ect sheet
57 UDH exteriors.
Version PG. No.
Current parts New parts
Old New Price rank
Export AB
series
Export
Inch series
2 0EULAB0303D11 TLABZ3516FCZZ AE
2 0EULAB0303D12 TLABZ3517FCZZ AE
64 UDH shift paper exit unit.
Version PG. No.
Current parts New parts
Old New Price rank
All A — LX-BZ0021FCZZ AA
A Added screw
Parts name
Rear size label
Rear size label
Parts name
TSRS-PS screw
72 UDH separation duct unit.
Version PG. No.
Export AB
series
Export
Inch series
A — TLABZ3510FCZZ AD
A — TLABZ3511FCZZ AD
Current parts New parts
Old New Price rank
Parts name
Side size label
Side size label
5/6
73 UHD Manual paper tray unit.
A Side size label
Version PG. No.
Current parts New parts
Old New Price rank
Export AB
series
Export
Inch series
32 0EULAB0301D11 TLABZ3513FCZZ AE
32 0EULAB0301D12 TLABZ3514FCZZ AE
86 Packing material & Accessories.
Version PG. No.
Current parts New parts
Old New Price rank
A — PSHEP3092FCZZ AD
A Added RDH protect sheet
Parts name
Manual paper feed size
label
Manual paper feed size
label
Parts name
RDH protect sheet
6/6
