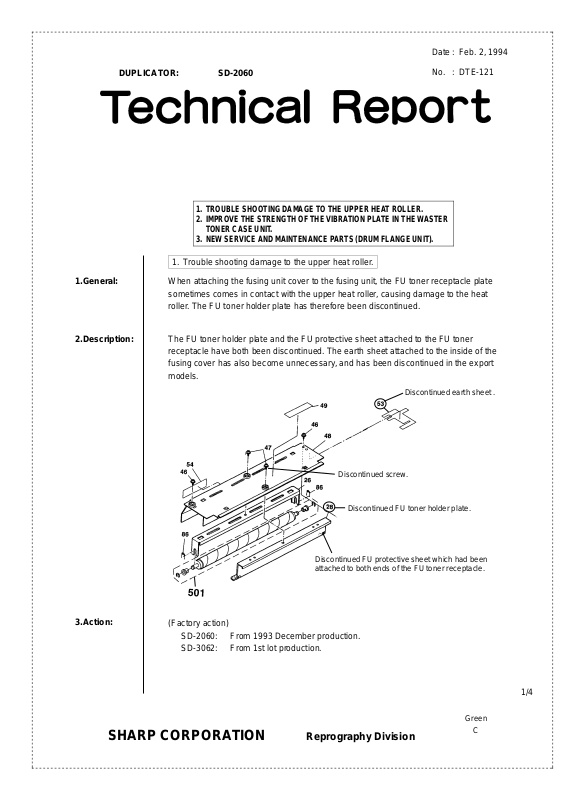

Date: Feb. 2, 1994
DUPLICATOR: SD-2060
No. : DTE-121
1. TROUBLE SHOOTING DAMAGE TO THE UPPER HEAT ROLLER.
2. IMPROVE THE STRENGTH OF THE VIBRATION PLATE IN THE WASTER
TONER CA SE UNIT.
3. NEW SERVICE AND MAINTENANCE PARTS (DRUM FLANGE UNIT).
1. Trouble shooting damage to the upper heat roller.
1.General: When attaching the fusing unit cover to the fusing unit, the FU toner receptacle plate
sometimes comes in contact with the upper heat roller, causing damage to the heat
roller. The FU toner holder plate has therefore been discontinued.
2.Description: The FU toner holder plate and the FU protective sheet attached to the FU toner
receptacle have both been discontinued. The earth sheet attached to the inside of the
fusing cover has also become unnecessary, and has been discontinued in the export
models.
Discontinued earth sheet .
Discontinued screw.
Discontinued FU toner holder plate.
Discontinued FU protective sheet which had been
attached to both ends of the FU toner receptacle.
3.Action:
(Factory action)
SD-2060: From 1993 December production.
SD-3062: From 1st lot production.
1/4
Green
C
SHARP CORPORATION Reprography Division
2. Improve the strength of the vibration plate in the waster toner case unit.
1.General: The material of the vibration plate in the waster toner transport area has been changed.
In addition, R of the bent section has also been changed. These changes are aimed at
improve the strength of the vibration plate.
2. Description: The material used in making the vibration plate of the waster toner case unit has been
changed from a phosphor bronze plate to a SUS, and R of the bent section has been
changed to improve the strength.
Added R 0.5
3.Action: (Factory action)
SD-2060: From 1993 October production.
SD-3062: From 1st lot production.
R0.5 → R0.8R
R0.5 → R0.8
Changed vibration plate.
2/4
3. New service and maintenance parts (Drum flange unit).
1.General: The drum flange unit has been redesigned to increase servicability for machines
already out on the market.
2.Description: The parts shown in the figure below have been combined into a single unit for supply
for service and maintenance purposes. Supply of individual parts for service and
maintenance purposes will also continue as before.
Nut brake roller collar
(NR0LR1015FCZZ).
Service parts only.
Nut spacer (LX-WZ0395FCZZ).
Drum pipe assembly (CPIPA0171FC01).
The parts shown inside the dotted lines are supplied as a unit.
3/4
Ref.
No.
1
Model
name
Version P/G No.
12 -28 LPLTM4291FCZZ Discontinued —
12 PSHEZ3557FCZZ Discontinued —
11 -53
All
Current parts New parts
Parts code Parts code
Price
Parts name
rank
FU toner holder
plate
FU protective
sheet
PSHEP3454FCZZ Discontinued — Earth sheet —
Effec-
tive
time
SD-2060:
’93/12,
SD-3062:
1st lot.
11 -47 LX-BZ0319FCZZ Change in quantity. — Screws (M4 x 6) —
SD-2060:
2
3
SD-2060
SD-3062
110V
series
200V
series
SEEG,
U. K.,
33 LPLTM4516FCZZ LPLTM4516FCZ1 AD Vibration plate
19 -901 — DUNT-6617FCZZ BY Drum flange unit
19 -901 — DUNT-6617FC14 BY Drum flange unit —
19 -901 — DUNT-6617FC15 BY Drum flange unit —
’93/10,
SD-3062:
1st lot.
Service
parts.
Australia
120V
19 -901 — DUNT-6617FC12 BY Drum flange unit —
127V
Brazil 19 -901 — DUNT-6617FC13 BY Drum flange unit —
<Interchange>
1. Interchangeable. 4. Not interchangeable.
2. C urr e nt t y pe c a n be u s ed i n p la ce of new type .
New ty pe cann ot be us ed i n place of curr ent type .
3. C urre nt ty pe cann ot be used i n place of new ty pe.
New t y pe c a n be u sed in pla c e of c u rr en t ty p e.
Parts m ar ke d wi t h “ ” is i mp ort an t fo r m a inta i ni ng t he sa fe ty of t he s e t. B e su r e to re pl ace these pa rts wi t h
specified ones for maintaining the safety and performance of the set.
!
5. Interchangeable if replaced with same types of
relate d parts in use .
6. Others.
Inter-
change-
ability
—
—
3
—
Note
Q’ty:
2 to 1
4/4
