Date: Nov. 18, 1993
DUPLICATOR : SD-2060
1. PREVENTION OF CENTER PAPER TRAY MALFUNCTION (E-4 TROUBLE / SKEW) CAUSED BY
ENTANGLEMENT WITH THE HARNESS.
2. ADDITION OF UNPACKING (WARNING) LABELS OVER THE TRAY FIXING SCREWS TO
PREVENT INSTALLAT ION ERRORS.
3. CORRECTION OF COPY PAPER SETTING LABELS (WRITTEN IN 4 LANGUAGES).
No. : DTE-097
1. Prevention of center paper tray malfunction (E-4 trouble / skew) caused by
entanglement with the harness.
1.Model name: SD-2060
2.General: The upper moving paper guide of the center paper tray sometimes becomes entangled
with the center paper tray harness, causing malfunctions. To remedy this problem,
mylar has been added to prevent the harness from becoming entangled.
3.Cause: To prevent center paper tray malfunctions caused by entanglement with the middle
paper tray harness.
4.Description: A harness binding sheet has been added to remedy the troublesome portion of the
center paper tray harness in the center paper tray. This portion is located in the section
of the harness going to the SB paper output sensor.
Added harness binding sheet.
(PSHEP3560FCZZ)
Both are fastened by this single screw.
SHARP CORPORATION Reprography Division
1/4
Green
C
Upper roller plate on fixed side.
Upper roller plate
Harness.
Harness
binding sheet.
SB paper output
sensor
SB paper output sensor.
Upper roller plate on fixed side.
on fixed side.
Harness.
5.Effective time: (Factory action)
From July, 1993.
2. Addition of unpacking (warning ) labels over the tray fixing screws to prevent
installation errors.
1.General: When installing the SD-2060 unit, the tray fixing screws should be removed before
turning on the main power. Failure to do so can cause damage such as breaking or
warping to the paper tray lift motor, the paper tray itself, and other parts. T o prevent
such accidents a warning label has been added with a reminder to remove the fixing
screws before turning the power on when installing the machine.

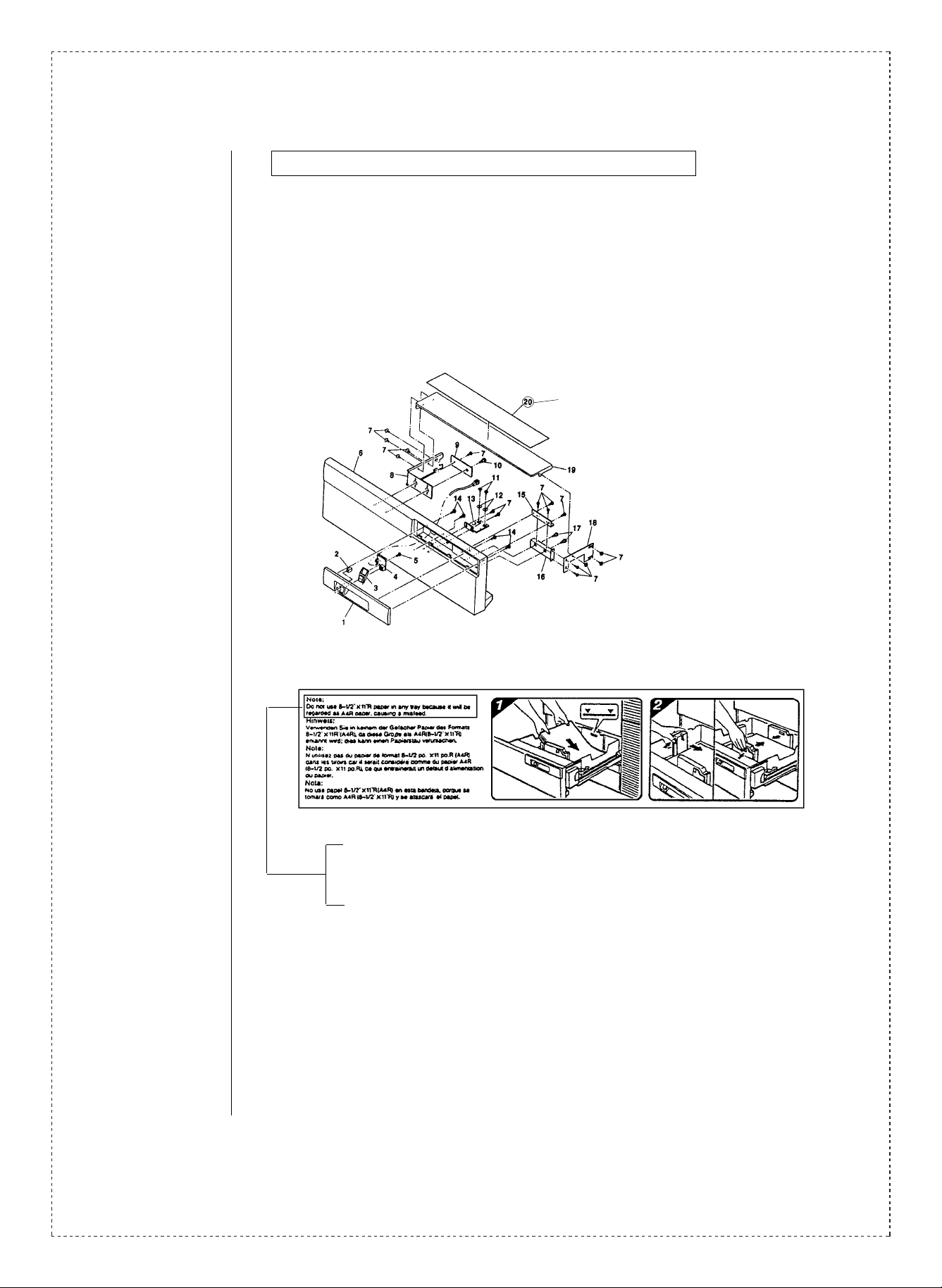

2.Description: Warning labels have been placed as shown in the diagram below , warning of the
danger of turning on the power without first removing the fixing screws when installing
the machine.
Fixing screws.
Added unpacking
(Warning) labels.
CLABZ0241FC01
3.Effective time: (Factory action)
From June, 1993.
2/4
3. Correction of copy paper setting labels (written in 4 languages).
1.General: The copy paper setting labels (written in 4 languages) that are pasted on the No. 2 and
No. 3 paper trays are worded for both AB paper size units and inch units. The English
written on the labels, however, is worded with only AB paper size units. This has been
corrected so that the English wording also covers both AB paper size units and inch
units.
2.Description: The copy paper setting labels (written in 4 languages) have been changed as shown
below.
Changed copy paper setting labels (E4).
Content of copy paper setting label (written in 4 languages) correction.
Current
New
3.Effective time: (Factory action)
From mid-August, 1993.
Note:
Do not use 8-1/2"X11"R paper in any tray because it will be
regarded as A4R paper, causing a misfeed.
Note:
Do not use 8-1/2"X11"R (A4R) paper in any tray because it will
be regarded as A4R (8-1/2"X11"R) paper, causing a misfeed.
3/4
No.
1
Model
name
Version P/G No.
31 — PSHEP3560FCZZ AC
All
Current parts New parts
Parts code Parts code
Price
rank
Parts name
Harness binding
sheets.
Effec-
tive
change-
time
’93/7 —
Inter-
Note
ability
2 Overseas
SD-2060
Except
3
<Interchange>
1. Interchangeable. 4. Not interchangeable.
2. C urr e nt t y pe c a n be u s ed i n p la ce of new t ype.
3. C urre nt ty pe cann ot be used i n place of new ty pe.
Parts m ar ke d wi t h “ ” is i mp ort an t fo r m a inta i ni ng t he sa fe ty of t he s e t. B e su r e to re pl ace these pa rt s wi t h
specified ones for maintaining the safety and performance of the set.
domestic,
USA,
U.K.,
Australia.
New ty pe cann ot be us ed i n place of curr ent type .
New t y pe c a n be u sed in p la c e of c u rr en t ty p e.
20
— CLABZ0241FC01 AF
21
22 -20 TLABH3422FCZZ TLABH3484FCZZ AG
5. Interchangeable if replaced with same types of
relate d parts in use .
6. Others .
!
Unpacking
(Warning) labels.
Copy paper
setting labels.
’93/6 — Q’ty: 3
MidAug.
1993
3 Q’ty: 2
4/4
