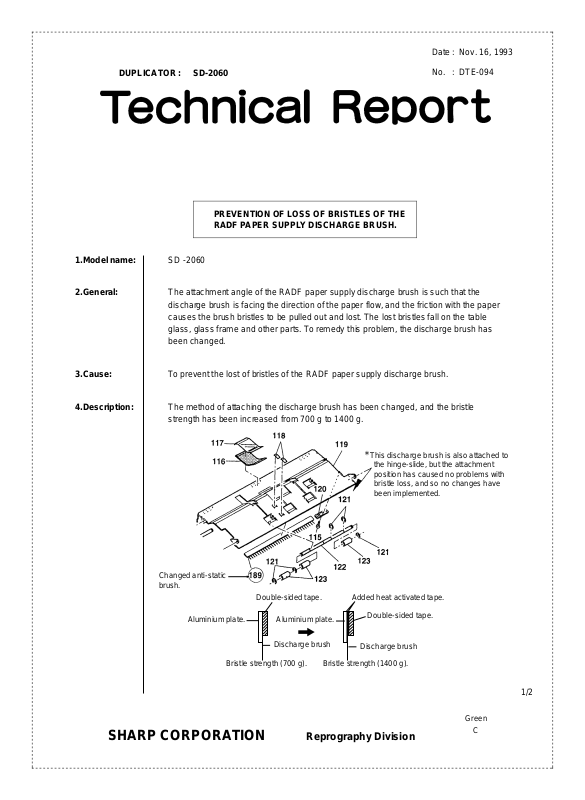

SHARP DTE094 Technical Report
Date: Nov. 16, 1993
DUPLICATOR : SD-2060
No. : DTE-094
PREVENTI ON O F L OS S OF BRI ST L ES OF THE
RADF P APER SUPPLY DISCHARGE BRUSH.
1.Model name: SD -2060
2.General: The attachment angle of the RADF paper supply dis charge brush is such that the
discharge brush is facing the direction of the paper flow, and the friction with the paper
causes the brush bristles to be pulled out and l ost. The lost bristles fall on the table
glass, glass frame and other parts. T o remedy this problem, the discharge brush has
been changed.
3.Cause: To prevent the lost of bristles of the RADF paper supply discharge brush.
4.Description: The method of attaching the discharge brush has been changed, and the bristle
strength has been increased from 700 g to 1400 g.
*This discharge brush is also attached to
the hinge-slide, but the attachment
position has caused no problems with
bristle loss, and so no changes have
been implemented.
Changed anti-static
brush.
Aluminium plate.
Double-sided tape.
Aluminium plate.
Added heat activated tape.
Double-sided tape.
Discharge brush
Bristle strength (700 g).
Bristle strength (1400 g).
Discharge brush
SHARP CORPORATION Reprography Division
1/2
Green
C
5.Effective time: (Factory action)
From October, 1993.
Ref.
Model
No.
SD-2060 All
<Inter ch an g e>
1. Interchangeable. 4. Not interchangeable.
2. C urr e nt t y pe c a n be u s ed i n p la ce of new t y pe .
New ty pe cann ot be us ed i n place of curr ent type .
3. C urre nt ty pe cann ot be used i n place of new ty pe.
New t y pe c a n be u sed in p la c e of c u rr en t ty p e.
Parts m ar ke d wi t h “ ” is i mp ort an t fo r m a inta i ni ng t he sa fe ty of t he s e t. B e su r e to re pl ace these pa r ts wi t h
specified ones for maintaining the safety and performance of the set.
name
Version P/G No.
43 -189 0CW2176P371A/ Quantity change AQ Discharge brush ’93/10 —
43 — 0CW2176P377A/ AS Discharge brush ’93/10 — Q’ty: 1
!
Current parts New parts
Parts code Parts code
5. Interchangeable if replaced with same types of
relate d parts in use .
6. Others .
Price
rank
Parts name
Effec-
tive
time
Inter-
change-
ability
Note
Q’ty:
2 → 1
