Sharp DT-400 User Manual

Before using the projector, please read this operation manual carefully.

Introduction

IMPORTANT

For your assistance in reporting the loss or theft of your Projector, please record the Serial Number located on the bottom of the projector and retain this information. Before recycling the packaging, please ensure that you have checked the contents of the carton thoroughly against the list of “Supplied accessories” on page 5.

There are two important reasons for prompt warranty registration of your new SHARP Projector, using the REGISTRATION CARD packed with the projector.

1. WARRANTY

This is to assure that you immediately receive the full benefit of the parts, service and labor warranty applicable to your purchase.

2. CONSUMER PRODUCT SAFETY ACT

To ensure that you will promptly receive any safety notification of inspection, modification, or recall that SHARP may be required to give under the 1972 Consumer Product Safety Act, PLEASE READ CAREFULLY THE IMPORTANT “LIMITED WARRANTY” CLAUSE.

WARNING: High brightness light source. Do not stare into the beam of light, or view directly. Be especially

careful that children do not stare directly into the beam of light.

Model No.: DT-400

Serial No.:

U.S.A. ONLY

ENGLISH

WARNING: To r educe the risk of fire or electric shock, do not expose this product to

rain or moisture.

See bottom of projector.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT REMOVE SCREWS

EXCEPT SPECIFIED USER

SERVICE SCREW.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER.

NO USER-SERVICEABLE PARTS EXCEPT LAMP UNIT.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk or electric shock to persons.

The exclamation point within a triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

WARNING: FCC Regulations state that any unauthorized changes or modifications to this equipment not

expressly approved by the manufacturer could void the user’s authority to operate this equipment.

U.S.A. ONLY

INFORMATION

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the operation manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

U.S.A. ONLY

-1

PRODUCT DISPOSAL

This projector utilises tin-lead solder, and a pressurised lamp containing a small amount of mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or, if you are located in the United States of America, the Electronic Industries Alliance: www.eiae.org .

Declaration of Conformity

SHARP PROJECTOR, MODEL DT-400 This device complies with Part 15 of the FCC rules. Operation is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Responsible Party:

SHARP ELECTRONICS CORPORATION Sharp Plaza, Mahwah, New Jersey 07430 TEL: 1-800-BE-SHARP (1-800-237-4277)

U.S.A. ONLY

Caution Concerning Lamp Replacement

See “Replacing the Lamp” on page 56.

LAMP REPLACEMENT WARNING :

TURN OFF THE LAMP AND DISCONNECT POWER CORD BEFORE OPENING THIS COVER. HOT SURFACE INSIDE. ALLOW 1 HOUR TO COOL BEFORE REPLACING THE LAMP. REPLACE WITH SAME SHARP LAMP UNIT MODEL AN-K2LP ONLY.

HIGH PRESSURE LAMP :

POTENTIAL HAZARD OF GLASS PARTICLES IF LAMP HAS RUPTURED. HANDLE WITH CARE. SEE OPERATION MANUAL.

SERVICEMAN-WARNING :

SKIN PROTECTION DURING SERVICING.

AVERTISSEMENT CONCERNANT LE REMPLACEMENT DE LA LAMPE :

ETEINDRE LA LAMPE ET DEBRANCHER LE CORDON D’ALIMENTATION AVANT D’OUVRIR LE COUVERCLE. L’INTERIEUR DU BOITIER ETANT EXTREMEMENT CHAUD, ATTENDRE 1 HEURE AVANT DE PROCEDER AU REMPLACEMENT DE LA LAMPE. NE REMPLACER QUE PAR UNE LAMPE SHARP DE MODÈLE AN-K2LP.

LAMPE A HAUTE PRESSION :

D’EXPLOSION. DANGER POTENTIEL DE PARTICULES DE VERRE EN CAS D’ECLATEMENT DE LA LAMPE. A MANIPULER AVEC PRECAUTION. SE REPORTER AU MODE D’EMPLOI.

AVERTISSEMENT – REPARATEUR :

YEUX ET LA PEAU DES RADIATIONS LORS DES REPARATIONS.

RISK OF EXPLOSION.

USE RADIATION EYE AND

RISQUE

SE PROTEGER LES

WARNING:

The cooling fan in this projector continues to run for about 90 seconds after the projector enters the standby mode. During normal operation, when putting the projector into standby mode always use the STANDBY button on the projector or on the remote control. Ensure the cooling fan has stopped before disconnecting the power cord. DURING NORMAL OPERATION, NEVER TURN THE PROJECTOR OFF BY DISCONNECTING THE POWER CORD. FAILURE TO OBSERVE THIS WILL RESULT IN PREMATURE LAMP FAILURE.

-2

WARNING:

Some IC chips in this product include confidential and/or trade secret property belonging to Texas Instruments. Therefore you may not copy, modify, adapt, translate, distribute, reverse engineer, reverse assemble or discompile the contents thereof.

This SHARP projector uses a DMD panel. This very sophisticated panel contains 921,600 pixels micromirrors. As with any high technology electronic equipment such as large screen TVs, video systems and video cameras, there are certain acceptable tolerances that the equipment must conform to. This unit has some inactive pixels within acceptable tolerances which may result in inactive dots on the picture screen. This will not affect the picture quality or the life expectancy of the unit.

• DLPTM (Digital Light Processing) and DMDTM (Digital Micromirror Device) are trademarks of Texas Instru- ments, Inc.

• Microsoft other countries.

• PC/AT is a registered trademark of International Business Machines Corporation in the United States.

• Macintosh

• All other company or product names are trademarks or registered trademarks of their respective companies.

and Windows® are registered trademarks of Microsoft Corporation in the United States and/or

is a registered trademark of Apple Computer, Inc. in the United States and/or other countries.

Introduction

-3

Contents

Preparing

Introduction

Contents.......................................................... 4

Accessories .................................................... 5

IMPORTANT SAFEGUARDS .......................... 6

Part Names and Functions ............................ 9

Using the Remote Control ........................... 13

Usable Range .................................................... 13

Inserting the Batteries ....................................... 13

Quick Start

Quick Start .................................................... 14

Using

Basic Operation

Turning the Projector On/Off....................... 27

Image Projection .......................................... 29

Switching the INPUT Mode ............................... 29

Adjusting the Focus ........................................... 30

Adjusting the Projected Image Size .................. 30

Using the Adjustment Feet ................................ 31

Keystone Correction .......................................... 32

Placement of the Projected Image Using the

Keystone Correction .................................... 33

Selecting the Picture Mode ............................... 34

Switching the High Brightness / High Contrast

Mode ........................................................... 34

Adjusting the Picture Aspect Ratio .................... 34

Useful Features

Menu Items ................................................... 36

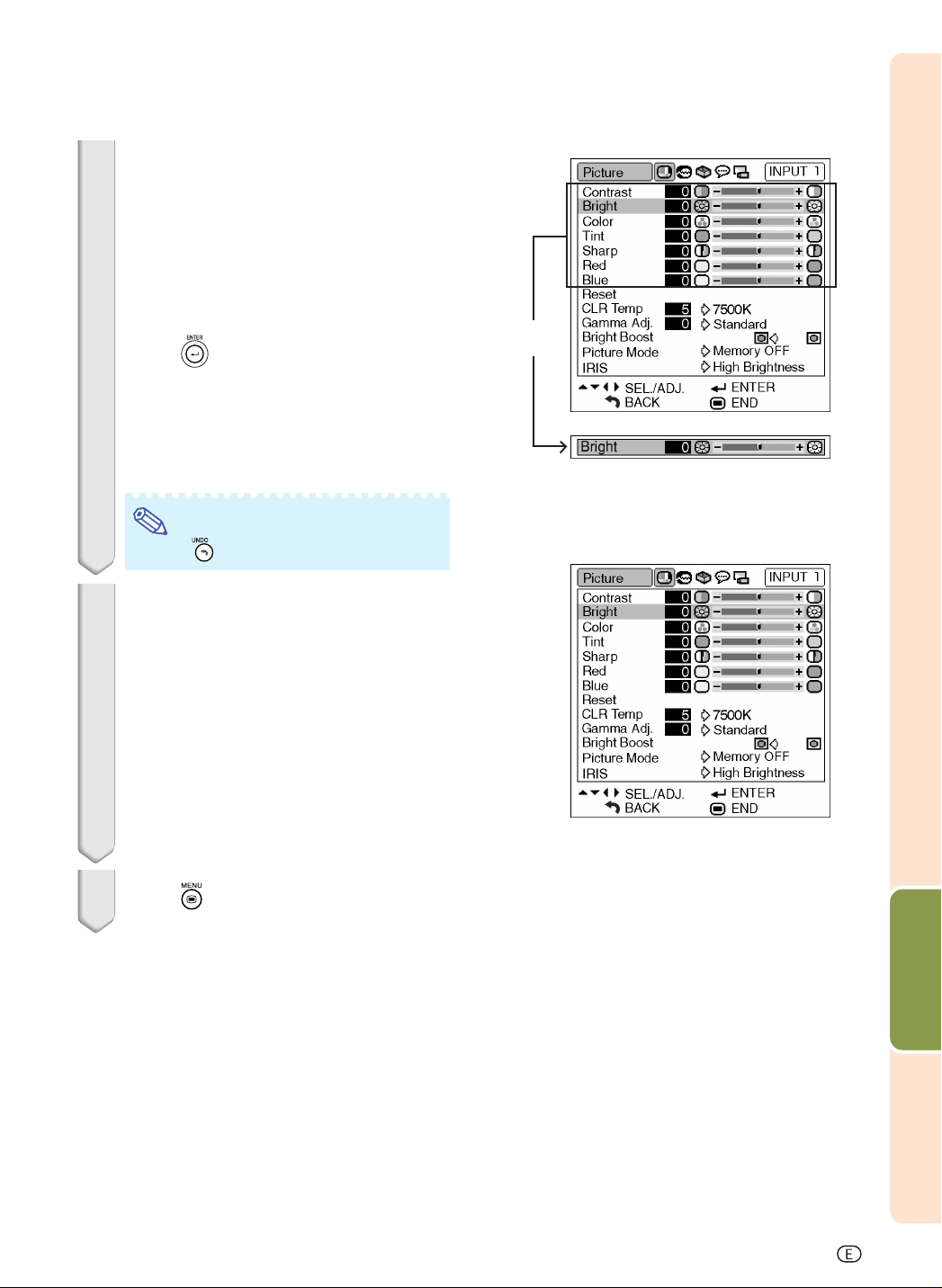

Using the Menu Screen ............................... 38

Menu Selections (Adjustments) ......................... 38

Menu Selections (Settings) ................................ 40

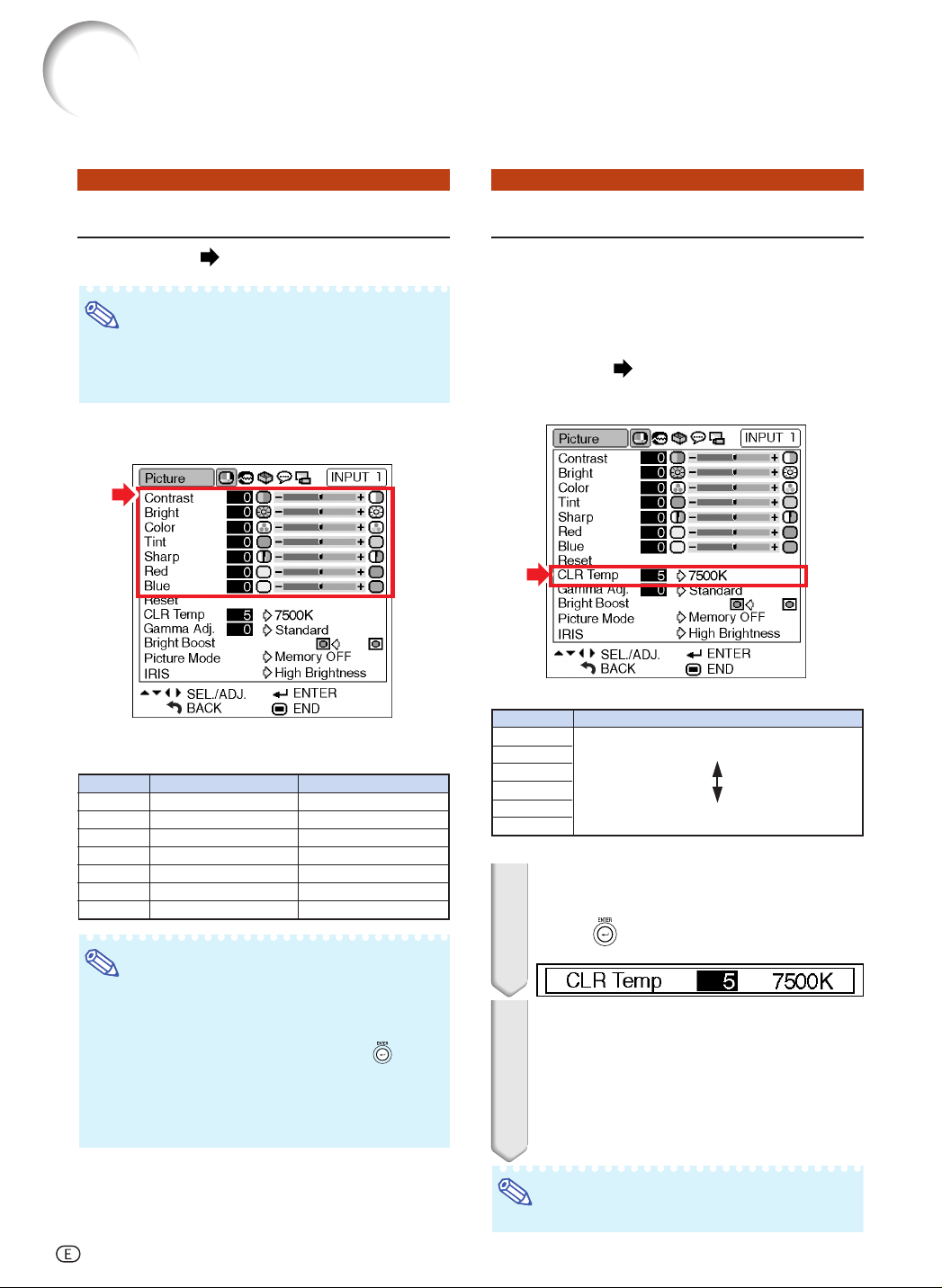

Picture Adjustment (“Picture” menu) ........ 42

Adjusting the Image .......................................... 42

Adjusting the Color Temperature ....................... 42

Setup

Setting Up the Projector .............................. 16

Setting Up the Projector .................................... 16

Screen Size and Projection Distance ................ 17

Projecting a Reversed Image ............................ 18

Connections

Connections ................................................. 19

INPUT Terminals and Connectable

Main Equipment .......................................... 19

Samples of Cables for Connection ............. 20

Connecting to Video Equipment ................. 21

Connecting to a Computer .......................... 25

Gamma Correction Function ............................. 43

Emphasising the Contrast ................................. 43

Picture Mode Function....................................... 44

Switching the High Brightness/High Contrast

Mode ........................................................... 44

Computer Image Adjustment

(“Fine Sync” menu) ................................ 45

Adjusting the Computer Image ......................... 45

Special Modes Setting ...................................... 45

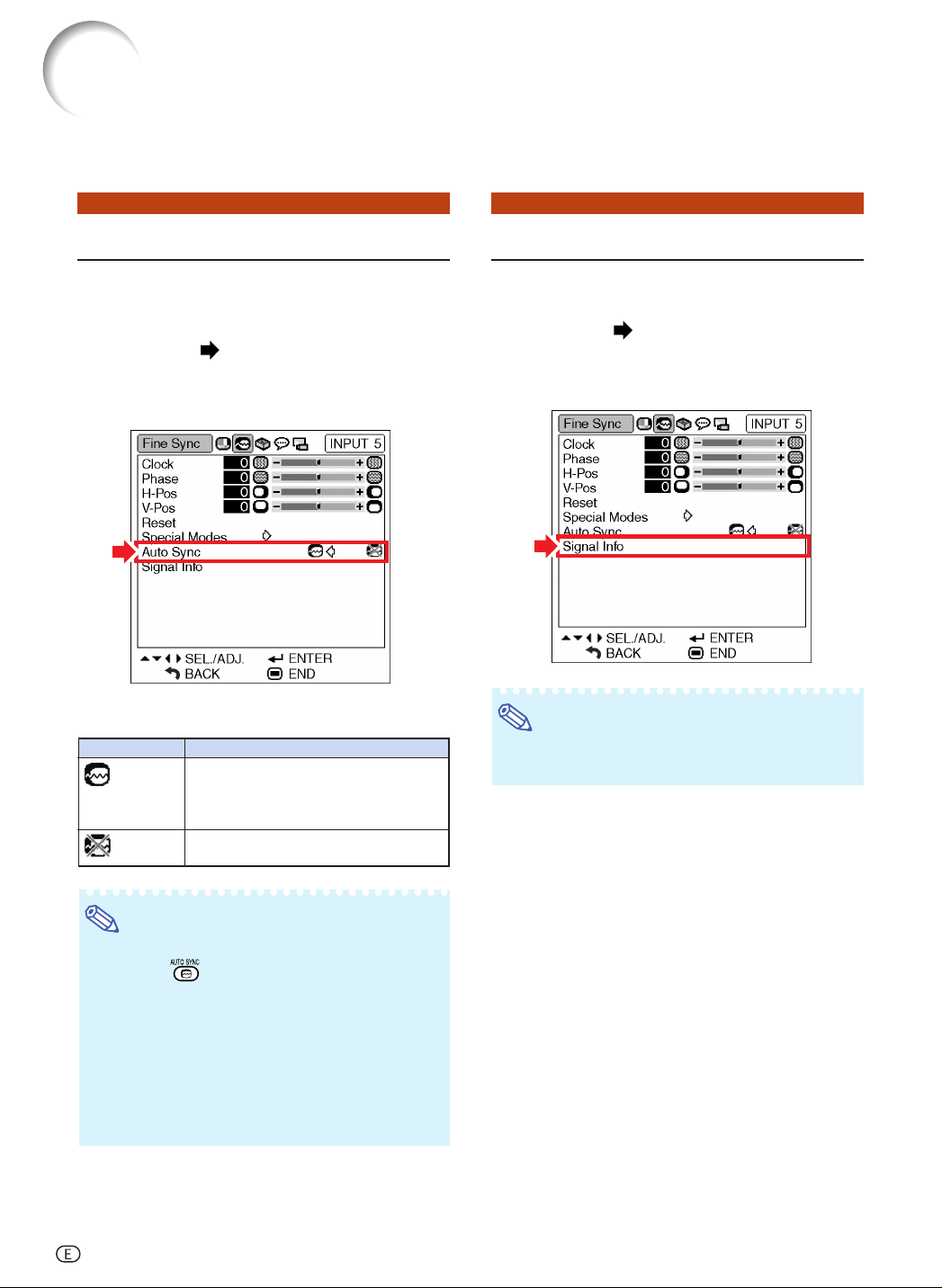

Auto Sync Adjustment ....................................... 46

Checking the Input Signal ................................. 46

Using the “Options” Menu ........................... 47

Checking the Lamp Life Status ......................... 47

Setting On-screen Display................................. 47

Setting the Video System................................... 48

Signal Type Setting ............................................ 48

Selecting a Background Image ......................... 49

Eco Mode .......................................................... 49

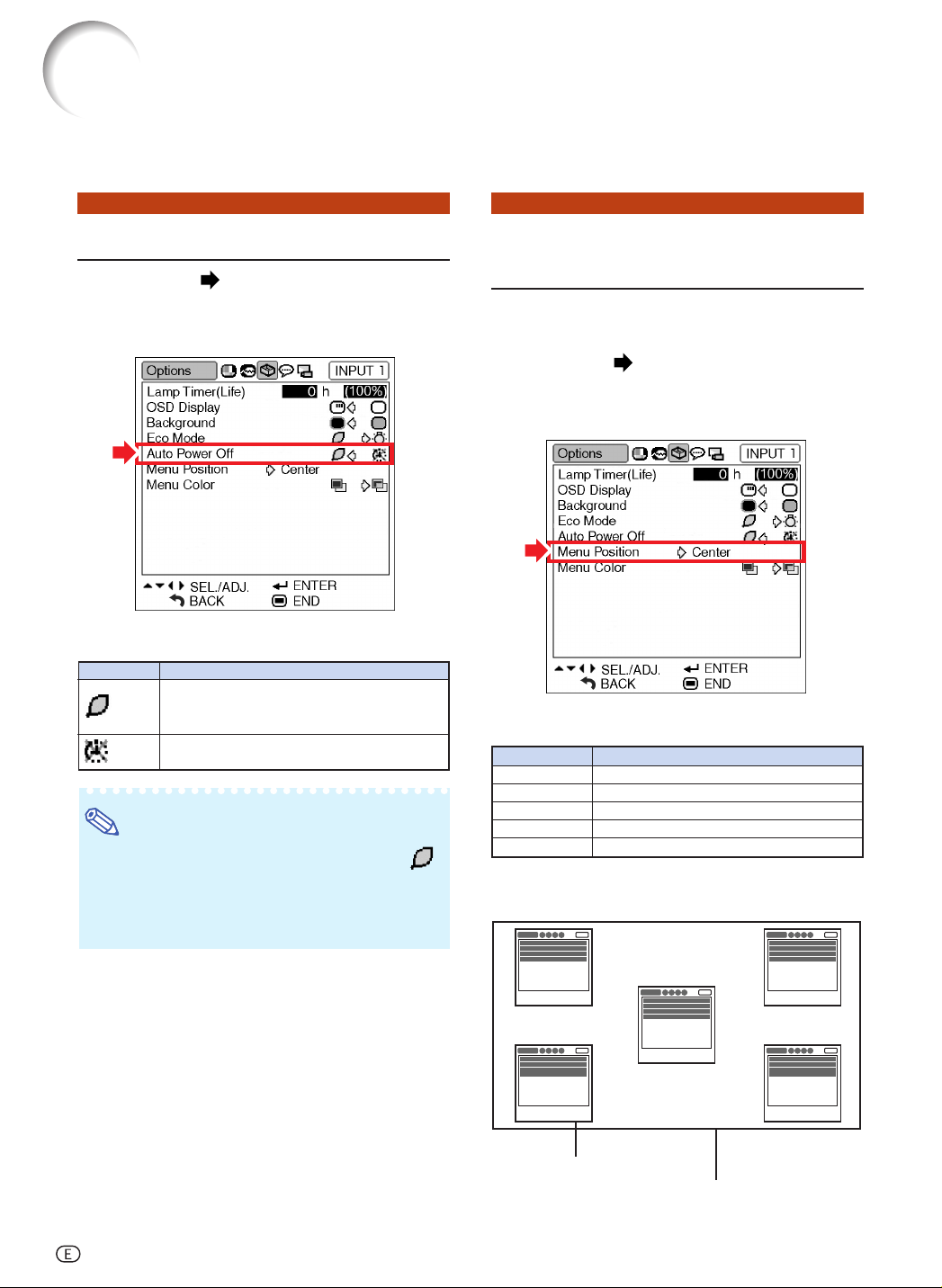

Auto Power Off Function .................................... 50

Selecting the Menu Screen Position .................. 50

Selecting the Menu Color .................................. 51

Selecting the On-screen Display

Language and the Projection Mode ...... 52

Selecting the On-screen Display Language ..... 52

Setting the Projection Mode .............................. 52

Reference

Appendix

Maintenance ................................................. 53

Maintenance Indicators ............................... 54

Regarding the Lamp .................................... 56

Lamp ................................................................. 56

Caution Concerning the Lamp .......................... 56

Replacing the Lamp .......................................... 56

Removing and Installing the Lamp Unit ............ 57

Resetting the Lamp Timer ................................. 58

Connecting Pin Assignments ..................... 59

Computer Compatibility Chart .................... 60

Troubleshooting ........................................... 61

Service Information (For the U.S.) .............. 61

-4

Specifications ............................................... 62

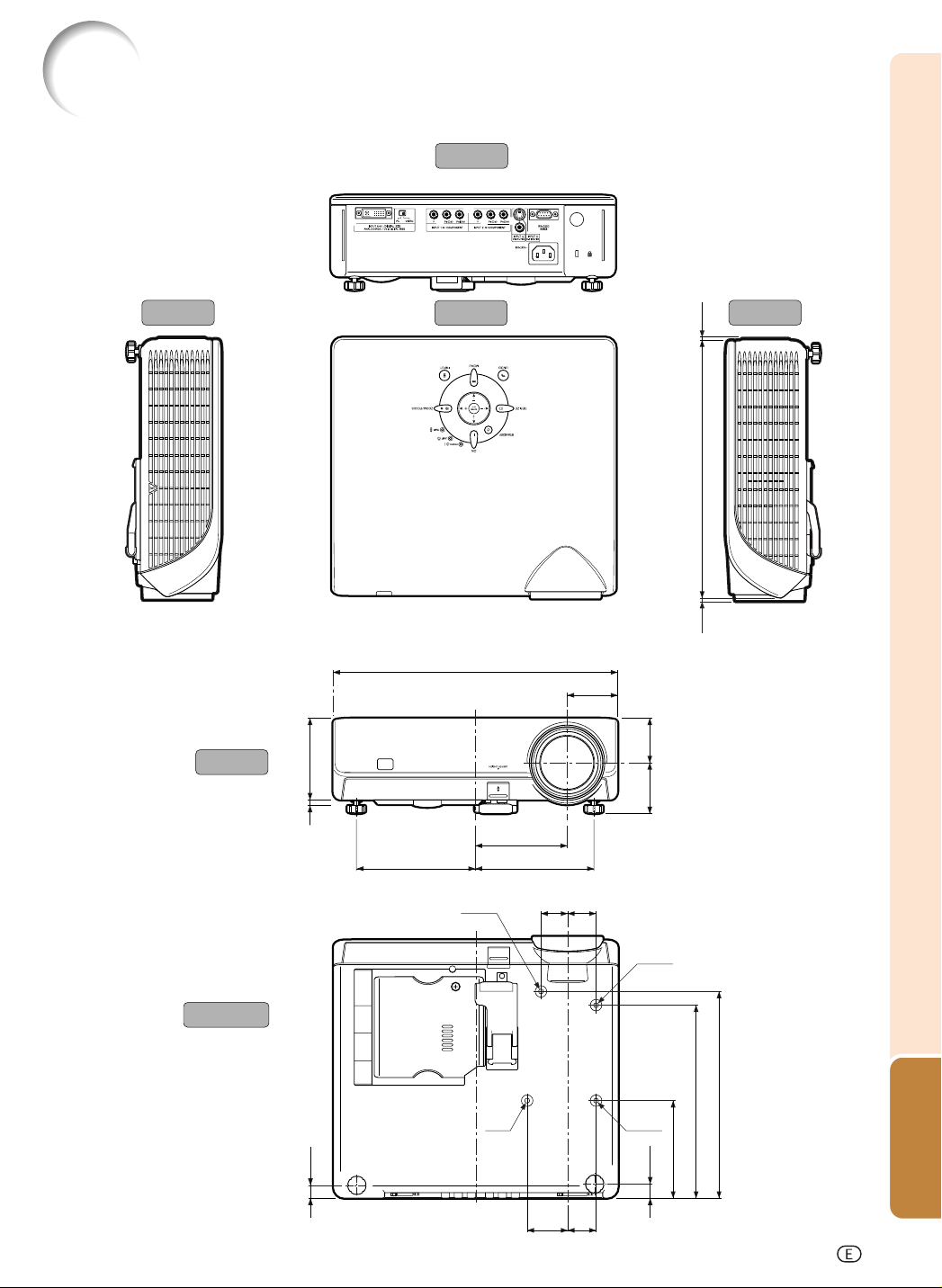

Dimensions ................................................... 63

Glossary ........................................................ 64

Index .............................................................. 65

CONSUMER LIMITED WARRANTY

(VALID IN USA ONLY) ............................. 66

LIMITED WARRANTY

(VALID IN CANADA ONLY) ..................... 67

Accessories

Supplied accessories

Remote control RRMCGA334WJSA

Introduction

Tw o AA size batteries

Power cord (6' (1.8 m)) QACCDA007WJPZ

Lens cap (attached) PCAPHA021WJSA

Operation manual TINS-B532WJZZ

Optional accessories

■ 3 RCA to 15-pin D-sub cable (9'10" (3.0 m)) AN-C3CP

■ DVI to 15-pin D-sub adaptor (7.9" (20 cm)) AN-A1DV

■ DVI cable (9'10" (3.0 m)) AN-C3DV

■ Lamp unit AN-K2LP

Note

• Some of the optional accessories may not be available depending on the region. Please check with your nearest Sharp Authorized Service Center or Dealer.

Marks Used in This Operation Manual

Info

........Indicates safeguards when using the projector.

........Indicates additional information for setting up and operating the projector.

Note

• In this operation manual, the illustration and the screen display are simplified for explanation, and may differ slightly from actual display.

-5

IMPORTANT SAFEGUARDS

CAUTION: Please read all of these instructions before you operate this product and save these

instructions for later use.

Electrical energy can perform many useful functions. This product has been engineered and manufactured to assure your personal safety. BUT IMPROPER USE CAN RESULT IN POTENTIAL ELECTRICAL SHOCK OR FIRE HAZARDS. In order not to defeat the safeguards incorporated in this product, observe the following basic rules for its installation, use and servicing.

1. Read Instructions

All the safety and operating instructions should be read before the product is operated.

2. Retain Instructions

The safety and operating instructions should be retained for future reference.

3. Heed Warnings

All warnings on the product and in the operating instructions should be adhered to.

4. Follow Instructions

All operating and use instructions should be followed.

5. Cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

6. Attachments

Do not use attachments not recommended by the product manufacturer as they may cause hazards.

7. Water and Moisture

Do not use this product near water–for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.

8. Accessories

Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.

9. Transportation

A product and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.

10. Ventilation

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.

11. Power Sources

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instructions.

12. Grounding or Polarization

This product is provided with one of the following types of plugs. If the plug should fail to fit into the power outlet, please contact your electrician. Do not defeat the safety purpose of the plug.

a. Two-wire type (mains) plug. b. Three-wire grounding type (mains) plug with a

grounding terminal. This plug will only fit into a grounding type power outlet.

-6

13. Power-Cord Protection

Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.

14. Lightning

For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the cable system. This will prevent damage to the product due to lightning and power-line surges.

15. Overloading

Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

16. Object and Liquid Entry

Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.

17. Servicing

Do not attempt to service this product yourself as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

18. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

a. When the power-supply cord or plug is damaged. b. If liquid has been spilled, or objects have fallen into

the product. c. If the product has been exposed to rain or water. d. If the product does not operate normally by following

the operating instructions. Adjust only those controls

that are covered by the operating instructions, as an

improper adjustment of other controls may result in

damage and will often require extensive work by a

qualified technician to restore the product to normal

operation. e. If the product has been dropped or damaged in any

way. f. When the product exhibits a distinct change in

performance, this indicates a need for service.

19. Replacement Parts

When replacement parts are required, ensure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.

20. Safety Check

Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.

21.Wall or Ceiling Mounting

This product should be mounted to a wall or ceiling only as recommended by the manufacturer.

22. Heat

This product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.

Ensure that you read the following safeguards when setting up your projector.

Introduction

Caution concerning the lamp unit

■ Potential hazard of glass particles if lamp ruptures. In case of lamp rupture, contact your nearest Sharp Authorized Service Center or Dealer for a replacement. See “Replacing the Lamp” on page 56.

Caution concerning the setup of the projector

■ For minimal servicing and to maintain high image quality, SHARP recommends that this projector be installed in an area free from humidity, dust and cigarette smoke. When the projector is subjected to these environments, the vents and lens must be cleaned more often. As long as the projector is regularly cleaned, use in these environments will not reduce the overall operation life of the unit. Internal cleaning should only be performed by a Sharp Authorized Service Center or Dealer.

Do not set up the projector in places exposed to direct sunlight or bright light.

■ Position the screen so that it is not in direct sunlight or room light. Light falling directly on the screen washes out the colors, making viewing difficult. Close the curtains and dim the lights when setting up the screen in a sunny or bright room.

The projector may be safely tilted to a maximum angle of 12 degrees.

■ Placement should be within ±12 degrees of horizontal.

Warning about placing the projector in a high position

■ When placing the projector in a high position, ensure to secure it carefully to avoid personal injury caused by the projector falling down.

Do not subject the projector to hard impact and/or vibration.

■ Take care with the lens so as not to hit or damage the surface of the lens.

Rest your eyes occasionally.

■ Continuously watching the screen for long hours will cause eye strain. Ensure to occasionally rest your eyes.

Avoid locations with extremes of temperature.

■ The operating temperature of the projector is from 41°F to 95°F (+5°C to +35°C).

■ The storage temperature of the projector is from –4°F to 140°F (–20°C to +60°C).

Do not block the exhaust and intake vents.

■ Allow at least 7 7/8 inches (20 cm) of space between the exhaust vent and the nearest wall or obstruction.

■ Ensure that the intake vent and the exhaust vent are not obstructed.

■ If the cooling fan becomes obstructed, a protection circuit will automatically put the projector into standby mode to prevent overheat damage. This does not indicate a malfunction (See pages 54 and 55.). Remove the pro- jector power cord from the wall outlet and wait at least 10 minutes. Place the projector where the intake and exhaust vents are not blocked, plug the power cord back in and turn on the projector. This will return the projector to the normal operating condition.

-7

IMPORTANT SAFEGUARDS

Caution regarding usage of the projector

■ When using the projector, ensure not to subject it to hard impact and/or vibration, as this can result in damage. Take extra care with the lens. If you are not to use the projector for a long time, ensure to unplug the power cord from the wall outlet, and disconnect any other cables connected to it.

■ Do not use the projector by holding the lens.

■

When you are not to use the projector for a long time, or storing the projector, ensure to attach the lens cap to the projector (See page 9.).

■ Do not expose the projector to direct sunlight or near heat sources. The projector may change color or become deformed.

Other connected equipment

■ When connecting a computer or other audiovisual equipment to the projector, make the connections AFTER unplugging the power cord of the projector from the AC outlet and turning off the equipment to be connected.

■ Please read the operation manuals of the projector and the equipment to be connected for instructions on how to make the connections.

Info

• The cooling fan regulates the internal temperature, and its performance is automatically controlled. The sound of the fan may change during projector operation due to changes in the fan speed. This does not indicate malfunction.

• Do not unplug the power cord during projection or cooling fan operation. This can cause damage due to rise in internal temperature, as the cooling fan also stops.

Using the projector in other countries

■ The power supply voltage and the shape of the plug may vary depending on the region or country you are using the projector in. When using the projector overseas, ensure to use an appropriate power cord for the country you are in.

Temperature monitor function

■

If the projector starts to overheat due to setup problems or blockage of the air vents, “ ” and “ ” will illuminate in the lower left corner of the picture. If the temperature continues to rise, the lamp will turn off, the temperature warning indicator on the projector will blink, and after a 90-second coolingoff period the projector will enter the standby mode. Refer to “Maintenance Indicators” on page 54 for details.

-8

Part Names and Functions

Numbers in refer to the main pages in this operation manual where the topic is explained.

Projector

Top View

ON button

Turn the power on.

STANDBY button

Put the projector into standby

RESIZE button

Switch the picture display

(STRETCH, SIDE BAR, etc.).

ENTER button

Set items selected or

adjusted on the menu.

mode.

Power indicator

Lamp indicator

5410

Temperature warning indicator

ZOOM/FOCUS button

Adjust the projected image size or adjust the focus.

Introduction

UNDO button

Undo an operation or

returning to the previous

MENU button

Display adjustment and

setting screens.

Front View

Remote control sensor

Front adjustment foot

(on the bottom of

the projector)

HEIGHT ADJUST button

display.

• Attaching the lens cap

Push the lens cap on until it clicks into position.

• Removing the lens cap

Pull the lens cap directly outward.

INPUT button

Switch input mode 1, 2, 3, 4, 5 or DIGITAL.

Adjustment buttons ('/"/\/|)

Select menu items and other settings.

-9

Part Names and Functions

About the Indicators on the Projector

Power indicator

Red on Green on

...

Normal (Standby)

...

Normal (Power on)

Lamp indicator

Green on Green blinks Red on

...

Normal

...

The lamp is warming up or shutting down.

The lamp has been shut down abnormally or

needs to be changed. (See page 54.)

Temperature warning indicator

...

Off

Normal

Red on

...

The internal temperature is abnormally high. (See page 54.)

-10

Numbers in refer to the main pages in this operation manual where the topic is explained.

Projector (Rear View)

Terminals Refer to “INPUT Terminals and Connectable Main Equipment” on page 19.

Introduction

INPUT 2 terminal

Component signals.

INPUT 1 terminal

Component signals.

Digital input type switch

INPUT 5/DIGITAL

terminal

Intake vent

22 23

537

25 26

INPUT 4 terminal

Connect video equipment.

INPUT 3 terminal

Connect video equipment with an S-video terminal.

RS-232C terminal

(Serviceman only).

Exhaust vent

The speed and pitch of

the cooling fan may change during operation in response to internal temperature changes. This is normal operation and does not indicate a malfunction.

Remote control sensor

Kensington Security

Rear adjustment feet

Standard connector

AC socket

Connect the supplied Power cord.

Using the Kensington Lock

• This projector has a Kensington Security Standard connector for use with a Kensington MicroSaver Security System. Refer to the information that came with the system for instructions on how to use it to secure the projector.

-11

Part Names and Functions

Numbers in refer to the main pages in this operation manual where the topic is explained.

Remote Control

Put the projector into standby

STANDBY button

mode.

KEYSTONE button

Enter the Keystone

Correction mode.

ENTER button

Set items selected or

adjusted on the menu.

UNDO button

Undo an operation or returning to

the previous display.

INPUT 1 button

INPUT 2 button

INPUT 4 button

AUTO SYNC button

Automatically adjust images when

connected to a computer.

RGB/COMP. button

Switch the signal type

(RGB or Component).

IRIS button

Switch “HIGH BRIGHTNESS

MODE” or “HIGH CONTRAST

MODE”.

ON button

Tu rn the power on.

MENU button

Display adjustment and setting screens.

Adjustment buttons ('/"/\/|)

ZOOM/FOCUS button

Adjust the projected image size or adjusting the focus.

INPUT 3 button

DIGITAL INPUT button

INPUT 5 button

RESIZE button

Switch the picture display (STRETCH, SIDE BAR, etc.).

PICTURE MODE button

Select the picture setting (Memory)

stored in “Picture Mode” on the “Picture” menu.

Note

• All the buttons on the remote control are made of luminous material that is visible in the dark. Visibility will diminish over time. Exposure to light will recharge the luminous buttons.

-12

Using the Remote Control

Introduction

Usable Range

The remote control can be used to control the projector within the ranges shown in the illustration.

Note

•

The signal from the remote control can be reflected off a screen for easy operation. However, the effective distance of the signal may differ depending on the screen material.

When using the remote control:

• Ensure not to drop, expose to moisture or high temperature.

• The remote control may malfunction under a fluorescent lamp. In this case, move the projector away from the fluorescent lamp.

Inserting the Batteries

1 Pull down the tab on the cover

and remove the cover towards the direction of the arrow.

Front View

Rear View

30°

30° Remote control signal transmitters

30°

Remote control

Remote control sensor

23' (7 m)

30°

23' (7 m)

30°

Remote control signal transmitters

Remote control

2 Insert the included batteries

(two “AA” size).

• Insert the batteries making sure the polarities correctly match the marks inside the battery compartment.

and

3 Insert the lower tab of the cover

into the opening, and lower the cover until it clicks in place.

Incorrect use of the batteries may cause them to leak or explode. Please follow the precautions below.

Caution

• Insert the batteries making sure the polarities correctly match the and marks inside the battery compartment.

• Batteries of different types have different properties, therefore do not mix batteries of different types.

• Do not mix new and old batteries.

This may shorten the life of new batteries or may cause old batteries to leak.

• Remove the batteries from the remote control once they have run out, as leaving them in can cause them to leak. Battery fluid from leaked batteries is harmful to skin, therefore ensure to first wipe them and then remove them using a cloth.

• The batteries included with this projector may run down in a short period, depending on how they are kept. Ensure to replace them as soon as possible with new batteries.

-13

Quick Start

This section shows the basic operation. For details, see the page described below for each step.

Setup and Projection

Connection of the projector and the video equipment with an S-video terminal is explained as an example below.

3 ON button 8 STNADBY button

6 ZOOM/FOCUS button

8 STNADBY button

3 ON button

7 KEYSTONE button

Adjustment buttons

6 4 INPUT button

6 HEIGHT ADJUST button

('/"/\/|)

6, 7

Adjustment buttons

('/"/\/|)

6 ZOOM/FOCUS button 4 INPUT buttons,

DIGITAL INPUT button

1. Place the projector facing a screen

Page 16

2. Connect the projector to the video equipment and plug the

power cord into the AC socket of the projector

Connect the audio output terminal of the video equipment to the audio input terminal of the audio equipment using an audio cable.

3. Remove the lens cap and turn the projector on

On the remote controlOn the projector

-14

Pages 21-27

Page 27

4. Select the INPUT mode

HEIGHT ADJUST button

Select the “INPUT 3” using the INPUT button on the projector or the INPUT 3 button on the remote control.

On the

projector

••

• When pressing on the projector, input mode switches in order of :

••

INPUT 1 INPUT 2 INPUT 3 INPUT 4 INPUT 5 DIGITAL

••

•

When using the remote control, press / / / / / to switch the INPUT mode.

••

On the remote

control

" On-screen Display

Page 29

5. Turn the video equipment on and playback

6. Adjust the projector angle, focus and zoom

Adjust the focus

On the projector

1 Press .

2 Adjust the focus by pressing \ or |.

On the remote control

1 Press .

2 Adjust the focus by pressing \ or |.

3 Adjust the projector angle

using the HEIGHT ADJUST button.

Quick Start

Adjust the projected image size by adjusting zoom.

On the projector

1 Press .

2 Adjust the zoom by pressing ' or ".

On the remote control

1 Press .

2 Adjust the zoom by pressing ' or ".

Pages 30, 31

7. Correct trapezoidal distortion

Correcting trapezoidal distortion using the Keystone Correction

On the remote control

Select “H Keystone”

or “V Keystone”.

Adjust

Horizontal Vertical

Pages 32, 33

8. Turn the Power off

Press the STANDBY button, then press that button again while the confirmation message is displayed, to put the projector into standby mode.

On the remote controlOn the projector

" On-screen Display

••

• Unplug the power cord from the AC outlet after the cooling fan stops.

••

Page 28

-15

Setting Up the Projector

Position the projector perpendicular to the screen to achieve an optimal image.

Note

• The projector lens should be centered in the middle of the screen. If the horizontal line passing through the lens center is not perpendicular to the screen, the image will be distorted, making viewing difficult.

• For an optimal image, position the screen so that it is not in direct sunlight or room light. Light falling directly on the screen washes out the colors, making viewing difficult. Close the curtains and dim the lights when setting up the projector in a sunny or bright room.

Standard Setup (Front Projection)

■ Place the projector at the required distance from the screen according to the desired picture size. (See page 17.)

Indication of the Projection Image Size and Projection Distance

See “Screen Size and Projection Distance” on page 17 for details. Example : When using a wide screen (16:9)

Picture Size

-16

200"

150"

100"

80"

60"

52" × 29"

87" × 49"

70" × 39"

5' 1" – 7' 8"

(1.55m – 2.35m)

6' 9" – 10' 4"

131" × 74"

(2.08m – 3.15m)

174" × 98"

8' 7" – 12' 11"

(2.62m – 3.95m)

12' 11" – 19' 6"

(3.95m – 5.95m)

17' 4" – 26' 0"

(5.29m – 7.95m)

Center

Projection

Distance

Screen Size and Projection Distance

The projection screen size varies according to the distance from the lens of the projector to the screen. Install the projector so that projected images are projected onto the screen at the optimum size by referring to the table below. Use the values in the table as a reference when installing the projector.

Side View

Screen

Lens center

When using a wide screen (16:9):

In case of displaying the 16:9 picture on the whole of the 16:9 screen.

Diag. [χ] Width Height Minimum [L1] Maximum [L2]

: Picture size (diag.) (inches) L: Projection distance (ft/m) L1: Minimum projection distance (ft/m) L2: Maximum projection distance (ft/m) H: Distance from the bottom of the image to the lens center (in/cm)

Picture (Screen) size Projection distance [L]

200" 174" 98" 17' 4" (5.29 m) 26' 0" (7.95 m) 3 9/32" (8.3 cm) 150" 131" 74" 12' 11" (3.95 m) 19' 6" (5.95 m) 2 29/64" (6.2 cm) 100" 87" 49" 8' 7" (2.62 m) 12' 11" (3.95 m) 1 21/32" (4.2 cm) 80" 70" 39" 6' 9" (2.08 m) 10' 4" (3.15 m) 1 5/16" (3.3 cm) 70" 61" 34" 5' 11" (1.82 m) 9' 0" (2.75 m) 1 5/32" (2.9 cm) 60" 52" 29" 5' 1" (1.55 m) 7' 8" (2.35 m) 40" 35" 20" 3' 3" (1.01 m) 5' 1" (1.55 m)

The formula for picture size and projection distance

[Feet/inches] [m/cm]

L1 (ft) = (0.02671χ–0.05334) / 0.3048 L1 (m) = 0.02671χ–0.05334 L2 (ft) = (0.03999χ–0.05215) / 0.3048 L2 (m) = 0.03999χ–0.05215 H (in) = 0.04151χ / 2.54 H (cm) = 0.04151

Distance from the bottom of the image to

the lens center [H]

/64" (2.5 cm)

/64" (1.7 cm)

When using a normal screen (4:3):

In case of setting the 16:9 picture to the full horizontal width of the 4:3 screen.

Diag. [χ] Width Height Minimum [L1] Maximum [L2]

Picture (Screen) size Projection distance [L]

200" 160" 120" 15' 10" (4.85 m) 23' 11" ( 7.29 m) 3" (7.62 cm) 150" 120" 90" 11' 10" (3.62 m) 17' 10" (5.45 m) 2 17/64" (5.72 cm) 100" 80" 60" 7' 10" (2.40 m) 11' 10" (3.62 m) 1 1/2" (3.81 cm) 80" 64" 48" 6' 3" (1.91 m) 9' 5" (2.88 m) 1 13/64" (3.05 cm) 70" 56" 42" 5' 5" (1.66 m) 8' 3" (2.52 m) 1 1/16" (2.67 cm) 60" 48" 36" 4' 7" (1.42 m) 7' 0" (2.15 m) 40" 32" 24" 3' 0" (0.93 m) 4' 7" (1.42 m)

The formula for picture size and projection distance

[Feet/inches] [m/cm]

L1 (ft) = (0.02452χ–0.05334) / 0.3048 L1 (m) = 0.02452χ–0.05334 L2 (ft) = (0.03671χ–0.05215) / 0.3048 L2 (m) = 0.03671χ–0.05215 H (in) = 0.03810χ / 2.54 H (cm) = 0.03810

Distance from the bottom of the image to

the lens center [H]

/64" (2.29 cm)

/64" (1.52 cm)

Setup

Note

• There may be an error of ± 3% in the above values.

-17

Setting Up the Projector

Projecting a Reversed Image

Projection from behind the Screen

■ Place a translucent screen between the projector and the audience.

■ Reverse the image by setting “Rear” in the “PRJ Mode” menu. (See page 52.)

Tr anslucent screen

Audience

Projection Using a Mirror

■ Place a mirror (normal flat type) in front of the lens.

■ When the translucent screen is placed between the mirror and audience, set to “Front” in the “PRJ Mode”

menu. (See page 52.)

■ When the mirror is placed on the audience side, set to “Rear” in the “PRJ Mode” menu. (See page 52.)

Set to “Front”

Mirror

Tr anslucent screen

Audience

Info

• When using a mirror, ensure to carefully position both the projector and the mirror so the light does not shine into the eyes of the audience.

Set to “Rear”

Audience

Mirror

Ceiling-mount Setup

■ It is recommended that you use the optional Sharp ceiling-mount bracket for this installation.

■ Before mounting the projector, contact your nearest Sharp Authorized Service Center or Dealer to obtain the recommended ceiling-mount bracket (commercially available). (AN-CM270 ceiling-mount bracket, AN-EP101B extension tube for AN-CM270.)

■ Invert the image by setting “Ceiling + Front” in “PRJ Mode”. See page 52 for use of this function.

-18

Connections

INPUT Terminals and Connectable Main Equipment

INPUT 5/DIGITAL terminal

Connecting video equipment with component output terminal (DVD player, DTV decoder, DVD recorder with hard disc, etc.). (See pages 22,

23.) Connecting the computer. (See pages 25, 26.)

INPUT 1, 2 terminal

Connecting video equipment with component output terminal (DVD player, DTV decoder, DVD recorder with hard disc, etc.). (See page 21.)

INPUT 4 terminal

Connecting video equipment without S-video output terminal. (See page 24.)

INPUT 3 terminal

Connecting video equipment with S-video output terminal (VCR, DVD player, etc.). (See page 24.)

Connections

-19

Samples of Cables for Connection

• For more details of connection and cables, refer to the opeation manual of the connecting equipment.

•You may need other cables or connectors not listed below.

Equipment

Audio-visual equipment

Computer

Terminal on

connected equipment

Component

video

output

terminal

Terminal for using

the

dedicated

cable

DVI output

terminal

RGB output

terminal

Video output

terminal

Terminal for using

the

dedicated

cable

S-video

output

terminal

Component cable (commercially available)

Dedicated cable attached to the connected equipment.

DVI cable (sold separately: AN-C3DV)

RGB cable (commercially available)

DVI to 15-pin D-sub adapter (sold separately: AN-A1DV)

Video cable (commercially available)

Dedicated cable attached to the connected equipment.

S-video cable (commercially available)

Cable

Terminal on the

projector

INPUT 1, 2

INPUT 5/DIGITAL

INPUT 4

INPUT 3

-20

Terminal for using

the

dedicated

cable

Dedicated cable attached to the connected equipment.

INPUT 3

Connecting to Video Equipment

Before connecting, ensure to unplug the power cord of the projector from the AC outlet and turn off the devices to be connected. After making all connections, turn on the projector and then the other devices.

Ensure to read the operation manuals of the devices to be connected before making connections.

When connecting the component video equipment to the component input terminal on the projector (INPUT 1 or INPUT 2)

Analog component output terminal

DVD Player,etc.

INPUT 1 or INPUT 2 terminal

Component cable

(commercially available)

Connections

-21

Connecting to Video Equipment

When connecting the component video equipment to the DVI input terminal on the projector (INPUT 5)

• Before connecting the cable, switch the digital input type switch to “VIDEO”.

Analog component

output terminal

DVD Player,etc.

INPUT 5 terminal

3 RCA to 15-pin D-sub cable (sold separately: AN-C3CP)

Switch to “VIDEO”

DVI to 15-pin D-sub adaptor

(sold separately: AN-A1DV)

Note

• For this connection, select “Component” for “Signal Type” on the OSD menu or press on the remote control. (See page 48.)

When connecting the video equipment with RGB output terminal (INPUT 5)

• Before connecting the cable, switch the digital input type switch to “VIDEO”.

DVD Player,etc.

INPUT 5 terminal

RGB output terminal

RGB cable

(commercially available)

Switch to “VIDEO”

DVI to 15-pin D-sub adaptor (sold separately: AN-A1DV)

Note

• For this connection, select “RGB” for “Signal Type” on the OSD menu or press on the remote control. (See page 48.)

-22

When connecting the video equipment with DVI output terminal (DIGITAL INPUT)

• Before connecting the cable, switch the digital input type switch to “VIDEO”.

DVD Player,etc.

DIGITAL terminal

DVI output terminal

DVI cable

(sold separately: AN-C3DV)

Switch to “VIDEO”

Note

• Select DIGITAL mode when connecting to video equipment with the digital output terminal. (See page

29.)

Connections

-23

Connecting to Video Equipment

When connecting video equipment with S-video output terminal (INPUT 3)

S-video output terminal

DVD Player,etc.

INPUT 3 terminal

S-video cable

(commercially available)

When connecting video equipment with video output terminal (INPUT 4)

Video output terminal

DVD Player,etc.

INPUT 4 terminal

-24

Composite video cable

(commercially available)

Connecting to a Computer

When connecting a computer, ensure that it is the last device to be turned on after all the connections are made.

Connecting to a computer (INPUT 5)

• Before connecting the cable, switch the digital input type switch to “PC”.

Computer

Switch to “PC”

INPUT 5 terminal

RGB output terminal

RGB cable (commercially available)

Note

•

Refer to “Computer Compatibility Chart” on page 60 for a list of computer signals compatible with the projector. Use with computer signals other than those listed may cause some of the functions not to work.

•

When connecting the projector to a computer in this way, select “RGB” for “Signal Type” on the OSD menu or press

on the remote control. (See page 48.)

•

A Macintosh adaptor may be required for use with some Macintosh computers. Contact your nearest Sharp Authorized Service Center or Dealer.

•

Depending on the computer you are using, an image may not be projected unless the signal output setting of the computer is switched to the external output. Refer to the computer operation manual for switching the computer signal output settings.

DVI to 15-pin D-sub adaptor

(sold separately: AN-A1DV)

Connections

-25

Connecting to a Computer

When connecting a computer, ensure that it is the last device to be turned on after all the connections are made.

Connecting to a computer with DIGITAL RGB output Terminal (DIGITAL)

• Before connecting the cable, switch the digital input type switch to “PC”.

Computer

Switch to “PC”

INPUT 5 terminal

DVI output terminal

DVI cable

(sold separately: AN-C3DV)

Note

• Select DIGITAL mode when connecting to digital output terminal of the computer. (See page 29.)

• Before switching “Digital input type switch” and connecting, ensure to unplug the power cord of the pro-

jector from the AC outlet and turn off the computer to be connected. After making all connections, turn on the projector and then the computer.

“Plug and Play” function

■ This projector is compatible with VESA-standard DDC 1/DDC 2B. The projector and a VESA DDC compatible computer will communicate their setting requirements, allowing for quick and easy setup.

■ Before using the “Plug and Play” function, ensure to turn on the projector first and the connected computer last.

Note

• The DDC “Plug and Play” function of this projector operates only when used in conjunction with a VESA

DDC compatible computer.

-26

Turning the Projector On/Off

Connecting the Power Cord

Plug the supplied power cord into the AC socket.

Turning the Projector On

Before performing the steps in this section, connect any equipment that you use with the projector. (See pages 19-26.)

Remove the lens cap and press on the

projector or on the remote control.

• The power indicator illuminates green.

• After the lamp indicator illuminates, the projec-

tor is ready to start operation.

Note

• The lamp indicator illuminates or blinks, in-

dicating the status of the lamp.

Green:The lamp is ready. Blinking green: The lamp is warming up

Red:

The lamp is shut down abnormally or

•

• If the projector is put into standby mode and

the lamp should be replaced. When switching on the projector, a slight flickering of the image may be experienced within the first minute after the lamp has been illuminated. This is normal operation as the lamp's control circuitry is stabilising the lamp output characteristics. This does not indicate malfunction.

immediately turned on again, the lamp may take some time to illuminate.

or shutting down.

Supplied accessory

Power cord (6' (1.8 m))

Info

• English is the factory preset language. If you want to change the on-screen display to another language, change the language according to the procedure on page 52.

ON button

STANDBY button

ON button

STANDBY button

Power indicator

Lamp indicator

Basic Operation

Lens cap

-27

Turning the Projector On/Off

Turning the Power Off

ting the Projector into Standby Mode)

(Put-

1 Press on the projector or

on the remote control, then press that button again while the confirmation message is displayed, to put the projector into standby mode.

▼On-screen Display

Unplug the power cord from the AC outlet after the cooling fan stops.

Info

•

Do not unplug the power cord during projection or cooling fan operation. The cooling fan in this projector continues to run for about 90 seconds after the projector enters the standby mode. This can cause damage due to rise in internal temperature, as the cooling fan also stops.

STANDBY button

-28

Image Projection

Switching the INPUT Mode

Select the appropriate input mode for the connected equipment.

Press , , , , or on the remote control to select the input mode.

••

• When pressing on the projector, input mode

••

switches in order of :

INPUT 1 INPUT 2 INPUT 3

DIGITAL

Note

• When no signal is received, “NO SIGNAL” will be displayed. When a signal that the projector is not preset to receive is received, “NOT REG.” will be displayed.

• The INPUT mode is not displayed when “OSD Display” of the “Options” menu is set to “

About the INPUT mode

INPUT 1 (Component)

INPUT 2 (Component)

INPUT 3 (S-Video)

INPUT 4 (Video)

INPUT 5 (Component/ RGB)

DIGITAL

INPUT 5 INPUT 4

(OFF)”. (See page 47.)

Used for projecting images from equipment connected to INPUT 1 terminals.

Used for projecting images from equipment connected to INPUT 2 terminal.

Used for projecting images from equipment connected to INPUT 3 terminal.

Used for projecting images from equipment connected to INPUT 4 terminal.

Used for projecting images from equipment connected to INPUT 5 terminal.

Used for projecting images from equipment with DVI or RGB output terminal connected to INPUT 5 terminal.

INPUT 1, 2, 3, 4, 5 and DIGITAL INPUT button

"On-screen Display of INPUT Mode (Example)

INPUT 1 mode

Using Component

INPUT 2 mode

Using Component

INPUT 3 mode

Using S-Video

INPUT 4 mode

Using Video

➝

➝➝

INPUT 5 mode

Component

RGB

• When switching the component and RGB input mode, press on the remote control or select “Signal Type” in the “Options” menu.

➝

DIGITAL mode

Basic Operation

-29

Image Projection

Adjusting the Focus

1 Press on the remote control. 2 Press \ or | on the remote con-

trol to adjust the focus.

Note

•

You can also adjust the focus by using

and

on the projector.

Adjusting the Projected Image Size

1 Press on the remote control. 2 Press ' or " on the remote con-

trol to adjust the zoom.

Note

•

You can also adjust the zoom by using

on the projector.

and

Adjustment buttons (

ZOOM/FOCUS button

Adjustment buttons ('/"/\/|)

'/"/\/|)

-30

Using the Adjustment Feet

The height of the projector can be adjusted using the adjustment feet at the front and rear of the projector when the screen is located higher than the projector, the screen is inclined or when the installation site is slightly inclined. Install the projector so that it is as perpendicular to the screen as possible.

1 Lift the projector to adjust its

height while pressing the HEIGHT ADJUST button.

• The projector is adjustable up to approximately 12 degrees (6 steps).

• When lowering the projector, it may be difficult to move the front adjustment foot because the installation surface is difficult to slide. In this case, pull the projector back slightly and adjust its height.

2 Remove your hands from the

HEIGHT ADJUST button of the projector after its height has been finely adjusted.

3 Finely adjust the height and in-

clination by turning the rear adjustment feet.

Side View

Lens center

HEIGHT ADJUST button

Top View

Front adjustment foot

Basic Operation

Note

•

When adjusting the projected image position, trapezoidal distortion occurs. In this case, see “Keystone Correction” on page 32.

Info

• Do not press the HEIGHT ADJUST button when the front adjustment foot comes out without firmly holding the projector.

• Do not hold the lens when lifting or lowering the projector.

• When lowering the projector, be careful not to get your fingers caught in the area between the adjustment foot and the projector.

Rear adjustment feet

-31

Image Projection

Keystone Correction

This function can be used to adjust the Keystone settings.

Note

• When the image is projected from a direction at an angle, the image becomes distorted trapezoidally. The function for correcting trapezoidal distortion is called Keystone Correction.

1 Press on the remote control

to enter the Keystone Correction mode.

2 Press '/" to select “H Keystone”

or “V Keystone”.

Selectable

items

H Keystone

V Keystone

Reset

Horizontally adjusts the keystone settings.

Ver tically adjusts the keystone settings.

Returns to the factory preset settings.

Description

KEYSTONE button

UNDO button

"On-screen Display (Keystone Correction mode)

Adjustment buttons (

Horizontal Keystone Correction

'/"/\/|)

3 Press \/| to move the mark on

the selected adjustment item to the desired setting.

Note

• Straight lines and the edges of the displayed image may appear jagged, when adjusting the Keystone setting.

• When adjusting “H Keystone” and “V Keystone” at the same time, the values of adjustable angles for each setting become smaller.

• The adjustable value of the “V Keystone” becomes extremely small when “H Keystone” is made to be the maximum value.

• Keystone correction is disabled while the picture mode is set to “SMART STRETCH”. (See page 35.)

4 Press .

• The on-screen display of the Keystone Correction mode will disappear.

-32

Ver tical Keystone Correction

Note

• When adjusting the Keystone setting, the placement range is changed depending on the input signal type.

• Keystone correction cannot be applied to On-screen Display.

• When Keystone correction is applied, the resolution of image can be deteriorated to some extent.

• Keystone Correction is also returned to the factory preset settings by pressing control.

on the remote

Placement of the Projected Image Using the Keystone Correction

Place the projector at a distance from the screen that

images to be projected onto the screen by referring

allows to “Screen Size and Projection Distance” on page 17.

: Screen area

Note

• The aspect ratio of the projected image also shifts slightly when the “H Keystone” and “V Keystone” functions are adjusted simultaneously.

• If you cannot correct trapezoidal distortion with Keystone correction, change the placement position of the projector.

1 Project the test pattern of the

Keystone correction function onto the screen. Adjust the focus until the image on the screen comes into focus. (See page 30.)

5 Align the image on the screen by

ZOOM/FOCUS

ZOOM

FOCUS

END

Align the edge of the screen closest to the projector with the test pattern by adjusting the zoom and the adjsuter. (See pages 30 and 31.)

Align

ZOOM/FOCUS

ZOOM FOCUS

END

Align

Adjust the Keystone function so that the size of the projected image matches the screen size. (See page 32.)

adjusting the zoom function and the adjsuter.

Basic Operation

Change the projection angle moving the projector or using the adjuster to properly project images onto the screen. (See page 31).

ZOOM/FOCUS

ZOOM FOCUS

END

6 Adjust the focus so that the projected

image is in focus at the center of the screen. (See page 30.)

-33

Image Projection

Selecting the Picture Mode

You can select the picture setting (Memory) directly stored in “Picture Mode” on the “Picture” menu.

Press on the remote control.

• Each time the button is pressed while the display is on, the picture mode changes in order of:

Memory OFF Memory 1 Memory 2

Memory 5 Memory 4 Memory 3

Note

• This function can also be accessed from the OSD menu (see page 44).

Switching the High Brightness / High Contrast Mode

This function controls the quantity of the projected light and the contrast of the image.

Press on the remote control.

•

Each time the button is pressed while the display is on, the mode is switched between “HIGH BRIGHTNESS MODE” and “HIGH CONTRAST MODE”.

Note

• This function can also be accessed from the OSD menu (see page 44).

Adjusting the Picture Aspect Ratio

UNDO button

RESIZE button

PICTURE MODE button

IRIS button

RESIZE button

UNDO button

This function allows you to modify or customize the picture display mode to enhance the input image. Depending on the input signal, you can choose STRETCH, SIDE BAR, SMART STRETCH or CINEMA ZOOM image.

Press on the remote control.

• Each time is pressed, the picture mode changes as shown on the next page.

•

To return to the standard image (“STRETCH”), press

while “RESIZE” is displayed on the screen.

• You can also change the picture display mode by pressing

-34

on the projector.

480

480P

576 576P NTSC

PAL

SECAM

540P 1080

4:3 aspect ratio

Letterbox

Squeeze

16:9 aspect ratio

Input signal

Output screen image

STRETCH CINEMA ZOOM

SIDE BAR SMART STRETCH

720P

16:9 aspect ratio

VGA

SVGA

XGA

4:3 aspect ratio

Note

• “SMART STRETCH” cannot be selected while the Keystone correction (page 32) is being adjusted.

• Keystone correction (page 32) is disabled while the picture mode is set to “SMART STRETCH”.

I/580P is displayed on the screen when signal 576I/576P is input.

• 580

• “STRETCH” is fixed when 540P, 720P or 1080

I signal is entered.

• “SMART STRETCH” cannot be selected while input signal from a computer (VGA, SVGA or XGA) is entered.

Basic Operation

-35

Menu Items

The following shows the items that can be set in the projector.

“Picture” menu

Example: Screen for INPUT 1

mode

Example: Screen for INPUT 5

(RGB) mode

Main Menu Sub Menu


Page 42

Contrast

Bright

Color

Tint

Sharp

Red

Blue

Reset

Page 42

CLR Temp

Page 42

Gamma Adj.

Page 43

Bright Boost [ON/OFF]

Page 43

Picture Mode

Page 44

IRIS

Page 44

+30-30

5500K 6500K 7500K 8500K 9300K 10500K

Standard Cinema 1 Cinema 2 Cinema 3

Memory 1 Memory 2 Memory 3 Memory 4 Memory 5 Memory OFF

High Brightness High Contrast

100 100 100 100 100 100

3-3 3-3 3-3 3-3

*1: Items when selecting INPUT 1, 2, 3, 4 or when inputting component signal

through INPUT 5

“Fine Sync” menu

Example: Screen for INPUT 5

(RGB) mode

Main Menu

Fine Sync

Page 45

Clock

Phase

H-Pos

V-Pos

Reset

+30-30

+15-15

+30-30

Page 45

Special Modes

Page 45

Auto Sync [ON/OFF]

Page 46

Signal Info

Page 46

*2: Item when inputting RGB signal through INPUT 5

Note

• “Tint” cannot be used with PAL, SECAM, PAL-M, PAL-N or PAL-60.

• “Color”, “Tint”, “Sharp”, “Clock”, “Phase”, “H-Pos”, “V-Pos” and “Auto Sync” cannot be used in the DIGITAL mode.

• “Fine Sync” menu cannot be displayed in the INPUT 3 and INPUT 4 modes.

-36

“Options” menu

Example: Screen for INPUT 1

mode

Example: Screen for INPUT 4

mode

Main Menu Sub Menu

Options

Page 47

Lamp Timer (Life)

Page 47

OSD Display [ON/OFF]

Page 47

Video System

Page 48

Signal Type

Page 48

Background [Blue/None]

Auto PAL NTSC3.58 SECAM NTSC4.43 PAL-M PAL-N PAL-60

RGB Component

Page 49

Eco Mode [Eco/Standard]

Page 49

Auto Power Off [ON/OFF]

Page 50

Menu Position

Page 50

Menu Color [Opaque/Translucent]

Center Upper Right Lower Right Upper Left Lower Left

Page 51

*1: Item when selecting INPUT 3 or INPUT 4 *2: Item when selecting INPUT 5

“Language” menu

“PRJ Mode” menu

Main Menu

Language

Page 52

Main Menu

PRJ Mode

Page 52

English Deutsch Español Nederlands Français Italiano Svenska Português

Front Ceiling+Front Rear Ceiling+Rear

Useful Features

-37

Using the Menu Screen

The menu can be operated to achieve two functions, adjustments and settings. (For setting the menu items, see pages 40 and 41. )

ENTER button

Adjustment buttons ('/"/\/|)

MENU button

UNDO button

Menu Selections (Adjustments)

• This operation can also be performed by using the buttons on the projector.

1 Press .

• The “Picture” menu screen for the selected input mode is displayed.

Adjustment buttons (

'/"/\/|

ENTER button

)

MENU button

UNDO button

Example: “Picture” menu screen for

INPUT 1 mode

Menu icons

2 Press

| or

\ to display the other

menu screens.

• The menu icon for the selected menu screen is highlighted.

Menu icon Menu screen


Fine Sync

Options

Language

PRJ Mode

Note

• The “Fine Sync” menu is not available for selecting INPUT 3 or 4.

-38

3 Press

' or

" to select the item you

want to adjust.

• The selected item is highlighted. (Example: Selecting “Bright”)

To adjust the projected image while viewing it

Press .

• The selected single adjustment item (e.g. “Bright”) appears on the lower part of the screen.

• When pressing ' or ", the next item will be displayed. (e.g. “Bright” is replaced with “Color” by pressing ".)

Note

• Press to return to the previous screen.

4 Press

lected.

• The adjustment is stored.

| or

\ to adjust the item se-

Single adjustment items

5 Press .

• The menu screen will disappear.

Useful Features

-39

Using the Menu Screen

The menu can be operated to achieve two functions, adjustments and settings. The “setting” item is displayed by or on the menu screen. (For adjusting the menu items, see pages 38 and 39.)

Adjustment buttons (

'/"/\/|

)

Menu Selections (Settings)

• This operation can also be performed by using the buttons on the projector.

1 Press .

• The “Picture” menu screen for the selected input mode is displayed.

ENTER button

MENU button

UNDO button

Example: “Picture” menu screen for

INPUT 1 mode

Menu icons

2 Press

| or

\ to display the other

menu screens.

• The menu icon for the selected menu screen is highlighted.

Menu icon Menu screen


Fine Sync

Options

Language

PRJ Mode

Note

• The “Fine Sync” menu is not available for selecting INPUT 3 or 4.

-40

Example: “Options” menu screen

3 Press

want to set, and then press play the sub menu.

• The selected item is highlighted. (Example: Selecting “Menu Position”)

Note

• Press or \ to return to the previous

screen.

• For some items, press \ or | to select

the icon using “

4 Press

of the item displayed in the sub menu.

' or

" to select the item you

”.

' or

" to select the setting

| to dis-

5 Press .

• The selected item is set.

6 Press .

• The menu screen will disappear.

Useful Features

-41

Picture Adjustment (“Picture” menu)

You can adjust the projector’s picture to your preferences using the “Picture” menu.

Adjusting the Image

Menu operation Page 38

Note

• First select “Memory 1-5” or “Memory OFF” when you want to save the “Picture” menu settings. See page 44 for details.

Example: “Picture” menu screen for

INPUT 1 mode

Description of Adjustment Items

Selectable items

Contrast Bright Color Tint Sharp Red Blue

Note

• “Color”, “Tint” and “Sharp” do not appear for RGB input in INPUT 5 mode.

• To reset all adjustment items, select “Reset” on the “Picture” menu screen and press

• “Tint” cannot be used with PAL, SECAM, PALM, PAL-N or PAL-60.

• “Color”, “Tint” and “Sharp” cannot be used in the DIGITAL mode.

Press \

For less contrast For less brightness For less color intensity For making skin tones purplish For less sharpness For weaker red For weaker blue

Press |

For more contrast For more brightness For more color intensity For making skin tones greenish For more sharpness For stronger red For stronger blue

Adjusting the Color Temperature

This function allows for selecting the desired color temperature. With the lower value selected, the projected image becomes warmer, reddish and incandescent-like while with the higher value, the image becomes cooler, bluish and fluorescent-like.

Menu operation Page 40

Example: “Picture” menu screen for

INPUT 1 mode

Description of Color Temperature Settings

CLR Temp

5500K 6500K 7500K 8500K 9300K

10500K

“CLR Temp” is fine adjusted by following the procedure below.

The less the value is set to, the warmer, reddish, incandescent-like the image becomes.

The more the value is set to, the cooler, bluish, fluorescent-like the image becomes.

Description

1 Select “CLR Temp” in the “Picture”

menu on the menu screen and press

• A single menu bar of “CLR Temp” is displayed.

2 Press

color temperature.

• With the lower value selected, the projected image becomes magenta-tinged. With the higher value selected, the projected image becomes green-tinged.

• Pressing \ or | changes the value of the color temperature in the sub menu.

' or

" to fine adjust the

-42

Note

•

Values on “CLR Temp” are only for general standard purposes.

Gamma Correction Function

Emphasising the Contrast

Gamma is an image quality enhancement function. Four gamma settings are available to allow for differences in the brightness of the room.

Menu operation Page 40

Example: “Picture” menu screen for

INPUT 1 mode

Description of Gamma Modes

Selectable Items Standard

Cinema 1

Cinema 2

Cinema 3

“Gamma Adj.” is fine adjusted by following the procedure below.

Standard picture without gamma correction Gives greater depth to darker portions of images. Brightness is toned down and the image becomes more balanced. Brighten the darker portions of images for easier viewing in a dimly lit room.

Description

This function emphasises the bright portions of images to obtain a higher contrast image.

Menu operation Page 40

Example: “Picture” menu screen for

INPUT 1 mode

Description of Bright Boost settings

Selectable Items

(ON)

(OFF)

For emphasising the bright portions of images

For disabling “Bright Boost”

Description

Useful Features

1 Select “Gamma Adj.” in the “Pic-

ture” menu on the menu screen and press

• A single menu bar of “Gamma Adj.” is displayed.

2 Press

color temperature.

• With the lower value selected, the projected image becomes less brightness. With the higher value selected, the projected image becomes more brightness.

• Pressing \ or | changes the value of the Gamma in the sub menu.

' or

" to fine adjust the

-43

Picture Adjustment (“Picture” menu)

Picture Mode Function

This function stores all items set in “Picture”. Five settings can be stored separately in “Memory 1” to “Memory 5”. Each stored setting is reassigned to each input mode (INPUT 1 to INPUT 5). Even when the input mode or signal is changed, you can easily select optimal settings from the stored settings.

Menu operation Page 40

Example: “Picture” menu screen for

INPUT 1 mode

Switching the High Brightness/High Contrast Mode

This function changes the brightness and contrast of the projected image. It can be operated using the IRIS button on the remote control.

Menu operation Page 40

Example: “Picture” menu screen for

INPUT 1 mode

Select “Picture Mode” on the “Picture” menu and the memory location where you want to store the settings. Then adjust the setting items on the “Picture” menu.

Picture Mode Memory 1-5

Memory OFF

Settings of all items in “Picture” can be stored for the respective input modes. The stored settings (Memory 1 to 5) can be selected in any input modes. Besides “Memory 1” to “Memory 5”, other settings on the “Picture” menu can be stored for each input mode. The settings stored in “Memory OFF” cannot be applied when another input mode is selected.

Description

If you want to apply the stored settings on the “Pic-

ture” menu, select input mode and then press or select “Picture Mode” in the “Picture” menu.

If you want to change the stored settings, select the memory location for those settings and make settings on the “Picture” menu.

-44

Description of IRIS Settings

Selectable items High Brightness

High Contrast

Description High brightness is given priority over high contrast. High contrast is given priority over high brightness.

Computer Image Adjustment (“Fine Sync” menu)

You can adjust the computer image, match the computer display mode, and confirm the input signal using the “Fine Sync” menu.

Adjusting the Computer Image

Use the Fine Sync function in case of irregularities such as vertical stripes or flickering in portions of the screen.

Menu operation Page 38

Example: “Fine Sync” menu screen for

INPUT 5 (RGB) mode

Description of Adjustment Items

Selectable items Clock Phase

H-Pos

V-Pos

Adjusts vertical noise. Adjusts horizontal noise (similar to tracking on your VCR). Centers the on-screen image by moving it to the left or right. Centers the on-screen image by moving it up or down.

Note

• You can automatically adjust the computer image by setting “Auto Sync” on the “Fine Sync”

menu to “ mote control. See page 46.

• “Clock”, “Phase”, “H-Pos” and “V-Pos” cannot be used in the DIGITAL mode.

• “Clock” and “Phase” cannot be used in the Component mode.

• The adjustable area of each item may be changed according to the input signal.

• To reset all adjustment items, select “Reset” and

press .

” (ON) or pressing on the re-

Description

Special Modes Setting

Ordinarily, the type of input signal is detected and the correct resolution mode is automatically selected. However, for some signals, the optimal resolution mode in “Special Modes” on the “Fine Sync” menu may need to be selected to match the computer display mode.

Menu operation Page 40

Example: “Fine Sync” menu screen for

INPUT 5 (Component) mode

Note

• If your computer displays patterns which repeat every other line (horizontal stripes), flickering may occur which makes the image hard to see.

• When inputting DTV 1080 corresponding type of signal.

• See “Checking the Input Signal” on the next page for information on the currently selected input signal.

I signal, select the

Useful Features

-45

Computer Image Adjustment (“Fine Sync” menu)

Auto Sync Adjustment

Select whether the image is to be synchronized automatically when switching the signal with “ON” or “OFF”.

Menu operation Page 40

Example: “Fine Sync” menu screen for

INPUT 5 (RGB) mode

Description of Auto Sync Adjustment

Selectable items

(ON)

(OFF)

Auto Sync adjustment will occur when the projector is turned on or when the input signals are switched, when connected to a computer. Auto Sync adjustment is not automatically performed.

Description

Checking the Input Signal

This function allows you to check the current input signal information.

Menu operation Page 40

Example: “Fine Sync” menu screen for

INPUT 5 (RGB) mode

Note

• 540P is displayed on the screen when signal 1080

I is inputted during DVI connection.

Note

• Auto Sync adjustment is also performed by pressing

• The Auto Sync adjustment may take some time to complete, depending on the image of the computer connected to the projector.

• When the optimum image cannot be achieved with Auto Sync adjustment, use manual adjustments. (See page 45.)

• “Auto Sync” cannot be used in the DIGITAL mode.

-46

on the remote control.

Using the “Options” Menu

You can use the “Options” menu to enhance the usage for the projector.

Checking the Lamp Life Status

You can confirm the cumulative lamp usage time and the remaining lamp life (percentage).

Menu operation Page 40

Example: “Options” menu screen for

INPUT 1 mode

Description of Lamp Life

Lamp usage condition

“Life” Operated exclusively in Eco mode ( ) Operated exclusively in Standard mode (

Remaining lamp life 100% 5%

Approx. Approx. 3,000 hours 150 hours

Approx. Approx. 2,000 hours 100 hours

)

Setting On-screen Display

This function allows you to turn off the on-screen messages that appear during input select.

Menu operation Page 40

Example: “Options” menu screen for

INPUT 1 mode

Description of “OSD Display” Settings

Selectable items

(ON)

(OFF)

All On-screen Displays are displayed.

INPUT/AUTO SYNC/ “An invalid button has been pressed.” are not displayed.

Description

Note

• It is recommended that the lamp be changed when the remaining lamp life becomes 5%. (See page 56.)

• The table above indicates rough estimates in the case of using only in each mode shown.

• Remaining lamp life changes within the range of the values shown depending on the frequency at which “Eco Mode” is switched to “

mode) and “

49.)

• The lamp life may vary depending on the usage condition.

” (Standard mode). (See page

” (Eco

Useful Features

-47

Using the “Options” Menu

Setting the Video System

The video input system mode is factory preset to “Auto”; however, a clear picture from the connected audio-visual equipment may not be received, depending on the video signal difference. In that case, switch the video signal.

Menu operation Page 40

Example: “Options” menu screen for

INPUT 4 mode

Description of Video Systems

Selectable items

PA L

NTSC3.58

SECAM

NTSC4.43

When connected to PAL video equipment. When connected to NTSC video equipment. When connected to SECAM video equipment. When reproducing NTSC signals in PAL video equipment.

Description

Signal Type Setting

This function allows you to select the input signal type RGB or Component for INPUT 5.

Menu operation Page 40

Example: “Options” menu screen for

INPUT 5 (RGB) mode

Description of Signal Type Settings

Selectable items RGB Component

Set when RGB signals are received. Set when Component signals are

received.

Note

• You can also select “Signal Type” using on the remote control (only INPUT 5).

Description

Note

• The video signal can only be set in INPUT 3, INPUT 4 mode.

•“Auto” cannot be set for PAL-M and PAL-N input signals. Select “PAL-M” or “PAL-N” in “Video System” menu for PAL-M and PAL-N input signals.

-48

Selecting a Background Image

This function allows you to select the image displayed when no signal is being sent to the projector.

Menu operation Page 40

Example: “Options” menu screen for

INPUT 1 mode

Description of Background Images

Selectable items

(Blue)

(None)

Blue screen

Black screen

Description

Eco Mode

Menu operation Page 40

Example: “Options” menu screen for

INPUT 1 mode

Description of Eco Mode

Selectable items

(Eco mode)

(Standard mode)

Brightness

85%

100%

Note

Power consumption

(When using AC 100V)

315 W

360 W

Approx. 3,000 hours

Approx. 2,000 hours

Lamp life

• When “Eco Mode” is set to “ ” (Eco mode), the power consumption will decrease and the lamp

life will extend. (Projection brightness decreases 15%.)

Useful Features

-49

Using the “Options” Menu

Auto Power Off Function

Menu operation Page 40

Example: “Options” menu screen for

INPUT 1 mode

Description of Auto Power Off

Selectable items

(OFF)

The projector automatically enters the

(ON)

standby mode when no input signal is detected for 15 minutes or longer. The Auto Power Off function will be disabled.

Note

• When the Auto Power Off function is set to “ ” (ON), 5 minutes before the projector enters the

standby mode, the message “Enter STANDBY mode in X min.” will appear on the screen to indicate the remaining minutes.

Description

Selecting the Menu Screen Position

This function allows you to select the desired position of the menu screen.

Menu operation Page 40

Example: “Options” menu screen for

INPUT 1 mode

Description of Menu Positions

Selectable items Center Upper Right Lower Right Upper Left Lower Left

Displayed on the center of the image. Displayed on the upper right of the image. Displayed on the lower right of the image. Displayed on the upper left of the image. Displayed on the lower left of the image.

Position of the Menu Screen which Is

Displayed on the Screen

Upper Left

Description

Upper Right

Center

-50

Lower Left

Menu screen

Lower Right

Screen

Selecting the Menu Color

This function allows you to select the color of the menu screen.

Menu operation Page 40

Example: “Options” menu screen for

INPUT 1 mode

Description of Menu Colors

Selectable Items

(Opaque)

(Translucent)

Description

The menu is displayed opaquely.

The menu is displayed translucently. The part of the menu on the image becomes transparent.

Useful Features

-51

Selecting the On-screen Display Language and the Projection Mode

Selecting the On-screen Display Language

The projector can switch the on-screen display language among 11 languages: English, German, Spanish, Dutch, French, Italian, Swedish, Portuguese, Chinese, Korean or Japanese.

Example: “Language” menu screen for

INPUT 1 mode

Press on the remote control.

• The “Picture” menu will be displayed.

2 Press \ or | to select the “Lan-

guage” menu icon (

• The “Language” menu will be displayed.

Setting the Projection Mode

This projector is equipped with a reverse/invert image function that allows you to reverse or invert the projected image for various applications.

Menu operation Page 40

Example: “PRJ Mode” menu screen

Description of PRJ Modes

Selectable items Front

Ceiling + Front

Rear

Ceiling + Rear

Front

Normal image

Inverted image

Reversed image

Reversed and inverted image

Description

Ceiling + Front

Press ' or " to select the desired

language, and then press

• The language you selected will be set as the on-screen display.

4 Press .

• The “Language” menu will disappear.

Note

• This procedure can also be performed by using the buttons on the projector.

-52

Rear

Note

• This function is used for the reversed image and ceiling-mount setups. (See page 18.)

Ceiling + Rear

Maintenance

Cleaning the projector

■ Ensure to unplug the power cord before cleaning the projector.

■ The cabinet as well as the operation panel is made of plastic. Avoid using benzene or thinner, as these can damage the finish on the cabinet.

■ Do not use volatile agents such as insecticides on the projector. Do not attach rubber or plastic items to the projector for long periods. The effects of some of the agents in the plastic may cause damage to the quality or finish of the projector.

Mild detergent

diluted with water

Thinner

Wax

Cleaning the lens

■ Use a commercially available blower or lens cleaning paper (for glasses and camera lenses) for cleaning the lens. Do not use any liquid type cleaning agents, as they may wear off the coating film on the surface of the lens.

■ As the surface of the lens can easily get damaged, ensure not to scrape or hit the lens.

Cleaning

Paper

Cleaning the exhaust and intake vents

■ Use a vacuum cleaner to clean dust from the exhaust vent and the intake vent.

■ Wipe off dirt gently with a soft flannel cloth.

■ When the dirt is hard to remove, soak a cloth in a

mild detergent diluted with water, wring the cloth well and then wipe the projector. Strong cleaning detergents may discolor, warp or damage the coating on the projector. Make sure to test on a small, inconspicuous area on the projector before use.

Info

• If you want to clean the air vents of projector, ensure to press

on the projector or on the remote control and put the projector into standby mode. After the cooling fan has stopped, unplug the power cord from the AC socket and clean the vents.

Appendix

-53

Maintenance Indicators

■ The warning lights on the projector indicate problems inside the projector.

■ If a problem occurs, either the temperature indicator or the lamp indicator will illuminate red, and

the projector will enter the standby mode. After the projector has entered the standby mode, follow the procedures given below.

Maintenance Indicators

Power indicator Lamp indicator Temperature warning indicator

About the temperature warning indicator

If the temperature inside the projector increases, due to blockage of the air vents, or the setting location,

“

turn off and the temperature warning indicator will blink, the cooling fan will run for a further 90 seconds, and

then the projector will enter the standby mode. After “

described on page 55.

” will illuminate in the lower left corner of the picture. If the temperature keeps on rising, the lamp will

” appears, ensure to perform the measures

About the lamp indicator

■ When the remaining lamp life becomes 5% or less, “ ” (yellow) and “Change The Lamp.” will be

displayed on the screen. When the percentage becomes 0%, it will change to “

automatically turn off and then the projector will automatically enter the standby mode. At this time, the lamp indicator will illuminate in red.

■

If you try to turn on the projector a fourth time without replacing the lamp, the projector will not turn on.

” (red), the lamp will

-54

Maintenance indicator

Temperature

warning

indicator

Lamp

indicator

Normal

Off

Green on

Green blinks

when the lamp

is warming up

or shutting

down.

Abnormal

Red on (Standby)

Red on

Red on (Standby)

Problem

The internal temperature is abnormally high.

The lamp does not illuminate.

Time to change the lamp.

The lamp does not illuminate.

Cause Possible solution

• Relocate the projector to an area

• Blocked air intake

• Cooling fan break-

down

• Internal circuit failure

• Clogged air intake

—

• Remaining lamp life becomes 5% or less.

• Burnt-out lamp

• Lamp circuit failure

with proper ventilation (see page

7).

• Ta ke the projector to your nearest Sharp Authorized Service Center or Dealer for repair.

• Clean the exhaust and intake vents. (See page 53.)

• Disconnect the power cord from the AC outlet, and then connect it again.

• Carefully replace the lamp. (See page 57.)

• Ta ke the projector to your nearest Sharp Authorized Service Center or Dealer for repair.

• Please exercise care when replacing the lamp.

Info

• If the temperature warning indicator illuminates and the projector enters the standby mode, check whether any of the ventilation holes are blocked (page 7) and then try turning the power back on. Wait until the projector has cooled down completely before plugging in the power cord and turning the power back on. (At least 10 minutes.)

• If the power is turned off for a brief moment due to power outage or some other cause while using the projector, and the power supply recovers immediately after that, the lamp indicator will illuminate in red and the lamp may not be lit. In this case, unplug the power cord from the AC outlet, replace the power cord in the AC outlet and then turn the power on again.

• Do not unplug the power cord after the projector has entered the standby mode and while the cooling fan is running. The cooling fan runs for about 90 seconds.

-55

Appendix

Regarding the Lamp

Lamp

■ It is recommended that the lamp (optional: AN-K2LP) be replaced when the remaining lamp life becomes 5% or less, or when you notice a significant deterioration in the picture and color quality. The lamp life (percentage) can be checked with the on-screen display. See page 47.

■ Purchase a replacement lamp of type AN-K2LP from your place of purchase, nearest Sharp Authorized Service Center or Dealer.

IMPORTANT NOTE TO U.S. CUSTOMERS:

The lamp included with this projector is backed by a 90-day parts and labor limited warranty. All service of this projector under warranty, including lamp replacement, must be obtained through an Sharp Authorized Service Center or Dealer. For the name of the nearest Sharp Authorized Service Center or Dealer, please call toll-free: 1-888-GO-SHARP (1-888-467-4277).

Hg LAMP CONTAINS MERCURY For State Lamp Disposal Information www.lamprecycle.org or 1-800-BE-SHARP

Caution Concerning the Lamp

■ This projector utilizes a pressurized mercury lamp. A loud sound may indicate lamp failure. Lamp failure can be attributed to numerous sources such as: excessive shock, improper cooling, surface scratches or deterioration of the lamp due to a lapse of usage time. The period of time up to failure largely varies depending on the individual lamp and/or the condition and the frequency of use. It is important to note that failure can often result in the bulb cracking.

■ When the lamp replacement indicator and on-screen display icon are illuminated, it is recommended that the lamp be replaced with a new one immediately, even if the lamp appears to be operating normally.

■ Should the lamp break, the glass particles may spread inside the lamp cage or gas contained in the lamp may be vented into the room from the exhaust vent. Because the gas in this lamp includes mercury, ventilate the room well if the lamp breaks and avoid all exposure to the released gas. In case of exposure to the gas, consult a doctor as soon as possible.

■ Should the lamp break, there is also a possibility that glass particles may spread inside of the projector. In such a case, it is recommended you contact your nearest Sharp Authorized Service Center or Dealer to assure safe operation.

U.S.A. ONLY

Replacing the Lamp

Caution

• Do not remove the lamp unit from the projector right after use. The lamp will be very hot and may cause burn

or injury.

• Wait at least one hour after the power cord is disconnected to allow the surface of the lamp unit to fully cool

before removing the lamp unit.

■ Carefully change the lamp by following the instructions described in this section. *If you wish, you

may have the lamp replaced at your nearest Sharp Authorized Service Center or Dealer.

* If the new lamp does not light after replacement, take your projector to the nearest Sharp Authorized Service

Center or Dealer for repair.

-56

Removing and Installing the Lamp Unit

Warning!

• During projector operation, the lamp unit is very hot. Do not remove the lamp unit from the projector right after use. The lamp and parts around the lamp will be very hot and may cause burn or injury.

Info

• Ensure to remove the lamp unit using the handle. Ensure not to touch the glass surface of the lamp unit or the inside of the projector.

• To avoid injury to yourself and damage to the lamp, ensure to carefully follow the steps below.

• Do not loosen other screws except for the lamp unit cover and lamp unit.

Optional

accessory

Lamp unit AN-K2LP

STANDBY button

1 Press on the projector or

on the remote control to put

the projector into standby mode.

• Wait until the cooling fan stops.

2 Disconnect the power cord.

• Unplug the power cord from the AC socket.

• Leave the lamp until it has fully cooled down (about 1 hour).

3 Remove the lamp unit cover.

• Tu rn the projector over. Loosen the user service screw (1) that secures the lamp unit cover. Hold the tab and slide towards the direction of the arrow to remove the lamp unit cover (2).

AC socket

Tab

User service screw (for lamp unit cover)

Appendix

Tab

-57

Regarding the Lamp

4 Remove the lamp unit.

• Loosen the two securing screws from the lamp unit. Hold the lamp unit by the handle and pull it in the direction of the arrow. At this time, keep the lamp unit horizontal and do not tilt it.

Handle

5 Insert the new lamp unit.

• Press the lamp unit firmly into the lamp unit compartment. Fasten the securing screws.

6 Replace the lamp unit cover.

• Align the lamp unit cover and slide it to close. Then tighten the user service screw to secure the lamp unit cover.

Info

• If the lamp unit and lamp unit cover are not correctly installed, the power will not turn on, even if the power cord is connected to the projector.

Resetting the Lamp Timer

Reset the lamp timer after replacing the lamp.

Info

• Make sure to reset the lamp timer only when replacing the lamp. If you reset the lamp timer and continue to use the same lamp, this may cause the lamp to become damaged or explode.

Securing screws

User service screw (for lamp unit cover)

AC socket

1 Connect the power cord.

• Plug the power cord into the AC socket of the projector.

2 Reset the lamp timer.

• Press , , ,

projector in order, and then press on

the projector.

• “LAMP 0000H” is displayed on the lower left of the screen, indicating that the lamp timer is reset.

-58

\, and

| on the

ON button

ENTER button

\/|

buttons

UNDO button

INPUT button

Connecting Pin Assignments

DVI-I (INPUT 5) port : 29 pin connector

••

• DVI Digital INPUT

••

•••••••••

••••

18 23

•••••••••

••••

C1 C2

C5 C3

Pin No. Signal Pin No. Signal

1T.M.D.S data 2– 16 Hot plug detection 2T.M.D.S data 2+ 17 T.M.D.S data 0– 3T.M.D.S data 2 shield 18 T.M.D.S data 0+ 4 Not connected 19 T.M.D.S data 0 shield 5 Not connected 20 Not connected 6 DDC clock 21 Not connected 7 DDC data 22 T.M.D.S clock shield 8 Not connected 23 T.M.D.S clock+

9T.M.D.S data 1– 24 T.M.D.S clock– 10 T.M.D.S data 1+ C1 Not connected 11 T.M.D.S data 1 shield C2 Not connected 12 Not connected C3 Not connected 13 Not connected C4 Not connected 14 +5V power C5 Ground 15 Ground

••

• DVI Analog RGB Input

••

Pin No. Signal Pin No. Signal

1 Not connected 16 Hot plug detection 2 Not connected 17 Not connected 3 Not connected 18 Not connected 4 Not connected 19 Not connected 5 Not connected 20 Not connected 6 DDC clock 21 Not connected 7 DDC data 22 Not connected 8Vertical sync 23 Not connected

9 Not connected 24 Not connected 10 Not connected C1 Analog input Red 11 Not connected C2 Analog input Green 12 Not connected C3 Analog input Blue 13 Not connected C4 Horizontal sync 14 +5V power C5 Ground 15 Ground

••

• DVI Analog Component Input

••

Pin No. Signal Pin No. Signal

1 Not connected 16 Not connected 2 Not connected 17 Not connected 3 Not connected 18 Not connected 4 Not connected 19 Not connected 5 Not connected 20 Not connected 6 Not connected 21 Not connected 7 Not connected 22 Not connected 8 Not connected 23 Not connected

9 Not connected 24 Not connected 10 Not connected C1 Analog input PR/CR 11 Not connected C2 Analog input Y 12 Not connected C3 Analog input PB/CB 13 Not connected C4 Not connected 14 Not connected C5 Ground 15 Ground

-59

Appendix

Computer Compatibility Chart

The table below lists signal codes that are compatible with the projector. When the images are distorted or cannot be projected, adjust the output signal of your computer and so forth while referring to the table below.

Computer

• Horizontal Frequency: 15–70 kHz Vertical Frequency: 43–75 Hz Pixel Clock: 12–80 MHz Compatible with sync on green XGA compatible in intelligent compression

PC/

MAC/

PC/

MAC 13"

MAC 16"

PC/

MAC 19"

Resolution

640 × 350

720 × 350

640 × 400

VGA

720 × 400

640 × 480

SVGA

800 × 600

1,024 × 768

XGA

1,280 × 720—45.0 60

640 × 480

VGA

832 × 624

SVGA

XGA

1,024 × 768

Horizontal

Frequency

(kHz)

27.0 60

31.5 70

27.0 60

31.5 70

27.0 60

31.5 70

27.0

31.5

26.2

31.5

34.7

37.9

37.5

31.4 50

35.1 56

37.9 60

44.5 70

48.1 72

46.9 75

35.5 43

40.3 50

56.5 70

58.1 72

34.9 67

46.8 75

49.6 75

48.4 60

60.0

Vertical

Frequency

(Hz)

VESA

Standard

✔

DVI

Support

✔

Display

Upscale

Intelligent

Compression

Upscale

Intelligent

Compression

Note

• This projector may not be able to display images from notebook computers in simultaneous (CRT/LCD)

mode. Should this occur, turn off the LCD display on the notebook computer and output the display data in “CRT only” mode. Details on how to change display modes can be found in your notebook computer’s operation manual.

DTV

Signal Vertical Frequency (Hz)Horizontal Frequency (kHz)

-60

480 480P 540P

576 576P 720P

1035 1035 1080 1080

I I I I

15.7

31.5

33.8

15.6

31.3

45.0

28.1

33.8

28.1

33.8

60 60 60 50 50 60 50 60 50 60

Troubleshooting

Problem

No picture

Color is faded or poor.

On-screen display does

not appear.

Picture is blurred;

noise appears.

An unusual sound is

occasionally heard

from the cabinet.

Maintenance

indicator illuminates or

blinks in red.

The cooling fan becomes noisy.

The lamp takes a long

time to turn on. Picture is dark.

Image is green on

INPUT 5 Component.

Image is pink (no green)

on INPUT 5 RGB.

Check

• Projector power cord is not plugged into the wall outlet.

• Power to the external connected devices is off.

• The selected input mode is wrong.

•

Cables are incorrectly connected to the rear panel of the projector.

•

External output has not been set when connecting notebook computer.

• “Contrast” and “Bright” are set to minimum position.

• Image adjustments are incorrectly set.

(Video Input only)

• Video input system is incorrectly set. (INPUT 5)

• Input signal type (RGB/Component) is incorrectly set.

• “OSD Display” is set to “ (OFF)”.

• Adjust the focus.

• The projection distance exceeds the focus range.

(Computer Input only)

• Perform “Fine Sync” Adjustments. (“Clock” Adjustment)

• Perform “Fine Sync” Adjustments. (“Phase” Adjustment)

• Noise may appear depending on the computer.

• If the picture is normal, the sound is due to cabinet shrinkage

caused by room temperature changes. This will not affect operation or performance.

• See “Maintenance Indicators”.

• When temperature inside the projector increases, the cooling

fan runs faster.

• The lamp will eventually need to be changed. The lamp has reached the end of its life. Replace the lamp.

• Change the input signal type.

Page

27 — 29

19-26

— 42 42

30 17

45 45 —

—

This projector is equipped with a microprocessor. Its performance could be adversely affected by incorrect operation or interference. If this should happen, unplug the Unit and plug it in again after more than 5 minutes.

Service Information (For the U.S.)

For the location of the nearest Sharp Authorized Service Center, or to obtain product literature, accessories, supplies or customer assistance, please call 1-800-BE-SHARP (1-800-237-

4277) or visit SHARP’s website (http://www.sharpusa.com).

Appendix

-61

Specifications

Product type

Model

Video system

Display method

DLP panel

Lens

Projection lamp

Video input signal

S-video input signal

Component input signal

(INPUT 1, 2)

Analog RGB/Digital

(INPUT 5/DIGITAL)

Horizontal resolution

Pixel clock

Ver tical frequency

Horizontal frequency

Rated voltage

Input current

Rated frequency

Power consumption

Power consumption (standby)

Heat dissipation

Operating temperature

Storage temperature

Cabinet

I/R carrier frequency

Dimensions (approx.)

Weight (approx.)

Supplied accessories

Replacement parts

Projector DT-400 PAL/PAL 60/PAL-M/PAL-N/SECAM/NTSC 3.58/NTSC 4.43 DTV 480I/480P/720P/1080I Single Panel Digital Micromirror Device (DMD™) by Texas Instruments Panel size: 0.8" Drive method: Digital Light Processing (DLP™) No. of dots: 921,600 dots (1,280 [H] ⳯ 720 [V]) 1–1.5 ⳯ zoom lens, F2.0–2.5 f=21.3–31.6 mm 275 W DC lamp RCA Connector: VIDEO (INPUT 4), composite video, 1.0 Vp-p, sync negative, 75 Ω terminated 4-pin Mini DIN connector (INPUT 3) Y (luminance signal): 1.0 Vp-p, sync negative, 75 Ω terminated C (chrominance signal): Burst 0.286 Vp-p, 75 Ω terminated RCA Connector Y: 1.0 Vp-p, sync negative, 75 Ω terminated PB (CB): 0.7 Vp-p, 75 Ω terminated PR (CR): 0.7 Vp-p, 75 Ω terminated 29-pin DVI-I terminal <Digital> Input impedance 50 Ω Input level 250-1000 mV <Analog> Input impedance 75 Ω Input level 0.7 Vp-p Y: 1.0 Vp-p, sync negative, 75 Ω terminated PB (CB): 0.7 Vp-p, 75 Ω terminated PR (CR): 0.7 Vp-p, 75 Ω terminated <Synchronization signal>

••

• Separate sync/Composite sync

••

Input level TTL level Input impedance 1 KΩ

••

• Green on sync

••

Input level (Synchronizing input) 0.286 Vp-p

Input impedance 75 Ω 720 TV lines (DTV 720P input) 12–80 MHz 43–75 Hz 15–70 kHz AC 100–240 V

3.65 A (When using AC 100 V) 50/60 Hz 360 W (When using AC 100 V) 6 W (When using AC 100 V) 1,350 BTU/hour 41°F to 95°F (Ⳮ5°C to Ⳮ35°C) ⳮ4°F to 140°F (ⳮ20°C to Ⳮ60°C) Plastic 38 kHz 12 7/32" × 3 33/64" × 11 7/64" (310 (W) × 89 (H) × 282 (D) mm)

9.5 lbs. (4.3 kg) Remote control, Two AA size batteries, Power cord, Lens cap (attached on the body), Operation manual Lamp unit (Lamp/cage module) (AN-K2LP), Remote control (RRMCGA334WJSA), AA size batteries, Power cord (QACCDA007WJPZ), Lens cap (PCAPHA021WJSA), Operation manual (TINS-B532WJZZ)

As a part of policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

-62

Dimensions

Units: inches (mm)

Side View Side View

Rear View

Top View

/32 (310)

/64 (55.05)

/16 (1.5)

/64 (282)

/64 (3.25)

Front View

Bottom View

/64 (89)

/64 (5)

/16 (14)

/16 (99.95)

/64 (129.5)5 7/64 (129.5)

1 3/4

(44.1)

(29.1)

/64

(48.5)

/16

(55.5)

1 7/32

/32

(30.9)

Appendix

/8 (225.3)

/32 (210.3)

/16 (106.3)

-63

1 (30.9)

/8 (15.5)

/32

Glossary

Aspect Ratio

Width and height ratio of an image. The normal aspect ratio of a computer and video image is 4:3. There are also wide images with an aspect ratio of 16:9 and 21:9.

Auto Sync

Optimizes projected computer images by automatically adjusting certain characteristics.

Background

Initial setting image projected when no signal is being output.

Clock

Clock adjustment is used to adjust vertical noise when clock level is incorrect.

CLR Temp (Color temperature)

Function that can be used to adjust the color temperature to suit the type of image input to the projector. Decrease the color temperature to create warmer, reddish images for natural flesh tones, or increase to create cooler, bluish images for a brighter picture.

Composite sync

Signal combining horizontal and vertical sync pulses.

DVI (Digital Visual Interface)

Display digital interface that also supports analog interfaces.

Gamma

Image quality enhancement function that offers a richer image by brightening the darker portions of the image without altering the brightness of the brighter portions. You can select from four different modes: Standard, Cinema 1, Cinema 2 and Cinema 3.

Intelligent compression and expansion

High quality resizing of lower and higher resolution images to fit the projector’s native resolution.

Keystone Correction

Function to digitally correct a distorted image when the projector is set up at an angle, smoothes out jaggies on keystone images and compresses the image not only horizontally but vertically keeping the 16 : 9 aspect ratio.

Phase

Phase shift is a timing shift between isomorphic signals with the same resolution. When phase level is incorrect, the projected image typically displays horizontal flicker.

Resize

Allows you to modify or customize the picture display mode to enhance the input image. You can select from four different modes: STRETCH, SIDE BAR, SMART STRETCH and CINEMA ZOOM.

Stretch

Mode that stretches the 4:3 image horizontally to display it on the wide screen.

-64

Index

AC socket ............................................................. 27

Adjustment buttons .............................................. 38

Aspect ratio .......................................................... 35

Auto Power Off ..................................................... 50

Auto Sync ............................................................. 46

AUTO SYNC button ............................................. 46

Background ..........................................................49

Blue ......................................................................42

Bright .................................................................... 42

Bright Boost ......................................................... 43

Ceiling+Front ........................................................ 52

Ceiling+Rear ........................................................ 52

Clock .................................................................... 45

CLR Temp (Color Temperature) ........................... 42

Color..................................................................... 42

Component terminals ...........................................21

Contrast................................................................ 42

DIGITAL INPUT button ......................................... 29

DVI ........................................................ 22,23,25,26

Eco Mode .............................................................49

ENTER button ......................................................39

Exhaust vent ................................................ 7,11,53

Fine Sync ............................................................. 45

Front ..................................................................... 52

Gamma Adj. ......................................................... 43

HEIGHT ADJUST button...................................... 31

H-Pos ................................................................... 45

INPUT buttons ...................................................... 29

Intake vent......................................................... 7,53

IRIS ................................................................. 34,44

IRIS button ........................................................... 34

Kensington Lock .................................................. 11

KEYSTONE button............................................... 32

Keystone Correction............................................. 32

Lamp .................................................................... 56

Lamp indicator ..................................................... 54

Lamp Timer (Life) ................................................. 47

Language ............................................................. 52

Lens cap................................................................. 9

MENU button........................................................ 38

Menu Color........................................................... 51

Menu Position....................................................... 50

ON button ............................................................. 27

On-screen display language ................................ 52

OSD Display......................................................... 47

Phase ...................................................................45

Picture ..................................................................42

Picture Mode ........................................................44

PICTURE MODE button ...................................... 34

Power cord ...........................................................27

Power indicator ..................................................... 10

PRJ mode ............................................................ 52

Rear ..................................................................... 52

Rear adjustment feet ............................................ 31

Red....................................................................... 42

Remote control ..................................................... 12

Remote control sensor ......................................... 13

Replacing the lamp .............................................. 56

RESIZE button ..................................................... 34

Sharp.................................................................... 42

Signal Info ............................................................ 46

Signal Type .......................................................... 48

Special Modes ..................................................... 45

STANDBY button ................................................. 28

STRETCH ............................................................ 35

S-video input terminal .......................................... 24

Temperature warning indicator............................. 54

Tint ....................................................................... 42

UNDO button........................................................ 34

Video input terminal ............................................. 24

Video System ....................................................... 48

V-Pos ....................................................................45

ZOOM/FOCUS button .......................................... 30

Appendix

-65

VALID IN USA ONLY

CONSUMER LIMITED WARRANTY

SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.

This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or other misuse, abnormal service or handling, or which has been altered or modified in design or construction.

In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide proof of purchase to the servicer.

The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law. ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp.

The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

Model Specific Section (In-Home Service)

Your Product Model Number & Description:

Warranty Period for this Product:

Additional Item(s) Excluded from Warranty Coverage (if any):

Where to Obtain Service:

What to do to Obtain Service:

DT-400 Projector

(Be sure to have this information available when you need service for your Product.)

One (1) year parts and labor from date of purchase except for the Projector Lamp for which the warranty period is ninety (90) days from date of purchase. After the ninety (90) day warranty period on the Projector Lamp, parts and labor for a lamp replacement are the responsibility of the consumer.

Cleaning of Optical System and/or replacement of any filter. Labor & materials required to remove and reinstall a suspended projector in installations not accessible with a standard (8' step) ladder or ceilings exceeding 12’ in height. Labor & materials required to remove and reinstall a projector in complex systems including, but not limited to, projectors installed in custom enclosures, projectors connected to third party control and automation systems, and realignment of projectors installed in “mirrored” rear projection enclosures.

From a Sharp Authorized Servicer located in the United States. To find the location of the nearest Sharp Authorized Servicer, call Sharp toll free at 1-800-BE-SHARP. Contact your Sharp Authorized Servicer to obtain in-home service for this Product. The Servicer will come to your home and if necessary to remove the Product for repair at the Servicer’s facility, the Servicer will reinstall it upon completion of repair. Be sure to have Proof of Purchase available.

TO OBTAIN PRODUCT INFORMATION, CALL 1-800-BE-SHARP (1-800-237-4277) OR VISIT www.sharpusa.com.

-66

VALID IN CANADA ONLY

LIMITED WARRANTY

Consumer Electronics Products

Congratulations on your purchase!

Sharp Electronics of Canada Ltd. (hereinafter called “Sharp”) gives the following express warranty to the first consumer purchaser for this Sharp brand product, when shipped in its original container and sold or distributed in Canada by Sharp or by an Authorized Sharp Dealer:

Sharp warrants that this product is free, under normal use and maintenance, from any defects in material and workmanship. If any such defects should be found in this product within the applicable warranty period, Sharp shall, at its option, repair or replace the product as specified herein.

This warranty shall not apply to: (a) Any defects caused or repairs required as a result of abusive operation, negligence, accident, improper installation or inappropriate

use as outlined in the owner’s manual.

(b) Any Sharp product tampered with, modified, adjusted or repaired by any party other than Sharp, Sharp’s Authorized Service

Centres or Sharp’s Authorized Servicing Dealers.

(c) Damage caused or repairs required as a result of the use with items not specified or approved by Sharp, including but not limited

to head cleaning tapes and chemical cleaning agents.

(d) Any replacement of accessories, glassware, consumable or peripheral items required through normal use of the product including

but not limited to earphones, remote controls, AC adapters, batteries, temperature probe, stylus, trays, filters, belts, ribbons,

cables and paper. (e) Any cosmetic damage to the surface or exterior that has been defaced or caused by normal wear and tear. (f) Any damage caused by external or environmental conditions, including but not limited to transmission line/power line voltage or

liquid spillage. (g) Any product received without appropriate model, serial number and CSA/cUL markings. (h) Any products used for rental or commercial purposes. (i) Any installation, setup and/or programming charges.

Should this Sharp product fail to operate during the warranty period, warranty service may be obtained upon delivery of the Sharp product together with proof of purchase and a copy of this LIMITED WARRANTY statement to an Authorized Sharp Service Centre or an Authorized Sharp Servicing Dealer. In home warranty service may be provided at Sharp’s discretion on any Sharp television with the screen size of 27” or larger and on any Sharp Over The Range Microwave Oven.

This warranty constitutes the entire express warranty granted by Sharp and no other dealer, service centre or their agent or employee is authorized to extend, enlarge or transfer this warranty on behalf of Sharp. To the extent the law permits, Sharp disclaims any and all liability for direct or indirect damages or losses or for any incidental, special or consequential damages or loss of profits resulting from a defect in material or workmanship relating to the product, including damages for the loss of time or use of this Sharp product or the loss of information. The purchaser will be responsible for any removal, reinstallation, transportation and insurance costs incurred. Correction of defects, in the manner and period of time described herein, constitute complete fulfillment of all obligations and responsibilities of Sharp to the purchaser with respect to the product and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or otherwise.

WARRANTY PERIODS

Projector 1 year (bulb 90 days)

To obtain the name and address of the nearest Authorized Sharp Service Centre or Dealer, please contact:

SHARP ELECTRONICS OF CANADA LTD.

SHARP ELECTRONICS OF CANADA LTD. 335 Britannia Road East Mississauga, Ontario L4Z 1W9 (905) 568-7140 Web site: www.sharp.ca

Appendix

-67
