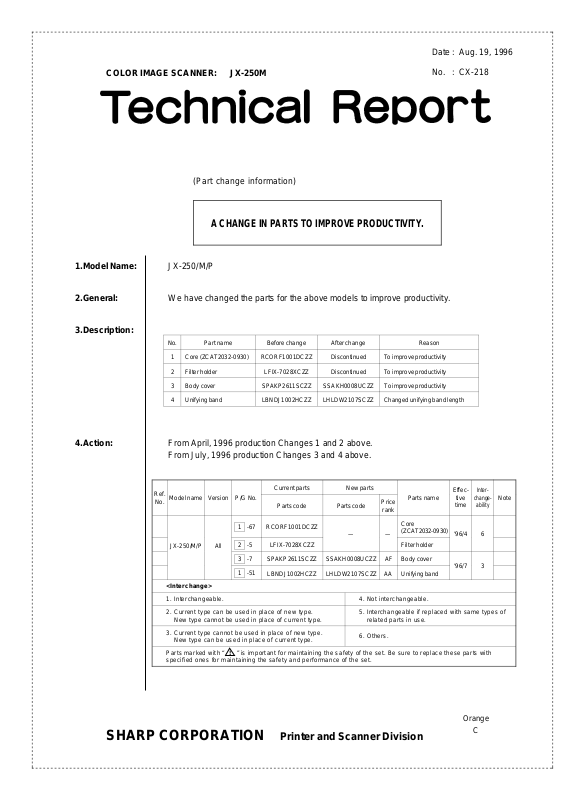

SHARP CX218 Technical Report

Date: Aug. 19, 1996

COLOR IMAGE SCANNER: JX-250M

No. : CX-218

(Part change information)

A CHANGE IN PARTS TO IMPROVE PRODUCTIVITY.

1.Model Name: JX-250/M/P

2.General: We have changed the parts for the above models to improve productivity.

3.Description:

No. Part name Before change After change Reason

1 Core (ZCAT2032-0930) RCORF1001DCZZ Discontinued To improve productivity 2 Filter holder LFIX-7028XCZZ Discontinued To improve productivity 3 Body cover SPAKP2611SCZZ SSAKH0008UCZZ To improve productivity 4 Unifying band LBNDJ1002HCZZ LHLDW2107SCZZ Changed unifying band length

4.Action: From April, 1996 production Changes 1 and 2 above. From July, 1996 production Changes 3 and 4 above.

Ref.

Model name Version P/G No.

No.

1 -67

JX-250/M/P All

1. Interc ha ng ea bl e. 4. Not int erc h an ge ab l e.

2. Current type can be used in place of new type. New type cannot be used in place of current type.

3. Current type cannot be used in place of new type. New type can be used in place of current type.

Parts m a r ked w it h “ ” i s imp or t an t fo r m ai n ta ini ng t he s a fe ty of the s e t. Be s ure to repl ac e t he se pa r ts wi th

s p ec if ie d ones fo r m ai n ta in i ng t he s a fe ty and per fo rma nc e o f th e s et .

2-5 3 -7 SPAKP2611SCZZ SSAKH0008UCZZ AF Body cover 1 -51

Current parts New parts

Parts code Parts code

RCORF1001DCZZ

LFIX-7028XCZZ Filter holder

LBNDJ1002HCZZ LHLDW2107SCZZ AA Unifying band

——

5. Interchangeable if replaced with same types of

6. Others.

Price

relate d parts in use .

Parts name

rank

Core (ZCAT2032-0930)

Effec-

tive

change-

time

’96/4 6

’96/7 3

Inter-

Note

ability

SHARP CORPORATION Printer and Scanner Division
