Date: Oct. 28, 1994
COLOR IMAGE SCANNER : JX330
No. : CX-160
1.PARTS GUIDE CORRECTIONS
2.PARTS CHANGES TO DISCONTINUE NEEDLESS
RADIATION
3.ADDITION OF ATTACHED PARTS (FOR AUSTRALIA)
1. Parts guide corrections
1.Model name: JX330M, P
2.General: The ROM described in the parts guide has been changed from the first lot.
3.Description: <Current> <New>
Parts code: VHI27020S081D VHI27020S081E
Versions: S081D S081E
4.Action: From the first lot
2. Parts changes to discontinue needless radiation
1.Model name: JX330M, P
2.General: To discontinue needless radiation, we have changed the ACSW cable wiring. We also
have changed the form of the sealed cover and material of the clump.
3.Description: ➀ We have changed the ACSW cable wiring as shown as the illustration below.
Do not let the ACSW cable through this.
AC switch
Wire cable
Add the cable clump
LHLDW5030BCZZ
2~4mm
Control/PS
Discontinued bushing (LBSHZ2037SCZZ)
Change the form of sealed cover
SHARP CORPORATION Printer and Scanner Division
ACSW cable
1/4
Orange
C
➁ We have changed the form of the sealed cover and its parts code as shown in the
illustration below.
4.Action: From September 1994 production:
For Europe, UK, Australia and other 200V series agents
From November 1994 production:
For Canada and other 100V series agents
3. Addition of attached parts
1.Model name: JX330M (for Australia)
(New)(Current)
Add notch
PSLDM7022XCZAPSLDM7022XCZZ
2.General: The guarantee and the placing report have been added as the attached parts.
3.Description: The guarantee (TGANE1001QCZA) and the placing report (TCADZ2001QCZA) have
been in the same package as shown in below.

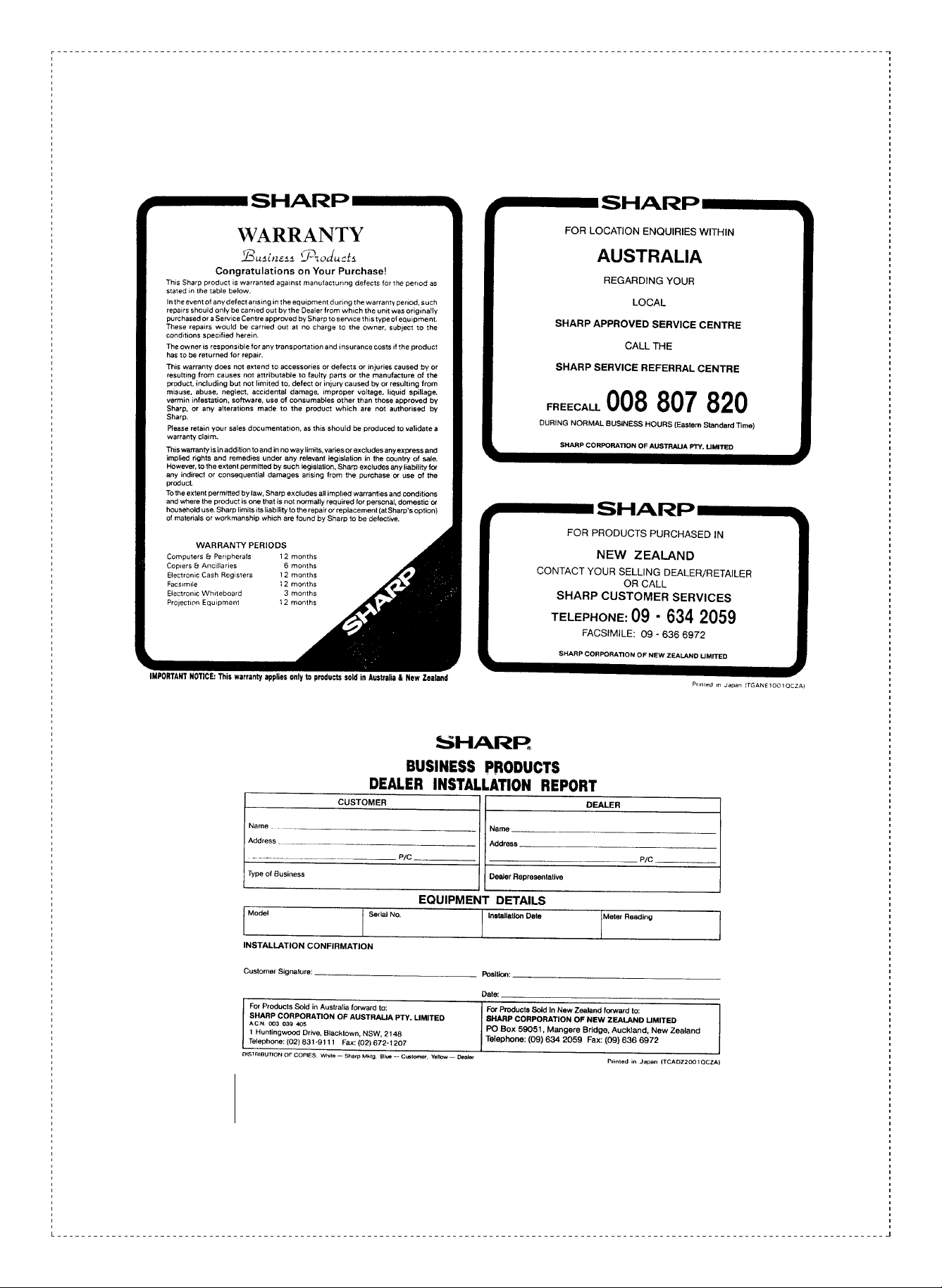

Guarantee
Placing report
2/4
Guarantee (TGANE1001QCZA)
<Face>
<Back>
Placing report (TCADZ2001QCZA)
4.Action: From September 1994 production.
3/4
Ref.
Model
No.
1
JX330M/P
2
3 JX330M Australia
<Inter chan ge>
1. Interchangeable. 4. Not interchangeable.
2. C urr e nt t y pe c a n be u s ed i n p la ce of new t ype .
New ty pe cann ot be us ed i n place of curr ent type .
3. C urre nt ty pe cann ot be used i n place of new ty pe.
New t y pe c a n be u sed in p la c e of c u rr en t ty p e.
Parts marked with “ ” is important for maintaining the safety of the set. Be sure to replace these parts with
specified ones for maintaining the safety and performance of the set.
name
Version P/G No.
5 -193
All
200V
series
100V
series
200V
series
100V
series
1 -30 PSLDM7022XCZZ PSLDM7022XCZA AM Sealed cover
1 -40 LBSHEZ2037SCZZ LHLDW5034BCZZ AB
3 — TGANE1001QCZA AC Guarantee ’94/9 6
3
!
Current parts New parts
Parts code Parts code
VHI27020S081D VHI27020S081E BB ROM (IC 7) ’94/8 3
— TCADZ2001QCZA AE Placing report ’94/9 6
Price
5. Interchangeable if replaced with same types of
relate d parts in use .
6. Others .
Parts name
rank
Clump A
(CKN-10)
Effec-
tive
time
’94/9
’94/11
’94/9
’94/11
Inter-
change-
ability
3
6
Note
4/4
