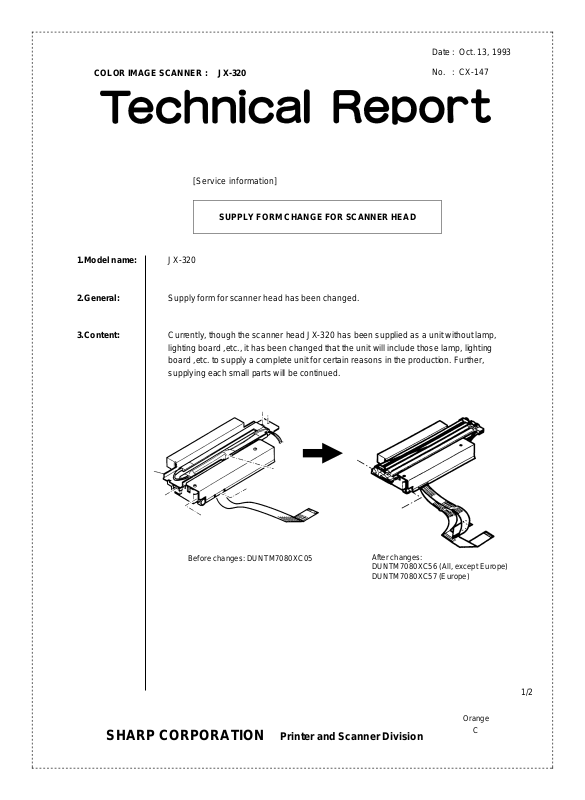

SHARP CX147 Technical Report
Date: Oct. 13, 1993
COLOR IMAGE SCANNER : JX-320
[Service information]
SUPPLY FORM CHANGE FOR SCANNER HEAD
1.Model name: JX-320
2.General: Supply form for scanner head has been changed.
No. : CX-147
3.Content: Currently, though the scanner head JX-320 has been supplied as a unit without lamp,
lighting board ,etc., it has been changed that the unit will include those lamp, lighting
board ,etc. to supply a complete unit for certain reasons in the production. Further,
supplying each small parts will be continued.
Before changes: DUNTM7080XC05
After changes:
DUNTM7080XC56 (All, except Europe)
DUNTM7080XC57 (Europe)
SHARP CORPORATION Printer and Scanner Division
1/2
Orange
C
4.Action for
parts:
Ref.
No.
Model
name
Version P/G No.
Current parts New parts
Parts code Parts code
Price
rank
Parts name
Effec-
tive
time
Inter-
change-
ability
Note
Except
SEEG
SUK
1 JX-320
SEEG
SUK
<Interchange>
1. Interchangeable. 4. Not interchangeable.
2. Current type can be used in place of new type.
New type cannot be used in place of current type.
3. Current type cannot be used in place of new type.
New type can be used in place of current type.
Parts marked with “ ” is important for maintaining the safety of the set. Be sure to replace these parts with
specified ones for maintaining the safety and performance of the set.
1
DUNTM7080XC05 DUNTM7080XC56 CM
2 -502
1
DUNTM7080XC05 DUNTM7080XC57 CM
2 -502
!
Scanner head
unit
Scanner head
unit
5. Interchangeable if replaced with same types of
related parts in use.
6. Others.
—3
—3
2/2
