CHAPTER

Getting Started

‘Welcome to Apple Final Cut Pro, the all-in-one solution for professional digital video editing, compositing, and special effects. Final Cut Pro has been designed to work with professional broadcast equipment in post-production environments. In addition, the program has been thoughtfully designed to take advantage of leading-edge digital technologies, enabling you to be creative as well as productive. Final Cut Pro supports Digital Video (DV) as well as all QuickTime formats, including MJPEG and streaming video. Final Cut Pro includes powerful production management capabilities in an intuitive interface. There are also powerful, builtin effects generators as well as support for Adobe With Final Cut Pro you can produce broadcast-quality productions in a ﬂexible, easy-to-use environment.

In this chapter you will ﬁnd information resources and system requirements for Final Cut Pro. Installation instructions will step you through the installation process. You will also be given hardware setup and conﬁguration information to help you put together hardware components designed for use with Final Cut Pro. At the end of this chapter there are tips for optimizing and troubleshooting Final Cut Pro.

™

After Effects third-party plug-in ﬁlters.

Where to Find Information

m Final Cut Pro User’s Manual: This book documents all of the features of Final Cut Pro. It

contains installation instructions and informative material as well as an instructional tutorial that can be taken using the video and audio clips included on the Final Cut Pro CD-ROM disc. Appendixes contain a complete list of effects scripting commands, sample effects, keyboard shortcuts, and indexes.

m Help system: Online help is built into the application. You can search it for information

while using Final Cut Pro. To open the Help system, choose Context Sensitive Help from the Help menu or press the F1 key.

m Read Me ﬁle: You can ﬁnd late-breaking information in this ﬁle on the Final Cut Pro CD. m Updates: Look in the box for other essential information.

For general product information and updates, visit the Apple Final Cut Pro Web site at www.apple.com/ﬁnalcutpro

System Requirements

m A Power Macintosh G3/266 computer or faster (G3/300 or faster required for DV), or a

PowerBook G3/300 or faster

m Mac OS 8.6 or later m 128 MB of RAM m A CD-ROM drive m A 6 GB, A/V (Audio/Video rated) drive (16 GB recommended) m A true-color display m ATI built-in video support on G3 models (required for DV ) m An Apple FireWire or other QuickTime-compatible digital video card for capturing video

from an external source or exporting video to tape m The correct FireWire or device control cable and any additional cables you may need for

connecting your deck or camcorder to your computer

Preparing to Install Final Cut Pro

18 Chapter 1

Final Cut Pro requires certain software components to be installed on your hard disk. QuickTime is required by Final Cut Pro and has been included with this program. Be sure to install QuickTime before installing Final Cut Pro.

Installing QuickTime Components

Insert the Final Cut Pro CD into your CD-ROM drive.

2 Double-click the Final Cut Pro CD icon on your desktop.

3 Locate and open the QuickTime Installer folder and double-click the QuickTime Installer

icon.

4 Follow the onscreen instructions in the QuickTime Installer.

Important On the “Choose Installation Type” panel, choose Custom and click Continue.

Click the Select All button on the next screen and click Continue.

5 Complete the QuickTime installation process by restarting your computer.

6 Unlock QuickTime Pro by following the instructions on the update sheet in your box.

Installing Final Cut Pro

Installation places the Final Cut Pro application and its components on your hard disk. Installation of certain software components is determined by the type of capture hardware you will be using with Final Cut Pro. If you have not yet installed and conﬁgured the additional hardware you will be using with your computer, read the section “Hardware Setup and Conﬁguration” on page 20. If you already have a system conﬁgured with capture hardware and a camcorder or deck, proceed with the installation instructions in this section.

1 Insert the Final Cut Pro CD into your CD-ROM drive.

2 Double-click the Install Final Cut Pro icon.

3 Choose a destination disk from the pop-up list and click Select.

Note: Final Cut Pro can only be installed on a hard disk with Mac OS 8.5 or later.

4 Read the Software License Agreement and click Continue.

m Click Agree to continue with the installation. m Click Disagree to cancel the installation.

5 Specify the video capture hardware you will be using:

m Select Pinnacle Systems Targa Series if you will use a Targa video capture card. m Select DV (digital video) if you will use Apple FireWire and DV devices. When you select

DV, your default video frame size is set to 720 x 480. Note: Selecting DV will install FireWire extensions in your System Folder. These

extensions are optimized for Final Cut Pro. If you have existing FireWire extensions in your System Folder that you want to retain, move them out of the Extensions folder before you continue.

m Select None/Don’t Know if you will use hardware other than DV or Pinnacle Systems

Ta rga.

6 To specify a default video frame size (Pinnacle Systems Targa only):

m Select NTSC Standard for a 640 x 480 frame size. m Select NTSC (CCIR 601) for a 720 x 486 frame size.

7 To specify the type of video source connection:

m Select Composite to sample video over a single cable using a BNC or RCA connector. m Select S-Video to sample video over a single cable using a 4-pin S-video connector. m Select Component to sample video over three cables using Betacam (r-y, b-y, Y)

Component BNC or RCA connectors.

8 Click Start to install Final Cut Pro.

9 Restart your computer.

Getting Started 19

10 Open the Final Cut Pro application and enter your registration information and serial

number. The serial number can be found on the Final Cut Pro CD sleeve. Note: Final Cut Pro is conﬁgured to use a standard set of preferences and preset controls

based on answers given during installation. You may want to change these before you proceed any further. See Chapter 4, “Preferences and Presets,” on page 95, and “About Presets and Sequence Settings” on page 166.

Hardware Setup and Configuration

Final Cut Pro is designed to work with DV and Pinnacle Systems Targa Series hardware. If you are using DV equipment, use the FireWire cable included with this package to connect your camcorder or deck to your computer. DV devices with FireWire transmit device control data, timecode, video, and audio over a single FireWire cable.

If you are using Pinnacle Systems Targa equipment, device control and timecode signals are transmitted over one cable while video and audio data use another set of cables depending on the type of video source connection you choose. See your Targa manual for details.

You can also connect camcorders or decks that do not support device control to capture video clips and export edited sequences. To print to video or edit to tape, the card must have video out capabilities. To connect these devices, you need a QuickTime-compatible video capture card. Go to the Final Cut Pro Web site at www.apple.com/ﬁnalcutpro for a list of vendors and qualiﬁed products.

20 Chapter 1

Connecting Video Devices to Your Computer

Devices can be connected to your computer through a dedicated video capture card or FireWire connection. It is recommended that you connect and turn on the device before opening Final Cut Pro so the application can detect the device.

If you are connecting devices to your computer with video and audio cables:

m Connect the video and audio cables to the output jacks of your camcorder or deck. m Connect the other ends of the cables to the corresponding input jacks of your capture

hardware. m Connect an appropriate device control cable between your camcorder or deck and the

serial port of your computer.

If you are connecting a DV device to your computer with FireWire: m Use a 2-meter, 6-pin to 4-pin FireWire cable to connect the DV device to your computer.

4-pin 1394 (FireWire) connector 6-pin 1394 (FireWire) connector

m Plug the 6-pin connector into the computer’s FireWire port and the 4-pin connector into

the device’s DV port. (FireWire ports on external devices are sometimes labeled IEEE 1394 or DV IN/OUT.)

The Apple FireWire port on your Macintosh is a 6-pin port.

Warning Do not attempt to force the 4-pin connector into the computer’s 6-pin FireWire

port. 4-pin connectors and ports can be especially fragile. Before connecting a 4-pin connector to its corresponding port, be sure it is aligned properly by matching an indent on the connector to the indent in the port. Do not force the two together.

Both connectors snap into place when properly engaged.

Once you have connected a camcorder or deck to your computer, turn on the device. If you are using a camcorder, switch it to VCR mode (sometimes labeled VTR.) In VCR mode, the camcorder operates as a playback/record deck and uses the video and audio connectors or FireWire for input and output. In Camera mode, the camcorder acquires video and audio through the CCD sensor and built-in Mic, not through the input connectors or FireWire. Final Cut Pro cannot record to the camcorder while it is in Camera mode.

Getting Started 21

Controlling Video Devices With Your Computer

Final Cut Pro can control devices through a serial or FireWire cable. If your camcorder or deck supports one of the following device control protocols, Final Cut Pro can transmit and receive timecode and transport control data to and from the device. Search mechanisms within some decks can also be controlled by Final Cut Pro.

Note: If your computer does not have a serial port, but does have a USB port, you can use a third-party product such as the Keyspan USB Serial Adapter, which allows you to attach serial devices to the USB port.

The following device protocols are supported:

m Apple FireWire or Apple FireWire Basic m JVC RS-232 m Panasonic RS-232 or RS-422 m Sony RS-422 or RS-232 m Sony VISCA or LANC

Note: The Panasonic RS-422 and Sony RS-422 protocols require special cables. For more information about the various protocols and their cables, see the Final Cut Pro Read Me ﬁle in the Final Cut Pro application folder or visit the Final Cut Pro Web site at www.apple.com/ﬁnalcutpro

For full functionality of Final Cut Pro, your video device needs to support auto editing VTRs and protocols.

Note: An auto editing VTR is a device that can take In Point and Out Point timecode, along with an Edit mode, and perform the edit accurately, regardless of the state of the controlling device or its software.

22 Chapter 1

About Apple FireWire

Apple FireWire is designed to work with digital video camcorders and decks that have a FireWire port and use the DV format. With Final Cut Pro and a FireWire connection, you can control external DV devices and capture DV movie clips to your hard disk. You can then view, edit, and apply effects to the DV clips and render movies in the DV format. Final Cut Pro can also play the movies to your camcorder or deck through the FireWire connection where the output can then be recorded on tape.

Apple FireWire Basic

FireWire (IEEE 1394) is a serial bus currently supported by many professional and consumer level camcorders and decks. However, there is a wide range of functionality and adherence to the FireWire speciﬁcations among these devices. For this reason, two versions of the FireWire protocol (Apple FireWire and Apple FireWire Basic) are provided in Final Cut Pro’s Device Control preferences.

If your deck or camcorder uses FireWire, begin by using the Apple FireWire protocol. This is the default protocol if you selected DV during the installation setup. While all decks and camcorders support the most basic functions like returning timecode and accepting basic transport commands, other commands may not be supported. If you ﬁnd that the device does not accurately go to speciﬁed timecodes or fails to execute special commands, try the Apple FireWire Basic protocol.

To switch between FireWire protocols in Final Cut Pro:

m Choose Preferences from the Edit menu and click the Device Control tab. m Choose Apple FireWire or Apple FireWire Basic from the Protocol pop-up menu.

System Configurations

Final Cut Pro works best with the following hardware conﬁguration:

External

A/V HD

Computer

DV Camcorder

or Deck

FireWire

Video out

Stereo Audio Out

Component, S-Video,

or Composite

Video Signal Out

Monitor

External Speakers

NTSC Video Monitor

A basic conﬁguration includes a computer, a high-resolution monitor, and a video camcorder or deck. Your source footage will be sampled to the internal hard disk of the computer via FireWire or other video/audio connection. Footage can then be edited on the computer with Final Cut Pro and output back to tape through FireWire or other video/audio connection.

Getting Started 23

A recommended setup also includes an Ultra Wide A/V hard disk drive, an external set of speakers, and an NTSC or PAL monitor.

m An Ultra Wide A/V hard disk drive provides a dedicated, high-throughput storage medium

where video and audio can be recorded or rendered. The beneﬁt of using a dedicated

drive for your media is that the drive contains no operating system software or other

applications and ﬁles that can fragment the disk. Fragmentation can interfere with the

continuous data ﬂow of video and audio to and from the disk. You can add an internal

drive to your existing SCSI bus or you can install an Ultra Wide SCSI card to support an

external A/V drive. m External speakers allow you to hear audio output from your video camcorder or deck.

Many camcorders come with a built-in speaker, but external speakers will provide you

with higher quality audio output.

Audio is output through the camcorder or deck

m when playing back video with audio in the Viewer, Canvas, or Timeline

m when printing or editing video to tape

Note: When playing video in the Canvas, audio output through the external speakers will

be slightly out of sync with the video. Audio from the external speakers will, however, be

in sync with video displayed on an NTSC or PAL monitor. m An NTSC or PAL monitor is highly recommended for previewing video output from your

hard disk if you intend to output to videotape or broadcast on television. Final Cut Pro

outputs video to the NTSC or PAL monitor through the camcorder or deck. Many video

camcorders have built-in LCD displays that can also be used for this purpose. An NTSC or

PAL monitor can also be used to view the playback from your video device when you are

searching for edit points. Connect the NTSC or PAL monitor to your video deck or

camcorder using the Component, S-Video, or Composite output jacks.

24 Chapter 1

Ultra Wide SCSI Hard Disk Drive and PCI Card Specifications

Digital video and audio demands high data throughput to and from the hard disk drive. For the best performance when working with digital media, use a high-capacity, Ultra Wide SCSI drive. Depending on your system conﬁguration, you may be able to add an internal drive if you have an existing Ultra Wide SCSI bus. If you do not have an internal Ultra Wide SCSI bus, install an Ultra Wide SCSI card in one of your computer’s PCI slots. Refer to the Final Cut Pro Web site at www.apple.com/ﬁnalcutpro for a list of vendors and qualiﬁed products.

About the Internal Ultra Wide SCSI Bus

If your computer came with an Ultra Wide SCSI card, all devices on the same SCSI bus must have unique ID numbers. However, devices on different SCSI buses may use the same SCSI ID number. (For example, you can have a removable media drive with ID number 3 connected to the computer’s built-in regular SCSI bus and a hard disk with ID number 3 connected to the Ultra Wide SCSI bus.)

Important Hard disks installed in your computer at the factory and the SCSI card have

reserved certain SCSI ID numbers on the Ultra Wide SCSI bus. Other ID numbers are available for assignment to SCSI devices that are added later, as described in the following table.

Ultra Wide SCSI ID Number Device

0Factory-installed hard disk drive (terminated)

1 through 6 Available

7SCSI PCI card (terminated)

8 through 15 Available

If your computer came with two or more Ultra Wide SCSI hard disk drives, use the System Profiler program (available in the Apple menu) to find out the SCSI ID numbers of your drives.

Getting Started 25

If you want to install an internal SCSI-3 drive, use the internal ribbon cable with the 68-pin connector to connect the device to the Ultra Wide SCSI bus.

68-pin connector

Warning Do not connect any SCSI devices to the external 68-pin SCSI-3 connector or to

the internal 50-pin SCSI-2 connector on the PCI card that supports the internal hard disk.

Connecting even one external SCSI device to the external 68-pin connector extends the

overall cable length of the SCSI bus beyond the limit for which error-free operation can be

guaranteed; the combined length of the internal cable and the external cable reduces the

reliability of all the devices connected to the Ultra Wide SCSI bus. Connecting a device to

the internal 50-pin SCSI-2 connector will cause your Ultra Wide SCSI devices to transfer

data at the slower, SCSI-2 rate.

26 Chapter 1

Optimizing Performance

These tips will help you to get the best from Final Cut Pro: m When a project is ﬁnished and archived, delete all ﬁles from the disk you used to create

the project. Defragment the drive with a disk-optimizing utility. This helps prepare the

disk for the next project you work on.

m Make sure that windows displaying video are not obscured or overlapped. m Don’t place windows so that they overlap monitors. m Defragment disk drives regularly, especially those used for capturing. m Store your project ﬁles on your startup disk. Store your media and rendered ﬁles on

another disk.

m Tu rn off virtual memory in the Memory control panel. (This is required.) m Keep your disk cache as small as possible. m Tu rn off all applications and processes that run in the background, such as networking

(which you can turn off by making AppleTalk inactive using the Chooser).

m Attempting to open clips or media over a network will cause poor performance in Final

Cut Pro. Copy ﬁles from the network to your local disk before importing them.

m Do not set Final Cut Pro’s memory allocation to an amount higher than the currently

available RAM.

Troubleshooting

If you encounter problems after installing Final Cut Pro and conﬁguring your hardware, the following tips may help.

My camcorder or deck is not recognized.

m Make sure your device control cable or FireWire cable is properly connected. m Verify that the camcorder is set to VCR mode. m Tu rn on the device and restart Final Cut Pro. m Make sure the appropriate protocol for your device is selected in the Device Control tab

in the Preferences window. See “Setting Device Control Preferences” on page 99 for more details.

Video is not visible on an external NTSC or PAL monitor.

m Make sure your cables are properly connected. m Verify that the camcorder is set to VCR mode. m Make sure the appropriate hardware setting is selected in the “View External Video Using”

pop-up menu in the General preferences tab. See “Setting General Preferences” on page 96 for more details.

m Choose Rendered Frames from the “View External Video Using” pop-up menu in the

General preferences tab to view rendered frames before they are output to NTSC or PAL video.

m Choose “All frames” or “Single frames” from the External Video submenu in the View

menu.

I noticed dropped frames on my NTSC or PAL monitor during DV playback from the Timeline.

m Reduce the Canvas or Viewer view size to 50%. m Tu rn off “Mirror on desktop during Playback” in the General preferences tab. m Disable View As Sq. Pixels in the View pop-up menu. m Reduce monitor bit depth from millions to 16-bit (thousands).

Getting Started 27

Video does not play through to the computer screen.

m Make sure your cables are properly connected. m Check your QuickTime video settings in the Capture preferences tab. For details on

QuickTime source and compression settings, see “Specifying Capture Preferences” on

page 101.

I am experiencing poor playback and stuttering video when trying to edit.

m Make sure you are not editing with media using keyframe compression such as Sorenson

or Cinepak. m Recompress the media with Final Cut Pro or Media Cleaner without keyframes.

I don’t hear audio on my computer’s speakers when playing video from my camcorder or deck.

m Make sure your audio cables are properly connected. m Check your QuickTime audio settings in the Capture preferences tab. For details on audio

sample and source settings, see “Specifying Capture Preferences” on page 101.

I don’t hear audio through my camcorder speakers.

m Make sure your cables are properly connected. m If you are scrubbing audio in the Viewer’s Audio tab, increase the volume of your

computer’s audio output.

I can’t control certain functions of my camcorder or deck.

m Make sure your device control cable is properly connected. m Make sure the appropriate protocol for your device is selected in the Device Control tab

in the Preferences window. See “Setting Device Control Preferences” on page 99 for more

details. m If you are using a device with FireWire, try switching the device control protocol from

Apple FireWire to Apple FireWire Basic.

28 Chapter 1

CHAPTER

2 Final Cut Pro Tutorial

This tutorial is designed to give you a hands-on introduction to Final Cut Pro. Working through the step-by-step procedures in the tutorial, you will create a short video using a variety of the editing, effects, and compositing features of the application. You will

m create a Final Cut Pro project and sequence m play clips and mark edit points m perform several types of edits m add special effects to your sequence m render and play the sequence you’ve put together m output your ﬁnal sequence to videotape or a QuickTime ﬁle for use on the World Wide Web

or in multimedia

The tutorial should take about one hour to complete.

Getting the Tutorial Files and Starting the Program

If you haven’t installed Final Cut Pro, follow the instructions in Chapter 1, “Getting Started,” on page 17. Next, consult the Read Me ﬁle installed with the program for the location of the tutorial ﬁles on the Final Cut Pro CD-ROM disc. Then copy the necessary ﬁles from the CD and open the project you will use for the tutorial.

Note: The tutorial ﬁles require about 90 megabytes (MB) of free space on your hard disk.

1 If necessary, clear 90 MB of space on your hard disk.

2 Copy the Tutorial folder from the Final Cut Pro CD to your hard disk.

3 Double-click the Final Cut Pro icon to start the program.

The Final Cut Pro Workspace

In Final Cut Pro, you work in four main windows: the Viewer, Canvas, Timeline, and Browser. These windows open the ﬁrst time you start the program. In addition, the Tool palette opens with the program.

Viewer Canvas

30 Chapter 2

Browser Timeline

Tool palette

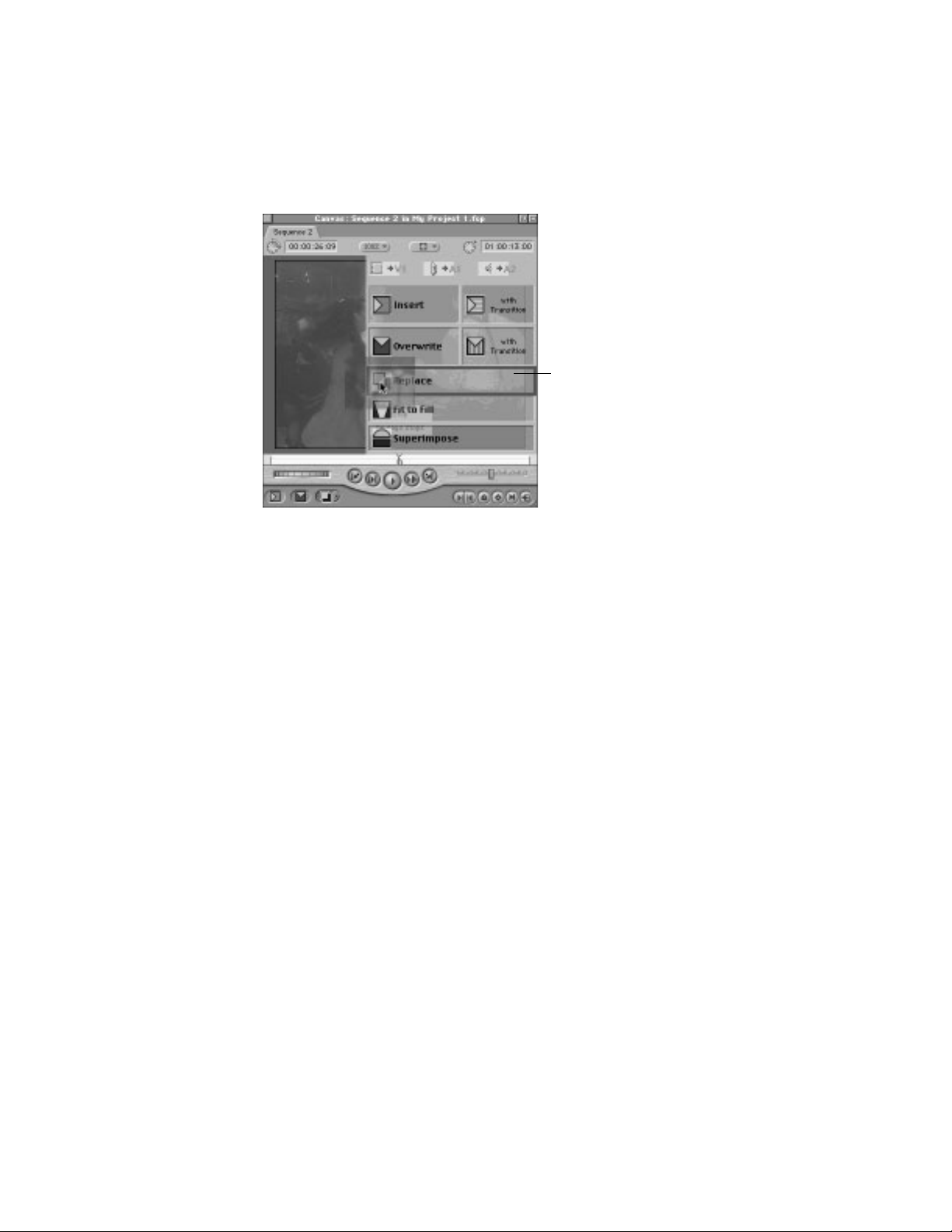

Each of the four main windows has multiple functions. Functions are grouped by tabs within the windows. You can drag tabs out of their parent windows to customize the workspace for your individual needs. (When you drag a tab, its content opens in a new window.)

Note: In some instances, the windows on your screen may look slightly different from the pictures in this tutorial.

+ 346 hidden pages
