Welcome to the SHARP Family . We are pleased that you are now the owner of a SHARP Color T elevision – built for outstanding quality, reliability and performance. Every SHARP Color Television set is tuned and adjusted for proper color and sound, and has passed through the most stringent quality control tests at the factory. W e have prepared this OPERATION MANUAL so that you may adjust the picture and color to your personal viewing preference. We sincerely hope that you receive the greatest satisfaction and enjoyment from your new SHARP Color Television set for years to come. Please read these instructions carefully, and keep them handy for your future reference.

IMPORTANT

T o aid reporting in case of loss or theft, please record the TV’s model and serial numbers in the space provided. The numbers are located at the rear of the TV.

Model No.: Serial No.:

IMPORTANT INFORMATION

Energy efficiency is becoming increasingly important to consumers both in the US and in Canada. ENERGY STAR is a US registered trademark to indicate that a product meets its guidelines for energy ef ficiency.

WHAT IS ENERGY STAR

TVs and VCRs use energy both when they are on and when they are off. North Americans spend more than $1 billion a year on energy consumed by TVs and VCRs when they are not in use. The new ENERGY STAR® models will reduce that energy “leakage” by up to 75 percent. Ultimately , this will mean more than $500 million a year in energy savings for consumers.

The energy savings will help reduce the burning of fossil fuels and the related carbon dioxide pollution that contributes to global warming. If every North American family replaced their TVs and VCRs with ENERGY STAR® models, it would reduce carbon dioxide emissions by five million tons every year — equivalent to eliminating the pollution from more than one million cars.

By using ENERGY ST AR® products, you will save money on your electric bills and use less energy. That makes good economic sense and it’s good for our environment.

WARNING:

®

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO WET LOCATIONS.

Before Operating Y our T elevision

Location

• For normal operation, your TV should be located in an area of the room where cool adequate ventilation is provided. Do not place the back of the television set in a place where free airflow will be restricted.

• Any magnetic force may disturb the color picture. Make sure that magnets, electric clocks, toys using magnets or any other magnetic substance, such as iron are kept well away from the TV set.

Power

Your TV operates on 120 Volts, 60 Hz (normal household current) and has a polarized plug. If you are unable to insert the plug fully into the outlet, try reversing the plug. Should it fail to fit, contact an electrician. Do not defeat the safety feature of the polarized plug.

CAUTION: TO PREVENT ELECTRIC SHOCK, MA TCH WIDE BLADE OF PLUG TO WIDE SLOT, FULL Y INSERT.

Note:

• If the set will not be used for a long period, such as during a vacation, unplug the set from the wall outlet to economize power. (If the TV set is plugged in, a slight current still flows, even with the POWER BUTTON in the OFF position.)

• Lines and other noise may appear in TV broadcast images when an FM tuner or radio is located near the TV and both radio and TV broadcasts are being received. Should such noise appear, turn off either the TV or the radio.

• If you are listening to an AM broadcast, turn the TV off. AM broadcast signals may not be received due to interference from the TV.

2

02-04 CR20S10[E].pm65 21/5/01, 3:03 pm2

Before Operating Y our T elevision (Continued)

CAUTION:

DO NOT PLACE THIS PRODUCT ON AN UNSTABLE CART, STAND, TRIPOD, BRACKET, OR TABLE. THE PRODUCT MAY FALL CAUSING SERIOUS PERSONAL INJURY AND SERIOUS DAMAGE TO THE PRODUCT. USE ONLY WITH A CART, STAND, TRIPOD, BRACKET, OR TABLE RECOMMENDED BY THE MANUFACTURER OR SOLD WITH THE PRODUCT. FOLLOW THE MANUFACTURER’S INSTRUCTIONS WHEN INSTALLING THE PRODUCT AND USE MOUNTING ACCESSORIES RECOMMENDED BY THE MANUFACTURER. A PRODUCT AND CART COMBINATION SHOULD BE MOVED WITH CARE. QUICK STOPS, EXCESSIVE FORCE, AND UNEVEN SURFACES MAY CAUSE THE PRODUCT AND CART COMBINATION TO OVERTURN.

L Before using the television, prepare the Remote Control

To use the remote control, insert batteries first.

Insert the batteries

Pull up

Battery Cover

• With your thumbnail, pull up the slit as indicated by the arrow to remove the back cover. Insert two batteries (size “AA”). Be sure to match the battery e/d terminals with the e/d marks inside the compartment.

Supplied Accessories

TV

INPUT

DISPLAY

DVD

VCR

POWER

TV

Infrared Remote Control/Part Number

+

VOL

100

ENTER

0

1 2 3

4 5 6

7 8 9

PERSONAL PREFERENCE

FLASHBACK

CH/SKIP

DVD VCR

CATV

CH

STOP REC

—

VOL

REW PLAY FF

MENU MUTE

PAUSE

A B C D

RRMCG1626CESA

TV • CATV• VCR • DVD

Size AA

Dry Batteries

Antenna Connections

Antennas

• The antenna requirements for good color television reception are more important than those for black & white television reception. For this reason, a good quality outdoor antenna is strongly recommended.

The following is a brief explanation of the type of connections that are provided with the various antenna systems:

1. A 75 ohm system is generally a round cable with Ftype connector that can easily be attached to a terminal without tools (not supplied).

2. A 300 ohm system is a flat “twin-lead” cable that can be attached to a 75 ohm terminal through a 300-75 ohm ADAPTOR (not supplied).

02-04 CR20S10[E].pm65 21/5/01, 3:03 pm3

75-ohm coaxial cable (round)

300-ohm twin-lead cable (flat)

F-type connector

3

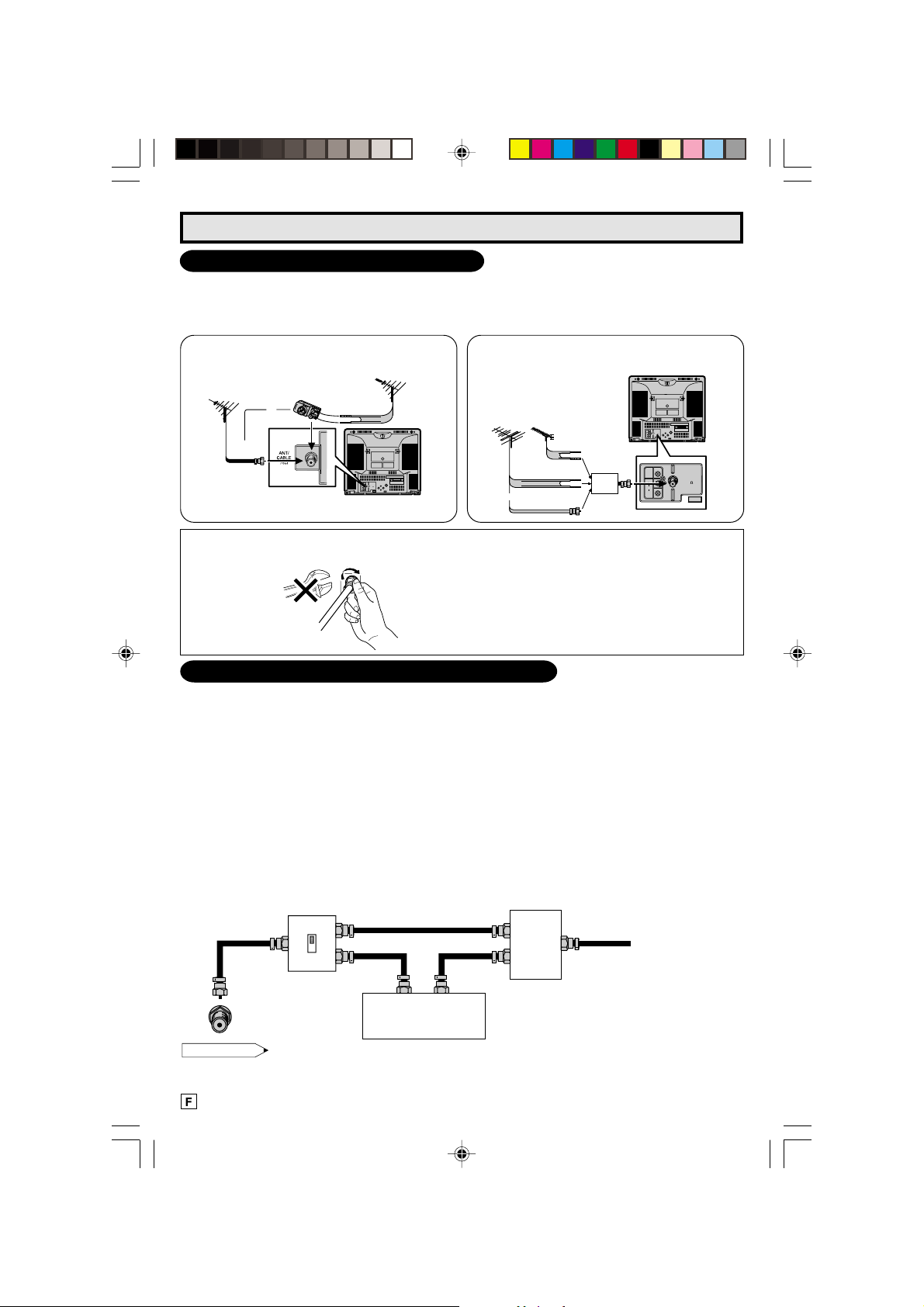

Antenna Connections (Continued)

OUTDOOR ANTENNA CONNECTION

• Use one of the following two diagrams if you connect an outdoor antenna. A: Using a VHF/UHF combination outdoor antenna. B: Using separate VHF and/or UHF outdoor antenna.

• Connect an outdoor antenna cable lead-in to the COAXIAL CABLE CONNECTOR on the rear of the TV set.

A. Combination VHF/UHF Antennas

ANT/CABLE

75

B0107GE

VHF/UHF ANTENNA

300-ohm twin-lead

B0107GE

IN

VIDEO

ANT/CABLE

75

L

AUDIO

R

REAR OF TV

VHF/UHF ANTENNA

75-ohm coaxial cable

or

300/75-ohm ADAPTOR (not supplied)

IN

VIDEO

L

AUDIO

R

F-type connector should be finger tightened only

F-type connector

When connecting the RF cable to the TV set, do not tighten F-type connector with tools. If not, it may cause damage to your TV set. (The breaking of Internal circuit, etc.)

75-ohm coaxial cable

B. Separate VHF/UHF Antenna

VHF

UHF

ANTENNA

300-ohm twin-lead

COMBINER

300-ohm

(not supplied)

twin-lead

or

75-ohm coaxial

IN OUT

cable

REAR OF TV

B0107GE

IN

VIDEO

ANT/CABLE

75

L

AUDIO

R

IN

VIDEO

ANT/CABLE

L

AUDIO

R

B0107GE

75

CABLE TV (CATV) CONNECTION

• A 75 ohm coaxial cable connector is built into the set for easy hookup. When connecting the 75 ohm

coaxial cable to the set, screw the 75 ohm cable to the COAXIAL CABLE CONNECTOR.

• Some cable TV companies offer “premium pay channels”. Since the signals of these premium pay

channels are scrambled, a cable TV converter/descrambler is generally provided to the subscriber by the cable TV company. This converter/descrambler is necessary for normal viewing of the scrambled channels. (Set your TV on channel 3 or 4. Typically one of these channels is used. If this is unknown, consult your cable TV company.) For more specific instructions on installing cable TV, consult your cable TV company. One possible method of utilizing the converter/descrambler provided by your cable TV company is explained below.

Please note: RF switch equipped with position A/B (not provided) is required. “A” position on the RF switch (not supplied) : You can view all unscrambled channels using the TV’s

channel keys.

“B” position on the RF switch (not supplied) : You can view the scrambled channels via the converter/

RF switch (not supplied)

OUTAIN

B

OUT

descrambler using the converter’s channel keys.

Two-set

IN

signal splitter (not supplied)

Cable TV Line

Cable TV converter/

descrambler

(not supplied)

Note:

• Consult your SHARP Dealer or Service Center for the type of splitter, RF switch or combiner that

might be required.

4

02-04 CR20S10[E].pm65 24/5/01, 2:11 PM4

Quick Reference Control Operation

L Location of Controls (ENGLISH)

Front Panel

O

SENSOR AREA FOR REMOTE CONTROL

POWER

O

V

–

POWER

Press → On. Press again → Off.

VOLUME UP/DOWN

(+) Increases sound. (–) Decreases sound.

Basic Remote Control Functions

POWER

Press → On. Press again → Off.

REMOTE KEYPAD

Accesses any channel from keypad.

FLASHBACK

Returns to previous channel.

PERSONAL PREFERENCE

With the Personal Preference buttons, you can program your favorite programs by using the 4 categories A, B, C and D. The channels can be accessed quickly by using these buttons. (See page

VOLUME UP/DOWN

(+) Increases sound. (–) Decreases sound.

• In menu mode, changes or selects the TV adjustments.

MENU

Press → Accesses MAIN MENU. Press again → Exits MAIN MENU.

CATV/DVD-TV/VCR MODE SELECT SWITCH

In TV/VCR position, sends power and channel select commands (Channel up/down and Random Access buttons) to the TV and VCR control. In CATV/DVD position, sends power and channel select commands to a cable TV converter and DVD control.

DVD/VCR CONTROL

See page

19.)

23.

Note:

• The above shaded buttons on the Remote Control glow in the dark. To use the glow-in-the-dark display on the remote

control, place it under a fluorescent light or other lighting.

• The phosphorescent material contains no radioactive or toxic material, so it is safe to use.

• The degree of illumination will vary depending on the strength of lighting used.

• The degree of illumination will decrease with time and depending on the temperature.

• The time needed to charge the phosphorescent display will vary depending on the surrounding lighting.

• Sunlight and fluorescent lighting are the most effective when charging the display.

POWER

TV

DVD

DISPLAY

VCR

1 2 3 4 5 6 7 8 9

FLASHBACK

0

PERSONAL PREFERENCE

A B C D

CH

VOL

—

CH

MENU MUTE

REW PLAY FF

PAUSE

STOP REC

TV • CATV • VCR • DVD

>

H

C

?

+

L

O

V

–

U N E M

?

+

L

INPUT

ENTER

100

VOL

+

CATV TV

DVD VCR

CH/SKIP

E R E T

S

S T M

R

-

O

I

D

U

A

-

L

N

I

O

E

D

I

V

>

H

C

MENU

VIDEO/AUDIO TERMINALS

(VIDEO/AUDIO terminals are also provided on the rear.)

IN

CHANNEL UP/DOWN – MENU

(8) Selects next higher channel. (9) Selects next lower channel.

• Press both at the same time to access the MAIN MENU screen.

Infrared Transmitter Window

DISPLAY

Press → Displays receiving channel for four seconds. Press again → Removes display.

• Temporarily displays receiving channel when in Closed Caption mode.

INPUT

Press → Switch to external video input mode. Press again → Switch to TV mode. See page

ENTER

Used in some instances where a Cable Converter Box requires an “enter” command after selecting channels, when using the REMOTE KEYPAD button. (See page 23)

CHANNEL UP/DOWN

(8) Selects next higher channel. (9) Selects next lower channel.

• See pages channel presetting.

• Moves the “ screens.

MUTE

Press → Mutes sound. Press again → Restores sound.

• CLOSED CAPTION appears when sound is muted.

22.

16 ~ 18 for

” mark of the MENU

5

05-07 CR20S10[E].pm65 25/5/01, 2:25 pm5

EZ SETUP during First Use

L When you turn on the TV for the first time, it will automatically

memorize the broadcast channels. Please perform the following instructions before you press the

power button. (1) Insert the batteries into the remote control. (See page 3) (2) Connect the antenna cable to the TV set. (See page 3 ~

4)

(3) Plug in the AC POWER cord to the wall outlet.

POWER

TV

DVD VCR

DISPLAY

INPUT

1 2 3 4 5 6 7 8 9

ENTER

FLASHBACK

0

100

PERSONAL PREFERENCE

ABCD

CH

VOL

—

MENU MUTE

CH

VOL

+

CATV TV

POWER

VOLUME (+)/(–)

CHANNEL UP (8)/ DOWN (9)

MENU

1 Press the

POWER

button on the TV set or on the Remote Control to turn on the TV. The SELECT LANGUAGE mode will be displayed.

2 Press

CH UP (8)

or

DOWN (9)

(On the Set)

POWER

to select “ENGLISH”, “SPANISH

(Remote Control)

(ESPAÑOL)” or “FRENCH (FRANÇAIS)”.

VOL (+)

or

(–)

Then press

3 Press

4 Press

VOL (+)

or

.

(–)

to SET LANGUAGE.

CH

to access EZ SETUP mode.

→

VOL—VOL

The tuner will automatically search for the broadcast and cable TV channels. (The CH No. will automatically increase when it appears.)

If you want to stop the EZ SETUP process once it has started, press

VOL (–)

and it will be cancelled.

If you want to SETUP again, please refer to page

15 on SETUP.

To cancel EZ SETUP

Press

VOL (–)

.

VOL

ENGL I SH ESPAÑOL FR NCA I S

A SE ECT : CH8/ 9

L

SE :TL+–/

(SELECT LANGUAGE mode)

ENGL I SH ESPAÑOL

FR NCA I S

+

A SE ECT : CH8/ 9

L

SE :TL+–/

OR CA B L E .

TSART SETUP?ZE

(EZ SETUP mode)

AU18TO RGGAMMI NORP

+

LANGUAGSELECT E

VO

LANGUAGSEL ECT E

VO

ANTENNCONNE C T A

YE : VOL+

S

NO :

VOL –

WA I TPLE EAS

TSOP:

VOL –

5 Once EZ SETUP is completed, the lowest channel number

memorized will be displayed.

Note:

• If EZ SETUP does not memorize all the channels in your region, please refer to page 16 for more information on manually memorizing the channels using CHANNEL SETTING.

• It may be difficult to PRESET when the broadcast signals are weak, the channel cycle frequency is incorrect or frequency jamming is occuring around the area. Please refer to pages 16 ~ 18 for more information on manually memorizing the channels using CHANNEL SETTING.

6

05-07 CR20S10[E].pm65 21/5/01, 3:03 pm6

Demo Mode

• To quickly learn more about the TV set, press and hold for more than three seconds both

CH UP (

88

8

)

and

88

DOWN (

99

9

)

on the TV set. The TV

99

set will go into DEMO mode and briefly explain the various features.

• To cancel DEMO mode, again press both

CH UP (

88

8

)

and

88

DOWN (

99

9

99

)

(On the Set)

>

H

C

?

U

EN

M

on the TV set.

CHANNEL

UP (8)/

Example:

DEMO mode display

oem

ndd

s

SHARP

uc

PMrio

CForm

SHARP

t

s

DOWN (9)

buttons

Accessing the MAIN MENU screen without Remote Control

• If you misplaced your Remote Control you can still access most settings via the MAIN MENU screen when you press both

DOWN (

99

9

)

on the TV set.

99

CH UP (

88

8

)

and

88

• Some features of your TV set will not be accessible without the Remote Control. If you lost your Remote Control, contact a Sharp Service Center for a replacement.

(On the Set)

>

H

C

?

U

EN

M

CHANNEL

UP (8)/

DOWN (9)

buttons

05-07 CR20S10[E].pm65 21/5/01, 3:03 pm7

7

FR NCAI S

ENGL I SH ESPAÑOL

LANGUAGE

A

SL EP T IMERE

120 RE A IMN

BL E SCREENU

PE SONAL PREF .R UN V ERS A L P LU SI LANGUAGE

INGCH SET T

Language

L The language for the ON SCREEN DISPLAY can be set to ENGLISH, SPANISH or FRENCH. L Setting the ON SCREEN DISPLAY Language.

1 Press

2 Press

3 Press

4 Press

5 Press

MENU

CH UP (8)

VOL (+)

or

DOWN (9)

VOL (+)

CH UP (8)

to access MAIN MENU screen.

or

DOWN (9)

or

(–)

to access SET UP mode, then press

to move the “ ” mark to “LANGUAGE”.

or

(–)

to access LANGUAGE change mode.

or

DOWN (9)

(ESPAÑOL)” or “FRENCH (FRANÇAIS)”.

to move the “ ” mark to “SET UP”.

CH

CH UP (8)

VOL—VOL

+

→

VOL—VOL

CH

+

to select “ENGLISH”, “SPANISH

CH

SL EP T IMERE VI DEO ADJUST

ELECTAUD I O S CAPT I ONCLOSED

CONT RO LPARENT ENERGY SAVE SET UP

(MAIN MENU screen)

SL EP T IMERE VI DEO ADJUST

ELECTAUD I O S

CAPT I ONCLOSED

CONT RO LPARENT ENERGY SAVE SET UP

(SET UP mode)

(LANGUAGE change mode)

IDIOMA

ENGL I SH ESPAÑOL FR NCAI S

A

6 Press

MENU

to exit.

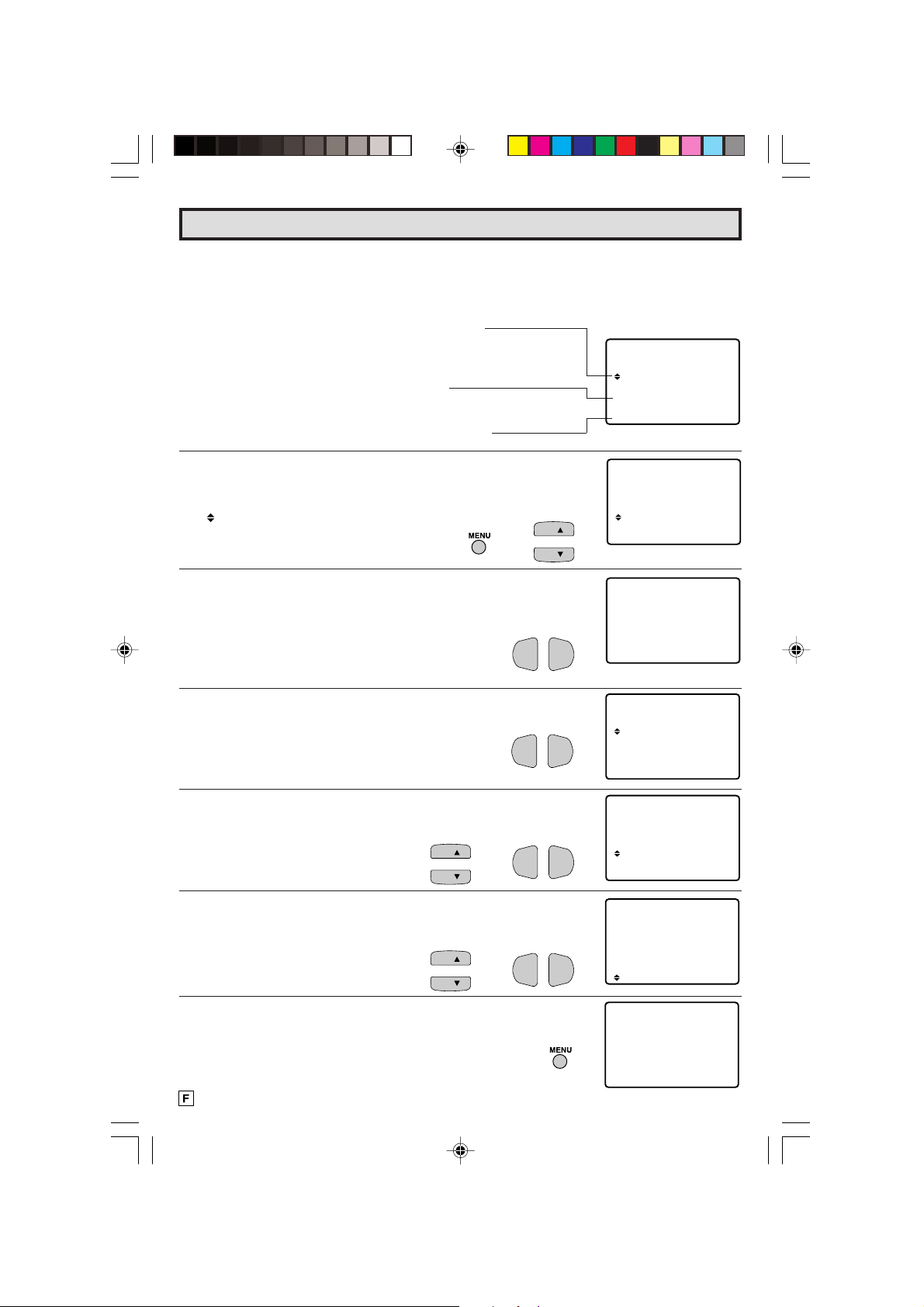

Sleep Timer

L You can preset your television to turn off automatically in increments of 30, 60, 90 or 120 minutes.

1 Press 2 Press

3 Press 4 Press

Note:

•

• While SLEEP TIMER is active, the time remaining will be briefly displayed on-screen at regular

08-10 CR20S10[E].pm65 21/5/01, 3:03 pm8

MENU

to access MAIN MENU screen.

VOL (+)

or

(–)

to access SLEEP TIMER mode.

→

VOL—VOL

+

SL EP T IMERE VIDEO ADJUST

ELECTAUD I O S

CAPT I ONCLOSED

CONTROLPARENT ENERGY SAVE SET UP

(MAIN MENU screen)

VOL (+)

MENU

or

(–)

to set a sleep time of 30, 60, 90 or 120 minutes.

to exit.

VOL—VOL

+

→

(TIMER SET mode)

To turn off the Sleep Timer, repeat the above SLEEP TIMER steps and select “– – – REMAIN” during step 3. intervals or when the remote’s Display key is pressed.

8

SL EP T IMERE V IDEO ADJUST

ELECTAUD I O S

SET UP

CAPT I ONCLOSED CONT ROLPARENT

ENERGY SAVE

Video Adjust

ICTUR

E

–+

P50ICTUR

E

– +

P

50

Description of Adjustment Items

Selected VOL UP (+) button VOL DOWN (–) button item

PICTURE To increase contrast To decrease contrast TINT To make skin tones greenish To make skin tones purplish COLOR To increase color intensity To decrease color intensity BRIGHT To increase brightness To decrease brightness SHARP To increase sharpness To decrease sharpness FAVORITE To choose a RED, BLUE or STANDARD COLOR TONE.

COLOR RESET To return all adjustments to factory preset levels.

1 Press 2 Press

MENU

to access MAIN MENU screen.

CH UP (8)

or

DOWN (9)

to move the “ ” mark to “VIDEO

ADJUST”.

→

3 Press

VOL (+)

or

(–)

to access PICTURE adjust mode.

CH

VOL—VOL

POWER

TV

DVD VCR

1 2 3 4 5 6 7 8 9

FLASHBACK

0

PERSONAL PREFERENCE

ABCD

CH

VOL

—

CH

MENU MUTE

(MAIN MENU screen)

+

(PICTURE adjust mode)

DISPLAY

ENTER

CATV TV

DVD VCR

INPUT

VOLUME (+)/(–)

100

CHANNEL

VOL

+

UP (8)/ DOWN (9)

MENU

4 Press

CH UP (8)

or

DOWN (9)

to select the desired mode.

(Refer to the diagram below.)


RESET

: CH UP (8)

5 Press

VOL (+)

TINT

FAVORITE COLOR

or

(–)

to adjust the setting.

COLOR

: CH DOWN (9)

6 Repeat steps 4 to 5 to adjust other settings.

7 Press

08-10 CR20S10[E].pm65 21/5/01, 3:03 pm9

MENU

to exit.

BRIGHT

SHARP

CH

VOL—VOL

+

VOL UP (+) increase contrast

VOL DOWN (–) decrease contrast

9

SL EP T IMERE VIDEO ADJUST

ELECTAUD I O S

SET UP

CAPT I ONCLOSED CONTROLPARENT

ENERGY SAVE

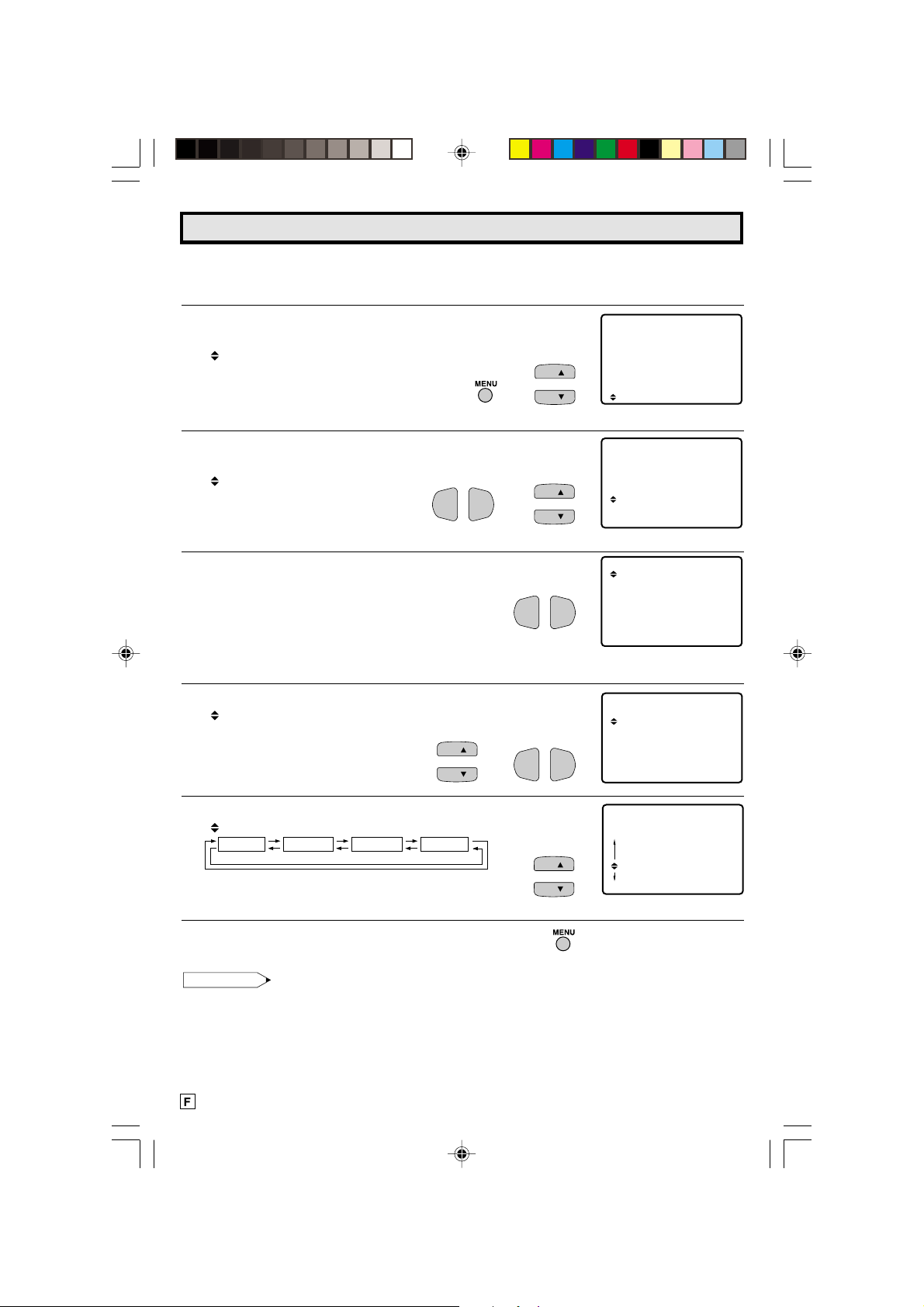

Audio Select

L MTS (Multichannel TV Sound)

This circuit allows reception of stereo or bilingual TV sound.

1 Press 2 Press

MENU

to access MAIN MENU screen.

CH UP (8)

or

DOWN (9)

to move the “ ” mark to “AUDIO

SELECT”.

→

3 Press

4 Press

5 Press

Ex:

VOL (+)

or

(–)

to access AUDIO SELECT mode.

or

(–)

to select “STEREO”, “SAP” or “MONO”.

STEREO SAP MONO

MENU

to exit.

Actual screen indicating ON AIR when receiving STEREO broadcasts.

Actual channel number “← ON AIR” will appear next to STEREO or

SAP when receiving STEREO or SAP broadcasts.

CH

VOL—VOL

(MAIN MENU screen)

+

AUD I O

+

(AUDIO SELECT mode)

REO

T IRON A

SSAE

P

MO O

N

(Channel call on screen)

SELECT

: SAPMTS

ON A

12

IR

L You can enjoy Hi-Fi stereo sound or SAP broadcasts where available.

• Stereo broadcasts Live television transmission of sports, shows, concerts, etc. can be received in dynamic stereo sound.

• SAP broadcasts Television broadcast can be received with either MAIN or SAP sound. MAIN sound: The normal program soundtrack. (Monaural or stereo where available.) SAP sound: Second language, supplementary commentaries, etc. (SAP sound is monaural.)

L If stereo sound is difficult to hear.

• You can obtain clearer sound by manually switching to fixed monaural mode.

Note:

• Once MONO mode is selected, the TV sound remains monaural even if the TV set receives a stereo broadcast. You must switch the mode back to STEREO if you want to hear stereo sound again.

• Selecting MTS while in the INPUT mode does not change the type of sound; in this case, sound is determined by the video source.

10

08-10 CR20S10[E].pm65 21/5/01, 3:04 pm10

CAPT I ONCLOSED

MODE :CAP

DATA : CH 1

TION

CAPT I ONCLOSED

MODE :CAP DATA : CH 1

TION

CAPT I ONCLOSED

MODE :CAP DATA : CH 1

TION

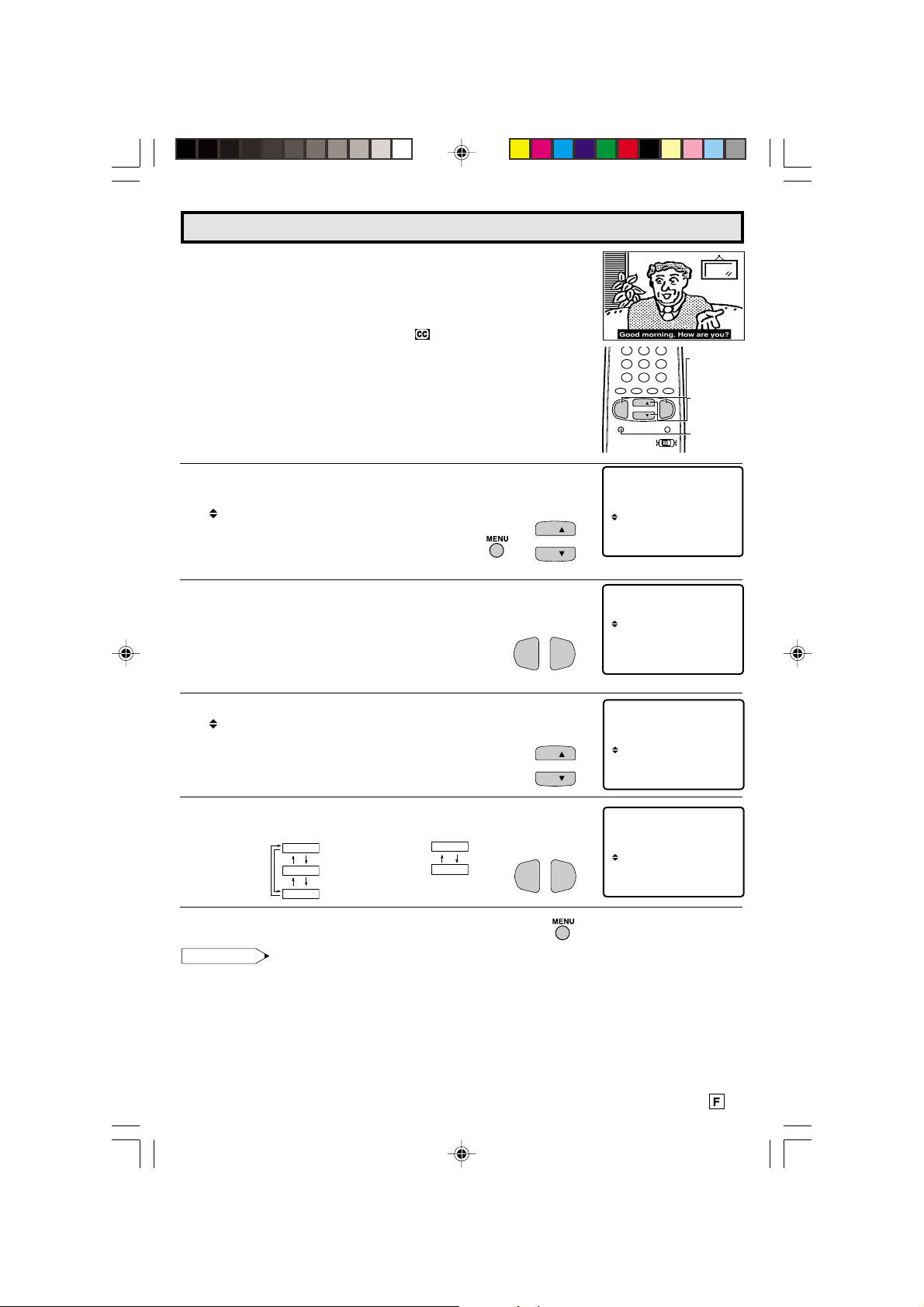

Closed Caption

L HOW TO SET CLOSED CAPTION

• Y our TV is equipped with an internal Closed Caption decoder . “Closed Caption” is a system which allows you to view conversations, narration, and sound effects in TV programs and home videos as subscript on your TV screen as shown on the right.

• Not all the programs and videos will offer closed caption. Please look for the “ ” symbol to ensure that captions will be shown.

• Closed Caption broadcast can be viewed in two modes: CAPTION and TEXT . For each mode, two channels are available, CH1 and CH2:

The [CAPTION] mode subscripts dialogues and commentaries of TV dramas and news programs while allowing clear view of the picture. The [TEXT] mode displays over the picture other various information (such as TV program schedule, weather forecast, etc.) that is independent of the TV programs.

4 5 6 7 8 9

ENTER

FLASHBACK

0

100

PERSONAL PREFERENCE

ABCD

CH

VOL

—

CH

MENU MUTE

CATV TV

DVD VCR

+

VOLUME (+)/(–)

CHANNEL UP (8)/ DOWN (9)

MENU

1 Press 2 Press

MENU CH UP (8)

CAPTION”.

3 Press

4 Press

VOL (+)

CH UP (8)

“MODE” or “DATA”.

5 Press

VOL (+)

MODE :

6 Press

MENU

to access MAIN MENU screen.

or

CAPTION

TEXT

OFF

DOWN (9)

(–)

to access CLOSED CAPTION setting mode.

or

DOWN (9)

(–)

to change the CLOSED CAPTION setting.

to move the “ ” mark to “CLOSED

to move the “ ” mark to either

DATA :

CH 1

CH 2

to exit.

→

VOL—VOL

SL EP T IMERE VIDEO ADJUST

CH

ENERGY SAVE SET UP

ELECTAUD I O S CAPT I ONCLOSED CONTROLPARENT

(MAIN MENU screen)

+

(CLOSED CAPTION setting mode)

CH

+

Note:

• If a broadcast has CLOSED CAPTION and the mode automatically. Pressing

MUTE

again will return the set to its previous condition.

MUTE

button is pressed, the set enters [CAPTION]

• Closed Caption may malfunction (white blocks, strange characters, etc.) if signal conditions are poor or if there are problems at the broadcast source. This does not necessarily indicate a problem with your TV .

• If any button is pressed to call up the ON SCREEN DISPLAY while viewing a CLOSED CAPTION broadcast, the closed captions will disappear momentarily.

• When viewing in TEXT mode, if no TEXT broadcast is being received, for some programs the screen may become dark and blank. Should this occur, set the Closed Caption mode to “OFF”.

11-14 CR20S10[E].pm65 21/5/01, 3:04 pm11

11

SL EP T IMERE VIDEO ADJUST

ELECTAUD I O S

SET UP

CAPT I ONCLOSED CONTROLPARENT

ENERGY SAVE

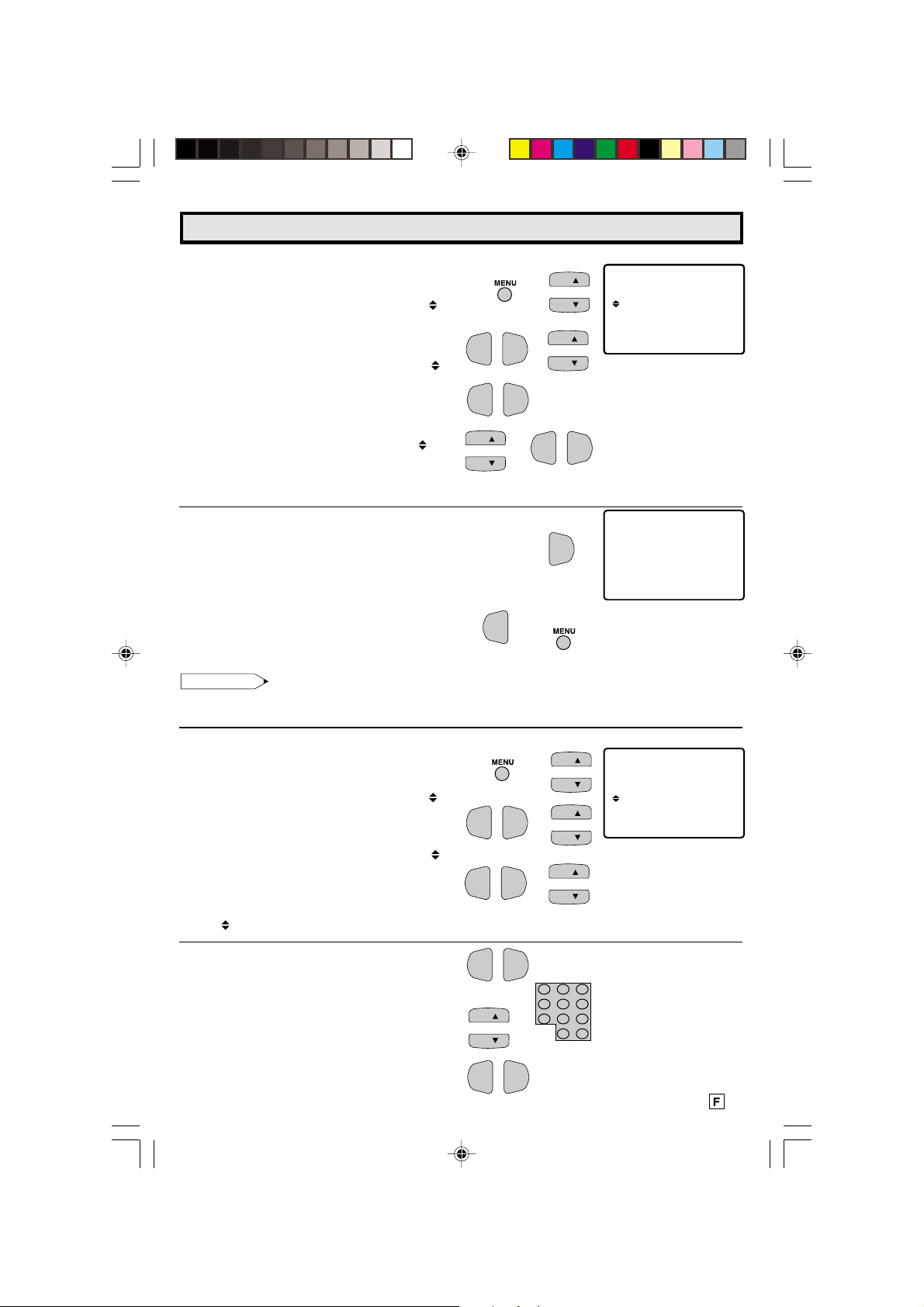

Parent Control (VIEW TIMER)

L VIEW TIMER

This function allows you to restrict TV viewing time and also allows you to control TV usage. This function is to prevent your children from watching too much TV.

VIEWING TIME (an accumulative timer: counts only the time duration acquired while the TV is on.)

• VIEWING TIME can be set from 30M (30 minutes) to 10H00M (10 hours) in 30 minutes intervals.

OFF TIME (Restricts TV watching after the VIEWING TIME reaches zero.)

• OFF TIME can be set from 30M (30 minutes) to 10H00M (10 hours) in 30 minutes intervals.

STATUS (ON/OFF setting of VIEW TIMER)

L How to set VIEW TIMER.

1 Press 2 Press

MENU

to access MAIN MENU screen.

CH UP (8)

or

DOWN (9)

to move the “ ” mark to “PARENT

CONTROL”.

→

CH

VEWT

IIMER

VEWINGITIME

––H

––M

TIME

OFF

––H ––M

STATU

S:OFF

(MAIN MENU screen)

3 Press

4 Press

5 Press

VOL (+)

or

CH UP (8)

(–)

to access PARENT CONTROL mode.

(–)

to access “VIEW TIMER”.

or

DOWN (9)

to select “VIEWING TIME” and

“OFF TIME”. For each selection, press the

the time duration.

6 Press

VOL (+)

CH UP (8)

or

(–)

DOWN (9)

to turn ON the “VIEWING TIMER”. (If STATUS is

to select “STATUS”. Press the

OFF, VIEW TIMER will not operate)

7 Press

MENU

. “INPUT SECRET No.” will be displayed.

VOL (+)

CH

→

or

VOL—VOL

(–)

to set

VOL—VOL

PAR ENT CONTROL

VIE

W

TIMER

+

(PARENT CONTROL mode)

VIWTIMER

E

W

ITIME

EGN

VI

+

OFF TIME

ST TAUS

VEWT

IIMER

VEWINGITIME

2H TIME

OFF

––H ––M

STATU

S:OFF

VEWT

IIMER

VEWINGITIME

2H TIME

OFF

5H 00M

STATU

S:ON

NI PUT SECRET No.

–

– – –

––––H

00M

M

:OFF

12

11-14 CR20S10[E].pm65 1/6/01, 12:29 pm12

Parent Control (VIEW TIMER Continued)

8 Enter the 4-digit SECRET No. using the 9

Press

MENU

, and SECRET No. is registered.

REMOTE KEYPAD

1 2 3 4 5 6 7 8 9

ENTER

0

100

.

→

Example

• To restrict anybody from watching the TV for 5 hours, after watching the

TV for 2 hours, your settings would look like this:

• They can choose to watch the 2 hours of TV however they wish. For

example, they could watch 1 hour of TV, turn TV off for 30 minutes, then turn TV on and watch the remaining 1 hour on the VIEWING TIMER.

L How to change the VIEW TIMER settings. (SECRET No. is registered)

1 Repeat “How to set VIEW TIMER” steps and select

“PARENT CONTROL VIEW TIMER” during step 3. Press

VOL (+)

or

(–)

, and “INPUT SECRET No.” will

be displayed.

2 Enter the 4-digit SECRET No. using the

KEYPAD

, and the VIEW TIMER access screen will

REMOTE

be displayed. Repeat step 5 ~ 6.

Note:

• When you choose the correct SECRET No., the VIEW TIMER access

screen is displayed. If the wrong SECRET No. is chosen, “SECRET No. IS INCORRECT” is displayed. Input the SECRET No. again in this case.

VOL—VOL

1 2 3 4 5 6 7 8 9

0

+

ENTER

100

NI PUT SECRET No.

1

2 3 4

VEWT

IIMER

VEWINGITIME

2H

00M

TIME

OFF

5H 00M

STATU

S:ON

NI PUT SECRET No.

–

– – –

I PUT ESN CRET No .

****

S ECRET No. IS

INC

O

RRECT

L How to cancel the VIEW TIMER (While the TV set is OFF but the

VIEW TIMER is set)

1 Turn on TV; a blue screen message “TIME OVER” will appear . If you

do nothing, the TV will turn off in approximately 30 seconds.

2 Enter the 4-digit SECRET No. using the

KEYPAD

the VIEW TIMER is canceled. If the wrong SECRET No. is chosen, “SECRET No. IS INCORRECT” is displayed. Input the SECRET No. again in this case.

L To cancel the VIEW TIMER setting or change the SECRET No. (When

you forget the SECRET No.)

. When you choose the correct SECRET No.,

1 Repeat “How to set VIEW TIMER” steps and select

“PARENT CONTROL VIEW TIMER” during step 3.

VOL (+)

Press be displayed.

11-14 CR20S10[E].pm65 1/6/01, 12:29 pm13

or

(–)

, and “INPUT SECRET No.” will

REMOTE

1 2 3 4 5 6 7 8 9

0

VOL—VOL

+

ENTER

100

TMEO

I VER

I PUT ESN CRET

–––

–

TMEOI VER

I PUT ESN CRET

****

NI PUT SECRET No.

–

– – –

No .

13

4 5 6

Parent Control (VIEW TIMER Continued)

2 Press and hold both

simultaneously until the VIEW TIMER access screen is displayed. Now you can cancel the VIEW TIMER settings or change the SECRET No. while “INPUT SECRET No.” is displayed.

VOL (+)

and

CH UP (8)

on the TV set

(On the Set)

?

+

L

O

V

MENU

>

H

C

L Notice of Remaining VIEWING TIME

• For every 30 minute interval, the “remaining time” will be displayed for 4 seconds. For the last 5 minutes, the “remaining time” will be displayed every minute.

•“0 REMAIN” will be displayed for 10 seconds just before the VIEWING TIME is complete.

Energy Save

L This feature lets you lower the power consumption of your TV

set which in turn saves you money and minimizes the impact on the environment. When this feature is turned on, it reduces the brightness of the TV to a level that consumes approximately 20 percent less energy than when the feature is turned off. The reduction in brightness will be less noticeable under low room lighting conditions.

1 Press MENU to access MAIN MENU screen. 2 Press

CH UP (8)

“ENERGY SAVE”.

or

DOWN (9)

to move the “ ” mark to

CH

→

CH

VOL (+) /

VIEWING TIME

7 8 9

FLASHBACK

PERSONAL PREFERENCE

ABCD

VOL

—

MENU MUTE

SL EP T IMERE

V I DEO ADJ UST AUD I O

PAR ENT CONTROL ENERGY S AVE SET UP

UP

(8) buttons

VIEWING TIME

0H

VIEWING TIME

0H

05M

0

ENTER

0

100

CH

VOL

+

CH

CATV TV

SELECT

CHANNEL

30M

REMAIN

VOLUME (+)/(–)

CHANNEL UP (8)/ DOWN (9)

MENU

CAPT I ONCLOSED

(MAIN MENU screen)

3 Press

4 Press

5 Press

VOL (+)

MENU

or

(–)

to access ENERGY SAVE select mode.

or

(–)

to select “ON”.

to exit.

14

11-14 CR20S10[E].pm65 21/5/01, 3:04 pm14

VOL—VOL

EN REGYSAVE

+

:OFF

(ENERGY SAVE select mode)

EN REGYSAVE

+

:ON

BL E SCREENU

LANGUAGE

INGCH SE T T

PE SONAL PREF .R UN VER SA L P L USI

SL EP T IMERE VIDEO ADJUST

ELECTAUD I O S

SET UP

CAPT I ONCLOSED CONTROLPARENT

ENERGY SAVE

Set Up

L EZ SETUP

By operating the channel preset functions, you can preset your TV to the desired channels for viewing.

1 2 3 4 5 6 7 8 9

ENTER

FLASHBACK

0

PERSONAL PREFERENCE

A B C D

CH

VOL

—

CH

MENU MUTE

REMOTE KEYPAD

VOLUME

100

(+)/(–) CHANNEL

VOL

+

UP (8)/ DOWN (9)

MENU

1 Press 2 Press

MENU

to access MAIN MENU screen.

CH UP (8)

or

DOWN (9)

to move the “ ” mark to “SET

UP”.

3 Press

4 Press

5 Press

6 Press

8

(

VOL (+)

)

or

DOWN (9)

VOL (+)

or

(–)

to access SET UP mode, then press

to move the “ ” mark to “CH SETTING”.

or

(–)

to access CH SETTING mode.

or

(–)

to access EZ SETUP mode.

. The tuner will automatically search for the broadcasting and cable TV channels. (The CH No. will automatically increase when it appears.)

If you want to stop the EZ SETUP process once it has started, press

VOL (–)

. Search will be

canceled.

To cancel EZ SETUP

Press

VOL (–)

.

VOL—VOL

CH

→

CH

(MAIN MENU screen)

CH UP

CH

→

+

CH

VOL—VOL

VOL

(SET UP mode)

EZ

SETUP AI /CABLER CH SE ARCH CH MEMORY

+

(CH SETTING mode)

OR CA B L E .

TSART SETUP?ZE

+

ANTENNCON NE CT A

YE : VOL+

S

NO :

VOL –

(EZ SETUP mode)

+

AU18TO RGGAMM I NORP

WA I TPLE EAS

TSOP:

VOL –

7 Once EZ SETUP is completed, the lowest channel number

memorized will be displayed.

15

15-16 CR20S10[E].pm65 21/5/01, 3:04 pm15

SL EP T IMERE VIDEO ADJUST

ELECTAUD I O S

SET UP

CAPT I ONCLOSED CONTROLPARENT

ENERGY SAVE

Set Up (Continued)

L CHANNEL SETTING

If EZ SETUP does not memorize all the channels in your region, follow the instructions below to manually memorize the channel.

1 Press 2 Press

UP”.

MENU

to access MAIN MENU screen.

CH UP (8)

or

DOWN (9)

to move the “ ” mark to “SET

CH

→

CH

(MAIN MENU screen)

3 Press 4 Press

VOL (+)

CH UP (8)

SETTING”.

5 Press

6 Press

VOL (+)

CH UP (

CABLE”, then press

7 Press

CH UP (

desired mode.

CABLE STD

AIR

or

(–)

to access SET UP mode.

or

DOWN (9)

or

(–)

to access CH SETTING mode.

8

) or

DOWN (

VOL (+)

8

) or

DOWN (9)

to move the “ ” mark to “CH

9

) to move the “ ” mark to “AIR/

or

(–)

to access AIR/CABLE mode.

to move the “ ” mark to the

CABLE HRC CABLE IRC

VOL—VOL

CH

BL E NSCREE

U

PE SONAL PREF .R

UN VER SA L P L USI

LA

+

CH

→

NGUAGE

CH SE T T I NG

(SET UP mode)

EZ

SETUP

AI /CABLER CH SE ARCH CH MEMORY

VOL—VOL

+

(CH SETTING mode)

EZ SETUP AI /CABLER

H SEARCH

C

HMEMORYC

VOL—VOL

→

+

AI /CABLER

AI

R

ABLE STD

CH

C

ABLE HRCC ABLE I RCC

(AIR/CABLE mode)

8 Press

MENU

to exit.

Note:

• Receivable channels of your TV set are: AIR channels: CABLE channels:

VHF: 2 through 13. 1 (HRC and IRC mode only) UHF: 14 through 69. 2 through 125 (STD, HRC and IRC)

16

15-16 CR20S10[E].pm65 21/5/01, 3:04 pm16

CH

Set Up (Continued)

L Saving broadcast TV channels into memory.

1.1 Press

1.2 Press

1.3 Press

1.4 Press

MENU

screen, then press

(

9

)

to move the “ ” mark to “SET UP”.

VOL (+)

mode, then press

9

)

to move the “ ” mark to “CH

(

to access MAIN MENU

CH UP (8)

or

(–)

to access SET UP

CH UP (8)

or

SETTING”.

VOL (+)

or

(–)

to access CH

SETTING screen.

CH UP (8)

the “

” mark to “CH SEARCH”, then press

VOL (+)

or

DOWN (9)

(–)

to access CH SEARCH

screen.

DOWN

to move

VOL—VOL

CH

+

→

VOL—VOL

CH

EZ

SETUP

AI /CABLER

AI /CABLER CH SE ARCH

CH SE ARCH CH MEMORY

CH MEMORY

(CH SETTING mode)

+

START

2.1 Press

VOL (+)

. The tuner will search through all available channels in your area and add them into the TV’s memory.

STOP

2.2 Press

VOL (–)

. CH SEARCH will stop at

the current channel and will not add any

(STOP)

VOL

(START)

VOL

+

—

CH SE ARCH

1

2

ST

ST S

S

AR +T:

TO –P:

AIR

(CH SEARCH mode)

higher channels.

2.3 Press

MENU

to exit.

Note:

• If you press

VOL (+)

again while in the CH SEARCH mode, autoprogram will start again, and the previously memorized channels will be lost.

L Adding weak or additional channels or erasing unwanted channels from TV memory.

1.1 Press

1.2 Press

1.3 Press

MENU

screen, then press

9

)

to move the “ ” mark to “SET UP”.

(

VOL (+)

mode, then press

9

)

to move the “ ” mark to “CH

(

to access MAIN MENU

CH UP (8)

or

(–)

to access SET UP

CH UP (8)

or

SETTING”.

VOL (+)

SETTING mode, then press

DOWN (9)

or

(–)

to access CH

CH UP (8)

to move the “ ” mark to “CH

DOWN

or

VOL—VOL

CH

→

CH

→

CH

+

EZ

SETUP

AI /CABLER

AI /CABLER CH SE ARCH

CH SE ARCH CH MEMORY

CH MEMORY

(CH SETTING mode)

MEMORY”.

2.1 Press

VOL (+)

MEMORY.

or

(–)

to access CH

VOL—VOL

+

2.2 Use

2.3 Press

CH UP (8)

KEYPAD

or

to select each desired channel

to add or erase.

VOL (+)

to add a channel to the TV’s

memory or press

DOWN (9)

VOL (–)

or

REMOTE

to erase a

VOL—VOL

or

+

1 2 3 4 5 6 7 8 9

0

ENTER

100

channel from the TV’s memory.

17

17-18 CR20S10[E].pm65 21/5/01, 3:04 pm17

LANG GEUA

BL E NSCREEU

CH SE T T I NG

PE SONAL PREF .R UN VER SA L P L USI

:OFF

BL EUSCREEN

:ON

BL EUSCREEN

Set Up (Continued)

2.4 Press

MENU

to exit.

VOL (+)

HMEMORY

C

AIR

2

1

D+:

ADTO

(CH MEMORY

unmemorized channel)

To add channel 12 to

the TV memory

VOL (–)

To erase channel 12 from

the TV memory

CH MEMORY

21

AIR

ESTO AR

(CH MEMORY

memorized channel)

L BLUE SCREEN

Automatically turns the screen blue if a broadcast signal is not received.

1 Press 2 Press

MENU

to access MAIN MENU screen.

CH UP (8)

or

DOWN (9)

to move the “ ” mark to “SET

UP”.

→

3 Press

4 Press

VOL (+)

or

(–)

to access SET UP mode.

or

(–)

to access BLUE SCREEN select mode.

E –:

CH

VOL—VOL

POWER

TV

DVD VCR

DISPLAY

INPUT

1 2 3 4 5 6 7 8 9

ENTER

FLASHBACK

0

100

PERSONAL PREFERENCE

ABCD

CH

VOL

—

CH

MENU MUTE

CATV TV

DVD VCR

SL EP T IMERE VIDEO ADJUST

ENERGY SAVE SET UP

VOLUME (+)/(–)

CHANNEL

VOL

+

UP (8)/ DOWN (9)

MENU

ELECTAUD I O S CAPT I ONCLOSED CONTROLPARENT

(MAIN MENU screen)

+

(SET UP mode)

VOL—VOL

+

(BLUE SCREEN select mode)

5 Press

6 Press

VOL (+)

MENU

or

(–)

to exit.

to select “ON”.

VOL—VOL

+

Note:

• Poor reception due to weak signals, or too much noise might activate the BLUE SCREEN function despite the presence of a broadcast signal. To continue watching TV under these conditions, switch the BLUE SCREEN “OFF”.

• While VCR input mode is selected, the BLUE SCREEN will not be shown on your TV even if the BLUE SCREEN is turned on.

18

17-18 CR20S10[E].pm65 21/5/01, 3:04 pm18

Set Up (Continued)

L PERSONAL PREFERENCE

By setting the PERSONAL PREFERENCE channels in advance, you can select your favorite channels easily.

1 Press 2 Press

MENU

to access MAIN MENU screen.

CH UP (8)

or

DOWN (9)

to move the “ ” mark to “SET

UP”.

→

3 Press

4 Press

VOL (+)

8

)

or

(

or

(–)

DOWN (9)

to access SET UP mode, then press to move the “ ” mark to “PERSONAL

PREFERENCE”.

VOL (+)

VOL—VOL

or

(–)

to select PERSONAL PREFERENCE select

→

+

mode in which you can program 4 favorite channels, in 4 different categories. (total of 16 channels)

PERSONAL PREFERENCE

CH

CH UP

CH

VOL—VOL

+

1 2 3

4 5 6

7 8 9

ENTER

FLASHBACK

0

PERSONAL PREFERENCE

A B C D

CH

VOL

—

CH

MENU MUTE

REMOTE KEYPAD

VOLUME

100

(+)/(–)

CHANNEL

VOL

+

UP (8)/ DOWN (9)

MENU

SL EP T IMERE

V I DEO AD JUST AUD IO

SELECT

PAR ENT CONTROL ENERGY SAV E SET UP

CAPT IONCLOSED

(MAIN MENU screen)

BL E SCREENU PE S RNOAL P F.ER UN VERSAL PLUSI

LA

GUAGEN

CH SE TT I NG

(SETUP mode)

.PE SRONAL PREF

ABCD ––– ––– ––– ––– ––– ––– ––– ––– ––– ––– ––– ––– ––– ––– ––– –––

(PERSONAL PREFERENCE select mode)

5 Press

CH UP (8)

or

DOWN (9)

to move the “ ” mark to the

desired position.

6 Press

REMOTE KEYPAD

on the Remote to input the CHANNEL

Number into the memory.

Example:

125 — Press “100” followed by “2” and then “5”. 25 — Press “2” and then “5”. 4 — Press “0” and then “4”.

7 Repeat steps 4 to 6 to input the next CHANNEL Number.

8 Press

19-20 CR20S10[E].pm65 23/5/01, 4:04 PM19

MENU

to exit.

To select the PERSONAL PREFERENCE channel.

If the channels are memorized as shown to the right, press the Remote’s “A” button to select the Channels below.

125 25 40 4

CH

1 2 3

4 5 6

7 8 9

0

ENTER

PE SRONAL PREF.

ABCD

––– ––– ––– ––– ––– ––– ––– ––– ––– ––– ––– ––– ––– ––– –––

PE SRONAL PREF

ABCD

125 ––– ––– –––

–––

––– ––– –––

–––

––– ––– –––

100

–––

––– ––– –––

PE SRONAL PREF

ABCD

125 85 38 –––

25 123 30 ––– 40 55 ––– –––

4 ––– ––– –––

–––

.

19

BL E SCREENU

LA

CH SE T T I NG

GUAGEN

UN VERSAL P LUSI

PE S RNOAL P F.ER

4 5 6

Set Up (Continued)

L UNIVERSAL PLUS FUNCTION

VCR or DVD input mode will be selected automatically by pressing the VCR or DVD PLAY buttons on the UNIVERSAL REMOTE CONTROL.

1 Press 2 Press

MENU

to access MAIN MENU screen.

CH UP (8)

or

DOWN (9)

to move the “ ” mark to “SET

UP”.

→

3 Press

4 Press

VOL (+) or (–)

CH UP (8)

“UNIVERSAL PLUS”.

to access SET UP mode.

or

DOWN (9)

to move the “ ” mark to

CH

VOL—VOL

CH

ENTER

100

VOL

+

ELECTAUD I O S CAPT I ONCLOSED CONTROLPARENT

VOLUME (+)/(–)

CHANNEL UP (8)/ DOWN (9)

MENU

7 8 9

FLASHBACK

0

PERSONAL PREFERENCE

ABCD

CH

VOL

—

CH

MENU MUTE

CATV TV

DVD VCR

SL EP T IMERE VIDEO ADJUST

ENERGY SAVE SET UP

(MAIN MENU screen)

+

(SET UP mode)

BL E SCREENU PE S RNOALP F.ER

UN VERSAL P LUSI

LA

GUAGEN

CH SE T T I NG

5 Press

VOL (+) or (–)

to access UNIVERSAL PLUS to select VCR

or DVD mode.

6 Press

press

CH3

CH UP (8)

or

VOL (+) or (–)

CH4

DOWN (9)

to select “CH3, CH4”, “INPUT” or “OFF”.

INPUT OFF

Set model to the input in which your VCR or DVD is connected to. If done through RF, select either channel 3 or 4 to match the setting of the VCR or DVD.

7 Press

MENU

to exit.

20

19-20 CR20S10[E].pm65 25/5/01, 3:15 pm20

VOL—VOL

+

to select the VCR or DVD, and

CH

→

VOL—VOL

+

UN VI ERS AL PL US

:

OFF

VCR

:

OFF

DVD

:

(UNIVERSAL PLUS select mode)

UN VI ERS AL PL US

:

CH3

VCR

:

OFF

DVD

:
