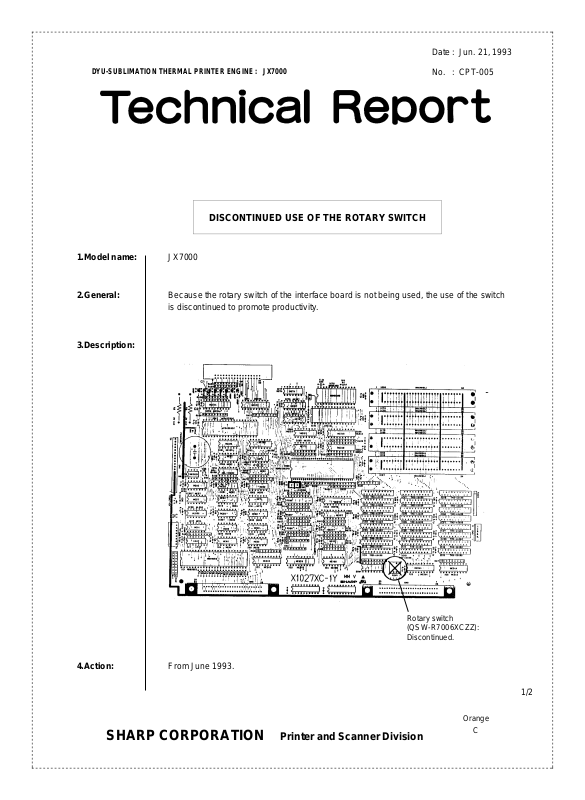

SHARP CPT005 Technical Report

Date: Jun. 21, 1993

DYU-SU BL IM ATIO N TH ERM A L PR INT ER ENG INE : JX700 0

No. : CPT-005

DISCONTINUED USE OF THE ROTARY SWITCH

1.Model name: JX7000

2.General: Because the rotary switch of the interface board is not being used, the use of the switch

is discontinued to promote productivity.

3.Description:

4.Action: From June 1993.

SHARP CORPORATION Printer and Scanner Division

Rotary switch
(QSW-R7006XCZZ):
Discontinued.

1/2

Orange

C

Ref.

No.

Model

name

Version P/G No.

JX7000 All

16 -118

Current parts New parts

Parts code Parts code

Price
rank

QSW-R7006XCZZ Discontinued —

Parts name

Rotary switch
(16p)

Effec­tive
time

’93/6 6

<Inter change>

1. Interchangeable. 4. Not interchangeable.

2. C urr e nt t y pe c a n be u s ed i n p la ce of new ty pe .
New ty pe cann ot be us ed i n place of curr ent type .

3. C urre nt ty pe cann ot be used i n place of new ty pe.
New t y pe c a n be u sed in pla c e of c u rr en t ty p e.

Parts marked with “ ” is important for maintaining the safety of the set. Be sure to replace these parts with

specified ones for maintaining the safety and performance of the set.

!

5. Interchangeable if replaced with same types of
relate d parts in use .

6. Others.

Inter­change­ability

Note

Discon­tinued

2/2
