MICRO COMPONENT SYSTEM
MODEL
XL-MP10H
OPERATION MANUAL
XL-MP10H (A) TINSEA 0 36S J ZZ
Thank you for purchasing this SHARP product.
To obtain the best performance from this product, please read this
manual carefully. It will guide you in operating your SHARP product.
XL-MP10H Micro Component System consisting of XL-MP10H (main unit)
and CP-S10H (speaker system).
Accessories
Please confirm that the following accessories are included.
1
Remote control 1 "AA" size battery
(UM/SUM-3, R6, HP-7
or similar) 2
Note:
Only the above accessories are included.
04/10/27 XL-MP10H(A)_FRONT.fm
FM/AM loop aerial
1
TINSEA036SJZZ
XL-MP10H
Special notes
Contents
Warning:
When the ON/STAND-BY button is set at STAND-BY position,
!
mains voltage is still present inside the unit. When the ON/
STAND-BY button is set at STAND-BY posi tion, the un it may be
brought into operation by the timer mode or remote control.
This unit contains no user serviceable parts. Never remove cov-
!
ers unless qualified to do so. This unit contains dangerous voltages, always remove mains plug from the socket before any
service operation and when not in use for a long period.
To prevent fire or shock hazard, do not expose this appliance to
!
dripping or splashing. No objects filled with liquids, such as
vases, should be placed on the apparatus.
CAUTION
This product is classified as a CLASS 1 LASER product.
!
Use of controls, adjustments or perform an c e of pr o ce du re s other than
!
those specified herein may re s ult in hazardous radiation ex posure.
As the laser beam used in this compact disc player is harmful to
the eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.
Laser Diode Properties
Material: GaAIAs
Wavelength: 780 nm
Emission Duration: continuous
Laser Output: max. 0.6 mW
Important Instruction
Note for users in Australia:
Copyright may exist in material you wish to record. Copying or
broadcasting such material without pe rmission of the relevant licensees or owners of the c opyright is prohibited by law. SHARP is
not in a position to authorise the copying or broadcasting of copyright materials and nothing in this OPERATION MANUAL should be
implied as giving that authority.
For other countries:
Audio-visual material may consist of copyri ghted works which must
not be recorded without the authority of the owner of the copyright.
Please refer to the relevant laws in your country.
2
Page
" General Information
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Controls and indic a tors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4, 5
" Preparation for Use
System connection s . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6, 7
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
" Basic Operation
Sound control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Setting the clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
" Disc Playback
Listening to a disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 - 12
Advanced disc playback . . . . . . . . . . . . . . . . . . . . . . . . . . 13 - 15
" Radio
Listening to the rad io . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 6
Listening to the me morised station . . . . . . . . . . . . . . . . . . . . . 17
" Tape Playback
Listening to a cass e tte ta p e . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
" Tape Recording
Recording on a cassette tape . . . . . . . . . . . . . . . . . . . . . . . 19, 20
" Advanced Features
Timer and sleep operation . . . . . . . . . . . . . . . . . . . . . . . . . 21, 22
" References
Troubleshooting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23, 24
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back cover
04/10/21 XL-MP10H(A)E1.fm
TINSEA036SJZZ
Precautions
XL-MP10H
" General
Please ensure that the equipment is posi tioned in a well venti-
!
lated area and that there is at least 10 cm of free space along the
sides and back. There must also be a minimum of 20 cm of free
space on the top of the unit.
10 cm 10 cm
Use the unit on a firm, level surface free from
!
vibration.
Keep the unit away from direct sunlight,
!
strong magnetic fields, excessive dust, humidity and electronic/electrical equipment
(home computers, facsimiles, etc.) which
generate electrical noise.
Do not place anything on top of the unit.
!
Do not expose the unit to moisture, to temperatures higher than
!
60°C or to extremely low temperatures.
If your system does not work proper ly, disconnec t the AC power
!
lead from the wall socket. Plug the AC power lead back in, and
then turn on your system.
In case of an electrical storm, unplug the
!
unit for safety .
20 cm
10 cm
Hold the AC power plug by the head when
!
removing it from the wall socket, as pulling
the lead can damage internal wires.
!
Do not remove the outer cover, as this
may result in electric shock. Refer internal service to your local SHARP service
facility.
The ventilation should not be impeded by
!
covering the ventilation openings with
items, such as newspapers, tablecloths,
curtains, etc.
No naked flame sources, such as lighted candles, should be
!
placed on the apparatus.
Attention should be drawn to the environmental aspects of bat-
!
tery disposal.
This unit should only be used within the range of 5°C - 35°C.
!
Warnings:
The voltage used must be the same as that specified on this unit.
!
Using this product with a higher voltage other than that which is
specified is dangerous and may result in a fire or o ther type of
accident causing damage. SHARP will not be held responsible
for any damage resulting from use of this unit with a voltage other
than that which is specified.
!
CD players use a laser pickup which can damage the eyes if
viewed directly. Do not look at the pickup, and do not touch
the pickup directly.
" Volume control
The sound level at a given volume setting depends on speaker ef ficiency, location, and various other factors. It is advisable to avoid
exposure to high volume levels. Do not turn the volume on to full at
switch on and listen to music at moderate levels.
1
General Information
04/10/21 XL-MP10H(A)E1.fm
3
TINSEA036SJZZ
XL-MP10H
Controls and indicators
General Information
4
28
29
30
1
2
3
4
5
6
9
10
11
12
13
14
7
8
8
16 18 19 20 2115 17
22
24 25 26 27
23
31
32
33
34
35
1.Disc Compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
2.On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
3.Bass/Treble Selector Button . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.Function Selector Button . . . . . . . . . . . . . . . . . . . . 11, 16, 18
5.Memory/Set Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 , 1 7
6.Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 17
7.Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
8.Cassette Compartment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
9.Disc Eject Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
10.Remote Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
11.Disc Track Up or Fast Forward,
Tuner Preset Up Button . . . . . . . . . . . . . . . . . . . . . . . . . 13, 17
12.Disc Play or Pause, Tuning Up Button . . . . . . . . . . . . . 11, 16
13.Disc Stop, Tuning Down Button . . . . . . . . . . . . . . . . . . 11, 16
14.Disc Track Down or Fast Reverse,
Tuner Preset Down Button . . . . . . . . . . . . . . . . . . . . . . 13, 17
15.Headphone Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
16.Tape Record Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19, 20
17.Tape Play Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
18.Tape Rewind Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
19.Tape Fast Forward Button . . . . . . . . . . . . . . . . . . . . . . . . . . 18
20.Tape Stop/Eject Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
21.Tape Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 8
22.Tape Record Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
23.Sleep Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
24.Disc Random Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . 14
25.Memory Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 17
26.MP3 Track Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
27.WMA Track Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
28.Timer Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
29.Disc Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
30.Disc Repeat Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
31.FM Stereo Mode Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 16
32.FM Stereo Receiving Indicator . . . . . . . . . . . . . . . . . . . . . . 16
33.FM/AM Loop Aerial Socket . . . . . . . . . . . . . . . . . . . . . . . . . . 6
34.Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
35.AC Power Lead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6, 7
Reference page
04/10/21 XL-MP10H(A)E1.fm
TINSEA036SJZZ
XL-MP10H
1
3
4
5
6
7
8
9
10
11
12
13 25
14
15
16
17
18
19
20
21
22
23
24
26
27
1.Full-Rang e Speaker
2.Speaker Wire
Note:
The speaker grilles are not removable.
3.Remote Control Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . 7
4.On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
2
5.Clock Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
6.Timer Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
7.Sleep Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
8.Disc Fast Reverse, Tuning Down Button . . . . . . . . . . . 13, 16
9.Disc Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
10.Disc Track Down, Tuner Preset Down,
Time Down Butt on . . . . . . . . . . . . . . . . . . . . . . . . . . . 9, 13, 17
11.Disc Play Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 1
12.Treble Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . 8
13.Memory Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9, 15, 17
14.Disc Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
15.Clear Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15, 17
16.Tuner and Band Selector Button . . . . . . . . . . . . . . . . . . . . 16
17.MP3/WMA Display Button . . . . . . . . . . . . . . . . . . . . . . . 12, 13
18.Direct Search Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
19.Volume Up Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
20.Disc Fast Forward, Tuning Up Butt on . . . . . . . . . . . . . 13, 16
21.Disc Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
22.Disc Track Up, Tuner Preset Up,
Time Up Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9, 13, 17
23.Volume Down Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
24.Bass Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . . 8
25.Disc Random Play Button . . . . . . . . . . . . . . . . . . . . . . . . . . 14
26.Disc Repeat Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
27.Tape Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Reference page
General Information
1
04/10/21 XL-MP10H(A)E1.fm
5
TINSEA036SJZZ
XL-MP10H
Preparation for Use
6
System connections
Make sure to unplug the AC power lead
before making any connections.
AM loop aerial
FM aerial
Right speaker Left speaker
Wall socket
(AC 230 - 240 V, 50 Hz)
White line
Plain
" Aerial connection
Connect the FM/AM loop aerial to the ANTENNA socket.
Position the FM aerial wire and rotate the AM loop aeri al for optimum reception. Place the AM loop aerial on a s hel f, or attach it to a
stand or a wall.
Notes:
Placing the aerial on the unit or near the AC power lead may
!
cause noise pickup. Place the aerial away from the unit for better
reception.
Do not connect the attached FM aerial to an external aerial as
!
this may cause trouble.
Installing the AM loop aerial:
< Assembling > < Attaching to the wall >
Wall Screws (not supplied)
" Speaker connection
Connect the wire with the white line to the minus (-) terminal and the
plain wire to the plus (+) terminal.
Caution:
!
Do not let the bare speaker wires touch each
other.
Use speakers with an impedance of 4 ohms or
!
more, as lower impedance speakers can damage
the unit.
Do not mistake the right and the left channels.
!
The right speaker is the one on the right side
when you face the unit.
Placing the speaker system:
There is no distinction between the right and the left speakers.
Incorrect
04/10/21 XL-MP10H(A)E1.fm
TINSEA036SJZZ
XL-MP10H (A) TINSEA 0 36S J ZZ
2
" AC power connection
After checking all the connections have been made correctly, plug
the AC power lead of this unit into the wall socket.
Note:
Unplug the AC power lead from the wall socket if the unit will not be
in use for a prolonged period of time.
Remote control
" Battery installation
1 Remove the battery cover.
2 Insert the supplied batteries according to the direction indi-
cated in the battery compartment.
When inserting or removing the batteries, push them toward the
battery terminals.
3 Replace the cover.
Precautions for battery use:
Replace all old batteries with new ones at the same time.
!
Do not mix old and new batteries.
!
Remove the batteries if the unit is not to be used for long periods
!
of time. This will prevent potential damage due to battery leakage.
Caution:
! Do not use rechargeable batteries (nickel-cadmium battery, etc.).
!
Installing the batteries incorrectly may cause the unit to malfunction.
Battery removal:
Remove the battery cover. Push each battery toward the battery
terminal and take them out.
" To turn the power on
Press the ON/STAND-BY button to turn the power on.
After use:
Press the ON/STAND-BY button to enter the power stand-by
mode.
Notes concerning use:
Replace the batteries if the operating distance is reduced or if the
!
operation becomes erratic. Purchase 2 "AA" size batteries (UM/
SUM-3, R6, HP-7 or similar).
Periodically clean the transmitter on the remote control and the
!
sensor on the unit with a soft cloth.
Exposing the sensor on the unit to strong light may i nterfere with
!
operation. Change the lighting or the direction of the unit.
Keep the remote control away from moisture, heat, shock, and
!
vibrations.
" Test of the remote control
Check the remote control after
checking all the connections (see
pages 6 - 7).
Point the remote control directly at
the remote sensor on the unit.
The remote control can be used
within the range shown:
Press the ON/STAND-BY button.
Does the power turn on? Now, you
can enjoy music.
Remote sensor
0.2 m - 6 m
XL-MP10H
2
Preparation for Use
04/10/21 XL-MP10H(A)E1.fm
7
TINSEA036SJZZ
XL-MP10H
Sound control
" Adjusting the volume
Main unit operation:
When the VOLUME control is turned clockwise, the volume will
increase. When it is turned anti-clockwise, the volume will decrease.
Remote control operation:
Press the VOLUME (- or +) button to increase or decrease the volume.
.....
21 28 29 300
" Adjusting the bass
Main unit operation:
1 Press the BASS/TREBLE button to sel e ct "BASS".
2 Within 5 seconds, turn the VOLUME control to adjust the bass.
Remote control operation:
Press the BASS (- or +) button to adjust the bass.
...
Basic Operation
" Adjusting the treble
Main unit operation:
1 Press the BASS/TREBLE button to select "TRE".
2 Within 5 seconds, turn the VOLUME control to adjust the treble.
Remote control operation:
Press the TREBLE (- or +) button to adjust the treble.
...
...
04-3
...
04-3
8
04/10/21 XL-MP10H(A)E1.fm
TINSEA036SJZZ
Setting the clock
This may be operated only with the remote control.
In this example, the clock is set for the 24-hour (0:00) display.
1
Press the CLOCK button and within 5 seconds, press the
MEMORY button.
2
Within 1 minute, press the PRESET ( or ) button to select 24-hour or 12-hour display and then press the MEMORY button.
"0:00" The 24-hour display will appear.
(0:00 - 23:59)
"AM 12:00" The 12-hour display will appear.
(AM 12:00 - PM 11:59)
3
Within 1 minute, press the PRESET ( or ) button to adjust the hour and then press the MEMORY button.
Press the PRESET ( or ) button once to advance the time
by 1 hour. Hold it down to advance continuously.
4
Within 1 minute, press the PRESET ( or ) button to adjust the minutes and then press the MEMORY button.
Press the PRESET ( or ) button once to advance the time
by 1 minute. Hold it down to advance continuously.
To confirm the time display:
Press the CLOCK button.
The time display will appear for about 5 seconds.
Note:
The "0:00" or time will flash when the AC power supply is restored
after a power failure or unplugging the unit.
Readjust the clock as follows.
To readjust the clock:
Perform "Setting the clock" from the begi nning. If the "0:00" is not
flashing in step 1, step 2 (for selecting the 24-hour or 12-hour display) will be skipped.
To change the 24-hour or 12-hour display:
1 Clear all the programmed contents. [Refer to "Clearing all the
memory (reset)" on page 24 for details.]
2 Perform "Setting the clock" from the beginning.
XL-MP10H
3
Basic Operation
04/10/21 XL-MP10H(A)E1.fm
9
TINSEA036SJZZ
XL-MP10H
Disc Playback
Listening to a disc
This system can play back a standard CD, CD-R/RW in the CD format and CD-R/RW with MP3 or WMA files, but cannot record o n
them.
Some audio CD-R and CD-RW discs may not be playable due to the
state of the disc or the equipment used for recording.
MP3:
MP3 is a form of compression. It is an acronym which stands for
MPEG Audio Layer 3.
MP3 is a type of audio code which is pr ocessed by signific ant compression from the original audio source with very little loss in sound
quality.
The MP3 track indicator will light up when an MP3 track is read.
!
This system supports MPEG 1 Layer 3, MPEG 2 Layer 3, and
!
VBR files.
During VBR file playback, time counter in the displ ay may differ
!
from its actual playback time.
WMA:
WMA files are ASF (Advanced Systems Format) audio files which
are compressed with Windows Media Audio codec. WMA i s developed by Microsoft as an audio format file for Windows Media Player.
The WMA track indicator will light up when a WMA track is read.
!
Supported bit rates for WMA files range from 64 kbps to 160
!
kbps.
10
04/10/21 XL-MP10H(A)E1.fm
TINSEA036SJZZ
XL-MP10H
1
Press the ON/STAND-BY button to turn the power on.
2
Press the FUNCTION button until "CD DISC" appears on
the display.
When operating with the remote control, press the CD button.
3
Press the CD EJECT button to open the disc compartment.
4
Place the disc on the spindle, label
side up.
5
Close the disc compartment by firmly pushing the corner
marked "PUSH CLOSE".
[MP3]
Total number of tracks
[CD]
Total number
of tracks
Due to the structure of its disc information, it takes longer
!
(approximately 20 to 90 seconds) to read a CD-R/RW disc
recorded in the MP3 or WMA format than a normal CD.
Total playing
time
[WMA]
Total number of tracks
MP3 track indicator
WMA track indicator
6
Press the ( ) button to start playback from track 1.
Disc play indicator
When the last track on the disc has finished playing, the unit will
stop automatically.
To interrupt playback:
Main unit operation:
Press the button.
To resume playback from the same
point, press the button again.
Remote control operation:
Press the button.
To resume playback from the same point, press the button.
To stop playback:
Press the button.
To remove the disc:
Whilst in the stop mode, press the CD EJECT button.
Caution:
Do not play discs with special shapes (heart or octagon s haped)
!
as it may cause malfunctions.
If a disc is damaged, dir ty, or loaded upside down, "NO DISC"
!
will appear on the display.
Keep foreign objects out of the disc compartment.
!
Subjecting the unit to shock or vibration may cause mistracking.
!
! When the unit is not being used, be sure to close the disc com -
partment. If it is left open, the le ns may be covered with dust and
the unit may not operate properly.
! If TV or radio interference occurs during disc operation, move the
unit away from it.
4
Disc Playback
04/10/21 XL-MP10H(A)E1.fm
11
TINSEA036SJZZ
XL-MP10H
Listening to a disc (continued)
! Care of compact discs
Compact discs are fairly resi stant to damage, however mistrack ing
can occur due to an accumulation of dirt on the disc surface. Follow
the guidelines below for maximum enjoyment from your CD collection and player.
Do not write on either side of the disc, particularly the non-label
"
side from which signals are read. Do not mark this surface.
Keep your discs away from direct sunlight, heat, and excessive
"
moisture.
Always hold the CDs by the edges. Fingerprints, dirt, or water on
"
the CDs can cause noise or mistracking. If a CD is dirty or does
not play properly, clean it with a soft, dry cloth, wiping straight out
from the centre, along the radius.
NO
YES
Correct
! Headphones
Before plugging in or unplugging the headphones, reduce the
"
volume.
Be sure your headphones have a 3.5 mm diameter plug and
"
impedance between 16 and 50 ohms. The recommended imped-
Disc Playback
ance is 32 ohms.
Plugging in the headphones disconnects the speakers automati-
"
cally. Adjust the volume using the VOLUME control.
! To change the display (CD-R/RW discs
recorded in the MP3 or WMA format only)
Whilst in the stop mode or playback mode, press the DISPLAY button.
Each time the button is pressed, the display will change as follows.
[When in the stop mode]
Total number
of tracks
To check the total number of tracks, press the button.
"
[When in the playback mode]
Track
number
Elapsed
playback
time
Folder name
Folder name
Artist name Title nameAlbum name
Track name
1st track
Track name
12
04/10/21 XL-MP10H(A)E2.fm
TINSEA036SJZZ
Advanced disc playback
! To select the desired folder or track by name
(CD-R/RW discs recorded in the MP3 or WMA
format only)
1
Whilst in the stop mode, press
the DISPLAY button on the remote control to display the folder
name.
2
Select the desired folder by pressing the or button.
3
Press the DISPLAY button to display the track name.
4
Select the desired track by pressing the or button.
5
Press the ( ) button to begin
playback.
! To locate the beginning of a track
To move to the beginning of the next track:
Press the button for less than 0.5 seconds during playback.
To restart the track being played:
Press the button for less than 0.5 seconds during playback.
Note:
You can skip to any track by pressing the or button repeatedly until the desired track number appears.
! To locate the desired portion
Sound will be heard for a CD, but not for CD-R/RW discs recorded
in the MP3 or WMA format. (Check the dis played playback t ime for
these discs.)
For fast forward:
Press and hold down the button during playback.
For fast reverse:
Press and hold down the button during playback.
Notes:
Normal playback will resume when the or button is
"
released.
When the end of the last track is reached during fast forward,
"
"END" will appear on the display and disc operation will be
paused. When the beginning of the first track is reached during
fast reverse, the disc will start playback automatically.
The or button on the main unit allows you to loca te the
"
desired portion.
XL-MP10H
4
Disc Playback
04/10/21 XL-MP10H(A)E2.fm
13
TINSEA036SJZZ
XL-MP10H
Advanced disc playback (continued)
14
! Direct search of the track
By using the direct search buttons, the desired tracks can be
played.
1
Whilst in the stop mode, use
the direct search buttons on
the remote control to select the
desired track.
The direct search buttons allow you to select up to number 9.
"
When selecting number 10 or higher, use the "+10" button.
"
A. For example, to choose 13
1 Press the "+10" button once.
2 Press the "3" button.
B. For example, to choose 30
1 Press the "+10" button three times.
2 Press the "0" button.
2
Press the ( ) button to start playback.
Playback of the selected track is started. When the last track on
Disc Playback
the disc has finished playing, the unit will stop automatically.
To stop playback:
Press the button.
Notes:
The selected track can be st arted simply by pressing the dir ect
"
search buttons during playback. [It is not necessary t o press the
( ) button.]
A track number higher than the number of tracks on the disc can-
"
not be selected.
During random play, direct search is not possible.
"
For CD-R/RW discs recorded in the MP3 or WMA format, you
"
can select the track number but cannot select the folder by pressing the direct search buttons.
Selected track number
! Repeat play
All tracks or a programmed sequence can be continuously
repeated.
To repeat all tracks:
1 Press the REPEAT button.
2 Press the ( ) button.
To repeat a desired track:
1 Perform steps 1 - 3 in the "Programmed play" section on page 15
and then press the REPEAT button.
2 Press the ( ) button.
To repeat random play:
Press the REPEAT button during random play.
To cancel repeat play:
Press the REPEAT button again. " " will go out.
Caution:
After performing repeat play, be sure to press the button. Otherwise, the disc will play continuously.
! Random play
The tracks can be played in random order automatically.
Whilst in the stop mode, press the
RANDOM button and the ( ) button sequentially to begin random
play.
To cancel random play:
Whilst in the stop mode, press the RANDOM button again.
Notes:
When you press the RANDOM button during pl ayback, the mai n
"
unit switches to random play.
Random play will stop automatically when al l tracks are played
"
once. (The same track will not be played back twice.)
In random play, the unit will select and play tracks automatically.
"
(You cannot select the order of the tracks.)
If you press the button during random play, you can move to
"
the next track by the random operation. On the other hand, the
button does not allow you to move to the prev ious tr ack. The
beginning of the track being played will be located.
04/10/21 XL-MP10H(A)E2.fm
TINSEA036SJZZ
XL-MP10H
! Programmed play
You can choose up to 32 selections for playback in the order you
like.
1
Whilst in the stop mode, use the
direct search buttons to select the
desired track.
Selected track number
You can also select a track by pressing the or button.
2
Press the MEMORY (MEMORY/
SET) button to save the track
number.
Playback order
When the track is memorised, "MEMORY" will appear.
3
Repeat steps 1 - 2 for other tracks. Up to 32 tracks can be
programmed.
If you make a mistake, the programmed tracks can be cleared
by pressing the CLEAR button.
4
Press the ( ) button to start playback.
To clear the programmed selections:
Whilst the "MEMORY" indicator is lit, set the CD to the stop mode
and then press the CLEAR button.
Each time the button is pressed, one track will be cleared, beginning
with the last track programmed. When all the tracks are cleared,
"MEMORY" will disappear.
Adding tracks to the programme:
If a programme has been previously stored, the "MEMORY" indicator will be displayed. Then follow steps 1 - 2 to add tracks. The new
tracks will be stored after the last track of the original programme.
Notes:
Opening the disc compartment automatically cancels the pro-
"
grammed sequence.
Even if you press the ON/STAND-BY button to enter the stand-by
"
mode or change the function from CD to another, the programmed selections w ill no t be cle ar ed.
During the programme operation, random play is not possible.
"
For CD-R/RW discs recorded in the MP3 or WMA format, you
"
can select the track number but cannot select the folder by pressing the direct search buttons.
4
Disc Playback
04/10/21 XL-MP10H(A)E2.fm
15
TINSEA036SJZZ
XL-MP10H
Radio
Listening to the radio
1
Press the ON/STAND-BY button to turn the power on.
2
Press the FUNCTION button until "FM" or "AM" appears on
the display.
When operating with the remote control, press the TUNER
(BAND) button to select "FM" or "AM".
3
Press the TUNING ( or ) button to tune in to the desired
station.
Manual tuning:
Press the TUNING button as many times as required to tune in
to the desired station.
Auto tuning:
When the TUNING button is pressed for more than 0.5 seconds, scanning will start automatically and the tuner will stop at
the first receivable broadcast station.
Notes:
When radio interference occurs, auto scan tuning may stop auto-
"
matically at that point.
Auto scan tuning will skip w e a k si gn al stat io n s .
"
To stop the auto tuning, press the TUNING button again.
"
To receive an FM stereo transmission:
Press the FUNCTION [TUNER ( BAND)] button to display t he "ST"
indicator.
" " will appear when an FM broadcast is in stereo.
"
If the FM reception is weak, press the FUNCTION [TUNER
"
(BAND)] button to extinguish the "ST" indicator. The reception
changes to monaural, and the sound becomes clearer.
FM stereo mode indicator
FM stereo receiving indicator
Note:
This product can receive FM stereo/FM monaural and AM monaural
broadcasts. AM stereo broadcasts will not be played in stereo.
16
04/10/21 XL-MP10H(A)E2.fm
TINSEA036SJZZ
Listening to the memorised station
XL-MP10H
! Memorising a station
You can store 40 AM and FM stations in memory and recall them at
the push of a button. (Preset tuning)
1
Perform steps 1 - 3 in "Listening to the radio" on page 16.
2
Press the MEMORY/SET (MEMORY) button to enter the preset tun-
ing saving mode.
3
Within 5 seconds, press the PRESET ( or ) button to select the
preset channel number.
Store the stations in memory, in order, starting with preset
channel 1.
4
Within 5 seconds, press the MEMORY/SET (MEMORY) button to
store that station in memory.
If the "MEMORY" and preset number indicators go out before
the station is memorised, repeat the operation from step 2.
5
Repeat steps 1 - 4 to set other stations, or to change a preset station.
When a new station is stored in memory, the station previously
memorised will be erased .
Note:
The backup function protects the memorised stations for a few
hours should there be a power failure or the AC power lead disc onnection.
! To recall a memorised station
Press the PRESET ( or ) button for less than 0. 5 seconds to
select the desired station.
To select a preset station with the direct number buttons:
Press the corresponding number ("0" - "+10").
Example:
To select 28, press "+10", "+10" and "8".
! To scan the preset stations
The stations saved in memory can b e scanned automa tically. (Preset memory scan)
1 Press the PRESET ( or ) button for more than 0.5 seconds.
The preset number will flash and the programmed stations will be
tuned in sequentially, for 5 seconds each.
2 Press the PRESET ( or ) button again when the desired sta-
tion is located.

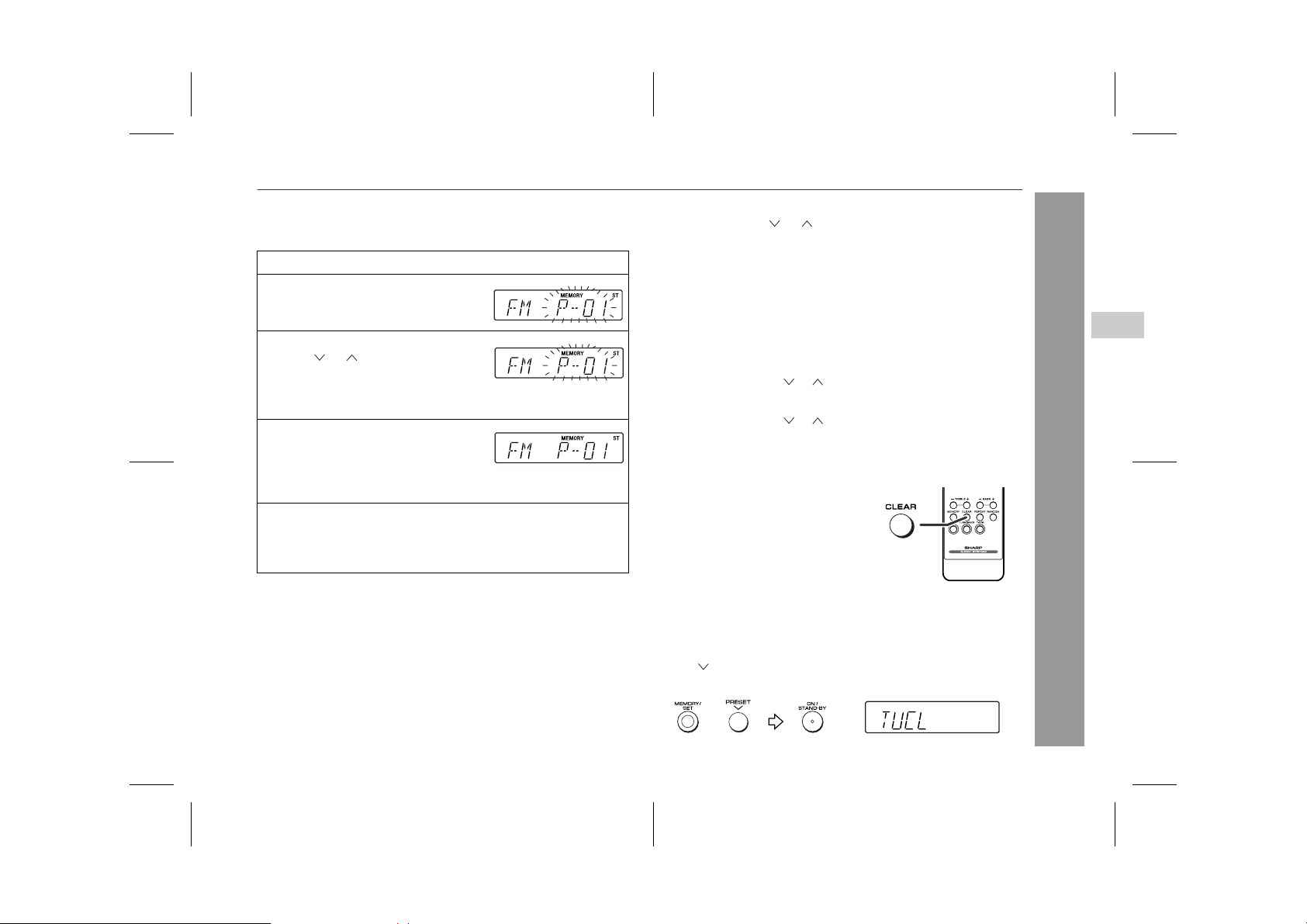

! To clear a memorised station
1 Recall the memorised station.
2 Whilst it is displayed, press the
MEMORY/SET (MEMORY) button.
3 Within 5 seconds, press the CLEAR
button on the remote control.
! To erase entire preset memory
1 Press the ON/STAND-BY button to enter the power stand-by
mode.
2 Whilst pressing down the MEMORY/SET button and the PRE-
SET button, press the ON/STAND-BY button until "TUCL" appears.
5
Radio
04/10/21 XL-MP10H(A)E2.fm
17
TINSEA036SJZZ
XL-MP10H
Listening to a cassette tape
Before playback:
For playback, use normal or low-noise tapes for
"
the best sound. (Metal or CrO tapes are not recommended.)
Do not use C-120 tapes or poor-quality tapes, as they
"
may cause malfunctions.
Before loading a tape into the cassette compartment,
"
tighten the slack with a pen or a pencil.
Tape Playback
1
Press the ON/STAND-BY button to turn the power on.
2
Press the FUNCTION button until "TAPE" appears on the
display.
When operating with the remote control, press the TAPE button.
3
Press the button to open the cassette compartment.
4
Load a cassette into the cassette compartment with the
side to be played facing toward you.
5
Close the cassette compartment.
6
Press the button to start playback.
To stop playback:
Press the button.
Fast forward/rewind:
To advance the tape, press the button, then press the but ton. To rewind, press the button, then press the button.
To interrupt playback:
Press the but ton duri ng playback.
Press the but ton agai n to resume playbac k.
Caution:
Do not press the button whilst the fast forward or rewind opera-
"
tions are in progress. The or button will not be released
when the tape end is reached. Once this occurs, press the
button.
Before changing from one tape operat i on to another, press the
"
button.
18
04/10/21 XL-MP10H(A)E2.fm
TINSEA036SJZZ
Recording on a cassette tape
XL-MP10H
Before recording:
When recording important selections, make a preliminary test to
"
ensure that the desired material is properly recorded.
SHARP is not liable for damage or loss of your recording ari sing
"
from malfunction of this unit.
The volume and sound controls can be adjusted with no effect on
"
the recorded signal (Variable Sound Monitor).
For recording, use only normal tapes. Do not use metal or
"
CrO tapes.
Do not use C-120 tapes or poor-quality tapes, as they may cause
"
malfunctions.
Erase-prevention tab of cassette tapes:
When recording on a cassette tape,
"
make sure that the erase-prevention
tabs are not removed. Cassettes have
removable tabs that prevent accidental recording or erasing.
To protect the recorded sound, re-
"
move the tab after recording. Cover
the tab hole with adhesive tape to
record on the tape without the tab.
Tab for
side B
! Recording from a disc
1
Press the ON/STAND-BY button to turn the power on.
2
Press the FUNCTION button until "CD DISC" appears on
the display.
When operating with the remote control, press the CD button.
3
Load the desired disc.
4
Load a cassette into the cassette compartment with the
side to be recorded on facing you.
Wind past the leader of the tape, on which recording cannot be
performed.
5
Press the button.
6
Press the button, which also
engages the button.
Side A
Tab for
side A
6
Tape Recording
7
Press the button again to cancel the pause mode.
8
Press the ( ) button to start recording.
04/10/21 XL-MP10H(A)E2.fm
19
TINSEA036SJZZ
XL-MP10H
Recording on a cassette tape (continued)
To perform programmed recording:
1 Programme tracks (see page 15).
2 Press the button.
3 Press the button, which also engages the button.
4 Press the button again to cancel the pause mode.
5 Press the ( ) button to start recording.
To interrupt recording:
Press the button.
To resume recording, press the button.
To stop recording:
Press the button.
The tape will stop.
Tape Recording
! Recording from the radio
1
Tune in to the desired station (see page 16).
2
Load a cassette into the cassette compartment with the
side to be recorded on facing you.
Wind past the leader of the tape, on which recording cannot be
performed.
3
Press the button.
4
Press the button, which also
engages the button.
5
Press the button again to begin recording.
To stop recording:
Press the button.
Note:
If you hear a whistling noise whilst recording an AM station, move
the AM loop aerial.
! Erasing recorded tapes
1 Load the tape to be erased into the cassette compartment with
the side to be erased facing toward you.
2 Press the FUNCTION button until "TAPE" appears on the dis-
play.
When operating with the remote control, press the TAPE button.
3 Press the button, which also engages the button to begin
erasing.
20
04/10/21 XL-MP10H(A)E2.fm
TINSEA036SJZZ
Timer and sleep operation
XL-MP10H
This may be operated only with the remote control.
Timer playback:
The unit turns on and plays the desired source (disc or tuner) at a
preset time.
Sleep operation:
The radio or disc can be turned off automatically.
Note:
The timer and sleep operations are not available during tape mode.
Before setting timer:
1 Check that the clock is set to the correct time (refer to page 9).
2 Load a disc to be played.
! Timer playback
1
Press the ON/STAND-BY button to turn the power on.
2
Press the CD or TUNER (BAND) button to select the desired function.
When you selected the TUNER (BAND), tune in to the desired
station.
3
Adjust the volume using the VOLUME buttons.
Do not turn the volume up too high.
4
Press the TIMER button and within 6 seconds, press the
MEMORY button.
5
Within 1 minute, press the PRESET ( or ) button to
specify the hour to start, then press the MEMORY button.
6
Within 1 minute, press the PRESET ( or ) button to
specify the minutes to start, then press the MEMORY button.
The timer playback starting time, function, and volume will be
"
displayed, and then the unit will enter the stand-by mode automatically.
" " wi ll appear and the current time will be disp layed.
"
7
Advanced Features
To cancel the timer playback:
Press the ON/STAND-BY button to turn the power on.
Continued to the next page
04/10/21 XL-MP10H(A)E2.fm
21
TINSEA036SJZZ
XL-MP10H
Timer and sleep operation (continued)
7
When the preset time is reached, playback will start.
The volume will increase gradually until it reaches the volume
you were listening at before your system enters the timer standby mode.
8
The unit will enter the stand-by mode one hour after the
timer playback starts. However, when disc playback time is
one hour or less, it will enter the stand-by mode after com-
pleting playback.
To reset or change the timer setting:
Perform "Timer playback" from the beginning.
! Sleep operation
1
Play back the desired sound source.
2
Press the SLEEP button.
To change the sleep time:
Press the SLEEP button repeatedly to select the desired sleep
time. The time will decrease as follows.
The amount of sleep time can also be changed whilst in the
Advanced Features
sleep mode.
(Maximum: 3 hours - Minimum: 5 minutes)
3:00 2:00 1:30 1:00
3
Your system will enter the power stand-by mode automatically after the preset time has elapsed.
The volume will turn down 40 seconds before the sleep operation finishes.
To cancel the sleep operation:
Press the ON/STAND-BY button whilst "SLEEP" is indicated.
To cancel the sleep operation without setting the system to the
stand-by mode, press the SLEEP button until "OFF" appears on the
display.
To confirm the remaining sleep time:
Press the SLEEP button once whilst the sleep timer is set.
The remaining sleep time is displayed for about 3 seconds.
! To use timer and sleep operation together
Example: To fall asleep and wake up to the same radio station
You can play back the same source only (the function cannot be
switched).
1
Set the sleep time (steps 1 - 2 on the left).
2
Whilst the sleep timer is set, set the desired playback time
(steps 4 - 6, page 21).
Sleep timer setting Timer playback setting
5 minutes - 3 hours
Sleep operation will
automatically stop.
10 15 305OFF
Timer playback
start time
22
04/10/21 XL-MP10H(A)E2.fm
TINSEA036SJZZ
Troubleshooting char t
XL-MP10H
Many potential problems can be resolved by the owner without calling a service technician.
If something is wrong with this product, check the following bef ore
calling your authorised SHARP dealer or service centre.
! General
Symptom Possible cause
The clock is not set to the
"
correct time.
When a button is pressed,
"
the unit does not respond.
No sound is heard.
"
Did a power failure occur? Reset
"
the clock. (Refer to page 9.)
Set the unit to the power stand-
"
by mode and then turn it back on.
If the unit still malfunctions, reset
"
it. (Refer to page 24.)
Is the volume level set to "0"?
"
Are the headphones connected?
"
Are the speaker wires discon-
"
nected?
! CD player
Symptom Possible cause
Playback does not start.
"
Playback stops in the mid-
"
dle or is not performed
properly.
Playback sounds are
"
skipped, or stopped in the
middle of a track.
Is the disc loaded upside down?
"
Does the disc satisfy the stan-
"
dards?
Is the disc distorted or
"
scratched?
Is the unit located near excessive
"
vibrations?
Is the disc very dirty?
"
Has condensation formed inside
"
the unit?
! Tuner
Symptom Possible cause
The radio makes unusual
"
noises continuously.
! Cassette deck
Symptom Possible cause
Cannot record.
"
Cannot record tracks with
"
proper sound quality.
Cannot erase completely.
"
Sound skipping.
"
Cannot hear treble.
"
Sound fluctuation.
"
! Remote control
Symptom Possible cause
The remote control does
"
not operate.
Is the unit placed near the TV or
"
computer?
Is the FM/AM loop aerial placed
"
properly? Move the aerial away
from the AC power lead if located
nearby.
Is the erase-prevention tab re-
"
moved?
Is it a normal tape? (You cannot
"
record on a metal or CrO tape.)
Is there slack in the tape?
"
Is the tape stretched?
"
Are the capstans, pinch rollers,
"
or heads dirty?
Is the AC power lead of the unit
"
plugged in?
Is the battery polarity correct?
"
Are the batteries dead?
"
Is the distance or angle incor-
"
rect?
Does the remote control sensor
"
receive strong light?
8
References
04/10/21 XL-MP10H(A)E2.fm
23
TINSEA036SJZZ
XL-MP10H
Maintenance
! If trouble occurs
When this product is subjected to strong external interference
(mechanical shock, excessive static electricity, abnormal supply
voltage due to lightning, etc.) or if it is oper ated incorrectly, it may
malfunction.
If such a problem occurs, do the following:
1 Set the unit to the stand-by mode and turn the power on again.
2 If the unit is not restored in the previous operation, unplug and
plug in the unit, and then turn the power on.
Note:
If neither operation above restores t he unit, cl ear al l the memory by
resetting it.
! Clearing all the memory (reset)
1 Press the ON/STAND-BY button to enter the power stand-by
mode.
2 Whilst pressing down the MEMORY/SET button and the CLEAR
button, press the ON/STAND-BY button until "CL" appears.
References
Caution:
This operation will erase all data stored in memory including clock,
timer settings, tuner preset, and CD programme.
! Condensation
Sudden temperature changes, storage or operation i n an ext remely
humid environment may cause condensation inside the cabinet (CD
pickup, tape heads, etc.) or on the transmitter on the remote control.
Condensation can cause the unit to malfunction. If this happens,
leave the power on with no disc (or casset te) in t he uni t until normal
playback is possible (about 1 hour). Wipe off any condensation on
the transmitter with a soft cloth before operating the unit.
! Cleaning the CD pickup lens
Do not touch the laser pickup lens. If fingerprints or dust accumulate on the pickup,
clean it gently with a dry cotton swab.
! Cleaning the cabinet
Periodically wipe the cabinet with a soft cloth and a diluted s oap
solution, then with a dry cloth.
Caution:
Do not use chemicals for cleaning (petrol, paint thinner, etc.) . It
"
may damage the cabinet finish.
Do not apply oil to the ins ide of the unit. It may cause m alfunc-
"
tions.
! Cleaning the tape-handling parts
Dirty heads, capstan or pi nch roller can cause poor sound and
"
tape jams. Clean these parts with a cotton swab mois tened with
commercial head/pinch roller cleaner or isopropyl alcohol.
When cleaning the heads, pinch roller, etc., unplug the unit which
"
contains high voltages.
Erase head
D
Recording/
Playback head
Capstan
Pinch roller
C
A
B
After long use, the deck's heads and capstan may become
"
magnetised, causing poor sound. Demagnetise these parts once
every 30 hours of pla ying/recording time by u sing a commercial
tape head demagnetiser. Read the demagnetiser's inst ructions
carefully before use.
24
04/10/21 XL-MP10H(A)E2.fm
TINSEA036SJZZ
Specifications
XL-MP10H
As part of our policy of continuous improvement, SHARP reserves
the right to make design and specification changes for product
improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be
some deviations from these values in individual units.
! General
Power source AC 230 - 240 V, 50 Hz
Power
consumption
Dimensions Width: 160 mm
Weight 2.3 kg
Power on: 25 W
Power stand-by: 0.9 W
Height: 242 mm
Depth: 250 mm
! Amplifier
Output power RMS: 10 W (5 W + 5 W) (10 % T.H.D.)
Output terminals Speakers: 4 ohms
Headphones: 16 - 50 ohms
(recommended: 32 ohms)
! Tuner
Frequency range FM: 87.5 - 108.0 MHz
AM: 522 - 1,620 kHz
! CD player
Type Compact disc player
Signal readout Non-cont act, 3-beam semiconductor laser
D/A converter 1-bit D/A converter
Frequency
response
Dynamic range 90 dB (1 kHz)
pickup
20 - 20,000 Hz
! Cassette deck
Frequency
response
Signal/noise ratio 50 dB (recording/playback)
Wow and flutter 0.3 % (WRMS)
125 - 8,000 Hz (normal tape)
! Speaker
Type 10 cm full-range speaker
Maximum input
power
Rated input power 5 W
Impedance 4 ohms
Dimensions Width: 130 mm
Weight 1.4 kg/each
10 W
Height: 240 mm
Depth: 161 mm
8
References
04/10/21 XL-MP10H(A)E2.fm
25
TINSEA036SJZZ
MEMO
04/10/27 XL-MP10H(A)_MEMO.fm
TINSEA036SJZZ
FOR LOCATION ENQUIRIES WITHIN
FOR LOCATION ENQUIRIES WITHIN
AUSTRALIA
REGARDING YOUR LOCAL
SHARP APPROVED SERVICE CENTRE
VISIT OUR WEBSITE AT
www.sharp.net.au
OR CALL SHARP CUSTOMER CARE
1300 135 022
(LOCAL CALL COST APPLY WITHIN AUSTRALIA)
SHARP CORPORATION OF AUSTRALIA PTY LTD
NEW ZEALAND
REGARDING YOUR LOCAL
SHARP APPROVED SERVICE CENTRE
VISIT OUR WEBSITE AT
www.sharp.net.nz
CONTACT YOUR SELLING DEALER/RETAILER
OR CALL
SHARP CUSTOMER SERVICES
TELEPHONE: 09 573 0111
FACSIMILE: 09 573 0113
SHARP CORPORATION OF NEW ZEALAND LIMITED
SPform019(JUNE 2004)
0410B
04/10/27 XL-MP10H(A)_WA.fm
TINSEA036SJZZ
WARRANTY
Consumer Electronic Products
Congratulations on Your Purchase!
This Sharp product is warranted against faults in materials and manufacture for a period of twelve(12) months from the
date of original purchase.
If service is required during the warranty period, please contact your nearest Sharp Approved Service Centre.
These repairs would be carried out at no charge to the owner, subject to the conditions specified herein.
The owner is responsible for any transportation and insurance costs if the product has to be returned for repair.
This warranty does not extend to accessories or defects or injuries caused by or resulting from causes not
attributable to faulty parts or the manufacture of the product, including but not limited to, defect or injury caused
by or resulting from misuse, abuse, neglect, accidental damage, improper voltage, liquid spillage, vermin
infestation, software, or any alterations made to the product which are not authorised by Sharp.
Please retain your sales documentation, as this should be produced to validate a warranty claim.
This warranty is in addition to and in no way limits, varies or excludes any express and implied rights and
remedies under any relevant legislation in the country of sale.
IMPORTANT
DO NOT RETURN THIS DOCUMENT TO SHARP
For your reference, please enter the particulars of your purchase below and retain,
with your purchase documentation.
Model No.
Serial No.
IMPORTANT NOTICE: This warranty applies only to products sold in Australia & New Zealand
Date of Purchase
Retailer
ITED
RATION O
40 003 039 405
ood NSW
ABN
1 Huntingwood D
Huntingw
rive
ARP CORPO
SH
AUSTRALIA PTY. LIM
ZEALAND LIMITED
SHARP CORPORATION OF
NEW
F
59 Hugo Johnston Drive
Penrose, Auckland
2148
(J
4
1
0
rm
fo
P
S
0
0
2
E
N
U
0410A
)
4
SHARP CORPORATION
04/10/13 XL-MP10H(A)_BACK.fm
TINSEA036SJZZ
04L N HK 1
0401_A5
TINSEA036SJZZ
Loading...
