Sharp CP-MPX870H Operation Manual

Page 1

9/5/06 CD-MPX870_FRONT.fm

TINSZA165AWZZ

MINI KOMPONENTEN SYSTEM MINI-CHAÎNE SISTEMA MINI MINI KOMPONENT SYSTEM MINI SISTEMI MINI SYSTEEM SISTEMA DE MINI COMPONENTE MINI COMPONENT SYSTEM

MODELL MODÈLE MODELO MODELL

MODELLO MODEL MODELO MODEL

CD-MPX870H

BEDIENUNGSANLEITUNG MODE D’EMPLOI MANUAL DE MANEJO BRUKSANVISNING

MANUALE DI ISTRUZIONI GEBRUIKSAANWIJZING MANUAL DE OPERAÇÃO OPERATION MANUAL

Das Mini Komponenten System CD-MPX870H besteht aus CD-MPX870H (Hauptgerät) und CP-MPX870H (Lautsprechersystem). Mini-chaîne CD-MPX870H composée de CD-MPX870H (appareil principal) et de CP-MPX870H (enceinte acoustique). CD-MPX870H Sistema de Mini Componente consistente en CD-MPX870H (unidad principal) y CP-MPX870H (sistema de altavoces). CD-MPX870H Minikomponentsystem bestående av CD-MPX870H (huvudenhet) och CP-MPX870H (högtalarsystem). CD-MPX870H Mini Component System, composto dal CD-MPX870H (unità principale) e dal CP-MPX870H (sistema di diffusori). CD-MPX870H Mini Component Systeem bestaande uit CD-MPX870H (hoofdunit) en CP-MPX870H (luidsprekersysteem). CD-MPX870H Mini Component System consistindo de CD-MPX870H (unidade principal) e CP-MPX870H (sistema de alto-falante). CD-MPX870H Mini Component System consisting of CD-MPX870H (main unit) and CP-MPX870H (speaker system).

Siehe Seiten i bis x und D-1 bis D-44. Se reporter aux pages i à x et F-1 à F-44. Consulte las páginas i a x y S-1 a S-44.

DEUTSCH

Favor consultar as páginas i a x e P-1 a P-44.

PORTUGUÊS

FRANÇAIS

ESPAÑOL

Hänvisa till sidorna i till x och V-1 till V-44. Leggere le pagine i a x e I-1 a I-44. Raadpleeg de bladzijden i t/m x en N-1 t/m N-44.

SVENSKA ITALIANO

NEDERLANDS

Please refer to pages i to x and E-1 to E-44.

ENGLISH

Page 2

9/5/06 CD-MPX870_COM.fm

CD-MPX870H

BESONDERE ANMERKUNGEN REMARQUES SPÉCIALES NOTAS ESPECIALES SÄRSKILDA ANMÄRKNINGAR NOTE PARTICOLARI BIJZONDERE OPMERKINGEN NOTAS ESPECIAIS SPECIAL NOTES

● Bei Einstellung der ON/STAND-BY-Taste auf STAND-BY ist die Netzspannung immer noch im Gerät vorhanden. Wenn die ON/STAND-BY-Taste auf STAND-BY eingestellt wird, kann das Gerät unter Verwendung der Timer-Betriebsart oder Fernbedienung in Betrieb gesetzt werden.

Warnung:

In diesem Gerät sind keine vom Benutzer wartbaren Teile vorhanden. Niemals Abdeckungen entfernen, außer wenn Sie dafür qualifiziert sind. In diesem Gerät sind gefährliche Spannungen vorhanden. Vor Ausführung von irgendwelchen Kundendienstarbeiten oder bei längerer Nichtverwendung des Gerätes stets den Netzstecker aus der Netzsteckdose ziehen.

● Lorsque la touche ON/STAND-BY est mise en STAND-BY, l’appareil est toujours sous tension. Lorsque la touche ON/STAND-BY se trouve sur la position STAND-BY, l’appareil est prêt à fonctionner par la minuterie ou la télécommande.

Avertissement:

Cet appareil contient des pièces non réparables par l’utilisateur. Personne non qualifiée n’enlèvera jamais les couvercles. L’appareil contenant des organes portés à haute tension, débrancher l’appareil avant toute réparation ou en période de non-utilisation.

● Dichiarazione di conformità

La società SHARP ELECTRONICS EUROPE GmbH dichiara che il prodotto

SHARP MINI SISTEMI CD-MPX870H

è costruito

in conformità alle prescrizioni del D.M.n˚548 del 28/8/95, pubblicato sulla G.U.n˚301 del 28/12/95 ed in particolare è conforme a quanto indicato nell’art. 2, comma 1 dello stesso decreto.

Page 3

9/5/06 CD-MPX870_COM.fm

CD-MPX870H

0203

● Wanneer de ON/STAND-BY toets in de STAND-BY stand staat, loopt er nog steeds stroom (netspanning) in het toestel. Wanneer de ON/STAND-BY toets in de STAND-BY stand staat, kan het toestel ingeschakeld worden via de timerfunctie of de afstandsbediening.

Waarschuwing:

Dit toestel bevat geen door de gebruiker te repareren onderdelen. Verwijder de behuizing nooit tenzij u deskundig bent op dit gebied. In het toestel loopt een gevaarlijke spanning; haal de stekker altijd uit het stopcontact alvorens onderhoud uit te voeren of wanneer het toestel voor langere tijd niet gebruikt wordt.

● Quando o botão ON/STAND-BY estiver ajustado na posição STAND-BY, a voltagem de alimentação ainda se encontra presente dentro do aparelho. Quando o botão ON/STAND-BY estiver ajustado na posição STAND-BY, o aparelho pode ser colocado em operação através do modo de programação horária ou pelo controle remoto.

Advertência:

Neste aparelho não há partes que podem ser consertadas pelo usuário. Nunca retire a tampa, a menos que você tenha qualificação para tal. Este aparelho contém voltagens perigosas. Remova sempre o cabo de alimentação da tomada antes de efetuar qualquer conserto ou quando deixar o aparelho muito tempo fora de uso.

● When the ON/STAND-BY button is set at STAND-BY position, mains voltage is still present inside the unit. When the ON/STAND-BY button is set at STAND-BY position, the unit may be brought into operation by the timer mode or remote control.

Warning:

This unit contains no user serviceable parts. Never remove

covers unless qualified to do so. This unit contains dangerous voltages, always remove mains plug from the socket before any service operation and when not in use for a long period.

● Cuando el botón ON/STAND-BY está puesto en la posición STAND-BY, todavía hay tensión dentro del aparato. Cuando el botón ON/STAND-BY está puesto en la posición STAND-BY, el aparato puede ponerse en funcionamiento utilizando el modo del temporizador o el controlador remoto.

Advertencia:

Tenga en cuenta que dentro de este aparato no hay piezas que pueda reparar. No quite nunca las tapas a menos que se esté cualificado para hacerlo. Este aparato tiene en su interior tensiones peligrosas. Desenchufe siempre la clavija de la red del tomacorriente antes de realizar cualquier servicio de mantenimiento y cuando no se use el aparato durante un largo período de tiempo.

● När ON/STAND-BY knappen är i läge STAND-BY, finns nätspänning i apparaten. Med ON/STAND-BY knappen i läge STAND-BY kan apparaten startas med timerfunktion eller fjärrkontrollen.

Varning:

Apparaten innehåller inga delar som kan åtgärdas av kunden. Höljet får endast öppnas av kvalificerad personal. Apparaten innehåller farliga spänningar. Stickkontakten ska därför dras ut från nätuttaget före reparationsarbeten och bör dras ut om apparaten inte ska användas på mycket länge.

● Quando il tasto ON/STAND-BY si trova in posizione STANDBY, all’interno dell’apparecchio c’è ancora la corrente. Se il tasto ON/STAND-BY si trova nella posizione STANDBY, l’unità può essere accesa con il modo timer o con il telecomando.

Avvertenza:

L’apparecchio non contiene parti riparabili dall’utente. Non togliere mai i coperchi, a meno di non essere qualificati per farlo. All’interno dell’apparecchio ci sono tensioni pericolose, per cui si deve sempre staccare la spina del cavo d’alimentazione dalla presa di corrente prima di qualsiasi intervento di manutenzione e quando non si usa l’apparecchio per un lungo periodo di tempo.

Page 4

iii

9/5/06 CD-MPX870_COM.fm

CD-MPX870H

● Når ON/STAND-BY-knappen er sat i STAND-BY positionen, er der stadig netspaending til stede i apparatet. Når ON/STAND-BY-knappen er sat i STAND-BY position, kan apparatet startes v.hj.a. timer-funksionen eller fjernbetjeningen.

Advarsel:

Apparatet indeholder ingen dele, der kan repareres af brugeren selv. Fjern aldrig kabinettet med mindre De er kvalificeret hertil. Apparatet indeholder farlig strømspaending. Traek altid stikket ud af stikkontakten før der foretages reparationer, eller hvis apparatet ikke er i brug i laengere tid.

DENNA APPARAT ÄR ANSLUTEN TILL 230 V VÄXELSTRÖM NÄR STICKPROPPEN ÄR INSKJUTEN I VÄGGUTTAGET. FÖR ATT FULLSTÄNDIGT KOPPLA IFRÅN APPARATEN, V.G. DRAG UT STICKPROPPEN.

● Audio-visuelles Material kann Urheberrechte umfassen, die ohne Genehmigung des Eigentümers dieser Urheberrechte nicht aufgenommen werden dürfen. Siehe die entsprechenden nationalen Gesetze.

● Le matériel audio-visuel peut comporter des oeuvres faisant l’objet de droits d’auteur qui ne peuvent être enregistrées sans l’autorisation du possesseur du droit d’auteur, veuillez vous référer aux réglementations nationales en vigueur.

● El material audiovisual puede consistir en trabajos que tengan derechos de autor y que no deben grabarse sin la autorización del poseedor de dichos derechos de autor. Sírvase consultar las leyes aplicables en su país.

● Audiovisuellt material kan innehålla upphovsrättsarbete som inte skall mångfaldigas utan tillstånd av copyrightinnehavaren. Se den tillämpliga lagen i ditt land.

● Il materiale audio-visivo che fosse soggetto a copyright non può essere registrato senza l’autorizzazione del possessore del copyright. Si prega di attenersi alle leggi in vigore sul territorio nazionale.

● Audio-visueel materiaal kan worden beschermd door auteursrechten, in welk geval het niet mag worden opgenomen zonder de toestemming van de auteursrechthouder. Zie voor nadere informatie de betreffende wetten in het land van gebruik.

● O material audiovisual pode consistir de trabalhos de direitos autorias que não devem ser gravados sem autorização do proprietário dos direitos. Favor consultar as leis vigentes em seu país.

● Audio-visual material may consist of copyrighted works which must not be recorded without the authority of the owner of the copyright. Please refer to relevant law in your country.

Page 5

9/5/06 CD-MPX870_COM.fm

CD-MPX870H

Page 6

9/5/06 CD-MPX870_COM.fm

CD-MPX870H

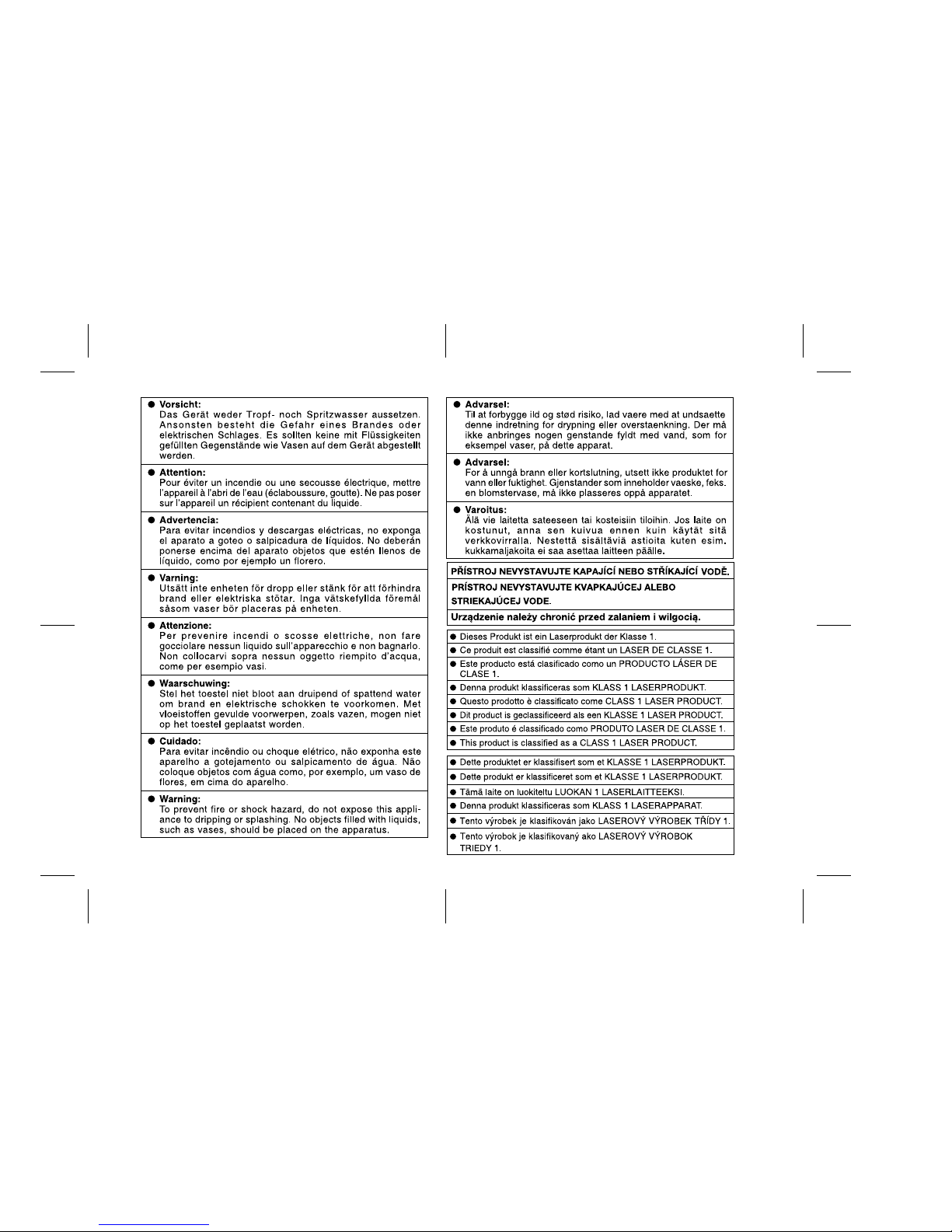

● VORSICHT

Verwendung von Regelungen oder Einstellungen bzw. Durchführung von anderen Verfahren als die hierin angegebenen kann zum Aussetzen gefährlicher Strahlung führen.

Da der in diesem Compact Disc Player verwendete Laserstrahl für die Augen schädlich ist, ist das Gehäuse unter keinen Umständen zu zerlegen. Wenden Sie sich für Wartungsarbeiten nur an berechtigten Fachhändler.

● ATTENTION

Respecter les indications données relatives à la manipulation, au réglage et au fonctionnement. En cas de non-respect, on s’exposera à une radiation dangereuse.

Éviter absolument de démonter l’appareil, qui utilise un rayon laser nuisible aux yeux. Pour toute réparation, s’adresser à une personne qualifiée.

● PRECAUCIÓN

El uso de los controles, ajustes o ejecución de procedimientos distintos de los especificados podría causar la exposición a radiación peligrosa.

No intente desmontar la caja ya que el haz de láser usado en este reproductor de discos compactos es perjudicial para los ojos. Para el servicio de reparación, consulte a una persona cualificada.

● OBSERVERA

Användning av reglage eller justeringar eller handhavande på annat sätt än som anges kan leda till farlig bestrålning.

Försök inte ta isär höljet eftersom CD-spelarens laserstråle är skadlig för ögonen. Överlåt service endast till kvalificerad personal.

● ATTENZIONE

L’uso dei comandi e l’effettuazione di regolazioni e procedimenti diversi da quelli specificati nel manuale possono provocare una pericolosa esposizione alle radiazioni.

Poiché il raggio laser usato in questo giradischi può danneggiare gli occhi, non smontare l’apparecchio. Per le riparazioni rivolgersi a personale specializzato.

● LET OP

Gebruik van regelaars, het maken van instellingen, gebruik of handelingen anders dan in deze gebruiksaanwijzing vermeld, kan gevaarlijke straling blootleggen.

De laserstraal in deze CD-speler kan de ogen beschadigen, Probeer derhalve de ombouw niet te verwijderen. Laat reparaties alleen over aan erkend onderhoudspersoneel.

● CUIDADO

O uso de controles, ajustes ou a execução de procedimentos além daqueles especificados aqui pode resultar em perigosa exposição à radiação.

Como os raios laser usados neste player de CD são perigosos para os olhos, não tente desmontar o aparelho. Solicite o conserto somente para pessoas especializadas.

● CAUTION

Use of controls, adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

As the laser beam used in this compact disc player is harmful to the eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only.

Page 7

9/5/06 CD-MPX870_COM.fm

CD-MPX870H

Eigenschaften der Laserdiode

Material: GaAIAs Wellenlänge: 795 nm Emissionsdauer: kontinuierlich Laser-Ausgang: max. 0,6 mW

Caractéristiques de la diode laser

Matière: GaAIAs Longueur d’onde: 795 nm Durée d’émission: ininterrompue Puissance de sortie laser maximale: 0,6 mW

Características del diodo láser

Material: GaAIAs Longitud de onda: 795 nm Duración de emisión : continua Salida de láser: máx. 0,6 mW

Laserdiodens egenskaper

Material: GaAIAs Våglängd: 795 nm Utstrålningsvaraktighet: kontinuerlig Lasereffekt: max. 0,6 mW

Proprietà del diodo laser

Materiale: GaAIAs Lunghezza d’onda: 795 nm Durata di emissione: continua Uscita massima del laser: 0,6 mW

Laser diode specificaties

Materiaal: GaAIAs Golflengte: 795 nm Stralingsduur: doorlopend Laseruitgang: max. 0,6 mW

Propriedades do diodo laser

Material: GaAlAs Comprimento de onda: 795 nm Duração da emissão: contínua Saída de laser: máx. 0,6 mW

Laser Diode Properties

Material: GaAIAs Wavelength: 795 nm Emission Duration: continuous Laser Output: max. 0.6 mW

VAROITUS! LAITTEEN KÄYTTÄMINEN MUULLA KUIN TÄSSÄ KÄYTTÖOHJEESSA MAINITULLA TAVALLA SAATTAA ALTISTAA KÄYTTÄJÄN TURVALLISUUSLUOKAN 1 YLITTÄVÄLLE NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE.

VARNING - OM APPARATEN ANVÄNDS PÅ ANNAT SÄTT ÄN I DENNA BRUKSANVISNING SPECIFICERAS. KAN ANVÄNDAREN UTSÄTTAS FÖR OSYNLIG LASERSTRÅLNING, SOM ÖVERSKRIDER GRÄNSEN FÖR LASERKLASS 1.

ADVERSEL-SYNLIG OG USYNLIG LASERSTRÅLING VED ÅBNING. SE IKKE IND I STRÅLEN-HELLER IKKE MED OPTISKE INSTRUMENTER.

VARO! AVAT TAESSA OLET ALTTIINA NÄKYVÄLLE JA NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE ÄLÄ TUIJOTA SÄTEESEEN ÄLÄKÄ KATSO SITÄ OPTISEN LAITTEEN LÄPI.

VARNING-SYNLIG OCH OSYNLIG LASERSTRÅLNING NÄR DENNA DEL ÄR ÖPPNAD. STIRRA EJ IN I STRÅLEN OCH BETRAKTA EJ STRÅLEN GENOM OPTISKT INSTRUMENT.

CAUTION-INVISIBLE LASER RADIATION WHEN OPEN. DO NOT STARE INTO BEAM OR VIEW DIRECTLY WITH OPTICAL INSTRUMENTS.

WARNUNG-UNSICHTBARE LASERSTRAHLUNG WENN GERÄT GEÖFFNET. NICHT IN DIE STRAHLUNG SCHAUEN ODER DIREKT MIT OPTISCHEN HILFSMITTELN BETRACHTEN.

ATTENTION-RAYON LASER INVISIBLE EN CAS D'OUVERTURE. NE PAS REGARDER LE FAISCEAU DIRECTEMENT OU AVEC DES INSTRUMENTS OPTIQUES.

Page 8

vii

9/5/06 CD-MPX870_COM.fm

CD-MPX870H

A. Entsorgungsinformationen für Benutzer aus

Privathaushalten

1. In der Europäischen Union

Achtung: Werfen Sie dieses Gerät zur Entsorgung bitte nicht in den normalen Hausmüll! Gemäß einer neuen EU-Richtlinie, die die ordnungsgemäße Rücknahme, Behandlung und Verwertung von gebrauchten Elektro- und Elektronikgeräten vorschreibt, müssen elektrische und elektronische Altgeräte getrennt entsorgt werden. Nach der Einführung der Richtlinie in den EU-Mitgliedstaaten können Privathaushalte ihre gebrauchten Elektro- und Elektronikgeräte nun kostenlos an ausgewiesenen Rücknahmestellen abgeben*. In einigen Ländern* können Sie Altgeräte u.U. auch kostenlos bei Ihrem Fachhändler abgeben, wenn Sie ein vergleichbares neues Gerät kaufen. *)

Weitere Einzelheiten erhalten Sie von Ihrer

Gemeindeverwaltung. Wenn Ihre gebrauchten Elektro- und Elektronikgeräte Batterien oder Akkus enthalten, sollten diese vorher entnommen und gemäß örtlich geltenden Regelungen getrennt entsorgt werden. Durch die ordnungsgemäße Entsorgung tragen Sie dazu bei, dass Altgeräte angemessen gesammelt, behandelt und verwendet werden. Dies verhindert mögliche schädliche Auswirkungen auf Umwelt und Gesundheit durch eine unsachgemäße Entsorgung.

2. In anderen Ländern außerhalb der EU

Bitte erkundigen Sie sich bei Ihrer Gemeindeverwaltung nach dem ordnungsgemäßen Verfahren zur Entsorgung dieses Geräts. Für die Schweiz: Gebrauchte Elektro- und Elektronikgeräte können kostenlos beim Händler abgegeben werden, auch wenn Sie kein neues Produkt kaufen. Weitere Rücknahmesysteme finden Sie auf der Homepage von www.swico.ch oder www.sens.ch.

B. Entsorgungsinformationen für gewerbliche

Nutzer

1. In der Europäischen Union

Wenn Sie dieses Produkt für gewerbliche Zwecke genutzt haben und nun entsorgen möchten:

Bitte wenden Sie sich an Ihren SHARP Fachhändler, der Sie über die Rücknahme des Produkts informieren kann. Möglicherweise müssen Sie die Kosten für die Rücknahme und Verwertung tragen. Kleine Produkte (und kleine Mengen) können möglicherweise bei Ihrer örtlichen Rücknahmestelle abgegeben werden. Für Spanien: Bitte wenden Sie sich an das vorhandene Rücknahmesystem oder Ihre Gemeindeverwaltung, wenn Sie Fragen zur Rücknahme Ihrer Altgeräte haben.

2. In anderen Ländern außerhalb der EU

Bitte erkundigen Sie sich bei Ihrer Gemeindeverwaltung nach dem ordnungsgemäßen Verfahren zur Entsorgung dieses Geräts.

Achtung: Ihr Produkt trägt dieses Symbol. Es besagt, dass Elektro- und Elektronikgeräte nicht mit dem Haushaltsmüll entsorgt, sondern einem getrennten Rücknahmesystem zugeführt werden sollten.

Entsorgungsinformationen

A. Informations sur la mise au rebut à l'intention

des utilisateurs privés (ménages)

1. Au sein de l'Union européenne

Attention : si vous souhaitez mettre cet appareil au rebut, ne le jetez pas dans une poubelle ordinaire ! Les appareils électriques et électroniques usagés doivent être traités séparément et conformément aux lois en vigueur en matière de traitement, de récupération et de recyclage adéquats de ces appareils. Suite à la mise en oeuvre de ces dispositions dans les Etats membres, les ménages résidant au sein de l'Union européenne peuvent désormais ramener gratuitement* leurs appareils électriques et électroniques usagés sur des sites de collecte désignés. Dans certains pays*, votre détaillant reprendra également gratuitement votre ancien produit si vous achetez un produit neuf similaire. *) Veuillez contacter votre administration locale pour plus

de renseignements. Si votre appareil électrique ou électronique usagé comporte des piles ou des accumulateurs, veuillez les mettre séparément et préalablement au rebut conformément à la législation locale en vigueur. En veillant à la mise au rebut correcte de ce produit, vous contribuerez à assurer le traitement, la récupération et le recyclage nécessaires de ces déchets, et préviendrez ainsi les effets néfastes potentiels de leur mauvaise gestion sur l'environnement et la santé humaine.

2. Pays hors de l'Union européenne

Si vous souhaitez mettre ce produit au rebut, veuillez contacter votre administration locale qui vous renseignera sur la méthode d'élimination correcte de cet appareil. Suisse : les équipements électriques ou électroniques usagés peuvent être ramenés gratuitement au détaillant, même si vous n'achetez pas un nouvel appareil. Pour obtenir la liste des autres sites de collecte, veuillez vous reporter à la page d'accueil du site www.swico.ch ou www.sens.ch.

B. Informations sur la mise au rebut à l'intention

des entreprises

1. Au sein de l'Union européenne

Si ce produit est utilisé dans le cadre des activités de votre entreprise et que vous souhaitiez le mettre au rebut : Veuillez contacter votre revendeur SHARP qui vous informera des conditions de reprise du produit. Les frais de reprise et de recyclage pourront vous être facturés. Les produits de petite taille (et en petites quantités) pourront être repris par vos organisations de collecte locales. Espagne : veuillez contacter l'organisation de collecte existante ou votre administration locale pour les modalités de reprise de vos produits usagés.

2. Pays hors de l'Union européenne

Si vous souhaitez mettre ce produit au rebut, veuillez contacter votre administration locale qui vous renseignera sur la méthode d'élimination correcte de cet appareil.

Attention : votre produit comporte ce symbole. Il signifie que les produits électriques et électroniques usagés ne doivent pas être mélangés avec les déchets ménagers généraux. Un système de collecte séparé est prévu pour ces produits.

Informations sur la mise au rebut correcte

Page 9

viii

9/5/06

CD-MPX870H

A. Información sobre eliminación para

usuarios particulares

1. En la Unión Europea

Atención: si quiere desechar este equipo, ¡por favor no utilice el cubo de la basura habitual! Los equipos eléctricos y electrónicos usados deberían tratarse por separado de acuerdo con la legislación que requiere un tratamiento, una recuperación y un reciclaje adecuados de los equipos eléctricos y electrónicos usados. Tras la puesta en práctica por parte de los estados miembros, los hogares de particulares dentro de los estados de la Unión Europea pueden devolver sus equipos eléctricos y electrónicos a los centros de recogida designados sin coste alguno *. En algunos países* es posible que también su vendedor local se lleve su viejo producto sin coste alguno si Ud. compra uno nuevo similar. *) Por favor, póngase en contacto con su autoridad local

para obtener más detalles. Si sus equipos eléctricos o electrónicos usados tienen pilas o acumuladores, por favor deséchelos por separado con antelación según los requisitos locales. Al desechar este producto correctamente, ayudará a asegurar que los residuos reciban el tratamiento, la recuperación y el reciclaje necesarios, previniendo de esta forma posibles efectos negativos en el medio ambiente y la salud humana que de otra forma podrían producirse debido a una manipulación de residuos inapropiada.

2. En otros países fuera de la Unión Europea

Si desea desechar este producto, por favor póngase en contacto con las autoridades locales y pregunte por el método de eliminación correcto. Para Suiza: Los equipos eléctricos o electrónicos pueden devolverse al vendedor sin coste alguno, incluso si no compra ningún nuevo producto. Se puede encontrar una lista de otros centros de recogida en la página principal de www.swico.ch o www.sens.ch.

B. Información sobre Eliminación para

empresas usuarias

1. En la Unión Europea

Si el producto se utiliza en una empresa y quiere desecharlo: Por favor póngase en contacto con su distribuidor SHARP, quien le informará sobre la recogida del producto. Puede ser que le cobren los costes de recogida y reciclaje. Puede ser que los productos de tamaño pequeño (y las cantidades pequeñas) sean recogidos por sus centros de recogida locales. Para España: por favor, póngase en contacto con el sistema de recogida establecido o con las autoridades locales para la recogida de los productos usados.

2. En otros países fuera de la Unión Europea

Si desea desechar este producto, por favor póngase en contacto con sus autoridades locales y pregunte por el método de eliminación correcto.

Atención: su producto está marcado con este símbolo. Significa que los productos eléctricos y electrónicos usados no deberían mezclarse con los residuos domésticos generales. Existe un sistema de recogida independiente para estos productos.

Información sobre la eliminación

A. Information om återvinning av elektrisk

utrustning för hushåll

1. EU-länder

OBS! Kasta inte denna produkt i soporna! Förbrukad elektrisk utrustning måste hanteras i enlighet

med gällande miljölagstiftning och återvinningsföreskrifter. I enlighet med gällande EU-regler ska hushåll ha möjlighet att lämna in elektrisk utrustning till återvinningsstationer utan kostnad.* I vissa länder* kan det även hända att man gratis kan lämna in gamla produkter till återförsäljaren när man köper en ny liknande enhet. *) Kontakta kommunen för vidare information.

Om utrustningen innehåller batterier eller ackumulatorer ska dessa först avlägsnas och hanteras separat i enlighet med gällande miljöföreskrifter.

Genom att hantera produkten i enlighet med dessa föreskrifter kommer den att tas om hand och återvinnas på tillämpligt sätt, vilket förhindrar potentiella negativa hälso- och miljöeffekter.

2. Länder utanför EU

Kontakta de lokala myndigheterna och ta reda på gällande sorterings- och återvinningsföreskrifter om du behöver göra dig av med denna produkt.

B. Information om återvinning för företag

1. EU-länder

Gör så här om produkten ska kasseras: Kontakta SHARPs återförsäljare för information om hur

man går till väga för att lämna tillbaka produkten. Det kan hända att en avgift för transport och återvinning tillkommer. Mindre skrymmande produkter (om det rör sig om ett fåtal) kan eventuellt återlämnas till lokala återvinningsstationer.

2. Länder utanför EU

Kontakta de lokala myndigheterna och ta reda på gällande sorterings- och återvinningsföreskrifter om du behöver göra dig av med denna produkt.

OBS! Produkten är märkt med symbolen ovan. Denna symbol indikerar att elektroniska produkter inte ska kastas i det vanliga hushållsavfallet eftersom det finns ett separat avfallshanteringssystem för dem.

Information om återvinning

Page 10

9/5/06 CD-MPX870_COM.fm

CD-MPX870H

A. Informazioni sullo smaltimento per gli utenti

(privati)

1. Nell'Unione europea

Attenzione: Per smaltire il presente dispositivo, non utilizzare il normale bidone della spazzatura! Le apparecchiature elettriche ed elettroniche usate devono essere gestite a parte e in conformità alla legislazione che richiede il trattamento, il recupero e il riciclaggio adeguato dei suddetti prodotti. In seguito alle disposizioni attuate dagli Stati membri, i privati residenti nella UE possono conferire gratuitamente le apparecchiature elettriche ed elettroniche usate a centri di raccolta designati*. In alcuni paesi*, anche il rivenditore locale può ritirare gratuitamente il vecchio prodotto se l'utente acquista un altro nuovo di tipologia simile. *) Per maggiori informazioni si prega di contattare

l'autorità locale competente. Se le apparecchiature elettriche o elettroniche usate hanno batterie o accumulatori, l'utente dovrà smaltirli a parte preventivamente in conformità alle disposizioni locali. Lo smaltimento corretto del presente prodotto contribuirà a garantire che i rifiuti siano sottoposti al trattamento, al recupero e al riciclaggio necessari prevenendone il potenziale impatto negativo sull'ambiente e sulla salute umana, che potrebbe derivare da un'inadeguata gestione dei rifiuti.

2. In paesi che non fanno parte dell'UE

Se si desidera eliminare il presente prodotto, contattare le autorità locali e informarsi sul metodo di smaltimento corretto. Per la Svizzera: Le apparecchiature elettriche o elettroniche usate possono essere restituite gratuitamente al rivenditore, anche se non si acquista un prodotto nuovo. Altri centri di raccolta sono elencati sulle homepage di www.swico.ch o di www.sens.ch.

B. Informazioni sullo smaltimento per gli utenti

commerciali

1. Nell'Unione europea

Se il prodotto è impiegato a scopi commerciali, procedere come segue per eliminarlo. Contattare il proprio rivenditore SHARP che fornirà informazioni circa il ritiro del prodotto. Potrebbero essere addebitate le spese di ritiro e riciclaggio. Prodotti piccoli (e quantitativi ridotti) potranno essere ritirati anche dai centri di raccolta locali. Per la Spagna: Contattare il sistema di raccolta ufficiale o l'ente locale preposto al ritiro dei prodotti usati.

2. In paesi che non fanno parte dell'UE

Se si desidera eliminare il presente prodotto, contattare le autorità locali e informarsi sul metodo di smaltimento corretto.

Attenzione: Il dispositivo è contrassegnato da questo simbolo, che segnala di non smaltire le apparecchiature elettriche ed elettroniche insieme ai normali rifiuti domestici. Per tali prodotti è previsto un sistema di raccolta a parte.

Informazioni per un corretto smaltimento

A. Informatie over afvalverwijdering voor

gebruikers (particuliere huishoudens)

1. In de Europese Unie

Let op: Deze apparatuur niet samen met het normale huisafval weggooien! Afgedankte elektrische en elektronische apparatuur moet gescheiden worden ingezameld conform de wetgeving inzake de verantwoorde verwerking, terugwinning en recycling van afgedankte elektrische en elektronische apparatuur. Na de invoering van de wet door de lidstaten mogen particuliere huishoudens in de lidstaten van de Europese Unie hun afgedankte elektrische en elektronische apparatuur kosteloos* naar hiertoe aangewezen inzamelingsinrichtingen brengen*. In sommige landen* kunt u bij de aanschaf van een nieuw apparaat het oude product kosteloos bij uw lokale distributeur inleveren. *) Neem contact op met de plaatselijke autoriteiten voor

verdere informatie. Als uw elektrische of elektronische apparatuur batterijen of accumulatoren bevat dan moet u deze afzonderlijk conform de plaatselijke voorschriften weggooien. Door dit product op een verantwoorde manier weg te gooien, zorgt u ervoor dat het afval de juiste verwerking, terugwinning en recycling ondergaat en potentiële negatieve effecten op het milieu en de menselijke gezondheid worden voorkomen die anders zouden ontstaan door het verkeerd verwerken van het afval.

2. In andere landen buiten de Europese Unie

Als u dit product wilt weggooien, neem dan contact op met de plaatselijke autoriteiten voor informatie omtrent de juiste verwijderingsprocedure. Voor Zwitserland: U kunt afgedankte elektrische en elektronische apparatuur kosteloos bij de distributeur inleveren, zelfs als u geen nieuw product koopt. Aanvullende inzamelingsinrichtingen zijn vermeld op de startpagina van www.swico.ch of www.sens.ch.

B. Informatie over afvalverwijdering voor

bedrijven

1. In de Europese Unie

Als u het product voor zakelijke doeleinden heeft gebruikt en als u dit wilt weggooien: Neem contact op met uw SHARP distributeur die u inlichtingen verschaft over de terugname van het product. Het kan zijn dat u een afvalverwijderingsbijdrage voor de terugname en recycling moet betalen. Kleine producten (en kleine hoeveelheden) kunnen door de lokale inzamelingsinrichtingen worden verwerkt. Voor Spanje: Neem contact op met de inzamelingsinrichting of de lokale autoriteiten voor de terugname van uw afgedankte producten.

2. In andere landen buiten de Europese Unie

Als u dit product wilt weggooien, neem dan contact op met de plaatselijke autoriteiten voor informatie omtrent de juiste verwijderingsprocedure.

Let op: Uw product is van dit merkteken voorzien. Dit betekent dat afgedankte elektrische en elektronische apparatuur niet samen met het normale huisafval mogen worden weggegooid. Er bestaat een afzonderlijk inzamelingssysteem voor deze producten.

Informatie over verantwoorde verwijdering

Page 11

9/5/06

CD-MPX870H

A. Informações sobre a Eliminação de

Produtos para os Utilizadores (particulares)

1. Na União Europeia

Atenção: Se quiser eliminar este equipamento, não o deve fazer juntamente com o lixo doméstico comum! O equipamento eléctrico e electrónico deve ser tratado separadamente e ao abrigo da legislação aplicável que obriga a um tratamento, recuperação e reciclagem adequados de equipamentos eléctricos e electrónicos usados. Após a implementação desta legislação por parte dos Estados-membros, todos os cidadãos residentes na União Europeia poderão entregar o seu equipamento eléctrico e electrónico usado em estações de recolha específicas a título gratuito*. Em alguns países* o seu revendedor local também pode recolher o seu equipamento usado a título gratuito na compra de um novo equipamento. *) Contacte as entidades locais para mais informações. Se o seu equipamento eléctrico e electrónico usado funcionar a pilhas ou baterias, deverá eliminá-las em separado, conforme a legislação local, e antes de entregar o seu equipamento. Ao eliminar este produto correctamente estará a contribuir para que o lixo seja submetido aos processos de tratamento, recuperação e reciclagem adequados. Desta forma é possível evitar os efeitos nocivos que o tratamento inadequado do lixo poderia provocar no ambiente e na saúde.

2. Em outros Países fora da UE

Se quiser eliminar este produto, contacte as entidades locais e informe-se sobre o método correcto para proceder à sua eliminação.

Na Suíça: O equipamento eléctrico e electrónico é aceite, a título gratuito, em qualquer revendedor, mesmo que não tenha adquirido um novo produto. Poderá encontrar uma lista das estações de recolha destes equipamentos na página da Web www.swicho.ch ou www.sens.ch.

B. Informações sobre a Eliminação de

Produtos para Utilizadores-Empresas

1. Na União Europeia

Se o produto for usado para fins comerciais e quiser eliminá-lo: Contacte o seu revendedor SHARP que irá informá-lo sobre a melhor forma de eliminar o produto. Poderá ter de pagar as despesas resultantes da recolha e reciclagem do produto. Alguns produtos mais pequenos (e em pequenas quantidades) poderão ser recolhidos pelas estações locais.

Na Espanha: Contacte o sistema de recolhas público ou as entidades locais para mais informações sobre a recolha de produtos usados.

2. Em outros Países fora da UE

Se quiser eliminar este produto, contacte as entidades locais e informe-se sobre o método correcto para proceder à sua eliminação.

Atenção: O seu produto está identificado com este símbolo. Significa que os produtos eléctricos e electrónicos não devem ser misturados com o lixo doméstico comum. Existe um sistema de recolhas específico

para estes pro-

dutos.

Informação sobre Eliminação de Produtos

A. Information on Disposal for Users (private

households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin!

Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment. Following the implementation by member states, private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one. *) Please contact your local authority for further details.

If your used electrical or electronic equipment has batteries or accumulators, please dispose of these separately beforehand according to local requirements.

By disposing of this product correctly you will help ensure that the waste undergoes the necessary treatment, recovery and recycling and thus prevent potential negative effects on the environment and human health which could otherwise arise due to inappropriate waste handling.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal.

For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

B. Information on Disposal for Business Users

1. In the European Union

If the product is used for business purposes and you want to discard it:

Please contact your SHARP dealer who will inform you about the take-back of the product. You might be charged for the costs arising from take-back and recycling. Small products (and small amounts) might be taken back by your local collection facilities.

For Spain: Please contact the established collection system or your local authority for take-back of your used products.

2. In other Countries outside the EU

If you wish to discard of this product, please contact your local authorities and ask for the correct method of disposal.

Attention: Your product is marked with this symbol. It means that used electrical and electronic products should not be mixed with general household waste. There is a separate collection system for these products.

Information on Proper Disposal

Page 12

03/12/17 CD-MPX870 EN.fm

E-1

CD-MPX870H

ENGLISH

Introduction

Thank you for purchasing this SHARP product. To obtain the best performance from this product, please read this manual carefully. It will guide you in operating your SHARP product.

Special Note

Supply of this product does not convey a license nor imply any right to distribute content created with this product in revenue-generating broadcast systems (terrestrial, satellite, cable and/or other distribution channels), revenue-generating streaming applications (via Internet, intranets and/or other networks), other revenue-generating content distribution systems (pay-audio or audio-on-demand applications and the like) or on revenue-generating physical media (compact discs, digital versatile discs, semiconductor chips, hard drives, memory cards and the like). An independent license for such use is required. For details, please visit http://mp3licensing.com

. MPEG Layer-3 audio coding technology licensed from Fraunhofer IIS and Thomson.

Accessories

Please confirm that the following accessories are included.

Note:

Only the above accessories are included.

Contents

Page

 General Information

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 - 5

 Preparation for Use

System connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 - 8

Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

 Basic Operation

General control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Setting the clock (Remote control only) . . . . . . . . . . . . . . . . . 11

 CD or MP3/WMA disc Playback

Listening to a CD or MP3/WMA disc . . . . . . . . . . . . . . . . . 12 - 15

Advanced CD or MP3/WMA disc playback . . . . . . . . . . . . 16 - 18

MP3/WMA navigation (only for MP3/WMA files) . . . . . . . . 19 - 22

 Radio

Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23 - 24

 Tape Playback

Listening to a cassette tape (TAPE 1 or TAPE 2) . . . . . . . 25 - 26

 Tape Recording

Recording on a cassette tape . . . . . . . . . . . . . . . . . . . . . . 26 - 28

 Advanced Features

Using the Radio Data System (RDS) . . . . . . . . . . . . . . . . . 29 - 34

Timer and sleep operation (Remote Control only) . . . . . . 35 - 38

Enhancing your system . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 - 40

 References

Troubleshooting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . .40 - 42

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43 - 44

Remote control 1 "AA" size battery (UM/SUM-3,

R6, HP-7 or similar) 2

AM loop aerial 1 FM aerial 1

General Information

ENGLISH

Page 13

03/12/17 CD-MPX870 EN.fm

E-2

ENGLISH

CD-MPX870H

1 2 3 4 5 6 7

General Information

Precautions

 General

 Please ensure that the equipment is positioned in a well ventilated

area and ensure that there is at least 10 cm (4") of free space along the sides, top and back of the equipment.

 Do not place anything on top of the unit.  Do not expose the unit to moisture, to temperatures higher than

C (140

F) or to extremely low temperatures.

 If your system does not work properly, disconnect the AC power

lead from the wall socket. Plug the AC power lead back in, and then turn on your system.

Warning:

The voltage used must be the same as that specified on this unit. Using this product with a higher voltage other than that which is specified is dangerous and may result in a fire or other type of accident causing damage. SHARP will not be held responsible for any damage resulting from use of this unit with a voltage other than that which is specified.

 Volume control

The sound level at a given volume setting depends on speaker efficiency, location, and various other factors. It is advisable to avoid exposure to high volume levels. Do not turn the volume on to full at switch on and listen to music at moderate levels.

 Use the unit on a firm, level surface free from

vibration.

 Keep the unit away from direct sunlight,

strong magnetic fields, excessive dust, humidity and electronic/electrical equipment (home computers, facsimiles, etc.) which generate electrical noise.

 In case of an electrical storm, unplug the

unit for safety.

10 cm (4")

Table

10 cm (4")

 Hold the AC power plug by the head when

removing it from the wall socket, as pulling the lead can damage internal wires.

 The AC power plug is used as disconnect

device and shall always remain readily operable.

 Do not remove the outer cover, as this

may result in electric shock. Refer internal service to your local SHARP service facility.

 The ventilation should not be impeded by

covering the ventilation openings with items, such as newspapers, tablecloths, curtains, etc.

 No naked flame sources, such as lighted candles, should be

placed on the apparatus.

 Attention should be drawn to the environmental aspects of battery

disposal.

 The apparatus is designed for use in moderate climate.  This unit should only be used within the range of 5

C - 35

(41

F - 95

F).

INP

Page 14

03/12/17 CD-MPX870 EN.fm

E-3

CD-MPX870H

ENGLISH

General Information

Controls and indicators

 Front panel

Reference page

1. Disc Trays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

2. Timer Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

3. Tuner (Band) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4. CD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

5. ON/STAND-BY Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

6. Tape (1 2) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

7. Game/Video Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

8. Tape 1 Cassette Compartment . . . . . . . . . . . . . . . . . . . . . . 25

9. Headphone Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

10. Game/Video Input Sockets . . . . . . . . . . . . . . . . . . . . . . . . . 39

11. Disc Tray Open/Close Button . . . . . . . . . . . . . . . . . . . . . . . 13

12. Disc Number Select Buttons . . . . . . . . . . . . . . . . . . . . . . . . 13

13. Volume Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

14. CD or Tape Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . 14, 26

15. CD Play or Repeat, Tape Play Button . . . . . . . . . . . 13, 17, 25

16. CD Track Up or Fast Forward, Tape 2 Fast Forward,

Tuner Preset Up, Time Up Button . . . . . . . . 11, 14, 24, 26, 35

17. CD Track Down or Fast Reverse, Tape 2 Rewind, Tuner Preset Down, Time Down Button . . . 11, 14, 24, 26, 35

18. Tape 2 Cassette Compartment . . . . . . . . . . . . . . . . . . . . . . 25

19. Remote Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Page 15

03/12/17 CD-MPX870 EN.fm

E-4

ENGLISH

CD-MPX870H

1 2 3 4 5 6 7

General Information

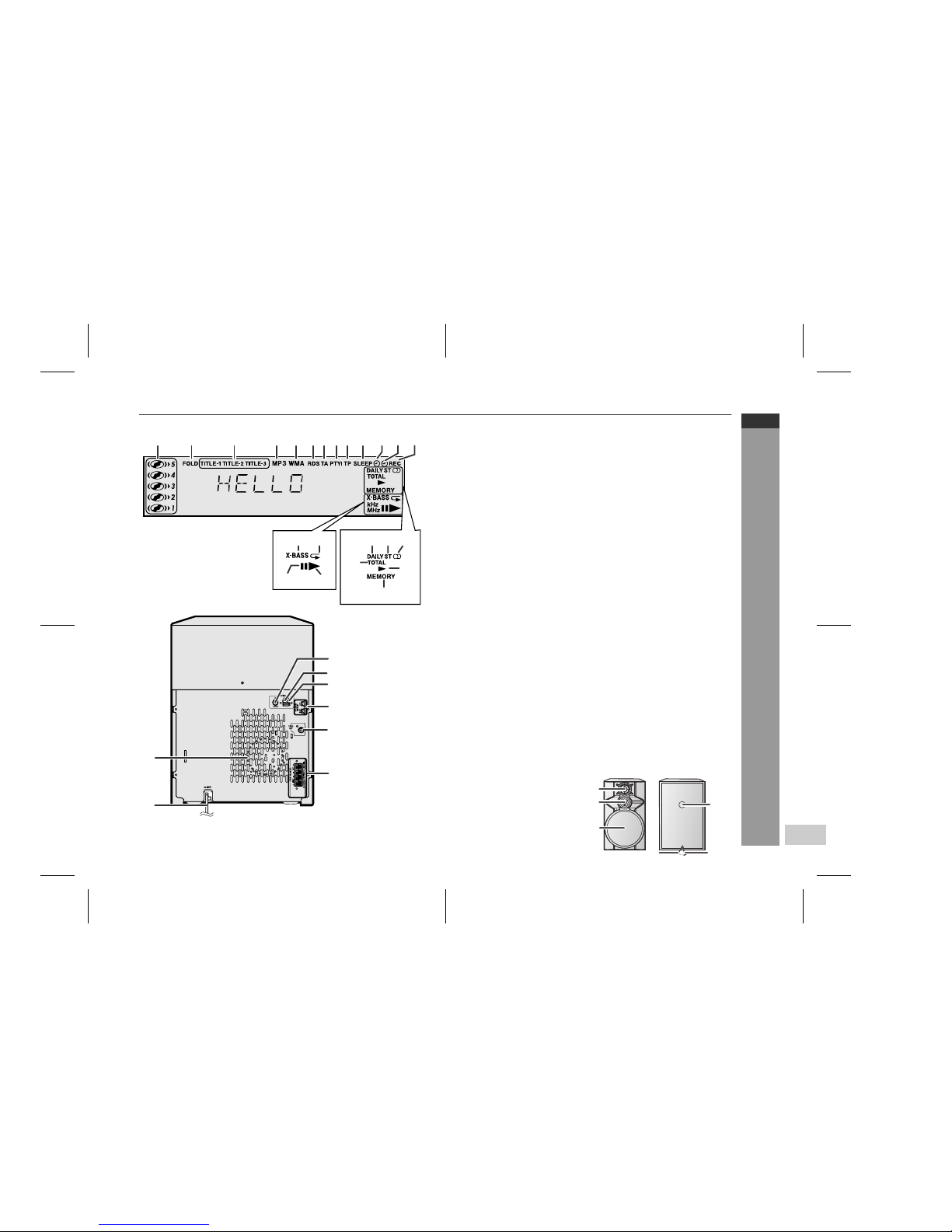

 Display

Reference page

1. Disc Number Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

2. MP3/WMA Folder Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 19

3. MP3/WMA Title Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4. MP3 Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

5. WMA Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

6. RDS Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

7. Trafﬁc Announcement Indicator . . . . . . . . . . . . . . . . . . . . 29

8. Dynamic PTY Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

9. Trafﬁc Programme Indicator . . . . . . . . . . . . . . . . . . . . . . . 29

10. Sleep Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

11. Timer Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

12. Timer Recording Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 36

13. Tape 2 Record Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

14. MP3/WMA Total Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 20

15. Daily Timer Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

16. FM Stereo Mode Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . 23

17. FM Stereo Receiving Indicator . . . . . . . . . . . . . . . . . . . . . . 23

18. Tape Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

19. Memory Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18, 24

20. Extra Bass Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

21. Disc Repeat Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 17

22. Disc Pause Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

23. Disc Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

 Rear panel

Reference page

1. Cooling Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2. AC Power Lead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

3. FM 75 Ohms Aerial Socket . . . . . . . . . . . . . . . . . . . . . . . . . . 7

4. AM Aerial EarthTerminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

5. AM Loop Aerial Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

6. Speaker Light-up Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

7. Video out Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

8. Front Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

 Front Speaker

12 3 45678 910111213

15 16 17

20 21

3 4

1. Tweeter

2. Super Tweeter

3. Woofer

4. Bass Reflex Duct

5. Speaker Wire

6. Speaker Light-Up Wire

11 2

Page 16

03/12/17 CD-MPX870 EN.fm

E-5

CD-MPX870H

ENGLISH

General Information

Controls and indicators (continued)

 Remote control

Reference page

1. Remote Control Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . 9

2. Disc Number Select Buttons . . . . . . . . . . . . . . . . . . . . . . . . 13

3. Clock/Timer Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11, 35

4. Character Input/Disc Direct Search Buttons . . . . . . . . 16, 21

5. Equaliser Mode Select Button . . . . . . . . . . . . . . . . . . . . . . . 10

6. Extra Bass/Demo Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

7. Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . 10

8. ON/STAND-BY Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

9. CD Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

10. Tuner (Band) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

11. Tape (1 2) Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

12. Game/Video Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

13. Disc Clear/Dimmer Button . . . . . . . . . . . . . . . . . . . . . . . 10, 18

14. Disc Random Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

15. Disc Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

16. Tape Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

17. Memory Button . . . . . . . . . . . . . . . . . . . . . . . . . . 11, 18, 24, 35

18. Disc Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

19. Disc Play or Repeat Button . . . . . . . . . . . . . . . . . . . . . . 13, 17

20. Tape Play Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

21. Tape 2 Record Pause Button . . . . . . . . . . . . . . . . . . . . . . . 27

22. Tuning Up, Cursor Up Button . . . . . . . . . . . . . . . . . . . . 19, 23

23. Disc Track Up or Fast Forward, Tape 2 Fast Forward,

Tuner Preset Up, Time Up, Cursor Right Button . . . . . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11, 14, 24, 26, 35

24. Disc Track Down or Fast Reverse, Tape 2 Rewind,

Tuner Preset Down, Time Down, Cursor Left Button . . . . . .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11, 14, 24, 26, 35

25. Tuning Down, Cursor Down Button . . . . . . . . . . . . . . . 19, 23

26. MP3/WMA Navigation Mode Select Button . . . . . . . . . . . . 19

27. Character Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

28. MP3/WMA Display Button . . . . . . . . . . . . . . . . . . . . . . . . . . 15

29. Enter Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

30. RDS ASPM Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

31. RDS PTY Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

32. RDS Display Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

9 10

11 12

26 27 28 29

30 31 32

Page 17

03/12/17 CD-MPX870 EN.fm

E-6

ENGLISH

CD-MPX870H

1 2 3 4 5 6 7

Preparation for Use

System connections

Left speaker

Right speaker

Speaker connection (see page 7)

Aerial connection (see page 7)

Make sure to unplug the AC power lead before any connections.

FM aerial

AM loop aerial

AC power connection (see page 8)

Wall socket (AC 230 V, 50 Hz)

Speaker light-up wire Speaker light-up wire

Page 18

03/12/17 CD-MPX870 EN.fm

E-7

CD-MPX870H

ENGLISH

Preparation for Use

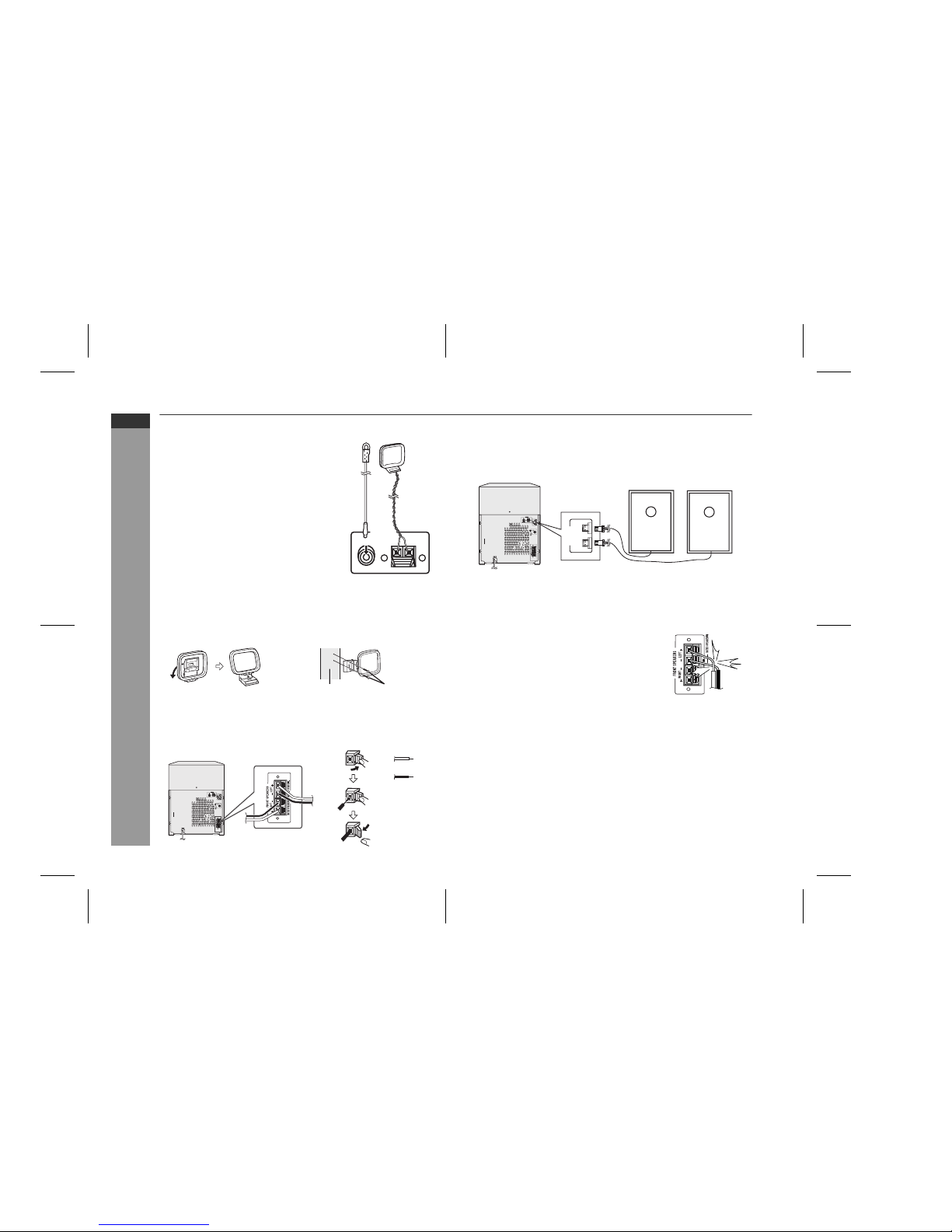

System connections (continued)

 Aerial connection

Note:

Placing the aerial on the unit or near the AC power lead may cause noise pickup. Place the aerial away from the unit for better reception.

Installing the AM loop aerial:

 Speaker connection

Connect the black wire to the FRONT SPEAKERS minus (-) terminal, and the red wire to the FRONT SPEAKERS plus (+) terminal.

 Speaker Light-Up connection

Connect the speaker light-up wires to the SPEAKERS LIGHT-UP sockets for speaker illumination. To turn off the speaker light-up feature, press the CLEAR/DIMMER button on the remote control for 2 seconds or more.

Note:

Placing the right speaker light-up wire to the RIGHT socket and the left speaker light-up wire to the LEFT socket.

Caution:

Supplied FM aerial:

Connect the FM aerial wire to the FM 75 OHMS socket and position the FM aerial wire in the direction where the strongest signal can be received.

Supplied AM loop aerial:

Connect the AM loop aerial to the AM and GND terminals. Position the AM loop aerial for optimum reception. Place the AM loop aerial on

a shelf, etc., or attach it to a stand or a wall with screws (not supplied).

< Assembling > < Attaching to the wall >

Wall Screws (not supplied)

ANTENNA

75 OHMS

GND

AM loop

aerial

Red

Black

 Use speakers with an impedance of 6 ohms

or more, as lower impedance speakers can damage the unit.

 Do not mistake the right and the left

channels. The right speaker is the one on the right side when you face the unit.

 Do not let the bare speaker wires touch

each other.

 Do not stand or sit on the speakers. You may

be injured.

 Do not allow any objects to fall into or to be

placed in the bass reflex duct.

Incorrect

LEFT SPEAKER

RIGHT SPEAKER

SPEAKERS

LIGHT-UP

RIGHT

LEFT

Page 19

03/12/17 CD-MPX870 EN.fm

E-8

ENGLISH

CD-MPX870H

1 2 3 4 5 6 7

Preparation for Use

 AC power connection

After checking all the connections have been made correctly, plug the AC power lead of this unit into the wall socket. If you plug in the unit first, the unit will enter the demonstration mode.

Notes:

 The unit will start the tape initialisation when plugged into the wall

socket. During this process, initialising sound will be heard and the unit cannot be turned on. Wait until the process is finished.

 Unplug the AC power lead from the wall socket if the unit will not

be in use for a prolonged period of time.

 Demonstration mode

 External FM aerial

Use an external FM aerial if you require better reception. Consult your dealer.

Note:

When an external FM aerial is used, disconnect the supplied FM aerial wire.

Cooling fan:

The main unit is built with a cooling fan at the rear of the unit for improved cooling. Please do not cover the opening of the fan with any obstacles, as this will block proper ventilation.

Wall socket (AC 230 V, 50 Hz)

The first time the unit is plugged in, the unit will enter the demonstration mode. You will see words scroll and the front speaker will light up in flashing mode.

To cancel the demonstration mode:

When the unit is in the power stand-by mode (demonstration mode), press the X-BASS/DEMO button. The unit will enter the low power consumption mode.

To return to the demonstration mode:

When the unit is in the power stand-by mode, press the X-BASS / DEMO button again.

Note:

When the power is on, the X-BASS/DEMO button can be used to select the extra bass mode.

External FM aerial

75 ohms coaxial cable

ANTENNA

75 OHMS

GND

Page 20

03/12/17 CD-MPX870 EN.fm

E-9

CD-MPX870H

ENGLISH

Preparation for Use

Remote control

 Battery installation

Precautions for battery use:

 Replace all old batteries with new ones at the same time.  Do not mix old and new batteries.  Remove the batteries if the unit will not be used for long periods

of time. This will prevent potential damage due to battery leakage.

Caution:

 Do not use rechargeable batteries (nickel-cadmium battery, etc.).  Installing the batteries incorrectly may cause the unit to malfunc-

tion.

Battery removal:

Open the battery cover and pull up the battery to take out.

Notes concerning use:

 Replace the batteries if the operating distance is reduced or if the

operation becomes erratic. Purchase 2 "AA" size batteries (UM/ SUM-3, R6, HP-7 or similar).

 Periodically clean the transmitter on the remote control and the

sensor on the unit with a soft cloth.

 Exposing the sensor on the unit to strong light may interfere with

operation. Change the lighting or the direction of the unit.

 Keep the remote control away from moisture, heat, shock, and vi-

brations.

 Test of the remote control

Check the remote control after checking all the connections (see pages 6 - 8). Point the remote control directly at the remote sensor on the unit.

The remote control can be used within the range shown below:

Press the ON/STAND-BY button. Does the power turn on? Now, you can enjoy music.

1 Open the battery cover. 2 Insert the supplied batteries according to the direction indi-

cated in the battery compartment.

When inserting or removing the batteries, push them towards the

battery terminals.

3 Close the battery cover.

Remote sensor

Page 21

03/12/17 CD-MPX870 EN.fm

E-10

ENGLISH

CD-MPX870H

1 2 3 4 5 6 7

Basic Operation

General control

 To turn the power on

Press the ON/STAND-BY button to turn the power on.

 Illumination light control

When the power is turned on, light illuminates around the display. To turn on/off the light, hold down the CLEAR/DIMMER button on the remote control for 2 seconds or more.

 Speaker light up control

The speaker will light up according to the level of the music source played back. To turn on/off the light, hold down the CLEAR/DIMMER button on the remote control for 2 seconds or more.

 Volume auto fade-in

If you turn off and on the main unit with the volume set to 27 or higher, the volume starts at 16 and fades in to the last set level.

 Volume control

 Bass Control (X-BASS)

 Equaliser

When the power is first turned on, the unit will enter FLAT mode. When the EQUALIZER MODE button is pressed, the current mode setting will be displayed. To change to a different mode, press the EQUALIZER MODE button repeatedly until the desired sound mode appears.

After use:

Press the ON/STAND-BY button to enter the power stand-by mode.

Main unit operation:

When the VOLUME control is turned clockwise, the volume will increase. When it is turned anti-clockwise, the volume will decrease.

Remote control operation:

Press the VOLUME (+ or -) button to increase or decrease the volume.

When the X-BASS/DEMO button is pressed, the unit will enter the extra bass mode. To cancel this mode, press the XBASS/DEMO button again.

In CD/TUNER/TAPE mode In GAME/VIDEO mode

30 MAXIMUM0

.....

POPS

VOCALS

JAZZ

FLAT

ROCK

CLASSIC

For rock music.

For pop music.

No equalisation.

For classical music.

For jazz.

Vocals are enhanced.

ACTION

SPORTS

RACING

FLAT

ROCK

CLASSIC

For rock music.

For action games.

No equalisation.

For classical music.

For car racing games.

For sports games.

Page 22

03/12/17 CD-MPX870 EN.fm

E-11

CD-MPX870H

ENGLISH

Basic Operation

Setting the clock (Remote control only)

In this example, the clock is set for the 24-hour (0:00) display.

To conﬁrm the time display:

[When the unit is in the stand-by mode] Press the CLOCK/TIMER button. The time display will appear for about 10 seconds.

[When the power is on] Press the CLOCK/TIMER button. Within 10 seconds, press the or button to display the time. The time display will appear for about 10 seconds.

Note:

The "CLOCK" will appear or time will ﬂash to conﬁrm the time display when the AC power supply is restored after a power failure or unplugging the unit. If incorrect, readjust the clock as follows.

To readjust the clock:

Perform "Setting the clock" from step 1. If the "CLOCK" does not appear in step 3, step 4 (for selecting the 24-hour or 12-hour display) will be skipped.

To change the 24-hour or 12-hour display:

1 Press the ON/STAND-BY button to turn the power on. 2 Press the CLOCK/TIMER button. 3 Within 10 seconds, press the or button to se-

lect "CLOCK", and press the MEMORY button.

4 Press the or button to select 24-hour or 12-

hour display and then press the MEMORY button.

"0:00" The 24-hour display will appear. (0:00 - 23:59) "AM 12:00" The 12-hour display will appear. (AM 12:00 - PM 11:59) "AM 0:00" The 12-hour display will appear. (AM 0:00 - PM 11:59)

5 Press the or button to adjust the hour and

then press the MEMORY button.

Press the or button once to advance the time by 1 hour. Hold it down to advance continuously.

6 Press the or button to adjust the minutes and

then press the MEMORY button.

Press the or button once to advance the time by 1 minute. Hold it down to change the time in 5-minute intervals.

1 Clear all the programmed contents. [Refer to "Clearing all the

memory (reset)" on page 42 for details.]

2 Perform "Setting the clock" from step 1.

Page 23

03/12/17 CD-MPX870 EN.fm

E-12

ENGLISH

CD-MPX870H

1 2 3 4 5 6 7

CD or MP3/WMA disc Playback

Listening to a CD or MP3/WMA disc

This system can play back a standard CD, CD-R/RW in the CD format and CD-R/RW with MP3 or WMA ﬁles, but cannot record on them. Some audio CD-R and CD-RW discs may not be playable due to the state of the disc or the device that was used for recording.

MP3: MP3 is a form of compression. It is an acronym which stands for MPEG Audio Layer 3. MP3 is a type of audio code which is processed by signiﬁcant compression from the original audio source with very little loss in sound quality.

 This system supports MPEG 1 Layer 3, MPEG 2 Layer 3, and

VBR files.

 During VBR ﬁle playback, time counter in the display may differ

from its actual playback time.

WMA: WMA ﬁles are Advanced System Format ﬁles that include audio ﬁles which are compressed with Windows Media Audio codec. WMA is developed by Microsoft as an audio format ﬁle for Windows Media Player.

 "MP3" or "WMA" indicator will light up after the unit reads infor-

mation on an MP3 or WMA disc.

Auto power on function:

When you press any of the following buttons, the unit turns on.  CD button (main unit and remote control): The unit turns on and

the "CD" function is activated.

 CD / button on the remote control: The unit turns on and CD

playback starts (regardless of the last function).

 / button on the main unit: The unit turns on and playback of

the last function starts (CD,TAPE,TUNER,GAME/VIDEO).

Auto power off function:

In the stop mode of CD, MP3 or WMA operation, the main unit enters the stand-by mode after 15 minutes of inactivity.

Page 24

03/12/17 CD-MPX870 EN.fm

E-13

CD-MPX870H

ENGLISH

CD or MP3/WMA disc Playback

Listening to a CD or MP3/WMA disc (continued)

1 Press the ON/STAND-BY button to turn the power on. 2 Press the CD button. 3 Press the 1 button and within 5 seconds, press the

button to open the disc tray 1.

4 Place the disc on the disc tray 1, label side up.

Be sure to place 8 cm (3") disc in the middle of the disc trays.

5 Press //

button to close the disc tray 1.

 Due to the structure of the disc information, it takes longer to

read an MP3/WMA disc than a normal CD (approximately 20 to 90 seconds).

6 You can place discs on the trays 2 - 5 by following steps

3 - 5.

7 Press the / button to start playback.

12 cm (5") 8 cm (3")

[CD]

Total number of tracks on the disc

Total playing time of the disc

Total number of folders

Total number of files

MP3 indicator

[MP3/WMA]

WMA indicator

Disc play indicator

Page 25

03/12/17 CD-MPX870 EN.fm

E-14

ENGLISH

CD-MPX870H

1 2 3 4 5 6 7

CD or MP3/WMA disc Playback

 Playback will begin from track 1 on disc 1. After that disc ﬁnishes

playing, the next disc will automatically play.

 After the last track on the fifth disc is played, the unit will stop au-

tomatically.

 When there is no disc in one of the disc trays (1 - 5), the empty

tray will be skipped to the next tray with a disc.

To exchange other discs whilst playing a disc:

Press one of the 1 - 5 buttons for the stopped disc and within 5 seconds, press the button and exchange discs.

To remove the discs:

In the stop mode, press the 1 - 5 buttons and within 5 seconds, press the button.

Caution:

 Do not place two discs in a same tray.  Do not play discs of special shapes (heart, octagon, etc.) as it

may cause malfunctions.

 Do not push the disc tray whilst it is moving.  If the power fails whilst the tray is open, wait until the power is re-

stored.

 If the disc tray is stopped with force, "ER-CD20" will appear on the

display for 3 seconds and the unit will not function. If this occurs, press the ON/STAND-BY button to enter the power stand-by mode and then turn the power on again.

 If TV or radio interference occurs during CD operation, move the

unit away from the TV or radio.

 If a disc is damaged, dirty, or loaded upside down, the disc will

skip or not play.

 Various disc functions

Function Main unit Remote

control

Operation

Play Press in the stop

mode.

Stop Press in the playback

mode.

Pause Press in the playback

mode. Press the / button to resume playback from the paused point.

Track up/ Track down

Press in the playback or stop mode.

If you press the button in the stop mode, press the / button to start the desired track.

Fast forward/Fast reverse

Press and hold down in the playback mode.

Release the button to resume playback.

Page 26

03/12/17 CD-MPX870 EN.fm

E-15

CD-MPX870H

ENGLISH

CD or MP3/WMA disc Playback

Listening to a CD or MP3/WMA disc (continued)

Notes for CD:

Notes for MP3/WMA discs:

 Track up/track down is possible only within individual discs.  The sound is heard during fast forward/fast reverse with a CD, but

not with an MP3/WMA disc. For fast forward or fast reverse of an MP3/WMA disc, refer to playback time on the display.

 Fast forward/fast reverse is possible only within individual tracks.  When the end of the track is reached during fast forward, the next

track will be played. Playback of the track will begin when its beginning is reached during fast reverse.

 To change the display (MP3/WMA discs only)

 Track up/track down is possible only within individual discs.  Fast forward/fast reverse is possible only within individual discs.  When the end of the last track is reached during fast forward,

"END" will appear on the display and CD operation will be paused. When the beginning of the first track is reached during fast reverse, the unit will enter the playback mode.

Whilst a disc is playing, press the DISPLAY button. Each time the button is pressed, the display will change as follows.

Folder name

File name

Track number

Elapsed playback time

Page 27

03/12/17 CD-MPX870 EN.fm

E-16

ENGLISH

CD-MPX870H

1 2 3 4 5 6 7

CD or MP3/WMA disc Playback

Advanced CD or MP3/WMA disc playback

 To specify a disc to play

You can play a disc by specifying the disc number.

 Playback will begin from track 1 on the chosen disc.  After the last track on the last disc is played, the unit stops auto-

matically.

Note:

If a disc tray with no disc is selected, playback will not start and the disc indicator will disappear.

To stop playback:

Press the (CD ) button.

 Direct track search

By using the direct search buttons, the desired tracks on the current disc can be played.

If the direct search buttons are pressed whilst the disc is stopped, press the / button to start the desired track on the current disc.

Notes:

 A track number higher than the number of tracks on the disc can-

not be selected.

 During random play, direct search is not possible.

1 Press one of the 1 - 5 buttons to select the desired disc.

Selected disc number

2 Within 5 seconds, press the / button on the main unit.

Use the direct search buttons on the remote control to select the desired track whilst playing the selected disc.

Selected track number

 The direct search buttons allow you to select up to number 9.  When selecting number 10 or higher, use the "+10" button.

A. For example, to choose 13

1 Press the "+10" button once. 2 Press the "3" button.

B. For example, to choose 30

1 Press the "+10" button three times. 2 Press the "0" button.

Page 28

03/12/17 CD-MPX870 EN.fm

E-17

CD-MPX870H

ENGLISH

CD or MP3/WMA disc Playback

Advanced CD or MP3/WMA disc playback (continued)

 Repeat play

Repeat play can play all 5 discs, all tracks on a chosen disc, or a programmed sequence continuously.

To cancel repeat play:

Press the / button again. " " will disappear.

 Random play

The tracks on the disc(s) can be played in random order automatically.

To cancel random play:

Press the / button. "R" will disappear.

Notes:

 If you press the button during random play, you can move to

the next track by the random operation. On the other hand, the button does not allow you to move to the previous track. The beginning of the track being played will be located.

 In random play, the unit will select and play tracks automatically.

(You cannot select the order of the tracks.)

Caution:

After performing repeat or random play, be sure to press the (CD

) button. Otherwise, the disc(s) will play continuously.

To repeat one disc:

Press the / button twice.

To repeat all tracks on up to 5 discs:

Press the / button three times.

To repeat desired tracks:

Perform steps 1 - 6 in "Programmed play" section on page 18 and then press the / button twice.

To random play all tracks on up to 5 discs:

Press the RANDOM button on the remote control.

Page 29

03/12/17 CD-MPX870 EN.fm

E-18

ENGLISH

CD-MPX870H

1 2 3 4 5 6 7

CD or MP3/WMA disc Playback

 Programmed play

You can choose up to 32 selections for playback in the order you like.

To cancel the programmed play mode:

Whilst in the stop mode and the "MEMORY" indicator is lit, press the CLEAR/DIMMER button on the remote control. The "MEMORY" indicator will disappear and all the programmed contents will be cleared.

Adding tracks to the programme:

If a programme has been previously stored, the "MEMORY" indicator will be displayed. Then follow steps 1 - 6 to add tracks. The new tracks will be stored after the last track of the original programme.

To check which tracks are programmed:

Whilst the unit is stopped in the programmed play mode, press the

or button.

Notes:

 When a disc with programmed tracks is ejected, the programme

is automatically cancelled.

 Even if you press the ON/STAND-BY button to enter the stand-by

mode or change the function from CD to another, the programmed selections will not be cleared.

 During the programme operation, random play is not possible.

1 Whilst in the stop mode, press

the MEMORY button to enter the programming save mode.

2 Press one of the 1 - 5 buttons

to select the desired disc.

Selected disc number

3 Press the direct search buttons

on the remote control to select the desired track.

Selected track number

You can also select a track by pressing the or button.

4 Press the MEMORY button to

save the track number.

5 Repeat steps 2 - 4 for other tracks. Up to 32 tracks can be

programmed.

If you make a mistake, the programmed tracks can be cleared by pressing the CLEAR/DIMMER button.

6 Press the (CD ) button.

The total number in memory will appear.

7 Press the / button to start playback.

To clear the programmed selections:

Press the CLEAR/DIMMER button on the remote control whilst the "MEMORY" indicator is flashing. Each time the button is pressed, one track will be cleared, beginning with the last track programmed.

Page 30

03/12/17 CD-MPX870 EN.fm

E-19

CD-MPX870H

ENGLISH

CD or MP3/WMA disc Playback

MP3/WMA navigation (only for MP3/WMA files)

MP3/WMA navigation:

You can search and play files by folder or title. For example, when you assign three titles to a file, enter genre (such as jazz) as title 1, album name as title 2, and music title as title 3 to search the file by any title.  You can search and play files by folder or title 1/2/3 within one

MP3/WMA disc (see page 20).

 By entering a name, you can search files by folder or title 1/2/3

within one MP3/WMA disc (see page 21).

 Folders or titles can be programmed within one MP3/WMA disc

(see page 22).

When you enter file names on your PC, connect words with hyphens. This product recognises the first word as title 1, second one as title 2, and third one as title 3. Up to three words can be recognised.

Notes:

 MP3 ﬁles must have the extension ".mp3".  WMA ﬁles must have the extension ".wma".  Up to 100 folders or 300 files can be read on the unit. If either limit

is exceeded, no more folders/files are displayed.

 This unit recognises and displays up to 48 characters for folder

names, and up to 32 characters for title 1/2/3.

 All file/folder names appear in uppercase.

Example:

(File name)

(POPULAR-HITS 1-A MUSIC.mp3)

AAA

(POPULAR-HITS 2-B MUSIC.mp3)

(JAZZ-HITS 1-A MUSIC.mp3)

BBB

(JAZZ-HITS 2-B MUSIC.mp3)

(ROCK-HITS 1-A MUSIC.mp3)

CCC

(ROCK-HITS 2-B MUSIC.mp3) (ROCK-HITS 3-C MUSIC.mp3) (ROCK-HITS 4-D MUSIC.mp3)

Folder

Title 1 Title 2 Title 3

Folder Title 1

Title 2 Title 3

Page 31

03/12/17 CD-MPX870 EN.fm

E-20

ENGLISH

CD-MPX870H

1 2 3 4 5 6 7

CD or MP3/WMA disc Playback

 File search (by folder or title 1/2/3)

You can search and play ﬁles by folder or title 1/2/3 within one MP3/ WMA disc.

File search by title 1/2/3:

 In step 5, select "T-1", "T-2" or "T-3" and follow the same steps as

file search by folder.

 The unit searches all files on the disc, regardless of the folder.

To stop playback:

Press the CD button.

To exit the MP3/WMA navigation mode:

In the stop mode, press the CD button.

Notes:

 In the MP3/WMA navigation mode, direct play and direct search

functions are disabled.

 If a folder, title or file name does not appear, or appears incorrect-

ly, remove and reinsert the disc and try again.

 If you press the RANDOM button in the stop mode, the MP3/WMA

navigation mode will be cancelled.

1 Press one of the 1 - 5 buttons to select a disc tray

containing an MP3/WMA disc.

2 Press the / button, and the unit starts to read the MP3

disc.

3 Press the CD button to stop playback.

"NAVI READ" appears and the display shows the total number of folders and files on the selected disc.

4 Press the NAVIGATION button. 5 Press the , , or cursor but-

ton on the remote control to select "FOL", "T-1", "T-2" or "T-3". To search files by folder name, select "FOL" (will flash).

The following steps describe file search by folder:

6 Press the ENTER button.

The total number of folders (or titles) appears for 2 seconds, and names of the first 2 folders (or titles) are displayed.



The NAVIGATION button allows you to go one step back.

 Press the DISPLAY button to

check the number of files.

Total number of folders

Total number of files

MP3 indicator WMA indicator

Folder Title 1

Title 2 Title 3

MP3

Folder name

7 Use the or cursor button to scroll and select a folder

(or title), and then press the ENTER button.

If you press the / button instead of the ENTER button, all files in the selected folder (or title) are played.

8 Use the or cursor button to scroll and select a file.

9 Press the / button to start playback.

The unit plays from the selected file to the last file in the selected folder (or title), and the previous display returns.

Folder name

File name

Page 32

03/12/17 CD-MPX870 EN.fm

E-21

CD-MPX870H

ENGLISH

CD or MP3/WMA disc Playback

MP3/WMA navigation (only for MP3/WMA files) (continued)

 Character search (for folder or title 1/2/3)

By entering a name, you can search files by folder or title 1/2/3 within one MP3/WMA disc.

To exit the MP3/WMA navigation mode:

In the stop mode, press the CD button.

Notes:

 The unit searches regardless of the case, and names found will

appear in uppercase.

 Some symbols do not appear properly.

Character entry with direct buttons:

For example, press "2" four times to enter "C".

1 Perform steps 1 - 3 in "File search (by folder or title 1/2/3)"

on page 20.

2 Press the NAVIGATION button. 3 Press the , , or cursor

button on the remote control to select "FOL", "T-1", "T-2" or "T-3". To search files by folder name, select "FOL" (will flash).

4 Press the CHARACTER button for 2 seconds.

The display will be ready for editing characters. 1st row: String table 2nd row: Input editor (8 digits)

5 Press the or cursor button to select the desired

alphabet.

Press the or button to go to the next page of character display.

6 Press the CHARACTER button and the active character will

be entered in the 2nd row of the display.

To delete an entered character, move the cursor to the character with the or button and press the CLEAR/DIMMER button on the remote control.

7 Repeat steps 5 and 6 to enter characters.

In the folder (or title) name search, you do not have to enter the full name. The unit searches for names beginning with the entered characters.

Folder Title 1

Title 2 Title 3

8 When finished, press the ENTER button. The unit

searches for the same name within folders (or titles).

If the search word is not in the folder (or title) name, "NOT FOUND" appears and the menu returns.

9 Use the or cursor button to scroll and select a folder

(or title).

10 Press the / button to start playback.

All files in the selected folder (or title) are played, and the previous display returns.

The direct buttons on the remote control can also be used for character entry. In step 5 on the left, use buttons 0 9 to enter alphabets. Alphabet types change as you press a button.

2 A B C

1 2 ABC 3 DEF 4 GHI 5 JKL 6 MNO

7 PQRS

8 TUV

9 WXYZ

: indicates a space.

Characters:

Page 33

03/12/17 CD-MPX870 EN.fm

E-22

ENGLISH

CD-MPX870H

1 2 3 4 5 6 7

CD or MP3/WMA disc Playback

 Programmed play (for folder, title 1/2/3)

Folders or titles can be programmed within one MP3/WMA disc. Folder, title 1, title 2 and title 3 cannot be programmed together simultaneously.

To stop playback:

Press the CD button.  The programmed contents are not cleared.

To check, add or delete programmed contents:

In the stop mode, select a folder (or title) with the or cursor button. If the folder (or title) is programmed, "MEMORY" ﬂashes.

 When you press the MEMORY button with "MEMORY" ﬂashing,

the folder (or title) is removed from the programme.

 If you press the MEMORY button with "MEMORY" off, the folder

(or title) is added to the programme.

 To clear all programmes, press the CLEAR/DIMMER button in

the stop mode.

To exit the MP3/WMA navigation mode:

In the stop mode, press the CD button.  The programmed contents are cleared.

Notes:

 The programmed contents are cleared when you eject a disc,

play another disc, switch the function, or enter the stand-by mode with the ON/STAND-BY button.

 If you press the RANDOM button in the stop mode, the MP3/

WMA navigation mode will be cancelled.

If tracks are programmed using track numbers (see "Programmed play" on page 18):

In the MP3/WMA navigation mode, only programme by folder (or title) name are played. When you exit the mode, the programme by folder (or title) name are cleared. When you exit the MP3/WMA navigation mode, programme by track number are cancelled. (Programme by track number are cleared when you remove the disc.)

1 Perform steps 1 - 3 in "File search (by folder or title 1/2/3)"

on page 20.

2 Press the NAVIGATION button. 3 Press the , , or cursor button on the remote control

to select "FOL", "T-1", "T-2" or "T-3" and then press the ENTER button.

The total number of folders (or titles) appears for 2 seconds, and names of the first 2 folders (or titles) are displayed.

4 Press the or cursor button to select the desired folder

(or title) and then press the MEMORY button.

The folder (or title) is memorised with all the files.

5 Repeat step 4 for other folders (or titles).

Up to 10 folders (or 10 titles) can be programmed.

6 Press the / button to start playback.

Programmed play will always start from the smallest folder (or title) number.

Flashes if the folder (or title) is programmed

Page 34

03/12/17 CD-MPX870 EN.fm

E-23

CD-MPX870H

ENGLISH

Radio

Listening to the radio

Auto power on function:

When you press any of the following buttons, the unit turns on.  TUNER (BAND) button (main unit and remote control): The unit

turns on and the "TUNER" function is activated.

 / button on the main unit: The unit turns on and playback of

the last function starts (CD, TAPE, TUNER, GAME/VIDEO).

 Tuning

Notes:

 When radio interference occurs, auto scan tuning may stop auto-

matically at that point.

 Auto scan tuning will skip weak signal stations.  To stop the auto tuning, press the TUNING (X or W) button again.  When an RDS (Radio Data System) station is tuned in, the fre-

quency will be displayed first, and then the RDS indicator will light up. Finally, the station name will appear..

 Full auto tuning can be achieved for RDS stations "ASPM", see

page 30.

To receive an FM stereo transmission:

Press the TUNER (BAND) button to display the "ST" indicator.

 " " will appear when an FM broadcast is in stereo.  If the FM reception is weak, press the TUNER (BAND) button to

extinguish the "ST" indicator. The reception changes to monaural, and the sound becomes clearer.

1 Press the ON/STAND-BY button to turn the power on. 2 Press the TUNER (BAND) button repeatedly to select the

desired frequency band (FM or AM).

3 Press the TUNING ( or ) button to tune in to the desired

station.

Manual tuning:

Press the TUNING (X or W) button as many times as required to tune in to the desired station.

Auto tuning:

When the TUNING (X or W) button is pressed for more than

0.5 seconds, scanning will start automatically and the tuner will stop at the first receivable broadcast station.

FM stereo mode indicator

FM stereo receiving indicator

Page 35

03/12/17 CD-MPX870 EN.fm

E-24

ENGLISH

CD-MPX870H

1 2 3 4 5 6 7

Radio

 Memorising a station

You can store 40 AM and FM stations in memory and recall them at the push of a button. (Preset tuning)

Note:

The backup function protects the memorised stations for a few hours should there be a power failure or the AC power lead become disconnected.

 To recall a memorised station

 To scan the preset stations

The stations saved in memory can be scanned automatically. (Preset memory scan)

 To erase entire preset memory

1 Perform steps 1 - 3 in "Tuning" on page 23. 2 Press the MEMORY button to enter the preset tuning sav-

ing mode.

3 Within 30 seconds, press the PRESET ( or ) button to

select the preset channel number.

Store the stations in memory, in order, starting with preset channel 1.

4 Within 30 seconds, press the MEMORY button to store that

station in memory.

If the "MEMORY" and preset number indicators disappear before the station is memorised, repeat the operation from step

5 Repeat steps 1 - 4 to set other stations, or to change a pre-

set station.

When a new station is stored in memory, the station previously memorised for that preset channel number will be erased.

Press the PRESET ( or ) button for less than 0.5 seconds to select the desired station.

1 Press the PRESET ( or ) button for more than 0.5 seconds.

The preset number will flash and the programmed stations will be tuned in sequentially, for 5 seconds each.

2 Press the PRESET ( or ) button again when the desired sta-

tion is located.

1 Press the ON/STAND-BY button to enter the stand-by mode. 2 Whilst pressing down the button and the button, press

the TUNER (BAND) button until "TUNER CL" appears.

Page 36

03/12/17 CD-MPX870 EN.fm

E-25

CD-MPX870H

ENGLISH

Tape Playback

Listening to a cassette tape (TAPE 1 or TAPE 2)

 Tape playback

Auto power on function:

When you press any of the following buttons, the unit turns on.  TAPE (1 2) button (main unit and remote control): The unit turns

on and the "TAPE" function is activated.

 TAPE button (remote control): The unit turns on and the "TAPE"

function is activated.

 / button (main unit): The unit turns on and playback of the last

function starts (CD,TAPE,TUNER,GAME/VIDEO).

Auto power off function:

In the stop mode of tape operation, the main unit enters the stand-by mode after 15 minutes of inactivity.

Before playback:  For playback, use normal or low-noise tapes for

the best sound. (Metal or CrO tapes are not recommended.)

 Do not use C-120 tapes or poor-quality tapes, as

they may cause malfunctions.

 Before loading a tape into the cassette compartment,

tighten the slack with a pen or a pencil.

1 Press the ON/STAND-BY button to turn the power on. 2 Open the cassette com-

partment by pushing the area marked " ".

3 Load a cassette into the

TAPE 1 compartment or TAPE 2 compartment with the side to be played facing towards you.

4 Press the TAPE (1 2) button to select the cassette you

want to listen to.

5 Press the / (TAPE ) to

start playback.

Tape play indicator

TAPE 1 TAPE 2

Page 37

03/12/17 CD-MPX870 EN.fm

E-26

ENGLISH

CD-MPX870H

1 2 3 4 5 6 7

Tape Recording

 Various tape functions

Caution:

 To remove the cassette, press the (TAPE ) button, and then

open the compartment.

 Before changing from one tape operation to another, press the

(TAPE ) button.

 If a power failure occurs during tape operation, the tape head will

remain engaged with the tape and the cassette door will not open. In this case, wait until the power is restored.

Recording on a cassette tape

Function Main unit Remote

control

Operation

Playback Press in the stop

mode.

Stop Press in the playback,

fast forward or rewind mode.

Fast forward/ Rewind

Press in the playback or stop mode.

(TAPE 2 only)

Before recording:

 When recording important selections, make a preliminary test to

ensure that the desired material is properly recorded.

 SHARP is not liable for damage or loss of your recording arising

from malfunction of this unit.

 The volume and sound controls can be adjusted with no effect

on the recorded signal (Variable Sound Monitor).

 For recording, use only normal tapes. Do not use metal or

CrO tapes.

Erase-prevention tab of cassette tapes:

 When recording on a cassette tape, make sure that the erase-

prevention tabs are not removed. Cassettes have removable tabs that prevent accidental recording or erasing.

 To protect the recorded sound, remove the tab after recording.

Cover the tab hole with adhesive tape to record on the tape without the tab.

Side A

Tab for side B

Tab for side A

Page 38

03/12/17 CD-MPX870 EN.fm

E-27

CD-MPX870H

ENGLISH

Tape Recording

Recording on a cassette tape (continued)

 Recording from a CD or MP3/WMA disc

To stop recording:

Press the (TAPE ) button. The disc and tape will stop.

1 Press the ON/STAND-BY button to turn the power on. 2 Press the CD button. 3 Load a cassette into the TAPE 2 cassette compartment

with the side to be recorded on facing you.

Wind past the leader of the tape, on which recording cannot be performed.

4 Press the button.

Recording will be paused.

5 Press one of the 1 - 5 buttons to select the desired disc. 6 Within 5 seconds, press the / button to start recording.

 Recording is started from the selected disc. When the play-

back of the last track is finished or the end of the tape is reached, the disc and the cassette will stop automatically.

 Playback of the disc will start approximately 7 seconds after

the tape starts.

Page 39

03/12/17 CD-MPX870 EN.fm

E-28

ENGLISH

CD-MPX870H

1 2 3 4 5 6 7

Tape Recording

To perform programmed recording:

To stop recording:

Press the (TAPE ) button. The disc and tape will stop.

 Recording from the radio

To interrupt recording:

Press the button. To resume recording, press the / (TAPE ) button.

To stop recording:

Press the (TAPE ) button.

Note:

If you hear a whistling noise whilst recording an AM station, move the AM loop aerial.

 Dubbing from tape to tape

You can record from TAPE 1 to TAPE 2.

To stop dubbing:

Press the (TAPE ) button. TAPE 1 and TAPE 2 will stop simultaneously.

 Erasing recorded tapes

Note:

Make sure that the TAPE 1 is not in use.

1 Programme discs and tracks (see page 18). 2 Press the button. 3 Press the / (TAPE ) button to start recording.

1 Tune in to the desired station (see page 23). 2 Load a cassette into the TAPE 2 cassette compartment

with the side to be recorded on facing you.

Wind past the leader of the tape, on which recording cannot be performed.

3 Press the button.

Recording will be paused.

4 Press the / (TAPE ) button to start recording.

1 Press the ON/STAND-BY button to turn the power on. 2 Load a prerecorded cassette

into the TAPE 1 cassette compartment. Insert a blank tape into the TAPE 2 cassette compartment.

It is recommended that the recording tape is the same length as the master tape.

3 Press the TAPE (1 2) button until "TAPE 1" appears on

the display.

4 Press the button.

Recording will be paused.

5 Press the / (TAPE ) button to start dubbing.

1 Load the tape to be erased into the TAPE 2 cassette compart-

ment with the side to be erased facing towards you.

2 Press the TAPE (1 2) button until "TAPE 2" appears on the dis-

play. 3 Press the button. 4 Press the / (TAPE ) button to start erasing.

TAPE 1 TAPE 2

Page 40

03/12/17 CD-MPX870 EN.fm

E-29

CD-MPX870H

ENGLISH

Advanced Features

Using the Radio Data System (RDS)

RDS is a broadcasting service which a growing number of FM stations provide. These FM stations send additional signals along with their regular programme signals. They send their station names, and information about the type of programme such as sport, music, etc.

When tuned to an RDS station, "RDS" and the station name will be displayed. "TP" (Traffic Programme) will appear on the display when the received broadcast carries traffic information, and "TA" (Traffic Announcement) will appear whilst a traffic information is on air. "PTYI" (Dynamic PTY Indicator) will appear whilst the Dynamic PTY station is received.

You can control the RDS by using the buttons on the remote control only.

 Information provided by RDS

Each time the RDS DISPLAY button is pressed, the display will switch as follows:

When you are tuning in to a station other than an RDS station or to an RDS station which sends weak signal, the display will change in the following order:

Station name (PS) Programme type (PTY)

Frequency Radio text (RT)

NO PS NO PTY

FM 98.80 MHz

NO RT

Page 41

03/12/17 CD-MPX870 EN.fm

E-30

ENGLISH

CD-MPX870H

1 2 3 4 5 6 7

Advanced Features

 Using the Auto Station Programme Memory

(ASPM)

Whilst in the ASPM operation mode, the tuner will automatically search for new RDS stations. Up to 40 stations can be stored. If you have already stored some stations in memory, the number of new stations you can store will be less.

1 Press the TUNER (BAND) button to select the FM band. 2 Press and hold down the RDS ASPM button on the remote

control for at least 3 seconds.

1 After "ASPM" has flashed for about 4 seconds, scanning will

start (87.50 - 108.00 MHz).

2 When an RDS station is found, "RDS" will appear for a short

time and the station will be stored in memory.

3 After scanning, the number of stations stored in memory will

be displayed for 4 seconds, and then "END" will appear for 4 seconds.

Page 42

03/12/17 CD-MPX870 EN.fm

E-31

CD-MPX870H

ENGLISH

Advanced Features

Using the Radio Data System (RDS) (continued)

To stop the ASPM operation before it is complete:

Press the RDS ASPM button whilst it is scanning for stations. The stations which are already stored in memory will be kept there.

Notes:

 If the same station is broadcasting on different frequencies, the

strongest frequency will be stored in memory.

 Any station which has the same frequency as one stored in

memory will not be stored.

 If 40 stations have already been stored in memory, the scan will

be aborted. If you want to redo the ASPM operation, erase the preset memory.

 If no stations have been stored in memory, "END" will appear for

about 4 seconds.

 If the RDS signals are very weak, station names may not be

stored in memory.

To erase all of the contents of preset memory:

To store a station name again if the wrong name was stored in memory:

It may be impossible to store station names in memory using the ASPM function if there is lots of noise or if the signal is too weak. In this case, perform as follows.

Notes:

 The same station name can be stored in different channels.  In a certain area or during certain time periods, the station names

may temporarily be different.

 Notes for RDS operation

If any of the following events occur, it does not mean that the unit is faulty:

 "PS", "NO PS" and a station name appear alternately, and the unit

does not operate properly.

 If a particular station is not broadcasting properly or a station is

conducting tests, the RDS reception function may not work properly.

 When you receive an RDS station whose signal is too weak,

information like the station name may not be displayed.

 "NO PS", "NO PTY" or "NO RT" will flash for about 5 seconds, and

then the frequency will be displayed.

Notes for radio text:

 The first 10 characters of the radio text will appear for 4 seconds

and then they will scroll across the display.

 If you tune in to an RDS station which is not broadcasting any

radio text, "NO RT" will be displayed when you switch to the radio text position.

 Whilst radio text data is received or when the text contents

change, "RT" will be displayed.

1 Press the ON/STAND-BY button to enter the power stand-by

mode.

2 Whilst pressing down the button and the button, press

the TUNER (BAND) button until "TUNER CL" appears.

 After performing this operation, all of the preset memory

information will be erased.

1 Press the PRESET ( or ) button to check whether the names

are correct.

2 If you find a wrong name during receiving the station, wait until the

correct name will be displayed. And then press the MEMORY button.

3 Within 30 seconds, press the MEMORY button whilst the preset

channel number is flashing.

 The new station name has been stored in memory correctly.

Page 43

03/12/17 CD-MPX870 EN.fm

E-32

ENGLISH

CD-MPX870H

1 2 3 4 5 6 7

Advanced Features

 To recall stations in memory

To specify programmed types and select stations (PTY search):

You can search a station by specifying the programme type (news,

sports, traffic programme, etc. ... see pages 33 -34) from the stations

in memory.

1 Press the TUNER (BAND) button to select the FM. 2 Press the RDS PTY button on the remote control.

"SELECT" and "PTY TI" will appear alternately for about 6 seconds.

3 Within 6 seconds, press the PRESET ( or ) button to se-

lect the programme type.

Each time the button is pressed, the programme type will appear. If the button is held down for more than 0.5 seconds, the programme type will appear continuously.

4 Whilst the selected programme type is flashing (within 6

seconds), press the RDS PTY button again.

After the selected programme type has been lit for 2 seconds, "SEARCH" will appear, and the search operation will start.

Page 44

03/12/17 CD-MPX870 EN.fm

E-33

CD-MPX870H

ENGLISH

Advanced Features

Using the Radio Data System (RDS) (continued)

Notes:

 If the display has stopped flashing, start again from step 2. If the

unit finds a desired programme type, the corresponding channel number will flash for about 4 seconds, and then the station name will flash for 7 seconds, which will remain lit.

 If you want to listen to the same programme type of another

station, press the RDS PTY button whilst the channel number or station name is flashing. The unit will look for the next station.

 If no station can be found, "NOT FOUND" will appear for 4

seconds.

If you select the traffic programme:

If you select the traffic programme (TP) in step 3, "TP" will appear. (This does not mean that you can listen to the traffic information at that time.) When the traffic information is broadcast, "TA" will appear.

To specify station names and select stations manually:

You can select a station by specifying the name (BBC R1, BBC R2, etc.) from the stations stored in memory. Before starting this operation, you must store one or more station names in memory.

Descriptions of the PTY (Programme Type) codes, TP (Traffic Programme) and TA (Traffic Announcement).

You can search for and receive the following PTY, TP and TA signals.

1 Press the TUNER (BAND) button to select the FM band. 2 Press the PRESET

( or ) button on the remote control to se-

lect a desired station.

3 The station name will be displayed for 6 seconds. Then the

display will change.

NEWS Short accounts of facts, events and publicly

expressed views, reportage and actuality.

AFFAIRS Topical programme expanding or enlarging upon

the news, generally in different presentation style or concept, including debate, or analysis.

INFO Programmes whose purpose is to impart advice in

the widest sense.

SPORT Programme concerned with any aspect of sport. EDUCATE Programme intended primarily to educate, of which

the formal element is fundamental.

DRAMA All radio plays and serials. CULTURE Programmes concerned with any aspect of national

or regional culture, including language, theatre, etc.

SCIENCE Programmes about the natural sciences and

technology.

VARIED Used for mainly speech-based programmes usually

of light-entertainment nature, not covered by other categories. Examples include: quizzes, panel games, personality interviews.

POP M Commercial music, which would generally be

considered to be of current popular appeal, often featuring in current or recent record sales charts.

ROCK M Contemporary modern music, usually written and

performed by young musicians.

EASY M Current contemporary music considered to be

"easy-listening", as opposed to Pop, Rock or Classical, or one of the specialised music styles, Jazz, Folk or Country. Music in this category is often but not always, vocal, and usually of short duration.

Page 45

03/12/17 CD-MPX870 EN.fm

E-34

ENGLISH

CD-MPX870H

1 2 3 4 5 6 7

Advanced Features

LIGHT M Classical music for general, rather than specialist

appreciation. Examples of music in this category are instrumental music, and vocal or choral works.

CLASSICS Performances of major orchestral works,

symphonies, chamber music, etc., and including Grand Opera.

OTHER M Musical styles not fitting into any of the other

categories. Particularly used for specialist music of which Rhythm & Blues and Reggae are examples.

WEATHER Weather reports and forecasts and meteorological

information.

FINANCE Stock Market reports, commerce, trading, etc. CHILDREN For programmes targeted at a young audience,

primarily for entertainment and interest, rather than where the objective is to educate.

SOCIAL Programmes about people and things that

influence them individually or in groups. Includes: sociology, history, geography, psychology and society.

RELIGION Any aspect of beliefs and faiths, involving a God or

Gods, the nature of existence and ethics.

PHONE IN Involving members of the public expressing their

views either by phone or at a public forum.

TRAVEL Features and programmes concerned with travel to

near and far destinations, package tours and travel ideas and opportunities. Not for use for announcements about problems, delays, or roadworks affecting immediate travel where TP/TA should be used.

LEISURE Programmes concerned with recreational activities

in which the listener might participate. Examples include, Gardening, Fishing, Antique collecting, Cooking, Food & Wine, etc.

JAZZ Polyphonic, syncopated music characterised by

improvisation.

COUNTRY Songs which originate from, or continue the musical

tradition of the American Southern States. Characterised by a straightforward melody and narrative story line.

NATION M Current Popular Music of the Nation or Region in

that country's language, as opposed to International 'Pop' which is usually US or UK inspired and in English.

OLDIES Music from the so-called "golden age" of popular

music.

FOLK M Music which has its roots in the musical culture of a

particular nation, usually played on acoustic instruments. The narrative or story may be based on historical events or people.

DOCUMENT Programme concerned with factual matters,

presented in an investigative style.

TEST Broadcast when testing emergency broadcast

equipment or receivers.

ALARM ! Emergency announcement made under

exceptional circumstances to give warning of events causing danger of a general nature.

NONE No programme type (receive only). TP Broadcasts which carry traffic announcements. TA Traffic announcements are being broadcast.

Page 46

03/12/17 CD-MPX870 EN.fm

E-35

CD-MPX870H

ENGLISH

Advanced Features

Timer and sleep operation (Remote control only)

Timer playback:

The unit turns on and plays the desired source (CD, tuner, tape) at a preset time.

Timer recording:

The unit turns on and starts recording from the tuner at the preset time.

Using the once timer and daily timer in combination:

For example, use the once timer to record a radio programme, and use the daily timer to wake up.

Note:

When set times for the daily timer and once timer overlap, the once timer takes priority. Allow an interval of at least 1 minute between operations.

 Timer playback or timer recording

Before setting timer:

Continued to the next page

This unit has 2 types of timer: ONCE TIMER and DAILY TIMER.

Once timer: Once timer play or once timer recording works for

one time only at a preset time.

For example, if you are away but want to record a programme on a radio station.

Daily timer: Daily timer play or daily timer recording works at

the same preset time every day.

For example, set the timer as a wake-up call every morning.

1 Set the daily timer (pages 35 - 37). 2 Set the once timer (pages 35 - 37).

Start

Daily timer

Once timer

1 minute or more

Stop Start Stop

1 Check that the clock is set to the correct time (refer to page 11).

If it is not set, you cannot use the timer function.

2 For timer playback: Load a cassette or discs to be played.

For timer recording: Load a cassette for recording in the cas-

sette compartment.

1 Press the ON/STAND-BY button to turn the power on. 2 Press the CLOCK/TIMER button. 3 Within 10 seconds, press the or button to se-

lect "ONCE" or "DAILY", and press the MEMORY button.

Set the clock to the correct time if "ONCE" or "DAILY" does not appear.

Page 47

03/12/17 CD-MPX870 EN.fm

E-36

ENGLISH

CD-MPX870H

1 2 3 4 5 6 7

Advanced Features

Continued to the next page

4 Within 10 seconds, press the or button to se-

lect "ONCE SET" or "DAILY SET", and press the MEMORY button.

5 Press the or button to select "PLAY" or

"REC", and press the MEMORY button.

The illustrations show the daily timer setting.

6 Press the or button to adjust the hour and

then press the MEMORY button.

The illustrations show the timer playback setting in the daily timer mode.

7 Press the or button to adjust the minutes and

then press the MEMORY button.

8 Set the time to finish as in steps 6 and 7 above.

White Red

9 Switch input with the or button, and then

press the MEMORY button.

To select the timer playback source: CD, TUNER, TAPE 1 or TAPE 2.

To select the timer recording source: TUNER.  When you select the tuner, select a station by pressing the

or button, and then press the MEMORY but-

ton.

 If a station has not been programmed, "NO PRESET" will

be displayed and timer setting will be cancelled.

10 Adjust the volume using the VOLUME control, and then

press the MEMORY button.

Do not turn the volume up too high.

11 Press the ON/STAND-BY button to enter the power stand-

by mode.

The "TIMER" indicator lights up and the unit is ready for timer playback or timer recording.

Page 48

03/12/17 CD-MPX870 EN.fm

E-37

CD-MPX870H

ENGLISH

Advanced Features

Timer and sleep operation (Remote control only) (continued)

Notes:

Checking the timer setting in the timer stand-by mode:

Cancelling the timer setting in the timer stand-by mode:

Reusing the memorised timer setting:

The timer setting will be memorised once it is entered. To reuse the same setting, perform the following operations.

12 When the preset time is reached, playback or recording

will start.

The volume will increase gradually until it reaches the preset volume.

13 When the timer end time is reached, the system will enter

the power stand-by mode automatically.

Once timer:

The timer will be cancelled.

Daily timer:

The timer will operate at the same time every day. It will continue until the daily timer setting is cancelled. Cancel the daily timer when it is not in use.

 When performing timer playback or recording using another unit

connected to the GAME INPUT sockets, select "GAME" in step 9. This unit will turn on or enter the power stand-by mode automatically, however, the connected unit will not turn on or off.

 During timer playback or timer recording, TIMER indicator light

and timer indicator on the display r, will blink. To stop the blinking, follow step "Cancelling the timer setting in the timer stand-by mode" on the right hand side of this page.

1 Press the CLOCK/TIMER button. 2 Within 10 seconds, press the or button to select

"ONCE" or "DAILY", and press the MEMORY button.

3 Within 10 seconds, press the or button to select

"ONCE CALL" or "DAILY CALL", and press the MEMORY button. The unit returns to the timer stand-by mode after displaying the settings in order.

1 Press the CLOCK/TIMER button. 2 Within 10 seconds, press the or button to select

"ONCE" or "DAILY", and press the MEMORY button.

3 Within 10 seconds, press the or button to select

"ONCE OFF" or "DAILY OFF", and press the MEMORY button. Timer will be cancelled (the setting will not be cancelled).

1 Turn the power on and press the CLOCK/TIMER button. 2 Within 10 seconds, press the or button to select

"ONCE" or "DAILY", and press the MEMORY button.

3 Within 10 seconds, press the or button to select

"ONCE ON" or "DAILY ON", and press the MEMORY button.

4 Press the ON/STAND-BY button to enter the power stand-by

mode.

Page 49

03/12/17 CD-MPX870 EN.fm

E-38

ENGLISH

CD-MPX870H

1 2 3 4 5 6 7

Advanced Features

 Sleep operation

The radio, CD, MP3/WMA disc and cassette tape can all be turned off automatically.

To confirm the remaining sleep time:

To cancel the sleep operation:

Press the ON/STAND-BY button whilst "SLEEP" is indicated. To cancel the sleep operation without setting the unit to the stand-by mode, proceed as follows.

 To use timer and sleep operation together

Sleep and timer playback:

For example, you can fall asleep listening to the radio and wake up to CD in the next morning.

Sleep and timer recording:

For example, you can fall asleep listening to the CD and record radio programmes whilst sleeping.

Caution:

When using the cassette deck, be sure the tape length is long enough to perform both functions. If you want to sleep and wake up listening to a tape, and the length of the tape is shorter than the sleep timer setting, timer playback or recording will not be possible.

1 Play back the desired sound source. 2 Press the CLOCK/TIMER button. 3 Within 10 seconds, press the

or button to select "SLEEP", and press the MEMORY button.

4 Press the or button to select the time.

(Maximum: 3 hours - Minimum: 1 minute)

 3 hours - 5 minutes 5-minute intervals  5 minutes - 1 minute 1-minute intervals

5 Press the MEMORY button.

"SLEEP" will appear.

6 The unit will enter the power stand-by mode automatically

after the preset time has elapsed.

The volume will be turned down 1 minute before the sleep operation finishes.

1 Whilst "SLEEP" is indicated, press the CLOCK/TIMER button. 2 Within 10 seconds, press the or button to select

"SLEEP X : XX". "X : XX" is remaining sleep time.

 The remaining sleep time is displayed for about 10 seconds.  You can change the remaining sleep time whilst it is displayed by

pressing the MEMORY button.

1 Whilst "SLEEP" is indicated, press the CLOCK/TIMER button. 2 Within 10 seconds, press the or button to select

"SLEEP OFF", and press the MEMORY button.

1 Set the sleep time (see left, steps 1 - 5). 2 Whilst the sleep timer is set, set the timer playback or recording

(steps 2 - 10, pages 35 - 36).

Sleep timer setting

Timer playback or recording setting

Sleep operation will automatically stop.

Timer playback or recording start time

End time

1 minute - 3 hours Desired time

Page 50

03/12/17 CD-MPX870 EN.fm

E-39

CD-MPX870H

ENGLISH

Advanced Features

Enhancing your system

The connection lead is not included. Purchase a commercially available lead as shown below.

 Listening to playback sounds of Game, VCR,

DVD, etc.

Note:

To prevent noise interference, place the unit away from the television.

Auto power on function:

When you press any of the following buttons, the unit turns on.  GAME/VIDEO button (main unit and remote control): The unit

turns on and the "GAME" function is activated.

 / button on the main unit: The unit turns on and playback of

the last function starts (CD,TAPE,TUNER,GAME/VIDEO).

 To record on a tape from game, VCR, etc.

AC INPUT

GAME or VCR, DVD, etc.

RedYellow

Yellow

To the line output socket

RCA lead (not supplied)

Video cable (not supplied)

Red

White

To video input socket

Video cable (not supplied)

Yellow

White

1 Connect a video game system, VCR, DVD, etc. to the front

GAME INPUT (VIDEO, AUDIO L and R) sockets.

2 Connect a TV to the rear VIDEO OUT sockets.

Switch the TV input to auxiliary.

3 Press the ON/STAND-BY button to turn the power on. 4 Press the GAME/VIDEO button. 5 Play the connected equipment.

You can enjoy sounds from the supplied speakers and images on the TV.

1 Insert a cassette in the TAPE 2 cassette compartment. 2 Press the GAME/VIDEO button. 3 Press the button. 4 Press the / (TAPE ) button. 5 Start the game system, VCR, etc.

Page 51

03/12/17 CD-MPX870 EN.fm

E-40

ENGLISH

CD-MPX870H

1 2 3 4 5 6 7

References

 Headphones

 Before plugging in or unplugging the headphones, reduce the vol-

ume.

 Be sure your headphones have a 3.5 mm (1/8") diameter plug and

impedance between 16 and 50 ohms. The recommended impedance is 32 ohms.

 Plugging in the headphones disconnects the speakers automati-

cally. Adjust the volume using the VOLUME control.

Troubleshooting chart

Many potential problems can be resolved by the owner without calling a service technician. If something is wrong with this product, check the following before calling your authorised SHARP dealer or service centre.

 General

 CD player

Symptom Possible cause

 The clock is not set to the

correct time.

 Did a power failure occur? Reset

the clock. (Refer to page 11.)

 When a button is pressed,

the unit does not respond.

 Set the unit to the power stand-

by mode and then turn it back on.

 If the unit still malfunctions, reset

it. (Refer to page 42.)

 No sound is heard.  Is the volume level set to "0"?

 Are the headphones connected?  Are the speaker wires discon-

nected?

Symptom Possible cause

 Playback does not start.  Is the disc loaded upside down?  Playback stops in the mid-

dle or is not performed properly.

 Does the disc satisfy the stan-

dards?

 Is the disc distorted or

scratched?

 Playback sounds are

skipped, or stopped in the middle of a track.

 Is the unit located near excessive

vibrations?

 Is the disc very dirty?  Has condensation formed inside

the unit?

Page 52

03/12/17 CD-MPX870 EN.fm

E-41

CD-MPX870H

ENGLISH

References

Troubleshooting chart (continued)

 Cassette deck

 Remote control

 Tuner

 Condensation

Sudden temperature changes, storage or operation in an extremely humid environment may cause condensation inside the cabinet (CD pickup, tape heads, etc.) or on the transmitter on the remote control. Condensation can cause the unit to malfunction. If this happens, leave the power on with no disc (or cassette) in the unit until normal playback is possible (about 1 hour). Wipe off any condensation on the transmitter with a soft cloth before operating the unit.

Symptom Possible cause

 Cannot record.  Is the erase-prevention tab re-

moved?

 Cannot record tracks with

proper sound quality.

 Is it a normal tape? (You cannot

record on a metal or CrO tape.)

 Cannot erase completely.  Sound skipping.  Cannot hear treble.  Sound fluctuation.

 Is there any slack?  Is the tape stretched?  Are the capstans, pinch rollers,

or heads dirty?

 Cannot remove the tape.  If a power failure occurs during

playback, the heads remain engaged with the tape. Do not open the compartment with great force.

Symptom Possible cause

 The remote control does

not operate.

 Is the AC power lead of the unit

plugged in?

 Is the battery polarity correct?  Are the batteries dead?  Is the distance or angle incor-

rect?

 Does the remote control sensor

receive strong light?

Symptom Possible cause

 The radio makes unusual

noises continuously.

 Is the unit placed near the TV or

computer?

 Is the FM aerial or AM loop aerial

placed properly? Move the aerial away from the AC power lead if it's located nearby.

Page 53

03/12/17 CD-MPX870 EN.fm

E-42

ENGLISH

CD-MPX870H

1 2 3 4 5 6 7

References

 If trouble occurs

When this product is subjected to strong external interference (mechanical shock, excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is operated incorrectly, it may malfunction.

If such a problem occurs, do the following:

1 Set the unit to the stand-by mode and turn the power on again. 2 If the unit is not restored in the previous operation, unplug and

plug in the unit, and then turn the power on.

Note:

If neither operation above restores the unit, clear all the memory by resetting it.

 Clearing all the memory (reset)

1 Press the ON/STAND-BY button to enter the power stand-by

mode.

2 Whilst pressing down the button and the button, press the

TUNER (BAND) button until "CLEAR ALL" appears.

Caution:

This operation will erase all data stored in memory including clock, timer settings, tuner preset, and CD programme.

 Before transporting the unit

Remove all CDs from the unit. Make sure there is no CD in the disc tray. Then, set the unit to the power stand-by mode. Carrying the unit with discs left inside can damage the unit.

 Care of compact discs

Compact discs are fairly resistant to damage, however mistracking can occur due to an accumulation of dirt on the disc surface. Follow the guidelines below for maximum enjoyment from your CD collection and player.  Do not write on either side of the disc, particularly the non-label

side from which signals are read. Do not mark this surface.

 Keep your discs away from direct sunlight, heat, and excessive

moisture.

 Always hold the CDs by the edges. Fingerprints, dirt, or water on

the CDs can cause noise or mistracking. If a CD is dirty or does not play properly, clean it with a soft, dry cloth, wiping straight out from the centre, along the radius.

NO YES

Correct

Page 54

03/12/17 CD-MPX870 EN.fm

E-43

CD-MPX870H

ENGLISH

References

Maintenance

 Cleaning the tape-handling parts

 Dirty heads, capstans or pinch rollers can cause poor sound and

tape jams. Clean these parts with a cotton swab moistened with

commercial head/pinch roller cleaner or isopropyl alcohol.

 When cleaning the heads, pinch rollers, etc., unplug the unit which

contains high voltages.

 After long use, the deck's heads and capstans may become mag-

netised, causing poor sound. Demagnetise these parts once ev-

ery 30 hours of playing/recording time by using a commercial tape

head demagnetiser. Read the demagnetiser's instructions care-

fully before use.

 Cleaning the CD pickup lens

In order to ensure proper operation of the CD player, preventative maintenance (cleaning of the laser pickup lens) should be performed periodically. Lens cleaners are commercially available. Contact your local CD software dealer for options.

 Cleaning the cabinet

Periodically wipe the cabinet with a soft cloth and a diluted soap solution, then with a dry cloth.

Caution:

 Do not use chemicals for cleaning (petrol, paint thinner, etc.). It

may damage the cabinet finish.

 Do not apply oil to the inside of the unit. It may cause malfunc-

tions.

Specifications

As part of our policy of continuous improvement, SHARP reserves the right to make design and specification changes for product improvement without prior notice. The performance specification figures indicated are nominal values of production units. There may be some deviations from these values in individual units.

 General

* This power consumption value is obtained when the demonstration

mode is cancelled in the power stand-by mode. Refer to page 8 to cancel the demonstration mode.

 Amplifier

Playback head Erase head

Capstans Recording/Playback head Pinch rollers

TAPE 1

TAPE 2

Power source AC 230 V, 50 Hz

Power consumption

Power on: 120 W Power stand-by: 0.6 W (*)

Dimensions Width: 260 mm (10 - 1/4")

Height: 330 mm (13") Depth: 323 mm (12 - 7/8")

Weight 7.78 kg (17.2 lbs.)

Output power PMPO: 1080 W

MPO: 540 W (270 W + 270 W) (DIN 45 324) RMS: 300 W (150 W + 150 W) (DIN 45 324) RMS: 240 W (120 W + 120 W) (DIN 45 500)

Output terminals Speakers: 6 ohms

Headphones: 16 - 50 ohms (recommended: 32 ohms)

Video output: 1Vp-p

Input terminals Game/ Auxiliary (audio signal):

500 mV/ 47 k ohms Game/Video: 1Vp-p

Page 55

03/12/17 CD-MPX870 EN.fm

E-44

ENGLISH

CD-MPX870H

1 2 3 4 5 6 7

References

 CD player

 Tuner

 Cassette deck

 Front Speaker

Type 5-disc multi-play compact disc player Signal readout Non-contact, 3-beam semiconductor laser

pickup

D/A converter 1-bit D/A converter

Frequency response

20 - 20,000 Hz

Dynamic range 90 dB (1 kHz)

Frequency range FM: 87.5 - 108 MHz

AM: 522 - 1,620 kHz

Frequency response

50 - 14,000 Hz (normal tape)

Signal/noise ratio 55 dB (TAPE 1, playback)

50 dB (TAPE 2, recording/playback)

Wow and flutter 0.35 % (DIN 45 511)

Type 3-way type speaker system

Super tweeter 5 cm (2") tweeter 16 cm (6 - 5/16") woofer

Maximum input power

300 W

Rated input power 150 W Impedance 6 ohms Dimensions Width: 200 mm (7 - 7/8" )

Height: 330 mm (13" ) Depth: 231 mm (9 - 1/8")

Weight 3.3 kg (7.3 lbs.) /each

Page 56

03/11/4 CD-MPX870_BACK.fm

INSZA213AWZZ

06H R AS 2

SHARP ELECTRONICS (Europe) GmbH

Sonninstraße 3, D-20097 Hamburg

SHARP CORPORATION

Page 57

CD-MPX870H

MINI COMPONENT SYSTEM

U P

DOWN
