Sharp CD-G10000DVD, CP-G10000 Owner Manual

DVD MINI SYSTEM

MODEL

CD-G10000DVD

SPEAKER SYSTEM

MODEL

CP-G10000

OPERATION MANUAL

Thank you for purchasing this SHARP product.
To obtain the best performance from this product, please read this
manual carefully. It will guide you in operating your SHARP product.

CD-G10000DVD

CD-G10000DVD DVD Mini System consisting of CD-G10000DVD (main unit) and
GBOXSA043AWM1 (surround speaker system).

CP-G10000

CP-G10000 Speaker System consisting of CP-G10000 (front speaker system) and CP­SW10000 (active subwoofer).

NTSC/PAL

*CD-G10000DVD(EN)Cover 05.1.17, 10:521

ENGLISH

Please refer to pages E-1 to E-77.

SHARP CORPORATION

CD-G10000DVD (S)
TINSZA160AWZZ

CD-G10000DVD
CP-G10000

ENGLISH

Special notes

ENGLISH

Accessories

WARNINGS

I When the ON/STAND-BY button is set at STAND-BY position, mains voltage

is still present inside the unit. When the ON/STAND-BY button is set at
STAND-BY position, the unit may be brought into operation by the timer
mode or remote control.

I This unit contains no user serviceable parts. Never remove covers unless

qualified to do so. This unit contains dangerous voltages, always remove
mains plug from the socket before any service operation and when not in use
for a long period.

I T o prevent fire or shock hazard, do not expose this appliance to dripping or splashing.

No objects filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION

I This product is classified as a CLASS 1 LASER product.
I This product contains a low power laser device. To ensure continued safety

do not remove any cover or attempt to gain access to the inside of the prod­uct. Refer all servicing to qualified personnel.

NOTE

Audio-visual material may consist of copyrighted works which must not be re­corded without the authority of the owner of the copyright.
Please refer to the relevant laws in your country.

Copy Protection

This Player supports Macrovision copy protection. On DVDs that include a
copy protection code, if the contents of the DVD are copied using a VCR, the
copy protection code prevents the videotape copy from playing normally.

Important Instruction

Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098
and 4,907,093 licensed for limited viewing uses only.

This product incorporates copyright protection technology that is protected
by method claims of certain U.S. patents and other intellectual property
rights owned by Macrovision Corporation and other rights owners. Use of
this copyright protection technology must be authorized by Macrovision
Corporation, and is intended for home and other limited viewing uses only
unless otherwise authorized by Macrovision Corporation. Reverse engi­neering or disassembly is prohibited.

Please confirm that the following accessories are included.

Remote control × 1

AM loop aerial × 1 FM aerial × 1

Front speaker wire × 2

(Red/Black)

Subwoofer cable × 1

(Black)

Note:

Only the above accessories are included.

“AA” size battery (UM/SUM-3,

R6, HP-7 or similar) × 2

Surround speaker wire × 2

(Grey/Black)

Video cable × 1

(Yellow)

E-1

*CD-G10000DVD(EN)01 05.1.17, 10:461

CD-G10000DVD (S)
TINSZA160AWZZ

1

2

3

4

5

6

7

8

9

10

SHARP TINSZA160AWZZ

Contents

H General Information Page

Precautions ................................................................................... 3

Controls and indicators ......................................................... 4 - 9

H Preparation for Use

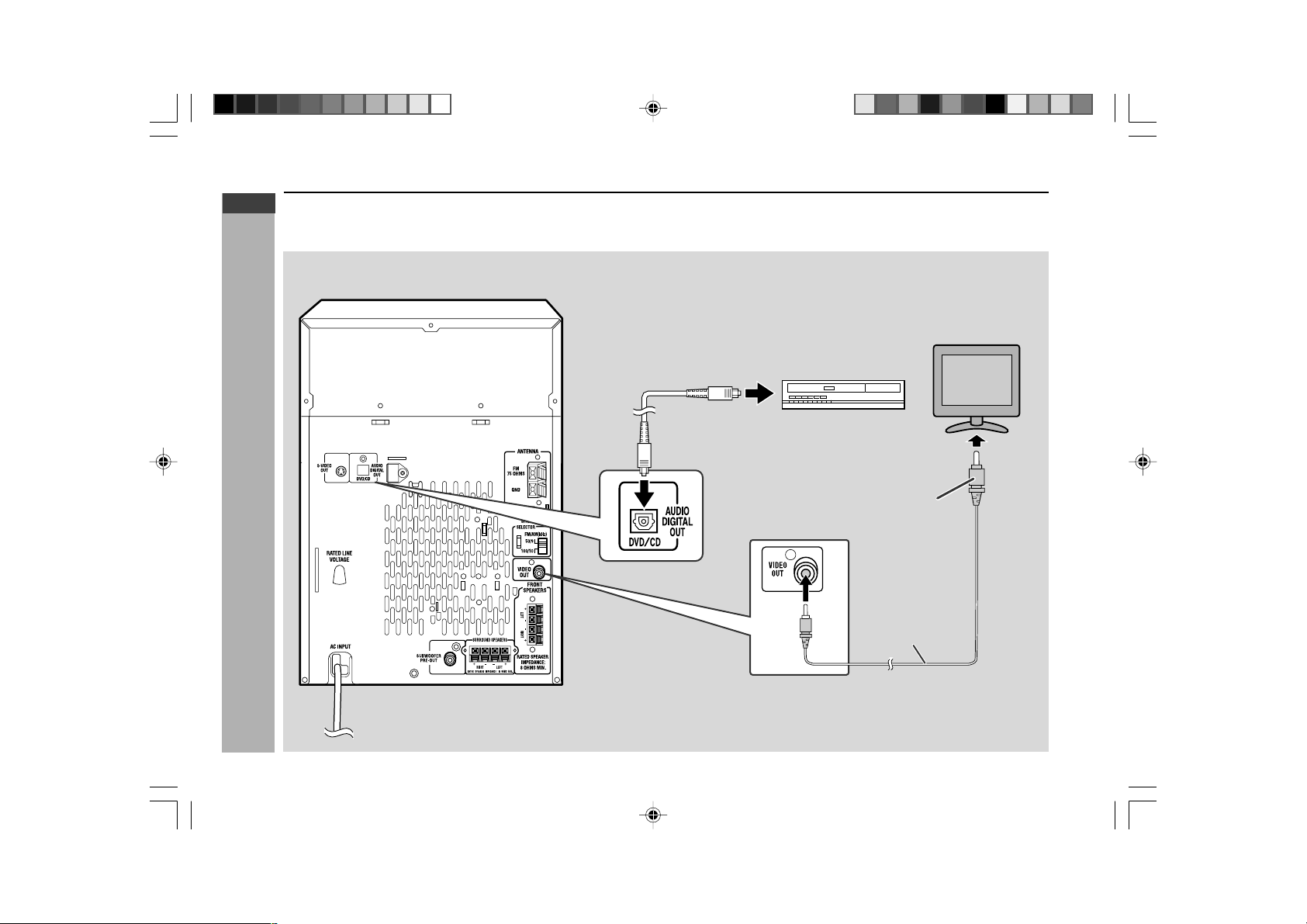

System connections........................................................... 10 - 15

Subwoofer control ......................................................................16

Remote control ...........................................................................17

H Basic Operation

General control ........................................................................... 18

Setting the clock .........................................................................19

H DVD Explanation

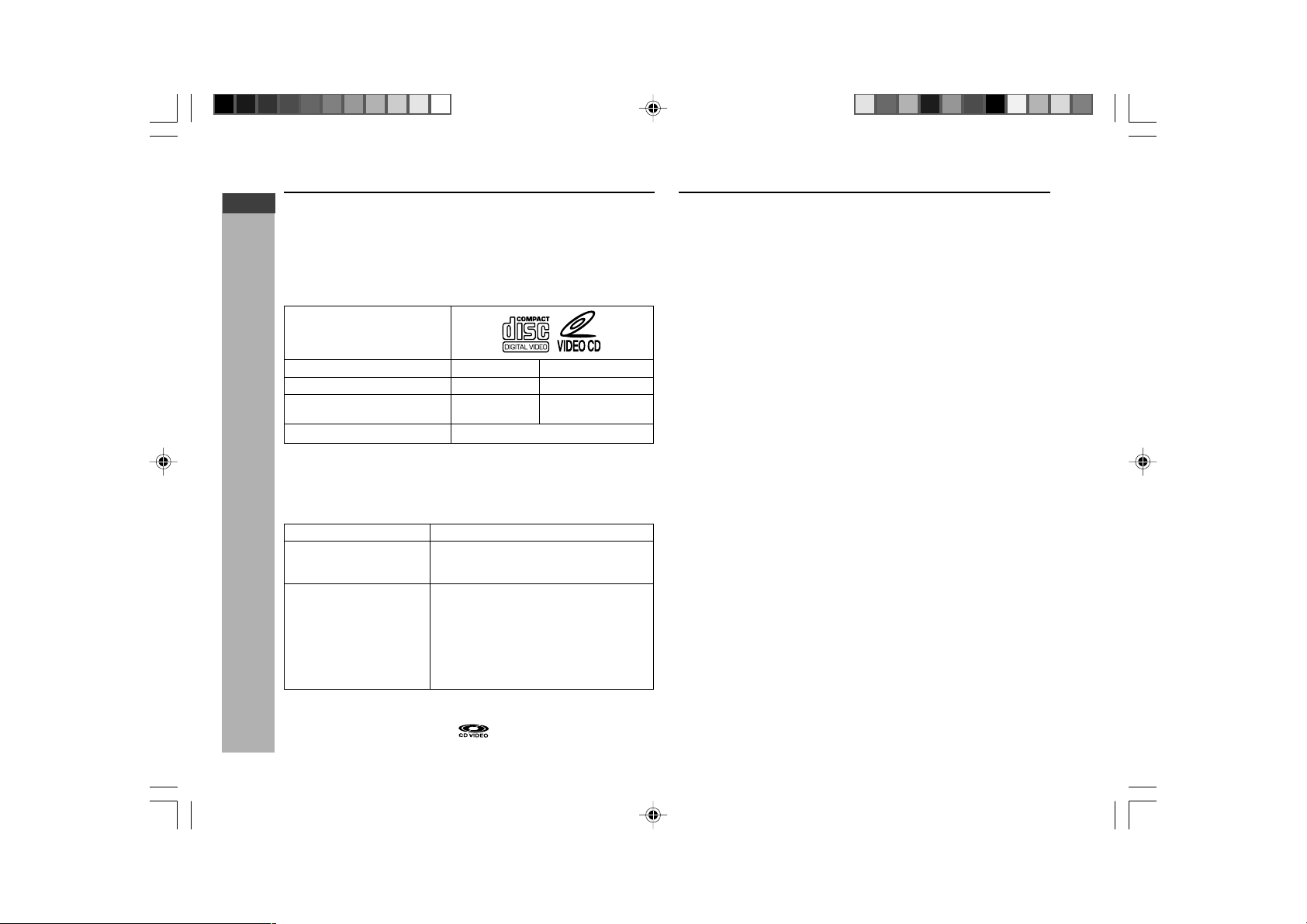

Types of playable discs ..................................................... 20 - 21

Preparing to watch a DVD (DVDs)............................................. 22

H DVD Setting

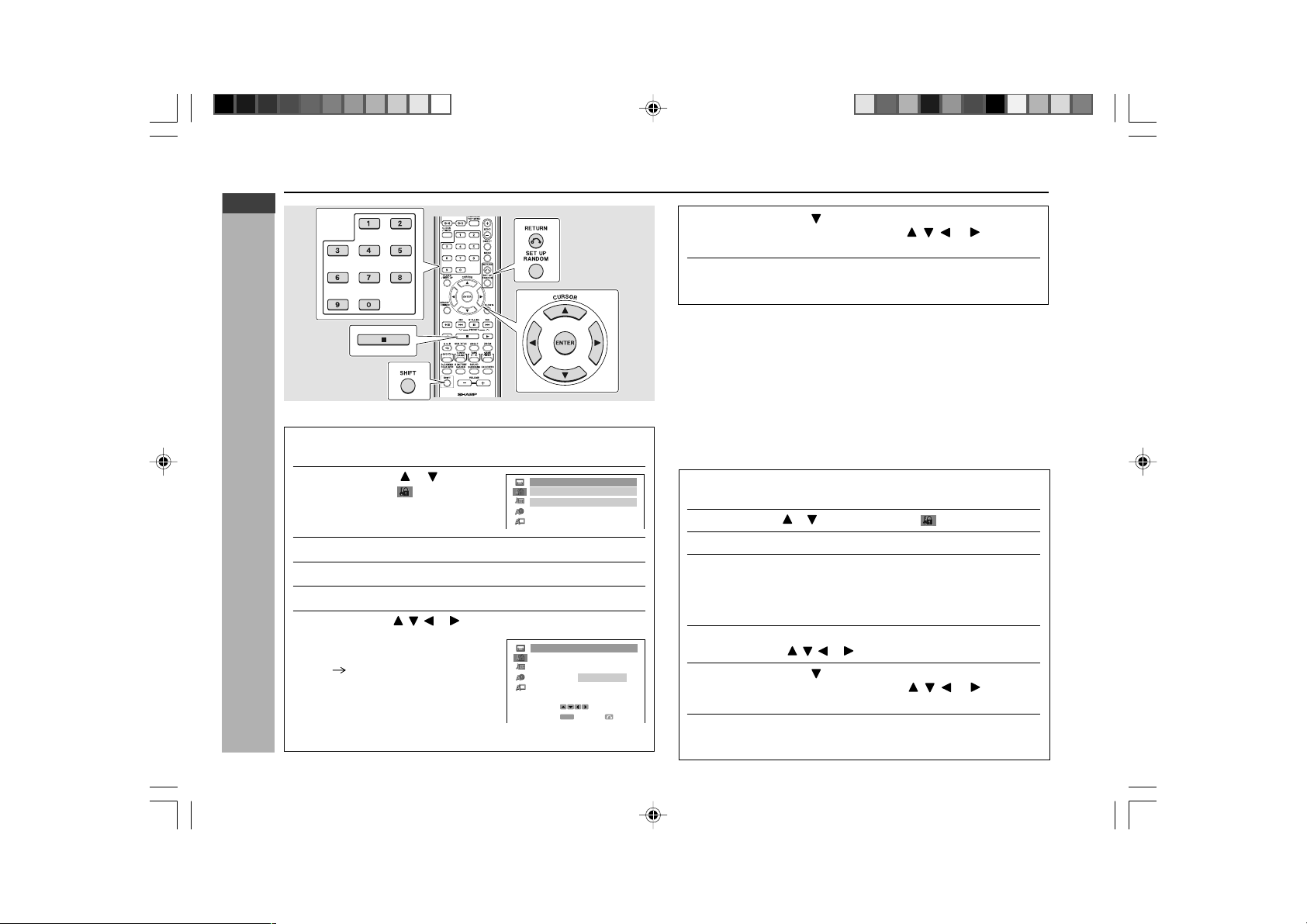

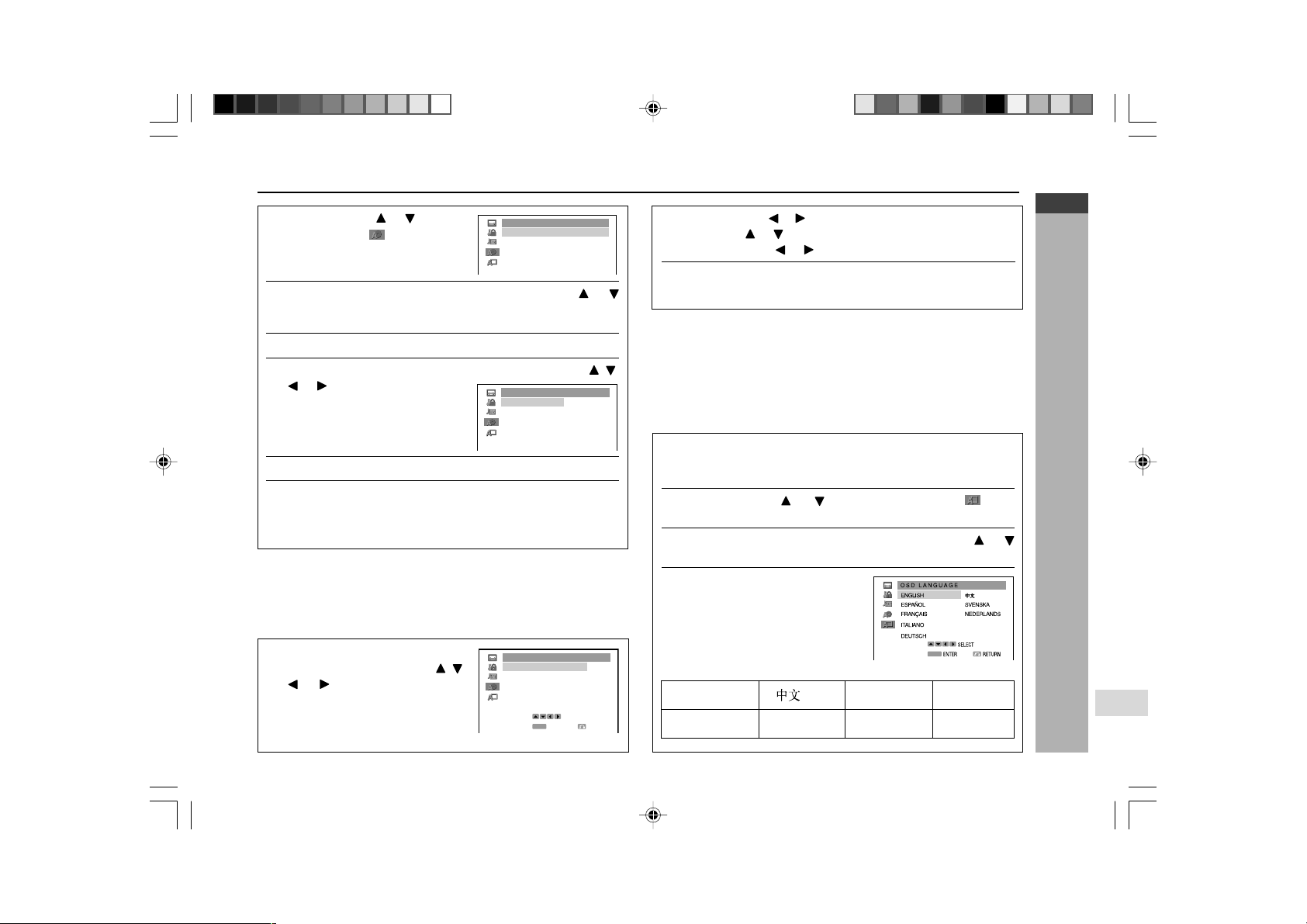

Initial setup (OSD language setup) ........................................... 23

Setting up for playback of an NTSC disc .................................24

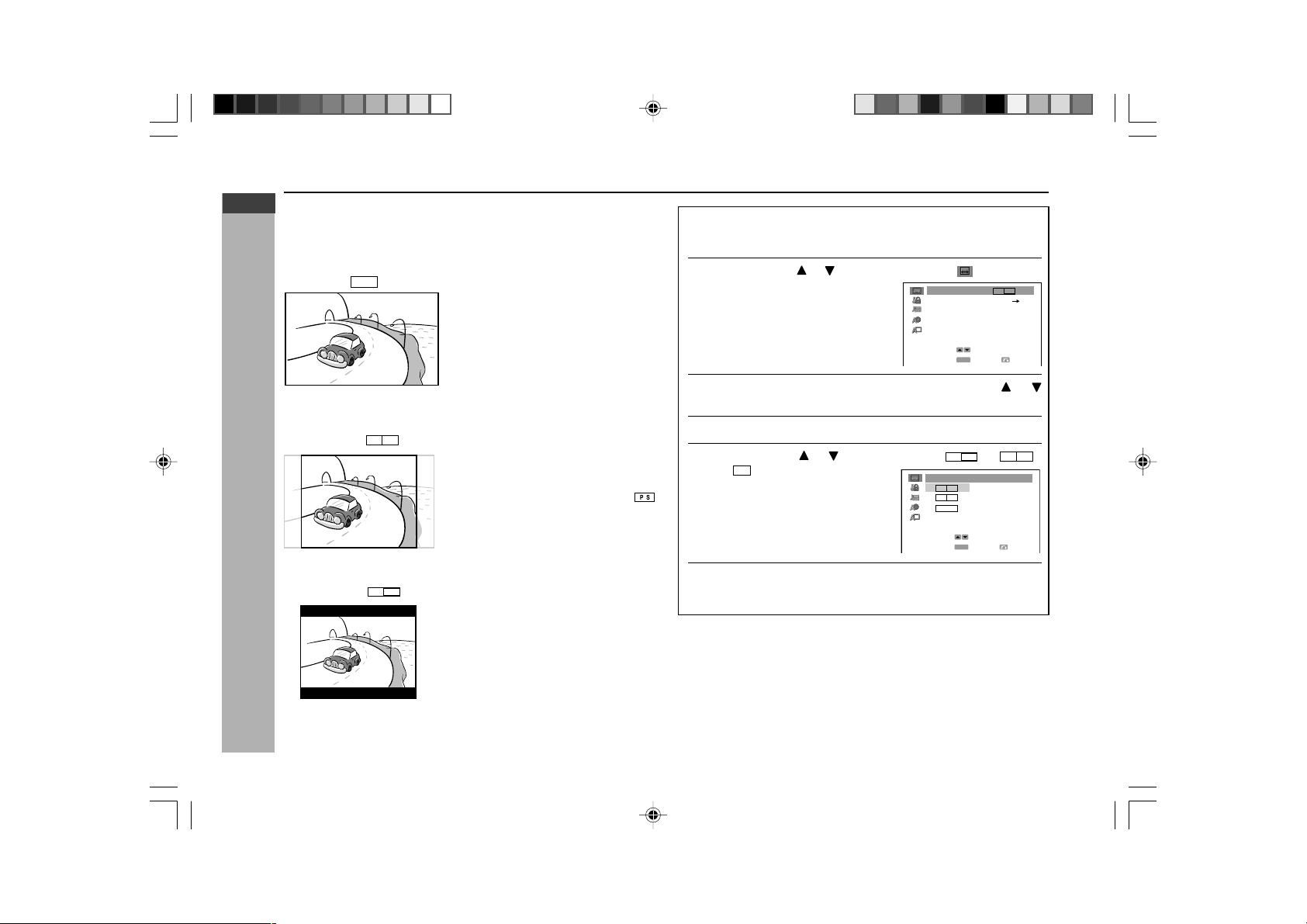

TV mode setup ............................................................................25

Parental setting................................................................... 26 - 27

Audio setting....................................................................... 28 - 29

Disc language setting ........................................................ 29 - 31

Changing the display mode....................................................... 32

H DVD Playback

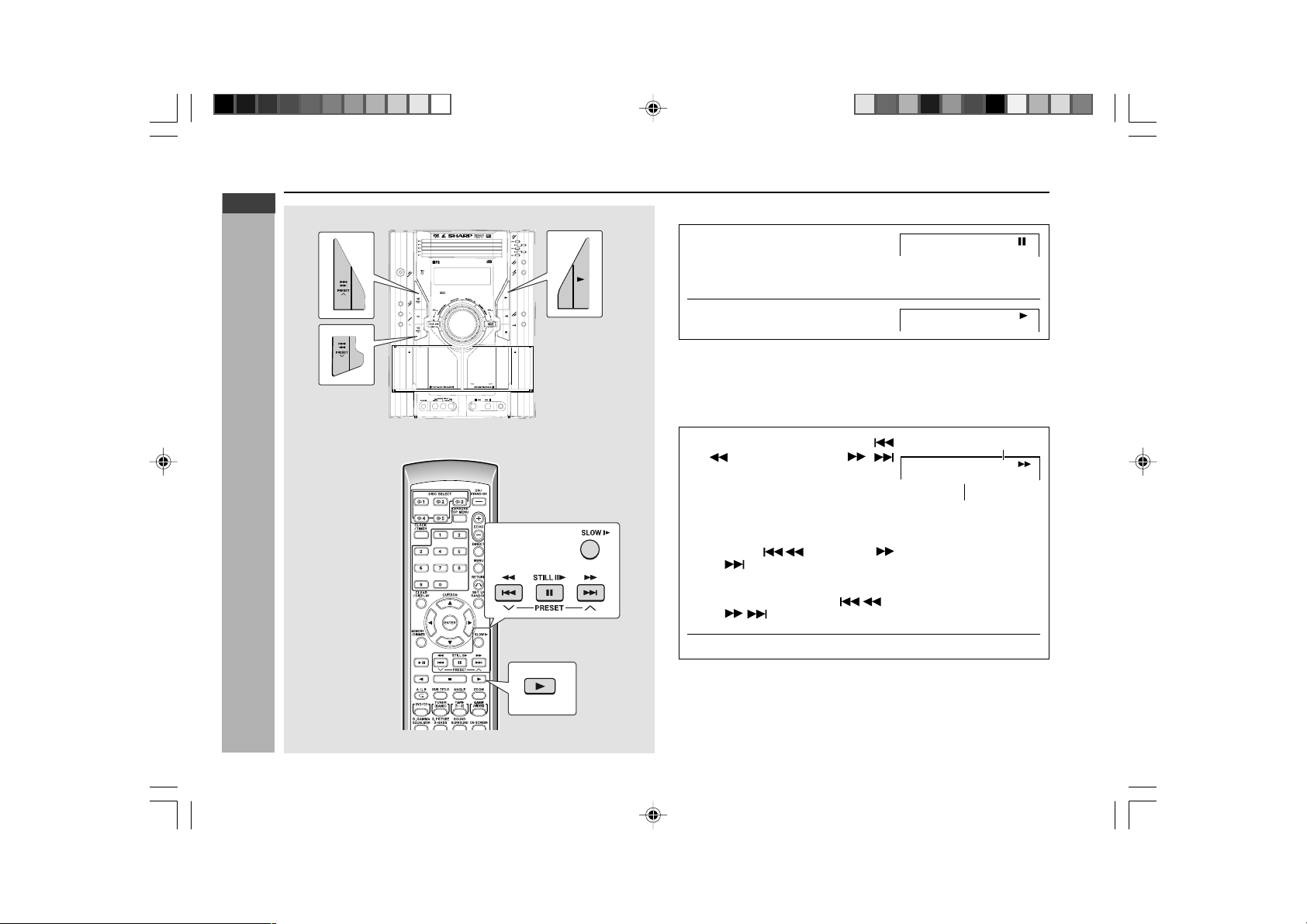

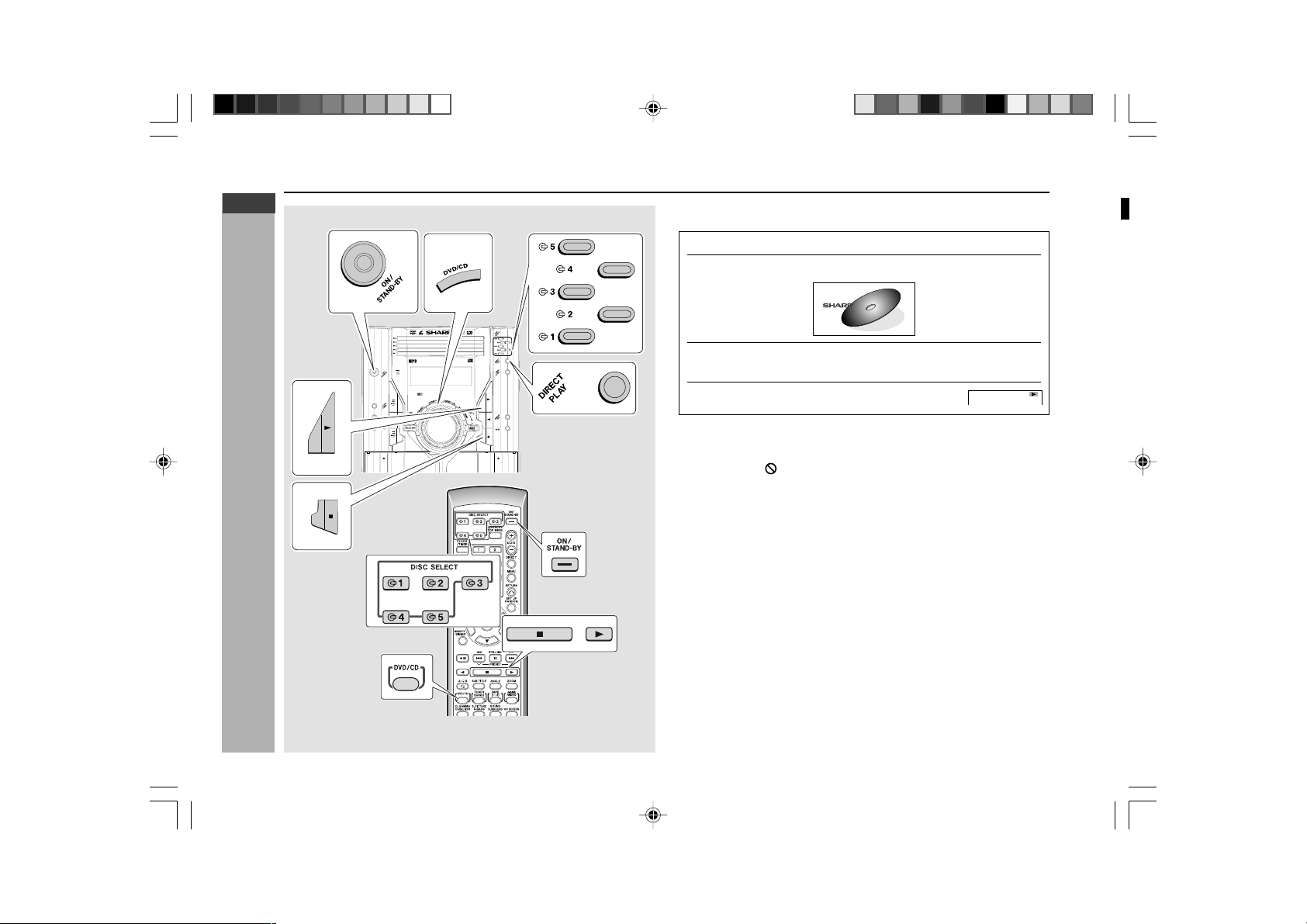

Playing a DVD (DVDs) ................................................................33

Other disc play features..................................................... 34 - 35

H Advanced DVD Features

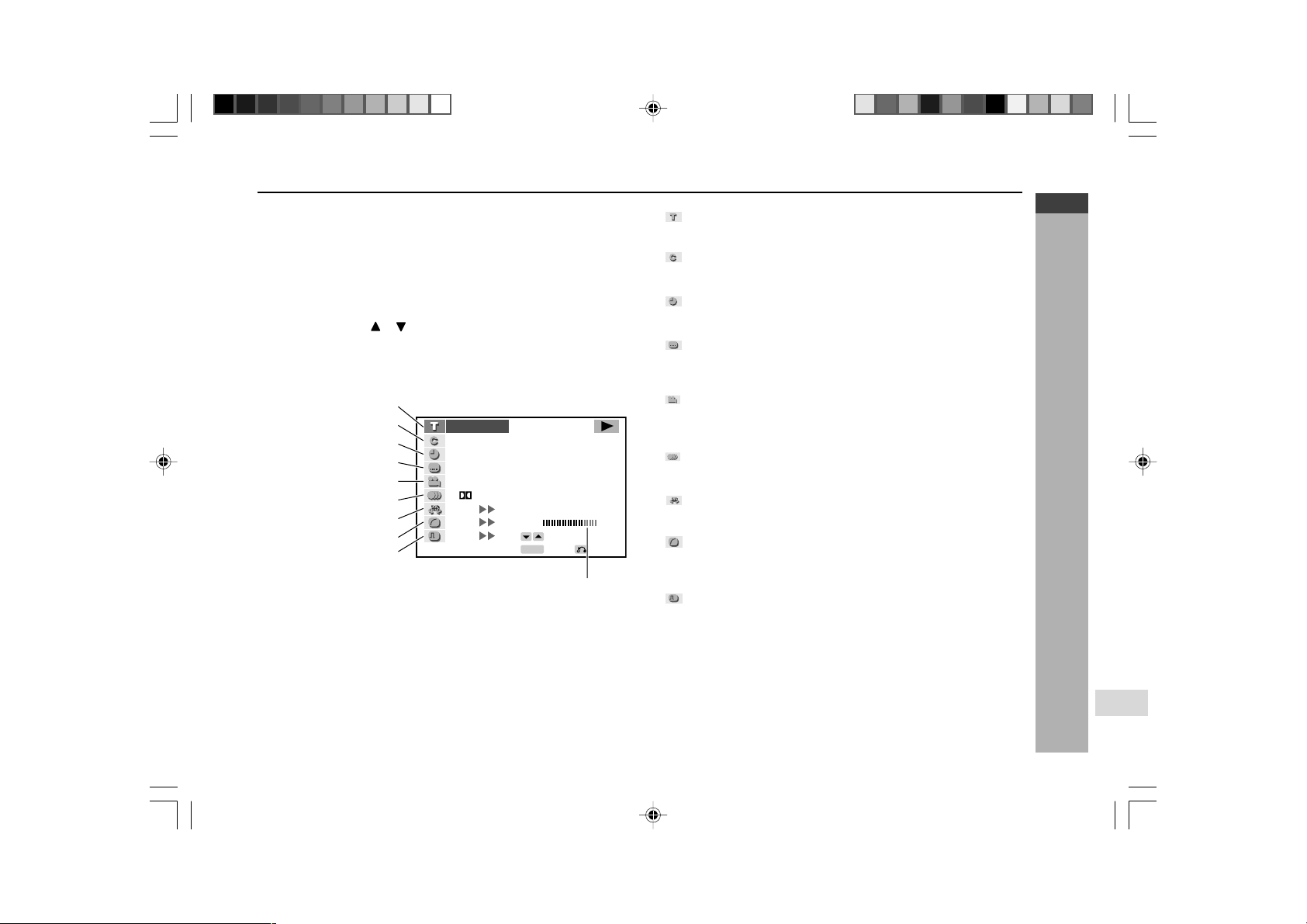

Using the function control ................................................. 36 - 41

Repeat playback .........................................................................42

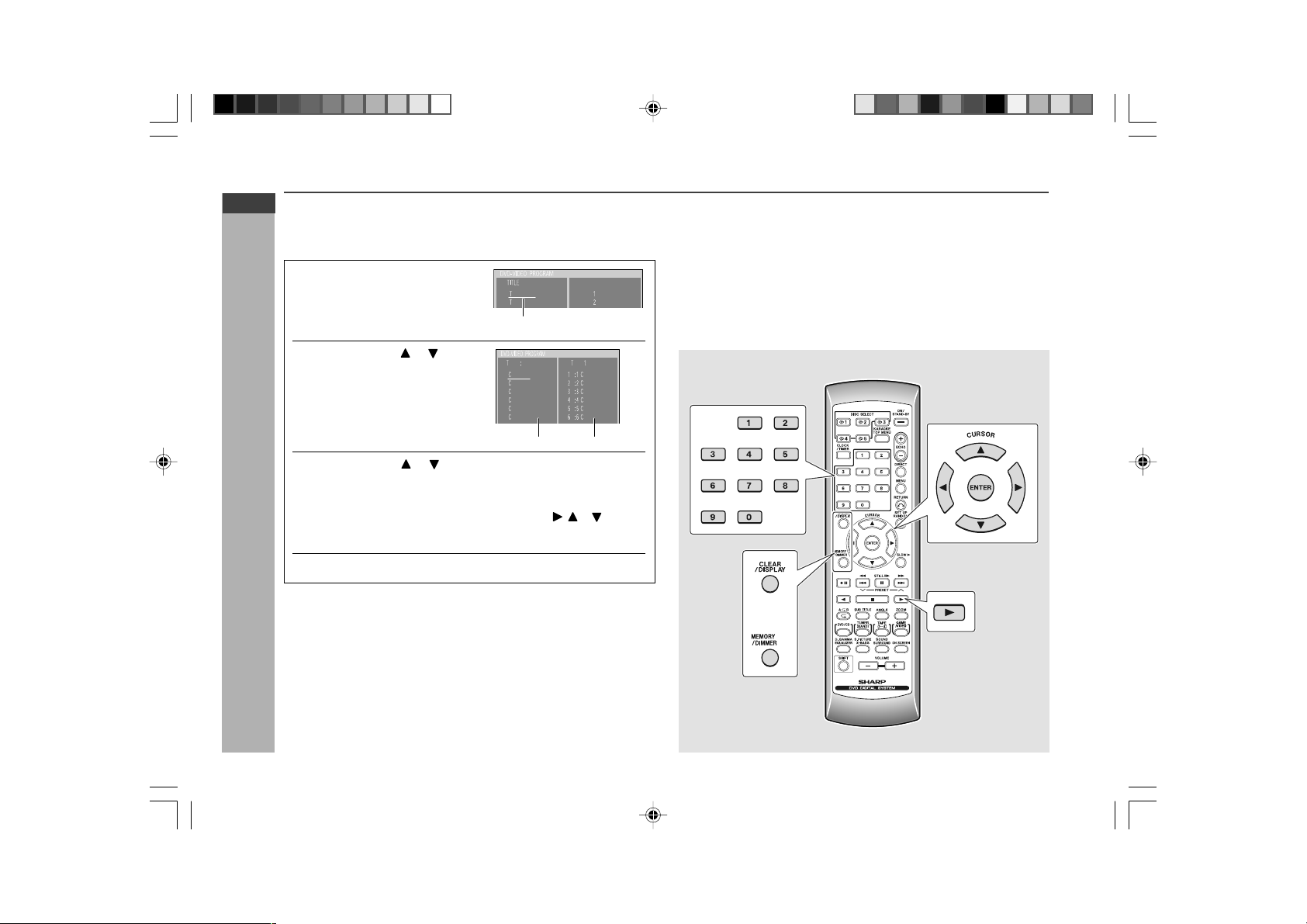

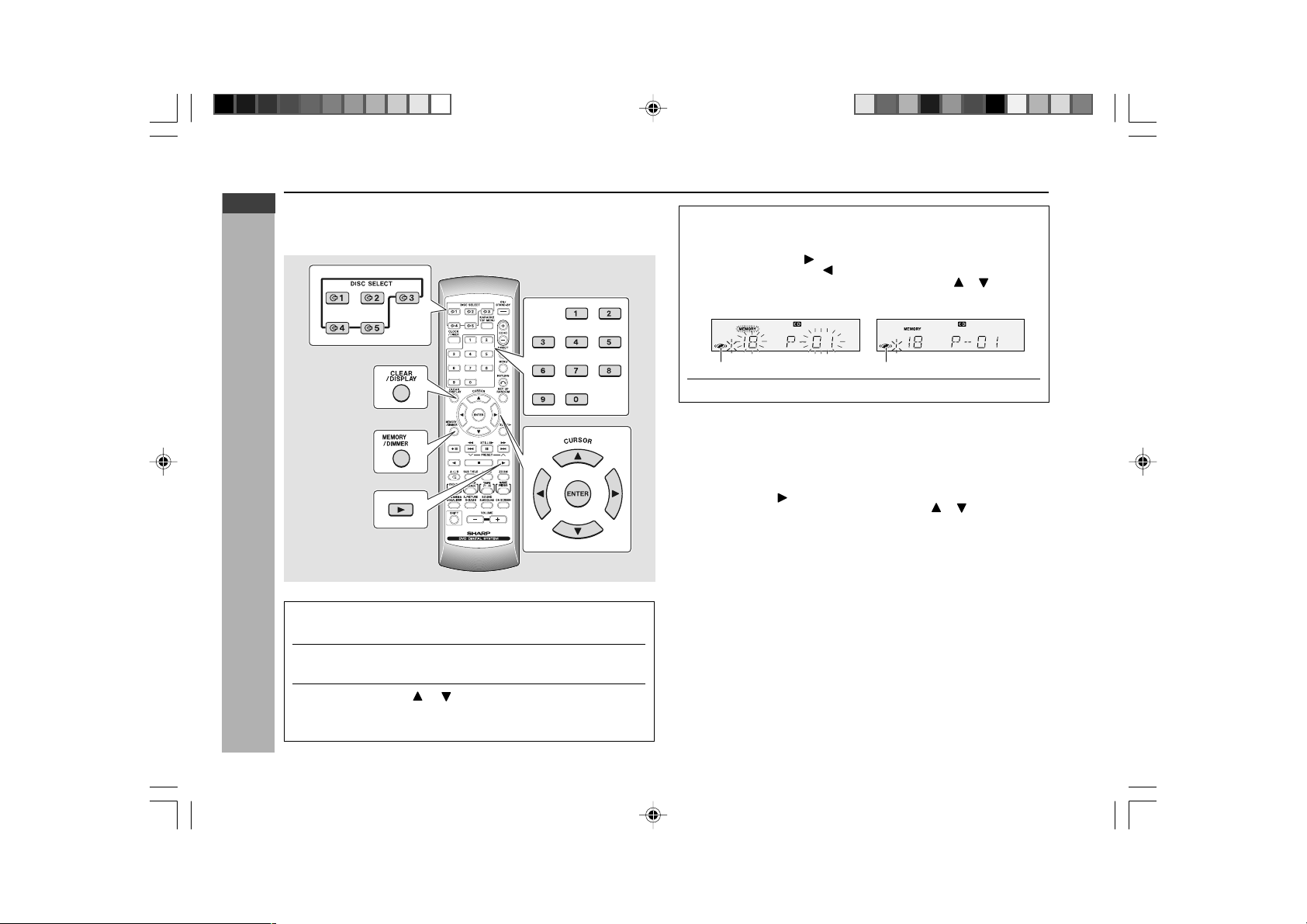

Programme playback .................................................................43

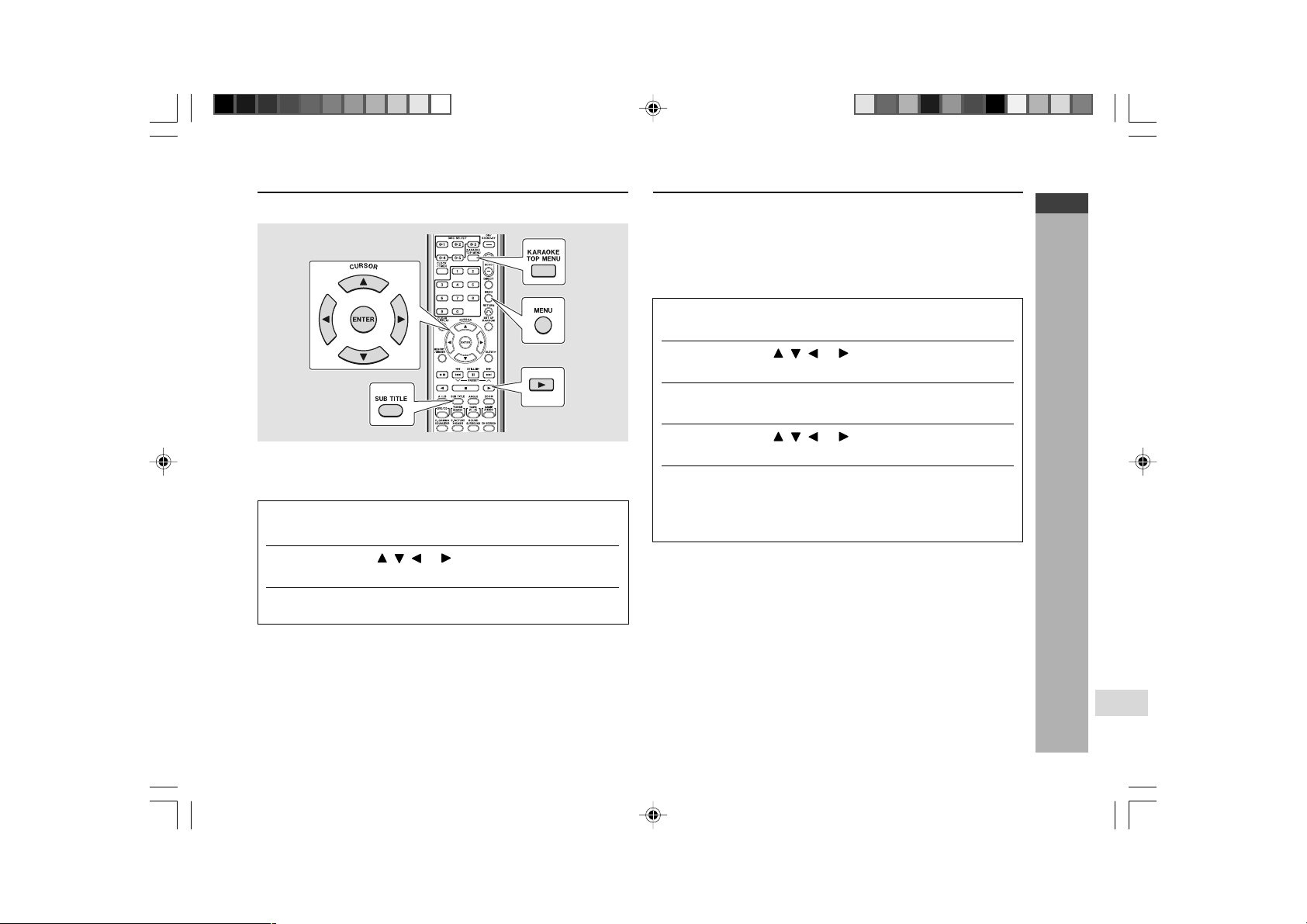

Selecting titles from the menu ..................................................44

Setting parameters using the disc menu .................................44

H Video CD/CD Playback Page

Video CD...................................................................................... 45

Preparation for video CD playback ...........................................45

Video CD playback ............................................................. 46 - 47

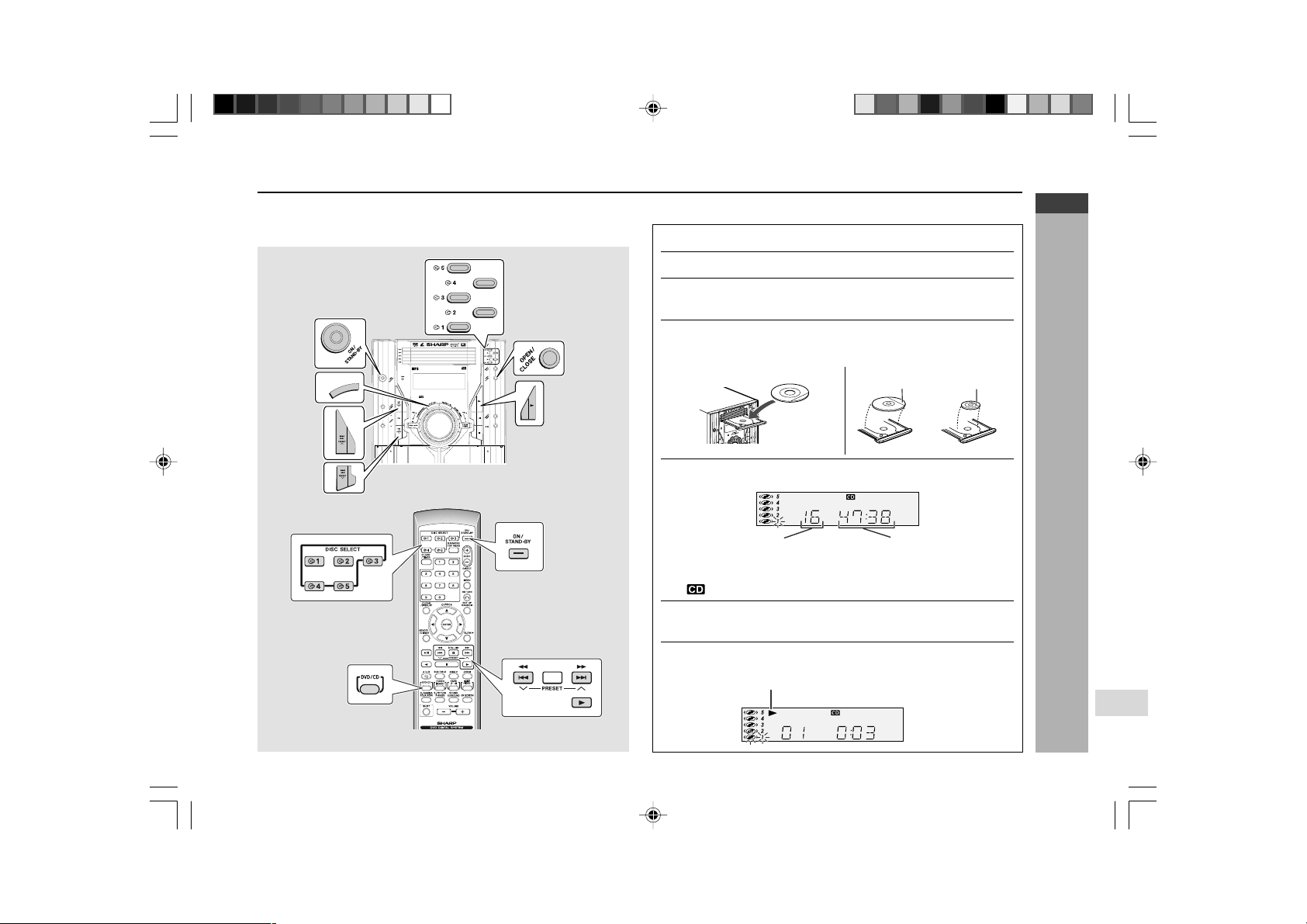

CD playback ........................................................................ 48 - 51

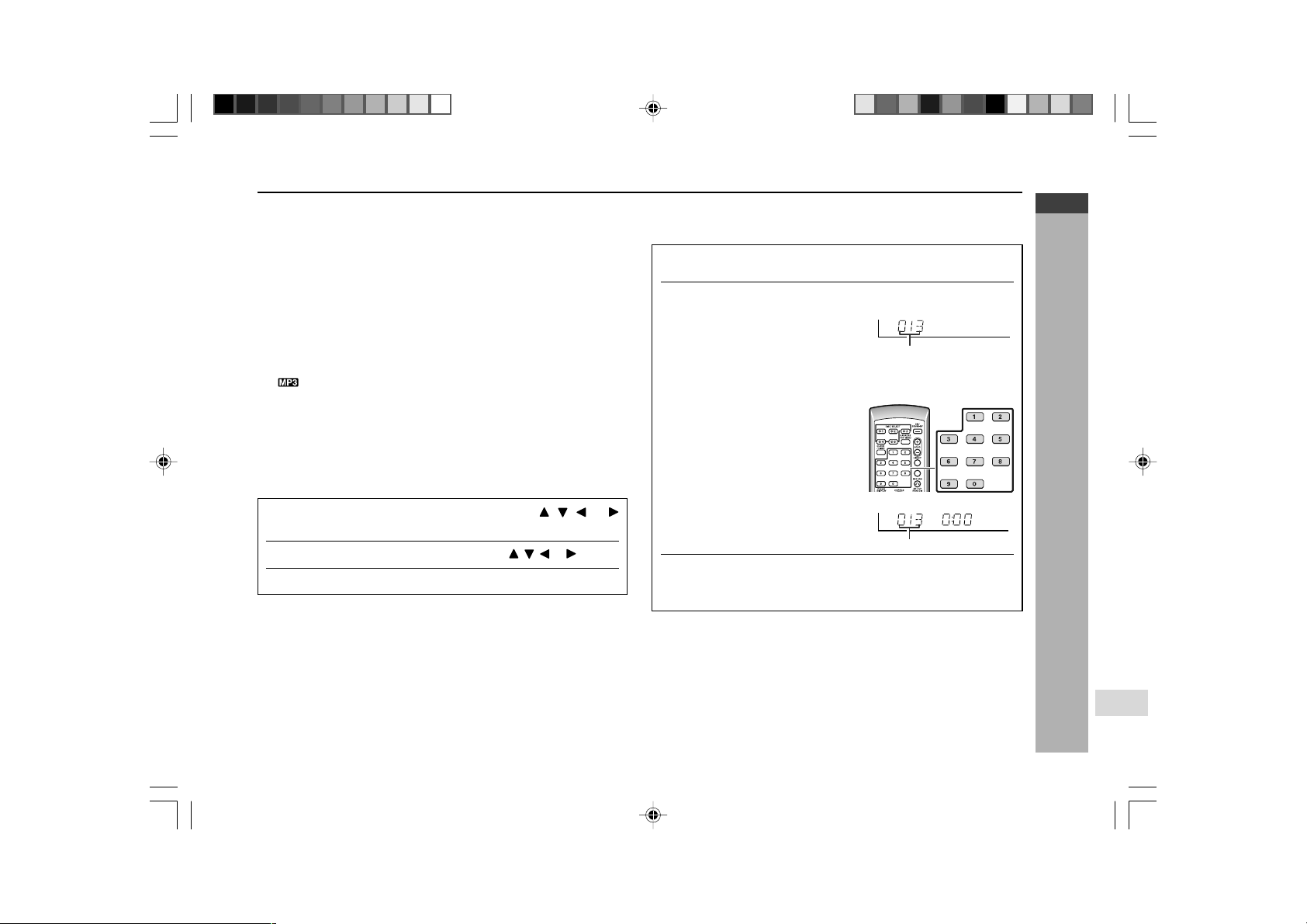

MP3/WMA disc .................................................................... 52 - 53

H Karaoke

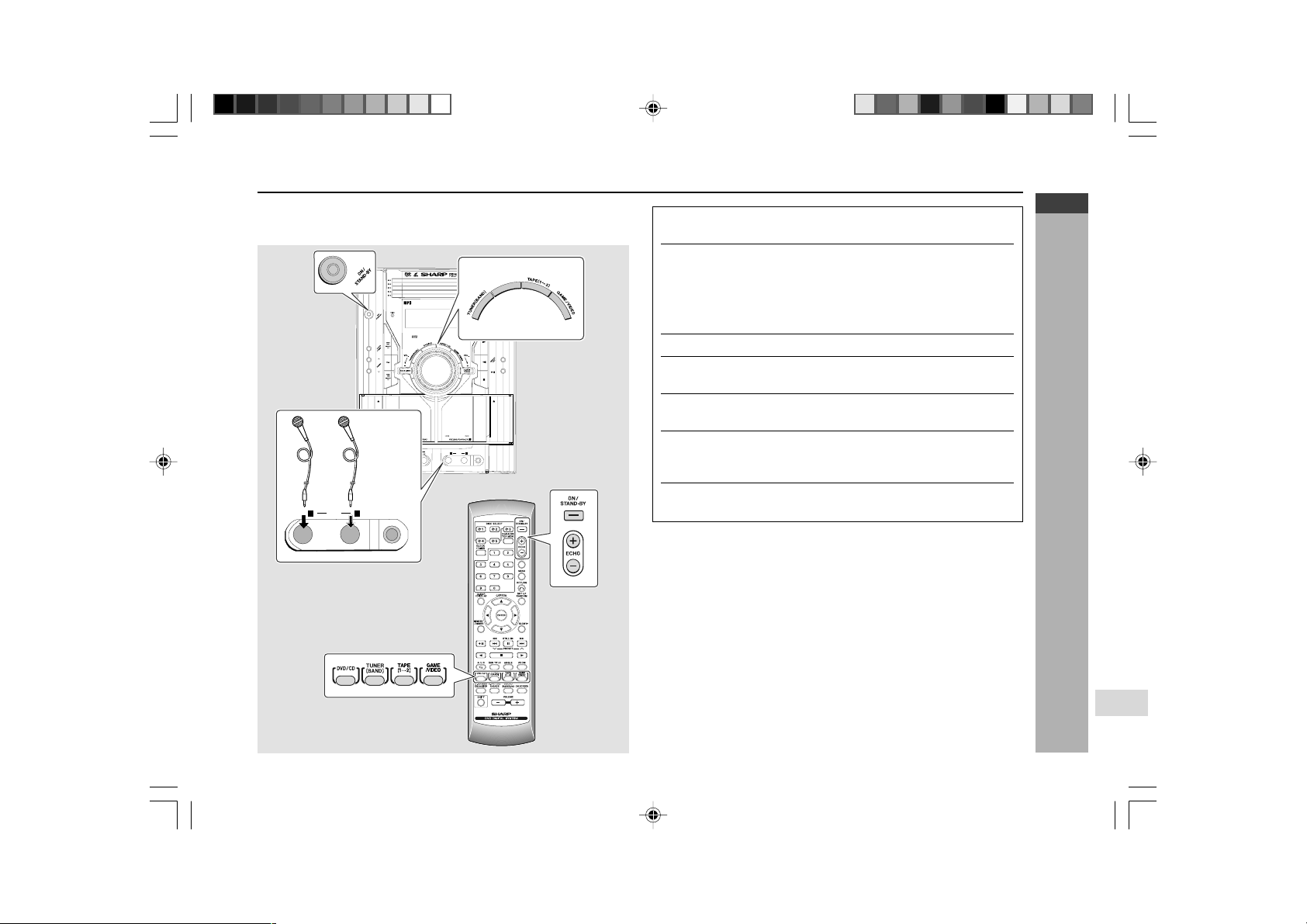

Playing karaoke .................................................................. 54 - 55

H Radio

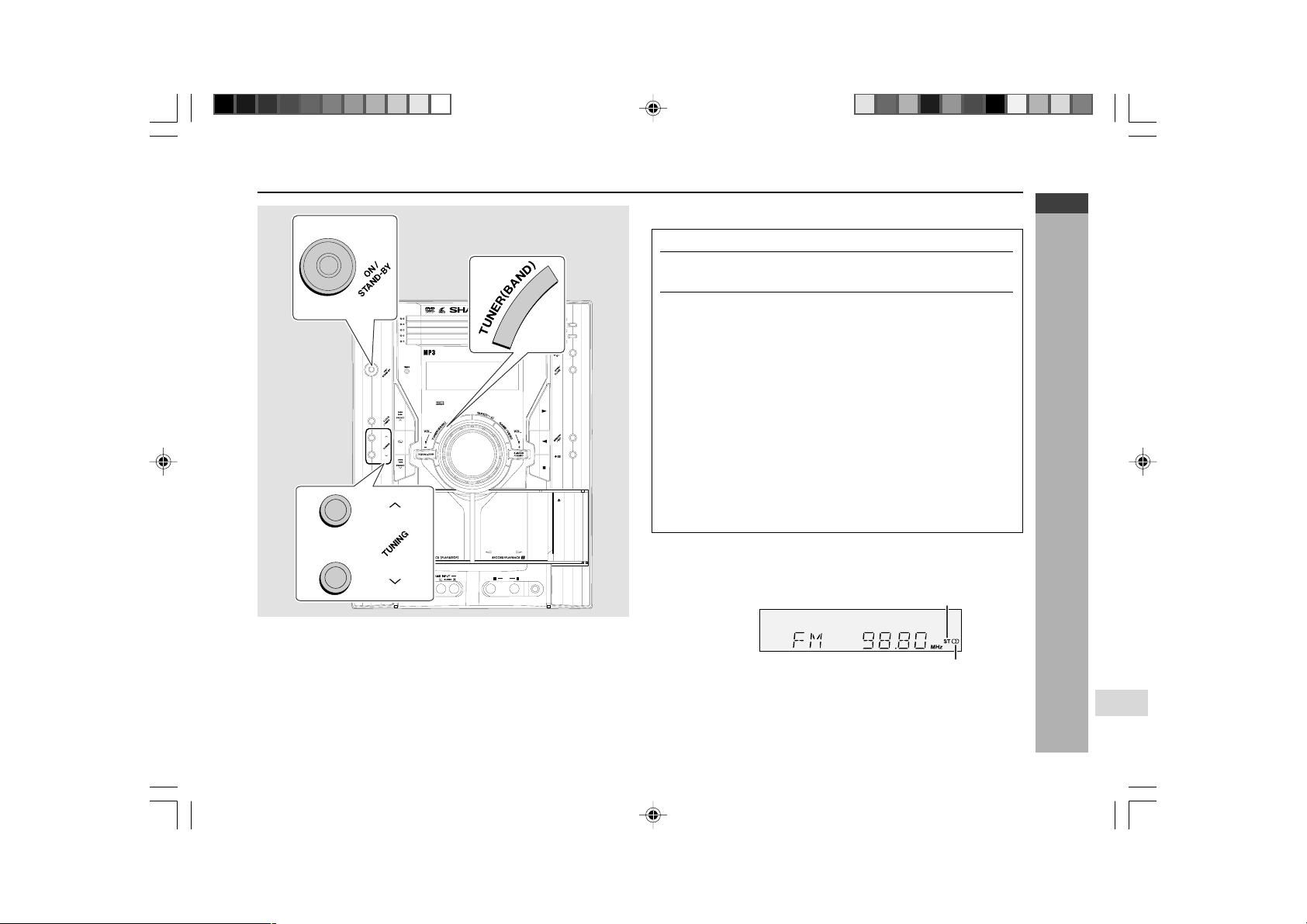

Listening to the radio ......................................................... 56 - 57

H Tape Playback

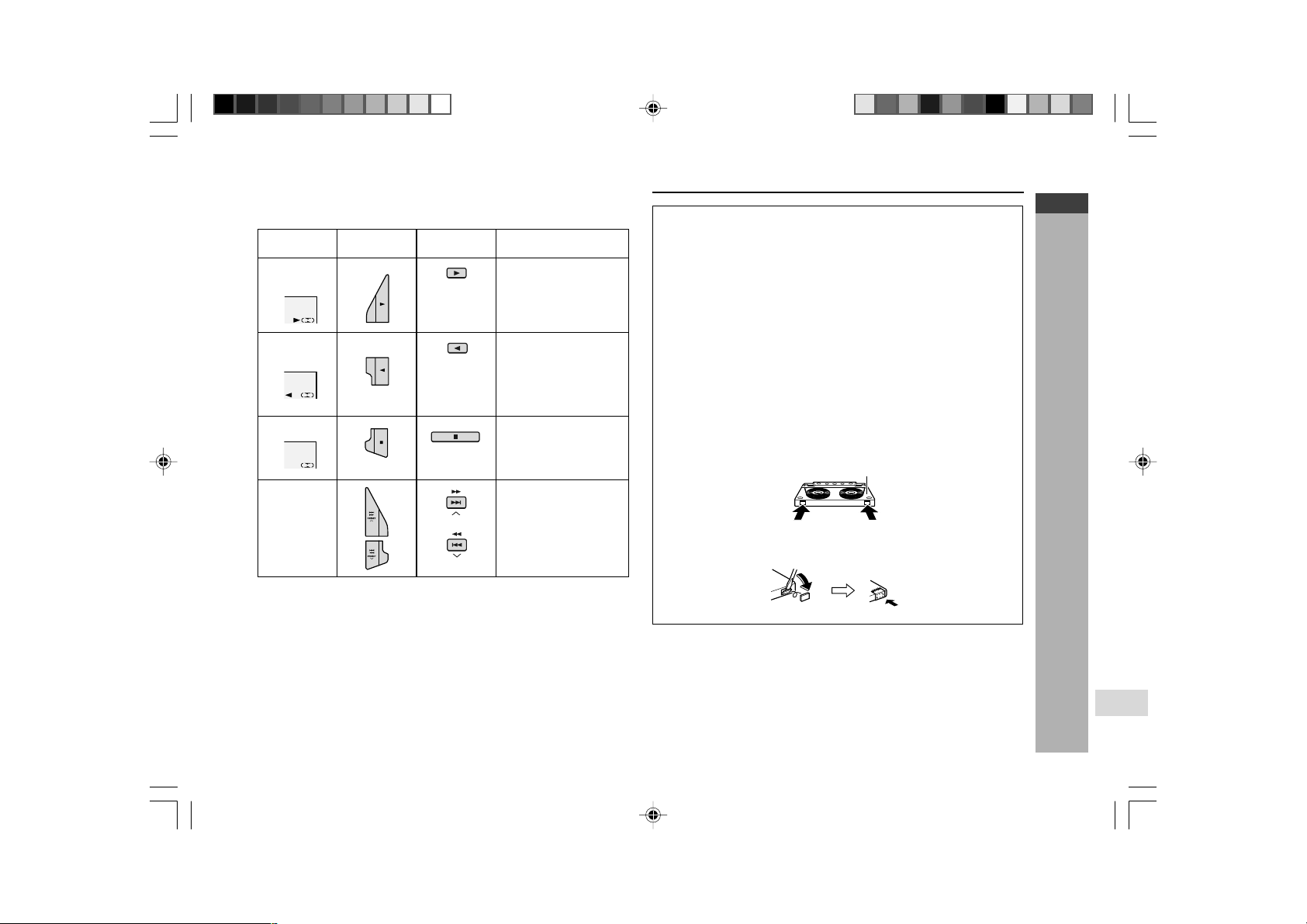

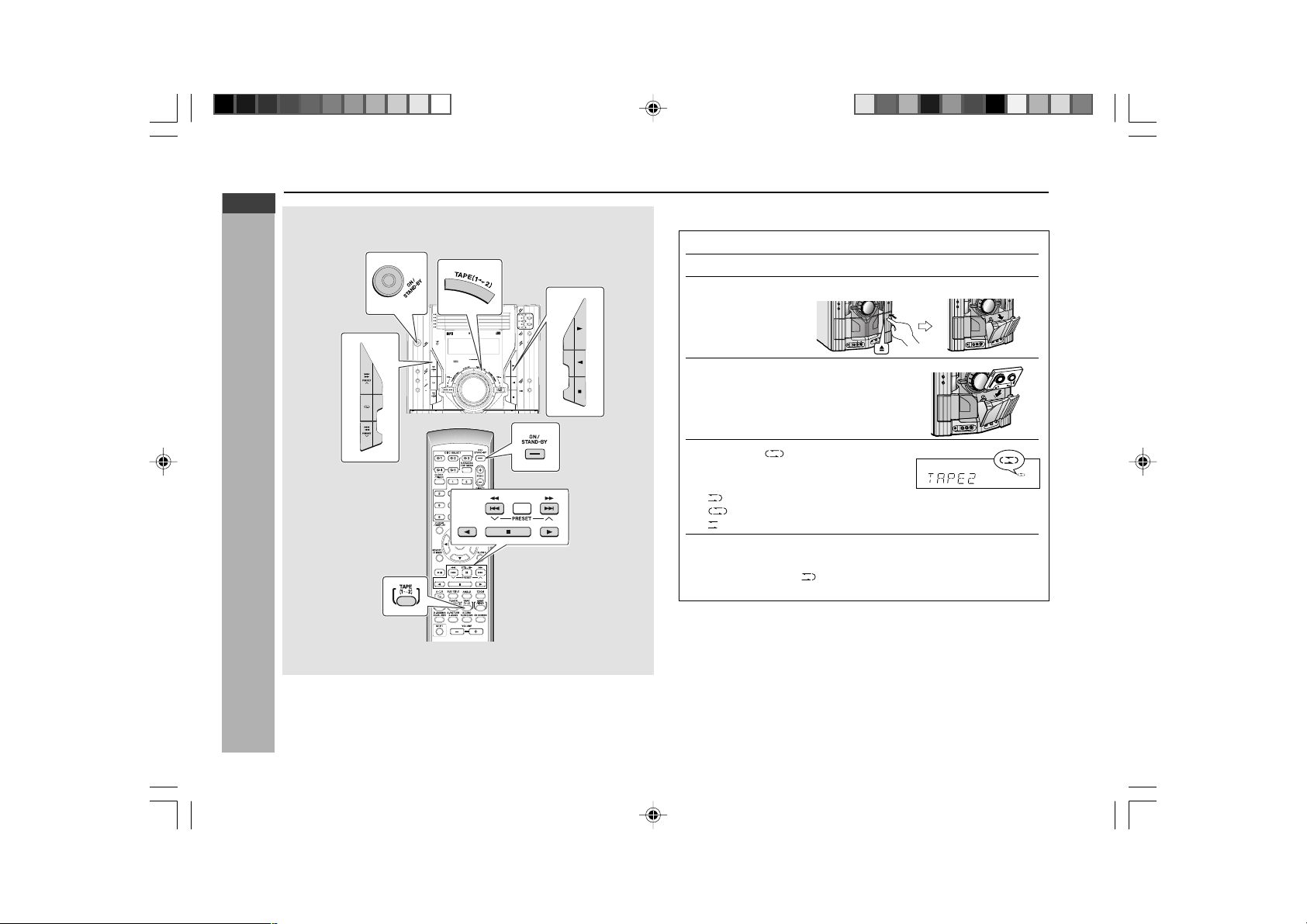

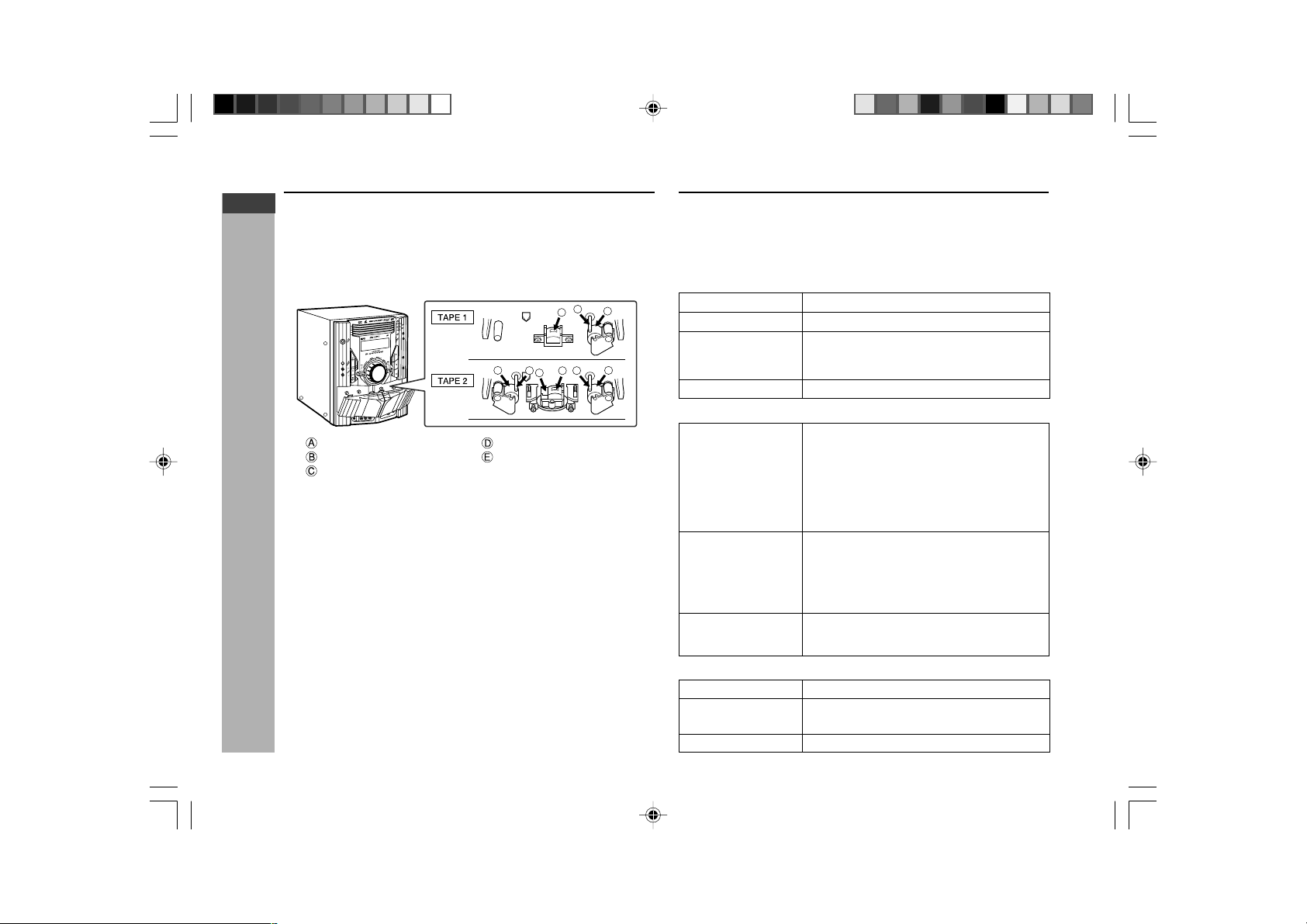

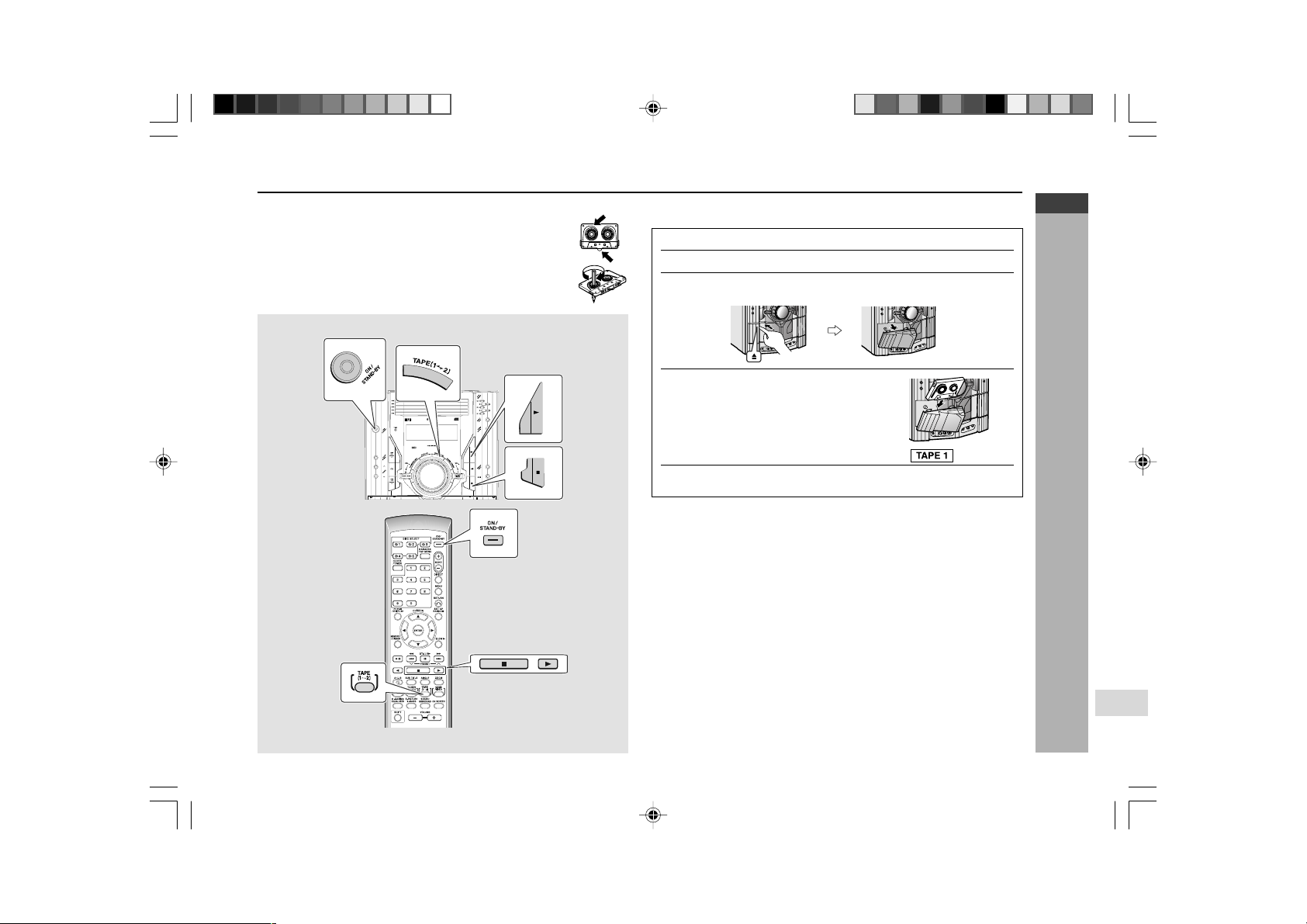

Listening to a cassette tape (TAPE 1 or TAPE 2)............. 58 - 60

H Tape Recording

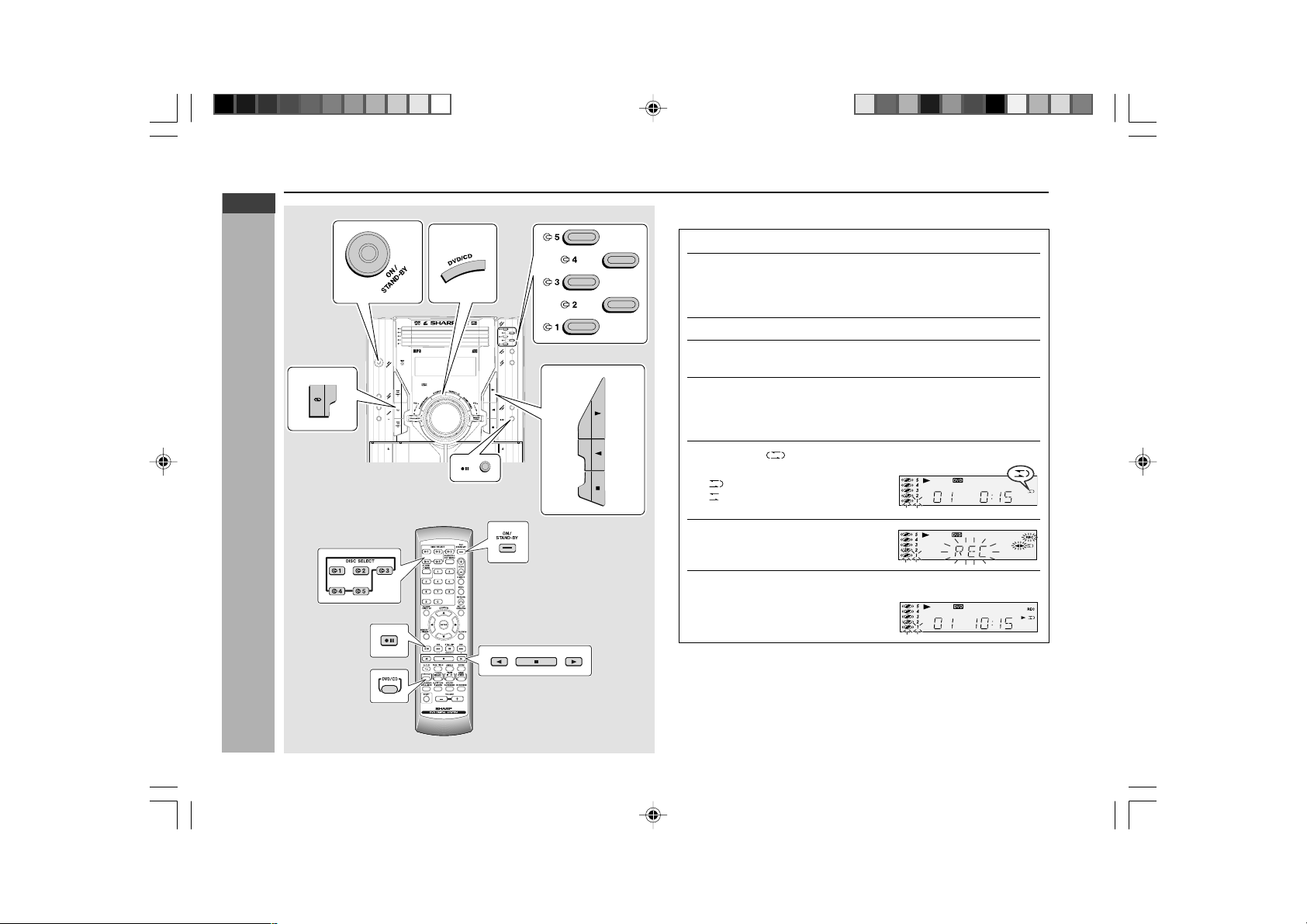

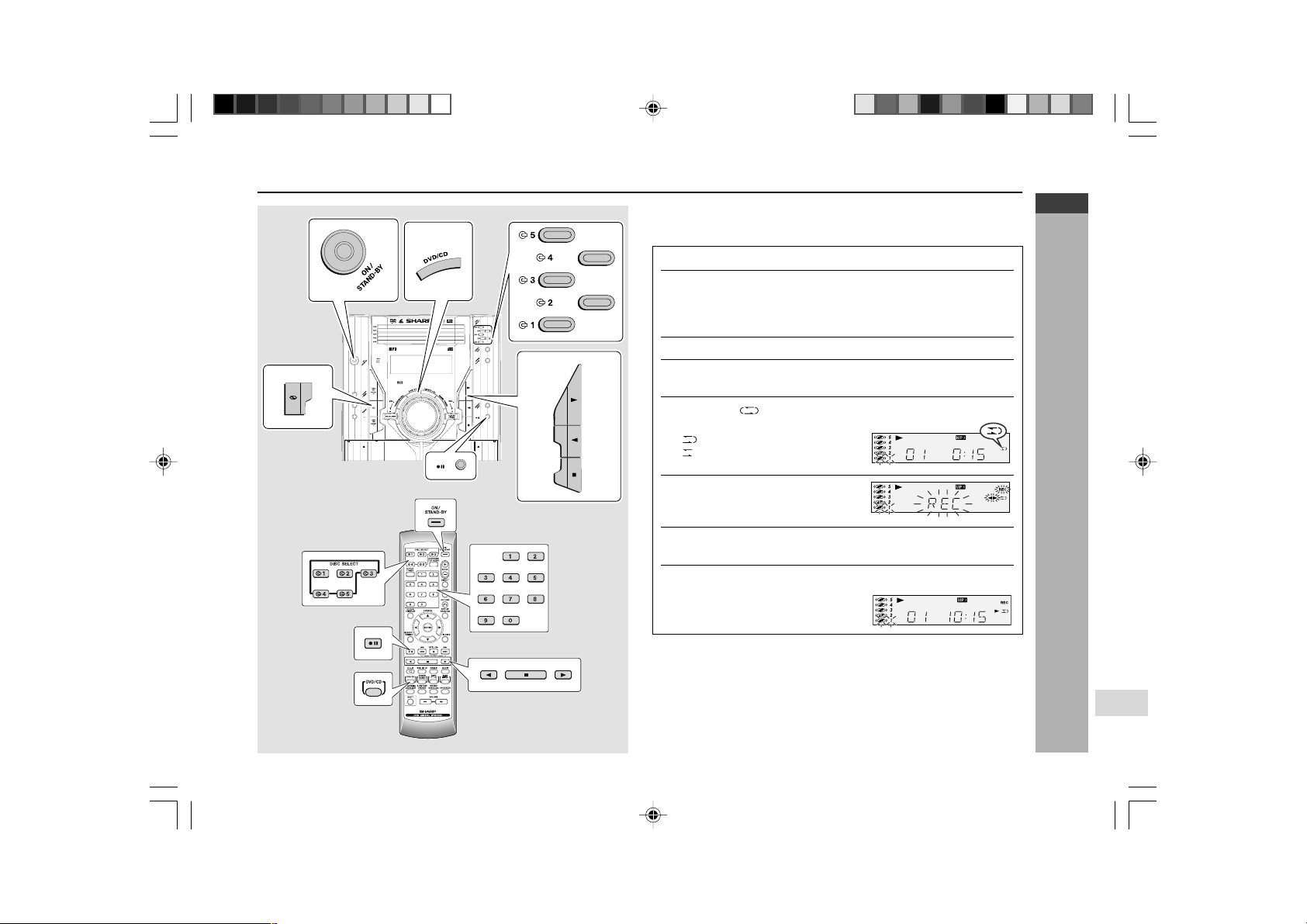

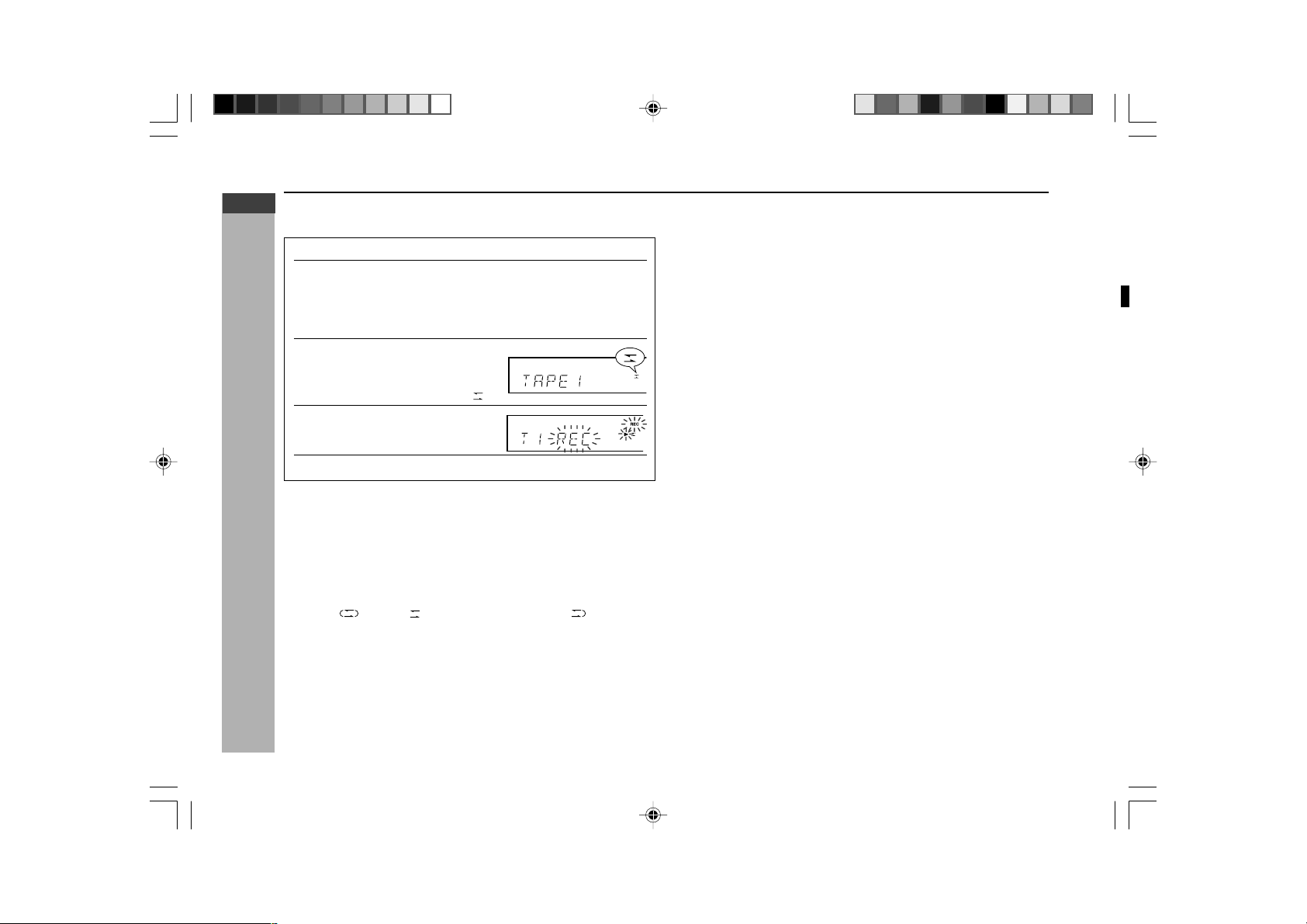

Recording to a cassette tape............................................. 60 - 65

H Advanced Features

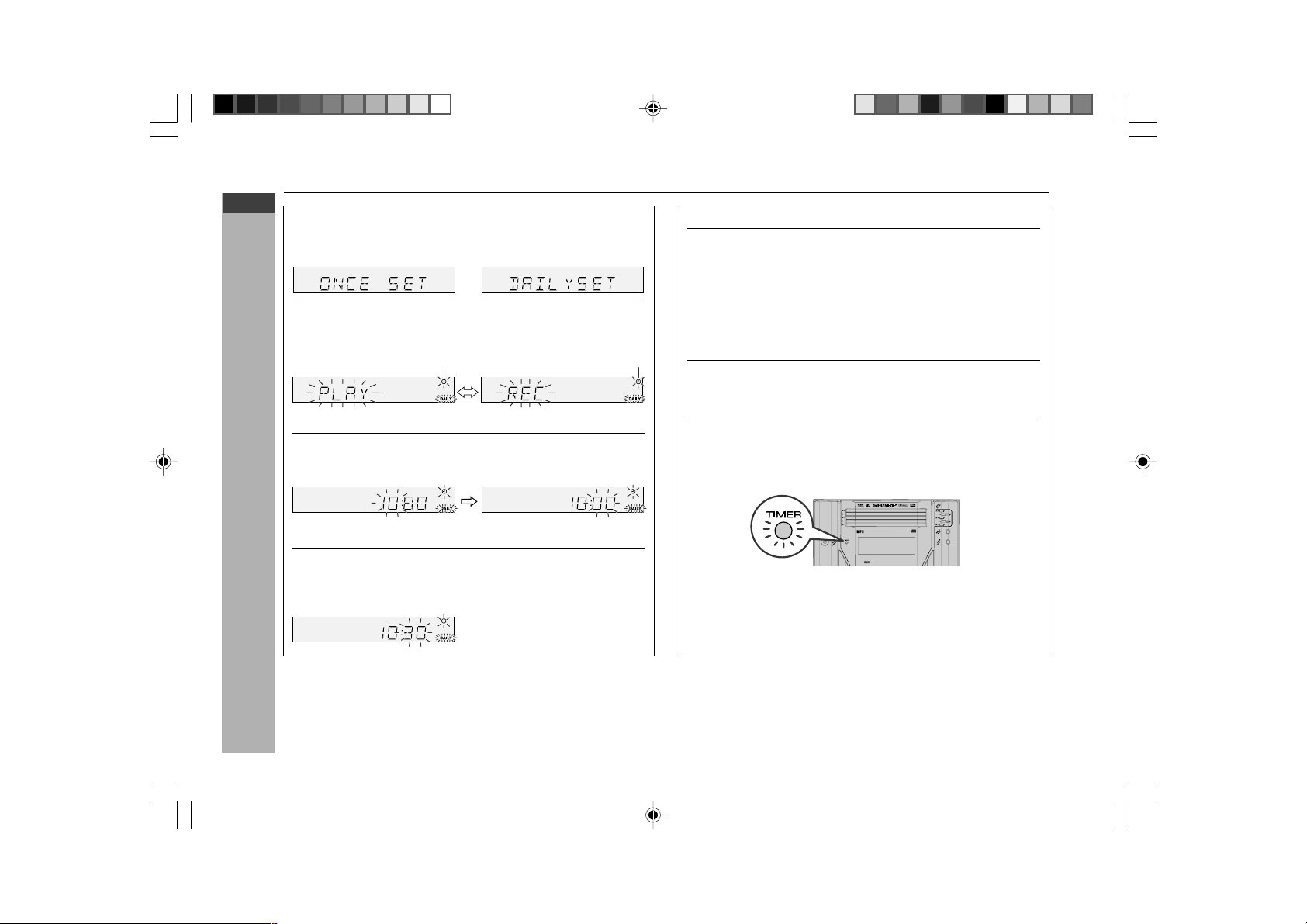

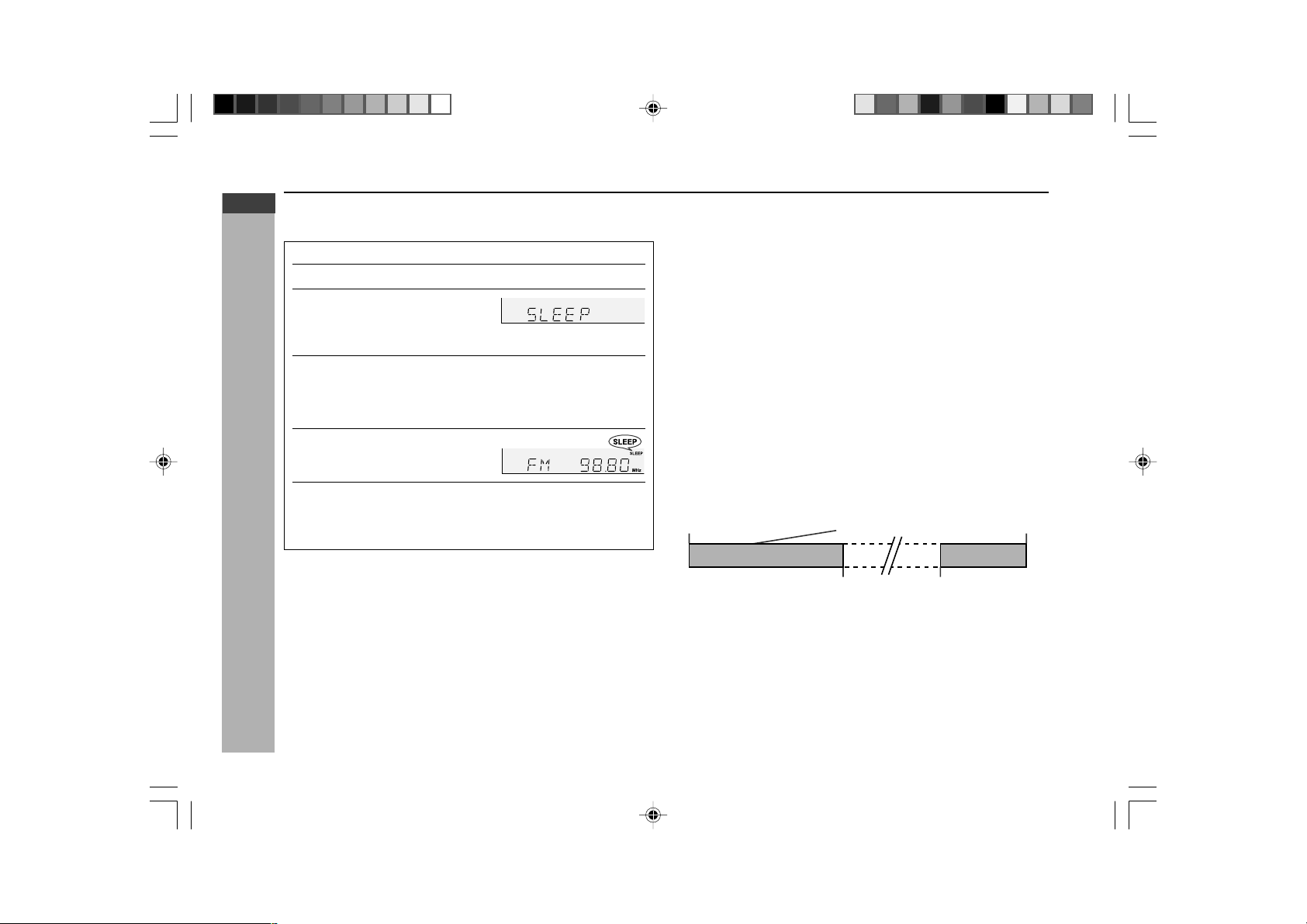

Timer and sleep operation ................................................. 66 - 69

Enhancing your system ..................................................... 70 - 71

H References

Troubleshooting chart........................................................ 72 - 74

Maintenance ................................................................................75

Specifications ..................................................................... 75 - 76

Glossary ......................................................................................77

CD-G10000DVD

CP-G10000

ENGLISH

General Information

7

(S)

*CD-G10000DVD(EN)02-05 05.1.17, 10:462

E-2

CD-G10000DVD (S)
TINSZA160AWZZ

CD-G10000DVD
CP-G10000

ENGLISH

Precautions

H General

I Please ensure that the equipment is positioned in a well ventilated area

and ensure that there is at least 10 cm (4") of free space along the sides,
top and back of the equipment.

Floor

I Do not place active subwoofer system on the same surface as main

unit to prevent sound interruption during playback.

I Use the unit on a firm, level surface free from vibration.
I Keep the unit away from direct sunlight, strong magnetic fields, excessive

dust, humidity and electronic/electrical equipment (home computers,
facsimiles, etc.) which generate electrical noise.

I Do not place anything on top of the unit.
I Do not expose the unit to moisture, to temperatures higher than 60°C (140°F)

or to extremely low temperatures.

I If your system does not work properly, disconnect the AC power lead from

the wall socket. Plug the AC power lead back in, and then turn on your
system.

I In case of an electrical storm, unplug the unit for safety.
I Hold the AC power plug by the head when removing it from the wall socket,

General Information

as pulling the lead can damage internal wires.

I Do not remove the outer cover, as this may result in electric shock.

Refer internal service to your local SHARP service facility.

I The ventilation should not be impeded by covering the ventilation openings

with items, such as newspapers, tablecloths, curtains, etc.

I No naked flame sources, such as lighted candles, should be placed on the

apparatus.

I Attention should be drawn to the environmental aspects of battery disposal.
I This unit should only be used within the range of 5°C - 35°C (41°F- 95°F).

10 cm (4") 10 cm (4")

Table

10 cm (4")

10 cm (4")

Warning:

The voltage used must be the same as that specified on this unit.
Using this product with a higher voltage other than that which is specified is
dangerous and may result in a fire or other type of accident causing damage.
SHARP will not be held responsible for any damage resulting from use of this
unit with a voltage other than that which is specified.

H Volume control

The sound level at a given volume setting depends on speaker efficiency,
location and various other factors. It is advisable to avoid exposure to high
volume levels. Do not turn the volume on to full at switch on and listen to music
at moderate levels.

H Care of DVD/Video CD/CD discs

DVD/Video CD/CD discs are fairly resistant to damage, however mistracking
can occur due to an accumulation of dirt on the disc surface. Follow the
guidelines below for maximum enjoyment from your DVD/Video CD/CD
collection and player.
I Do not write on either side of the disc, particularly the non-label side from

which signals are read. Do not mark this surface.

I Keep your discs away from direct sunlight, heat, and excessive moisture.
I Always hold the DVD/Video CD/CDs by the edges. Fingerprints, dirt, or

water on the DVD/Video CD/CDs can cause noise or mistracking. If a DVD/
Video CD/CD is dirty or does not play properly, clean it with a soft, dry
cloth, wiping straight out from the centre, along the radius.

NO

YES

Correct

E-3

*CD-G10000DVD(EN)02-05 05.1.17, 10:463

CD-G10000DVD (S)
TINSZA160AWZZ

Controls and indicators

-DISC

5

GHANGER

DVD MINI SYSTEM

CD-G10000DVD

AUTO REVERSE

MIC

MIC LEVEL

1 2

MIN MAX

D

C

/

D

V

D

31302928

H Front panel

1. Disc Trays............................................................................................ 22

2. Timer Set Indicator ............................................................................. 67

3. On/Stand-by Button ...................................................................... 18, 22

DVD Chapter Skip/DVD/Video CD/CD/MP3/WMA Track Up or

4.

Fast Forward, Tape 2 Fast Forward, Tuner Preset Up,

Time Up Button ....................................................... 19, 34, 49, 57, 60, 66

5. Tape 2 Reverse Mode Select Button.................................................

6. Clock/Timer Button...........................................................

7. Tuning Up Button................................................................................

8. Tuning Down Button ...........................................................................

9.

DVD Chapter Skip/DVD/Video CD/CD/MP3/WMA Track Down or

Fast Reverse, Tape 2 Rewind, Tuner Preset Down,

Time Down Button .................................................. 19, 34, 49, 57, 60, 66

10. Equaliser Mode Select Button ...........................................................

11. Tape 1 Cassette Compartment ..........................................................

12. Headphone Socket .............................................................................

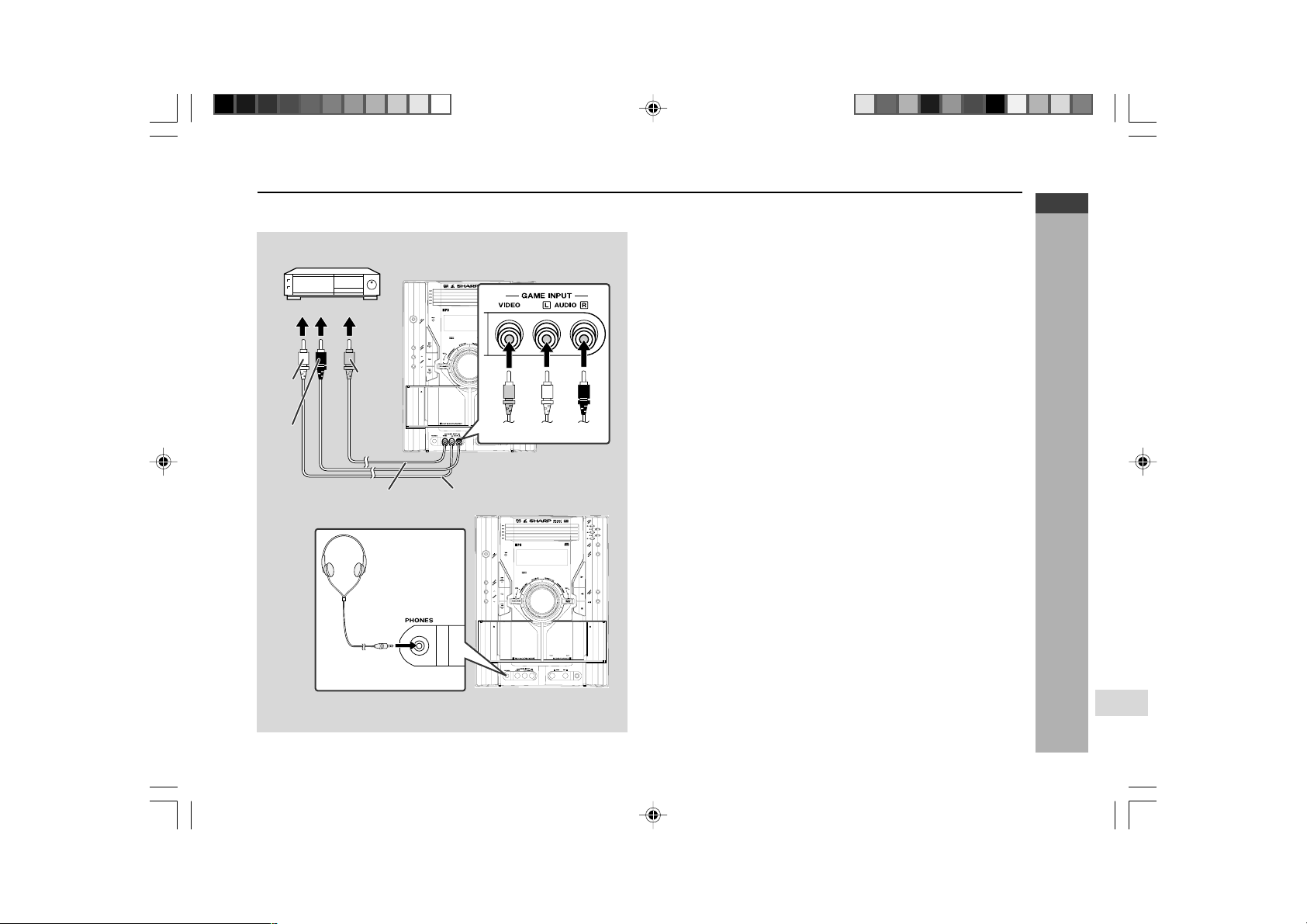

13. Game/Video Input Sockets ................................................................

14.

Disc Number select Buttons .............................................................

15.

Disc Direct Play Button ...........................................................................

16. Disc Tray Open/Close Button ......................................................

17.

DVD/Video CD/CD/MP3/WMA

Play, Tape 1 Play,

Tape 2 Forward Play Button.........................................................

18. Memory/Set Button ...............................................

19.

Tape 2 Record Pause Button............................................................... 61

20.

Tape 2 Reverse Play

21.

DVD/Video CD/CD/MP3/WMA or Tape Stop

22. Extra Bass/Demo Mode Button .........................................................

Button ...............................................................

Button .....................

23. Volume Control ...................................................................................

24. Tape 2 Cassette Compartment ..........................................................

25. Microphone Socket 1..........................................................................

26. Microphone Socket 2..........................................................................

27. Microphone Level Control .................................................................

28.

Tuner (Band) Button............................................................................. 56

29. DVD/Video CD/CD/MP3/WMA Button ..........................................

30. Tape (1V2) Button........................................................................

31. Game/Video Button ......................................................................

Reference page

59

19, 66, 68, 69

56
56

18
58
70
70

22, 33

33

22, 33
33, 58

19, 43, 51, 57, 66, 69

59

33, 60

18
18
59
54
54
54

22, 33
58, 59
54, 70

CD-G10000DVD

CP-G10000

ENGLISH

General Information

7

*CD-G10000DVD(EN)02-05 05.1.17, 10:464

E-4

CD-G10000DVD (S)
TINSZA160AWZZ

CD-G10000DVD
CP-G10000

ENGLISH

Controls and indicators (continued)

General Information

H Display

1. Disc Number Indicators

2. DVD/Video CD/CD/MP3/WMA Play Indicator

3. DVD/Video CD/CD/MP3/WMA Pause Indicator

4. DVD/Video CD/CD/MP3/WMA Repeat Indicator

5. DVD Indicator

6. VCD Indicator

7. CD Indicator

8. MP3 Indicator

9. Extra Bass Indicator

10. Memory Indicator

11. DVD Angle Indicator

12. DVD Chapter Indicator

13. DVD Title Indicator

14. WMA Indicator

15. Virtual Surround Indicator

16. Tape Record Indicator

17. Timer Recording Indicator

18. Timer Play Indicator

19. Sleep Indicator

20. Tape 2 Reverse Play Indicator

21. Tape Forward Play Indicator

22. Tape 2 Reverse Mode Indicator

23. FM Stereo Mode Indicator

24. FM Stereo Receiving Indicator

25. Daily Timer Indicator

26. Tuner Receiving Frequency Indicators

27. Karaoke Mode Indicator

E-5

*CD-G10000DVD(EN)02-05 05.1.17, 10:465

CD-G10000DVD (S)
TINSZA160AWZZ

H Rear panel

CD-G10000DVD

CP-G10000

ENGLISH

1. Audio Digital Out Socket.................................................................... 71

2. S-Video Output Socket ....................................................................... 22

3. AC Voltage Selector...................................................................... 13, 14

4. Cooling Fan

5. AC Power Lead ............................................................................. 13, 14

6. FM 75 Ohms Aerial Terminal........................................................ 10, 11

7. FM Aerial Earth Terminal.............................................................. 10, 11

8. AM Loop Aerial Socket................................................................. 10, 11

9. Span Selector Switch ......................................................................... 15

10. Video Output Socket .......................................................................... 12

11. Front Speaker Terminals.............................................................. 10, 11

12. Surround Speaker Terminals....................................................... 10, 11

1
2

6
7

13. Subwoofer Pre-output Socket ..................................................... 10, 14

Cooling fan:

This product is equipped with a cooling fan inside, which begins to run once the
power is on for better heat radiation.

Reference page

8

3

9

10

4

11

General Information

5

12
13

*CD-G10000DVD(EN)06-09 05.1.17, 10:466

7

E-6

CD-G10000DVD (S)
TINSZA160AWZZ

CD-G10000DVD
CP-G10000

ENGLISH

Controls and indicators (continued)

1

3

2

1

43

4

2

H Front Speaker

1. Woofers

2. Tweeter

3. Bass Reflex Duct

4. Speaker Terminals

H Surround Speaker

1. Full-range Speakers

2. Speaker Terminals

General Information

E-7

*CD-G10000DVD(EN)06-09 05.1.17, 10:467

2 1

5
6

9

8

10

7

H Active Subwoofer

1. Bass Reflex Duct

2. Subwoofer

3. Power Indicator ................................................................................... 14

4. Power Switch ...................................................................................... 14

5. Volume Control ................................................................................... 14

6. Crossover Frequency Control ........................................................... 14

7. Cooling Fan

8. AC Power Lead ............................................................................. 10, 14

9. AC Voltage Selector............................................................................ 14

10. Subwoofer Input Socket............................................................... 10, 14

Reference page

CD-G10000DVD (S)
TINSZA160AWZZ

11

12 13 14

15

2
3

4
5

6
7

8
9

10

16 17

18
19

1

RRMCGA015AWSA

20
21

22
23

24
25
26

27
28

29 30 31 32

33 34 35 36

37 38 39 40

GAME
/VIDEO

H Remote control

1. Remote Control Transmitter................................................................ 17

2. Disc Number Select Buttons ................................................... 22, 33, 46

3. DVD Top Menu Button ......................................................................... 44

4. Clock/Timer Button ............................................................ 19, 66, 68, 69

5. Direct Search Button ..................................................................... 51, 52

6. Clear/Display Button ............................................................................ 43

7. Enter Button ................................................................................... 24, 28

8. Cursor Left Button ......................................................................... 27, 51

9. Memory/Dimmer Button ................................... 18, 19, 43, 51, 57, 66, 67

10. Cursor Down Button ................................................................ 24, 28, 51

11. Tape Record Pause Button ......................................... 61, 62, 63, 64, 65

12. DVD Chapter Skip/DVD/Video CD/MP3/ WMA Fast Reverse/Video CD/
CD/MP3/WMA Track Down/Tape Fast Wind and Tuner Preset Down,

Time Down Button ................................................................... 34, 35, 50

13. DVD/Video CD/CD/MP3/WMA Pause Button ...................................... 35

14. DVD Chapter Skip/DVD/Video CD/MP3/WMA Fast Forward/Video CD/
CD/MP3/WMA Track Up/Tape Fast Wind and T uner Preset Up,

Time Up Button ........................................................................ 34, 35, 50

15. Tape 2 Reverse Play Button .........................................55, 59, 61, 62, 63

16. DVD/Video CD/CD/MP3/WMA/Tape Stop Button .......................... 33, 51

17. DVD/Video CD/CD/MP3/WMA/Tape 1 Play/

Tape 2 Forward Play Button.......................................................... 33, 51

18. Shift Button .................................................................................... 24, 55

19. Volume Up or Down Button................................................................. 18

20. On/Stand-by Button ....................................................................... 18, 23

21. Echo Level Up/Down Button .............................................................. 54

22. DVD Direct Button................................................................................ 37

23. DVD Menu Button ................................................................................ 44

24. Return Button ................................................................................. 38, 39

25. CD Random Button .............................................................................. 50

26. Cursor Up Button ..................................................................... 24, 28, 51

27. Cursor Right Button....................................................................... 27, 51

28. DVD/Video CD Slow Button................................................................. 34

29. DVD/Video CD/CD/MP3/WMA Repeat Button..................................... 42

30. DVD Subtitle Button ............................................................................. 38

31. DVD Angle Button ................................................................................ 38

32. DVD Zoom Button ................................................................................ 41

33. DVD/Video CD/CD/MP3/WMA Button............................................ 23, 33

34. Tuner (Band) Button ............................................................................ 56

35. Tape (1

36. Game/Video Button........................................................................ 54, 70

37. Equaliser Mode Select Button............................................................. 18

38. Extra Bass Button ................................................................................ 18

39. DVD 3-D Virtual Surround Button ....................................................... 39

40. DVD On Screen Button ........................................................................ 32

VV

V 2) Button ....................................................................... 58, 59

VV

Reference page

CD-G10000DVD

CP-G10000

ENGLISH

General Information

7

E-8

*CD-G10000DVD(EN)06-09 05.1.17, 10:468

CD-G10000DVD (S)
TINSZA160AWZZ

CD-G10000DVD
CP-G10000

ENGLISH

Controls and indicators (continued)

1

2

H Remote control with shift button

1. Karaoke/Audio Mode Button ....................................................... 54, 55

2. DVD Setup Button......................................................................... 24, 28

3. DVD Sound Button ............................................................................. 39

4. DVD Super Picture Button ................................................................. 41

5. DVD/Video CD/CD A-B Repeat Button .............................................. 42

6. DVD Digital Gamma Button ............................................................... 40

Reference page

5

General Information

6

E-9

*CD-G10000DVD(EN)06-09 05.1.17, 10:469

RRMCGA015AWSA

3

4

CD-G10000DVD (S)
TINSZA160AWZZ

System connections

Make sure to unplug the AC power lead before making any connections.

Front speaker

(right)

FM Aerial

Active Subwoofer

Surround speaker

(right)

AM Loop

Aerial

Front speaker

(left)

CD-G10000DVD

CP-G10000

ENGLISH

Surround speaker

(left)

To a wall socket
(See page 14)

*CD-G10000DVD(EN)10-17 05.1.17, 10:4710

Preparation for Use

To a wall socket
(See page 13)

Grey

7

E-10

CD-G10000DVD (S)
TINSZA160AWZZ

CD-G10000DVD
CP-G10000

ENGLISH

System connections (continued)

H Aerial connection

Supplied FM aerial:

Connect the FM aerial wire to the FM 75 OHMS terminal and position the FM
aerial wire in the direction where the strongest signal can be received.

Supplied AM loop aerial:

Connect the AM loop aerial to the AM LOOP socket. Position the AM loop
aerial for optimum reception. Place the AM loop aerial on a shelf, etc., or attach
it to a stand or a wall with screws (not supplied).

Note:

Placing the aerial on the unit or near the AC power lead may cause noise
pickup. Place the aerial away from the unit for better reception.

Installing the AM loop aerial:
< Assembling > < Attaching to the wall >

Preparation for Use

External FM aerial:

Use an external FM aerial if you require better reception. Consult your dealer.

Note:

When an external FM aerial is used, disconnect the supplied FM aerial wire.

E-11

75 ohm
coaxial cable

Wall

External
FM aerial

Screws (not supplied)

H Speaker connection

Front speakers:

Connect the black wire to the FRONT SPEAKERS (-) terminal, and the red
wire to the FRONT SPEAKERS (+) terminal.

Surround speakers:

Connect the black wire to the SURROUND SPEAKERS (-) terminal, and the
grey wire to the SURROUND SPEAKERS (+) terminal.

Front speaker (right)

Surround speaker (right)

Caution:

I Connect the speaker wires to the speakers first, then to the unit.
I Never mistake the FRONT SPEAKERS and the SURROUND SPEAKERS

terminals. The unit or the speakers may be damaged.

I If you use other speakers with impedance lower than

that specified, the unit may be damaged. Front
speakers: 8 ohms Surround speakers:16 ohms

I Do not mistake the right and the left channels. The

right speaker is the one on the right side when you
face the unit.

I Do not let the bare speaker wires touch each

other.

I Do not allow any objects to fall into or to be placed in

the bass reflex ducts.

I Do not stand or sit on the speakers. You may be

injured.

Front speaker (left)

Surround speaker (left)

Red
Black

Grey

Incorrect

*CD-G10000DVD(EN)10-17 05.1.17, 10:4711

CD-G10000DVD (S)
TINSZA160AWZZ

H Placing the speaker system

To enjoy the surround effect, we recommend that you place each speaker as
shown to the below.

Active
subwoofer

TV

Main unit

H TV/monitor connection

If the TV/monitor has a video input, connect it to the VIDEO OUT socket on the
rear of the unit.

CD-G10000DVD

CP-G10000

ENGLISH

Front
speaker
(left)

Surround
speaker
(left)

Front
speaker
(right)

Surround
speaker
(right)

Note:

The speaker grilles are not removable.

Caution:

I Do not place active subwoofer system on the same surface as main unit to

prevent sound interruption during playback.

Notes:

I The speakers are magnetically shielded.

Therefore, they do not affect the display even you use them near the TV.
However, some colour variation may occur, depending on the type of TV
used.

If colour variation occurs...

Turn off the TV (from the power switch).
After 15 - 30 minutes, turn the TV on again.

If the colour variation is still present...

Move the speakers further away from the TV.

I If any kind of magnet or an electromagnet is placed too close to the TV and

the system, irregular colours may appear on the TV screen.

To video
input socket

TV

Yellow

Video cable

(Yellow)

Yellow

Preparation for Use

7

E-12

*CD-G10000DVD(EN)10-17 05.1.17, 10:4712

CD-G10000DVD (S)
TINSZA160AWZZ

CD-G10000DVD
CP-G10000

ENGLISH

System connections (continued)

Preparation for Use

Main Unit

H Setting the AC voltage selector

Check the setting of the AC voltage selector located on the rear panel before
plugging the unit into a wall socket. If necessary, adjust the selector to correspond
to the AC power voltage used in your area.

Turn the selector with a screwdriver until the appropriate voltage number
appears in the window (110 V, 127 V, 220 V or 230 V - 240 V AC).

H Connecting the AC power lead

After checking all the connections have been made correctly, plug the AC power
lead of this unit into the wall socket. If you plug the unit first, the unit will enter
the demonstration mode (see page 15).

Notes:

I The unit will start the tape initialisation when plugged in to the AC socket.

During this process, initialising sound will be heard and the unit cannot be
turned on. Wait until the process is finished.

I Unplug the AC power lead from the wall socket if the unit will not be in use

for a prolonged period of time.

AC Plug Adaptor

In areas (or countries) where a wall socket as shown in illustration is used,
connect the unit using the AC plug adaptor supplied with the unit, as illustrated.
The AC plug adaptor is not included in areas where the wall socket and AC

power plug can be directly connected (see illustration ).

E-13

*CD-G10000DVD(EN)10-17 05.1.17, 10:4713

CD-G10000DVD (S)
TINSZA160AWZZ

SUBWOOFER

IN

To subwoofer
input socket

Active Subwoofer

H Setting the AC voltage selector

Check the setting of the AC voltage selector located on the rear panel before
plugging the unit into a wall socket. If necessary, adjust the selector to correspond
to the AC power voltage used in your area.

Turn the selector with a screwdriver until the appropriate voltage number
appears in the window (110 V, 127 V, 220 V or 230 V - 240 V AC).

H Connecting the AC power lead

After checking all the connections have been made correctly, plug the AC power
lead of this unit into the wall socket.

Note:

I Unplug the AC power lead from the wall socket if the unit will not be in use

for a prolonged period of time.

AC Plug Adaptor

In areas (or countries) where a wall socket as shown in illustration is used,
connect the unit using the AC plug adaptor supplied with the unit, as illustrated.
The AC plug adaptor is not included in areas where the wall socket and AC
power plug can be directly connected (see illustration

H Connecting the subwoofer

Use the subwoofer cable to connect the SUBWOOFER PRE-OUT socket on
the main unit and the SUBWOOFER IN socket on the active subwoofer.

).

CD-G10000DVD

CP-G10000

ENGLISH

Preparation for Use

*CD-G10000DVD(EN)10-17 05.1.17, 18:2814

7

E-14

CD-G10000DVD (S)
TINSZA160AWZZ

CD-G10000DVD
CP-G10000

ENGLISH

System connections (continued)

H Setting the FM/AM span selector

The International T elecommunication Union (ITU) has established that member
countries should maintain either a 100 kHz or a 50 kHz interval between
broadcasting frequencies of FM stations and 10 kHz or 9 kHz for AM station.
The illustration shows the 50/9 kHz zones (regions 1 and 3), and the 100/10
kHz zone (region 2).
Before using the unit, set the SPAN SELECTOR switch (on the rear panel) to

Preparation for Use

the interval (span) of your area.

To change the tuning zone:

1. Press the ON/STAND-BY button to enter the stand-by mode.

2. Set the SP AN SELECTOR switch (on the rear panel) as follows.

I For 50 kHz FM interval (9 kHz in AM) → 50/9
I For 100 kHz FM interval (10 kHz in AM) → 100/10

3. Whilst pressing down the I6 button and the X-BASS/DEMO button, press
the 5 3 PRESET X button until “CLEAR AL” appears.

Caution:

This operation will erase all data stored in memory including clock, timer settings,
tuner preset, and CD programme.

H Demonstration mode

The first time the unit is plugged in, the unit
will enter the demonstration mode.
You will see words scroll.

CD-G10000DVD

To cancel the demonstration mode:

When the unit is in the power stand-by mode (demonstration mode), press the
X-BASS/DEMO button. The demonstration mode will be cancelled and the
display will disappear.

To return to the demonstration mode:

When the unit is in the power stand-by mode, press the X-BASS/DEMO button.

Note:

When the power is on, the X-BASS/DEMO button can be used to select the
extra bass mode.

E-15

*CD-G10000DVD(EN)10-17 05.1.17, 10:4715

CD-G10000DVD (S)
TINSZA160AWZZ

Subwoofer control

H Power Switch

The POWER indicator lights up when you press the POWER switch to : ON.

H Volume control

Turn the VOLUME control clockwise to increase the volume, and turn it anti­clockwise to decrease the volume.

H Crossover frequency control

Adjusts the high frequency cut-off point. Frequencies higher than the set
frequency are removed.
To emphasise the bass, turn this control towards 35 Hz and increase the
volume.

Notes:

Observe the following to avoid malfunction and sound distortion.
I Do not set the volume too high on the main unit. The subwoofer may be

damaged.

I Before you switch on/off on the main unit, minimise the volume on the main

unit.

CD-G10000DVD

CP-G10000

ENGLISH

Preparation for Use

Power Indicator

*CD-G10000DVD(EN)10-17 05.1.17, 15:0116

7

E-16

CD-G10000DVD (S)
TINSZA160AWZZ

CD-G10000DVD
CP-G10000

ENGLISH

Remote control

H Battery installation

1 Open the battery cover.
2 Insert the batteries according to the direction indicated in the battery

compartment.

When inserting or removing the batteries, push them towards the ë battery
terminal.

3 Close the cover.

Notes concerning use:

I Replace the batteries if the operating distance is reduced or if the operation

becomes erratic. Purchase 2 “AA” size batteries (UM/SUM-3, R6, HP-7 or
similar).

I Periodically clean the transmitter on the remote control and the sensor on

the unit with a soft cloth.

I Exposing the sensor on the unit to strong light may interfere with operation.

Change the lighting or the direction of the unit.

I Keep the remote control away from moisture, heat, shock and vibrations.

1

2

3

4

Precautions for battery use:

I Replace all old batteries with new ones at the same time.
I Do not mix old and new batteries.
I Remove the batteries if the unit is not to be to used for long periods of time.

This will prevent potential damage due to battery leakage.

Caution:

I Do not use rechargeable batteries (nickel-cadmium battery, etc.).
I Installing the batteries incorrectly may cause the unit to malfunction.

Preparation for Use

E-17

H Test of the remote control

Check the remote control after checking all the connections have been made
correctly. (See pages 10 - 15).
Point the remote control directly at the remote sensor on the unit.

The remote control can be used within the range shown below:

Press the ON/STAND-BY button. Does the power turn on? Now , you can enjoy
music.

Remote sensor

CD-G10000DVD

0.2 m - 6 m
(8" - 20')

5

6

7

8

9

10

SHARP TINSZA160AWZZ

(S)

*CD-G10000DVD(EN)10-17 05.1.17, 10:4717

CD-G10000DVD (S)
TINSZA160AWZZ

1

General control

Remote control operation:

2

3

-DISC

5

CHANGER

4

DVD MINI SYSTEM

CD-G10000DVD

Press the VOLUME (+ or -) button to increase or decrease the volume.

.....

30 MAXIMUM0

H Bass control

When the power is first turned on, the unit will enter the extra bass mode which
emphasises the bass frequencies, and “X-BASS” will appear. To cancel the
extra bass mode, press the X-BASS/DEMO (X-BASS) button.

CD-G10000DVD

CP-G10000

ENGLISH

5

6

7

8

9

H To turn the power on

Press the ON/STAND-BY button to turn the power on.

After Use:

10

Press the ON/STAND-BY button to enter the power stand-by mode.

H Illumination light control

When the power is turned on, light illuminates around

SHARP TINSZA160AWZZ

the display. To turn on/off the light, hold down MEMORY/
DIMMER button on the remote control for more than 2
seconds.

H Volume control

Main unit operation:

When the VOLUME control is turned clockwise, the volume will increase. When
it is turned anti-clockwise, the volume will decrease.

(S)

*CD-G10000DVD(EN)18-19 05.1.17, 10:4718

AUTO REVERSE

MIC

12

H Equaliser

When the EQUALIZER button is pressed, the current mode setting will be
displayed. To change to a different mode, press the EQUALIZER button
repeatedly until the desired sound mode appears.

MIC LEVEL

MIN

MAX

For Tuner, Tape and other than DVD/VCD disc For DVD/VCD disc only

The Sound is not modified.
Bass and treble are emphasised.
Treble is cut a little.
Bass and treble are slightly emphasised.
Vocals (midrange tones) are emphasised.
Treble is slightly emphasised.

FLAT
MODE-1
MODE-2
MODE-3
MODE-4
MODE-5

Basic Operation

For Game/Video mode

The Sound is not modified.
Bass and treble are emphasised.
Treble is cut a little.

ACTION
SPORTS
RACING

Bass is emphasised.
Vocals and treble are emphasised.
Bass and treble are emphasised more.

7

Note:

If the EQUALIZER button is pressed in the extra bass mode, it will be cancelled
automatically.

E-18

CD-G10000DVD (S)
TINSZA160AWZZ

CD-G10000DVD
CP-G10000

ENGLISH

Setting the clock

CD-G10000DVD

5

Press the 5 3 or 2 4 button to adjust the hour and
then press the MEMORY/SET button.

-DISC

5

CHANGER

DVD MINI SYSTEM

Press the 5 3 or 2 4 button once to advance the time by 1
hour. Hold it down to advance continuously.

6

Press the 5 3 or 2 4 button to adjust the minutes
and then press the MEMORY/SET button.

In this example, the clock is set for the 24-hour (0:00) display.

1

Press the ON/STAND-BY button to turn the power on.

2

Press the CLOCK/TIMER button.

3

Within 10 seconds, press the 5 3 or 2 4 button to
select “CLOCK”, and press the MEMORY/SET button.

Basic Operation

4

Press the 5 3 or 2 4 button to select 24-hour or 12­hour display and then press the MEMORY/SET button.

“0:00” → The 24-hour display will appear.

“AM 12:00” → The 12-hour display will appear.

“AM 0:00” → The 12-hour display will appear.

E-19

*CD-G10000DVD(EN)18-19 05.1.17, 10:4719

(0:00 - 23:59)

(AM 12:00 - PM 11:59)

(AM 0:00 - PM 11:59)

Press the 5 3 or 2 4 button once to advance the time by 1
minute. Hold it down to change the time in 5-minutes intervals.

To confirm the time display:

[When the unit is in the stand-by mode]
Press the CLOCK/TIMER button.
The time display will appear for about 10 seconds.

[When the power is on]
Press the CLOCK/TIMER button.
Within 10 seconds, press the 5 3 or 2 4 button to display the time.
The time display will appear for about 10 seconds.

Note:

The “CLOCK” will appear or time will flash to confirm the time display when the
AC power supply is restored after a power failure or unplugging the unit. If
incorrect, readjust the clock as follows.

To readjust the clock:

Perform “Setting the clock” from step 1. If the “CLOCK” does not appear in step
3, step 4 (for selecting the 24-hour or 12-hour display) will be skipped.

To change the 24-hour or 12-hour display:

1 Clear all the programmed contents. [Refer to “Clearing all the memory

(reset)” on page 74 for details.]

2 Perform “Setting the clock” from step 1.

Note:

The clock can also be set with the remote control.

CD-G10000DVD (S)
TINSZA160AWZZ

Types of playable discs

The unit can playback discs bearing any of the following marks:

DVD Video DVD-R

4.7

See Note 1.
See Note 2.
See Note 3.

(*) playability depends on recording device or disc condition

(special disc, scratches, dirt or dirt on pick-up)

Disc recorded in
Video Mode (*)

DVD-RW

Disc recorded in
Video Mode (*)

Audio CD

Note 1:

DVD video players and discs are designed with region numbers which dictate
the regions in which a disc can be played. If the region number on the disc you
want to play does not match the region number in your system, you will not be
able to play the disc.

The region number for this system is 2.

Sample disc display:

or

CD-R/CD-RW

CD-R/CD-RW disc
recorded in MP3/
WMA format file

Note 2:

The specific playback functionality for some DVD discs is determined by the
disc manufacturer. Because this system plays disc data in accordance with the
disc manufacturer’s guidelines, some functions may not be available on some
discs. Be sure to read the instructions provided with the disc.

The “Prohibited” indicator or displayed during operation indicates
that such manufacturer-imposed restrictions apply.

Note 3:

This product supports the following modes.

I 2-channel (L/R) PCM audio
I Dolby Digital
I 2-channel MPEG audio
I 5.1 channel MPEG audio
I DTS audio (External decoder is required)

H DVD-R/DVD-RW Playback

I DVD-R disc that has been recorded in Video Mode.
I DVD-RW disc that has been recorded in Video Mode.
I Make sure the DVD-R/DVD-RW disc has been finalized after recording

process before playback on this unit.

I Further information about Video Mode, refer to DVD-R/DVD-RW recorder

operation manual.

CD-G10000DVD

CP-G10000

ENGLISH

DVD Explanation

7

*CD-G10000DVD(EN)20-22 05.1.17, 10:4720

E-20

CD-G10000DVD (S)
TINSZA160AWZZ

CD-G10000DVD
CP-G10000

ENGLISH

Types of playable discs (continued)

H MP3 File Format

MP3 file format song data which is compressed in “MPEG 1 audio layer 3”
format file. MP3 file is file with [ .mp3 ] extensions. ( If file with [ .mp3 ] extensions
but not recorded in MP3 format, only noise could be heard if it is possible to
playback).

H WMA File Format

WMA is an audio file format developed by Microsoft with [ .wma ] extensions.
This type of audio file is being recorded through Microsoft Windows Operating
system.

H Disc that cannot be played

I This unit does not support below disc types:

II

I DVD discs that are not included

II

in region or

II

I SECAM system DVD

II

II

I DVD-ROM

II

II

I DVD-RAM

II

I Above disc sometimes cannot be playback, sometimes only pictures without

sound will appear or only sound can be heard. Playing the disc may damage
the speakers due to the possibility of enormous sound output or may even
cause hearing injuries whilst using headphone.

I If DVD disc with DTS is playback, no sound can be heard. Select other

sound output format to hear sound output.

I Disc that is sold in other region sometimes does not fit to standard. This

DVD Explanation

type of disc cannot be played.

I Depending on DVD restriction, operation of the disc may be different than

operation manual.

I When the system detects an incompatible disc, it displays indicator

When this happens, check the disc type.

II

I DVD-Audio

II

II

I CDG

II

II

I Photo CD

II

II

I CD-ROM

II

II

I SACD

II

Icons used on DVD discs

Sample Icons

1. English

2. Japanese

Number of
recorded audio
tracks

Title, chapter and track

DVDs are divided into “titles” and “chapters”. If the disc has more than one
movie on it, each movie would be a separate “title”. “Chapters” are subdivisions
of titles.

Example: DVD

Title 1 Title 2

Chapter 1

.

Audio CDs are divided into “tracks”. You can think of a “track” as one tune on
an audio CD.

Example: Audio CD

1. English

2. Japanese

Type of subtitles
recorded

Chapter 2

Chapter 3 Chapter 1

Video
format

Disc with
multiple
camera
angles

Region code
indicator
(See page 20.)

Chapter 2

E-21

*CD-G10000DVD(EN)20-22 05.1.17, 10:4721

Track 1 Track 2 Track 3 Track 4 Track 5

Note:

Numbers identify each title, chapter and track on a disc. Most discs have these
numbers recorded on them.

CD-G10000DVD (S)
TINSZA160AWZZ

Preparing to watch a DVD (DVDs)

VIDEO IN

Video cable
(Supplied)

S-Video cable
(commercially available)

D

C

/

D

V

D

To TV with external terminals

-DISC

5

GHANGER

DVD MINI SYSTEM

CD-G10000DVD

D

C

/

D

V

D

S-VIDEO INPUT

To watch DVD video images on the TV:

1 Turn on the TV.
2 Set the TV to “AV”, “VIDEO”, etc.
3 Turn on the unit and start play.

See page 33 for playing disc.

Note:

There is no audio signal supplied to the TV.

H Loading a DVD (DVDs)

1 Press the ON/STAND-BY button to turn the power on.
2 Press the DVD/CD button.
3 Press the s 1 button and within 5 seconds, press the OPEN/

CLOSE button to open the disc tray 1.

4 Place the DVD on the disc tray 1, label side up.

I

Be sure to place 8 cm (3") DVD(s) in the middle of the disc positions.

12 cm (5")

8 cm (3")

CD-G10000DVD

CP-G10000

ENGLISH

H Connecting to TV

Besides the supplied video cable, you can use a commercially available S­video cable to connect your system to television equipped with an S-video
input socket and enjoy viewing high-quality images on the TV screen. Be sure
to turn both the system and the TV equipment off before connecting them.

*CD-G10000DVD(EN)20-22 05.1.17, 10:4722

5 Press the OPEN/CLOSE button to close the disc tray.

Caution:

I Do not place two discs in one disc tray.
I Do not play discs of special shapes (heart, octagon, etc.). It may cause

malfunctions.

I Do not push the disc tray whilst it is moving.
I If the power fails whilst the tray is open, wait until the power is restored.
I If the disc tray is stopped with force, “ER-CD20” will appear on the display

for 3 seconds and the unit will not function. If this occurs, press the ON/
STAND-BY button to enter the power stand-by mode and then turn the
power on again.

I If TV or radio interference occurs during CD operation, move the unit away

from the TV or radio.

I If a disc is damaged, dirty or loaded upside down, the disc will skip.

CD-G10000DVD (S)
TINSZA160AWZZ

DVD Explanation

7

E-22

CD-G10000DVD
CP-G10000

ENGLISH

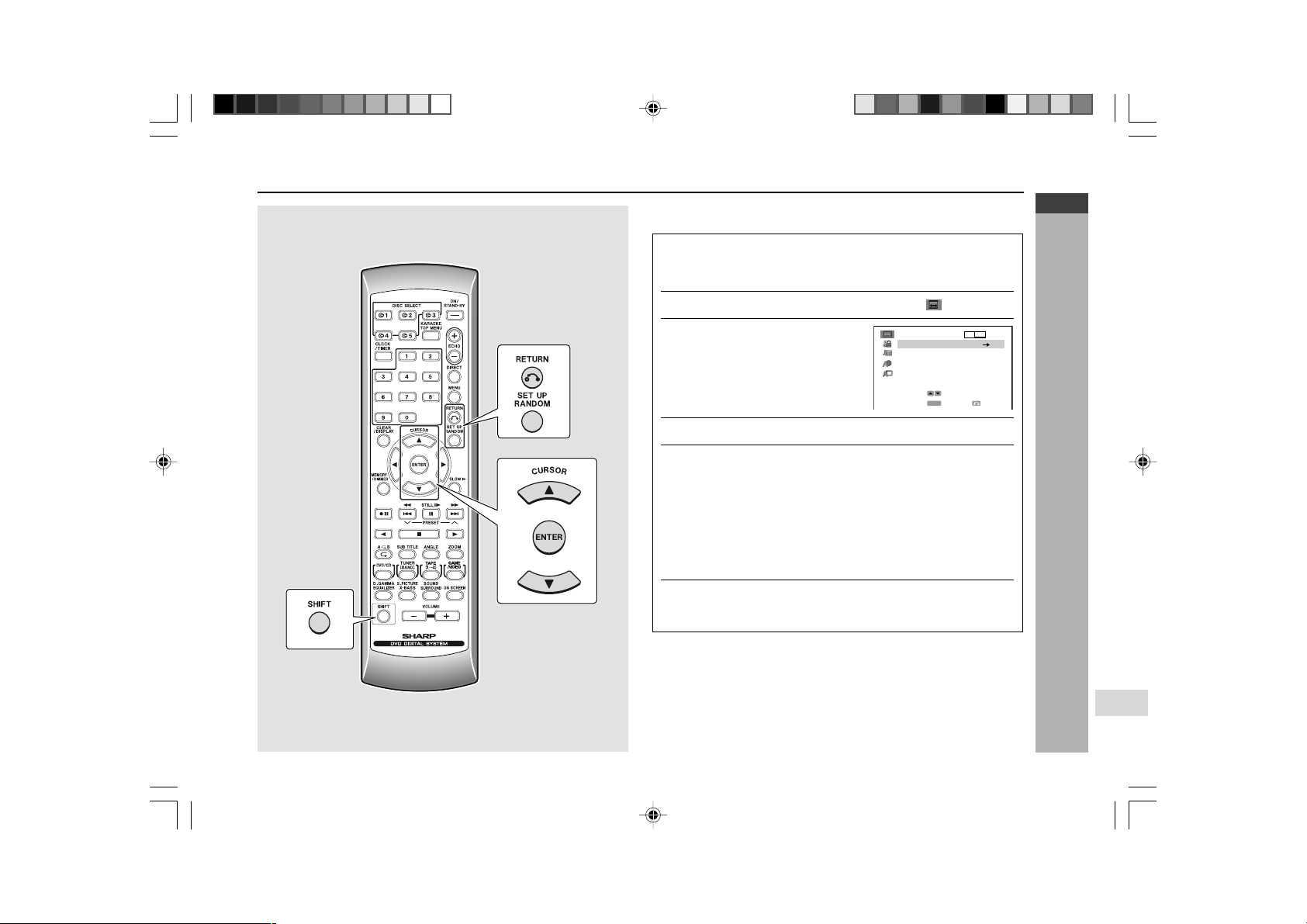

Initial setup (OSD language setup)

DVD Setting

When you use the unit for the first time, you should set the language to be used
for the OSD (On Screen Display).

1

Press the ON/STAND-BY button to turn the power on.

2

Press the DVD/CD button.

3

Whilst the disc is stopped, press the SET UP button whilst
pressing down the SHIFT button to display the setup
screen.

4

Use the or button to select the

“

OSD LANGUAGE SETUP” and

then press the ENTER button.

“

OSD LANGUAGE SETUP”

screen appears.

5

Use the , , or button to select the language you

LSD ANGUAGEO
ENGL I SH
ESPAÑOL

ITALIANO
DEUTSCH

SVENSKA
NEDERLANDSFRANÇAIS

ENTER

ENTER

SELECT

RETURN

want to use.

6

Press the ENTER button to confirm the setting.

To exit the setup screen and return to the startup screen, press the SET
UP button whilst pressing down the SHIFT button or the RETURN button.

Notes:

I Once you go through this procedure, the screen appears in the language

selected in step 5 above from the next operation.

I You cannot open the setup screen whilst a playback operation is in progress.

If a disc is playing, stop playback first.

E-23

*CD-G10000DVD(EN)23-28 05.1.17, 10:4723

RRMCGA015AWSA

CD-G10000DVD (S)
TINSZA160AWZZ
