07/7/30 HTCN550DVW3_6_E.fm

ENGLISH

HT-CN550DVW3

E-1

ENGLISH

Important Instruction

- Introduction / Special notes -

Introduction

z HT-CN550DVW3 Home Theater with DVD consisting of HT-CN550DVW3 (main

unit), CP-CN550F (front speakers), CP-CN550C (centre speaker), CP-CN550R (surround speakers) and CP-CN550SW (subwoofer).

Special notes

WARNING

z When the ON/STAND-BY button is set at STAND-BY position, mains voltage is still

present inside the unit. When the ON/STAND-BY button is set at STAND-BY position, the unit may be brought into operation by the remote control.

z This unit contains no user serviceable parts. Never remove covers unless qualified

to do so. This unit contains dangerous voltages, always remove mains plug from the socket before any service operation and when not in use for a long period.

z To prevent fire or shock hazard, do not expose this appliance to dripping or

splashing. No objects filled with liquids, such as vases, should be placed on the apparatus.

CAUTION

Thank you for purchasing this SHARP product. To obtain the best performance from this product, please read this manual carefully. It will guide you in operating your SHARP product.

z Unauthorised copying, broadcast, public display, transmission, public

performance and rental (regardless of whether or not such activities are for profit) of disc contents are prohibited by law.

z This system is equipped with copy protection technology that causes substantial

degradation of images when the contents of a disc are copied to a video tape.

This unit supports Macrovision copy protection. On DVD discs that include a copy protection code, if the contents of the DVD disc are copied using a VCR, the copy protection code prevents the video tape copy from playing normally.

Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098, and 4,907,093, licensed for limited viewing uses only.

z This product is classified as a CLASS 1 LASER product. z This product contains a low power laser device. To ensure continued safety, do not

remove any cover to attempt to gain access to the inside of the product. Refer all servicing to qualified personnel.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners.

Use of this copyright protection technology must be authorised by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorised by Macrovision Corporation.

Reverse engineering or disassembly is prohibited.

“DTS” and “DTS Digital Out” are trademarks of Digital Theater Systems, Inc.

Manufactured under license from Dolby Laboratories, “Dolby” and the double-D symbol are trademarks of Dolby Laboratories.

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-2

General Information

- Contents -

Contents

Page

 General Information

Types of playable discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Description of discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Controls and indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7 - 10

 System Connections

Speaker connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11 - 12

Aerial connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Connections to TV, VCR, etc. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 - 16

 Preparation for Use

System installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Battery installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Turning the power on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Changing the setup menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19 - 24

General control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

 DVD Operation

DVD playback

Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 - 27

To resume playback after stopping (resume play) . . . . . . . . . . . . . . . . . . . . . . .27

DVD mode operation indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

Basic operation

To locate the beginning of a chapter (track) (skip) . . . . . . . . . . . . . . . . . . . . . . .28

Fast forward/Fast reverse (search) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

To start playback from the desired point (direct play) . . . . . . . . . . . . . . . . 29 - 30

Useful operation

Slow-motion play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

To change the angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

To zoom images (zoom) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

To play repeatedly (repeat play) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

To play the contents between the specified points repeatedly (A-B repeat) . .33

To select a title from the top menu of the disc . . . . . . . . . . . . . . . . . . . . . . . . . .33

To select a subtitle or audio language from the disc menu . . . . . . . . . . . . . . .33

Page

Various settings

To change the subtitle language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

To change the audio channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

To change the display on TV screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

 Video CD and Super Video CD Operation

Video CD and Super Video CD playback

Playback of a video CD (super video CD) with P.B.C. . . . . . . . . . . . . . . . . . . . . 36

To play without activating the playback control function . . . . . . . . . . . . . . . . . 37

To start playback from the desired point (direct play) . . . . . . . . . . . . . . . . . . . .37

 CD, CD-R and CD-RW Operation

CD operation

To play in the desired order (programmed play) . . . . . . . . . . . . . . . . . . . . . . . . 38

To start playback from the desired point (direct play) . . . . . . . . . . . . . . . . . . . .38

MP3/WMA, JPEG and DivX disc operation

To start playback from the desired point (direct play) . . . . . . . . . . . . . . . . . . . .39

Playback on the menu screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39 - 41

Rotating a picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

 Radio Operation

Listening to the radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 - 43

 Advanced Features

Enjoying various sounds . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 - 45

Adjusting channel delay/speaker level . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46 - 47

Sleep operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

Playing karaoke . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49

 References

Troubleshooting chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 - 51

Error indicators and warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53 - 54

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-3

General Information

- Types of playable discs -

Types of playable discs

The DVD player can play back discs bearing any of the following marks:

z For unplayable discs, see page 6.

Types of playable DVD discs vary depending on the region. This unit can play back only DVDs with the same region number are written on the back of the unit.

Disc type Disc contents Disc size

DVD Video Disc Audio and video

(movies)

12 cm (5")

8 cm (3")

Super Video CD Audio and video

(movies)

12 cm (5")

8 cm (3")

Video CD Audio and video

(movies)

12 cm (5")

8 cm (3")

Audio CD Audio 12 cm (5")

8 cm (3")

CD-R/CD-RW (*1) Audio and picture 12 cm (5")

8 cm (3")

Or CD-R/CD-RW recorded in MP3 format (*2), JPEG format (*3) (*4) (*5)

DivX® Video disc (Ver 5.2 and below) Audio and video

(movies)

12 cm (5")

8 cm (3")

(*1): The CD-R/CD-RW may not be played back properly depending on the recording

equipment or the disc.

(*2): If the sampling frequency is 44.1 or 48.1 kHz and the fixed bit rate is 128 kbps

or higher, MPEG 1 Audio Layer 3 (MP3) files can be played. However, some of them may not be played depending on their conditions or formats.

(*3): This unit also can recognise .AVI, .DIV, .MPG, .MPEG and .XVID. Bitrate can go

up to 4.8 Mbps.

(*4): JPEG or JPG picture discs also play on this unit. However, pictures may not be

clear (depends on resolution and recording method).

(*5): JPEG maximum resolution limit at 2M file size.

If photo bigger than this size, a dialog box will appear to display “over file size” and go to next picture.

Icons used in this operation manual

Some functions may not be available depending on discs. The following icons indicate the discs that can be used in the section.

... Indicates DVDs.

... Indicates Super video CDs.

... Indicates video CDs.

... Indicates audio CDs.

... Indicates CD-R/RW with MP3 recording.

... Indicates CD-R/RW with JPEG recording.

... Indicates DivX

video.

z Some operations may not be performed depending on discs even if they are

described in this manual.

During operation,

“”

may be displayed on the screen. This means that the

operations described in this manual are not possible.

z Unauthorised copying, broadcast, public display, transmission, public performance

and rental (regardless of whether or not such activities are for profit) of disc contents are prohibited by law.

z This system is equipped with copy protection technology that causes substantial

degradation of images when the contents of a disc are copied to a videotape.

z This system is protected by U.S. patents and other intellectual property rights, the

copyright for which belongs to Macrovision Corporation. The use of Macrovision’s copy protection technology in the system is authorised by Macrovision and is intended for home use only, unless otherwise authorised in writing by Macrovision. Reverse engineering or disassembly is prohibited.

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-4

General Information

- Accessories -

Accessories

Please confirm that the following accessories are included.

Remote control × 1 “AAA” size battery

(UM-4, R03, HP-16 or similar) × 2

Audio/Video cable × 1 FM aerial × 1

Speaker connection lead × 5

Green and Black

(for centre speaker) approx. 3 m

Blue and Black

(for left surround speaker)

rox. 8 m

Grey and Black

(for right surround speaker)

rox. 8 m

Red and Black

(for right front speaker)

approx. 3 m

White and Black

(for left front speaker) approx. 3 m

Note:

Only the above accessories are included.

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-5

General Information

- Precautions -

Precautions

 General

z Please ensure that the equipment is positioned in a well ventilated area and that

there is at least 10 cm (4") of free space along the sides and back. There must also be a minimum of 15 cm (6") of free space on the top of the unit.

z No naked flame sources, such as lighted candles, should be placed on the

apparatus.

z Attention should be drawn to the environmental aspects of battery disposal. z This unit should only be used within the range of 5°C - 35°C (41°F - 95°F).

Warning:

The voltage used must be the same as that specified by this unit. Using this product with a higher voltage other than that specified is dangerous and may result in a fire or other types of accident, causing damage. SHARP will not be held responsible for any damage resulting from the use of this unit with a voltage other than that specified.

 Volume control

The sound level at a given volume setting depends on speaker efficiency, location, and various other factors. It is advisable to avoid exposure to high volume levels. Do not turn the volume on to full at switch on and listen to music at moderate levels.

 Care of DVD/CD discs

DVD/CD discs are fairly resistant to damage, however mistracking can occur due to an accumulation of dirt on the disc surface. Follow the guidelines below for maximum enjoyment from your DVD/CD collection and player. z Do not write on either side of the disc, particularly the non-label side from which sig-

nals are read. Do not mark this surface.

z Keep your discs away from direct sunlight, heat, and excessive moisture. z Always hold the DVD/CDs by the edges. Fingerprints, dirt, or water on the DVD/

CDs can cause noise or mistracking. If a DVD/CD is dirty or does not play properly, clean it with a soft, dry cloth, wiping straight out from the centre, along the radius.

z Use the unit on a firm, level surface free from

vibration.

z Keep the unit away from direct sunlight, strong

magnetic fields, excessive dust, humidity and electronic/electrical equipment (home computers, facsimiles, etc.) which generates electrical noise.

z Do not place anything on top of the unit. z Do not expose the unit to moisture, to temperatures higher than 60°C (140°F) or to

extremely low temperatures.

z If the unit does not work properly, unplug and plug it in again. Then turn on the unit. z In case of an electrical storm, unplug the unit for safety. z Hold the AC power plug by the head when removing it from the wall socket, as

pulling the lead can damage internal wires.

z The AC power plug is used as disconnect device and shall always remain readily

operable.

z Do not remove the outer cover, as this may result

in electric shock. Refer internal service to your local SHARP service facility.

10 cm (4")

15 cm (6")

z The ventilation should not be impeded by covering

the ventilation openings with items, such as newspapers, tablecloths, curtains, etc.

YES Correct

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-6

General Information

- Description of discs -

Description of discs

 Discs that cannot be played

z The discs above cannot be played at all, or no sound is heard although images

appear on the screen or vice versa.

z Incorrect operation may damage the speakers and can have an negative effect on

your hearing when played at high volume settings.

z You cannot play illegally produced discs.

Notes:

z A disc with has scratches or fingerprints may not play properly. Refer to “Care of

DVD/CD discs (page 5)” and clean the disc.

z Do not play the discs of special shapes (heart or octagon shaped) as they can be

ejected whilst rotating and cause injury.

 Title, chapter and track

DVDs are divided into “titles” and “chapters”. If the disc has more than one movie on it, each movie is a separate “title”. “Chapters” are subdivisions of titles.

Audio CDs consist of “tracks”. A “track” is each tune on an audio CD.

Note:

Title, chapter, or track numbers may not be recorded on some discs.

 Icons used on DVD discs

Check the icons on the DVD case before playing your discs.

z DVDs without the region number on

the back of the unit or “ALL”.

z CDG

z CDV z DVDs with SECAM system z Photo CD z DVD-ROM z CD-ROM z DVD-RAM z SACD z DVD-Audio z Discs recorded in special formats, etc.

Chapter 1

Title 1 Title 2

Chapter 2

Chapter 3 Chapter 1 Chapter 2

Track 1 Track 2 Track 3 Track 4 Track 5

Display Description

Region number (playable area number) DVD discs are programmed with region

numbers indicating countries in which they can be played. This system can play discs with region number on the back of the unit.

Format recorded on the DVD To adopt the video format to the

connected TVs (“wide-screen TV” or “4:3 size TV”).

Recorded in 4:3.

You can enjoy wide images on a wide-screen TV, and letterbox size images on the 4:3 size TV.

You can enjoy wide images on a wide-screen TV and 4:3 images with the side edges cut on the 4:3 size TV.

Type of subtitles recorded

Recorded subtitle languages.

Example: Language can be selected with the

SUBTITLE button.

1: English

2: French

Number of camera angles

Number of angles recorded on the DVD.

Angles can be selected with the ANGLE button.

Number of audio tracks and audio recording systems

The number of audio tracks and audio recording systems are indicated.

Example: 1: Original <English> (DTS 5.1 Surround)

z The audio recorded on the DVD can

be switched by using the AUDIO button.

z The number of audio tracks and

recording systems vary depending on the DVD. Check them in the DVD's manual.

2: English (Dolby Digital

5.1 Surround)

4 52 3

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-7

General Information

- Controls and indicators -

Controls and indicators

 Main unit (front panel)

Reference page

1.On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18, 19

2.Disc Tray . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

3.Disc Tray Open/Close Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

4.Remote Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

5.Function Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19, 26, 42

6.Speaker Level Mode Button . . . . . . . . . . . . . . . . . . . . . . . . . . . 25, 47

7.Chapter (track) Skip Down or Preset/Tuning Down Button . . 28, 42

8.Chapter (track) Skip Up or Preset/Tuning Up Button. . . . . . . 28, 42

9.Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27, 36

10.Play or Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26, 27, 30

11.Volume Up and Down Buttons . . . . . . . . . . . . . . . . . . . . . . . . . 25, 49

12.Microphone Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

13. Speaker Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

14.DVD Indicator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26, 27, 28, 29

Reference page

15.JPEG Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

16.P-SCAN Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14,15, 20

17.Play Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26, 27, 29

18.Pause Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

19.Dolby Digital Signal Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

20.SVCD/VCD/CD Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36, 37

21.MP3 Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

22.DTS Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

23.Dolby Pro Logic Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

24.Stereo (2-ch) or FM Stereo Receiving Indicator. . . . . . . . . . . . .42, 43

25.Title Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27, 28, 44

26.Track Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

27.Chapter Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27, 28, 44

28.Programme Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

29.Sleep Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

30.Repeat Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

31.A-B Repeat Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

2 4 5 6 7 8 9

21 22 23 24 25 26 27 28 29 30 31

14 15 16 17 18

(1) Left Front Speaker Indicator (4) Left Surround Speaker Indicator (2) Centre Speaker Indicator (5) Subwoofer Indicator (3) Right Front Speaker Indicator (6) Right Surround Speaker Indicator

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-8

General Information

- Controls and indicators -

 Main unit (rear panel)

Reference page

1. AC Lead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

2. Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

3. Audio Input Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

4. Audio Output Sockets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13, 14

5. Video Output Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

6. Component Video Output Sockets . . . . . . . . . . . . . . . . . . . . . . . . . .14

7. S-Video Output Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

8. FM 75 Ohms Aerial Socket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

1 2 4 5

7 8

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-9

General Information

- Controls and indicators -

Controls and indicators (continued)

 Remote control

Reference page

1. Remote Control Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

2. On/Stand-by Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

3. Mute Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

4. Chapter (track) Skip Down or Preset Down Button . . . . . . 28, 36, 42

5. Slow Motion Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

6. Fast Reverse or Tuning Down Button . . . . . . . . . . . . . . . . . . . . 28, 42

7. Stop Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

8. Function Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19, 26, 40, 42

9. Cursor Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

10.Menu/Playback Control On/Off Button . . . . . . . . . . . . . . . . 32, 37, 39

11.Key Control Button (Lower) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

12.Key Control Button (Normal) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

13.Direct Number Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28, 32, 42

14.Equaliser Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

15.MIC Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

16.Echo Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

17.Speaker Level Mode Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25, 47

18.Audio Select Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

19.Sleep Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

20.Subtitle Select Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

21.Direct Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29, 37

22.Disc Tray Open/Close Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

23.Chapter (track) Skip Up or Preset Up Button . . . . . . . . . . . 28, 36, 42

24.On Screen Display On/Off Button . . . . . . . . . . . . . . . . . . . . . . . . . . 35

25.Play or Pause Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26, 27

26.Fast Forward or Tuning Up Button . . . . . . . . . . . . . . . . . . . . . . 28, 42

27.Setup Menu Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

28.Enter Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

29.Title Select/Return Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33, 36

30.Key Control Button (Highest) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

31.Programme Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38, 43

32.Surround/Stereo (2-ch) Listening Mode Button . . . . . . . . . . . . 44, 45

33.Volume Up Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25, 49

34.Volume Down Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25, 49

35.Angle Select Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

36.A - B Repeat Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

37.Zoom Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31, 40

38.Repeat Play Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32, 38

ON STAND-BY OPEN CLOSE

PRESET MUTE PRESET

OSDPLAYSLOW

TUNING TUNINGSTOP

PAUSE

TITLE

SETUP

ENTER

FUNCTION

PBC

RETURN

LISTENING

EQUALIZER PROG

MODE

ECHO

MIC

VOLUME

ANGLEZOOMSUBTITLEAUDIO

SLEEP DIRECT REPEAT A-B

123

456

7809

3 4

23 24

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-10

General Information

- Controls and indicators -

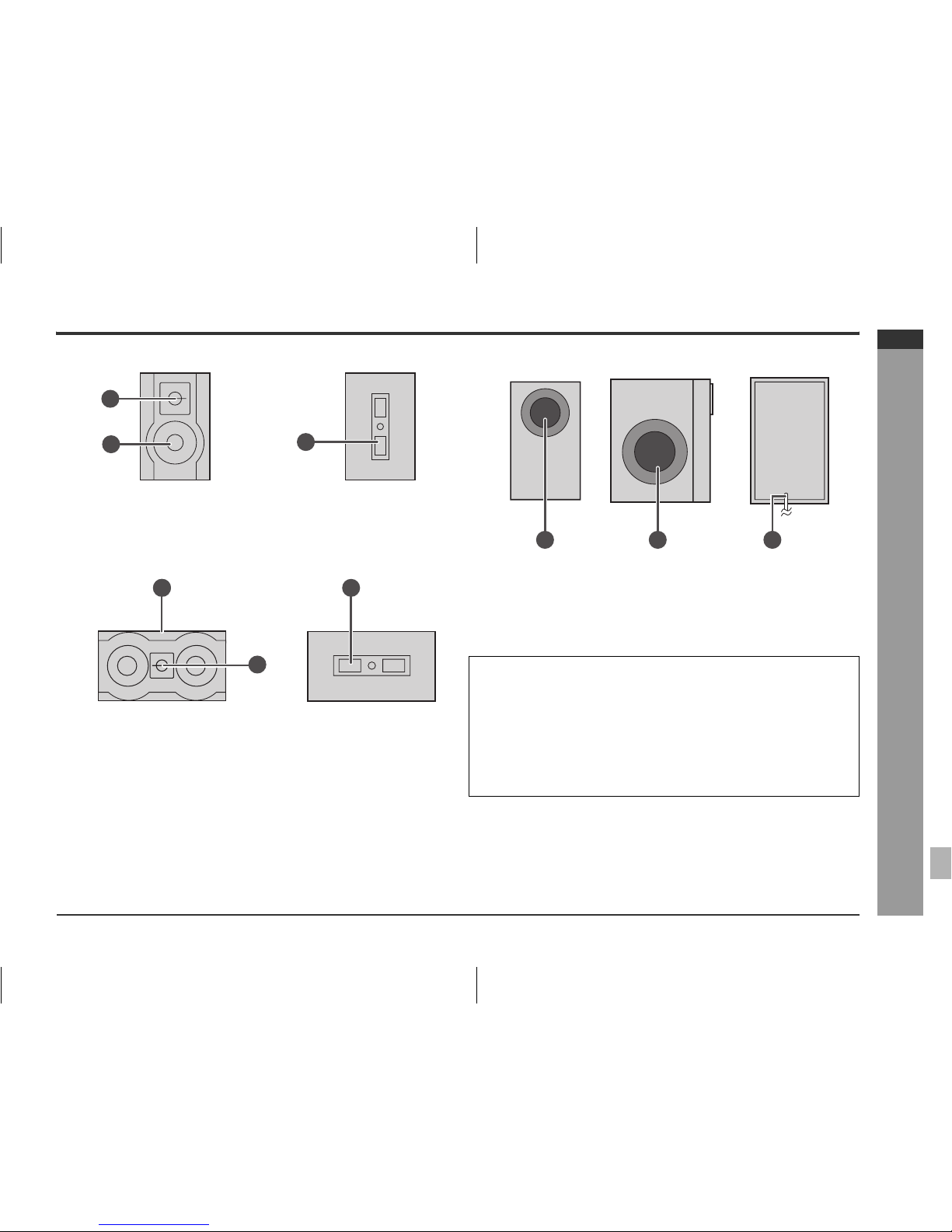

 Front/surround speakers

Reference page

1. Speaker

2. Super Tweeter

3. Speaker Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

 Centre speaker

Reference page

1. Speaker

2. Super Tweeter

3. Speaker Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

 Subwoofer

Reference page

1. Bass Reflex Duct

2. Woofer

3. Speaker Lead . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

 Speaker functions

Notes:

z Do not allow any objects to fall into or to be placed in the bass reflex ducts. z Front and centre speakers are magnetically shielded.

1 31

Front speaker:

Reproduces left and right sound (stereo mode) or front surround sound.

Centre speaker:

Reproduces centre surround sound.

Surround speaker:

Reproduces rear surround sound.

Subwoofer:

Reproduces bass sound.

21 3

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-11

System Connections

- Speaker connection -

Speaker connection

Speaker terminals on the main unit and speakers, and speaker wires are distinguished by colours. Connect the speaker and the unit by matching the colours. (For speaker installation, see page 17.)

MODEL NO. CP-CN550SW

IMPEDANCE RATED POWER MAXIMUM POWER

4 OHMS 50 W 70 W

SUBWOOFER

Purple

(+)

Green

(+)

White

(+)

Grey

(+)

Red

(+)

Front speaker

(right)

Centre speaker

Surround speaker

(left)

Subwoofer

Surround speaker

(right)

Front speaker

(left)

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-12

System Connections

- Speaker connection / Aerial connection -

 Connecting speaker wires

To prevent accidental short circuits between and terminals, connect the speaker wires to the speakers first and then to the unit.

Aerial connection

External FM aerial:

Use an external FM aerial if you require better reception. Consult your dealer.

Make sure to leave the AC power lead disconnected when connecting the speakers.

Caution:

z The supplied speaker for HT-CN550DVW3 is designed exclusively for

HT-CN550DVW3. Do not connect speakers for HT-CN550DVW3 to other equipment. Also, do not connect other speakers to HT-CN550DVW3. It may cause malfunction.

z Do not mistake the and , and right and left terminals of the speaker wires.

(The right speaker is placed on the right when you face the unit.)

z Do not let the bare speaker wires touch each other. z Do not stand or sit on the speakers. You may be injured. z Do not short-circuit the speaker wires. If the power is

turned on, malfunction may occur.

z When disconnecting the speaker wires, unplug the AC

power lead, and then disconnect the speaker wires from the main unit.

Red

(+)

Red

(+)

Black

( )

Black

( )

1 Connect the wires to the speakers.

2 Connect the other end to the main

unit.

Incorrect

Supplied FM aerial:

Connect the FM aerial wire to the FM 75 OHMS socket and position the FM aerial wire in the direction where the strongest signal can be received.

Note:

Placing the aerial on the unit or near the AC power lead may cause noise pickup. Place the aerial away from the unit for better reception.

FM aerial

External FM aerial

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-13

System Connections

- Connections to TV, VCR, etc. -

Connections to TV, VCR, etc.

 Connecting to a TV with a video input socket

 Connecting to a TV with an S-video input socket

 Audio connection from TV or VCR

You can enjoy surround sound from TV or VCR by connecting them to the unit as shown.

Caution:

Turn off all other equipment before making connections.

To video input socket

To audio input sockets

Video cable (supplied)

Audio cable (supplied)

Video signal

Audio signal

To S-video input socket

To audio input sockets

S-video cable (commercially available)

Video signal

Audio cable (supplied)

Audio signal

VCR

To audio output sockets

Audio cable (supplied)

Audio signal

Audio cable (supplied)

To audio output sockets

Audio signal

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-14

System Connections

- Connections to TV, VCR, etc. -

 Connecting to a TV with Progressive-scan capability

Your TV must be capable of handling progressive scanning and have component video input capability.

* Please consult your local audio/video dealer.

1. Connect the DVD main unit to the component video input sockets of the TV. (The VIDEO INPUT or S-VIDEO OUT sockets connection is not encourage.)

2. You also need to connect the left and right audio cables to the AUDIO OUT sockets of DVD main unit and the Audio input sockets of the TV.

3. Set the DVD main unit to the PROGRESSIVE position. (See page 20)

AUDIO INPUT COMPONENT VIDEO INPUT

Y PB PRR

Green

White

Red

Blue

Red

TV with progressive-scan capability

To COMPONENT VIDEO INPUT sockets

To audio input sockets

Audio cable (supplied)

Red

Blue

Green

*Component video cable (not supplied)

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-15

System Connections

- Connections to TV, VCR, etc. -

Connections to TV, VCR, etc. (continued)

Progressive Scanning

Whilst interlaced scanning produces one frame of video in two fields, progressive scanning creates one frame in one field. Conventional interlaced scanning constitutes one second with 30 frames (60 fields), but progressive scanning constitutes it with 60 frames from scratch. Progressive scanning can reproduce sharper picture with high resolution for still image or other picture containing long texts or horizontal lines. This model has compliance with 525p (progressive) system.

Notes:

z Please refer to your TV instruction manual. z When you connect the DVD main unit to your TV, be sure to turn off the power and disconnect both units from the wall socket until all the connections have been made. z Do not connect the DVD main unit to a VCR directly. The playback picture will be distorted because DVD video discs are copy protected.

Interlaced scanning

Progressive scanning

Notes:

z For VIDEO connection, please refer to “BASIC CONNECTIONS”. z Please refer to the instruction manual of your amplifier. z When you connect the DVD main unit to your amplifier, be sure to turn off the power and disconnect both units from the wall socket until all the connections have been

made.

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-16

System Connections

- Connections to TV, VCR, etc. -

To listen to TV or VCR sound via the speakers of this unit:

 Audio connection to other equipment

 Connecting the AC power lead

After checking all the connections have been made correctly, plug the AC power lead of this unit into the wall socket.

Notes:

z Plug the AC power lead into the wall socket, after any connections. z Unplug the AC power lead from the wall socket if the unit will not be in use for a

prolonged period of time.

z Use only the supplied AC power lead. Using other power leads may cause an

electric shock or fire.

AC Plug Adaptor

In areas (or countries) where a wall socket as shown in illustration is used, connect the unit using the AC plug adaptor supplied with the unit, as illustrated. The AC plug adaptor is not included in areas where the wall socket and AC power plug can be directly connected (see illustration ).

Note:

An AC plug adaptor is not supplied if the lead has an Australian Standard plug.

Press the FUNCTION button repeatedly to select the desired audio input.

Unit display

z “AUX 1” or “AUX 2”.

Notes:

z Change the TV input in accordance with the connected socket. z Do not connect other equipment (VCR, etc.) between the TV and this unit.

Pictures may be distorted.

z Refer to the operation manual of the equipment to be connected. z Insert the plugs fully to avoid fuzzy pictures or noise.

ON STAND-BY OPEN CLOSE

PRESET MUTE PRESET

OSDPLAYSLOW

TUNING TUNINGSTOP

PAUSE

SETUP

ENTER

FUNCTION

UNCTION

A-B

REPEAT1SLEEPPROGCHPESET

KHz MHz

Audio cable

To audio input socket

MD recorder

Audio signal

Wall socket (AC 220 ~ 240 V, 50/60 Hz)

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-17

Preparation for Use

- System installation -

System installation

 Placing the speaker system

The best surround effect will be achieved by placing each speaker at the same distance from the listening position. It is recommended to arrange the speakers as shown below.

Notes:

z Place the TV halfway between the front speakers. z It is recommended that the centre speaker be placed near the television. z Place the surround speakers at a position just above the height of your ears. z The subwoofer vibrates whilst reproducing bass. Place it on a stable, sturdy

surface.

z The bass sound from the subwoofer is non-directional, however, it is recommended

to place it as close as left and right speakers.

 Magnetically shielded speakers

The front and centre speakers may be placed beside or near the TV as they are magnetically shielded. However, discolouration may occur depending on the TV type.

If colour variation occurs...

Turn off the TV (with the power switch). After 15 - 30 minutes, turn the TV on again.

If the colour variation is still present...

Move the speakers further away from the TV. Refer to the manual of the TV for details.

Note:

The surround speakers and subwoofer are not magnetically shielded.

Note:

If speakers cannot be placed at equal distances, refer to “Speaker delay time setting” (see page 46).

Installation image:

Front

speaker (left)

Subwoofer

Front speaker (right)

Surround speaker (left)

Surround speaker (right)

Centre

speaker

Front speaker (left)

Same distance

Front speaker (right)

Centre speaker

Same distance

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-18

Preparation for Use

- Battery installation / Turning the power on -

Battery installation

Precautions for battery use:

z Replace all old batteries with new ones at the same time. z Do not mix old and new batteries. z Remove the batteries if the unit is not to be used for long periods of time. This will

prevent potential damage due to battery leakage.

Caution:

z Do not use rechargeable batteries (nickel-cadmium battery, etc.). z Incorrect installation may cause the unit to malfunction. z Batteries (battery pack or batteries installed) shall not be exposed to excessive

heat such as sunshine, fire or the like.

Notes concerning use:

z Replace the batteries if the operating distance is reduced or if the operation

becomes erratic. Purchase 2 “AAA” size batteries (UM-4, R03, HP-16 or similar).

z Periodically clean the transmitter on the remote control and the sensor on the unit

with a soft cloth.

z Exposing the sensor on the unit to strong light may interfere with operation. Change

the lighting or the direction of the unit.

z Keep the remote control away from moisture, heat, shock, and vibrations.

Turning the power on

 Test of the remote control

Check the remote control operation after making all the connections (see pages 11 -

17). Point the remote control directly at the remote sensor on the unit.

The remote control can be used within the range shown below:

Press the ON/STAND-BY button. Does the power turn on? Now, you can enjoy your system.

 To turn the power on

Press the ON/STAND-BY button.

If the power does not turn on, check the AC power lead is plugged in properly.

1 Open the battery cover. 2 Insert the supplied batteries according to the direction indica ted in

the battery compartment.

When inserting or removing the batteries, push them towards the battery terminals.

3 Close the cover.

ON STAND-BY OPEN CLOSE

PRESET MUTE PRESET

OSDPLAYSLOW

TUNING TUNINGSTOP

PAUSE

TITLE

SETUP

ENTER

FUNCTION

Remote sensor

0.2 m - 6 m (8" - 20')

ON STAND-BY

Power stand-by indicator

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-19

Preparation for Use

- Changing the setup menu -

Changing the setup menu

Turn on the TV, and switch the input to the “VIDEO 1”, “VIDEO 2”, etc. accordingly.

Notes:

z During playback, “PREFERENCES” settings cannot be changed. z Settings are stored even if the unit is set to the stand-by mode. z The backup function protects the stored settings for a few hours should there be a

power failure or the AC power lead disconnection.

z If the startup screen is blurred, change the TV type in the setup menu.

1 Press the ON/STAND-BY button to turn the

power on.

z The startup screen appears. z The startup screen does not appear when the

input is not set to the disc mode. Press the FUNCTION button to select DVD mode.

ON STAND-BY OPEN CLOSE

PRESET MUTE PRESET

OSDPLAYSLOW

TUNING TUNINGSTOP

PAUSE

TITLE

SETUP

ENTER

FUNCTION

PBC

RETURN

LISTENING

EQUALIZER PROG

MODE

MIC

ECHO

VOLUME

ANGLEZOOMSUBTITLEAUDIO

SLEEP DIRECT REPEAT A-B

123

456

7809

SETUP

ON STAND-BY

FUNCTION

ENTER

2 Press the SETUP button. 3 Press the W or X button to select a menu and press the ENTER but-

ton.

See the list on pages 20 - 24 for setup menu.

4 Press the S, T, W or X button to change the setting and press the

ENTER button.

z See the list on pages 20 - 24 for the selectable parameters.

5 Press the SETUP button.

z The setting is completed.

z To change other settings, begin from step 2.

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-20

Preparation for Use

- Changing the setup menu -

 Change the system with conventional TV connecting

z If you use a conventional TV, you must select the INTERLACE at “Video Setup Page” (see page 21). z INTERLACE mode is use for normal video output. z For conventional TV connection, please refer to page 13.

 Change the system to a TV with Progressive-Scan

z If you use TV with Progressive-Scan capability and connect it to the COMPONENT VIDEO OUT sockets of the DVD main unit (see page 14), you must select the

PROGRESSIVE-SCAN (P-SCAN).

Setup menu Selectable parameters (* indicates default setting) Description

GENERAL SETUP PAGE

TV DISPLAY NORMAL/PS*

NORMAL/LB WIDE WIDE SQUEEZE

The screen mode should be set according to the connected TV type (for details, see page 23).

ANGLE MARK ON*

OFF

OSD LANG ENGLISH*

RUSSIAN FRENCH SPANISH

You can select the desired OSD (On Screen Display) language for the setup menu or playback control screen.

SCREEN SAVER

ON* A screensaver appears. OFF The screensaver is disabled.

LAST MEMORY

ON If accidently push ON/STAND-BY or OPEN/CLOSE button during

playback mode, you can resume playback from the point playback is stopped after power on back or you push the OPEN/CLOSE button to close the disc tray.

OFF* Last memory not function.

AUDIO SETUP PAGE

SPEAKER SETUP

TEST TONE ON

OFF*

You can check speaker output (see page 47).

DOLBY DIGITAL SETUP

DYNAMIC(*1) FULL Audio with fully compressed dynamic range.

3/4

1/4

Audio with partially compressed dynamic range.

OFF* Audio with uncompressed dynamic range.

CHANNEL DELAY

Adjust the delay time of the speakers (for details, see page 46).

(*1) Selects the dynamic range compression to fit the individual listening situation of the audience. This function can be used in DVD playback. Depending on the disc, sounds may become too loud or inaudible during playback. Dolby Digital's dynamic range control allows you to adjust the sound range.

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-21

Preparation for Use

- Changing the setup menu -

Changing the setup menu (continued)

Setup menu Selectable parameters (* indicates default setting) Description

VIDEO SETUP PAGE

TV MODE P-SCAN If connect DVD main unit (Component Video Output sockets, YP

BPR)

to TV (Component Video Input sockets with progressive-scan capability) (see page 14).

INTERLACE* If connect DVD main unit (Video Output socket or S-Video Output

socket) to TV (Video Input socket or S-Video Input socket) (see page

13).

DivX VOD OK SHARP provide you the DivX registration code that allows you to rent

and purchase videos using the DivX service. Please go to www.divx.com/vod

for more information.

PREFERENCE PAGE

TV TYPE PAL*

AUTO NTSC

Please refer page 23.

PBC ON*

OFF

AUDIO ENGLISH*

FRENCH SPANISH CHINESE JAPANESE KOREAN RUSSIAN THAI

Select the language audible from the speakers.

SUBTITLE ENGLISH

FRENCH SPANISH CHINESE JAPANESE KOREAN RUSSIAN THAI OFF*

Select the subtitle displayed on the TV screen.

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-22

Preparation for Use

- Changing the setup menu -

Setup menu Selectable parameters (* indicates default setting) Description

PREFERENCE PAGE

DISC MENU ENGLISH*

FRENCH SPANISH CHINESE JAPANESE KOREAN RUSSIAN THAI

Select the disc menu language.

PARENTAL 1 KID SAFE

2 G 3 PG 4 PG 13 5 PGR 6 R 7 NC17 8 ADULT*

Set a restriction level for DVD viewing (for details, see page 24).

DEFAULT RESET This resets all settings, except for PARENTAL and PASSWORD, to

the factory defaults.

PASSWORD SETUP PAGE

PASSWORD CHANGE See page 24 for password setting.

EXIT SETUP The setting is completed.

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-23

Preparation for Use

- Changing the setup menu -

Changing the setup menu (continued)

 TV display setting

Note:

When playing the disc with a fixed video format, it will not change even if the TV screen size is changed.

 TV type setting

 Language setting

Indicator Setting

NORMAL/PS When playing a wide image (16:9) disc,

the left and right sides of the image are cut (pan scan) to display a naturallooking 4:3 size image.

A wide image disc without pan scan is played back in 4:3 letterbox.

A 4:3 disc is played in 4:3.

NORMAL/LB When playing a wide image (16:9) disc,

black bands are inserted at the top and bottom and you can enjoy full wide images (16:9) on a 4:3 size TV.

A 4:3 disc is played in 4:3.

WIDE A wide image (16:9) is displayed when

playing a wide image (16:9) disc.

z When playing a 4:3 image disc, the image size depends on the

setting of the connected TV.

z If you play back a wide image (16:9) disc with this unit connected

to a 4:3 TV, the vertically shrunk image is displayed.

WIDE SQUEEZE

When play 4:3 disc with this unit connected to a 16:9 TV (wide screen TV), the horizontally expended image is displayed. If you use this setting, a natural looking image 4:3 size can be viewed with the black bands are inserted at the left and right of the screen.

z If you playback a wide image (16:9) disc with 4:3 TV, the vertically

shrunk image is displayed.

Indicator Setting

AUTO Select this mode for the multi-system TV.

NTSC Select this mode for the NTSC TV.

PAL Select this mode for the PAL TV.

Indicator Setting

OSD LANG A language for screen display can be set for the setup menu,

messages, etc.

AUDIO A language for audio can be set.

You can specify a language for conversation and narration.

SUBTITLE A language for subtitle can be set.

The subtitles are displayed in a specified language.

English French

DISC LOADING DISQUE CHARGEMENT

English French

Thank you

Merci

English French

Merci

Thank you

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-24

 Parental setting

Note:

Whilst playing a disc with parental lock, the display may appear requesting a password in order to watch some restricted scenes. In such a case, enter the password to temporarily change the parental level.

 Password setting

From the setup menu, select “PASSWORD SETUP PAGE”, “PASSWORD” and then “CHANGE”. A screen appears.

Note:

When you forget your password, follow below sequence.

At setup menu, select “PASSWORD SETUP PAGE”, “PASSWORD” and then “CHANGE”.

1. Enter the old password as “000000” using the Direct Number buttons.

2. Enter the new password.

3. Enter the new password again for confirmation.

Indicator Setting

DISC MENU A language for disc menus can be set.

Menu screens are displayed in a specified language.

1 Select “PREFERENCES” on the setup menu screen (see steps 1 - 3

on page 19).

2 After selecting “PARENTAL” in step 4 on page 19, select the

parental level and press the ENTER button.

3 Enter a 6-digit password using the Direct Number buttons and press

the ENTER button.

If this is the first time, enter “000000”.

Indicator Setting

1 KID SAFE Only DVD software intended for children can be played back.

2G to 7 NC-17 Only DVD software intended for general use and children can be

played back.

8 ADULT DVD software of any grade (adult/general/children) can be

played back.

English French

ACTEURS

PERSONNEL

CAST

STAFF

1 Enter the old password using the Direct Number buttons.

(If this is the first time, enter “000000”).

2 Enter the new password using the Direct Number buttons. 3 Enter the new password again for confirmation.

Preparation for Use

- Changing the setup menu -

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-25

Preparation for Use

- General control -

General control

 Volume control

 Treble and Bass

 Muting

 Auto power off function

ON STAND-BY OPEN CLOSE

PRESET MUTE PRESET

OSDPLAYSLOW

TUNING TUNINGSTOP

PAUSE

TITLE

SETUP

ENTER

FUNCTION

PBC

RETURN

LISTENING

EQUALIZER PROG

MODE

MIC

ECHO

VOLUME

ANGLEZOOMSUBTITLEAUDIO

SLEEP DIRECT REPEAT A-B

123

456

7809

MUTE

VOLUME

MODE

Unit Display

Press the VOLUME + (VOLUME S) button to increase the volume and the VOLUME − (VOLUME

T) button for decreasing.

Unit Display

1 Press the MODE button repeatedly to select

the TREB or BASS.

−10 dB to +10 dB

2 Within 3 seconds, press the VOLUME +

(VOLUME

S) or VOLUME − (VOLUME T)

button to adjust the level. You can adjust the level at 2 dB intervals.

−10 dB to +10 dB

TV Display (TV Screen)

The volume is muted temporarily when pressing the MUTE button on the remote control. Press again to restore the volume.

In the stop mode of DVD function, the unit enters to the stand-by mode after 20 minutes of inactivity.

A-B

REPEAT1SLEEPPROGCHPPRESETTRKTITLE

KHz MHz

CDMP3STEREOV

DIGITAL Pro Logic

MIN 1 2

.....

38 39 MAX

A-B

REPEAT1SLEEPPROGCHPPRESETTRKTITLE

KHz MHz

CDMP3STEREOV

DIGITAL Pro Logic

A-B

REPEAT1SLEEPPROGCHPPRESETTRKTITLE

KHz MHz

CDMP3STEREOV

DIGITAL Pro Logic

A-B

REPEAT1CHPPRESETTRKTITLE

KHz MHz

CDMP3STEREOV

DIGITAL Pro Logic

A-B

REPEAT1SLEEPPROGCHPPRESETTRKTITLE

KHz MHz

CDMP3STEREOV

DIGITAL Pro Logic

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-26

DVD Operation

- DVD playback -

DVD playback

Turn on the TV, and switch the input to the “VIDEO 1”, “VIDEO 2”, etc. accordingly.

 Playback

Note:

During operate FM/AUX, OPEN/CLOSE CD tray will change to DVD function.

ON STAND-BY OPEN CLOSE

PRESET MUTE PRESET

OSDPLAYSLOW

TUNING TUNINGSTOP

PAUSE

TITLE

SETUP

ENTER

FUNCTION

PBC

RETURN

LISTENING

EQUALIZER PROG

MODE

ECHO

MIC

VOLUME

ANGLEZOOMSUBTITLEAUDIO

SLEEP DIRECT REPEAT A-B

123

456

7809

OPEN CLOSE

ON STAND-BY

STOP

FUNCTION

PLAY PAUSE

1 Press the ON/STAND-BY button to turn the power on. 2 When the input is not set to the disc mode,

press the FUNCTION button repeatedly to display the startup screen.

The startup screen appears.

3 Press the OPEN/CLOSE button to open the disc tray. 4 Place the disc on the disc tray, label side up.

Be sure to place 8 cm (3") discs in the middle of the disc position.

5 Press the OPEN/CLOSE button to close the disc tray.

Discs supporting auto start will start to play once you close the disc tray even if you do not press the PLAY/PAUSE ( ) button.

6 If playback does not start in step 5, press the PLAY/PAUSE

( ) button.

No Disc

Label side

Disc tray

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-27

DVD Operation

- DVD playback -

DVD playback (continued)

To interrupt playback

Press the PLAY/PAUSE ( ) button. To resume playback from the same point, press the PLAY/PAUSE ( ) button.

To stop playback

DVD:

Press the STOP  () button twice.

Audio CD/MP3/JPEG:

Press the STOP  () button.

When the unit is left unoperated for more than 5 minutes after pressing the STOP  () button, a screen saver appears (see page 20 when the screen saver setting is “ON”). Press any button on the main unit or remote control. The startup screen returns.

Caution:

z Close the disc tray when not in use. Otherwise, dust may accumulate inside and

cause malfunction.

z The unit gets slightly warm when used for a long time. It does not mean the unit is

damaged.

z When attempting to play discs with scratches or of a different region number, or

unplayable or restricted (*1) discs, an error message will appear on the TV display and the disc will not play.

Notes:

z During disc initialisation, the volume cannot be adjusted. z Stop positions may be recorded on some discs. When you play such a disc,

playback stops there.

z During an operation, “ ” may appear indicating that the operation is disabled by

the disc.

 To resume playback after stopping

(resume play)

You can resume playback from the point playback is stopped.

To cancel the resume playback:

Press the STOP  () button twice.

Notes:

z The resume playback feature is disabled on some discs. z Depending on the disc, playback may resume from slightly before the stopped

position.

 DVD mode operation indicators

The following are examples of operation indicators that appear during DVD playback.

(*1) Viewing is prohibited on some DVDs according to the audience age.

z The main unit detects loaded discs automatically and then the indicators light up.

CD CD MP3V

1 Whilst a disc is playing, press the STOP 

() button.

The system stores the point you stopped.

2 To restart play, press the PLAY/PAUSE ( ) button.

Play resumes from the point you stopped.

Operation TV screen Unit display

When the power is on without a disc

Disc data is being read

Stop

Play

Pause

Press Play Key To Continue

NO DISC

TITLE CHP

A-B

REPEAT1SLEEPPROGPRESETTRK

KHz MHz

A-B

REPEAT1SLEEPPROGCHPPRESETTRKTITLE

KHz

MHz

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-28

DVD Operation

- Basic operation -

Basic operation

 To locate the beginning of a chapter (track)

(skip)

You can move to other tracks with simple operations. When playing SVCD or VCD, cancel the P.B.C. (playback control) (see page 37).

Notes:

z Some discs do not display the chapter (track) and the skip feature is disabled. z On a DVD, skip does not operate between titles. z Alternatively, press the or button on the main unit.

 Fast forward/Fast reverse (search)

You can search the desired point as you play the disc.

Notes:

z On some discs, the search function is disabled. z On a DVD, search does not operate between titles. z On SVCD, VCD, audio CD and MP3, the search does not operate between tracks. z Whilst searching on a DVD, the sound is not heard and the subtitles do not appear. z Whilst searching on an SVCD or a VCD, the sound is not heard. z When search is performed during the DVD playback, pictures may not be

forwarded or reversed in the search speed specified in this manual, depending on the disc or the scene being played.

z The search does not operate on JPEG discs.

 To play in the desired order

(programmed play)

You can playback the desired tracks with titles or chapters in a specific order. Maximum of 20 tracks can be programmed.

Continued to the next page

Whilst a disc is playing, press the or button.

z Use the button to skip to the next chapter (track).

z Use the button to skip to the previous chapter (track).

z On SVCD, VCD and Audio CD, press the button to skip to the beginning

of the current track. Press the button again (twice) to skip to the beginning of the previous track.

ON STAND-BY OPEN CLOSE

PRESET MUTE PRESET

OSDPLAYSLOW

TUNING TUNINGSTOP

PAUSE

TITLE

SETUP

ENTER

FUNCTION

PBC

RETURN

LISTENING

EQUALIZER PROG

MODE

MIC

ECHO

VOLUME

123

456

7809

ENTER

PLAY PAUSE

PRESETPRESET

TUNING

123

456

7809

1 Whilst a disc is playing, press the or button.

Example: When the button is pressed

On DVD/DivX/SVCD/VCD/Audio CD/MP3, the speed changes as follows:

The disc is forwarded by the button and reversed by the button.

2 Press the PLAY/PAUSE button to return to the normal

playback.

Whilst in the stop or playback mode, press the PROG button.

TV screen

2 X 4 X 8 X 16 X 32 X

PLAY (Normal play)

Program : Track (01-23)

TT: CH:

Exit Next

Reset

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-29

DVD Operation

- Basic operation -

Basic operation (continued)

To change the programmed contents:

Repeat the above procedures from step 1.

Programmed contents will be cleared when you perform the following operations:

z Switch the input or remove the discs. z Set to the stand-by mode.

 To start playback from the desired point

(direct play)

To select and play the desired title and chapter: In the stop mode

In the playback mode

Notes:

z Direct play feature is disabled on some discs. z Some discs may not display the chapter number. z With DVDs, you can specify the desired point only in the current title and not in

another title.

2 Enter title or chapter number with the Direct Number buttons.

z To specify title or track 1, enter “01” (must use 2 digits).

z If you enter the wrong numbers, press

S or T button to select the concerned

track and then reenter the new numbers.

z To clear all the numbers those entered, press

T to select “Reset” and then

press ENTER button.

3 Press T button to select “Start” and then

press ENTER button to start playback the programmed track(s).

TV screen

1 Whilst in the stop mode, press the DIRECT button.

TV screen

2 Within 10 seconds, enter the title number first then only can enter

the chapter number by using the Direct Number buttons. You can also press W

or X button at this time for title or chapter selection.

TT: 01 CH: 02

TT: 02 CH: 02

TT: CH:

ExitReset Next

Start

TITLE 01/02 CHAPTER 001/002

Example:

To select title or chapter 1: Press “0” and “1”.

To select title or chapter 12: Press “1” and “2”.

To select title or chapter 22: Press “ 2” and “2”.

1 Whilst in the playback mode, press the DIRECT button.

TV screen

2 Select the title or chapter by pressing the S or T button and press

the ENTER button.

3 Enter the title or chapter number using the Direct Number buttons.

To select chapter 1: Press “0” and “1”.

To select chapter 12: Press “1” and “2”.

Playback starts after you complete enter the number(s).

4 Press the DIRECT button to return to the actual size of image

(standard screen).

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-30

DVD Operation

- Basic operation / Useful operation -

To play by specifying time (time search):

You can playback from the desired point by specifying the time.

Notes:

z Some discs cannot play from the specified point. z Time search feature is disabled on some discs.

Useful operation

 Slow-motion play

You can slow down the playback speed.

Note:

On some discs, the slow-motion play functions are disabled.

1 Whilst in the playback mode, press the DIRECT button.

TV screen

2 Press T or S button to select “TT Time” then press the ENTER

button.

3 Specify the time with the Direct Number buttons.

z To specify 1 hour 23 minutes and 40 seconds, enter “12340”.

z If you enter the wrong number, start over from step 1.

z Playback starts after you complete enter the number(s).

4 Press the DIRECT button to return to the actual size of image

(standard screen).

Track Time 1:23:40

1 Whilst a disc is playing, press the SLOW button repeatedly to

select the desired speed.

On DVD, the speed changes as follows:

On SVCD/VCD/DivX, only forward play is possible and the speed changes as follows:

2 Press the PLAY/PAUSE button to return to the normal

playback.

ON STAND-BY OPEN CLOSE

PRESET MUTE PRESET

OSDPLAYSLOW

TUNING TUNINGSTOP

PAUSE

TITLE

SETUP

ENTER

FUNCTION

PBC

RETURN

PLAY PAUSE

SLOW

1/2

PLAY (Normal play)

1/4 1/8 1/16

1/16 1/8 1/4 1/2

SLOW forward play

SLOW reverse play

1/2

PLAY (Normal play)

1/4 1/8 1/16

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-31

DVD Operation

- Useful operation -

Useful operation (continued)

 To change the angle

You can change the angle of view when playing a DVD disc that contains scenes recorded from multiple angles.

Notes:

z The angle number is not displayed if angles are not recorded on the disc. z Refer to the manual of the disc as the operation may vary depending on the disc.

 To zoom images (zoom)

You can magnify images during playback.

To return to normal view:

Press the ZOOM button repeatedly.

Notes:

z Images may become distorted when zoomed. z Subtitles cannot be zoomed.

ON STAND-BY OPEN CLOSE

PRESET MUTE PRESET

OSDPLAYSLOW

TUNING TUNINGSTOP

PAUSE

TITLE

SETUP

ENTER

FUNCTION

PBC

RETURN

LISTENING

EQUALIZER PROG

MODE

ECHO

MIC

VOLUME

ANGLEZOOMSUBTITLEAUDIO

SLEEP DIRECT REPEAT A-B

123

456

7809

ANGLE

ZOOM

When “ ” is displayed in the upper right corner of the TV screen, press the ANGLE button repeatedly to select the desired angle number.

1 Whilst a disc is playing, press the ZOOM button.

Each press of the ZOOM button cycles through the zoom settings as follows:

2 To shift the view and display the

desired part of a zoomed image, press the S, T, W or X button repeatedly.

2 X 3 X 4 X 1/2 1/3 1/4 OFF

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-32

DVD Operation

- Useful operation -

 To play repeatedly (repeat play)

You can play a chapter (track) or a title repeatedly by specifying it during playback. When playing SVCD or VCD, cancel the P.B.C. (playback control) (see page 37).

Caution:

After performing repeat play, be sure to press the STOP  button. Otherwise, the disc will play continuously.

Note:

On some discs, the repeat play function is disabled.

ON STAND-BY OPEN CLOSE

PRESET MUTE PRESET

OSDPLAYSLOW

TUNING TUNINGSTOP

PAUSE

TITLE

SETUP

ENTER

FUNCTION

PBC

RETURN

LISTENING

EQUALIZER PROG

MODE

MIC

ECHO

VOLUME

ANGLEZOOMSUBTITLEAUDIO

SLEEP DIRECT REPEAT A-B

123

456

7809

ENTER

123

456

7809

REPEAT

A-B

PBC

STOP

1 Whilst a disc is playing, press the REPEAT button.

TV screen Unit display

Each time the button is pressed, the repeat play mode changes in the following order.

The repeat play mode changes as follows on DVD:

The repeat play mode changes as follows on SVCD/VCD:

The repeat play mode changes as follows on audio CD:

MP3, DivX and JPEG are displayed when menu screen is “ON” (see page 39).

2 To return to the normal playback, press the REPEAT button

repeatedly until no display on TV screen.

CHAPTER

REP 1

“ CHAPTER”

Repeat the currently playing chapter.

Repeat the currently playing title.

Repeat the currently playing disc.

The normal playback.

“ TITLE”

“ ALL”

“REPEAT OFF”

“REP 1”

“REP”

No display

Repeat the currently playing track.

Repeat the currently playing disc.

The normal playback.

“ TRACK”

“ ALL”

“REPEAT OFF”

“REP 1”

“REP”

No display

Repeat the currently playing track.

Repeat the currently playing disc.

Randomly play the track

“ TRACK”

“ ALL”

“SHUFFLE”

“REP 1”

“REP”

“SHUFF”

The normal playback.

“REPEAT OFF” No display

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-33

DVD Operation

- Useful operation -

Useful operation (continued)

 To play the contents between the specified

points repeatedly (A-B repeat)

You can play the desired portion repeatedly by specifying it during playback.

Notes:

z A-B repeat play is disabled on some discs. z A-B repeat play for DVD is possible only within a title. z A-B repeat play for SVCD/VCD is possible only within a track. z Some scenes on DVD may not allow A-B repeat play.

 To select a title from the top menu of the

disc

On a DVD with multiple titles, you can select a title from the top menu.

Note:

The procedure shown here provides only general steps. The actual procedure for using the title menu depends on the disc. See the disc jacket for details.

 To select a subtitle or audio language from

the disc menu

You can select the desired subtitle or audio language and sound system [Dolby Digital (5.1ch) or DTS sound] on your DVD if it has a disc menu.

Note:

The procedure shown here provides only general steps. The actual procedure for using the disc menu depends on the disc. See the disc jacket for details.

1 Whilst a disc is playing, press the A - B button.

TV screen Unit display

This registers the start point (A).

2 Press the A - B button again to enter the end point (B).

This starts A-B repeat from the start point (A) to the end point (B).

3 Press the A - B button to return to the normal playback.

A-

A-B

1 Whilst in the stop or playback mode,

press the TITLE/RETURN button to display the title menu.

Example

2 Use the S, T, W or X button to select a title, and then press the

ENTER button.

z The selected title plays.

z Or use the Direct Number buttons for some discs.

1 Whilst in the stop or playback

mode, press the TITLE/RETURN button to display the disc menu.

Example

2 Press the S, T, W or X button to change the setting and press the

ENTER button.

Or use the Direct Number buttons for some discs.

21 Drama Action

43 SF Comedy

1.Highlights

2.Start Movie

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-34

DVD Operation

- Various settings -

Various settings

The subtitle language, audio language and TV type you select during playback are reset each time you set this unit to the stand-by mode or switch the input. To keep your own settings, set them in the setup menu (see page 19).

 To change the subtitle language

You can change the subtitle language or hide subtitles during playback.

Notes:

z On some discs, the subtitle language cannot be changed. z If no subtitles are recorded on the disc, “[” is displayed. z It may take time to switch the subtitle language to the selected one. z Subtitles cannot be hidden on some DVDs.

ON STAND-BY OPEN CLOSE

PRESET MUTE PRESET

OSDPLAYSLOW

TUNING TUNINGSTOP

PAUSE

TITLE

SETUP

ENTER

FUNCTION

PBC

RETURN

LISTENING

EQUALIZER PROG

MODE

MIC

ECHO

VOLUME

ANGLEZOOMSUBTITLEAUDIO

SLEEP DIRECT REPEAT A-B

123

456

7809

SUBTITLE

AUDIO

Whilst a disc is playing, press the SUBTITLE button repeatedly to select the desired subtitle language.

SUBTITLE 01/03: ENGLISH

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-35

DVD Operation

- Various settings -

Various settings (continued)

 To change the audio channel

You can select an audio channel.

Note:

The audio channel may not be changed on some discs.

 To change the display on TV screen

You can display or hide the operation indicators on the TV screen.

Whilst a disc is playing, press the OSD button. (The display is changed at each press.)

Whilst a disc is playing, press the AUDIO button repeatedly to select the desired audio channel.

The audio channel changes as follows on DVD:

The audio channel changes as follows on SVCD:

The audio channel changes as follows on VCD:

Audio 1/3: AC3 5 CH English

Audio 2/3: AC3 2 CH English

Audio 3/3: DTS 5.1 CH English

Audio 1 Audio 2 Audio 3 Audio 4

Mono Left Mono Right Mix Mono Stereo

DVD: DivX:

TT 01/01 CH 01/12 0:01:21

TITLE ELAPSED 0:00:10

SINGLE ELAPSED 0:01:06

Total number of chapters

Current chapter number

Current title number

Total number of titles

Elapsed playback time for the current title

Elapsed playback time for the current track

Remaining playback time for the current track

SINGLE REMAIN 0:46:37

TITLE REMAIN 1:43:28

Remaining playback time for the current title

Remaining playback time for the current chapter

SVCD/VCD/CD:

SINGLE ELAPSED 00:19

Elapsed playback time for the current track

Remaining playback time for the current track

SINGLE REMAIN 49:32

DISPLAY OFF

TOTAL ELAPSED 00:52

Total elapsed playback time for the disc

TOTAL REMAIN 49:54

Total remain playback time for the disc

DISPLAY OFF

Note:

When P.B.C. is set to ON for SVCD or VCD, total elapsed playback time and total remaining playback time do not appear.

CHAPTER ELAPSED 0:00:16

Elapsed playback time for the current chapter

CHAPTER REMAIN 0:03:17

DISPLAY OFF

HTCN550DVW3_6_E.fm07/7/30

ENGLISH

HT-CN550DVW3

E-36

Video CD and Super Video CD Operation

- Video CD and Super Video CD playback -

Video CD and Super Video CD playback

The following playback functions are the same as DVD or CD operations.
