Sharp CD-BA2600, CP-BA2600, CP-BA250 Service Manual

– 1 –

CD-BA250/CD-BA2600

No. S1105CDBA250/

CONTENTS

Page

IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)....................................................................................................... 2

SPECIFICATIONS ............................................................................................................................................................. 2

NAMES OF PARTS ........................................................................................................................................................... 3

OPERATION MANUAL ...................................................................................................................................................... 5

DISASSEMBLY.................................................................................................................................................................. 9

REMOVING AND REINSTALLING THE MAIN PARTS................................................................................................... 12

ADJUSTMENT ................................................................................................................................................................. 13

BLOCK DIAGRAM ........................................................................................................................................................... 17

SCHEMATIC DIAGRAM / WIRING SIDE OF P.W.BOARD..............................................................................................20

VOLTAGE ........................................................................................................................................................................ 36

NOTES ON SCHEMATIC DIAGRAM .............................................................................................................................. 37

TYPES OF TRANSISTOR AND LED................................................................................................................................37

WAVEFORMS OF CD CIRCUIT...................................................................................................................................... 38

TROUBLESHOOTING ..................................................................................................................................................... 39

FUNCTION TABLE OF IC................................................................................................................................................ 43

FL DISPLAY......................................................................................................................................................................49

REPLACEMENT PARTS LIST/EXPLODED VIEW
PACKING OF THE SET (FOR U.S.A. ONLY)

• In the interests of user-safety the set should be restored to its
original condition and only parts identical to those specified be
used.

SERVICE MANUAL

This document has been published to be used
for after sales service only.
The contents are subject to change without notice.

SHARP CORPORATION

MINI COMPONENT SYSTEM

MODEL CD-BA250

CD-BA250 Mini Component System consisting of
CD-BA250 (main unit) and CP-BA250 (speaker system).

MINI COMPONENT SYSTEM

MODEL CD-BA2600

CD-BA2600 Mini Component System consisting of
CD-BA2600 (main unit) and CP-BA2600 (speaker system).

CD-BA250/CD-BA2600

– 2 –

General

Amplifier

CD player

Tuner

Cassette deck

Power source

AC 120 V, 60 Hz

Power consumption

128 W

Dimensions

Width: 10-5/8" (270 mm)
Height: 13" (330 mm)
Depth: 13-7/16" (340 mm)

Weight

13.8 lbs. (6.3 kg)

Output power

75 watts minimum RMS per channel into 6 ohms from
60 Hz to 20 kHz, 10% total harmonic distortion

Output terminals

Speakers: 6 ohms
Headphones: 16 - 50 ohms (recommended: 32 ohms)

Input terminals

Video/Auxiliary (audio signal): 500 mV/47 kohms

Type

3-disc multi-play compact disc player

Signal readout

Non-contact, 3-beam semiconductor laser pickup

D/A converter

1-bit D/A converter

Frequency response

20 - 20,000 Hz

Dynamic range

90 dB (1 kHz)

Frequency range

FM: 87.5 - 108 MHz
AM: 530 - 1,720 kHz

Frequency response

50 - 14,000 Hz (Normal tape)

Signal/noise ratio

55 dB (TAPE 1, playback)
50 dB (TAPE 2, recording/playback)

Wow and flutter

0.3 % (WRMS)

Type

2-way type speaker system
2" (5 cm) Tweeter
5-1/4" (13 cm) Woofer

Maximum input power

150 W

Rated input power

75 W

Impedance

6 ohms

Dimensions

Width: 8-11/16" (220 mm)
Height: 13" (330 mm)
Depth: 8-9/16" (217 mm)

Weight

6.6 lbs. (3.0 kg)/each

FOR A COMPLETE DESCRIPTION OF THE OPERATION OF THIS UNIT, PLEASE REFER
TO THE OPERATION MANUAL.

Specifications for this model are subject to change without
prior notice.

SPECIFICATIONS

CD-BA250/CD-BA2600

CP-BA250/CP-BA2600

IMPORTANT SERVICE NOTES (FOR U.S.A. ONLY)

BEFORE RETURNING THE AUDIO PRODUCT

(Fire & Shock Hazard)
Before returning the audio product to the user, perform the
following safety checks.

1. Inspect all lead dress to make certain that leads are not
pinched or that hardware is not lodged between the chassis
and other metal parts in the audio product.

2. Inspect all protective devices such as insulating materials,

cabinet, terminal board, adjustment and compartment covers
or shields, mechanical insulators etc.

3. To be sure that no shock hazard exists, check for leakage

current in the following manner.
* Plug the AC line cord directly into a 120 volt AC outlet.
* Using two clip leads, connect a 1.5k ohm, 10 watt resistor

paralleled by a 0.15µF capacitor in series with all exposed
metal cabinet parts and a known earth ground, such as
conduit or electrical ground connected to earth ground.

* Use a VTVM or VOM with 1000 ohm per volt, or higher,

sensitivity to measure the AC voltage drop across the
resistor (See diagram).

* Connect the resistor connection to all exposed metal parts

having a return path to the chassis (antenna, metal cabinet,
screw heads, knobs and control shafts, escutcheon, etc.)
and measure the AC voltage drop across the resistor.

All check must be repeated with the AC line cord plug connection
reversed.
Any reading of 0.3 volt RMS (this corresponds to 0.2 milliamp.
AC.) or more is excessive and indicates a potential shock
hazard which must be corrected before returning the audio
product to the owner.

TO EXPOSED
METAL PARTS

CONNECT TO
KNOWN EARTH
GROUND

TEST PROBE

0.15 µ F

1.5k ohms
10W

VTVM

AC SCALE

– 3 –

CD-BA250/CD-BA2600

NAMES OF PARTS

CD-BA250/CD-BA2600

Front panel

1. Disc Tray

2. Timer Set Indicator

3. Power On/Stand-by Button

4. Tape 2 Cassette Compartment

5. Tape 1 Cassette Compartment

6. Equalizer Mode Select Button

7. Volume Up or Down Buttons

8. Extra Bass/Demo Mode Button

9. Disc Tray Open/Close Button

10. Disc Skip Button

11. Tuning and Time Up Button

12. CD or Tape Stop Button

13. CD Button

14. Tuner (Band) Button

15. Tape (1 2) Button

16. Video/Auxiliary Button

17. Dimmer Button

18. Clock Button

19. Timer/Sleep Button

20. Headphone Jack

21. CD Play or Repeat, Tape Play Button

22. CD Track Up or Fast Forward, Tape 2
Fast Forward, Tuner Preset Up Button

23. Tuning and Time Down Button

24. Memory/Set Button

25. Tape 2 Record Pause Button

26.CD Track Down or Fast Reverse, Tape 2
Rewind, Tuner Preset Down Button

17

21

4
5

161514131211

23 24 25 26

22

18
19

20

67

1
2

3

8

9
10

Display

1. Extra Bass Indicator

2. FM Stereo Mode Indicator

3. FM Stereo Receiving Indicator

4. CD Repeat Play Indicator

5. CD Pause Indicator

6. CD Play Indicator

7. Disc Number Indicators

8. Timer Play Indicator

9. Timer Recording Indicator

10. Tape 2 Record Indicator

11. Memory Indicator

12. Tape Play Indicator

13. Sleep Indicator

14. Spectrum Analyzer/Volume Level Indicator

1
2

345 10

14

14 14

1112 136

7
8

9

CD-BA250/CD-BA2600

– 4 –

CD-BA250/CD-BA2600

Rear panel

1. FM/AM Loop Antenna Jack

2. Video/Auxiliary (Audio Signal) Input Jacks

3. Speaker Terminals

4. AC Power Cord

1
2

3

4

Remote control

1. Remote Control Transmitter

2. Disc Number Select Buttons

3. CD Pause Button

4. CD Memory Button

5. CD Track Down or Fast Reverse Button

6. CD Clear Button

7. Tape 1 Play Button

8. Tape 1/Tape 2 Stop Button

9. Equalizer Mode Select Button

10. Tape 2 Record Pause Button

11. CD Button

12. Tuner (Band) Button

13. Power On/Stand-by Button

14. Extra Bass Button

15. CD Stop Button

16. CD Play or Repeat Button

17. CD Track Up or Fast Forward Button

18. CD Random Button

19. Tuner Preset Up/Down Buttons

20. Tape 2 Play Button

21. Tape 2 Rewind Button

22. Tape 2 Fast Forward Button

23. Video/Auxiliary Button

24. Tape (1

2) Button

25. Volume Up or Down Buttons

1

2

15
16

17
18
19
20

21

24

3

6

4

7

8
9

10

14

13

12

11

5

25

22
23

✱

✱

✱

✱

Buttons with " " mark in the illustration can be operated on the remote control

only.

Other buttons can be operated both on the main unit and the remote control.

– 5 –

CD-BA250/CD-BA2600

OPERATION MANUAL

CP-BA250/CP-BA2600

Setting the Clock

In this example, the clock is set for the 12-hour (AM 12:00) display.

Note:

The "CLOCK" or time will flash at the push of the CLOCK button when the AC power
supply is restored after a power failure or unplugging the unit.
Readjust the clock as follows.

To readjust the clock:

Perform "Setting the Clock" from the beginning. If the time display is flashing, step 3
(for selecting the 12-hour or 24-hour display) will be skipped.

To change the 12-hour or 24-hour display:

1

Press the ON/STAND-BY button to turn the power on.

2

Press the CLOCK button and within 5 seconds, press the MEMO­RY/SET button.

3

Press the TUNING/TIME ( or ) button to select 12-hour or 24­hour display and then press the MEMORY/SET button.

"AM 12:00" The 12-hour display will appear.
(AM 12:00 - PM 11:59)
"AM 0:00" The 12-hour display will appear.
(AM 0:00 - PM 11:59)
"0:00" The 24-hour display will appear.
(0:00 - 23:59)
Note that this can only be set when the unit is first installed or it has been reset.

(Refer to step 3 under "If trouble occurs".)

4

Press the TUNING/TIME ( or )button to adjust the hour and then
press the MEMORY/SET button.

Press the TUNING/TIME ( or ) button once to advance the time by 1 hour.
Holdit down to advance continuously.

When the 12-hour display is selected, "AM" will change automatically to "PM".

5

Press the TUNING/TIME ( or ) button to adjust the minutes and
then press the MEMORY/SET button.

Press the TUNING/TIME ( or ) button once to advance the time by 1
minute. Hold it down to change the time in 5-minute intervals.

The hour will not advance even if minutes advance from "59" to "00".
The clock begins counting from "0" seconds. (Seconds are not displayed.)

The time display will disappear after a few seconds.

To confirm the time display:

Press the CLOCK button.
The time display will appear for about 5 seconds.

1 Clear all theprogrammed contents. [Perform to step 3 under "If trouble occurs"]
2 Perform "Setting the Clock" from the beginning.

Speaker system

1. Tweeter

2. Woofer

3. Bass Reflex Duct

4. Speaker Wire

3

4

1

2
3

CD-BA250/CD-BA2600

– 6 –

Troubleshooting Chart

Many potential "problems" can be resolved by the owner without calling a service
technician.
If something is wrong with this product, check the following before calling your autho­rized SHARP dealer or service center.

General

CD player

Tuner

Cassette deck

Remote control

Condensation

Symptom Possible cause

The clock is not on time. Did a power failure occur? Reset the clock.
When a button is pressed, the unit

does not respond.

Set this unit to the power stand-by mode and
then turn it back on.

If the unit still malfunctions, reset it. (Refer to
step 3 under "If trouble occurs")

No sound is heard. Is the volume level set to "0"?

Are the headphones connected?
Are the speaker wires disconnected?

Symptom Possible cause

Playback does not start. Is the disc loaded upside-down?
Playback stops in the middle or is not

performed properly.

Does the disc satisfy the standards?
Is the disc distorted or scratched?

Playback sounds are skipped, or
stopped in the middle of a track.

Is the unit located near excessive vibrations?
Is the disc very dirty?
Has condensation formed inside the unit?

Symptom Possible cause

Radio makes unusual noise con­secutively.

Is the unit placed near the TV or computer?
Is the FM/AM loop antenna placed properly?

Move the AC power cord away from the an­tenna if located near.

Symptom Possible cause

Cannot record. Is the erase-protection tab removed?
Cannot record tracks with proper

sound quality.

Is it a normal tape? (You cannot record on a

metal or CrO tape.)
Cannot erase completely.
Sound skipping. Is there any slack?

Is the tape stretched?
Cannot hear treble. Are the capstans, pinch rollers, or heads

dirty?
Sound fluctuation.

Cannot remove the tape. If a power failure occurs during playback, the

heads remain engaged with the tape. Do not

open the compartment forcibly. Wait until

electricity resumes.

Symptom Possible cause

The remote control does not oper­ate.

Is the AC power cord of the unit plugged in?

Is the battery polarity respected?

Are the batteries dead?

Is the distance or angle incorrect?

Does the remote control sensor receive

strong light?

Sudden temperature changes, storage or operation
in an extremely humid environment may cause con­densation inside the cabinet (CD pickup, tape
heads, etc.) or on the transmitter on the remote con­trol.
Condensation can cause the unit to malfunction. If
this happens, leave the power on with no disc (or
cassette) in the unit until normal playback is possible
(about 1 hour). Wipe off any condensation on the
transmitter with a soft cloth before operating the unit.

Troubleshooting Chart

If trouble occurs

When this product is subjected to strong external interference (mechanical shock,
excessive static electricity, abnormal supply voltage due to lightning, etc.) or if it is
operated incorrectly, it may malfunction.

If such a problem occurs, do the following:

Caution:

This operation will erase all data stored in memory including clock, timer settings,
tuner preset, and CD program.

Before transporting the unit

1 Set the unit to the stand-by mode and turn the power on again.
2 If the unit is not restored in step 1, unplug and plug in the unit, and then turn

the power on.

3 If neither step 1 nor 2 restores the unit, do the following:

Press the ON/STAND-BY button to enter the power stand-by mode.
While pressing down the / button and the X-BASS/DEMO button, press
the ON/STAND-BY button until "CLEAR AL" appears.

1 Press the ON/STAND-BY button to turn the power on.
2 Press the CD button.
3 Press the OPEN/CLOSE button to open the disc tray.

Remove all CDs inserted in the unit.

4 Press the OPEN/CLOSE button to close the disc tray.

Make sure that "NO DISC" is displayed.

5 Press the ON/STAND-BY button to enter the stand-by mode, and then

unplug the AC power cord from the AC outlet.

Remote Control

Test of the remote control

Face the remote control directly to the remote sensor on the unit.

The remote control can be used within the range shown below:

Press the ON/STAND-BY button. Does the power turn on? Now, you can enjoy the
music.

8" - 20'
(0.2 m - 6 m)

Remote sensor

– 7 –

CD-BA250/CD-BA2600

Accessories

Accesorios

FM/AM loop antenna × 1

Antena de cuadro de FM/AM

×

1

Remote control × 1

Controlador remoto

×

1

1

1

1

2

3

Battery Installation of the Remote Control

Instalación de las pilas del controlador remoto

Use 2 “AA” size batteries (UM/SUM-3, R6, HP-7 or similar). Batteries are not included.

Use dos pilas del tamaño “AA” (UM/SUM-3, R6, HP-7 o equivalentes). Las pilas no están incluidas.

Remove the

Insert the batteries

Replace the cover.

battery cover.

as shown.

Extraiga la cubierta Inserte las pilas Vuelva a colocar la

de las pilas. como se muestra. cubierta.

1

2

System Connections

Conexiones del sistema

3

3

AM loop antenna

Antena de cuadro de AM

FM antenna

Antena de FM

Red

Rojo

Black

Negro

Right speaker

Altavoz derecho

Left speaker

Altavoz izquierdo

AC outlet

(AC 120 V, 60 Hz)

A un tomacorriente de

CA (120 V de CA, 60 Hz)

Right speaker

Altavoz derecho

Left speaker

Altavoz izquierdo

RCA cord

(not supplied)

Cable RCA

(no suministrado)

To the line

output jack

A la toma de

salida de línea

VCR

Videograbadora

TV

TV

CD-BA250/CD-BA2600

– 8 –

Turning on Your System

Conexión de la alimentación de su sistema

4

4

The first time the unit is plugged,

the unit will enter the demonstra-

tion mode. You will see words

scroll.

Cuando se enchufe por primera vez

el aparato, se establecerá en el

modo de demostración. Verá un

desplazamiento de palabras.

1

2

Press the

X-BASS/DEMO

button to cancel

the demonstration

mode.

Pulse el botón

X-BASS/DEMO para

cancelar el modo de

demostración.

Press the ON/

STAND-BY button to

turn the power on.

Pulse el botón ON/

STAND-BY

para

conectar la

alimentación.

Listening to a CD (CDs)

Audición de un disco CD (discos CD)

1

Press the CD button.

Pulse el botón CD.

2

Press the OPEN/CLOSE button to

open the disc tray.

Pulse el botón OPEN/CLOSE para abrir

la bandeja de discos.

3

Place the CD(s) on the disc tray, label

side up.

When loading a third disc, press the

DISC SKIP button to turn the disc tray,

then place the CD in the open position.

Coloque el disco compacto en la bandeja

de discos, con el lado de la etiqueta hacia

arriba.

Cuando ponga un tercer disco, pulse el

botón DISC SKIP para girar la bandeja de

discos, y coloque el disco compacto en la

posición abierta.

4

Press the OPEN/CLOSE button to

close the disc tray.

Pulse el botón OPEN/CLOSE para cerrar

la bandeja de discos.

5

To select the CD you want to listen to

first, press one of 1 - 3 buttons on

the remote control.

Para seleccionar el disco CD que desee

escuchar primero, pulse uno de los botones

1 - 3 del controlador remoto.

6

Press the button to start playback.

Pulse el botón para iniciar la

reproducción.

5” (12 cm)

12 cm

3” (8 cm)

8 cm

Listening to a Cassette Tape (TAPE 1 or TAPE 2)

Audición de una cinta de cassette (TAPE 1 o TAPE 2)

Listening to the Radio

Audición de la radio

FM stereo mode indicator

Indicador del modo de FM en estéreo

FM stereo receiving indicator

Indicador de recepción de FM en estéreo

1

Open the cassette door by pushing the

area marked “ PUSH EJECT”.

Abra la puerta del cassette pulsando la

parte marcada “ PUSH EJECT”.

2

Load a cassette into the TAPE 1 or T APE

2 cassette compartment with the side to

be played facing toward you.

Cargue un cassette en el compartimiento

de cassette de TAPE 1 o de T APE 2 con la

cara a reproducirse encarada hacia usted.

3

Press the TAPE (1 2) button to select

the cassette you want to listen to.

Pulse el botón TAPE (1 2) para

seleccìonar el cassette que desee

escuchar.

4

Press the button to start playback.

Pulse el botón para iniciar la

reproducción.

1

Press the TUNER (BAND) button repeat-

edly to select the desired frequency

band (FM or AM).

Pulse repetidamente el botón TUNER

(BAND) para seleccionar la banda de

frecuencia deseada (FM o AM).

2

Press the TUNING/TIME ( or ) but-

ton to tune in to the desired station.

When the TUNING/TIME button is

pressed for more than 0.5 seconds, scan-

ning will start automatically and the tuner

will stop at the first receivable broadcast

station.

Pulse el botón TUNING/TIME ( o ) para

sintonizar la emisora deseada.

Cuando se pulse el botón

TUNING/TIME

durante más de 0,5 segundos, la

exploración se iniciará automáticamente y

el sintonizador se parará en la primera

emisora difusora que pueda recibirse.

To receive an FM stereo transmission:

Press the TUNER (BAND) button to display the

“ST” indicator.

● “ ” will appear when an FM broadcast is in ste-

reo.

Para recibir una transmisión de FM en estéreo:

Pulse el botón TUNER (BAND) para que se encienda

el indicador “ST”.

●

“ ” aparecerá cuando una difusión de FM sea en

estéreo.

TAPE 1

TAPE 2

– 9 –

CD-BA250/CD-BA2600

1 Top Cabinet 1. Screw ..................... (A1) x4 9-1

2 Side Panel 1. Screw ..................... (B1) x8 9-1

(Left/Right)

3 CD Player Unit/ 1. Turn on the power supply, 9-2

CD Tray Cover open the disc tray, take out

the CD tray cover, and close.
(Note 1)

2. Screw ..................... (C1) x1

3. Hook....................... (C2) x3

4. Hook....................... (C3) x2

5. Socket .................... (C4) x2

4 Rear Panel with 1. Screw ..................... (D1) x9 9-2

Fan Motor 2. Socket .................... (D2) x1

5 Main PWB 1. Screw ..................... (E1) x3 9-2

2. Socket .................... (E2) x3 10-2

3. Flat Cable .............. (E3) x1

4. Flat Wire................. (E4) x1

6 Front Panel 1. Screw ..................... (F1) x2 10-2

7 Display PWB 1. Screw..................... (G1)

x11

10-3

2. Flat Cable .............. (G2) x1

8 Tape Mechanism 1. Open the cassette holder. 10-3

2. Screw...................... (H1) x5

9

Headphones PWB

1. Screw ..................... (J1) x1 10-3

10 Turntable 1. Hook....................... (K1) x2 10-4

2. Cover ..................... (K2) x1

11 Disc Tray 1.

Turn fully the lock lever in the

9-3

arrow direction

.

2.

While holding the lock lever,rotate

10-1
the cam gear until the cam gear
rib engages with the clamp lever.

3.

Push the slide holder backward to

10-5
engage the claw with the groove
and remove it in the direction

of the arrow. ...............

(L1) x6

12 CD Servo PWB 1. Screw ..................... (M1) x1 10-6

(Note 2) 2. Hook....................... (M2) x2

3. Socket .................... (M3) x4

13 CD Mechanism 1. Hook....................... (N1) x2 11-1

2. Hook....................... (N2) x3

14

Loading Motor PWB

1. Hook....................... (P1) x5 11-1

DISASSEMBLY

Caution on Disassembly

Follow the below-mentioned notes when disassembling
the unit and reassembling it, to keep it safe and ensure
excellent performance:

1. Take cassette tape and compact disc out of the unit.

2. Be sure to remove the power supply plug from the wall
outlet before starting to disassemble the unit.

3. Take off nylon bands or wire holders where they need to
be removed when disassembling the unit. After servicing
the unit, be sure to rearrange the leads where they were
before disassembling.

4. Take sufficient care on static electricity of integrated
circuits and other circuits when servicing.

Figure 9-2

Figure9-3

CD-BA250/CD-BA2600

STEP

REMOVAL

PROCEDURE

FIGURE

Figure 9-1

CD-BA250/CD-BA2600

Note 1: How to open the changer manually. (Fig. 9-3)

1. In this state, turn fully the lock lever in the arrow direction through
the hole on the loading chassis bottom.

2.

While holding the lock lever, rotate the cam gear anticlockwise until the

cam gear rib engages with the clamp lever.

(Fig. 10-1)

3. After that, push forward the CD slide holder.

Note 2:

1. After removing the connector for the optical pickup from the

connector, wrap the conductive aluminium foil around the front end
of the connector so as to protect the optical pickup from electro­static damage.

Lock Lever

CD Player Unit
(Bottom View)

(B1)x4
ø3x10mm

(B1)x2
ø3x10mm

Rear
Panel

(B1)x2
ø3x10mm

Side Panel
(Right)

Side Panel
(Left)

(A1)x2
ø3x12mm

(A1)x2
ø3x12mm

Top Cabinet

(E1)x1
ø3x10mm

(C3)x1

(D1)x2
ø3x10mm

(D2)x1

CD Player
Unit

CD Tray Cover

Pull

(C3) x1

(C4)x2

(C2) x3

1

1

2

CD Servo
PWB

(C1)x1
ø3x10mm

(D1)x7
ø3x10mm

Rear
Panel

Main PWB

Lug Wire

Note 3:

1. Be careful not to break the claw of the CD mechanism.

2. When fining back the cam gear assembly, let it lock by front
movement.

CD-BA250/CD-BA2600

– 10 –

Figure 10-1

Figure 10-2

Figure 10-3

Figure 10-4

Figure 10-5

Figure 10-6

Clamp Lever

CD Player Unit
(Top View)

Cam Gear Rib

Turntable

Slide
Chassis

(K2)x1

CD Player Unit

(K1)x2

1

3

2

(L1)x3

(L1)x3

Main PWB

Headphones
PWB

Power­transformer
PWB

Power PWB

(E2)x2

(E4)x1

(E3)x1

(E2)x1

(F1)x2

ø3x8mm

(E1)x2

ø3x10mm

(G2)x1

(G1)x11
ø3x10mm

(H1)x5
ø3x10mm

Display PWB

Headphones
PWB

Open

Cassette
Holder

Tape
Mechanism

(J1)x1
ø3x10mm

(M3)x2

(M2)x2

(M3)x2

CD Video

PWB

Slide
Chassis

(M1)x1
ø3x8mm

– 11 –

CD-BA250/CD-BA2600

1 Front Panel 1. Net......................... (A1) x1 11-2

2 Woofer 1. Screw .................... (B1) x4 11-3

3 Tweeter 1. Screw .................... (C1) x2 11-3

STEP

REMOVAL PROCEDURE

FIGURE

Figure 11-2

Figure 11-1

CP-BA250/CP-BA2600

Figure 11-3

(N2)x3

(N1)x1

(P1)x5

(N1)x1

Loading
Motor
PWB

CD
Mechanism

(A1)x1

Screwdriver

Driver should
be pried away
from Speaker Box.

Front Panel

Speaker Boox

(B1)x4

ø4x12mm

Woofer

(C1)x2

ø3x10mm

Tweeter

CD-BA250/CD-BA2600

– 12 –

REMOVING AND REINSTALLING THE MAIN PARTS

TAPE MECHANISM SECTION

Perform steps 1 to 6 and 8 of the disassembly method to
remove the tape mechanism.

How to remove the record/playback and erase
heads (TAPE 2) (See Fig. 12-1)

1. When you remove the screws (A1) x 2 pcs., the recording/
playback head and three-dimensional head of the erasing
head can be removed.

How to remove the playback head (TAPE 1)
(See Fig. 12-2)

1. When you remove the screws (B1) x 2 pcs., the playback
head.

How to remove the pinch roller (TAPE 1/2)
(See Fig. 12-3)

1. Carefully bend the pinch roller pawl in the direction of the
arrow <A>, and remove the pinch roller (C1) x 1 pc., in the
direction of the arrow <B>.

Note:

When installing the pinch roller, pay attention to the spring
mounting position.

How to remove the belt (TAPE 2) (See Fig. 12-4)

1. Remove the main belt (D1) x 1 pc., from the motor side.

2. Remove the FF/REW belt (D2) x 1 pc.

How to remove the belt (TAPE 1) (See Fig. 12-4)

1. Remove the main belt (E1) x 1 pc., from the motor side.

2. Remove the FF/REW belt (E2) x 1 pc.

How to remove the motor (See Fig. 12-5)

1. Remove the screws (F1) x 2 pcs., to remove the motor.

Figure 12-1

Figure 12-2

Figure 12-3

Figure 12-4Figure 12-5

(A1)x2
Ø2 x 9mm

TAPE 2

Record/Playback
Head

Erase Head

(B1)x2
Ø2 x 9mm

TAPE 1

Playback
Head

Pinch Roller
(C1)x1

<A>

<B>

Pinch
Roller
Pawl

Pull

TAPE 2

TAPE 1
Main Belt
(E1)x1

TAPE 2
Main Belt
(D1)x1

TAPE 1

Main Belt
(D1)x1

FF/REW
Belt
(D2)x1

FF/REW
Belt
(E2)x1

Motor

Motor

(F1) x2

Ø 2.6 x 5mm

Motor

– 13 –

CD-BA250/CD-BA2600

How to remove the pickup (See Fig. 13-2)

1. Remove the stop washer (B1) x 1 pc., to remove the gear
(B2).

2. Remove the screws (B3) x 2 pcs., to remove the shaft (B4).

3. Remove the pickup.

Note

After removing the connector for the optical pickup from the
connector wrap the conductive aluminium foil around the front
end of connector so as to protect the optical pickup from
electrostatic damage.

Figure 13-2

CD MECHANISM SECTION

Perform steps 1, 2, 3, 10,11,12 and 13 of the disassembly
method to remove the CD mechanism.

How to remove the loading motor
(See Fig. 13-1)

1. Bend the hooks (A1) x 5 pcs., to remove the loading motor.

2. Remove the drive belt (A2) x 1pc.

Figure 13-1

ADJUSTMENT

MECHANISM SECTION

• Driving Force Check

Torque Meter Specified Value

Play: TW-2111 Tape 1: Over 80 g

Tape 2: Over 80 g

• Torque Check

Torque Meter

Tape 2

Play: TW-2111 30 to 80 g.cm 30 to 80 g.cm
Fast forward: TW-2231 — 70 to 180 g.cm
Rewind: TW-2231 — 70 to 180 g.cm

Specified Value

Tape 1

Specified

Value

Adjusting

Point

Instrument

Connection

Test Tape

Normal MTT-111 Variable 3,000 ± 30 Hz Speaker
speed Resistor in terminal

motor. (Load

resistance:
6 ohms)

• Tape Speed

Figure 13-3

(A1)x2

(A1)x1

Loading Motor

CD Player
Chassis

(A1)x2

Pulley

Drive Belt
(A2) x1

Loading
Motor

(B1) x2
ø2.6 x6mm

Shaft
(B2) x1

Stop Washer
(B3) x1

Gear
(B4) x1

CD Mechanism

Pickup

TAPE MECHANISM

Tape
Motor

Variable Resistor in motor

CD-BA250/CD-BA2600

– 14 –

Test Stage

Frequency Frequency

Display

Setting/

Adjusting

Parts

Instrument

Connection

CD SECTION

• AM IF/RF

Signal generator: 400 Hz, 30%, AM modulated

*1. Input: Antenna Output: TP302
*2. Input: Antenna Output: TP301

TUNER SECTION

fL: Low-range frequency
fH: High-range frequency

AM IF 450 kHz 1,720 kHz T351 *1
AM Band — 530 kHz (fL): T306 *2

Coverage 1.1 ± 0.1 V
AM Tracking 990 kHz 990 kHz (fL): T303 *1

*1. Input: Antenna Output: TP301
*2. Input: Antenna Output: Speaker terminal

• FM RF

Signal generator: 1 kHz, 75 kHz dev., FM modulated

FM Band — 87.50 MHz T301(fL): *1
Coverage 1.3 V ± 50 mV

FM RF 98.00 MHz 98.00 MHz L312 *2

(10-30 dB)

Test Stage

Instrument

Connection

Frequency Frequency

Display

Setting/

Adjusting

Point

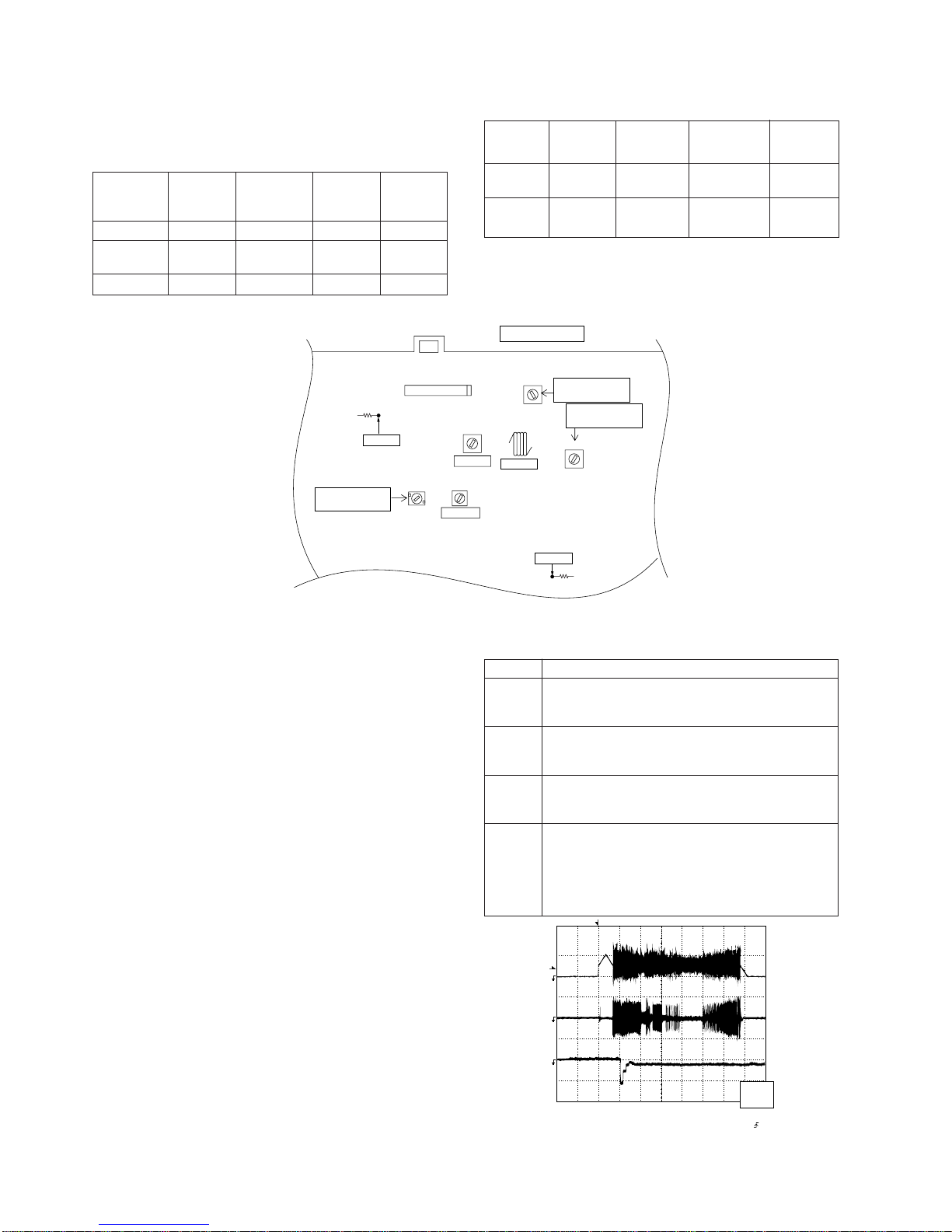

Figure 14-1 ADJUSTMENT POINTS

Figure 14-2

CD ERROR CODE DESCRIPTION

Error

State Code

[Servo System Error]
0001 Cannot detect Pickup-in SW
0002 DSP access error

[Error during close operation]
0101 Open/Close SW not functioning (Low → High)
0103 Open/Close SW not functioning (High → Low)

[Error during open operation]
0201 Open/Close SW not functioning (Low → High)
0203 Open/Close SW not functioning (High → Low)

[Error during skip operation]
0302 Pickup-in SW is not detected
0306 During Disc 1 search, Open/Close SW or Clamp SW

or Disc SW do not change to low.
0307 Clamp SW not function (Low → High)
0308 Clamp SW not function (High → Low)

Items adjusted automatically

(1) Offset adjustment (The offset voltage between the head

amplifier output and the VREF reference voltage is
compensated inside the IC.)

* Focus offset adjustment
* Tracking offset adjustment

(2) Tracking balance adjustment (waveform drawing

Fig.14-2 EFBL)

(3) Gain adjustment (The gain is compensated inside the IC

so that the loop gain at the gain crossover frequency will
be 0 dB.)

* Focus gain adjustment
* Tracking gain adjustment

• Adjustment
Since this CD system incorporates the following automatic
adjustment functions, readjustment is not needed when
replacing the pickup. Therefore, different PWBs and pickups
can be combined freely.
Each time a disc is changed, these adjustments are
performed automatically. Therefore, playback of each disc
can be performed under optimum conditions.

IC301

AM IF

FM IF

FM RF

T303

T306

T302

L312

AM
TRACKING fL

AM BAND
COVERAGE fL

T301

T351
FM BAND
COVERAGE fL

MAIN PWB

CNP301

FM/AM LOOP

ANTENNA

TP302

R357

R316

TP301

T

T

EFBL

FDO

TE

Stopped

CH1=500mV

DC 10:1

CH2=200mV

DC 10:1

CH3=1V

DC 10:1

500ms/div

(500ms/div)

NORM:20kS/s

1

2

3

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.000V

Main : 100K
Zoom : 2k

Mode : SINGLE
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2µs

CH3 : 0.00V
CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH2
v/DIV
200mV

1999/04/05 20:26:47

– 15 –

CD-BA250/CD-BA2600

TEST MODE

·Setting the test mode
Any one of test mode can be set by pressing several keys as follows.
<X-BASS> + <CD> + <POWER> TEST:CD operation test

Function:-CD test mode.

-Enter test mode.

C D T E S T

OPEN/CLOSE operation is using manual.

<< >>, << >> buttons make pick's slide possible.

Do TOC IL. Do normal play
When these following key is input
into PLAY key, track number can
be appoint directly

<<PLAY>> key input.

<<MEMORY>> key input.

<< 1>> key: Track 4
<< 2>> key: Track 9
<< 3>> key: Track 15

<<STOP>> key input.

STOP

Laser ON.

<<MEMORY>> key input.

Tracking OFF play at that
specific point.

<<MEMORY>> key input.

Tracking ON play from
that specific point.

<<STOP>> key input.

STOP

IL isn't done

VOL — Last memory
BAL — CENTER
P.GEQ — FLAT
X-BASS — OFF

To cancel : Power OFF

Sliding the PICKUP with
<<

>>, << >> button

must only be in STOP mode.

<<MEMORY>>
key input

Adjustment result
automatically will
display as below
for each 2 sec :
a) "FOFF_XX"
b) "TOFF_XX"
c) "TBAL_XX"
d) "TGAN_XX"
f) "FGAN_XX"
g) "RFLS_XX"

explanation:
a) Focus off set ="FOFF_XX"
b) Tracking off set ="TOFF_XX"
c) Tracking balance ="TBAL_XX"
d) Tracking gain ="TGAN_XX"
f) Focus Gain ="FGAN_XX"
g) RF level shift ="RFLS_XX"

Adjustment result auto­matically will display as
below
for each 2 sec :
a) "FOFF_XX"
b) "TOFF_XX"
c) "TBAL_XX"
d) "TGAN_XX"
f) "FGAN_XX"
g) "RFLS_XX"

XX: Hex value

CD-BA250/CD-BA2600

– 16 –

Standard Specification of Stereo System Error MessageDisplay Contents

Error Contents DISPLAY Notes
Output while Device Protection Operation 'PROTECT' 00: While in Protect Circuit Operate

01: Over Current Detection
02: DC Detection
03:

TAPE Mechanism Error 'ER-TA**' 00: Tape Mechanism Error

01: Initial Error
02:
03:

CD/VCD Pickup Mechanism Error 'ER-CD**' 00: Pickup Mechanism Error

01: PU-IN SW Detection NG
02:
03:
04:

CD Changer Mechanism Error 'ER-CD**' 10: Changer Error

11: Initial Error
12:
13:

Tray Error 'ET-CD**' 20: Tray Error

21:
22:

23:
Focus Not Match 'NO DISC'
IL Time Over 'NOT READ'

TUN PLL Unlock 'ER-TU**' 00: TUN Error

01: PLL Unlock

02:

03:

– 17 –

CD-BA250/CD-BA2600

Figure 17 BLOCK DIAGRAM (1/3)

+5V

CNS4

BI4

CNP4

M3

T/T UP DOWN

LOADING

+3.3V

TO DISPLAY SECTION

TO MAIN SECTION

CONSTANT

VOLTAGE

Q2

LASER

DRIVER

+3.3V

Q1

+5V

PICK UP UNIT

IC1

LC78645E

CD SERVO

VVDD

LDD

LDS

M

SW3

DISC

NUMBER

SW2

CLAMP

SW1
OPEN/
CLOSE

CNP8

CNP7

TRACKING COIL

FOCUS COIL

SW1

PICK UP

IN

M2

SLED

MOTOR

M1

SPINDLE

MOTOR

M

M

R-CH

Q3

XVDD

RVDD

LVDD

ADAVDD

RFVDD

XL1

33.8688MHz

OC. DISC NO

CLAMP SW

CD RES

CLK

DI

DO

CE

DRF

WRQ

+5V

+5V

DGND

L-CH

AGND

VCC3

VCC2

VCC4

VCC1

IC2

M63001FP

FOCUS/TRACKING/

SPIN/SLED

DRIVER

XIN

XOUT

RES

WRQ

DO

DI

CLK

CE

TIN2

TIN1

FIN2

FIN1

TD0

FD0

SPDO

SLDO

CONT5

CONT2

CONT3

CONT4

RCHO

RVSS

LVSS

LCHO

80

42

79

75

20

5

40

18

24

23

14

8

21

22

29

35

41

47

46

7

10

987

15

12

17 25

42

41 8339

4765

168226 27

316452

316452

316452

54

71

61
62
63

69
57
56
55
51
50

40

37

19

28

26

23
22
21

3271689

615432

4543 44 25 70

64
65
66

48

49

18

CD-BA250/CD-BA2600

– 18 –

Figure 18 BLOCK DIAGRAM (2/3)

IC101
AN7345K
PLAYBACK AND RECORD
/PLAYBACK AMP.

AUX

R

L

R

L

JK690

VIDEO/AUX IN

FM

+B

+B4

CLK

+B4

AM IF

OSC BUFF

AM

FM IF

FM

OSC

B.P.F

CNP301

BI601

ATT

–20dB

Q103­Q104

–B2

+B4

IC561,IC562

KIA4558P

OPE AMP.

IC562

IC561

Q107
Q108

Q601
Q602

10.7MHz

450kHz

FM

REC/PL

A

CLK

CE

DI

DO

DI

CE

MO/ST

SWITCHING

+B4

FM/AM

IC302

LC72131

PLL(TUNER)

FM/AM

OUT

L

R

T

MUTING

P.B.

REC

AC BIAS

L

L

R

R

R

L

TAPE

TUNER

CD

PB

CNP7

FROM CD SECTION

HEAD

ERASE

SWITCHING

SWITCHING

SWITCHING

BIAS

Q113

Q114

Q112

Q110

SWITCHING
Q109

OSC

BIAS

Q111

L103

Q105
Q106

REC PB HEAD

TAPE 2

PB HEAD

TAPE 1

R-CH

L-CH

R-CH

L-CH

IC601

LC75341

AUDIO PROCESSOR

+B4

R

L

REC

R

L

L NF
R NF

ALC

REF

R REC

L REC

POP REDUCE

R NF

L NF

SWITCHING

L(T2)
R(T2)

R(T1)

L(T1)

R

L

FM/AM

MPXIN

STEREO

AM RF IN

AM OSC IN

FM

Q360

VT

OSC

X352

4.5MHZ

AM BAND
COVERAGE

AM TRACKING

T303 T306

Q302

X351

456kHz

MO/ST

VCO

FM

DET

FM+B

GND

AM IF

CF351

IC303

LA1832S

FM IF DET.

FM MPX./

AM IF MPX.

AM MIX

CF352

T351

RF

FM

OSC

FM

L312 T301

CF303T302

IC301

TA7358AP

FM FRONT END

BF301

21

7

8

4

1

22

3

4

24

2

1

81817

3

9

10

18

11

16

3

15

10

9

7

23

14
12
13

1
2

20

19

7

18

10

8

17

13

21

4

5

2

24

23

6
9

16
14
12

15

1

5413

8

4

3

2

1

21

7

98517

6

21

21

20 22 11

17

1615

9

6

5

7

13

14

12

15

1623

4

7

H/N

P.B

REC

T1/T2

T1/T2

NOR/
HIGH

– 19 –

CD-BA250/CD-BA2600

Figure 19 BLOCK DIAGRAM (3/3)

Q914

KTC2026

KIA7810AP

VOLTAGE REGULATOR

Q907
Q908

AC120V/60Hz

–VF

VF2

VF1

Q901

+B5

+5V

UN-SW5V

KIA7805AP

CONSTANT VOLTAGE REGULATOR

IC904

+B4

+B3

+B1

-B1

–B2

+B5

+B3

+B5

-

13 44

+B4

–

16

–

Q701-Q703

R

L

T

dB

+B5

RX701

REMOTE
SENSOR

+B4

1,IC562
4558P

E AMP.

IC701

IX0399AW

(2/2)

562

561

D902~D905

D901

RL914

JK701
HEADPHONES

M901

FAN

MOTOR

M

Q906

Q709

Q902
Q903
Q905
Q904

Q601
Q602

IC903

IC902

IC901
STK4029S
POWER AMP.

A+10V

M12

F903

2A/125V

F904

2A/125V

F902

4A/125V

F901

4A/125V

+Vcc

–Vcc

R-OUT

L-OUT

CLK

SO901
SPEAKER
TERMINAL

AC POWER

SUPPLY CORD

31

REC/PLAY

VLOAD

RESET

+B5

+B5

+B5

+B5

VDD

VDD

VDD

SP. DET.

–

CEDIDO

XL700

4.194304MHz

–

BIAS

T1/T2

AVDD

SW701-SW703
SW712-SW718
SW720-SW727
SW729-SW732

KEY

TO CD

SECTION

IC701

IX0399AW(1/2)

SYSTEM

MICROCOMPUTER

FL701

FL DISPLAY

23

89

81

32

80

4948

47

93

14

92

90

12456 78

15

1

29

28

9

78

67

6 132

3

2

1

7

8

1

13

7

8

10

100

33
31

4546

1112 13

9

1 0 16 1 7 20 21232224

79

5756 54 5352515055 4948

4344 42 40

39

36
35
34

T.F.

PT801

POWER

TRANSFORMER

CD-BA250/CD-BA2600

– 20 –

Figure 20 SCHEMATIC DIAGRAM (1/9)

A

B

C

D

E

F

G

H

1

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 37.

CD SIGNAL

CD MOTOR PWB-F

CD SERVO PWB-C

4

1

9

101112131415161718192021

22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41

8

7

6

5

432

9

1

0

1

1

1

2

1

3

1

4

1

5

1

6

1

7

1

8

1

9

2

0

8

7

6

5

4

3

2

1

TP3

TP2

TP1

L

VCC4

M–

M+

VCC3

SPO

VCC2

SLDO

VCC

STANDBY

VREF

MUTE

FD

SP–

SL–

SL+

SP+

TR–

TR+

FO+

FO–

GND

GND

GND

FO–

FO–

LD

VR

PD

FO+

TR+

TR–

C

F

B

A

E

GND

PUIN

SL+
SL–

SP–

SP+

VREF

VCC

PICKUP UNIT

TR–

TR–
TR+

TR+

FO+

FO+

FO–

PD
VR

LD

F

C

B

A

E

VCC

VREF

SLIDE

SPIN

+

+
–

–

PU-IN

1
2
3
4
5
6

1
2
3
4
5
6

5

3

6

2

7

1

4

5

3

6

2

7

1

4

5

3

6

2

7

1

4

5

3

6

2

7

1

4

4

1

3

6
5

2

4

1

3

6
5

2

M

M

4

8

5

2

1

7

3

6

4

8

5

2

1

7

3

6

4

8

5

2

1

7

3

6

4

8

5

2

1

7

3

6

++–

–

+

–

+

+

–

–

+

–

+

–

+

–

2

CNP1

CNS1A

CNS1B

R6

33K

R5

12K

R4

12K

R3

33K

R1

12K

R2

12K

C1

47/25

C2

0.01

CNP2

CNS2A

CNS2B

C38

0.01

C39

100/10

R44

12K

C41
100/10

CNP3

CNS3A

CNS3B

R13

1K

R14

C12

100P

C11

0.22/50

C10

10/50

C9

100/10

C50
22P

(CH)

R12
330

C7

100P

R10
27K

C5

0.047(ML)

R11

10K

R9

3.3

Q1

KTA1266 GR

C4

0.001

C49

47/25

C3

47/25

C8

0.0047

C6

0.1

IC2

M63001FP
FOCUS/TRACKING/
SPIN/SLED DRIVER

C40

220/6.3

R7
47

M1

SPINDLE

MOTOR

M2

SLED

MOTOR

SW4

PICKUP IN

– 21 –

CD-BA250/CD-BA2600

Figure 21 SCHEMATIC DIAGRAM (2/9)

7

8 9 10 11 12

• The numbers 1 to 12 are waveform numbers shown in page 38.

CD RES

O/C, DISC NO

CLAMP SW

FROM

DISPLAY PWB

P27 8-A

CL

DI

DO

CE

DRF

WRQ

FROM

MAIN PWB

P22 1-A

8

3

5

7

12

11

10

9

6

4

1

9404142

4321

9
10
11
12
13
14
15
16
17
18
19
20

2122232425262728293031323334353637383940

8079787776757473727170696867666564636261

41

42

43

44

45

46

47

48

49

50

51

52

53

55

56

57

58

59

60

54

8

7

6

5

4

3

2

1

TP1

LD_M+

LD_M–

VCC4

M+

TO

FD

FO+

M

+5V

LDD

LDS

FR

VVDD

PCKIST

VVSS

PDO2

PDO1

CONT2

CONT3

VSS

VDD5

DRF

VRES

VWRQ

DO

DI

CL

CE

DATA

DATACK

LRSY

ASDFIN
ASDACK
ASLRCK
IGMOUT

EFLG

C2F

XVSS

FSX/16MIN

XIN
XOUT
XVDD

RVDD
RCHO

RVSS

LVSS

LCHO

LVDD

TEST

DOUT

VDD

VSS

MON15

MON14

MON13

MON12

MON11

FSEQ

V/1P

DEFECT

SBCK/FG

CONT5

CONT4

GPDAC

SLDO

SPDO

FDO

TDO

REF1

VREF

ADAVSS

ADAVDD

JITTC

RFMON

TE

TEC

FE

TIN2 F

TIN1 E

FIN2 B

FIN1 A

RSVSS

RFVDD

RF

EFMIN

SLCIST

SLCO

+5V

DGND

L-CH

AGND

R-CH

6

3

5

4

2

6

1

3

5

4

2

6

1

3

5

4

2

6

1

9

8

7

6

2

4
5

3

1

5

4

3

2

1

3

1

2

CNS8

CNS601

CD LOADING

MOTOR PWB-E

2

R49

1

D2

DS1SS133

D1
DS1SS133

Q3

KRC102 M

R45
470

R46
470

R20
10K

R13

1K

R14

1K

R15

1K

R16

1K

R18

1K

R17

1K

C11

.22/50

C10

10/50

C5

4

7(ML)

R11

10K

C33

100P

C32

100P

C30

100P

C28

100P

C27

0.022

R42

1.2K
R41 12K

C37

0.1

C36

2.2/50

R40

680

R31

1K

R29

2.2K
R28

2.2K

R43
100

XL1

33.8688MHz

R22

100

C51

0.022

L1

0.82µH

C24

10/50

R25

2.2K

R27
10K

ZD1 DZ3.3BSB

C13

0.022

R26
10K

C25

0.0015

C23

10/50

C44

0.001
R24

2.2K

C16

330/6.3

C48

0.022

R23

220

ZD2

DZ3.9BSB

R30

8.2K

R19
15K

CNP4

CNS4

BI4

CNP8

IC1

LC78645E

CD SERVO

R47

100

C18

100/10

Q2

KTC3203 Y

C26

0.0015

C17

0.022

C14

100/10

R32 1K

R37 1K
R36 1K
R35 1K
R34 1K
R33 1K

R38 1K

8

47

R39

680

C35

0.047

(ML)

C34

100P

CNP7

M3 T/T

UP DOWN

LOADING

SW1

OPEN/CLOSE

SW2

CLAMP

SW3

DISC NO.

CD-BA250/CD-BA2600

– 22 –

A

B

C

D

E

F

G

H

1

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 37.

Figure 22 SCHEMATIC DIAGRAM (3/9)

9

10 11

1415161718192021222324

8

7

6

5

4

321

9

10

11
12

13

14

15

16

17

18

19

20

21

22

23

24

8

7

6

5

4

3

2

1

–15V

VF1

VF2

–VP

UN_SW_5V

P_IN

M_+12V
A+10V

GND

GND

L-CH

R-CH

SW_5V

GND

GND

GND

RE

C

SP_RLY

SP_DET

(A_+B) SW_5V
CD_+B SW_5V

A_+B

A_GND

L

L

R

R

TO POWER SECTION

P24 1-G

TO CD SERVO PWB

P21 12-C

CNP7

CD_+B

CD_GND

L-CH

A_GND

R-CH

T1_R

T1_L

A_GND

M_GND
ERASE
T2_R2

T2_R1
T2_L1
T2_L2

4

2

ERASE HEAD

TAPE2

RECORD/

PLAYBACK HEAD

TAPE1

PLAYBACK HEAD

R-CHL-CH

R-CH

L-CH

1

2

3

1

3

5

6

3

2

1

6

5

4

3

2

1

6

5

4

3

2

1

1
2
3
4
5
6

7

CD

TUNER

DECK

AUX

DI
CE

VSS
LOUT

LBASS
LTRE

LIN

L4
L3

L2
L1

CLK

VDD

VREF

ROUT

RBASS

RTRE

RIN

RSEL0

R4
R3
R2
R1

CCB

INTERFACE

+

–

+

–

+

–

+

–

+

–

+

–

+

–

+

–

LSEL0

ALC

ALC

RIPPLE

NOR/CRO2

–

–

+

–

+

Hich=T1

+

–

+

Hich=CHROME

56K

112K

56K

112K

213

2

1

3

1
2

3
4
5
6
7
8

9
10
11
12

13
14

15

17

18
19

20
21

MAIN PWB-A1(1/3)

+B

+B

+B

+B

+B

+B

+B +B

+B

+B
+B

-B

-B -B

BI601

CNS601

CNP101

CNP102

Q104

2SCC1845 F

C104
180P

R106

3.3K

R104

2.2K
Q102

2SCC1845 F

R108

47K

R110

4.7K

Q106

KTC3199 GR

C106

560P

R112 15K

R116

56

C112

100/25

C114

0.033

R122

33K

C116
560P

C118

47/25

R124

5.6K

R120

3.9K

R118
100K

C120

0.0022

R126

3.9K

C121

0.022
C122

3.3/50

R128

6.8K

C124

270P

R132

100

C126
22/50

C132
47/25

C130

0.0033

C128

0.022

R130

1.5K

R134
10K

C108
330P

R114

1K

C110
330P

C107
330P

R113

1K

C109
330P

IC101

AN7345K

PLAYBACK AND RECORD/

PLAYBACK AMP.

C103

180P

Q103

2SCC1845 F

R105

3.3K

R103

2.2K

Q101

2SCC1845 F

C102
560P

C101
560P

C136

0.022

Q112

KTA1266 GR

R146

10K

R148

4.7K

R147

10K

Q113

KRC104 M

C141

100/16

C150

10/50

R149

150

C639

1/50

R621

22K

R618

330

R619

330

R604

10K

C610

1/50

C608

0.1

(ML)

R606

3.9K
C612

0.0027

C606

0.15
C614

1/50

C616

4.7/50

C618

1/50

C620

1/50

C624

1/50

C622

1/50

R608

1.2K

C626

0.0056

R602

1K

R601

1K

IC601

LC75341

AUDIO PROCESSOR

C623

1/50

C

1

C

1

C

1

C

4.

C

1

C6

0

0.

1

C

C

6

22

Q

KTC

3

R138

10K

R137
220K

R139

10K

C119

0.0022

R121

33K

R125

68K

R127

3.9K

R117

100K

C113

0.033

C111

100/25

R115

56

C115
560P

R119

3.9K

C117
47/25

R123

5.6K

C123

270P

R129

6.8K
C125

22/50

C127

0.022

R131

1.5K

R133

100

C129

0.0033

C131

47/25

R135

10K

C133

22/50

C134

220/10

C601

220/16

R614

3.3K

R615

3.3K

R613

390

R611

2.2K

C635

0.001

C636

0.001

R610

2.2K

R612

390

Q602

KTC3199 GR

Q601

KTC3199 GR

Q114

KRC104 M

R111

15K

R101

1K

R102

1K

R107

47K

C105

560P

Q105

KTC3199 GR

R109

4.7K

Q107

KTC3199 GR

– 23 –

CD-BA250/CD-BA2600

Figure 23 SCHEMATIC DIAGRAM (4/9)

7

8 9 10 11 12

22
23
24
25
26
27
28
29

30
31

9

10 11 12

131415161718

8

7

13

14

15

16

17

18

19

20

21

22

23

24

TUN_SM

DO
CE

A+10V

TUN_L

TUN_R

DI

CLK

REC_R

TO DISPLAY PWB

P27 12-C

CNS701

(D_GND)GND

(A_GND)GND

P_IN

TO TUNER SECTION

P28 1-G

–20dB

M_GND

SP_DET

UN_SW 5V

A_GND

SW_5V

D_GND

–15V

M_+12V

SP_RLY

VF2

–VF

VF1

SPA_SIG

SMUTE

REC/PLAY

T_T1/T2

T_BIAS

CLK

DI

TUN_SM

CE

DO

CHASSIS

R-CH

L-CH

1

1

4

2
3

9

10
11

12
13
14
15
16
17
18
19

20
21
22
23
24

24

8

7

6

5

C

D

NER

ECK

UX

CLK
VDD

VREF
ROUT

RBASS

RTRE

RIN

RSEL0

R4
R3
R2
R1

B
FACE

+

–

+

–

+

–

+

–

+

–

VCC

ALC

GND

ALC

RIPPLE

NOR/CRO2

–

+

–

+

Hich=CHROME

56K
56K

2

1

3

CD SIGNAL

VIDEO SIGNAL

RECORD SIGNAL

PLAYBACK SIGNAL

FM SIGNAL

+B

+B

+B +B

+B

+B

+B

+B

+B

+B

+B

-B

-B

+B
+B

R126

3.9K

R128

6.8K

C124

270P

R132

100

C126
22/50

C132
47/25

C130

0.0033

C128

0.022

R130

1.5K

R134
10K

IC101

AN7345K

ECORD/

MP.

10/50

601
75341
ROCESSOR

C623

1/50

C625

0.0056

R609

1.2K

C621

1/50

C619

1/50

C617
1/50

C615

4.7/50

C613

1/50

C605

0.1
C611

0.0027

R607

3.9K

C607

0.1

C603
22/50

C609

1/50

R605

10K

R623
220K

R622
220K

R136

220K

Q108

KTC3199 GR

R138

10K

R137
220K

R139

10K

3.9K

C123

270P

6

.

8K

C125
22/50

C127

0.022

R131

1.5K

R133

100

C129

0.0033

C131

47/25

R135

10K

C133

22/50

C134

220/10

C135

0.022

R158

220

Q109

KTA1266 GR

R140

47K

R142

82

R143

47K

R144

22K

C137

0.047

(ML)

C138

0.0082
(PP)

C139

0.039(ML)

L103

330µH

R145

4.7

Q111

KTC3203 Y

C693

0.001

D691

DS1SS133

D690

DS1SS133

JK690

VIDEO/AUX

IN

R690

6.8K

R691

6.8K

C691
390P

C690
390P

R692

33K

CNP701

FFC701

C601

220/16

R603

1K

R141

4.7K

Q110

KRC104 M

Q107

KTC3199 GR

C140

47/25

R693

33K

CD-BA250/CD-BA2600

– 24 –

Figure 24 SCHEMATIC DIAGRAM (5/9)

A

B

C

D

E

F

G

H

1

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 37.

+B2

2

1

3

1

2

3

3 2 1

3 2 1

–15V

M_+12V

P_IN
GND(CD_GND)

R-CH

L-CH

A+10V

GND(D_GND)

GND(A_GND)

GND(M_GND)

VF1

VF2

–VP

SP_RLY

SP_DET

SW_5V

UN_SW_5V

CD_+B

A_+B

GND(A_GND)

TO MAIN SECTION

P22 1-B

15

14

13

121110

9

8

7

6

5

4 3 2

1

CH1

OUT

OUT

CH2

CH2

CH1

–

–

+

+

+VCC

–VCC

R-CH

L-CH

1

2

4

3
6

20

7
9

17
18

19
13

8

21

5
14
10
15

12
11

IC901

STK4029S

POWER AMP.

R934

1K

C938
150P

C936

15P

R930
100K

C932

0.001
R932

56K

C930

0.22/50

R938

56K

R936

820

C934

4.7/50

R940

1K

R948

0.22

(2W)

R946

0.22

(2W)

C942

0.22

R942

22K

C940

100/50

R944

100

R950

0.1(1W)

R952

1K

C948

0.022

R954

1.5K
Q902

KTC3199 GR

D912

DS1SS133

C946
10/50

C945
10/50

C941

100/50

R945

0.22(2W)

R943

100

R935

1K

R941

1K

C937

15P

C939
150P

R939

56K

R937

820
C935

4.7/50

R947

0.22(2W)

Q904

KTC3199 GR R956

56K

R955

56K

C952

0.047
(ML)

R958

4.7

C953

0.047
(ML)

R959

4.7

R949

0.1(1W)

C947

0.022

Q903

KTC3199 GR

R951
1K

R953

1.5K
Q905

KTC3199 GR

D911

DS1SS133

R931

100K

C931

0.22/50

R933

56K

R975

8.2

C915

0.022

C916

22/50

R909

22K

ZD904

DZ130BSB

ZD905

DZ2.4BSB

R908

560

IC902

KTC2026

C920

47/25

IC903

KIA7810AP

IC903

KIA7810AP

VOLTAGE

REGULATOR

C918

0.1

(ML)

R976

8.2
C907

4700/16

C970

6800/16

C921

0.1

(ML)

D916

DS1SS133

C923

47/25

C904

2200/63

C903

2200/63

R902

22K

R903

3.3K
BI902

R901

22K

C949

47/50

Q908

KRA107 M

C969

3.3/50

Q907

KRC107 M

C933

0.001

D913

DS1SS133

IC904

KIA7805AP

IC904

KIA7805AP

CONSTANT VOLTAGE REGULATOR

R957

56K

+B

+B

+B

+B

+B

+B

+B

+B

+B

+B

+B

+B

+

+B

+B

+B

+B

-B

-B

-B

– 25 –

CD-BA250/CD-BA2600

Figure 25 SCHEMATIC DIAGRAM (6/9)

7

8 9 10 11 12

B2

TRANS­FORMER
PWB-A3

AC POWER
SUPPLY CORD
AC120V/60Hz

MAIN PWB-A1 (2/3)

POWER PWB-A2

6 OHMS MIN

+

R1_OUT

L1_OUT

SP_RCH_GND

SP_LCH_GND

SP_RCH

SP_LCH

5

1

8
9

6

5

4

3

2

7

1

10

1
2
3
4
5
6
7
8
9

10

M

22

1 1

1

7

2
3
4
5
6

9

8

10

T.F.

C952

0.047
(ML)

R958

4.7

R988 680
R986 680

R981 680
R982 680

R968

4.7K

R967

4.7K

RL914

RELAY

D914

DS1SS133

C967
47/50

R970

1K

Q906

KTC3203 Y

CNP971

FW981

D901

TS6B04GM

C901

0.1

(ML)

D905

DS1N4004S

D903

DS1N4004S

D902

DS1N4004S

D904

DS1N4004S

R984

47K

F901

4A/125V

F902

4A/125V

C902

0.1

(ML)

F904

2A/125V

F903

2A/125V

C908

100/50

D907

DS1N4004S

C909

100/50

D906

DS1N4004S

D908

DS1N4004S

R905

47K

C911

47/50

R904

2.2K

Q901

KTA1274 Y

R906

10

C910

220/50

ZD901

DZ330BSD

ZD903

DZ6.2BSA

R977

47

R978

47

R907

12K

C913

100/35

C912

47/50

C905

0.1

(ML)

C906

0.1

(ML)

CNS971

R971

68K

D915

DS1SS133

C968
10/50

R972

15K

R983

220K

CNP902

CNS902

BI902

Q914

KTC3199 GR

R973

47K

ZD902

DZ110BSB

L920

L921

R969

4.7

PT801

POWER

TRANSFORMER

SO901

SPEAKER

TERMINAL

M901

FAN MOTOR

HEADPHONES
PWB-B2

1
2
3

4
5

CNP981

JK701

HEADPHONES

C734

220P

C735
220P

FM SIGNAL

+B

+B

+B

+B

+B

CD-BA250/CD-BA2600

– 26 –

Figure 26 SCHEMATIC DIAGRAM (7/9)

A

B

C

D

E

F

G

H

1

23456

M12V

P22

P21

P20

P19

P18

P17

P16

P15

P14

P13

P12

P11

P10

F F F

49

48

47

444342 4140393837 363534 33 32

P09

P08

P07

P06

P05

P04

P03

P02

P01

G11

31 30 29 28 27 26 25 24 23 1

6

9

0

89

88

87

86

85

8483

82

81

80
79
78
77
76
75
74
73
72
71
70

P1P2P3P4P5

P11
P12
P13
P14

G11

P6P7P8

P9

P10

VLOAD

P15
P16
P17
P18

P19/DIST0
69
68
67
66
65
64
63
62
61
60
59
58
57
56

LCK 0

KARAOKE LATCH

FPB

MIC SW

NO USE / MPEG_POW

DISTOUT/SW OUT

RDS-READY/ESS_DO

RDS-RDCL/ESS_DI

RDS-RDDA/ESS_STB

RDS-RST/ESS_ACK

P22/DIST3

P21/DIST2

P20/DIST1

NO USE

SMUTE

T_SOL_A

T_MOTOR

T_SOL_B

44 43 42 4

1

TIMER LED

VDD

AC RLY_CONT

SPK_DET

SP_RLY

50 49 48 47 46 45

55
54
53
52
51

PLAY SW_B

CD CLAMP

SW

T2

RUN

FPA

T1

RUN

NO USE

8
7

6

5

4

3

2

1

8
7

6

5

4

3

2

1

T2 PLAY

T2 RUN
+MTR

SOL2
SOL1

T1 RUN

GND

F_REC

4
5

1

1

6

3

2

7
8

8

+B

+B

+B

+B

+B

+B

+B

+B

+B

+B

+B

+B

+B
+B

+B

+B

-B

-B

-B

-B

7

6

5

4

8

2

1
3

+

-

TAPE

MOTOR

M

PLAY

CASSETTE

SOLENOID

SOLENOID

PH

TAPE MECHANISM
PWB-D

CNS702

D703

DS1SS133

R770

10K

R772
10K

C706
47/50

R726

2.2K

R727

2.2K

R728

2.2K

R729

2.2K

R732
1K

R733

1K

R734

1K

LED701

R761

1K

I

C

IX0

3

S

Y

MICRO

C

R572
100K

C572

0.022

ZD561

DZ6.2BSB

C573

0.022

C569

2.2/50

R578
100K

R731

10K

R778
10K

R779
10K

R777
10K

Q708

KTA1271 Y

Q707

KTA1271 Y

Q706

KTA1273 Y

C712

47/50

D709

DS1SS133

D710

DS1SS133

R756

10K

R758

10K

R759

10K

R760

10K

R752

33

R579

15K

C571

0.022

C566

2.2/50

R747

1K

R746

1K

R748

1K

R749

100K

R750

100K

R751

100K

R571
390K

D563

DS1SS133

D562

DS1SS133

R580
180K

IC562

KIA4558P

OPE AMP.

C567

0.0068

D561 DS1SS133

R573

56K

R568
220K

R566
220K

R565

33K

R567

68K

R563

270

R562
820K

R574

1M

R576

2.2M

R561

10K

C568

0.0068

C561

270P

R570
12K

C565

0.0027

R738

22K

R739

1K

R740

1K

R569
100K

C570

0.022

R575
470K

C707

1/50

D716

DS1SS133

FL701

FL DISPLAY

R735

1K

R736

1K

C564

0.0027

C562

270P

IC561

KIA4558P

OPE AMP.

Q701

KTC3199 GR

Q702

KTC3199 GR

Q703

KTC3199 GR

C563

2.2/50

R577
150K

FFC702

DISPLAY PWB-B1

• NOTES ON SCHEMATIC DIAGRAM can be found on page 37.

– 27 –

CD-BA250/CD-BA2600

Figure 27 SCHEMATIC DIAGRAM (8/9)

7

8 9 10 11 12

5V BACK UP

2

1

3

P05

P04

P03

P02

P01

G01

G02

G03

G04

G05

G06

G07

G08

G09

G10

G11

FFF

27 26 25 24 23 16 15 14 13 12 11 10

9876

321

DISC_NO SW

WRQ(DSP)

CLAMP SW

CD DO

CD DI

CD CE

CD CLK

DRF

RES OUT

TO CD SERVO PWB

P21 12-B

123456789

123456789

100

99

98

97

96

95

9493

92

91

90

89

88

87

86

85

11

10

9

8

7

6

5

4

3

2

1

T-BIAS

T_T1/T2

X2

RESET

WRQ

P1P2P3P4P5

DSA_STB

REC/PLAY

RES OUT

G11

G10

G9G8G7G6G5G4G3G2G1

VDD

-20dB

DRF

TCH

EG_POW

OUT

ESS_DO

S

S_DI

SS_STB

_ACK

25

24

23

22

21

20

19

18

17

16

15

14

13

12

VDD

X1

CD CE

CD DI

SPAN

CE

Vpp/IC

CD CLK

CD DO

CLK

DI

DO

AVSS

XT2

P-IN

VF1

VF2

–VP

SMUTE

SP_RLY

A_GND

–15V

SW_5V

UN_SW 5V

SP_DET

M_GND

SPA_SIG

–20dB

M_+12V

22

20
21

13
14
15

17

23
24

24

19

16

18

11
12

10

D_GND

REC/PLAY

T_T1/T2

T_BIAS

DI

CE

CLK

DO

TUN SM

1

1

2
3
4

9

8

7

6

5

30

29

28

27

26

O/C SW/

DSA DATA

TUN SM

DSA_ACK

SPEANA2

AVDD

KEY 2

KEY 1

KEY 0

P_IN

REMOCON

VSS

SMUTE

T_SOL_A

T_MOTOR

T_SOL_B

AVref

JOG 0

JOG 1

44 43 42 41 40 39 38 37 36 35 34 33 32 31

TIMER LED

VDD

46 45

321

CNP701

TO

MAIN PWB

P23 12-D

FFC701

+B

+B

+B

+B+B

+B

+B

+B

+B

+B

+B

+B

+B

+B

+B

+B

B

+B

+B

+B

+B

+B

+B

-B

+B

+B

+B

+B

+B

+B

+B

+B

+B

-B-B

-B

R725

1K

CNS701

RD07

3.9K

RD06

2.7K

RD05

2.2K

RD04

1.5K

RD03

1K

RD30

5.6K

RD16

3.9K

SW717

VOLUME

UP

SW718

VOLUME

DOWN

RD17
180K

D711

DS1SS133

R774

10K

R773 1K

D713

DS1SS133

C714

3.3/50

R782

100K

D715

DS1SS133

Q709

KRC102 M

C702

220/10

C703

0.022

C701

1/50

R781

47K

C715

0.01

R765

4.7K

R718

1K

R719

1K

R720

1K

R721

1K

R724

1K

R726

2.2K

R727

2.2K

R728

2.2K

R729

2.2K

2

LED701

IC701

IX0399AW

SYSTEM

MICROCOMPUTER

D712

DS1SS133

L701

100µH

D714
DS1SS133

C716

0.022

RX701
REMOTE
SENSOR

R766

10K

R768
10K

R767

10K

BI701

CNP8

CNS8

R783
100

C717
47/50

SW727

STOP

RD01

680

SW701

POWER

RD02

820

SW702
CLOCK

SW703
TIMER

RD09

10K

RD08

5.6K

SW732

TUNER

RD29
100K

SW731

VIDEO

RD28

33K

SW730
TUNING

UP

RD27

18K

SW716

EQUALIZER

RD14

820

SW715

X-BASS

RD13

680

SW725

FAST

FORWARD

RD21

1.5K
SW726

PLAY

RD23

2.7K

SW723
MEMORY/

SET

RD26

10K

SW724

REWIND

RD25

5.6K

RD22

2.2K

RD24

3.9K

SW712

DISC
SKIP

RD10

18K

RD12
100K

SW713
OPEN/

CLOSE

RD11

33K

RD15

1.8K

C705

18P

R710 1K
R711 1K
R712 1K
R713 1K
R714 1K
R715 1K
R716 1K

R707 1K

R702 1K
R703 1K

R717 1K

R706 1K

SW729

REC

PAUSE

RD20

1K

RD19

820

RD18

680

SW720

CD

SW721

TAPE

SW722

TUNING

DOWN

SW714

DIMMER

R705 1K

R708 1K

R704 1K

R709 1K

XL700

4.194304MHz

C704

15P

SPEANA0

SPEANA1

CD-BA250/CD-BA2600

– 28 –

A

B

C

D

E

F

G

H

1

23456

• NOTES ON SCHEMATIC DIAGRAM can be found on page 37.

Figure 28 SCHEMATIC DIAGRAM (9/9)

1

2

3

AM BAND

COVERAGE fL

AM ANT.

FM SIGNAL
AM SIGNAL

1

12

3

23

3

2

1

9

8

7

6

5

4

3

2

1

22
21
20

19
18

17
16
15

14
13
12

11

10

9

8

7

6

5

4

3

2

1

24
23
22
21

20
19
18

17
16

15
14

13

12

11

10

9

8

7

6

5

4

3

2

1

GND(D_GND)

GND(A_GND)
TUN_SM

DI

DO

CE

TUN_R

CLK

TUN_L

A+10V

IF
CONT

FM/AM

FM/AM

SD

MO/ST

ST IND

MO/ST

VSS

AOUT

AIN
PD

VDD
FM IN
AM IN

DO

CL

DI

CE

X IN

X OUT

IF IN

REG

AM IF IN

GND

SD

STEREO
FM DET

VCC
IF OUT

PHASE

(FM/AM)

PHASE

L-CH OUT

R-CH OUT

MPX IN

MPX VCO

FM/AM OUT

VSM

AM LOW CUT

AM RF IN

AM OSC IN

FM AFC

AM OSC OUT

AM MIX OUT

FM IF IN

1

3

2

30

24
22
27

29
26

24
23
25
31

MAIN PWB-A1(3/3)

+B

+B

+B

+B

+B

FM

ANTENNA

AM

ANTENNA

C301

0.01

CT1

0.01

C340

0.001

C330

15P

C331

0.047

C303

10P(CH)

BF301

BAND PASS FILTER

R372 1K

IC302

IC302

LC72131

PLL(TUNER)

C364 4.7/50

IC303

LA1832S

FM IF DET./FM MPX./AM IF

R365

10K

R302

10

C318
100P

R316

4.7K

TO MAIN PWB

P23 12-E

R387

5.6K

C370

1/50

R325

47K

R393

1K

R376

1K

R355

3.3K

R359

1.8K

R309

10K

C384

0.001

T302 FM IF

C305

4.7P
(CH)

C314

0.0047

C369

27P

C374 0.015

ZD351

DZ5.1BSB

C396

100/10

C395

0.022

R313

33K

R381

10K

X352

4.5MHz

R363

6.8K

C363 0.022

R391

270

Q360

KTA1266 GR

R385

5.6K

R392

270

C372

1/50

R364

6.8K

T351
AM IF

C317

0.001

R361

10K

C355

22P

R388

3.9K

R311
100K

L312 FM RF

C332

0.022

C315

0.0047

C304

0.01

R314

22

C324

3.9P(UJ)

D305
DS1SS133

C371
1/50

R362

10K

R378 1K

R327

33

R386

22K

C388

0.001

CF303

R356

1K

C368

1/50

C398

100/10

C356

0.001

VD302

SVC211C

VD303

SVC211C

C357

2.2/50

C358
1/50

T306

AM

OSC.

C338 0.001

D301 DS1SS133

D302 DS1SS133

CF352

R352

1K

C361 0.022

C362 3.3/50

VD301

SVC348S

R382

150

IC301

C353 0.022

C399

0.022

C373

0.015

X351

456kHz

C397

0.022

C382

15P(CH)

C366 0.001

R350

2.7K

R357
470K

R323

68K

R322

680

R383

5.6K

C391
47/25

R384

5.6K

R375

470

R395

47K

C386

330P

R360

4.7K

R377
47K

C334

22P

C335
560P

(SL)

L351

100µH

C385

0.01

C380
10/50

R379

2.2K

C323

0.022

T303

AM TRACKING

C393

1/50

R380

1.5K

T301 FM OSC.

R373 1K

R374 1K

CNP301

C306

0.022

C307
10/50

C310
15P(CH)

Q302

KTC3194 Y

C387

0.022

C309

0.001

C392

0.001

C394
47/25

C308 4.7P(CH)

C316

0.022

C352 10/50
C389 0.022

C312

0.022

R351 5.6K

C350 0.022

C313

22P

(CH)

R358

3.9K

C342

0.022

C365 0.022

C367

1/50

R353

270

CF351

C354 0.022

C311

18P

C381

12P(CH)

R336

10K

TP301

TP302

TP

IC301

TA7358AP

FM FRONT

END

– 29 –

CD-BA250/CD-BA2600

Figure 29 WIRING SIDE OF P.W.BOARD (1/7)

7

8 9 10 11 12

C902

CNP902

CNS902

FROM

MAIN PWB

P31 11-F

D901

R984

R983

D903

D904

D905

D902

C906

C905

C908

ZD902

D906

C901

C909

C911

R904

D908

F904

2A/125V

F903

2A/125V

F901

4A/125V

F902

4A/125V

R978

R977

D907

ZD903

ZD901

C913

R905

R907

R906

C912

Q901

C910

T.F

PT801

POWER TRANSFORMER

AC POWER

SUPPLY CORD

AC120V/60Hz

POWER PWB-A2

POWER TRANSFORMER PWB-A3

1

BC E

2345678910

CD-BA250/CD-BA2600

– 30 –

Figure 30 WIRING SIDE OF P.W.BOARD (2/7)

A

B

C

D

E

F

G

H

1

23456

SO901

SPEAKER

TERMINAL

C918

ZD351

C608

C370

C610

C601

C358

C603

R602

C371

C609

C373

C374

R603

R601

C372

R618

D912

R952

Q902

C948

R954

C949

R930

C930

ZD904

C915

C934

R903

R909

C916

R944

R908

C942

R975

R902

R976

R901

C952

R950

R946

C903

R958

RL914

D914

R948

R947

R945

R949

R959

C953

IC901

LG1

R968

C940

C941

R943

R935

C946

C945

R973

Q914

C931

C935

C967

R969

D911

Q905

Q904

Q903

D913

Q907

Q908

C969

R619

Q602

C639

Q601

T306

C365

C364

C368

R357

R358

C362

C367

VD302

IC303

X351

D305

L312

CF303

C357

C350

T302

R309

CF351

C352

VD303

Q302

C398

T301

T351

CF352

R382

C393

R375

Q360

C380

C394

L351

C391

IC302

R384

R387

R386

C396

X352

C307

1

2

3

4

5

6

7

8

9

IC301

R314

CNP301

D301

D302

BF301

132

CT1

T303

C331

D690

D691

Q906

R970

C968

R971

R972

D915

R967

C963

L920

L921

VD301

IC902

CNP971

123456789

10 11 12

24 23 22 21 20 19 18 17 16 15 14 13

123456789

10 11

22 21 20 19 18 17 16 15 14 13 12

123456789

101112131415

1
2
3

12

JK690

VIDEO AUX IN

R-CH

L-CH

AM LOOP
ANTENNA

FM

ANTENNA

1
2
3

B
C
E

B
C
E

E

BCE

1
2
3

3
2
1

C
B

B

B

B
C
E

CE

1

1

2

3

23

C
E

B
C
E

E
C
B

ECB

BCE

C395

R395

R606

C388

C356

R355

C355

R363

R361

R364

R362

R604

R932
C932
R936

R942

R938
C936
R934
C938

R956

R940

R955

R941

C939

C937

R939

R937

C933

R933

R957

R931

R951

C947

R953

C636

R610

R614

R612

R621

R611

C635

R615

R605

R613

C335

C332

R323

R356

C363

C342

R350

C334

C361

R336

R365

C369

R316

C316

R313

C366

R311

C308

C309

C399

C389

R351

C353

R352

C354

R353

C312

C310

C313

C311

R302

R327

C324

R325

R322

R383

R380

R381

R393

C385

C318

R385

R377

C392

R379

C387

C386

R360

C381

R359

R376

C382

R388

R374

R372

R373

R378

C384

C301

C397

C306

C304

C305

C315

C303

C314

C317

C323

C330

C338

C340

C693

R691

C691

R693

C690

R690

R692

R392

R391

1
2

CNS971

RD

BR

M901

FAN MOTOR

R-CH

L-CH

– 31 –

CD-BA250/CD-BA2600

Figure 31 WIRING SIDE OF P.W.BOARD (3/7)

7

8 9 10 11 12

R137

Q107

C134

C131

C119

C133

C127

C150

C125

IC101

C122

R115

R114

Q104

R113

Q102

CNP101

Q105

Q106

Q101

CNP102

R112

Q103

C137

R145

C138

Q114

Q111

L103

C141

Q113

C140

C139

Q112

C136

R142

R141

R149

Q109

Q110

C970

BI902

1

10

R988

R981

R986

R982

C904

C921

ZD905

C907

C923

D916

C920

C918

CNP701

FFC701

CNS701

TO DISPLAY PWB

P33 11-A

C114

BI601

CNS601

CNP7

1

6

C112

C615

C118

C613

C619

C617

C621

R136

C605

C607

C623

IC601

C624

C614

C622

C606

C618

C616

C620

C608

C610

C601

C603

R602

C609

R603

2468

10

12 14 16 18 20 22 24

24

113579

11

13 15 17 19 21 23

R601

ZD904

C915

R909

C916

R975

R976

C903

FW981

1

5

IC904

IC903

IC902

123456789

10 11 12

24 23 22 21 20 19 18 17 16 15 14 13

1

2

3

4

5

6

7

8

9

10

11

12

24

23

22

21

20

19

18

17

16

15

14

13

321

7

1

2

3

4

5

6

GY
WH
GY
WH
GY
WH
GY
WH
GY
RD

10

9
8
7
6
5
4
3
2
1

CNP902

TO POWER PWB

P29 9-H

GYWHGYWHGY

RD

123456

GYWHGYWHGY

RD

TO CD SERVO PWB

P34 5-A

FROM
TAPE2

RECORD/PLAYBACK

ERASE HEAD

FROM
TAPE1

PLAYBACK HEAD

P35 10-F

P35 11-F

BR

COLOR TABLE

RD(R)

OR

YL

GR

BL
VL
GY

WH(W)

BK
PK

BROWN

RED
ORANGE
YELLOW

GREEN

BLUE

VIOLET

GRAY
WHITE
BLACK

PINK

BCE

BCE

ECB

ECB

ECB

ECB

ECB

E

E
C
B

E
C
B

E
C
B

1

1

123123BCE

23

123

2
3

CB

R131
R135

R121
C129
R133

R134

C135

C130

R132

R123
R127
R129

R130

C123

R128

R125

C124

C121

R117

C115

R119

C108

C109

C110

C107

R102

R101

R106

C104

C106

R104

R103

C101

C105

R111
R105

C103

R107

R108

R109

R110

C102

R144
R143

R148

R147

R146

R140

R118

C116

R120

R124

R607

C627

R122

R623

C120

R622

R126

C611

C625

R609

R138

C626

R608

C612

R606

C735

C734

JK701

HEADPHONES

CNP981

CNS902

1

2

3

4

5

HEADPHONES PWB-B1

MAIN PWB-A1

C113

C117

C111

R116

Q108

C132

C126

R158
R139

C128

CD-BA250/CD-BA2600

– 32 –

Figure 32 WIRING SIDE OF P.W.BOARD (4/7)

A

B

C

D

E

F

G

H

1

23456

R702

R703

R704

X

SW718

VOLUME DOWN

D709

RD16

Q707

SW716

EQUALIZER

RD15

RD08

D711

SW717

VOLUME UP

SW731

VIDEO

R579

C563

D712

C714

D561

C708

D715

C566

Q709

L701

C717

R708

Q701

Q702

Q703

BI701

CNP8

CNS8

TO

CD SERVO PWB

P34 4-A

1

9

C701

C702

RX701

R566

R570

IC561

D562

C561

D716

IC562

1

2

3

4

8

7

6

5

1

2

3

4

8

7

6

5

ZD561

D563

C573

SW713
OPEN/

CLOSE

R563

D714

D713

C569

Q706

SW715

X-BASS

Q708

D710

SW712

DISC

SKIP

C712

CNS702

FFC702

P35 8-A

1

E
C
B

E
C
B

E
C
B

357

2468

8

9
8
7
6
5
4
3
2
1

1

DISPLAY PWB-B1

TO TAPE MECHANISM PWB

BR

COLOR TABLE

RD(R)

OR

YL

GR

BL
VL

GY

WH(W)

BK
PK

BROWN

RED
ORANGE
YELLOW

GREEN

BLUE

VIOLET

GRAY
WHITE
BLACK

PINK

WH
GY
WH
GY
WH
GY
WH
GY
RD

R

D

R778

R777

RD30

RD07

RD06

R569

R781

R782

R783

C715

R751

R750

R749

R748

R747

R746

R571

R568

C564

C565

R567
R565

C716

C562

R561

R562

R572

C572

C570

R577

C571

R580

C568

R576

R574

C567

R573

R575

R578

RD09

RD12

R779

RD11

RD10

1 2 3 6 7 8 9 10111213141516

B

1
2
3

C
E

B
C
E

B
C
E

321

– 33 –

CD-BA250/CD-BA2600

Figure 33 WIRING SIDE OF P.W.BOARD (5/7)

7

8 9 10 11 12

CNS701

CNP701

TO MAIN PWB

P31 9-H

FFC701

SW701

POWER

R740

R739
R738
R736

R725

R765

R773

SW714

DIMMER

SW702
CLOCK

SW703

TIMER

SW723

MEMORY/SET

SW722

TUNING DOWN

SW724

REWIND

RD26

SW727

STOP

SW730

TUNING UP

R770

R772

SW720

CD

R719

R720

R721

R735

R734

R724

R728

R727

R726

R718

R729

C706

C707

D703

XL700

R712

R711

R710

R709

SW732
TUNER

SW721

TAPE

RD03

RD28

RD19

SW726

PLAY

SW725

FAST

FORWARD

SW729

REC/PAUSE

LED701

1357911131517192123

24681012141618202224

1

24

R760

R756
R759
R758

R774

R732

RD13

RD02

RD25

RD01

R767

R766

R768

RD18

R731

R713

R716

R761

R733

R717

R752

C703

R701

IC701

100

81

80

95

90

85

75

70

65

60

55

51

50

45

40

35

31

30

1

25

20

15

10

5

R705

C704

R706

C705

R707

R714
R715

RD04

RD05

RD29

RD14

RD24RD23

RD27

RD17

RD22

RD20

RD21

FL701

23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 47 48 49

CD-BA250/CD-BA2600

– 34 –

Figure 34 WIRING SIDE OF P.W.BOARD (6/7)

A

B

C

D

E

F

G

H

1

23456

• The numbers 1 to 12 are waveform numbers shown in page 38.

C25

R26

R24

R17

R45

R16

R46

C13

R15

R14

R13

IC1

IC2

C2

C38

C7

C8

R12

C4

R11

R42

R41

R40

R39

C33

C34

C27

C30

C28

R43

C42

C51

C17

C26

C44

R25

R47

R23

R27

C32

1

5

10

1520

21

22

25 30 35 40

42

1

5

10

15

20

21

25

30

35

40

41

45

50

55

60

61

65

70

75

80

B

BCE

321

CE

12

3

4

56 12

3

4

567

89

65

4

3

2165

4

3

21

5

4 2 1

6

9

10

11

12

7
8

3

CNP1

C40

R44

C41

C39

R49

R5

R2

R4

CNP3

R1

R6

R3

C9

CNP4

C12

C10

C11

C16

D1

D2

Q3

C14

C23

R18

R20

R30

R19

C48

C18

Q2

ZD2

L1

C24

R22

CNP7

ZD1

XL1

R32

R33

R31

R28

R29

R34

CNP8

R35

C35

C6

R36

C36

R37

C37

R38

C50

C3

R10

R9

C49

C5

Q1

R7

C1

CNP2

1

2

3

4

5

6

7

8

1

2

3

4

5

6

7

CNS601

P31 8-A

FROM

MAIN PWB

CNS8

P32 1-B

FROM

DISPLAY PWB

CD SERVO PWB-C

-

M1

SPINDLE MOTOR

17

1

8

CNS3B

CNS3A

RD

WH

GR

WH

GR

WH

PICKUP UNIT(306)

CD MOTOR
PWB-F

SW4

PICKUP IN

M2

SLED MOTOR

+

-

+

12345

6

12345

6

12345

6

CNS1B

CNS1A

CNS2BCNS2A

BL

WH

BL

WH

BL

WH

RD

RD
WH
GY
WH
GY
WH

GY

WH

1
2
3
4
5
6
7
8

1
2
3
4
5
6
7
8

1
2
3
4
5
6
7

3
4

1
2

5
6
7

– 35 –

CD-BA250/CD-BA2600

Figure 35 WIRING SIDE OF P.W.BOARD (7/7)

7

8 9 10 11 12

CD LOADING MOTOR
PWB-E

16

123

456

BI4

M3

T/T UP/DOWN

LOADING MOTOR

RD

WH

BK

WH

BK

WH

–

+

SW3

DISC

NUMBER

SW2

CLAMP

SW1

OPEN/

CLOSE

BR

COLOR TABLE

RD(R)

OR

YL

GR

BL
VL

GY

WH(W)

BK
PK

BROWN

RED

ORANGE

YELLOW

GREEN

BLUE

VIOLET

GRAY
WHITE
BLACK

PINK

CNS4

TAPE

MOTOR

-

+

1

1

2

3

2

4

567

8

1

8

CNS703

SOLENOID

PH

SW

SW

SW

SOLENOID

TAPE MECHANISM PWB-D

TAPE MECHANISM
ASSEMBLY

P32 4-G

TO DISPLAY PWB

CNP101

P31 11-E

TO MAIN PWB

P31 11-D

TO MAIN PWB

CNP102

TAPE 1

PLAYBACK HEAD

TAPE 2

ERASE HEAD

RECORD/PLAYBACK

HEAD

FFC702

BL

WH

YL

BK

PK

WH

BK

BK

BK

PK

WH

WH

WH

PK

BK

7 6 5 4 3 2 1

GR

GR

GR

23

1

BL

YL

WH

PK

CD-BA250/CD-BA2600

– 36 –

VOLTAGE

1.6V

1.0V

1.6V

1.8V

3.3V
0V

1.6V

1.6V

1.6V

1.6V

1.6V

1.6V

1.5V

1.5V

1.5V

1.5V

0.8V

3.2V
0V

1.6V

1.6V

1.6V

1.6V
0V
0V

3.2V
0V
0V
0V
0V
0V
0V
0V
0V

1.6V
0V
0V

3.2V

3.2V
0V

9

8

7

6

5

4

3

2

1

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

40

39

38

37

36

35

34

33

32

31

PIN
NO.

VOLTAGE

IC1

3.7V

3.7V
0V
0V

3.7V

3.2V

3.2V

3.2V
0V
0V
0V

3.2V
0V
0V
0V
0V
0V

3.2V
0V
0V
0V

4.7V
0V

4.9V

4.9V

4.9V
0V

4.9V
0V
0V
0V
0V
0V
0V
0V

3.2V

3.2V

3.2V
0V

3.2V

PIN
NO.

VOLTAGE

41

54

53
55

56
57
58
59
60
61
62
63
64
65
66
67
68
69
70

52

51

50

49

48

47

46

45

44

43

42

75

74
76

77
78
79
80

73

72

71

4.77V

4.68V
0V
0V

4.67V

4.72V

4.74V
0V

5.41V

4.86V

2.3V
2V
0V

4.76V
0V

4.77V

4.7V
0V

5.36V

0.16V
0V
0V
0V
0V
0V

2.3V

0.22V
0V
0V
0V

5.03V

5.03V

5.03V

4.77V

5.04V

2.48V
0V
0V

4.92V
0V

5.67V

12.5V

12.52V

12.5V

3.8V

4.78V

4.78V

4.5V

5.04V

5.28V

9

8

7

6

5

4

3

2

1

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

40

39

38

37

36

35

34

33

32

31

PIN
NO.

VOLTAGE

IC701

5.28V
0V
0V

5.25V

5.28V

5.28V
0V

0.31V
0V
0V
0V
0V
0V
0V
0V
0V
–28.82V
–28.82V
–28.8V
–28.88V
–28.79V
–28.8V
–18.2V
–18.74V
–26.3V
–23.77V
0V
–21.2V
–28.9V
–26.2V
–26.3V
–26.3V
–21.28V
–28.83V
0V
0V
–18.73V
0V
0V
–26.28V
–26.28V
–26.24V
–26.32V
–26.3V
–26.29V
–26.3V
–26.3V
–26.3V
–26.28V
–26.3V

PIN
NO.

VOLTAGE

51

64

63
65

66
67
68
69
70
71
72
73
74
75
76
77
78
79
80

62

61

60

59

58

57

56

55

54

53

52

85

84
86

87
88
89
90

83

82

81

50

49

48

47

46

45

44

43

42

41

95

94
96

97
98
99

100

93

92

91

1.7V

1.7V

1.8V

2.1V

2.1V

2.1V

2.0V
0V
0V
0V
0V
0V
0V
0V

2.1V

2.1V

1.6V

4.9V

3.0V

1.6V
0V
0V

4.9V

4.9V

1.8V

2.1V

2.1V
0V
0V
0V
0V
0V
0V
0V
0V

4.2V
0V

2.1V

2.1V

4.9V

3.7V

3.7V

9

8

7

6

5

4

3

2

1

30

29

28

27

26

25

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

40

39

38

42

41

37

36

35

34

33

32

31

PIN
NO.

VOLTAGE

IC2

0V
0V
0V

5.03V

5.00V

5.01V

5.01V

5.03V

5.01V

5.01V

5.01V

5.01V

5.01V

5.01V

5.01V

5.01V

5.03V

5.01V

5.01V

5.00V

5.04V

5.03V

10.03V
0V

9

8

7

6

5

4

3

2

1

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

PIN
NO.

VOLTAGE

IC601

0V
0V

0.57V

2.0V

0.59V(AC)

1.32V
0V

0.59V

3.45V

3.42V
0V
0V

6.92V

4.13V
0V

3.43V

0.59V
0V

2.63V

0.56V(AC)

2.00V

0.57V
0V
0V

9

8

7

6

5

4

3

2

1

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

PIN
NO.

VOLTAGE

IC101

2.09V

5.17V

2.09V

2.08V
0V

5.15V

5.15V

3.02V

5.17V

4.35V

4.01V

4.01V

4.10V

1.18V

1.19V

2.08V

1.79V

1.79V
0V

0.58V

2.60V

2.96V

5.17V

3.64V

9

8

7

6

5

4

3

2

1

24

23

22

21

20

19

18

17

16

15

14

13

12

11

10

PIN
NO.

VOLTAGE

IC303

2.55V
0V
0V
0V
0V

5.16V
0V

4.69V

4.02V

4.10V

5.15V
0V

5.15V
0V
0V

2.53V

5.16V

0.90V

0.90V

1.31V
0V

2.55V

9

8

7

6

5

4

3

2

1

22

21

20

19

18

17

16

15

14

13

12

11

10

PIN
NO.

VOLTAGE

IC302

0V
0V
0V

50.1V
–48.8V
0V
0V

51.8V
–51.5V
0V
0V
–50.1V
0V
0V
0V

9

8

7

6

5

4

3

2

1

15

14

13

12

11

10

PIN
NO.

VOLTAGE

IC901

0.17V

0.2V

0.19V
–13.11V

0.19V

0.2V

0.17V
0V

6.23V

9

8

7

6

5

4

3

2

1

PIN
NO.

VOLTAGE

IC561

3

2

1

PIN
NO.

VOLTAGE

IC902

12.56V

24.75V

13.17V

3

2

1

PIN
NO.

VOLTAGE

IC903

24.70V
0V

10.04V

3

2

1

PIN
NO.

VOLTAGE

IC904

12.21V

0.66V

5.68V

8
9

7

6

5

4

3

2

1

PIN
NO.

VOLTAGE

IC301

0.91V

1.64V

5.40V

1.62V
0V

5.41V

4.65V

5.37V

5.41V

0.26V

0.3V

0.3V
–13.11V
0V
0V
0V

6.23V

8

7

6

5

4

3

2

1

PIN
NO.

VOLTAGE

IC562

– 37 –

CD-BA250/CD-BA2600

• The indicated voltage in each section is the one measured
by Digital Multimeter between such a section and the chas­sis with no signal given.

1. In the tuner section,

( ) indicates AM
< > indicates FM stereo

2. In the main section, a tape is being played back.

3. In the deck section, a tape is being played back.

( ) indicates the record state.

4. In the power section, a tape is being played back.

5. In the CD section, the CD is stopped.

• Parts marked with “ ” ( ) are important for
maintaining the safety of the set. Be sure to replace these
parts with specified ones for maintaining the safety and
performance of the set.

NOTES ON SCHEMATIC DIAGRAM

• Resistor:
To differentiate the units of resistors, such symbol as K and
M are used: the symbol K means 1000 ohm and the symbol
M means 1000 kohm and the resistor without any symbol is
ohm-type resistor. Besides, the one with “Fusible” is a fuse
type.

• Capacitor:
To indicate the unit of capacitor, a symbol P is used: this
symbol P means pico-farad and the unit of the capacitor
without such a symbol is microfarad. As to electrolytic
capacitor, the expression “capacitance/withstand voltage”
is used.
(CH), (TH), (RH), (UJ): Temperature compensation
(ML): Mylar type
(P.P.): Polypropylene type

• Schematic diagram and Wiring Side of P.W.Board for this
model are subject to change for improvement without prior
notice.

REF. NO

DESCRIPTION

POSITION POSITION

SW718 VOLUME DOWN ON—OFF
SW720 CD ON—OFF
SW721 TAPE ON—OFF
SW722 TUNING DOWN ON—OFF
SW723 MEMORY SET ON—OFF
SW724 REWIND ON—OFF
SW725 FAST FORWARD ON—OFF
SW726 PLAY ON—OFF
SW727 STOP ON—OFF
SW729 REC/PAUSE ON—OFF
SW730 TUNING UP ON—OFF
SW731 VIDEO ON—OFF
SW732 TUNER ON—OFF

REF. NO

DESCRIPTION

SW1 OPEN/CLOSE ON—OFF
SW2 CLAMP ON—OFF
SW3 DISC NUMBER ON—OFF
SW4 PICKUP IN ON—OFF
SW701 POWER ON—OFF
SW702 CLOCK ON—OFF
SW703 TIMER/SLEEP ON—OFF
SW712 DISC SKIP ON—OFF
SW713 OPEN/CLOSE ON—OFF
SW714 DIMMER ON—OFF
SW715 X-BASS ON—OFF
SW716 EQUALIZER ON—OFF
SW717 VOLUME UP ON—OFF

TYPES OF TRANSISTOR AND LED

(1) (2) (3)

(S) (G) (D)

E C B

FRONT

VIEW

KTA1266 GR
KRC102 M
KRC104 M
KTA1271 Y
KTA1274 Y
2SC1845 F

KTA1273 Y
KTC3203 Y
KTC3199 GR
KRA107 M
KRC107 M
KTC3194 Y

SLR342VCJ1

FRONT
VIEW

CD-BA250/CD-BA2600

– 38 –

T

T

DATA

DATACK

LRSY

Stopped

CH1=2V

DC 10:1

CH2=2V

DC 10:1

CH3=2V

DC 10:1

5us/div

(5us/div)

NORM:100kS/s

1

2

3

=Record Length=

Smoothing : ON CH1 : 0.00V

CH2 : 0.00V

Main : 5K
Zoom : 100

Mode : AUTO
Type : EDGE CH3
Delay : 0.0ns
Hold off : 0.2µs

CH3 : 0.00V
CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH3
v/DIV
2 V

1999/04/05 20:50:17

10

IC1 58

IC1 59

IC1 60

11

12

T

T

DOUT

Stopped

CH1=2V

DC 10:1

500ns/div

1999/04/07 09:25:28

(500ns/div)

NORM:200MS/s

1

=Record Length=

Smoothing : ON CH1 : 0.00V

CH2 : 0.00V

Main : 1K
Zoom : 100

Mode : NORMAL
Type : EDGE CH1
Delay : 2.887ms
Hold off : 0.2µs

CH3 : 0.00V
CH4 : 0.00V

BW : FULL

=Trigger=

=Filter= =Offset=

9

IC1 39

T

FDO

PDO2

PDO1

Stopped

CH1=500mV

DC 10:1

CH3=1V

DC 10:1

CH4=1V

DC 10:1

500ms/div

(500ms/div)

NORM:20kS/s

1

4

3

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.0V

Main : 100K
Zoom : 2K

Mode : AUTO
Type : EDGE CH2
Delay : 0.0ns
Hold off : 0.2µs

CH3 : 0.00V
CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH1
v/DIV
500mV

1999/04/05 17:33:17

1

IC1 21

7

IC1 73

8

IC1 74

T

T

FDO

SPDO

Stopped

CH1=200mV

DC 10:1

CH2=500mV

DC 10:1

500ms/div

1999/04/07 09:51:15

(500ms/div)

NORM:20kS/s

2

1

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.000V

Main : 100K
Zoom : 2K

Mode : NORMAL
Type : EDGE CH2
Delay : 2.924ms
Hold off : 0.2µs

CH3 : 0.00V
CH4 : 0.00V

BW : FULL

=Trigger=

=Filter= =Offset=

1

IC1 21

6

IC1 22

T

T

TE

DRF

Stopped

CH1=10V

DC 10:1

CH2=1V

DC 10:1

100ms/div

(100ms/div)

NORM:100kS/s

2

1

=Record Length=

Smoothing : ON CH1 : 0.0V

CH2 : 0.00V

Main : 100K
Zoom : 2K

Mode : NORMAL
Type : EDGE CH1
Delay : 2.924ms
Hold off : 0.2µs

CH3 : 0.00V
CH4 : 0.00V

BW : FULL

=Trigger=

=Filter= =Offset=

3

IC1 67

4

IC1 15

Vp-p=1.0V~1.3V

0.5mV/div,0.5µsec/div

5

IC1 4

T

FDO

DRF

TE

Stopped

CH1=500mV

DC 10:1

CH2=10V

DC 10:1

CH3=1V

DC 10:1

500ms/div

(500ms/div)

NORM:20kS/s

1

2

3

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.0V

Main : 100K
Zoom : 2K

Mode : AUTO
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2µs

CH3 : 0.00V
CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

-3div -1div 0div +1div +3div

CH Position To

CH2
Position

0.20div

1

IC1 21

3

IC1 67

4

IC1 15

T

FDO

TDO

Stopped

CH1=500mV

DC 10:1

CH3=500mV

DC 10:1

500ms/div

(500ms/div)

NORM:20kS/s

1

3

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.0V

Main : 100K
Zoom : 2K

Mode : AUTO
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2µs

CH3 : 0.000V
CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH1
v/DIV
500mV

1

IC1 21

2

IC1 20

WAVEFORMS OF CD CIRCUIT

– 39 –

CD-BA250/CD-BA2600

HOW TO USE

CAUTION

Cleaning fluid

Cleaner disc

Using the brush in the cleaner cap, apply 1 or 2 drops of the cleaning fluid to the
brush on the CD cleaner disc which has the mark next to it.
Place the CD cleaner disc onto the CD disc tray with the brush side down,then
press the play button.
You will hear music for about 20 seconds and the CD player will automatically stop.
If it continuous to turn, press the stop button.

1.

2.

3.

The CD lens cleaner should be effective for 30-50 operations, however if the
brushes become worn out earlier then please the cleaner disc.
If the CD cleaner brushes become very wet then wipe off any excess fluid with a soft
cloth.
Do not drink the cleaner fluid or allow it to come in contact with the eyes. In the
event of this happening then drink and / or rinse with clean water and seek medical
advice.
The CD cleaner disk must not be used on car CD players or on computer CD-ROM
drives.
All rights reserved.Unauthorized duplicating, broadcasting and renting this product is
prohibited by law.

Parts code

1. CD optical pickup Lens cleaner disc UDSKA0004AFZZ

TROUBLE SHOOTING

When the CD does not function

When the CD section does not operate when the objective lens of the optical pickup is dirty, this section may not operate. Clean
the objective lens, and check the playback operation. When this section does not operate even after the above step is taken, check
the following items.
Remove the cabinet and follow the trouble shooting instructions.
"Track skipping and/or no TOC (Table Of Contents) may be caused by build up of dust other foreign matter on the laser pickup
lens. Before attempting any adjustment make certain that the lens is clean. If not, clean it as mentioned below."

Turn the power off.
Gently clean the lens with a lens cleaning tissue and a small amount of isopropyl alcohol.
Do not touch the lens with the bare hand.

When a CD cannot be played

1. "E-CD01" is displayed.

(1) Check the power to IC1 (LC78645E), the presence of the clock signal (33.8688 MHz) and the status of the RESET terminal
(pin 66 on IC1).
(2) Does the pickup move to the PICKUP-IN Switch (SW4) position?

If (1) and (2) are OK, check the system microcomputer (especially the communication line with the DSP).

2. Pressing the CD operation key is accepted, but playback does not occur.

(1) Focus-HF system check
(2) Tracking system check
(3) Spin system check
(4) PLL system check
(5) Others

CD-BA250/CD-BA2600

– 40 –

Vp-p=1.0V~1.3V

0.5mV/div,0.5µsec/div

T

FDO

DRF

TE

Stopped

CH1=500mV

DC 10:1

CH2=10V

DC 10:1

CH3=1V

DC 10:1

500ms/div

(500ms/div)

NORM:20kS/s

1

2

3

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.0V

Main : 100K
Zoom : 2K

Mode : AUTO
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2µs

CH3 : 0.00V
CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

-3div -1div 0div +1div +3div

CH Position To

CH2
Position

0.20div

T

FDO

TDO

Stopped

CH1=500mV

DC 10:1

CH3=500mV

DC 10:1

500ms/div

(500ms/div)

NORM:20kS/s

1

3

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.0V

Main : 100K
Zoom : 2K

Mode : AUTO
Type : EDGE CH1
Delay : 0.0ns
Hold off : 0.2µs

CH3 : 0.000V
CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH1
v/DIV
500mV

If the level is not normal.

1. Is focus servo activated ?

(Waveform drawing Figure 40-2)

Pins 7~12, 79 and 80 on IC1
Check the laser diode driver Q1 peripheral circuit.

When a disc is loaded, start playback operation.

2. Does DRF change from "L" to "H" ?

Is the disc rotating ?

3. Is the HF waveform normal ? (Waveform drawing
Figure 40-3)

Check the spin system.

If the disc is spinning and a HF waveform is generated,
DRF will go H.

Figure 40-1

Check the laser diode driver Q1 peripheral circuit.

(1) Focus-HF system check

Although a CD is inserted and the cover is closed, "NO
DISC" is displayed.

1. Does the pickup move to the PICKUP-IN Switch (SW4)
position ?

Sled motor (M2)

Press the OPEN/CLOSE switch (SW1) without inserting a
disc, and try starting the playback operation.

2. Does the focus (lens) move up and down ?

(Waveform drawing Figure 40-1).

Check the focus peripheral circuit.

3. Is the laser lit ?

Spindle motor (M1).

4. Is the turntable rotating ?

Figure 40-2

Figure 40-3

Yes

Yes

Yes

No

No

No

No

No

No

No

Yes

Yes

No

– 41 –

CD-BA250/CD-BA2600

T

T

FDO

SPDO

Stopped

CH1=200mV

DC 10:1

CH2=500mV

DC 10:1

500ms/div

1999/04/07 09:51:15

(500ms/div)

NORM:20kS/s

2

1

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.000V

Main : 100K
Zoom : 2K

Mode : NORMAL
Type : EDGE CH2
Delay : 2.924ms
Hold off : 0.2µs

CH3 : 0.00V
CH4 : 0.00V

BW : FULL

=Trigger=

=Filter= =Offset=

T

T

TE

DRF

Stopped

CH1=10V

DC 10:1

CH2=1V

DC 10:1

100ms/div

(100ms/div)

NORM:100kS/s

2

1

=Record Length=

Smoothing : ON CH1 : 0.0V

CH2 : 0.00V

Main : 100K
Zoom : 2K

Mode : NORMAL
Type : EDGE CH1
Delay : 2.924ms
Hold off : 0.2µs

CH3 : 0.00V
CH4 : 0.00V

BW : FULL

=Trigger=

=Filter= =Offset=

The tracking servo is not activated.
Check the peripheral circuits at pins 14, 15 and 20 on IC1, and
CNS1A/B.

If the waveform shown in Figure 41-1 appears and soon after
NO DISC appears. ?

(2) Tracking system check

Check the TE waveform at pin 15 on IC1.

A normal jump operation cannot be completed or the beginning of
the track cannot be found.
Check the around pin 20 on IC1.

"Initialization" is possible, but play is not possible. ?

Data cannot be read. Check the VCO-PLL system.

"Initialization" is not possible.

Figure 41-1

Figure 41-2

Press the OPEN/CLOSE switch without inserting a disc, and
then try starting the play operation.

(3) Spin system check

The spin driver circuit is OK.

1. The turntable rotates a little. ? (Waveform drawing
Figure 41-2)

Check around pin 22 on IC1, pins 15 and 16 on IC3, and CNS3A/B.

2. The turntable doesn't rotate.

No

Yes

No

Yes

Yes

No

CD-BA250/CD-BA2600

– 42 –

T

T

DOUT

Stopped

CH1=2V

DC 10:1

500ns/div

1999/04/07 09:25:28

(500ns/div)

NORM:200MS/s

1

=Record Length=

Smoothing : ON CH1 : 0.00V

CH2 : 0.00V

Main : 1K
Zoom : 100

Mode : NORMAL
Type : EDGE CH1
Delay : 2.887ms
Hold off : 0.2µs

CH3 : 0.00V
CH4 : 0.00V

BW : FULL

=Trigger=

=Filter= =Offset=

T

FDO

PDO2

PDO1

Stopped

CH1=500mV

DC 10:1

CH3=1V

DC 10:1

CH4=1V

DC 10:1

500ms/div

(500ms/div)

NORM:20kS/s

1

4

3

=Record Length=

Smoothing : ON CH1 : 0.000V

CH2 : 0.0V

Main : 100K
Zoom : 2K

Mode : AUTO
Type : EDGE CH2
Delay : 0.0ns
Hold off : 0.2µs

CH3 : 0.00V
CH4 : 0.00V

BW : FULL

=Trigger==Filter= =Offset=

CH1
v/DIV
500mV

1999/04/05 17:33:17

Is pin 52 (C2F) on IC1 "L" ?

Yes

No

The HF waveform is normal and the time is displayed
normally, but no sound is produced. Or the sound
has dropouts.

(5) Others

There are too many error flags on a damaged disc which
makes error correction impossible.

Check again using a known good disc.

1. When playing at normal speed
Check the peripheral circuit at pin 39 (DOUT) on IC1 and
the waveform (Figure 42-2).

If OK, Check the unit.

When a disc is loaded, start play operation.

(4) PLL system check

The HF waveform is normal, but the TOC data cannot be
read.

Check the PDO waveform. (Figure 42-1)

Check around pins 73~78 on IC1.

Figure 42-1

Figure 42-2

– 43 –

CD-BA250/CD-BA2600

FUNCTION T ABLE OF IC

IC1 VHiLC78645E-1: CD Servo (LC78645E) (1/2)

1 SLC0 Output – Control output.
2 SLCIST Input –

Resistor connection terminal for SLCO output current

setting.
3 EFMIN Input – RF signal input terminal.
4 RF Output – RF signal monitor terminal.
5 RFVDD Input – RF power terminal.
6 RFVSS – – RF earth terminal. To be connected to 0V.
7 FIN1 Input – A+C signal input terminal.
8 FIN2 Input – B+D signal input terminal.
9 TIN1 Input – E signal input terminal.
10 TIN2 Input – F signal input terminal.
11 VREF Output RFVDD/2 VREF voltage output terminal.
12 REFI Input – Reference supply setting terminal.
13* FE Output ZHI FE signal monitor terminal.
14 TEC Output – LPF capacitor connection terminal for TE signal.
15* TE Output ZHI TE signal monitor terminal.
16* RFMON Output ZHI RF internal signal monitor terminal.
17 JITTC – – Capacitor connection terminal for jitter detection.
18 ADAVDD Input – Power terminal for servo A/D, D/A.
19 ADAVSS – – Earth terminal for serve A/D, D/A. To be connected to 0V.
20 TD0 Output ADAVDD/2 Output terminal for tracking control. D/A output.
21 FD0 Output ADAVDD/2 Output terminal for focus control. D/A output.
22 SPD0 Output ADAVDD/2 Output terminal for spindle control. D/A output.
23 SLD0 Output ADAVDD/2 Output terminal for sled control. D/A output.
24* GPDAC Output ADAVDD/2 Servo D/A general-purpose output terminal.
25 CONT4 Input/Output Input Mode General-purpose I/O terminal 4.
26 CONT5 Input/Output Input Mode General-purpose I/O terminal 5.
27* SBCK/CONT6 Input/Output Input Mode General-purpose I/O terminal 6 or

Subcode reading clock input terminal.

28 SBCK/FG Input – Subcode reading clock input terminal/FG signal input terminal/external

emphasis setting terminal. Terminal functions are set by commands. When

not used, connect to 0V.
29* DEFECT Output L Defect terminal.
30* V/*P Output H Auto switching monitor output terminal for rough servo phase control. “H”:

rough servo, “L”: phase servo.
31* FSEQ Output L Sync signal detection output terminal.

The status changes to “H” when the sync signal detected in EFM and the

sync signal of internal generation are identified.
32* MONI1 Output L Internal signal monitor terminal 1.
33* MONI2 Output L Internal signal monitor terminal 2.
34* MONI3 Output L Internal signal monitor terminal 3.
35* MONI4 Output L Internal signal monitor terminal 4.
36* MONI5 Output L Internal signal monitor terminal 5.
37 VSS – – Digital system earth terminal. To be connected to 0V.
38 VDD Input – Digital system power terminal.
39 DOUT Output L Digital OUT output terminal. (EIAJ format)
40 TEST Input L Input terminal for test. To be connected to 0V.
41 LVDD Input – Power supply for Left channel.
42 LCH0 Output LVDD/2 Left channel output.
43 LVSS – – GND for Left channel. Must be connected to 0V.

Pin No.

Function

Terminal Name

Input/Output

Setting in Reset

Controlled by commands from the
microcomputer. When not used, set
them as input terminals and connect
to 0V, or set them as output
terminals and leave open.

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Left channel

D/A converter

For slice level

control.

CD-BA250/CD-BA2600

– 44 –

44 RVSS – – GND for Right channel. Must be connected to 0V.
45 RCHO Output LVDD /2 Right channel output.
46 RVDD Input – Power supply for Right channel.
47 XVDD – – Power supply for crystal oscillator.
48 XOUT Output – Connected for the 33.8688MHz crystal oscillator ciement.
49 XIN Input –
50 FSX/16MIN Input/Output Input 7.35kHz Synchronization signal monitor port.

or Clock input port for Digital filter & D/A

51 XVSS – – Crystal GND for crystal oscillator. Must be connected to 0V.

Oscillator
52* C2F Output H C2 FLAG monitor port.
53* EFLG Output L C1, C2 error corrected monitor port.
54* 16MOUT Output Clock 16.9344MHz output port.
55 ASLRCK Input – Word clock input port.

(If this port does not use, must be connect to 0V.)

56 ASDACK Input – Bit clock input port.

(If this port does not use, must be connect to 0V.)

57 ASDFIN Input –

Left/Right channel data input port.

(If this port does not use, must be connect to 0V.)
58* LRSY Output L Word clock output port.
59* DATACK Output L Digital data Bit clock output port.
60* DATA Output L Left/Right channel data output port.
61 CE Input – Chip enable signal input port.
62 CL Input –

Microcomputer

Data transfer clock input port.
63 DI Input – Interface Data input port.
64 DO Output (H) Data output port. (N-ch. open drain output.)
65 *WRQ Output H Interruption signal output.
66 *RES Input – Chip reset signal input port.

This port must be set LOW after first applied power on.
67 DRF Output L Focus detection output port.
68 VDD5 Input — Power supply for Microprocessor.
69 VSS – – GND for digital circuit. Must be connected to 0V.
70 CONT3 Input/Output Input General purpose port 1.

71 CONT2 Input/Output Input General purpose port 2.

72* CONT1 Input/Output Input General purpose port 3.

73 PDO1 Output — Internal VCO control phase comparator output port 1.
74 PDO2 Output Input Internal VCO control phase comparator output port 2.
75 VVSS — — GND for internal VCO.Must be connected to 0V.
76 PCKIST Input — PDO output current adjustment resistor connection port.
77 VVDD Input — Power supply for internal VCO.
78 FR Input — VCO frequency range adjustment port.
79 LDS Input — LASER power detected signal input port.
80 LDD Output — LASER power control signal output port.

IC1 VHiLC78645E-1: CD Servo (LC78645E) (2/2)

Pin No.

Function

Terminal Name

Input/Output

Setting in Reset

Right channel
D/A converter

Crystal

Oscillator

Anti-shock

Controlled with serial data command from micro­computer. When not used, General purpose input/
output terminal 7. set it as the input terminal and open
it by connecting to 0V, or set it as the output terminal
and open it.

PLL

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Be sure to supply the same potential to each power terminal. (VVDD,ADAVDD,VDD,LVDD,RVDD,XVDD)

Terminal witch is controlled by the power terminal (VDD5V) for a microcomputer interface :
CE (61pin), CL (62pin), DI (63pin), DO (64pin), WRQ (65pin), RES 66pin), DRF (67pin)

– 45 –

CD-BA250/CD-BA2600

Figure 45 BLOCK DIAGRAM OF IC

IC1 VHiLC78645E-1: CD Servo (LC78645E)

1
2
3
4
5
6
7
8

9
10
11
12
13
14
15
16
17
18
19
20

21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40

80 79 78 77 76 75 74 73 72 71 70 69 68 67 66 65 64 63 62 61

60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41

SLC0

SLCIST

EFMIN

RF

RFVDD

RFVSS

FIN1
FIN2
TIN1
TIN2

VREF

REFI

FE

TEC

TE

RFMON

JITTC
ADAVDD
ADAVSS

TD0

FD0

SPD0

SLD0

GPDAC

CONT4

CONT5

SBCK/CONT6

SBCK/FG

DEFECT

V/*P

FSEQ

MONI1

MONI2

MONI3

MONI4

MONI5

(3.3V)VSS

VDD

DOUT

TEST

LDD

LDSFRVVDD

PCKIST

VVSS

PD02

PD01

CONT1

CONT2

CONT3

VSS

VDD5

DRF

*RES

*WRQDODICLCE

DATA
DATACK
LRSY
ASDFIN
ASDACK
ASLRCK
16MOUT
EFLG
C2F
XVSS
FSX/16MIN
XIN
XOUT
XVDD
RVDD
RCH0
RVSS
LVSS
LCH0
LVDD

LC78645E

+
–

+
–

+
–

+
–

–

–

+

+

MIX

LPF

LPF

LPF

TBAL

TBAL

RAM

LEVEL SET

AGC EQ

SW

PH

BH

+
–

+
–

+
–

+

–

MONI
CONT

A/D

SERVO PROCESSOR

TRACK JUMP

AUTO ADJUST

JITTER

DETECT

1bit DAC

8FS

DIGITAL FILTER

GENERAL-PURPOSE

PORTS

COMMAND

INTERFACE

CLOCK

GENERATOR

CLV,CAV

CONTROL

PLL

VCEC

SLICE LEVEL

CONTROL

APC

S/H

D/A

SW

DRF

RUPTURE DEFECT

FRAME SYNC

DETECT,PROTECT INSERT,

EFN DECODE

VDD

SUBCODE DECODE CRC

MONITOR SIGNAL SELECTOR

RAM

ERROR

CORRECTION

AUDIO CD

AUDIO OUT

SERIAL

OUT

EXTERNAL

AUDIO IN

INTERPOLATION

MUTE

ATTENUATION

DEEMPHSIS

LPF

FIN1

FIN2

TIN1

TIN2

REF1

DETECT

ADIN

ADAVDD

ADAVSS

JITTC

SLC0

EFMIN

SLCIST

PCK

PDO1
PDO2

FR

PCKIST

VVDD
VVSS

SBCK/FG

XIN

XOUT

16MOUT

XVDD
XVSS

*RES

*WRQ

CL
CE

DI

DO

VDD5V

CONT1, 2, 3

TEST

CONT4, 5

SBCK/CONT6

LVDD

LVSS

LCHO

RCHO

RVDD

RVSS

ASDFIN

ASDQCK

ASLRCK

DATA

DATACK

LRSY

DOUT

EFLG

C2F

FSK/16MIN

MONI1~5

VSS

VDD

V/*P

FSEQ

DRF

GPDAC

SPD0

SLD0

TD0

FD0

LDS

LDD

VREF

RFMON

RFVSS

RFVDD

RF

TEC

TE

FE

CD-BA250/CD-BA2600

– 46 –

1 VDD VDD Input (+) POWER SUPPLY
2 P37 -20d BATT Output -20dB ATTENUATOR
3 P36 NO USE Output GND
4 P35 T_BIAS Output TAPE RECORD BIAS
5 P34 T_T1/T2 Output TAPE T1/T2 CHANGE
6 P33 REC/PLAY Output TAPE REC/PLAY CHANGE
7 P32 RES OUT Output CD DSP RESET&MPEG MICROCOMPUTER RESET
8 P31 DRF Input CD RF LEVEL DETECTION
9 P30 WRQ Input CD DSP WRITE REQUEST
10 RESET RESET Input RESET
11 X2 X2 Output MAIN CLOCK
12 X1 X1 Input MAIN CLOCK
13 VPP/IC VPP/IC — GND
14* XT2 XT2 — OPEN
15 P04 SPN Input TUNER SPAN CHANGE
16 VDD VDD — (+) POWER SUPPLY
17 P27 CD CLK Output CD DSP CLOCK
18 P26 CD DI Output CD DSP COMMAND
19 P25 CD DO Input CD DSP CODE Q OUT/
20 P24 CD CE Output CD DSP CE OUTPUT
21 P23 CE Output CE OUTPUT
22 P22 CLK Output CLOCK OUTPUT
23 P21 DI Output DATA OUTPUT
24 P20 DO Input DATA INPUT
25 AVSS AVSS — ANALOG GROUND

26 ANI7

O/C SW Input CD OPEN/CLOSE SWITCH
DISC NO SW Input CD DISC NUMBER SWITCH

27 ANI6 TUNER SM Input TUNER SIGNAL METER INPUT

DSA ACK Input/Output DSA ACR
28 ANI5 SPEANA2 Input SPEANA DATA INPUT 16 kHz
29 ANI4 SPEANA1 Input SPEANA DATA INPUT 1 kHz
30 ANI3 SPEANA0 Input SPEANA DATA INPUT 63 kHz
31-33 ANI2-ANI0 KEY 2-KEY 0 Input KEY INPUT
34 AVDD AVDD Input ANALOG VDD
35 AVREF AVREF Input ANALOG REF VOLTAGE
36 INTP3 P-IN Input POWER FAILURE DETECT
37 P02 JOG 1 Input JOG VOLUME INPUT 1
38 P01 JOG 0 Input JOG VOLUME INPUT 0
39 INTP0 REMOCON Input REMOCON INPUT
40 VSS VSS — GROUND VOLTAGE
41 P74 SMUTE Output SYSTEM MUTE CONTROL
42 P73 T_SOL B Output TAPE 2 SOLENOID CONTROL
43 P72 T_SOL A Output TAPE 1 SOLENOID CONTROL
44 P71 T_MOTOR Output TAPE MOTOR CONTROL
45 P70 TIMER LED Output TIMER LED CONTROL
46 VDD VDD — (+) POWER SUPPLY
47* P127 AC RLY_CONT Output AC RELAY CONTROL
48 P126 SP RLY Output SPEAKER OUTPUT RELAY CONTROL
49 P125 SP DET Input SPEAKER OUTPUT DETECTION
50 P124 T1 RUN Input TAPE 1 RUN PULSE INPUT
51 P123 T2 RUN Input TAPE 2 RUN PULSE INPUT
52 P122 CD CLAMP SW Input CD CHANGER CLAMP SWITCH

IC701 RH-iX0399AWZZ: System Microcomputer (IX0399AW) (1/2)

Port Name

Terminal Name

Pin No.

Input/Output

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

Function

– 47 –

CD-BA250/CD-BA2600

53 P121 NO USE Input GND
54 P120 PLAY SW_B Input PLAY SWITCH FOR T2
55 P117 FPA Input TAPE 2 A-SIDE FULL PROOF
56 P116 FPB Input TAPE 2 B-SIDE FULL PROOF
57 P115 MIC SW Input MIC SWITCH
58* P114 LCK0 Output LED DRIVER LCK
59 P113

DISTOUT

Output DESTINATION OUTPUT
60 FIP39 NO USE Output GND
61* FIP38 KARAOKE LATCH Output KARAOKE LATCH (WHEN NOT USED. CONNECT TO 0V)
62 FIP37 NO USE Output GND

MPEG_POW Output MPEG POWER CONTROL

63 FIP36 NO USE Output GND

RDS RST/ESS_ACK Output RDS FAN RESET

64 FIP35 NO USE Input GND

RDS RDDA/ESS_STB Input RDS TRANSMIT DATA INPUT/DSA STROBE

65 FIP34 NO USE Output GND

RDS RDCL/ESS_DI Output RDS CLOCK /DSA DATA OUTPUT

66 FIP33 NO USE Input GND

RDS READY/ESS_DO Input RDS READY/DSA DATA INPUT

67 P103 DIST3 Input DESTINATION INPUT

FIP32 P22 Output FL DISPLAY DRIVER

68 P102 DIST2 Input DESTINATION INPUT

FIP31 P21 Output FL DISPLAY DRIVER

69 P101 DIST1 Input DESTINATION INPUT

FIP30 P20 Output FL DISPLAY DRIVER

70 P100 DIST0 Input DESTINATION INPUT

FIP29 P19 Output FL DISPLAY DRIVER
71-78 FIP28-FIP21 P14-P7 Output FL DISPLAY DRIVER
79 VLOAD VLOAD Input FL DRIVER (-) POWER SUPP. -30V
80-89 FIP20-FIP11 P10-P1 Output FL DISPLAY DRIVER
90-100 FIP10-FIP0 G11-G1 Output FL DISPLAY DRIVER

IC701 RH-iX0399AWZZ: System Microcomputer (IX0399AW) (2/2)

Port Name

Terminal Name

Pin No.

Input/Output

Function

In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.

CD-BA250/CD-BA2600

– 48 –

IC601 VHiLC75341/-1: Audio Processor (LC75341)

Figure 48 BLOCK DIAGRAM OF IC

19

20

21

222324

123

4

5

6

7

8

9

10 11 12 13 14 15 16

18

17

LVref

RVref

CONTROL

CIRCUIT

CONTROL

CIRCUIT

CONTROL

CIRCUIT

LOUT

LBASS

0.1uF

LIN

LSEL0

L4

L3

L2 L1

R1 R2

R3 R4

RSEL0

R1N

RTRELTRE

RBASS

0.1uF

ROUT

Yref

VDD

CL

DI

CE

YSS

CCB

INTERFACE

CD

Tuner

Tape

Video

24 23 22 21 20 19 18 17 16 15 14 13

123456789101112

LC75341

DI

CE

VSS

LOUT

LBASS

LTRE

LIN

LSEL0

L4

L3

L2

L1

CL

VDD

VREF

ROUT

RBASS

RTRB

RIN

RSEL0R4R3

R2

R1

– 49 –

CD-BA250/CD-BA2600

FL701 VVKBJ11LM02T1: FL Display

FL DISPLAY

S1

9G

B1 B2 B3 B4 B5 B6 B7

B7 B6 B5 B4 B3 B2 B1

S5

1G 2G 3G 4G 5G 6G 7G 8G

11G 10G

S1

B8

B9
B10
B11
B12
B13
B14

S1S1

S1

S1

S4

S3

S2

col

f

a

bk

j

h

mg

c

n

e

r

p

Dp

d

B21

B20

B19

B18

B17

B16

B15

B1

B2

B3

B4

B5

B6

B7

11G

S1
B1
B2
B3
B4
B5
B6
B7

10G

S1
B1
B2
B3
B4
B5
B6
B7
B8

B9
B10
B11
B12
B13
B14
B15
B16
B17
B18
B19
B20
B21

9G
S1
B1
B2
B3
B4
B5
B6
B7

8G
Dp

d
c
n
p

r

e

m

g

b
k

j

h

f

a
S2
S3
S4
S5

7G
Dp

d
c
n
p

r

e

m

g

col

b
k

j

h

f

a
S2
S3
S4
S5

6G
Dp

d

c
n
p

r

e

m

g

b

k

j

h

f

a

S2
S3
S4
S5

5G
Dp

d

c
n
p

r
e

m

g

b

k

j

h

f
a

S2
S3
S4
S5

4G
Dp

d

c
n
p

r

e

m

g

b

k

j

h

f

a

S2
S3
S4
S5

3G

Dp

d
c
n
p

r

e

m

g

b
k

j

h

f

a
S2
S3
S4
S5

2G
Dp

d
c
n
p

r

e

m

g

b
k

j

h

f

a
S2
S3
S4
S5

1G
Dp

d
c
n
p

r

e

m

g

b
k

j

h

f

a
S2
S3
S4
S5

P1
P2
P3
P4
P5
P6
P7
P8

P9
P10
P11
P12
P13
P14
P15
P16
P17
P18
P19
P20
P21
P22

(Hiper)

(Lower)

CD-BA250/CD-BA2600

– 50 –

–– MEMO ––

– 51 –

CD-BA250/CD-BA2600

PARTS GUIDE

NOTE:

Parts marked with “ ” are important for maintaining the safety of the set.
Be sure to replace parts with specified ones for maintaining the safety and performance of the set.

“HOW TO ORDER REPLACEMENT PARTS”

To have your order filled promptly and correctly, please furnish the
following information.

1. MODEL NUMBER 2. REF. No.

3. PART NO. 4. DESCRIPTION

MARK: SPARE PARTS-DELIVERY SECTION

For U.S.A. only

Contact your nearest SHARP Parts Distributor to order.

For location of SHARP Parts Distributor,
Please call Toll-Free;
1-800-BE-SHARP

Explanation of capacitors/resistors parts codes

Capacitors

VCC ....................... Ceramic type

VCK........................ Ceramic type

VCT........................ Semiconductor type

VC • • MF ............... Cylindrical type (without lead wire)

VC • • MN............... Cylindrical type (without lead wire)

VC • • TV................ Square type (without lead wire)

VC • • TQ ............... Square type (without lead wire)

VC • • CY ............... Square type (without lead wire)

VC • • CZ ............... Square type (without lead wire)

VC • • • • • • • • • J .. The 13th character represents capacity difference.

("J" ±5%, "K" ±10%, "M" ±20%, "N" ±30%,
"C" ±0.25 pF, "D" ±0.5 pF, "Z" +80-20%.)

If there are no indications for the electrolytic capacitors, error is ±20%.

Resistors

VRD ....................... Carbon-film type

VRS........................ Carbon-film type

VRN ....................... Metal-film type

VR • • MF ............... Cylindrical type (without lead wire)

VR • • MN............... Cylindrical type (without lead wire)

VR • • TV................ Square type (without lead wire)

VR • • TQ ............... Square type (without lead wire)

VR • • CY ............... Square type (without lead wire)

VR • • CZ ............... Square type (without lead wire)

VR • • • • • • • • • J .. The 13th character represents error.

("J" ±5%, "F" ±1%, "D" ±0.5%.)

If there are no indications for other parts, the resistors are ±5%
carbon-film type.

CD-BA250 Mini Component System consisting of
CD-BA250 (main unit) and CP-BA250 (speaker system).

MINI COMPONENT SYSTEM

MODEL CD-BA250

CD-BA2600 Mini Component System consisting of
CD-BA2600 (main unit) and CP-BA2600 (speaker system).

MINI COMPONENT SYSTEM

MODEL CD-BA2600

PRICE

RANK

DESCRIPTION

NO.

PARTS CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BA250/CD-BA2600

CD-BA250/CD-BA2600

– 1 –

INTEGRATED CIRCUITS

IC1 VHILC78645E-1 J AY CD Servo,LC78645E
IC2 VHIM63001FP-1 J AX Focus/Tracking/Spin/Sled

Driver,M63001FP

IC101 VHIAN7345K/-1 J AM Playback and Record/Playback

Amp.,AN7345K
IC301 VHITA7358AP-1 J AG FM Front End,TA7358AP
IC302 VHILC72131/-1 J AP PLL (Tuner),LC72131
IC303 VHILA1832S/-1 J AN FM IF Det./FM Mpx./AM IF,

LA1832S
IC561,562 VHIKIA4558P-1 J AC Ope Amp.,KIA4558P
IC601 VHILC75341/-1 J AM Audio Processor,LC75341
IC701 RH-IX0399AWZZ J AW System Microcomputer,

IX0399AW
IC901 VHISTK4029S-1 J BA Power Amp.,STK4029S
IC902 VSKTC2026//-1 J AF Silicon,NPN,KTC2026
IC903 VHIKIA7810AP1 J AF Voltage Regulator,KIA7810AP
IC904 VHIKIA7805AP1 J AF Constant Voltage Regulator,

KIA7805AP

TRANSISTORS

Q1 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q2 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
Q3 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q101~104 VS2SC1845F/-1 J AC Silicon,NPN,2SC1845 F
Q105~108 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q109 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q110 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
Q111 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
Q112 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q113,114 VSKRC104M//-1 J AC Digital,NPN,KRC104 M
Q302 VSKTC3194Y/-1 J AD Silicon,NPN,KTC3194 Y
Q360 VSKTA1266GR-1 J AB Silicon,PNP,KTA1266 GR
Q601,602 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q701~703 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q706 VSKTA1273Y/-1 J AE Silicon,PNP,KTA1273 Y
Q707,708 VSKTA1271Y/-1 J AC Silicon,PNP,KTA1271 Y
Q709 VSKRC102M//-1 J AC Digital,NPN,KRC102 M
Q901 VSKTA1274Y/-1 J AE Silicon,PNP,KTA1274 Y
Q902~905 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR
Q906 VSKTC3203Y/-1 J AC Silicon,NPN,KTC3203 Y
Q907 VSKRC107M//-1 J AC Digital,NPN,KRC107 M
Q908 VSKRA107M//-1 J AE Digital,PNP,KRA107 M
Q914 VSKTC3199GR-1 J AB Silicon,NPN,KTC3199 GR

DIODES

D1,2 VHDDS1SS133-1 J AB Silicon,DS1SS133
D301,302 VHDDS1SS133-1 J AB Silicon,DS1SS133
D305 VHDDS1SS133-1 J AB Silicon,DS1SS133
D561~563 VHDDS1SS133-1 J AB Silicon,DS1SS133
D690,691 VHDDS1SS133-1 J AB Silicon,DS1SS133
D703 VHDDS1SS133-1 J AB Silicon,DS1SS133
D709~716 VHDDS1SS133-1 J AB Silicon,DS1SS133
D901 VHDTS6B04GM-1 J AP Silicon,TS6B04GM
D902~908 VHDDS1N404S-1 J AB Silicon,DS1N404S
D911~916 VHDDS1SS133-1 J AB Silicon,DS1SS133
LED701 VHPSLR342VCJ1 J AC LED,Red,SLR342VCJ1
ZD1 VHEDZ3R3BSB-1 J AB Zener,3.3V,DZ3.3BSB
ZD2 VHEDZ3R9BSB-1 J AC Zener,3.9V,DZ3.9BSB
ZD351 VHEDZ5R1BSB-1 J AC Zener,5.1V,DZ5.1BSB
ZD561 VHEDZ6R2BSB-1 J AC Zener,6.2V,DZ6.2BSB
ZD901 VHEDZ330BSD-1 J AC Zener,33V,DZ330BSB
ZD902 VHEDZ110BSB-1 J AB Zener,DZ110BSB
ZD903 VHEDZ6R2BSA-1 J AB Zener,6.2V,DZ6.2BSA
ZD904 VHEDZ130BSB-1 J AB Zener,DZ130BSB
ZD905 VHEDZ2R4BSB-1 J AB Zener,2.4V,DZ2.4BSB

FILTERS

BF301 RFILR0008AWZZ J AE Band Pass Filter
CF303 RFILF0124AFZZ J AD FM IF,10.7 MHz
CF351 RFILF0003AWZZ J AK FM IF
CF352 RFILA0009AWZZ J AE AM IF

TRANSFORMERS

1 PT801 RTRNP0350AWZZ J BE Power

T301 RCILB0065AWZZ J AC FM OSC.
T302 RCILI0017AWZZ J AB FM IF
T303 RCILA0052AWZZ J AE AM Tracking
T306 RCILB0067AWZZ J AD AM OSC.
T351 RCILI0019AWZZ J AD AM IF

COILS

L1 VP-XHR82K0000 J AC 0.82 µH
L103 VP-MK331K0000 J AB 330 µH,Choke
L312 RCILR0056AWZZ J AB FM RF
L351 VP-DH101K0000 J AB 100 µH,Choke
L701 VP-DH101K0000 J AB 100 µH,Choke
L920,921 RCILZ0137AFZZ J AA 0.29 µH

VARIABLE CAPACITORS

VD301 VHCSVC348S/-1 J AK Variable Capacitance,SVC348S
VD302,303 VHCSVC211C/-1 J AG Variable Capacitance,SVC211C

VIBRATORS

X351 92LCRSTL1425A J AF Crystal,456 kHz
X352 RCRSP0015AWZZ J AF Crystal,4.5 MHz
XL1 RCRM-0041AWZZ J AF Ceramic,33.8688 MHz
XL700 RCRSP0003AWZZ J AH Crystal,4.194304 MHz

CAPACITORS

C1 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C2 VCTYMN1CY103N J AA 0.01 µF,16V
C3 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C4 VCKYMN1HB102K J AA 0.001 µF,50V
C5 VCQYKA1HM473J J AB 0.047 µF,50V,Mylar
C6 VCTYPA1CX104K J AB 0.1 µF,16V
C7 VCKYMN1HB101K J AA 100 pF,50V
C8 VCTYMN1CX472K J AA 0.0047 µF,16V
C9 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C10 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C11 VCEAZA1HW224M J AB 0.22 µF,50V,Electrolytic
C12 VCCSPA1HL101J J AA 100 pF,50V
C13 VCTYMN1EF223Z J AA 0.022 µF,25V
C14 RC-EZY107AF1A J AB 100 µF,10V,Electrolytic
C16 VCEAEA0JW337M J AD 330 µF,6.3V,Electrolytic
C18 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C23,24 RC-EZY106AF1H J AB 10 µF,50V,Electrolytic
C25,26 VCTYMN1CX152K J AA 0.0015 µF,16V
C27 VCTYMN1EF223Z J AA 0.022 µF,25V
C28 VCKYMN1HB101K J AA 100 pF,50V
C30 VCKYMN1HB101K J AA 100 pF,50V
C32~34 VCKYMN1HB101K J AA 100 pF,50V
C35 VCQYKA1HM473J J AB 0.047 µF,50V,Mylar
C36 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C37 VCTYPA1CX104K J AB 0.1 µF,16V
C38 VCTYMN1CY103N J AA 0.01 µF,16V
C39 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C40 VCEAZA0JW227M J AC 220 µF,6.3V,Electrolytic
C41 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C42 VCTYMN1CY103N J AA 0.01 µF,16V
C44 VCKYMN1HB102K J AA 0.001 µF,50V
C48 VCKZPA1HF223Z J AA 0.022 µF,50V
C49 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C50 VCCCPA1HH220J J AA 22 pF (CH),50V
C51 VCTYBT1EF223Z J AA 0.022 µF,25V
C101,102 VCKYMN1HB561K J AA 560 pF,50V
C103,104 VCKYMN1HB181K J AA 180 pF,50V
C105,106 VCKYMN1HB561K J AA 560 pF,50V
C107~110 VCKYMN1HB331K J AA 330 pF,50V
C111,112 VCEAZA1EW107M J AB 100 µF,25V,Electrolytic
C113,114 VCTYPA1EX333K J AA 0.033 µF,25V
C115,116 VCKYMN1HB561K J AA 560 pF,50V
C117,118 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C119 VCKYPA1HB222K J AA 0.0022 µF,50V
C120 VCTYMN1CX222K J AA 0.0022 µF,16V
C121 VCTYMN1EF223Z J AA 0.022 µF,25V
C122 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
C123,124 VCKYMN1HB271K J AA 270 pF,50V

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BA250/CD-BA2600

C125,126 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C127,128 VCKZPA1HF223Z J AA 0.022 µF,50V
C129,130 VCTYMN1CX332K J AA 0.0033 µF,16V
C131,132 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C133 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C134 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic
C135 VCTYMN1EF223Z J AA 0.022 µF,25V
C136 VCKZPA1HF223Z J AA 0.022 µF,50V
C137 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C138 VCQPKA2AA822J J AA 0.0082 µF,100V,Polypropylene
C139 VCQYKA1HM393K J AB 0.039 µF,50V,Mylar
C140 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C141 VCEAZA1CW107M J AC 100 µF,16V,Electrolytic
C150 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C301 VCTYMN1CY103N J AA 0.01 µF,16V
C303 VCCCMN1HH100J J AA 10 pF (CH),50V
C304 VCTYMN1CY103N J AA 0.01 µF,16V
C305 VCCCMN1HH4R7C J AA 4.7 pF (CH),50V
C306 VCTYMN1EF223Z J AA 0.022 µF,25V
C307 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C308 VCCCMN1HH4R7C J AA 4.7 pF (CH),50V
C309 VCKYMN1HB102K J AA 0.001 µF,50V
C310 VCCCMN1HH150J J AA 15 pF (CH),50V
C311 VCCSMN1HL180J J AA 18 pF,50V
C312 VCTYMN1EF223Z J AA 0.022 µF,25V
C313 VCCSMN1HL220J J AA 22 pF,50V
C314,315 VCTYMN1CX472K J AA 0.0047 µF,16V
C316 VCTYMN1EF223Z J AA 0.022 µF,25V
C317 VCKYMN1HB102K J AA 0.001 µF,50V
C318 VCKYMN1HB101K J AA 100 pF,50V
C323 VCTYMN1EF223Z J AA 0.022 µF,25V
C324 VCCUMN1HJ3R9K J AA 3.9 pF (UJ),50V
C330 VCCSMN1HL150J J AA 15 pF,50V
C331 VCKZPA1HF473Z J AA 0.047 µF,50V
C332 VCTYMN1EF223Z J AA 0.022 µF,25V
C334 VCCSMN1HL220J J AA 22 pF,50V
C335 VCKYMN1HB561K J AA 560 pF,50V
C338 VCKYMN1HB102K J AA 0.001 µF,50V
C340 VCKYMN1HB102K J AA 0.001 µF,50V
C342 VCTYMN1EF223Z J AA 0.022 µF,25V
C350 VCKZPA1HF223Z J AA 0.022 µF,50V
C352 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C353,354 VCTYMN1EF223Z J AA 0.022 µF,25V
C355 VCCSMN1HL220J J AA 22 pF,50V
C356 VCKYMN1HB102K J AA 0.001 µF,50V
C357 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C358 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C361 VCTYMN1EF223Z J AA 0.022 µF,25V
C362 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
C363 VCTYMN1EF223Z J AA 0.022 µF,25V
C364 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic
C365 VCKZPA1HF223Z J AA 0.022 µF,50V
C366 VCKYMN1HB102K J AA 0.001 µF,50V
C367,368 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C369 VCCSMN1HL270J J AA 27 pF,50V
C370~372 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C373,374 VCTYPA1CX153K J AA 0.015 µF,16V
C380 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C381 VCCCMN1HH120J J AA 12 pF (CH),50V
C382 VCCCMN1HH150J J AA 15 pF (CH),50V
C384 VCKYMN1HB102K J AA 0.001 µF,50V
C385 VCTYMN1CY103N J AA 0.01 µF,16V
C386 VCKYMN1HB331K J AA 330 pF,50V
C387 VCTYMN1EF223Z J AA 0.022 µF,25V
C388 VCKYMN1HB102K J AA 0.001 µF,50V
C389 VCTYMN1EF223Z J AA 0.022 µF,25V
C391 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C392 VCKYMN1HB102K J AA 0.001 µF,50V
C393 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C394 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C395 VCTYMN1EF223Z J AA 0.022 µF,25V
C396 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C397 VCTYMN1EF223Z J AA 0.022 µF,25V
C398 VCEAZA1AW107M J AB 100 µF,10V,Electrolytic
C399 VCTYMN1EF223Z J AA 0.022 µF,25V
C561 VCKYPA1HB271K J AA 270 pF,50V
C562 VCKYMN1HB271K J AA 270 pF,50V
C563 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C564,565 VCTYMN1CX272K J AA 0.0027 µF,16V
C566 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic
C567,568 VCTYMN1CX682K J AA 0.0068 µF,16V
C569 VCEAZA1HW225M J AB 2.2 µF,50V,Electrolytic

C570~572 VCTYMN1EF223Z J AA 0.022 µF,25V
C573 VCKZPA1HF223Z J AA 0.022 µF,50V
C601 VCEAZA1CW227M J AC 220 µF,16V,Electrolytic
C603 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C605,606 VCFYDA1HA154J J AB 0.15 µF,50V,Thin Film
C607,608 VCFYHA1HA104J J AB 0.1 µF,50V,Thin Film
C609,610 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C611,612 VCTYMN1CX272K J AA 0.0027 µF,16V
C613,614 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C615,616 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic
C617~624 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C625,626 VCTYMN1CX562K J AA 0.0056 µF,16V
C635,636 VCKYMN1HB102K J AA 0.001 µF,50V
C639 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C690,691 VCKYMN1HB391K J AA 390 pF,50V
C693 VCKYMN1HB102K J AA 0.001 µF,50V
C701 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C702 VCEAZA1AW227M J AC 220 µF,10V,Electrolytic
C703 VCTYMN1EF223Z J AA 0.022 µF,25V
C704 VCCSMN1HL150J J AA 15 pF,50V
C705 VCCSMN1HL180J J AA 18 pF,50V
C706 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C707 VCEAZA1HW105M J AB 1 µF,50V,Electrolytic
C712 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C714 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
C715 VCTYMN1CY103N J AA 0.01 µF,16V
C716 VCTYMN1EF223Z J AA 0.022 µF,25V
C717 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C734,735 VCCSPA1HL221J J AA 220 pF,50V
C901,902 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C903,904 RC-EZ0063AWZZ J 2200 µF,63V,Electrolytic
C905,906 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C907 VCEAZW1VW228M J AH 2200 µF,35V,Electrolytic
C908,909 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic
C910 VCEAZA1HW227M J AC 220 µF,50V,Electrolytic
C911,912 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C913 VCEAZA1VW107M J AC 100 µF,35V,Electrolytic
C915 VCKZPA1HF223Z J AA 0.022 µF,50V
C916 VCEAZA1HW226M J AB 22 µF,50V,Electrolytic
C918 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C920 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C921 VCQYKA1HM104K J AB 0.1 µF,50V,Mylar
C923 VCEAZA1EW476M J AB 47 µF,25V,Electrolytic
C930,931 VCEAZA1HW224M J AB 0.22 µF,50V,Electrolytic
C932,933 VCKYMN1HB102K J AA 0.001 µF,50V
C934,935 VCEAZA1HW475M J AB 4.7 µF,50V,Electrolytic
C936,937 VCCSMN1HL150J J AA 15 pF,50V
C938,939 VCKYMN1HB151K J AA 150 pF,50V
C940,941 VCEAZA1HW107M J AC 100 µF,50V,Electrolytic
C942 VCFYDA1HA224J J AB 0.22 µF,50V,Polyester
C945,946 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C947 VCTYMN1EF223Z J AA 0.022 µF,25V
C948 VCKZPA1HF223Z J AA 0.022 µF,50V
C949 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C952,953 VCQYKA1HM473K J AB 0.047 µF,50V,Mylar
C967 VCEAZA1HW476M J AB 47 µF,50V,Electrolytic
C968 VCEAZA1HW106M J AB 10 µF,50V,Electrolytic
C969 VCEAZA1HW335M J AB 3.3 µF,50V,Electrolytic
C970 VCEAZW1CW688M J AH 6800 µF,16V,Electrolytic
CT1 VCKZPA1HF103Z J AA 0.01 µF,50V

RESISTORS

VRD-MN2BD000C J AA 0 ohm,Jumper,ø1.4×3.5mm,Ivory
R1,2 VRD-ST2CD123J J AA 12 kohms,1/6W
R3 VRD-ST2CD333J J AA 33 kohms,1/6W
R4,5 VRD-ST2CD123J J AA 12 kohms,1/6W
R6 VRD-ST2CD333J J AA 33 kohms,1/6W
R7 VRD-ST2CD470J J AA 47 ohms,1/6W
R9 VRD-ST2CD3R3J J AA 3.3 ohms,1/6W
R10 VRD-ST2CD273J J AA 27 kohms,1/6W
R11 VRD-MN2BD103J J A A 10 kohm,1/8W
R12 VRD-MN2BD331J J AA 330 ohms,1/8W
R13~17 VRD-MN2BD102J J AA 1 kohm,1/8W
R18 VRD-ST2CD102J J AA 1 kohm,1/6W
R19 VRD-ST2CD153J J AA 15 kohms,1/6W
R20 VRD-ST2CD103J J AA 10 kohm,1/6W
R22 VRD-ST2CD101J J AA 100 ohm,1/6W
R23 VRD-MN2BD221J J AA 220 ohms,1/8W
R24,25 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R26,27 VRD-MN2BD103J J AA 10 kohm,1/8W

– 2 –

PRICE

RANK

DESCRIPTION

NO.

PARTS CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BA250/CD-BA2600

R28,29 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R30 VRD-ST2CD822J J AA 8.2 kohms,1/6W
R31~38 VRD-ST2CD102J J AA 1 kohm,1/6W
R39,40 VRD-MN2BD681J J AA 680 ohms,1/8W
R41 VRD-MN2BD123J J A A 12 kohms,1/8W
R42 VRD-MN2BD122J J A A 1.2 kohms,1/8W
R43 VRD-MN2BD101J J AA 100 ohm,1/8W
R44 VRD-ST2CD123J J AA 12 kohms,1/6W
R45,46 VRD-MN2BD471J J AA 470 ohms,1/8W
R47 VRD-MN2BD101J J AA 100 ohm,1/8W
R49 VRD-ST2EE1R0J J AA 1 ohm,1/4W
R101,102 VRD-MN2BD102J J AA 1 kohm,1/8W
R103,104 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R105,106 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R107,108 VRD-MN2BD473J J AA 47 kohms,1/8W
R109,110 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R111 VRD-MN2BD153J J AA 15 kohms,1/8W
R112 VRD-ST2CD153J J AA 15 kohms,1/6W
R113,114 VRD-ST2CD102J J AA 1 kohm,1/6W
R115,116 VRD-ST2CD560J J AA 56 ohms,1/6W
R117,118 VRD-MN2BD104J J AA 100 kohm,1/8W
R119,120 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R121,122 VRD-MN2BD333J J AA 33 kohms,1/8W
R123,124 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R125 VRD-MN2BD683J J AA 68 kohms,1/8W
R126,127 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R128,129 VRD-MN2BD682J J AA 6.8 kohms,1/8W
R130,131 VRD-MN2BD152J J AA 1.5 kohms,1/8W
R132,133 VRD-MN2BD101J J AA 100 ohm,1/8W
R134,135 VRD-MN2BD103J J AA 10 kohm,1/8W
R136,137 VRD-ST2CD224J J AA 220 kohms,1/6W
R138 VRD-MN2BD103J J AA 10 kohm,1/8W
R139 VRD-ST2CD103J J AA 10 kohm,1/6W
R140 VRD-MN2BD473J J AA 47 kohms,1/8W
R141 VRD-RT2HD472J J AA 4.7 kohms,1/2W
R142 VRD-ST2CD820J J AA 82 ohms,1/6W
R143 VRD-MN2BD473J J AA 47 kohms,1/8W
R144 VRD-MN2BD223J J AA 22 kohms,1/8W
R145 VRD-ST2CD4R7J J AA 4.7 ohms,1/6W
R146,147 VRD-MN2BD103J J AA 10 kohm,1/8W
R148 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R149 VRD-ST2EE151J J AA 150 ohms,1/4W
R158 VRD-ST2EE221J J AA 220 ohms,1/4W
R302 VRD-MN2BD100J J AA 10 ohm,1/8W
R309 VRD-ST2CD103J J AA 10 kohm,1/6W
R311 VRD-MN2BD104J J AA 100 kohm,1/8W
R313 VRD-MN2BD333J J AA 33 kohms,1/8W
R314 VRD-ST2CD220J J AA 22 ohms,1/6W
R316 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R322 VRD-MN2BD681J J AA 680 ohms,1/8W
R323 VRD-MN2BD683J J AA 68 kohms,1/8W
R325 VRD-MN2BD473J J AA 47 kohms,1/8W
R327 VRD-MN2BD330J J AA 33 ohms,1/8W
R336 VRD-MN2BD103J J AA 10 kohm,1/8W
R350 VRD-MN2BD272J J AA 2.7 kohms,1/8W
R351 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R352 VRD-MN2BD102J J AA 1 kohm,1/8W
R353 VRD-MN2BD271J J AA 270 ohms,1/8W
R355 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R356 VRD-MN2BD102J J AA 1 kohm,1/8W
R357 VRD-ST2CD474J J AA 470 kohms,1/6W
R358 VRD-ST2CD392J J AA 3.9 kohms,1/6W
R359 VRD-MN2BD182J J AA 1.8 kohms,1/8W
R360 VRD-MN2BD472J J AA 4.7 kohms,1/8W
R361,362 VRD-MN2BD103J J AA 10 kohm,1/8W
R363,364 VRD-MN2BD682J J AA 6.8 kohms,1/8W
R365 VRD-MN2BD103J J AA 10 kohm,1/8W
R372~374 VRD-MN2BD102J J AA 1 kohm,1/8W
R375 VRD-ST2CD471J J AA 470 ohms,1/6W
R376 VRD-MN2BD102J J AA 1 kohm,1/8W
R377 VRD-MN2BD473J J AA 47 kohms,1/8W
R378 VRD-MN2BD102J J AA 1 kohm,1/8W
R379 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R380 VRD-MN2BD152J J AA 1.5 kohms,1/8W
R381 VRD-MN2BD103J J AA 10 kohm,1/8W
R382 VRD-ST2EE151J J AA 150 ohms,1/4W
R383 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R384 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R385 VRD-MN2BD562J J AA 5.6 kohms,1/8W
R386 VRD-ST2CD223J J AA 22 kohms,1/6W
R387 VRD-ST2CD562J J AA 5.6 kohms,1/6W
R388 VRD-MN2BD392J J AA 3.9 kohms,1/8W

R391,392 VRD-ST2EE271J J AA 270 ohms,1/4W
R393 VRD-MN2BD102J J AA 1 kohm,1/8W
R395 VRD-MN2BD473J J AA 47 kohms,1/8W
R561 VRD-MN2BD103J J AA 10 kohm,1/8W
R562 VRD-MN2BD824J J AA 820 kohms,1/8W
R563 VRD-ST2EE271J J AA 270 ohms,1/4W
R565 VRD-MN2BD333J J AA 33 kohms,1/8W
R566 VRD-ST2CD224J J AA 220 kohms,1/6W
R567 VRD-MN2BD683J J AA 68 kohms,1/8W
R568 VRD-MN2BD224J J AA 220 kohms,1/8W
R569 VRD-MN2BD104J J AA 100 kohm,1/8W
R570 VRD-ST2CD123J J AA 12 kohms,1/6W
R571 VRD-MN2BD394J J AA 390 kohms,1/8W
R572 VRD-MN2BD104J J AA 100 kohm,1/8W
R573 VRD-MN2BD563J J AA 56 kohms,1/8W
R574 VRD-MN2BD105J J AA 1 Mohm,1/8W
R575 VRD-MN2BD474J J AA 470 kohms,1/8W
R576 VRD-MN2BD225J J AA 2.2 Mohms,1/8W
R577 VRD-MN2BD154J J AA 150 kohms,1/8W
R578 VRD-MN2BD104J J AA 100 kohm,1/8W
R579 VRD-ST2CD153J J AA 15 kohms,1/6W
R580 VRD-MN2BD184J J AA 180 kohms,1/8W
R601~603 VRD-ST2CD102J J AA 1 kohm,1/6W
R604,605 VRD-MN2BD103J J AA 10 kohm,1/8W
R606,607 VRD-MN2BD392J J AA 3.9 kohms,1/8W
R608,609 VRD-MN2BD122J J AA 1.2 kohms,1/8W
R610,611 VRD-MN2BD222J J AA 2.2 kohms,1/8W
R612,613 VRD-MN2BD391J J AA 390 ohms,1/8W
R614,615 VRD-MN2BD332J J AA 3.3 kohms,1/8W
R618,619 VRD-ST2CD331J J AA 330 ohms,1/6W
R621 VRD-MN2BD223J J AA 22 kohms,1/8W
R622,623 VRD-MN2BD224J J AA 220 kohms,1/8W
R690,691 VRD-MN2BD682J J AA 6.8 kohms,1/8W
R692,693 VRD-MN2BD333J J AA 33 kohms,1/8W
R702~704 VRD-ST2CD102J J AA 1 kohm,1/6W
R705~707 VRD-MN2BD102J J AA 1 kohm,1/8W
R708~712 VRD-ST2CD102J J AA 1 kohm,1/6W
R713~717 VRD-MN2BD102J J AA 1 kohm,1/8W
R718~721 VRD-ST2CD102J J AA 1 kohm,1/6W
R724,725 VRD-ST2CD102J J AA 1 kohm,1/6W
R726~729 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R731 VRD-MN2BD103J J AA 10 kohm,1/8W
R732,733 VRD-MN2BD102J J AA 1 kohm,1/8W
R734~736 VRD-ST2CD102J J AA 1 kohm,1/6W
R738 VRD-ST2CD223J J AA 22 kohms,1/6W
R739,740 VRD-ST2CD102J J AA 1 kohm,1/6W
R746~748 VRD-MN2BD102J J AA 1 kohm,1/8W
R749~751 VRD-MN2BD104J J AA 100 kohm,1/8W
R752 VRD-MN2BD330J J AA 33 ohms,1/8W
R756 VRD-MN2BD103J J AA 10 kohm,1/8W
R758~760 VRD-MN2BD103J J AA 10 kohm,1/8W
R761 VRD-MN2BD102J J AA 1 kohm,1/8W
R765 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R766~768 VRD-MN2BD103J J AA 10 kohm,1/8W
R770 VRD-ST2CD103J J AA 10 kohm,1/6W
R772 VRD-ST2CD103J J AA 10 kohm,1/6W
R773 VRD-ST2CD102J J AA 1 kohm,1/6W
R774 VRD-MN2BD103J J AA 10 kohm,1/8W
R777~779 VRD-MN2BD103J J AA 10 kohm,1/8W
R781 VRD-MN2BD473J J AA 47 kohms,1/8W
R782 VRD-MN2BD104J J AA 100 kohm,1/8W
R783 VRD-MN2BD101J J AA 100 ohm,1/8W
R901,902 VRD-ST2CD223J J AA 22 kohms,1/6W
R903 VRD-RT2HD332J J AA 3.3 kohms,1/2W
R904 VRD-ST2CD222J J AA 2.2 kohms,1/6W
R905 VRD-ST2CD473J J AA 47 kohms,1/6W
R906 VRD-ST2CD100J J AA 10 ohm,1/6W
R907 VRD-ST2CD123J J AA 12 kohms,1/6W
R908 VRD-ST2EE561J J AA 560 ohms,1/4W
R909 VRD-ST2CD223J J AA 22 kohms,1/6W
R930 VRD-ST2CD104J J AA 100 kohm,1/6W
R931 VRD-MN2BD104J J AA 100 kohm,1/8W
R932,933 VRD-MN2BD563J J AA 56 kohms,1/8W
R934 VRD-MN2BD102J J AA 1 kohm,1/8W
R935 VRD-ST2CD102J J AA 1 kohm,1/6W
R936,937 VRD-MN2BD821J J AA 820 ohms,1/8W
R938,939 VRD-MN2BD563J J AA 56 kohms,1/8W
R940,941 VRD-MN2BD102J J AA 1 kohm,1/8W
R942 VRD-MN2BD223J J AA 22 kohms,1/8W

1 R943,944 VRG-ST2EC101J J AB 100 ohm,1/4W,Fusible

R945~948 VRN-VV3DAR22J J AC 0.22 ohms,2W
R949,950 VRN-VV3AAR10J J AB 0.1 ohm,1W

– 3 –

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BA250/CD-BA2600

R951 VRD-MN2BD102J J AA 1 kohm,1/8W
R952 VRD-ST2CD102J J AA 1 kohm,1/6W
R953 VRD-MN2BD152J J AA 1.5 kohms,1/8W
R954 VRD-ST2CD152J J AA 1.5 kohms,1/6W
R955~957 VRD-MN2BD563J J AA 56 kohms,1/8W
R958,959 VRD-ST2EE4R7J J AA 4.7 ohms,1/4W
R967,968 VRD-ST2CD472J J AA 4.7 kohms,1/6W
R969 VRD-RT2HD4R7J J AA 4.7 ohms,1/2W
R970 VRD-RT2HD102J J AA 1 kohm,1/2W
R971 VRD-ST2CD683J J AA 68 kohms,1/6W
R972 VRD-ST2CD153J J AA 15 kohms,1/6W
R973 VRD-ST2CD473J J AA 47 kohms,1/6W
R975,976 VRD-RT2HD8R2J J AA 8.2 ohms,1/2W
R977,978 VRD-ST2EE470J J AA 47 ohms,1/4W
R981,982 VRD-RT2HD681J J AA 680 ohms,1/2W
R983 VRD-ST2CD224J J AA 220 kohms,1/6W
R984 VRD-ST2CD473J J AA 47 kohms,1/6W
R986 VRD-RT2HD681J J AA 680 ohms,1/2W
R988 VRD-RT2HD681J J AA 680 ohms,1/2W
RD01 VRD-MN2BD681J J AA 680 ohms,1/8W
RD02 VRD-MN2BD821J J AA 820 ohms,1/8W
RD03 VRD-ST2CD102J J AA 1 kohm,1/6W
RD04 VRD-MN2BD152J J AA 1.5 kohms,1/8W
RD05 VRD-MN2BD222J J AA 2.2 kohms,1/8W
RD06 VRD-MN2BD272J J AA 2.7 kohms,1/8W
RD07 VRD-MN2BD392J J AA 3.9 kohms,1/8W
RD08 VRD-ST2CD562J J AA 5.6 kohms,1/6W
RD09 VRD-MN2BD103J J AA 10 kohm,1/8W
RD10 VRD-MN2BD183J J AA 18 kohms,1/8W
RD11 VRD-MN2BD333J J AA 33 kohms,1/8W
RD12 VRD-MN2BD104J J AA 100 kohm,1/8W
RD13 VRD-MN2BD681J J AA 680 ohms,1/8W
RD14 VRD-MN2BD821J J AA 820 ohms,1/8W
RD15 VRD-ST2CD182J J AA 1.8 kohms,1/6W
RD16 VRD-ST2CD392J J AA 3.9 kohms,1/6W
RD17 VRD-MN2BD184J J AA 180 kohms,1/8W
RD18 VRD-MN2BD681J J AA 680 ohms,1/8W
RD19 VRD-ST2CD821J J AA 820 ohms,1/6W
RD20 VRD-MN2BD102J J AA 1 kohm,1/8W
RD21 VRD-MN2BD152J J AA 1.5 kohms,1/8W
RD22 VRD-MN2BD222J J AA 2.2 kohms,1/8W
RD23 VRD-MN2BD272J J AA 2.7 kohms,1/8W
RD24 VRD-MN2BD392J J AA 3.9 kohms,1/8W
RD25 VRD-MN2BD562J J AA 5.6 kohms,1/8W
RD26 VRD-ST2CD103J J AA 10 kohm,1/6W
RD27 VRD-MN2BD183J J AA 18 kohms,1/8W
RD28 VRD-ST2CD333J J AA 33 kohms,1/6W
RD29 VRD-MN2BD104J J AA 100 kohm,1/8W
RD30 VRD-MN2BD562J J AA 5.6 kohms,1/8W

OTHER CIRCUITRY PARTS

BI4/CNS4 QCNWN1572AWZZ J AF Connector Ass’y,6/6Pin
BI601/CNS601 QCNWN1842AWZZ J AG Connector Ass’y,6/6Pin
BI701/CNS8 QCNWN1843AWZZ J AH Connector Ass’y,9/9Pin
BI902/CNS902 QCNWN1875AWZZ J AH Connector Ass’y,10/10Pin
CNP1 QCNCM704GAWZZ J AC Plug,7Pin
CNP2 QCNCM704HAWZZ J AC Plug,8Pin
CNP3 92LCONE6P53253 J AC Plug,6Pin
CNP4 QCNCM705FAFZZ J AB Plug,6Pin
CNP7 92LCONE6P53254 J AC Plug,6Pin
CNP8 92LCONE9P53254 J AD Plug,9Pin
CNP101 QCNCM705CAFZZ J AA Plug,3Pin
CNP102 QCNCM705GAFZZ J AB Plug,7Pin
CNP301 92LCONE3P5268 J AC Plug,3Pin
CNP701 QCNCWZX24AWZZ J AD Socket,24Pin
CNP902 92LCONEAP5267 J AC Plug,10Pin
CNP971 92LCONE2P53253 J AB Plug,2Pin
CNP981 92LCONE5P52287 J AC Plug,5Pin
CNS1A/B QCNWN1537AWZZ J AG Connector Ass’y,7/7Pin
CNS2A/B QCNWN1538AWZZ J AG Connector Ass’y,8/8Pin
CNS3A/B QCNWN1539AWZZ J AE Connector Ass’y,6/6Pin
CNS701 QCNCWZF24AWZZ J AE Socket,24Pin
CNS702 QCNCWZY08AWZZ J AC Socket,8Pin
CNS971 QCNWN1389AWZZ J AC Connector Ass’y,2Pin

1 F901,902 QFS-D402DAWNI J AC Fuse,4A,125V
1 F903,904 QFS-D202DAWNI J AC Fuse,2A,125V

FFC701 QCNWN1874AWZZ J AG Flat Cable,24Pin
FFC702 QCNWN1838AWZZ J AD Flat Cable,8Pin
FL701 VVKBJ11LM02T1 J BC FL Display
FW981 QCNWN1836AWZZ J AD Flat Wire,5Pin

JK690 QSOCJ0219AWZZ J AD Jack,Video/AUX In
JK701 QJAKM0010AWZZ J AF Jack,Headphones
LG1 QLUGP0001AWZZ J AC Lug
M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]
M2 92LMTR1854BASY J AP Motor with Gear [Sled]
M3 92LMEN7E6Y J AR Motor with Worm Pulley

[T/T Up Down Loading]
M901 RMOTV0027AWZZ J AM Motor,Air Cooling Fan
RL914 RRLYD0014AWZZ J AK Relay
RX701 VHLN63H380A-1 J AK Remote Sensor,N63H380A
SO901 QTANA0417AWZZ J AE Terminal,Speaker
SW1 SWMPU10780MLB J AH Switch,Push Type [Open/Close]
SW2 SWMPU11470MLB J AE Switch,Push Type [Clamp]
SW3 SWMPU11470MLB J AE Switch,Push Type [Disc Number]
SW4 QSWF9001AW01 J AD Switch,Push Type [Pickup In]
SW701 92LSWICHT1663T J AC Switch,Key Type [Power]
SW702 92LSWICHT1663T J AC Switch,Key Type [Clock]
SW703 92LSWICHT1663T J AC Switch,Key Type [Timer]
SW712 92LSWICHT1663T J AC Switch,Key Type [Disc Skip]
SW713 92LSWICHT1663T J AC Switch,Key Type [Open/Close]
SW714 92LSWICHT1663T J AC Switch,Key Type [Dimmer]
SW715 92LSWICHT1663T J AC Switch,Key Type [X-Bass]
SW716 92LSWICHT1663T J AC Switch,Key Type [Equalizer]
SW717 92LSWICHT1663T J AC Switch,Key Type [Volume Up]
SW718 92LSWICHT1663T J AC Switch,Key Type [Volume Down]
SW720 92LSWICHT1663T J AC Switch,Key Type [CD]
SW721 92LSWICHT1663T J AC Switch,Key Type [Tape]
SW722 92LSWICHT1663T J AC Switch,Key Type [Tuning Down]
SW723 92LSWICHT1663T J AC Switch,Key Type [Memory/Set]
SW724 92LSWICHT1663T J AC Switch,Key Type [Rewind]
SW725 92LSWICHT1663T J AC Switch,Key Type [Fast Forward]
SW726 92LSWICHT1663T J AC Switch,Key Type [Play]
SW727 92LSWICHT1663T J AC Switch,Key Type [Stop]
SW729 92LSWICHT1663T J AC Switch,Key Type [Rec/Pause]
SW730 92LSWICHT1663T J AC Switch,Key Type [Tuning Up]
SW731 92LSWICHT1663T J AC Switch,Key Type [Video]
SW732 92LSWICHT1663T J AC Switch,Key Type [Tuner]

CD MECHANISM PARTS

301 NGERH0011AWZZ J AC Gear,Middle
302 NGERH0012AWZZ J AC Gear,Drive
303 MLEVP0080AWZZ J AC Rail,Guide
304 NSFTM0020AWFW J AD Shaft,Guide
305 92LM-CUSN1524A J AC Cushion

1 306 92LHPC1LXASY J BD Pickup Unit Ass’y

306- 1 ———— –– Pickup Unit

(Not Replacement Item)
306- 2 NGERR0043AFZZ J AC Gear,Rack
306- 3 MSPRC0961AFZZ J AA Spring,Rack
701 XBSSD26P06000 J AA Screw,ø2.6×6mm
702 XHBSD20P05000 J AA Screw,ø2×5mm
703 XBBSD20P03000 J AA Screw,ø2×3mm
704 LX-WZ1070AFZZ J AA Washer,ø1.5×3.8×0.25mm
M1 92LMTR2790CASY J BB Motor with Chassis [Spindle]
M2 92LMTR1854BASY J AP Motor with Gear [Sled]
SW4 QSW-F9001AW01 J AD Switch,Leaf Type [Pickup In]

CABINET PARTS

201 92LCAB3561AASY J Front Panel Ass’y

[For CD-BA250]
201 92LCAB3565AASY J Front Panel Ass’y

[For CD-BA2600]
201- 1 ———— –– Front Panel

(Not Replacement Item)
201- 2 GDORF0099AWSA J AE Holder,Cassette [Tape 1]
201- 3 GDORF0100AWSA J AE Holder,Cassette [Tape 2]
201- 4 GCOVA1349AWSA J AG Cover,Cassette

[Tape 1 for CD-BA250]
201- 4 GCOVA1349AWSB J AH Cover,Cassette

[Tape 1 for CD-BA2600]
201- 5 GCOVA1350AWSA J AG Cover,Cassette

[Tape 2 for CD-BA250]
201- 5 GCOVA1350AWSB J AH Cover,Cassette

[Tape 2 for CD-BA2600]
201- 6 HDECQ0686AWSA J AE Panel,Cassette [Tape 1]
201- 7 HDECQ0687AWSA J AE Panel,Cassette [Tape 2]
201- 8 HDECQ0688AWSA J AK Panel,Amp. [For CD-BA250]
201- 8 HDECQ0735AWSA J Panel,Amp. [For CD-BA2600]
201- 9 JKNBZ0777AWSA J AE Button,Power [For CD-BA250]

– 4 –

PRICE

RANK

DESCRIPTION

NO.

PARTS CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BA250/CD-BA2600

201- 9 JKNBZ0777AWSB J AE Button,Power [For CD-BA2600]
201-10 JKNBZ0778AWSA J AF Button,Dimmer/Tuning

[For CD-BA250]

201-10 JKNBZ0778AWSB J AG Button,Dimmer/Tuning

[For CD-BA2600]
201-11 JKNBZ0779AWSA J AF Button,Function
201-12 HDECQ0690AWSA J AC Volume Ring
201-13 JKNBZ0780AWSA J AF Button,Disc Control

[For CD-BA250]
201-13 JKNBZ0780AWSB J AF Button,Disc Control

[For CD-BA2600]
201-14 JKNBZ0781AWSA J AG Button,Center Operation
201-15 GCOVA1351AWSA J AB Cover,Operation LED A
201-16 MLIFP0008AWZZ J AD Damper
201-17 MSPRD0092AWFJ J AB Spring,Cassette [Tape 1]
201-18 MSPRD0093AWFJ J AB Spring,Cassette [Tape 2]
201-19 JKNBZ0783AWSA J AF Button,X-Bass/Equalizer
201-20 PSHEP0063AWZZ J Filter,Remote Sensor
201-21 LHLDZ1328AWZZ J AC Holder,Cassette Lock
201-22 MSPRC0029AWFJ J AB Spring,Cassette Lock
201-23 MLOKC0006AWZZ J AB Lock Lever Cassette [Tape 1]
201-24 MLOKC0007AWZZ J AB Lock Lever Cassette [Tape 2]
201-25 JKNBZ0805AWSA J AE Button,Volume
201-26 92LBADGE1671A J AC Badge,SHARP
202 92LCAB3561BASY J Side Panel Ass’y,Left

[For CD-BA250]
202 92LCAB3565BASY J Side Panel Ass’y Left

[For CD-BA2600]
202- 1 ———— –– Side Panel,Left

(Not Replacement Item)
202- 2 PCUSG0022AWZZ J AB Cushion,Leg
203 92LCAB3561CASY J Side Panel Ass’y,Right

[For CD-BA250]
203 92LCAB3565CASY J Side Panel Ass’y Right

[For CD-BA2600]
203- 1 ———— J –– Side Panel,Right

(Not Replacement Item)
203- 2 PCUSG0022AWZZ J AB Cushion,Leg
204 GCAB-1194AWSA J AP Cabinet,Top [For CD-BA250]
204 GCAB-1194AWSB J AP Cabinet,Top [For CD-BA2600]
206 GCOVA1348AWSA J AH Cover,CD Tray
207 GITAR0662AWSA J AM Rear Panel

[CD-BA250 for Mexico]
207 GITAR0669AWSA J Rear Panel

[CD-BA250 for U.S.A./Central

America]
207 GITAR0697AWSA J AM Rear Panel

[CD-BA250 for Canada]
207 GITAR0710AWSA J AM Rear Panel

[CD-BA2600 for Mexico]
207 GITAR0711AWSA J Rear Panel

[CD-BA2600 for Canada]
207 GITAR0712AWSA J AM Rear Panel

[CD-BA2600 for U.S.A./Central

America]
211 LANGK0252AWFW J AE Bracket,Fan Support
212 LBSHC0005AWZZ J AD Bushing,AC Power Supply Cord
213 LCHSM0122AWFW J AN Chassis,Main
214 LHLDZ1332AWZZ J AD Holder,FL Display
218 NFANP0001AWZZ J AD Rotary Fan
219 PCUSG0022AWZZ J AB Cushion,Leg
220 PRDAR0188AWFW J AR Heat Sink,Main

1 222 QACCD0022AWZZ J AM AC Power Supply Cord

223 QCNWN1844AWZZ J AC Lug Wire

1 224 QFSHD0001AWZZ J AB Holder,Fuse

225 92LBE231616 J AD Belt
226 92LCSPR1431C J AA Spring,Ring
227 92LEVA0330702 J AD Velvet Carpet,Chassis
228 92LMAG0104302 J AE Magnet
229 92LMT0304302 J AB Plate,Metal
230 92LNBAND1318A J AA Nylon Band,80mm
231 92LNM0305401 J AB Velvet Carpet
232 92LPT0303002 J AB Roller
233 92LPT0304303 J AB Lever,Stop
234 92LPT0304304 J AB Stopper
235 92LPT0304305 J AE Lever,Lock
236 92LPT0304306 J AG Stabilizer
237 92LPT0304307 J AC Support,Cam
238 92LPT0304308 J AB Lock Gear Pin
239 92LPT0304309 J AB Cap,Pulley Stopper
240 92LPT0305413 J AG Cam Gear Lower
241 92LPT0309506 J AD Gear,Turntable Drive

242 92LPT0309507 J AD Gear,Open/Close Drive
243 92LPT0309508 J AD Gear,Planet
244 92LPT0309509 J AD Gear,Drive
245 92LPT0309510 J AE Gear,Pulley
246 92LPT0309511 J AD Gear,Middle
247 92LPT0311101 J AB Lever,Clamp
248 92LPT0311102 J AC Lever,Disc
249 92LPT0312005 J AL Gear,Cam
250 92LPT0320201 J AE Support,Stabilizer
251 92LPT0330301 J AU Chassis,Loading
252 92LPT0330803 J AK CD,Chassis
253 92LPT0331003 J AT Shassis,Slide
254 92LPT0331105 J AM Turntable
255 92LSP0304303 J AB Spring,Stopper
256 92LSP0304305 J AB Spring,Lock
257 92LSP0304306 J AB Spring,Lock Gear
258 KMECB0018AWZZ J BE Tape Mechanism Ass’y
258- 1 92PF513-860 J Head Plate Block [Tape 2]
258- 2 92PF525-338 J Motor with Pulley [Tape]
258- 3 92PF567-649 J Tape Mechanism PWB Ass’y
258- 4 92PFF19U-12 J Belt,Main [Tape 2]
258- 5 92PF514-135 J AL Pinch Roller
258- 6 92PF19S-31 J Belt,FF/REW [Tape 2]
258- 7 92PFF19N-11 J Belt,Main [Tape 1]
258- 8 92PF522-061 J Clutch Ass’y Block [Tape 1]
258- 9 92PFF19S-52 J Belt,FF/REW [Tape 1]
258-10 92PF513-861 J Head Plate Block [Tape 1]
258-11 92PF522-063 J Clutch Ass’y Block [Tape 2]
259 PCOVQ3002AWZZ J Fan Cover
601 LX-BZ2222AXZZ J AB Screw,Special
602 XJBSD30P12000 J AA Screw,ø3×12mm
603 LX-JZ0010AFFD J AA Screw,ø3×10mm
605 XBBSD20P04000 J AA Screw,ø2×4mm
606 XEBSD30P10000 J AA Screw,ø3×10mm
607 XEBSD30P12000 J AA Screw,ø3×12mm
608 XESSD30P10000 J AA Screw,ø3×10mm
610 XJBSD30P10000 J AA Screw,ø3×10mm
611 XJBSD30P14000 J AA Screw,ø3×14mm
613 XJSSD30P10000 J AA Screw,ø3×10mm
614 92LSC0308MBZI J AB Screw,ø3×8mm
615 92LSC0308RBZI J AB Screw,ø3×8mm
616 XHBSD40P08000 J AA Screw,ø4×8mm

PACKING PARTS (Except for U.S.A.)

SPAKA0300AWZZ J Packing Add.
SPAKC1138AWZZ J Packing Case

[CD-BA250 for U.S.A./Central
America]

SPAKC1139AWZZ J Packing Case

[CD-BA250 for Mexico]

SPAKC1140AWZZ J AX Packing Case

[CD-BA250 for Canada]

SPAKC1174AWZZ J Packing Case

[CD-BA2600 for U.S.A./Central
America]

SPAKC1175AWZZ J Packing Case

[CD-BA2600 for Canada]

SPAKC1176AWZZ J Packing Case

[CD-BA2600 for Mexico]
SPAKP0013AWZZ J AC Polyethylene Bag,Unit
SPAKZ0771AWZZ J Center Pad
SPAKZ0773AWZZ J Top Pad
SSAKA0007AWZZ J AB Polyethylene Bag,Accessories

ACCESSORIES

QANTL0007AWZZ J AK AM/FM Loop Antenna
TINSE0343AWZZ J AE Operation Manual

[For U.S.A./Central America]
TINSK0111AWZZ J AK Operation Manual

[CD-BA250 for Canada]
TINSK0111AWZZ J AK Operation Manual

[CD-BA2600 for Canada]
TINSZ0649AWZZ J AC Quick Guide

[For U.S.A./Central America

Only]
TINSZ0651AWZZ J AF Operation Manual

[CD-BA250 for Mexico]
TINSZ0651AWZZ J AK Operation Manual

[CD-BA2600 for Mexico]

– 5 –

NO.

PRICE

RANK

DESCRIPTIONPARTS CODE

NO. PARTS CODE

PRICE

RANK

DESCRIPTION

CD-BA250/CD-BA2600

CP-BA250

CP-BA2600

TLABN0112AWZZ J AA Label,Serial Number
TLABR1180AWZZ J AB Label,Bar Code [For CD-BA250]
TLABR1181AWZZ J AB Label,Bar Code

[For CD-BA2600]
TLABZ0872AWZZ J AC Label,Feature [Tape 1]
TLABZ0873AWZZ J AC Label,Feature [Tape 2]
RRMCG0264AWSA J AQ Remote Control
GFTAB1022AWSB J AK Battery Lid,Remote Control

P.W.B. ASSEMBLY (Not Replacement Item)

PWB-A1~3 92LPWB3561MANS J –– Main/Power/Transformer

(Combined Ass’y)

PWB-B1,2 92LPWB3561DPLS J –– Display/Headphones (Combined

Ass’y)

PWB-C 92LPWB3552CDUS J –– CD Servo
PWB-D 92PF567-649 J Tape Mechanism
PWB-E 92LPC99C017 J AE CD Loading Motor (PWB Only)
PWB-F QPWBF0027AWZZ J AD CD Motor (PWB Only)

OTHER SERVICE PART

UDSKA0004AFZZ J AZ CD Pickup Lens Cleaner

SPEAKER BOX PARTS

901 GBOXS6002AWSA J AX Speaker Box Ass’y
902 CWAKP1045AWSA J AN Net Frame Ass’y
903 HPNLS1020AWSA J AW Front Panel
904 LHLDZ8001AWSA J AD Catching Holder
906 PCUSG0022AWZZ J A B Foot Cushion
907 TSPC-0820AWZZ J Label,Specifications
908 XJBSD40P12000 J AA Screw,ø4×12mm
909 XJBSD30P10000 J AA Screw,ø3×10mm
SP1,2 RSPA10007AW6W J AX Woofer
SP3,4 RSPA00008AW6T J AP Tweeter

PACKING PARTS

SPAKA0301AWZZ J Packing Add.
SSAKH0051AWZZ J AC Polyethylene Bag,Speaker

SPEAKER BOX PARTS

901 GBOXS6003AWSA J AX Speaker Box Ass’y
902 CWAKP1045AWSB J AN Net Frame Ass’y
903 HPNLS1020AWSB J AW Front Panel
904 LHLDZ8001AWSA J AD Catching Holder
906 PCUSG0022AWZZ J A B Foot Cushion
907 TSPC-0855AWZZ J Label,Specifications
908 XJBSD40P12000 J AA Screw,ø4×12mm
909 XJBSD30P10000 J AA Screw,ø3×10mm
SP1,2 RSPA10007AW6W J AX Woofer
SP3,4 RSPA00008AW6T J AP Tweeter

PACKING PARTS

SPAKA0301AWZZ J Packing Add.
SSAKH0051AWZZ J AC Polyethylene Bag

– 6 –

CD-BA250/CD-BA2600

A

B

C

D

E

F

G

H

1

23456

Figure 7 CD MECHANISM EXPLODED VIEW

– 7 –

CD-BA250/CD-BA2600

306-1

701

304

701

302

301

702

303

M1

703x2

305x2

SW4

M2

305

PWB-F

306-2

306-3

306

704

CD-BA250/CD-BA2600

A

B

C

D

E

F

G

H

1

23456

Tape

Motor

MAIN BELT

FLYWHEEL

ASS'Y

TAPE1

FLYWHEEL

ASS'Y

TAPE2

FF/REW

ROLLER

ASS'Y

FF/REW
ROLLER

ASS'Y

BELT CONNECTION

202

202-1

202-2

PWB-B1

PWB-A1

PWB-B2

M901

PWB-D

226

218

223

207

211

258

258-1~258-11

201-10

201-9

201-14

214

FL701

610x2

201-16

201-16

201-26

201

201-1

201-25

201-8

201-12

201-4

201-6

201-7

201-5

201-2

201-17

219x2

201-3

201-18

213

230

212

222

203

203-2

203-1

224x8

PWB-A3

PT801

PWB-A2

610x10

610x2

610

605x2

611x2

610

610

602x3

IC904

IC902

IC903

IC901

603x2

603x1

601x1

608x1

616x2

616x2

613x2

608x1

606x11

223

608x5

201-24

201-21

201-22

201-13

201-19

201-11

201-21

201-23

201-22

201-15

610

610x2

Silicon

Grease

603x1

201-20

220

259

Figure 8 CABINET EXPLODED VIEW (1/2)

– 8 –

CD-BA250/CD-BA2600

Note: Only the unit and consumable parts are supplied as parts supply for the Tape mechanism.

CD-BA250/CD-BA2600

Figure 9 CABINET EXPLODED VIEW (2/2)

A

B

C

D

E

F

G

H

1

23456

– 9 –

CD-BA250/CD-BA2600

CD
MECHANISM

204

250

228

229

236

254

252

232

232

232x4

PWB-C

232

225

M3

M3

SW3

PWB-E

PWB-E

607x2

607x2

SW2

SW1

247

253

235

251

256

615

241

246

248

245

244

243x4

242

239

249

255

234

231
240

237

614

227

233

206

238

257

CD-BA250/CD-BA2600

A

B

C

D

E

F

G

H

1

23456

C1,2

Capacitor

2.7µF,100V
(N.P.)

C1,2
Capacitor

2.7µF,100V
Electrolytic (N.P.)

SP3,4

TWEETER

SP1,2

WOOFER

BK

BK

RD

RD

SP1,2

WOOFER

SP3,4

TWEETER

901

907

904x4

902

908x4

903

906x2

906x2

909x2

SP3,4

SP1,2

Figure 10 SPEAKER EXPLODED VIEW

– 10 –

CP-BA250/CP-BA2600

CD-BA250/CD-BA2600

– 11 –

PACKING OF THE SET (FOR U.S.A. ONLY)

Setting position of switches and knobs

Tape Mechanism STOP

SPAKP0013AWZZ
Polyethylene Bag, Unit

UNIT

SSAKA0007AWZZ
Polyethylene Bag, Accessories

SPAKZ0773AWZZ
TOP PAD

AM/FM Loop Antenna
Quick Guide
Operation Manual
Remote Control

SPAKC1138AWZZ [CD-BA250]
SPAKC1174AWZZ [CD-BA2600]
Packing Case

FRONT SIDE OF
SPEAKERS

BACK SIDE

SPAKA0300AWZZ
Packing Add., LEFT/RIGHT

Top

Bottom

A

B

TOP

BACK

YELLOW COLOUR

RIGHT

LEFT

A

FRONT SPEAKER CP-BA250/CP-BA2600

B

SSAKH0051AWZZ
Polyethylene Bag

SPAKA0301AWZZ
Packing Add.

SPAKA0301AWZZ
Packing Add.

FRONT

Top

Top

FRONT

FRONT

FRONT

Top

RIGHT

LEFT

SPAKZ0771AWZZ
CENTER PAD

Not Replacement Item

CD-BA250/CD-BA2600

– 12 –

–– MEMO ––

CD-BA250/CD-BA2600

COPYRIGHT 2001 BY SHARP CORPORATION

ALL RIGHTS RESERVED.

No part of this publication may be reproduced,
stored in a retrieval system, or transmitted in
any form or by any means, electronic, mechanical,
photocopying, recording, or otherwise, without
prior written permission of the publisher.

A0102- DS•HA•M

SC • SL • LAG

SHARP CORPORATION
Communication Systems Group
Quality & Reliability Control Center
Higashihiroshima, Hiroshima 739-0192, Japan

Printed in Japan

©
