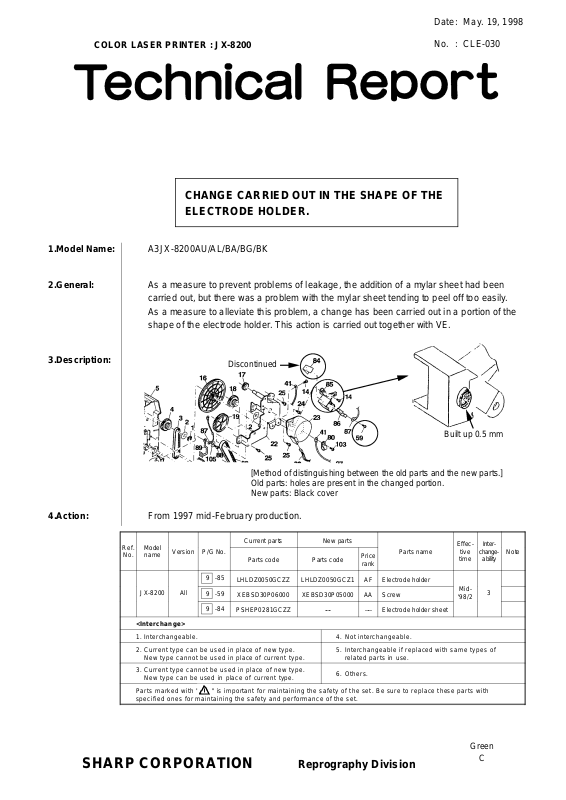

SHARP CLE030 Technical Report

COLOR LASER PRINTER : JX-8200

Date

May. 19, 1998

No. : CLE-030

CHANGE CARRIED OUT IN THE SHAPE OF THE ELECTRODE HOLDER.

1.Model Name: A3JX-8200 AU/AL/BA/BG/BK

2.General: As a measure to prevent problems of leakage, the addition of a mylar sheet had been

carried out, but there was a problem with the mylar sheet tending to peel off too easily. As a measure to alleviate this problem, a change has been carried out in a portion of the shape of the electrode holder. This action is carried out together with VE.

3.Description:

Discontinued

[Method of distinguishing between the old parts and the new parts.] Old parts: holes are present in the changed portion. New parts: Black cover

4.Action: From 1997 mid-February production.

Ref.

Model

name

Version P/G No.

New type cannot be used in place of current type.

New type can be used in place of current type.

9 -85 9 -59 9 -84

No.

JX-8200 All

1. Interchangeable. 4. Not interchangeable.

2. Current type can be used in place of new type.

3. Current type cannot be used in place of new type.

Parts marked with " " is important for maintaining the safety of the set. Be sure to replace these parts with

specified ones for maintaining the safety and performance of the set.

Current parts New parts

Parts code Parts code

LHLDZ0050GCZZ LHLDZ0050GCZ1 AF Electrode holder

XEBSD30P06000 XEBSD30P05000 AA Screw

PSHEP0281GCZZ ---- ---- Electrode holder sheet

Built up 0.5 mm

Effec-

Price

rank

5. Interchangeable if replaced with same types of related parts in use.

6. Others.

Parts name

tive

time

Mid-

'98/2

Inter-

change-

ability

Note

SHARP CORPORATION Reprography Division
