Sharp AY-M09AE, AY-A249E-T, AE-M18AE-T User Manual

∑Ç ÜN∑TE

AY-M09AE

DIΩ ÜN∑TE

AE-M18AE-T

MULTI SPLIT TYPE ROOM AIR CONDITIONER

MULTI-SPLIT KL∑MA

ENGLISH

INDOOR UNIT (2 UNITS)

∑Ç ÜN∑TE (2 ÜN∑TE)

OPERATION MANUAL

KULLANMA KILAVUZU

TÜRKÇE

OUTDOOR UNIT

DIΩ ÜN∑TE

AY-M09AE AE-M18AE-T

ENGLISH

Thank you for purchasing a Sharp air conditioner. Please read this manual carefully before operating the product.

CONTENTS

• PRECAUTIONS ...........................................E-1

• PART NAMES..............................................E-2

• USING THE REMOTE CONTROL ..............E-4

• BASIC OPERATION ....................................E-6

•

ADJUSTING THE AIR FLOW DIRECTION ..

• TIMER OPERATION....................................E-9

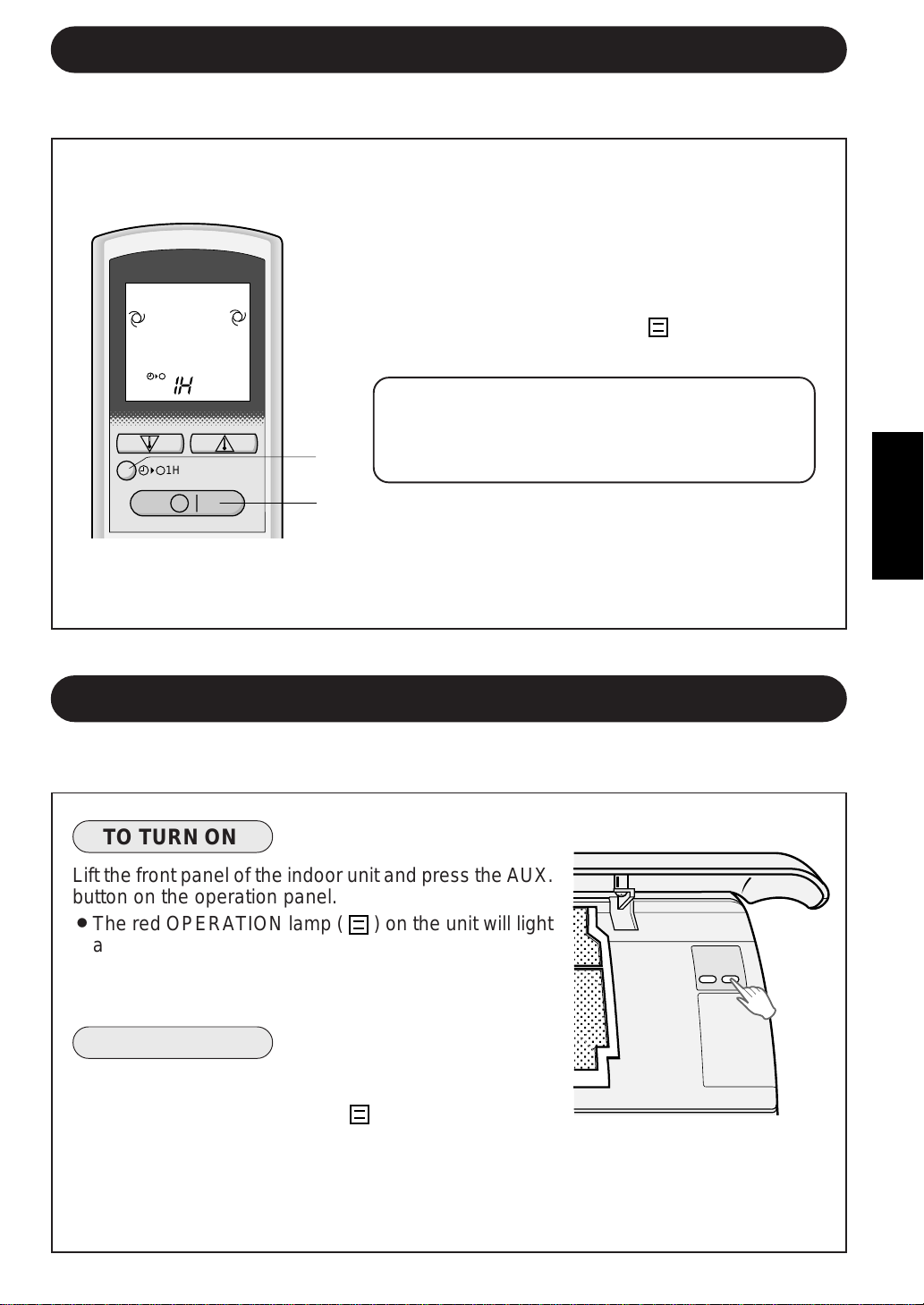

• ONE-HOUR OFF TIMER .............................E-11

E-8

• AUXILIARY MODE ................................. E-11

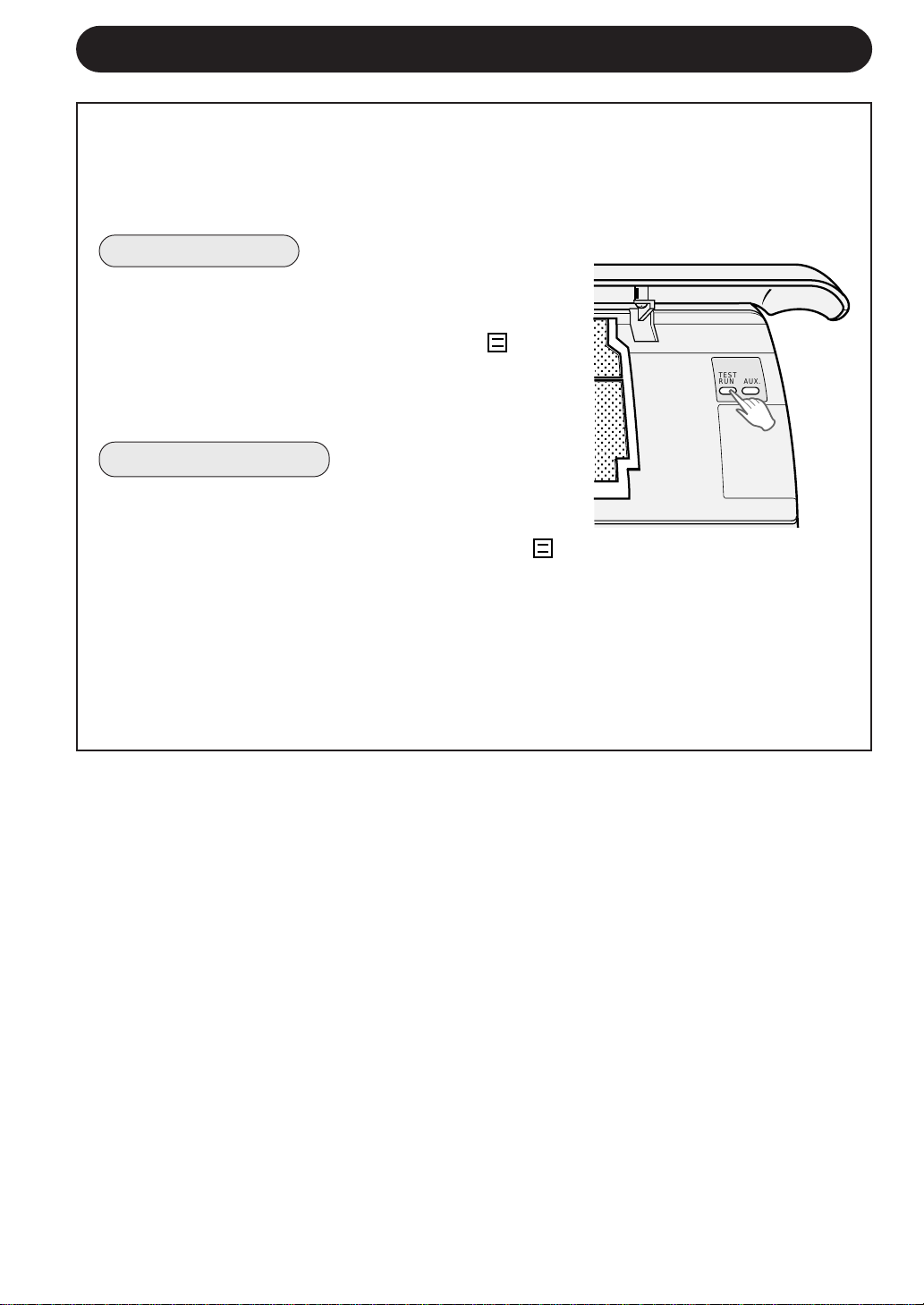

• TEST RUN MODE .................................. E-12

• ADDITIONAL NOTES ON OPERATION E-13

• TIPS ON SAVING ENERGY ................... E-13

• MAINTENANCE ...................................... E-14

• BEFORE CALLING FOR SERVICE ....... E-15

• OPTION KIT ............................................ E-16

PRECAUTIONS

WARNING

1. Use a power supply with a 220-240 volt (±10%) rating.

Use of a power supply with improper voltage and frequency can result in equipment damage and possible fire.

2. Open a window or door periodically to ventilate the room, especially when using gas

appliances.

3. Never insert objects into the unit. Inserting objects can result in injury due to the high speed

rotation of internal fans.

4. Do not pull the power cord. Pulling and misuse of the power cord can result in damage to

the unit and cause electrical shock.

5. When using the air conditioner in a room where infants, children, elderly people, or

bedridden or disabled people are present, make sure the room temperature is suitable for them.

ENGLISH

6. Make sure a fuse with the correct current rating is installed.

7. Follow the local rules and regulations for power cord cabling. Improper cable connection

can cause the power cord, plug and the electrical outlet to overheat and cause a fire.

8. For safety, turn off the circuit breaker or disconnect the power cord when the unit is not

used for an extended period of time.

This unit is designed for use in residences. Do not use for other applications such as in a kennel or greenhouse to raise animals or grow plants.

LOCATION

» Install the unit in a place with minimal dust, fumes and moisture in the air.

REMOVAL

» Do not attempt to remove the unit. Consult your dealer or other qualified service personnel

for the removal of the unit.

This equipment complies with the requirements of Directives 89/336/EEC and 73/23/EEC as amended by 93/68/EEC.

E-1

PART NAMES

TEST RUN AUX.

INDOOR UNIT

To open the open panel, hold the bottom corners of the open panel and gently pull the panel outwards.

0 TEST RUN Button q AUX. Button

1 2

1 Inlet (Air) 2 Open Panel 3 Operation panel 4 Air Filters 5 Indicator Panel 6 Vertical Adjustment

Louvres

7 Horizontal Adjustment

Louvres

8 Outlet (Air) 9 Remote Control

w RECEIVER Window e OPERATION Lamp (Red ) r TIMER Lamp (Yellow ) t BUSY Lamp (Red )

Blinks when the unit can not operate due to the other unit operating in different mode.

OUTDOOR UNIT

y Inlet (Air) u Refrigerant Tube and

Interconnecting Cord

i Drainage Hose o Outlet (Air)

NOTES:

1. Actual units may vary slightly from those shown above.

2. AE-M18AE-T is a multi-type outdoor unit and this unit is connected to two indoor units. See the Installation Manual for detail installation instructions.

E-2

PART NAMES

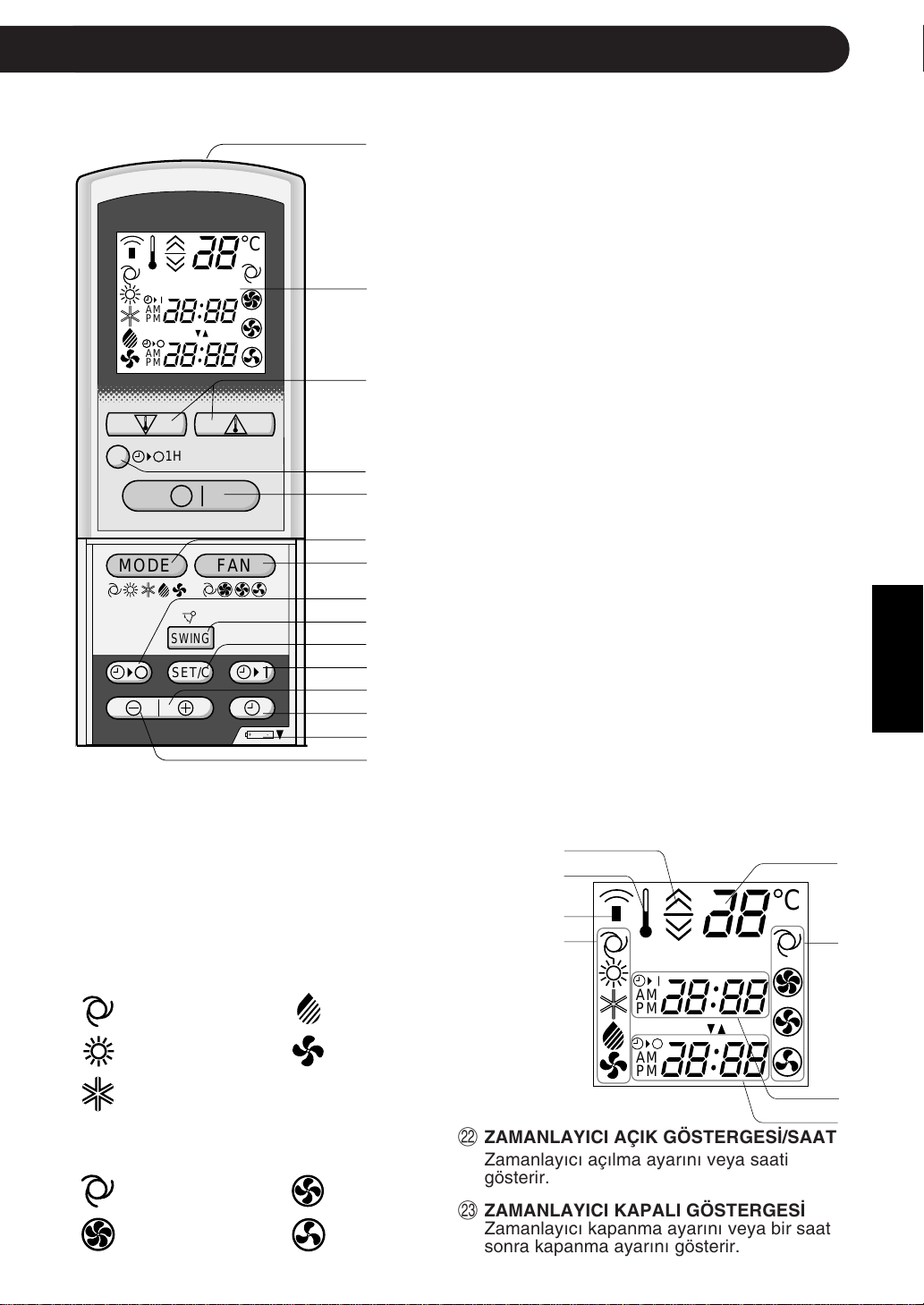

REMOTE CONTROL

AM PM

1 TRANSMITTER 2 DISPLAY (Liquid Crystal Display) 3 THERMO. (Thermostat) Button 4 ONE-HOUR OFF TIMER Button 5 ON/OFF Button 6 MODE Button 7 FAN Button 8 TIMER OFF Button (for setting the timer)

9 SWING Button

0 TIMER SET/CANCEL Button q TIMER ON Button (for setting the timer) w TIME ADVANCE Button e CLOCK Button

MODE

FAN

6 7

8 9

SWING

SET/C

0 q w

r Indicates BATTERY COMPARTMENT is

t TIME REVERSE Button

r t

L.C.D. REMOTE CONTROL DISPLAY

y THERMOSTAT SETTING FOR AUTO

AND DRY MODES

u TEMPERATURE SYMBOL i TRANSMITTING SYMBOL o MODE SYMBOLS

:AUTO :DRY

below this mark

y u

i o

AM PM

ENGLISH

:HEAT :FAN ONLY :COOL

p TEMPERATURE INDICATOR a FAN SPEED SYMBOLS

:AUTO :LOW :HIGH :SOFT

AM PM

s TIMER ON INDICATOR/CLOCK

Indicates the timer on preset time or current time.

d TIMER OFF INDICATOR

Indicates the preset time for timer off or onehour off timer.

E-3

s d

USING THE REMOTE CONTROL

INSTALLING BATTERIES Use two size-AAA (R03) batteries.

1 Remove the remote control

cover.

Remote control cover

2 Insert batteries in the compart-

ment, making sure the ± and

— polarities are correctly

aligned.

» The display indicates "AM

6:00" when batteries are properly installed.

3 Reinstall the cover.

NOTES:

» The battery life is approximately one year in normal use. » When you replace the batteries, always change both batteries, and make sure

they are the same type.

» If the remote control does not operate properly after replacing the batteries, take

out the batteries and reinstall them again after 30 seconds.

» If you will not be using the unit for a long time, remove the batteries from the

remote control.

HOW TO USE THE REMOTE CONTROL

Point the remote control towards the unit’s signal receiver window and press the desired button. The unit generates a beep when it receives the signal.

» Make sure there is no curtain or other

object between the remote control and the unit.

» The remote control can send signals

from up to 7 metres away.

NOTE:

If two indoor units are installed in the same room, both units may operate at the same time by the remote control signal. The units should be installed apart from the other as much as possible. Transmit the signal directly toward the unit you wish to operate.

E-4

CAUTION

» Do not allow the signal receiver window to receive strong direct sunlight, since it can

adversely affect its operation. If the signal receiver window is exposed to direct sunlight, close a curtain to block the light.

» Using a fluorescent lamp with a quick starter in the same room may interfere with

transmission of the signal.

» The unit can be affected by signals transmitted from the remote control of a television,

VCR or other equipment used in the same room.

» Do not leave the remote control in direct sunlight or near a heater. Also, protect the unit

and remote control from moisture and shock which can discolour or damage them.

SETTING THE CURRENT CLOCK TIME

ENGLISH

There are two clock modes: 12hour mode and 24-hour mode.

MODE

Å|

Å{

SWING

SET/C

FAN

Å{

Å|

Example: 5 o'clock in the afternoon

Clock Display 12-hour mode PM 5:00 24-hour mode 17:00

1 To set to the 12-hour mode, press the

CLOCK button once in the first step. To set to the 24-hour mode, press the

CLOCK button twice in the first step.

2 Press the TIME ADVANCE or REVERSE

button to set the current time.

» Keep the button pressed to advance

or reverse the time display quickly.

3 Press the SET/C button.

» The colon (:) blinks to indicate that the

clock is functioning.

NOTE:

» The current time cannot be set when the

timer is operating.

E-5

BASIC OPERATION

Press the MODE button to select the operation mode.

AUTO HEAT COOL DRY FAN ONLY

MODE

SWING

SET/C

FAN

Press the ON/OFF button to start operation.

» The red OPERATION lamp (

will light.

) on the unit

Press the THERMO. button to set the desired

2 5

temperature.

» In the AUTO and

DRY mode, the indicator bars represent changes in temperature.

» In the COOL and HEAT mode, the tempera-

ture can be set within the range of 18 to 32 °C.

» In the FAN ONLY mode, the temperature

setting cannot be made.

Press the FAN button to set the desired fan

speed.

» In the DRY mode, the fan speed cannot be

changed.

» In the FAN ONLY mode, the fan speed can-

not be set to AUTO.

AUTO HIGH LOW SOFT

2°C higher 1°C higher

1°C lower 2°C lower

To turn off the unit, press the ON/OFF button

again.

» The red OPERATION lamp (

will turn off.

) on the unit

E-6

NOTES:

This air conditioner is a multi-type, and two indoor units are connected to one outdoor unit.

When the setting mode of one indoor unit differs from the other , the indoor unit operated later may not work.

» When one indoor unit is operating in HEAT mode, the other unit can not operate

in COOL or DRY mode.

» When one indoor unit is operating in COOL or DRY mode, the other unit can not

operate in HEAT mode.

When the mode of the indoor unit later operated is different from the one which is in operation, the red BUSY lamp indoor unit later operated will blink.

( )

of the

How to reset the BUSY lamp

There are two ways to reset the blinking BUSY lamp Change the remote control's mode and send the same mode signal which

the other indoor unit is operating in, or push the ON/OFF button of the remote control.

( )

)

(

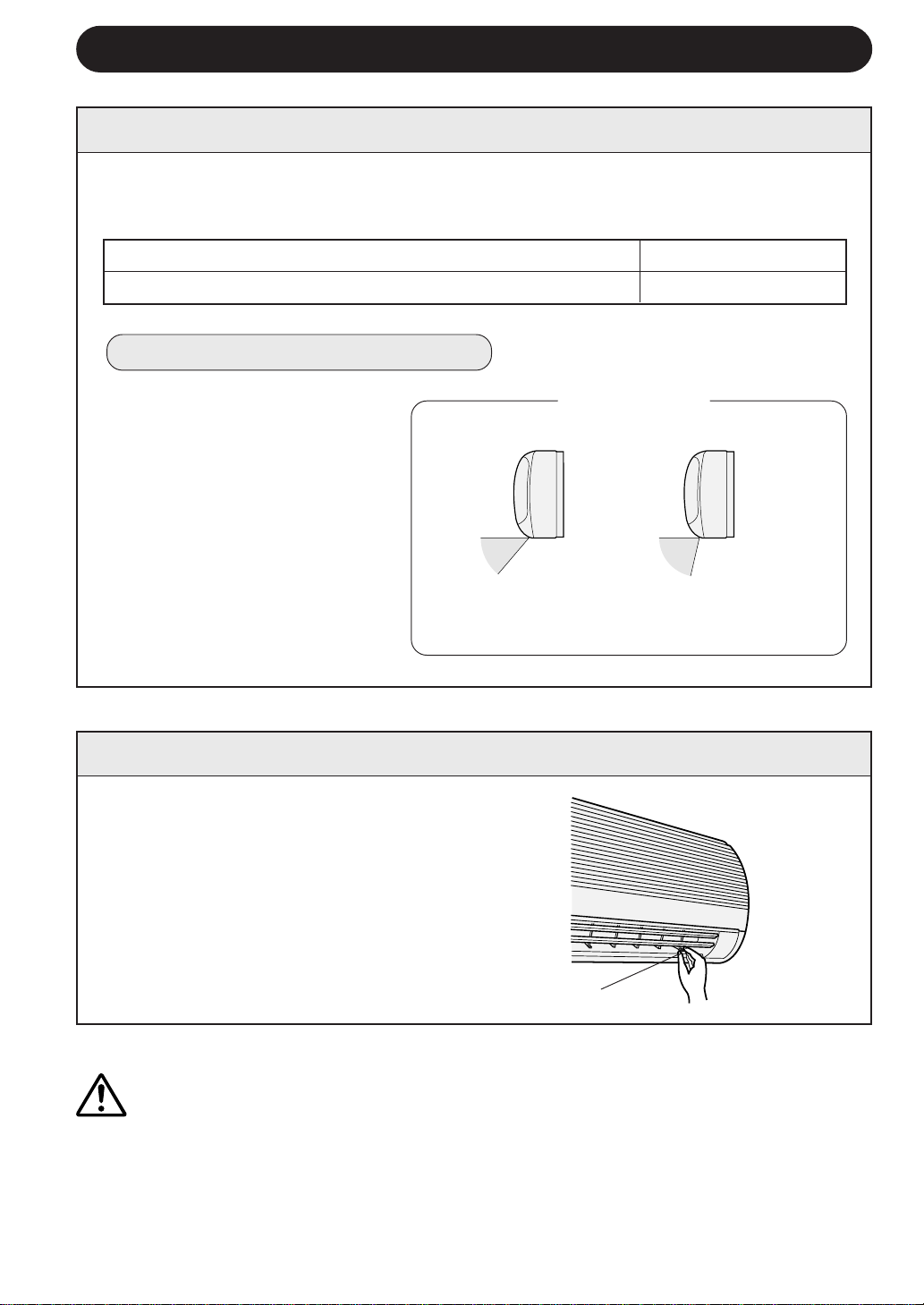

TIPS ABOUT AUTO MODE

In the AUTO mode, the temperature setting and mode are automatically selected according to the room temperature when the unit is turned on.

Room temp. at operation start-up

Below 21°C HEAT 23°C 21°C-24°C DRY Room Temp. at start-up 24°C-26°C COOL 24°C 26°C-28°C COOL 25°C Above 28°C COOL 26°C

Automatic Operation

Mode Thermostat Setting

ENGLISH

E-7

ADJUSTING THE AIR FLOW DIRECTION

VERTICAL AIR FLOW

The air flow direction is automatically preset in each mode as follows for optimum comfort:

COOL and DRY mode Horizontal air flow FAN ONLY and HEAT mode

HOW TO ADJUST THE AIR FLOW DIRECTION

Diagonal air flow

Press the SWING button on the remote control once.

» The vertical adjustment louvres

will change its angle continuously within the range shown in the diagram.

Press the SWING button again when the vertical adjustment louvres are at the desired position. The louvres will stop moving when the button is pressed.

HORIZONT AL AIR FLOW

Hold the horizontal adjustment louvre levers as shown in the diagram and adjust the air flow direction. There are three louvre levers.

Adjustment range

COOL and DRY mode

The adjustment range is narrow in order to prevent condensation from dripping.

FAN ONLY and HEAT mode

The range is wide so the air flow can be directed toward the floor.

Louvre levers

CAUTION

Never attempt to adjust the vertical adjustment louvres manually.

» Manual adjustment of the vertical adjustment louvres can cause the unit to malfunction

when the remote control is used for the adjustment.

» When the vertical adjustment louvres are positioned at the lowest position in the COOL or

DRY mode for an extended period of time, condensation may result.

E-8

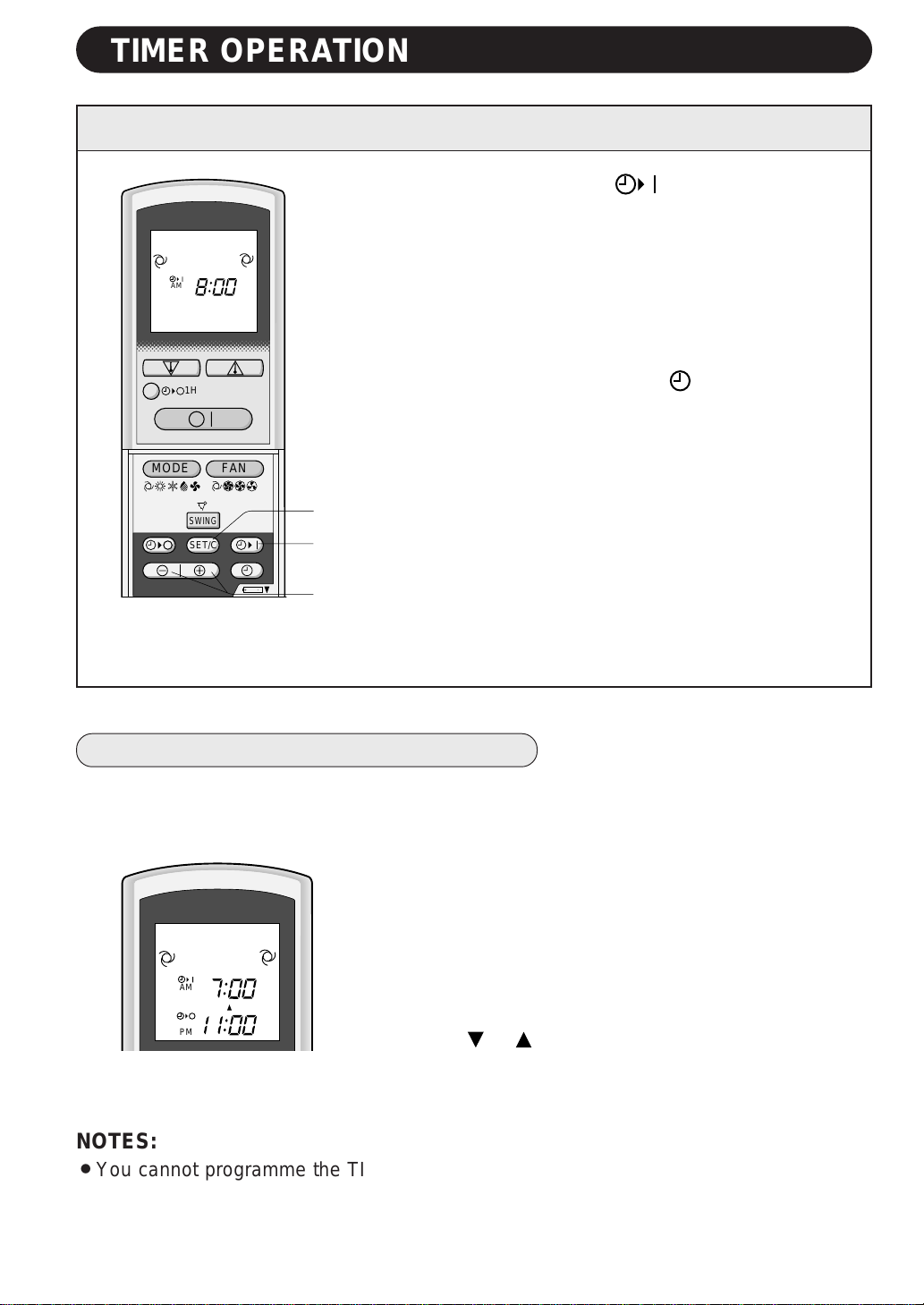

TIMER OPERATION

NOTE:

Before setting the timer, make sure the clock is properly set with the current time.

TIMER OFF

1 Press the TIMER OFF ( ) button. 2 The TIMER OFF indicator will blink; press the

TIME ADVANCE or REVERSE buttons to set the desired time. (The time can be set in 10-

minute increments.)

3 Point the remote control at the signal receiver

window on the unit and press the TIMER SET (SET/C) button.

» The yellow TIMER lamp ( ) on the unit will

light.

» The unit will generate a beep when it re-

ceives the signal.

MODE

SWING

SET/C

FAN

ENGLISH

TIPS ABOUT TIMER OFF OPERATION

When the TIMER OFF mode is set, the temperature setting is automatically adjusted to prevent the room from becoming excessively hot or too cold while you sleep. (Auto Sleep function)

COOL/DRY MODE:

» One hour after the time operation begins,

the temperature setting rises 1°C higher than the original thermostat setting.

HEAT MODE:

» One hour after the timer operation begins,

the temperature setting drops 3°C lower than the original thermostat setting.

NOTES:

»»

» The Auto Sleep function will not activate

»»

during the FAN ONLY mode.

»»

» The temperature setting cannot be ad-

»»

justed during the FAN ONLY mode.

TO CANCEL TIMER MODE

Press the TIMER CANCEL (SET/C) button.

» The yellow TIMER lamp (

) on the unit

will turn off.

» The current clock time will be displayed

on the remote control.

MODE

FAN

SWING

SET/C

NOTE:

» If both TIMER ON and TIMER OFF are

set, the TIMER CANCEL button cancels both settings.

TO CHANGE TIME SETTING

Cancel the TIMER seting first, then set it again.

E-9
