Sharp XGV10WU, AN-SD1U, AN-S422U Service Manual

XG-V10WU

AN-SD1U/S422U

SERVICE MANUAL

S80F8XG-V10WU

LCD PROJECTOR

XG-V10WU

AN-SD1U

MODEL

In the interests of user-safety (Required by safety regulations in some countries) the set should be restored
to its original condition and only parts identical to those specified should be used.

CONTENTS

Page Page

• SPECIFICATIONS ............................................. 2

• IMPORTANT SERVICE SAFETY NOTES ......... 3

• NOTE TO SERVICE PERSONNEL ................... 4

• OPERATION MANUAL ...................................... 8

• REMOVING OF MAJOR PARTS ..................... 16

• RESETTING THE TOT AL LAMP TIMER ......... 21

• THE OPTICAL UNIT OUTLINE........................ 22

• CONVERGENCE AND

FOCUS ADJUSTMENT .................................. 23

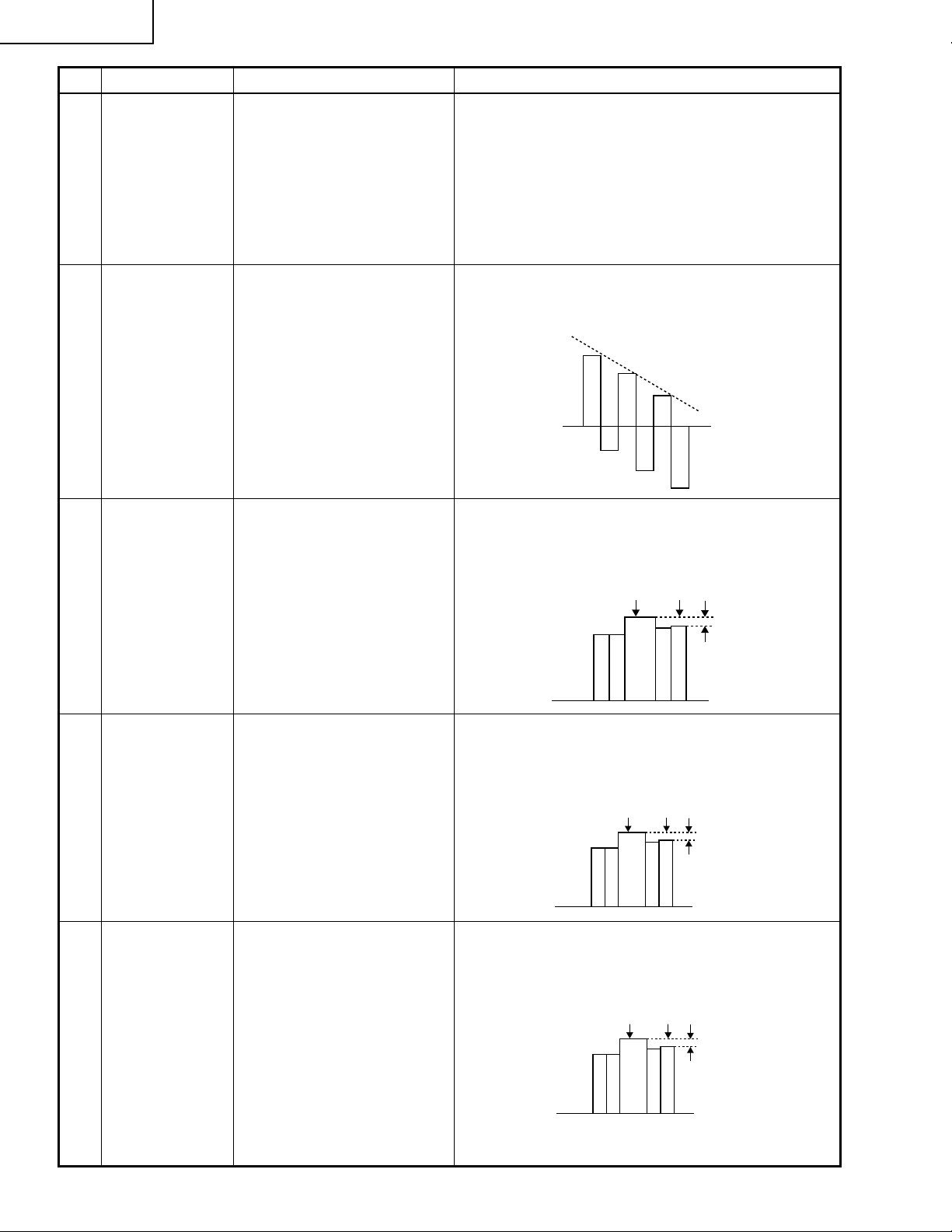

• ELECTRICAL ADJUSTMENT.......................... 29

• ADJUSTING THE PC INTERFACE ................. 37

• TROUBLE SHOOTING TABLE........................ 41

• CHASSIS LAYOUT .......................................... 62

• BLOCK DIAGRAM ........................................... 64

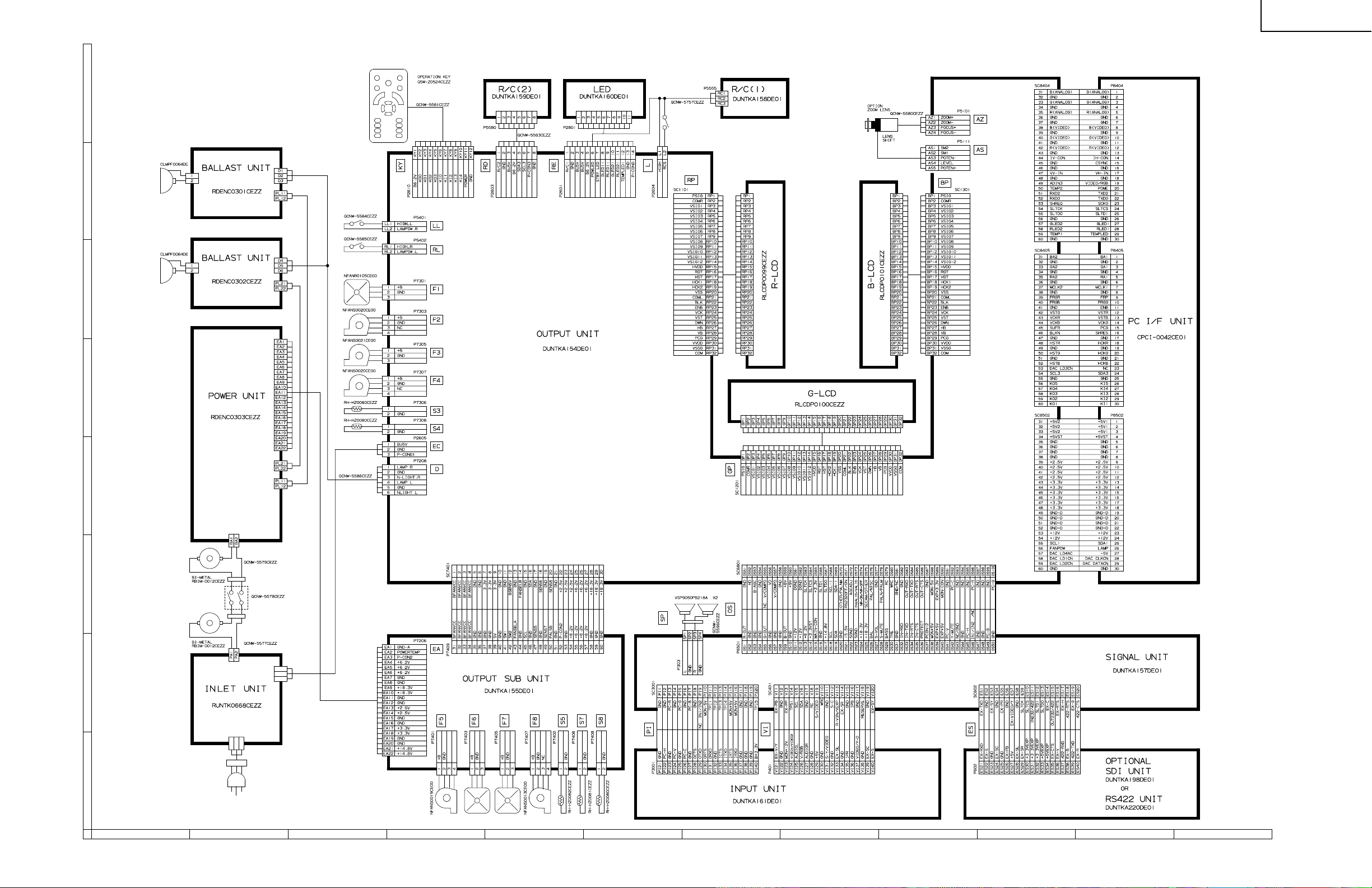

• OVERALL WIRING DIAGRAM ........................ 66

• DESCRIPTION OF SCHEMATIC DIAGRAM... 68

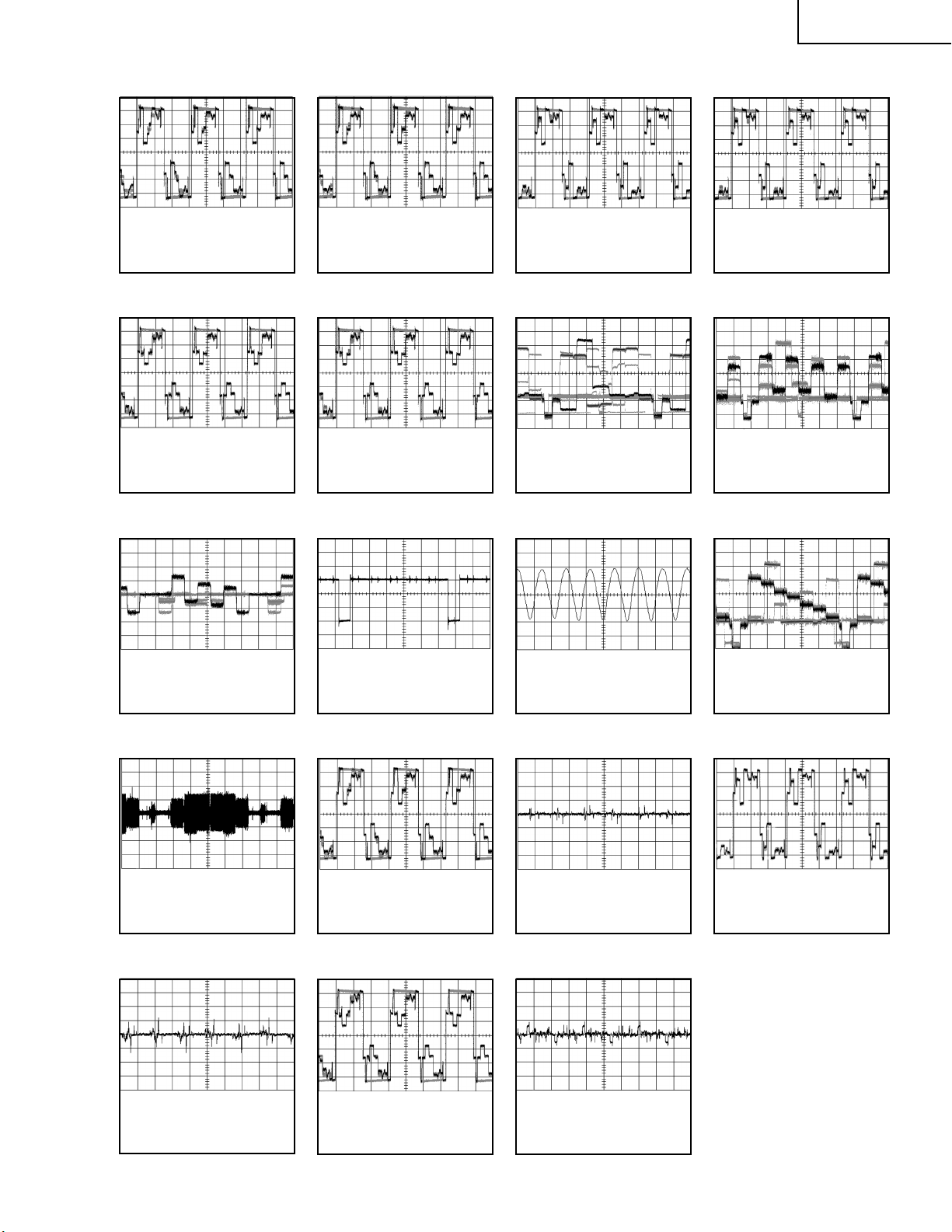

• WAVEFORMS.................................................. 69

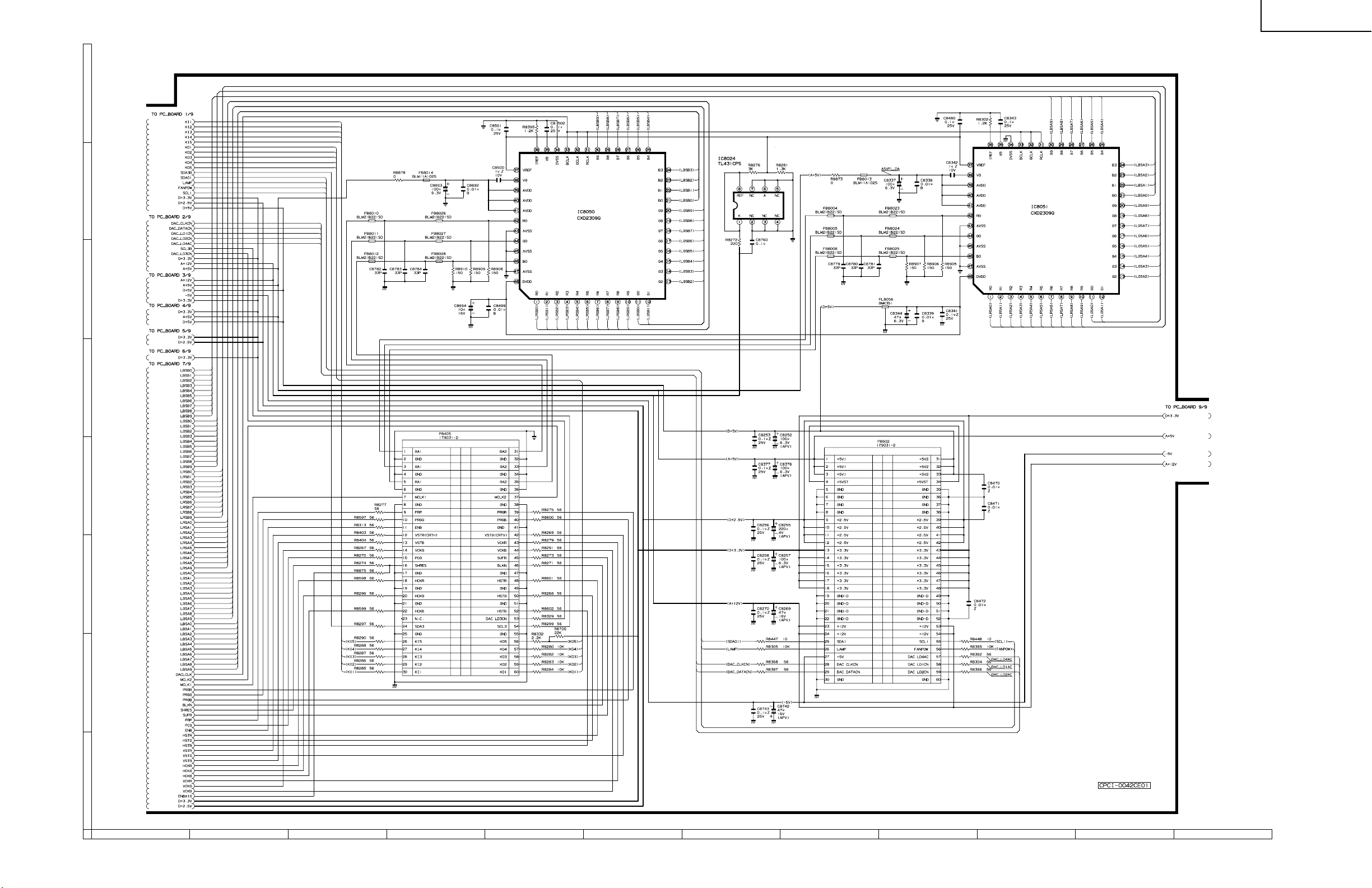

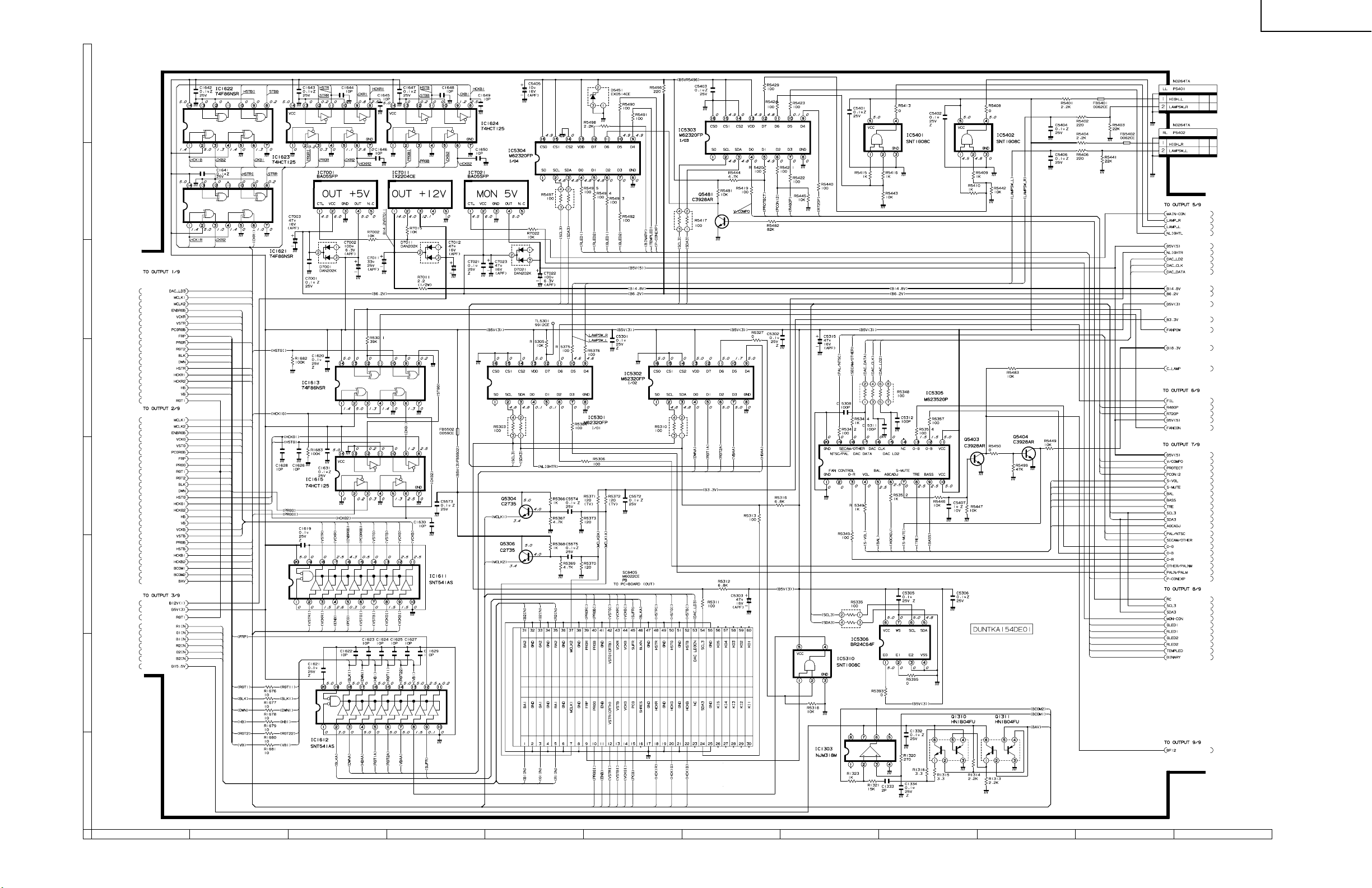

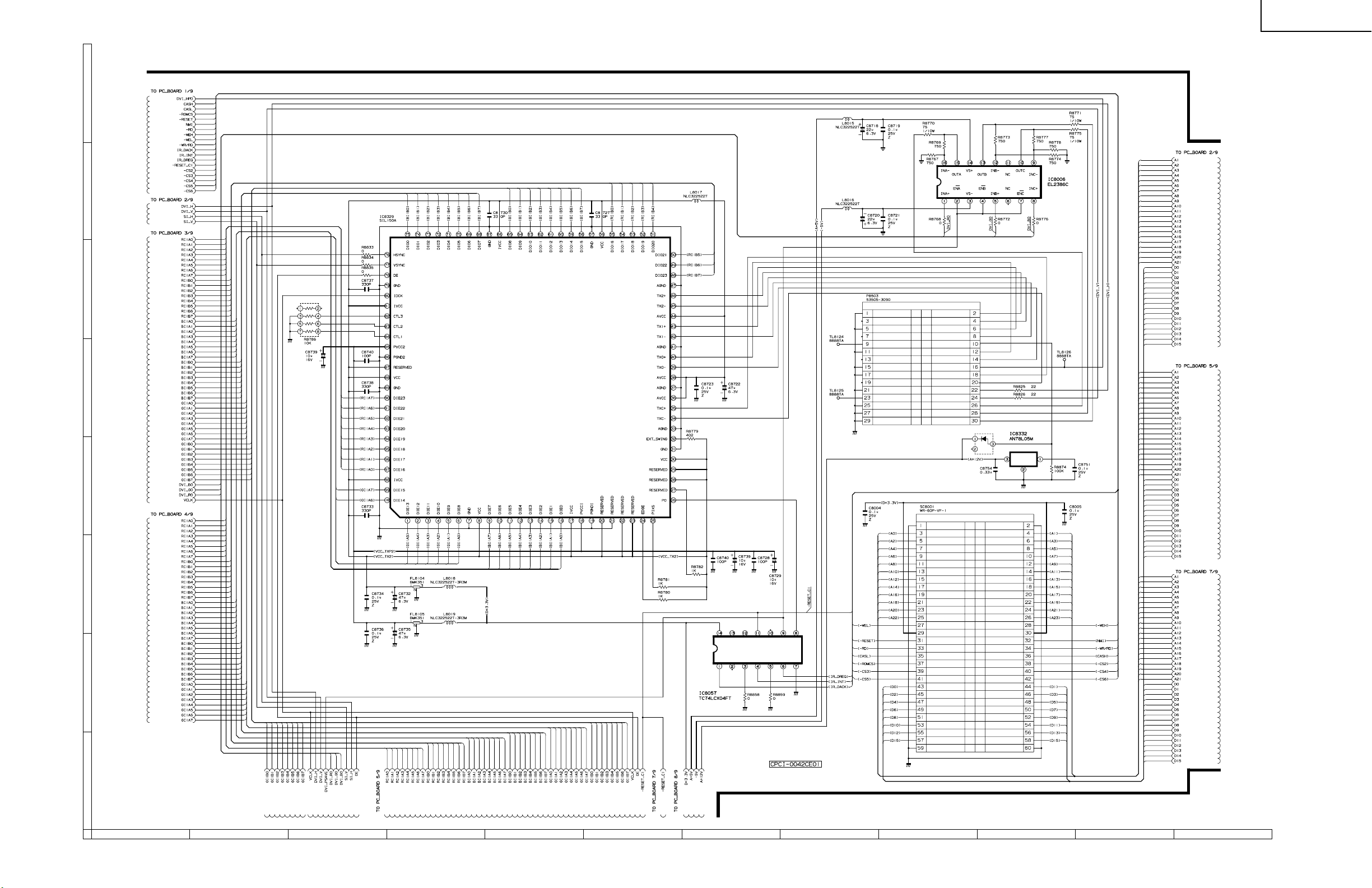

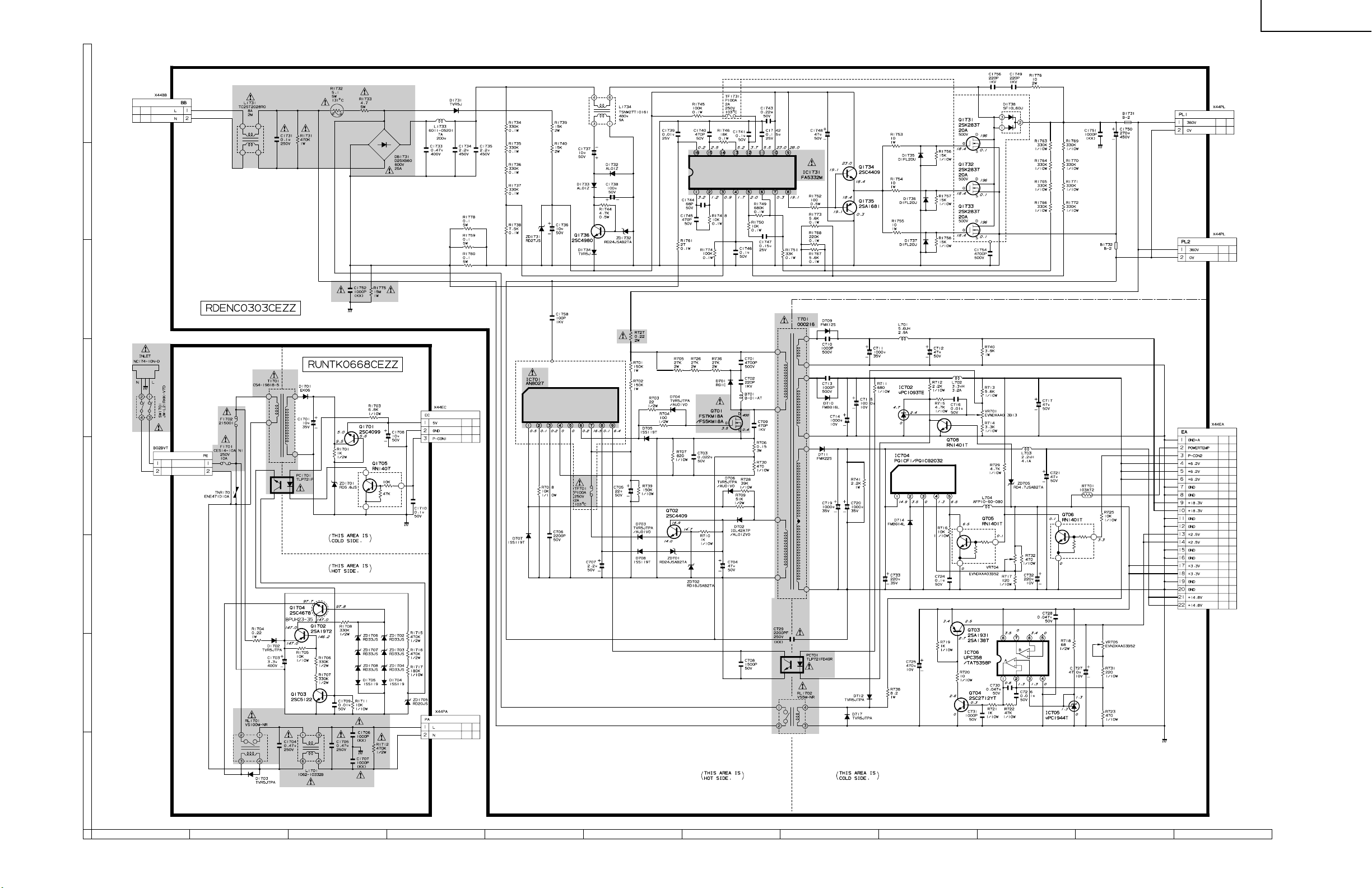

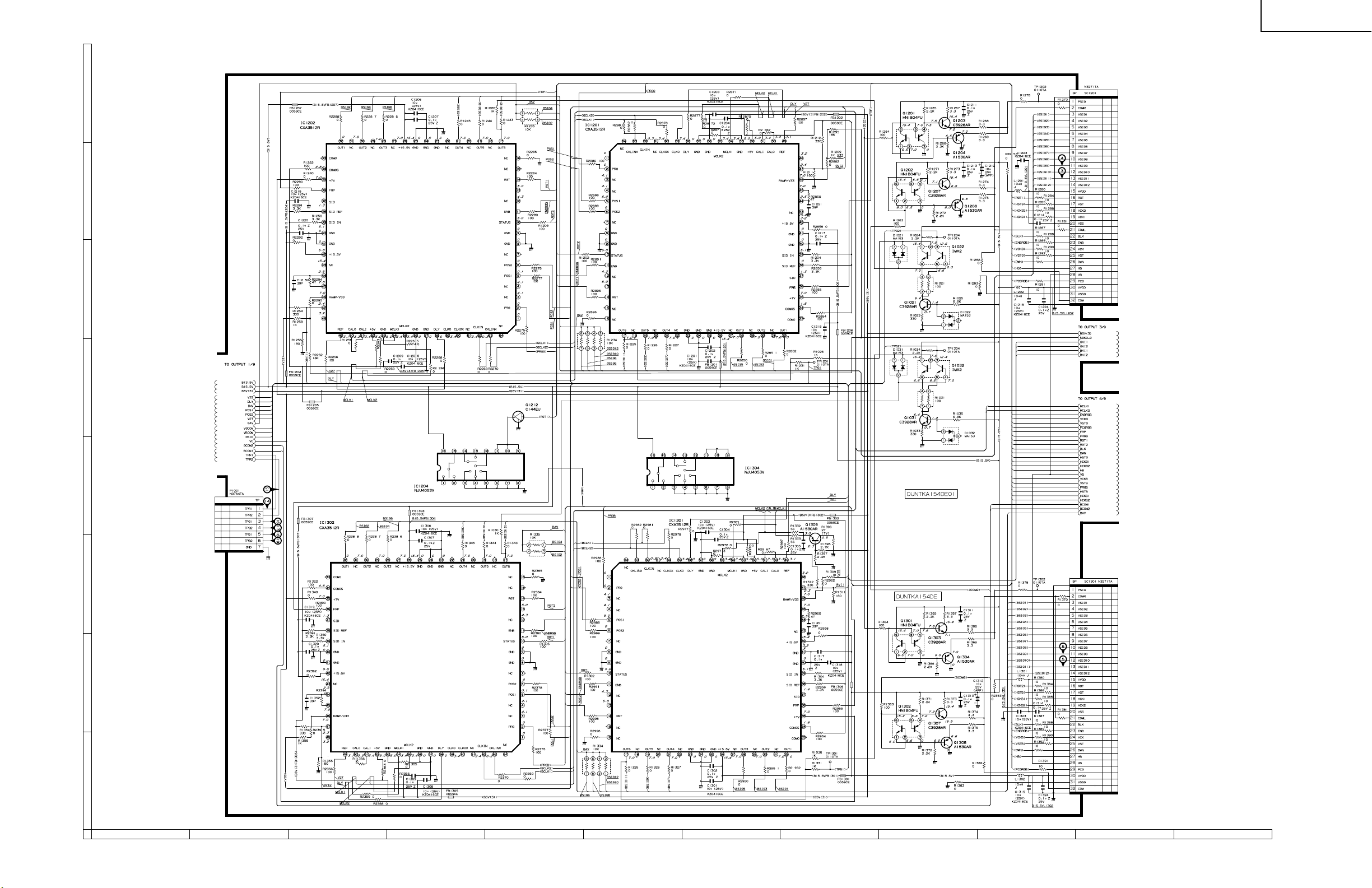

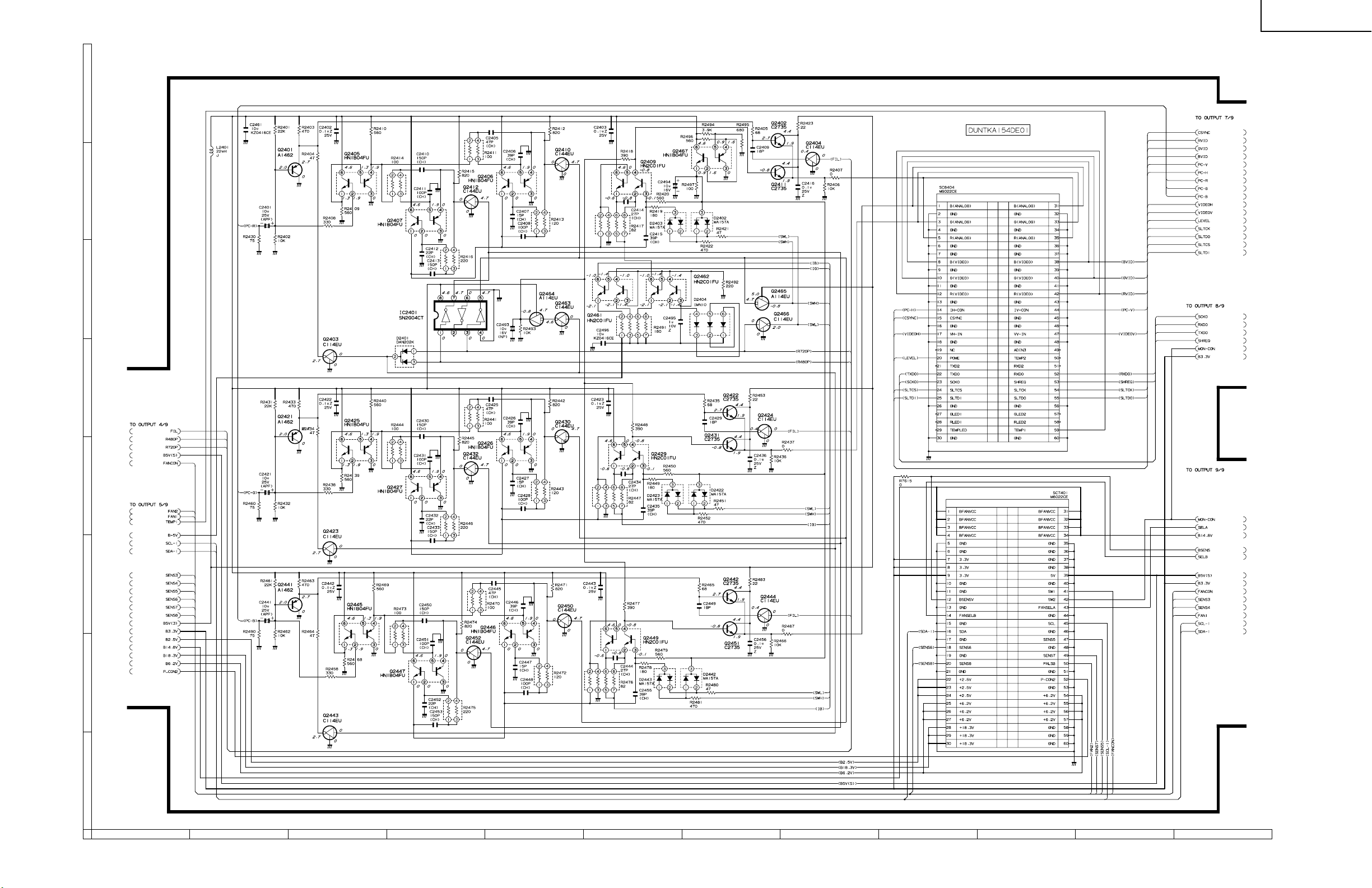

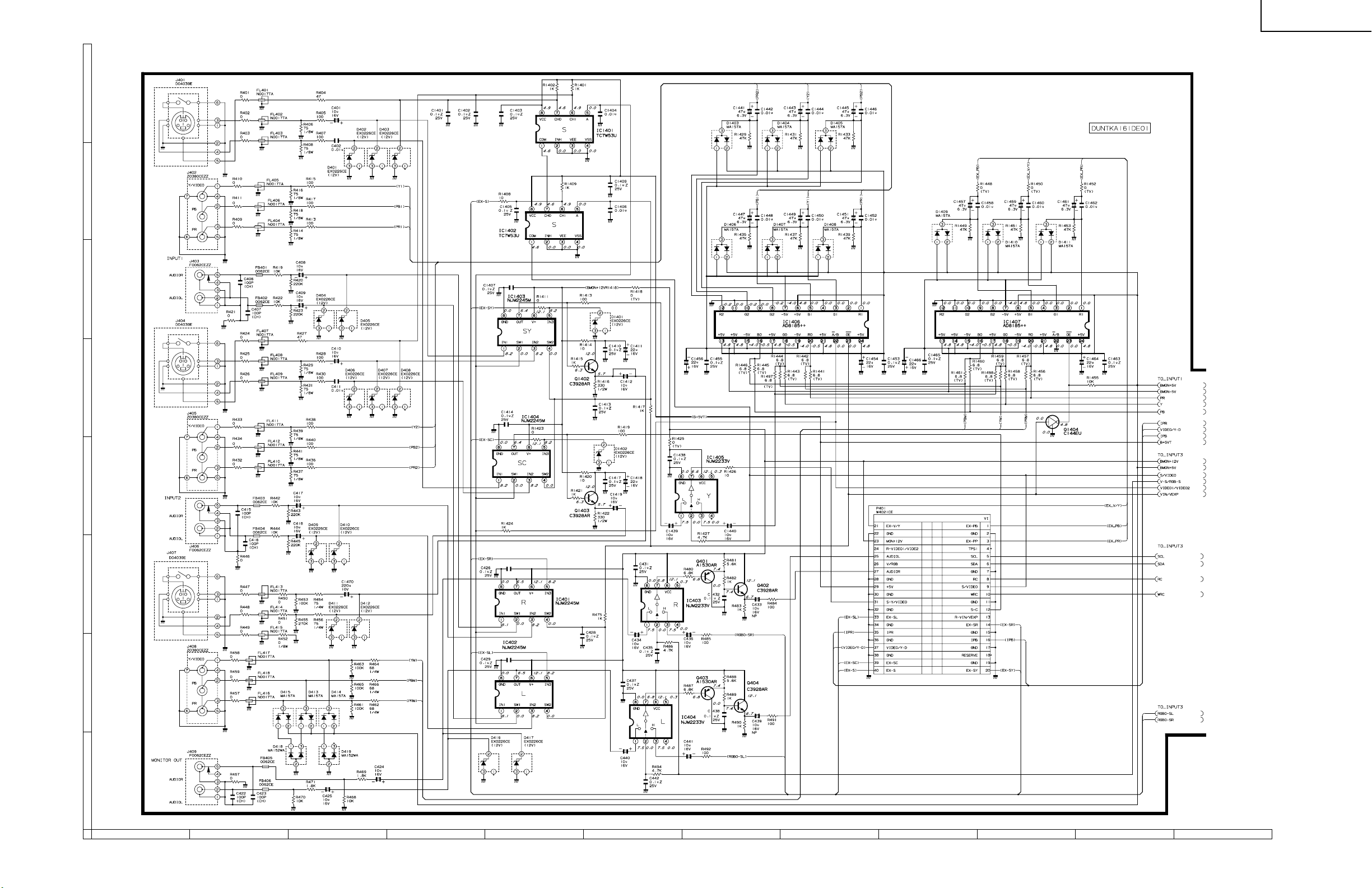

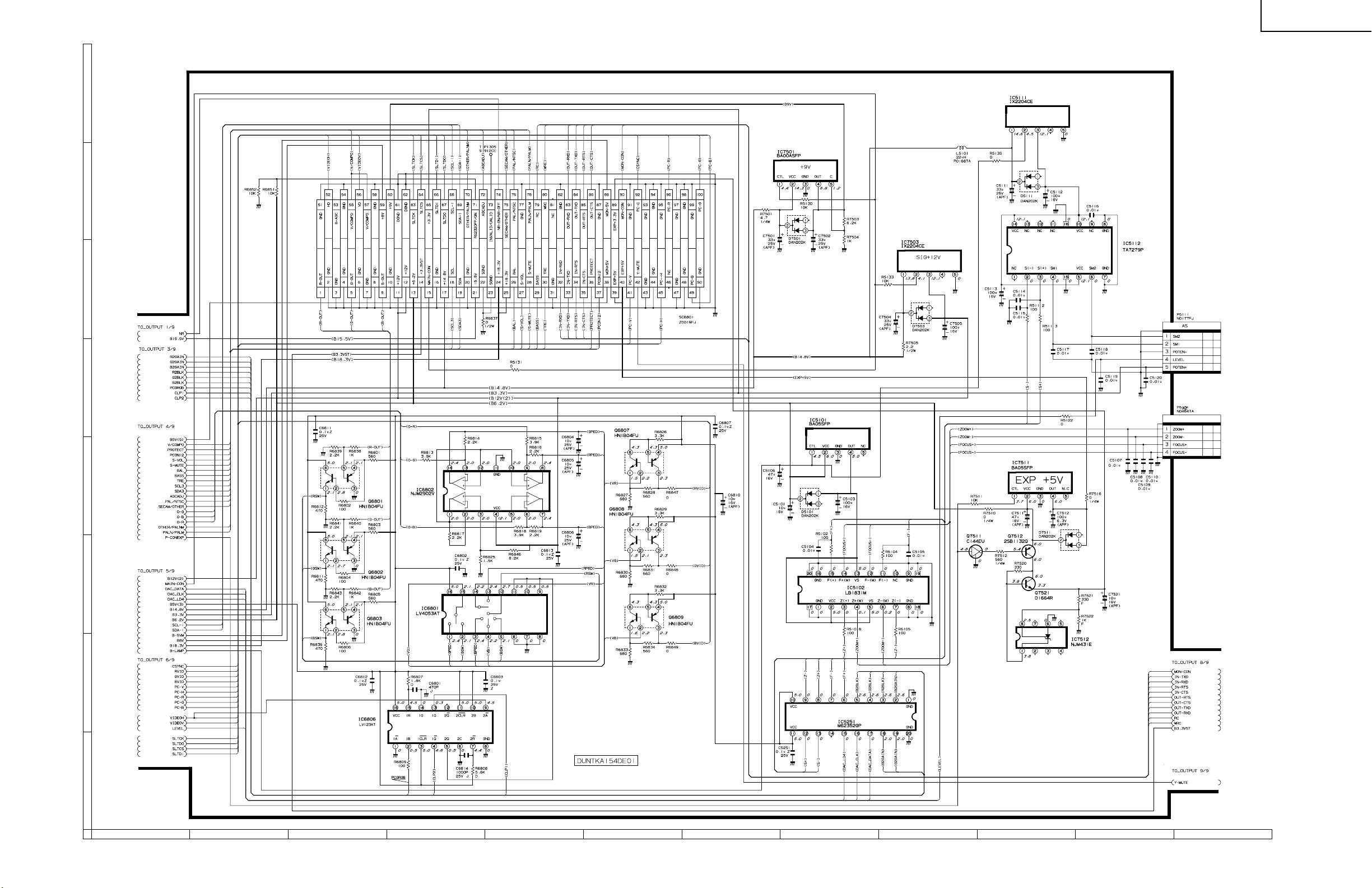

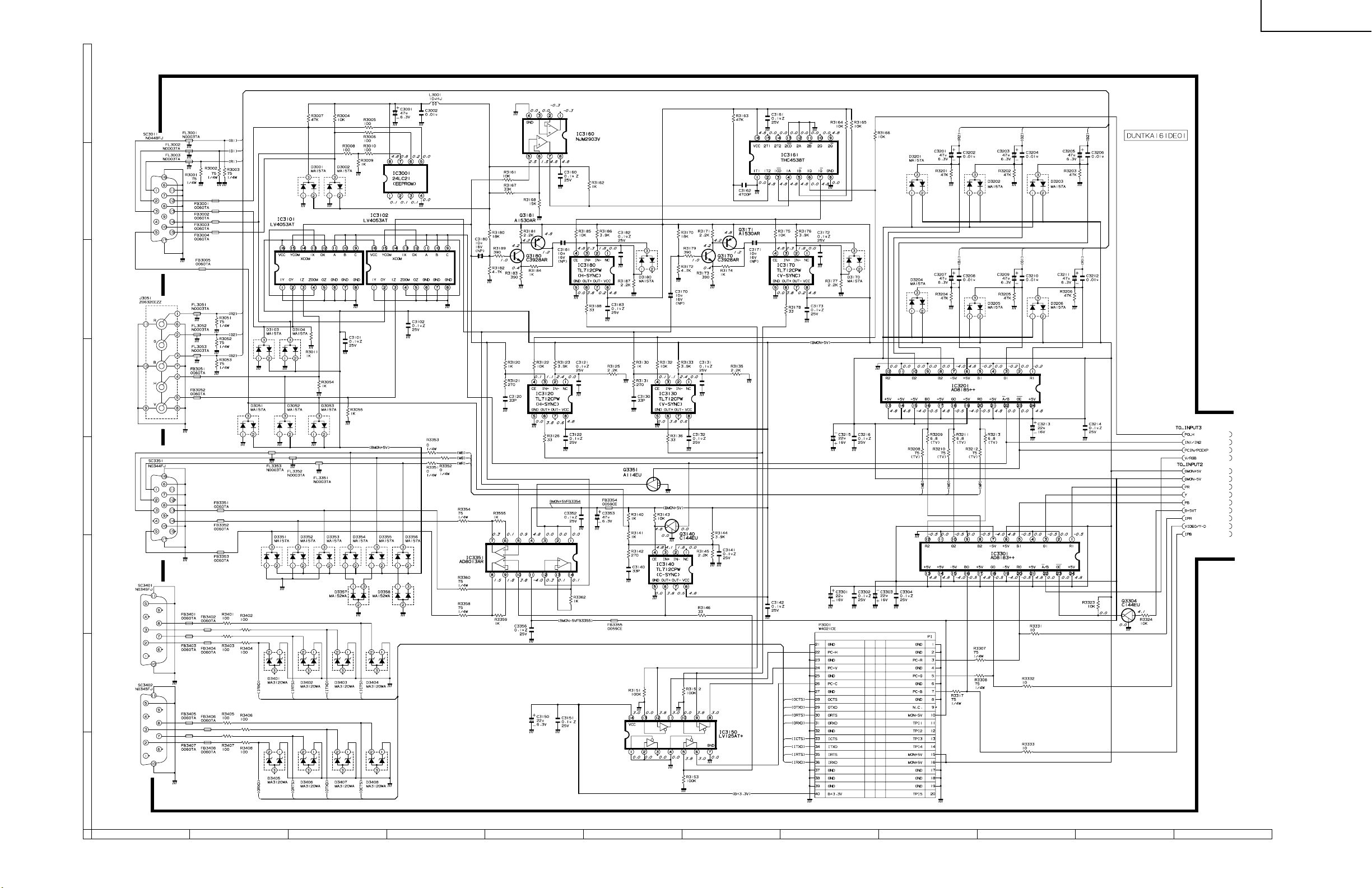

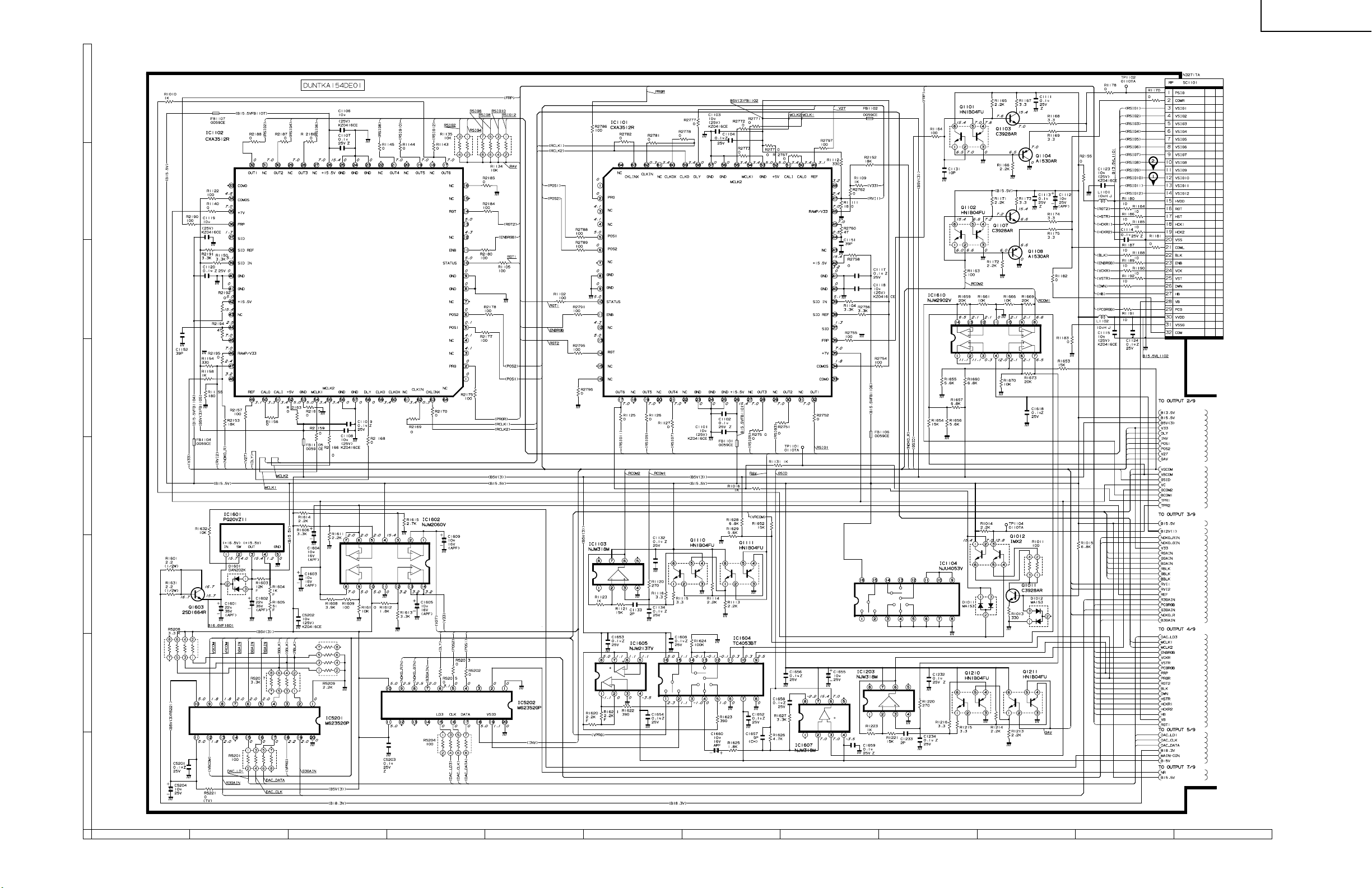

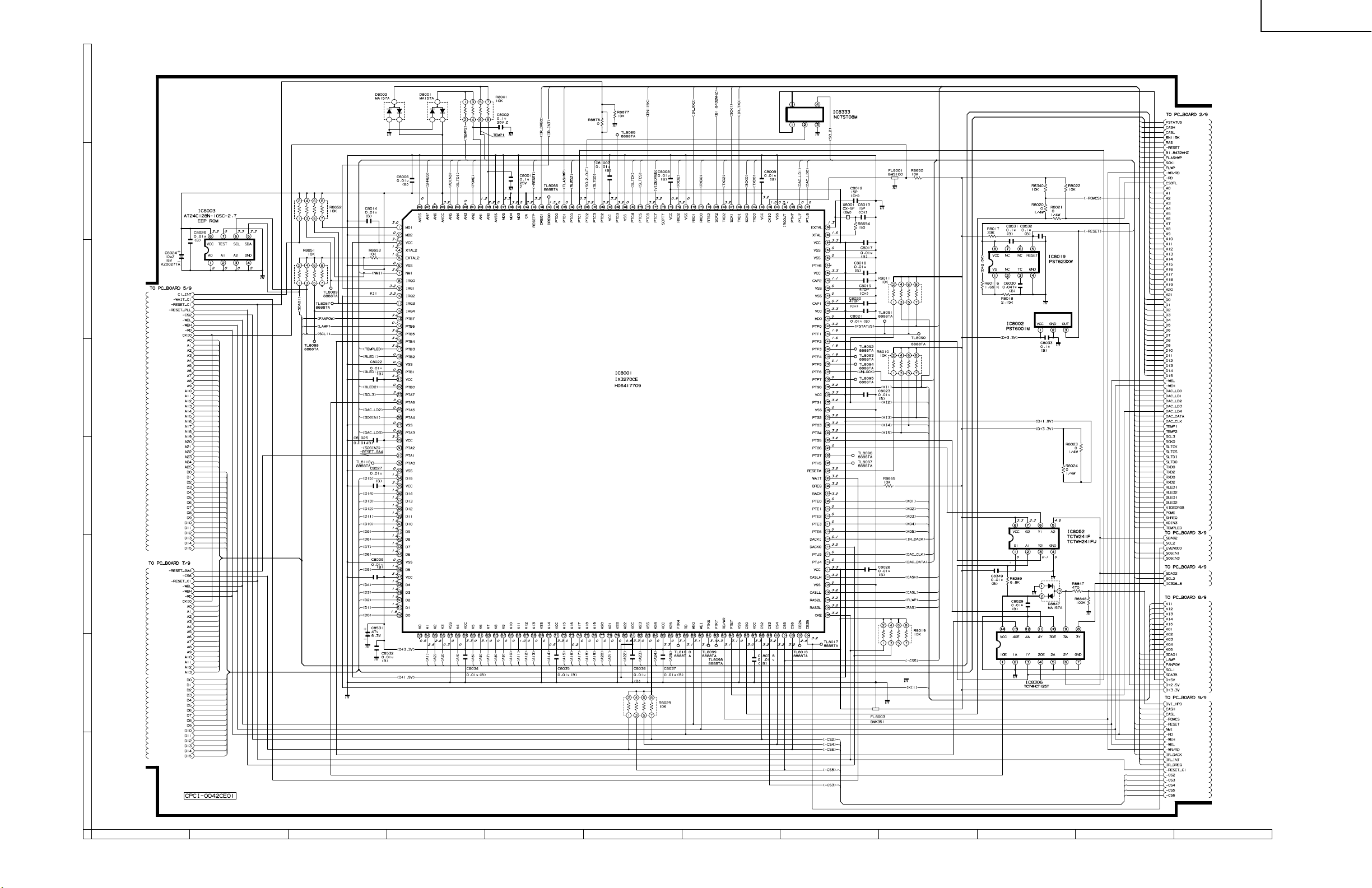

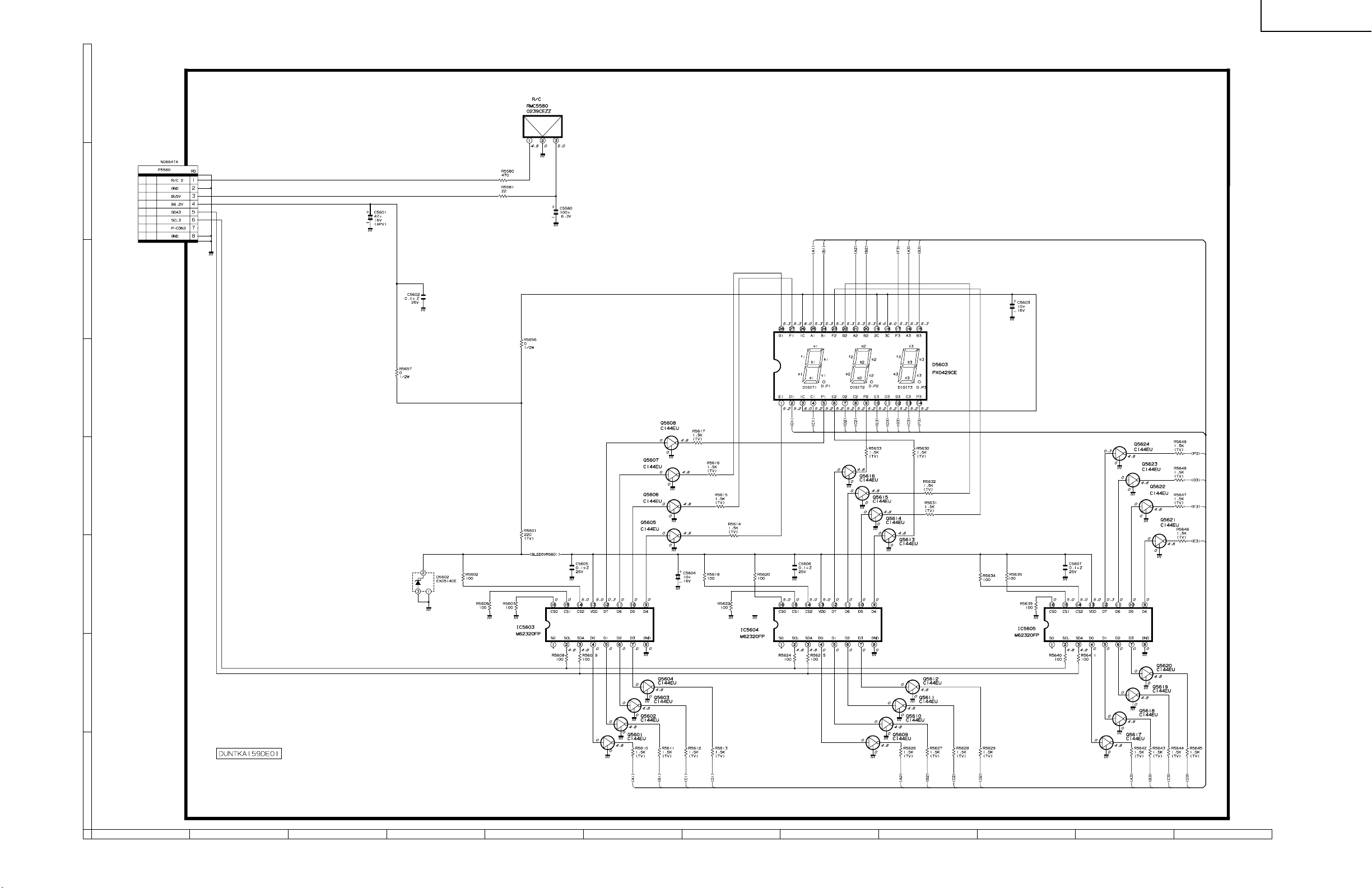

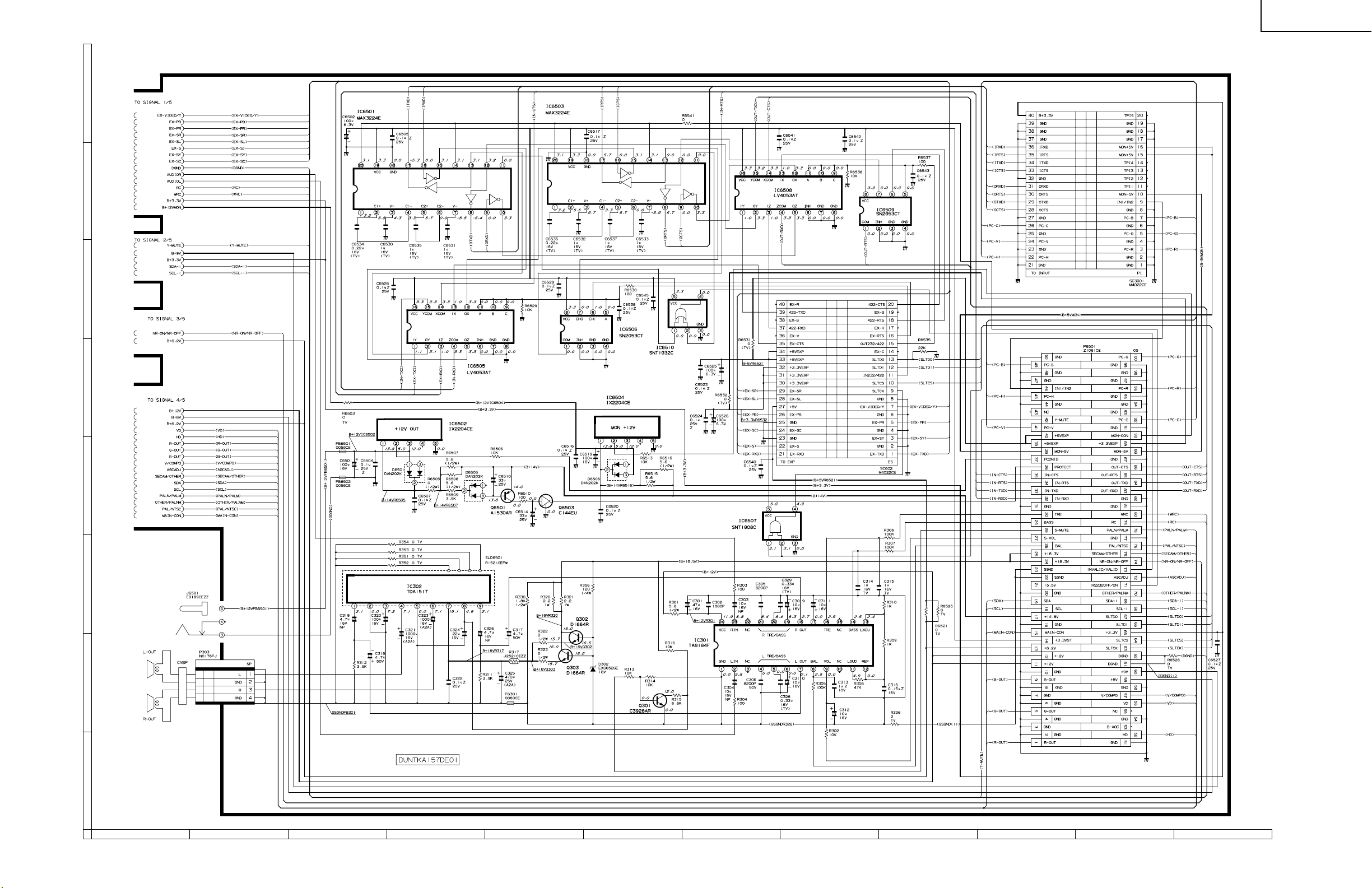

• SCHEMATIC DIAGRAM .................................. 70

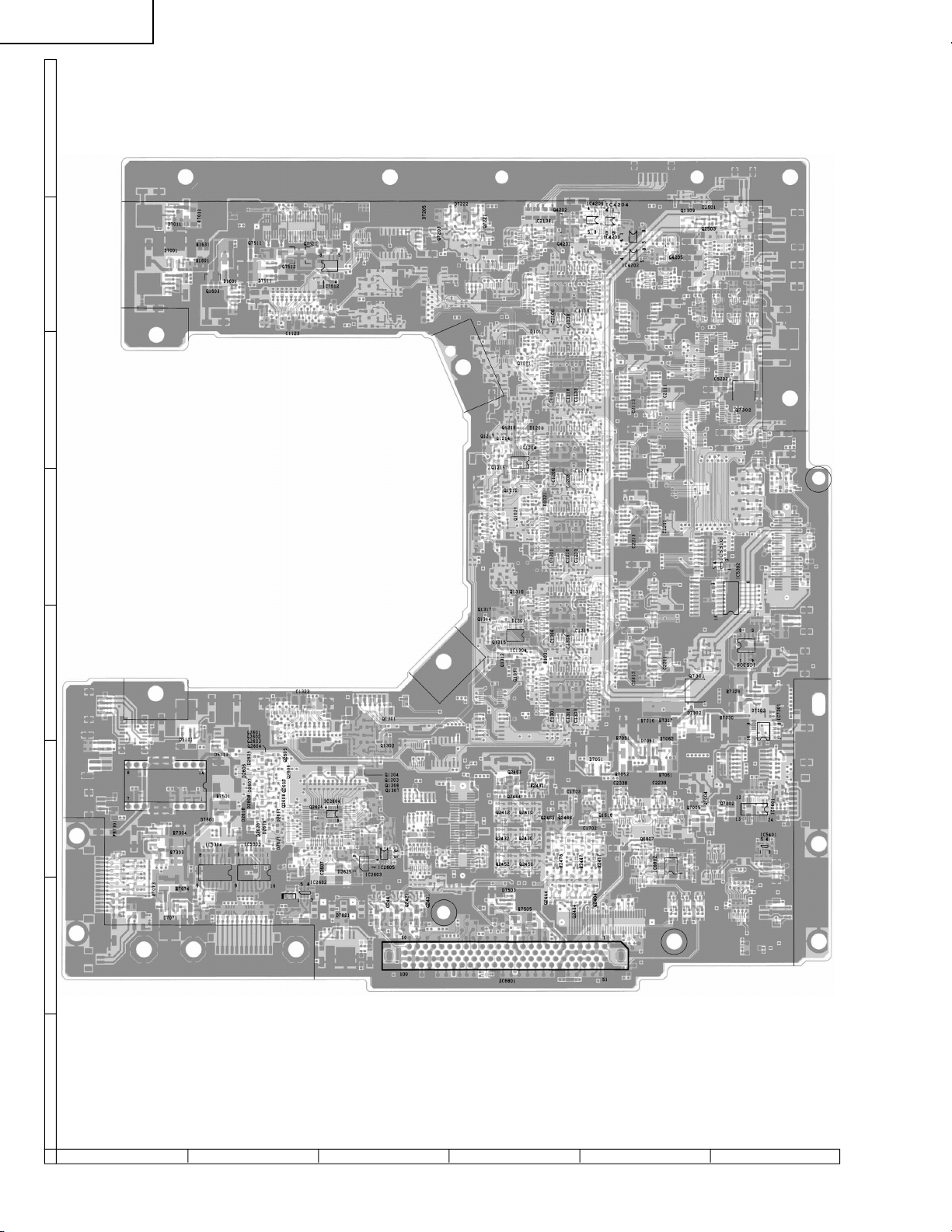

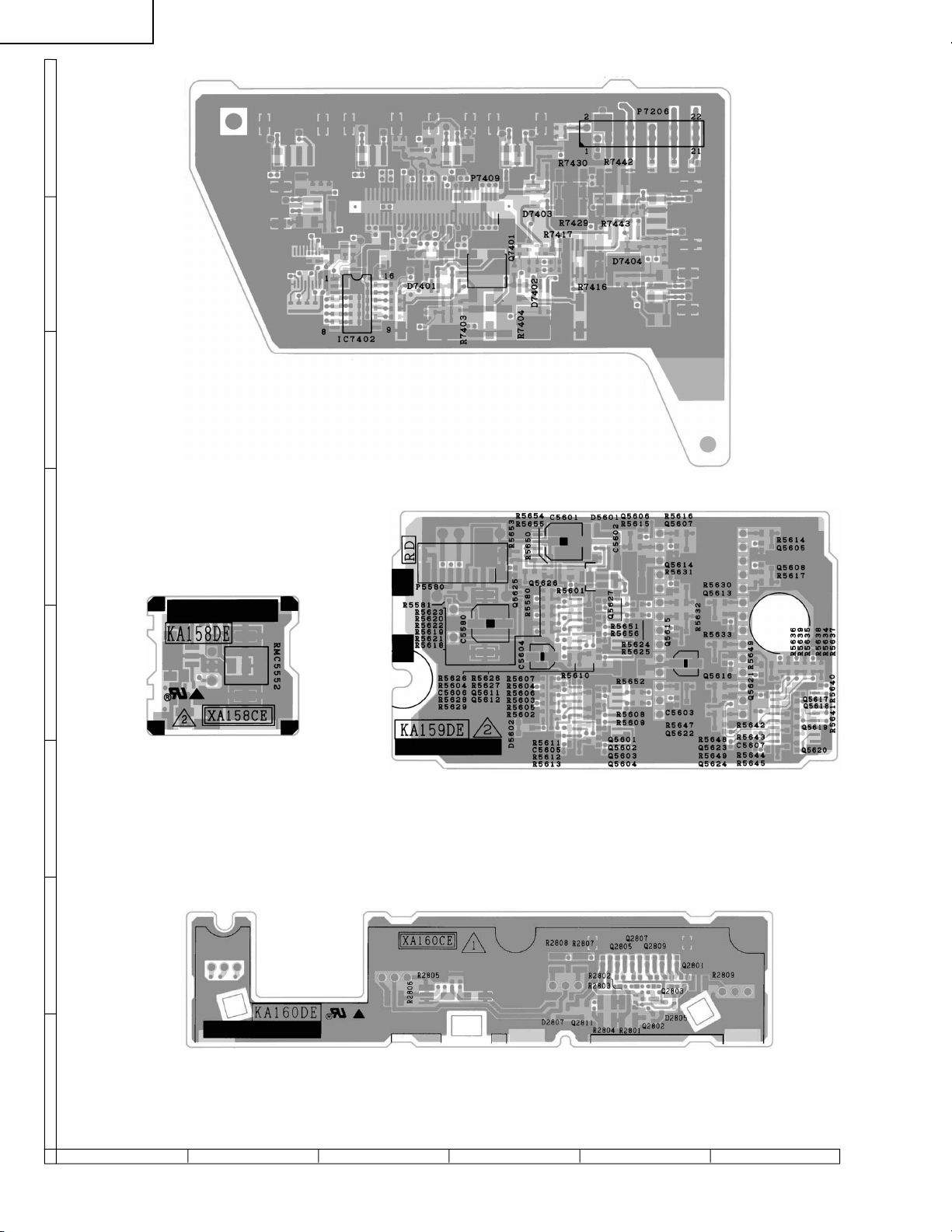

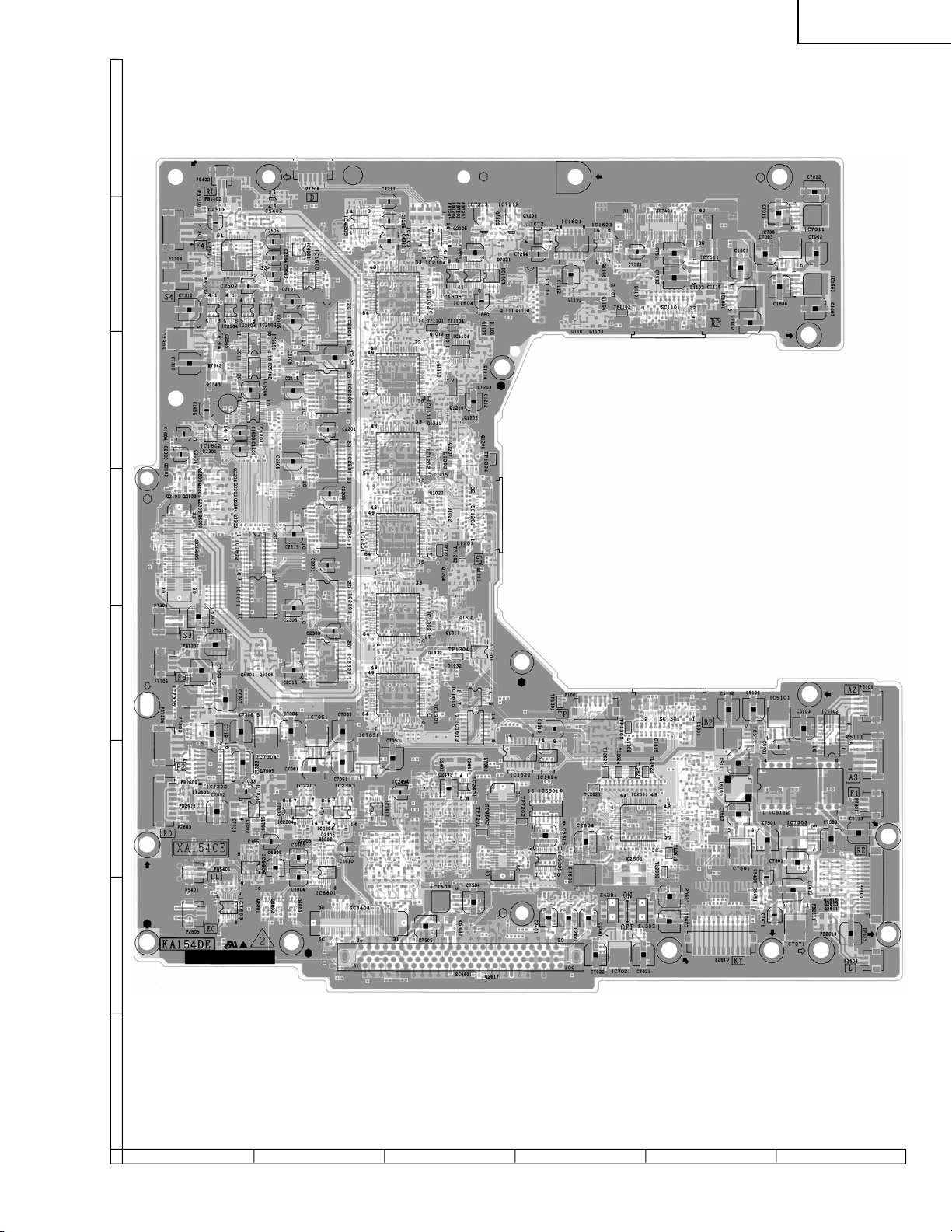

• PRINTED WIRING BOARD ASSEMBLIES ... 130

• PARTS LIST

• PACKING OF THE SET ................................. 183

• OPTIONAL BOARDS..................................... 184

AN-S422U

Ë

ELECTRICAL PARTS............................... 143

Ë

CABINET AND MECHANICAL PARTS .... 177

Ë

ACCESSORIES PARTS........................... 182

Ë

PACKING PARTS..................................... 182

SHARP CORPORATION

This document has been published to be used for
after sales service only.
The contents are subject to change without notice.

1

XG-V10WU

AN-SD1U/S422U

Specifications

Product type

Model

Video system

Display method

LCD panel

Projection lamp

Contrast ratio

Video input signal

S-video input signal

Component input signal

Horizontal resolution

RGB input signal

Pixel clock

Vertical frequency

Horizontal frequency

Computer control signal

Speaker system

Rated voltage

Input current

Rated frequency

Power consumption

Power dissipation

Operating temperature

Storage temperature

Cabinet

I/R carrier frequency

Laser pointer of remote control

Dimensions (approx.)

Weight (approx.)

Supplied accessories

Replacement parts

LCD Projector
XG-V10WU
PAL/PAL 60/PAL-M/PAL-N 60/SECAM/NTSC 3.58/NTSC 4.43
DTV 480P/720P/DTV 1080I
LCD panel × 3, RGB optical shutter method
Panel size: 1.8" (28.7 [H] × 35.8 [W] mm)
Display method: Translucent TN liquid crystal panel
Drive method: TFT (Thin Film Transistor) Active Matrix panel
No. of dots: 1,310,720 dots (1,280 [H] × 1,024 [V])
200 W UHP lamp × 2
400:1
BNC Connector: VIDEO (INPUT 4, 5), composite video, 1.0 Vp-p, sync negative, 75 Ω
terminated
RCA Connector: AUDIO (INPUT 4, 5), 0.5 Vrms more than 22 kΩ (stereo)
4-pin Mini DIN connector (INPUT 4, 5)
Y (luminance signal): 1.0 Vp-p, sync negative, 75 Ω terminated
C (chrominance signal): Burst 0.286 Vp-p, 75 Ω terminated
BNC Connector (INPUT 2, 4, 5) 15-

SUB CONNECTOR

(INPUT 1)

PIN MINI

D-

Y: 1.0 Vp-p, sync negative, 75 Ω terminated

B

: 0.7 Vp-p, 75 Ω terminated

P
P

R

: 0.7 Vp-p, 75 Ω terminated

620 TV lines (video input), 720 TV lines (DTV 720P input, Dot by Dot)

PIN MINI

D-

15-

SUB CONNECTOR

(INPUT 1), 5 BNC

CONNECTOR

(INPUT 2):
RGB separate/composite sync/sync on green type analog input: 0–0.7 Vp-p, positive,
75 Ω terminated

CONNECTOR

DVI

ORIZONTAL SYNC. SIGNAL

H

ERTICAL SYNC. SIGNAL

V

(29-

PIN

) (INPUT 3), RGB (DIGITAL), 250–1,000 mV, 50 Ω

: TTL level (positive/negative) or composite sync (Apple only)

: Same as above
12–230 MHz
43–200 Hz
15–126 kHz
9-pin D-sub connector (RS-232C Input Port/Output Port)
1

31

⁄32" × 3

5

/ " (5 × 8 cm) oval × 2, 3 W + 3 W (stereo)

32

AC 110–120/220–240 V

6.2 A/3.1 A
50/60 Hz
575 W
< 2,100 BTU/hour
41°F to 104°F (+5°C to +40°C)
–4°F to 140°F (–20°C to +60°C)
Plastic
38 kHz
Wave length: 650 nm / Max. output: 1 mW / Class II Laser Product

31

⁄64" (W) × 7 23⁄32" (H) × 24 29⁄64" (D) (444.2 × 196.2 × 621.3 mm) (main body only)

17

55

20

⁄64" (W) × 8 23⁄32" (H) × 25 5⁄16" (D) (530.1 × 221.9 × 643.2 mm) (including standard

lens, terminal cover, adjustment feet and projecting parts)

41.7 lbs. (18.9 kg) (main body only)
Remote control, Two AA size batteries, Power cord (11'10", 3.6m), RGB cable (9' 10",
3m), PS/2 mouse control cable (3' 3", 1 m), USB mouse control cable (3' 3", 1 m), Remote
mouse receiver, Extra air filter, CD-ROM, LCD projector operation manual, LCD projector
quick reference, Sharp Advanced Presentation Software operation manual
Lamp unit (Lamp/cage module) (BQC-XGV10WU/1), Remote control (RRMCG1564CESA),
AA size batteries, Power cord (QACCU5013CEZZ), RGB cable (QCNW-5304CEZZ), PS/2
mouse control cable (QCNW-5113CEZZ), USB mouse control cable (QCNW-5680CEZZ),
Remote mouse receiver (RUNTK0673CEZZ), Air filter (PFILD0110CEZZ), CD-ROM
(UDSKA0020CEN1), LCD projector operation manual (TINS-6974CEZZ), LCD projector
quick reference (TINS-6980CEZZ), Sharp Advanced Presentation Software operation
manual (TINS-6992CEZZ), Terminal Cover (CCOVA1789CE01)

This SHARP projector uses LCD (Liquid Crystal Display) panels. These
very sophisticated panels contain 1,310,720 pixels (× RGB) TFTs
(Thin Film Transistors). As with any high technology electronic
equipment such as large screen TVs, video systems and video
cameras, there are certain acceptable tolerances that the equipment
must conform to.

Specifications are subject to change without notice.

This unit has some inactive TFTs within acceptable tolerances which
may result in illuminated or inactive dots on the picture screen. This
will not affect the picture quality or the life expectancy of the unit.
If you have any questions about this matter , please call toll free 1-888­GO-SHARP (1-888-467-4277).

U.S.A. ONLY

2

XG-V10WU

2
2

AN-SD1U/S422U

IMPORTANT SERVICE SAFETY NOTES

Ë Service work should be performed only by qualified service technicians who are

thoroughly familiar with all safety checks and servicing guidelines as follows:

WARNING

1. For continued safety, no modification of any circuit
should be attempted.

2. Disconnect AC power before servicing.

BEFORE RETURNING THE PROJECTOR:
(Fire & Shock Hazard)

Before returning the projector to the user, perform
the following safety checks:

1. Inspect lead wires are not pinched between the
chassis and other metal parts of the projector.

2. Inspect all protective devices such as non-metallic
control knobs, insulating materials, cabinet backs,
adjustment and compartment covers or shields,
isolation resistor-capacity networks, mechanical
insulators, etc.

3. To be sure that no shock hazard exists, check for
current leakage in the following manner:

» Plug the AC cord directly into a 120-volt AC outlet,

(Do not use an isolation transformer for this test).

» Using two clip leads, connect a 1.5k ohm, 10 watt

resistor paralleled by a 0.15µF capacitor in parallel
between all exposed metal cabinet parts and earth
ground.

» Use an AC voltmeter with sensitivity of 5000 ohm per

volt., or higher, sensitivity to measure the AC voltage
drop across the resistor (See Diagram).

» All checks must be repeated with the AC plug

connection reversed. (If necessary , a non-polarized
adapter plug must be used only for the purpose of
completing these checks.)
Any reading of 0.3 volts RMS (this corresponds to

0.2 milliamp. AC.) or more is excessive and indicates
a potential shock hazard which must be corrected
before returning the unit to the owner.

AC

VOLTMETER

1.5k ohm (10W)

0.15µF

TEST PROBE

TO EXPOSED
METAL PARTS

CONNECT TO KNOWN
EARTH GROUND

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

SAFETY NOTICE

Many electrical and mechanical parts in LCD Projector
have special safety-related characteristics.
These characteristics are often not evident from visual
inspection, nor can protection afforded by them be
necessarily increased by using replacement components
rated for higher voltage, wattage, etc.
Replacement parts which have these special safety
characteristics are identified in this manual; electrical
components having such features are identified by “å”
and shaded areas in the Replacement Parts Lists and
Schematic Diagrams. For continued protection,
replacement parts must be identical to those used in the
original circuit. The use of a substitute replacement parts
which do not have the same safety characteristics as
the factory recommended replacement parts shown in
this service manual, may create shock, fire or other
hazards.

AVIS POUR LA SECURITE

De nombreuses pièces, électriques et mécaniques, dans
les projecteur à LCD présentent des caractéristiques
spéciales relatives à la sécurité, qui ne sont souvent
pas évidentes à vue.
Le degré de protection ne peut pas être nécessairement
augmentée en utilisant des pièces de remplacement
étalonnées pour haute tension, puissance, etc.
Les pièces de remplacement qui présentent ces
caractéristiques sont identifiées dans ce manuel;
les pièces électriques qui présentent ces particularités
sont identifiées par la marque “å” et hachurées dans la
liste des pièces de remplacement et les diagrammes
schématiques. Pour assurer la protection, ces pièces
doivent être identiques à celles utilisées dans le circuit
d’origine. L’utilisation de pièces qui n’ont pas les mêmes
caractéristiques que les pièces recommandées par
l’usine, indiquées dans ce manuel, peut provoquer des
électrocutions, incendies ou autres accidents.

WARNING: The bimetallic component has the primary

conductive side exposed. Be very careful in
handling this component when the power is on.

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

AVERTISSEMENT: La composante bimétallique dispose du

conducteur primaire dénudé. Faire
attention lors de la manipulation de cette
composante sous tension.

3

XG-V10WU

AN-SD1U/S422U

NOTE TO SERVICE
PERSONNEL

UV-RADIATION PRECAUTION

The light source, UHP lamp, in the LCD projector
emits small amounts of UV-Radiation.

A VOID DIRECT EYE AND SKIN EXPOSURE.

To ensure safety please adhere to the following:

1. Be sure to wear sun-glasses when servicing the
projector with the lamp
turned “on” and the top
enclosure removed.

2. Do not operate the lamp outside of the lamp housing.

NOTE POUR LE PERSONNEL
D’ENTRETIEN

PRECAUTION POUR LES RADIATIONS UV

La source de lumière, la lampe UHP, dans le
projecteur LCD émet de petites quantités de
radiation UV.

EVITEZ TOUTE EXPOSITION DIRECTE
DES YEUX ET DE LA PEAU.

Pour votre sécurité, nous vous prions de respecter
les points suivants:

1. Toujours porter des lunettes de soleil lors d’un
entretien du projecteur
avec la lampe allumée
et le haut du coffret retiré.

2. Ne pas faire fonctionner la lampe à l’extérieur du
boîtier de lampe.

3. Do not operate for more than 2 hours with the
enclosure removed.

UV-Radiation and Medium Pressure
Lamp Precautions

1. Be sure to disconnect the AC plug when replacing
the lamp.

2. Allow one hour for the unit to cool down before
servicing.

3. Replace only with same type lamp. Type
CLMPF0064DE01/02 or BQC-XGV10WU/1 rated
100V/200W.

4. The lamp emits small amounts of UV-Radiation, avoid
direct-eye contact.

5. The medium pressure lamp involves a risk of
explosion. Be sure to follow installation instructions
described below and handle the lamp with care.

3. Ne pas faire fonctionner plus de 2 heures avec le
coffret retiré.

Précautions pour les radiations UV
et la lampe moyenne pression

1. Toujours débrancher la fiche AC lors du
remplacement de la lampe.

2. Laisser l’unité refroidir pendant une heure avant de
procéder à l’entretien.

3. Ne remplacer qu’avec une lampe du même type.
Type CLMPF0064DE01/02 or BQC-XGV10WU/1,
caractéristique 100V/200W.

4. La lampe émet de petites quantités de radiation UV­éviter tout contact direct avec les yeux.

5. La lampe moyenne pression implique un risque
d’explosion. Toujours suivre les instructions
d’installation décrites ci-dessous et manipuler la
lampe avec soin.

4

XG-V10WU

5

4

5
5

AN-SD1U/S422U

234567890123456789012345678901212345678901234

UV-RADIATION PRECAUTION (Continued)

23456789012345678901234567890121234567890123

Lamp Replacement

Note:

Since the lamp reaches a very high temperature
during units operation replacement of the lamp
should be done at least one hour after the power
has been turned off. (to allow the lamp to cool off.)
Installing the new lamp, make sure not to touch the
lamp (bulb) replace the lamp by holding its reflector

2.
[Use original replacement only.]

Lamp

1

Reflector

2

DANGER ! –– Never turn the power on without the
lamp to avoid electric-shock or damage of the
devices since the stabilizer generates high voltages
at its start.

234567890123456789012345678901212345678901234

PRECAUTION POUR LES RADIATIONS UV (Suite)

234567890123456789012345678901212345678901234

Remplacement de la lampe

Remarque:

Comme la lampe devient très chaude pendant le
fonctionnement de l’unité, son remplacement ne doit
être effectué au moins une heure après avoir coupé
l’alimentation (pour permettre à la lampe de refroidir).
En installant la nouvelle lampe, s’assurer de ne pas
toucher la lampe (ampoule). Remplacer la lampe en
tenant son réflecteur 2.
[N’utiliser qu’un remplacement d’origine.]

1

Lampe

2

Reflecteur

DANGER ! –– Ne jamais mettre sous tension sans
la lampe pour éviter un choc électrique ou des
dommages des appareils car le stabilisateur génère
de hautes tensions à sa mise en route.

Since small amounts of UV-radiation are emitted from
an opening between the exhaust fans, it is recom­mended to place the cap of the optional lens on the
opening during servicing to avoid eye and skin ex-

posure (Fig. 1).

Note: Please obtain a lens cap before servicing a

model XG-V10WU that is received without
one.

LENS CAP

Comme de petites quantités de radiation UV sont
émises par une ouverture entre les ventilateurs as­pirants, il est recommandé de placer le capuchon
de l’optique optionnelle sur l’ouverture pendant
l’entretien pour éviter une exposition des yeux et la
peau (Fig. 1).

Remarque: Priére de se procurer un capuchon

d'optique acant d'entretien un modéle
XG-V10WU qui est livré sans.

CAPUCHON D'OPTIQUE

Figure 1.

Figure 1.

5

XG-V10WU

AN-SD1U/S422U

Cautions Concerning the Laser Pointer

"COMPLIES WITH 21 CFR SUBCHAPTER J"

SHARP ELECTRONICS CORPORATION
SHARP PLAZA, MAHWAH, NEW JERSEY 07430

LASER RADIATION­DO NOT STARE INTO BEAM

WAVE LENGTH : 650nm
MAX. OUTPUT : 1mW

CLASS II LASER PRODUCT

AVOID EXPOSURE-

RADIATION IS EMITTED
FROM THIS APERTURE.

TEL : 1-800-BE-SHARP

REMOTE CONTROL
MODEL NO. : RRMCG1564CESA
DC3V(1.5VX2PCS.)
MADE IN CHINA
FABRIQUÉ AU CHINE

LASER

U.S.A. ONLY

Précautions Liées au pointeur laser

"COMPLIES WITH 21 CFR SUBCHAPTER J"

SHARP ELECTRONICS CORPORATION
SHARP PLAZA, MAHWAH, NEW JERSEY 07430

LASER RADIATION­DO NOT STARE INTO BEAM

WAVE LENGTH : 650nm
MAX. OUTPUT : 1mW

CLASS II LASER PRODUCT

AVOID EXPOSURE-

RADIATION IS EMITTED
FROM THIS APERTURE.

TEL : 1-800-BE-SHARP

REMOTE CONTROL
MODEL NO. : RRMCG1564CESA
DC3V(1.5VX2PCS.)
MADE IN CHINA
FABRIQUÉ AU CHINE

LASER

U.S.A. ONLY

6

XG-V10WU

2

AN-SD1U/S422U

WARNING: High brightness light source, do not stare into the beam of light, or view directly . Be especially

careful that children do not stare directly in to the beam of light.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO

MOISTURE OR WET LOCATIONS.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT REMOVE SCREWS

EXCEPT SPECIFIED USER

SERVICE SCREW

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

NO USER-SERVICEABLE P ARTS EXCEPT LAMP UNIT.

CAUTION

(INLET Unit)

15A 250V

234567890123456789012345678901212345678901234567890123456789012123456789012345678901234567890121

DO NOT REMOVE CABINET.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

CAUTION

For continued
protection against
a risk of fire,
replace only with
same type 15A
250V fuse.
(F1701)

(INLET Unit)

1A 250V

For continued
protection against
a risk of fire,
replace only with
same type 1A
250V fuse.
(F1702)

CAUTION

(POWER Unit)

2A 250V

The lighting flash with arrowhead within a
triangle is intended to tell the user that
parts inside the product are risk of electric
shock to persons.

The exclamation point within a triangle is
intended to tell the user that important
operating and servicing instructions are in
the manual with the projector.

For continued
protection against a
risk of fire, replace
only with same type
P100A, ANZEN
DENGU, 2A, 250V
103°C fuse.(TF701)

A VERTISSEMENT : Source lumineuse de grande intensité. Ne pas fixer le faisceau lumineux ou le regarder

directement. Veiller particulièrement à éviter que les enfants ne fixent directement le
faisceau lumineux.

A VERTISSEMENT : AFIN D’EVITER T OUT RISQUE D’INCENDIE OU D’ELECTROCUTION, NE P AS PLACER

CET APPAREIL DANS UN ENDROIT HUMIDE OU MOUILLE.

ATTENTION

RISQUE

D’ELECTROCUTION NE

PASRETIRER LES VIS, A

L’EXCEPTION DES VIS DE

REPARATION UTILISATEUR

SPECIFIEES

L’éclair terminé d’une flèche à l’intérieur
d’un triangle indique à l’utilisateur que les
pi‘eces se trouvant dans l’appareil sont
susceptibles de provoquer une décharge
électrique.

Le point d’exclamation à l’intérieur d’un

ATTENTION: POUR EVITER T OUT RISQUE

D’ELECTROCUTION, NE PAS RETIRER LE CAPOT.

AUCUNE DES PIECES INTERIEURES N’EST REPARABLE

PAR L’UTILISATEUR, A L’EXCEPTION DE L’UNITE DE

LAMPE. POUR TOUTE REPARA TION, S’ADRESSER A UN

PRECAUTION

(Unite d’admission)

15A 250V

TECHNICIEN D’ENTRETIEN QUALIFIE.

PRECAUTION

Pour une protection
continue contre les
risques d’incendie,
ne remplacer
qu’avec un fusible
15A 250V du même
type.
(F1701)

(Unite d’admission)

1A 250V

Pour une protection
continue contre les
risques d’incendie,
ne remplacer
qu’avec un fusible
1A 250V du même
type.
(F1702)

PRECAUTION

(Unité de PUTSSANCE)

2A 250V

triangle indique à l’utilisateur que les
instructions de fonctionnement et
d’entretien sont détaillées dans les
documents fournis avec le projecteur.

Pour une protection
continue contre un
risques d’incendie, ne
remplacer qu’avec un
fusible P100A, ANZEN
DENGU 2A 250V,
103°C du même type.
(TF701)

7

XG-V10WU

AN-SD1U/S422U

Location of Controls

Projector

Front and Top View

MUTE button

POWER buttons (ON/OFF)

LENS button

ENTER button

INPUT 1, 2, 3 button

FREEZE button

ENLARGE button

UNDO button

VOLUME buttons (+/–)

MENU button

ADJUSTMENT buttons
(' /" /\ /| )

INPUT 4, 5, 6 button
AUTO SYNC button
RESIZE button
GAMMA button

Remote control sensor

Lens (sold separately)

Air filter (Intake vent)

Carrying handle
Adjuster

POWER indicator

LAMP 1 REPLACEMENT indicator

LAMP 2 REPLACEMENT indicator

TEMPERATURE WARNING indicator

8

Projector

Side and Rear View

Remote control sensor

LED display (ID No.)

XG-V10WU

AN-SD1U/S422U

Speakers

Exhaust vent

AC socket

RS-232C INPUT port

RS-232C OUTPUT port

OUTPUT port (15-pin Mini D-Sub) for INPUT 1, 2/

AUDIO OUTPUT terminals for INPUT 1, 2

INPUT 2 terminals/AUDIO INPUT 2 terminals

INPUT 1 port (15-pin Mini D-sub)/

AUDIO INPUT 1 terminals

INPUT 3 port (DVI)/

AUDIO INPUT 3 terminals

INPUT 6 EXPANSION board

S-VIDEO INPUT 4 terminal (4-pin Mini DIN)/

INPUT 4 terminals/AUDIO INPUT 4 terminals

MAIN POWER switch

S-VIDEO INPUT 5 terminal (4-pin Mini DIN)/

INPUT 5 terminals/AUDIO INPUT 5 terminals

OUTPUT terminals for INPUT 4, 5/

S-VIDEO OUTPUT terminal for INPUT 4, 5 (4-pin Mini DIN)/

AUDIO OUTPUT terminals for INPUT 4, 5

DC 12V OUTPUT

WIRED REMOTE control input terminal

9

XG-V10WU

AN-SD1U/S422U

Operating the Wireless Mouse Remote Control

Remote Control

Front View

MUTE button

POWER buttons

LENS/BLACK

SCREEN button

RIGHT-CLICK/

ENTER button

FREEZE button

ADJUSTMENT

(ON/OFF)

MOUSE/

switch

1.2.3 4.5.6

Conference Series

VOLUME buttons
(+/–)

LASER POINTER/
MENU button

MOUSE/
ADJUSTMENT
buttons (

INPUT 4, 5, 6 buttonINPUT 1, 2, 3 button

AUTO SYNC button

RESIZE buttonENLARGE button

GAMMA buttonTOOLS button

BACKLIGHT button

'/"/\/|

Top View

Remote control
signal transmitter

Laser
pointer
window

Rear View

)

LEFT-CLICK/
UNDO
button

Bottom View

Bottom View

Wired remote control
input

Inserting the batteries

Press in on the arrow

13

mark and slide in the
direction of the arrow to
remove the battery cover.

Battery

cover

Insert two AA size

2

batteries, making sure
the polarities match the

+ and – marks inside

the battery compartment.

Battery

compartment

Insert the side tabs of
the battery cover into the
slots and press the
cover in until it is
properly seated.

Battery

cover

10

Using the Remote Control as a Wireless Mouse

XG-V10WU

AN-SD1U/S422U

The remote control has the following three functions:

• Projector control

MOUSE/ADJUSTMENT switch

(Remote control)

• Wireless mouse

• Laser pointer

MOUSE

ADJ.

Wireless mouse/

Laser pointer

MOUSE

ADJ.

Projector contr

Remote Control/Mouse Receiver Positioning

• The remote control can be used to control the projector within the ranges shown below.

• The remote mouse receiver can be used with the remote control to control the mouse functions of a connected

computer within the ranges shown below.

• The signal from the remote control can be reflected off a screen for easy operation. However, the effective distance
signal may differ due to the screen material.

Controling the Projector

Remote Control

30˚

23' (7 m)

30˚

45˚

Using the Wireless Mouse

Remote Control

30˚

45˚

30˚

Remote Control

13'(4 m)

11

30˚

120˚

Remote
mouse
receiver

XG-V10WU

AN-SD1U/S422U

Use as a Wireless Mouse

Be sure the supplied remote mouse receiver is connected to your computer.
Slide the MOUSE/ADJUSTMENT switch to MOUSE.

MOUSE mode buttons

BLACK SCREEN

MOUSE

LASER
POINTER

LEFT-CLICK

RIGHT-CLICK

1.2.3 4.5.6

MOUSE/

ADJUSTMENT

MOUSE

ADJ.

switch

Conference Series

• For one-button mouse systems, use either the LEFT-CLICK or RIGHT-CLICK button.

• Press BACKLIGHT to turn on the backlights of the operation buttons for about five seconds.

Button name

LASER POINTER/MENU
BLACK SCREEN/LENS
RIGHT-CLICK/ENTER
MOUSE/ADJUSTMENT
LEFT-CLICK/UNDO
POWER ON/OFF
VOLUME +/–
MUTE

Position of MOUSE/ADJUSTMENT switch

LASER POINTER (GREEN)
BLACK SCREEN (GREEN)
RIGHT-CLICK (GREEN)
MOUSE (NOT LIT)
ON (NOT LIT)

MOUSE

ADJ.

MENU (RED)
LENS (RED)
ENTER (RED)
ADJUSTMENT (NOT LIT)
UNDO (NOT LIT)

ON (RED)

Button name

INPUT 1, 2, 3
INPUT 4, 5, 6
FREEZE
AUTO SYNC
ENLARGE
RESIZE
TOOLS
GAMMA

Position of MOUSE/ADJUSTMENT switch

ADJ. MOUSE

ON (RED)

12

Use as a Laser Pointer

Slide the MOUSE/ADJUSTMENT switch to MOUSE, and press LASER POINTER ( ) to activate
the laser pointer.

1.2.3 4.5.6

Conference Series

LASER
POINTER

MOUSE

ADJ.

MOUSE/ADJUSTMENT
switch

• When the button is released, the light automatically goes off.

• For safety reasons, the laser pointer automatically goes off after 1 minute of continuous use. To turn it on, release LASER

POINTER ( ) and press again.

Wired Remote Control

When the remote control cannot be used due to the range
or positioning of the projector (rear projection, etc.), connect
a 3.5 mm stereo minijack cable (sold separately) from the
wired remote control input on the bottom of the remote
control to the WIRED REMOTE control input terminal on the
side of the projector.

• The laser pointer and wireless mouse functions can still be
operated wthe wired remote control.

3.5 mm stereo minijack cable
(sold separately)

XG-V10WU

AN-SD1U/S422U

13

XG-V10WU

AN-SD1U/S422U

Connection Pin Assignments

INPUT 1 RGB and OUTPUT (INPUT 1, 2) Signal Input Ports: 15-pin mini D-sub female connector

RGB Input

Analog

1. Video input (red)

2. Video input
(green/sync on green)

3. Video input (blue)

4. Reserve input 1

10
15

5

1
6
11

5. Composite sync

6. Earth (red)

7. Earth (green/sync on green)

RS-232C Port: 9-pin D-sub male connector of the DIN-D-sub RS-232C cable

15

69

Pin No. Signal Name I/O Reference

1 CD Not connected
2 RD Receive Data Input Connected to internal circuit
3 SD Send Data Output Connected to internal circuit
4 ER Not connected
5 SG Signal Ground Connected to internal circuit
6 DR Data Set Ready Output Not connected
7 RS Request to Send Output Connected to internal circuit
8 CS Clear to Send Input Connected to internal circuit
9 CI Not connected

8. Earth (blue)

9. Not connected

10. GND

11. GND

12. Bi-directional data

13. Horizontal sync signal

14. Vertical sync signal

15. Data clock

DVI Port: 29-pin

C1C2

91 816

C32417 C4

C5

• *1 Return for +5 V, Hsync. and Vsync.

• *2 Analog R G and B return

• *3 These pins are not used on this equipment.

Pin No. Name

1 T.M.D.S. Data 2–
2 T.M.D.S. Data 2+
3 T.M.D.S. Data 2/4 Shield
4 T.M.D.S. Data 4–*
5 T.M.D.S. Data 4+*

3
3

6 DDC Clock
7 DDC Data
8 Analog V ertical Sync

9 T.M.D.S. Data 1–
10 T.M.D.S. Data 1+
11 T.M.D.S. Data 1/3 Shield
12 T.M.D.S. Data 3–*
13 T.M.D.S. Data 3+*
14 +5 V Power
15 Ground*

1

3
3

16 Hot Plug Detect
17 T.M.D.S. Data 0–
18 T.M.D.S. Data 0–
19 T.M.D.S. Data 0/5 Shield
20 T.M.D.S. Data 5–*
21 T.M.D.S. Data 5+*

3
3

22 T.M.D.S.Clock Shield
23 T.M.D.S. Clock+
24 T.M.D.S. Clock–

C1 Analog Red
C2 Analog Green
C3 Analog Blue
C4 Analog Horizontal sync
C5 Analog Ground*

2

14

Dimensions

XG-V10WU

AN-SD1U/S422U

Rear View

Side View

Front View

5

/32 (3.9)

(221.85)

64

/

47

8

T op View

17 31/64 (444.2)

1 21/32 (42)

(621.3)

64

/

29

(81.85) 24

32

/

7

Side View

(74.5)

16

/

15

2

(414.5)

16

/

5

16

Bottom View

14 51/64 (376)

15

(25.65) 3

64

/

1

1

Units: inches (mm)

XG-V10WU

AN-SD1U/S422U

REMOVING OF MAJOR PARTS

1.Removing the intake cover, intake filter and lamp unit.

1-1. Detach the intake cover.
1-2. Detach the intake filter.
1-3. Loosen the lock screw from the lamp cover and slide the lamp cover off position.
1-4. Remove the three lock screws each from the lamp units 1 and 2, and detach these units.

Intake cover

1-3

Lamp cover

Lamp unit 1

1-4

1-4

Lamp unit 2

1-2

1-1

Intake filter

16

XG-V10WU

AN-SD1U/S422U

2.Removing the front, top and rear panels.

2-1. Remove the ten lock screws from the rear panel. Disconnect the connector (RD) of the remote control receiver

PWB unit 2. Then detach the rear panel.

2-2. Remove the two lock screws from the remote control receiver PWB unit 2. Detach the remote control receiver

PWB unit 2.
2-3. Remove the two lock screws from the lens cover (top) and detach the lens cover (top).
2-4. Remove the four lock screws from the lens cover (bottom) and detach the lens cover (bottom).
2-5. Remove the four lock screws from the shutter holder and detach the shutter holder.
2-6. Take out the shutter.
2-7. Remove the seven lock screws from the front panel.(Long size 2, Short size 5)
2-8. Remove the four lock screws from the top panel.
2-9. Slowly lift the back of the top panel. Disconnect the following connectors: connector (KY) of the operation

unit, connector (L) of the leaf switch, and connector (RE) of the LED PWB unit and remote control receiver

PWB unit 1. Lift and detach both the front and top panels.
2-10. Remove the two lock screws from the LED PWB unit. Detach the LED PWB unit.
2-11. Open the hooks of the remote control receiver PWB unit 1 and take out the remote control receiver PWB 1.

LED PWB unit

2-10

2-8

Top panel

Lens cover (top)

(RE)

2-9

Front panel

2-7

2-3

Lens cover (bottom)

2-6

Shutter

(KY)

(L)

2-8

2-5

2-7

2-11

2-4

2-5

Shutter holder

2-7

Rear panel

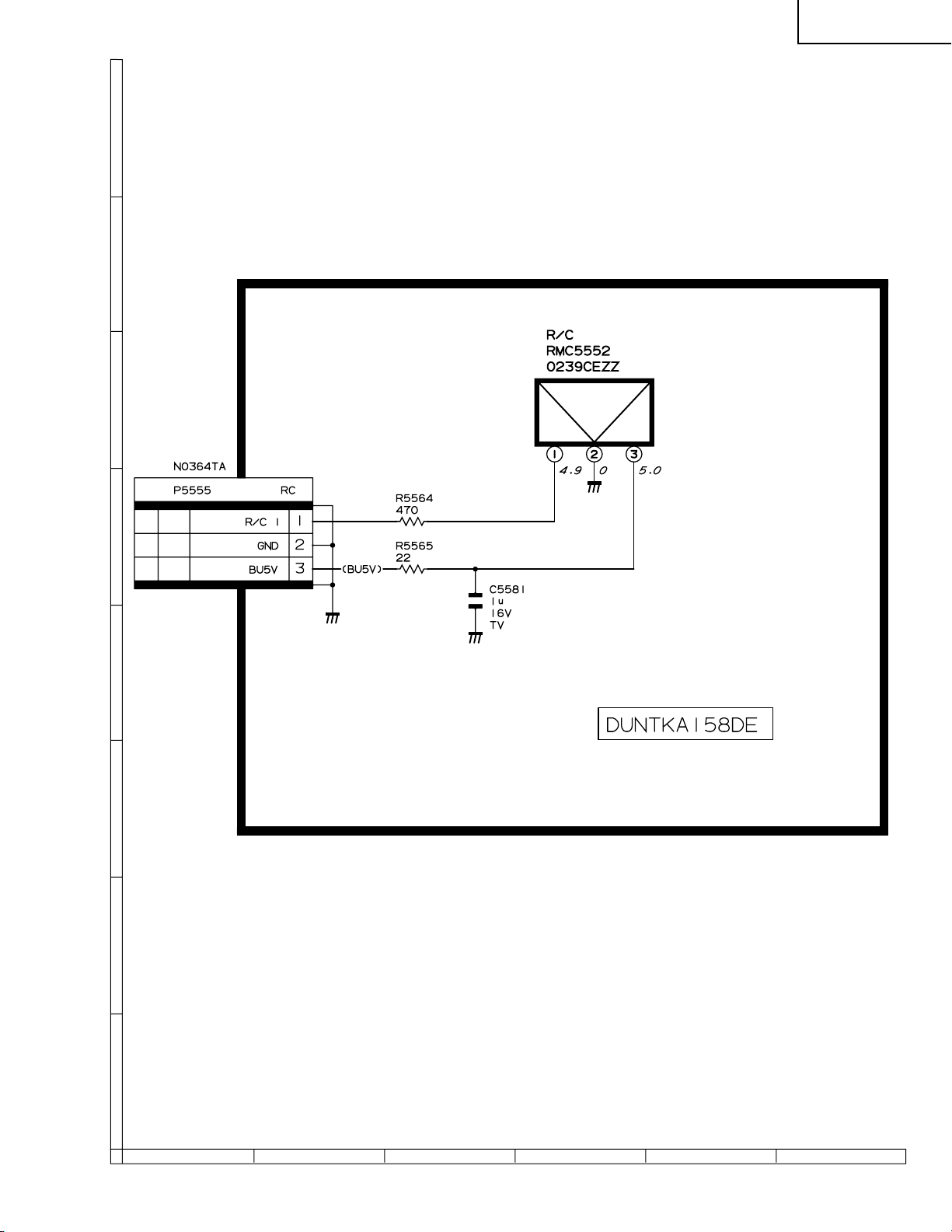

Remote control
receiver PWB unit 1

(RD)

2-2

2-1

Remote control receiver PWB unit 2

17

XG-V10WU

AN-SD1U/S422U

3.Removing the reinforcing angles and intake fan duct assembly.

3-1. Remove the four lock screws from the front reinforcing angle and detach this angle.
3-2. Remove the four lock screws from the rear reinforcing angle and detach this angle.
3-3. Remove the five lock screws from the intake fan duct assembly and detach this assembly.
3-4. Remove the two lock screws from the intake cover and detach this cover.

3-1

Front reinforcing angle

3-1

Rear reinforcing angle

3-2

3-2

Intake cover

3-2

3-4

3-3

3-3

Intake fan duct assembly

3-3

18

XG-V10WU

AN-SD1U/S422U

4.Removing the PWBs

4-1. Remove the two lock screws from the DVI connector.
4-2. Remove the five lock screws from the PC I/F PWB. Lift this PWB off the output PWB unit.
4-3. Remove the four lock screws from the cooling fan. Remove the lock screw from the output sub-PWB unit and

disconnect the connectors. Lift the cooling fan and the output sub-PWB unit off the output PWB unit.
4-4. Disconnect the connectors from the output PWB unit.
4-5. Remove the four stud bolts and eight lock screws from the output PWB unit. Lift and detach the output PWB

unit.
4-6. Disconnect the connector (SP) of the signal PWB unit.
4-7. Remove the eight lock screws from the side terminal board.
4-8. Remove the lock screw from the terminal cover and detach the terminal cover.
4-9. Remove the three lock screws from the grounding plate behind the terminal cover and detach the grounding

plate.
4-10. Detach the terminal board from the left-side panel. Lift the input PWB unit and the signal PWB unit off position.

Output

(F6)

(F8)
(S8)

(F7)

(TP)

(S7)

(RP)

(GP)

(BP)

(F5)

(KY)

sub-PWB
unit

(S5)

FRONT

(AZ)
(AS)
(F1)
(RE)
(L)

Cooling fan

Output sub-PWB unit

4-3

4-5

4-2

PC I/F PWB unit

4-5

4-4

(TOP VIEW)

(F4)
(S4)

(S3)
(F3)
(F2)

(RD)

(LL)

(EC)

(RL) (D) (EA)

Output
PWB unit

Output PWB unit

` Note: When reassembling, fit

the projection of the
terminal PWB shield in
the positioning hole of the
left-side panel.

4-5

4-5

4-5

4-1

`

4-8

Signal PWB unit

Input PWB unit

4-6

4-10

Left-side panel

4-7

4-9

4-7

19

XG-V10WU

AN-SD1U/S422U

5.Removing the power/ballast PWB unit assembly.

5-1. Remove the lock screw from the socket holder (with shorter lead) for the lamp unit 1. Slide sideway and

detach the holder.

5-2. Remove the lock screw from the socket holder (with longer lead) for the lamp unit 2. Slide sideway and detach

the holder.
5-3. Disconnect the connectors from the power/ballast PWB unit assembly.
5-4. Remove the six lock screws from the power/ballast PWB unit assembly. Lift and detach this assembly.

6.Removing the inlet PWB unit assembly.

6-1. Remove the three lock screws from the left-side panel at the inlet PWB unit assembly.
6-2. Disconnect the connectors from the inlet PWB unit assembly.
6-3. Remove the two lock screws from the bottom panel at the inlet PWB unit assembly. Lift and detach this

assembly.

7.Removing the optical mechanism unit.

7-1. Remove the five lock screws from the lamp fan assembly.
7-2. Remove the seven lock screws

from the optical mechanism unit.

Lift and detach this unit.

5-1

5-3

(BB)

5-4

(EA)

Power/ballast PWB
unit assembly

(PL)

5-3

(F7)

7-1

Lamp fan assembly

Bottom panel

7-1

5-2

(F6)

7-2

7-1

Optical mechanism unit

Left-side panel

(EC)

6-3

6-2

6-1

(PA)

Inlet PWB unit assembly

20

XG-V10WU

AN-SD1U/S422U

RESETTING THE TOTAL LAMP TIMER

Resetting the counter

» Draw out the lamp to be replaced. Turn on the power and the absence of the lamp is detected. Now reset the total

hour counter.

Resetting procedure

Replacing one lamp Replacing both lamps

1 Draw out the relevant lamp only. Draw out both the lamps.
2 Turn on the main power.
3 Press POWER button to LCD projector on.

4
5 Turn off the main power. Fit a new lamp into position.

» With just one of the lamps drawn out, the optical mechanism may get unstable in temperature. To avoid this,

the projector comes in the reset mode.

» For two or more projectors, their counters cannot be reset at once using the remote controller. Press the

ENTER key for resetting.

» In the process mode, the historical information is also reset.

The LED indicator at the drawn-out lamp side starts flashing.

Press the ENTER key to reset the counter. The LED indicator goes out.

End

Maintenance Indicator

TEMPERATURE
WARNING indicator

LAMP REPLACE­MENT indicator
(LAMP1, LAMP2)

POWER indicator

The internal
temperature is
abnormally high.

The lamp does
not light up.

The POWER
indicator flashes
in red when the
projector is on.

Condition

Problem

· Blocked air intake.

· Clogged air filter.

· Cooling fan breakdown.

· Internal circuit failure.

· Burnt-out lamp.

· Lamp circuit failure.

· The filter cover is open.

· The lens cover is miss­ing.

Possible Solution

· Relocate the projector to an area with
proper ventilation.

· Clean the filter.

· Take the projector to your nearest Au­thorized Sharp Industrial LCD Products
Dealer or Service Center for repair.

· Carefully replace the lamp.

· Take the projector to your nearest Au­thorized Sharp Industrial LCD Products
Dealer or Service Center for repair.

· Securely install the filter cover.

· Remove the top lens cover
(CCOVA1785CE01) off the front panel.

21

XG-V10WU

AN-SD1U/S422U

THE OPTICAL UNIT OUTLINE

Layout of the optical system

Note: Layout for positioning the optical system.

★2 Output polarizer R

★2 Output polarizer G

Dichroic coating
(R transmission)

Dichroic coating
(G transmission)

AL-deposited face

Marking

★M2

Dichroic coating

UV absorbing glass

PBS aperture

Fly-eye lens

R-LCD

M5

AL-coated mirror R

RED

B/G reflector

L2(R)

G-LCD

Projection Lens

L2(G)

G/R Reflector

★M3

Marking

L1

Cross dichroic prism

AL-coated mirror B

G03

B-DF

GREEN

G01

PBS

(polarization beam splitter)

Marking

AL-deposited face

Dicroic coating

(B transmission)

Relay lens 1

★2 Output polarizer B

B-LCD

Input polarizer B

Relay lens 3

M6

AL-deposited face

Relay lens 2

G02

BLUE

M4

AL-coated mirror B

UHP lamp

(Light source)

Marking

★ M2 and M3 mirrors have a coat-

ing wedge (for different film thick­ness). Set up these mirrors, with
their markings positioned as
shown above, so that their
coated faces and both sides be
in the correct directions.

Prism array

★2 See the assemble-illustration

for determing a direction of
the output polarizer.

22

UHP lamp

(Light source)

UV-IR filter

XG-V10WU

AN-SD1U/S422U

CONVERGENCE AND FOCUS ADJUSTMENT

» Place the set in the ceiling-mounted position, open the maintenance door, and start the

convergence and focus adjustments. Make sure the settings are complete and then turn
on the power. For adjusting the image, use the remote controller. Take the following
adjustment procedures.

1. Focusing the projection lens

(A) Replacing all the 3 LCD panels

1. Before replacing all the 3 LCD panels, project an image on the screen and bring it into focus.

2. Replace the panels with new ones. But until the focus has been completely readjusted, be careful not to
change the distance between the set and the screen, nor to move the projection lens focus and zoom
rings.
If the focus is readjusted with a different positional relation, the relation between the projection distance
and the screen size is affected. In other words, a short-distance image (40 WIDE, for example) may get
out of the focus range, or a long-distance image (300 WIDE, for example) may come out of focus.

(B) Replacing 1 or 2 of the 3 LCD panels

1. In adjusting the focus after replacement of one or two LCD panels, project an image on the screen and turn
the projection lens focus ring to get the non-replaced LCD panel into focus.

2. But until the focus has been completely adjusted for the new LCD panels, be careful not to change the
distance between the set and the screen, nor to move the projection lens focus and zoom rings.
(If the distance has been changed or the projection lens readjusted, repeat the above steps 1 and 2.)

2. Adjusting the G-LCD panel

(A) Focus adjustment. (Make this adjustment on the white-only screen.)

1. Right-and-left focus adjustment (θY direction) .
Loosen the lock screws "b" and "c" and insert the eccentric screwdriver into the notch and hole "b". Turn
the screwdriver until the right and left halves on the screen get into focus.
First get the right and left halves in balance. Then improve the accuracy while making the adjustment 2
below.

2. Top-center-bottom focus adjustment (θX and Z directions).
Loosen the lock screws "a" and "c" and insert the eccentric screwdriver into the notch and hole "a" or "c".
Turn the screwdriver until the top, center and bottom on the screen get into focus. In adjusting this top-to­bottom focus, temporarily tighten the lock screw "b" to fix the θY direction adjustment.

3. Repeat the above steps 1 and 2 to finely adjust the focus. Finally tighten up all the lock screws.

Notes :

1 Carefully proceed with the focus adjustment because the adjusting directions are correlated.
2 In adjusting the convergence and focus, do not move the projection lens zoom and focus rings until the end

of all the adjustments.

(B) Convergence adjustment

» The G-LCD panel has no convergence adjustment mechanism. Use this panel as convergence adjustment

reference.

3. B-LCD panel adjustment (the same for the R-LCD panel)

(A) Focus adjustment

» T ake the same procedure as for the G-LCD panel focus adjustment. Note that the adjustment range is small

in the Z direction. If the convergence is quite different between the B-LCD and G-LCD panels, roughly adjust
the convergence first and then the focus.

(B) Convergence adjustment

» Use a crosshatch pattern signal for this adjustment.

Make the adjustment just for the G-color and the relevant color.
(1) Loosen the convergence lock screw "d".
(2) With the G-LCD panel’s screen center as reference, adjust the B-LCD panel in the X, Y and θZ directions.
(3) Finally tighten up the convergence lock screw "d".

23

XG-V10WU

AN-SD1U/S422U

Notes :

1 The eccentric cam is used for convergence adjustment. This means that the cam’s turning and the linear

movement are not always uniform.

2 This model is not equipped with the LCD image adjustment mechanism. This is because the dichroic prism

is used for image formation. When the LCD panels all get into the best focus, the images are almost
completely converged.

Convergence and Focus Adjustments Mechanism

BOTT OM VIEW SIDE VIEW

FRONT

Lock screw "a"

Notch and hole "a"

SIDE VIEW (from outside) SIDE VIEW (from inside)

R-LCD

B-LCD

Lock screw "c"
Notch and hole "c"

θ

X

G-LCD panel
mounting screws

G-LCD

Notch and hole "b"
Lock screw "b"

X

Y

Z

Notch and hole "c"

Z

θ

Y

X

Lock screw "c"

Eccentric cam

θ

Y

Z

TOP

G-LCD

G adjusting plate

RáB-LCD

TOP

Lock screw "d"

Y

X

θ

Z

(convergence

adjustment)

RáB-LCD panel
mounting screws

24

Convergence and Focus Adjustments at a Glance

2

5

16

R2

50

CUT

Adjustment directions

Adjustment Direction Definition Direction of LCD panel

X direction LCD right and left

Convergence Y direction LCD top and bottom

θZ direction Rotation around Z axis LCD turning axis
Z direction LCD optical axis

Focus θX direction Rotation around X axis LCD top-to-bottom flapping

θY direction Rotation around Y axis LCD right-to-left flapping

Convergence and Focus Adjustment for the Optical Mechanism

XG-V10WU

AN-SD1U/S422U

Color Adjustment Direction

X direction ±0.8mm Eccentric cam Eccentric cam adjusting wrench d Hex wrench

Convergence Y direction ±0.8mm Eccentric cam Eccentric cam adjusting wrench d Hex wrench

R/B θZ direction ±1° Eccentric cam Eccentric cam adjusting wrench d Hex wrench
colors Z direction ±1.3mm

Focus θX direction ±1°

θY direction ±2.5°

Z direction ±0.4mm

G color Focus θX direction ±1° Same as for R and B colors

θY direction ±2.5°

Movement

Position Adjusting tool

Notch and hole "a" & "c"
Notch and hole "a" & "c"
Notch and hole "b" & "c"

Eccentric screwdriver a, c

Lock screw

a, c
b, c

Tightening tool

Phillips
screwdriver,
*Hex wrench

Focus Adjustments the Other Way

Lock screw Position Related direction

a Notch and hole "a" Z and θX directions
b Notch and hole "b" θY direction
c Notch and hole "c" Z, θX and θY directions

Convergence and Focus Adjusting and Tightening Tools

Tool Specific or General Tool code Configuration

Eccentric cam Specific 9DASPN-XGNV1U
adjusting wrench

80

Eccentric screwdriver Specific 9EQDRiVER-NV1A

100

Hex wrench General (redesigned) 9EQLNC-XGNV1U

Phillips screwdriver General — For M2.6 pan-head machine screw
*Hex wrench General —

25

Preferably use a 70 mm or longer
screwdriver (with a handle).

XG-V10WU

AN-SD1U/S422U

Replacing the LCDs

Remove the top cover.

(1)Remove the six screws off the relay duct and disconnect the relay duct.
(2)Remove the two screws off the upper suction cover and detach this cover.
(3)Disconnect the LCD flat cable from the PWB connector.
(4)Place the set in the ceiling-mounted position and open the maintenance door.
(5)Remove the lock screws "b" and "c". Take out the LCD-equipped R/B adjusting board and G adjusting board.
(6)Detach the LCD panel from the adjusting board.
(7)Place a replacement LCD panel and take the above steps (1) thru (5) in the reverse order.

~ Keep in mind that the G LCD panel does not need convergence readjustment and that it has a small adjustable

range in the Z direction.

BOTT OM VIEW

Lock

R-LCD

FRONT

5

screws "c"

G-LCD

Lock

5

Lock
screws "c"

screws "b"

5

B-LCD

Z

X

θY

5

Lock
screws "c"

SIDE VIEW SIDE VIEW

R·B adjusting plate

R·B-LCD

Y

X

X

Z

`

G adjusting plate

θY

G-LCD

TOP

θZ

6

R·B-LCD panel
mounting screws

G-LCD panel

6

mounting screws

TOP

26

XG-V10WU

AN-SD1U/S422U

1. Adjusting the mirror optical axis

The optical axis must be readjusted to correct possible eclipse that occurs with the R, G or B LCD panel.
This readjustment is usually required when an optical part in the optical mechanism has been replaced,
and may be needed when a LCD panel has been replaced.

1. Disconnect the LCD flat cable.

2. Get the lamp on. Be sure to start the cooling fan too.

(Eclipse with the R LCD panel: Screen edges appearing in cyan)

3. Loosen the lock screws of the M5 adjusting lever.

4. Watching the image on the screen, turn or slide the M5 adjusting lever until the eclipse disappears from the
screen. Now tighten up the lock screws.

(Eclipse with the G LCD panel: Screen edges appearing in magenta)

3. Loosen the lock screws of the M3 adjusting lever.

4. Watching the image on the screen, turn or slide the M3 adjusting lever until the eclipse disappears from the
screen. Now tighten up the lock screws.

(Eclipse with the B LCD panel: Screen edges appearing in yellow)

3. Loosen the lock screws of the M6 adjusting lever.

4. Watching the image on the screen, turn or slide the M6 adjusting lever until the eclipse disappears from the
screen. Now tighten up the lock screws.

2. Adjusting the orientation of polarizer

The contrast must be optimized when the polarizer or an optical mechanism part has been replaced.

1. Turn on the power.

2. If the background is blue, clear the screen and get it black.

3. Loosen the two lock screws of the polarizer (two for each plate).

4. Press the heads of the lock screws in the arrow directions until the onscreen contrast becomes best. Finally
tighten up the lock screws.

3. Adjusting the PBS

This adjustment may be required when the optical mechanism has been disassembled. Colors uneven
on the right and left halves onscreen can be corrected here. Usually there is no need to make this adjust­ment. It is enough to have the lamp adjusting groove in alignment.

1. Turn on the power.

2. Loosen the PBS lock screw.

3. Feed a white-only signal, or call the process mode and get the screen white only.

4. Put the eccentric screwdriver (9EQDRiVER-NV1A) in the PBS adjusting groove.

5. Watching the image on the screen, turn the eccentric screwdriver until the right-and-left colors onscreen
become most even. Finally tighten up the lock screw.

4. Adjusting the lamp optical axis

The lamp optical axis is optimized to obtain the best color evenness and brightness. Usually there is no
need to make this adjustment because the replacement lamp unit (BQC-XGV10WU/1) has been delivered
factory-adjusted.

1. Turn on the power.

2. Loosen the three lamp lock screws.

3. Feed a white-only signal, or call the process mode and get the screen white only.

4. Put the eccentric screwdriver (9EQDRiVER-NV1A) in the lamp adjusting groove.

5. Watching the image on the screen, turn the eccentric screwdriver until the right-and-left colors onscreen
become most even. Finally tighten up the lock screws.

27

XG-V10WU

AN-SD1U/S422U

Mirror adjusting
lever lock screws

PBS lock screw

PBS adjusting groove

Lamp adjusting groove

4

1

M5 adjusting lever

R

2

G

M3 adjusting lever

4

1

M6 adjusting lever

Mirror adjusting
lever lock screws

B

1

Mirror adjusting lever
lock screws

Lamp adjusting groove

3

Lamp lock screws

Lamp lock screws

28

XG-V10WU

AN-SD1U/S422U

ELECTRICAL ADJUSTMENT

Hook up a signal generator, or a DOSV or Mac personal computer to the projector in order to feed the
signals specified in the Adjusting conditions.

No. Adjusting point Adjusting conditions Adjusting procedure

1 EEPROM

initialization

1. Turn on the power (with the
lamp on) and warm up the
set for 15 minutes.

» Make the following settings.

Press S2601 to call the process mode. Execute
the S2 and S4 commands on the SSS menu. With
the S2 command, all but the PC boards will be
initialized. Do not execute the S1 command
because this will get the PC boards initialized. To
readjust the PC boards, refer to "Adjusting the PC
interface" on page 37.

2 RGB drive

adjustment

3 RGB1 system

black level
signal amplitude
adjustment

1. Feed the 100% white sig­nal.

2. Select the following group
and subjects.
Group : A/D
Subject : R-D (R)

G-D (G)
B-D (B)

1. Select the following group
and subjects.
Group : OUTPUT1
Subject : G1-BLK

G1-GAIN
For the R and B colors,
choose the following re­spective subjects.
R1-BLK and R1-GAIN for R
B1-BLK and B1-GAIN for B

2. Make sure the process ad­justment color bars are be­ing displayed.

3. Connect the oscilloscope to
pin (3) (for G) of P1001.

4. Similarly connect the oscil­loscope to the following for
the R and B colors.
Pin (1) of P1001 for R
Pin (5) of P1001 for B

» Using the set's control switch or the remote

controller's button, adjust the settings so that there
be some bit dropouts.

» Select G1-GAIN. Using the set's control switch or

the remote controller’s button, adjust the setting so
that the signal amplitude be 3.7 ± 0.05 Vp-p.

» Select G1-BLK. Using the set’s control switch or

the remote controller’s button, adjust the setting so
that the white to white level be 2.4 ± 0.05 Vp-p.

» Do the same for the R and B colors.

2.4Vp-p

3.7Vp-p

`The G1 settings affect all the R, G and B signals

at the same time. When the G1-BLK setting has
been changed, therefore, the R1-BLK and B1-BLK
settings are accordingly modified. Also with a
change in the G1-GAIN setting, the R1-GAIN and
B1-GAIN settings are accordingly modified. In
other words, adjust the G settings first and then
the R as well as B settings.

29

XG-V10WU

AN-SD1U/S422U

No. Adjusting point Adjusting conditions Adjusting procedure

4 RGB2 system

black level
signal amplitude
adjustment

5 Sample hold

pulse phase
checking

1. Select the following group
and subjects.
Group : OUTPUT2
Subject : R2-GAIN

R2-BLK
For the G and B colors,
choose the following re­spective subjects.
G2-GAIN and G2-BLK for G
B2-GAIN and B2-BLK for B

2. Connect the oscilloscope to
pin (2) (for R) of P1001.

3. Similarly connect the oscil­loscope to the following for
the G and B colors.
Pin (4) of P1001 for G
Pin (6) of P1001 for B

1. Feed the SXGA-mode, 75-

Hz black signal.

2. Select the following group

and subject.
Group : OUTPUT3
Subject : SH-PHASE

» Select R2-GAIN. Adjust the setting so that the

signal component has the minimum amplitude.

» Select R2-BLK. Adjust the setting so that the wave-

form becomes a straight horizontal line.

Adjusted to

» Using the set's control switch or the remote

controller’s button, make sure the characters
OUTPUT3 are not blurry with no ghost image on
the screen. If anything blurry or a ghost image
appears onscreen, readjust the setting in the
range of 7-9.

6 RGB

countervoltage
adjustment

7 RGB tone

reproduction
adjustment

1. Feed the SXGA-mode, 60-

Hz, countervoltage adjust­ment signal.

2. Select the following group

and subjects.
Group : OUTPUT3
Subject : RC (R)

GC (G)
BC (B)

1. Feed the Infocom

Grayscale & Color Pattern
signal.

2. Select the following group

and subject.
Group : OUTPUT1
Subject : G1-BLK

» Using the set's control switch or the remote

controller’s button, adjust the setting so that the
flickering be minimum.

» If there is a difference between the center and

both sides on the screen, adjust the setting to get
both sides equal to each other.

» Make sure the grayscale, shown below, is visible

up to the tone 251 (white) as well as down to the
tone 8 (black).

» If the white tone is out of spec, finely adjust the

G1-BLK setting.

4

812

249 251

30

No. Adjusting point Adjusting conditions Adjusting procedure

XG-V10WU

AN-SD1U/S422U

8 RGB white

balance adjust­ment

9 Video horizontal

center adjust­ment
DLY checking

10 Video picture

adjustment

1. Feed the 32-step grayscale
signal. (SXGA, 60 Hz)

2. Select the following group
and subjects.
Group : OUTPUT1
Subject : R1-BLK (R)

B1-BLK (B)

1. Feed the NTSC
monoscope pattern signal.

2. Group : VIDEO 2
Subject : N358-DLY (2)

N443-DLY (0)
P AL-DLY (0)

SECAM-DLY(0)
Make sure the settings are
as above.

3. Then select the following
group and subject.
Group : VIDEO1
Subject : NTSC-H

1. Feed the split color bar
signal.

2. Select the following group
and subject.
Group : VIDEO1
Subject : PICTURE

3. Connect the oscilloscope
between pin (1) of P801
and GND.

» Adjust the R1-BLK and B1-BLK settings to get the

tone balance to optimum.

» Using the set's control switch or the remote con-

troller’s button, adjust the setting so that the
overscan be the same at right and left.

» Using the set’s control switch or the remote con-

troller’s button, adjust the setting so that the ampli­tude between the black and 100% white levels be

2.3 ± 0.02 Vp-p.

2.3Vp-p

11 Video offset

adjustment

1. Feed the color bar signal
with base band. (ON-AIR
not allowed because of its
too much noise.)

2. Select the following group
and subjects.
Group : VIDEO2
Subject : VROS (R)

VGOS (G)

VBOS (B)
Make sure there are some
bit dropouts on the screen.
If not, press the set’s con­trol switch or the remote
controller’s mute button.
(Gamma correction is now
set for the adjustment proc­ess.)

» Using the set's control switch or the remote con-

troller’s button, adjust the settings so that the black
signal has some bit dropouts.

31

XG-V10WU

100% White Red

100% White Red

AN-SD1U/S422U

No. Adjusting point Adjusting conditions Adjusting procedure

12 Video AGC

adjustment

13 Video tint

adjustment

14 NTSC color

saturation
adjustment

1. Feed the split color bar sig­nal.

2. Select the following group
and subject.
Group : VIDEO1
Subject : AGC
Make sure there are some
bit dropouts on the screen.

1. Feed the split color bar sig­nal. Select the following
group and subject.
Group : VIDEO1
Subject : TINT

2. Connect the oscilloscope to
pin (4) of P801.

1. Feed the split color bar sig­nal.

2. Select the following group
and subject.
Group : VIDEO1
Subject : N-COLOR

3. Connect the oscilloscope to
pin (1) of P801.

» Using the set’s control switch or the remote

controller’s button, adjust the setting so that the
100% white signal has some bit-less.

» Using the set's control switch or the remote

controller's button, adjust the setting so that the –
(B–Y) waveform runs straight downhill.

» Using the set’s control switch or the remote

controller’s button, adjust the setting so that the
amplitude between the 100% white and red levels
be 0.20 ± 0.02 Vp-p.

15 PAL color

saturation
adjustment

16 SECAM color

saturation
adjustment

1. Feed the PAL color bar sig­nal.

2. Select the following group
and subject.
Group : VIDEO1
Subject : P-COLOR

3. Connect the oscilloscope to
pin (1) of P801.

1. Feed the SECAM color bar
signal.

2. Select the following group
and subject.
Group : VIDEO1
Subject : S-COLOR

3. Connect the oscilloscope to
pin (1) of P801.

» Using the set's control switch or the remote

controller’s button, adjust the setting so that the
amplitude between the 100% white and red levels
be 0.36 ± 0.02 Vp-p.

100% White Red

» Using the set's control switch or the remote

controller’s button, adjust the setting so that the
amplitude between the 100% white and red levels
be 0.50 ± 0.02 Vp-p.

32

No. Adjusting point Adjusting conditions Adjusting procedure

XG-V10WU

AN-SD1U/S422U

17 Video input

panel signal
amplitude
adjustment

18 Video white

balance adjust­ment

19 DVD contrast

adjustment

1. Feed the NTSC 10-step
signal.

2. Select the following group
and subjects.
Group : VIDEO2
Subject : R1-GAIN

B1-GAIN

3. Connect the oscilloscope to
pin (1) (for R) of P1001 and
pin (3) (for G) of P1001.

4. Similarly connect the oscil­loscope to the following for
the B color.
Pin (5) of P1001 for B
Pin (3) of P1001 for G

1. Feed the NTSC
monoscope pattern signal.

2. Select the following group
and subjects.
Group : VIDEO2
Subject : R1-BLK

B1-BLK

1. Feed the 100% color bar
signal of the 480I compo­nent signal to the G (Y) in­put terminal on the BNC
socket.

2. Select the following group
and subject.
Group : DVD
Subject : CONTRAST

» Select R1-GAIN. Adjust the setting so that the R

signal amplitude and the G signal amplitude be
the same.

» Do the same for the B color.

» Using the set's control switch or the remote

controller's button, adjust the setting so that the
white balance be the same as on the monitor
screen.

» Using the set's control switch or the remote

controller's button, adjust the setting so that the
100% white signal has some bit dropouts.

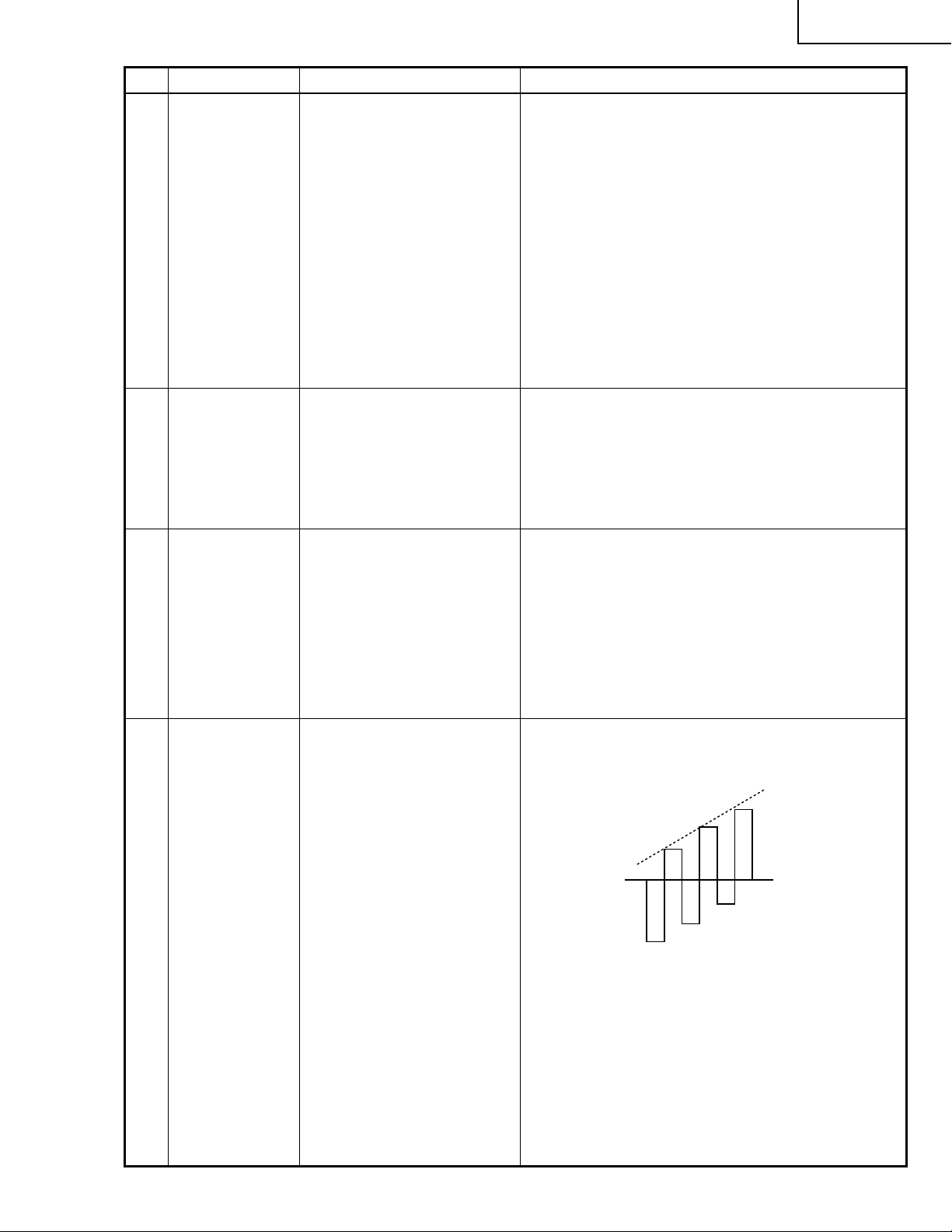

20 DVD tint adjust-

ment

1. Feed the 100% color bar
signal of the 480I compo­nent signal to the Y, Pb and
Pr input terminals on the
BNC socket. For the Y sig­nal, feed the sync signal
only.

2. Select the following group
and subject.
Group : DVD
Subject : TINT

3. Connect the oscilloscope to
pin (2) of P801.

» Using the set's control switch or the remote

controller’s button, adjust the setting so that the
(B–Y) waveform runs straight uphill.

33

XG-V10WU

100% White Red

AN-SD1U/S422U

No. Adjusting point Adjusting conditions Adjusting procedure

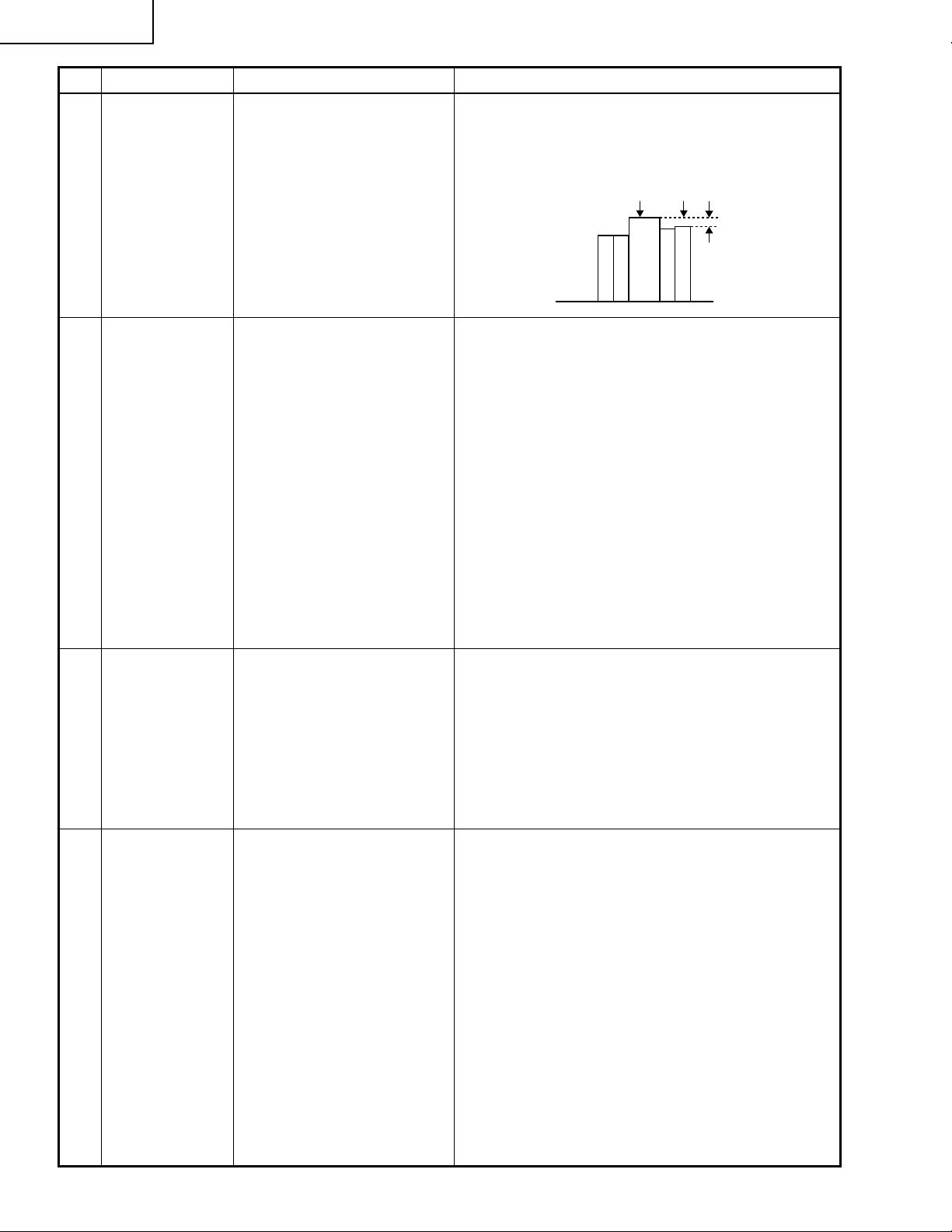

21 DVD color

saturation
adjustment

22 DVD input panel

signal amplitude
adjustment

1. Feed the 100% color bar
signal of the 480I compo­nent signal to the Y, Pb and
Pr input terminals on the
BNC socket.

2. Select the following group
and subject.
Group : DVD
Subject : COLOR

3. Connect the oscilloscope to
pin (1) of P801.

1. Feed the 10-step signal to
the G (Y) input terminal on
the BNC socket.

2. Select the following group
and subjects.
Group : DVD
Subject : R1-GAIN

B1-GAIN

3. Connect the oscilloscope to
pin (1) (for R) of P1001 and
pin (3) (for G) of P1001.

4. Similarly connect the oscil­loscope to the following for
the B color.
Pin (5) of P1001 for B
Pin (3) of P1001 for G

» Using the set’s control switch or the remote

controller’s button, adjust the setting so that the
amplitude between the 100% white and red levels
be 0.10 ± 0.02 Vp-p.

» Select R1-GAIN. Adjust the setting so that the R

signal amplitude and the G signal amplitude be
the same.

» Do the same for the B color.

23 DVD white

balance check­ing

24 Saw-tooth wave

correction (G),
(R)

1. Feed the NTSC
monoscope pattern signal
to the G (Y) input terminal
on the BNC socket.

2. Select the following group
and subjects.
Group : DVD
Subject : R1-BLK

B1-BLK

Make sure the lamp optical
axis has been already ad­justed.

1. Feed the SXGA, 60-Hz
gray-only signal.

2. Check for uneven color
spot on the screen.

3. Select the following group
and subject.
Group : NOKO
Subject : NOKO-G
Choose the subject NOKO­R for the R color.

» Make sure the white balance is the same as on

the monitor screen.

» If not, adjust the setting so that the white balance

be the same as on the monitor screen, using the
set's control switch or the remote controller's
button.

» When the green color is found not uneven, turn off

the saw-tooth wave correction with S4201.

» Select NOKO-G and adjust the setting to minimize

the color unevenness at right and left on the

screen.
For the R color, use S4202 to turn on or off the wave
correction.

34

No. Adjusting point Adjusting conditions Adjusting procedure

XG-V10WU

AN-SD1U/S422U

25 White balance

checking and
readjustment

26 Set-up 1. Select the following.

27 Color-related

performance
checking

1. For the adjusting condi­tions, refer back to Item
Nos. 8, 19 and 24 for the
RGB, Video and DVD in­puts, respectively.
DTV input

1) Feed the 720P SMPTE
(color difference) signal.
If out of spec, take the
readjustment step below.

2) Select the following
group and subjects.
Group : DTV
Subject : CR-OFFSET

CB-OFFSET

Group : VIDEO 1
Subject : SET UP B

SET UP C

1. Feed the color bar signal.

» Make sure the white balance is the same as on

the monitor screen. To obtain the specified white
balance, readjust the RGB, Video and DVD inputs
in this order.

» Make sure the SET UP B and SET UP C settings

are 6 and 1, respectively.

» Select the process mode L1. Check the Color and

Tint settings.

28 Video-related

performance
checking

29 Audio-related

performance
checking

30 RGB-related

performance
checking

31 Off-timer per-

formance
checking

32 Thermistor

performance
checking

1. Feed the monoscope pat­tern signal.

1. Feed the stereo audio sig­nal.

1. Feed the RGB signal.

» Select the process mode L2. Check the Picture,

Brightness and Sharpness settings.

» Select the process mode L3. Check the Bass,

Treble and Balance settings.

» Select the process mode L4. Check the Picture,

Brightness, Red, Blue, Clock, Phase, H-Pos and
V-Pos settings.

» Select the process mode OFF. Make sure that the

off-timer starts with "5" (minutes) onscreen and
counts down minute by minute each second, and
that the set turns itself off with "0" (minutes)
onscreen.

» Get the thermistor status list displayed onscreen.

33 Auto sync

performance
checking

1. Feed the phase check pat­tern signal.

» In the VGA, SVGA, XGA, SXGA and UXGA

modes, make sure the Clock, Phase, H-Pos and
V-Pos settings can be automatically adjusted.

35

XG-V10WU

AN-SD1U/S422U

No. Adjusting point Adjusting conditions Adjusting procedure

34 Lens perform-

ance checking

» Using the set's control switch or the remote control-

ler, make sure the focus, zoom, keystone and lens
shift actions are as specified.

35 Delivery set-

tings

1. When the S4 delivery set­tings have been made, the
SET-UP signal is accept­able.
If the process mode is

» Make the following settings.

Process
adjustment

S4 "Delivery setting 4"

called up again, however,
the SET-UP signal is not
automatically accepted. In
such case, select Group:
VIDEO1 and Subject: SET
UP, change the SET UP
setting from 0 to 1, and exit
from the process mode. Or
make the S4 delivery set­tings again.

The methods of color correction adjustment, after LCD panel is replaced.
When not use color correction system.

Remote controller
setting

No. Adjusting point Adjusting conditions Adjusting procedure

1 Color correction

Rest

2 Saw-tooth wave

Correction (G),
(R)

1. Make the following choice.
Group : NOKO
Subject : CC

1. Feed the gray only RGB
color signal. (XGA 60Hz)

2. Check for uneven color spot
on the screen.

3. Make the following choice.
Group : NOKO

» Make the following setting.

Subject : CC
Setting : 0 (color correction OFF)

» If the color is irregular, adjust the setting NOKO-G

or NOKO-R to minimize the right-hand and left­hand color irregularity.

» If there is no color irregularity, turn off the saw-

tooth correction using SW4201 (green) and

SW4202 (red).
Subject : NOKO-G
Choose the subject NOKO­R for the R Color.

36

XG-V10WU

AN-SD1U/S422U

ADJUSTING THE PC INTERFACE (CPCi-0042CE01. PC I/F Unit)

1.Initializing the EEPROM

1) Press S2601 to call the process mode.

2) Execute the S1 command on the SSS menu. (The S1 command is used to get the PC boards initialized. Do
not carry out the S2 command because otherwise all the other adjustment data than on the PC boards would
be initialized.)

3) Make sure the program version VER.XXX on the SPECIAL menu is the latest one.

2.Adjusting the levels

2-1. Preparing the oscilloscope

1) Set the oscilloscope range to 1 Vdc/div. and 5 µs/div.

2-2. Connecting the PC interface

1) Connect the PC interface to the set and make sure the P404, P405 and P502 connectors are all tight in
position.

2) Connect a cable between the ANALOG OUTPUT terminal (signal generator) and the DSUB connector
(projector's INPUT1).

3) Set the projector's INPUT SELECT to the INPUT1 position.

4) Set the signal generator to the SXGA mode (1280 x 1024, 60 Hz, 32 tones). Adjust the output amplitude
between the black and white levels to 700 mVp-p (terminated with a 75-ohm impedance).

5) Turn on the power.

2-3. Adjusting and checking the levels

1) Press S2601 and call the process mode.

2) Adjust the SH-PHASE setting on the OUPUT3 menu to 8. (Make sure the onscreen display characters
appear crisp and clear.)

(Adjusting the A/D menu settings)

3) G-BRIGHT adjustment: Feed the black signal and adjust the G-BRIGHT setting on the A/D menu until there
are bit dropouts.

4) R-BRIGHT adjustment: Feed the black signal and adjust the R-BRIGHT setting on the A/D menu until there
are bit dropouts.

5) B-BRIGHT adjustment: Feed the black signal and adjust the B-BRIGHT setting on the A/D menu until there
are bit dropouts.

6) G-D adjustment: Feed the white signal and adjust the G-D setting on the A/D menu until there are bit
dropouts.

7) R-D adjustment: Feed the white signal and adjust the R-D setting on the A/D menu until there are bit
dropouts.

8) B-D adjustment: Feed the white signal and adjust the B-D setting on the A/D menu until there are bit
dropouts.

2-4. Adjusting the DTV settings

1) Feed the 480P Y signal to the INPUT1 terminal. Keep out the R (Pr) and B (Pb) signals.

2) G-BRIGHT adjustment: Feed the black signal and adjust the G-BRIGHT setting on the DTV menu until there
are bit dropouts.

3) CR-OFFSET adjustment: Adjust the CR-OFFSET setting to 16.

4) CB-OFFSET adjustment: Adjust the CB-OFFSET setting to 16.

5) Press S2601 to exit from the process mode.

37

XG-V10WU

AN-SD1U/S422U

Process menu1

AD
OUTPUT1
OUTPUT2
DTV
OUTPUT3
VIDEO1
VIDEO2
DVD
NOKO
LINE
SSS
PATTERN
CVIC
LENS
SPECIAL

VIDEO2
VROS
VGOS
VBOS
R1-BLK
R1-GAIN
B1-BLK
B1-GAIN
N358 DLY
N443 DLY
PAL DLY
SECAM DLY

OUTPUT2
PSIG-H
PSIG-L
R2-BLK
R2-GAIN
G2-BLK
G2-GAIN
B2-BLK
B2-GAIN

NTSC-H


AGC

BRIGHT

TINT

N-COLOR

P-COLOR

S-COLOR

SET UP

SET UP B

SET UP C

VIDEO1

OUTPUT1
R1-BLK
R1-GAIN
G1-BLK
G1-GAIN
B1-BLK
B1-GAIN

OUTPUT3
RC
GC
BC
SH-PHASE
GCK-PHASE
R3-GAIN
G3-GAIN
B3-GAIN

AD
R-BRIGHT
G-BRIGHT
B-BRIGHT
R-D
B-D
G-D

DTV
G-BRIGHT
CB-OFFSET
CR-OFFSET

38

NOKO
NOKO-G
NOKO-R
CC
R-CNV-H
G-CNV-H
B-CNV-H
R-CNV-V
G-CNV-V
B-CNV-V

DVD
CONTRAST
BRIGHT
TINT
COLOR
R1-BLK
R1-GAIN
B1-BLK
B1-GAIN

Process menu2

XG-V10WU

AN-SD1U/S422U

AD
OUTPUT1
OUTPUT2
DTV
OUTPUT3
VIDEO1
VIDEO2
DVD
NOKO
LINE
SSS
PATTERN
CVIC
LENS
SPECIAL

SPECIAL
IPL
E2PROM
ADR RD/WR

LINE
L1
L2
L3
L4
OFF
TEMP OFF
SENSER CHECK
ID CHECK

CVIC
PROGRESSIVE
ENHANCE
SCREEN
IDC

LENS
LENS AUTO
LENS TOP
LENS BOTTOM

TIME
S1
S2
S3
S4
S5
LAMP

SSS

PATTERN
RGB
RGB [50]
CROSS
RAMP
STEP
COLOR
CHR

PROGRESSIVE
MODE
LPF
LSW
PTG
LEVEL
LIMIT
FILM
THRESH
MISSTH

IDC
XEGTH
XLTH1-H
XLTH1-L
XLTH2-H
XLTH2-L
YEGTH
YLTH1-H
YLTH1-L
YLTH2-H
YLTH2-L

39

SCREEN
CUBIC-RGB
CUBIC-VIDEO

ENHANCE
BBN-RGB
BBN-VIDEO
DFC-RGB
DFC-VIDEO

XG-V10WU

AN-SD1U/S422U

Precautions in servicing

(1) If the convergence gets out of spec during servicing, call up the process mode and select the following sub-

jects.
Group : NOKO
Subject : R-CNV-H, R-CNV-V

G-CNV-H, G-CNV-V
B-CNV-H, B-CNV-V

(H: Horizontal adjustment, V: Vertical adjustment)
Adjust the above settings in the range of 0-4. When changing each setting from the initial setting of 2, however,
the 1280 x 1024 dot display area will have a fewer number of lines.

Example 1 : When the R-CNV-H setting is changed from 2 (initial) to 4, the number of lines will be from 1280 to

1278.

Example 2 : When the R-CNV-H, G-CNV-H and B-CNV-H settings are changed to 3, 3 and 4, respectively, the

display will be 1278 x 1024 lines. But when the above settings are switched to 2, 2 and 3, respec­tively, the display will be 1279 x 1024 lines.

Preferably keep each setting as close to 2 as possible.

(2) When calling up the process mode, make sure the following appears onscreen.

Group : VIDEO1
Subject : SET UP B 2

SET UP C 1
Be sure to exit from this mode with the following onscreen.
Subject : SET UP 1

40

TROUBLE SHOOTING TABLE

Checking the PWB performance

XG-V10WU

AN-SD1U/S422U

Video input in trouble

Go to "Checking the video unit
circuit".

RGB input in trouble

Feed test pattern signal from
PC.

Is specified cable connected
between PC and projector?

Yes

Is supply voltage as specified?

Yes

Does image appear?

Yes

Go to "Trouble shooting table
for PC I/F unit ".

Through-output in trouble

Through-output circuit in
trouble.

No

Use specified cable.

No

Power circuit in trouble.

No

Check the connectors, starting
from the input circuit.

Remote control in trouble

Go to "Checking the remote
control".

Checking the video system

Is the lamp on?

Yes

Is specified voltage fed to EA
connectors?

Yes

Are there signal inputs at pins (12),
(31) and (37) of SC401?

Yes

Are there signal outputs at pins (7) of
IC6014 and (7) of IC6015?

Yes

Go to "Checking IC803
(RGB signal output circuit)".

Check IC6009, IC6011,
IC6014, IC6015 and their
peripheral circuits as well
as switching circuit.

No

No

Go to "Lamp fails to light-up".

No

Check the power circuit and its parts.

No

Check the input unit circuit (IC1401,
IC1402, IC1403, IC1404, IC1405
and its peripheral circuits).

41

XG-V10WU

AN-SD1U/S422U

Checking the video unit circuit

TROUBLE SHOOTING TABLE (Continued)

Is there video signal output at pin (7)
of IC1405?

Yes

Is there video signal input at IC4001?

Yes

Are there signal outputs at pins (6)
and (8) of IC4001?

Yes

Check the low-pass and buffer circuits
of Q6008 thru Q6014. Is the signal as
specified?

Yes

Go to "Checking IC801 (RGB signal
output circuit)".

No

Check the IC1403, IC1406 selector
switch, terminal voltage and input

No

No

No

circuit.

Check the low-pass and buffer
circuits of Q4002, Q4003 and Q4004.

Check IC4001 and its peripheral
circuits (bias).

Check Q4005 thru Q4008 and their
peripheral circuits.

Checking IC801 (RGB signal output circuit)

Go to "No colour or unusual tone",
"No Y signal" or "Out of sync".

No

Are there RGB output waveforms at
pins (31), (32) and (33) of IC803?

Yes

Are there output waveforms at pin
1 of Q6801, Q6802, Q6803?

Yes

Are there output waveforms at pin
(8), (10), (12) of SC8404?

Yes

Go to "Trouble shooting table for PC
I/F unit".

No

Check the data transfer and other
performance at pins (17) and (18) of
video IC803.

No

Check Q6801, Q6802, Q6803 and
their peripheral circuits.

No

Check IC6801, Q6807, Q6808,
Q6809 and their peripheral circuits.

42

TROUBLE SHOOTING TABLE (Continued)

Checking the chroma and Y signals of IC801
(RGB signal output)

XG-V10WU

AN-SD1U/S422U

Are there signal inputs at pins (12),
(31) and (37) of SC401?

Yes

Are there output waveforms at pins
(7) of IC6014 (chroma signal) and
(7), (Y signal)of IC6015?

Yes

Are there signal inputs at pins (20)
(chroma signal) and (21) (Y signal)
of IC803?

Yes

Go to "Checking IC801 (RGB signal
output circuit)".

No

Go to "Checking the video unit
circuit".

No

Check the IC6009 IC6010 and IC6011
switching and their peripheral circuits.
If there is no signal at pins (1) of
IC6014 and pin (5) of IC6015 and pin
(16) of IC6010 check 3-D noise
reduction circuit (IC6009).

No

Check IC803 and its peripheral
circuits.

Checking IC806 (3-D noise reduction circuit)
and its peripheral circuits

Are there signal inputs at pins (40)
(Y signal) and (45)(chroma signal) of
IC6009?

Yes

Are there signal outputs at pins (55)
(Y signal) and (51)(chroma signal) of
IC8001?

Yes

Are there signal outputs at the
emitters of Q6010 (Y signal) and
Q6015 (chroma signal)?

Yes

Check IC6011, IC6014, IC6015 and
IC801 (RGB signal output circuit).

No

Check the buffer circuit of Q6007 thru
Q6011 as well as Q6013 thru Q6014.

No

Check IC6008, IC6010 (memory) and
their peripheral circuits.

No

Check the low-pass circuit around
Q6010, Q6012 and Q6015.

Check IC6009 (3-D noise reduction
circuit) and its peripheral circuits.

No colour or unusual tone (NTSC, PAL, PALM, PALN)

Is there chroma signal input at pin
(20) of IC801?

Yes

Are there signal outputs at pins
(46)(R-Y) and (45)(B-Y) of IC801?

Yes

Check IC804, IC805 and their
peripheral circuits.

No

Go back to the signal processing
block.

No

Check the oscillation of X801, X802,
X803 and X804 and their peripheral
circuits.

43

XG-V10WU

AN-SD1U/S422U

TROUBLE SHOOTING TABLE (Continued)

No or unusual Y signal

Is there Y signal input at pin (21) of
IC803?

Yes

Is there Y signal output at pin (40) of
IC803?

Yes

Is there Y signal output at pin (17) of
IC804?

Yes

Check IC804 and its peripheral
circuits.

No

Go back to the signal processing
block.

No

Check IC803 and its peripheral
circuits.

No

Check IC804 and its peripheral
circuits as well as IC806 (AGC).

No or unusual horizontal sync

Is there horizontal sync pulse output
at pin (56) of IC803?

Yes

Is there horizontal sync pulse output
at pin (9) of IC802?

Yes

No

Check IC803 and its peripheral
circuits.

No

Check the pulse shaping circuit of
IC801 and IC802.

Go to "Trouble shooting table for PC
I/F unit".

No or unusual vertical sync

Is there vertical sync pulse output at
pin (4) of IC803?

Yes

Go to "Trouble shooting table for
PC I/F unit".

No

Check IC803 and its peripheral
circuits.

44

TROUBLE SHOOTING TABLE (Continued)

Checking the output PWB unit

XG-V10WU

AN-SD1U/S422U

If there is no signal at SC6801,
go to the video system block.

If there is no signal at SC8404
and SC8405, go to "Trouble
shooting table for PC I/F unit".

Is there signal input at
SC6801?
Are voltages applied to EA
connectors and SC8404,
SC8405 and SC8502?

Yes

Are there signal outputs at
pins (17) of IC2101, IC2102,
IC2201, IC2202, IC2301,
IC2302?

Yes

Are there signal inputs at pin
(47) of IC1101, IC1102,
IC1201, IC1202, IC1301 and
IC1302?

Yes

Are there signal outputs at pins
(17), (19), (21), (28), (30) and
(32) of IC1101, IC1102,
IC1201, IC1202, IC1301 and
IC1302?

Yes

NoNo

If there is no signal at EA
connector or SC8404, SC8405
and SC8502, go to Checking
the power unitblock.

No

Check IC2101, IC2102,
IC2201, IC2202, IC2301,
IC2302 and their peripheral
circuits.

No

Check IC2101, IC2102, IC2201,
IC2202, IC2301, IC2302 and
their peripheral circuits.

No

Check IC1101, IC1102,
IC1201,IC1202, IC1301,
IC1302 and their peripheral
circuits.

If there is no signal input at
pins (1) and (32) of SC1101,
SC1201 and SC1301, check
the switching circuit and
amplifier circuit of IC1101,
IC1201, IC1301, IC1102,
IC1202, IC1302 and their
peripheral circuits.

No

Are there signal inputs at
SC1101, SC1201 and
SC1301?

Check the R, G and B panels.

Yes
Yes

No

If there is no signal input at
pins (15) and (30) of
SC1101, SC1201 and
SC1301, check IC1601
and their peripheral
circuits.

Check IC1611, IC1612,
IC1613, IC1615, IC1621,
IC1622, IC1623, IC1624
and their peripheral
circuits.

45

XG-V10WU

AN-SD1U/S422U

TROUBLE SHOOTING TABLE (Continued)

No audio output

Are there audio signal inputs at pins
(2) and (23) of IC301?

Are there audio signal outputs at pins
(3) and (6) of IC302?

If the voltage at pin (7) of IC302 is not
as specified, check Q302, Q303 and
their peripheral circuits.

Checkig the Power Unit

No

Yes

No

Yes

Check IC302 and its peripheral
circuits, and the SP connectors and
speakers.

Check the input, the switching circuit
of IC403 and IC404, and their
peripheral circuit.

Check IC302 and its peripheral
circuits.

There is no voltage output at
EA connector.

No

Is EA connector disconnected
or loose?

No

Is AC voltage (85-264V)
applied across the BA
connector?

Yes

Is R727 broken?

Yes

Replace R727 or Q701.

Yes

Reconnect the EA connector.

No

Replace F1701.

No

There is a short-circuit along
the EA output line. Using a
tester, check the resistance
between each voltage line and
the ground.

46

TROUBLE SHOOTING TABLE (Continued)

Power on

XG-V10WU

AN-SD1U/S422U

Is the right input selected?

Yes

Are the PC, video and LCP cables as

specified and properly connected?

Yes

With the contrast control at maximum,
does the image appear?

No

Is the voltage at CON3 (P8502)
connector as specified?

Yes

Hook up a personal computer.

Does the image appear?

No

Select the right input with remote
control.

No

Use the right cables or reconnect the
cables.

Yes

Readjust the video system.

No

Power circuit faulty.

No

Yes

Is the image as specified?

Yes

Is the image's colour as specified?

Yes

Does the on-screen display function?

Yes

Does the remote control function?

Yes

End

Go to "Checking the clock circuit and
its peripheral circuits".

No

Check the sync signal circuit and its
peripheral circuits.

No

Check the video circuit and its
peripheral circuits.

No

Go to "Checking the OSD circuit and
its peripheral circuits".

No

Go to "Checking the remote control".

47

XG-V10WU

AN-SD1U/S422U

Is the lamp out of socket?

Yes

Reconnect the
lamp into socket.

TROUBLE SHOOTING TABLE (Continued)

Lamp fails to light-up

Turn on the power switch. Is

Yes

discharging sound heard from
the lamp?

No

No

No

Check the power circuit.

Replace the
lamp.

Is the ballast cooling fan
running?

Yes

Replace the ballast.

Is DC 360V voltage applied
between PL1 and PL2
connector pins?

Is 3.5V or higher voltage

Yes

applied between pins (1), (2)
and (4) of ballast’s D
connector?

Is power EA connector
disconnected?

Yes

Reconnect the
connector into socket.

No

Yes

No

No

Check the
microcomputer circuit.

48

TROUBLE SHOOTING TABLE FOR PC I/F UNIT-1

Checking the PC PWB

0

Does the user menu appear

Yes

onscreen?

No

XG-V10WU

AN-SD1U/S422U

Is screen color as specified?

No

Adjust the output system in the
process adjustment.

0

Check the RGB input.
(Check the basic signal flow.
The COMPONENT and VIDEO
signals flow in the same way
from CVIC_IC up to DAC OUT.
No checking is therefore
needed from the CVIC on.)

Check the COMPONENT
input.
(The signal flows in the same
circuit as with the RGB input.
Check the SOG (Sync On
Green) circuit and the color
adjust circuit, among others.)

Yes

Check the GA4 and its
peripherals.

Overwrite the flash ROM.

Check the VIDEO input.
(The VIDEO signal comes to
CVIC_IC via a different route
from the RGB input signal. So
check the VIDEO DACÆEPLL
IC.)

Check the DVI input.
(Check the DVI digital input
and the DVI analog input
alike.)

End

49

XG-V10WU

AN-SD1U/S422U

TROUBLE SHOOTING TABLE FOR PC I/F UNIT-2

Checking the RGB input

Feed the sync separation type
RGB signal to INPUT1 or
INPUT2.

1

Using panel key or remote
controller, select INPUT1 or
INPUT2.

2

Does image appear onscreen?

Yes

Is the image free of distortion?

Yes

3

» Checking the sync (H/V) signal separation type

No

Check the video input.

No

Check the sync signal.

Do the R, G and B colors all
appear?

Yes

Execute the AUTOSYNC
command.

Is the image contour as
specified?

Yes

Is the vertical stripe pattern
as specified?

Yes

No problem with the RGB input

No

Check the R, G and B signals.

No

No

PLL, ADC or their peripherals
defective.

50

TROUBLE SHOOTING TABLE FOR PC I/F UNIT-3

Checking the video input

Check up the input signal
settings.

XG-V10WU

AN-SD1U/S422U

Is there video signal at C77
land?

Yes

Check the sync signal.

Yes

CVIC_IC or ADCÆEPLL circuit
defective.

No

Input PWB defective.

Checking the input signal settings

Are connector connections
and input menu selection as
specified?

Yes

No

Select the right ones.

Are connectors properly
connected?

Yes

Input signal settings completed.

No

2

Reconnect the connectors.

1

51

XG-V10WU

AN-SD1U/S422U

TROUBLE SHOOTING TABLE FOR PC I/F UNIT-4

» Check the H/V separation type sync signal.

Checking the sync signal

Is there vertical sync signal at
TL134?

Yes

Is there horizontal sync signal
at TL133?

Yes

Is there vertical sync signal at
TL131?

Yes

Is there horizontal sync signal
at TL130?

Yes

Are both the vertical and
horizontal sync signals in
good timing?

No

No

No

Check up the input signal
settings.

Input PWB defective.

No

No

PC board s sync signal
selector circuit or its
peripherals defective.

Yes

No problem with the sync
signal.

Is the signal generator (input
source) as specified?

Yes

Input PWB defective.

No

Make proper signal source
settings.

2

52

TROUBLE SHOOTING TABLE FOR PC I/F UNIT-5

» Check the R, G and B (Y, Pb and Pr) colors.

Checking the R, G and B colors

XG-V10WU

AN-SD1U/S422U

Is the signal type set for RGB?

Yes

Call the process mode.

Select R, G and B individually
on the pattern menu.

Check the GA4 peripherals.

Set the signal generator for the
tone signal to check the input
signal.

No

Set the type for RGB.

Watch the TP1, TP2 and TP3
outputs on oscilloscope screen
to check the tine signal.

Are the TP1, TP2 and TP3
outputs as specified?

Yes

CVIC_IC or its peripherals
defective.

No

Are there signals at
C69 and C61?

Yes

ADC·PLL_IC or its
peripherals defective.

53

No

Input PWB defective.

XG-V10WU

AN-SD1U/S422U

TROUBLE SHOOTING TABLE FOR PC I/F UNIT-6

Checking the GA4 peripherals

Select R, G and B individually
on the pattern menu.

Are the R, G and B video
outputs as specified?

No

Measure the FB4, FB5, FB6,
FB10, FB11 and FB12 outputs
on oscilloscope screen.

Are the pattern menu-selected
settings and the above
measurements consistent?

No

Are there clocks at pins (31),
(32) and (33) of IC50 and
IC51?

Yes

Measure the TL106 thru TL111
outputs on oscilloscope
screen.

Yes

GA4 peripherals checking
complete.

Yes

Output PWB defective.

No

Is there clock at TL114?

Is there 54-MHz clock at
FL110?

CVIC_IC defective.

Yes

No

GA4 defective.

No

Yes

X5 (quartz oscillator)
defective.

Are the pattern menu-selected
settings and the above
measurements consistent?

Yes

GA4 defective.

No

CVIC_IC defective.

54

TROUBLE SHOOTING TABLE FOR PC I/F UNIT-7

XG-V10WU

AN-SD1U/S422U

Checking the COMPONENT input

Feed the COMPONENT signal
to INPUT1 or INPUT 2.

Using panel key or remote
controller, select INPUT1 or
INPUT2.

Does image appear onscreen?

Yes

4

Are the colors as specified?

No

Is the signal type of
COMPONENT?

Yes

No

Check the SOG circuit.

Yes

No

Set the signal type to
COMPONENT.

» Check the COMPONENT (1080I, 720P, 480P, etc.:

480I not included) signals.

Carry out the process
adjustment.

4

Is the image contour as
specified?

Yes

No problem with the
COMPONENT input.

No

IC4 (CXA3516R) or IC25
(CVIC_IC) defective.

55

XG-V10WU

AN-SD1U/S422U

TROUBLE SHOOTING TABLE FOR PC I/F UNIT-8

Checking the SOG circuit

Measure the TL136 output on
oscilloscope screen.

Is the composite sync signal
reproduced in good timing?

No

Measure the C69 land on
oscilloscope screen.

Does the Y signal contain
sync signal?

Yes

SOG sync separation circuit
defective.

Yes

No problem with the SOG
circuit.

No

Check the input signal settings.

Input PWB defective.

56

TROUBLE SHOOTING TABLE FOR PC I/F UNIT-9

Checking the VIDEO input

Feed the composite video
signal to INPUT4 or INPUT 5.

Using panel key or remote
controller, select INPUT4 or
INPUT5.

Select the VIDEO signal type
on user menu.

5

XG-V10WU

AN-SD1U/S422U

Does image appear onscreen?

Yes

Is the image free of distortion?

Yes

Are the colors as specified?

Yes

No problem with the VIDEO
input.

Measure the following outputs on
oscilloscope screen: at pin (5)(R)
of IC324, pin (3)(G) of IC326 and
pin (5)(B) of IC326.

Is the video signal level
between VRB and VRT?

No

No

Check the VIDEO sync signal.

No

» VRB: Bottom reference voltage at video ADC

Yes

» VRT: Top reference voltage at video ADC

Check the VIDEO sync signal.

Carry out the process
adjustment.

5

No

Measure the output at pin (5) or
(6) of IC323 on oscilloscope
screen.

Is the clamp pulse as
specified?

No

Check the VIDEO sync signal.

CVIC_IC or its peripherals
defective.

IC310 or CVIC_IC defective.

Yes

» Checking the clamp pulse

Clamp level setting IC (IC316,
IC327 or IC323) or its
peripherals defective.

57

XG-V10WU

AN-SD1U/S422U

TROUBLE SHOOTING TABLE FOR PC I/F UNIT-10

Checking the VIDEO sync signal

» Checking the VIDEO vertical sync signal.

Measure the TL135 output on
oscilloscope screen.

Is the vertical sync signal as
specified?

Yes

Measure the TL132 output on
oscilloscope screen.

Is the horizontal sync signal as
specified?

Yes

Are there horizontal and
vertical sync signals at TL130
and TL131?

Yes

Is the pulse output at pin (4) of
IC328 in the same timing as
the horizontal signal?

Yes

Is the pulse output at pin (5) of
IC328 in the same timing as
the pulse at pin (4)?

Yes

No

» Checking the VIDEO
vertical sync signal

No

Check the input signal settings.

Input PC board defective.

No

IC302 or its peripherals
defective.

No

CVIC_IC or its peripherals
defective.

No

CVIC_IC or its peripherals
defective.

Is there 69-MHz or so clock at
FL102?

Yes

No problem with the VIDEO
sync signal and clock.

No

IC328 (PLL_IC) or its
peripherals defective.

58

TROUBLE SHOOTING TABLE FOR PC I/F UNIT-11

Checking the DVI digital input

XG-V10WU

AN-SD1U/S422U

Feed the DVI digital signal to
INPUT3.

Select the INPUT3 input.

Does image appear onscreen?

Yes

Is the image free of distortion?

Yes

Are the colors as specified?

Yes

No problem with the DVI
digital input.

Note:
In order to establish the plug & play fashion, first connect the cable
to INPUT3 and then turn on the computer power (signal generator).

No

No

No

IC298 (Sil151) or its
peripherals defective.

Is the sync signal as specified?

Yes

Is the clock as specified?

Yes

IC298 (Sil151) or its
peripherals defective.

No

No

» Measure the C463 land for the vertical sync

signal and the C464 land for the horizontal sync
signal (on the back the PC board).

» Measure the R685 value for the clock (on the

back of the PC board).

IC298 (Sil151) or its
peripherals defective.

59

XG-V10WU

AN-SD1U/S422U

TROUBLE SHOOTING TABLE FOR PC I/F UNIT-12

Checking the DVI analog input

With the plug & play fashion
established, feed the DVI
analog signal to INPUT3.

Select the INPUT3 input.

Does image appear onscreen?

Yes

Yes

3

Is the image free of distortion?

No

Is the sync signal of separate
type?

Yes

Is the sync signal as specified?
(Check pin (6) of IC330 for the
vertical sync signal and pin (6)
of IC331 for the horizontal sync
signal.)

No

Sync separation circuit IC330
or IC331 (TL712CPW) or its
peripherals defective.

No

Are there R, G and B signals?
(Check to see if the R, G and B
signals are coming to pins
(126), (136) and (141) of IC4.)

Yes

No

Check the DVI_SOG circuit.

Yes

Are there horizontal and
vertical sync signals at TL130
and TL131?

Yes

CVIC_IC or IC4 peripherals
defective.

No

DVI connector or its
peripherals defective.

No

IC302 or its peripherals
defective.

60

TROUBLE SHOOTING TABLE FOR PC I/F UNIT-13

» The SOG component of the DVI analog signal is separated

Checking the DVI_SOG

in the CXA3516R circuit. The Green signal is fed to the
SOGIN2 terminal. The DVI SOG sync signal is selected
by the bus switch (IC23).

XG-V10WU

AN-SD1U/S422U

Is there horizontal sync signal
at TL82?

No

Is there Green signal at pin
(135) of IC4?

Yes

IC4 or IIC bus control
peripherals defective.

Is there sync signal at TL136?

No

Are pins (4) of IC23 and IC336
at low level?

Yes

Yes

No

DVI connector or its
peripherals defective.

Yes

No

No problem with the DVI_SOG.

IC23 or IC336 defective.

CPU port defective.

61

CHASSIS LAYOUT

XG-V10WU

AN-SD1U/S422U

H

G

F

OUTPUT UNIT
DUNTKA154DE01

INPUT UNIT
DUNTKA161DE01

SIGNAL UNIT
DUNTKA157DE01

R/C(2) UNIT

R/C(1) UNIT

DUNTKA159DE01

DUNTKA158DE01

E

INLET UNIT
RUNTK0668CEZZ

OUTPUT SUB UNIT
DUNTKA155DE01

D

LED UNIT
DUNTKA160DE01

C

POWER UNIT

PC I/F UNIT
CPCI-0042CE01

RDENC0303CEZZ

B

BALLAST UNIT
RDENC0301CEZZ

BALLAST UNIT
RDENC0302CEZZ

A

121110987654321

6362

BLOCK DIAGRAM

H

G

F

XG-V10WU

AN-SD1U/S422U

E

D

C

B

A

121110987654321

6564

OVERALL WIRING DIAGRAM

H

G

F

XG-V10WU

AN-SD1U/S422U

E

D

C

B

A

121110987654321

6766

XG-V10WU

AN-SD1U/S422U

DESCRIPTION OF
SCHEMATIC DIAGRAM

H

VOLTAGE MEASUREMENT CONDITION:

1. Voltages at test points are measured at the
supply voltage of AC 120V. Signals are fed by a
color bar signal generator for servicing purpose and
the above voltages are measured with a 20k ohm/V
tester.

G

WAVEFORM MEASUREMENT CONDI­TION:

1. Waveforms at test points are observed at the supply
voltage of AC 120V. Signals are fed by a color bar
signal generator for servicing purpose.

F

E

D

INDICATION OF RESISTOR & CAPACI­TOR:

RESISTOR

1. The unit of resistance “Ω” is omitted.
(K=kΩ=1000 Ω, M=MΩ).

2. All resistors are ± 5%, unless otherwise noted.
(J= ± 5%, F= ± 1%, D= ± 0.5%)

3. All resistors are 1/10W, unless otherwise noted.

4. All resistors are Carbon type, unless otherwise
noted.

C : Solid
S : Oxide Film T : Special
N : Metal Coating

CAPACITOR

1. All capacitors are µF, unless otherwise noted.
(P=pF=µµF).

2. All capacitors are 50V, unless otherwise noted.

3. All capacitors are Ceramic type, unless otherwise
noted.

(ML): Mylar (TA): Tantalum
(PF): Polypro Film (ST): Styrol

W

: Cement

C

CAUTION:

This circuit diagram is original one, therefore there may be a
slight difference from yours.

SAFETY NOTES:

1. DISCONNECT THE AC PLUG FROM THE AC

B

OUTLET BEFORE REPLACEING PARTS.

2. SEMICONDUCTOR HEAT SINKS SHOULD BE
REGARDED AS POTENTIAL SHOCK HAZARDS
WHEN THE CHASSIS IS OPERATING.

IMPORTANT SAFETY NOTICE:

PARTS MARKED WITH “å” ( ) ARE

A

IMPORTANT FOR MAINTAINING THE SAFETY OF
THE SET. BE SURE TO REPLACE THESE PARTS
WITH SPECIFIED ONES FOR MAINTAINING THE
SAFETY AND PERFORMANCE OF THE SET.

87109654321

68

WAVEFORMS

XG-V10WU

AN-SD1U/S422U

1 SC1101 13-pin

(RSIG11)
H : 10µsec/div
V : 2V/div

5 SC1301 13-pin

(BSIG11)
H : 10µsec/div
V : 2V/div

9 P801 4-pin

(B-Y)
H : 10µsec/div
V : 0.5V/div

2 SC1101 11-pin

(RSIG9)
H : 10µsec/div
V : 2V/div

6 SC1301 11-pin

(BSIG9)
H : 10µsec/div
V : 2V/div

0 IC802 9-pin

(HD)
H : 10µsec/div
V : 2V/div

3 SC1201 13-pin

(GSIG11)
H : 10µsec/div
V : 2V/div

7 P801 1-pin

(R)
H : 10µsec/div
V : 0.5V/div

q Q6003 Emitter

(4FSC)
H : 50nsec/div
V : 1V/div

4 SC1201 11-pin

(GSIG9)
H : 10µsec/div
V : 2V/div

8 P801 2-pin

(B)
H : 10µsec/div
V : 0.5V/div

w IC803 21-pin

(Y-signal)
H : 10µsec/div
V : 200mV/div

e IC803 20-pin

(CHROMA signal)
H : 10µsec/div
V : 200mV/div

u P1001 4-pin

(TPG2)
H : 10µsec/div
V : 2V/div

r P1001 1-pin

(TPR1)
H : 10µsec/div
V : 2V/div

i P1001 5-pin

(TPB1)
H : 10µsec/div
V : 2V/div

69

t P1001 2-pin

(TPR2)
H : 10µsec/div
V : 2V/div

o P1001 6-pin

(TPB2)
H : 10µsec/div
V : 2V/div

y P1001 3-pin

(TPG1)
H : 10µsec/div
V : 2V/div

1716 1918151413121110

XG-V10WU

AN-SD1U/S422U

Ë

OUTPUT UNIT-1/9

H

G

F

E

D

C

B

A

121110987654321

7170

XG-V10WU

AN-SD1U/S422U

Ë

OUTPUT UNIT-2/9

H

G

F

E

D

C

B

A

121110987654321

7372

XG-V10WU

AN-SD1U/S422U

Ë

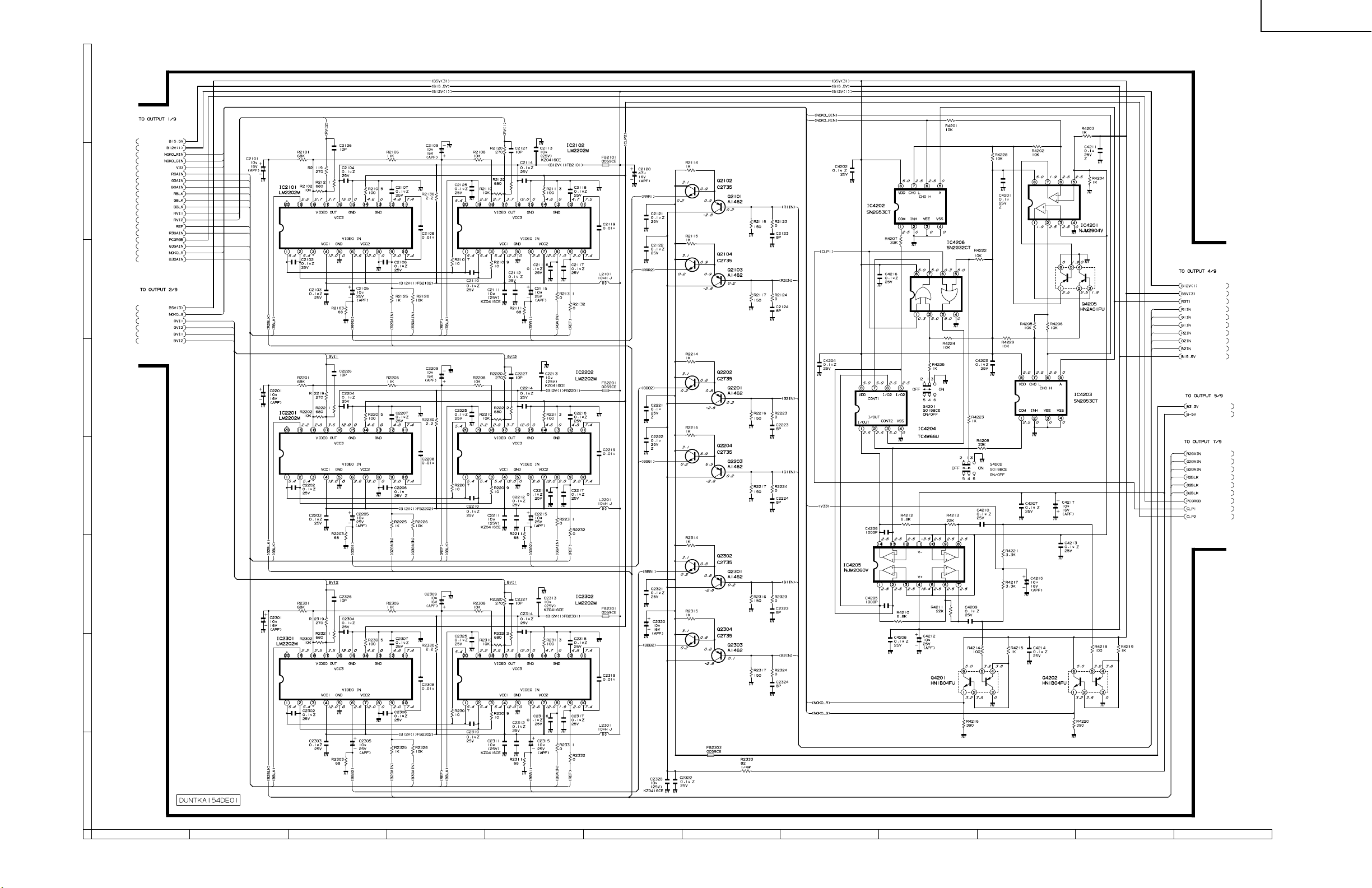

OUTPUT UNIT-3/9

H

G

F

E

D

C

B

A

121110987654321

7574

XG-V10WU

AN-SD1U/S422U

Ë

OUTPUT UNIT-4/9

H

G

F

E

D

C

B

A

121110987654321

7776

XG-V10WU

AN-SD1U/S422U

Ë

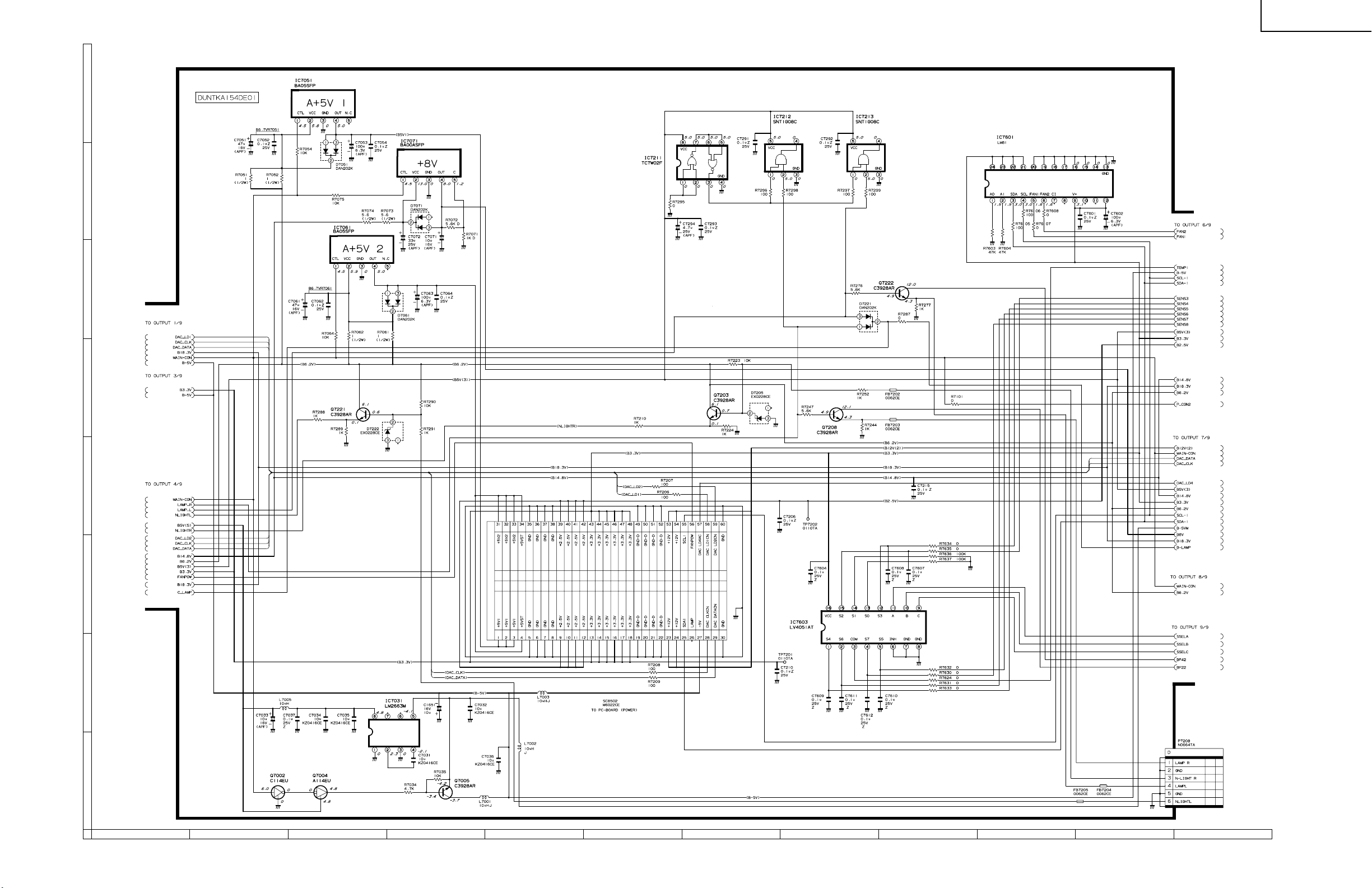

OUTPUT UNIT-5/9

H

G

F

E

D

C

B

A

121110987654321

7978

XG-V10WU

AN-SD1U/S422U

Ë

OUTPUT UNIT-6/9

H

G

F

E

D

C

B

A

121110987654321

8180

XG-V10WU

AN-SD1U/S422U

Ë

OUTPUT UNIT-7/9

H

G

F

E

D

C

B

A

121110987654321

8382

XG-V10WU

AN-SD1U/S422U

Ë

OUTPUT UNIT-8/9

H

G

F

E

D

C

B

A

121110987654321

8584

XG-V10WU

AN-SD1U/S422U

Ë

OUTPUT UNIT-9/9

H

G

F

E

D

C

B

A

121110987654321

8786

XG-V10WU

AN-SD1U/S422U

Ë

OUTPUT SUB UNIT

H

G

F

E

D

C

B

A

121110987654321

8988

XG-V10WU

AN-SD1U/S422U

Ë

SIGNAL UNIT-1/5

H

G

F

E

D

C

B

A

121110987654321

90

91

XG-V10WU

AN-SD1U/S422U

Ë

SIGNAL UNIT-2/5

H

G

F

E

D

C

B

A

121110987654321

92

93

XG-V10WU

AN-SD1U/S422U

Ë

SIGNAL UNIT-3/5

H

G

F

E

D

C

B

A

121110987654321

94

95

XG-V10WU

AN-SD1U/S422U

Ë

SIGNAL UNIT-4/5

H

G

F

E

D

C

B

A

121110987654321

96

97

XG-V10WU

AN-SD1U/S422U

Ë

SIGNAL UNIT-5/5

H

G

F

E

D

C

B

A

121110987654321

98

99

XG-V10WU

AN-SD1U/S422U

Ë

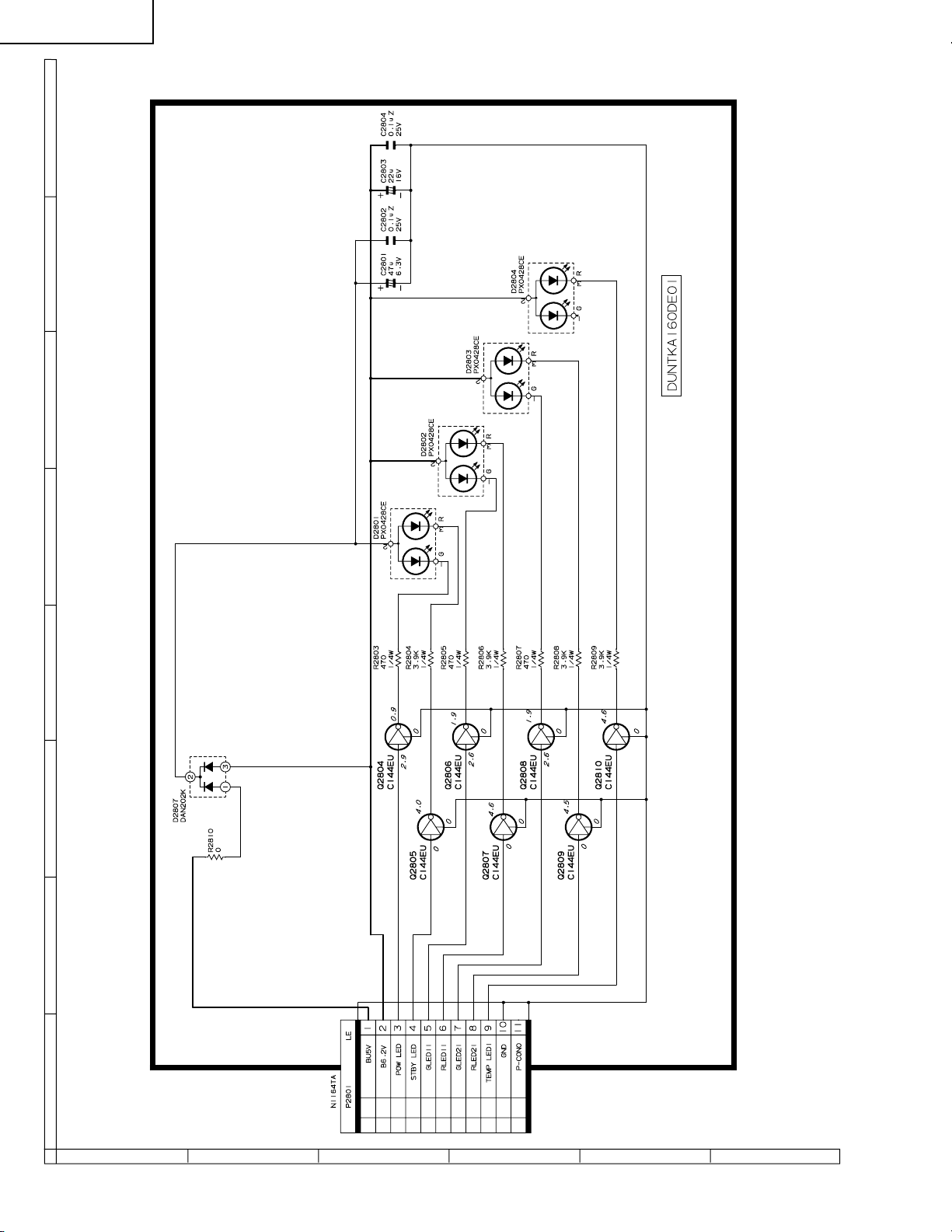

LED UNIT

H

H

G

G

F

F

E

E

D

D

C

C

B

B

A

A

87109654321

654321

100

XG-V10WU

AN-SD1U/S422U

Ë

R/C RECEIVER-1 UNIT

H

G

F

E

D

C

B

A

1716 1918151413121110

654321

101

XG-V10WU

AN-SD1U/S422U

Ë

R/C RECEIVER-2 UNIT

H

G

F

E

D

C

B

A

121110987654321

102

103

XG-V10WU

AN-SD1U/S422U

Ë

INPUT UNIT-1/3

H

G

F

E

D

C

B

A

121110987654321

104

105

XG-V10WU

AN-SD1U/S422U

Ë

INPUT UNIT-2/3

H

G

F

E

D

C

B

A

121110987654321

106

107

XG-V10WU

AN-SD1U/S422U

Ë

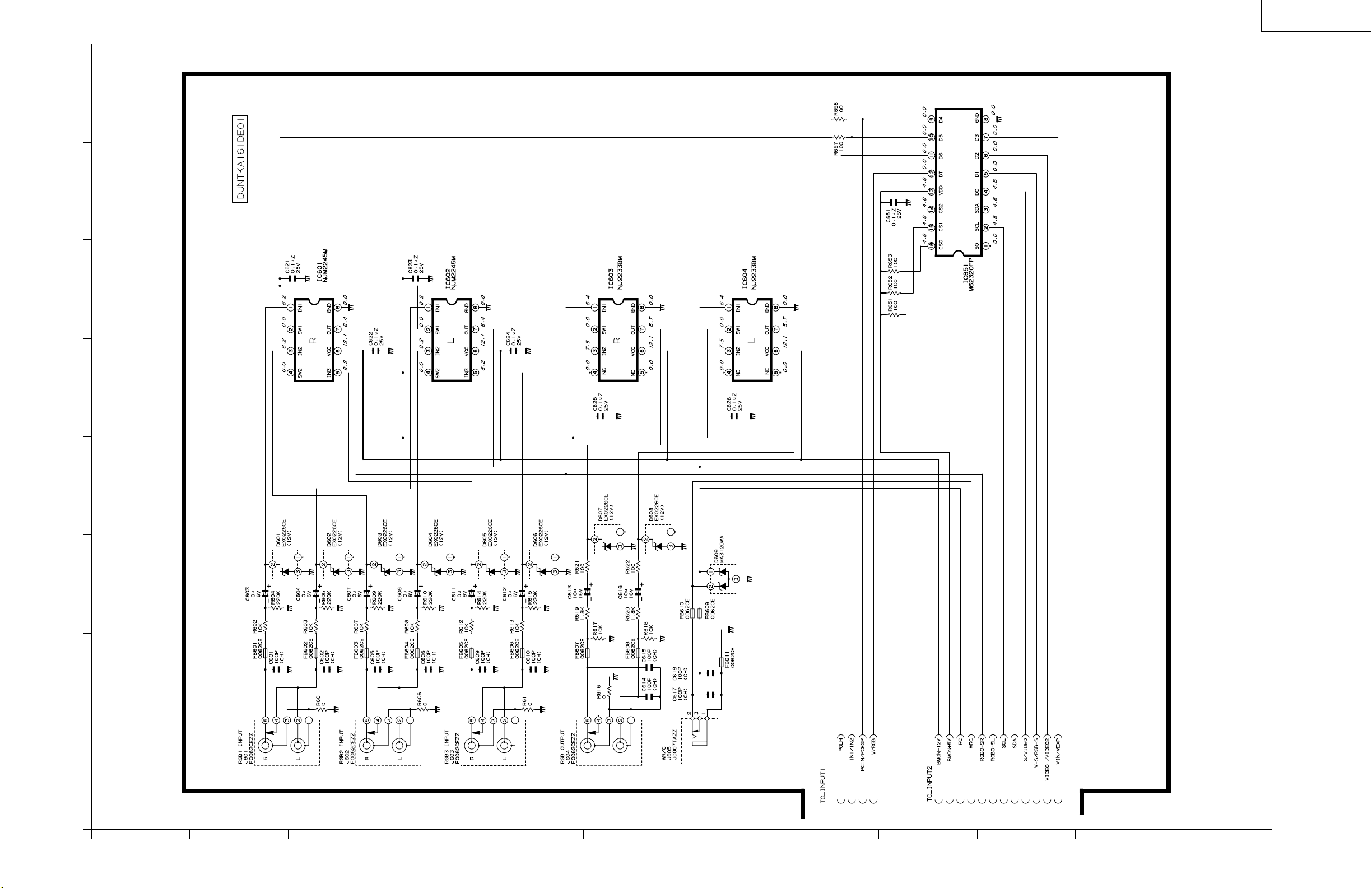

INPUT UNIT-3/3

H

G

F

E

D

C

B

A

121110987654321

108

109

XG-V10WU

AN-SD1U/S422U

Ë

POWER AND INLET UNIT

H

G

F

(POWER)

(INLET)

E

D

C

B

A

121110987654321

110

111

XG-V10WU

AN-SD1U/S422U

Ë

PC I/F UNIT-1/9

H

G

F

E

D

C

B

A

121110987654321

112

113

XG-V10WU

AN-SD1U/S422U

Ë

PC I/F UNIT-2/9

H

G

F

E

D

C

B

A

121110987654321

114

115

XG-V10WU

AN-SD1U/S422U

Ë

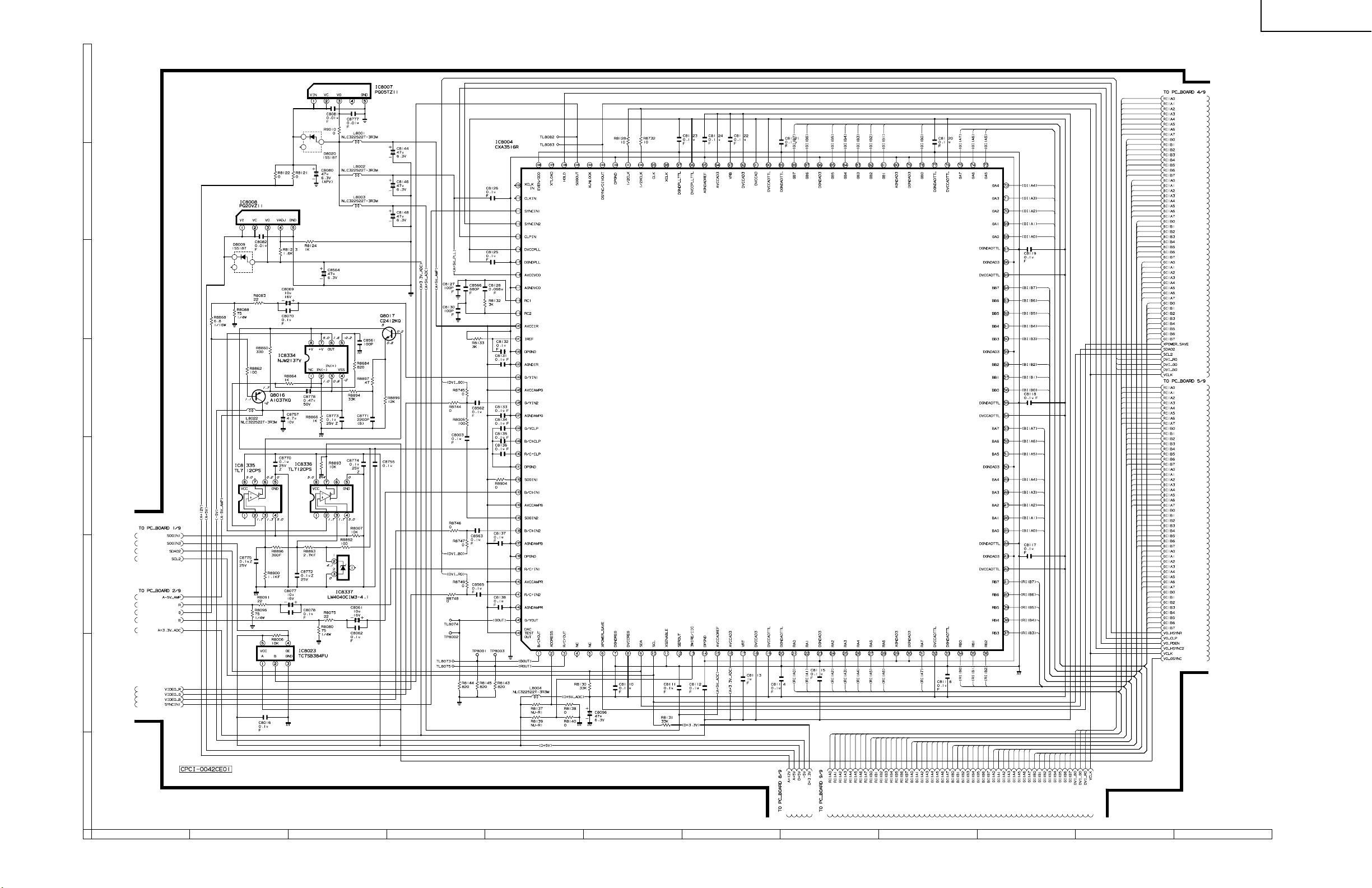

PC I/F UNIT-3/9

H

G

F

E

D

C

B

A

121110987654321

116

117

XG-V10WU

AN-SD1U/S422U

Ë

PC I/F UNIT-4/9

H

G

F

E

D

C

B

A

121110987654321

118

119

XG-V10WU

AN-SD1U/S422U

Ë

PC I/F UNIT-5/9

H

G

F

E

D

C

B

A

121110987654321

120

121

XG-V10WU

AN-SD1U/S422U

Ë

PC I/F UNIT-6/9

H

G

F

E

D

C

B

A

121110987654321

122

123

XG-V10WU

AN-SD1U/S422U

Ë

PC I/F UNIT-7/9

H

G

F

E

D

C

B

A

121110987654321

124

125

XG-V10WU

AN-SD1U/S422U

Ë

PC I/F UNIT-8/9

H

G

F

E

D

C

B

A

121110987654321

126

127

XG-V10WU

AN-SD1U/S422U

Ë

PC I/F UNIT-9/9

H

G

F

E

D

C

B

A

121110987654321

128

129

XG-V10WU

AN-SD1U/S422U

PRINTED WIRING BOARD ASSEMBLIES

H

G

F

E

D

C

B

A

Output Unit (Wiring Side)

654321

130

XG-V10WU

AN-SD1U/S422U

H

G

F

E

D

C

B

A

Output Unit (Component Side)

654321

131

XG-V10WU

AN-SD1U/S422U

H

G

F

Output Sub Unit (Wiring Side)

E

D

R/C Receiver-1 Unit

(Wiring Side)

C

B

R/C Receiver-2 Unit (Wiring Side)

A

LED Unit (Wiring Side)

654321

132
